USER MANUAL VigorSwitch P2500 Draytek

PoE L2 Managed Gigabit Switch

DrayTek

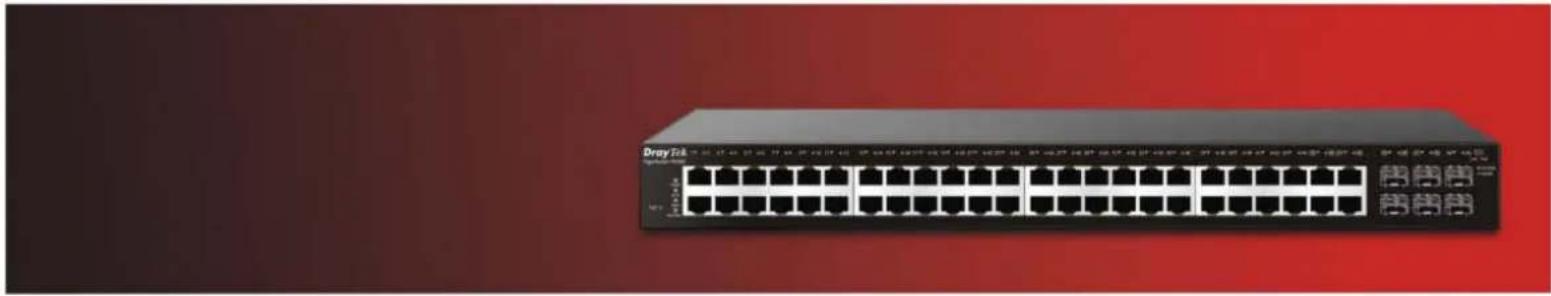

Front view of a black DreyTA network switch device with multiple ports and indicator lights against a red background (no readable text or symbols on the device itself)

Your reliable networking solutions partner

User's Guide

V1.1

VigorSwitch P2500

PoE L2 Managed Gigabit Switch

User's Guide

Version: 1.1

Firmware Version: V2.4.3

(For future update, please visit DrayTek web site)

Date: August 29, 2019

Copyrights

© All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

● Microsoft is a registered trademark of Microsoft Corp.
● Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8, 10 and Explorer are trademarks of Microsoft Corp.
● Apple and Mac OS are registered trademarks of Apple Inc.
● Other products may be trademarks or registered trademarks of their respective manufacturers.

Caution

Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge.

To protect your device, always:

• Touch the metal chassis of your computer to ground the static electrical charge before you pick up the circuit device.
• Pick up the device by holding it on the left and right edges only.

Warranty

We warrant to the original end user (purchaser) that the device will be free from any defects in workmanship or materials for a period of one (1) year from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Be a Registered Owner

Web registration is preferred. You can register your Vigor router via http://www.DrayTek.com.

Firmware & Tools Updates

Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

More update, please visit www.draytek.com.

Table of Contents

Part I Introduction....1

I-1 Introduction ...... 2

I-1-1 Key Features 2
I-1-2 Specifications 3
I-1-3 Packing List 4

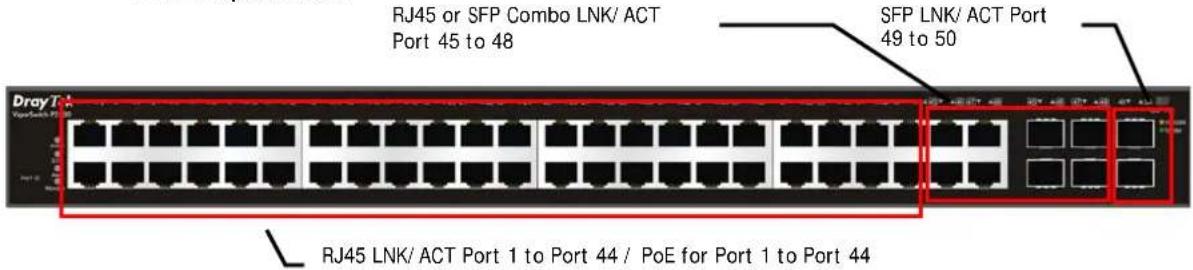

I-1-4 LED Indicators and Connectors .... 4

I-2 Installation....6

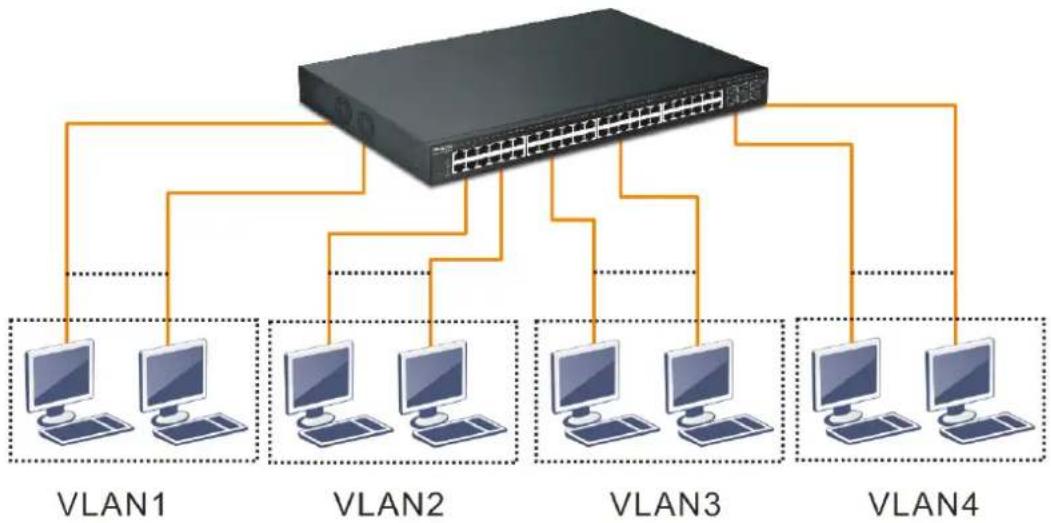

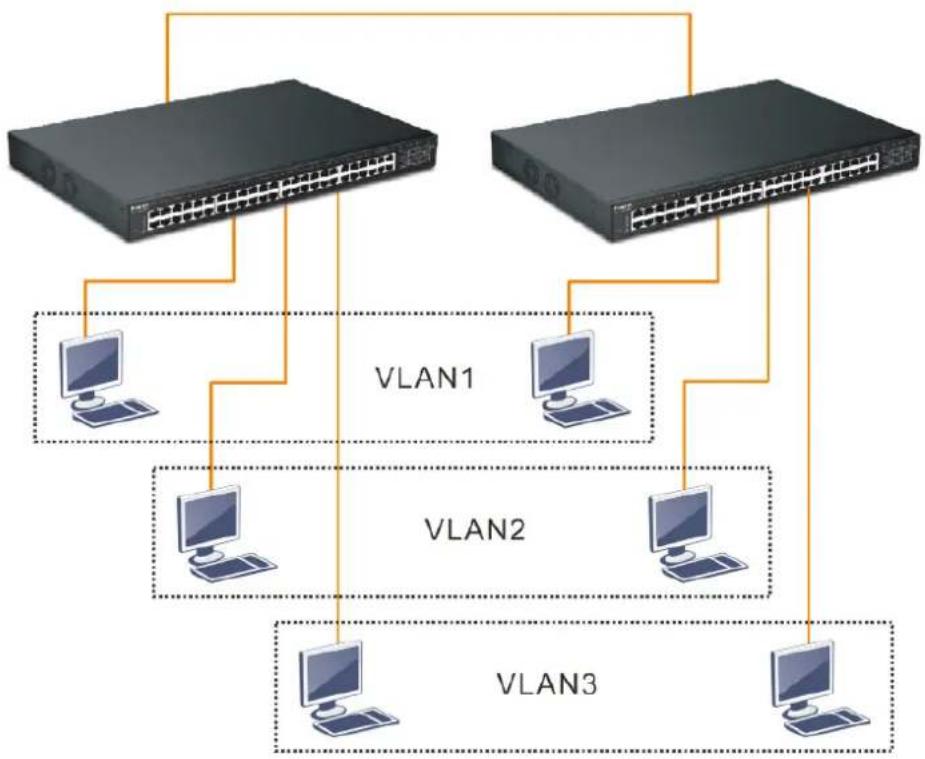

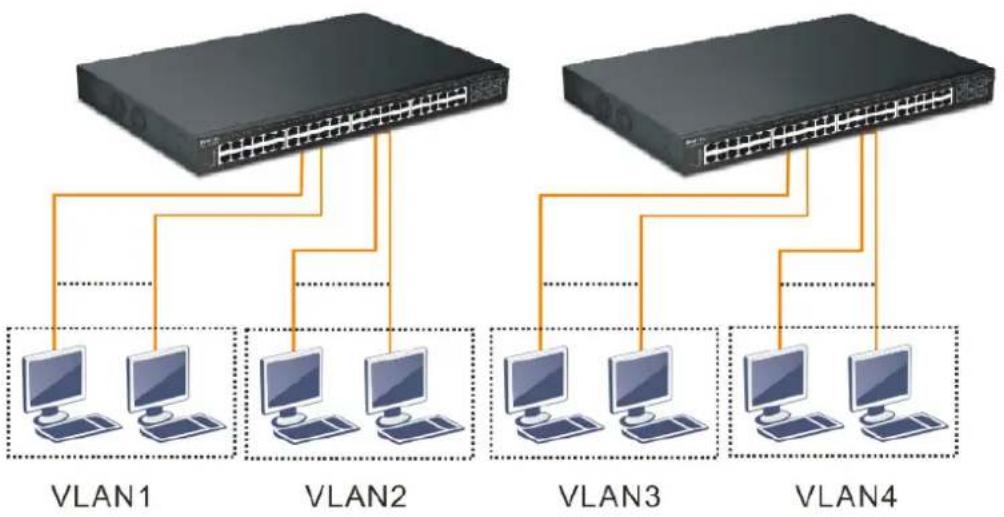

I-2-1 Typical Applications....6
I-2-2 Installing Network Cables.... 10
I-2-3 Configuring the Management Agent of Switch.... 10
I-2-4 Managing VigorSwitch P2500 through Ethernet Port.... 10
I-2-5 IP Address Assignment 11

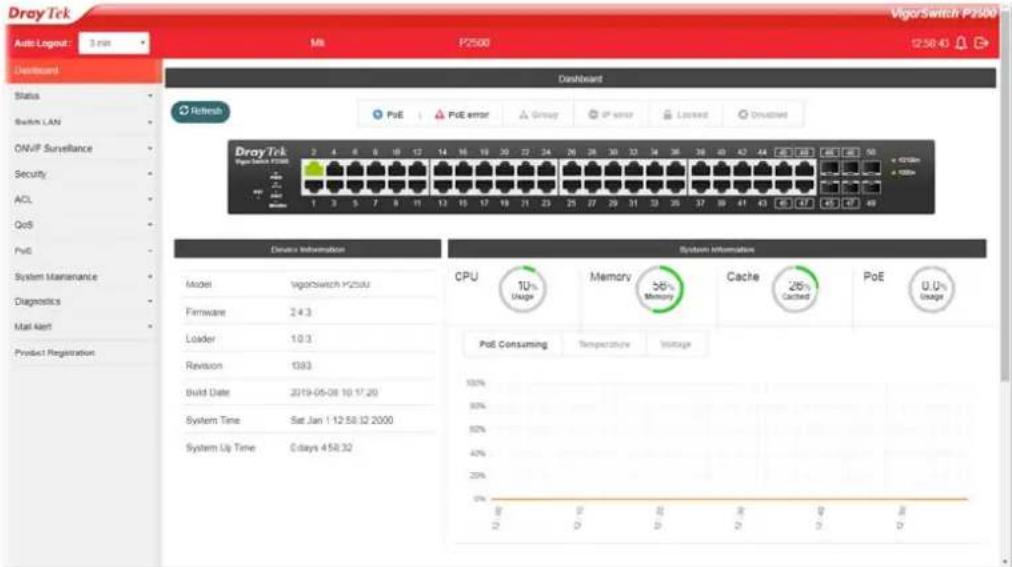

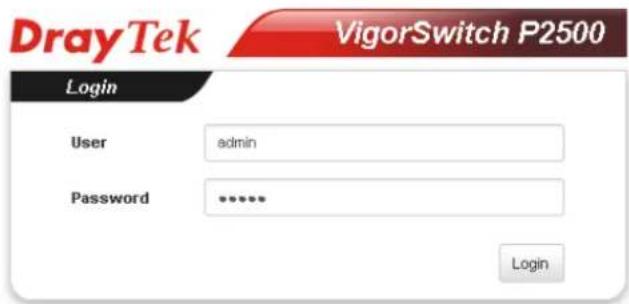

I-3 Accessing Web Page of VigorSwitch 15
I-4 Dashboard.... 16
I-5 Status 17

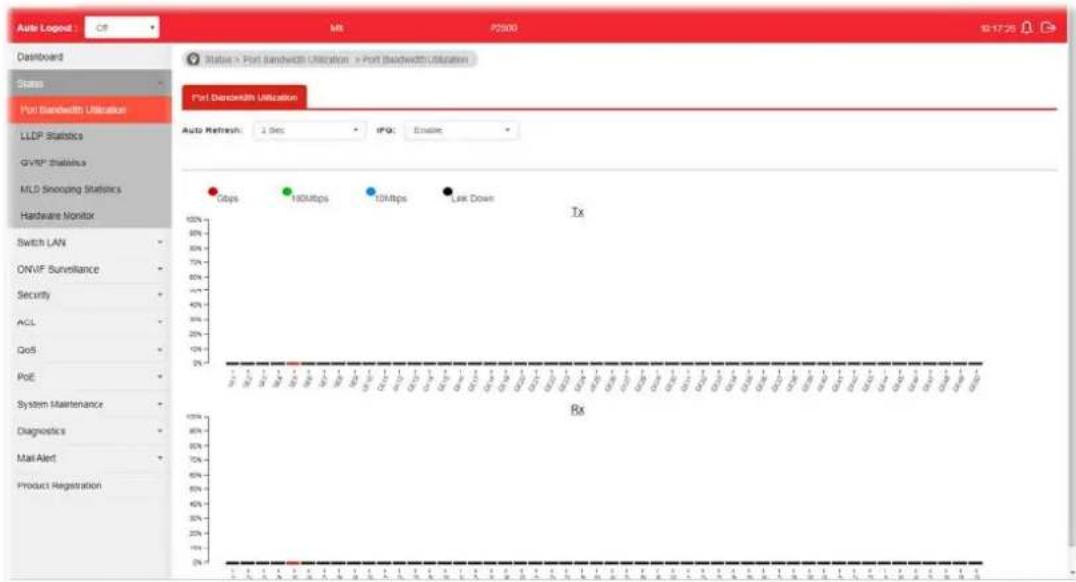

I-5-1 Port Bandwidth Utilization 17
I-5-2 LLDP Statistics 17
I-5-3 GVRP Statistics....18

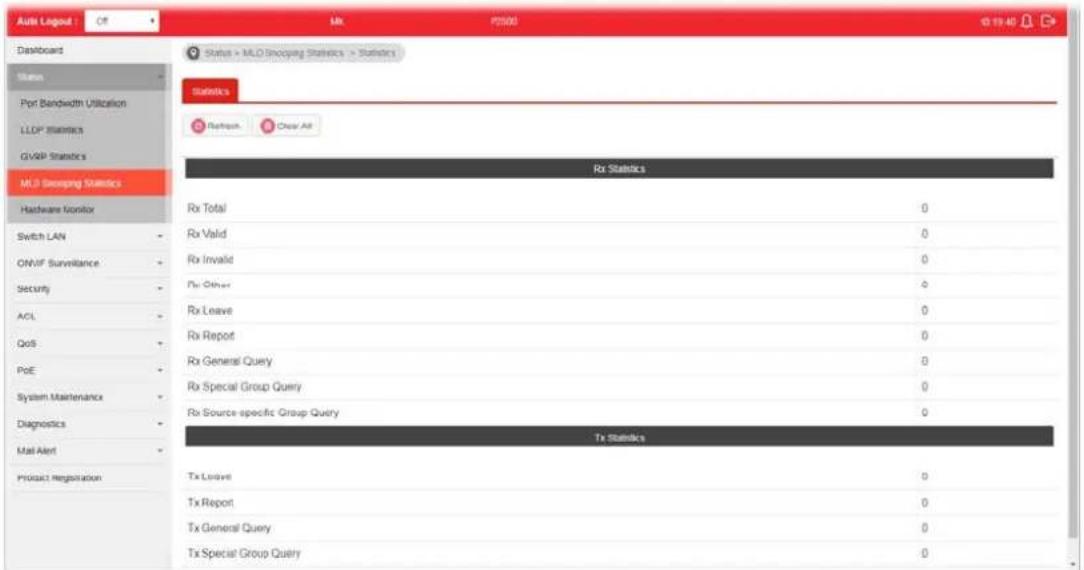

I-5-4 MLD Snooping Statistics 18
I-5-5 Hardware Monitor....19

Part II Switch LAN....21

II-1 General Setup....22

II-1-1 IP Address 22

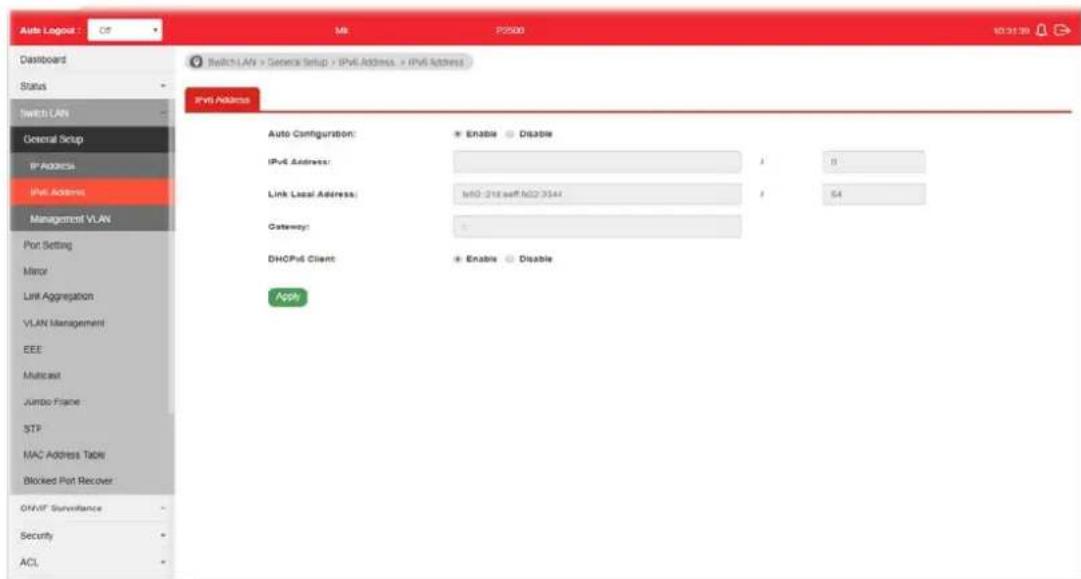

II-1-2 IPv6 Address 23

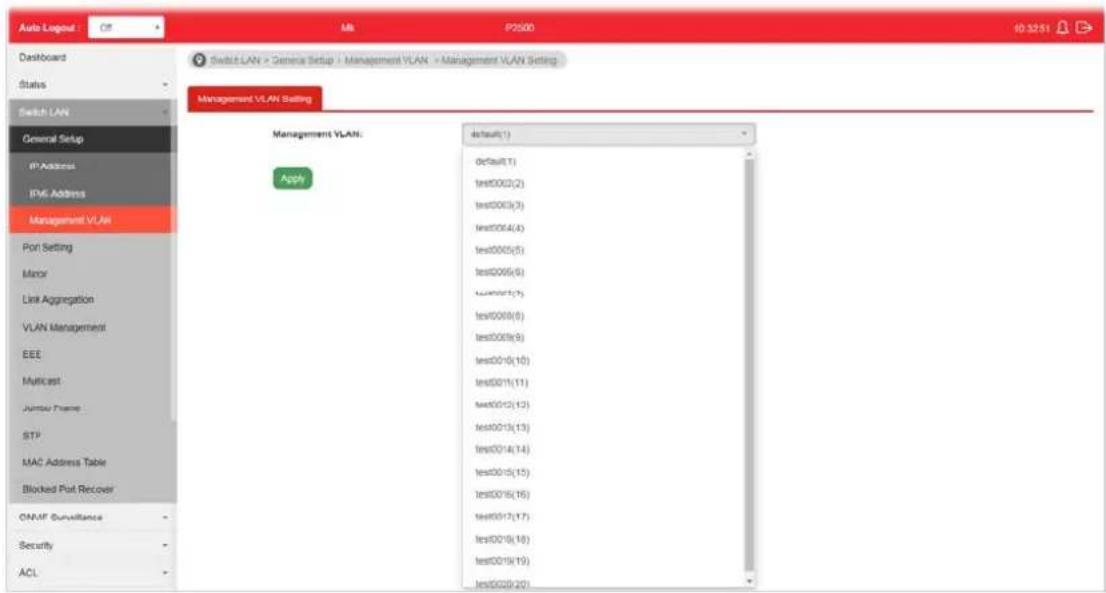

II-1-3 Management VLAN 24

II-2 Port Setting 25

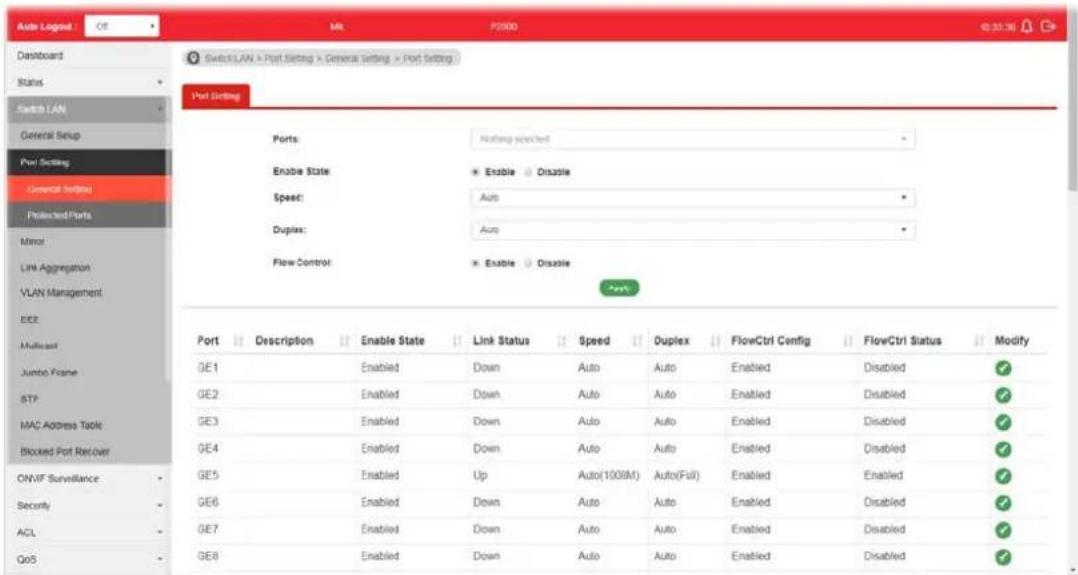

II-2-1 General Setting.... 25

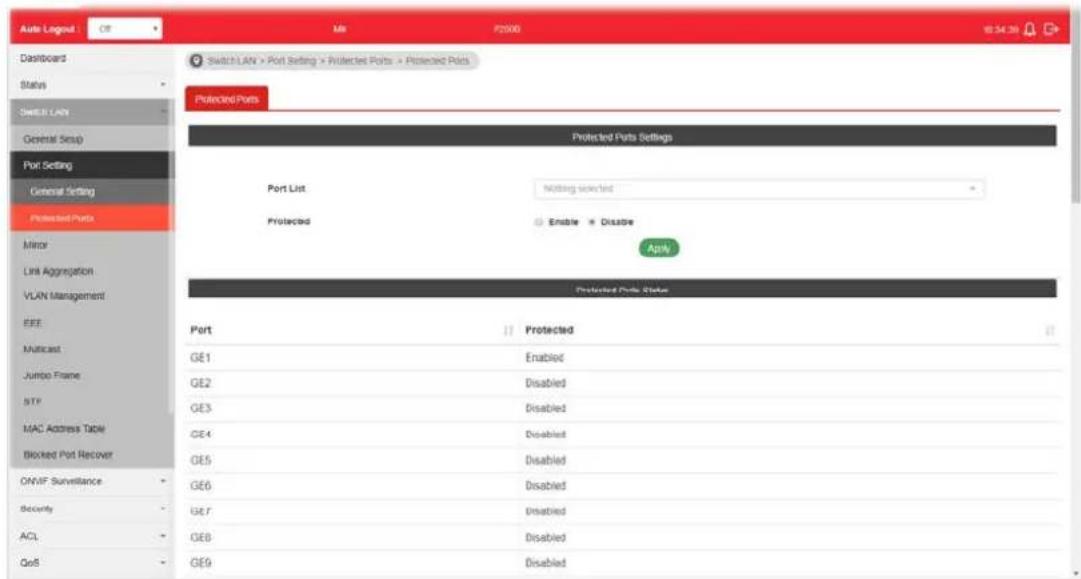

II-2-2 Protected Ports.... 27

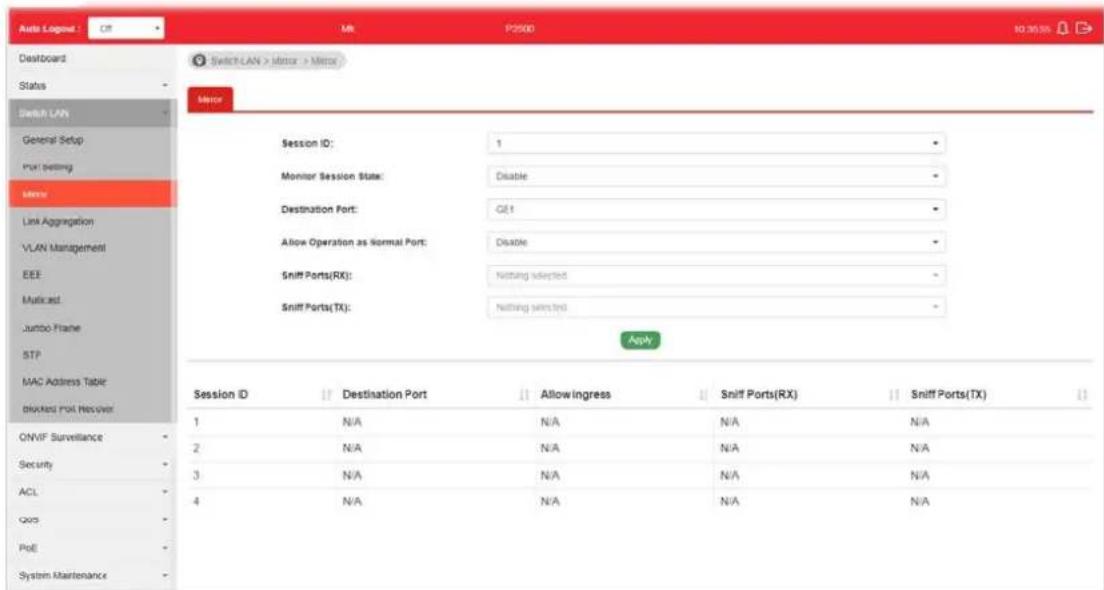

II-3 Mirror 28

II-4 Link Aggregation 29

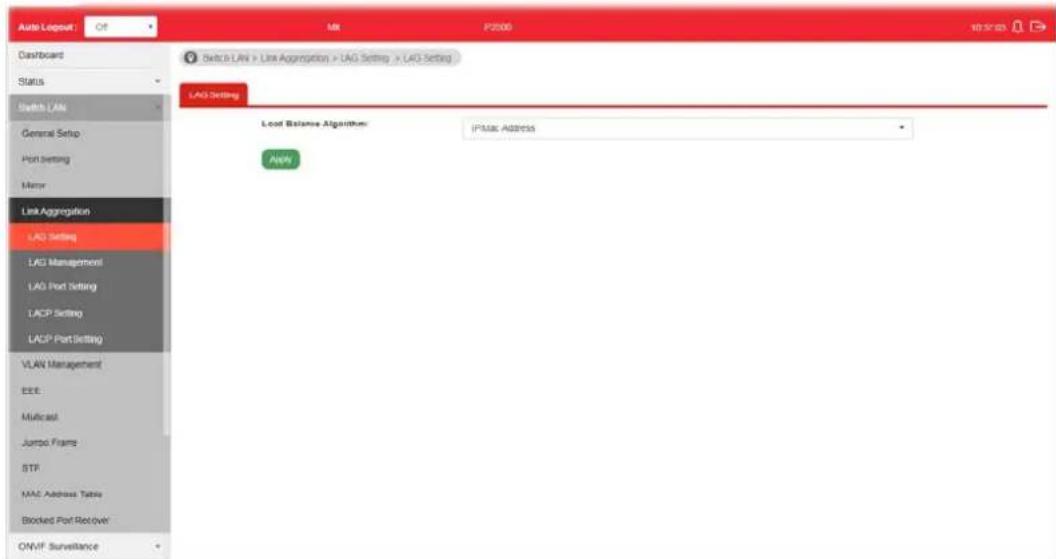

II-4-1 LAG Setting 29

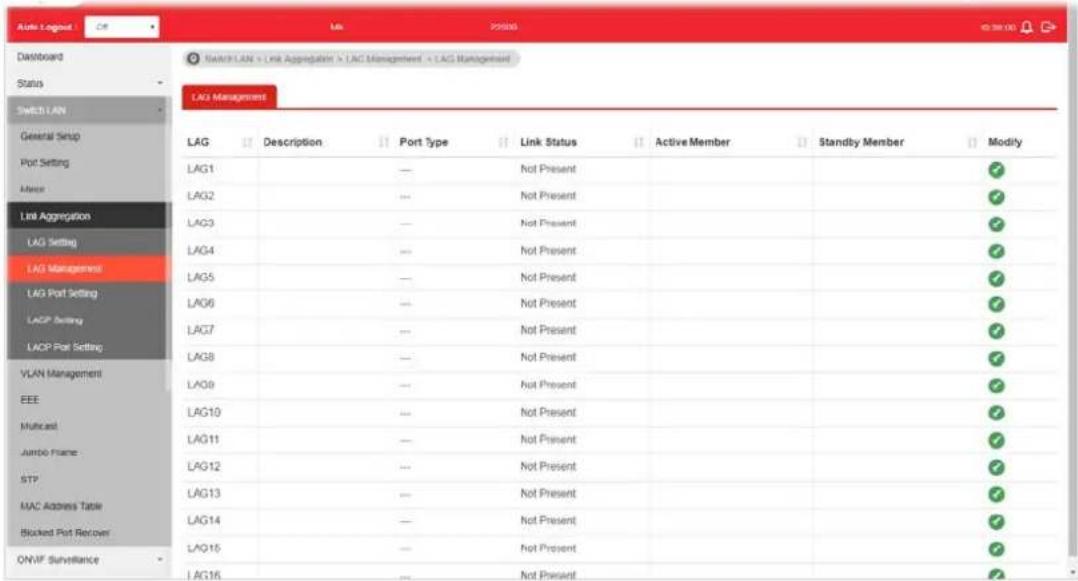

II-4-2 LAG Management 30
II-4-3 LAG Port Setting.... 31
II-4-4 LACP Setting 32
II-4-5 LACP Port Setting 33

II-5 VLAN Management.... 34

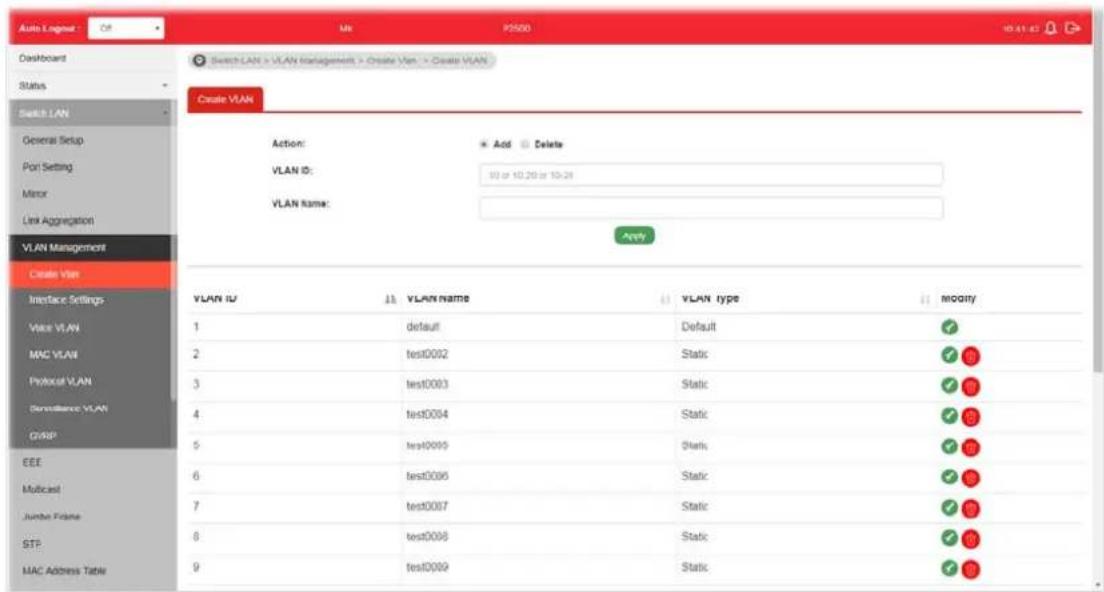

II-5-1 Create VLAN 34
II-5-2 Interface Settings.... 35

II-5-3 Voice VLAN 37

II-5-3-1 Properties 37

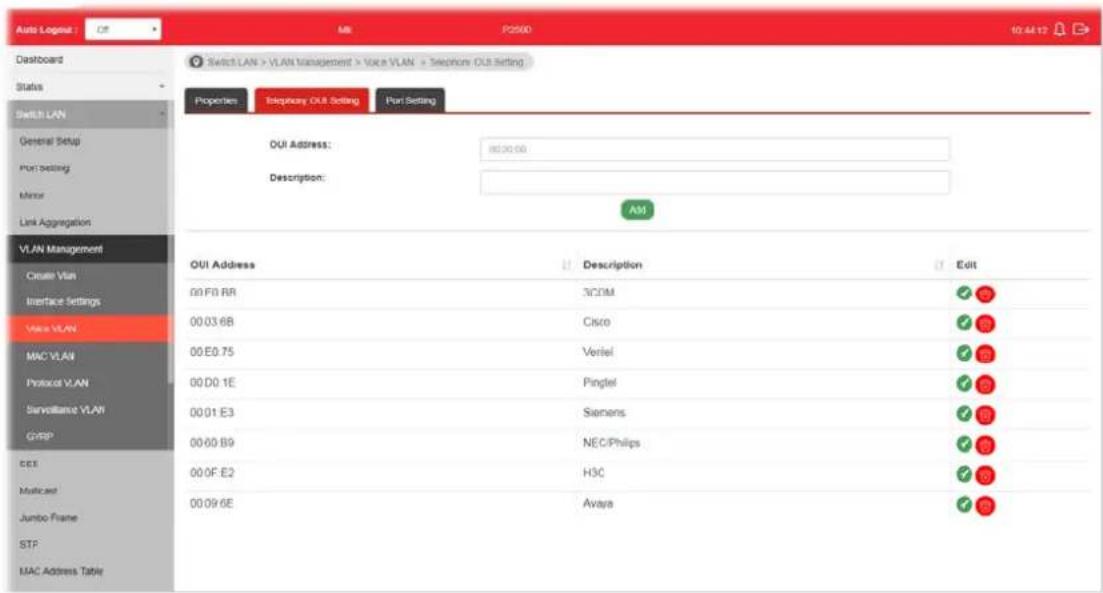

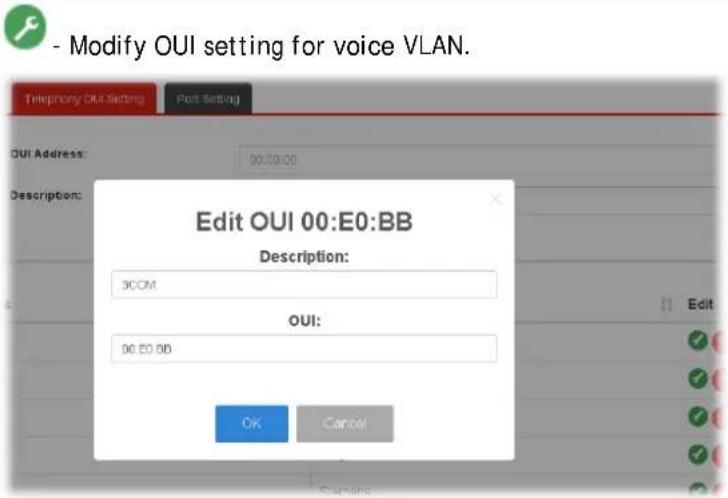

II-5-3-2 Telephony OUI Setting 38

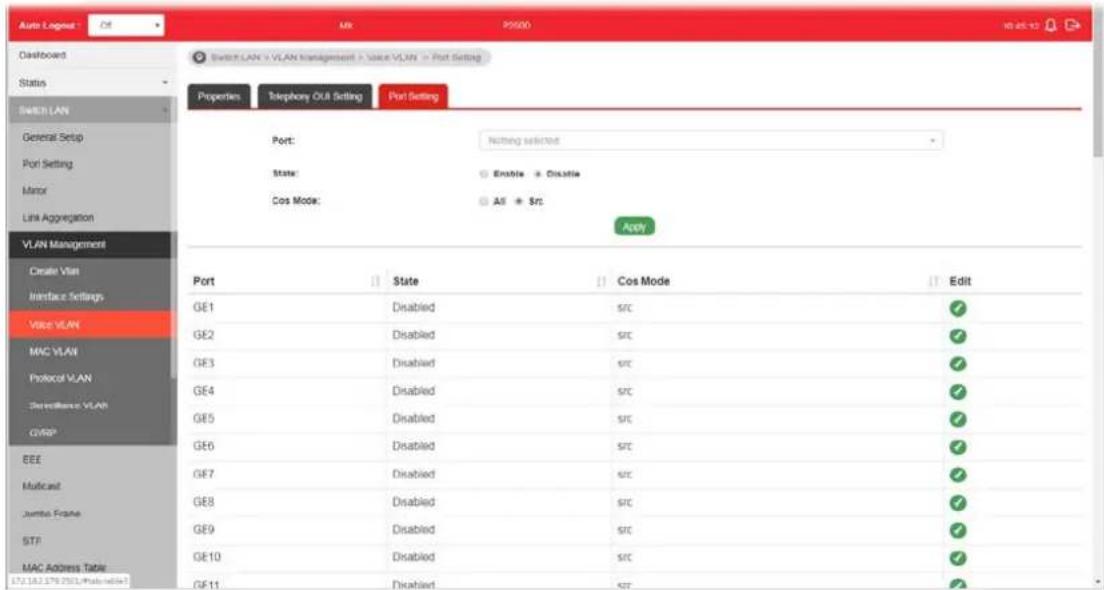

II-5-3-3 Port Setting 39

II-5-4 MAC VLAN 40

II-5-4-1 MAC Group 40

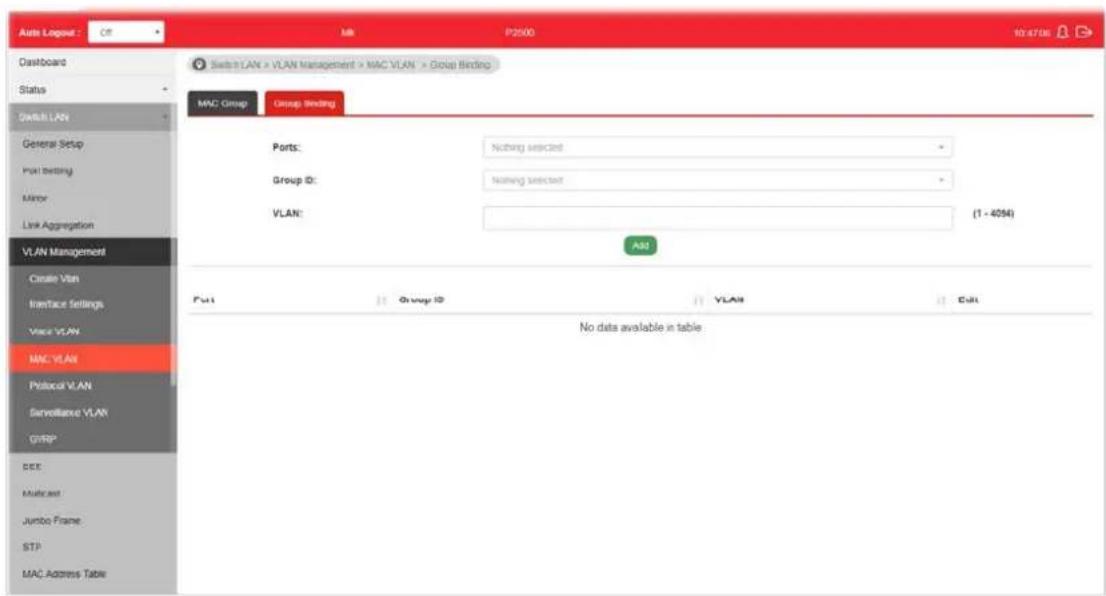

I-5-4-3 Group Binding 41

II-5-5 Protocol VLAN 42

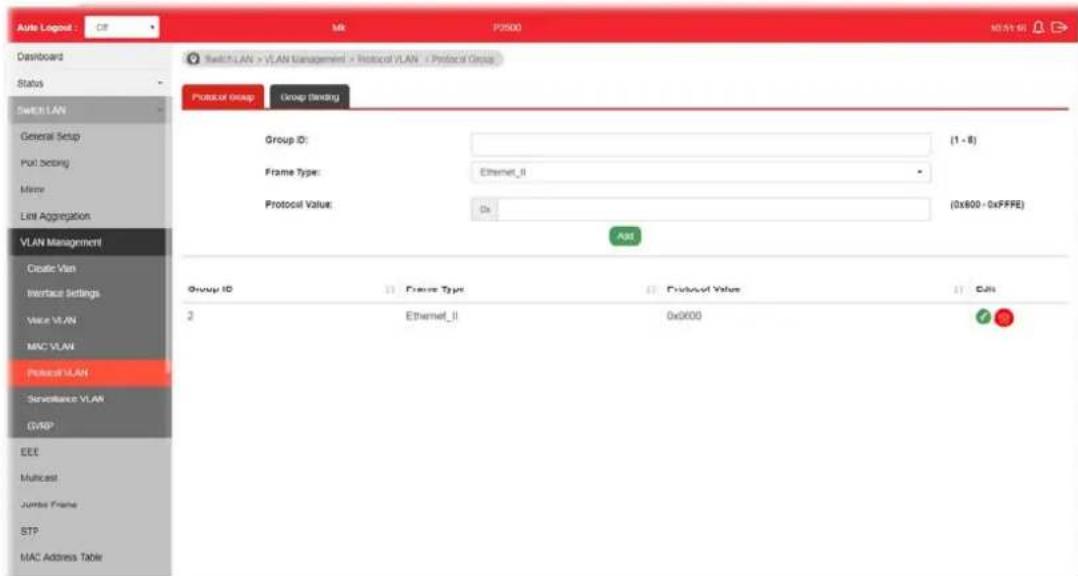

II-5-5-1 Protocol Group 42

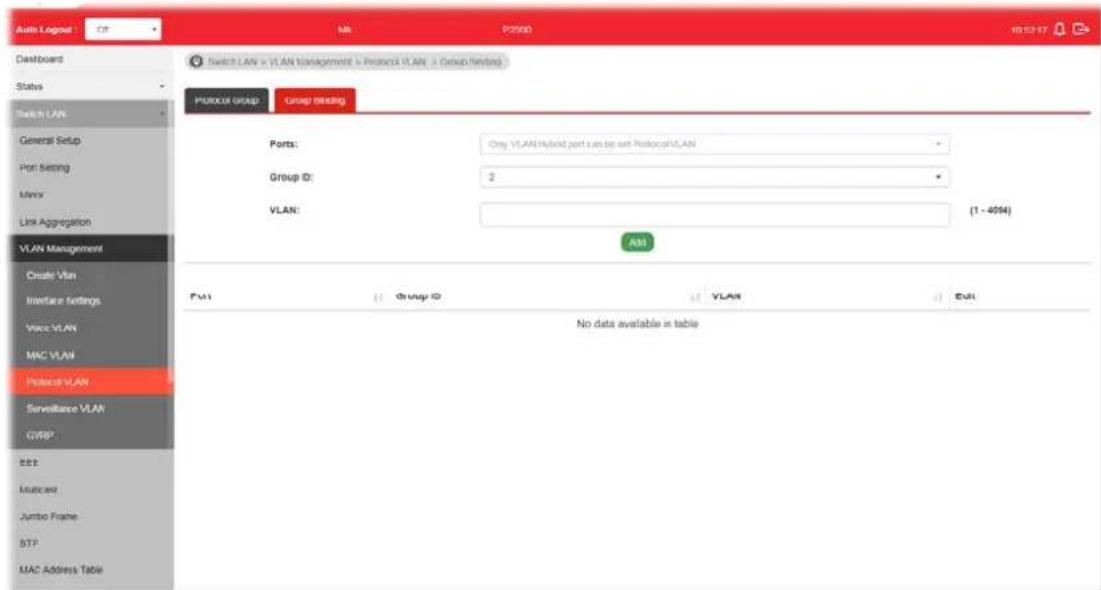

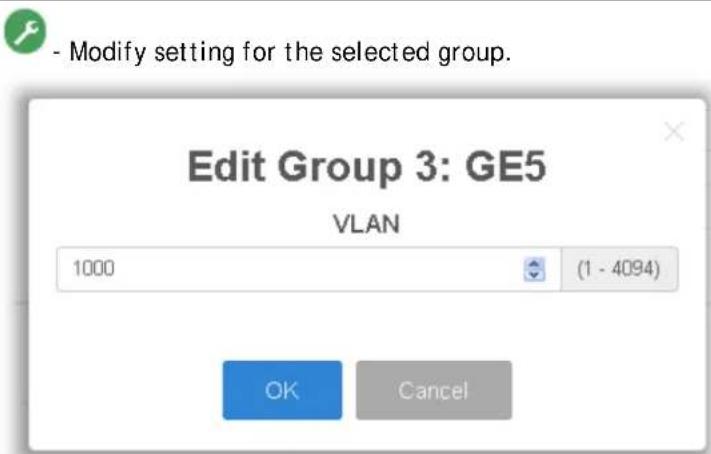

II-5-5-2 Group Binding 43

II-5-6 Surveillance VLAN....45

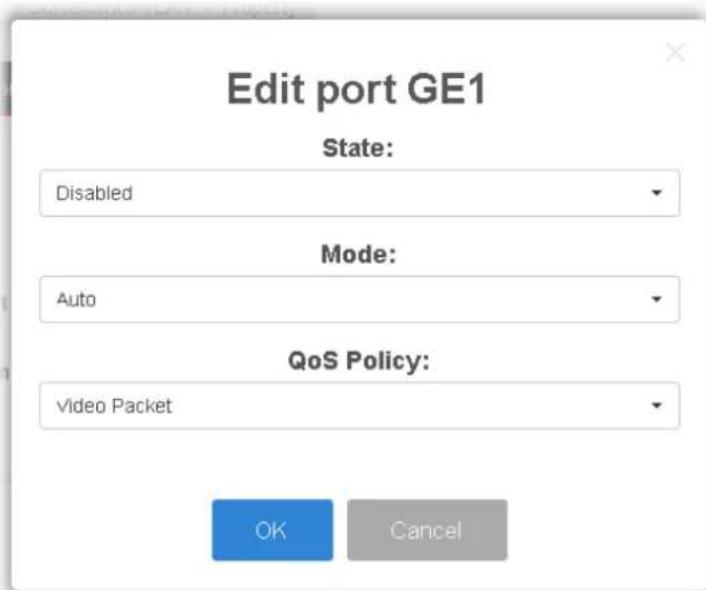

II-5-6-1 Property 45

II-5-6-1 Surveillance OUI....47

II-5-7 GVRP 48

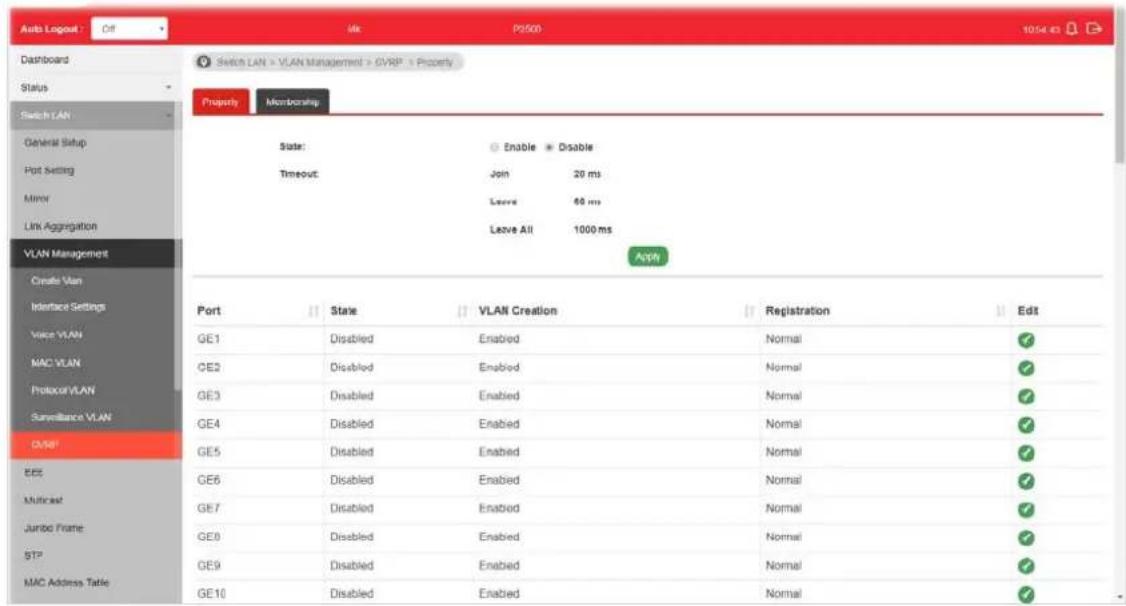

II-5-7-1 Property 48

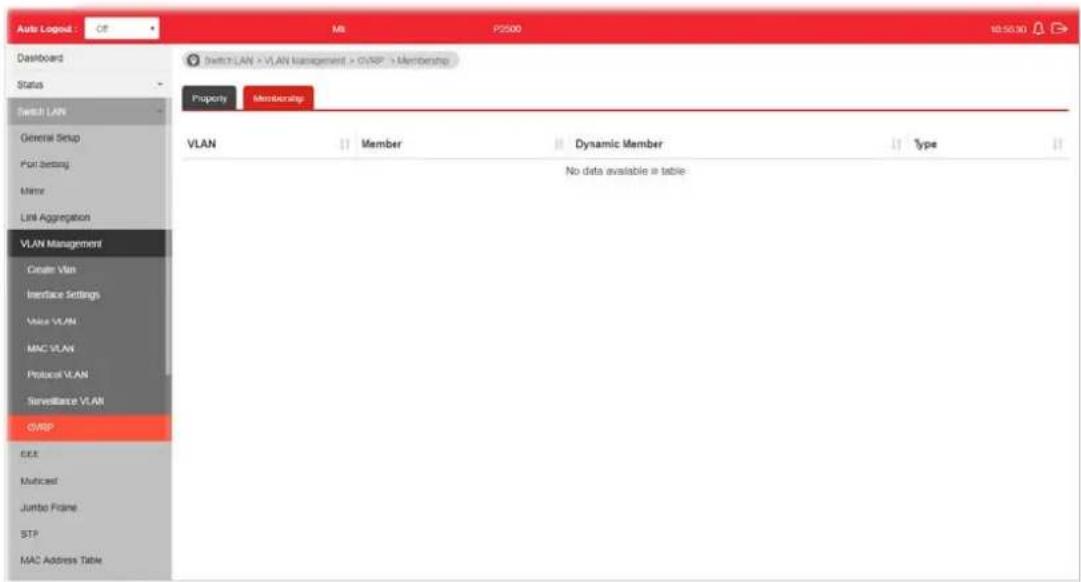

II-5-7-2 Membership....49

II-6 EEE 50

II-7 Multicast 51

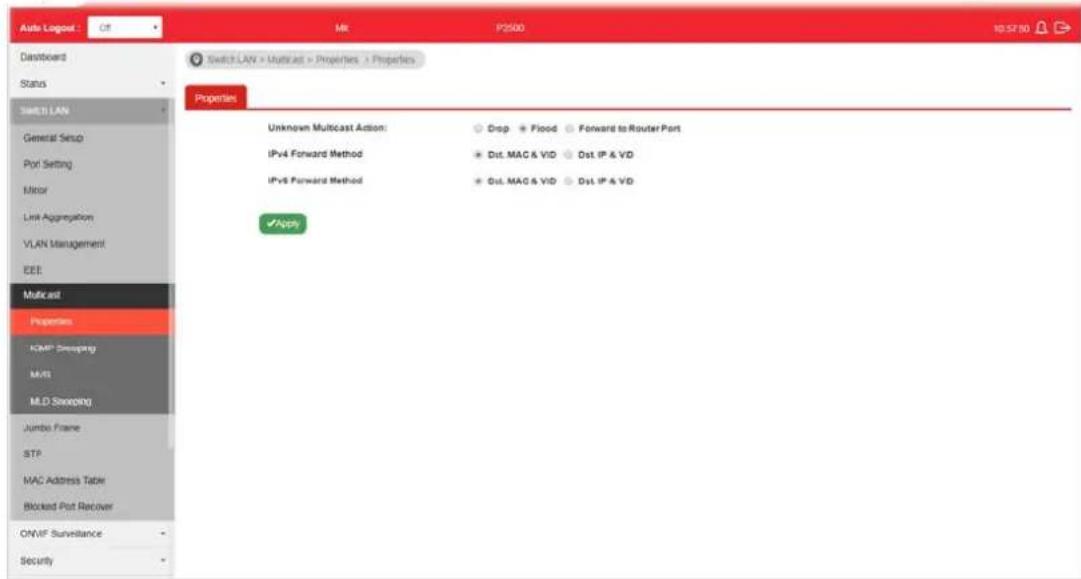

II-7-1 Properties 51

II-7-2 IGMP Snooping 53

II-7-2-1 IGMP Setting 53

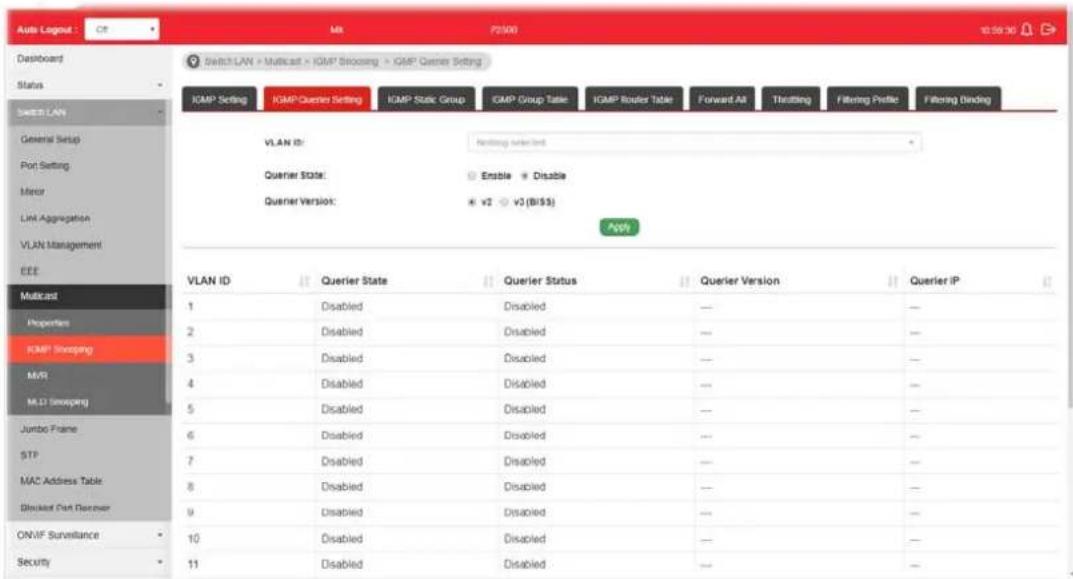

II-7-2-2 IGMP Querier Setting....55

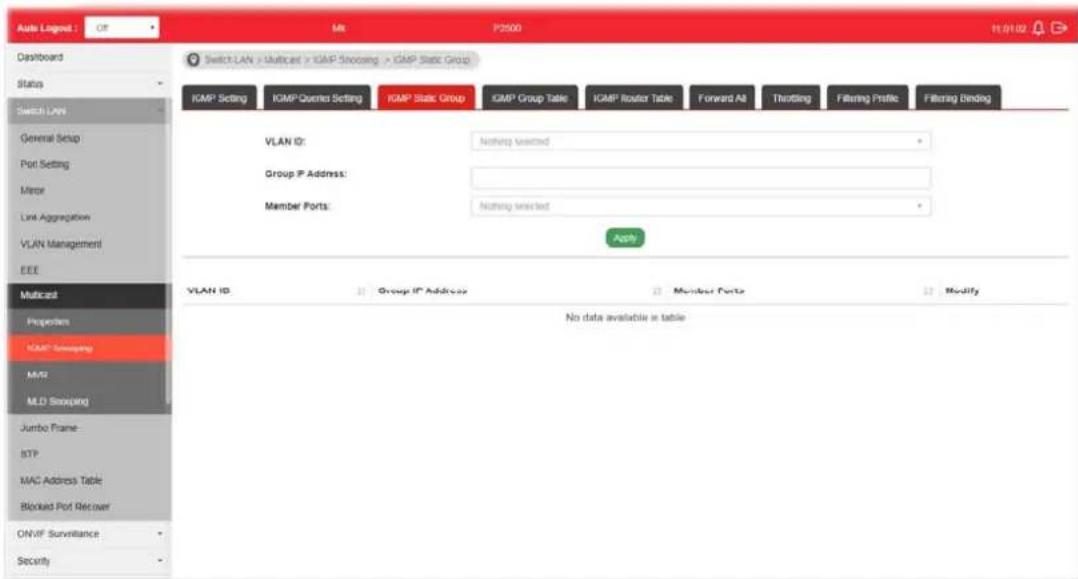

II-7-2-3 IGMP Static Group 56

II-7-2-4 IGMP Group Table....57

II-7-2-5 IGMP Router Table....58

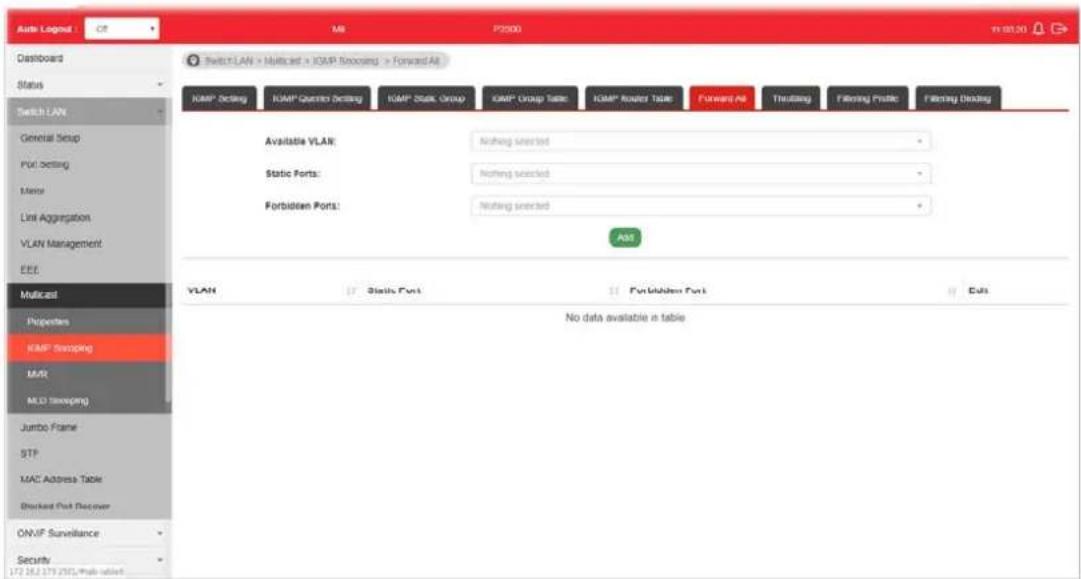

II-7-2-6 Forward All 59

II-7-2-7 Throttling 60

II-7-2-8 Filtering Profile....61

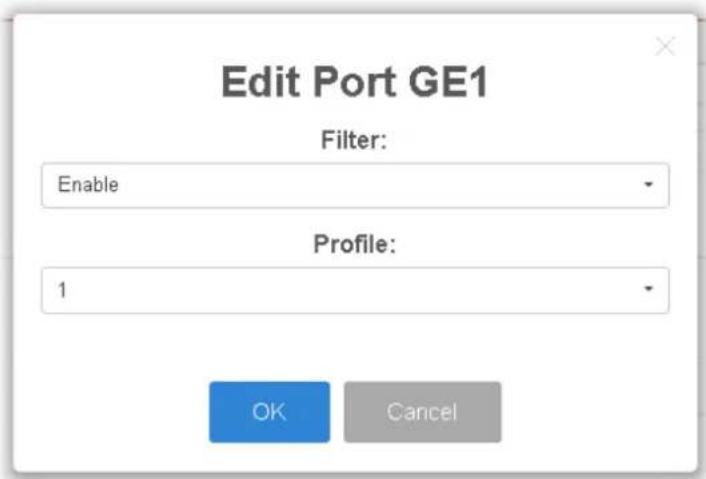

II-7-2-9 Filtering Binding 62

II-7-3 MVR....64

II-7-3-1 Property 64

II-7-3-2 Port Setting....65

II-7-3-3 Group Address....66

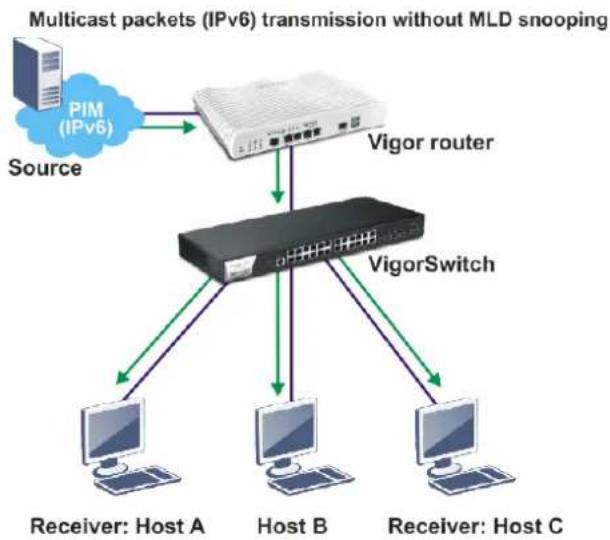

II-7-4 MLD Snooping....67

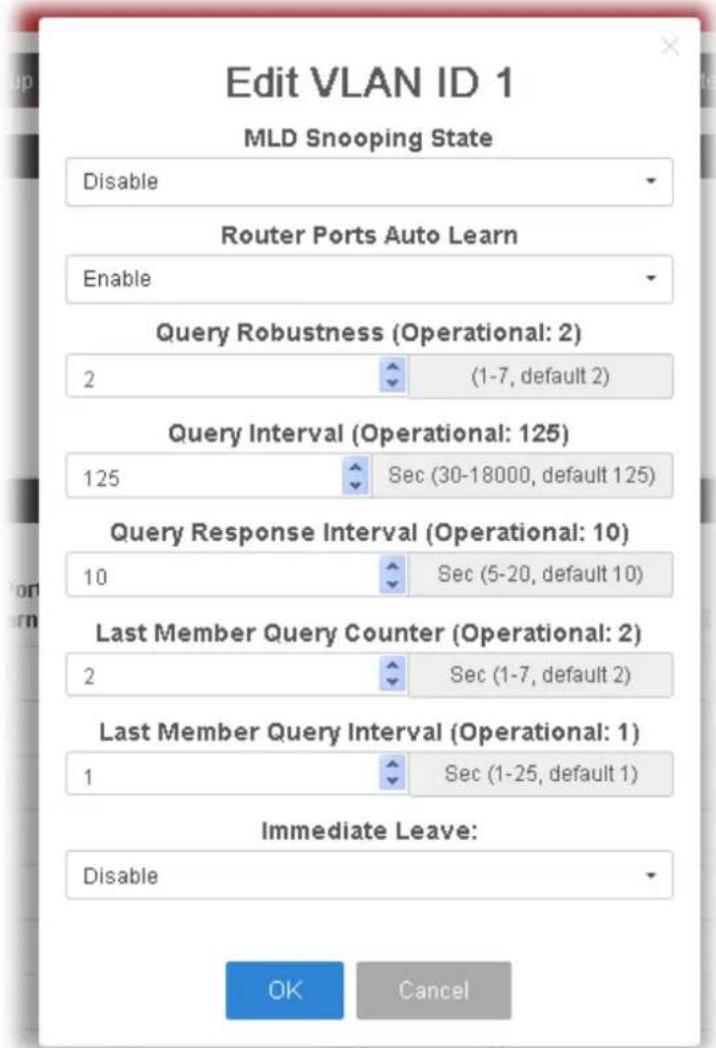

II-7-4-1 MLD Setting 67

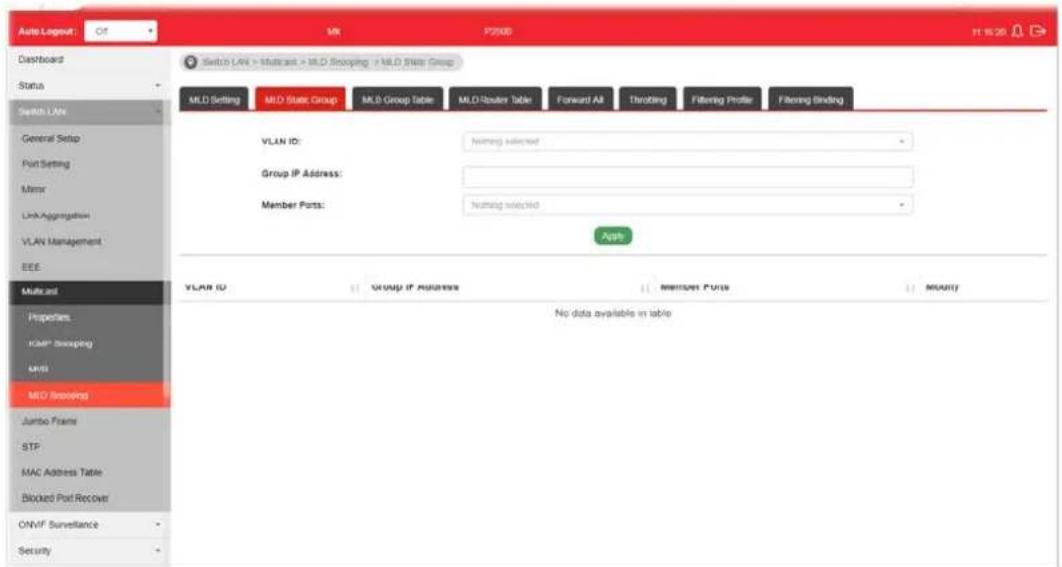

II-7-4-2 MLD Static Group 69

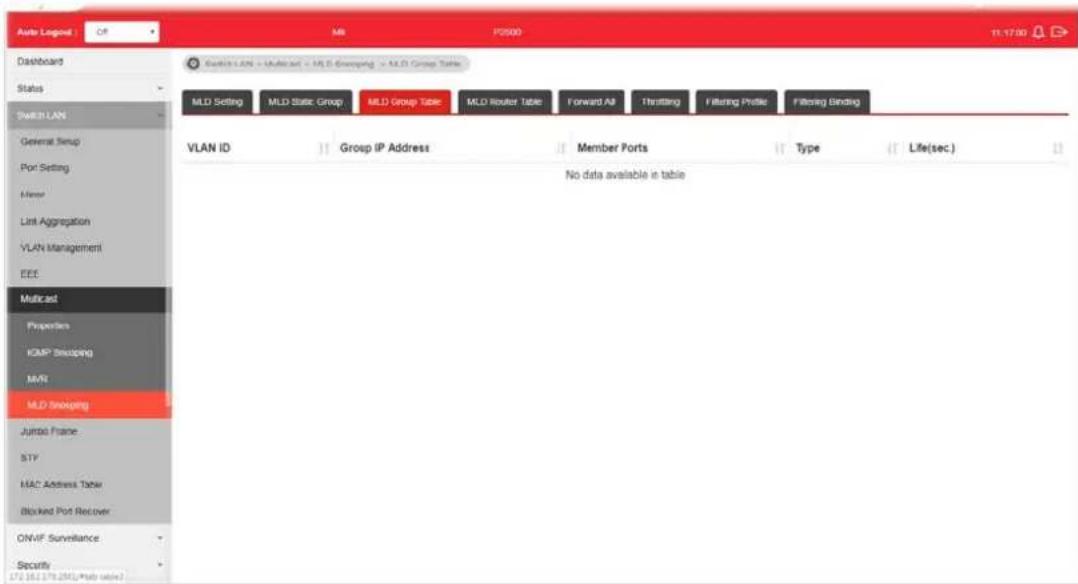

II-7-4-3 MLD Group Table....71

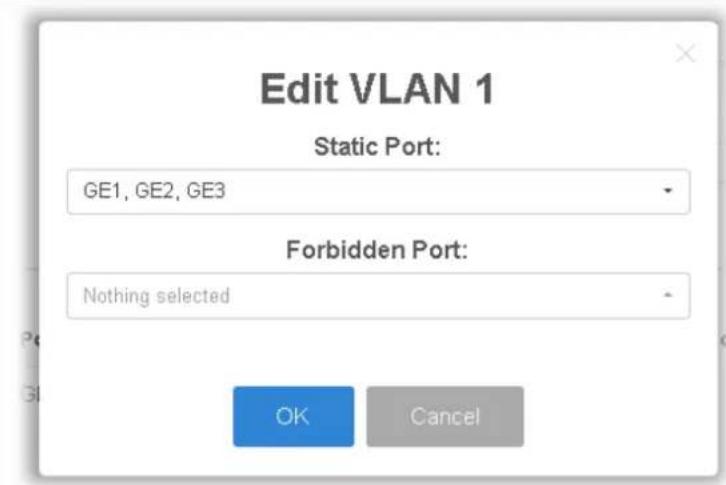

II-7-4-4 MLD Router Table....72

II-7-4-5 Forward All 73

II-7-4-6 Throttling 74

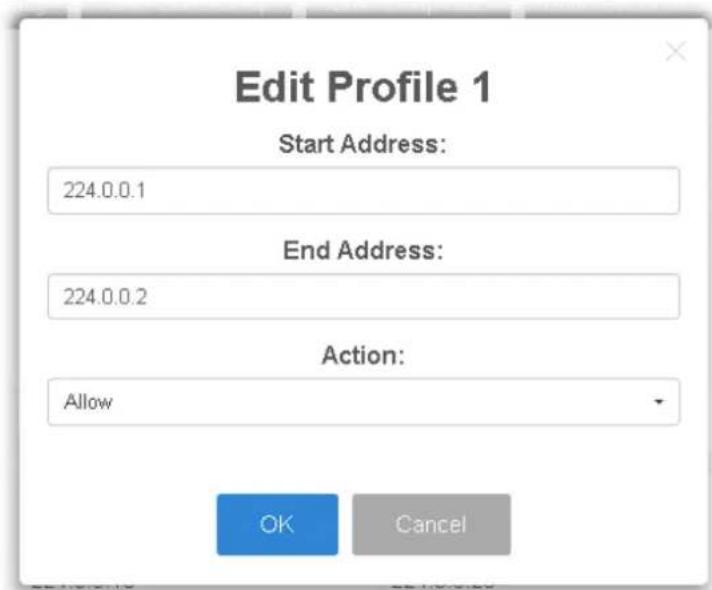

II-7-4-7 Filtering Profile 75

II-7-4-8 Filtering Binding 76

II-8 Jumbo Frame 78

II-9 STP 79

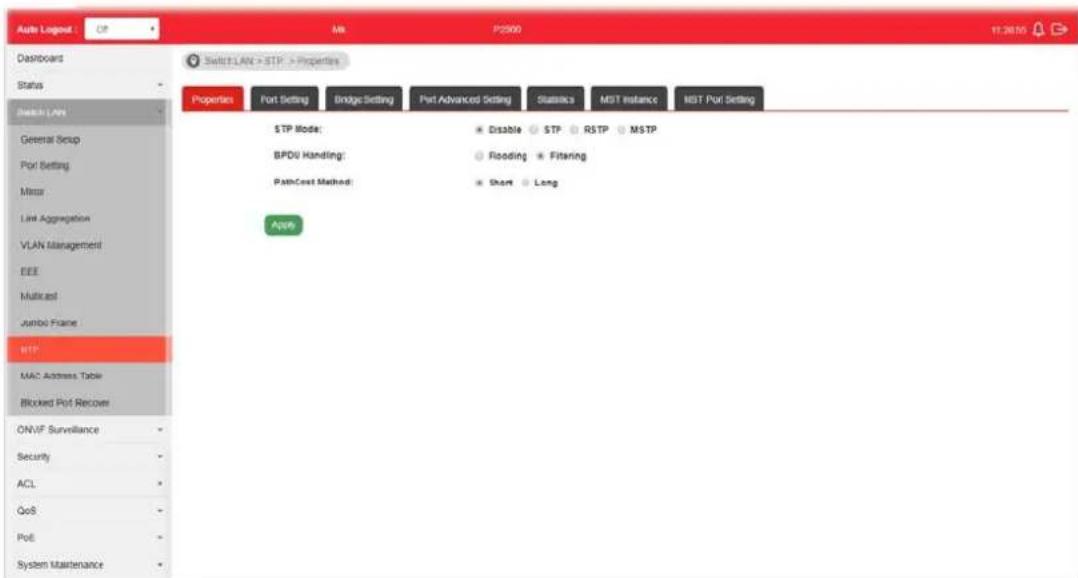

II-9-1 Properties 79

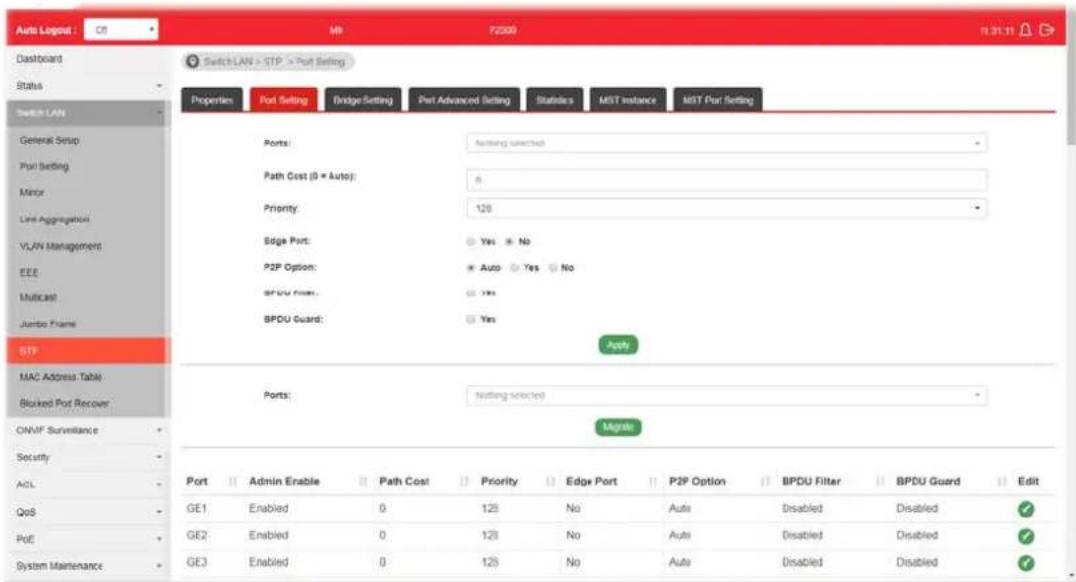

II-9-2 Port Setting 80

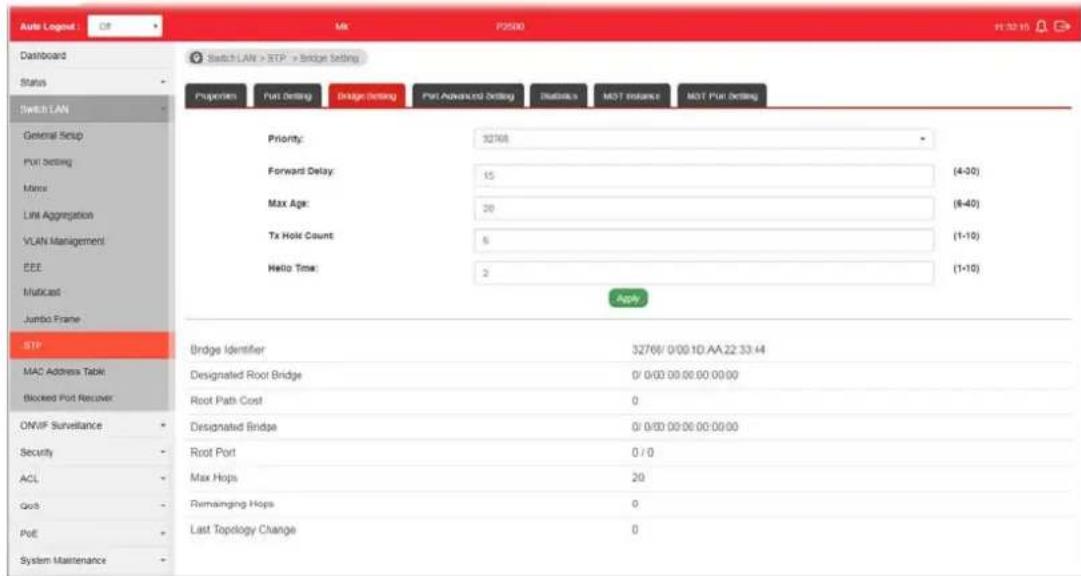

II-9-3 Bridge Setting 82

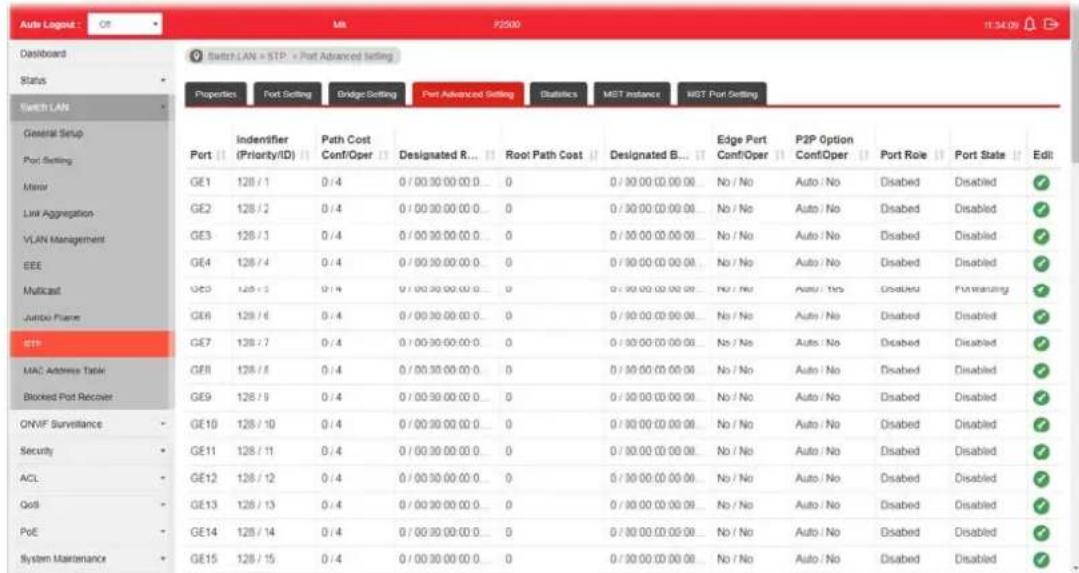

II-9-4 Port Advanced Setting....83

II-9-5 Statistics 84

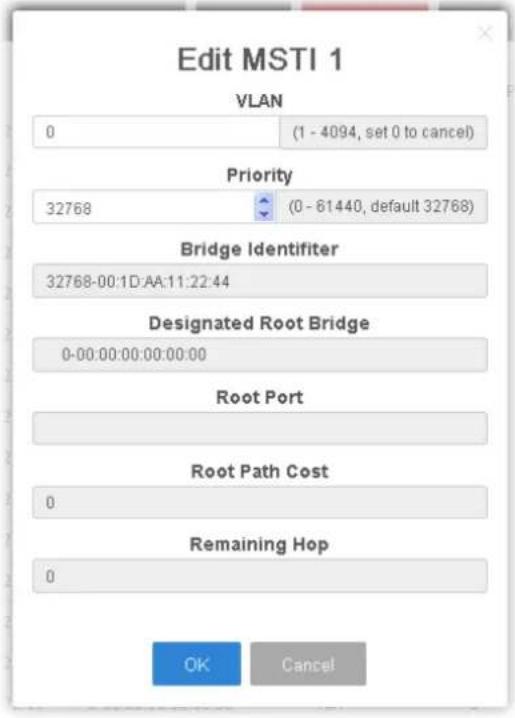

II-9-6 MST Instance 85

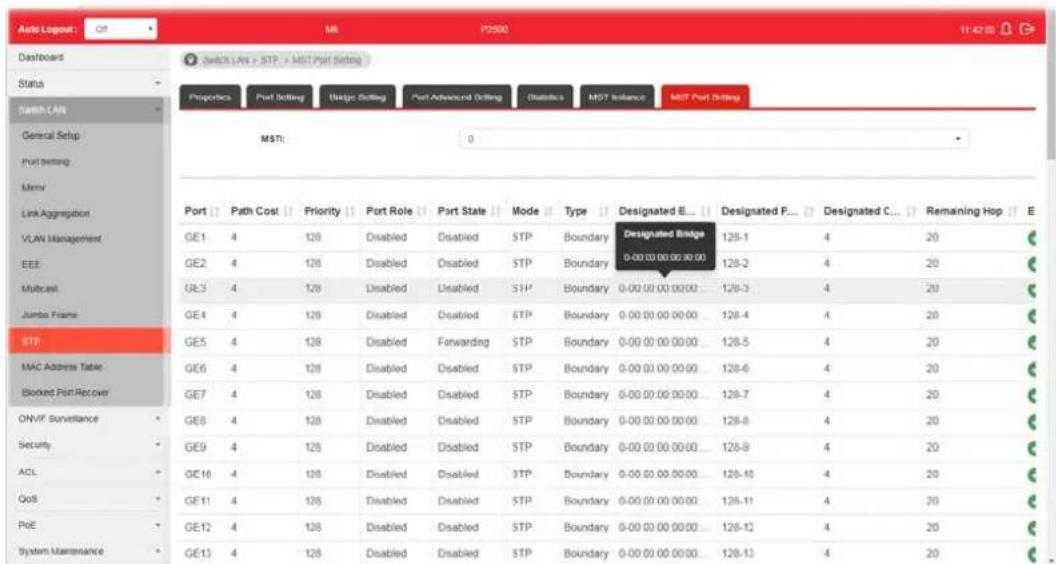

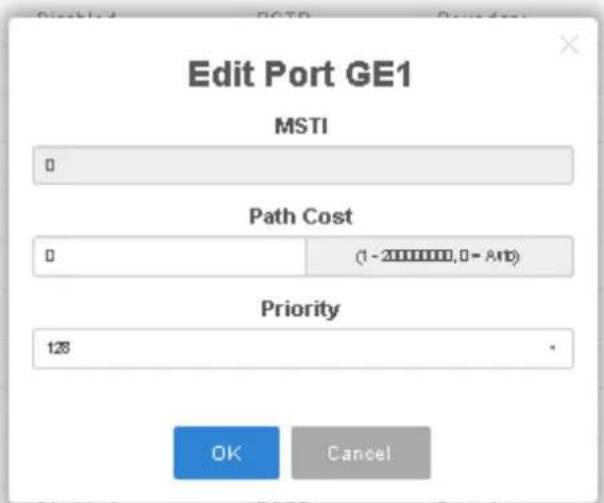

II-9-7 MST Port Setting 86

II-10 MAC Address Table....88

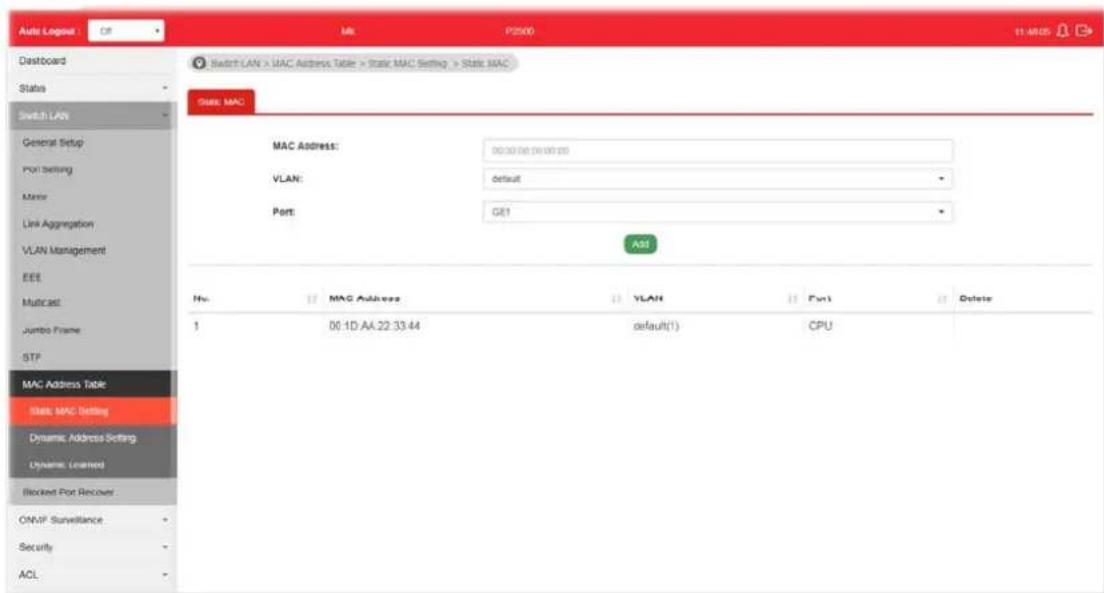

II-10-1 Static MAC Setting 88

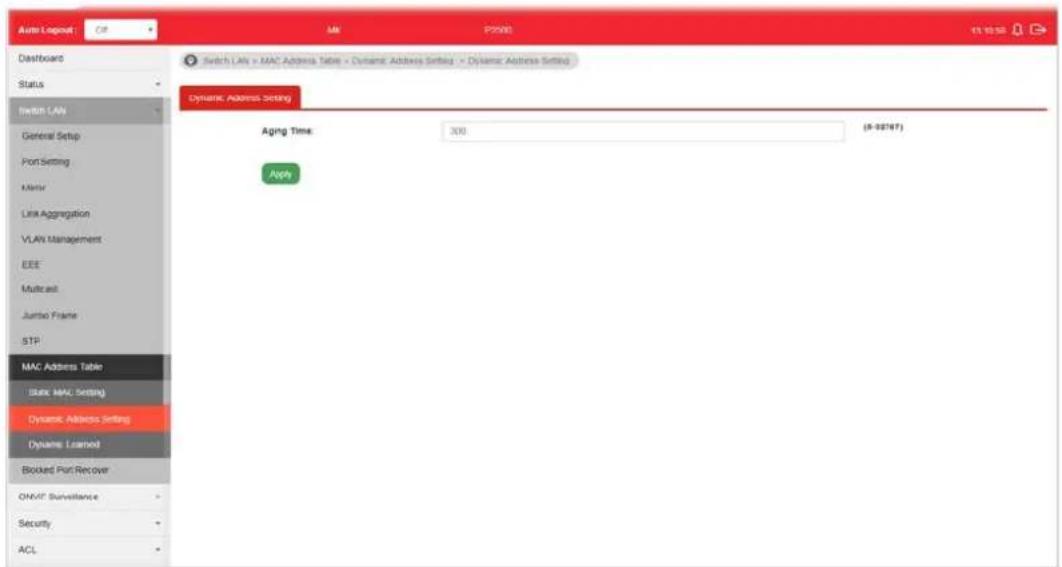

II-10-2 Dynamic Address Setting 89

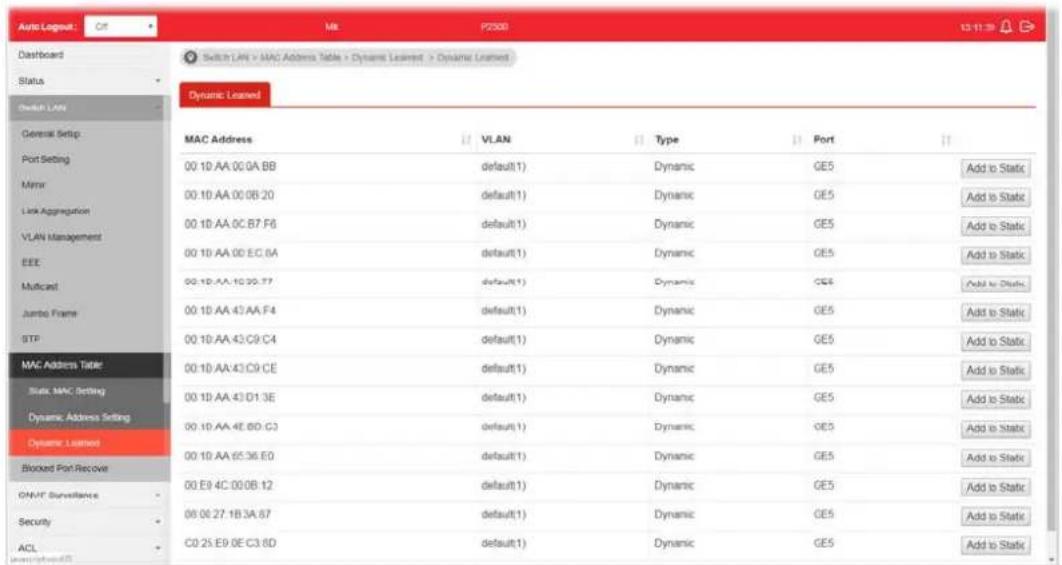

II-10-3 Dynamic Learned 89

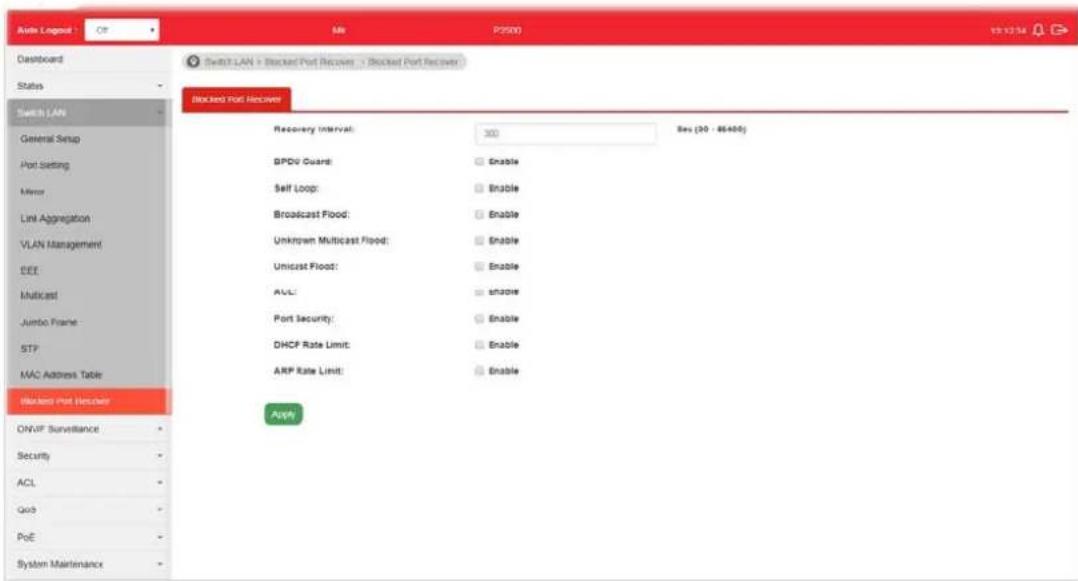

II-11 Blocked Port Recover....91

Part III ONVIF Surveillance....93

III-1 Discovery 94

III-2 Topology 95

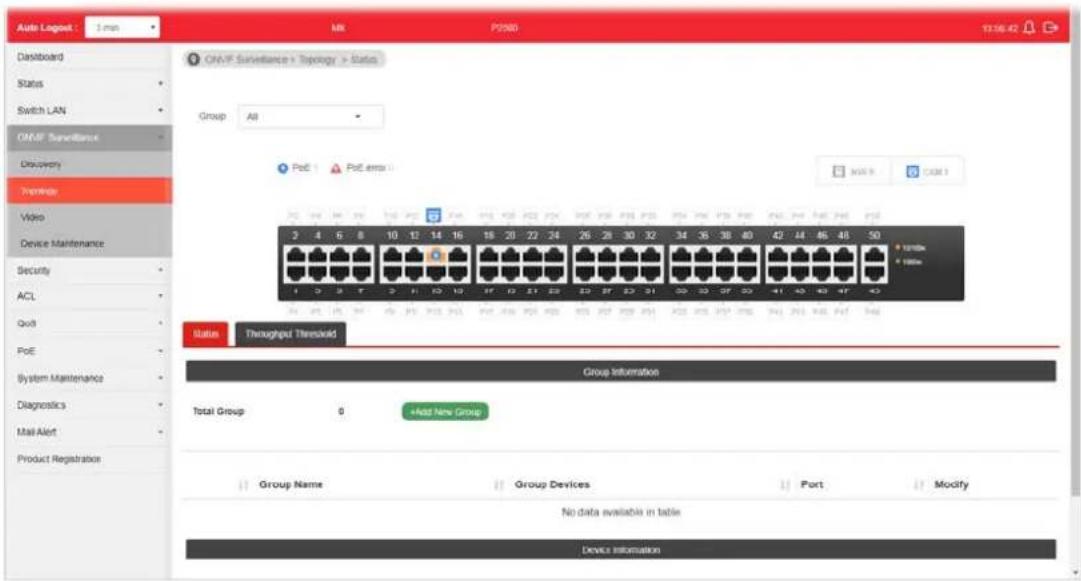

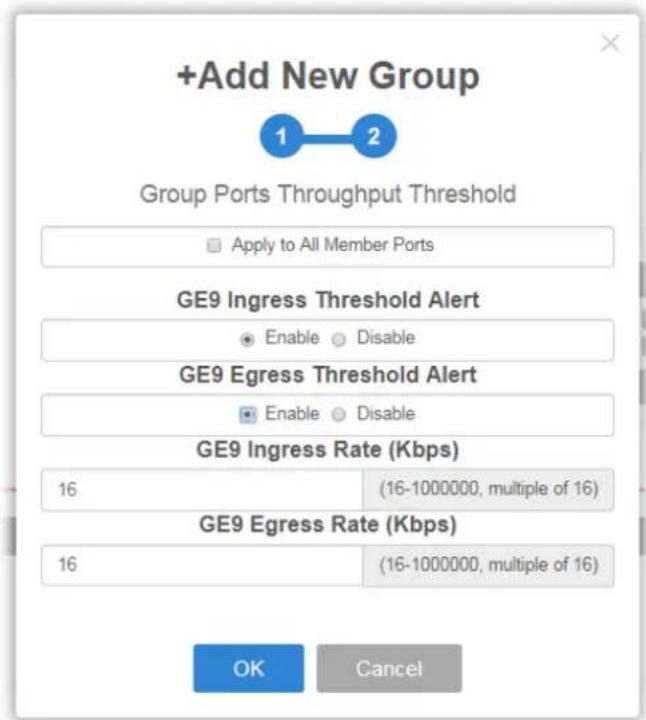

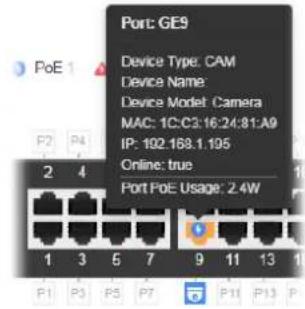

III-2-1 Status 95

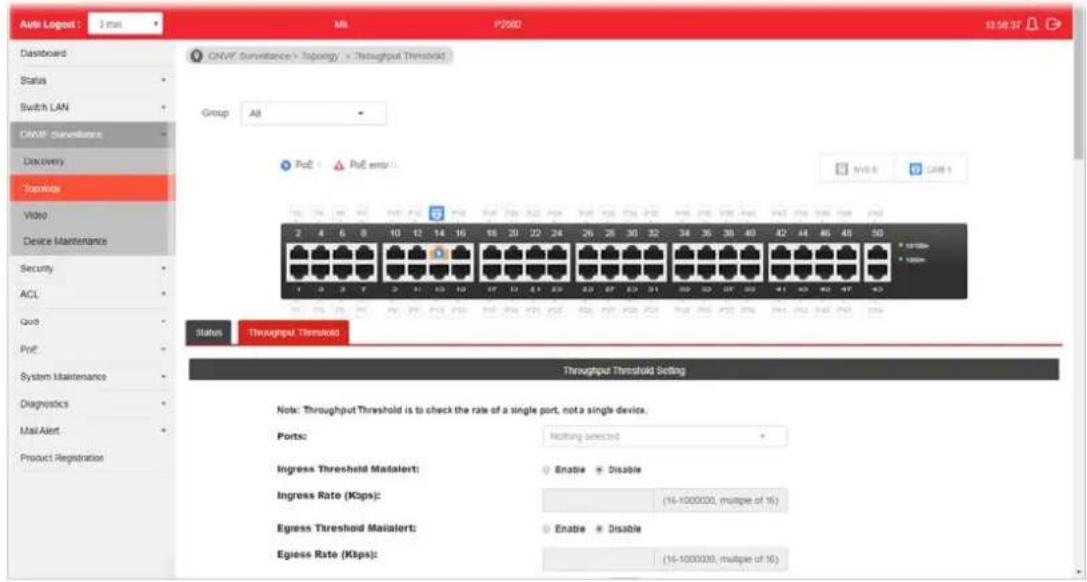

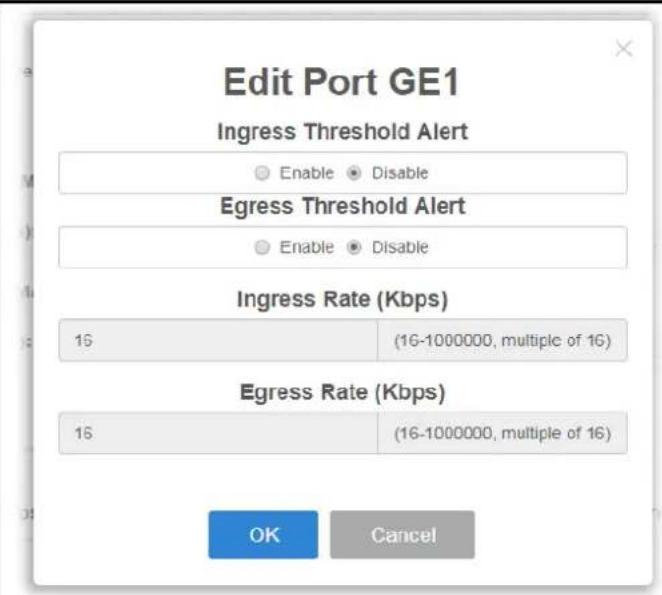

III-2-2 Throughput Threshold 99

III-3 Video 101

III-4 Device Maintenance 102

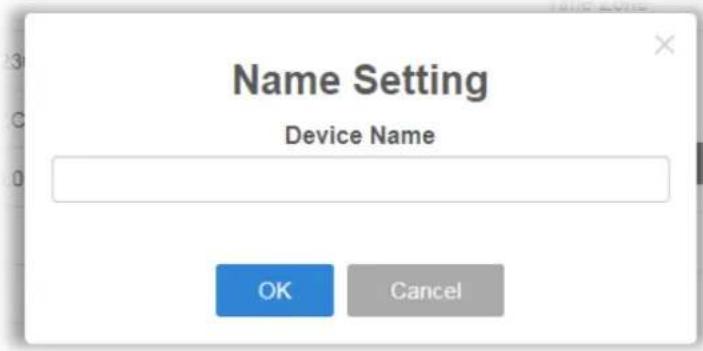

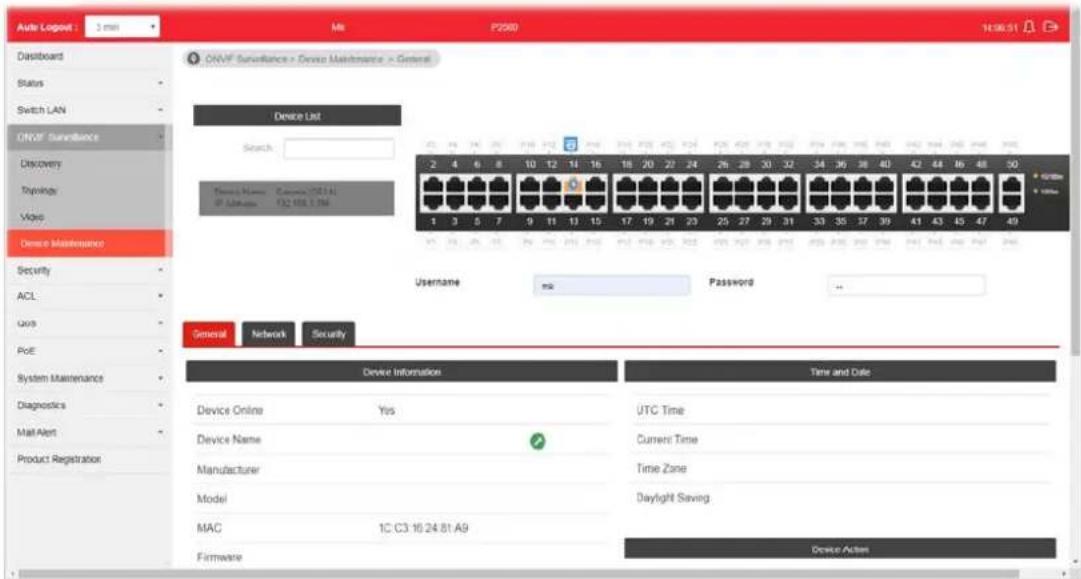

III-4-1 General.... 102

III-4-1 Network 104

III-4-3 Security....105

Part IV Security ....107

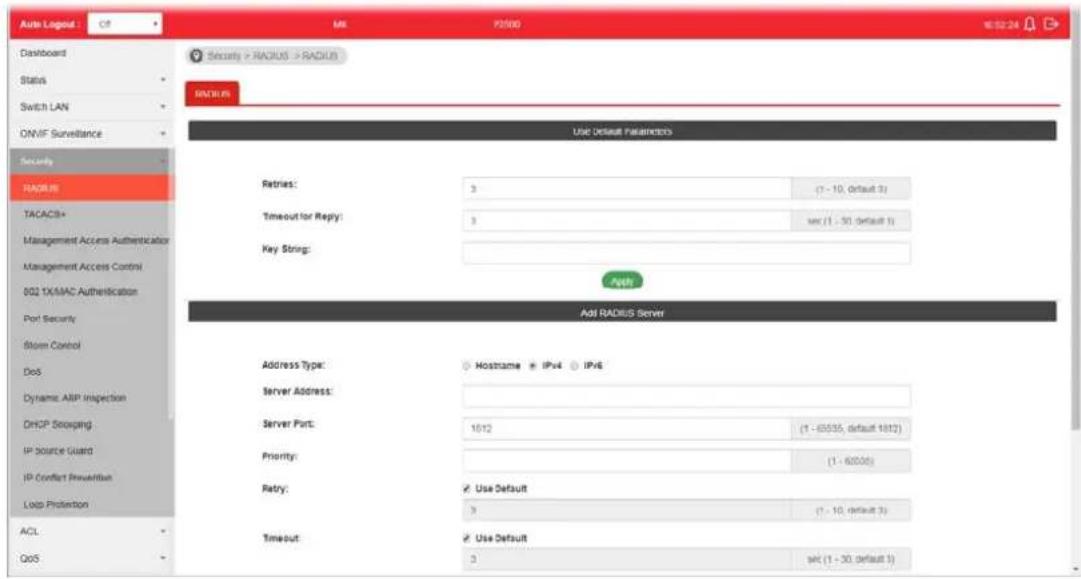

IV-1 RADIUS 108

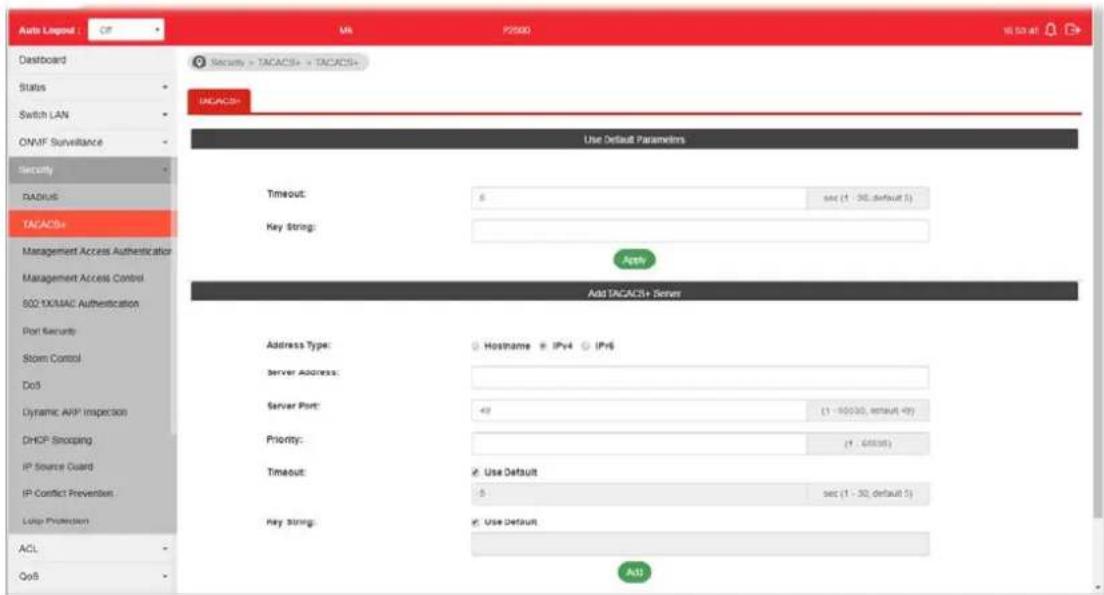

IV-2 TACACS+....110

IV-3 Management Access Authentication....111

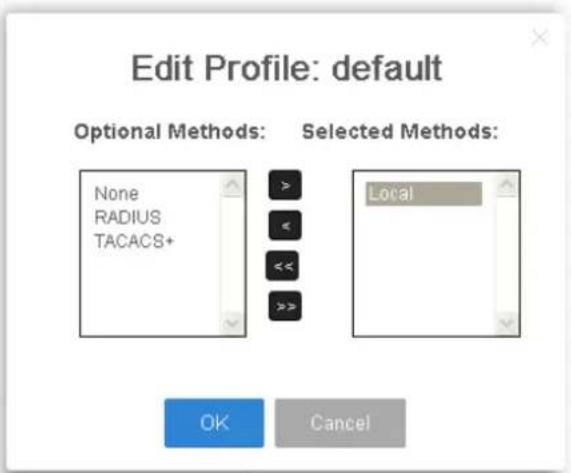

IV-3-1 Method Profile.... 111

IV-3-2 Application Authentication.... 112

IV-4 Management Access Control....113

IV-4-1 Management Access Control Profile (ACL) 113

IV-4-2 Management Access Control Entries (ACE).... 114

IV-5 802.1X/MAC Authentication....116

IV-5-1 Properties.... 116

IV-5-1-1 Global Settings 116

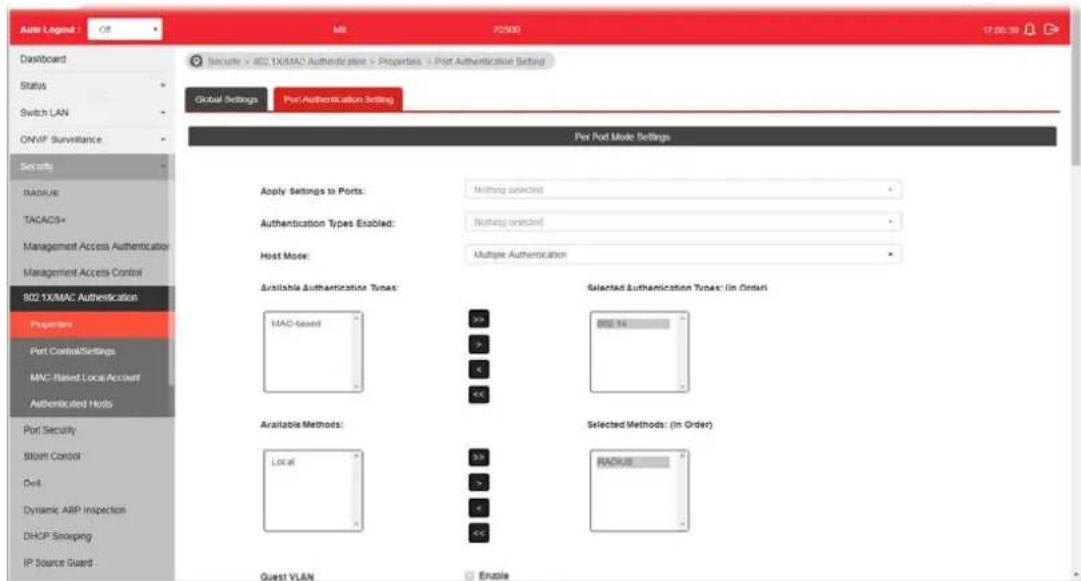

IV-5-1-2 Port Authentication Setting.... 117

IV-5-2 Port Control/Settings 118

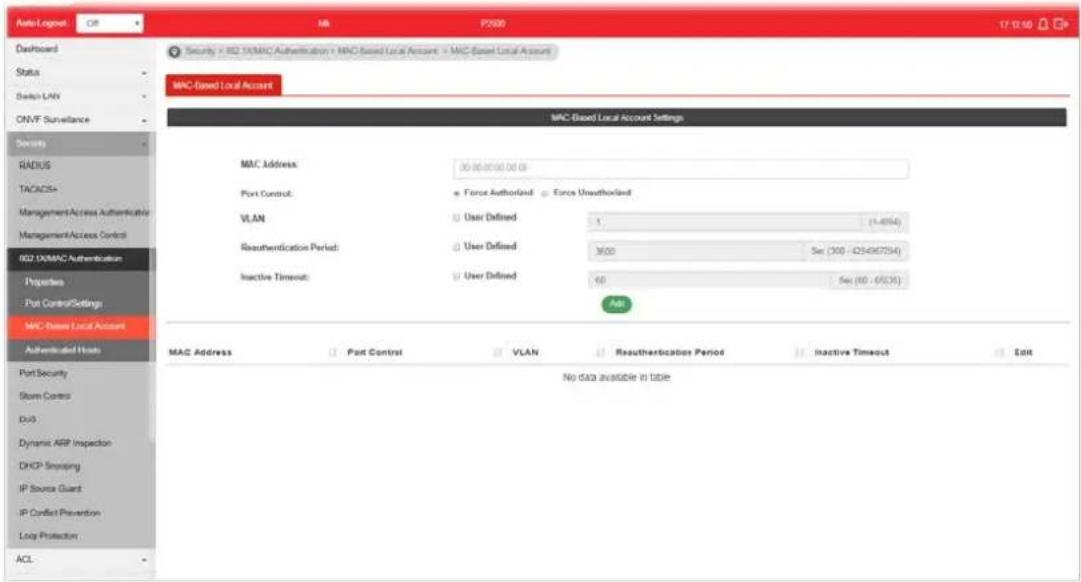

IV-5-3 MAC-Based Local Account 120

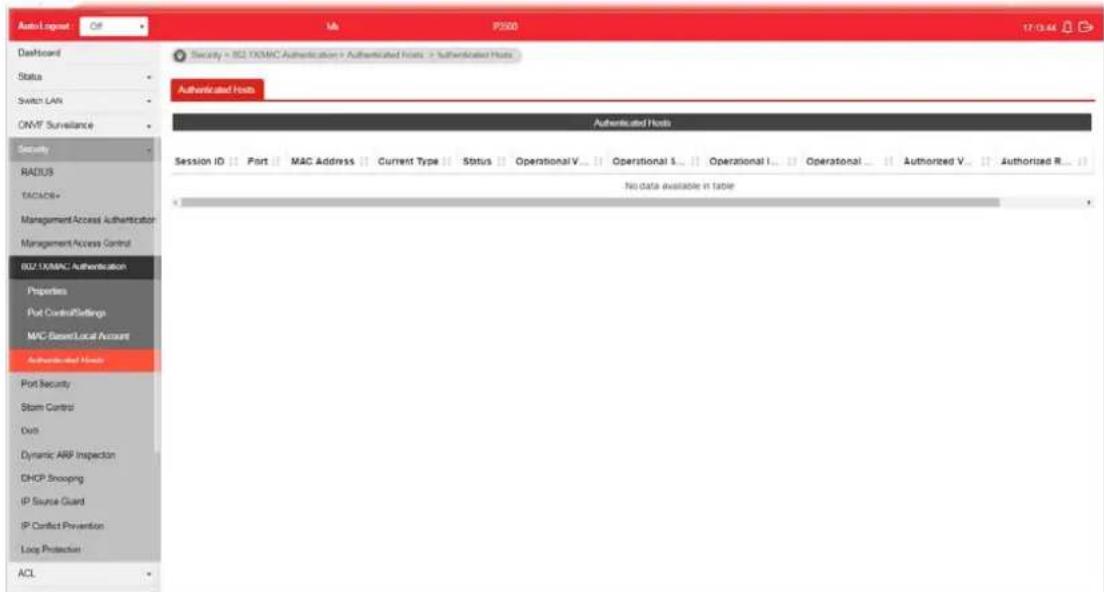

IV-5-4 Authenticated Hosts 121

IV-6 Port Security 122

IV-7 Storm Control....124

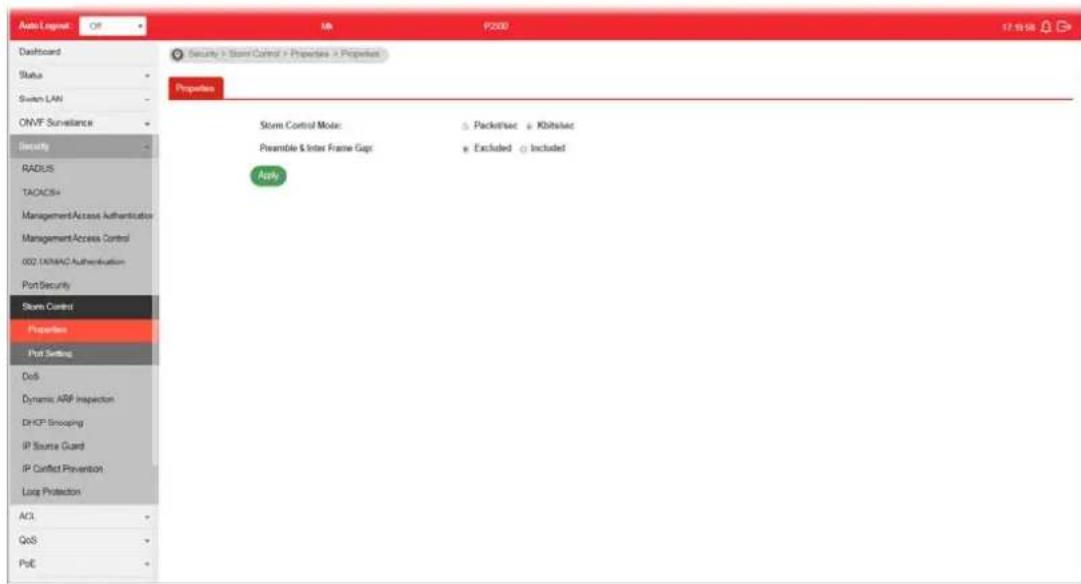

IV-7-1 Properties.... 124

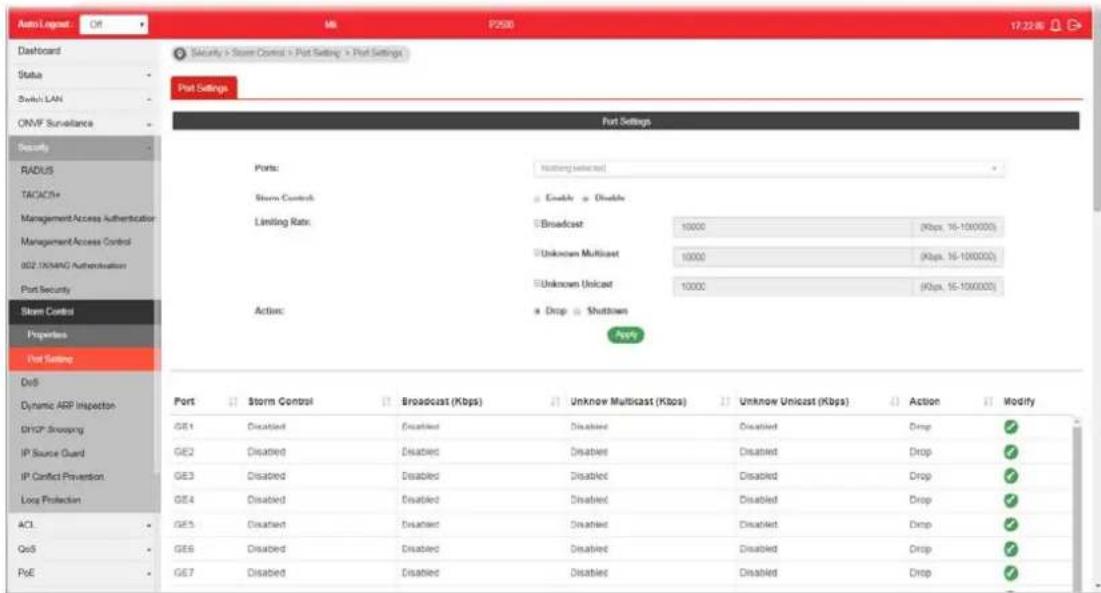

IV-7-2 Port Setting 125

IV-8 DoS....126

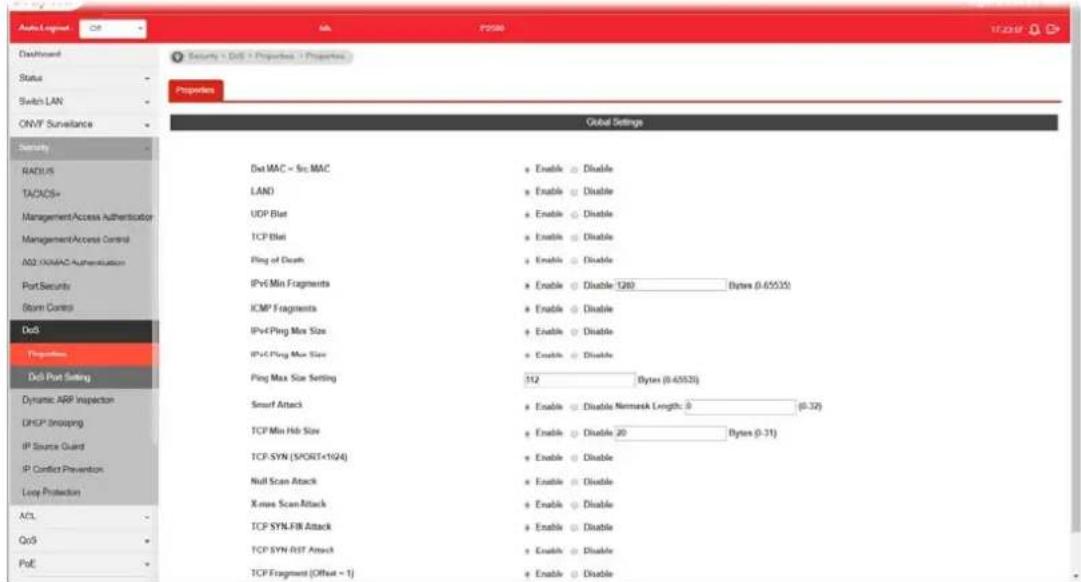

IV-8-1 Properties.... 126

IV-8-2 DoS Port Setting 128

IV-9 Dynamic ARP Inspection 129

IV-9-1 Properties 129

IV-9-1-1 Global Property Settings.... 129

IV-9-1-2 Per Port Property Settings.... 130

IV-9-2 Statistics....131

IV-10 DHCP Snooping.... 132

IV-10-1 Properties.... 132

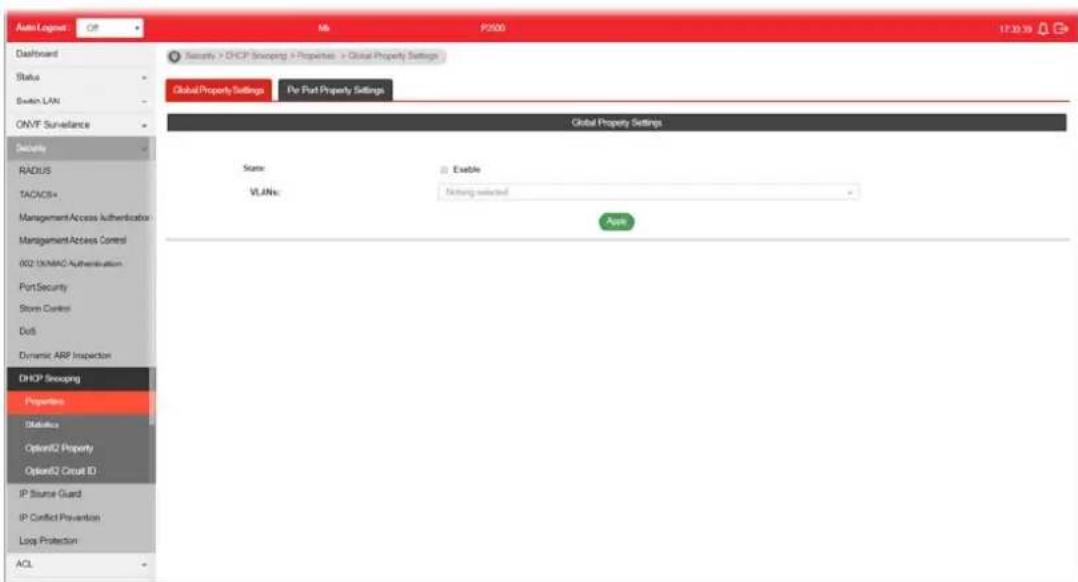

IV-10-1-1 Global Property Settings 132

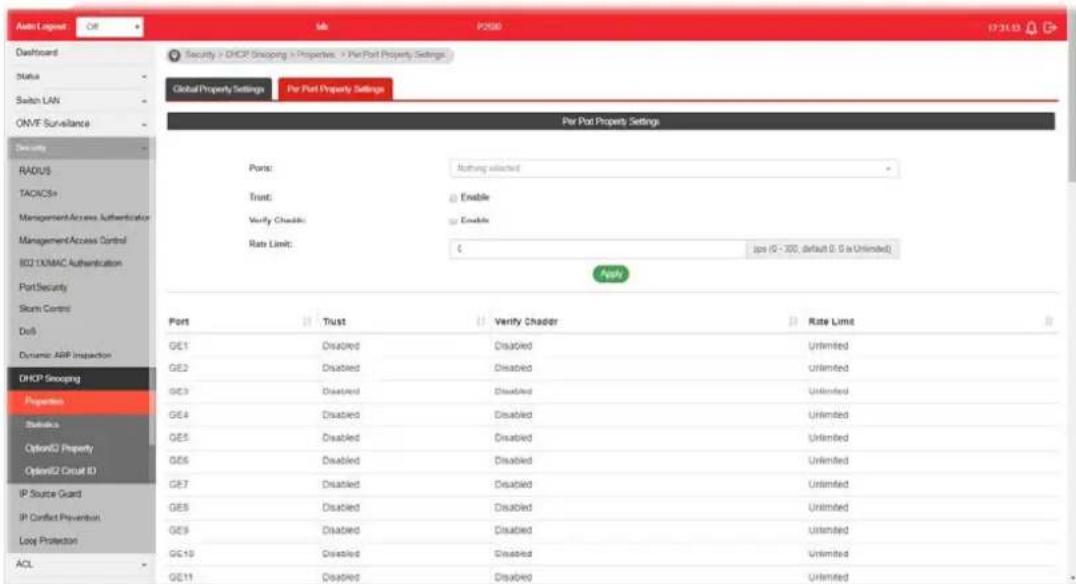

IV-10-1-2 Per Port Property Settings 133

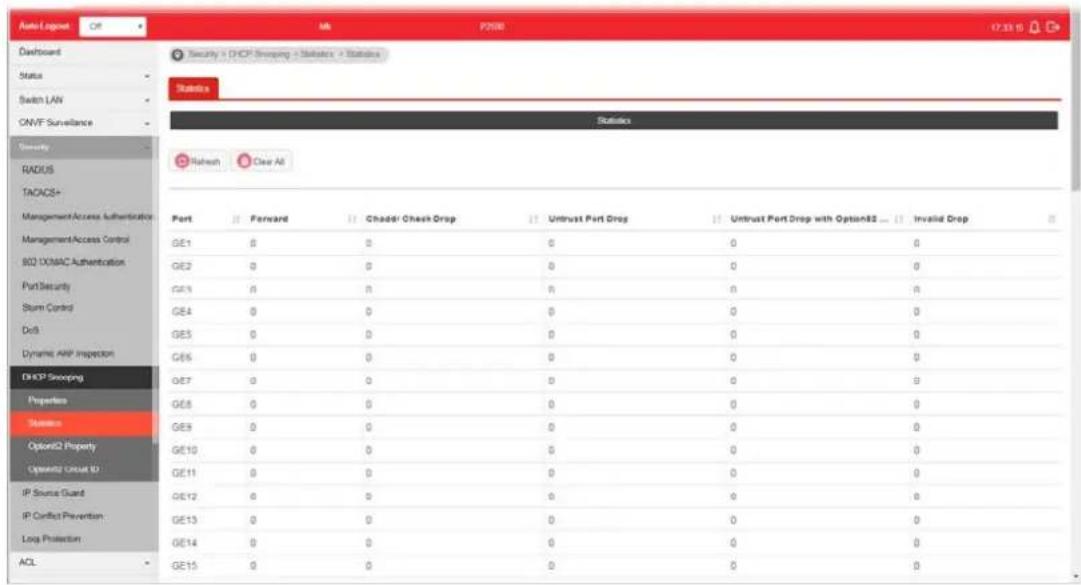

IV-10-2 Statistics.... 134

IV-10-3 Option82 Property 134

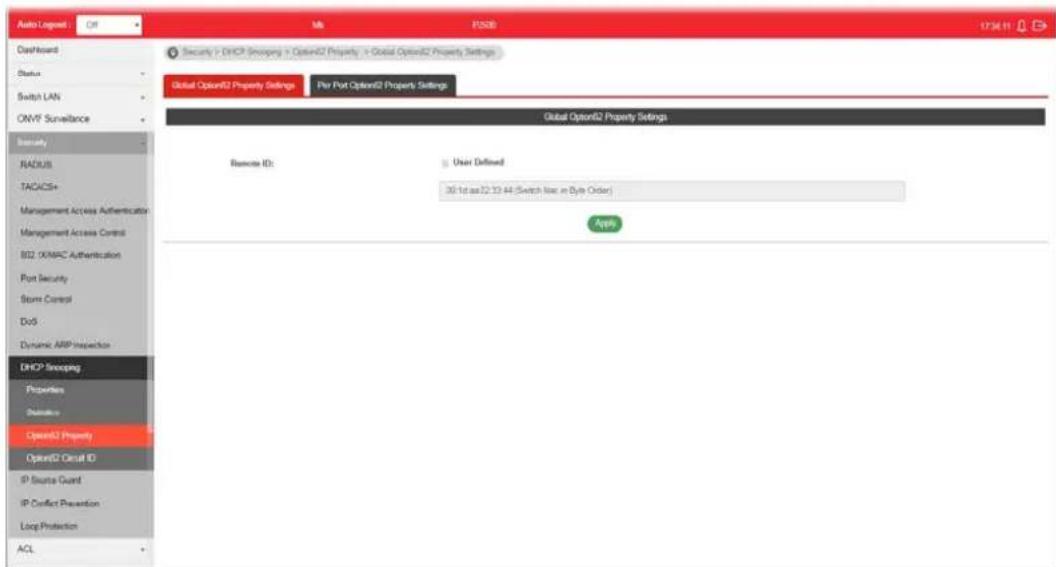

IV-10-3-1 Global Option82 Property Settings 134

IV-10-3-2 Per Port Option82 Property Settings 135

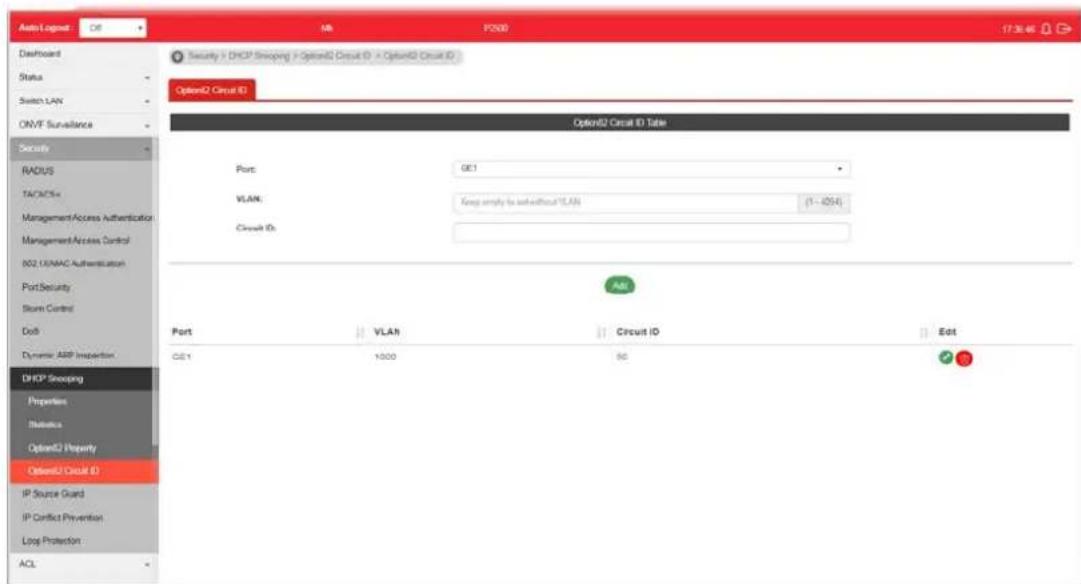

III-10-4 Option82 Circuit ID 136

IV-11 IP Source Guard 137

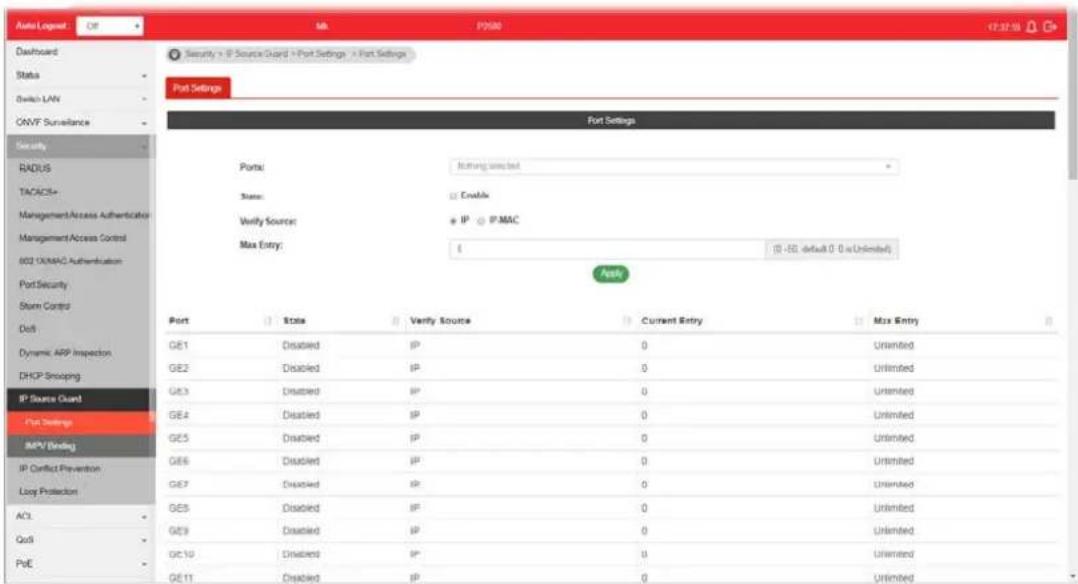

IV-11-1 Port Settings.... 137

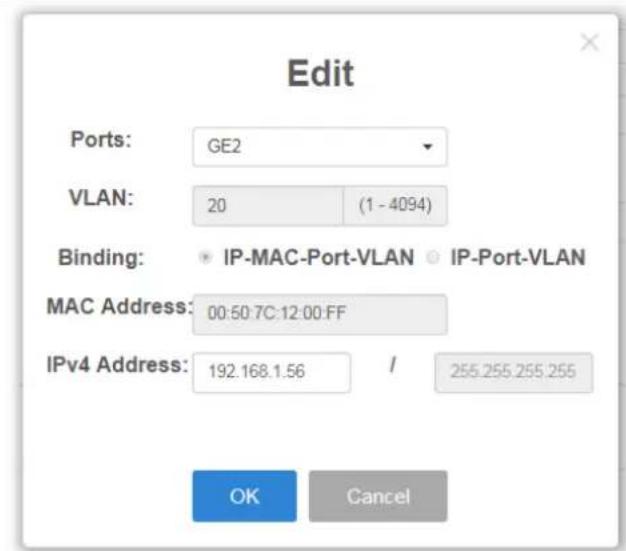

IV-11-2 IMPV Binding 138

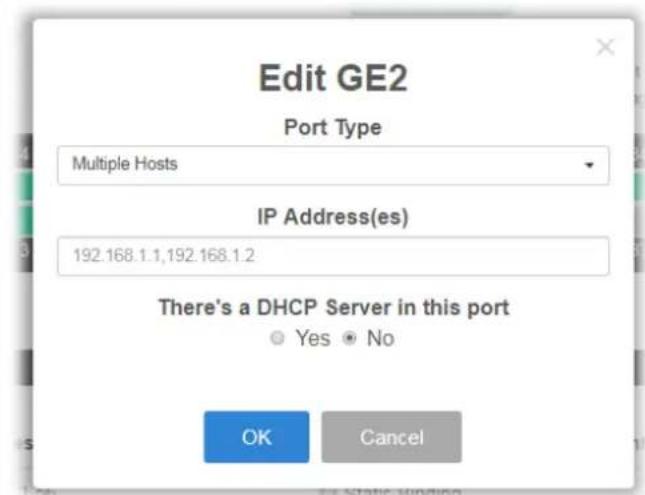

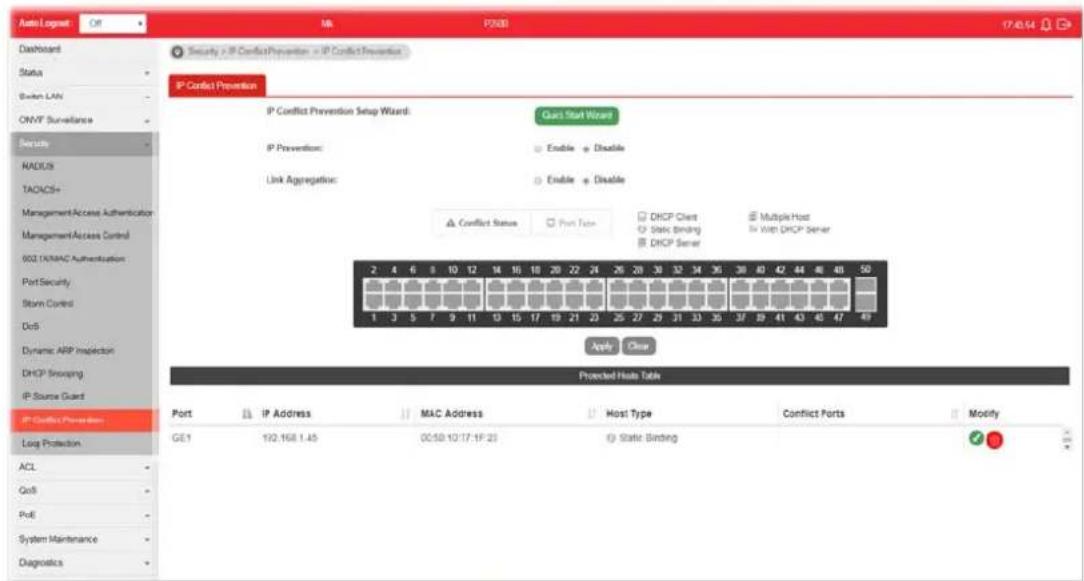

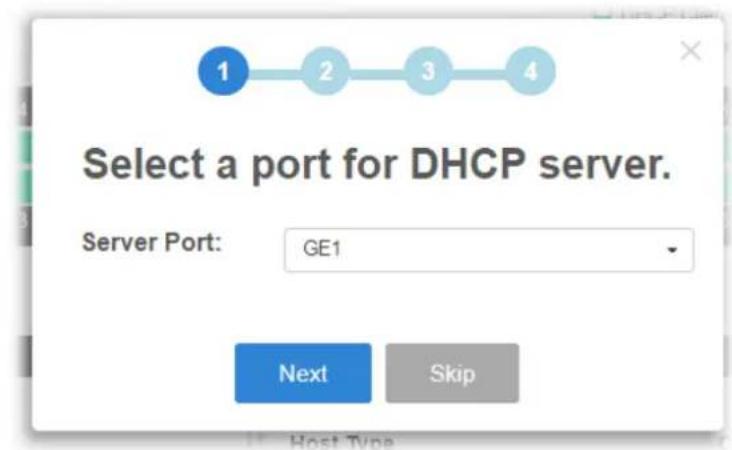

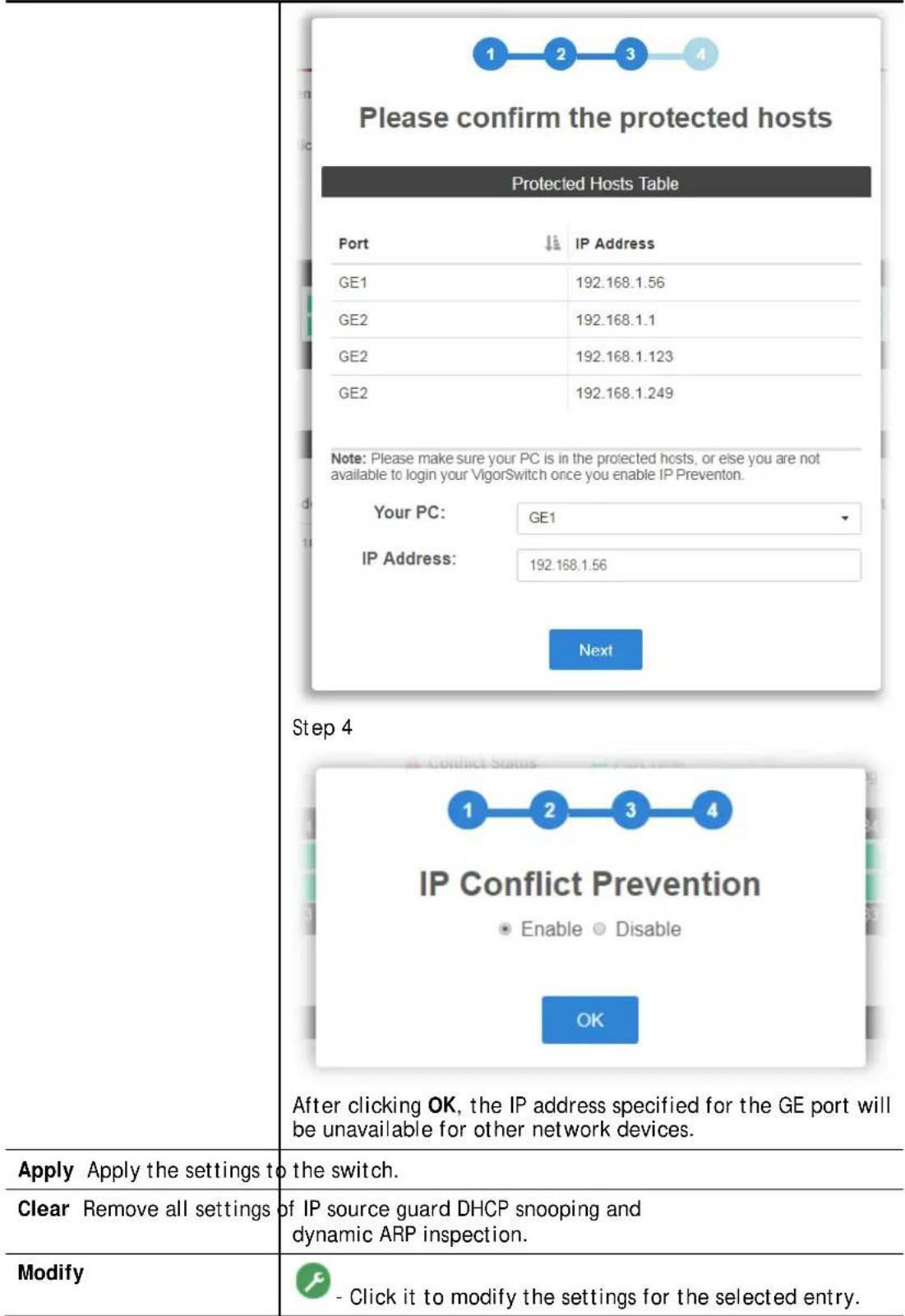

IV-12 IP Conflict Prevention 139

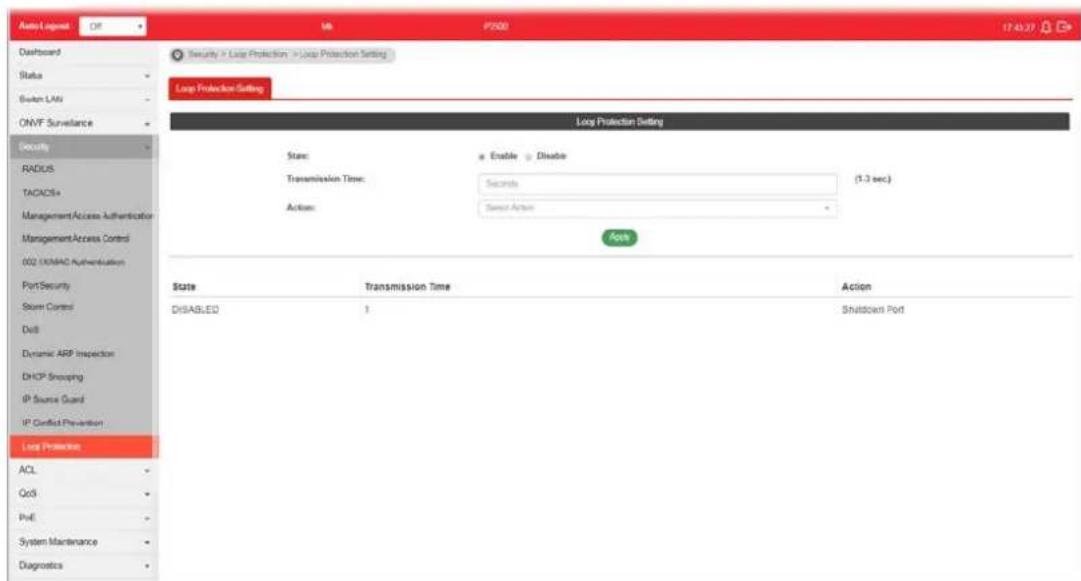

IV-13 Loop Protection.... 143

Part V ACL Configuration....145

V-1 Create ACL 146

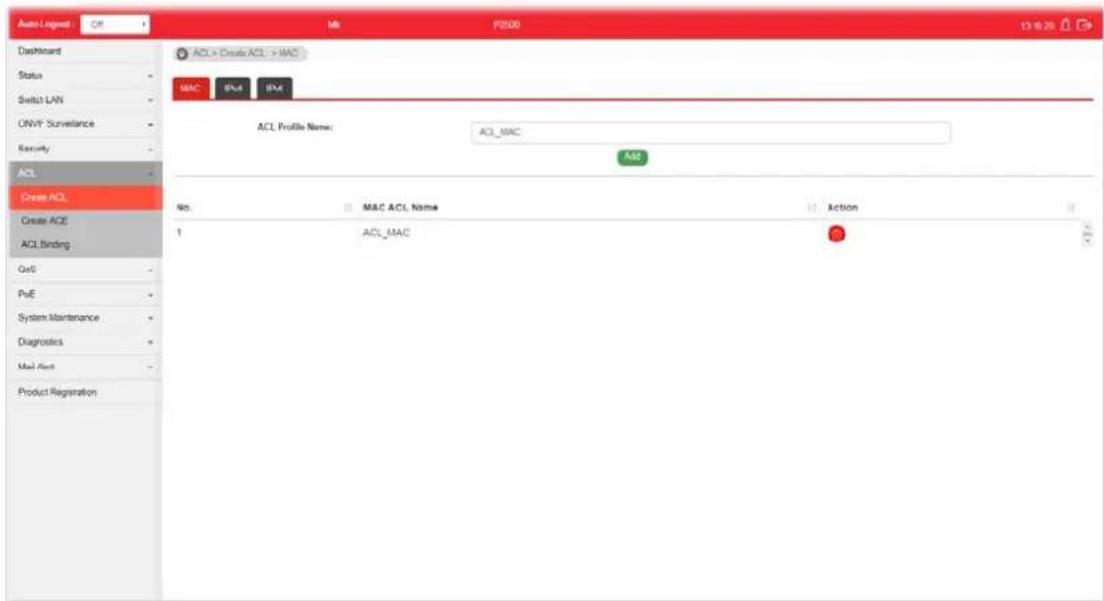

V-1-1 MAC 146

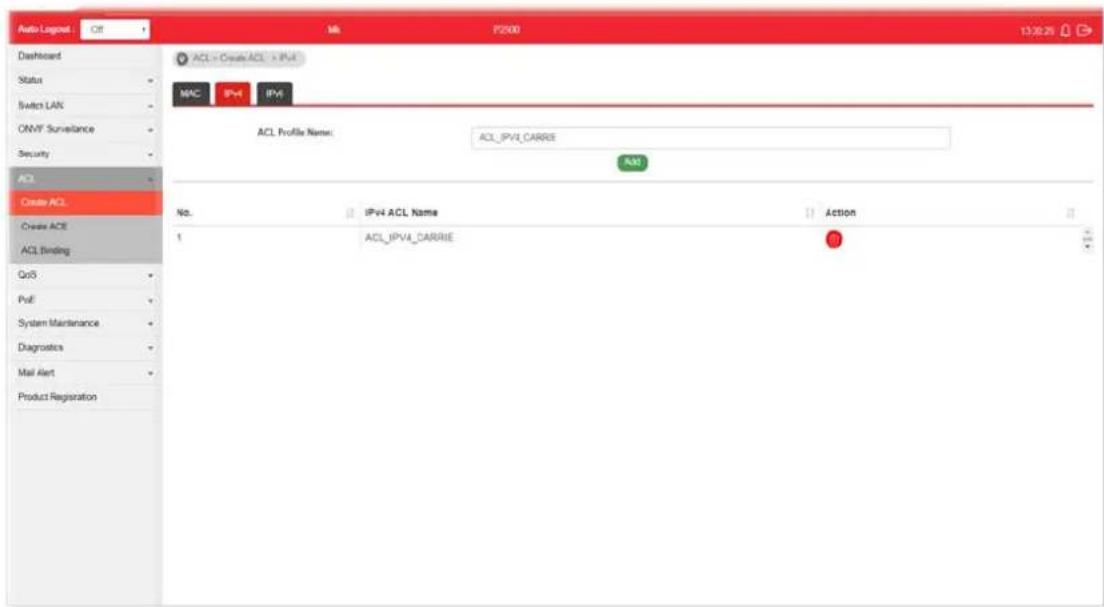

V-1-2 IPv4 146

V-1-3 IPv6 147

V-2 Create ACE 149

V-2-1 MAC 149

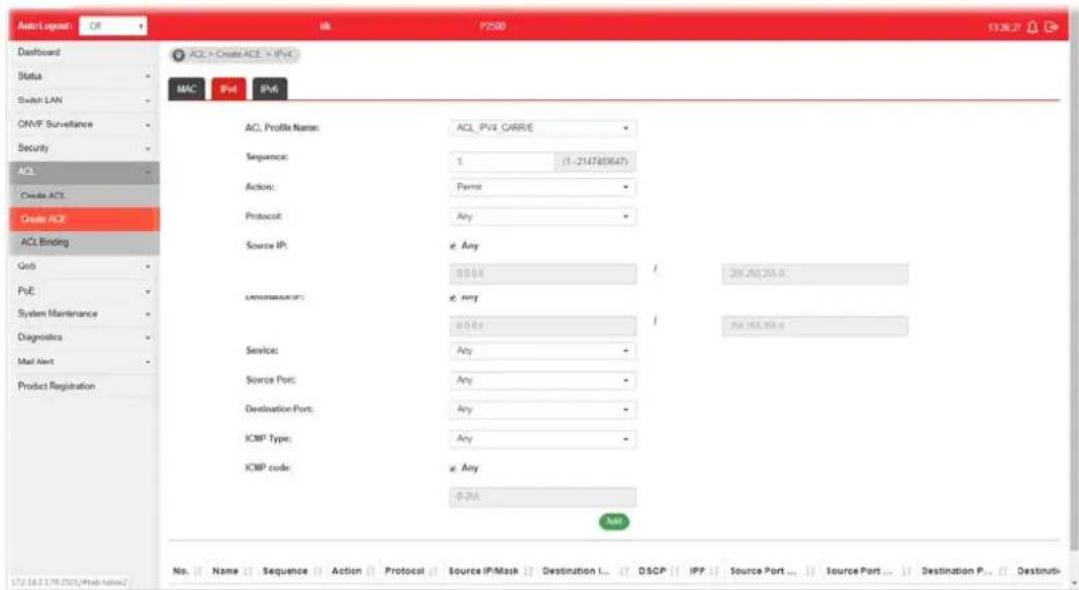

V-2-2 IPv4 150

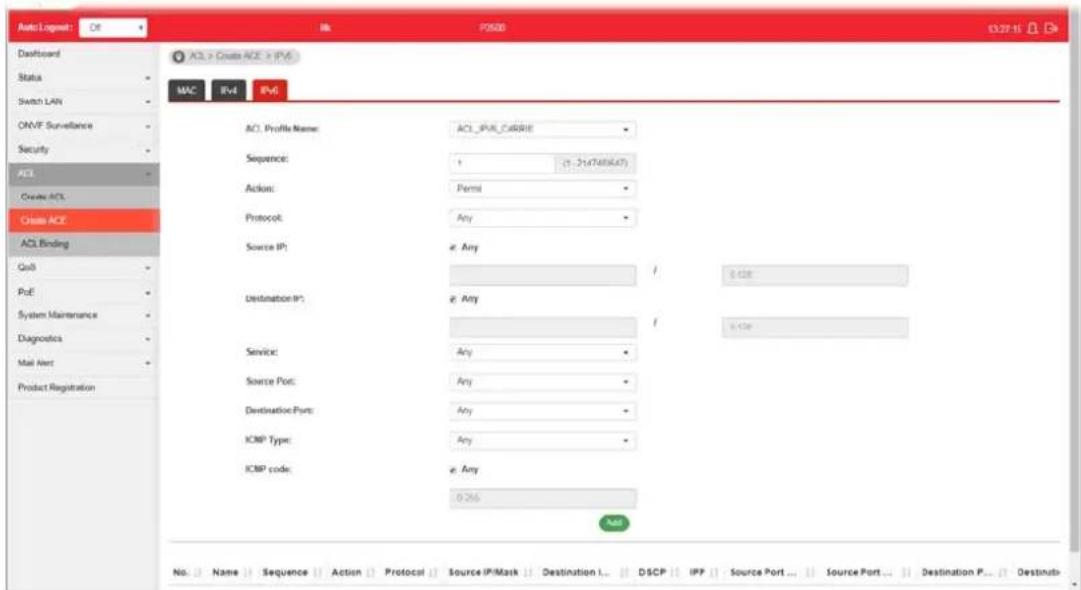

V-2-3 IPv6 152

V-3 ACL Binding 154

Part VI QoS Configuration....155

VI-1 General 156

VI-1-1 Properties.... 156

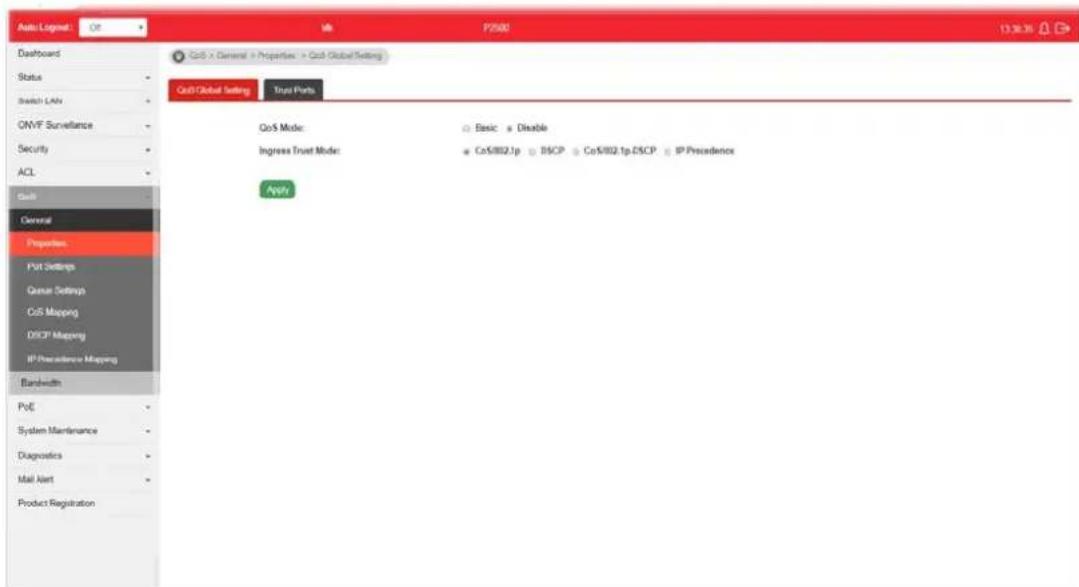

VI-1-1-1 QoS General Setting 156

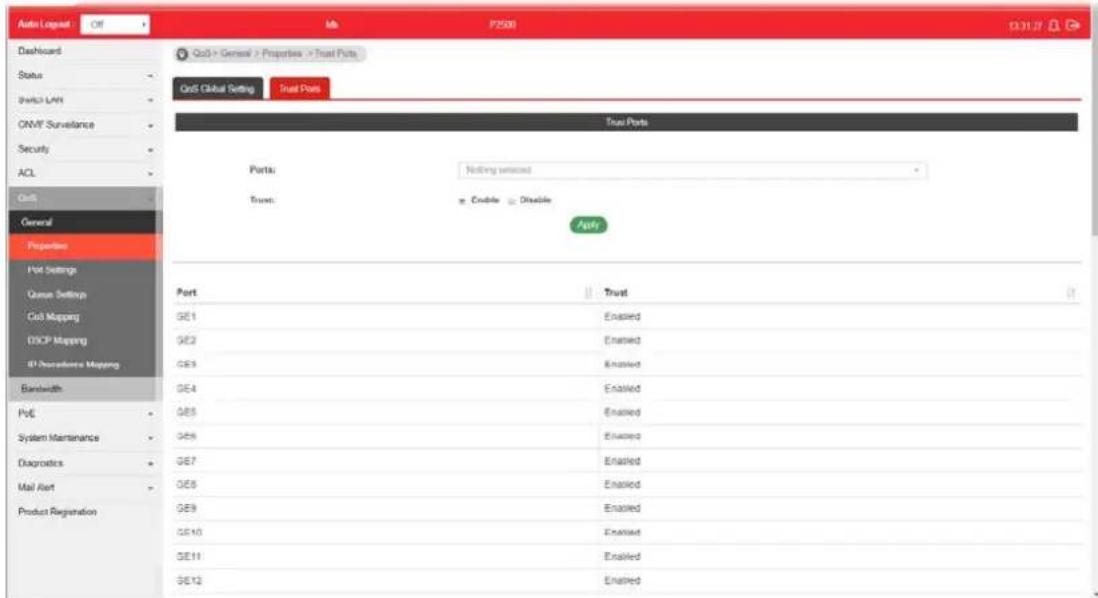

VI-1-1-2 Trust Ports 157

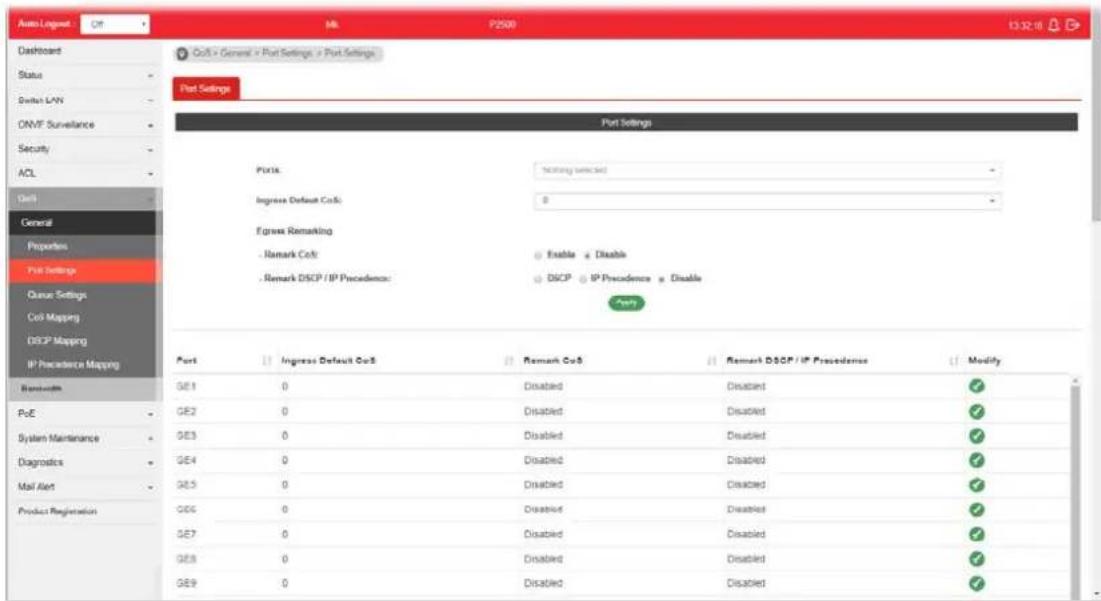

VI-1-2 Port Settings.... 158

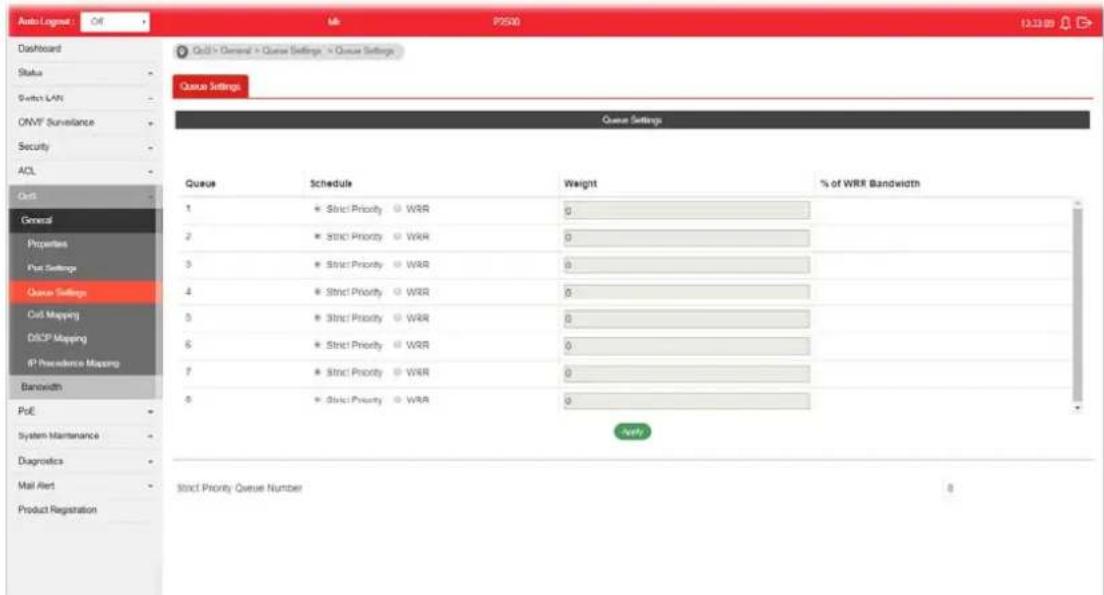

VI-1-3 Queue Settings 159

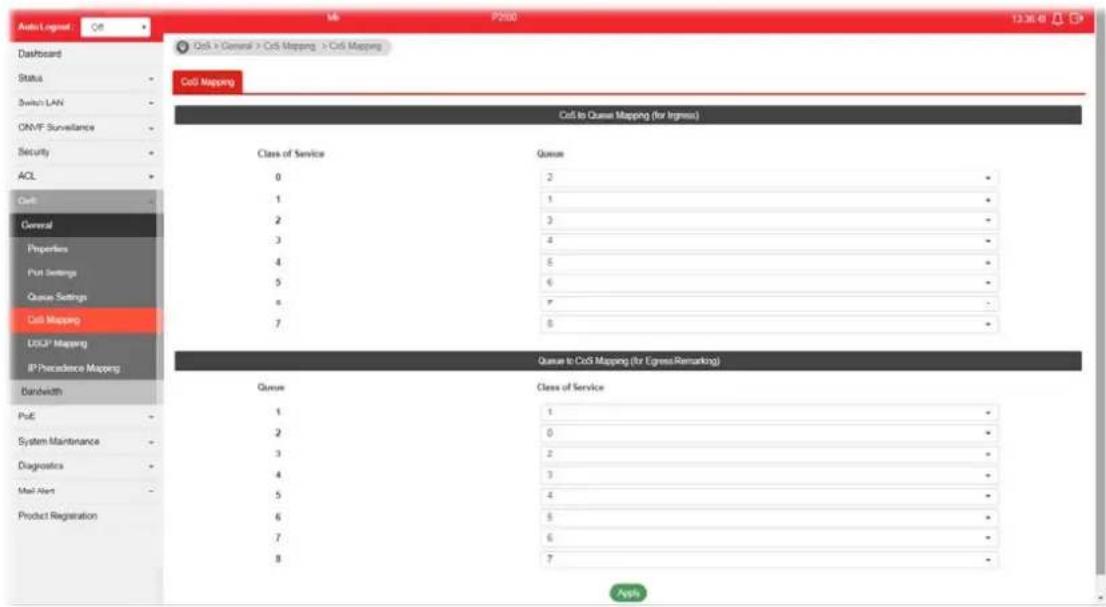

VI-1-4 CoS Mapping 160

VI-2-2 Egress Shaping Rate 164

VI-2-3 Egress Shaping Per Queue 165

Part VII PoE Configuration....167

VII-1 Properties 168

VII-2 Status....169

VII-3 Schedule....170

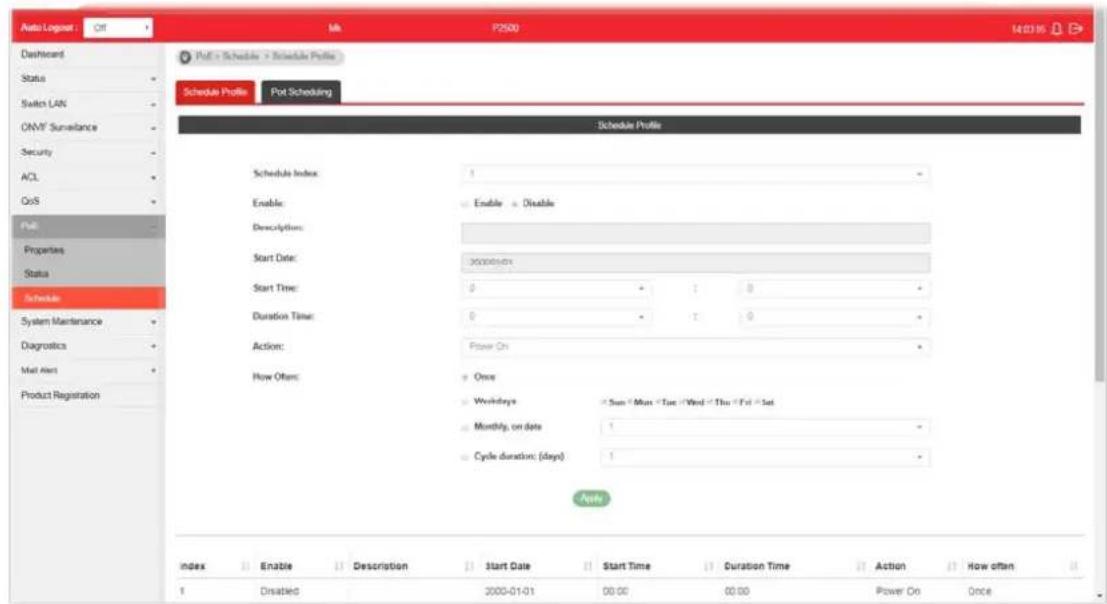

VII-3-1 Schedule Profile 170

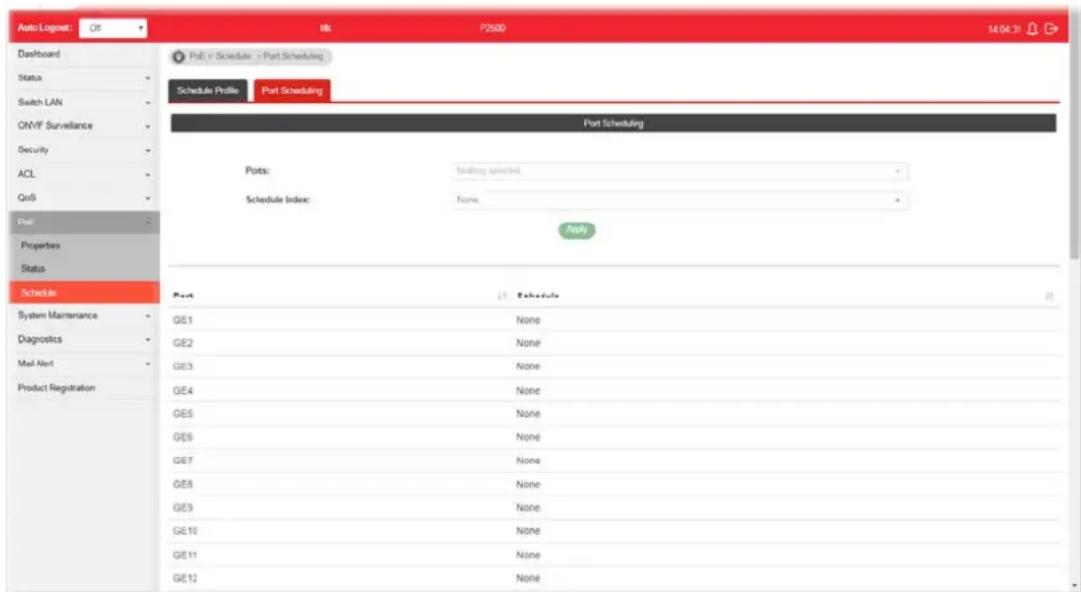

VII-4-2 Port Scheduling.... 171

Part VIII System Maintenance....173

VIII-1 TR-069.... 174

VIII-2 OpenVPN.... 176

VIII-3 Webhook....177

VIII-4 LLDP 178

VIII-4-1 Properties.... 178

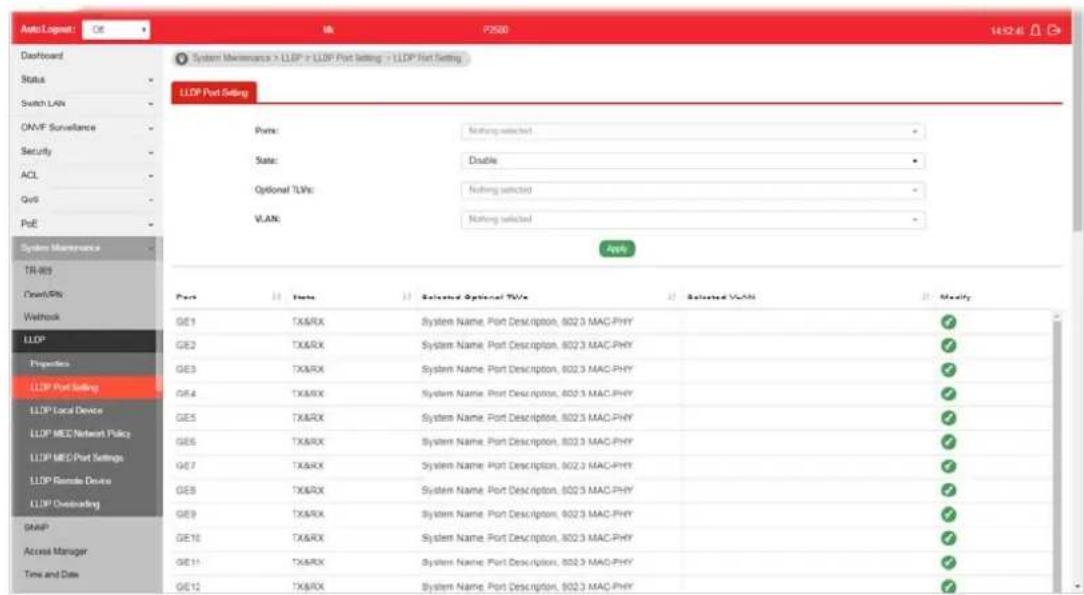

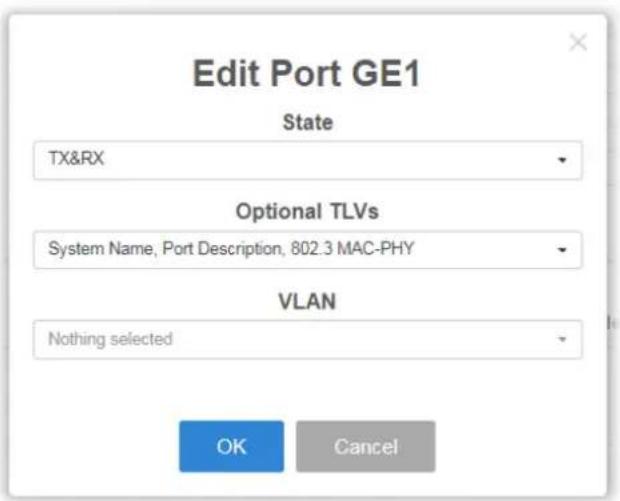

VIII-4-2 LLDP Port Setting 179

VIII-4-3 LLDP Local Device....181

VIII-4-4 MED Network Policy 182

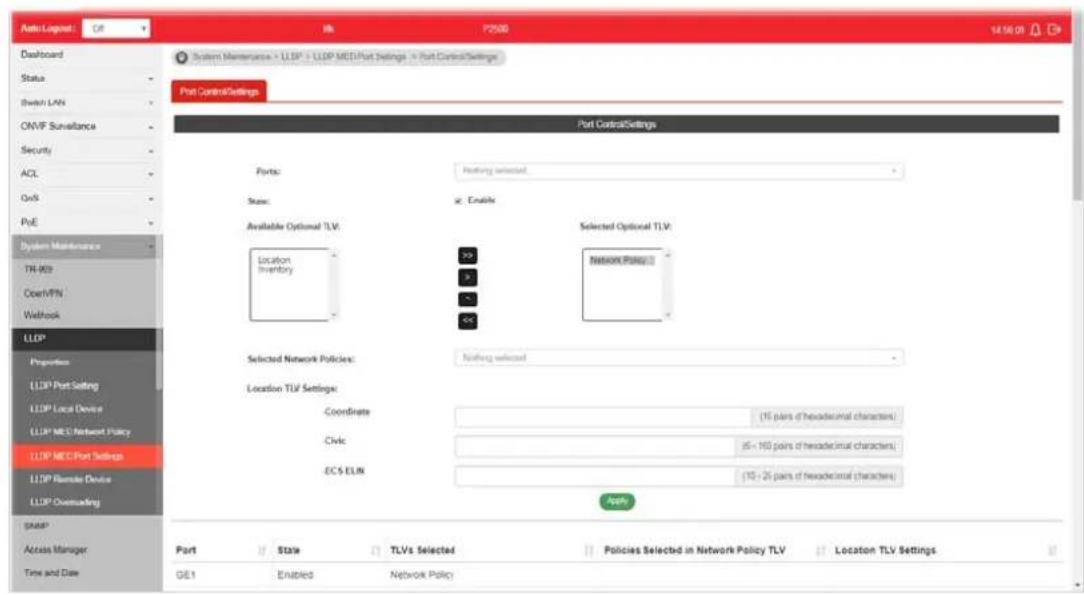

VIII-4-5 LLDP MED Port Settings 183

VIII-4-6 LLDP Remote Device 184

VIII-4-7 LLDP Overloading.... 185

VIII-5 SNMP 186

VIII-5-1 View 187

VIII-5-2 Group 188

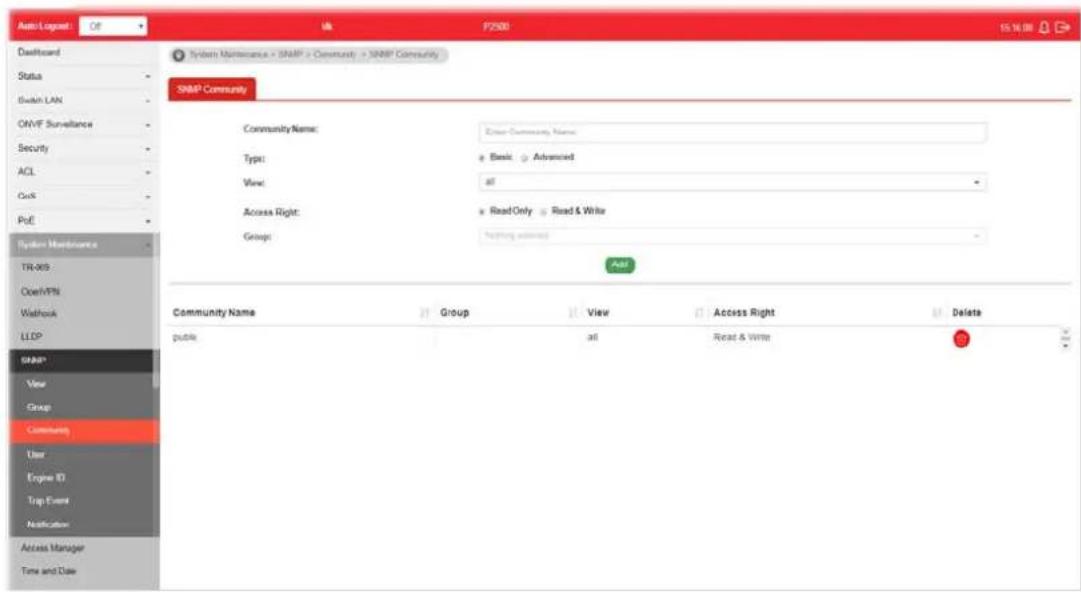

VIII-5-3 Community 190

VIII-5-4 User....191

VIII-5-5 Engine ID 193

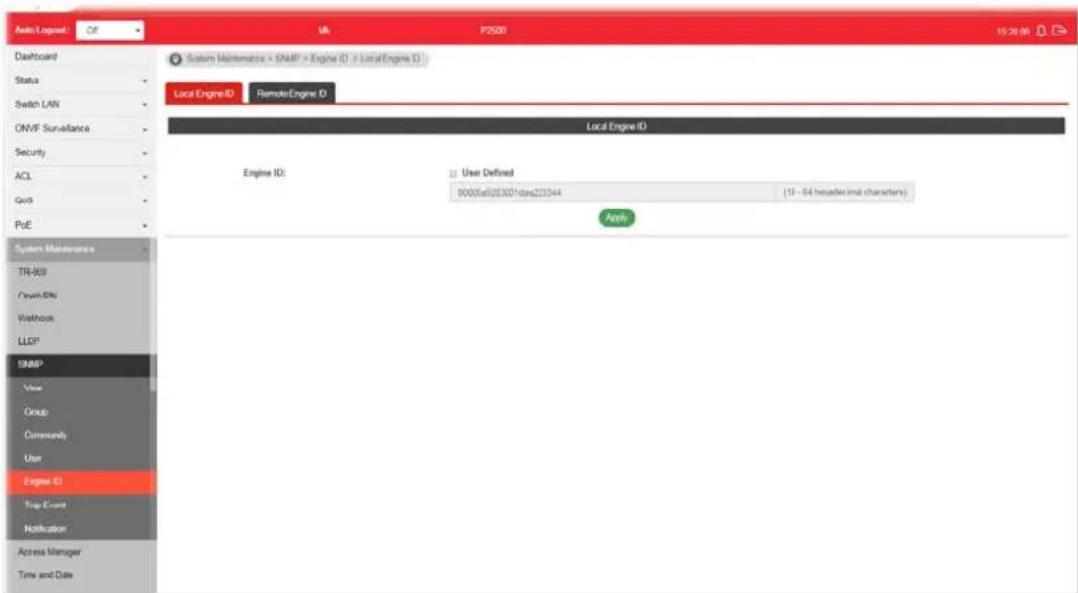

VIII-5-5-1 Local Engine ID 193

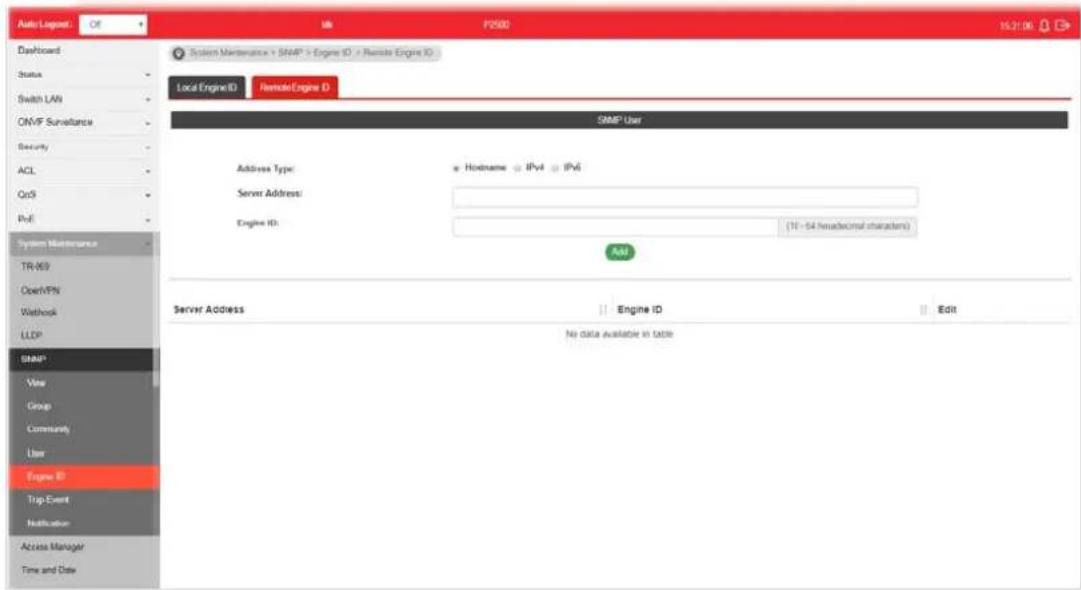

VIII-5-5-2 Remote Engine ID.... 194

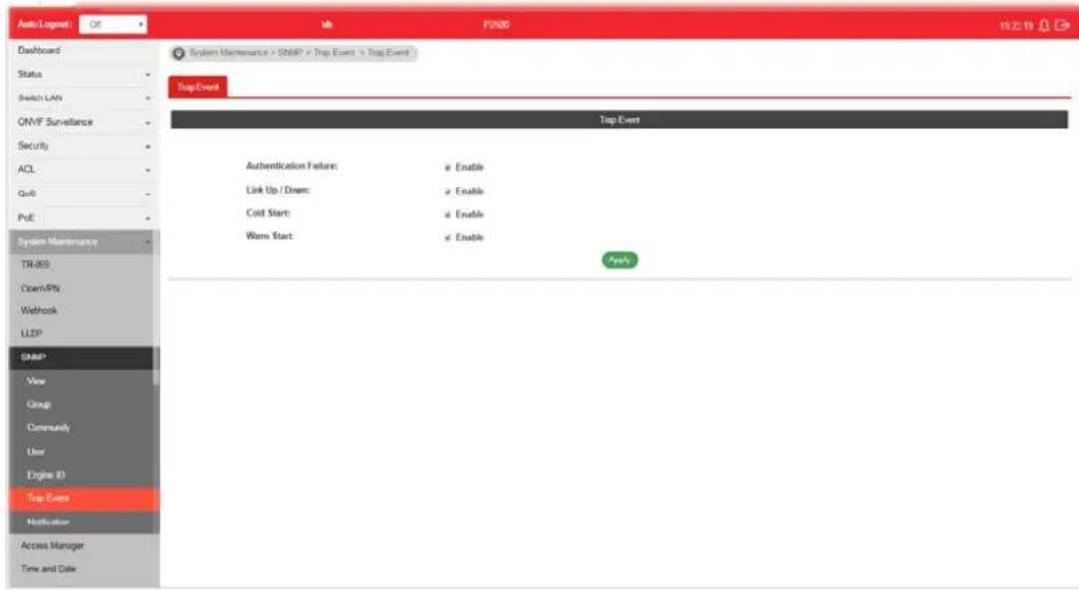

VIII-5-6 Trap Event.... 195

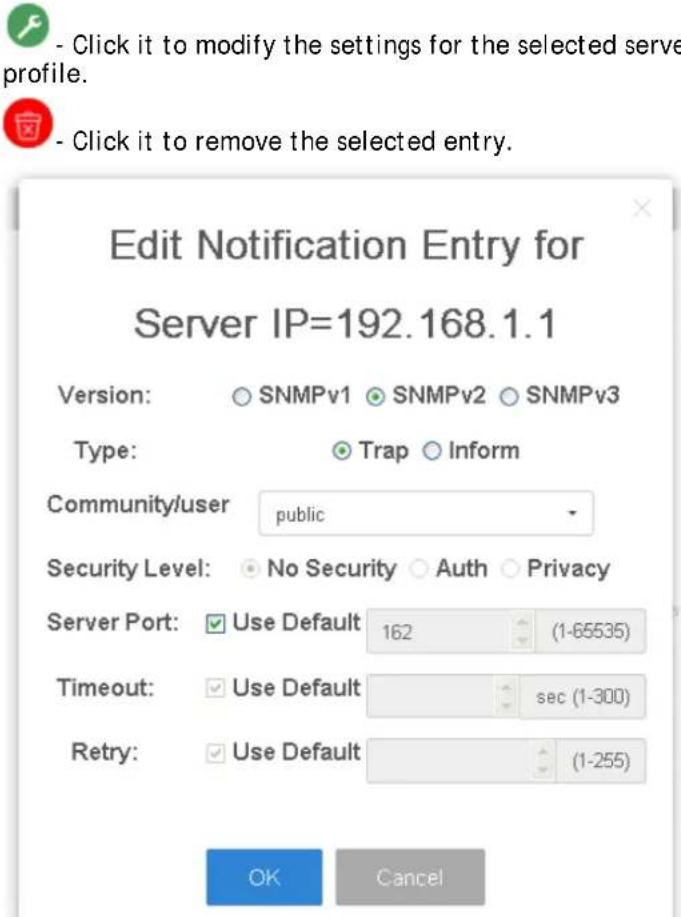

VIII-5-7 Notification 196

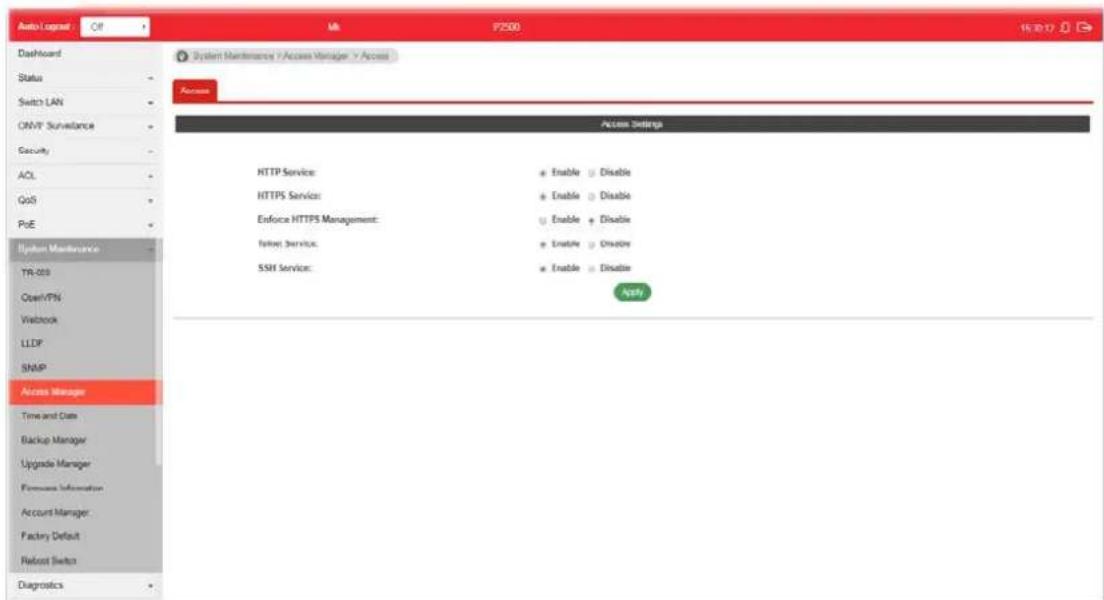

VIII-6 Access Manager 198

VIII-7 Time and Date 199

VIII-7-1 System Time Zone 199

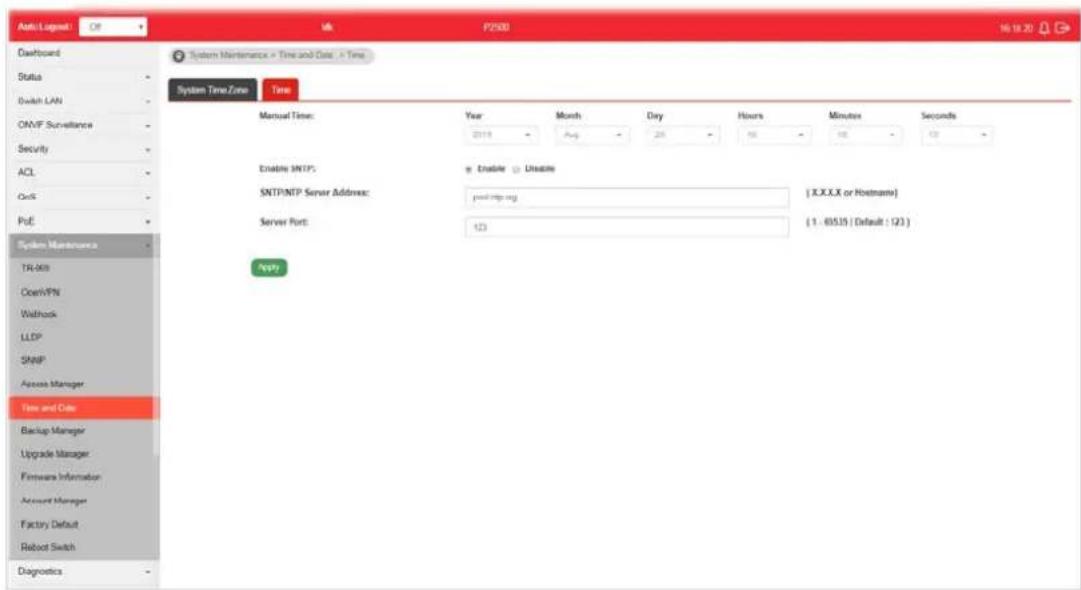

VIII-7-2 Time 200

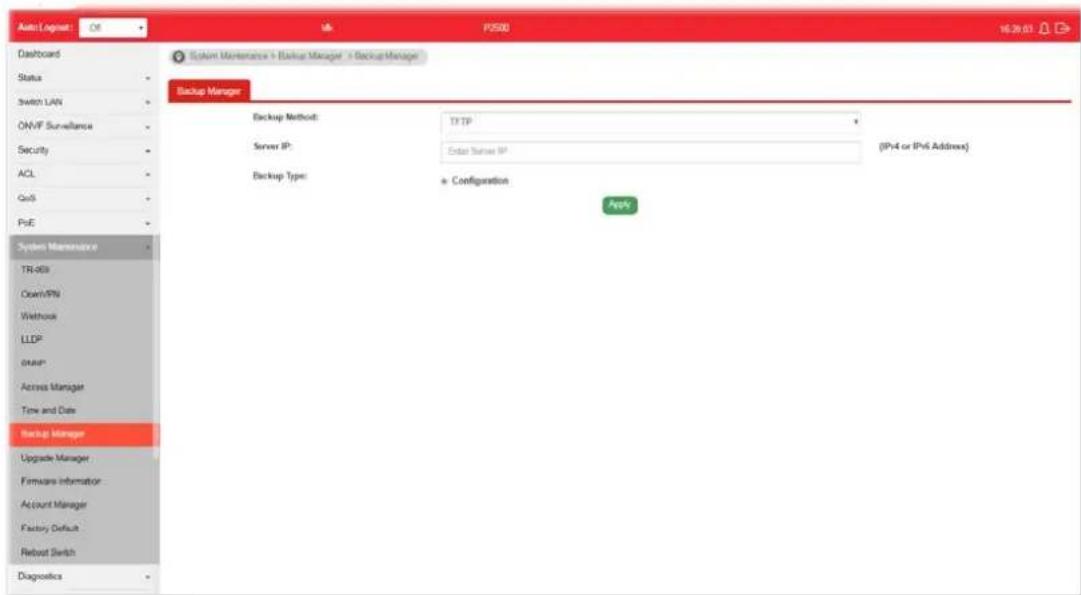

VIII-8 Backup Manager....201

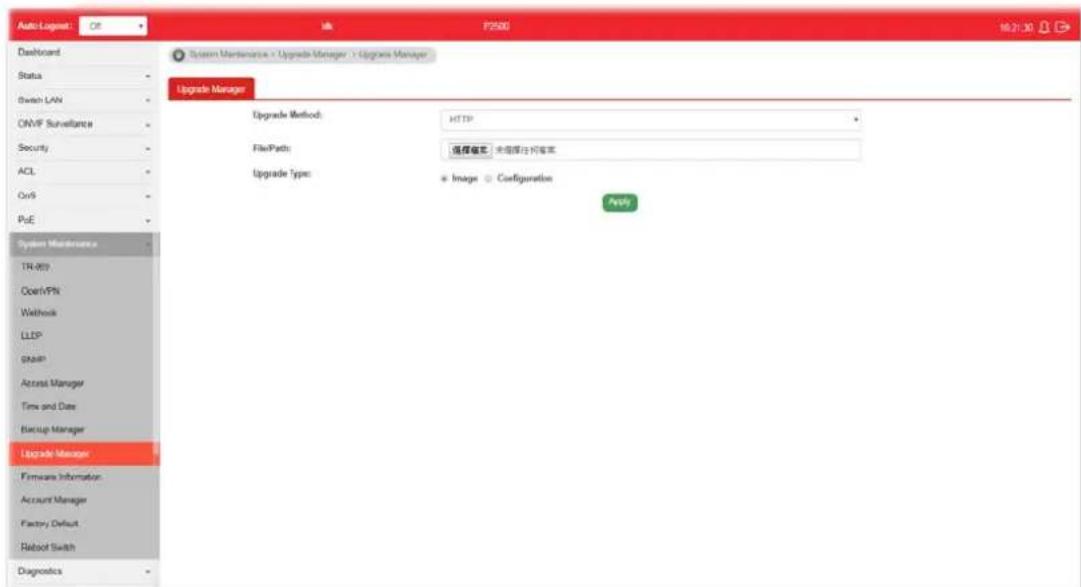

VIII-9 Upgrade Manager....202

VIII-10 Firmware Information.... 203

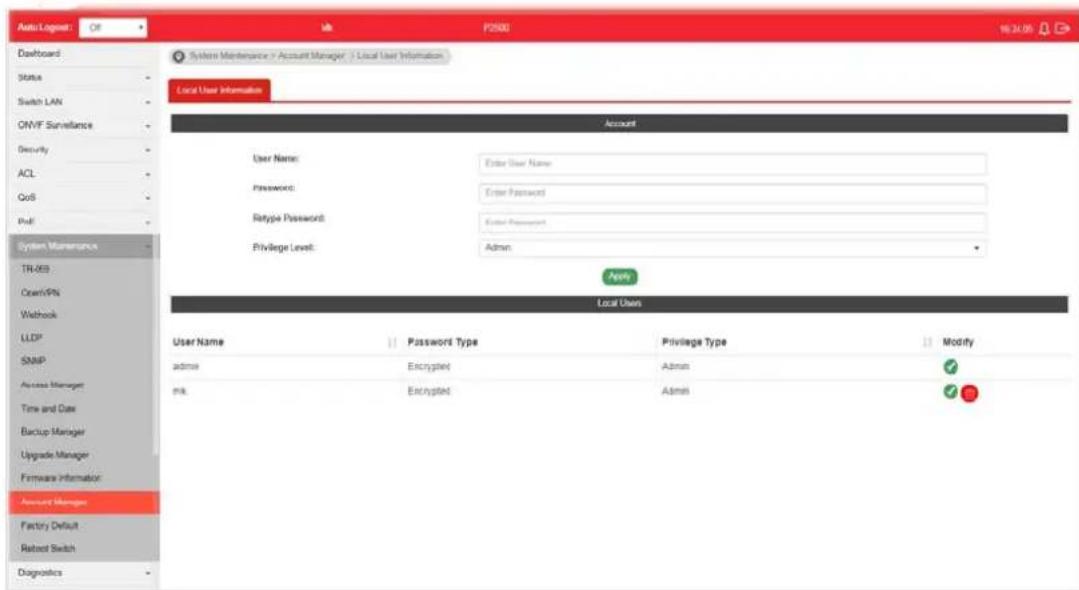

VIII-11 Account Manager....204

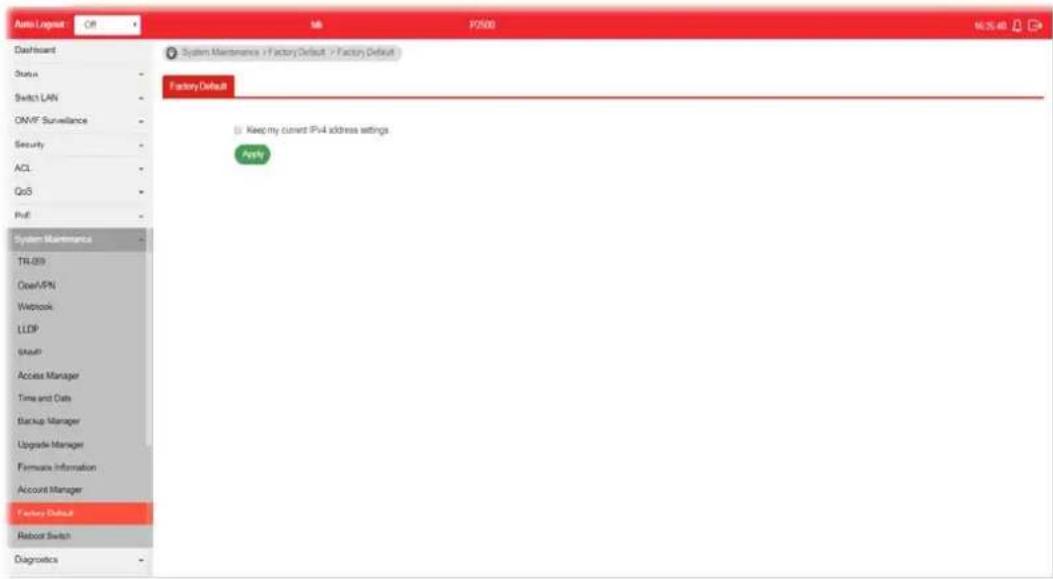

VIII-12 Factory Default 206

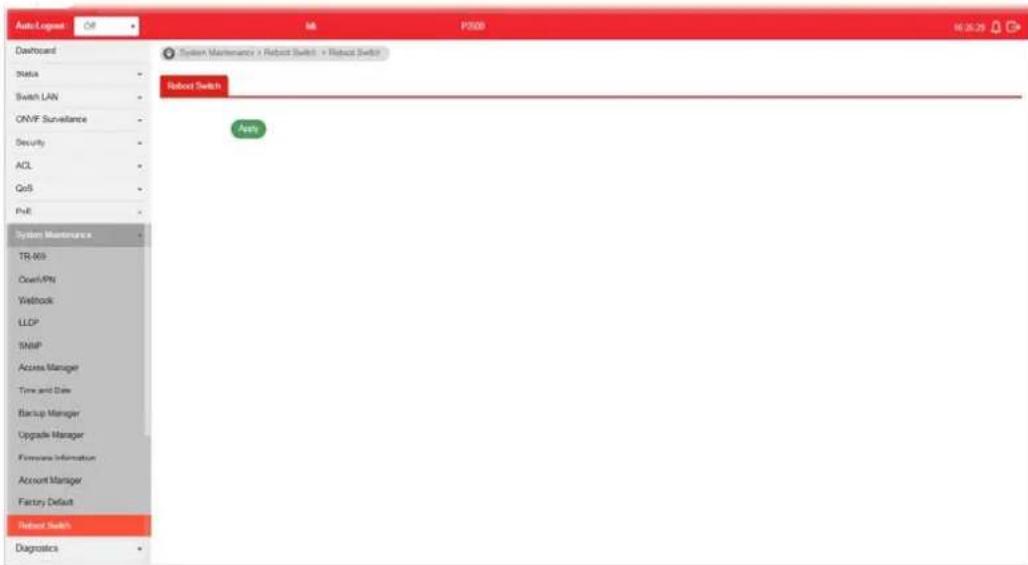

VIII-13 Reboot Switch....207

Part IX Diagnostics....209

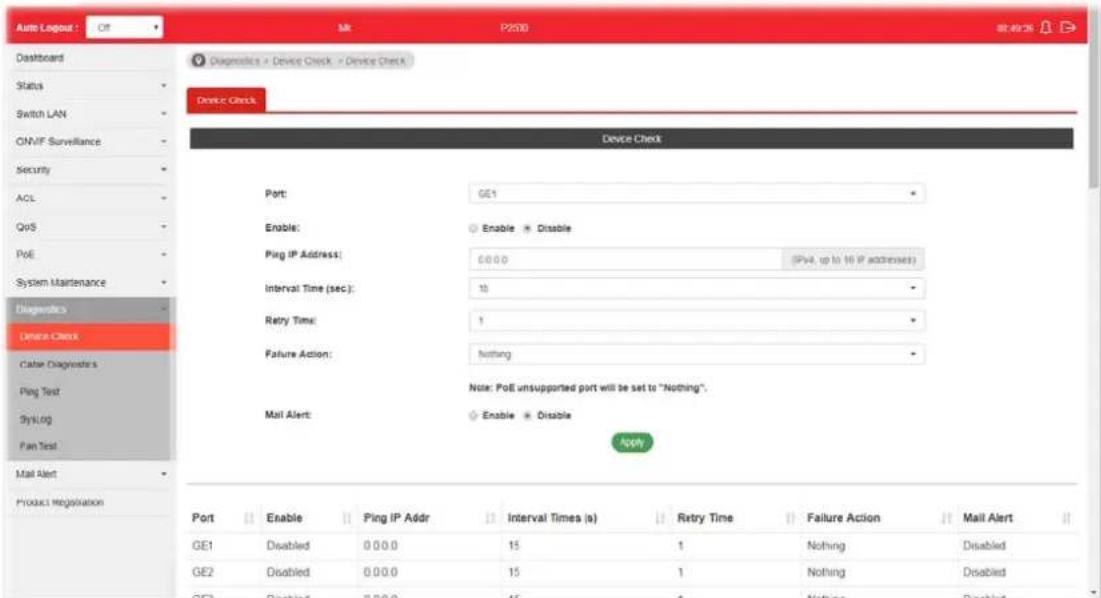

IX-1 Device Check....210

IX-2 Cable Diagnostics....211

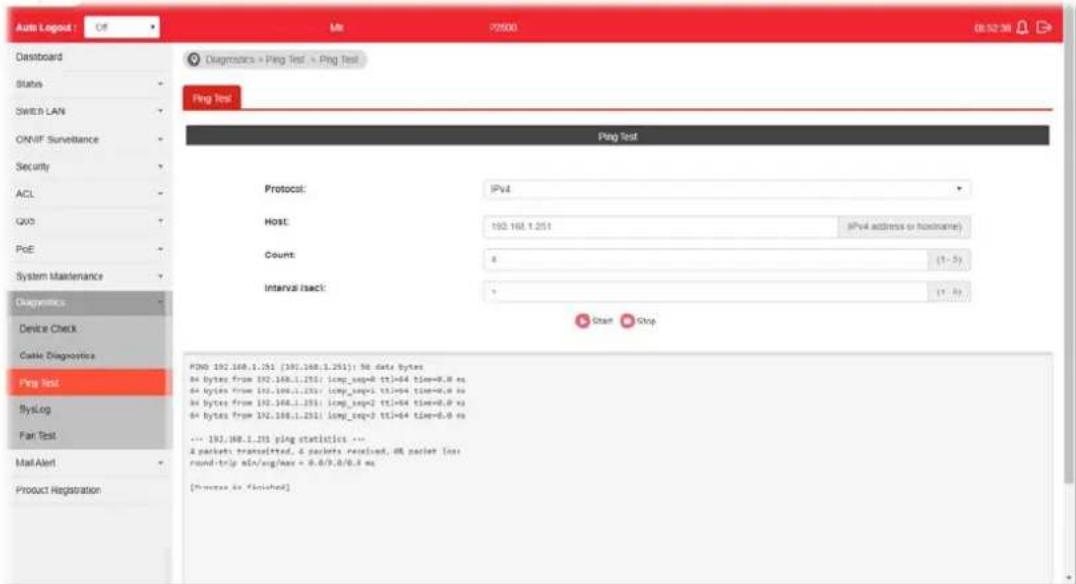

IX-3 Ping Test 212

IX-4 SysLog 213

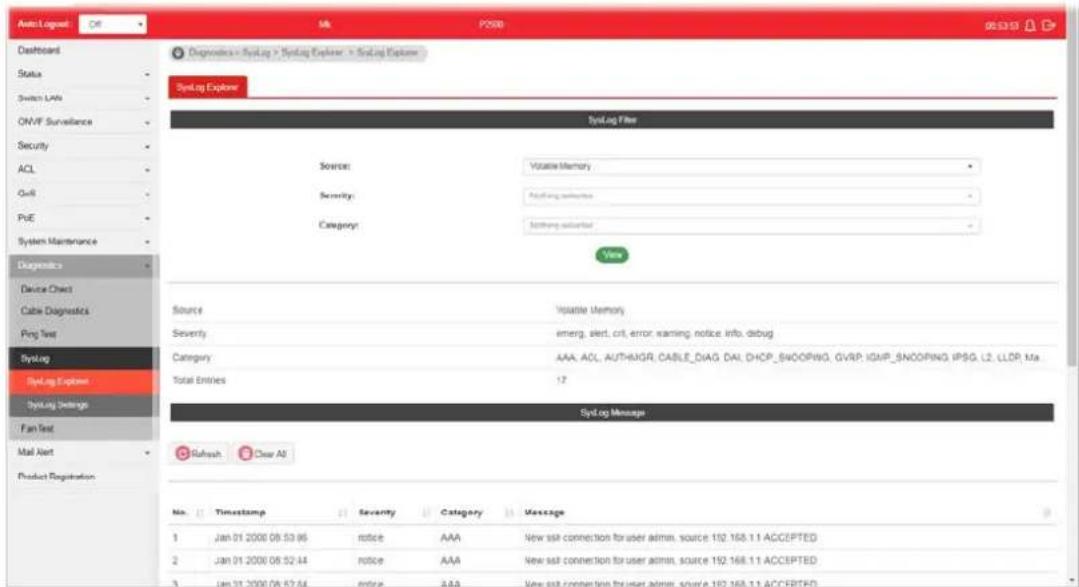

IX-4-1 SysLog Explorer 213

IX-4-2 SysLog Settings 214

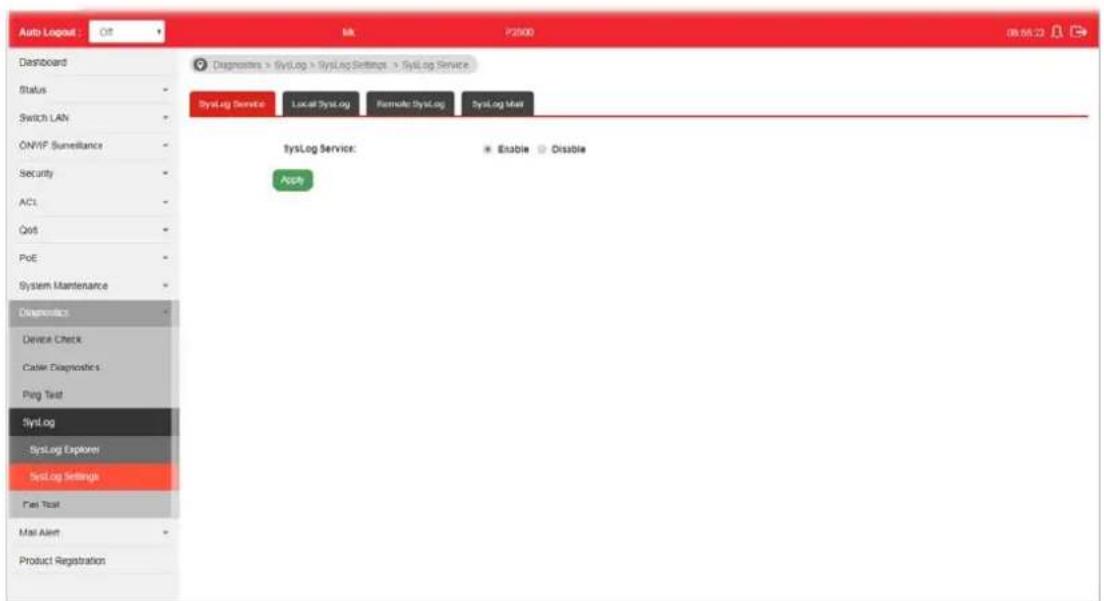

IX-4-2-1 SysLog Service 214

IX-4-2-2 Local SysLog 215

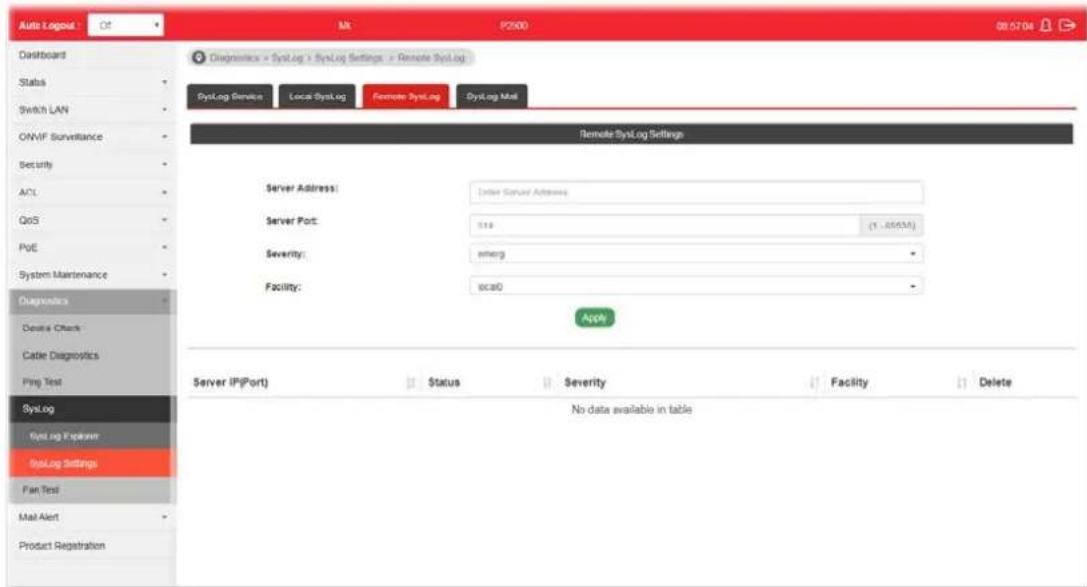

IX-4-2-3 Remote SysLog 216

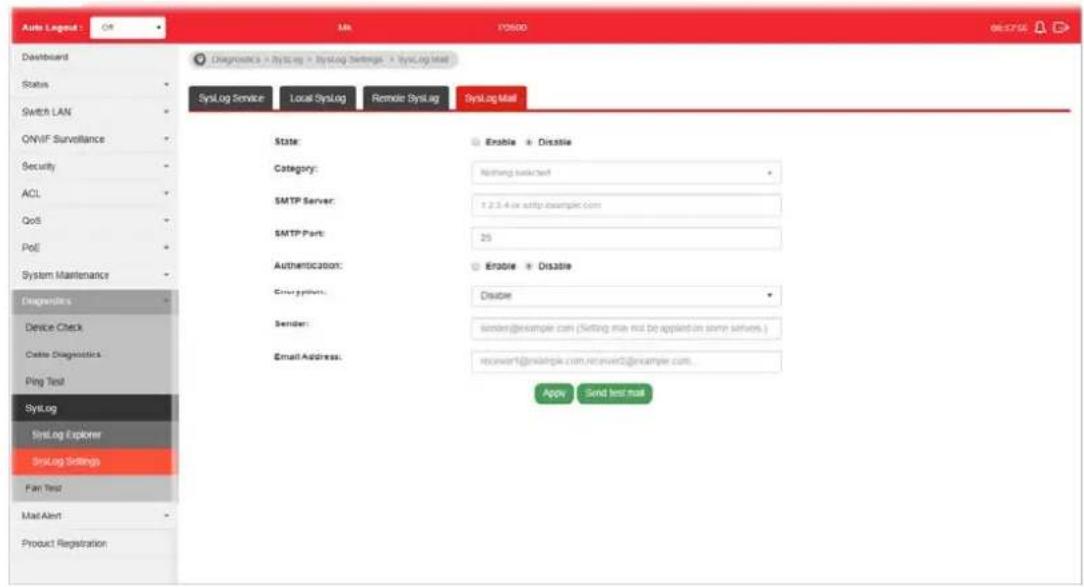

IX-4-2-4 SysLog Mail 217

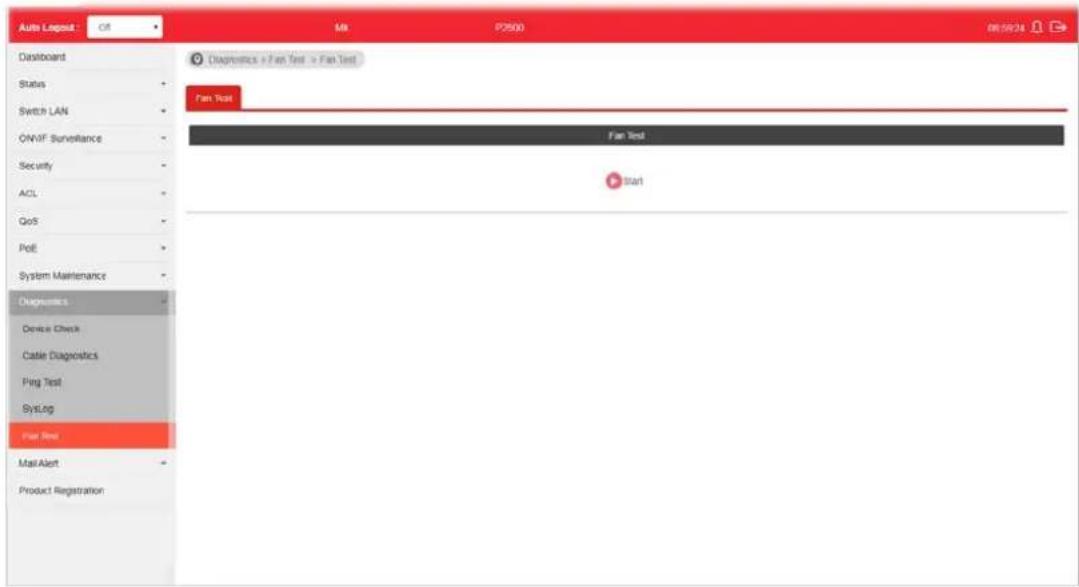

IX-5 Fan Test....219

Part X Mail Alert 221

X-1 Alert Setting 222

Part XI Telnet Commands....225

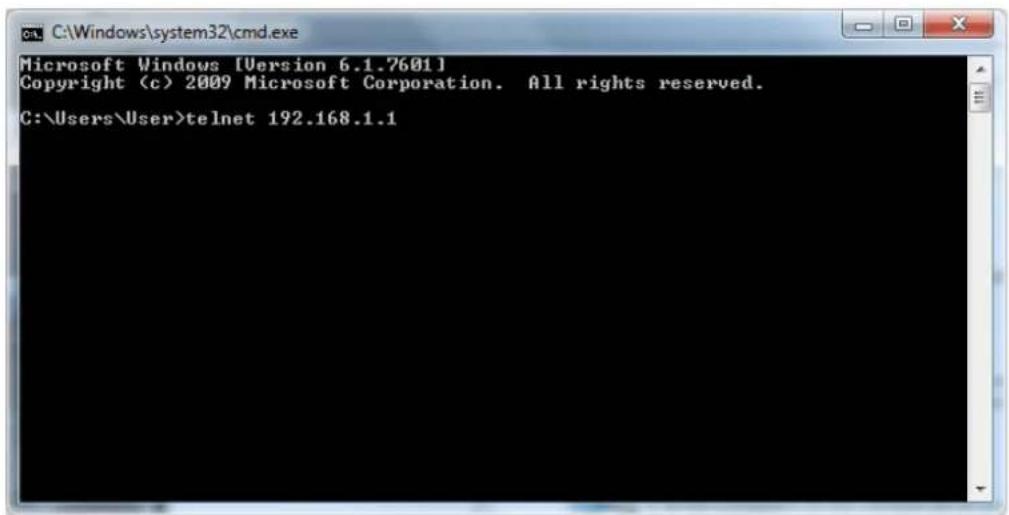

XI-1 Accessing Telnet of VigorSwitch....226

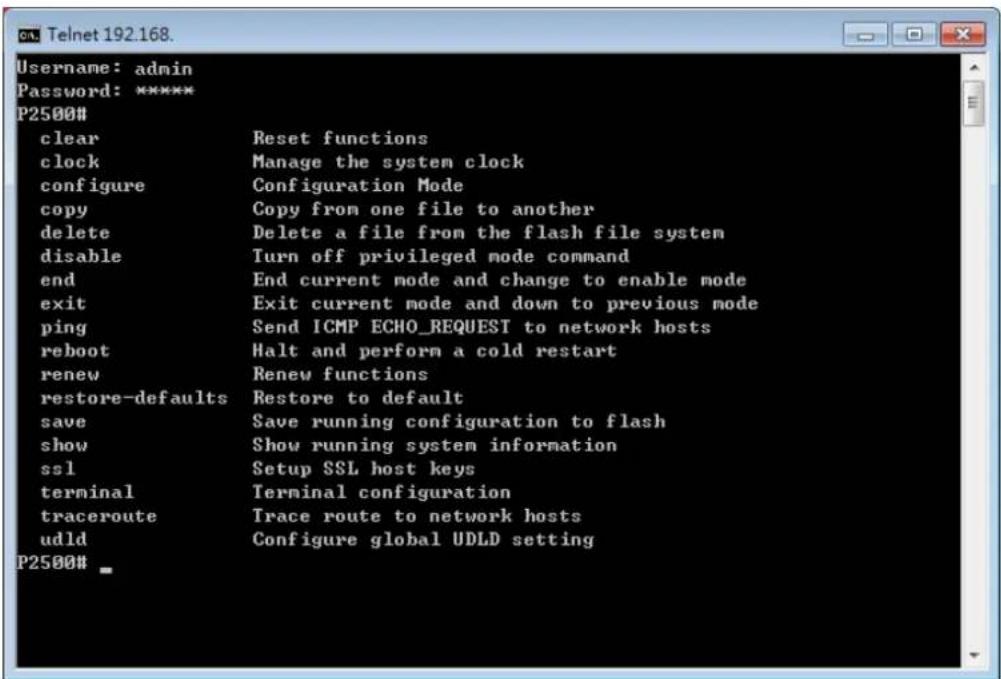

XI-2 Available Commands.... 227

XI-2-1 Clear Configuration 228

XI-2-2 Clock Configuration.... 237

XI-2-3 Configure Configuration 238

XI-2-4 Copy Configuration 323

XI-2-5 Delete Configuration 324

XI-2-6 Disable Configuration.... 325

XI-2-7 End Configuration 325

XI-2-8 Exit Configuration.... 325

XI-2-9 Ping Configuration.... 326

XI-2-10 Reboot Configuration 327

XI-2-11 Renew Configuration.... 327

XI-2-12 Restore-defaults Configuration 327

XI-2-13 Save Configuration.... 328

XI-2-14 Show Configuration.... 328

XI-2-15 SSL Configuration.... 329

XI-2-16 Terminal Configuration.... 329

XI-2-17 Traceroute Configuration 330

XI-2-18 UDLD Configuration.... 330

Appendix: Reference....333

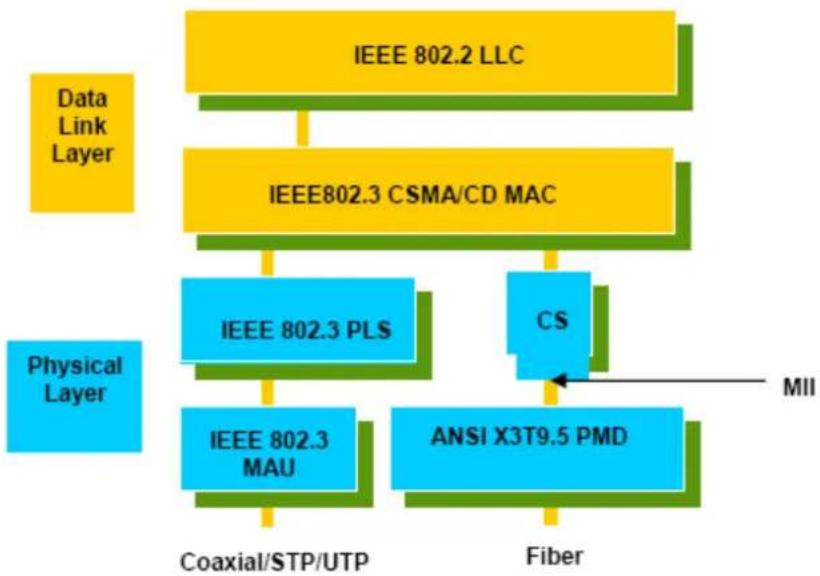

A-1 What's the Ethernet....333

A-2 Media Access Control (MAC) 336

A-3 Flow Control.... 340

Index 343

Part I Introduction

I-1 Introduction

VigorSwitch P2500, PoE L2 Managed Gigabit Switch, is a standard switch that meets all IEEE 802.3/ u/ x/ z Gigabit, Fast Ethernet specifications. The switch has 24 10/ 100/ 1000Mbps TP ports. It supports telnet, http, https, SSH and SNMP interface for switch management. The network administrator can login the switch to monitor, configure and control each port's activity. In addition, the switch implements the QoS (Quality of Service), VLAN, and Trunking. It is suitable for office application.

VigorSwitch supports IEEE 802.3az, Energy-Efficient Ethernet, and provides power saving feature. It can efficiently save the switch power with auto detect the client idle and cable length to provide different power.

1000Mbps SFP Fiber port fully complies with all IEEE 802.3z and 1000Base-SX/LX standards.

I-1-1 Key Features

Below shows key features of this device:

QoS

The switch offers powerful QoS function. This function supports 802.1p VLAN tag priority and DSCP on Layer 3 of network framework.

VLAN

Support Port-based VLAN and IEEE802.1Q Tag VLAN. Support 24 active VLANs and VLAN ID 1\~4094.

Port Trunking

Allows one or more links to be aggregated together to form a Link Aggregation Group by the static setting.

Power Saving

The Power saving using the IEEE 802.3az, Energy-Efficient Ethernet to detect the client idle and cable length automatically and provides the different power. It could efficient to save the switch power and reduce the power consumption.

I-1-2 Specifications

The VigorSwitch P2500, a standalone off-the-shelf switch, provides the comprehensive features listed below for users to perform system network administration and efficiently and securely serve your network.

Hardware

44 10/100/1000Mbps Auto-negotiation Gigabit Ethernet TP ports with PoE+
◆ 4 TP/ SFP Combo Ethernet Ports
◆ 2 SFP Ports
❖ Jumbo frame support 9KB
◆ Programmable classifier for QoS (Layer 2/ Layer 3)
✿ 8K MAC address and support VLAN ID(1\~4094)
- Per-port shaping, policing, and Broadcast Storm Control
Power Saving with IEEE 802.3az, Energy-Efficient Ethernet
Full-duplex flow control (IEEE802.3x) and half-duplex backpressure
◆ Extensive front-panel diagnostic LEDs; Power, System, PoE fail and PoE/ link activity
Hardware reset button for resetting configuration to factory default by pressing over 5 seconds

Management

◆ Supports per port traffic monitoring counters
◆ Supports a snapshot of the system Information when you login
◆ Supports port mirror function
◆ Supports the static trunk function
◆ Supports 802.1Q VLAN
◆ Supports user management and limits three users to login
Maximal packet length can be up to 9600 bytes for jumbo frame application
◆ Supports Broadcasting Suppression to avoid network suspended or crashed
◆ Supports to send the trap event while monitored events happened
✿ Supports default configuration which can be restored to overwrite the current configuration which is working on via Web UI and Reset button of the switch
◆ Supports on-line plug/ unplug SFP modules
✿ Supports Quality of Service (QoS) for real time applications based on the information taken from Layer 2 to Layer 3
Built-in web-based management and CLI management, providing a more convenient UI for the user

I-1-3 Packing List

Before you start installing the switch, verify that the package contains the following:

VigorSwitch P2500
AC Power Cord
◆ Quick Start Guide
Rubber feet
◆ Rack mount kit

Please notify your sales representative immediately if any of the aforementioned items is missing or damaged.

I-1-4 LED Indicators and Connectors

Before you use the Vigor device, please get acquainted with the LED indicators and connectors first. There are 8 Ethernet ports and SFP ports on the front panel of the switch. LED display area, locating on the front panel, contains an ACT, Power LED and ports working status of the switch.

LED Explanation

RJ45 or SFP Combo LNK/ ACT Port 45 to 48 SFP LNK/ ACT Port 49 to 50 DrayT RJ45 LNK/ ACT Port 1 to Port 44 / PoE for Port 1 to Port 44

LED	Color	Explanation
PWR	On (Green) The device is powered on and running normally.
	Off The device is not ready or is failed.
SYS	On (Green)	The switch finishes system booting and the system is ready.
	Blinking (Green)	The switch is powered on and starts system booting.
	Off	The power is off or the system is not ready / malfunctioning.
Alert	Blinking (Green) The power is over (>) 80% watts PoE power budget.
	Off	The power is under (<) 80% watts PoE power budget.
Monitor	On (Red)	An alert for system failure due to overheating or wrong voltage.
	Off	The device is in normal condition and running normally.
Port 1 ~ 44(PoE/ RJ 45)	On (Green) The device is connected with 1000Mbps or supplied with PoE power.
	On (Amber) The device is connected with 10/ 100Mbps.
	Blinking The system is sending or receiving data through the port.
	Off The port is disconnected or the link is failed or No PoE power is supplied.
Port 45 ~ 48(RJ45 or SFP)	On (Green) The device is connected with 1000Mbps.
	On (Amber) The device is connected with 10/ 100Mbps.
	Blinking The system is sending or receiving data through the port.
	Off The port is disconnected or the link is failed.
Port 49 ~ 50(SFP)	On (Green) The device is connected with 1000Mbps.
	On (Amber) The device is connected with 10/ 100Mbps.
	Blinking The system is sending or receiving data through the port.
	Off The port is disconnected or the link is failed.

Connector Explanation

Interface	Description
Port 1 ~ 44 (RJ45)	Port 1 to Port 44 can be used for Ethernet connection and PoE connection, depending on the device connected.
Port 1 ~ 44 (PoE)
Port 45 ~ 48(RJ45 or SFP)	Port 45 to Port 48 are used either for Ethernet or fiber connection.
Port 49 ~ 50 (SFP)	Port 49 to Port 50 are used for fiber connection.
Slide Switch(for P2500 only)	Switch the LED function.Right: PoE connection status.Left: LAN port connection status.
Console	Used to perform telnet command control.
	Power inlet for AC input (100~240V/ AC, 50/ 60Hz).

Note:

Power Output -

• IEEE 802.3af Max. 15.4W Output Supported
• IEEE 802.3at Max. 30W Output Supported

PoE Power Budget--

● 405 Watts (Max)

I-2 Installation

I-2-1 Typical Applications

The VigorSwitch implements 24 Gigabit Ethernet TP ports with auto MDIX and four slots for the removable module supporting comprehensive fiber types of connection, including LC and BiDi-LC SFP modules. The switch is suitable for the following applications:

Case 1: All switch ports are in the same local area network.

Every port can access each other. (*The switch image is sample only.)

If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.

Here VLAN area is defined by what VLAN you are using. The switch supports both port-based VLAN and tag-based VLAN. They are different in practical deployment, especially in physical location. The following diagram shows how it works and what the difference they are.

Case 2: Port-based VLAN -1 (*The switch image is sample only.)

The same VLAN members could not be in different switches.

• Every VLAN members could not access VLAN members each other.
  The switch manager has to assign different names for each VLAN groups at one switch.

Case 3: Port-based VLAN - 2
✿ VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members.
✿ VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.
✿ VLAN3 members could not access VLAN1, VLAN2 and VLAN4.
✿ VLAN4 members could not access VLAN1 and VLAN3 members, but they could access VLAN2 members.

Case 4: The same VLAN members can be at different switches with the same VID

Case 5: Desktop Installation

1. Install the switch on a level surface that can support the weight of the unit and the relevant components.
2. Plug the switch with the female end of the provided power cord and plug the male end to the power outlet.

Case 6: Rack-mount Installation

The switch may be standalone, or mounted in a rack. Rack mounting facilitate to an orderly installation when you are going to install series of networking devices.

Procedures to Rack-mount the switch:

1. Disconnect all the cables from the switch before continuing.
2. Place the unit the right way up on a hard, flat surface with the front facing you.
3. Locate a mounting bracket over the mounting holes on one side of the unit.
4. Insert the screws and fully tighten with a suitable screwdriver.
5. Repeat the two previous steps for the other side of the unit.
6. Insert the unit into the rack and secure with suitable screws.
7. Reconnect all the cables.

Case 7: Central Site/Remote site application is used in carrier or ISP

Case 8: Peer-to-peer application is used in two remote offices

Case 9: Office network
I-2-2 Installing Network Cables

Crossover or straight-through cable: All the ports on the switch support Auto-MDI/ MDI-X functionality. Both straight-through or crossover cables can be used as the media to connect the switch with PCs as well as other devices like switches, hubs or router.

Category 3, 4, 5 or 5e, 6 UTP/STP cable: To make a valid connection and obtain the optimal performance, an appropriate cable that corresponds to different transmitting/receiving speed is required. To choose a suitable cable, please refer to the following table.

Media	Speed	Wiring
10/100/1000 Mbps copper	10 Mbps Category 3,4,5 UTP/ STP
	100Mbps Category 5 UTP/ STP
	1000 Mbps Category 5e, 6 UTP/ STP

I-2-3 Configuring the Management Agent of Switch

Users can monitor and configure the switch through the following procedures.

Configuring the Management Agent of VigorSwitch P2500 through the Ethernet Port.

There are several ways to configure and monitor the switch through Ethernet port, includes Web-UI and SNMP.

VigorSwitch, for example:

IP Address: 192.168.1.224

Subnet Mask: 255.255.255.0

Default Gateway: 192.168.1.254

DrayTek system.com Assign a reasonable IP address, for example: IP Address: 192.168.1.100 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.254 Ethernet LAN

I-2-4 Managing VigorSwitch P2500 through Ethernet Port

Before start using the switch, the IP address setting of the switch should be done, then perform the following steps:

1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector.

Note: If PC directly connects to the switch, you have to setup the same subnet mask between them. But, subnet mask may be different for the PC in the remote site. Please refer to the above figure about the Web Smart Switch default IP address information.

1. After configuring correct IP address on your PC, open your web browser and access switch's IP address.

Default system account is "admin", with password "admin" in default. Switch IP address is "192.168.1.224" by default with DHCP client enabled.

I-2-5 IP Address Assignment

For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS.

IP address:

The address of the network device in the network is used for internetworking communication. Its address structure looks is shown below. It is “classful” because it is split into predefined address classes or categories.

Each class has its own network range between the network identifier and host identifier in the 32 bits address. Each IP address comprises two parts: network identifier (address) and host identifier (address). The former indicates the network where the addressed host resides, and the latter indicates the individual host in the network which the address of host refers to. And the host identifier must be unique in the same LAN. Here the term of IP address we used is version 4, known as IPv4.

Network identifier Host identifier 32 bits

With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/ X, for example, 192.168.1.0/ 24. Each class has its address range described below.

Class A:

Address is less than 126.255.255.255. There are a total of 126 networks can be defined because the address 0.0.0.0 is reserved for default route and 127.0.0.0/8 is reserved for loopback function.

Bit # 0 1 7 8 31 0 Network address Host address

Class B:

IP address range between 128.0.0.0 and 191.255.255.255. Each class B network has a 16-bit network prefix followed 16-bit host address. There are 16,384 (2^14)/ 16 networks able to be defined with a maximum of 65534 (2^16 -2) hosts per network.

Bit # 01 2 15 16 31 10 Network address Host address

Class C:

IP address range between 192.0.0.0 and 223.255.255.255. Each class C network has a 24-bit network prefix followed 8-bit host address. There are 2,097,152 (2^21)/24 networks able to be defined with a maximum of 254 (2^8 -2) hosts per network.

Bit # 0 1 2 3 23 24 31 110 Network address Host address

Class D and E:

Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.

According to IANA (Internet Assigned Numbers Authority), there are three specific IP address blocks reserved and able to be used for extending internal network. We call it Private IP address and list below:

Class A 10.0.0.0 ---	10.255.255.255
Class B 172.16.0.0 ---	172.31.255.255
Class C 192.168.0.0 ---	192.168.255.255

Please refer to RFC 1597 and RFC 1466 for more information.

Subnet mask:

It means the sub-division of a class-based network or a CIDR block. The subnet is used to determine how to split an IP address to the network prefix and the host address in bitwise basis. It is designed to utilize IP address more efficiently and ease to manage IP network.

For a class B network, 128.1.2.3, it may have a subnet mask 255.255.0.0 in default, in which the first two bytes is with all 1s. This means more than 60 thousands of nodes in flat IP address will be at the same network. It's too large to manage practically. Now if we divide it into smaller network by extending network prefix from 16 bits to, say 24 bits, that's using its third byte to subnet this class B network. Now it has a subnet mask 255.255.255.0, in which each bit of the first three bytes is 1. It's now clear that the first two bytes is used to identify the class B network, the third byte is used to identify the subnet within this class B network and, of course, the last byte is the host number.

Not all IP address is available in the sub-netted network. Two special addresses are reserved. They are the addresses with all zero's and all one's host number. For example, an IP address 128.1.2.128, what IP address reserved will be looked like? All 0s mean the network itself, and all 1s mean IP broadcast.

128.1.2.128/25

Network Subnet 10000000.00000001.00000010.1 0000000 25 bits All 0s = 128.1.2.128 All 1s = 128.1.2.255 1 0000000 1 1111111

In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask. With this, you can easily count the number of IP addresses matched. The following table shows the result.

Prefix Length No. of IP matched No. of Addressable IP

/32	1		-
/31	2		-
/30	4		2
/29	8		6
/28	16		14
/27	32		30
/26	64		62
/25	128		126
/24	256		254
/23	512		510
/22	1024	1022
/21	2048	2046
/20	4096	4094
/19	8192	8190
/18	16384	16382
/17	32768	32766
/16	65536	65534

According to the scheme above, a subnet mask 255.255.255.0 will partition a network with the class C. It means there will have a maximum of 254 effective nodes existed in this sub-netted network and is considered a physical network in an autonomous network. So it owns a network IP address which may looks like 168.1.2.0.

With the subnet mask, a bigger network can be cut into small pieces of network. If we want to have more than two independent networks in a worknet, a partition to the network must be performed. In this case, subnet mask must be applied.

For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network.

For assigning an IP address to the switch, you just have to check what the IP address of the network will be connected with the switch. Use the same network address and append your host address to it.

First, IP Address: as shown above, enter "192.168.1.224", for instance. For sure, an IP address such as 192.168.1.x must be set on your PC.
Second, Subnet Mask: as shown above, enter "255.255.255.0". Choose a subnet mask suitable for your network.

Note: The DHCP Setting is enabled in default. Therefore, if a DHCP server presented on network connected to the switch, check before accessing your switch is essential.

I-3 Accessing Web Page of VigorSwitch

1. Open any browser (e.g., Firefox) and type "192.168.1.224" as URL.
2. Please type "admin/admin" as the Username/Password and click Login.

DrayTek VigorSwitch P2500 Login User admin Password ***** Login

1. Now, the Main Screen will appear.

DrayTek Auto: Logout: 3 min VigorSwitch P2500 12:58:43 Dashboard Dashboard Status Switch LAN ONVIP Surveillance Security ACL Oct9 Pvt6 System Maintenance Diagnostics Mail Alert Product Registration Dray Tek Vigor Switch P2500 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 33 34 36 38 40 42 44 46 48 50 1 3 5 7 8 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 (E) (F) (G) (H) (I) (J) (K) Devate Information Model Vigorisch P2500 Firmware 2.4.3 Loader 1.0.3 Revision 1383 Build Date .2019-05-08 10:17:20 System Time Sat Jan 1:12:58:32 2000 System Up Time C days 4:58:32 System Information CPU 10% Usage Memory 56% Memory Cache 26% Cached PoE 0.0% Usage Poll Consuming Temperature Voltage 100% 80% 60% 40% 20% 0% Q D Q D Q D Q D 10%

Info

The DHCP Setting is enabled in default. Therefore, if a DHCP server presented on network connected to VigorSwitch, checking before accessing VigorSwitch is essential.

1-4 Dashboard

Click Dashboard from the main menu on the left side of the main page.

Auto Logout : 3 min Dashboard Status Switch LAN ONVIF Surveillance Security

A web page with default selections will be displayed on the screen. Refer to the following figure:

Dashboard Refresh PoE | PoE error | Group | IP error | Locked | Disabled DrayTek Vigor Switch P208 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 38 41 43 45 47 45 47 49 10/10m 100m

Device Information
Model	VigorSwitch P2500
Firmware	2.4.3
Loader	1.0.3
Revision	1383
Build Date	2019-05-08 10:17:20
System Time	Mon Aug 26 10:15:29 2019
System Up Time	0 days 0.7:54

I-5 Status

I-5-1 Port Bandwidth Utilization

This page offers the traffic statistics including data information and data of interframe gap for each port (GE1 to GE28). In which, data of interframe gap can be displayed or hidden by choose Enable / Disable for IFG.

Auto Logod : CF MS P0300 181726 Dashboard Status > Port Bandwidth Utilization > Port Bandwidth Utilization Port Bandwidth Utilization Auto Refresh: 1 Dec IPQ: Enable Tx Rx

I-5-2 LLDP Statistics

This page offers the statistics of LLDP packets (in, out and error) of each port (GE1 to GE28).

Auto Legend Desktop Status Port Bandwidth Utilization LLDP Statistics GIVIP Statistics MLD Scoping Stablers Hardware Monitor Switch LAN ONVP Surveillance Security ACL QoS PoE System Maintenance Diagnostics Mail Alert Product Registration Status > LLDP Statistics > LLDP Statistics LLDP Statistics LLDP Global Statistics Refresh Clear All Insertions 1 Deletions 0 Dnns 0 Age Outs 0 LLDP Port Statistics Port TX Frames RX Frames RX Frames RX TLVs RX TLVs RX Ageouts Total Total Total Total Discarded Errors Discarded Unrecognized Total GE1 0 0 0 0 0 0 0 GE2 0 0 0 0 0 0 0 GE3 0 0 0 0 0 0 0 GE4 0 0 0 0 0 0 0 GE5 22 22 0 0 0 0 0 GE6 0 0 0 0 0 0 0

I-5-3 GVRP Statistics

GVRP (Generic Attribute Registration Protocol) is used automatically for exchanging information for VLAN membership between switches. This page counts the GVRP information received on each port.

Auto Logrol : Off MS P2500 10:19:00 Dashboard Status Port Bandwidth Utilization LLDP Statistics VGRP Statistics MLD Snooping Statistics Hardware Monitor Switch LAN ONVP Surveillance Security ACL GoB PoE System Maintenance Diagnostics Mail Alert Product Registration Button x GVRP Statistics > Statistics Statistics Port: Nothing watched Statistics: Transmit. Receive Error Refresh Rate: 10 sec Tx Statistics Port Join empty Empty Leave Empty Join In Leave In Leave All No data available in table Rx Statistics Port Join empty Empty Leave Empty Join In Leave In Leave All No data available in table Error Statistics Port Invalid Protocol ID Invalid Attribute Type Invalid Attribute Value Invalid Attribute Length Invalid Event No data available in table

I-5-4 MLD Snooping Statistics

This page counts the MLD messages received or transmitted on the network.

Auto Logout : Off Desktop Status Port Bandwidth Utilization LLDP Statistics GVAP Statistics MLD Shopping Statistics Hardware Monitor Switch LAN ONVIF Surveillance Security ACL QoS PoE System Maintenance Diagnostics Mail Alert Product Registration Rx Total Rx Valid Rx Invalid Rx Other Rx Leave Rx Report Rx General Query Rx Special Group Query Rx Source specific Group Query Tx Statistics Tx Leave Tx Report Tx General Query Tx Special Group Query 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

I-5-5 Hardware Monitor

This page displays the temperature change and voltage of VigorSwitch.

Auto Logon : Off ML P2500 10:20:57 Dashboard Status Port Bandwidth Utilization LLDP Statistics GVRP Statistics MLD Snooping Statistics Hardware Monitor Switch LAN ON/IF Surveillance Security ACL QoS PoE System Maintenance Diagnostics Mail Alert Product Registration Status > Hardware Monitor > Hardware Monitor Hardware Monitor Temperature 100°C 80°C 60°C 40°C 20°C 0°C Voltage 1kV 12V 10V

This page is left blank.

Part II Switch LAN

II-1 General Setup

General setup is used to configure settings for the switch network interface and offers how the switch connects to a remote server to get services.

II-1-1 IP Address

Use the IP Address screen to configure the switch IP address and the default gateway device. The gateway field specifies the IP address of the gateway (next hop) for outgoing traffic.

The switch needs an IP address for it to be managed over the network. The factory default IP address is 192.168.1.224. The subnet mask specifies the network number portion of an IP address. The factory default subnet mask is 255.255.255.0.

Info

If VigorSwitch has connected to Vigor router, it will use the IP address obtained from the DHCP server on Vigor router. Thus, the user must type the assigned IP as URL for accessing into the web user interface of VigorSwitch. If not, 192.168.1.224 shall be the default IP.

Auto Logout : Off Switch LAN > General Setup > IP Address > IP Address IP Address Mode: Static ONGP IP Address: 192 168.1.251 Subnet Mask: 345.256.356.0 Gateway: 192 168.1.1 DNS Server 1: 192 168.1.1 IPv8 Server 0: 5 5 5 5 AppR Dashboard ONVIF Surveillance Security ACL

Available settings are explained as follows:

Item	Description
Mode Select the mode of network connection.● Static- Use static IPv4 address.● DHCP - Use DHCP provisioned IP address and Gateway if feasible.
IP Address	It is available when Static is selected as Mode.Enter the IP address of your switch in dotted decimal notation for example 192.168.1.224. If static mode is enabled, enter IP address in this field.
Subnet Mask	It is available when Static is selected as Mode.Enter the IP subnet mask of your switch in dotted decimalnotation for example 255.255.255.0. If static mode is enabled, enter subnet mask in this field.
Gateway	It is available when Static is selected as Mode.Enter the IP address of the gateway in dotted decimal notation. If static mode is enabled, enter gateway address in this field.
DNS Server 1	It is available when Static is selected as Mode.If static mode is enabled, enter primary DNS server address in this field.
DNS Server 2	It is available when Static is selected as Mode.If static mode is enabled, enter secondary DNS server address in this field.
Apply Apply the settings to the switch.

II-1-2 IPv6 Address

Use the IPv6 Address screen to configure the switch IPv6 address and the default gateway device. The gateway field specifies the IPv6 address of the gateway (next hop) for outgoing traffic.

Auto Logical : C6 M8 P2500 10:31:39 Dashboard Status Switch LAN General Setup IP ADDRESS IPv6 Address Management VLAN Port Setting Mirror Link Aggregation VLAN Management EEE Multicast Jumbo Frame STP MAC Address Table Blocked Port Recover ON/IT Surveillance Security ACL Switch LAN > Generic Setup > IPv6 Address > IPv6 Address IPv6 Address Auto Configuration: * Enable * Disable IPv6 Address: / Link Local Address: info-314 self-hcc-3144 / 8 Gateway: DHCPd Client * Enable * Disable Apply

Available settings are explained as follows:

Item	Description
Auto Configuration Enable	- Check it to let switch automatically configure IPv6 address.
IPv6 Address	It is available when Auto Configuration is set as Disable.Enter the IPv6 address of your switch. If auto configuration mode is disabled, enter IPv6 address in this field.
Link Local Address Display	link local address.
Gateway	It is available when Auto Configuration is set as Disable.Enter the IPv6 address of the router as your default IPv6 gateway to access IPv6 Internet or other IPv6 network.
DNS Server 1	It is available when Auto Configuration is set as Disable.If static mode is enabled, enter primary DNS server address in this field.
DNS Server 2	It is available when Auto Configuration is set as Disable.If static mode is enabled, enter secondary DNS server address in this field.
DHCPv6 Client	It is available when Auto Configuration is set as Enable.Enable this feature if there is a DHCPv6 server on your network for assigning IPv6 Address, instead of using Router Advertisement.
Apply Apply the settings to the switch.

II-1-3 Management VLAN

This page allows the network administrator to change the VLAN ID of management access. Management access protocols such as http, https, SNMP and etc., are only accessible from the VLAN specified as management VLAN.

Auto Logout : Off Switch LAN Dashboard Status Switch LAN General Setup IP Address IP6 Address Management VLAN Port Setting Minor Link Aggregation VLAN Management EEE Multicast Jumper Frame STP MAC Address Table Blocked Port Recover ONAM Surveillance - Security - ACL - Switch LAN > Generic Setup > Management VLAN > Management VLAN Setting Management VLAN Setting Management VLAN: Apply default(1) default(1) test000(2) test000(3) test000(4) test000(5) test000(6) test000(7) test000(8) test000(9) test001(10) test001(11) test001(12) test001(13) test001(14) test001(15) test001(16) test001(17) test001(18) test001(19) test002(20)

Available settings are explained as follows:

Item	Description
Management VLAN	Select the VLAN ID as management VLAN. You can create additional VLAN profiles bySwitch LAN>>VLANmanagement>> Create VLAN.
Apply Apply the settings to the switch.

II-2 Port Setting

II-2-1 General Setting

Port Setting is used to configure settings for the switch ports, trunk, Layer 2 protocols and other switch features.

Auto Logged Dashboard Status Switch LAN General Setup Port Setting General Setting Protected/Parts Mirror Link Aggregation VLAN Management EEE Multicast Jumbo Frame STP MAC Address Table Blocked Port Recover ONVF Surveillance Security ACL QoS Switch LAN > Port Setting > General Setting > Port Setting Port Setting Ports: Nothing selected Enable State: Enable Disable Speed: Auto Duplex: Auto Flow Control: Enable Disable * ports Port Description Enable State Link Status Speed Duplex FlowCtrl Config FlowCtrl Status Modify GE1 Enabled Down Auto Auto Enabled Disabled ✓ GE2 Enabled Down Auto Auto Enabled Disabled ✓ GE3 Enabled Down Auto Auto Enabled Disabled ✓ GE4 Enabled Down Auto Auto Enabled Disabled ✓ GE5 Enabled Up Auto(100MM) Auto(Full) Enabled Enabled ✓ GE6 Enabled Down Auto Auto Enabled Disabled ✓ GE7 Enabled Down Auto Auto Enabled Disabled ✓ GE8 Enabled Down Auto Auto Enabled Disabled ✓

Available settings are explained as follows:

Item	Description
Ports Use the drop down I	st to select one or more LAN port(s).
Enable State Enable -Click	it to enable the port.Disable - Click it to disable the port.
Speed Port speed capabilities	Auto: Auto speed with all capabilities.Auto-10M: Auto speed with 10M ability only.Auto-100M: Auto speed with 100M ability only.Auto-1000M: Auto speed with 1000M ability only.Auto-10/100M: Auto speed with 10/ 100M ability.10M: Force speed with 10M ability.100M: Force speed with 100M ability.1000M: Force speed with 1000M ability.Selecting Auto (auto-negotiation) allows one port to negotiate with a peer port automatically to obtain the connection speed and duplex mode that both ends support. When auto-negotiation is turned on, a port on the switch negotiates with the peer automatically to determine the connection speed and duplex mode. If the peer port does not support auto-negotiation or turns off this feature, the switch determines the connection speed by detecting the signal on the cable and using half duplex mode. When the switch's auto-negotiation is turned off, a port uses the pre-configured speed and duplex mode when making a connection, thusrequiring you to make sure that the settings of the peer port are the same in order to connect.For SFP fiber module, you might need to manually configure the speed to match fiber module speed.
Duplex Port duplex capabilities:Auto: Auto duplex with all capabilities.Half: Auto speed with 10/100M ability only.Full: Auto speed with 10/100/1000M ability only.
Flow Control A concentration of traffic on a port decreases port bandwidth and overflows buffer memory causing packet discards and frame losses. Flow Control is used to regulate transmission of signals to match the bandwidth of the receiving port. The switch uses IEEE802.3x flow control in full duplex mode and backpressure flow control in half duplex mode. IEEE802.3x flow control is used in full duplex mode to send a pause signal to the sending port, causing it to temporarily stop sending signals when the receiving port memory buffers fill. Back Pressure flow control is typically used in half duplex mode to send a "collision" signal to the sending port (mimicking a state of packet collision) causing the sending port to temporarily stop sending signals and resend later.Enable - Click it to enable such function.Disable - Click it to disable such function.
Apply Apply the settings to the switch.
Modify It is used to manually enter the description, state, speed, duplex, flow control for the port.

II-2-2 Protected Ports

This page allows the network administrator to configure protected port setting to prevent the selected ports from communication with each other. Protected port is only allowed to communicate with unprotected port.

For example, GE1 and GE3 are selected in Port List and Enable is clicked as Protected, then users behind GE1 and GE3 are separated and can not communicate with each other.

Auto Loglog Dashboard Status SWELL LAN General Setup Port Setting General Setting Protected Ports Minor Link Aggregation VLAN Management EEE Multicast Jumbo Frame SFP MAC Address Table Blocked Port Recover ONVIF Surveillance Security ACL QoB Switch LAN × Port Setting × Protected Ports × Protected Ports Protected Ports Protected Ports Settings Port List Notching selected Protected Enable Disable Apply Protected Ports Status Port Protected GE1 Enabled GE2 Disabled GE3 Disabled GE4 Disabled GE5 Disabled GE6 Disabled GE7 Disabled GE8 Disabled GE9 Disabled

Available settings are explained as follows:

Item	Description
Protected Ports Settings	● Port List - Use the drop down list to select the port(s) (GE1 to GE28) for applying the settings configured in this page.● Protected - Click Enable to activate the protected port function.● Apply - The modification made above can be applied on to the selected GE port immediately.
Protected Port Status Display current status for each GE port.

II-3 Mirror

This section provides ability to mirror packets coming in or going out on any port to a destination port. Through the packet duplication in the destination port, this feature is convenient for system administrator to monitor / understand the traffic operation.

Session ID 1 to 4 can be enabled simultaneously and operate independently.

Auto Logout : Off Mk: P0500 10:36:55 Switch LAN > Idener > Meter Switch LAN General Setup Port Setting Memory Link Aggregation VLAN Management EEE Multicast Jumbo Frame STP MAC Address Table Divided Port Recover Session ID : 1 Monitor Session State : Disable Destination Port : Gl I Allow Operation as Normal Port : Disable Sniff Ports(RX) : Nothing selected Sniff Ports(TX) : Nothing selected Apply Session ID Destination Port Allow ingress Sniff Ports(RX) Sniff Ports(TX) 1 N/A N/A N/A N/A 2 N/A N/A N/A N/A 3 N/A N/A N/A N/A 4 N/A N/A N/A N/A ONIF Surveillance Security ACL QQS PoE System Maintenance

Available settings are explained as follows:

Item	Description
Session ID Select the session ID (profile 1 to 4) of mirror operation you wish to configure.
Monitor Session State	● Enable - Enable specified mirror session. ● Disable - Disable specified mirror session.
Destination Port Specify the port where you wish to observe the mirrored packets.
Allow Operation as Normal Port	● Enable - The destination port is able to function as a port connecting to network, communicating with other network devices. ● Disable - Only observe the mirrored packets.
Sniff Ports (RX) / (TX)	Select the port(s) which you wish to mirror the traffic, Rx for mirror the packets into the port, Tx for mirror the packets going out from the port.
Apply Apply the settings to the switch.

II-4 Link Aggregation

LAG means Link Aggregation Group which groups some physical ports together to make a single high-bandwidth data path. Thus it can implement traffic load sharing among the member ports in a group to enhance the connection reliability.

II-4-1 LAG Setting

This page allows to configure Load Balance Algorithm for Link Aggregation.

Auto Layout: OF Switch LAN General Setup Port Setting Menu Link Aggregation LAG Setting LAG Management LAG Port Setting LACP Setting LACP Port Setting VLAN Management EET: Multicast Jumbo Frames STP MAC Address Table Blocked Port Ret/over ONMF Surveillance Switch LAN > Link Aggregation > LAG Setting > LAG Setting LAG Setting Local Balance Algorithm: IP MAC Address AIDS

Available settings are explained as follows:

Item	Description
Load Balance Algorithm	Select your Load balance algorithm.MAC address- Aggregated group will balance the traffic based on different MAC addresses. Therefore, the packets from different MAC addresses will be sent to different links.IP/Mac Address- Aggregated group will balance the traffic based on MAC addresses and IP addresses. Therefore, the packets from same MAC addresses but different IP addresses will be sent to different links.
Apply Apply the settings to the switch.

II-4-2 LAG Management

There are eight LAG profiles allowed to group different physical ports (GE1 to GE28). The system will assign certain port(s) as Active Member and Standby Member according to the GE selections.

Auto Logged Dashboard Status Switch LAN General Setup Port Setting After Link Aggregation LAG Setting LAG Management LAG Port Setting LACP Setting LACP Port Setting VLAN Management EEE Multicast Jumbo Frame STP MAC Address Table Booked Port Recover ONVF Surveillance LAG Management LAG Description Port Type Link Status Active Member Standby Member Modify LAG1 --- Not Present ✓ LAG2 --- Not Present ✓ LAG3 --- Not Present ✓ LAG4 --- Not Present ✓ LAG5 --- Not Present ✓ LAG6 --- Not Present ✓ LAG7 --- Not Present ✓ LAG8 --- Not Present ✓ LAG9 --- Not Present ✓ LAG10 --- Not Present ✓ LAG11 --- Not Present ✓ LAG12 --- Not Present ✓ LAG13 --- Not Present ✓ LAG14 --- Not Present ✓ LAG15 --- Not Present ✓ LAG16 --- Not Present ✓

Available settings are explained as follows:

Item	Description
Description Display the port description.
Port Type Display the type of the LAG.
Link Status Display LAG port link status.
Active Member	Display active member ports of the LAG.
Standby Member	Display inactive or candidate member ports of the LAG.
Modify It is used to edit the name, type and port number for each link aggregation profile.
	Name- Enter a string as LAG name.Type - Use the drop down menu to specify the type for LAG.● Static- The static aggregated port sends packets over active member without detecting or negotiating with remote aggregated port.● LACP- The LACP aggregated ports place member into active only after negotiated with remote aggregated port

II-4-3 LAG Port Setting

This page defines port setting for each LAG profile (LAG1 to LAG8), including data speed and enabling/disabling the flow control.

Auto Lognet CF M4 P2500 10:30:00 Dashboard Switch LAN > Link Aggregation > LAG Port Setting > LAG Port Setting Status Switch LAN General Setup Port Setting Mirror Link Aggregation LAG Setting LAG Management LAG Port Setting LAGP Setting LAGP Port Setting LAG PRT Setting LAG: Nothing selections Enable: Enable Speed: Auto(10M/190M/1000M) Duplex: Auto Flow Control: Disable Apply LAG Description Port Type Enable State Link Status Speed Duplex Flow Control Co... Flow Control Sta... Modify EEE Multicast Jumbo Frame STF MAC Address Table Blocked Port Recover ONMF Surveillance LAG1 — Enabled Down Auto(All) Auto Enabled Disabled ✓ LAG2 — Enabled Down Auto(All) Auto Enabled Disabled ✓ LAG3 — Enabled Down Auto(All) Auto Enabled Disabled ✓ LAG4 — Enabled Down Auto(All) Auto Enabled Disabled ✓ LAG5 — Enabled Down Auto(All) Auto Enabled Disabled ✓ LAG6 — Enabled Down Auto(All) Auto Enabled Disabled ✓ LAG7 — Enabled Down Auto(All) Auto Enabled Disabled

Available settings are explained as follows:

Item	Description
LAG Use the drop down list to select one or more LAG profiles.
Enable	● Enable -Click it to enable the profile.● Disable - Click it to disable the profile.
Speed Port speed capabilities:● Auto: Auto speed with all capabilities.● Auto-10M: Auto speed with 10M ability only.● Auto-100M: Auto speed with 100M ability only.● Auto-1000M: Auto speed with 1000M ability only.● Auto-10/100M: Auto speed with 10/100M ability.● 10M: Force speed with 10M ability.● 100M: Force speed with 100M ability.● 1000M: Force speed with 1000M ability.● 10G: Force speed with 10G ability.Selecting Auto (auto-negotiation) allows one port to negotiate with a peer port automatically to obtain the connection speed and duplex mode that both ends support. When auto-negotiation is turned on, a port on the switch negotiates with the peer automatically to determine the connection speed and duplex mode. If the peer port does not support auto-negotiation or turns off this feature, the switch determines the connection speed by detecting the signal on the cable and using half duplex mode. When the switch's auto-negotiation is turned off, a port uses the pre-configured speed and duplex mode when making a connection, thus
	requiring you to make sure that the settings of the peer port are the same in order to connect.For SFP fiber module, you might need to manually configure the speed to match fiber module speed.
Duplex Port duplex capabilities:Auto: Auto duplex with all capabilities.Half: Auto speed with 10/100M ability only.Full: Auto speed with 10/100/1000M / 10G ability only.
Flow Control A concentration of traffic on a port decreases port bandwidth and overflows buffer memory causing packet discards and frame losses. Flow Control is used to regulate transmission of signals to match the bandwidth of the receiving port. The switch uses IEEE802.3x flow control in full duplex mode and backpressure flow control in half duplex mode. IEEE802.3x flow control is used in full duplex mode to send a pause signal to the sending port, causing it to temporarily stop sending signals when the receiving port memory buffers fill. Back Pressure flow control is typically used in half duplex mode to send a "collision" signal to the sending port (mimicking a state of packet collision) causing the sending port to temporarily stop sending signals and resend later.Enable - Click it to enable such function.Disable - Click it to disable such function.
Apply Apply the settings to the switch.
Modify	It is used to edit status, speed, and flow control for the LAG.

II-4-4 LACP Setting

This page allows the network administrator to enable or disable the LACP function.

Auto Lognet Off Link P2500 10:38:51 Dashboard Status Switch LAN General Setup Port Setting Minor Link Aggregation LAG Setting LAG Management LAG Port Setting LACP Setting LACP Port Setting VLAN Management EEE Multicast Aumbo Frame STF MAC Address Table Blocked Port Recover ONMF Surveillance Switch LAN > Link Aggregation > LACP Setting > LACP Setting LACP Setting LACP: Enable Disable System Priority: 32765 (1-48838) Apply

Available settings are explained as follows:

Item	Description
LACP	● Enable – Click it to enable such function.● Disable - Click it to disable the function.
System Priority The priority is used to determine which switch (local or remote) on the LAG connection is able to decide LACP activities. The lower the number is, the higher the priority for VigorSwitch will be. Therefore, the switch with the highest system priority (e.g., 1) can make decisions about which ports actively participate in LAG at a given time.
Apply Apply the settings to the switch.

II-4-5 LACP Port Setting

This section provides few detailed configuration regarding to Ports under LACP protocol.

Auto Logod : GB Switch LAN - Low Aggregation - LACP Port Setting - LACPPort Setting LACP Port Setting Ports: Nothing selected Priority: 1 Timeout: Long (146525) Port Priority Timeout Modify GE1 1 Long ✓ GE2 1 Long ✓ GE3 1 Priority 1 Long ✓ GE4 1 Long ✓ GE5 1 Long ✓ GE6 1 Long ✓ GE7 1 Long ✓ GE9 1 Long ✓ GE10 1 Long

Available settings are explained as follows:

Item	Description
Ports Use the drop down list to specify LAN Port.
Priority Enter a port priority number for the port.
Timeout The timeout option decides how local switch of LAG connection determines connection to be lost. Switch would also notify the remote switch about this setting value, so that remote switch can send LACP PDU in correct timing.Long - LACP PDU will be sent every 30 seconds. If port member is not seen over 90 seconds, it will cause port member timeout.Short - LACP PDU will be sent per second. If port member is not seen over 3 seconds, it will cause port member timeout.
Apply Apply the settings to the switch.
Modify It is used to edit settings (priority and timeout) for LACP port.

II-5 VLAN Management

A virtual local area network, virtual LAN or VLAN, is a group of hosts with a common set of requirements that communicate as if they were attached to the same broadcast domain, regardless of their physical location. A VLAN has the same attributes as a physical local area network (LAN), but it allows for end stations to be grouped together even if they are not located on the same network switch. VLAN membership can be configured through software instead of physically relocating devices or connections.

II-5-1 Create VLAN

This page allows a user to add, edit or delete VLAN settings.

Auto Logset Switch LAN > VLAN Management > Create Van > Create VLAN Create VLAN Action: VLAN ID: 10 or 10.26 or 10-28 VLAN Name: Add Delete ANY VLAN ID 11 VLAN Name VLAN type moorly 1 default Default ✓ 2 test0002 Static ✓ ✓ ✓ 3 test0003 Static ✓ ✓ ✓ 4 test0004 Static ✓ ✓ ✓ 5 test0005 Static ✓ ✓ ✓ 6 test0006 Static ✓ ✓ ✓ 7 test0007 Static ✓ ✓ ✓ 8 test0008 Static ✓ ✓ ✓ 9 test0009 Static ✓ ✓ ✓

Available settings are explained as follows:

Item	Description
Action Select which action	to perform, add VLANs or delete VLANs.Add-Create a new VLAN profile.Delete-Delete an existed VLAN profile.
VLAN ID	Enter the number as VLAN ID to be created or deleted. If you want to create / delete multiple VLAN profiles, simply enter multiple VLAN ID separated by comma, and/or range of VLAN ID using hyphen.
VLAN Name	Enter the prefix you wish to add followed by VLAN ID as VLAN name. Leave it empty for using default "VLAN".After clicking Apply, you will see:
	VLAN ID	11	VLAN Name	11
	1	default	Default	11
	2	marketing0002	Static	11
	3	marketing0003	Static	11
Apply Apply the settings to the switch.

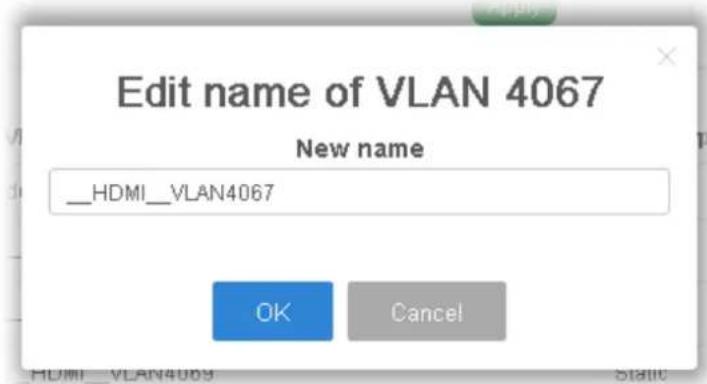

Modify

- Modify the name of the selected VLAN ID.

Edit name of VLAN 4067 New name __HDMI__VLAN4067 OK Cancel

● New Name - Type a name for such VLAN profile.
● OK - Apply the settings to the switch.
- Cancel - Close the page and return to previous page.

- Delete the selected VALN ID.

II-5-2 Interface Settings

This page allows a user to configure interface setting related to VLAN.

Auto Logout : Off Switch LAN > VLAN Management > Interface Settings > Interface Settings Dashboard Status Switch LAN General Setup Port Setting Motor Link Aggregation VLAN Management Create Vlan Interface Settings VLAN VLAN MNC VLAN Protocol VLAN Surveillance VLAN GDP EEE Multicast Jumbo Frame STP MAC Address Table Interface Settings Port Select: Portfolio selector Interface VLAN Mode: Hybrid Access Trunk Tunnel PVID: 1 (1 - 4084) Accepted Type: All Tag Only Unag Only Ingress Filtering: Enable Disable Tagged VLAN: Portfolio selected Untagged VLAN: Portfolio selected Forbidden VLAN: Portfolio selected Add Port Interface VLA... PVID Tagged VLAN Untagged VL... Forbidden VL... Accept Fran... Ingress Filter... Uplink TPID Modify GE1 Trunk 1 -- 1 -- ALL Enabled Disabled 0x£100 ✓ GE2 Trunk 1 -- 1 -- ALL Enabled Disabled 0x£100 ✓ GE3 Trunk 1 -- 1 -- ALL Enabled Disabled 0x£100 ✓ GE4 Trunk 1 -- 1 -- ALL Enabled Disabled 0x£100 ✓ GE5 Trunk 1 -- 1 -- ALL Enabled Disabled 0x£100 ✓

Available settings are explained as follows:

Item	Description
Port Select Select LAN ports to configure VLAN Settings.
Interface VLAN Mode Select the VLAN mode of the interface.Hybrid – Support all functions as defined in IEEE 802.1Q specification.Access – Accept only untagged frames and join an untagged VLAN.
	● Trunk - An untagged member of one VLAN at most, and is a tagged member of zero or more VLANs.
PVID	A PVID (Port VLAN ID) is a tag that adds to incoming untagged frames received on a port so that the frames are forwarded to the VLAN group that the tag defines.For port under Access Mode, VLAN ID provided as PVID would automatically be selected as the untagged VLAN.
Accepted Type Specify the	acceptable-frame-type of the specified interfaces.It's only available with Hybrid mode.All - Accept frames regardless it's tagged with 802.1q or not.Tag Only - Accept frames only with 802.1q tagged.Untag Only - Accept frames untagged.
Ingress Filtering Enable the	ingress filtering to filter out any packets not belong to any VLAN members of this port. It is enabled automatically while operating in Access and Trunk mode.Enabled - Click it to enable the function.Disabled - Click it to disable the function.
Tagged VLAN Specify the	VLAN profile tagged in the VLAN.
Untagged VLAN	Specify the VLAN profile untagged in the VLAN.
Forbidden VLAN	Specify the VLAN profile forbidden in the VLAN.
Apply Apply the settings to the switch.
Modify	- It is used to edit settings for the selected port.

II-5-3 Voice VLAN

With such feature, a VLAN will be created temporarily and when the specified OUI device delivers protocol packets related to "VoIP", VigorSwitch will guide these packets into the specified Voice LAN with specified priority tag to speed up the packet transmission. Such voice VLAN is only active inside VigorSwitch for packet transmission. After these packets leave VigorSwitch, the Voice VLAN tag will be removed immediately.

II-5-3-1 Properties

This page allows a user to configure global and per interface setting of voice VLAN.

Auto Lognet : Off Mk P2500 10:43:34 Dashboard Status Switch LAN General Setup Port Setting Minor Link Aggregation VLAN Management Create Vlan Interface Settings Voice VLAN MAC VLAN Protocol VLAN Serverless VLAN CVRP EEE Multicast Jumbo Frame STF MAC Address Table Proporten Taplitory OUT Setting Port Setting Voice VLAN State: Enable Disable Voice VLAN id: exit0000(0) Enable Enable Remark Co/$802.1p: Enable Disable Remark Value: $- Aging Time: NAD (10-69536 min) Apply

Available settings are explained as follows:

Item	Description
Voice VLAN State	Enabled - Click it to enable Voice VLAN. Disabled - Click it to disable Voice VLAN.
Voice VLAN Id Check the box of Enable first and then select Voice VLAN ID profile.
Remark CoS/802.1p	Click Enabled / Disabled to enable or disable 1p remarking. If enabled, qualified packets will be remarked by this value.
Remark Value Specify the number of packets to be remarked.Specify the CoS/ 802.1p number you wish ingress VoIP packets be tagged with, so that QoS can prioritize it correctly.
Aging Time	Select value of aging time (30~65536 min).Default is 1440 minutes. A voice VLAN entry will be age out after this time if without any packet pass through.
Apply Apply the settings to the switch.

II-5-3-2 Telephony OUI Setting

This page allows a user to add, edit or delete OUI MAC addresses. Default has 8 pre-defined OUI MAC.

Switch LAN > VLAN Management > Voice VLAN > Security OUI Setting Properties Temporary OUI Setting Port Setting GUI Address: 8530.00 Description: AM OUI Address Description Edit 00 F0 RR 3CDM ✓ ✓ ✓ 00 03 6B Cisco ✓ ✓ ✓ 00 E0 75 Veriel ✓ ✓ ✓ 00 D0 1E Pingtel ✓ ✓ ✓ 00 01 E3 Siemens ✓ ✓ ✓ 00 00 B9 NEC/Philips ✓ ✓ ✓ 00 0F E2 H3C ✓ ✓ ✓ 00 09 6E Avaya ✓ ✓ ✓

Available settings are explained as follows:

Item	Description
OUI Address Type OUI address.
Description Enter a description of the specified MAC address to the voice VLAN OUI table.
Add Click it to create a new voice OUI based on the settings configured above.
Edit	- Click it to remove the selected OUI entry.

II-5-3-3 Port Setting

This page allows a user to specify LAN port(s) as Voice LAN port.

Auto Lognet Diasboard Status Switch LAN General Setup Port Setting Minor Link Aggregation VLAN Management Create Vlan Interface Settings Vize VLAN MAC VLAN Protocol VLAN Stereless: VLAN GWRP EEE Multicast Jumbo Frame STF MAC Address Table LTD.136.279.2001/Mac-ndire? Switch LAN > VLAN management > Voice VLAN > Port Setting Properties Telephony OUT Setting Port Setting Port: Nothing selected State: Enable * Disable Cos Mode: All * Src Apply Port State Cos Mode Edit GE1 Disabled src GE2 Disabled src GE3 Disabled src GE4 Disabled src GE5 Disabled src GE6 Disabled src GE7 Disabled src GE8 Disabled src GE9 Disabled src GE10 Disabled src GE11 Disabled

Available settings are explained as follows:

Item	Description
Port Use the drop down list to specify one or more LAN ports.
State	Enabled - Click it to enable the port settings for Voice LAN disabled - Click it to disable the port settings for Voice LAN.
Cos Mode	If Remark CoS/802.1p is enabled in Voice VLAN>>Properties, settings in this page shall be applied. Otherwise, this option will not take effect.All - Once this port is identified as Voice VLAN by frame with matched OUI, remark CoS/ 802.1p shall tag for all ingress frame regardless of remarked frame matched with pre-configured OUI or not.Src (Source) - Once this port is identified as Voice VLAN by frame with matched OUI, remark CoS/ 802.1p shall tag for only the matched ingress frame with pre-configured OUI.
Apply Apply the settings to the switch.
Edit	Click the icon under Edit for one entry to modify port settings (State, Cos Mode) for voice VLAN.

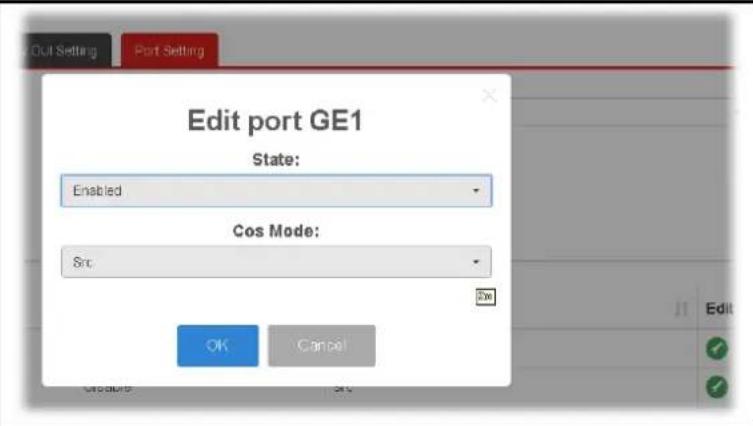

Edit port GE1 State: Enabled Cos Mode: Src. OK Cancel

II-5-4 MAC VLAN

II-5-4-1 MAC Group

The MAC VLAN allows you to statically assign a VLAN ID to a host with specific MAC address(es). VigorSwitch allows you to configure multiple groups with configured MAC address and mask to be active on ports and to be bound with VLAN ID. This page allows the network administrator to define groups with specific MAC addresses for later binding with VLAN and Port.

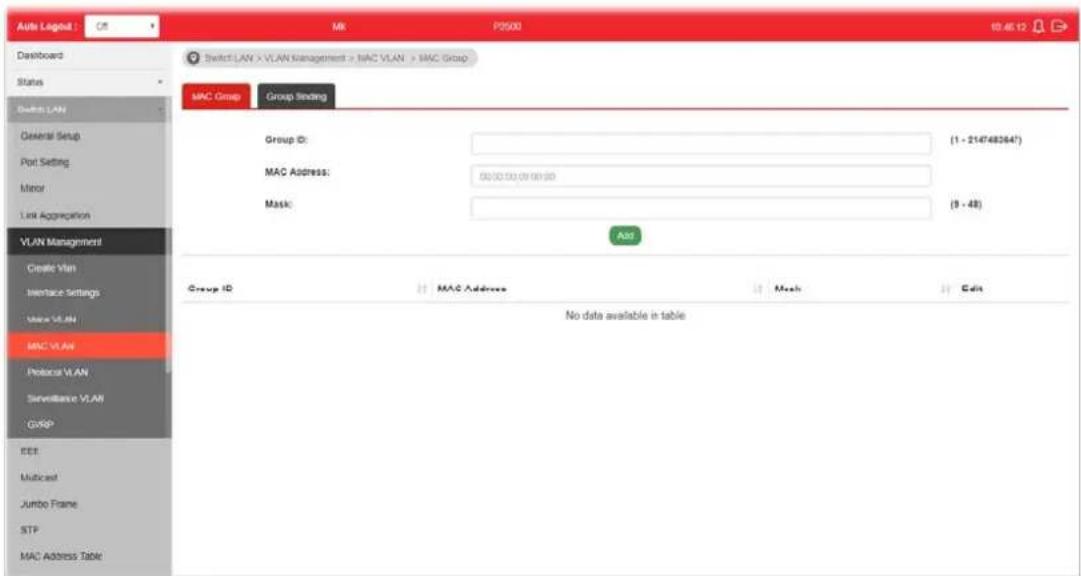

Auto Logoul : C$ MK P0500 10:46:12 Dashboard Switch LAN General Setup Port Setting Minor Link Aggregation VLAN Management Create VLAN Interface Settings Use VLAN MAC VLAN Protocol VLAN Servilliance VLAN GWRIP EEE Multicast Jumbo Frame STP MAC Address Table Switch LAN > VLAN Management > MAC VLAN > MAC Group MAC Group Group Binding Group ID: (1 - 2147483647) MAC Address: 00:00:00.00:00:00 Mask: (9 - 48) Add Group ID MAC Address Mesh Edit No data available in table

Available settings are explained as follows:

Item	Description
Group ID It is a number for	identification later, while chosen to bebound with VLAN/ Port.
MAC Address	Enter the MAC address you wish to be classified in this group
Mask	The mask is the length of matching prefix you wish to have on MAC address.For example, configure mask in 10. It means a host with beginning of the 10-digit of MAC address will be checked, and classified into this group if matched.
Add Click it to create a new settings configured above.	MAC group profile based on the
Edit	Click the icon under Edit for one entry to modify settings for group ID.

I-5-4-3 Group Binding

The MAC VLAN allows you to statically assign a VLAN ID to a host with specific MAC address(es). VigorSwitch allows you to configure multiple groups with configured MAC address and mask to be active on ports and to be bound with VLAN ID. This page allows the network administrator to bind the group of specified MAC addresses with VLAN and Port.

Auto Logout : C# P2500 10:47:06 Dashboard Status Switch LAN General Setup Full Setting Mirror Link Aggregation VLAN Management Create Vlan Interface Settings Voice VLAN MAC VLAN Protocol VLAN Servariance VLAN GWRP SEE Multicast Jumbo Frame STP MAC Address Table Switch LAN > VLAN Management > MAC VLAN > Global Binding MAC Group Group Binding Ports: Nothing selected > Group ID: Nothing selected > VLAN: (1 - 4094) ADD Full Group ID VLAN Edit No data available in table

Available settings are explained as follows:

Item	Description
Ports Select the ports you	wish to be bound with specified MAC address group.
Group ID Choose the group	ID you have created in earlier section, which specified a group of host by MAC address and its mask.
VLAN Enter the VLAN ID that	at you wish to be bound with.
Add Click it to create a new settings configured above.	MAC group binding profile based on the settings configured above.
Edit	Click the icon under Edit for one entry to modify settings for selected port profile.

II-5-5 Protocol VLAN

VigorSwitch offers protocol VLANs which allows Network Administrator to filter out untagged traffic of certain protocol and then assign them a specific VLAN ID.

II-5-5-1 Protocol Group

Up to eight protocol groups can be defined, each of them can have a unique filtering criteria such as frame type and protocol value.

Auto Logod : CF Mk P0500 10:31:00 Dashboard Status SWIEN LAN General Setup Port Setting Name Low Aggregation VLAN Management Create Vian Interface Settings Value VLAN MAC VLAN Protocol VLAN Surveillance VLAN GWRP EEE Multicast Jumbo Frame STP MAC Address Table Switch LAN > VLAN Management > Protocol VLAN > Protocol Group Protocol Group Group Binding Group ID: (1 - 8) Frame Type: Ethernet_II Protocol Value: 0x (0x600 - 0xFFFE) ADD Group ID Device Type Protocol Value SN 2 Ethernet_II 0x6000

Available settings are explained as follows:

Item	Description
Group ID It is a number for	identification while bounding with VLAN/ Port.
Frame Type	Use the drop-down list to specify the frame type which you would like to filter.Ethemet_IIEthernet_IIIEEE802.3_LLC_OtherRFC_1042Ethernet_II - Packet will be mapped based on Ethernet version 2.IEEE802.3_LLC_Other -Packet will be mapped based on 802.3 packet with LLC other header.RFC_1042 - Packet will be mapped based on RFC 1042.
Protocol Value Input a value (ranging from 0x600 ~0xFFFE). Packets match with such value will be classified into this group.
Add Click it to create a new protocol group profile based on the settings configured above.

Edit

- Modify setting for selected group.

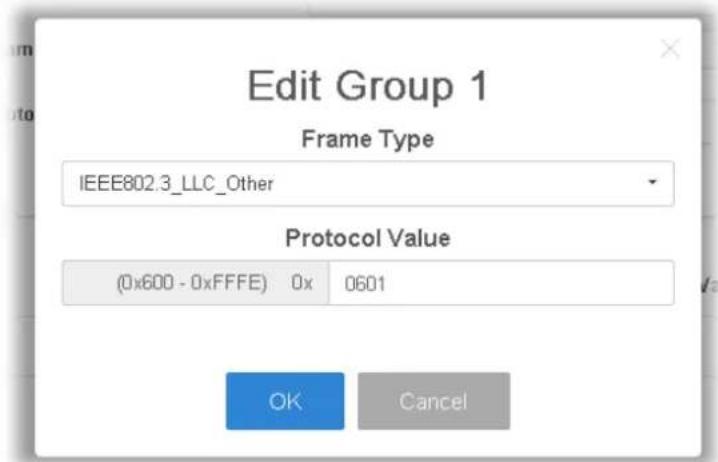

Edit Group 1 Frame Type IEEE802.3_LLC_Other Protocol Value (0x600 - 0xFFFE) 0x 0601 OK Cancel

- Click it to remove the group.

II-5-5-2 Group Binding

This page is for setting up the ports and protocol group that we would like to filter, and the VLAN ID we would like to assign.

Auto Logout CF Link P2500 10.12.17 Dashboard Switch LAN Status Switch LAN General Setup Port Setting Menu Link Aggregation VLAN Management Create Vian Interface Settings Voice VLAN MAC VLAN Protocol VLAN Servariance VLAN GWRP SET Multicast Jumbo Frame STP MAC Address Table Switch LAN > VLAN Management > Protocol VLAN > Group Setting PRODUCT GROUP Group Binding Ports: Only VLAN Hybrid port can be set Protocol/VLAN Group ID: 2 VLAN: (1 - 4094) ADD Exit Group ID VLAN Exit No data available in table

Available settings are explained as follows:

Item	Description
Ports Use the drop-down list to select one or more ports for applying protocol-based VLAN. Note that protocol-based VLAN can only be applied to the ports of which Interface VLAN Mode (at VLAN Management >> Interface Settings) is set to “Hybrid”.
Group ID Select the protocol group defined in Protocol Group setup.
VLAN	Use drop down list to choose a value as VLAN number.
Add Add the above settings to the switch.

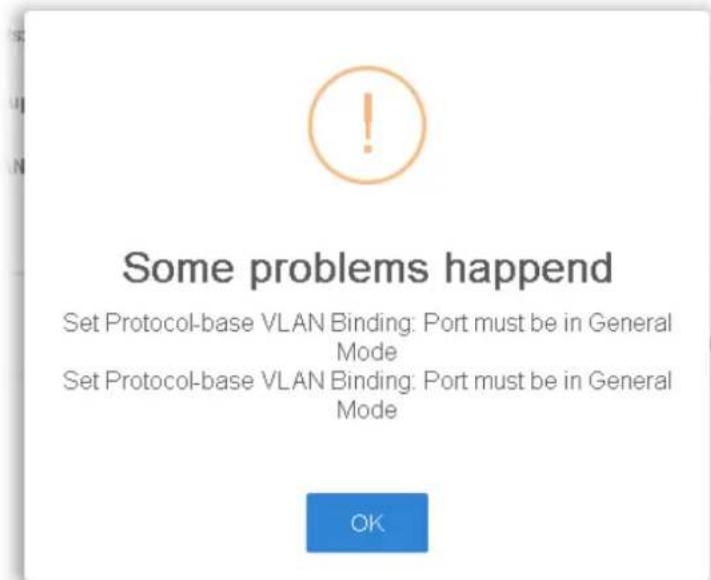

	Before using Add, open Switch LAN>>VLAN Management>>Interface Settings to specify Hybrid as Interface VLAN Mode for the GE ports first. Otherwise, the following error message will appear.
Edit
	- Click it to remove the selected group.

II-5-6 Surveillance VLAN

Surveillance VLAN can be configured for VigorSwitch to identify the packets coming from an IP camera automatically and assign those traffics to a specific VLAN ID and CoS/ 802.1p value, this helps you to prioritize those traffics and improve video quality.

II-5-6-1 Property

This page is for setting up the VLAN to which the video traffic should be assigned and to enable/disable Surveillance VLAN on each port.

Auto Logout : Off Dashboard Status Switch LAN General Setup Port Setting Minor Link Aggregation VLAN Management Create Vlan Interface Settings Voice VLAN MAC VLAN Protocol VLAN Servilion e VLAN GRP EEE Multicast Jumbo Frame STP MAC Address Table Switch LAN > VLAN Management > Surveillance VLAN > Property Property Servilion e OUI State: Enable Disable VLAN ID: test8002(2) CoS/802.1p Remarking: 6 Aging Time: 14:0 Enable (30-65526 sec) Apply Port State Mode QoS Policy Edit GE1 Disabled Auto Video Packet ✓ GE2 Disabled Auto Video Packet ✓ GE3 Disabled Auto Video Packet ✓ GE4 Disabled Auto Video Packet ✓ GE5 Disabled Auto Video Packet ✓ GE6 Disabled Auto Video Packet ✓ GE7 Disabled Auto Video Packet ✓ GE8 Disabled Auto Video Packet ✓ GE9 Disabled Auto Video Packet ✓

Available settings are explained as follows:

Item	Description
State	Enabled- Click it to enable the port settings for such VLAN disabled- Click it to disable the port settings for such VLAN.
VLAN ID	Choose a VLAN profile (created in Switch LAN>>VLAN Management>>Create Vlan) as Surveillance VLAN.
CoS/802.1p Remarking	Specify the CoS/ 802.1p number you wish ingress packets be tagged with, so that QoS can prioritize it correctly.Enable- If enabled, qualified packets will be remarked by this value.
Aging Time Unit is second	Select value of aging time (30~65536 seconds).Default is 1440 seconds. VLAN entry will be aged out after this time if no packet passes through.
Apply Apply the settings to the switch.
Edit	Click it to modify port setting status.

Edit port GE1 State: Disabled Mode: Auto QoS Policy: Video Packet OK Cancel

• State -Set it to enable surveillance VLAN function of interface.
  ● Mode -Select port surveillance VLAN mode.
  Auto: Surveillance VLAN auto detect packets that match OUI table and add received port into surveillance VLAN ID tagged member.
  ◆ Manual: User need add interface to VLAN ID tagged member manually.
  ● QoS Policy - Select port QoS Policy mode.
  ◆ Video Packet: QoS attributes are applied to packets with OUI in the source MAC address.
  ◆ All: QoS attributes are applied to packets that are classified to the Surveillance VLAN.
• OK - Apply the settings to the switch.
• Cancel - Abandon the changes and return to previous page.

II-5-6-1 Surveillance OUI

Filtering Surveillance traffic is based on the OUI of the IP cameras. Users can add, edit, and delete OUI on this page.

Auto Legend DB MB P2500 10:55:56 Dashboard Status Switch LAN General Setup Port setting Menu Link Aggregation VLAN Management Create VLAN Interface Settings Ware VLAN MAC VLAN Protocol VLAN Sensitivity VLAN GRP EEI Multicast Jumbo Frame STF MAC Address Table Switch LAN > VLAN Management > Surveillance VLAN > Surveillance OUT Property Surveillance OUT GUI Address: 00:30:00 Description: Add GUI Address Description Edit No data available in table

Available settings are explained as follows:

Item	Description
OUI Address Enter OUI MAC address of monitored IP camera. It can't be edited in edit dialog.
Description Enter a description of the specified MAC address to the surveillance VLAN OUI table.
Add Click it to create a new voice OUI based on the settings configured above.
Edit	- Modify OUI setting for surveillance VLAN.- Click it to remove the selected OUI entry.

II-5-7 GVRP

II-5-7-1 Property

This page allows the network administrator to configure registration mode (e.g., Normal, Fixed or Forbidden) of GVRP (GARP VLAN Registration Protocol) for each GE port.

Such function can eliminate unnecessary network traffic and prevent any attempt to transmit information to unregistered users.

Auto Logout : Off Switch LAN > VLAN Management > GVRP > Property Property Membership State: Enable Disable Timeout: Join 20 ms Leave 60 ms Leave All 1000 ms Apply Port State VLAN Creation Registration Edit GE1 Disabled Enabled Normal ✓ GE2 Disabled Enabled Normal ✓ GE3 Disabled Enabled Normal ✓ GE4 Disabled Enabled Normal ✓ GE5 Disabled Enabled Normal ✓ GE6 Disabled Enabled Normal ✓ GE7 Disabled Enabled Normal ✓ GE8 Disabled Enabled Normal ✓ GE9 Disabled Enabled Normal ✓ GE10 Disabled Enabled Normal ✓

Available settings are explained as follows:

Item	Description
State	Enabled- Click it to enable the port settings for such VLAN disabled- Click it to disable the port settings for such VLAN.
Timeout Display the current time status for GVRP.
Apply Apply the settings to the switch.
Edit	- Click it to modify settings for the selected port.

Edit port GE1 State: Disabled VLAN Creation: Enabled Mode: Normal OK Cancel

● State - Select Enabled or Disabled for such port.
● VLAN Creation -Select Enabled or Disabled.
● Mode - There are three modes to be specified.

◆ Normal - Default setting. All packets can pass through the selected GE port.
Fixed - The selected GE port only sends static VLAN information to neighboring device and allows static VLAN packet to pass through.
◆ Forbidden - The selected GE port only allows default VLAN packet to pass through.

II-5-7-2 Membership

This page display information about membership for GVRP.

Auto Logid : Off MI P2500 10:50:30 Dashboard Status Switch LAN General Setup Port membership Mines Link Aggregation VLAN Management Create Vlan Interface Settings Voice VLAN MAC VLAN Protocol VLAN Surveillance VLAN CVRSP ECE Multicast Jumbo Frame STP MAC Address Table Switch LAN > VLAN management > CVRSP > Membership Property Membership VLAN Member Dynamic Member Type No data available @ table

This page allows a user to enable or disable port EEE (Energy Efficient Ethernet) function.

Auto Logout : C# UK F2000 10:06:20 Dashboard Status Swiss LAN General Setup Port Setting Mirror Link Aggregation VLAN Management EES Multicast Jumbo Frame BTP MAC Address Table Blocked Port Recover ONVIF Surveillance Security ACL QoS PoE System Maintenance Switch LAN > EEE > Energy Efficient Ethernet Setup Energy Efficient Ethernet Setup Port: Nothing selected Enable: Enable + Disable OFF Port Enable Status Modify GE1 Disabled Disabled ✓ GE2 Disabled Disabled ✓ GE3 Disabled Disabled ✓ GE4 Disabled Disabled ✓ GE5 Disabled Disabled ✓ GE6 Disabled Disabled ✓ GE7 Disabled Disabled ✓ GE8 Disabled Disabled ✓ GE9 Disabled Disabled ✓ GE10 Disabled Disabled ✓ GE11 Disabled Disabled ✓ GE12 Disabled Disabled ✓

Available settings are explained as follows:

Item	Description
Port	Select one or multiple ports to configure (GE1 to GE28).
Enable	● Enable -Click it to enable the EEE function. ● Disable - Click it to disable the EEE function.
Apply Apply the settings to the switch.
Modify	- Click it to modify port setting status.

II-7 Multicast

IP multicast is a technique for one-to-many communication over an IP infrastructure in a network.

To avoid the incoming data broadcasting to all GE ports, multicast is useful to transfer the data/ message to specified GE ports for IGMP snooping. When VigorSwitch receives a message "subscribed" by the client, it must decide to transfer the data to specified GE ports according to the location of the client (subscribed member).

II-7-1 Properties

For the multicast packets, This page allows the network administrator to choose actions for processing the unknown multicast packets and for handling known packets with MAC address, IP address and VLAN ID.

Auto Logod : Off MK P2500 10:57:00 Dastboard Status TIMES LAN General Setup Port Setting Minor Link Aggregation VLAN Management EEE Multicast Properties NMP Dropping MMS MLD Dropping Jumbo Frame STP MAC Address Table Blocked Port Receiver ONVF Surveillance Security Switch LAN » Multicast » Properties » Properties Properties Unknown Multicast Action: Drop Flood Forward to Router Port IPv4 Forward Method Dist. MAC & VID Dist. IP & VD IPv8 Forward Method Dist. MAC & VID Dist. IP & VD Apply

Available settings are explained as follows:

Item	Description
Unknown Multicast Action	Select an action for switch to handle with unknown multicast packet.Drop: Drop the unknown multicast data.Flood: Flood the unknown multicast data.Forward to Router port: Forward the unknown multicast data to router port.
IPv4 Forward Method Set	the IPv4 multicast forward method.Dst. MAC & VID: Forward using destination multicast MAC address and VLAN IDs.Dst. IP & VID: Forward using destination multicast IP address and VLAN ID.
IPv6 Forward Method Set	the IPv6 multicast forward method.Dst. MAC & VID: Forward using destination multicast MAC address and VLAN IDs.● Dst. IP & VID: Forward using destination multicast IPv6 address and VLAN ID.
Apply Apply the settings to the switch.

II-7-2 IGMP Snooping

IGMP snooping is the process of listening to Internet Group Management Protocol (IGMP) network traffic. The feature allows a network switch to listen in on the IGMP conversation between hosts and routers. By listening to these conversations the switch maintains a map of which links need which IP multicast streams. Multicasts may be filtered from the links which do not need them and thus controls which ports receive specific multicast traffic.

Multicast packets (IPv4) transmission without IGMP snooping

Multicast packets (IPv4) transmission with IGMP snooping

II-7-2-1 IGMP Setting

This page allows the network administrator to enable/disable IGMP function, select snooping version, and enable/disable snooping report suppression.

Auto Legend: C# Switch LAN + Multicast > Properties > Properties Properties Unknown Multicast Action: Drip Flood Forward to Router Port IPv4 Forward Method Dst. MAC & VID Dst. IP & VID IPv4 Forward Method Dst. MAC & VID Dst. IP & VID ✓App Mac Address Table Blocked Pot Recover ONVIF Surveillance Security

Available settings are explained as follows:

Item	Description
IGMP Snooping State	● Enable - Click it to set enabling IGMP function.● Disable - Click it to disable IGMP function.
IGMP Snooping Version Set the IGMP snooping version.● v2 - Only support process IGMP v2 packet.● v3 (BISS) - Support v3 basic and v2.
IGMP Snoopign Report Suppression	Click Enable to allow the switch to handle IGMP reports between router and host, suppressing bandwidth used by IGMP.
Apply Apply the settings to the switch.
Modify	● - Click it to modify IGMP settings for selected profile. However, if IGMP Snooping State is not set as Enable, such option will be disabled.
	Edit VLAN ID 1IGMP Snooping StateDisableRouter Ports Auto LearnEnableQuery Robustness (Operational: 2)2 (1-7, default 2)Query Interval (Operational: 125)125 Sec (30-18000, default 125)Query Response Interval (Operational: 10)10 [2932] Sec (5-20, default 10)Last Member Query Counter (Operational: 2)2 [488C] Sec (1-7, default 2)Last Member Query Interval (Operational: 1)1 [X454] Sec (1-25, default 1)Immediate Leave:Enable Cancel
	● IGMP Snooping State -Choose Enable to enable IGMP snooping function.● Router Ports Auto Learn - Set the enabling status of IGMP router port learning. Choose Enable to learn router port by IGMP query.● Query Robustness - Set a number which allows tuning for the expected packet loss on a subnet.● Query Interval - Set the interval of querier send general

Edit VLAN ID 1

IGMP Snooping State

Router Ports Auto Learn

Query Robustness (Operational: 2)

Query Interval (Operational: 125)

Query Response Interval (Operational: 10)

Last Member Query Counter (Operational: 2)

Last Member Query Interval (Operational: 1)

Immediate Leave:

• IGMP Snooping State -Choose Enable to enable IGMP snooping function.
• Router Ports Auto Learn - Set the enabling status of IGMP router port learning. Choose Enable to learn router port by IGMP query.
• Query Robustness - Set a number which allows tuning for the expected packet loss on a subnet.
• Query Interval - Set the interval of querier send general

query.●Query Response Interval- It specifies the maximum allowed time before sending a responding report in units of 1/10 second.●Last Member Query Counter- After quering for specified times (defined here) and still not receiving any response from the subscribed member, VigorSwitch will stop transmitting data to the related GE port(s).●Last Member Query Interval- The maximum time interval between counting each member query message with no responses from any subscribed member.●Immediate Leave- Leave the multicast group immediately on the port & VLAN where leave message is sent from, regardless there is still a subscribed member or not. Click Enable to enable Fastleave function.●OK- Apply the settings to the switch.●Cancel- Close the page and return to previous page.

II-7-2-2 IGMP Querier Setting

This page allows a user to configure querier settings on specific VLAN of IGMP Snooping.

Auto Layout: CF Dashboard Status SWEET LAN General Setup Port Setting Minor LIM Aggregation VLAN Management EEE Multicast Properties IGMP Shipping MVR MLD Shipping Jumbo Frame STP MAC Address Table Blocked Diet Receiver ONVF Surveillance Security Switch LAN > Multicast > IGMP Shipping > IGMP Server Setting ICMP Setting IGMP Quarter Setting IGMP Static Group IGMP Group Table IGMP Router Table Forward Alt Thratling Filtrating Profile Filtrating Binding VLAN ID: Querier State: Enable Disable Querier Version: v2 v3 (B/$5) VLAN ID Querier State Querier Status Querier Version Querier IP 1 Disabled Disabled — — 2 Disabled Disabled — — 3 Disabled Disabled — — 4 Disabled Disabled — — 5 Disabled Disabled — — 6 Disabled Disabled — — 7 Disabled Disabled — — 8 Disabled Disabled — — 9 Disabled Disabled — — 10 Disabled Disabled — — 11 Disabled Disabled — —

Available settings are explained as follows:

Item	Description
VLAN ID	Use the drop down list to specify a VLAN profile as IGMP Snooping querier.
Querier State	● Enable - Click Enable to set the enabling status of IGMP Querier on the chosen VLAN profile.● Disable - Click it to disable the function.
Querier Version Set the query version of IGMP Querier Election on the chosen VLANs.● v2 - Querier version 2.● v3 - Querier version 3.Note: For maximum compatibility, it is suggested to use querier version lower than IGMP snooping version, for there is possible network mixed with IGMP v2/ v3 client and v2 query
	message is widerly understandable for those clients.
Apply Apply the settings to the switch.

II-7-2-3 IGMP Static Group

The IGMP static group is allowed to assign a VLAN/ port as a specific IPv4 multicast member. Every IPv4 multicast stream that belongs to the specified group IP address will be forwarded to the specified port/ VLAN member.

Auto Logged : CF Switch LAN - Multicast > IGMP Shooting > IGMP Static Group ICMP Setting IGMP Quoted Setting IGMP Static Group IGMP Group Table ICMP Router Table Forward Alt Thinning Filtering Profile Filtering Binding VLAN ID: Nothing selected Group P Address: Member Ports: Nothing selected Apply VLAN ID Group IP Address Member Ports Modify No data available in table

Available settings are explained as follows:

Item	Description
VLAN ID	Use the drop down list to specify a VLAN profile as IGMP Static Group.
Group IP Address It is an id	identifier for the group member. Packets sent to such address will be transferred to all interfaces defined in Member Ports.Specify the IPv4 multicast address you wish to assign for the static group (defined in VLAN ID).
Member Ports Specify the	port(s) that static group with given IPv4 multicast address shall include.
Apply Apply the settings to	the switch.
Modify	- Click it to modify settings.

II-7-2-4 IGMP Group Table

This page shows currently known and dynamically learned by IGMP snooping or shows the assigned IPv4 multicast address group in operation.

Auto Logical C# ML F0500 Dashboard Status Switch LAN General Setup Port Setting Mirror Link Aggregation VLAN Management ECE Multicast Properties ICMP Shipping MVR MLD Shipping Jumbo Frame SIP MAC Address Table Blocked Pot Recover ONVIF Surveillance Security Switch LAN + Multicast + ICMP Shipping + IGBT Group Table ICMP Setting ICMP Queue Setting ICMP Suite Group IGBT Group Table ICMP Router Table Forward Alt Thinning Filtering Profile Filtering Binding VLAN ID Group IP Address Member Ports Type Life(sec.) No data available in table

Available settings are explained as follows:

Item	Description
VLAN ID	Display the VLAN of this multicast group belongs to.
Group IP Address	Display the multicast address of this multicast group.
Member Ports Display the	port(s) where subscribing member of this multicast group belongs to.
Type Display if it is dynamically learned or statically assigned.
Life(sec.) Display the life	time of this multicast member left if no membership report sent again.

II-7-2-5 IGMP Router Table

This page shows the IGMP querier router known to this switch.

Switch-LAN - Multicast > ICMP Shooang > ICMP Reader Table KAMP Setting KAMP-Queue Setting KAMP Subc Group KAMP Group Table KAMP User Table Forward All Thrashing Filtering Profile Filtering Binding VLAN ID: Nothing selected Type: Subc Forbidden Member Ports: Nothing sent leaf Add VLAN ID Port Static Port Forbidden Port Expiry/ Time(sec) Edit No data available in table

Available settings are explained as follows:

Item	Description
VLAN ID	Use the drop down list to specify a VLAN profile (created in Switch LAN>>VLAN Management>>Create Vlan) that the MLD querier belongs to.
Type	Static - Specify LAN Port (GE/ LAG) to send out query to remote host.Forbidden - Use the drop down list to specify forbidden LAN Port (GE/ LAG).
Member Ports Use the drop down list to choose the uplink ports where querier router exists.
Add Click it to display the result based on the settings configured above.
Port Display the static port member specified in Member Ports.
Expire Time (sec.)	Display the time before querier is considered no longer existed.
Edit Click the icon under Edit to modify the settings for the selected VLAN profile.

II-7-2-6 Forward All

This page is allowed to determine which port(s) would like to receive the data (multicast packets) that forwarded by VigorSwitch.

Auto-Logic C8 MB P0500 11:00:30 Dashboard Status Switch LAN General Setup Port Setting Menu Limit Aggregation VLAN Management EEE Multicast Properties KMP Srooping MAR MLD Srooping Jumbo Frame STP MAC Address Table Broker Post Recover ONVF Surveillance Security 172 362 173 264/MLM tablet Switch-LAN > Multicast > KMP Srooping > Forward AI KMP Setting KMP Quarter Setting KMP Static Group KMP Group Table KMP Router Table Forward AI Thrilling Filtering Profile Filtering Blocking Available VLAN: Nothing selected Static Ports: Nothing selected Forbidden Ports: Nothing selected ABS VLAN Static Port Filterable Port Edit No data available in table

Available settings are explained as follows:

Item	Description
Available VLAN	To display all of the available VLAN, the State must be set as Enabled in MLD Setting first.Use the drop down list to specify a VLAN profile (created in Switch LAN>>VLAN Management>>Create Vlan) that multicast packets will be forwarded to.
Static Ports	Use the drop down list to specify LAN Port (GE/ LAG).Later, the multicast packets will be delivered to the network device connected by these ports.
Forbidden Ports Use the drop down list to specify forbidden LAN Port (GE/ LAG).	Later, the multicast packets will not be delivered to the network device connected by these ports.
Add Click it to display the result based on the settings configured above.
Edit	- Click it to modify port setting (static port and forbidden port).- Click it to remove the selected entry.

II-7-2-7 Throttling

The administrator can configure the user on a switch port (GE/LAG port) belonging to which multicast group and restrict the number of multicast group that the user on the switch can join. Then the administrator is able to control the network service (e.g, IP/TV service) that the user can enjoy.

The Throttling page is used for configuring the maximum number (0\~255) of IGMP group that a user on a switch port can join. After defined the maximum number, each switch port interface can be set to deny the IGMP join report or set to replace randomly selected multicast interface with received IGMP join report.

Auto Lognet Dashboard Switch LAN > Mastercat > ICMP Snapping > Throttling IGMP Setting IGMP QCimo Setting IGMP Static Group GMP Group Table IGMP Router Table Forward All Thratling Filtrating Profile Filtrating Binding Ports: Max Group: Exceed Action: (+ Deny □ Replace Porty Port Max Group (+) Exceed Action (+) Edit GE1 256 Deny ✓ GE2 256 Deny ✓ GE3 256 Deny ✓ GE4 256 Deny ✓ GE5 256 Deny ✓ GE6 256 Deny ✓ GE7 256 Deny ✓ GE8 256 Deny ✓ GE9 256 Deny ✓ GE10 256 Deny ✓

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to specify LAN Port (GE/ LAG).
Max Group Define the maximum number of IGMP group profile that a user on the switch can join. If “0” is selected, then such interface (port) can join all of the IGMP group profiles (defined in Filtering Profile).
Exceed Action VigorSwitch will perform the action defined below when the number of IGMP join report for the specified interface exceeds value defined in Max Group.· Deny - It is default setting. The IGMP join report (for multicast service) received by such interface will be discarded.· Replace - When it is selected, a new group with IGMP report received will replace the existing group.
Apply Apply the settings to the switch.
Edit	- Click it to modify port setting (max group and exceed action).

II-7-2-8 Filtering Profile

The administrator can configure the user on a switch port (GE/LAG port) belonging to which multicast group and restrict the number of multicast group that the user on the switch can join. Then the administrator is able to control the network service (e.g, IP/TV service) that the user can enjoy.

The filtering profile page allows to configure up to 128 IP-group (for multicast servie) profiles (starting and ending point within an IP range shall be specified). Each IP group profile can be set for permission of / denial of network service respectively.

In addition, such filtering profile is only effective for controlling the query for multicast. It has nothing to do with the general IGMP query.

Auto Legend OP NK P2500 11.05.43 Dashboard Status SWEET LAN General Setup Port Setting Mirror Link Aggregation VLAN Management EEE Multicast Properties ICMP Shipping M/FI MLD Shipping Jumbo Frame STP MAC Address Table Blocked Port Recover ONVIF Surveillance Securities 172 285 279 2611/Auto-Wed SETET LAN = Multicast > ICMP Shipping > Filtering Profile ICMP Setting ICMP Queue Setting ICMP Static Group CMP Group Table ICMP Router Table Forward All Thrusting Fishing Profile Fishing Binding Profile ID: COMP Phone ID (1 - 138) Start Address: 224.0.0.1 End Address: 224.0.0.2 Action: Allow Deny Add Profile ID Start Address End Address Action Edit No data available in table

Available settings are explained as follows:

Item	Description
Profile ID Use the drop down list to select one filtering profile (1~128) for IGMP snooping.
Start Address	Enter an IP address as the starting point for the IP range.
End Address	Enter an IP address as the ending point for the IP range.
Action	Deny - It is default setting. The forwarding request of multicast traffic will be discarded.Allow - When it is selected, the request for multicast traffic will be forwarded to the multicast group normally.
Add Click it to display the result based on the settings configured above.
Edit	- Click it to modify port setting (max group and exceed action).

Edit Profile 1 Start Address: 224.0.0.1 End Address: 224.0.0.2 Action: Allow OK Cancel

II-7-2-9 Filtering Binding

This page allows the network administrator to select a filtering profile for LAN/GE port to process multicast traffic.

Auto Logged : Off Switch LAN > Multicast > IGP Tracking > Filtering Binding ICMP Setting IGMP Queue Setting IGMP Static Group IGMP Group Table IGMP Router Table Forward All Throttling Filtering Profile Fiterag Binding Ports: Nothing selected Profile ID: nothing selected Enable App1 Port Profile ID Edit GF1 -- ✓ GE2 -- ✓ GE3 -- ✓ GE4 -- ✓ GE5 -- ✓ GE6 -- ✓ GE7 -- ✓ GE8 -- ✓ GE9 -- ✓ GE10 -- ✓ GE11 -- ✓

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to specify LAN Port (GE/ LAG).
Profile ID Use the drop down list to choose the filtering profile for the select port/ interface.● Enable - Check this box first to make profile ID selection be available for choosing.
Apply Apply the settings to the switch.
Edit	- Click it to modify port setting (enabling / disabling filter function and choosing a profile for such interface).

Edit Port GE1 Filter: Enable Profile: 1 OK Cancel

II-7-3 MVR

Multicast VLAN Registration (MVR) can route packets received in a multicast source VLAN to one or more desination VLANs. LAN users are in the destination VLANs and the multicast server is in the source VLAN.

MVR can continuously send multicast stream for traffic in the multicast VLAN, but isolate the streams from the source VLANs for bandwidth and security reasons.

In general, MVR is able to:

• Identify the MVR IP multicast streams and their associated IP multicast group.
• Intercept the IGMP messages

II-7-3-1 Property

This page allows the network administrator to configure general settings for MVR, such as enabling function, selecting VLAN ID (as source VLAN) and specify IP address(es) for receiver/LAN users.

Auto Logout: C/F MI P2500 11.12.24 Dashboard Switch LAN Switch LAN > Multicast > MVR > Property Status Switch LAN General Setup Port Setting Minor Link Aggregation VLAN Management EEE Multicast Properties CAMP Snooping MVR MLD Snooping Jumbo Fram STF MAC Address Table Blocker PortRecover ONVP Surveillance Security Property Settings State: Enable Disable VLAN ID: 1st0003(1) Mode: Compatible Dynamic Group Start: 202.64.1.3 Backup Search: 11.3 (7-1289) Query Time: 6 (7-10 sec) Apply Operational Group Maximum: 120 Current: 0

Available settings are explained as follows:

Item	Description
State	Enabled- Click it to enable the MVR function.Disabled- Click it to disable the MVR function.
VLAN ID	Choose one VLAN profile from the drop down list as multicast source VLAN which will receive multicast data. All source ports must belong to this VLAN. The default is VLAN 1.Note: Each VLAN ID shall be configured with group address and member port (defined inMVR>>Group Addresspage).
Mode There are two modes offered for MVR operation.Comaptible-Multicast data received by MVR hosts (multicast server) will be forwarded to all MVR receiver ports.Dynamic-Multicast data received by MVR hosts (multicast server) on VigorSwitch will be forwarded from those MVR data and client ports grouped under
	MVR server.
Group Start Enter an IP address. Any multicast data sent to this IP address will be sent to all source ports on VigorSwitch; and all receiver ports will accept / receive data from that multicast address.
Group Count	Select a number to configure a contiguous series of MVR group addresses (the range for count is 1 to 128; the default is 1).
Query Time Use the drop down list to define the maximum time (1 - 10 seconds) to wait for IGMP report members on a receiver port before the port is removed from multicast group.
Apply Apply the settings to the switch.
Operation Group Display group information for MVR operation.

II-7-3-2 Port Setting

It is necessary to specify destination port and source port (GE/LAG) for Vigor system to perform MVR operation.

Auto Logout : Off SwitchLAN + MULZAD + MVR > Port Setting Property Port Setting Group Address Ports: Nothing selected Role: None Receiver Source Immediate Leave: Enable Disable Apply Multicast Properties KMP Snooping MVR MLD Snooping Jumbo Frame SPT MAC Address Table Blocked Port Recover ONVF Surveillance Security Port Role Immediate Leave Edit GE1 None Disabled ✓ GE2 None Disabled ✓ GE3 None Disabled ✓ GE4 None Disabled ✓ GE5 None Disabled ✓ GE6 None Disabled ✓ GE7 None Disabled ✓ GE8 None Disabled ✓ GE9 None Disabled ✓ GE10 None Disabled ✓ GE11 None Disabled ✓

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select LAN Port (GE/LAG). Later, each port can be set as Receiver or Source port respectively. If you do not satisfy with the port setting, simply click the Edit button to make the modification.
Role	None - Noting will be happed to the selected LAN port in MVR operation.Receiver - The selected port will be treated as destination port which will receive multicast data from the multicast server.Source - The selected port will be treated as source port which will send multicast data to the receiver port.
Immediate Leave	Enabled - Enable the function fo immediate leave. When the port (with the role of receiver) receives the leavemessage, it will be removed from multicast group to speed up leave latency.●Disabled- Disable the function of immediate leave.
Apply Apply the settings to the switch.
Edit	[WEHD]- Click it to modify port setting (role and immediate leave).

II-7-3-3 Group Address

This page allows the network administrator to configure IP address and specify port member for VLAN selected in MVR>>Property page.

Auto Logpal : Off MS P0500 11:13:22 Dashboard Status Switch LAN General Setup PORT Setting Mirror Link Aggregation VLAN Management EEE Multicast Properties ICMP Selecting MVR Multi Selecting Jumbo Frame STP MAC Address Table Blocked Port Recover ONVF Surveillance Security Switch LAN > Multicast > MVR > Group Address Property Port Setting Group Address VLAN ID: 3 Group Address: Member: Nothing selected (202.84.1.3 - 202.84.1.119) Add VLAN Group Address Member Type Life (Sec.) Edit No data available in table

Available settings are explained as follows:

Item	Description
VLAN ID Display the ID number of the VLAN.
Group Address Define a range of IP address(es) with the format of “xxx.xxx.xxx.xxx - xxx.xxx.xxx.xxx”.
Member	Choose GE/ LAG port to be grouped under the selected VLAN.
Add Click it to display the result based on the settings configured above.
Edit	- Click it to modify the settings.

II-7-4 MLD Snooping

MLD snooping does the same thing as IGMP snooping. The difference is that IGMP snooping acts on IPv4 packets; MLD snooping acts on IPv6 packets. MLD snooping is the process of listening to Multicast Listener Discovery network traffic. It can examine IPv6 packets and forward these packets to designate location via VLAN port members.

II-7-4-1 MLD Setting

This page allows the network administrator to enable/disable MLD Snooping function, select snooping version, and enable/disable snooping report suppression.

Auto Logout : C8 Switch LAN > Multicast > MLD Snooping > MLD Setting MLD Setting MLD State Group MLD Group Table MLD Router Table Forward All Thralling Filtering Profile Filtering Binding Property Settings State: Enable Disable Version: MLDv1 MLDv2 Report Suppression: Enable Disable Apply Multicast Properties IGMP Snooping MAC MLD Snooping Jumbo Frame STP MAC Address Table Blocked Port Recover ONMF Surveillance Security VLAN ID MLD Snooping Operational S... Router Port Auto Learn Query Robustress Query Interval Query Max Response Inte... Last Member Query Counter Last Member Query Interval Immediate Le... Edit 1 Disabled Enabled 2 125 10 2 1 Disabled 2 Disabled Enabled 2 125 10 2 1 Disabled 3 Enabled Disabled 0 0 0 0 0 Enabled 4 Disabled Enabled 2 125 10 2 1 Disabled 5 Disabled Enabled 2 125 10 2 1 Disabled 6 Disabled Enabled 2 125 10 2 1 Disabled 7 Disabled Enabled 2 125 10 2 1 Disabled 8 Disabled Enabled 2 125 10 21Disabled2DisabledEnabled21251021Disabled3EnabledDisabled00000Enabled4DisabledEnabled21251021Disabled5DisabledEnabled21251021Disabled6DisabledEnabled21251021Disabled7DisabledEnabled21251021Disabled8DisabledEnabled21251021DisabledVLAN Setting

Available settings are explained as follows:

Item	Description
State	Enabled- Click it to enable the MLD snooping function. Disabled- Click it to disable the MLD snooping function.
Version VigorSwitch supports two versions of MLD snooping.MLDv1- When it is selected, VigorSwitch will detect packets controlled by MLDv1 andbridgethe traffic to IPv6 destination defined with multicast address(es).MLDv2- When it is selected, VigorSwitch will detect packets controlled by MLDv1 andforwardthe traffic to destination defined with multicast address(es).
Report Suppression	Enabled- Click it to allow the switch to handle MLD reports between router and host, suppressing bandwidth used by MLD. Disabled- Click it to disable the function.
Apply Click it to display the result based on the settings configured above.
Edit	- Click it to modify the settings for the selected VLAN ID (GE/ LAG port).
	●MLD Snooping State- Enable/ disable the MLD snooping function for the selected port.●Router Ports Auto Learn-Set the enabling status of IGMProuter port learning. Choose Enable to learn router port by MLD query.Query Robustness - Set a number which allows tuning for the expected packet loss on a subnet.Query Interval - Specify the time interval for VigorSwitch to send out general MLD query to the host (responsible for responding). Later, based on the response, VigorSwitch can forward the traffic through ports in VLAN.Query Response Interval - Specify the time interval for VigorSwitch to receive the query response from the host. If time is up and no response received, the packets will be blocked and discarded.Last Member Query Counter - After quering for specified times (defined here) and still not receiving any response from the subscribed member, VigorSwitch will stop transmitting data to the related GE port(s).Last Member Query Interval - The maximum time interval between counting each member query message with no responses from any subscribed member.Immediate Leave - Click Enable to enable the function of immediate leave. When the GE/ LAG port receives the leave message, it will be removed from multicast group to speed up leave latency.OK - Apply the settings to the switch.Cancel - Close the page and return to previous page.

II-7-4-2 MLD Static Group

The MLD static group is allowed to assign a VLAN/ port as a specific IPv6 multicast member. Every IPv6 multicast stream that belongs to the specified group IP address will be forwarded to the specified port/ VLAN member.

Auto Layout: Of Switch LAN > Multicast > MLD Snooping / MLD State Group MLD Setting MLD State Group MLD Group Table MLD Router Table Forward All Throlling Filtering Profile Filtering Binding VLAN ID: Group IP Address: Member Ports: Apple Multi Card Properties Kinder Snooping LMS MD Snooping Jumbo Frames STP MAC Address Table Blocked Port Recover ONVF Surveillance Security VLAN ID Group IP Address Member Ports MODLY No data available in table

Available settings are explained as follows:

Item	Description
VLAN ID	Use the drop down list to specify a VLAN profile (created in Switch LAN>>VLAN Management>>Create Vlan) as MLDStatic Group.However, if State in MLD Setting is not set as Enabled, such option will be disabled and no ID can be selected.
Group IP Address It is an id	identifier for the group member. Packets sent to such address will be transferred to all interfaces defined in Member Ports.Specify the IPv6 multicast address you wish to assign for the static group (defined in VLAN ID).
Member Ports Use the drop down list to specify interfaces (GE/LAG) for receiving the packets from group IP address.
Add Click it to display the result based on the settings configured above.

II-7-4-3 MLD Group Table

This page shows currently known and dynamically learned by MLD snooping or shows the assigned IP6 multicast address group in operation.

Auto Logout Off MB P2000 11:17:00 Dashboard Status SwISS LAN General Setup Port Setting Mirror Limit Aggregation VLAN Management EEE Multica Properties IGMP Snogging MVR MLD Snogging Junction Frame SIP MAC Address Table Blocked Port Recover ONVF Surveillance Security Switch LAN - Multica4 - MLD Snogging - MLD Group Table MLD Setting MLD Static Group MLD Group Table MLD Router Table Forward All Thrulling Filtering Profile Filtering Binding VLAN ID Group IP Address Member Ports Type Life(sec.) No data available in table

Available settings are explained as follows:

Item	Description
VLAN ID Display the name	of VLAN configured in MLD Static Group.
Group IP Address	Display the IP adderss defined in MLD Static Group.
Member Ports	Display all of the interfaces defined in MLD Static Group.
Type Display if it is dynamically learned or statically assigned.
Life(sec.) Display the life time of this multicast member left if no membership report sent again.

II-7-4-4 MLD Router Table

This page is allowed to configure VLAN profile by specifying static/ forbidden ports for the router (MLD querier).

Auto Logist CIR MIL P2500 11:17:44 Dashboard Status Switch LAN General Setup Port Setting Menu Link Aggregation VLAN Management EEE Multicard Properties IOMP Shopping MVR MLO Shopping Junto Frame SIP MAC Antenna Table Blocked Port Recover ONVF Surveillance Security Switch LAN = Multicast = MLD Shopping = MLD Router Table MLD Setting MLD Subic Group MLD Group Tube MLD Router Tube Forward All Timing Filtering Profile Flooding Blocking VLAN ID: Nothing selected Type: Static Forbidden Member Ports: Nothing selected Add VLAN ID Port Static Port Forbidden Port Expiry Time(sec 1) Edit 5 GE8 GE8 0 ✓ 7 GE3 0 ✓ 10 GE22 0 ✓

Available settings are explained as follows:

Item	Description
VLAN ID	Use the drop down list to specify a VLAN profile (created in Switch LAN>>VLAN Management>>Create Vlan) that the MLD querier belongs to.
Type	Static - Specify LAN Port (GE/ LAG) to send out query to remote host.Forbidden - Use the drop down list to specify forbidden LAN Port (GE/ LAG).
Member Ports Use the drop down list to choose the uplink ports where querier router exists.
Add Click it to display the result based on the settings configured above.
Static Port / Forbidden Port	Display the static port / forbidden port member specified in Member Ports.
Expire Time (sec.)	Display the time before querier is considered no longer existed.
Edit	Click it to modify the settings for the selected entry.

Edit VLAN 1 Static Port: GE1, GE2, GE3 Forbidden Port: Nothing selected OK Cancel

II-7-4-5 Forward All

This page is allowed to determine which port(s) would like to receive the data (multicast packets) that forwarded by VigorSwitch.

Switch LAN > Multicast > MLD Strooping > Forward Alt MLD Setting MLD Static Group MLD Group Table MLD Support Table Forward Alt Thrilling Fibbing Profile Fibring Binding Available VLAN: Nothing selected Static Ports: Nothing selected Forbidden Ports: Nothing selected Add VLAN Static Port Fortified Port Exit No data available in table

Available settings are explained as follows:

Item	Description
Available VLAN	To display all of the available VLAN, the State must be set as Enabled in MLD Setting first.Use the drop down list to specify a VLAN profile (created in Switch LAN>>VLAN Management>>Create Vlan) that multicast packets will be forwarded to.
Static Ports	Use the drop down list to specify LAN Port (GE/ LAG).Later, the multicast packets will be delivered to the network device connected by these ports.
Forbidden Ports Use the drop down list to specify forbidden LAN Port (GE/ LAG).Later, the multicast packets will not be delivered to the network device connected by these ports.
Add Click it to display the	result based on the settings configured above.
Edit	- Click it to modify port setting (static port and forbidden port).- Click it to remove the selected entry.

II-7-4-6 Throttling

The administrator can configure the user on a switch port (GE/LAG port) belonging to which multicast group and restrict the number of multicast group that the user on the switch can join. Then the administrator is able to control the network service (e.g, IP/TV service) that the user can enjoy.

The Throttling page is used for configuring the maximum number (0\~255) of MLD group that a user on a switch port can join. After defined the maximum number, each switch port interface can be set to deny the MLD join report or set to replace randomly selected multicast interface with received MLD join report.

Auto Logset CP MS P0000 11:30:00 Dashboard Status WIN LAN General Setup Port Setting Minor Link Aggregation VLAN Management EEE Multicast Properties ICMP Shopping MVR MLD Shopping Jumbo Frame STP MAC Address Table Slanked Port Recover ONVF Surveillance Security Switch LAN > Multicast > ML DI Screening > Thinning MLD Setting MLD Task Group MLD Group Table MLD User Text Forward As Thinning Fishing Profile Fishing Binding Ports: Nothing selected Max Group: 256 (0 - 256) Exceed Action: + Deny ▼ Replace Apply Port Max Group Exceed Action Edit GE1 256 Deny GE2 256 Deny GE3 256 Deny GE4 256 Deny GE5 256 Deny GE6 256 Deny GE7 256 Deny GE8 256 Deny GE9 256 Deny GE10 256 Deny

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to specify LAN Port (GE/ LAG) for applying throttling feature.
Max Group Define the max	maximum number of MLD group profile that a user on the switch can join. If “0” is selected, then such interface (port) can join all of the MLD group profiles (defined in Filtering Profile).
Exceed Action VigorSwitch	will perform the action defined below when the number of MLD join report for the specified interface exceeds value defined in Max Group.·Deny - It is default setting. The MLD join report (for multicast service) received by such interface will be discarded.·Replace - When it is selected, a new group with MLD report received will replace the existing group.
Apply Apply the settings to the switch.
Edit	- Click it to modify the settings for the selected entry.

II-7-4-7 Filtering Profile

The administrator can configure the user on a switch port (GE/LAG port) belonging to which multicast group and restrict the number of multicast group that the user on the switch can join. Then the administrator is able to control the network service (e.g, IP/TV service) that the user can enjoy.

The filtering profile page allows to configure up to 128 IP-group (for multicast servie) profiles (starting and ending point within an IP range shall be specified). Each IP group profile can be set for permission of / denial of network service respectively.

In addition, such filtering profile is only effective for controlling the query for multicast traffic. It has nothing to do with the general MLD query.

Auto Logout : Off ML P2000 11.2129 Dashboard Switch LAN = Multicost = MLD Smoking = Filtering Profile Status Switch LAN General Setup Port Setting Minor Link Aggregation VLAN Management EEE Multicell Properties IOMP Smoking M/R MLD Smoking Jumbo Frame SFP MAC Address Table Blocked Port Recover ONVF Surveillance Security MLO Setting MLO Static Group MLO Group Table MLO Router Table Forward All Thrilling Filtering Profile Filtering Binding Profile ID: User Provider (1 + 128) Start Address: PPP2.1 End Address: PPP2.2 Action: Allow Deny Add Profile ID Start Address End Address Action Edit No data available in table

Available settings are explained as follows:

Item	Description
Profile ID Use the drop down list to select one filtering profile (1~128) for MLD snooping.
Start Address	Enter an IP address as the starting point for the IP range.
End Address	Enter an IP address as the ending point for the IP range.
Action	Deny - It is default setting. The forwarding request of multicast traffic will be discarded.Allow - When it is selected, the request for multicast traffic will be forwarded to the multicast group normally.
Add Click it to display the result based on the settings configured above.
Edit	- Click it to modify the settings for the selected entry.

Edit Profile 1 Start Address: 224.0.0.1 End Address: 224.0.0.2 Action: Allow OK Cancel

II-7-4-8 Filtering Binding

This page allows the network administrator to select a filtering profile for LAN/GE port to process multicast traffic.

Aide Legend: Dashboard Status Switch LAN General Setup Port Setting Minor Limit Aggregation VLAN Management EEE Multicard Properties GMP Snooping MVR MLD Snooping Jumbo Frame SIP MAC Address Table Blocked Port Recover ONVF Surveillance Security Bench LAN - Multicard - MLD Snooping - Filtering Binding MLD Setting MLD State Group MLD Group Table MLD Router Table Forward AI Thinning Filtring Profile Filtring Binding Ports: Nothing selected Profile ID: No voting required Add Port Profile ID Edit GE1 ✓ GE2 ✓ GE3 ✓ GE4 ✓ GE5 ✓ GE6 ✓ GE7 ✓ GE8 ✓ GE9 ✓ GE10 ✓ GE11 ✓

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to specify LAN Port (GE/ LAG).
Profile ID Use the drop down list to choose the filtering profile for the select port/ interface.● Enable - Check this box first to make profile ID selection be available for choosing.
Apply Apply the settings to the switch.
Edit	- Click it to modify port setting (enabling / disabling filter function and choosing a profile for such interface).

Edit Port GE1 Filter: Enable Profile: 1 OK Cancel

II-8 Jumbo Frame

This page allows a user to configure switch port jumbo frame settings.

Auto Logset : Off Mk P2500 11:34:66 Dashboard Status Switch LAN General Setup Port Setting Mirror Limit Aggregation VLAN Management EEE Multicled Jumbo Frame STP MAC Address Table Blocked Port Recover ONVP Surveillance Security ACL QoS PoE System Maintenance Switch LAN > Jumbo Frame > Jumbo Frame Setting Jumbo Frame Setting Jumbo Frame (Byte): 1526 (1826-12388) Azets

Available settings are explained as follows:

Item	Description
Jumbo Frame (Bytes) Enter Jumbo frame size. The valid range is 1526 bytes - 9216 bytes.
Apply Apply the settings to the switch.

II-9 STP

The Spanning Tree Protocol (STP) is a network protocol that ensures a loop-free topology for any bridged Ethernet local area network.

Bridge Protocol Data Units (BPDUs) are frames that contain information about the Spanning Tree Protocol (STP). Switches send BPDUs using a unique MAC address from its origin port and a multicast address as destination MAC (01:80:C2:00:00:00, or 01:00:0C:CC:CC:CD for Per VLAN Spanning Tree).

For STP algorithms to function, the switches need to share information about themselves and their connections. What they share are bridge protocol data units (BPDUs).

BPDUs are sent out as multicast frames to which only other layer 2 switches or bridges are listening. If any loops (multiple possible paths between switches) are found in the network topology, the switches will co-operate to disable a port or ports to ensure that there are no loops; that is, from one device to any other device in the layer 2 network, only one path can be taken.

II-9-1 Properties

This page allows a user to configure and display Spanning Tree Protocol (STP) property configuration.

Auto Logend CP Diasboards Status Switch LAN General Setup Port Setting Mirror Limit Aggregation VLAN Management EEE Multicast Jumbo Frame WTP MAC Address Table Blocked Port Recover ONVF Surveillance Security ACL QoS PoE System Maintenance SwitchLAN > STP > Properties Properties Port Setting Bridge Setting Port Advanced Setting Statistics MST Instance HST Port Setting STP Mode: Disable STP RSTP MSTP BPDU Handling: Flooding Filtering PathCost Method: Short Long Apple

Available settings are explained as follows:

Item	Description
STP Mode Set the operating mode of Spanning Tree (STP).● Disabled - Disable the STP operation.● STP - Enable the Spanning Tree (STP) operation.● RSTP - Enable the Rapid Spanning Tree (RSTP) operation.● MSTP - Enable the Multiple Spanning Tree Protocol (MSTP) operation.
BPDU Handling	● Specify the BPDU forward method when the STP is disabled.● Filtering - Filter the BPDU when STP is disabled. ● Flooding - Flood the BPDU when STP is disabled.
PathCost Method	● Specify the path cost method. ● Long - Specifies that the default port path costs are within the range: 1~200,000,000. ● Short - Specifies that the default port path costs are within the range: 1~65,535.
Apply Apply the settings to the switch.

II-9-2 Port Setting

This page allows the user to configure and display Spanning Tree Protocol (STP) port settings.

Auto Logset : CS Switch LAN > STP > Port Setting Properties Port Setting Bridge Setting Port Advanced Setting Statisticals MST instance MST Port Setting General Setup Port Setting Minor Limit Aggregation VLAN Management EEE Multicast Jumbo Frame STP MAC Address Table Blocked Port Recover ONMF Surveillance Security ACL QoS PGE System Maintenance Ports: Path Cost Priority Edge Port: P2P Option: BPDU Filter: BPDU Guard: Setting selected Apply Ports: Migrate Port Admin Enable Path Cost Priority Edge Port P2P Option BPDU Filter BPDU Guard Edit GE1 Enabled 0 125 No Auto Disabled Disabled GE2 Enabled 0 125 No Auto Disabled Disabled GE3 Enabled 0 125 No Auto Disabled Disabled

Available settings are explained as follows:

Item	Description
Ports Use the drop down to specify the interface ID or the list of interface IDs.
Path Cost (0=Auto)	Path cost is the cost of transmitting a frame on to a LAN through that port. It is recommended to assign this value according to the speed of the bridge. The slower the media, the higher the cost. Entering 0 means the switch will automatically assign a value.
Priority	Specify a priority value for the switch. The smaller the priority value, the higher the priority and greater chance of becoming the root.
Edge Port In the edge mode, the interface would be put into the Forwarding state immediately upon link up. If the edge mode is enabled for the interface and there are BPDUs received on the interface, the loop might be occurred in the short time before the STP state change.Yes - Enable the function.No - Disable the function.
P2P Option	Auto - VigorSwitch determines the STP of link type forthis port automatically.Yes- It means the STP of link type on this port is full-duplex and directly connect to another switch or host.No- It means the STP of link type on this port is “not” full-duplex and “does not” directly connect to another switch or host.
BPDU Filter	Yes- Drop all BPDU packets and no BPDU will be sent.
BPDU Guard Yes - BPDU Guard further protects your switch by turning this port into error state and shutdown if any BPDU received from this port. Check it to enable such function.
Apply Apply the settings to the switch. After clicking it, the settings configured above will be shown on the table below.
Ports	Use the drop down to specify the interface(s) for applying the function ofMigrate.
Migrate Click it to force the port(s) specified above to send one RSTP BPDU (Rapid Spanning Tree Protocol Bridge Protocol Data Unit).
Edit Click it to modify the settings for the selected GE port.

II-9-3 Bridge Setting

This page allows the network administrator to configure required information to negotiate with other VigorSwitch for determining the bridge switch.

Auto Legend: Off Switch LAN > STEP > Bridge Setting Properties Put Damping Bridge Damping Put Advanced Damping Status MOT Instance MOT Put Damping General Setup Port Setting Menu Link Aggregation VLAN Management EEE Multicast Jumbo Frame Priority: 32768 Forward Delay: 15 Max Age: 20 Tx Hold Count: 6 Hello Time: 2 (4-30) (6-40) (1-10) (1-10) Apply STP MAC Address Table: Blocked Port Recover ONIF Surveillance Security ACL QoS PoE System Maintenance Bridge Identifier 32768/ 0/00.10.AA.22.33.14 Designated Root Bridge 0/ 0/00 00:00:00:00:00 Root Path Cost 0 Designated Bridge 0/ 0/00 00:00:00:00:00 Root Port 0 / 0 Max Hops 20 Remaining Hops 0 Last Topology Change 0

Available settings are explained as follows:

Item	Description
Priority Specify the bridge	priority. The valid range is from 0 to 61440, and the value should be the multiple of 4096. It ensures the probability that the switch is selected as the root bridge, and the lower value has the higher priority for the switch to be selected as the root bridge of the topology.
Forward Delay Specify the	STP forward delay time, which is the amount of time that a port remains in the Listening and Learning states before it enters the Forwarding state. Its valid range is from 4 to 10 seconds.
Max Age Specify the time	nterval in seconds for a switch to wait the configuration messages, without attempting to redefine its own configuration.
Tx Hold Count Specify the	tx-hold-count used to limit the maximum numbers of packets transmission per second. The valid range is from 1 to 10.
Hello Time	Specify the STP hello time in second to broadcast its hello message to other bridge by Designated Ports. Its valid range is from 1 to 10 seconds.
Apply Apply the settings to	the switch.

II-9-4 Port Advanced Setting

This page allows user to edit general setting of STP CIST port and browser CIST port status.

Auto Logout : Off Mk P2500 11:34:09 Dashboard Switch LAN = S1P. = Port Advanced Setting Status Properties Port Setting Bridge Setting Port Advanced Setting Statistics MST Instance MST Port Setting Switch LAN General Setup Port Setting Port Indentifier (Priority/ID) Path Cost Conf/Oper Designated R... Root Path Cost Designated B... Edge Port Conf/Oper P2P Option Conf/Oper Port Role Port State Edit GE1 128 / 1 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / No Disabled Disabled ✓ GE2 128 / 2 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / No Disabled Disabled ✓ GE3 128 / 3 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / No Disabled Disabled ✓ GE4 128 / 4 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / Yes Disabled Forwarding ✓ GE5 128 / 5 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / Yes Disabled Forwarding ✓ GE6 128 / 6 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / No Disabled Disabled ✓ GE7 128 / 7 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / No Disabled Disabled ✓ GE8 128 / 8 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 00... No / No Auto / No Disabled Disabled ✓ GE9 128 / 9 0 / 4 0 / 00 30 00 00 0... 0 0 / 30 00 00 00 09... No / No Auto / NoDisabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Disabled Preferred Method (SIP) - Post Advanced Setting

Available settings are explained as follows:

Item	Description
Port Display the interface	number for GE and LAG.
Indentifier(Priority/ID)	Display the spanning tree port identifier.
Path Cost Conf/Oper	Display current path cost of given port.
Designated Root Bridge	display the identifier of designated root bridge.
Root Path Cost Display the operational root path cost.
Designated Bridge Display	the identifier of next bridge on this port.
Edge Port Conf/Oper	Display if this port is configured as Edge of STP network, for speed up link up.
P2P MAC Conf/Oper	Display if this port is configured as point to point link to another switch or host.
Port Role Display current	port role on the specified port. The possible values will be: “Disabled”, “Root”, “Designated”, “Alternative”, and “Backup”.
Port State Display current	port state on the specified port. The possible values will be: “Disabled”, “Discarding”, “Learning”, and “Forwarding”.
Edit Click it to modify the priority setting for the selected GE port / LAG port.

Indentifier (Priority/ID) Path Cost Conf/Oper Designated... Root Path Cost Designated... Edit Port GE1 Priority 128 OK Cancel

II-9-5 Statistics

This page displays STP statistics.

Auto Lognot OS Dashboard Status Switch LAN General Setup Port Setting Mines Link Aggregation VLAN Management EEE Matcast Jumbo Frame STP MAC Address Table Blocked Port Recover ONVIF Surveillance Security ACL QoA PoE System Maintenance 1/2 16.1.179 250L/Port details Switch LAN = STP > Status Properties Port Setting Disagging Setting Port Advanced Setting Distances MST Instance MST Port Setting Port Configure BPDUs Rx. TCN BPDUs Rx. Configure BPDUs Tx. TCN BPDUs Tx. GE1 0 0 0 0 GE2 0 0 0 0 GE3 0 0 0 0 GE4 0 0 0 0 GE5 0 0 0 0 GE6 0 0 0 0 GE7 0 0 0 0 GE8 0 0 0 0 GE9 0 0 0 0 GE10 0 0 0 GE11 0 0 0 0 GE12 0 0 0 0 GE13 0 0 0 0 GE14 0 0 0 GE15 0 0 0 GE16 0 0

Available settings are explained as follows:

Item	Description
Port Display the port number (GE / LAG).
Configure BPDUs Rx.	Display the counts of the received CONFIG BPDU.
TCN BPDUs Rx.	Display the counts of the received TCN BPDU.
Configure BPDUs Tx.	Display the counts of the transmitted CONFIG BPDU.
TCN BPDUs Rx	Display the counts of the transmitted TCN BPDU.

II-9-6 MST Instance

MSTP allows traffic of different VLAN to be mapped into different MST Instances. VigorSwitch supports up to 16 independent MST instances (0\~15) with which the VLAN can be associated.

Auto Logpost CF Switch LAN Dashboard Status Switch LAN General Setup Port Setting Minor Link Aggregation VLAN Management EEE Multicast Jumbo Frame SST MAC Address Table Blocked Port Recover ONVF Surveillance Security ACL QoS PGE System Maintenance 172 182.179 (200) P####-4560 MSTI Priority Bridge Identifier Designated Root ... Root Port Root Path Cost Remaining Hop VLAN Edit 0 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 1-4394 1 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 2 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 3 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 4 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 5 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 6 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 7 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 8 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 00 N/A 0 0 9 32768 32768-08 1D AA 22.3 0-00 00 00 00 00 N/A 0 0 10 32768 32768-08 1D AA 22.3 0-00 00 00 00.00 N/A 0 0 11 32768 32768-08 1D AA 22.3. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12 32768 32768-08 1D AA 22.3. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13 32768 32768-08 1D AA 22.3. - - - - - - - - - - - - - - - - - - - - - - 14 32768 32768-08 1D AA 22.3. - -- + + + + + + + + + + + + + + + + + + + + + + + + + 15 32768 32768-08 1D AA 22.3. - + + + + + + + + + + + + + + + + + + + + + + + + + + + +

Available settings are explained as follows:

Item	Description
MSTI Display the index number of MST Instance. Each MSTI can have one or multiple VLANs.
Edit	- Click it to modify the priority setting for the selected GE port / LAG port.
	● VLAN - Enter the ID (1-4094) of the VLAN which should be associated with this MSTI.● Priority - The switch priority for this MST instance. A lower number gives the switch higher chance to be chosen as the root bridge.● Bridge Identifier - Display the priority of MSTI instance number + MAC address of the switch.● Designated Root Bridge - Display the Bridge Identifier of the root bridge.● Root Port - Display the port toward the root.● Root Path Cost - Display the path cost toward the root.● Remaining Hop - Display the remaining hop count in BPDU.● VLAN - Display the range of VLAN ID numbers.● OK - Save the modifications.

II-9-7 MST Port Setting

MST Port Settings is used to configure the GE port / LAG group settings for each MST instance. The table displays the MST parameters for each port.

Auto Layout: Off Dashboards Status Switch LAN General Setup Port Setting Menu Link Aggregation VLAN Management EEE Multicast Jumbo Frames STP MAC Address Table Blocked Port Recover ONVF Surveillance Security ACL QoS PoE System Maintenance Switch LAN > STP > MST Port Setting Properties Port Setting Design Setting Port Advanced Drilling Dislikes MDT Balance MDT Port Drilling MST: 0 Port | Path Cost | Priority | Port Role | Port State | Mode | Type | Designated E... | Designated F... | Designated C... | Remaining Hop | GE1 4 128 Disabled Disabled STP Boundary Designated Bridge 128-1 4 20 GE2 4 128 Disabled Disabled STP Boundary 0-00 00 00 00 00 00 128-2 4 20 GE3 4 128 Disabled Disabled STP Boundary 0-00 00 00 00 00 128-3 4 20 GE4 4 128 Disabled Disabled STP Boundary 0-00 00 00 00 00 128-4 4 20 GE5 4 128 Disabled Forwarding STP Boundary 0-00 00 00 00 00 128-5 4 20 GE6 4 128 Disabled Disabled STP Boundary 0-00 00 00 00 00 128-6 4 20 GE7 4 128 Disabled Disabled STP Boundary 0-00 00 00 00 00 128-7 4 20 GE8 4 128 Disabled Disabled STP Boundary 0-00 00 00 00 00 128-8 4 20 GE9 4 128 Disabled Disabled STP Boundary 0-00 00 00 00 00 128-9 4 20 GE10 4 128 Disabled Disabled STP Boundary 0-00 00 00 00.00 128-10 4 20 GE11 4 128 Disabled Disabled STP Boundary 0-00 00 00 00.00 128-11 4 20 GE12 4 128 Disabled Disabled STP Boundary 0-00 00 00 00.00 128-12 4 20 GE13 4 128 Disabled Disabled STP Boundary 0-00 00 00 00.00 128-13 4 20

Available settings are explained as follows:

Item	Description
MSTI Select one of the M	ST instances.
Edit	- Click it to modify the path cost and priority setting for the port.

Edit Port GE1 MSTI 0 Path Cost 0 (1 - 20000000, 0 = A10) Priority 128 OK Cancel

● MSTI - Display the selected MST instance.
- Path Cost - Set path cost value for the port. A port with lowest value will be used as the forwarding port by spanning tree. Default value was set according to the bandwidth of the port.
- Priority – Among the ports with same path cost, port with lower priority will have higher chance to be used as the forwarding port by spanning tree. Use the drop down list to choose desired priority value.

II-10 MAC Address Table

This section allows user to view the dynamic MAC address entries in the MAC table, change related setting, and assign MAC address into MAC table.

II-10-1 Static MAC Setting

This section allows user to manually assign MAC address into MAC table. The configuration result will be displayed on the table listed on the lower side of this web page.

Auto Logos Diet MS P2500 11:48:05 Switch LAN > MAC Address Table > Static MAC Setting > Static MAC Date: MAC MAC Address: 00:30 00:16:00:20 VLAN: default Port: GE1 ADD No. MAC Address YLAN Port Delete 1 00:1D AA:22:33:44 default(1) CPU Dynamic Address Setting Dynamic Learned Blocked Port Recover ONVP Surveillance Security ACL

Available settings are explained as follows:

Item	Description
MAC Address	Enter the MAC address that will be forwarded.
VLAN	This is the VLAN group to which the MAC address belongs.
Port Select the port where	received frame of matched destinationMAC address will be forwarded to.
Add	Click it to add any port into the static MAC table.
Delete Click it to remove the selected port from the static MAC table.

II-10-2 Dynamic Address Setting

This page allows a user to configure aging time for dynamic MAC address.

Aster Layout: CIP MA P0002 13.10.2016 Dastboard Status Switch LAN General Setup Port Setting Menu Link Aggregation VLAN Management EEE Multicast Jumbo Frame STP MAC Address Table Static MAC Setting Dynamic Address Setting Dyains Learned Blocked Port Recover ONOM Surveillance Security ACL Switch LAN = MAC Address Table - Dynamic Address Setfile - Dynamic Address Setfile Dynamic Address Setting Aging Time: 300 (5-92747) Apply

Available settings are explained as follows:

Item	Description
Aging Time Enter the Dynamic MAC address aging out value (5-32767 seconds).
Apply Apply the settings to the switch.

II-10-3 Dynamic Learned

This page displays the MAC address and port number automatically learned by VigorSwitch.

Auto Logout: C# M# P2000 13:11:39 Dashboard Switch LAN > MAC Address Table > Dynamic Leased > Dynamic Leased Status Switch LAN General Setup Port Setting Mirror Link Aggregation VLAN Management EEE Multicard Jumbo Frame STP MAC Address Table Static MAC Setting Dynamic Address Setting Dynamic Leased Blocked Port Receive GNTF Surveillance Security ACL (www.gntf.com) Switch LAN > MAC Address Table > Dynamic Leased > Dynamic Leased Dynamic Leased MAC Address : VLAN : Type : Port : 00 10 AA 00 0A BB default(1) Dynamic GE5 Add to Static 00 10 AA 00 0B 20 default(1) Dynamic GE5 Add to Static 00 10 AA 0C B7 F6 default(1) Dynamic GE5 Add to Static 00 10 AA 00 ECGA default(1) Dynamic GE5 Add to Static 00 10 AA 10 20 F7 default(1) Dynamic GE5 Add to Static 00 10 AA 43 AA F4 default(1) Dynamic GE5 Add to Static 00 10 AA 43 C9 C4 default(1) Dynamic GE5 Add to Static 00 10 AA 43 C9 CE default(1) Dynamic GE5 Add to Static 00 10 AA 43 D1 3E default(1) Dynamic GE5 Add to Static 00 10 AA 4E BD G3 default(1) Dynamic GE5 Add to Static 00 10 AA 65 36 E0 default(1) Dynamic GE5 Add to Static 00 E9 4C 00 0B 12 default(1) Dynamic GE5 Add to Static 06 06 27.1B 3A 67 default(1) Dynamic GE5 Add to Static CQ 25 E9 0E C3 8D default(1) Dynamic GE5 Add to Static

Available settings are explained as follows:

Item	Description
MAC Address	Display the MAC address that will be forwarded.
VLAN	Display the VLAN group to which the MAC address belongs.
Type	Display whether the MAC address is Dynamic (learned by the Switch) or Static Unicast (manually entered in the Static MAC Forwarding screen).
Port	Display the port to which this MAC address belongs.
Add to Static Click this button to add any port into the static MAC table.

II-11 Blocked Port Recover

This page is used for configuring settings to recover the port which is being blocked by the following functions after a defined period of time.

Switch LAN Backed Port Recover Recovery Interval: 300 BPOU Guard: Enable Self Loop: Enable Broadcast Flood: Enable Unknown Multicast Flood: Enable Unicast Flood: Enable ACL: enable Port Security: Enable DHCP Rate Limit: Enable ARP Rate Limit: Enable Apply

Available settings are explained as follows:

Item	Description
Recovery Interval The port being blocked will be able to receive and send traffic after the time period configured here.
BPDU Guard Enable - Recover the port being blocked by BPDU Guard after the time set in Recovery Interval.
Self Loop Enable - Recover the port being blocked by self loop Guard after the time set in Recovery Interval.
Broadcast Flood Enable - Recover the port being blocked by broadcast flood after the time set in Recovery Interval.
Unknown Multicast Flood Enable - Recover the port being blocked by unknown multicast flood after the time set in Recovery Interval.
Unicast Flood Enable - Recover the port being blocked by unicast flood after the time set in Recovery Interval.
ACL	Enable - Recover the port being blocked by ACL after the time set in Recovery Interval.
Port Security Enable - Recover the port being blocked by port security after the time set in Recovery Interval.
DHCP Rate Limit Enable - Recover the port being blocked by DHCP rate limit after the time set in Recovery Interval.
ARP Rate Limit Enable - Recover the port being blocked by ARP rate limit after the time set in Recovery Interval.
Apply Apply the settings to the switch.

This page is left blank.

Part III ONVIF Surveillance

III-1 Discovery

ONVIF (Open Network Video Interface Forum), an International standard for current surveillance system industry, focuses on security products based on network IP address.

With this feature, VigorSwitch can:

● Integrate the ONVIF device and surveillance network
● Centralize management of IP video products
- Offer real-time video monitoring
● Offer remote IP video products maintenance

Auto Logpost : Off Mk P2000 13:18:54 Dashboard Status Switch LAN ONVP Surveillance Discovery Tripings Video Device Maintenance Security ACL GoE PoE System Maintenance Diagnostics Mail Alert Product Registration ONVP Surveillance + Discovery > Discovery Discovery State: Enable Disable Apply

Available settings are explained as follows:

Item	Description
State	Enable - If enabled, VigorSwitch will automatically detect ONVIF devices, recognize third party IP cameras and NVR and integrate ONVIF device(s) to form surveillance network.Disable - Disable the function of Discovery.
Apply Apply the settings to the switch.

III-2 Topology

ONVIF devices can be centralized and managed remotely via VigorSwitch. With a hierarchy view, the administrator can manage several ONVIF devices and check abnormal traffic detected by Vigor system.

III-2-1 Status

The status (including port enabled, traffic, downlink, etc.) of the IP cameras and NVRs (Network Video Recorders) can be seen on this page.

Auto Lognet : 5 mm Dashboard Status Switch LAN OMAF Surveillance Discovery Portugal Video Device Maintenance Security ACL Quilt PoE System Maintenance Diagnostics Mail Alert Product Registration MK P250 17:56:42 OMAF Surveillance > Topology > Status Group All PoE PoE error MUST COM1 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 1000m 100m Status Thousgpt Threshold Group Information Total Group 0 +Add New Group Group Name Group Devices Port Modify No data available in table Device Information

Available settings are explained as follows:

Item	Description
Group Specify a group for	displaying group information and device information under the selected group.Or, choose the default setting, All, to display information for all groups.
PoE / PoE Error	PoE - Display the number of LAN PoE device(s) connected to VigorSwitch.PoE Error - Display the number of LAN PoE device(s) disconnected.
NVR Display the number of	NVR device(s) connected toVigorSwitch. The panel sketch on the screen will display which LAN port that the NVR device connected.
CAM	Display the number of IP camera(s) connected to VigorSwitch.The panel sketch on the screen will display which LAN port that the IP camera connected.
Group Information
Total Group Display the total number of groups.
+Add New Group A group	can contain one (IP camera or NVR, as group leader) to several devices (IP cameras as group devices).Click the button to create a new group for managing multiple devices.Step (1) - The first page allows you to configure general settings for a new group.Group Name - Enter the name of a group.All IPC Group - Check it to group all IP cameras within the group. However, if you want to specify an NVR device as the group leader, do NOT check this box.Available selections of devices (IP cameras or NVR devices) will vary according to the configuration of All IPC Group. If "All IPC Group" is disabled, the system will detect the NVR devices and list them on the field of NVR. If "All IPC Group" is enabled, the system will detect the IP cameras and list them on the field of Group Leader.NVR/Group Leader - Select an IP device. For the vedio from IP camera will be recorded on an NVR device, it is suggested to assign an NVR as the group leader.Group Device - This field lists all devices (IP cameras) not included by other group. Simply select one IP device

to multiple devices for managed by this group.

- Next - Click it to access into next page.

Step (2) - The second page allows you to configure throughput threshold for the group port. It is helpful for the system administrator to make the corresponding process if encountered abnormal situation.

+Add New Group 1 2 Group Ports Throughput Threshold Apply to All Member Ports GE9 Ingress Threshold Alert Enable Disable GE9 Egress Threshold Alert Enable Disable GE9 Ingress Rate (Kbps) 16 (16-1000000, multiple of 16) GE9 Egress Rate (Kbps) 16 (16-1000000, multiple of 16) OK Cancel

• Apply to All Member Ports - Check the box to apply the throughput threshold setting to all member ports.
• GE# Ingress Threshold Alert - Click Enable to set the ingress limit value. When the incoming traffic (packet) of the GE port reaches the limit, the Vigor System will send an alert email to the system administrator.
  ■ GE# Ingress Rate - If enabling the ingress threshold alert, enter the ingress rate as a threshold to send mail alert.
• GE# Egress Threshold Alert - Click Enable to set the egress limit value. When the outgoing traffic (packet) of the GE port reaches the limit, the Vigor System will send an alert email to the system administrator.
  ■ GE# Egress Rate - If enabling the egress threshold alert, enter the egress rate as a threshold to send mail alert.
• OK - Save the configuration and exit the box.
• Cancel - Exit the box without saving the configuration.

Device Information

Modify Click it to modify the settings of the selected IP device.

Edit Device - Camera Online true Port GE9 Device Name Group No Group Auth Username Auth Info for location modify or device reboot Auth Password Auth Info for location modify or device reboot Location Set Location Settings may not take effect immediately Reboot! OK Cancel

III-2-2 Throughput Threshold

This page is used for set throughput threshold for multiple ONVIF devices managed by VigorSwitch.

Auto Logout: 3 min Dashboard Status Switch LAN CNVF Sanellatus Discovery Tonkaya Video Device Maintenance Security ACL QoR PnP System Maintenance Diagnostics Mail Alert Product Registration PN002 13/58/37 CNVF Surveillance > Topergy > Throughput Threshold Group All PoE PoE error NISB 2 CAM 1 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Status Throughput Threshold Throughput Threshold Setting Note: Throughput Threshold is to check the rate of a single port, not a single device. Ports: Nothing selected Ingress Threshold Matalert: Enable Disable Ingress Rate (Kbps): (16-1000030, multiple of 16) Egress Threshold Matalert: Enable Disable Egiess Rate (Kbps): (16-1000030, multiple of 16)

Available settings are explained as follows:

Item	Description
Ports Specify one to several GE ports which will be limited by the threshold configured here.
Ingress Threshold Mailalert	Enable - When the ingress rate reaches the threshold configured here, Vigor system will send alert mail to specified mail address.Disable - No mail alert will be sent out.
Ingress Rate (Kbps) Enter a value as the threshold of ingress packets.
Egress Threshold Mailalert	Enable - When the egress rate reaches the threshold configured here, Vigor system will send alert mail to specified mail address.Disable - No mail alert will be sent out.
Egress Rate (Kbps) Enter a value as the threshold of engress packets.
Apply Save the settings or changes to the switch.
Modify Click it to modify the settings for the selected GE port / LAG port.

Edit Port GE1 Ingress Threshold Alert Enable Disable Egress Threshold Alert Enable Disable Ingress Rate (Kbps) 16 (16-1000000, multiple of 16) Egress Rate (Kbps) 16 (16-1000000, multiple of 16) OK Cancel

III-3 Video

This page can offer a real-time video of specified IP camera for monitoring and control environments.

Auto Loga 5 mm Mk P2000 14:02:33 Dashboard Status Switch LAN ONVIF Surveillance Discovery Topology Video Device Maintenance Security ACL GoS PoE System Maintenance Diagnostics Mail Alert Product Registration ONVIF Surveillance > Video > Video Group: All Devices Username: mk Password: - Camera List Search Design Name: Opera (2019) XP Address: 102 Mkt €/Mkt Video Device Live Streaming http://10.1.106/5aimer/ Copy URI to watch live stream on video player, recommend) Network Caste 17/12/2018 13:04-04

Available settings are explained as follows:

Item	Description
Group	Specify a group which contains the IP camera you want to check.
Username Enter the username	ame of the IP camera.
Password Enter the password of the IP camera.
Camera List Search - Enter	the device name of the IP camera for searching and displaying on this field.
Video Preview After authenticated with correct username and password, the vedio of the specified IP camera (supported by VigorSwitch) will be shown immediately.Live Streaming - Display the streaming URI of the IP camera.

III-4 Device Maintenance

The system administrator can remotely configure time setting and reboot the devices (IP cameras or NVRs) managed by VigorSwitch.

III-4-1 General

This page displays the information (e.g., device online, device name, etc.), time and date and the device action for a selected IP device (e.g., IP camera). Meanwhile, this page allows configuring settings for ping check of IP camera or NVR.

Auto Logout: 2 min Dashboard Status Switch LAN ONVF Surveillance Discovery Typology Video Device Maintenance Security ACL QoS PoE System Maintenance Diagnostics Mail Alert Product Registration MNVF Surveillance > Device Maintenance > General Device List Search: Device Name: Camera (0514) IP Address: F32 103.1.196 Username: ns Password: -- General Network Security Device Information Time and Date Device Online Yes UTC Time Device Name Current Time Manufacturer Time Zone Model Daylight Saving MAC 1C C3 16 24 81 A9 Firmware Device Actions

Available settings are explained as follows:

Item	Description
Device List Search - Enter	a string to search the IP device you want.Usage / Password - Enter the username / password of the IP-based device.After entering the correct username and password of the IP camera, click the mouse on the device name under the Device List. Later, general information related to the IP device will be shown below.
Device Information Display	the information related to the selected device.- Click it to modify the device name.
Time and Date Display the	time and date information related to the selected device. - Click it to modify the time setting for the device.
Device Action Display the	action performed by IP-based device. Factory Default - Click the Apply button to rest the factory default to the IP device. Reboot - Click the Apply button to reboot the IP device immediately.
Device Ping Check -- Configure settings for ping check of IP camera or NVR.
Port Display the port number of the IP device
Enable	Enable - Click it to enable the device ping check function. Disable - Click it to disable the function.
Ping IP Address Add Device	- Click it to add an IP address of the device to be pinged by VigorSwitch. Up to 16 IP address(es) can be added and displayed in this field one by one (with the format of x.x.x.x, x.x.x.x, x.x.x.x...) Del Device - Click it to remove the selected IP address.
Interval Time (sec) Set a time interval (15, 30, 60, 120) for pinging action.
Retry Time Choose 1, 3, or 5 for Vigor system to retry the pinging action.
Failure Action	Configure the power behavior for each LAN port. Power Cycle - Once the device is offline, Vigorswitch will power off the device and then power on the device again. Power Off - When the device is offline, power off the device immediately. Nothing - When the device is offline, no action will be Note: When a PoE hub connecting to LAN port of VigorSwitch, the power behavior (on/off) to the PoE hub also will apply to all the devices connecting to the PoE hub.
Mail Alert Enable - When the device is offline, Vigor system will send an alert mail to notify the receptant.
Apply Save the settings or changes to the switch.

III-4-1 Network

This page displays the network settings of the specified device (IP CAM or NVR).

Auto Legend: 3 min Dashboard Status Switch LAN ONMF Surveillance Discovery Topology Video Device Maintenance Security ACL Geo PoE System Maintenance Diagnostics Mail Alert Product Registration Device List Search: Device Name: Closed (RCT1) IP Address: VU2 SN6.1708 Username: ms Password: -- General Network Security Mode: Static DHCP Hostname: IP Address: Prefix Length: Gateway: DNS Server1: DNS Server2:

Available settings are explained as follows:

Item	Description
Device List Search - Enter	a string to search the device you want.Usage / Password - Enter the username / password of the IP-based device. Later, current network settings related to this device will be shown on the screen.
Mode Change the connection	on mode for this device.Static - When it is selected, you have to enter value for network setting manually for the IP device.IP Address - Enter an IPv4 address for the IP device.Prefix Length - Specify the subnet mask for the IP address.Gateway - Enter the IPv4 address for the gateway.DNS Server1/2 - Enter the IP address for primary / secondary DNS server.DHCP - When it is selected, the IP device will be assigned with the settings by the network's DHCP server automatically to access the Internet.Hostname - Display the hostname of the DHCP server.
Zero Configuration Enable	- The network settings for the IP device will be configured automatically.Disable - The network settings for the IP devcie must be configured manually.
Apply Save the settings or	changes to the switch.

III-4-3 Security

This page displays the security settings of the specified IP device (IP CAM or NVR).

Auto Logos: C8 Mk P2500 14.10.25 Dashboard Status Switch LAN ONWt Surveillance Discovery Technology Video Device Maintenance: Security ACL QoS PoE System Maintenance Diagnostics Mail Alert Product Registration Device List Snach: Device Name: Camera p36.17g IP Address: MS2 MS1.17g Username password Password General Network Security HTTP Ports: Enable Disable HTTPS Ports: Enable Disable RTSP Ports: Enable Disable Apply

Available settings are explained as follows:

Item	Description
Device List Search - Enter	a string to search the device you want.Usage / Password - Enter the username / password of the IP-based device. Later, current network settings related to this device will be shown on the screen.
HTTP Ports Current HTTP	port number of the IP device is shown in this field.Enable - Click it to enable the HTTP port configuration and enter a port value if required.Disable - Disable the HTTP port configuration.
HTTPS Ports Current HTTPS	port number of the IP device is shown in this field.Enable - Click it to enable the HTTPS port configuration and enter a port value if required.Disable - Disable the HTTPS port configuration.
RTSP Ports Current RTSP	port number of the IP device is shown in this field.Enable - Click it to enable the RTSP port configuration and enter a port value if required.Disable - Disable the RTSP port configuration.
Apply Save the settings or	changes to the switch.

This page is left blank.

Part IV Security

IV-1 RADIUS

This page allows the network administrator to add and configure multiple RADIUS servers.

Auto Logout : CF MS P5000 16:22:24 Dashboard Status Switch LAN ONVIF Surveillance Security RADIUS TACACIS+ Management Access Authentication Management Access Control 802 1X/MAC Authentication Port Security Steam Control Dos Dynamic ARP Inspection DHCP Scoping IP Source Guard IP Conflict Prevention Loop Protection ACL QoS Secents > RADIUS > RADIUS RADIUS Use Default Parameters Retries: 3 (1 - 10, default 3) Timeout for Reply: 3 sec (1 - 30, default 3) Key String: Add Add RADIUS Server Address Type: Hostname IPv4 IPv6 Server Address: Server Port: 1012 (1 - 65035, default 1012) Priority: (1 - 65035) Retry: Use Default 3 (1 - 10, default 3) Timeout: Use Default 3 sec (1 - 30, default 3)

Available settings are explained as follows:

Item	Description
Use Default Parameters	Retries - The retry time before this server being considered not-reachable.Timeout for Reply - Set the time (in seconds) before this server being considered lost connection.Key String - Enter the string used to encrypt and authenticate with RADIUS server.Apply - Save the settings.
Add RADIUS Server	Address Type - Specify whether switch uses a hostname to resolve address by DNS to connect to server, or directly connect using IPv4 address.Sever Address - Enter the server's address corresponding with address type given.Server Port - Enter the port number used by RADIUS server.Priority - Specify the priority that switch uses this server. The higher number, the lower priority. Switch will start with server with lowest priority.Retry - Set the time before this server being considered not-reachableTimeout - Set the time (in seconds) before this server being considered lost connection.Key String - Enter the key string used for encrypting and authenticating with server. Unless Key String is specified here, the default string will be used.Usage -Specify whether you would like to use this server for switch login authentication or 802.1x access port authentication, or both.● Add - Click it to add a new RADIUS server and display in this page.under Edit- Click it to modify the priority setting for the selected GE port / LAG port.

IV-2 TACACS+

This page allows the network administrator to add and configure multiple TACACS+ server.

Auto Legend : CP MS P2500 16:30:40 Dashboard Status Switch LAN ONVF Surveillance Security DADJUST TACACS+ Management Access Authentication Management Access Control S02 XX/MAC Authentication Port Security Storm Control DoS Dynamic APP Inspection DHCP Smooping IP Source Guard IP Conflict Prevention Loop Protection ACL QoS Security > TACACS+ > TACACS+ UACACS+ Use Default Parameters Timeout: 6 sec (1 - 30, default 5) Key String: Apply Add TACACS+ Server Address Type: Hostname IPv4 IPv6 Server Address: Server Port: 49 (1 - 50030, default 49) Priority: (1 - 68535) Timeout: Use Default 5 sec (1 - 30, default 5) Key String: Use Default Add

Available settings are explained as follows:

Item	Description
Use Default Parameters	Timeout-Set the time (in seconds) before this server being considered lost connection.Key String-Enter the string used to encrypt and authenticate with TACACS+ server.Apply-Save the settings.
Add TACACS+ Server	Address Type-Specify whether switch use a hostname to resolve address by DNS to connect to server, or directly connect using IPv4 address.Sever Address-Enter the server's address corresponding with address type given.Server Port-Enter the port number used by TACACS+ server.Priority-Specify the priority that switch uses this server. The higher number, the lower priority. Switch will start with server with lowest priority.Timeout-Set the time (in seconds) before this server being considered lost connection.Key String-Enter the key string used for encrypting and authenticating with server. Unless Key String is specified here, the default string will be used.Add-Click it to add a new RADIUS server and display in this page.under Edit-Click it to modify the priority setting for the selected GE port / LAG port.

IV-3 Management Access Authentication

IV-3-1 Method Profile

This page allows a user to create method list for applying on management service.

Auto Logout: OF MS P0500 18.53.45 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACACS+ Management Access Authentication Management Access Control S02 TX/SMAC Authentication Port Security Storm Control DoS Dynamic ARP Inspection DHCP Snooping IP Source Guard IP Conflict Prevention Loop Protection ACL QoS Security + TACACS+ + TACACS+ TACACS+ Use Default Parameters Timeout: 6 set (1 - 30, default 5) Key String: Appm Add TACACS+ Server Address Type: Hostname IPv4 IPv6 Server Address: Server Port: 49 (1 - 60510, default 49) Priority: (1 - 60535) Timeout: Use Default 5 set (1 - 30, default 5) Key String: Use Default Appm

Available settings are explained as follows:

Item	Description
Method Profile	Name- Enter a name for creating a method.Optional Methods- Available methods include Local, RADIUS and TACACS+.Selected Methods- The method listed in this field will be applied for such method profile.Add- Click it to add a method from Optional Method onto Selected Method.
[YSCZ]under Edit	Click it to modify the optional methods/ selected methods for the selected profile.

IV-3-2 Application Authentication

This page allows the network administrator to select the customized Method List to apply to any management service, for management access control.

Auto Logout : CF MR P2500 18:58:04 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACACS+ Management Access Authentication Management Access Control IU2 1X/MAC Authentication Port Security Storm Control Disk Dynamic ARP Inspection DHCP Smoping IP Source Guard IP Conflict Prevention Loop Protection ACL QoSi Security > Management Access Authentication > Application Authentication Method Profile Application Authentication Application Authentication Application Console Selected Profile default Apply Application Selected Profile Console default Tokenet default SSH default HTTP default HTTPS default

Available settings are explained as follows:

Item	Description
Application There are five	methods to be configured with different profile respectively.● Console/ Telnet/ SSH/ HTTP/ HTTPS
Selected Profile Specify one of customized method profiles to apply to any management service, for management access control.
Apply Save the settings.

IV-4 Management Access Control

IV-4-1 Management Access Control Profile (ACL)

This page allows a user to add, edit, and delete Management Access Control profiles.

Auto Logout : Off MR P2500 17:00:00 Dashboard Status Switch LAN ON/IF Surveillance Security > Management Access Control > Management Access Control Profile(ACL) Management Access Control Profile(ACL) > Management Access Control Entities (ACCE) Management Access Control Profile(ACL) ACL Name: Add Management Access Authentication Management Access Control 502 TX/MAC Authentication Port Security Storm Control DoS Dynamic ARP Inspection DHCP Smoiping IP Source Guard IP Conflict Prevention Loop Protection ACL QoS ACL Profile Name State Rule Activate Deactivate Delete ACL_NI Inactive 0

Available settings are explained as follows:

Item	Description
ACL Name Enter a name to create a profile for ACL.Once a profile is created, it will be displayed on this page.
Add Click it to create a new ACL profile after entering the ACL name.
ACL Profile Name Display the name of the ACL profile.
State Display if such ACL profile is active or inactive.
Rule Display the number of ACE used by this ACL profile.
Activate / Deactivate	- Click it to activate / deactivate such entry.To configure detailed settings for the selected ACL profile, do not click Activate for that profile.
Delete Click the icon under Delete to remove the selected entry.

IV-4-2 Management Access Control Entries (ACE)

This page allows a user to add, edit, or remove Access Control Entries (ACE) of the Management Access Control profiles. However, only the ACE of inactive profiles can be modified, and before configuring ACE, at least one ACL profile should be created.

Auto Logical CP MK P2500 17.01.11 Dashboard Status Switch LAN ONVIF Surveillance Security RADIUS TACACS+ Management Access Authentication Management Access Control SO2/IX/MAC Authentication Port Security Strom Control Dot Dynamic ARP Inspection DHCP Smoothing IP Source Guard IP Conflict Prevention Log Protection ACL QoS Security > Management Access Control > Management Access Control Entries (ACE) Management Access Control Pin(s)(ACL) Management Access Control Entries (ACE) Management Access Control Entries (ACE) ACL Profile Name: ACL_N8 Priority: (1: 49633) Service: All Action: Deo Ports: Nothing Selected IP Versions: All IPv4 IPv6 IPv4: / IPv6: / Add ACL Profile Name Priority Service Action Ports IP Version IP Address IP Netmask Edit ACL_Ni(Inactive) 1 ALL Deny GE1-GE50 All ✓

Available settings are explained as follows:

Item	Description
ACL Profile Name Use the	drop-down list to select the inactive ACL profile you would like to modify.
Priority	Specify a priority number (1 to 65535) for such rule. The lower the number, the higher the priority.
Service Choose the service type you would like to control the access.
Action Select the action to be taken on the traffic of selected service type.Deny - Incoming / outgoing data which meets ACE rules will be blocked.Permit - Incoming / outgoing data which meets ACE rule is allowed to pass through.
Ports Select the ports to which the ACL should be applied.
IP Versions Specify the IP address/ subnet to which the ACL should be applied.All - All the IP address should be applied.IPv4 - Specify the IPv4 address / subnet.IPv6 -Specify the IPv6 address / subnet.
IPv4 Enter the IPv4 address/ subnet to which the ACE rule should apply.
IPv6 Enter the IPv6 address/ subnet to which the ACE rule should apply.
Add Click it to create an ACE rule profile.Then, such ACE rule profile will be shown on the table below.

Edit

- click it to modify the settings for the selected entry.

Edit ACE with ACL profile=sdf and Priority=1 Service: All Action: Deny Ports: CE1 IP Versions: All IPv4 IPv6 IPv4: / IPv6: / OK Cancel

- click it to remove the selected entry.

IV-5 802.1X/MAC Authentication

The authentication manager allows you to configure securely access from any host connected to physical ports. You may apply multiple ways of authentication to each port.

IV-5-1 Properties

IV-5-1-1 Global Settings

VigorSwitch P2500 supports 802.1x and MAC-based authentication methods. In Global Settings page, you can specify authentication type, enable Guest VLAN function, specify a VID and select format for MAC address entry.

Auto Logod: C# M8 P2500 17:00:33 Dashboard Security > ML XMAC Authentication > Properties > Global Settings Status Switch LAN ONVIF Surveillance Security Radius TACACS+ Management Access Authentication Management Access Control BQI XMAC Authentication Properties Port Control Settings MFC-Based Local Account Authenticated Hosts Port Security Strom Control Dot Dynamic ABP Inspection DHCP Smoothing IP Source Guard Global Settings Authentication Types: Nothing selected Guest VLAN: Enable Selected VD: 1 MAC-Based User ID Format: XXXXXXXXXXXXX Apply

Available settings are explained as follows:

Item	Description
Authentication Types Use	the drop down list to specifywhich type (802.1x, MAC-based) will be used for authentication. Choose to enable 802.1x or MAC-based authenticate method for host connecting to Ethernet port. You may configure which type to be used per port, but enabling any per port without enabling here will not be effective.
Guest VLAN	Check to enable a Guest VLAN for those have not successfully authenticated with any given methods. Choose one of the VLAN ID as a Guest VLAN.
Selected VID If Guest VLAN	is enabled, use the drop down list to specify one VID number.
MAC-Based User ID Format	Specify how the MAC-based user ID should be expressed in EAP message between AAA server and switch.
Apply Save and activate the	settings configured above.

IV-5-1-2 Port Authentication Setting

This page allows the network administrator to configure detailed authentication settings for each port.

Aire Logout : GB Mk: 72500 17:00:39 Dashboard Status Switch LAN ONVP Surveillance Security RADIUS TACACS+ Management Access Authentication Management Access Control 802 1X/MAC Authentication Properties Port Control Settings MNC-Related Local Account Authenticated Holds Port Security Short Control Dell Dynamic ARP Inspection DHCP Smooping IP Source Guard Securities > 802 1X/MAC Authenticative > Properties > Port Authentication Setting Global Settings PortAuthentication Setting Port Port Mode Settings Apply Settings to Ports: Nothing selected Authentication Types Enabled: Nothing windowed Host Mode: Multiple Authentication Available Authentication Types: MAC-based > > > < < < Available Methods: Local > > > > < < Selected Methods: (In Order) Guest VLAN Enable Selected Authentication Types: In Ontario 802.16

Available settings are explained as follows:

Item	Description
Apply Settings to Ports	Select physical port(s) for applying settings.Note that port authentication will not be effective if none of them were enabled.
Authentication Types Enabled	Select 802.1x and/ or MAC-based authenticate method for host connecting to this port.
Host Mode	Multiple Authentication - Each host are authenticated individually.Multiple Hosts - Authentication is done on port basis, only one authenticated host is required; other hosts connected to this port can access freely as authenticated host.Single Host - Only one host can be authenticated, and access the port.
Available Authentication Types	Display available authentication types of AAA server (or local) you wish to have on this port.
Selected Authentication Types	Specify the order of authentication type you wish to have on this port.
Available Methods	Display available methods of AAA server (or local) you wish to have on this port.
Selected Methods Specify	the order of authentication methods you wish to have on this port.
Guest VLAN	Check Enable to enable Guest VLAN on this port for those didn't authenticated successfully.
RADIUS VLAN Assignment	Disable - Switch will ignore the VLAN assignment from the RADIUS server and keep the original VLAN of the host.Static - Switch will use the VLAN assignment from the RADIUS server if it receives the information. If there isnot VLAN information, it will keep the original VLAN of the host.Reject - Switch will reject the host if it does not receive the VLAN information from RADIUS server.
Apply The modification made above can be applied on to the selected GE port immediately.

IV-5-2 Port Control/Settings

This page allows the network administrator to controls port setting, based on 802.1X, for ethernet port authentication.

Security > 802 DMAC Authentication > Port Control Settings > Port Control Settings Port Control Settings Ports: Port Control: Periodic Reauthentication: Enable Max Hosts: 256 (1-256, default 254) Reauthentication Period: 3000 Sec (300 - 4294987294, default 3603) Inactive Timeout: 60 Sec (60 - 65535, default 60) Quiet Period: 60 Sec (60 - 65535, default 60) Rereind EAP Period(80.1X Parameter): 30 Sec (30 - 65535, default 30) Supplicant Timeout(80.1X Parameter): 30 Sec (30 - 65535, default 30) Server Timeout(80.1X Parameter): 30 Sec (30 - 65535, default 30) Max EAP Requests(80.1X Parameter): 2 (1 - 10, default 2) ports: Port Control Reauthenticat... Max Hosts Reauthenticat... Inactive Quiet Resend EAP P... Supplicant T... Server Timeout... Max EAP Req... GE1 Disabled Disabled 256 3600 60 60 30 30 30 2 GE2 Disabled Disabled 256 5600 60 60 30 30 30 2

Available settings are explained as follows:

Item	Description
Ports Select the ports to m	modify the port control settings.
Port Control	Specify if you wish this account to be allowed (Authorized) or blocked (Unauthorized) or determined by VigorSwtich (Auto).● Disabled - Disable any authentication requirement for port access. All clients are allowed to access the network.● Force Authorized- Port will be considered authorized. All clients are allowed to access the network.● Force Unauthorized - Port will be considered un-authorized. All clients are NOT allowed to access the network.● Auto - Port will be considered authorized or unauthorized based on the authentication results of the host.
Periodic Reauthentication	Enable - The hosts via the selected GE port will be re-authenticated periodically.
Max Hosts If Multiple Authentication mode is selected as Host Mode(802.1X/ MAC Authentication>>Properties>>Port Authentication
	Setting), the total number of hosts cannot exceed the maximum number of hosts configured here.
Reauthentication Period	Enter a time period. When the time is up, the host shall return to initial state and prepare to pass authentication procedure again. Default is 3600 seconds.
Inactivate Timeout When	there is no packet coming from the authenticated host, the system will start the inactive timer. After inactive timeout, the host will be unauthorized and corresponding session will be deleted. In Multiple Hosts mode (configured in 802.1X/ MAC Authentication>>Properties>>Port Authentication Setting), the packet is counted on the authorized host only and not all packets on the port.
Quiet Period When a GE port	port is disabled just because authentication fails several times, the host connected to that port will be blocked for a period of time configured in quiet period.Later, after the time period set in this field, the host will be allowed to perform authentication again.
Resend EAP Period (802.1X Parameter)	Set the period for host to re-send EAP (Ethernet Automatic Protection) requests.Default value is 30 (seconds).
Supplicant Timeout(802.1X Parameter)	Set a period of time for the maximum number of EAP requests will be sent.If a response from the host is not received by VigorSwitch after the defined period (supplicant timeout), the authentication process will be started again.
Server Timeout (802.1X Parameter)	Set a period of time for the server. The EAP requests shall be resent to the supplicant within the time; otherwise, the time setting will lapse and the requests won't be sent out.
Max EAP Request (802.1X Parameter)	Set the maximum time interval for EAP request sent out.
Apply The modification made above can be applied on to the selected GE port immediately.

IV-5-3 MAC-Based Local Account

This page allows the network administrator to create profiles by entering MAC address of the hosts to be authenticated.

Auto-Logout Off MB P2000 17-12-50 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACACS+ Management Access Authentication Management/Access Control 802 DX/MAC Authentication Properties Port Control Settings MAC Address Local Account Authenticated Hosts Port Security Storm Control Do3 Dynamic ARP Inspection DHCP Snapping IP Source Guard IP Conflict Prevention Log Protection ACL Security > 802 DX/MAC Authentication > MNC-Based Local Account > MAC-Based Local Account MAC-Based Local Account Settings MAC Address: 30-06-07-08:09:08 Port Control: Force Authorized Force Unwhithorized VLAN User Defined 1 (1-4954) Reauthentication Period: User Defined 3600 Ser (300 - Q294967554) Inactive Timeout: User Defined 60 Ser (60 - 69536) Add MAC Address Port Control VLAN Reauthentication Period Inactive Timeout Edit No data available in table

Available settings are explained as follows:

Item	Description
MAC Address Enter the MAC address of the host.
Port Control Specify a control type for the host.
VLAN	User Defined - Check it to specify which VLAN will be by the host of this account.
Reauthentication Period	User Defined - Check it to specify the time this account required to be authenticated again after authentication taken place.
Inactive Timeout User Defined - Check it to specify the time of inactive this account becoming log-off.
Add Click it to create a new account.
Edit It is available when there is one profile existed.

IV-5-4 Authenticated Hosts

This page displays information related to the host authenticated by VigorSwitch.

Auto-Import Dashboard Status Switch LAR ON/TF Surveillance Security RADIUS TACADE+ Management Access Authentication Management Access Control 32.000M/32.000M Authentication Properties Port Control Settings MAC-Based Local Account Authenticated Hosts Port Security Storm Control Outs Dynamic ARP Inspection DHCP Snooping IP Source Guard IP Conflict Prevention Loop Protection ACL Mk P2600 17:13:44 Security > 32.000M/32.000M Authentication > Authenticated Hosts > Authenticated Hosts Authenticated Hosts Session ID Port MAC Address Current Type Status Operational V... Operational I... Operational ... Operational ... Authorized V... Authorized R... No data available in table

IV-6 Port Security

This page allows the network administrator to configure security settings for each port interface (GE port / LAG group). When port security is enabled for each interface, released action will be performed once detecting that the number of MAC address exceeds the limit.

Autos Lognet OS ns P0580 17:14:32 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TAC/AC5# Management/Access Authentication Management/Access Control 802 U/MAC Authentication Port Security Storm Control DvS Dynamic ARP Inspection DHCP Snapping IP Source Guard IP Conflict Prevention Loop Protection ACL CoS PdE System Maintenance Diagnostics Security > Port Security > Port Security Port Security Port Security State: Enable Disable Ports: Nothing selected Port State: Enable Disable MAC Address: 1 Action: Forward Discard Shutdown NEW! Port State MAC Address Action Modify GE1 Disabled 1 Discard GE2 Disabled 1 Discard GE3 Disabled 1 Discard GE4 Disabled 1 Discard GE5 Disabled 1 Discard GE6 Disabled 1 Discard GE7 Disabled 1 Discard GE8 Disabled 1 Discard GE9 Disabled 1 Discard

Available settings are explained as follows:

Item	Description
State Enable or disable port security function on the switch.● Enabled - Enable the port security function.● Disabled - Disable the port security function.
Ports	Select the port(s) you would like to configure the port security settings.
Port State Enable or disable port security function on the ports selected above.● Enabled - The selected port applies the port security settings.● Disabled - The selected port does not apply the port security settings.
MAC Address Enter the maximum number of MAC addresses that the port is allowed to learn.
Action Select an action to perform when there is an unknown MAC address on the port.● Forward- Forward a packet whose source MAC is unknown to the switch.● Discard- Discard a packet whose source MAC is unknown to the switch.● Shutdown- Shutdown this port when a packet with unknown source MAC is received.
Apply The modification made above can be applied on to the selected GE/ LAG port immediately.

Edit

- click it to modify the settings for the selected entry.

Edit Port GE1 Port State Enabled Disabled MAC Address 1 (0 - 255) Action Forward Discard Shutdown OK Cancel

IV-7 Storm Control

Storm Control helps to suppress possible broadcast, unknown multicast or unknown unicast storm by applying a rate limit on those packets.

N-7-1 Properties

This page allows a user to configure general settings for Storm Control.

Auto Logout Off Avio Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TAOAC54 Management/Access Authentication Management/Access Control 002.10NMAC Authentication Port Security Store Control Properties Port Setting DoS Dynamic ARP Inspection DHCP Smooping IP Source Guard IP Conflict Prevention Loop Protection AOL QoS PoE Security > Store Control > Properties > Properties Properties Store Control Mode: PacketPiec Kibishac Preamble & Inter Frame Gap: Excluded Included Apply

Available settings are explained as follows:

Item	Description
Storm Control Mode Select	the mode of storm control.● Packet/sec - Storm control rate will be calculated by packet-based.● Kbits/sec - Storm control rate will be calculated by octet-based.
Preamble & Inter Frame Gap	Select the rate calculation with/ without preamble & IFG (20 bytes).● Excluded - Exclude preamble & IFG (20 bytes) when count ingress storm control rate.● Included - Include preamble & IFG (20 bytes) when count ingress storm control rate.
Apply Apply the settings to the switch.

IV-7-2 Port Setting

This page allows the network administrator to configure port settings for Storm Control. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto Lognet: Off MS P250 17.22.86 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACIACH Management Access Authentication Management Access Control 002 100WANG Authentication Port Security Storm Control Properties Port Setting DoS Dynamic ARP Inspection CHOP Shopping IP Source Guard IP Conflict Prevention Log Protection ACL QoS PoE Security > Storm Control > Port Setting > Port Settings Port Settings Ports: Nothing selected > Storm Control Enable Disable Limiting Rate: Broadcast 10000 (Kbps, 16-100000) Unknown Multicast 10000 (Kbps, 16-100000) Unknown Unicast 10000 (Kbps, 16-100000) Action: Drop Shutdown None Port Storm Control Broadcast (Kbps) Unknown Multicast (Kbps) Unknown Unicast (Kbps) Action Modify GE1 Disabled Disabled Disabled Disabled Drop ✓ GE2 Disabled Disabled Disabled Disabled Drop ✓ GE3 Disabled Disabled Disabled Disabled Drop ✓ GE4 Disabled Disabled Disabled Disabled Drop ✓ GE5 Disabled Disabled Disabled Disabled Drop ✓ GE6 Disabled Disabled Disabled Disabled Drop ✓ GE7 Disabled Disabled Disabled Disabled Drop ✓

Available settings are explained as follows:

Item	Description
Ports Use the drop down list to select the port profile (GE1 to GE28).
Storm Control	Disable - Disable the storm control configuration for the selected port profile.Enable - Enable the storm control configuration for the selected port profile.
Limiting Rate Check the box(es) to enable strom control rate limited for Broadcast, Unknown Multicast and/or Unknown Unicast packet.Broadcast - Specify the storm control rate for Broadcast packet. Value of storm control rate, Unit: Kbps (Kbits per-second). The range is from 16 to 1000000.Unknown Multicast - Specify the storm control rate for unknown multicast packet. Value of storm control rate, Unit: Kbps (Kbits per-second). The range is from 16 to 1000000.Unknown Unicast - Specify the storm control rate for unknown multicast packet. Value of storm control rate, Unit: Kbps (Kbits per-second). The range is from 16 to 1000000.
Action Select the state of setting.Drop - Packets exceed storm control rate will be dropped.Shutdown - Port exceeds storm control rate will be shutdown.
Apply Apply the settings to the switch.

IV-8 DoS

A Denial of Service (DoS) attack is a hacker attempt to make a device unavailable to its users. DoS attacks saturate the device with external communication requests, so that it cannot respond to legitimate traffic. These attacks usually lead to a device CPU overload.

The DoS protection feature is a set of predefined rules that protect the network from malicious attacks. The DoS Security Suite Setting enables activating the security suite.

IV-8-1 Properties

This page allows a user to configure DoS setting to enable/disable DoS function for global setting.

Security - D65 - Properties - Properties Properties Global Settings Det MAC = Src MAC LAND UDP Blot TCP Blot Ping of Death IPv6 Min Fragments ICMP Fragments IPv6 Ping Max Size IPv6 Ping Max Size Ping Max Size Setting Smart Attack TCP Min Hb Size TCP SYN (SPORT+1024) Null Scan Attack X-max Scan Attack TCP SYN-FIN Attack TCP SYN-RST Attack TCP Fragment (Offset - 1) Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable Bytes (0.65535) Bytes (0.65535) Enable Disable Normack Length: 0 (0.32) Enable Disable 20 Bytes (0.31) Enable Disable Enable Disable Enable Disable Enable Disable Enable Disable

Available settings are explained as follows:

Item	Description
Dst MAC=Src MAC Drop the packets if the destination MAC address is equal to the source MAC address.● Disabled - Disable the item function.● Enabled - Enable the item function.
LAND Drop the packets if the source IP address is equal to the destination IP address.● Disabled - Disable the item function.● Enabled - Enable the item function.
UDP Blat Drop the packets if the UDP source port equals to the UDP destination port.● Disabled - Disable the item function.● Enabled - Enable the item function.
TCP Blat Drop the packages if the TCP source port is equal to the TCP destination port.● Disabled - Disable the item function.
	● Enabled - Enable the item function.
Ping of Death Avoid ping of death attack.Ping packets that length are larger than 65535 bytes.● Disabled - Disable the item function.● Enabled - Enable the item function.
IPv6 Min Fragments Check the minimum size of IPv6 fragments, and drop the packets smaller than the minimum size. The valid range is from 0 to 65535 bytes, and default value is 1240 bytes.● Disabled - Disable the item function.● Enabled - Enable the item function.
ICMP Fragments Drop the fragmented ICMP packets.● Disabled - Disable the item function.● Enabled - Enable the item function.
IPv4 Ping Max Size Determine the IPv4 PING packet with the length.● Disabled - Disable the item function.● Enabled - Enable the item function.-
IPv6 Ping Max Size Determine the IPv6 PING packet with the length.● Disabled - Disable the item function.● Enabled - Enable the item function.
Ping Max Size Setting Determine the IPv4/ IPv6 PING packet with the length. Specify the maximum size of the ICMPv4/ ICMPv6 ping packets. The valid range is from 0 to 65535 bytes, and the default value is 512 bytes.
Smurf Attack	Avoid smurf attack. The length range of the netmask is from 0 to 323 bytes, and default length is 0 byte.● Disabled - Disable the item function.● Enabled - Enable the item function.
TCP Min Hdr Size Check the minimum TCP header and drops the TCP packets with the header smaller than the minimum size. The length range is from 0 to 31 bytes, and default length is 20 bytes.● Disabled - Disable the item function.● Enabled - Enable the item function.
TCP-SYN (SPORT<1024) Drop SYN packets with sport less than 1024.● Disabled - Disable the item function.● Enabled - Enable the item function.
Null Scan Attack Drop the packets with NULL scan.● Disabled - Disable the item function.● Enabled - Enable the item function.
X-mas Scan Attack Drop the packets if the sequence number is zero, and the FIN, URG and PSH bits are set.● Disabled - Disable the item function.● Enabled - Enable the item function.
TCP SYN-FIN Attack Drop the packets with SYN and FIN bits set.● Disabled - Disable the item function.● Enabled - Enable the item function.-
TCP SYN-RST Attack Drop the packets with SYN and RST bits set.● Disabled - Disable the item function.
TCP Fragment (Offset=1)	Drop the fragmented ICMP packets.● Disabled - Disable the item function.● Enabled - Enable the item function.
Apply Apply the settings to the switch.

IV-8-2 DoS Port Setting

This page allows a user to configure and display the state of DoS protection for interfaces. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto/Logout Oil Dashboard Status SARID LAW ONVF Surveillance Security RADIUS TACHOS+ Management Access Authentication Management Access Control BIZI UX/MHC Authentication Port Security Storm Control Dx5 Proportion Dx5 Port Setting Dynamic ARP Inspector DHCP Snooping IP Source Guard IP Conflict Prevention Loop Protection ACL QoS PoE Security > Dx5 > Dx5 Port Setting > Port Settings Port Settings Port Setting Ports: No Off selected Do IS Protection x Enable Disable Apply Port GE1 GE2 GE3 GE4 GE5 GE6 GE7 GE8 GE9 GE10 GE11 GE12 Modify Disabled Disabled Disabled Disabled Disabled Disabled Modified

Available settings are explained as follows:

Item	Description
Port	Use the drop down list to select the port profile (GE1 to GE28) or profiles.
DoS Protection	● Disabled - Disable the function of DoS Protection. ● Enabled - Enable the function of DoS Protection.
Apply Apply the settings to the switch.
Modify	- Click it to modify settings.

IV-9 Dynamic ARP Inspection

Dynamic ARP inspection (DAI) can prevent ARP spoofing attacks by validating ARP packet in a network. It can intercept, record, and discard ARP packets with invalid IP-to-MAC address bindings; and then protect the network against malicious attacks.

IV-9-1 Properties

IV-9-1-1 Global Property Settings

This page allows a user to configure global property settings for the function of Dynamic ARP Inspection.

AutoLogistics Off Index PC203 17.26.44 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACACS+ Management Access Authentication Management Access Control 802 UVMAC Authentication Port Security Storm Control DoS Dynamic: ARP Inspection Properties Statistics DnCP Shouping IP Stree Guard IP Conficit Prevention Long Protection ACL QoS PoE Security > Dynamic ARP Inspection > Properties > Global Property Settings Global Property Settings Per Port Property Settings Global Property Settings State Enable VLANs: No belong selected App App

Available settings are explained as follows:

Item	Description
State	Enable - Check the box to enable global property settings.
VLANs Select VLAN profile(s) to apply the function of Dynamic ARP Inspection.Only the GE/ LAG port within the selected VLAN will apply DAI function.
Apply Apply the settings to the switch.

IV-9-1-2 Per Port Property Settings

This page allows a user to configure detailed settings of DAI for each port (GE/LAG).

AutoLogpred Off Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACADS+ Management Access Authentication Management Access Control 0021 EXMAC Authentication Port Security Store Control DOS Dynamic APF Inspection Properties Distalator DHOP Snapping IP Source Guard IP Conflict Prevention Loop Protection ACL QoS PoE Security > Dynamic APF Inspection > Properties > Per Port Property Settings Global Property Settings Per Port Property Settings Per Port Property Settings Ports: Nothing selected Trust: Enable Source MAC Address: Enable DestinationMAC Address: Enable IP Address: Enable : Allow Zero (0.00.0) Rate Limit: 0 Apply Port Trust Source MAC Address Destination MAC Address IP Address Rate Limit GE1 Disabled Disabled Disabled Disabled Unlimited GE2 Disabled Disabled Disabled Disabled Unlimited GE3 Disabled Disabled Disabled Disabled Unlimited GE4 Disabled Disabled Disabled Disabled Unlimited GE5 Disabled Disabled Disabled Disabled Unlimited GE6 Disabled Disabled Disabled Disabled Unlimited GE7 Disabled Disabled Disabled Disabled Unlimited GE8 Disabled Disabled Disabled Disabled Unlimited GE9 Disabled Disabled Disabled Disabled Unlimited

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port (GE1 to GE28, LAG1 to LAG8) or ports for applying DAI function.
Trust	Enable - Enable the function of DAI for the port(s) selected above.
Source MAC Address Enable	- Check it to enable the function of source MAC address validation mechanism for the selected port(s).
Destination MAC Address	Enable - Check it to enable the function of destination MAC address validation mechanism for the selected port(s).
IP Address	● Enable - Check it to enable the function of IP address validation mechanism for the selected port(s).● Allow Zero - The IP address of “0.0.0.0” can be applied to the selected port(s) if it is enabled.
Rate Limit	Use the drop down list to choose a rate limitation value (0~50) for the selected port(s).
Apply Apply the settings to the switch.

IV-9-2 Statistics

This page displays all statistics recorded by Dynamic ARP Inspection function.

Auto/Lognet Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACNOS+ Management/Access Authentication Management/Access Control SG2 U/MAC Authentication Port Security Storm Control DoS Dynamic ARP Inspection Properties Statistics GE1 GE2 GE3 GE4 GE5 GE6 GE7 GE8 GE9 GE10 GE11 GE12 GE13 GE14 GE15 Source MAC Failure Destination MAC Failure Source IP Validation Fail... Destination IP Validation ... IP-MAC Mismatch Failure

IV-10 DHCP Snooping

DHCP snooping is able to validate DHCP messages obtained from untrusted sources and filter out invalid message.

For DHCP snooping to function properly, it is suggested to connect DHCP servers to VigorSwitch through trusted interfaces; because untrusted DHCP messages will be forwarded to trusted interfaces only.

IV-10-1 Properties

IV-10-1-1 Global Property Settings

This page allows a user to configure global property settings for the function of DHCP snooping Inspection.

In default, DHCP snooping is inactive on all VLANs. You can enable such feature on a single VLAN or a range of VLANs.

Auto Loglog Off Ms P000 17:30:19 Dashboard Status Exxon LAN ONVF Surveillance Security RADIUS TACAOB+ Management Access Authentication Management Access Control 002 UVMAC Authentication PortSecurity Storm Control Dot5 Dynamic ARP Inspection DHCP Shroping Properties Statistics Option2 Property Option2 Circuit ID IP Source Guard IP Conflict Prevention Loop Protection ACL Global Property Settings State Enable VLANs: Not using selected Auto

Available settings are explained as follows:

Item	Description
State	Enable - Check the box to enable global property settings.
VLANs Select VLAN profile(s) to apply the function of DHCP Snooping Inspection.Only the GE/ LAG port within the selected VLAN will apply DHCP Snooping function.
Apply Apply the settings to the switch.

IV-10-1-2 Per Port Property Settings

This page allows a user to configure detailed settings of DHCP Snooping for each port (GE/ LAG).

Any device that is not in the service provider network will be regarded as an untrusted source (such as a customer switch). Host ports are untrusted sources. In VigorSwitch, you can assign a source as trusted device by configuring the trust state of its connecting port.

Avail Layout Off Mid P2500 17:31:03 Dashboard Security > DHCP Shopping > Properties > Per Port Property Settings Status Switch LAN ONVF Surveillance Security RADIUS TACACS# Management/Access Authentication Management/Access Control 8D2 UMMC Authentication Port Security Storm Control DoS Dynamic ARP Inspection DHCP Snooping Properties Statistics OptionG2 Property OptionG2 Circuit ID IP Source Guard IP Conflict Prevention Loop Protection ACL Port: Trust: Verify Shader: Rate Limit: Port: GT1 Disabled: Disabled: Unlimited GE2 Disabled: Disabled: Unlimited GE3 Disabled: Disabled: Unlimited GE4 Disabled: Disabled: Unlimited GE5 Disabled: Disabled: Unlimited GE6 Disabled: Disabled: Unlimited GE7 Disabled: Disabled: Unlimited GE8 Disabled: Disabled: Unlimited GE9 Disabled: Disabled: Unlimited GE10 Disabled: Disabled: Unlimited GE11 Disabled: Disabled: Unlimited

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port (GE1 to GE28, LAG1 to LAG8) or ports for applying DHCP snooping function.
Trust	Enable - Check it to make the port(s) selected above as trusted interface.
Verify Chaddr Enable - Check it to enable chaddr (client hardware address) validation of GE/ LAG port. All DHCP packets will be checked if the client hardware MAC address is the same as source MAC in Ethernet header or not. Default is disabled.
Rate Limit Input rate limitation (0~300) of DHCP packets. The unit is “pps”. “0” means unlimited. Default is unlimited.
Apply Apply the settings to the switch.

IV-10-2 Statistics

This page displays all statistics recorded by DHCP snooping function.

Auto Logout Off Isk P2500 17:33:15 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACACS+ Management Access Authentication Management Access Control SOI UXMAC Authentication Port Security Storm Control DcB Dynamic ARP Inspection DHXP Spooping Properties Status OptionQ Property Operator/ Onset ID IP Source Guard IP Conflict Prevention Loop Protection ACL Security > DHCP Spooping > Statistics > Statistics Statistics Refresh Clear All Port Forward Chadder/ Check Drop Untrust Port Drop Untrust Port Drop with Option82 ... Invalid Drop GE1 0 0 0 0 0 GE2 0 0 0 0 0 GE3 0 0 0 0 0 GE4 0 0 0 0 0 GE5 0 0 0 0 0 GE6 0 0 0 0 0 GE7 0 0 0 0 0 GE8 0 0 0 0 0 GE9 0 0 0 0 0 GE10 0 0 0 0 0 GE11 0 0 0 0 0 GE12 0 0 0 0 0 GE13 0 0 0 0 0 GE14 0 0 0 0 0 GE15 0 0 0 0 0

IV-10-3 Option82 Property

You can use information settings including Remote ID and Circuit ID for Option82 Property, also known as the DHCP relay agent, to protect VigorSwitch against spoofing attacks.

IV-10-3-1 Global Option82 Property Settings

This page allows a user to set string as remote ID for DHCP option82. For example, use a switch-configured hostname or specify an ASCII text string as remote ID.

Auto Logged Off Dashboard Status Switch LAN ONVF Surveillance RADIUS TACACS+ Management Access Authentication Management Access Control BID: O/MAC Authentication Port Security Store Control Doc - Dynamic ARP Inspection DHCP Snooping Properties Statistics Option02 Property Option02 Occal ID IP Source Guard IP Conflict Prevention Loop Protection ACL Global Option02 Property Settings User Defined 30 1st as 12:13:44 (Switch Use in Byte Order) Apply

Available settings are explained as follows:

Item	Description
Remote ID	The string specified here is used to identify the remote host.User Defined - Check it and manually enter ASCII text string in the entry box.
Apply Apply the settings to the switch.

IV-10-3-2 Per Port Option82 Property Settings

This page allows a user to configure detailed settings of DHCP Snooping, Option82 for each port (GE/LAG).

PerPort Options2 Property Settings Global Options2 Property Settings Per Port Options2 Property Settings Ports: Nothing selected Access: Enable Allow Instruct: Keep Drop Replace Apply GE1 Disabled Drop GE2 Disabled Drop GE3 Disabled Drop GE4 Disabled Drop GE5 Disabled Drop GE6 Disabled Drop GE7 Disabled Drop GE8 Disabled Drop GE9 Disabled Drop GE10 Disabled Drop GE11 Disabled Drop GE12 Disabled Drop

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port (GE1 to GE28, LAG1 to LAG8) or ports for applying DHCP snooping, Option82 Property function.
State	Enable - Check it to make the port(s) selected above apply the settings configured in this page.
Allow Untrust Untrusted packets detected by VigorSwitch will be performed by the action determined here.Keep - Packets are allowed to pass through.Drop - Packets are blocked and discarded.Replace - Packets will be replaced.
Apply Apply the settings to the switch.

III-10-4 Option82 Circuit ID

This page allows a user to set string as circuit ID for DHCP option82 setting. Circuit ID shall be combined with VLAN name (or VLAN ID number) and interface name (GE/LAG port).

Auto Lognot Off MS PC000 17:36:45 Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACADS+ Management Access Authentication Management Access Control N2. US/MAC Authentication Port Security Store Control DoS Dynamic ARP Inspection DHCP Snooping Properties Statistics Options2 Property Options2 Circuit ID IP Source Guard IP Conflict Prevention Loop Protection ACL Security / DHCP Snooping / Options2 Circuit ID / Options2 Circuit ID Options2 Circuit ID Table Port: GE1 VLAN: Keep simply to sub-without VLAN (1 - 2554) Circuit IDs: All Port VLAN Circuit ID Edit GE1 1000 50 OK

Available settings are explained as follows:

Item	Description
Port	Use the drop down list to select the port (GE1 to GE28, LAG1 to LAG8) or ports for applying DHCP snooping, Option82 Property function.
VLAN	Choose a number as VLAN ID which is easy to be identified for a packet containing with it.It is optional setting.
Circuit ID Enter ASCII text	string in the entry box. Later, any packet passes through the specified interface (GE/ LAG port) will be inserted with such information.
Add Click it to create a profile.
Edit	- click it to modify the circuit ID value for the selected entry.- click it to remove the selected entry.

IV-11 IP Source Guard

By using the source IP address filtering function, IP source guard can prevent a malicious host from feigning a legal host with its IP address and performing malicious attack.

IV-11-1 Port Settings

IP source guard is a port-based feature. Therefore, it is necessary to configure detailed settings for each GE/LAG port interface separately.

Auto Lognet Off Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACACS+ Management Access Authentication Management Access Control 602 X/MAC Authentication Port Security Storm Control Dof Dynamic ARP Inspection DHCP Smooping IP Source Guard Port Settings APV Binding IP Conflict Prevention Loop Protection ACL QoB PoE Security > IP Source Guard > Port Settings > Port Settings Port Settings Ports: Nothing miss bad State: Enable Verify Source: IP IP MAC Max Entry: (0 - SD, default 0 - 0 is Unlimited) Apply Port State Verify Source Current Entry Max Entry GE1 Disabled IP 0 Unlimited GE2 Disabled IP 0 Unlimited GE3 Disabled IP 0 Unlimited GE4 Disabled IP 0 Unlimited GE5 Disabled IP 0 Unlimited GE6 Disabled IP 0 Unlimited GE7 Disabled IP 0 Unlimited GE8 Disabled IP 0 Unlimited GE9 Disabled IP 0 Unlimited GE10 Disabled IP 0 Unlimited GE11 Disabled IP 0 Unlimited

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port (GE1 to GE28, LAG1 to LAG8) or ports for applying IP source guard function.
State	Enable - Check it to make the port(s) selected above apply the settings configured in this page.
Verify Source Specify the type of source IP for the packet coming from.IP - Only the packet with specified IP address will be verified.IP-MAC - Only the packet with specified IP address and MAC address will be verified.
Max Entry Define the number (0~50) for the port.The default is 0 (no limit).
Apply Apply the settings to the switch.

IV-11-2 IMPV Binding

This page allows the network administrator to set the filtering conditions (binding type, MAC address, IPv4 address) for packets through the specified LAN port.

Auto Lognet Dashboard Status Switch LAN ONVF Surveillance Security RADIUS TACADS+ Management Access Authentication Management Access Control 802 CANMAC Authentication Port Security Storm Control DoS Dynamic ASP Inspection DHCP Scoping IP Source Guard Port Settings MPV Binding IP Conflict Prevention Loop Protection ACL QoB PvE Security = IP Source Guard + MPV Binding + MPV Binding MPV Binding IP MAC Port VLAN Binding Table Ports: GE1 VLAN: (1 - 4254) Binding: IP MAC Port VLAN IP Port VLAN MAC Address: M130.00.00.00.100 IPv4 Address: / 266.266.266.266 Add Port VLAN MAC Address IP Address subnet Mask Binding Type Lease Time Edit GE1 1100 06:00:10:77:17:23 192.168.1.43 250.250.250.250 IP MAC Port VLAN Datab N/A

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port (GE1 to GE28, LAG1 to LAG8) or ports for applying IMPV Binding function.
VLAN	Choose a number as VLAN ID which is easy to be identified for a packet containing with it.It is optional setting.
Binding Select the binding	type for such feature.IP-MAC-Port-VLAN-Packets will be allowed to pass through the port interface if they meet the conditions specified by IP address, MAC address, Port setting and VLAN ID setting.IP-Port-VLAN-Packets will be allowed to pass through the port interface if they meet the conditions specified by IP address, Port setting and VLAN ID setting.
MAC Address Enter the MAC address of the device connecting to the port interface selected above.
IPv4 Address Enter the IP address with mask address of the device connecting to the port interface selected above.
Add Click it to create a new binding profile.
Edit	- Click it to modify the settings for the selected entry.

Edit Ports: GE2 VLAN: 20 (1 - 4094) Binding: IP-MAC-Port-VLAN IP-Port-VLAN MAC Address: 00:50.7C:12:00.FF IPv4 Address: 192.168.1.56 / 255.255.255.255 OK Cancel

click it to remove the selected entry.

IV-12 IP Conflict Prevention

A user can configure IP addresses for network devices manually. However, it might result in conflict between different devices due to using the same IP address, and cause the devices not working correctly.

This page allows you to prevent IP conflict by binding the port with the specified IP address.

Auto Lognet Off MS F2003 17:45:54 Dashboard Status Begin LAN ONVP Surveillance Security RADUS TACOS+ Management Access Authentication Management Access Control 602 (XIMAC Authentication) Port Security Storm Control DoS Dynamic ARP Inspection DHCP Sharing IP Source Guard IP Conflict Prevention Log Protection ACL QoS PoE System Maintenance Diagnostics Security > IP Conflict Prevention > IP Conflict Prevention IP Conflict Prevention Setup Wizard: Quest Start Wizard IP Prevention: Enable Enable Link Aggregation: Enable Enable Conflict Status Port Type DHCP Client Multiple Host Static Binding In Win DHCP Server DHCP Server Apply Clear Projected Host Table Port IP Address MAC Address Host Type Conflict Ports Modify GE1 192.168.1.45 00:50 10:17:1F:23 Static Binding ✓

Available settings are explained as follows:

Item	Description
IP Prevention	Enable - Click it to activate the function of IP prevention.Disable - Click it to deactivate the function of IP prevention.

IP Conflict Prevention Setup Wizard

Quick Start Wizard - The system will guide to bind server port with an IP address step by step.

Step 1

Select a port for DHCP server. Server Port: GE1 Next Skip

Step 2

Please confirm the port type 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 DHCP Client State Binding Multiple Voids DHCP Server LAO Group Note: Click on the port to change the port type to correct one. Next Cancel

Detecting your network...

Step 3

Please confirm the protected hosts Protected Hosts Table Port GE1 GE2 GE2 GE2 IP Address: 192.168.1.56 192.168.1.1 192.168.1.123 192.168.1.249 Note: Please make sure your PC is in the protected hosts, or else you are not available to login your VigorSwitch once you enable IP Prevention. Your PC: GE1 Next IP Address: 192.168.1.56 Step 4 1 2 3 4 IP Conflict Prevention Enable Disable OK After clicking OK, the IP address specified for the GE port will be unavailable for other network devices. Apply Apply the settings to the switch. Clear Remove all settings of IP source guard DHCP snooping and dynamic ARP inspection. Modify - Click it to modify the settings for the selected entry.

Edit GE1 Port Type DHCP Client IP Address 192.168.1.56 OK Cancel

Edit GE2 Port Type Multiple Hosts IP Address(es) 192.168.1.1,192.168.1.2 There's a DHCP Server in this port Yes No OK Cancel

Port Type - There are four selections - DHCP Client, Static Binding, Multiple Hosts and DHCP Server. Each type will bring out different IP address(es) settings.

OK - Click it to save the settings.

- Click it to remove the selected entry.

IV-13 Loop Protection

Loop event might be caused due to wrong hardware connection. VigorSwitch will periodically send packets out to check if they loopback or not. This page allows you to set conditions and perform an action when VigorSwitch detects the looped packet.

Audio logout OFF Ms P500 17:43:27 Dashboard Status System LAN ONVF Surveillance Security RADIUS TACADS+ Management Access Authentication Management Access Control 002 UENMAC Authentication Port Security Storm Control DvB Dynamic ARP Inspection DHCP Grouping IP Source Guard IP Conflict Prevention Loop Protection ACL QoS PwE System Maintenance Diagnostics Security & Loop Protection & Loop Protection Setting Loop Protection Setting State: Enable Disable Transmission Time: Seconds (1.3 sec) Action: Switch Action Stop State Transmission Time Action DISABLED 1 Shutdown Port

Available settings are explained as follows:

Item	Description
State	Enable- VigorSwitch detects the loop event of GE ports/ LAG ports automatically.Disable- VigorSwitch will not detect the loop event.
Transmission Time When the loop event occurred, VigorSwitch will perform the action after a period of time.
Action When the switch detects loop situation occurred to a port; it will perform the action selected in this field.Log- The switch will record such event as a log.Shutdown Port- The switch will shut down the port.Shutdown Port and Log- The switch will shut down the port and record the event as a log. The system administrator will view the content from system log.
Apply Apply the settings to the switch.

This page is left blank.

Part V ACL Configuration

V-1 Create ACL

An Access Control List (ACL) is a sequential list of permit or deny conditions that apply to IP addresses, MAC addresses, or other more specific criteria. This switch tests ingress packets against the conditions in an ACL one by one. A packet will be accepted as soon as it matches a permit rule, or dropped as soon as it matches a deny rule. If no rules match, the frame is accepted.

V-1-1 MAC

The function is used to show the Access Control List (ACL) based on Layer 2 filtering, the MAC layer. The ACL is composed by many Access Control Element (ACE) rules. You can create a new ACL here; then add multiple ACEs.

Auto Logout Off Mk P2500 13:16:28 Dashboard Status Switch LAN ONVF Surveillance Security ACL Create ACL Create ACE ACL Binding GoS PoE System Maintenance Diagnostics Mail Alert Product Registration ACL > Create ACL > MAC MAC IVM IVM ACL Profile Name: ACL_MAC Add No. MAC ACL Name Action 1 ACL_MAC 3

Available settings are explained as follows:

Item	Description
ACL Profile Name Enter a	name for creating a new ACL profile.
Add Add a new ACL entry using given ACL name.
Action	- click it to remove the selected entry.

V-1-2 IPv4

The function is used to show the Access Control List (ACL) based on Layer 2 to Layer 4 filtering, the IPv4. The ACL is composed by many Access Control Element (ACE) rules. You may create a new ACL here; then add multiple ACEs.

Auto Loglog: Off Mk 17200 13:26:25 Dashboard Status Switch LAN ONVF Surveillance Security ACI Create ACL Create ACE ACL Binding QoS Pull System Maintenance Diagnostics Mail Alert Product Registration ACL - Create ACL - IPv4 MAC IPv4 IPv4 ACL Profile Name: ACL_IPV4_CARRIE Add No. IPv4 ACL Name Action 1 ACL_IPV4_CARRIE 0

Available settings are explained as follows:

Item	Description
ACL Profile Name Enter a	name for creating a new ACL profile.
Add Add a new ACL entry using given ACL name.
Action	click it to remove the selected entry.

V-1-3 IPv6

The function is used to show the Access Control List (ACL) based on Layer 2 to Layer 4 filtering, the IPv6. The ACL is composed by many Access Control Element (ACE) rules. You may create a new ACL here; then add multiple ACEs.

Auto Lognet Off Dashboard Status Switch LAN ONVF Surveillance Security ACL Create ACL Create ACE ACL Binding QoS PoE System Maintenance Diagnostics Mail Alert Product Registration Mb P2500 1322.58 ACL < Create ACL > IPv MAC IPv4 IPv6 ACL Profile Name: ACL_IPVE_CARRIE Add No. IPv6 ACL Name Action ACL_IPVE_CARRIE 0

Available settings are explained as follows:

Item	Description
ACL Profile Name Enter a	name for creating a new ACL profile.
Add Add a new ACL entry using given ACL name.
Action	- click it to remove the selected entry.

V-2 Create ACE

Since ACL based on MAC, IPv4 and/or IPv4 has been created on the section of IV-1, now you can add multiple ACE rules for each ACL.

V-2-1 MAC

This page shows ACE based on MAC address. You may choose ACL, permit, and deny particular packet or frame, even shutdown the port.

You may provide filtering/matching criteria for one or more of packet characteristic (such as Source/Destination MAC, Ethertype, VLAN, 802.1p) for this ACE to identify the packet.

Auto1 Nogust OR Mk P200 13.26.43 Dashboard Status Switch LAN ONVF Surveillance Security ACL Create ACL Create ACL ACL Binding Go9 PoE System Maintenance Diagnostics Mail Aero Product Registration ACL Profile Name: ACL MAC Sequence: 1 (1-2147(03647) Action: Permit Source MAC: Any 00:00:00:00:00:00 Destination MAC: Any 00:00:00:00:00:00 Ethertype: Any (Dx000-Dx/FTF) VLAN: Any [1-075] 862.1p: Any b7 Add No. Name Sequence Action Source MAC/Mask Destination MAC/Mask Ethertype VLAN 802.1p Modify Default Done all Done Any Any Circulans Any Any/Any 172 18 21 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 MAC PV4 PV6

Available settings are explained as follows:

Item	Description
ACL Profile Name Use the	drop down list to selected one of the user defined ACL profiles.
Sequence	Assign a sequence number to this ACE. The sequence is used to identify which one of ACEs in an ACL is firstly used to match ingress packets. The switch port bound with an ACL use the contained ACE rules, start with the one with lower sequence number to match the packet first.
Action Select the action applied to the packet matched this ACE. Permit or deny the packets into switch core, or shutdown the port for stopping further transmission.● Permit● Deny● Shutdown
Source MAC / Destination MAC	Specify the source and the destination MAC address for filtering.Any - All packets will be filtered.Or, enter the IP address to filter the packets coming from that address.
Ethertype Specify ethernet	type for filtering.Select Any.Or, enter the value with the format of “0x600 ~ 0xFFFF”.
VLAN Specify VLAN profile	for filtering.Select Any.Or, enter a VLAN number. The packets coming from the VLAN specified here will be filtered by Vigor device.
802.1p Specify the 802.1p	priority value for filtering. Select Any, or a number from 0 to 7.
Add Click it to create a new ACE rule.
Modify	GXGC- click it to modify the settings for the selected entry.- click it to remove the selected entry.

V-2-2 IPv4

This page shows ACE based on IPv4 address. You may choose ACL, permit, and deny particular packet or frame, even shutdown the port.

You may provide filtering/ matching criteria for one or more of following packet characteristic (such as Protocol over the IP layer, Source/ Destination IPv4 address, Type of Service, Source/ Destination port number, TCP flags, ICMP Type, if chosen protocol contains ICMP), for this ACE to identify the packet.

Auto Logat: Off File: P2500 13:26:27 Dashboard Status Switch LAN ON/F Surveillance Security ACL Create ACL Create ACL ACL Binding Grid PoE System Maintenance Diagnostics Mail Alert Product Registration ACL Profile Name: ACL_PVE_CARRIE Sequence: 1 (1-214785647) Action: Format Protocol: Any Source IP: e Any 0.001 / 29.250.25.0 UNIVERSARY: e Any 0.001 / 29.250.25.0 Service: Any Source Port: Any Destination Port: Any ICMP Type: Any ICMP code: e Any 0.250 Net No. Name Sequence Action Protocol Source IP/Mask Destination L... DSCP IPP Source Port ... Source Port ... Destination P... Destinuti- 172.161.179 (2011/Port name)

Available settings are explained as follows:

Item	Description
ACL Profile Name Use the	drop down list to selected one of the user defined ACL profiles.
Sequence	Assign a sequence number to this ACE. The sequence is used to identify which one of ACEs in an ACL is firstly used to match ingress packets. The switch port bound with an ACL use the contained ACE rules, start with the one with lower sequence number to match the packet first.
Action Select the action applied to the packet matched this ACE. Permit or deny the packets into switch core, or shutdown the port for stopping further transmission.● Permit● Deny● Shutdown
Protocol Specify the protocol for filtering.● Any - All packets will be filtered.● Select - Choose one of the protocol (e.g., ICMP, IP in IP, TCP, EGP, IGP...) from the drop down list. Packets passing through the selected protocol will be filtered.● Define - Specify a type number (0 - 255) for ICMP code. For example, 0 means “Echo Reply”; 254 means “RFC3692-style Experiment 2”.
Source IP / Destination IP	Specify the source and the destination IPv4 address for filtering.Any - All packets will be filtered.Or, enter the IP address to filter the packets coming from that address.
Service	● Any - All packets will be filtered.● DSCP - All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.● IP Precedence - All IP traffic is mapped to queues based on the IP Precedence field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.
Source Port / Destination Port	Specify the source and destination port number for filtering the packets.● Any - All packets will be filtered.● Single - Only the packets passing through the number defined here will be filtered.● Range - Only the packets passing through the port range defined here will be filtered.
ICMP Type	● Any - All packets will be filtered.● Select - Choose one of the type (e.g., Destination Unreachable Echo Reply, MLD Query...) from the drop down list.● Define - Specify a type number (0 - 255) for ICMP code. For example, 0 means “Echo Reply”; 254 means “RFC3692-style Experiment 2”.
ICMP code Each ICMP type	can be defined with different codes. For example, if you define ICMP Type as “3”, then the available codes for Type 3 will be 0-15.Any - All packets will be filtered.Or, enter 0 to 255 based on the ICMP type specified.
Add Click it to create a new binding profile.
Modify	- click it to modify the settings for the selected entry. - click it to remove the selected entry.

V-2-3 IPv6

This page allows the network administrator to create ACE based on IPv6 address.

Auto1 lopset: Or ACI. > Origin ACE. > IPv6 MAC IPv4 IPv5 ACI. Profile Name: ACL_IPUR_CARRIE Sequence: t (1..31x7883647) Action: Permi Protocol: Any Source IP: e Any Destination IP: e Any Service: Any Source Port: Any Destination Port: Any ICBP Type: Any ICBP code: e Any 0266 No. Name Sequence Action Protocol Source IP/Mask Destination L... DSCP IPP Source Port ... Source Port ... Destination P... Destinub

Available settings are explained as follows:

Item	Description
ACL Profile Name Use the	drop down list to selected one of the user defined ACL profiles.
Sequence	Assign a sequence number to this ACE. The sequence is used to identify which one of ACEs in an ACL is firstly used to match ingress packets. The switch port bound with an ACL use the contained ACE rules, start with the one with lower sequence number to match the packet first.
Action Select the action applied to the packet matched this ACE. Permit or deny the packets into switch core, or shutdown the port for stopping further transmission.● Permit● Deny● Shutdown
Protocol Specify the protocol for filtering.● Any - All packets will be filtered.● Select - Choose one of the protocol (e.g., ICMP, TCP, EGP...) from the drop down list. Packets passing through the selected protocol will be filtered.● Define - Specify a type number (0 - 255) for ICMP code. For example, 0 means “Echo Reply”; 254 means “RFC3692-style Experiment 2”.
Source IP / Destination IP	Specify the source and the destination IPv6 address for filtering.Any - All packets will be filtered.Or, enter the IPv6 address to filter the packets coming from that address.
Service	Any - All packets will be filtered.DSCP - All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.IP Precedence - All IP traffic is mapped to queues based on the IP Precedence field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.
Source Port / Destination Port	Specify the source and destination port number for filtering the packets.Any - All packets will be filtered.Single - Only the packets passing through the number defined here will be filtered.Range - Only the packets passing through the port range defined here will be filtered.
ICMP Type	Any - All packets will be filtered.Select - Choose one of the type (e.g., Destination Unreachable Echo Reply, MLD Query....) from the drop down list.Define - Specify a type number (0 - 255) for ICMP code. For example, 0 means “Echo Reply”; 254 means “RFC3692-style Experiment 2”.
ICMP code Each ICMP type	can be defined with different codes. For example, if you define ICMP Type as “3”, then the available codes for Type 3 will be 0-15.Any - All packets will be filtered.Or, enter 0 to 255 based on the ICMP type specified.
Add Click it to create a new binding profile.
Modify	- Click it to modify the settings for the selected profile. - Click it to remove the selected entry.

V-3 ACL Binding

This section allows you to bind Access Control Lists created in previous section to an interface (physical port or aggregation).

A physical port can only be bound with one of the IPv4 and IPv6 ACL, not both.

Auto Logpost Off Link 72500 13:38:06 Dashboard Status Switch LAN ONVF Surveillance Security ACL Create ACL Create ACE ACL Binding ACL > ACL Binding > ACL Binding ACL Binding Port: MAC ACL: IPv4 ACL: IPv6 ACL: Nothing selected Select MAC ACL Select IPv4 ACL Select IPv6 ACL + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Available settings are explained as follows:

Item	Description
Ports Use the drop down list	to select the port profiles (GE1 to GE28)for binding ACL.
MAC ACL / IPv4 ACL /IPv6 ACL	Select ACLs (MAC, IPv4, and/ or IPv6) to be bound on thisinterface (port), so Switch may filter packets by using it.
Apply Apply the settings to the switch.

Part VI QoS Configuration

VI-1 General

QoS (Quality of Service) functions to provide different quality of service for various network applications and requirements and optimize the bandwidth resource distribution so as to provide a network service experience of a better quality.

VI-1-1 Properties

VI-1-1-1 QoS General Setting

This page allows the network administrator to specify Ingress Trust Mode for basic QoS mode.

Auto-Login Dashboard Status Switch LAN ONVF Surveillance Security ACL CoS General Properties Port Settings Queue Settings CoS Mapping DISCP Mapping IP Precedence Mapping Bandwidth PoE System Maintenance Diagnostics Mail Alert Product Registration CoS > General > Properties > CoS Global Setting CoS Global Setting Trust Ports CoS Mode: Basic Disable Ingress Trust Mode: CoS/802.1p BSCP CoS/802.1p.DSCP IP Precedence Apply

Available settings are explained as follows:

Item	Description
QoS Mode Disable -Disable	the function of QoS mode.Basic - Enable the function of QoS mode.
Ingress Trust Mode Select	the QoS operation mode.CoS/802.1p -Traffic is mapped to queues based on the CoS field in the VLAN tag, or based on the per-port default CoS value if there is no VLAN tag on the incoming packet.DSCP - All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP traffic, it is mapped to the lowest priority queue.CoS/802.1p-DSCP - All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP but has VLAN tag, mapped to queues based on the CoS value in the VLAN tag.IP Precedence - All IP traffic is mapped to queues based on the DSCP field in the IP header. If traffic is not IP but has VLAN tag, mapped to queues based on the CoS value in the VLAN tag.

Apply Apply the settings to the switch.

VI-1-1-2 Trust Ports

This page allows the network administrator to enable the trust mode of basic QoS on each port. Port that is trust disabled will be sent with lowest priority queue. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto Logpost Off Ms P2500 13:31:27 Dashboard Status Health LAN ONMT Surveillance Security ACL CoS General Properties Port Settings Queue Settings CoS Mapping DISCP Mapping ID Recombination Mapping Bandwidth PoE System Maintenance Diagnostics Mail Alert Product Registration CoS > General > Properties > Trust Ports CoS Global Setting Trust Ports True Ports Ports: Nothing retained Trues: Code Disable Apply Port GE1 GE2 GE3 GE4 GE5 GE6 GE7 GE8 GE9 GE10 GE11 GE12 Trust Enabled Enabled Enabled Enabled Enabled Enabled Enabled

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port profile (GE1 to GE28) or profiles.
Trust	Click Enable to make traffic follow the trust mode in general setting.Enable - Traffic will follow trust mode in general setting.Disable - No QoS service for this port.
Apply Apply the settings to the switch.

VI-1-2 Port Settings

This page allows the network administrator to configure port settings for QoS. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto Logout Off ML P2500 13:32:18 Dashboard Status Switch LAVY ONVF Surveillance Security ACL Gel General Properties Port Settings Queue Settings Cell Mapping DSP Mapping IP Precedence Mapping Remarks GE1 GE2 GE3 GE4 GE5 GE6 GE7 GE8 GE9 Port Settings Port: Improx Default CoS: Egress Remarking Remark CoS: Remark DSP / IP Precedence: Notting selected Enable Disable DSCP IP Precedence Disable Apply Ingress Default CoS Remark CoS Remark DSP / IP Precedence Modify GE1 GE2 GE3 GE4 GE5 GE6 GE7 GE8 GE9

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port profile (GE1 to GE28) or profiles.
Ingress Default CoS	Specify the default CoS priority value for those ingress frames without given trust QoS tag (802.1q/ DSCP/ IP Precedence, depending on configuration).
Engress Remarking
Remark CoS	Disable - Disable CoS remarking function for outgoing packets.Enable - Egress traffic will be marked with CoS value according to the Queue to CoS mapping table.
Remark DSCP/IP Precedence	Disable - Disable DSCP/ IP Precedence remarking function for outgoing packets.DSCP - Egress traffic will be marked with DSCP value according to the Queue to DSCP mapping table.IP Precedence - Egress traffic will be marked with IP Precedence value according to the Queue to IP Precedence mapping table.
Apply Apply the settings to the switch.
Modify	Click it to modify the settings for the selected port profile.

VI-1-3 Queue Settings

VigorSwitch supports multiple queues for each interface. The higher numbered queue represents the higher priority. The following lists the types of supported priority queue:

• Strict Priority (SP) - Egress traffic from the higher priority queue will be transmitted first, lower priority queue shall wait until all traffic in SP queue is transmitted.
  ● Weighted Round Robin (WRR) - The number of packets sent from the queue is proportional to the weight of the queue.

Auto Logout: Off Mk P7500 12:33:09 Dashboard Status Switch LAN ONMF Surveillance Security ACL Grid General Properties Post Settings Queue Settings Queue Settings Queue Schedule Weight % of WRR Bandwidth 1 Strict Priority WRR 0 2 Strict Priority WRR 0 3 Strict Priority WRR 0 4 Strict Priority WRR 0 5 Strict Priority WRR 0 6 Strict Priority WRR 0 7 Strict Priority WRR 0 8 Strict Priority WRR 0 #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### #### ####

Strict Priority Queue Number

8

Available settings are explained as follows:

Item	Description
Queue There are eight queue ID numbers allowed to be configured.
Schedule	● Strict Priority - Click it to set queue to strict priority type.● WRR - Click it to set queue to Weight round robin type.
Weight If the queue type is WRR, set the queue weight for the queue.
% of WRR Bandwidth Display the percentage of traffic which can be sent by current queue compared to total WRR queues.
Apply Apply the settings to the switch.
Strict Priority Queue Number	Display the number of queues using Strict Priority method.

VI-1-4 CoS Mapping

This section allows user to configure how ingress frames with CoS/802.1p tag map to QoS queues, and QoS queues to CoS/802.1p on egress frames.

Actual effectiveness is based on how QoS is configured in previous QoS section. This page provides settings for user to configure mapping only.

Auto Lognet C6 Dashboard Status Switch LAN ON/F Surveillance Security ACL Cell General Properties Port Settings Queue Settings Cell Mapping UDP Mapping IP Precedence Mapping Bandwidth PcE System Maintenance Diagnostics Mail Alert Product Registration Mb P2000 13:36:00 Coll > General > C6S Mapping > Cell Mapping ColS Mapping ColS to Queue Mapping (for Ingress) Class of Service Queue 0 2 * 1 1 * 2 3 * 3 4 * 4 5 * 5 6 * 6 7 * 7 8 * Queue to ColS Mapping (for Egress.Remarking) Queue Class of Service 1 1 * 2 0 * 3 2 * 4 3 * 5 4 * 6 5 * 7 6 * 8 7 * Apply

Available settings are explained as follows:

Item	Description
CoS to Queue Mapping (for Ingress) - Settings for incoming packets.
Class of Service Display the class of service value (0 to 7).
Queue	Define the queue ID (level 1 to 8) for different class of service values.
Queue to CoS Mapping (for Egress Remarking) - Settings for outgoing packets.
Queue	Display the queue ID (level 1 to 8) for different class of service values.
Class of Service Define the class of service value (0 to 7).
Apply Apply the settings to the switch.

VI-1-5 DSCP Mapping

This section allows user to configure how ingress packets with DSCP tag map to QoS queues, and QoS queues to DSCP on egress packets.

Actual effectiveness is based on how QoS is configured in previous QoS section. This page provides settings for user to configure mapping only.

Auto Logout Off Mb P2000 13:37:44 Dashboard Status Switch LAN ONVF Surveillance Security ACL Cell General Properties Put Settings Queue Settings Cell Mapping USCP Mapping IP Precedence Mapping Bankwidth PvtE System Maintenance Diagnostics Mail Alert Product Registration Gulf > General > DISCP Mapping > DISCP Mapping DISCP Mapping DISCP to Queue Mapping (for Ingress) DSCP Queue Nothing wheeled 1 Queue to DISCP Mapping (for Express Remarkoring) Queue DSCP 1 0 - 2 5 - 3 16 - 4 24 - 5 32 - 6 40 - 7 45 - 8 56 - Pure DSCP Mapping to Queue 0 1 1 1 2 1

Available settings are explained as follows:

Item	Description
DSCP to Queue Mapping (for Ingress) - Settings for the incoming packets.
DSCP Display the DSCP value (0 to 7).
Queue Define the queue ID (level 1 to 8) for different DSCP values.
Queue to DSCP Mapping (for Egress Remarking) - Settings for outgoing packets.
Queue Display the queue ID (level 1 to 8) for different DSCP values.
DSCP Define the DSCP value (0 to 7).
Apply Apply the settings to the switch.

This section allows user to configure how ingress packets with IP Precedence tag map to QoS queues, and QoS queues to IP Precedence on egress packets.

Actual effectiveness is based on how QoS is configured in previous QoS section. This page provides settings for user to configure mapping only.

Auto Lognet Dashboard Status Switch LAN ONVF Surveillance Security ACL Gain General Properties Port Settings Queue Settings Cell Mapping DISCP Mapping IP Precedence Mapping Bandwidth PulE System Maintenance Diagnostics Mail Alert Product Registration QoS > General > P Precedence Mapping > IP Precedence Mapping IP Precedence Mapping IP Precedence to Queue Mapping (for Ingress) IP Precedence Queue 0 1 2 3 4 5 6 7 Queue to IP Precedence Mapping (for Cymsa Remarking) Quser IP Precedence 1 0 2 1 3 2 4 3 5 4 6 5 7 6 7 Apply

Available settings are explained as follows:

Item	Description
IP Precedence to Queue Mapping (for Ingress) - Settings for the incoming packets.
IP Precedence Display the	IP Precedence value (0 to 7).
Queue Define the queue ID	(level 1 to 8) for different IP Precedence values.
Queue to IP Precedence Mapping (for Egress Remarking) - Settings for outgoing packets.
Queue Display the queue ID	(level 1 to 8) for different IP Precedence values.
IP Precedence Define the	IP Precedence value (0 to 7).
Apply Apply the settings to the switch.

VI-2 Bandwidth

Use the bandwidth setting pages to define values that determine how much traffic the switch can receive and send on specific port or queue.

VI-2-1 Ingress Rate Limit

This page allows a user to configure ingress port rate limit. The ingress rate limit is the number of bits per second that can be received from the ingress interface. Excess bandwidth above this limit is discarded. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto Logust Off Dashboard Status - Switch LAN ONVF Surveillance - Security - ACL - Cats General Bandwidth Ingress Rate Limit Egress Sharing Rate Egress Sharing Per Queue Port | Rate Limit (Ktps) | Modify GE1 off ✓ GE2 off ✓ GE3 off ✓ GE4 off ✓ GE5 off ✓ GE7 off ✓ GE8 off ✓ GE9 vt ✓ GE10 off ✓ GE11 off ✓

Available settings are explained as follows:

Item	Description
Ingress Rate Limit
Ports	Use the drop down list to select the port profile (GE1 to GE28) or profiles.
State	Disable - Disable ingress bandwidth control.Enable - Enable ingress bandwidth control.
Rate (Kbps) Enter the rate	value,<16-1000000>,unit:16 Kbps.
Apply Apply the settings to the switch.
Modify	Click it to modify the settings for the selected port profile.

VI-2-2 Egress Shaping Rate

This page allows a user to configure egress port rate limit. The egress rate limit is the number of bits per second that can be received from the egress interface. Excess bandwidth above this limit is discarded.

Auto Logout: Off Dashboard Status Switch LAN ONVF Surveillance Security ACL G00 General Bandwidth Ingress Rate Level Express Shaping Rate Express Shaping Per Queue Porta: Nothing selected SaaS: Customs + Disable CR (Kbps): (16-100000, multiple of 16) Exit Express Shaping Rate Port GR (Kbps) Modify PoE GE1 of GE2 of GE3 of GE4 of GE5 of GE6 of GE7 of GE8 of GE9 of GE10 of GE11 of

Available settings are explained as follows:

Item	Description
Egress Shapping Rate
Ports	Use the drop down list to select the port profile (GE1 to GE28) or profiles.
State	Disable - Disable egress bandwidth control.Enable - Enable egress bandwidth control.
CIR (Kbps) Enter the rate value, <16-1000000>, unit: 16 Kbps.
Apply Apply the settings to the switch.
Modify	Click it to modify the settings for the selected port profile.

VI-2-3 Egress Shaping Per Queue

This page allows user to configure the maximum egress bandwidth not only by port but also by specific QoS queues. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto Logpost: Off Dashboard Status Switch LAN ON/F Surveillance Security ACL Data General Bandwidth Ingress Rate Unit Egress Shaping Rate Egress Shaping Per Queue Egress Shaping Per Queue Port: GE1 Queue: Select Queue ID: State: Enable a Disuble CR (Kbps): (16-100000, multiple of 16) Apply PoE System Maintenance Diagnostics Mail Alert Product Registration Queue Information of Fort GE1 Queue ID CIR (Kbps) 1 of 2 of 3 of 4 of 5 of 6 of 7 of 8 of

Available settings are explained as follows:

Item	Description
Egress Shapping Per Queue
Port	Use the drop down list to select the port profile (GE1 to GE28) or profiles.
Queue Use the drop down	list to select queue number (1 to 8) for the selected GE port.
State	Disable - Disable egress bandwidth control.Enable - Enable egress bandwidth control.
CIR (Kbps) Enter the rate value, <16-1000000>, unit: 16 Kbps.
Apply Apply the settings to the switch.

This page is left blank.

Part VII PoE Configuration

VII-1 Properties

This page allows a user to configure general settings for PoE and configure priority of each port for supplying PoE power. While maximum power budget is reached, power will be served starting with critical priority.

If the priority setting for all GE ports is configured as the same value (e.g., High); then, GE1 will have the highest priority to obtain PoE power in actual operation.

Auto Logpad Off Mk P2500 1488.22 Dashboard Status Switch LAN ON/F Surveillance Security ACL Grid PoE Properties Status Schedule System Maintenance Diagnostics Mail Alert Product Registration PoE > Properties > Properties Properties PoE Mode: Auto Manual Disable Ports: Notang chosen! Enable: Enable Priority: Low Apply

Available settings are explained as follows:

Item	Description
PoE Mode	Disable- Disable the PoE function.Auto- Provides plug and play PoE function. PoE schedule and Power Limit are disabled in this mode.Manual- Before using PoE>>Schedule, set Manual as PoE mode.
Ports	Use the drop down list to select the port (GE1 to GE24) or ports for applying PoE configuration.
Enable	Enable- Make the selected ports be applied with PoE mode.Disable- Make the selected ports be not applied with PoE mode.
Priority Select Priority for	PoE device.Low-Set PoE device to low priority connection.High-Set PoE device to high priority connection.Critical- Set PoE device to highest priority connection.
Power Limit	This setting is available whenManualis selected as PoE Mode.Enter the value as the maximum limit of power given to each physical port.
Apply Apply the settings to	the switch.

VII-2 Status

This page displays the current PoE status (configured in Properties, Device Check and Schedule) for each PoE port.

Auto Lognot Off Dashboard Status Switch LAN ON/F Surveillance Security ACL QoS PUF Properties Status Schedule System Maintenance Diagnostics Mail Alert Product Registration Port Enable Status PD Class Priority Power Used (W) Power Limit (W) Power Cycle GE1 Enabled No PD — Low 0 AT (30) App# GE2 Enabled No PD — Low 0 AT (30) App# GE3 Enabled No PD — Low 0 AT (30) App# GE4 Enabled No PD — Low 0 AT (30) App# GE5 Enabled No PD — Low 0 AT (30) App# GE6 Enabled No PD — Low 0 AT (30) App# GE7 Enabled No PD — Low 0 AT (30) App# GE8 Enabled No PD — Low 0 AT (30) App

Available settings are explained as follows:

Item	Description
Refresh Click it to refresh	the status page.
PoE Mode	Display the PoE Mode (Manual, Auto or Disable) selected for the LAN port.
Power Budget(W) Display	the maximum power this switch can supply over PoE.
Consuming Power(W) Display	play current power being consumed by all devices over PoE.
Remaining Power(W) Display	play remaining power that can be supplied to additional devices over PoE.
Power Cycle	Apply - If PoE device connects to VigorSwitch, such button will be available for you to manually perform the cold boot for the PoE device by cycling the power supply.

VII-3 Schedule

VII-3-1 Schedule Profile

This page allows the network administrator to configure maximum 15 PoE schedule rules.

Auto Logos Ctrl Dashboard Status Switch LAN ONMY Surveillance Security ACL GoS Full Properties Status Schedule System Maintenance Diagnostics Mail Alert Product Registration Poll + Schedule > Schedule Profile Schedule Profile Pot Scheduling Schedule Profile Schedule Index 1 Enable Enable Disable Description: Start Date: 30000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Start Time: 1 1 1 Duration Time: 1 1 1 Action: Power On How Often: Once Workdays Sun Mon-Tur/Vend-Ttu-Fol-Set Monthly on date 1 Cycle duration (days) 1 Apply Index Enable Description Start Date Start Time Duration Time Action How often 1 Disabled 2008-01-01 00:00 00:00 Power Do Once

Available settings are explained as follows:

Item	Description
Schedule Index	Use the drop down list (1 to 15) to choose one schedule profile.
Enable	Disable - The selected schedule profile will not take action but be saved for future use.Enable - The selected schedule profile will take action as configured.
Description Enter a brief comment for such schedule.
Start Date	Specify the starting date of the schedule by choosing from a drop down calendar.
Start Time Specify the starting time of the schedule by using the drop down list to specify the starting time (hours and minutes).
Duration Time Define the time duration (hours and minutes).
Action Specify which action should perform during the period of the schedule.Power On - PoE connection is always on.Power Off - PoE connection is always down.
How Often Specify how often the schedule will be applied.Once - The schedule will be applied just once.Weekdays - Specify which days in one week should perform the schedule.Monthly, on date - Specify the day in a month as the
	starting point.● Cycle duration (days) - The period of cycle duration is between 1 day and 31 days. For example, 7 means the whole cycle is 7 days; 20 means the whole cycle is 20 days. When the time is up, the PoE device will be turned on of off automatically.
Apply Apply the settings to the switch.

VII-4-2 Port Scheduling

This page allows the network administrator to specify the PoE port for applying the schedule. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto Lognot: Off Dashboard Status Switch LAN ON/F Surveillance Security ACL QoS Port Properties Status Schedule System Maintenance Diagnostics Mail Alert Product Registration PdE > Schedule > Port Scheduling Schedule Profile Port Scheduling Ports: Routing selected. Schedule Index: None Apply Port GE1 GE2 GE3 GE4 GE5 GE6 GE7 GE8 GE9 GE10 GE11 GE12 Schedule None None None None None None None

Available settings are explained as follows:

Item	Description
Ports Select the port or ports for applying the schedule.
Schedule Index Use the drop down list to choose the schedule profile (from 1 to 15). After clickingApply, the selected port(s) will be applied with the specified schedule.
Apply Apply the settings to the switch.

This page is left blank.

Part VIII System Maintenance

This page allows a user to configure TR-069 settings for connecting to VigorACS 2.

Auto\Logexp OF Dashboard Status Switch LAN ONVF Surveillance Security ACL Ctrl PoE System Maintenance TR.000 Open/VPN Weblock LCDP SNAP Access Manager Time and Date Backup Manager Upgrade Manager Firmware Information Account Manager Factory Default Reboot Switches Diagnostics ML F2500 14:09:28 System Maintenance >TR-000 >TR-000 Setting TR.000 Setting ACS Settings TR.000s Enable Disable URL: Enter URL Wizard Username: Enter User Name Password: Enter Password Last Inform: (NA) Text Inform: Text With Inform CPE Settings CPE Client: HTTP HTTPS URL: https://192.168.1.251.6003e.wen/ORN.html Port: 8003 0-65535 Username: vigor Password: ———— Periodic Inform Settings Periodic Inform Settings: Enable Disable Interval Time: 300 second(s)

Available settings are explained as follows:

Item	Description
ACS Settings	TR-069 - Click Enable to activate the settings on this page.URL - The URL must be entered according to the ACS (Auto Configuration Server) you want to link.Wizard - Click it to enter the IP address of VigorACS server, port number and the handler.Usage - The string of username must be entered according to the VigorACS (Auto Configuration Server) you want to link.Password - The password must be entered according to the VigorACS (Auto Configuration Server) you want to link.Last Inform - Display the time that VigorACS server makes a response while receiving Inform message from CPE last time.Test Inform - Click Test With Inform to send a message to test if such CPE is able to communicate with VigorACS server.
CPE Settings	CPE Client - Choose HTTP or HTTPS for connecting with VigorACS.URL - Display the URL of VigorSwitch.Port - Type the username and password that VigorACS can use to access into this switch.Usage - Enter the username that VigorACS can use to access into this switch.Password - Enter the password that VigorACS can use to access into this swtich.
Periodic Inform Settings	Periodic Inform Settings - Click Enable to configure the interval time.Interval Time - Set the interval time for the switch to send notification to CPE.
STUN Settings	STUN Settings - Click Enable to configure STUN settings.Server Address - Enter the IP address of the STUN server.Server Port - Enter the port number of the STUN server.Minimum Keep Alive Period - If STUN is enabled, the switch must send binding request to the server for the purpose of maintaining the binding in the Gateway. Please type a number as the minimum period. The default setting is “60 seconds”.Maximum Keep Alive Period - If STUN is enabled, the switch must send binding request to the server for the purpose of maintaining the binding in the Gateway. Please type a number as the maximum period. A value of “-1” indicates that no maximum period is specified.
Health Check Vigor system	will check the health status of LAN ports including link up / down, speed change or PoE power disconnection.Port Link Up/Down - Select LAN port(s) to do the health check of port link.Link Speed Change - Select LAN port(s) to do the health check of speed change.PoE Port Warning - Select LAN port(s) to do the health check of PoE power.
Apply Apply the settings to the switch.
Clear Discard current settings.

VIII-2 OpenVPN

Devices connecting to VigorSwitch can transmit data to remote end via OpenVPN to ensure the information security.

Auto (Logist) Of Isk P2500 14:17:37 Dashboard Status Switch LAN ON/F Surveillance Security ACL CoV PoE System Maintenance TR-960 Open/PN Lock/PMI Wishesk LLDP SNRP Access Manager Time and Date Backup Manager Upgrade Manager Hardware Information Account Manager Factory Default Robot Switch Diagnostics System Maintenance > Open/PN > Open/PN Open/PN Open/PN Settings Remote Management: Enable + Disable Config File: 保留毫度 -未保留分配毫度 New! Status Session Status 11 Config File Disabled

Available settings are explained as follows:

Item	Description
Remote Management Enable	- Click it to enable OpenVPN tunnel between VigorSwitch with the remote end. Disable - Click it to disable OpenVPN tunnel.
Config File As a VPN client	, please import the OpenVPN config file coming from OpenVPN server.
Apply Save and apply the settings to the switch.
Status Display current Open	nVPN status (Disabled, Connecting or Success) and configuration file used.

VIII-3 Webhook

Without getting any request, VigorSwitch will send the data (if available) that a user concerned to the specified URL (provided by remote client) automatically.

Auto Lograd OS ID P0208 14:13:11 Dashboard Status Switch LAN ONVF Surveillance Security ACL Quiz PoE System Maintenance TR-60 CnualSNI Wntrock LLDP SNAP Access Manager Time and Date Backup Manager Upgrade Manager Firmware Information Account Manager Factory Default Robust Search Diagnostics System Maintenance - Watchbox - Watchbox Wntrock Wntrock: Enable Enable URL: http://www.crayton.com/craytrainsample/ Report Period: 1 (1 - 65 minutes) Keep my settings while reset default. Apply List Report POST /Crayton.example HTTP.L.1 Post: www.crayton.com User-Agent: Viperwitch P2006, 0800A22744 Context-Type: application/json Context-Length: 176 ("Device": C#020", "08-10-A2-21-B44", "Type": "code", "Tase", "P200", "model": "Viperwitch P2006", "manufacturer": "Drakek", "CPU utilization": 15, "None": 971)

Available settings are explained as follows:

Item	Description
Webhook	Enable - Click it to enable the webhook service. The data will be transmitted to the specified URL.Disable -Click it to disable the webhook service.
URL Specify the destination	to receive the real-time data by entering the URL.Please get the URL from the client who wants to obtain the newest and available data automatically from the switch.
Report Period Set the transmission interval (unit is minute).Keep my settings while rest default - Check the box to keep the webhook configuration when resetting VigorSwitch with default settings.
Apply Apply the settings to the switch.
Test Report Vigor system will send a test report to the remote address.

VIII-4 LLDP

LLDP is a one-way protocol; there are no request/response sequences. Information is advertised by stations implementing the transmit function, and is received and processed by stations implementing the receive function. The LLDP category contains LLDP and LLDP-MED pages.

VII-4-1 Properties

This page allows a user to set general settings for LLDP.

Auto Layout Off Index P200 14.11.38 Dashboard Status Switch LAN ONAV Surveillance Security ACL Go0 PoE System Maintenance TR-039 Cron#SIN Vestock LLDP Properties LLDP Port Setting LLDP Local Device LLDP MED Network Policy LLDP MED Port Settings LLDP Remote Device LLDP Overloading SNAP Access Manager Time and Date System Maintenance + LLDP > Properties + LLDP Global Setting LLDP Global Setting LLDP Status: Enable Disable Transmission Interval: 30 (5.32763) Holdtime Multiplier: 4 (2.10) Reinstaturation Delay: 2 (3.10) Transmit Delay: 2 (1.8191) LLDP MED Fast Start Repeat Count: 5 (3.10) LLDP MED Network Policy for Voice Application: Auto Auto

Available settings are explained as follows:

Item	Description
LLDP State	● Enable - Enable LLDP protocol on this switch. ● Disable - Disable LLDP protocol on this switch.
Transmission Interval Select	the interval at which frames are transmitted. The default is 30 seconds, and the valid range is 5-32768seconds.
Holdtime Multiplier Select	the multiplier on the transmit interval to assign to TTL (range 2-10, default = 4).
Reinitialization Delay	Select the delay before a re-initialization (range 1-10 seconds, default = 2).
Transmit Delay Select the	delay after an LLDP frame is sent (range 1-8192 seconds, default = 3).
LLDP-MED Fast Start Repeat Count	Select the number of LLDP packets that will be sent during LLDP-MED Fast Start period. The default is 3. Available range is from 1 to 10.
LLDP MED Network Policy for Voice Application	The default is Auto.

VII-4-2 LLDP Port Setting

This page allows a user to select specified port or all ports to configure LLDP state.

Auto Lognet: Or Dashboard Status Switch LAN ONVF Surveillance Security ACL Gus PoE System Maintenance TR-03 Draft/FRY Network LLDP Properties LLDP Port Setting LLDP Local Device LLDP MEC Network Policy LLDP MEC Port Settings LLDP Remote Device LLDP Overloading SMP Access Manager Time and Date System Maintenance > LLDP > LLDP Port Setting > LLDP Port Setting LLDP Port Setting Ports: Nothing selected State: Double Optional TLVs: Nothing selected VLAN: Nothing selected Apply Port || State || Selected Optional TLVs || Selected VLAN || Modify GE1 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE2 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE3 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE4 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE5 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE6 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE7 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE8 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE9 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE10 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE11 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓ GE12 TX/RX System Name, Port Description, 802.3 MAC-PHY ✓

Available settings are explained as follows:

Item	Description
Ports	Use the drop down list to select the port (GE1 to GE50) or ports for device check.
State	Disable - Disable the transmission of LLDP PDUs.TX&RX - Transmit and receive LLDP PDUs both.TX Only - Transmit LLDP PDUs only.RX Only - Receive LLDP PDUs only.
Optional TLVs	Within data communication protocols, optional information may be encoded as a type-length-value or TLV element inside a protocol. TLV is also known as tag-length value.The type and length are fixed in size (typically 1-4 bytes), and the value field is of variable size.Select the LLDP optional TLVs to be carried (multiple selection is allowed).Available items include System Name, Port Description, System Description, System Capability, 802.3 MAC-PHY, 802.3 Link Aggregation, 802.3 Maximum Frame Size, Management Address and 802.1 PVID.
VLAN Select the VLAN ID number to be performed (multiple selections are allowed).
Apply Apply the settings to the switch.
Modify	Click it to modify the settings for the selected port profile.

Edit Port GE1 State TX&RX Optional TLVs System Name, Port Description, 802.3 MAC-PHY VLAN Nothing selected OK Cancel

VIII-4-3 LLDP Local Device

This page displays information for LLDP Local Device.

Auto Lognet: Off Index P2500 MSS417 Dashboard Status Switch LAN ON/F Surveillance Security ACL QoS PoE System Maintenance > LLDP > LLDP Local Device > LLDP Local Device LLDP Local Device Device Summary Name Value Chassis ID Subtype MAC Address Chassis ID 90 1D AA 22 33 44 System Name P2109 System Description 44-Port 10/100/1000Base? PoE + 4-Port 100M/1000M Combo SFP + 2-Port 100M/1000M SFP L2... Capabilities Supported Bridge Capabilities Enabled Bridge Port O Subtype Interface name Port Details Port LDDP State Detail GE1 TX&RX ✓ GE2 TX&RX ✓ GE3 TX&RX ✓ GE4 TX&RX ✓ GE5 TX&RX ✓ GE6 TX&RX ✓ GE7 TX&RX ✓ GE8 TX&RX ✓

Available settings are explained as follows:

Item	Description
Device Summary Display a	summary of the LLDP information for this switch.Chassis ID Subtype - Display the type of chassis ID, such as the MAC address.Chassis ID - Display Identifier of chassis. Where the chassis ID subtype is a MAC address, the MAC address of the switch is displayed.System Name - Display model name of switch.System Description - Display description of switch.Capabilities Supported - Display the primary functions of the device, such as Bridge, WLAN AP, or Router.Capabilities Enabled - Primary enabled functions of the device.Port ID Subtype - Display the type of the port identifier that is shown.
Port Details Display detailed	information of the selected GE port.Detail - Click the button under it to review the detailed information contained in TLVs sent out from each interface, containing MAC/ PHY, 802.3, 802.3 Link Aggregation, 802.1 VLAN and Protocol for each LAN port (GE1 to GE28).

VIII-4-4 MED Network Policy

This page allows the network administrator to set MED (Media Endpoint Discovery) network policy.

Auto Lognet: Off Dashboard Status Switch LAN ON/F Surveillance Security ACL OnS PoE System Maintenance TR (W) Open/VPIs Waitlock LLDP Proportion LLDP Port Setting LLDP Local Device LLDP MEC Network Policy LLDP MEC Port Settings LLDP Remote Device LLDP Overloading SNMP Acoustic Manager Time and Data System Maintenance > LLDP > LLDP MED Network Policy > MED Network Policy MED Network Policy Policy ID: 1 Enable Policy: ● Enable ● Enable Application: Voice Signaling VLAN: (1-400A) VLAN Tag: ● Untag ● Tag Priority: 0 DISCP: 0 Policy ID Policy Enabled Application VLAN ID Tagged/Untagged Priority DSCP 1 Disabled Unknown 0 Untagged 0 0 2 Disabled Unknown 0 Untagged 0 0 3 Disabled Unknown 0 Untagged 0 0 4 Disabled Unknown 0 Untagged 0 0 5 Disabled Unknown 0 Untagged 0 0 6 Disabled Unknown 0 Untagged 0 0 7 Disabled Unknown 0 Untagged 0 0

Available settings are explained as follows:

Item	Description
Policy ID Choose a number	for configuring the policy profile.Available selections include 1 to 32.
Enable Policy Enable - Click it to enable such function.
Application	There are several applications which can be used for MED network.Selection includes Voice Signaling, Guest Voice, Guest Voice Signaling, Softphone Voice, Video Conferencing, Stream Video and Video Signaling.
VLAN	Set a VLAN ID (ranging from 1 to 4095) for such profile.
VLAN Tag Specify if the outgoing packets will be tagged or not.Untag - Packets will be sent out without any tag.Tag - Packets will be sent out with a number tagged.
Priority Set Layer2 priority (range from 0 to 7).
DSCP Set DSCP value (range form 0 to 63).
Apply Apply the settings to the switch.

VIII-4-5 LLDP MED Port Settings

This page allows the network administrator to configure TLV (Type / Length / Value) settings for each port.

Auto Lognet: CF Dashboard Status Swim LAN ONVIF Surveillance Security ACL OxS PoE System Maintenance TR (R) CoerVPN Webhook LLDP Proportion LLDP Port Setting LLDP Local Device LLDP NEC Network Policy LLDP NEC Port Settings LLDP Remote Device LLDP Overloading State Access Manager Time and Date System Maintenance > LLDP > LLDP MEC Port Settings > Port Control Settings Port Control Settings Ports: Floating selected State: Enable Available Optional TLV: Location Inventory: Selected Optional TLV: >>: >>: <<: Network Policy: Selected Network Policies: Nothing selected Location TLV Settings: Coordinate: (16 pairs of hexadecimal characters) Chlc: (5 - 100 pairs of hexadecimal characters) ECS ELIN: (15 - 25 pairs of hexadecimal characters) Apply Port State TLVs Selected Policies Selected in Network Policy TLV Location TLV Settings GE1 Enabled Network Policy

Available settings are explained as follows:

Item	Description
Ports Choose the port(s) for configuring TLV settings.
State	Enable - Click it to enable LLDP MED on the selected port.
Available Optional TLV Available TLV items will be shown in this field.Choose the one(s) you want and click the >> arrow to transfer the selection(s) to the field of “Selected Optional TLV”.
Selected Optional TLV Display the selected TLV items.
Selected Network Policies	Select network policy profiles (created in LLDP>>LLDP MED Network Policy) for applying onto the selected port.
Location TLV Settings Define the location, civic address and ECS ELIN for LLDP protocol.Coordinate -Enter the coordinate location in 16 pairs of hexadecimal characters.Civic - Enter the civic address in 6 ~ 160 pairs of hexadecimal characters.ECS ELIN - Enter the ECS (Emergency Call Service) ELIN (Emergency Location Identification Number) in 10 ~ 25 pairs of hexadecimal characters.
Apply Apply the settings to the switch.

VIII-4-6 LLDP Remote Device

This page allows the network administrator to view the information sent from neighboring devices by LLDP protocol.

Local Port Chassis ID Subtype Chassis ID Port ID Subtype Port ID System Name Time to Live Details Delete GES MAC address 00:1D AA-40 C9-C8 Locally assigned gr10 G2280x 110 ✓ ✓ LLDP Proportion LLDP Port Setting LLDP Local Device LLDP MED Network Policy LLDP MED Port Settings LLDP Remote Devices LLDP Overloading SAMP Access Manager Time and Date

Available settings are explained as follows:

Item	Description
Local Port	Display the number of the local port to which the neighbor is connected.
Chassis ID Subtype	Display the type of chassis ID (for example, MAC address).
Chassis ID Display the identifier of the 802 LAN neighboring device's chassis.
Port ID Subtype Display the type of port identifier.
Port ID Display the number of port identifier.
System Name Display the name of the switch.
Time to Live Display the time interval in seconds after which the information for remote device will be deleted.
Details Display detailed information contained in TLVs sent out from neighboring devices.
Delete Click it to remove information of the selected port.

VIII-4-7 LLDP Overloading

This page allows user to review current size, overall size of LLDP packet and whether it is to exceed maximum allowed size of single LLDP packet.

Auto Legend: OF Dashboard Status Switch LAN ONVF Surveillance Security ACL CoS PoE System Maintenance TR-009 Open/PN Vitashok LDP Proportions LLDP Port Setting LLDP Local Device LLDP MEC Network Policy LLDP MEC Port Settings LLDP Remote Device LLDP Overloading SNAP Access Manager Time and Date System Maintenance > LLDP > LLDP Overloading > LLDP Overloading LLDP Overloading Port Total(Bytes) Left to Band(Bytes) Status Mandatory TLVs 802.3 TLVs Optional TLVs 802.1 TLVs GE1 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE2 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE3 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE4 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE5 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE6 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE7 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE8 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE9 68 1420 Not Overloading 21(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE10 69 1419 Not Overloading 22(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE11 69 1419 Not Overloading 22(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE12 69 1419 Not Overloading 22(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE13 69 1419 Not Overloading 22(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE14 69 1419 Not Overloading 22(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE15 69 1419 Not Overloading 22(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted) GE16 69 1419 Not Overloading 22(Transmitted) 11(Transmitted) S(Transmitted) B(Transmitted)

Available settings are explained as follows:

Item	Description
Port Display the name of the port.
Total(Bytes)	Display the total number of bytes of LLDP information in each packet.
Left to Send(Bytes)	Display the total number of available bytes left for additional LLDP information in each packet.
Status Display if LLDP TLVs has overloaded the PDU maximum size or not.
Mandatory TLVs Display how many bytes used by mandatory TLVs.
802.3 TLVs Display how many bytes used by 802.3 TLVs.
Optional TLVs Displays how many bytes used by optional TLVs.
802.1 TLVs Displays how many bytes used by 802.1 TLVs.

VIII-5 SNMP

Simple Network Management Protocol (SNMP) is an "Internet-standard protocol for managing devices on IP networks". Devices that typically support SNMP include routers, switches, servers, workstations, printers, modem racks and more.

SNMP is used mostly in network management systems to monitor network-attached devices for conditions that warrant administrative attention.

SNMP is a component of the Internet Protocol Suite as defined by the Internet Engineering Task Force (IETF). It consists of a set of standards for network management, including an application layer protocol, a database schema, and a set of data objects.

An SNMP-managed network consists of three key components:

• Managed device
  ● Agent - software which runs on managed devices
  ● Network management station (NMS) - software which runs on the manager

A managed device is a network node that implements an SNMP interface that allows unidirectional (read-only) or bidirectional (read and write) access to node-specific information. Managed devices exchange node-specific information with the NMSs. Sometimes called network elements, the managed devices can be any type of device, including, but not limited to, routers, access servers, switches, bridges, hubs, IP telephones, IP video cameras, computer hosts, and printers.

An agent is a network-management software module that resides on a managed device. An agent has local knowledge of management information and translates that information to or from an SNMP-specific form.

A network management station (NMS) executes applications that monitor and control managed devices. NMSs provide the bulk of the processing and memory resources required for network management. One or more NMSs may exist on any managed network.

VIII-5-1 View

This page allows the network administrator to create MIB views (Management information base) and then include or exclude OID (Object Identifier) in a view.

Auto:Lognet: Of Back P2000 15.07.07 Dashboard Status Switch LAN ON/F Surveillance Security ACL OoS PoE System Maintenance TR-009 Open/PN Washock LLOP SNMP View Group Community User Engine ID Trap Event Notification Access Manager Time and Date System Maintenance > SNMP > View > View View SNMP View View Name: OID Subtree: Type: + Included + Excluded Add View OID Subtree Type Delete All 1 Included

Available settings are explained as follows:

Item	Description
View Name Enter a name	of the MIB view.
OID Subtree Enter an OID	string to be included or excluded from the MIB view.
Type Determine to include	or exclude the selected MIBs.
Apply Apply the settings to	the switch.

VIII-5-2 Group

This page allows the network administrator to group SNMP users and assign different authorization and access privileges.

Auto Logout Off Ms P0500 15:08:12 Dashboard Status Switch LAN ONMF Surveillance Security ACL OctS PvE System Maintenance TN-23 Open/PN Weblock LLDP SNMP View Group Community User Expense ID Trip Event Notification Access Manager Time and Data System Maintenance > SNMP > Group > Group Group SNMP Group Group Name: Version: Security Level: SNMP-v1 SNMP-v2 SNMP-v3 Security Level: No Security Authentication Authentication and Privacy Read View Enabled all Write View Enable all Notify View Enable all Add Group Name Version Security Level View (Read) View (Write) View (Notify) Edit No data available in table

Available settings are explained as follows:

Item	Description
Group Name Enter a name	for the group.
Version Specify SNMP version.
Security Level Specify SNMP	security level for the group. It is available when SNMPv3 is selected.No Security - No authentication and no encryption.Authentication - Requires authentication but no encryption.Authentication and Privacy -Requires authentication and encryption.
Read View Enabled - Users	of this group have the right to read the selected MIB view.Use the drop down list to select one of the views. The default is “all”, which means the group user can read all MIB views.
Write View Enabled - Users	of this group have the right to write the selected MIB view.Use the drop down list to select one of the views. The default is “all”, which means the group user can write all MIB views.
Notify View Enabled - Users	of this group have the right to send notification for the selected MIB view.Use the drop down list to select one of the views. The default is “all”, which means the group user have the right to send notification for all MIB views.
Add Click it to create a new group profile.
Edit	- Click it to modify the settings for the selected group.

VIII-5-3 Community

This page allows a user to add/remove multiple communities of SNMP.

Auto Logpost Off UK F2500 15:16:08 Dashboard Status Switch LAN ON/F Surveillance Security ACL CoS PoE System Maintenance > SNMP > Community > SNMP Community SNMP Community Community Name: Enter Community Name Type: Basic Advanced View: all Access Right: Read Only Read & Write Group: Texting allowed Add TR-909 Open/PIN Washock LLDP SNMP View Group Community User Engine ID Trap Event Notification Access Manager Time and Date Community Name Group View Access Right Delete public all Read & Write 97

Available settings are explained as follows:

Item	Description
Community Name Enter a	name as community name. The maximum length of the text is limited to 23 characters.
Type	● Basic – View and access right can be specified for such SNMP community profile.● Advanced – Specify one of the SNMP groups for such SNMP community profile.
View Simply specify one of	the view profiles (created in SNMP>>View) from the drop down list.
Access Right	● Read Only – It allows unidirectional access to node-specific information.● Read & Write - It allows bidirectional access to node-specific information.
Group	Specify the SNMP group configured by user (SNMP>>Group) to define the object available to the community.
Add Click it to add a new community.
Delete Click the icon to re	move the selectd community strings.

VIII-5-4 User

This page allows a user to configure SNMP user profile.

AutoLegend: Off VK P7500 19:34:45 Dashboard Status Switch LAN ON/FV Surveillance Security ACL GoS PoE System Maintenance TR-963 OpenAPI Waltwork LLDP GARP View Group Community User Engine ID Trip Event Notification Access Manager Time and Date SBNM Maintenance > SNAP > User > User User SBNM User User Name: Group: S1 Security Level: No Security Authentication Authentication and Privacy Authentication Method: Method: None MDS SHA Password: Privacy: Method: None DES Password: Add User Group Security Level Authentication Method Privacy Method Edit carry S1 NoAuth None None

Available settings are explained as follows:

Item	Description
User Name Enter a name for creating new SNMP user.
Group Choose one of the SNMP group from the drop down list. Then, this user profile will be grouped under the selected SNMP group.
Security Level Specify SNMP security level for the group. It is available when SNMPv3 is selected.No Security - No authentication.Authentication - Authentication without encryption will be performed for packets.Authentication and Privacy - Authentication with encryption will be performed for packets.
Authentication Method	It is available when Authentication or Authentication and Privacy is selected as security level.Method - At present, available methods include None, MD5 and SHA.Password - Enter a password for the selected method.
Privacy	It is available when Authentication or Authentication and Privacy is selected as security level.Method -At present, available methods include DES and None.Password - Enter a password for the selected method.
Add Click it to add a new user profile.
Edit	- click it to modify the settings for the selected profile.

Edit SNMP User=carrie Group: s3 Security Level: No Auth Auth Auth & Privacy Authentication Method: Method None MD5 SHA Password: Privacy: Method None DES Password: OK Cancel

VIII-5-5 Engine ID

VIII-5-5-1 Local Engine ID

This page allows a user to configure and display SNMP local engine ID.

Switch Logpost: Off UK P2501 15:30:00 Dashboard Status Switch LAN ON/VF Surveillance Security ACL GoR PoE System Maintenance TR-809 Open EPS Networks LLDP SNAP View Group Communities User Engine ID Top Course Notification Access Manager Time and Date System Maintenance > SNMP > Engine (I) > Local Engine (I) Local Engine ID Engine ID: User Defined 00000e6203071dsea222344 (10 - 54 hexadecimal characters) Active

Available settings are explained as follows:

Item	Description
Engine ID	The user defined engine ID is range 10 to 64 hexadecimal characters, and the hexadecimal number must be divided by “2”.User Defined - If it is checked, the local engine ID will be configured manually. If not, the default Engine ID which is made up of MAC and Enterprise ID will be used instead.
Apply Apply the settings to the switch.

VIII-5-5-2 Remote Engine ID

This page allows a user to configure and display SNMP remote engine ID.

Auto Logpost: Off File F0500 16:27:06 Dashboard Status Switch LAN ON/F Surveillance Security ACL QoS PvE System Maintenance TR-969 Open/PN Wetbook LLDP SMMP View Group Community User Engine ID Trip-Event Notification Access Manager Time and Date System Maintenance + SNMP > Engine ID > Remote Engine ID Local EngineID Remote Engine D SMMP User Address Type: Hostname IPv4 IPv6 Server Address: Engine ID: (11 - 54 hexadecimal characters) Add Server Address Engine ID Edit No data available in table

Available settings are explained as follows:

Item	Description
Address Type	Specify the address type for entering hostname or IPv4/ IPv6 address.
Server Address Enter the	IP address or the host name of the SNMP server.
Engine ID Specify the engine ID for remote SNMP server.The engine ID is range10 to 64 hexadecimal characters, and the hexadecimal number must be divided by 2.
Add Click it to create a new profile.
Edit	- click it to modify the settings for the selected server profile.- click it to remove the selected entry.

VIII-5-6 Trap Event

This page allows a user to add or delete SNMP trap receiver IP address and community name.

Auto Lognet: QF Dashboard Status Switch LAN ON/F Surveillance Security ACL GoS PoE System Maintenance TR/80 Open/Pt Webhook LLDP SNR* View Group Community User Engine 8) Trip Event Notification Access Manager Time and Date System Maintenance > SNMP > Trip Event > Trip Event Stop Event Tap Event Authentication Failure: # Enable Link Up / Down: # Enable Cold Start: # Enable Worn Start: # Enable Apply Apply

Available settings are explained as follows:

Item	Description
Authentication Failure Enable	- VigorSwtich will reboot when encountering authentication failure (including community not match or user password not match).
Link Up / Down Enable - VigorSwtich will reboot while encountering port link up or down trap.
Cold Start Enable - VigorSwtich will reboot while encountering user trap.
Warm Start Enable - VigorSwtich will reboot while encountering power down trap.
Apply Apply the settings to the switch.

VIII-5-7 Notification

This page allows a user to configure a host to receive SNMPv1/ v2/ ve notification.

Auto/Logost: OS Dashboard Status Switch LAN ONVF Surveillance Security ACL Go6 PoE System Maintenance > SNMP > Notification > Notification Notification Address Type: Server Address: Version: Type: Community User: Security Level: Server Port: Timeout: Entry: No Security Authentication Authentication and Privacy Use Default 102 (1 - 65535 default 162) Use Default 15 sec (1 - 300 default 15) Use Default 3 (1 - 250 default 3) Add Index Server Address Server Port Timeout Entry Version Type Communication/User Security Level Edit No data available in table

Available settings are explained as follows:

Item	Description
Address Type Choose IPv4/ IPv6/ Hostname to specify IP address or the hostname of the SNMP trap recipients.
Server Address Enter the	IP address of SNMP server based on the address type selected above.
Version Specify SNMP notification version (SNMPv1/ v2/ v3).
Type Specify Notification Type. Trap -Send SNMP traps to the host.Inform - Send SNMP informs to the host. If it is used, Timeout and Retry also shall be defined.
Community/user Use the drop down list to choose one of the community profiles.
Security Level	Specify SNMP security level for SNMP notification packet. It is available when SNMPv3 is selected.No Security - No authentication.Authentication - Authentication without encryption will be performed for packets.Authentication and Privacy - Authentication with encryption will be performed for packets.
Server Port Specify the UDP port number for the recipient's server.Use Default - If it is checked, the default number (162) will be used automatically.
Timeout	Specify the SNMP informs timeout. It is available whenInform is selected asType.Use Default - If it is checked, the default number (15) will be used automatically.
Retry Specify the SNMP informs retry count. It is available whenInformis selected as Type.Use Default- If it is checked, the default number (3) will be used automatically.
Add Click it to create a new notification profile.
Edit

VIII-6 Access Manager

This page allows the network administrator to control availability of management services such as HTTP, HTTPS, Telent and SSH.

Auto Lograd Off Mk P2500 Dashboard Status Switch LAN ONVP Surveillance Security AOL GoS PoE System Maintenance TR-010 Open/PN Weblock LLDP SNAP Access Manager Time and Data Backup Manager Upgrade Manager Hardware Information Account Manager Factory Default Robost Switch Diagnostics System Maintenance / Access Manager / Access Access Access Settings HTTP Service: * Enable Disable HTTPS Service: * Enable Disable Enforce HTTPS Management: * Enable Disable Faster Service: * Enable Disable SSH Service: * Enable Disable Apply

Available settings are explained as follows:

Item	Description
HTTP Service HTTP is the	acronym of HyperText Transfer Protocol. Enabled -Click it to enable HTTP service.
HTTPS Service HTTPS is the	the acronym of Hypertext Transfer Protocol over Secure Socket Layer. Enabled - Click it to enable HTTPS service.
Enforce HTTPS Management	Enabled - Users will be forced to access into the web user interface of VigorSwitch by HTTPS protocol.
Telnet Service Telnet is the	TCP/IP standard protocol for remote terminal service. TELNET allows a user at one site to interact with a remote timesharing system at another site as if the user's keyboard and display connected directly to the remote machine. Disabled - Click it for not accessing telnet service. Enabled - Click it to access telnet service.
SSH Service Enabled - Enable SSH service.
Apply Apply the settings to the switch.

VIII-7 Time and Date

VIII-7-1 System Time Zone

This page allows a user to specify where the time of VigorSwitch should be inquired from.

Auto Lognet Off Mk P2500 16:16:44 Dashboard Status Switch LAN ON/IV Surveillance Security ACL QoS PoE System Maintenance TR 059 CNAV/PN Walletock LLDF SNAP Access Manager Time and Date Backup Manager Upgrade Manager Firmware Information Account Manager Finding Default Robost Switch Diagnostics System Maintenance > Time and Date > System Time Zone System Time Zone Time System Time Zone Setting Auto Detect Time Zone: Enable Daylight Saving Time: Disable Apply System Time Zone Informations Current Date/Time 16:16:37 (UTC+8) Aug. 28 2019 Time zone: UTC+8 Auto Time Zone Status Update Successful Daylight Saving Time Disabled

Available settings are explained as follows:

Item	Description
System Time Zone Setting
Auto Detect Time Zone	Select Enable to make Vigor router detect the time zone that VigorSwitch is located automatically.
Daylight Saving Time Select	the mode of daylight saving timeDisable -Disable daylight saving time.Recurring - Using recurring mode of daylight saving time.Non-Recurring - Using non-recurring mode of daylight saving time.USA -Using daylight saving time in the United States that starts on the second Sunday of March and ends on the first Sunday of November.European - Using daylight saving time in the Europe that starts on the last Sunday.
Daylight Saving Time Offset	It is available when Recurring is selected as Daylight Saving Time.Specify the adjust offset of daylight saving time.
Recurring From / To	It is available when Recurring is selected as Daylight Saving Time.From - Specify the starting time of recurring daylight saving time.To - Specify the ending time of recurring daylight saving time.
Non-recurring From / To	It is available when Non-Recurring is selected as Daylight Saving Time.●From - Specify the starting time of non-recurring daylight saving time.●To - Specify the ending time of recurring daylight saving time.
Apply Apply the settings to the switch.
System Time Zone Informations	Display the status of system time zone.

VII-7-2 Time

This page allows a user to specify time and activate SNTP server manually.

Auto: Legend Off wk P2500 16:19:20 Dashboard Status Dutch LAN ON/VF Surveillance Security ACL OnS PuE System Maintenance TR-669 Open/PN Wallhock LLDP SNRP Access Manager Time and Date Backup Manager Upgrade Manager Firmware Information Account Manager Factory Default Reboot Switch Diagnostics System Maintenance > Time and Date > Time System Time Zone Time Manual Time: Year Month Day Hours Minutes Seconds 2018 Aug 24 NO NO 16 13 Enable SMTP: UEFA SMTP/FTP Server Address: (X.X.X.X or Hostname) Server Port: 123 (1 : 6535 | Default : 123 ) Apply

Available settings are explained as follows:

Item	Description
Manual Time	Specify static time (year, month, day, hours, minutes and seconds) manually.
Enable SNTP	● Enable - Click it to enable SNTP time server. ● Disable - Click to disable the time server.
SNTP/NTP Server Address	Enter the web site of the time server or the IP address of the server.
Server Port Enter the port	number use by the time server.
Apply Apply the settings to the switch.

VIII-8 Backup Manager

Backup Manager allows a user to backup the firmware image or configuration file on the switch to remote TFTP server or host file system through HTTP protocol.

Auto Logset: Off Avk P0500 16:28:03 Dashboard Status Switch LAN ON/IF Surveillance Security ACL GoS PoE System Maintenance TR-969 Open/PIN Network LLDP Group Access Manager Time and Date Backup Manager Upgrade Manager Firmware Information Account Manager Factory Default Reboot Switch Diagnostics System Maintenance + Backup Manager + Backup Manager Backup Manager Backup Method: TCP Server IP: Enter Server IP Backup Type: + Configuration AppR (IPv4 or IPv6 Address)

Available settings are explained as follows:

Item	Description
Backup Method Select Backup method.●TFTP - Using TFTP to backup firmware.●HTTP - Using WEB browser to ubackup firmware.
Server IP It is available when TFTP is selected as Backup Method.Enter the IPv4/ IPv6 address for the TFTP server.
Backup Type Configuration - Make a backup copy for the configurations for VigorSwitch.
Apply Apply the settings to the switch.

VIII-9 Upgrade Manager

Backup Manager allows a user to upgrade the firmware image or configuration file on the switch to remote TFTP server or host file system through HTTP protocol.

Auto Logist: CE F7500 16:21:30 Dashboard Status Switch LAN ONVF Surveillance Security ACL Or9 PoE System Maintenance TR-800 OpenVPN Network LLDP SNAP Access Manager Time and Date Backup Manager Upgrade Manager Hardware Information Account Manager Factory Default Reboot Switch Diagnostics System Maintenance - Upgrade Manager - Upgrade Manager Upgrade Manager Upgrade Method: HTTP FilePaths: 选择模板 未连接任何答案 Upgrade Type: Image Configuration Apply

Available settings are explained as follows:

Item	Description
Upgrade Method Select Upgrade method:TFTP - Using TFTP to upgrade firmware.HTTP - Using WEB browser to upgrade firmware.
Server IP	It is available when TFTP is selected as Upgrade Method.Enter the IPv4/ IPv6 address for the TFTP server.
File Name	It is available when TFTP is selected as Upgrade Method.Enter the firmware image or configuration file name on the TFTP server.
File/Path	It is available when HTTP is selected as Upgrade Method.Choose the firmware file located in your computer.
Upgrade Type	It is available when TFTP is selected as Upgrade Method.Image - Click it to upgrade the firmware image.Configuration - Click it to upgrade the configurations for VigorSwitch.
Apply Apply the settings to the switch.

VIII-10 Firmware Information

This page allows a user to choose the active firmware and backup firmware.

Auto-Logat OS P2500 16:21:51 Dashboard Status Switch LAN ONVF Surveillance Security ACL GoS PoE System Maintenance TR-803 CrewS/N Wethook LLDP SNMP Access Manager Time and Date Backup Manager Upgrade Manager Firmware Information Account Manager Factory Default Robust Switch Diagnostics System Maintenance > Firmware Information > Firmware Information Firmware Information Active Manager: Firmware 1 Auto Firmware 1 Information Mode Active Version Build Time Size (MB) Active y 2.4.3 2019-05-08 10:17:54 8004078 Firmware 2 Information Mode Active Version Build Time Size (MB) Backup - 2.4.3_RC3 2019-05-31 17:22:47 8009619

Available settings are explained as follows:

Item	Description
Active Image	There are two versions of firmware. Simply choose the one you want as primary firmware.
Apply Apply the settings to the switch.
Firmware 1 Information Firmware 2 Information	Mode - Display the mode (Active or Backup) of the firmware.Active -Display the status (in use or not) of the firmware.Version - Display the switch version.Build Time - Display the built time of the firmware.Size (MB) - Display the size of the firmware.

VIII-11 Account Manager

This page allows a user to add or delete local user on switch database for authentication. The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto/Logist: Or File P2500 16.34.05 Dashboard Status Switch LAN ON/F Surveillance Security ACL QoS Pul System Maintenance TR-063 Open/PN Webhook LLDP SNAP Access Manager Time and Date Backup Manager Upgrade Manager Firmware Information Account Manager Factory Default Robust Switch Diagnostics System Maintenance > Account Manager > Local User Information Local User Information Account User Name: Enter User Name: Password: Enter Password Retype Password: External Password Privilege Level: Admin: Apply Local Usn User Name Password Type Privilege Type Modify admin Encrypted Admin ✓ mA Encrypted Admin ✓ 97

Available settings are explained as follows:

Item	Description
User Name Enter a username	If you want to modify an existed user account, simply enter the same string in this field. Then, modify the password and choose privilege level. After clickingApply, the existed user name will be modified with different values.
Password Enter a password	for new account.
Retype Password	Retype password to make sure the password is exactly you typed before in “Password” field.
Privilege Level Use the drop down list to select privilege level (Admin/ User) for new account.● Admin - Allow to change switch settings.● User - See switch settings only. Not allow to change it.
Apply Apply the settings to the switch.
Delete Remove the selected account.
Edit	- Click it to modify the settings for the selected user profile.● - Click it to remove the selected entry.

Edit User: admin Edit Password: Disabled Privilege Type: Admin OK Cancel

VIII-12 Factory Default

Click Apply to return to factory default settings for VigorSwitch.

Auto Lognot Off Dashboard Status Switch LAN ONVF Surveillance Security ACL GoS PvF System Maintenance TEL03 CoreVPN Webbook LLDP GNDP Access Manager Time and Oats Backup Manager Upgrade Manager Hardware Information Account Manager Factory Default Reboot Switch Diagnostics System Maintenance > Factory Default > Factory Default Factory Default Keep my current Pv4 address settings Apply

If Keep my current IPv4 address settings is checked, after clicking Apply, the original configuration for IP address will be kept.

VIII-13 Reboot Switch

Click Apply to reboot VigorSwitch with current settings.

Auto Logos Off M P3000 16:25:29 Dashboard Status Switch LAN ONVF Surveillance Security ACL QoS P&E System Maintenance TR-WB Open/PN Weblock LLDP SNIP Access Manager Time and Data Backup Manager Upgrade Manager Foreword Information Account Manager Factory Default Robust Switch Diagnostics System Maintenance > Robust Switch > Robust Switch Robust Switch Apps

This page is left blank.

Part IX Diagnostics

IX-1 Device Check

After finished copper test, the results will be shown on the lower side of this web page.

This page is used to configure device check of PoE PD devices. It can be applied to PoE PD devices connected directly, check ping echo status, and forcibly reboot the device when meeting the preset health condition.

The configuration result for each port will be displayed on the table listed on the lower side of this web page.

Auto Logout: Off Mk P2000 GE 49:26 Dashboard Status Switch LAN ONVIF Surveillance Security ACL QoS PoE System Maintenance Diagnostics Device Check Catal Diagnostics Ping Test Syklog Fan Test Mail Alert Product Registration Diagnostics > Device Check > Device CheckA Device Check Port: GE1 Enable: Enable * Disable Ping IP Address: 0000 (Pv4, up to 16 IP addresses) Interval Time (sec): 10 Retry Time: 1 Failure Action: Nothing Note: PoE unsupported port will be set to "Nothing"; Mail Alert: Enable * Disable Apply Port Enable Ping IP Addr Interval Times (s) Retry Time Failure Action Mail Alert GE1 Disabled 0000 15 1 Nothing Disabled GE2 Disabled 0000 15 1 Nothing Disabled

Available settings are explained as follows:

Item	Description
Port	Use the drop down list to select the port (GE1 to GE28) or ports for device check.
Enable Disable - No PoE	function for the selected GE port.Enable - PoE function will be enabled for the selected GE port.
Ping IP Address Enter the	IP address of the PoE device for check.
Interval Time (sec.) The ping	ing check will be performed every 10, 30, 60 or 120 seconds for the selected port (PoE device).
Retry Time	The system will perform the ping check the selected port (PoE device) for 1, 3 or 5 times.
Failure Action Specify the	action performed for PoE device when there is no number of retry time of echo from given IP address.Power Cycle - Forcely reboot the device by cycling the power given to PoE device.Power Off - The PoE divice will be powered off.Nothing - Log this event only, no action is taken on PoE device.
Mail Alert	Enable - Click it to enable the mail alert function.Disable - Click it to disable the mail alert funciton.
Apply Save the settings or	changes to the switch.

IX-2 Cable Diagnostics

After finished copper test, the results will be shown on the lower side of this web page.

Auto Layout : GB SJK P2500 08:51:56 Dashboard Status Switch LAN ONVIF Surveillance Security ACL QoS PoE System Maintenance Diagnostics Device Check Center Diagnostics Ping Test SysLog Fan Test Mail Alert Product Registration Diagnostics > Cable Diagnostics > Copper Test Copper Test Port: GE1 Start Port Result GE1 FAIL

Available settings are explained as follows:

Item	Description
Port	Use the drop down list to select the port (GE1 to GE28) or ports for performing cable diagnostics.
Start Perform the copper test action.

IX-3 Ping Test

After finished the ping test, the results will be shown on the lower side of this web page.

Auto Logout : CF Mx 72500 (8.52.36) Dassboard Status Switch LAN ONVIF Surveillance Security ACL QVD PoE System Maintenance Diagnostics Device Check Cable Diagnostics Ping Test SysLog Fair Test Mail Alert Product Registration Diagnosis > Ping Test > Ping Test Ping Test Protocol: IPv4 Host: 192.168.1.251 IPv4 address or hostname) Count: # Interval (sec): * Start Stop PNO 192.168.1.251 (192.168.1.251): 56 data bytes 84 bytes from 192.168.1.251: lomp_seq=0 tti=44 tiso=0.8 es da bytes from 192.168.1.251: lomp_seq=1 tti=44 tiso=0.8 es da bytes from 192.168.1.251: lomp_seq=2 tti=44 tiso=0.8 es da bytes from 192.168.1.251: lomp_seq=3 tti=44 tiso=0.8 es --- 192.168.1.251 ping statistics --- & packets transdelted, & packets resolved, &k packet loss round-trip dkt/vsg/less = 0.6/9.0/0.4 ms [Source As Finished]

Available settings are explained as follows:

Item	Description
Protocol Choose IPv4/ IPv6	to specify IP address for sending ping to check if network path is ok.
Host Enter the IP address of SNMP server based on the protocol selected above.
Count	It means how many times to send ping request packet.Enter a number between 1 and 5 as the count and the default configuration is 4.
Interval(sec) Define the interval to perform ping action. For example, “1” means the ping action will be performed per second.
Start Perform ping action.
Stop Terminate ping action.

IX-4-1 SysLog Explorer

After clicking View, the results will be shown on the lower side of this web page.

Audio Logout CIR Mk POSTD 05:32:17 Dashboard Status Switch LAN ONVF Surveillance Security ACL QoR PVE System Maintenance Diagnostics Device Check Cable Diagnostics Ping Test Syslog Syslog Explorer Syslog Settings Fan Test Mail Alert Product Registration Diagnostics > SysLog > Syslog Explorer > SysLog Explorer SysLog Explore SysLog Filter Source: Volatile Memory Severity: Applying services Category: Applying services View Source: Volatile Memory Severity: emerg, alert, crit, error, naming, notice, info, debug Category: AAA, ACL, AUTHIGR, CABLE_DIAG_DAI, DHCP_SNOOPING, GVRP_IGMP_SNOOPING_IPSG_L2, LLDP_Ma. Total Entries: 17 Syslog Message Refresh Clear All No. Timestamp Severity Category Message 1 Jan 01 2008 08:53:06 notice AAA New salt connection for user admin, source 192.168.1.1 ACCEPTED 2 Jan 01 2008 08:52:44 notice AAA New salt connection for user admin, source 192.168.1.1 ACCEPTED 3 Jan 01 2008 08:52:44 notice AAA New salt connection for user admin, source 192.168.1.1 ACCEPTED

Available settings are explained as follows:

Item	Description
Source	● Volatile Memory - Explore the logs contained in volatile memory (also known as RAM).● Non-Volatile Memory - Explore the logs contained in non-volatile memory (also known as Flash).
Severity Select severity (emerg, alert, crit, error, warning, notice, info and debug) of log messages which you wish to filter out for review.
Category	Select the categories (related features) of logs you wish to review.Category contains AAA, ACL, AUTHMGR, CABLE_DIAG, DAI, DHCP_SNOOPING, GVRP, IGMP_SNOOPING, IPSG, L2, LLDP, Mac-based VLAN, Mirror, MLD_SNOOPING, Platform, PM, Port, PORT_SECURITY, QoS, Rate, SNMP, STP, Security suite, System, Surveillance VLAN, Trunk, UDLD and VLAN.
View Click it to display logs based on the settings configured above.
Refresh Click it to refresh the log.
Clear All Clear it to remove all logs displayed in this page.

IX-4-2 SysLog Settings

IX-4-2-1 SysLog Service

This page allows user to enable system logging into local syslog and specific remote syslog server for storage.

Auto Logpad Off Mk P2800 08:55:22 Dashboard Status Switch LAN ONWIP Surveillance Security ACL QoS PoE System Maintenance Dispersals Device Check Caster Diagnostics Ping Test SysLog SysLog Explorer SysLog Settings Fan Task Mail Alert Product Registration Diagnóstes > SysLog > SysLog Settings > SysLog Service SysLog Devote Local SysLog Remote SysLog SysLog Mail TsysLog Service: Enable Disable \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% \% SysLog Service: Enable Disable

Available settings are explained as follows:

Item	Description
SysLog Service	● Enable – Click it to activate function of syslog. ● Disable – Click it to inactivate the function.
Apply Apply the settings to the switch.

IX-4-2-2 Local SysLog

This page allows user to enable logging into volatile memory or non-volatile memory.

Auto Logout : Off Mk 22500 08:56:17 Dashboard Status Switch LAN ON/IF Surveillance Security ACL QoS PoE System Maintenance Diagnosis Device Check Case Diagnostics Ping Test SysLog SysLog Explorer SysLog Settings Free Mail Mail Alert Product Registration Diagnostics Local SysLog Settings Source: Nothing selected Severity: emerg Origin Source Status Severity Delete Volatile Memory enabled emerg, alert, crit, error, warning, notice

Available settings are explained as follows:

Item	Description
Source	● Volatile Memory - Select the volatile memory for saving local log. Volatile memory does not hold the log after reboot or power off. ● Non-Volatile Memory - Select the non-volatile memory for saving.If you want to modify Volatile Memory / Non-Volatile Memory, select Volatile Memory / Non-Volatile Memory in this field. Then, use the drop down list of severity to specify type of log message. After clicking Apply, the Volatile Memory / Non-Volatile Memory will be modified with new configured severity level.
Severity Select severity (emerg, alert, crit, error, warning, notice, info and debug) of log messages which will be stored.
Apply Apply the settings to the switch.
Delete Remove all logs displayed in this page.

IX-4-2-3 Remote SysLog

This page allows user to enable system logging into specific remote syslog server for storage.

After clicking Apply, the results will be shown on the lower side of this web page.

Auto Log(s) Ct MK PC500 08.07.04 Dashboard Status Switch LAN ONMF Surveillance Security ACL QoS PoE System Maintenance Diagnostics Device Check Cader Diagnostics Ping Test SysLog SysLog Explorer SysLog Settings Fan Test Mail Alert Product Registration Diagnostics Sync Log Settings Server Address: Enter Serial Address: Server Port: 119 (1..65636) Severity: among Facility: local0 AppN Server IP(Port) Status Severity Facility Delete No data available in table

Available settings are explained as follows:

Item	Description
Server Address Enter the	IP address of Syslog server.
Server Port	Specify the port that syslog should be sent to.
Severity Select severity (emerg, alert, crit, error, warning, notice, info and debug) of log messages which will be stored.
Facility One device supports multiple facilities (represented with facility ID, local0 to local7) of remote Syslog server. For each facility ID contains different syslog server configuration, please choose a facility ID for such Syslog server.
Apply Apply the settings to the switch.
Delete Remove specific remote syslog entry.

IX-4-2-4 SysLog Mail

This page allows user to enable system logging into specific remote syslog server for storage. After clicking Apply, the results will be shown on the lower side of this web page.

Auto Legend - OK Dashboard Status Switch LAN ONVIF Surveillance Security ACL QoS PoE System Maintenance Diagnostics Device Check Case Diagnostics Ping Test SysLog SysLog Explorer SysLog Settings Fan Test Mail Alert Product Registration DNS 10500 Diagnostics > SysLog > SysLog Settings > SysLog Mail SysLog Service Local SysLog Remile SysLog SysLog Mail State: Category: SMTP Server: SMTP Port: Authentication: Email Address: Enable Disable Nothing switch/soft 1.2.3.4 ix sntp-example.com 25 Enable Disable Disable Sender: [e-mail] (Setting mix not be applied on some servers.) [e-mail],[e-mail]... Apply Send test mail

Available settings are explained as follows:

Item	Description
State	Enable - Enable the function of Syslog Mail.Disable - Disable the function of Syslog Mail.
Category Vigor sytem will	send the e-mail related to the selected feature(s) to the recipient.
SMTP Server Enter IP address or URL of the SMTP server.
SMTP Port Enter the port number for the SMTP server.
Authentication	Enable - Click it to enable authentication mechanism.User Name - Enter a user name for authentication.Password - Enter a password for authentication.
Encryption After enabling	Authentication, choose one of the encryption servers for data encryption.StartTLS - The mail will be encrypted with StartTLS.SSL/TLS - The mail will be encrypted with SSL/ TLS.Disable - The mail sent out will not be encrypted.
Sender Enter the email address which will send the syslog mail out.
Email Address Enter the email address which will receive the syslog mail.
Apply Apply the settings to the switch.
Send test mail	After clicking this button, VigorSwitch system will send a test mail to the recipient.

IX-5 Fan Test

The built-in fan in the VigorSwitch can be tested if it runs normally or not. Simply click Start to perform the fan test.

Auto Layout: Off Mk P2500 08/09/24 Dashboard Status Switch LAN ONVF Surveillance Security ACL GoS PoE System Maintenance Diagnostics Device Check Case Diagnostics Ping Test SysLog Fire Test Mail Alert Product Registration Diagnostics > Fan Test > Fan Test Fan Test Fan Test Start

This page is left blank.

Part X Mail Alert

X-1 Alert Setting

This page allows a user to configure settings for VigorSwitch to send alert mail when encountering certain situation.

Auto Logout : Off Mk P2500 08:00:25 Dashboard Status Switch LAN ONVIF Surveillance Security ACL QoS PoE System Maintenance Diagnostics Mail Alert Alert Setting Product Registration Mail Alert > Alert Setting > Alert Setting Alert Setting State: Enable Disable SMTP Server: 1.2.2.4 or smtp-example.com SMTP Port: 25 Authentication: Enable Disable Encryption: Disable Security: [e-mail] (Setting may not be applied on some server) Receiver: insertExample.com/receive/exchange Up to 756 characters. Min. Transmit Interval: $ (1 - 62) sec. Alert Type: Nothing selected Apply Send test mail

Available settings are explained as follows:

Item	Description
State	Enable - Click it to enable the mail alert function.Disable - Click it to disable the mail alert funciton.
SMTP Server Enter IP address or URL of the SMTP server.
SMTP Port Enter the port number for the SMTP server.
Authentication	Enable - Click it to enable authentication mechanism.User Name - Enter a user name for authentication.Password - Enter a password for authentication.
Encryption After enabling	Authentication, choose one of the encryption servers for data encryption.StartTLS - The mail will be encrypted with StartTLS.SSL/TLS - The mail will be encrypted with SSL/ TLS.Disable - The mail sent out will not be encrypted.
Sender Enter the email address which will send the alert mail out.
Receiver Enter the email address which will receive the alert mail.
Min. Transmit Interval	Set a time interval for VigorSwitch system to send an alert out from the specified sender.
Alert Type Specify the condition(s) for VigorSwitch system to send an alert out.Port Link StatusPort Link SpeedSystem RestartedPoE Warning Status
Apply Apply the settings to the switch.
Send test mail	After clicking this button, VigorSwitch system will send a test mail to the recipient.

This page is left blank.

Part XI Telnet Commands

XI-1 Accessing Telnet of VigorSwitch

This chapter also gives you a general description for accessing telnet and describes the firmware versions for the routers explained in this manual.

Info

For Windows 7 user, please make sure the Windows Features of Telnet Client has been turned on under Control Panel>>Programs.

Type cmd and press Enter. The Telnet terminal will be open later.

Programs (1) cmd See more results cmd

In the following window, type Telnet 192.168.1.224 as below and press Enter. Note that the IP address in the example is the default address of the router. If you have changed the default, enter the current IP address of the router.

Microsoft Windows [Version 6.1.7601] Copyright (c) 2009 Microsoft Corporation. All rights reserved. C:\Users\User>telnet 192.168.1.1

Next, enter admin/ admin for Account/ Password.

For users using previous Windows system (e.g., XP), simply click Start >> Run and type Telnet 192.168.1.224 in the Open box.

Next, enter admin/ admin for Account/ Password.

Username: admin Password: ***** P2280x#

XI-2 Available Commands

Enter ? to get a list of available commands.

Username: admin Password: ***** P2500# clear Reset functions clock Manage the system clock configure Configuration Mode copy Copy from one file to another delete Delete a file from the flash file system disable Turn off privileged mode command end End current mode and change to enable mode exit Exit current mode and down to previous mode ping Send ICMP ECHO_REQUEST to network hosts reboot Halt and perform a cold restart renew Renew functions restore-defaults Restore to default save Save running configuration to flash show Show running system information ssl Setup SSL host keys terminal Terminal configuration traceroute Trace route to network hosts udld Configure global UDLD setting P2500# _

The available commands contain - clear, clock, configure, copy, delete, disable, end, exit, ping, reboot, renew, restore-defaults, save, show, ssl, terminal, traceroute and udld. Each

command will be explained as follows.

Note: You can also enter ? to check if there are subcommands under current command.

XI-2-1 Clear Configuration

This command allows resetting the functions of ARP, interface, IP, IPv6, LACP, Line, LLDP, Logging, MAC, and Spanning Tree.

Telnet Command: clear arp

Use this command to clear entries in the ARP cache.

Syntax Items

clear arp

Description

Syntax Items Description
clear arp- Enter the IP address of the device (e.g., 192.168.1.224).Related Syntax:# clear arp# clear arp

Example

P2500# clear arp 192.168.1.224

P2500#

Telnet Command: clear authentication

Use this command to clear authentication sessions based on LAN port, MAC address, or authentication type for 802.1x/ MAC authentication.

Syntax Items

clear authentication sessions

clear authentication sessions interfaces gigabitethernet

clear authentication sessions mac

clear authentication sessions session-id

clear authentication sessions type

Description

Syntax Items Description
clear authentication sessions	Clear all of the sessions related to authentication.Related Syntax:# clear authentication sessions
clear authentication sessions interfaces gigabitethernet	Clear the sessions of a specific interface.<1-50>- Enter the number of LAN port.Related Syntax:● # clear authentication sessions interfaces gigabitethernet <1-50>
clear authentication sessions mac	Clear the sessions with the MAC address set here.- Enter the MAC address of the device that you want to clear the authentication information.Related Syntax:● # clear authentication sessions mac
clear authentication sessions session-id	Clear the sessions with the string set here.- Enter a string of a session that you want to clear.Related Syntax:● # clear authentication sessions session-id
clear authentication sessions type	Clear the sessions with authentication type selected here.- Use 802.1x authentication.- Use mac-based authentication.- Use web-based authentication.Related Syntax:● # clear authentication sessions type

Example

P2500# clear authentication sessions
No Auth Manager sessions currently exist
P2500# clear authentication sessions mac 48:5B:39:2F:A8:66
P2500# clear authentication sessions interfaces GigabitEthernet 2
P2500# clear authentication sessions session-id 0000000B002AFBE8

Telnet Command: clear gvrp

Use this command to clear statistics or port error statistics for all interfaces or a specific interface (LAN or LAG).

Syntax Items

clear gvrp error-statistics

clear gvrp statistics

Description

Syntax Items Description
clear gvrp error-statistics	Specify a LAN/ LAG interface for clearing error statistics for GVRP.<1-50> - Enter the number (1 to 50) of LAN port.<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface) that you want to clear the GVRP setting.Related Syntax:# clear gvrp error-statistics interfaces GigabitEthernet <1-50># clear gvrp error-statistics interfaces LAG <1-8>
clear gvrp statistics	Specify a LAN/ LAG interface for clearing statistics for GVRP.<1-50> - Specify an interface for clearing statistics for GVRP.<1-8> - Specify LAG interface for clearing statistics for GVRP.Related Syntax:● # clear statistics interfaces GigabitEthernet <1-50>● # clear statistics interfaces LAG <1-8>

Example

P2500# clear gvrp error-statistics interfaces GigabitEthernet 2
P2500#
P2500# clear gvrp error-statistics interfaces LAG 2
P2500#

Telnet Command: clear interfaces

Use this command to clear statistics counters for all interfaces or a specific interface (LAN or LAG).

Syntax Items

clear interfaces GigabitEthernet

clear interfaces LAG

Description

Syntax Items Description
clear interfacesGigabitEthernet	Specify a LAN interface for clearing statistics counters on that port.<1-50> - Enter the number (1 to 24) of LAN port.Related Syntax:● # clear interfaces gigabitEthernet <1-50> counters
clear interfaces LAG	Specify a LAG interface for clearing statistics counters on that port.<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:● # clear interfaces LAG <1-8> counters

Example

P2500# clear interfaces gigabitethernet 3 counters
P2500# clear interfaces
P2500# clear interfaces lag 2 counters
P2500#

Telnet Command: clear ip

Use this command to clear ARP inspection information, DHCP snooping database agent, and IGMP snooping groups (dynamic or static) information for all interfaces or a specific interface (LAN or LAG) with IP address.

Syntax Items

clear ip arp

clear ip dhcp

clear ip igmp

Description

Syntax Items Description
clear ip igmp snooping groups dynamic - Clear dynamic snooping groups of IGMP server.snooping groups static - Clear static snooping groups of IGMP server.snooping statistics - Clear snooping statistics for IGMP server.Related Syntax:# clear ip igmp snooping groups dynamic# clear ip igmp snooping groups static

		● # clear ip igmp snooping statistics
clear ip dhcp	snooping database statistics - Clear snooping database statistics for DHCP server.snooping interfaces GigabitEthernet / LAG- Specify a LAN / LAG interface for clearing DHCP snooping information.<1-50> - Enter the number (1 to 50) of LAN port.<1-8> - Specify a LAG interface for clearing DHCP snooping information.Related Syntax:● # clear ip dhcp snooping database statistics● # clear ip dhcp snooping interfaces GigabitEthernet <1-50> statistics● # clear ip dhcp snooping interfaces LAG <1-8> statistics
clear ip igmp	snooping groups dynamic - Clear dynamic snooping groups of IGMP server.snooping groups static - Clear static snooping groups of IGMP server.snooping statistics - Clear snooping statistics for IGMP server.Related Syntax:● # clear ip igmp snooping groups dynamic● # clear ip igmp snooping groups static● # clear ip igmp snooping statistics

Example

P2500# clear ip igmp snooping groups dynamic
P2500#

Telnet Command: clear ipv6

Use this command to clear MLD snooping configuration for dynamic / static group(s) with IPv6 address.

Syntax Items

clear ipv6 mld

Description

Syntax Items Description
clear ipv6 mld snooping groups dynamic - Clear dynamic snooping groups of MLD.snooping groups static - Clear static snooping groups of MLD.Related Syntax:# clear ipv6 mld snooping groups dynamic# clear ipv6 mld snooping groups static

Example

P2500# clear ipv6
P2500# clear ipv6 mld snooping groups dynamic
P2500# clear ipv6 mld snooping groups dynamic?
<cr>
P2500# clear ipv6 mld snooping groups static

Telnet Command: clear lacp

Use this command to clear LACP configuration for specified LAG interface or all LAG interfaces.

Syntax Items

clear lacp <1-8> counters

clear lacp counters

Description

Syntax Items Description
clear lacp <1-8>	<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:# clear lacp <1-8> counters
clear lacp counters Clear LACP	configuration for all LAG interfaces.Related Syntax:# clear lacp counters

Example

P2500# clear lacp 1 counters
No interfaces configured in the channel group
P2500#

Telnet Command: clear line

Use this command to clear line settings including SSH (Secure Shell) configuration and telnet daemon configuration.

Syntax Items

clear line ssh

clear line telnet

Description

Syntax Items Description
clear line ssh Clear SSH configuration for line connection.
slear line telnet Clear SSH Telnet configuration for line connection.

Example

P2500# clear line ssh
P2500# clear line telnet

Telnet Command: clear lldp

Use this command to clear LLDP statistics or reset LLDP information.

Syntax Items

clear lldp global

clear lldp interfaces

Description

Syntax Items Description
clear lldp global Clear all of the statistics related to LLDP.Related Syntax:● # clear lldp global statistics
clear lldp interfaces	Specify a LAN / LAG interface for clearing LLDP information.<1-50> - Enter the number (1 to 50) of LAN port.<1-8> - Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:● # clear lldp interfaces GigabitEthernet <1-50> statistics● # clear lldp interfaces LAG <1-8> statistics

Example

P2500# clear lldp global statistics

P2500#

P2500# clear lldp interfaces LAG 1 statistics

P2500# clear lldp interfaces gigabitethernet 1 statistics

P2500#

Telnet Command: clear logging

Use this command to clear log messages from the internal logging buffer and flash.

Syntax Items

clear logging buffered

clear logging file

Description

Syntax Items Description
clear logging buffered Clear the log stored in RAM.Related Syntax:# clear logging buffered
clear logging file Clear the log stored in flash.Related Syntax:# clear logging file

Example

P2500# clear logging buffered

P2500# clear logging file
P2500#

Telnet Command: clear mac

Use this command to clear MAC configuration related to VLAN, LAG, and LAN port.

Syntax Items

clear mac

Description

Syntax Items Description
clear mac address-table <1-50>	- Enter the number (1 to 50) of LAN port.<1-8>- Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).<1-4094>- Specify a VLAN ID by entering its number.Related Syntax:# clear mac adderss-table dynamic interfaces GigabitEthernet <1-50># clear mac adderss-table dynamic interfaces LAG <1-8># clear mac adderss-table dynamic vlan <1-4094>

Example

P2500# clear mac address-table dynamic vlan 2038
P2500# clear mac address-table dynamic interfaces gigabitethernet 3
P2500#

Telnet Command: clear mvr

Use this command to clear information for all members (including dynamic, static) of MVR.

Syntax Items

clear mvr members

Description

Syntax Items Description
clear mvr members	Clear information for dynamic / static members.Related Syntax:# clear mvr members dynamic# clear mvr members static

Example

P2500# clear mvr members dynamic
P2500# clear mvr members static
P2500#

Telnet Command: clear spanning-tree

Use this command to clear running system information.

Syntax Items

clear spanning-tree

Description

Syntax Items Description
clear spanning-tree interfaces	Specify a LAN interface for clearing its running information.<1-50>- Enter the number (1 to 50) of LAN port.<1-8>- Enter the number (1 to 8) of LAG interface (IEEE 802.3 Link Aggregation Interface).Related Syntax:# clear spanning-tree interfaces GigabitEthernet <1-50>statistics# clear spanning-tree interfaces LAG <1-8> statistics

Example

P2500# clear spanning-tree interfaces GigabitEthernet<1-50> GigabitEthernet device number

P2500# clear spanning-tree interfaces gigabitethernet 3 statistics

P2500# clear spanning-tree interfaces LAG 1 statistics

P2500#

XI-2-2 Clock Configuration

This command allows managing the system clock.

Telnet Command: clock set

Use this command to configure the system clock manually.

Syntax Items

clock set

Description

Syntax Items Description

clock set Set current by entering hours, minutes, seconds, month, date and year with the format listed below:- Hour, minute, second (e.g., 08:10:30).- January.- February-March-April-May-June-July-August- September- October-November- December<1-31>- Date 1 to 31.<2000-2035>- Year of 2000 to 2035.Related Syntax:● # clock set HH:MM:SSjan/ feb/ mar/ apr/ may/ jun/ jul/ aug/ sep/ oct/ nov/ dec <1-31><2000-2035>

Example

P2500# clock set 12:10:30 jan 1 2019
2019-01-01 12:10:30 UTC+8

XI-2-3 Configure Configuration

This command allows configuring the settings related to VigorSwitch.

Available sub-commands under Configure include:

aaa, authentication, boot, clock, custom, dos, dot1x, do, dray_surveillance, enable, end, errdisable, exit, gvrp, hostname, interface, ip, ipv6, jumbo-frame, lacp, lag, line, lldp, logging, logmail, loop-protection, mac, mailalert, management, management-vlan, mirror, mvr, no, openvpn, poe, port-security, qos, radius, schedule, snmp, sntp, spanning-tree, start-up, storm-control, surveillance-vlan, system, tacacs, tr069, udld, username, vlan, voice-vlan, webhook

Before configuration, you have to enter "configure" to access into next phase.

To return to previous phase, enter "exit"

Example

P2500# configure
P2500(config)#
P2500(config)# exit
P2500#

Telnet Command: aaa

Use this command to add a login authentication list to authenticate with local, tacacs+, radius, and none service.

Syntax Items

aaa authentication enable aaa authentication login

Description

Syntax Items Description
aaa authentication enable	Enable authentication is used only on CLI for a user trying to switch from User EXEC (>) mode to Privileged EXEC (#) mode.enable - Enable the authentication list.- Enter a string as the list name for authentication type. Default value is “default”.- Specify the authentication method by entering none, enable, tacacs+ or radius.None: Do nothing and just make user be authenticated.Enable: Use local password to authenticate.Tacacs+: Use remote Tacas+ server to authenticate.Radius: Use remote Radius server to authenticate.default - It is used to configure default enable authentication.Related Syntax:#aaa authentication enable#aaa authentication enable default- Enter a string as the list name for authentication
aaa authentication login	Login authentication is used when a user tries to login into the switch.- Enter a string as the list name for authenticationtype. Default value is “default”.-Specify the authentication method by entering none, enable, tacacs+ or radius.default - It is used to configure default login authentication.Related Syntax:#aaa authentication login#aaa authentication login default

Example

P2500# configure
P2500(config)#
P2500(config)# aaa authentication enable LISTNAME enable
P2500(config)#
P2500(config)# exit
P2500# show aaa authentication enable lists
Enable List Name Authentication Method List
----
default enable
LISTNAME enable
P2500#

Telnet Command: authentication

Use this command to enable the global setting of 802.1x/MAC/WEB authentication network access control (default is disabled for all).

Syntax Items

authentication dot1x

authentication guest-vlan

authentication mac

authentication web

Description

Syntax Items Description
authentication dot 1x Enable	802.1x authentication by entering the word, dot 1x after authentication.Related Syntax:# authentication dot 1x
authentication guest-vlan	Configure the guest VLAN.<1-4094> - Specify a guest VLAN ID by entering its number.Related Syntax:# authentication guest-vlan <1-4094>
authentication mac	Enable MAC authentication by entering the word, mac after authentication.mac local - Local database for MAC-Based authentication. It can add local MAC authentication hosts in database.- Enter the MAC address to be added for authentication.control auth - Set a local entry control mode, auth (the host will be set to authorized) or unauth (the host will be set to unauthorized).vlan <1~4094> - Specify a VLAN ID by entering its numberreauth-period <300~4294967294> - Set a time to initiate automatic re-authentication.inactive-timeout <60~65535>- Set the inactive timeout for MAC authentication host. After the time interval, if there is no activity from the client, then it will be unauthorized by Vigor system.control unauth - Set a local entry control mode as "unauth" to let the host set as unauthorized.radius mac-case- Set RADIUS user ID with lower case or upper case.radius mac-delimiter- Select RADIUS user ID delimiter. In which,colon: XX:XX:XX:XX:XX:XXdot: XX.XX.XX.XX.XX.XXhyphen: XX-XX-XX-XX-XX-XXnone:XXXXXXXXXXXXgap <2/ 4/ 6> - Select delimiter gap.Related Syntax:#authentication mac#authentication mac localcontrol auth inactive-timeout <60~65535>#authentication mac localcontrol auth reauth-period <300~4294967294>#authentication mac localcontrol auth vlan <1~4094> #authentication mac localcontrol auth vlan<1~4094> reauth-period <300~4294967294>#authentication mac localcontrol auth vlan<1~4094> reauth-period <300~4294967294> inactive-timeout <60~65535>#authentication mac localcontrol unauth#authentication mac radius mac-case#authentication mac radius mac-delimitergap <2/ 4/ 6>
authentication web	Web - Enable web authentication by entering the word "web" after "authentication".username- Specify a username.password- Set a password.vlan <1~4094> - Specify a VLAN ID by entering its number.reauth-period <30~4294967294>- Set a time to initiate automatic re-authentication.inactive-timeout <60~65535>- Set the inactive timeout for MAC authentication host. After the time interval, if there is no activity from the client, then it will be unauthorized by Vigor system.Related Syntax:#authentication web#authentication web local usernamepasswordinactive-timeout <60~65535>#authentication web local usernamepasswordreauth-period <300~4294967294>#authentication web local usernamepasswordreauth-period <300~4294967294>inactive-timeout <60~65535>#authentication web local usernamepasswordvlan<1~4094>#authentication web local usernamepasswordvlan<1~4094>reauth-period<30~4294967294>inactive-timeout <60~65535>

Example

P2500# configure
P2500(config)# authentication dot1x
P2500(config)# vlan 3
P2500(config-vlan)# exit
P2500(config)# authentication guest-vlan 3
P2500(config)#
P2500(config)# exit
P2500# show authentication
Authentication dot1x state : enabled
Authentication mac state : disabled
Authentication web state : disabled
Guest VLAN : enabled (3)
Mac-auth Radius User ID Format : XXXXXXXXXXXXX
Mac-auth Local Entry :
Web-auth Local Entry :
Interface Configurations
Interface GigabitEthernet1
Admin Control : disable
Host Mode : multi-auth
Type dot1x State : disabled
Type mac State : disabled
Type web State : disabled
Type Order : dot1x
MAC/WEB Method Order : radius
Guest VLAN : disabled
Reauthentication : disabled
Max Hosts : 256
VLAN Assign Mode : static
--More-

Telnet Command: boot

Use this command to have a backup image in the flash partition. Select the active firmware image, and another firmware image will become a backup one.

Syntax Items

boot system

Description

Syntax Items Description
boot system	Boot the system	from flash image partition 0 / 1.Related Syntax:# boot system image0# boot system image1

Example

P2500# configure
P2500(config)#
P2500(config)# boot system image0
Select "image0" Success
P2500(config)# exit
P2500#
P2500# show boot
Image	Version	Date	Status	File Name
0	1.0.2	2017-08-29 09:44:57	Not active*	2280_r442_220RC1.all
1	2.3.2	2018-05-16 09:14:31	Active	p2280_r734_230RC4.all
"*" designates that the image was selected for the next boot
P2500#

Telnet Command: clock

Use this command to configure time zone, summer-time and external time source for the system clock.

Syntax Items

clock auto timezone clock source local clock source sntp clock summer-time clock timezone

Description

Syntax Items Description
clock auto timezone	VigorSwitch sets the time zone automatically.
clock source local Configure an external time source for the system clock.“local” means to use static time. It is the default setting.Related Syntax:# clock source local
clock source sntp	Configure an external time source for the system clock. “sntp” means to use SNTP time.Related Syntax:# clock source sntp
clock summer-time	Configure the system to automatically switch to summer time (daylight saving time).ACRONYM - Specify the acronym name of time zone. The acronym of the time zone will be displayed when summer time is in effect. If unspecified, the time zone acronym will be used in default. (1-4 chars)- Indicate January, February, March, April, May, June, July, August, September, October, November, December.<1-31> means date 1 to 31.<2000-2037> - means year of 2000 to 2035.- means hours and minutes.recurring - Summer time should start and end on the corresponding specified days every year.<1-1440>- Set the number of minutes to add during the summer time. The default number is 60.eu - The summer time is based on the European Union rules. (Start point - last Sunday in March, End point - last Sunday in October)usa - The summer time is based on the United States rules. (Start point - second Sunday in March, End point - first Sunday in November)first - The first week of the month.last - The last week of the month.- Indicate Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday.- Indicate January, February, March, April, May, June, July, August, September, October, November, December.- Specify the first week or the last week of the month.<1-5> - Specify the number of the week in the month.Note that the first group of month, date, hour and minute is used for configuring starting time, and the second group is used for configuring ending time.Related Syntax:# clock summer-time ACRONYM date<1-31><2000-2037><HH:MM><jan/ feb/ mar/ apr/ may/ jun/ jul/ aug/ sep/ oct/ nov/ dec><1-31><2000-2037><HH:MM)# clock summer-time ACRONYM recurring eu <1-1440)# clock summer-time ACRONYM recurring usa <1-1440)# clock summer-time ACRONYM recurring first< sun/ mon/ tue/ wed/ thu/ fri/ sat>< jan / feb / mar / apr / may / jun/ jul/ aug/ sep/ oct/ nov/ dec><HH:MM><first/ last><sun/ mon/ tue/ wed/ thu/ fri/ sat>< jan / feb / mar / apr/ may/ jun/ jul/ aug/ sep/ oct/ nov/ dec><HH:MM><1-14400)# clock summer-time ACRONYM recurring last< sun/ mon/ tue/ wed/ thu/ fri/ sat>< jan / feb / mar / apr / may/ jun/ jul/ aug/ sep/ oct/ nov/ dec><HH:MM><first/ last><sun/ mon/ tue/ wed/ thu/ fri/ sat>< jan / feb / mar/ apr/ may/ jun/ jul/ aug/ sep/ oct/ nov/ dec><HH:MM><1-14400)# clock summer-time ACRONYM recurring <1-5>< sun/ mon/ tue/ wed/ thu/ fri/ sat>< jan / feb / mar / apr / may/ jun/ jul/ aug/ sep/ oct/ nov/ dec><HH:MM><1-5>< sun/ mon/ tue/ wed/ thu/ fri/ sat>< jan / feb / mar / apr/ may/ jun/ jul/ aug/ sep/ oct/ nov/ dec><HH:MM><1-14400>
clock timezone ACRONYM<-12-13> minutes <0-59>	Set the time zone for display purposes.ACRONYM - Specify the acronym name of time zone. The acronym of the time zone will be displayed when summer time is in effect. If unspecified, the time zone acronym will be used in default. (1-4 chars)< -12-13> - Specify the hour offset (from -12 to +13) of time zone. minutes <0-59> - Specify the minute difference from UTC.Related Syntax:# clock timezone ACRONYM<-12-13> minutes <0-59>

Example

P2500# configure
P2500(config)# clock source sntp
P2500(config)# exit
P2500# show clock detail
2019-01-05 06:51:23 UTC+8
Time source is sntp
Time zone:
Acronym is
Offset is UTC+8
P2500# configure
P2500(config)# clock summer-time tw date jan 30 2019 23:30 feb 1 2019 20:50
P2500(config)# exit
P2500# show clock detail
2019-01-05 07:13:49 UTC+8
Time source is sntp

Time zone:
Acronym is ACRONYM
Offset is UTC-10:08

Summertime:
Acronym is tw
Starting and ending on a specific date.
Begins at 1 30 19 23:30

Ends at 2 1 19 20:50
Offset is 60 minutes.
P2500# configure
P2500(config)# clock summer-time ACRONYM recurring eu 1200
P2500(config)# clock summer-time ACRONYM recurring first mon jan 10:10 first sun feb 10:10 1000
P2500(config)# exit
P2500# show clock detail
2019-01-05 11:37:18 UTC+8
Time source is sntp
Time zone:
Acronym is
Offset is UTC+8
Summertime:
Acronym is ACRONYM
Recurring every year.
Begins at 1 1 1 10:10
Ends at 1 0 2 10:10
Offset is 1000 minutes.

Telnet Command: custom

Use this command to enable the module settings.

Syntax Items

custom enable

Description

Syntax Items Description
custom enable Enable the module settings.	Related Syntax:●# custom enable

Example

P2500# configure

P2500(config)# custom enable

P2500(config)#

Telnet Command: dos

Use this command to enable specific Denial of Service (DoS) protection.

Syntax Items

dos daeqsa-deny

dos icmp-frag-pkts-deny

dos icmp-ping-max-length

dos icmpv4-ping-max-check

dos icmpv6-ping-max-check

dos ipv6-min-frag-size-check

dos ipv6-min-frag-size-length

dos land-deny

dos nullscan-deny

dos pod-deny

dos smurf-deny

dos smurf-netmask

dos syn-sportl1024-deny

dos synfin-deny

dos synrst-deny

dos tcp-frag-off-min-check

dos tcpblat-deny

dos tcphdr-min-check

dos tcphdr-min-length

dos udpblat-deny

dos xma-deny

Description

Syntax Items Description
dos daeqsa-deny	Drop the packets if the destination MAC address equals to the source MAC address.Related Syntax:# dos daeqsa-deny
dos icmp-frag-pkts-deny Drop	the fragmented ICMP packets.Related Syntax:# dos icmp-frag-pkts-deny
dos icmp-ping-max-length	Set the maximum packet size for ICMPv4/ ICMPv6 ping operation.<0-65535> - Specify a packet number.Related Syntax:# dos icmp-ping-max-length <0-65535>
dos icmpv4-ping-max-check Check ICMPv4 ping maximum packets size and drop the packets larger than the maximum packet size defined by the command, dos icmp-ping-max-length.Related Syntax:# dos icmpv4-ping-max-check
dos icmpv6-ping-max-check Check ICMPv6 ping maximum packets size and drop the packets larger than the maximum packet size defined by the command, icmp-ping-max-length.Related Syntax:# dos icmpv6-ping-max-check
dos ipv6-min-frag-size-check Check minimum size of IPv6 fragments.Related Syntax:# dos ipv6-min-frag-size-check
dos ipv6-min-frag-size-length<0-65535>	Set the minimum packet size of IPv6 fragmented packets.<0-65535> - Specify a packet number.Related Syntax:# dos ipv6-min-frag-size-length <0-65535>
dos land-deny	Drop the packets if the source IP address equals to destination IP address.Related Syntax:# dos land-deny
dos nullscan-deny Drop the packets if attacked by NULL Scan.Related Syntax:# dos nullscan-deny
dos pod-deny Drop the packets if attacked by Ping of Death.Related Syntax:# dos pod-deny
dos smurf-deny Drop the packets if encountered Smurf attack.
	Related Syntax:●# dos smurf-deny
dos smurf-netmask Set the smurf attack size.	- Enter a number as smurf attacks size.Related Syntax:●# dos smurf-netmask <0-32>
dos syn-sport11024-deny Drop	SYN packets with sport less than 1024.Related Syntax:●# dos syn-sport11024-deny
dos synfin-deny Drop the packets with SYN and FIN bits set.	Related Syntax:●# dos synfin-deny
dos synrst-deny Drop the packets with SYNC and RST bits set.	Related Syntax:●# dos synrst-deny
dos tcp-frag-off-min-check	Drop the TCP fragmented packet with offset equals to the minimum packet size.Related Syntax:●# dos tcp-frag-off-min-check
dos tcpblat-deny	Drop the packets if the source TCP port equals to destination TCP port.Related Syntax:●# dos tcpblat-deny
dos tcphdr-min-check Check the minimum TCP header and drop the TCP packets with the header smaller than the minimum size defined.	Related Syntax:●# dos tcphdr-min-check
dos tcphdr-min-length Set the minimum size of TCP header.	- Specify a packet number.Related Syntax:●# dos tcphdr-min-length <0-65535>
dos udpblat-deny	Drop the packets if the source UDP port equals to destination UDP port.Related Syntax:●# dos udpblat-deny
dos xma-deny Drop the packets if the sequence number is zero and the FIN, URG and PSH bits are set already.	Related Syntax:●# dos xma-deny

Example

P2500# configure
P2500(config)#
P2500(config)# dos icmp-ping-max-length 25252
P2500(config)# dos icmpv4-ping-max-check
P2500(config)#

Telnet Command: dray\_surveillance

Use this command to enable / disable the ONVIF.

Syntax Items

dray_surveillance add

dray_surveillance direct-add

dray_surveillance set

Description

Syntax Items Description
dray_surveillance add Add an	IP device for surveillance.WORD <36-36> - Enter the UUID string of the IP camera or IP-based device.Related Syntax:# dray_surveillance add device uuid WORD <36-36># dray_surveillance add group uuid WORD <36-36>
dray_surveillance direct-add	WORD <36-36> - Enter the UUID string of the IP camera or IP-based device.Related Syntax:# dray_surveillance direct-add device uuid WORD <36-36>
dray_surveillance set	WORD <36-36> - Enter the UUID string of the IP camera or IP-based device.Related Syntax:# dray_surveillance set device uuid WORD <36-36># dray_surveillance set group uuid WORD <36-36>

Example

P2500# configure

P2500(config)#

P2500(config)# dray_surveillance

P2500(config)#

P2500(config)# dray_surveillance add device uuid

53d7762a-c52b-4bb9-8000-305501e0f35f

P2500(config)#

Telnet Command: do

Use this command to execute a command immediately.

Syntax Items

do SEQUENCE

Description

Syntax Items Description
SEQUENCE	Enter the command that you want to execute immediately.Related Syntax: (for example)●# do show info

Example

P2500(config)# do show info

System Name : P2280x

System Location : Default

System Contact : Default
MAC Address : 00:1D:AA:43:D1:3E
IP Address : 192.168.1.238
Subnet Mask : 255.255.255.0
Loader Version : 1.0.4
Loader Date : Apr 18 2019 - 16:31:58
Firmware Version : 2.5.0
Firmware Date : May 22 2019 - 18:09:18
Firmware Revision : 1421
System Object ID : 1.3.6.1.4.1.7367
System Up Time : 0 days, 5 hours, 33 mins, 8 secs
PoE SW Version : 211
P2500(config)#

Telnet Command: enable

Use this command to configure local password with encrypted string or not.

Syntax Items

enable password enable privilege enable secret

Description

Syntax Items Description
enable password	Edit the password for each privilege level for activating authentication.<1-15> - Enter a number for specifying a privilege level. Default value is 15.Related Syntax:# enable password <1-15>
enable privilege	Edit the privilege level of the password for local user.<1-15> - Enter a number for specifying a privilege level. Default value is 15.- Enter a new string as the password.Related Syntax:# enable privilege <1-15> password (This password will NOT be encrypted.)# enable privilege <1-15> secret (This password will BE encrypted.)# enable privilege <1-15> secret encrypted (This password is copied from another configuration file. So, enter an existed and encrypted password.)
enable secret	Enter a new string as the encrypted password.Related Syntax:# enable secret PASSWORD# enable secret encrypted PASSWORD

Example

P2500# configure
P2500(config)# enable secret encrypted testtest
P2500(config)# exit
P2500# show running-config
P2500# ...
enable privilege 2 secret "OTE5ZTY4MmNhYzgyNWQ0MzBhNTgwZTg0MmZmMGJiYzQ="
enable secret "testtest"
vlan 2
    name "test0002"
vlan 3
    name "test0003"
vlan 5
    name "test_carrie"
voice-vlan oui-table 00:E0:BB "3COM"
voice-vlan oui-table 00:03:6B "Cisco"
voice-vlan oui-table 00:E0:75 "Veritel"
......

Telnet Command: end

Use this command to end current mode.

Syntax Items

end

Example

P2500# configure
P2500(config)#end
P2500#

Telnet Command: errdisable

Use this command to enable the auto recovery timer for port error.

Syntax Items

errdisable recovery cause errdisable recovery interval

Description

Syntax Items Description
errdisable recovery cause	Enable the auto recovery timer for port error disabled from ACL, all, ARP rate limit, STP BPDU guard, broadcast flooding, DHCP rate limit, port security, STP self-loop, unicast flooding, or unknown multicast flooding causes.Related Syntax:# erridisable recovery cause < acl / all/ arp-inspection / bpduguard / broadcast-flood/ dhcp-rate-limit / psecure-violation / selfloop / unicast-flood/ unknown-multicast-flood >
errdisable recovery interval	Set the recovery time of the error disabled port.<30-86400> - The default value is 300 seconds.Related Syntax:# erridisable recovery interval <30-86400>

Example

P2500# configure
P2500(config)#
P2500(config)# errdisable recovery interval 600
P2500(config)#

Telnet Command: exit

Use this command to exit current mode and return to previous mode/ phase.

Syntax Items

exit

Example

P2500# configure
P2500(config)#
P2500(config)# exit

P2500#

Telnet Command: gvrp

Use this command to enable the GVRP configuration. In default, the GVRP is disabled.

Syntax Items

gvrp

Example

P2500# configure
P2500(config)# gvrp
P2500(config)#
P2500(config)# exit
P2500# show gvrp
GVRP Status
----
GVRP : Enabled
Join time : 200 ms
Leave time : 600 ms
LeaveAll time : 10000 ms
P2500#

Telnet Command: hostname

Use this command to modify the network name of VigorSwitch.

Syntax Items

hostname

Description

Syntax Items Description
hostname- Enter a string as the network name for VigorSwitch.Related Syntax:# hostname

Example

P2500# configure
P2500(config)# hostname Switch_3F
Switch_3F(config)#

Telnet Command: interface

Use this command to configure interface settings.

Before configuring, you have to access into next phase. See the following example:

P2500# configure
P2500(config)#
P2500(config)# interface GigabitEthernet 3
P2500(config-if)#

Or

P2500# configure
P2500(config)#
P2500(config)# interface range LAG 3
P2500(config-if-range)#

Syntax Items

interface GigabitEthernet interface LAG interface range

Description

Syntax Items Description
interface GigabitEthernet	<1-50> - Specify the number of Ethernet LAN port.Related Syntax:# interface GigabitEthernet <1-50>
interface LAG <1-8> - Specify the number of LAG interface.Related Syntax:# interface LAG <1-8>
Interface range	Specify an interface ranges for configuring detailed settings.Related Syntax:# interface range GigabitEthernet <1-50># interface range LAG <1-8>

Example

P2500# configure
P2500(config)# interface LAG 1
P2280x(config-if)#

Under (config-if) #, available sub-commands for LAN or LAG will be different. Below shows the items under Ethernet LAN:

<config-if># authentication
<config-if># back-pressure
<config-if># custom
<config-if># description
<config-if># device-check
<config-if># dos
<config-if># dot1x
<config-if># do
<config-if># dray_surveillance
<config-if># duplex
<config-if># eee
<config-if># end
<config-if># exit
<config-if># flowcontrol
<config-if># gvrp
<config-if># ip
<config-if># ipv6
<config-if># lacp
<config-if># lag
<config-if># lldp
<config-if># mac
<config-if># mvr

<config-if># no
<config-if># poe
<config-if># port-security
<config-if># power
<config-if># protected
<config-if># qos
<config-if># rate-limit
<config-if># shutdown
<config-if># spanning-tree
<config-if># speed
<config-if># storm-control
<config-if># surveillance-vlan
<config-if># switchport
<config-if># udld
<config-if># vlan
<config-if># voice-vlan

Description

Syntax Items Description
authentication	Apply Auth Manager Port Configuration Commands to the specified interface (Ethernet port/ LAG port).dot1x - Execute the 802.1x authentication.guest-vlan - Authenticate the guest VLAN configuration.host-mode- Set the maximum number of authenticated hoss allowed on this port.max-hosts <1-256> - Set the maximum number of authenticated hoss allowed on this port.method- Set authentication method by using local or RADIUS server.order- Add an authentication type to the order list.port-control- Set the port state of this port as AUTO, Authorized or Unauthorized.radius- attributes vlan reject - If the Radius server authorizes the supplicant, but does not provide a supplicant VLAN, the supplicant will be rejected. If the parameter is omitted, the option is applied by default.radius- attributes vlan static - If the Radius server authorizes the supplicant but does not provide asupplicant VLAN, the supplicant will be accepted.reauth - Enable/ Disabel Reauthentication for this porttimer- Set the time value for authentication. After the time interval, if there is no activity from the client, it will be unauthorized.timer quiet <0-65535> - Set the time value to wait failed authentication exchange.timer reauth <300-4294967294> - Set the time value. After the time interval, an automatic re-authentication should be initiated.web - Execute the web-based authentication.web max-login-attempts <3-10> - Set a maximum number of login attempts on the port.web max-login-attempts infinite - No limit for login attempts.Related Syntax:# authentication dot1x# authentication guest-vlan# authentication host-mode/multi-host / single-host># authentication mac# authentication max-hosts <1-256)# authentication method# authentication order# authentication port-control# authentication radius-attributes vlan reject# authentication radius-attributes vlan static# authentication reauth# authentication timer inactive <60-65535)# authentication timer quiet <0-65535)# authentication timer reauth <300-4294967294)# authentication web# authentication web max-login-attempts <3-10)# authentication web max-login-attempts infinite
back-pressure	Enable back-pressure for the specified interface (Ethernet port/LAG port).Related Syntax:# back-pressure
custom	- Enable the custom module configuration for the specified interface (Ethernet port/LAG port).Related Syntax:# custom enable
description	Write a description for the specified interface (Ethernet port/LAG port).- Enter a description (up to 32 characters).Related Syntax:# descripton
device-check	Perform a device check the specified interface (Ethernet port/LAG port).ip-address-Anter the IP address of the device.interval <120/15/30/60>- Check the device interval by entering the time value. Unit is second.retry <1/3/5>- Enter the retry time during a checking period.Failure-action- Set the power cycle.Related Syntax:# device-check ip-addressinterval <120/15/30/60>retry <1/3/5>failure-action
dos	Apply DoS to the specified interface (Ethernet port/LAG port).
dot1x It is available for Gigabit	Ethernet port only.guest-vlan - Set guest VLAN configuration.max-req <1-10>- Set the maximum request retries. Default is 2.Port-control- Set the port control value (auto, authorized or unauthorized)reauth - Enable/ disable the reauthentication for this port.timeout-reauth-period / server-timeout / supp-timeout / tx-period>- Set timeout value for this port.<0-65535>- Set a value as quiet period (default is 60-second).<300-4294967294>- Set a value as re-authentication period. (default is 3600-second).<1-65535>- Set a value to wait for a packet retransmission to theauthentication server.supp-timeout <1-65535> - Set a vale as supplicant timeout period.tx-period <1-65535> - Set a value to wait for a response to an EAP-request / identity before resending the request.Related Syntax:# dot1x guest-vlan# dot1x max-req <1-10># dot1x port-control/# dot1x reauth# dot1x timeout quiet-period <0-65535># dot1x timeout reauth-period <300-4294967294># dot1x timeout server-timeout <1-65535># dot1x timeout supp-timeout <1-65535># dot1x timeout tx-period <1-65535>
do Run execution commands in current mode.
dray_surveillance Use this command to set the ONVIF throughput alert threshold.<16-1000000> - Specify a number as the alert threshold for egress / ingress throughput.Related Syntax:#dray_surveillance set threshold alert egress <16-1000000>#dray_surveillance set threshold alert ingress <16-1000000>
duplex	Apply the duplex configuration to the specified interface (Ethernet port/LAG port).- Auto duplex configuration.- Force full duplex operation.- Force half-duplex operation.Related Syntax:# duplex
eee	Apply the EEE configuration to the specified interface (Ethernet port).
end End current mode, change to enable mode and return to previous phase.
exit Exit from current mode.
flowcontrol	Configure flow-control mode to the specified interface (Ethernet port/LAG port).- Enable AUTO flow-control configuration.- Disable the force flow-control.- Enable the force flow-control.Related Syntax:# flowcontrol
gvrp	Apply the GVRP configuration to the specified interface (Ethernet port/LAG port).registration-mode- Set registration mode for GVRP. When registration-mode is fixed or forbidden, it will remove the dynamic port from VLAN.vlan-creation-forbid - Do not remove dynamic port from VLAN.Related Syntax:# gvrp registration-mode# gvrp vlan-creation-forbid

ip

Apply IP configuration to the specified interface (Ethernet port/LAG port).

acl - Specify an ACL for packets. Enter the name of the ACL. arp inspection rate-limit <1-50> - ARP inspection is to enable Dynamic ARP Inspection function. Set the rate limitation (1 - 50) on the interface. VigorSwitch will drop ARP packets after receives more than configured rate of packets per second.

arp inspection trust - Use it to set trusted interface.

arp inspection validate dst-mac - It means the switch will drop ARP reply packets if arp-target-mac and ethernet-dst-mac are not matched.

arp inspection validate ip allow-zeros - The "allow-zeros" means the switch will not drop all zero IP address.

arp inspection validate src-mac - It means the switch will drop ARP requests and reply packets if arp-sender-mac and ethernet-source-mac are not matched.

conflict prevention bind-ip -

conflict prevention port-type DHCP-Client -

conflict prevention port-type DHCP-Client has-server -

conflict prevention port-type DHCP-Server -

conflict prevention port-type DHCP-Server has-server -

conflict prevention port-type Multiple-Hosts -

conflict prevention port-type Multiple-Hosts has-server -

conflict prevention port-type Static-Binding -

conflict prevention port-type Static-Binding has-server -

dhcp snooping option - Use it to enable the function of inserting option82 content into the packet.

dhcp snooping option action - Use it to set the action (drop, keep or replace) when receiving packets with option82 content.

dhcp snooping option circuit-id - Use it to set user-defined circuit-id string (1 to 63 characters).

dhcp snooping rate-limit <1-300> - Use it to set rate limitation on the interface.

dhcp snooping trust - Use it to set trusted interface.

dhcp snooping verify mac-address - Use it to verify MAC address function on the interface.

dhcp snooping vlan <1-4094> option circuit-id - Set user-defined circuit-id string for specified VLAN ID.

igmp filter <1-128> - Use it to bind a profile for a port. Specify a profile ID.

igmp max-groups <0-256> - Use it to limit port learning max group number (0-256).

igmp max-groups action - Use it to set the action (deny or replace) when the number of groups reach the limitation. source binding max-entry <1-50> -

source binding max-entry no-limit -

source verify mac-and-ip - Use it to enable IP source guard function.

Related Syntax:

- # ip acl

- # ip arp inspection rate-limit <1-50>

- # ip arp inspection trust

- # ip arp inspection validate dst-mac

- # ip arp inspection validate ip allow-zeros

- # ip arp inspection validate src-mac

- # ip conflict prevention bind-ip

	# ip conflict prevention port-type DHCP-Client# ip conflict prevention port-type DHCP-Client has-server# ip conflict prevention port-type DHCP-Server# ip conflict prevention port-type DHCP-Server has-server# ip conflict prevention port-type Multiple-Hosts# ip conflict prevention port-type Multiple-Hosts has-server# ip conflict prevention port-type Static-Binding# ip conflict prevention port-type Static-Binding has-server# ip dhcp snooping option# ip dhcp snooping option action# ip dhcp snooping option circuit-id# ip dhcp snooping rate-limit <1-300# ip dhcp snooping trust# ip dhcp snooping verify mac-address# ip dhcp snooping vlan <1-4094> option circuit-id# ip igmp filter <1-128# ip igmp max-groups <0-256# ip igmp max-groups action# ip source binding max-entry <1-50# ip source binding max-entry no-limit# ip source verify mac-and-ip
ipv6	Apply IPV6 configuration to the specified interface (Ethernet port/ LAG port).acl-Specify the ACL name for packets mld- Set IPv6 filter for MLD configuration.mld max-groups - Specify the number for maximum group.<0-256>- MLD snooping group number.action- Define the action to be performed when excessing the maximum group.Related Syntax:# ipv6 acl# ipv6 mld filter# ipv6 mld max-groups <0-256# ipv6 mld max-groups action
Iacp	Apply LACP Configuration to the specified interface (Ethernet port/ LAG port).<1-65535>- Set a number for IEEE 802.3 link aggregation port priority.- Set long or short timeout value.Related Syntax:# lacp port-priority <1-65535)# lacp timeout
lag	Apply Link Aggregation Group Configuration the specified interface (Ethernet port/ LAG port).<1-8>- Specify LAG number.Related Syntax:# lag <1-8>
Ildp med location - Configure the LLDP MED location data. The “coordinate”, “civic-address”, “ecs-elin” locations are independent, so at most three location TLVs could be sent if their data are not empty.med network-policy add / remove - Configure the LLDP MED network policy table. Add / remove a network policy entry that can be bind to ports.med tlv-select - Configure LLDP MED TLVs selection. Available optional TLVs are network-policy, location, inventory and poe-pse.tlv-select - Select LLDP TLVs to send.- The location is specified as civic address.- Range from 6 to 160 hexadecimal bytes.- The location is specified as coordinates.- 16 hexadecimal bytes exactly.- The location is specified as ECS ELIN.- 10 to 25 hexadecimal bytes.- Range from 1 to 32.- LLDP optional TLV, pick from: port-desc, sys-name, sys-desc, sys-cap, mac-phy, lag, max-frame-size, management-addr.pvid - Enable or disable the TX optional-TLV 802.1 PVID.vlan-name <2-4094> - Add/ remove a selected VLAN.Enter the VLAN ID number.- Enable LLDP reception on interface.- Enable LLDP transmission on interface.Related Syntax:# lldp med location# lldp med network-policy add# lldp med network-policy remove# lldp med tlv-select# lldp tlv-select# lldp tlv-select pvid <2-4094># lldp tlv-select vlan-name<2-4094># lldp
mac Specify an access control list for packets.Before configuring, you have to create an ACL based on MAC address. For example,# mac acl CA_ACL#- Enter a name for ACL.Related Syntax:# mac acl
mvr Make MVR configuration.	immediate - Enable MVR function.type - Specify MVR port type as receiver or source.Related Syntax:# mvr immediate# mvr type
no	Negate command. Such command can disable current setting of command executed and return to the factory setting of thatcommand.Example:# no mvrThe operation will make mvr setting is default. Continue?[yes/ no]:yes#Related Syntax:# no
poe Enable or disable the PoE	port.
port-security	port-security - Enable the port security functionality. Default is disabled.- Enter the number as limitation for MAC address.action- Speify an action to be performed.Related Syntax:# port-security# port-security adderss-limit <1-256>action
power Configure the inline power for the PoE device.inline auto - Turn on the PoE device discovery protocol and apply the power to the devcie.inline never - Turn off the PoE device power.power-limit <15.4w/ 30w/ MW> - Set the power limit for the PoE device.priority <1-3/ critical/ high/ low> - Set the priority of power application for the PoE device.schedule-index - Specify the index number of the schedule profile.Related Syntax:# power inline auto# power inline never# power power-limit <15.4w/ 30w/ MW)# power priority <1-3/ critical/ high/ low)# power schedule-index
protected	Configure an interface to be a protected port.Related Syntax:#protected
qos	cos - Configure the default CoS value for an Ethernet port.<0-7> - Specify a CoS value for the selected interface. Default value is 0.remark - Configure remarking state of each port.trust - Configure each port to trust state while the system is in "basic" mode. There are four trust types for a device to judge the appropriate queue of the packets.- Enable cos remarking.- Enable DSCP remarking.- Enable cos and DSCP remarking.- Enable IP precedence remarking.Related Syntax:#qos cos <0-7>#qos remark#qos trust
rate-limit It is effective for Ethernet port only.
	egress - Configure the egress port shaper.ingress - Configure the ingress port shaper.egress queue - Configure queue for egress port shaper.<0-1000000> - Enter a number as the average traffic rate in Kbps. It must be a multiple of 16.<16-1000000> - Enter a number as the average traffic rate in Kbps. It must be a multiple of 16.<1-8> - Specify a nubmer as queue ID.Related Syntax:# rate-limit egress <0-1000000># rate-limit egress <1-8> <16-1000000># rate-limit ingress <16-1000000>
shutdown Disable the selected interface.Example:(config)# interface gigabitethernet 3(config-if)# shutdown(config-if)# exit(config)# exit# show interface Gigabitethernet 3GigabitEthernet3 is downRelated Syntax:# shutdown
spanning-tree Configure spanning-tree settings.bpdu-filter - Set the BPDU-Filter for specified port.bpdu-guard - Set the BPDU-Guard for specified port.edge - Set the edge-port for specified port.cost - Change an interface's spanning tree path cost.link-type - Specify a link type for spanning tree protocol use.mcheck - Set the mcheck for specified port to migrate.mst - Set spanning-tree parameters of instance.port-priority- Set the priority for specified instance.<0-200000000> - Specify a value of internal path cost (0 means Auto).- The selected port will be treated as point-to-point.- The selected port will be treated as shared.<0-15> - Specify an instance ID.<0-240> - Specify a priority number for the selected port.Related Syntax:# spanning-tree# spanning-tree # spanning-tree cost <0-200000000># spanning-tree link-type# spanning-tree mcheck# spanning-tree mst <0-15> cost <0-200000000># spanning-tree port-priority <0-240>
speed Configure speed operation.<10/ 100/ 1000> - Force 10/ 100/ 1000 Mbps operation.- Enable Auto speed configuration.Related Syntax:# speed<10/ 100/ 1000># speed auto
storm-control	action - Select an action for storm control after exceeding the threshold.broadcast level - Enable the storm control type of broadcast for the selected port. unknown-multicast level - Enable the storm control type of unknown-multicast for the selected port. unknown-unicast level- Enable the storm control type of unknown-unicast for the selected port. - Drop packets after exceeding storm control threshold. - Disable the port after exceeding storm control threshold. <1-1000000> - Specify the rate value.Related Syntax:● # storm-control action● # storm-control broadcast level <1-1000000>● # storm-control unknown-multicast level <1-1000000>● # storm-control unknown-unicast level <1-1000000>
surveillance-vlan	cos - Set surveillance VLAN configuration. mode - Set surveillance member port join mode. - QoS attributes are applied to all packets that are classified to the Surveillance VLAN. - QoS attributes are applied only on packets from IP phones. - Make surveillance member port join voice VLAN automatically. - The administrator manually makes surveillance member port join voice VLAN.Related Syntax:● # surveillance-vlan cos● # surveillance-vlan mode
switchport Set switching mode characteristics. access vlan -Use it to set a native VLAN on the interface. default-vlan tagged - Use it to make the selected port interface to become the default VLAN tagged member. forbidden default-vlan - Use it to forbid the default-vlan on the interface. forbidden vlan - Use it to forbid a vlan on the interface. hybrid accetable-frame-type - Use it to choose which type of frame will be accepted. hybrid allowed - Use it to allow a VALN set on the interface. hybrid ingress-filtering - Use it to enable VLAN ingress filter. hybrid pvid - Use it to set PVID of the interface. mode access - Use it to configure the selected port as the role of access. Only untagged frames will be accepted. mode hybrid - Use it to configure the selected port as the role of hybrid. Support all functions defined in IEEE 802.1Q specification. mode trunk uplink - Use it to configure the selected port as the role of trunk. It can recognize double tagging on the interface. trunk allowed - Use it to allow a VALN on the interface. trunk native - Use it to set a native VLAN on the interface. tunnel vlan - Use it to set a Dot1q tunnel VLAN on the interface. vlan tpid - Use it to set TPID on the interface. <1-4094> - Specify a VLAN ID. - Add or remove the allowed VLAN list. - Specify an option for accepting all frames, only tagged frames or only untagged frames. <1-4094/ all> - Specify a VLAN ID or all VLAN IDs.	< 0x8100 / 0x88A8 / 0x9100 / 0x9200> - Specify one tag-protocol-id.Related Syntax:# switchport access vlan <1-4094)# switchport default-vlan tagged# switchport forbidden default-vlan# switchport forbidden vlan <add/ remove> <1-4094)# switchport hybrid accetable-frame-typeall/ tagged-only/ untagged-only)# switchport hybrid allowed vlan add <1-4094)# switchport hybrid allowed vlan add <1-4094)# switchport hybrid allowed vlan remove <1-4094)# switchport hybrid ingress-filtering# switchport hybrid pvid <1-4094)# switchport mode# switchport mode trunk uplink# switchport trunk allowed vlan <1-4094/ all)# switchport trunk native <1-4094)# switchport tunnel vlan <1-4094)# switchport vlan tpid < 0x8100/ 0x88A8 / 0x9100 / 0x9200>
udId	Configure UDLD enabled or disabled and ignore global UDLD setting. aggressive - Enable UDLD protocol on such interface.Related Syntax:# udld# udId aggressive
vlan	mac-vlan group - Set a MAC-based VLAN configuration. protocol-vlan group - Set a protocol-based VLAN configuration. <1-2147483647> - Specify a group ID to map. <1-4094> - Specify a VLAN ID.Related Syntax:# vlan mac-vlan group <1-2147483647> vlan <1-4094)# vlan protocol-vlan group<1-2147483647> vlan <1-4094>
voice-vlan cos - Set voice VLAN	N configuration as COS mode.mode - Set voice member port join mode.- QoS attributes are applied on all packets that are classified to the Voice VLAN.- QoS attributes are applied only on packets from IP phones.- Make voice member port join voice VLAN automatically.- The administrator manually makes voice member port join voice VLAN.Related Syntax:# voice-vlan cos# voice-vlan mode

Example

P2500# configure
P2500(config)# interface LAG 1
P2500(config-if)# speed 100

P2500(config-if)# backpressure
P2500(config-if)# lldp med location ecs-elin 112233445566778899AA
P2500(config-if)# vlan mac-vlan group 35 vlan 1000
P2500(config-if)#

Telnet Command: ip

Use this command to create an IPv4 access list (ACL) which performs classification on layer 3 fields and enters ip-access configuration mode.

Syntax Items

ip acl

ip arp

ip conflict

ip dhcp

ip igmp

ip source

Description

Syntax Items Description
ip acl	acl- Set the name of the access list (ACL) based on IPv4. To configure detailed settings, enter the name of ACL to access into next level.#ip aclThen, available sub-command includes:#deny#do#end#exit#permit#sequence#show
	Use the “deny” command to create deny rules for the IPv4 access list.<0-255/ egp/ hmp/ icmp/ igp/ ipinip/ ipv6 / ipv6:frag / ipv6:icmp / ipv6: rout / ip / 12tp / ospf / pim / rdp / rsvp / tcp / udp > - Specify the IP protocol number or enter the name of the protocol./- Specify the source and destination IPv4 addresses and subnet masks.dscp <0-63> - Set the DSCP filtering by specifying a value for DSCP. precedence <0-7> - Set the cos value and the cos mask for a packet. shutdown - Disable the Ethernet interface.any - Any IP address (as source or destination).Related Syntax:#deny <0-255>/dscp <0-63>#deny <0-255>/dscp <0-63> shutdown#deny <0-255>/precedence <0-7>#deny <0-255>/shutdownany/dscp <0-63>●#deny <0-255> anydscp<0-63> shutdown●#deny <0-255> any/precedence <0-7>●#deny <0-255> any/precedence <0-7> shutdown●#deny <0-255> any any dscp <0-7>●#deny <0-255> any any dscp <0-7> shutdown●#deny <0-255> any any precedence <0-7>●#deny <0-255> any any precedence <0-7> shutdown
	Use the “do” command to run execution command in current mode.-Related Syntax:●#do
	Use the “end” command to finish current mode. Any changes in current mode will be saved.Related Syntax:●#end
	Use the “exit” command to close the current CLI session or return to the previous mode without saving the settings.Related Syntax:●#exit
	Use the “no sequence” command to delete any entry in management ACL.<1-2147483647>- Specify an index number of the ACL.Related Syntax:●#no sequence <1-2147483647>
	Use the “permit” command to create permit rules which bypass the packets meet the rule.<0-255/ egp/ hmp/ icmp/ igp/ ipinip/ ipv6 / ipv6:frag / ipv6:icmp / ipv6:rout / ip / 12tp / ospf / pim / rdp / rsvp / tcp / udp > - Specify the IP protocol number or enter the name of the protocol./- Specify the source and destination IPv4 addresses and subnet masks.dscp <0-63> - Set the DSCP filtering by specifying a value for DSCP. precedence <0-7> - Set the cos value and the cos mask for a packet.Shutdown - Disable the Ethernet interface.any - Any IP address (as source or destination).Related Syntax:●#permit <0-255>/dscp <0-63>●#permit <0-255>/shutdown●#permit <0-255>/precedence <0-7>shutdown●#permit <0-255>/shutdownanydscp <0-63>●#permit <0-255>/shutdownanydscp <0-63>precedence <0-7> shutdown●#permit <0-255> any any dscp <0-7>●#permit <0-255> any any dscp <0-7> shutdown●#permit <0-255> any any precedence <0-7>●#permit <0-255> any any precedence <0-7> shutdown
	Use the “sequence” command to deny or permit the ACL.<1-2147483647> - Enter the sequence of ACL entry. The sequence represents the priority of the ACE in the ACL.Related Syntax:●#sequence <1-2147483647> deny●#sequence <1-2147483647> permit
	Use the “show acl” command to list current status of the selected ACL.
ip arp	Use this command to enable the function of dynamic ARP inspection.vlan <1-4094> - Specify the VLAN ID number.Related Syntax:●#ip arp inspection●#ip arp inspection vlan <1-4094>
ip conflict Use this command to do IP conflict prevention.lag - Enable/ disable the function.- Specify the IPv4 addresses.<1-50> - Specify a physical port.<1-8> - Specify a LAG port.Related Syntax:●#ip conflict lag●#ip conflict prevention●#ip conflict prevention clear●#ip conflict prevention server-ipinterface GigabitEthernet <1-50>●#ip conflict prevention server-ipinterface LAG <1-8>
ip dhcp	Use this command to enable DHCP client to get IP address from remote DHCP server.database- Write the database to FLASH or remote TFTP server. Set timeout interval for abortion. Set delay timer for writing to URL.- Specify the IPv4 addresses.- Enter the name of the host.- Set a name for the backup file.<0-86400> - Enter a value. Unit is second.<15-86400> - Enter a value. Unit is second option - Configure DHCP-Option82 settings by specifying remote ID number.- Enter a string (from 1 to 63 characters) for the DHCP option.vlan - Configure VLAN settings.<1-4094> - Specify the VLAN ID number.Related Syntax:●#ip dhcp snooping●#ip dhcp snooping database●#ip dhcp snooping database flash●#ip dhcp snooping database tftp●#ip dhcp snooping database tftp# ip dhcp snooping database timeout <0-86400># ip dhcp snooping database write-delay <15-86400># ip dhcp snooping option remote-id# ip dhcp snooping vlan <1-4094>
ip igmp Use this command to	set IGMP profile and enable IGMP snooping function.Profile - Set IGMP profile.<1-128> - Enter the index number of IGMP profile to access into next phase for configuring detailed settings.- Specify the source and destination IPv4 addressesaction - Speicfy the rule (deny/ permit) for the IGMP profile.Related Syntax:# ip igmp profile <1-128># do# end# exit# profile range ipaction# profile range ip# show# ip igmp snooping
ip source	Use this command to create a static IP source binding entry.- Enter the MAC address for the binding entry.vlan <1-4094> - Specify the VLAN ID number.- Specify the source and destination IPv4 addresses.<1-50> - Specify a physical port.<1-8> - Specify a LAG port.Related Syntax:# ip source binding vlan <1-4094><A.B.C.D><A.B.C.D> interface GigabitEthernet <1-50># ip source binding vlan <1-4094><A.B.C.D><A.B.C.D> interface GgabitEthernet <1-50># ip source binding vlan <1-4094><A.B.C.D><A.B.C.D> interface LAG <1-8>

Example

P2500# configure
P2500(config)# ip acl market_1
P2280(config-ip-acl)#
P2280(config-ip-acl)# deny 20 192.168.2.55/255.255.255.0 192.168.2.85/255
P2500(config)# ip dhcp snooping database tftp draytek carrie_backup

Use the "do" command to run execution command in current mode. -

Related Syntax:

- #do

Use the "end" command to finish current mode. Any changes in current mode will be saved.

Related Syntax:

- #end

Use the "exit" command to close the current CLI session or return

	to the previous mode without saving the settings.Related Syntax:#exit
	Use the “no sequence” command to delete any entry in management ACL.<1-2147483647>- Specify an index number of the ACL.Related Syntax:#no sequence <1-2147483647>
	Use the “permit” command to create permit rules which bypass the packets meet the rule.<0-255/ icmp/ ipv6/ tcp / udp > - Specify the IP protocol number or enter the name of the protocol.<0-255/ any> - Specify ICMPv6 number./ <0-128> - Specify the source/ destination IPv6 addresses and subnet masks.dscp <0-63> - Set the DSCP filtering by specifying a value for DSCP. precedence <0-7> - Set the cos value and the cos mask for a packet. shutdown - Disable the Ethernet interface.any - Any IP address (as source or destination).<0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> <X:X::X:X> / <0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> - Set TCP port.match-all - Set TCP flags. List of TCP flags that should occur. If a flag should be set, it is p refixed by "+"If a flag should be unset, it is prefixed by "-"Avai lable options are +urg, +ack, +psh, +rst, +syn, +fin, -urg, -ack, -psh, -rst, -syn and -fin.To define more than 1 flag - enter additional flags one after another without a space (example +syn-ack).<0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmtrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> <X:X::X:X> / <0-128> <0-65535/ PORT_RANGE / any / bootpc / bootps / discard / domain / echo / nameserver / netbios-ns / ntp / rip / snmp / snmtrap / sunrpc / syslog / tacacs-ds / talk / tftp / time / who> - Set UDP port.Related Syntax:#permit <0-255> <X:X::X:X> / <0-128> <X:X::X:X> / <0-128>#permit <0-255> <X:X::X:X> / <0-128> <X:X::X:X> / <0-128>dscp <0-63>#permit <0-255> <X:X::X:X> / <0-128> <X:X::X:X> / <0-128>dscp <0-63> shutdown#permit <0-255> <X:X::X:X> / <0-128> <X:X::X:X> / <0-128> precedence <0-7>#permit <0-255> <X:X::X:X> / <0-128> <X:X::X:X> / <0-128> precedence <0-7> shutdown#permit <0-255> <X:X::X:X> / <0-128> shutdown#permit <0-255> <X:X::X:X> / <0-128> any dscp <0-63>#permit <0-255> <X:X::X:X> / <0-128> any dscp <0-63> shutdown#permit <0-255> <X:X::X:X> / <0-128> any precedence <0-7>#permit <0-255> <X:X::X:X> / <0-128> any

precedence <0-7>shutdown
- # permit <0-255> /<0-128> any shutdown - permit icmp /<0-128> /<0-128> <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/ any> dscp <0-63>
- # permit icmp /<0-128> /<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/ any> dscp <0-63> shutdown
- # permit icmp /<0-128> /<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded><0-255/ any> precedence <0-7>
- # permit icmp /<0-128> /<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/ any> precedence <0-7> shutdown
- # permit icmp /<0-128> /<0-128><0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255/ any> shutdown
- # permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 / any> dscp <0-63>
- # permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 / any> dscp <0-63> shutdown
- # permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 / any> precedence <0-7>
- # permit icmp / <0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 / any> precedence <0-7> shutdown
- # permit icmp /<0-128> any <0-255 / any / destination-unreachable / echo-reply / echo-request / nd-na / nd-ns / packet-too-big/ parameter-problem/ router-advertisement / router-solicitation / time-exceeded> <0-255 / any> shutdown
- # permit ipv6 /<0-128> /<0-128>
- # permit ipv6 /<0-128> /<0-128> dscp <0-63>
- # permit ipv6 /<0-128> /<0-128> dscp <0-63> shutdown

• # permit ipv6 /<0-128> /<0-128> precedence <0-7>
• # permit ipv6 /<0-128> /<0-128> precedence <0-7> shutdown
• # permit ipv6 /<0-128> /<0-128> shutdown
• # permit ipv6 /<0-128> any dscp <0-63>
• # permit ipv6 /<0-128> any dscp <0-63> shutdown
• # permit ipv6 /<0-128> any precedence <0-7>
• # permit ipv6 /<0-128> any precedence <0-7>shutdown
• # permit ipv6 /<0-128> any shutdown
• # permit ipv6 any /<0-128>
• # permit ipv6 any /<0-128> dscp <0-63>
• # permit ipv6 any /<0-128> dscp <0-63> shutdown
• # permit ipv6 any /<0-128> precedence <0-7>
• # permit ipv6 any /<0-128> precedence <0-7> shutdown
• # permit ipv6 any /<0-128> shutdown
• # permit ipv6 any any
• # permit ipv6 any any dscp <0-63>
• # permit ipv6 any any dscp <0-63> shutdown
• # permit ipv6 any any precedence <0-7>
• # permit ipv6 any any precedence <0-7> shutdown
• # permit ipv6 any any shutdown
• # permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>
  # permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> dscp <0-63>
• # permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>dscp <0-63> shutdown
• #deny tcp /<0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 /

smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> / <0-128> <0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all dscp <0-63>

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all dscp <0-63> shutdown

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all precedence <0-7>

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all precedence <0-7> shutdown

- # permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> match-all shutdown

- # permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> precedence <0-7>

# permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www> precedence <0-7> shutdown

- # permit tcp /<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data / hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc / syslog / tacacs-ds / talk / telnet / time / whois / www>/<0-128><0-65535 / PORT_RANGE / any / daytime / discard / domain / drip / echo / ftp / ftp-data/

	hostname / klogin / kshell / pop2 / pop3 / smtp / sunrpc /syslog / tacacs-ds / talk / telnet / time / whois / www>shutdown# permit udp/ <0-128> <0-65535/PORT_RANGE/ any / bootpc / bootps / discard / domain / echo/ nameserver / netbios-ns / ntp / rip / snmp / snmptrap /sunrpc / syslog / tacacs-ds / talk / tftp / time / who>/<X::X:X/><0-128> <0-65535/ PORT_RANGE / any / bootpc /bootps / discard / domain / echo / nameserver / netbios-ns /ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk/tftp / time / who><config-ipv6-acl># permit udp/ <0-128> <0-65535/PORT_RANGE/ any / bootpc / bootps / discard / domain / echo/ nameserver / netbios-ns / ntp / rip / snmp / snmptrap /sunrpc / syslog / tacacs-ds / talk / tftp / time / who><X::X:X/><0-128> <0-65535/ PORT_RANGE / any / bootpc /bootps / discard / domain / echo / nameserver / netbios-ns /ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk/tftp / time / who> dscp <0-63>
	# permit udp/ <0-128> <0-65535/PORT_RANGE/ any / bootpc / bootps / discard / domain / echo/ nameserver / netbios-ns / ntp / rip / snmp / snmptrap /sunrpc / syslog / tacacs-ds / talk / tftp / time / who><X::X:X/><0-128> <0-65535/ PORT_RANGE/ any / bootpc /bootps / discard / domain / echo / nameserver / netbios-ns /ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk/tftp / time / who> dscp <0-63> shutdown
	# permit udp/ <0-128> <0-65535/PORT_RANGE/ any / bootpc / bootps / discard / domain / echo/ nameserver / netbios-ns / ntp / rip / snmp / snmptrap /sunrpc / syslog / tacacs-ds / talk / tftp / time / who><X::X:X/><0-128> <0-65545/ PORT_RANGE / any / bootpc /bootps / discard / domain / echo / nameserver / netbios-ns /ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk/tftp / time / who> dscp <0-63> precedence <0-7>
	# permit udp/ <0-128> <0-65535/PORT_RANGE/ any / bootpc / bootps / discard / domain / echo/ nameserver / netbios-ns / ntp / rip / snmp / snmptrap /sunrpc / syslog / tacacs-ds / talk / tftp / time / who><X::X:X/><0-128> <0-6535/ PORT_RANGE / any / bootpc /bootps / discard / domain / echo / nameserver / netbios-ns /ntp / rip / snmp / snmptrap / sunrpc / syslog / tacacs-ds / talk/tftp / time / who> dscp <0-63> precedence <0-7> shutdown
	# permit udp/ <0-128> <0-65535一年多y
	Use the “sequence” command to deny or permit the ACL.<1-2147483647> - Enter the sequence of ACL entry. The sequencerepresents the priority of the ACE in the ACL.Related Syntax:#sequence <1-2147483647> deny#sequence <1-2147483647> permit
	Use the “show acl” command to list current status of the selectedACL.
ipv6 mld Use this command to	set MLD configuration.profile <1-128> - Use it to enter profile configuration.snooping - Use it to enable MLD snooping function.forward-method -report-suppression - Use it to enable MLD snoopingreport-suppression function.unknown-multicast action- Use it to setunknown multicast action.version <1/ 2> - Use it to change MLD support version.

vlan <1-4094> - Use it to enable MLD on VLAN. Specify a VLAN ID for configuration.

forbidden-port GigabitEthernet <1-50> - Specify a physical port.

forbidden-port LAG <1-8> - Specify a LAG port.

forbidden-router-port GigabitEthernet <1-50> - Use it to add static forbidden router port. Specify a physical port.

forbidden-router-port LAG <1-8> - Use it to add static forbidden router port. Specify a LAG port.

immediate-leave - Use it to enable fastleave function.

last-member-query-count <1-7> - Use it to change how many query packets will send. Specify the last member query count. Default is 2.

last-member-query-interval <1-25> - Use it to set interval between each query packet. Specify the last member query interval. Default is 1.

query-interval <30-18000> - Use it to set interval between each query. Specify the query interval. Default is 125.

response-time <5-20> - Use it to set response time. Specify a time value. Default is 10.

robustness-variable <1-7> - Specify a robustness-variable value. Default is 2.

router learn pim-dvmrp - Use it to enable learning router port by routing protocol packets (DVMRP).

static-group interfaces gigabitethernet <1-50> - Use it to add a static group. Specify a physical port.

static-group interfaces LAG <1-8> - Use it to add a static group. Specify a LAG port.

static-port gigabitethernet <1-50>- Use it to add static forwarding port. Specify a physical port.

static-port LAG <1-8>- Use it to add static forwarding port. Specify a LAG port.

static-router-port GigabitEthernet <1-50> - Use it to add static router port. All query packets will forward to the specified port. Specify a physical port.

static-router-port LAG <1-8> - Use it to add static router port. All query packets will forward to the specified port. Specify a LAG port.

Related Syntax:

<config>#ipv6 mld profile <1-128>
    <config-mld-profile># do
    <config-mld-profile># end
    <config-mld-profile># exit
    <config-mld-profile># profile range ipv6 <X:X::X:X> action <deny/ permit>
    <config-mld-profile># profile range ipv6 <X:X::X:X> <X:X::X:X>
    <config-mld-profile># profile range ipv6 <X:X::X:X> <X:X::X:X> action <deny/ permit>
    <config-mld-profile># show

- #ipv6 mld snooping

#ipv6 mld snooping forward-method

- #ipv6 mld snooping report-suppression

#ipv6 mld snooping unknown-multicast action

- #ipv6 mld snooping version <1/2>

- #ipv6 mld snooping vlan <1-4094>

#ipv6 mld snooping vlan <1-4094> forbidden-port GigabitEthernet <1-50>

#ipv6 mld snooping vlan <1-4094> forbidden-port LAG <1-8>#ipv6 mld snooping vlan <1-4094> forbidden-router-port GigabitEthernet <1-50>#ipv6 mld snooping vlan <1-4094> forbidden-router-port LAG <1-8> #ipv6 mld snooping vlan <1-4094> immediate-leave #ipv6 mld snooping vlan <1-4094> last-member-query-count <1-7>#ipv6 mld snooping vlan <1-4094> last-member-query-interval <1-25>#ipv6 mld snooping vlan <1-4094> query-interval <30-18000>#ipv6 mld snooping vlan <1-4094> response-time <5-20>#ipv6 mld snooping vlan <1-4094> robustness-variable <1-7>#ipv6 mld snooping vlan <1-4094> router learn pim-dvmrp#ipv6 mld snooping vlan <1-4094> static-groupX:X::X:X> interfaces gigabitethernet <1-50>#ipv6 mld snooping vlan <1-4094> static-groupX:X::X:X> interfaces LAG <1-8>#ipv6 mld snooping vlan <1-4094> static-port gigabitethernet <1-50>#ipv6 mld snooping vlan <1-4094> static-port LAG <1-8>#ipv6 mld snooping vlan <1-4094> static-router-port GigabitEthernet <1-50>#ipv6 mld snooping vlan <1-4094> static-router-port LAG <1-8>

Example

P2500# configure
P2500(config)#
P2500(config)# ipv6 mld snooping vlan 33
P2500(config)# ipv6 acl CA_v6
P2500(config-ipv6-acl)# deny 3 00:50::32:ff/24 00:50::78:aa/32

Telnet Command: jumbo-frame

Use this command to modify the maximum frame size of jumbo frame.

Syntax Items

jumbo-frame

Description

Syntax Items Description
jumbo-frame Enable the function of jumbo frame.
	●# jumbo-frame <1518-10000>

Example

P2500# configure
P2500(config)#
P2500(config)# jumbo-frame 8000
P2500(config)#

Telnet Command: Iacp

Use this command to set the system priority of the switch.

Syntax Items

Iacp

Iacp system-priority

Description

Syntax Items Description
lacp Enable the function.
lacp system-priority	It is used for selecting a master switch between two devices. Lower system priority has higher priority. The device with higher priority value can determine which port is able to join LAG.<1-65535>- Specify the system priority value.Related Syntax:# lacp# lacp system-priority <1-65535>

Example

P2500# configure
P2500(config)#
P2500(config)# lacp system-priority 1000
P2500(config)#

Telnet Command: lag

LAG port can transmit packets to all ports for balancing the traffic loading. Use this command to change the load balance algorithm to src-dst-mac or src-dst-mac-ip as the Load Balance policy.

Syntax Items

lag load-balance

Description

Syntax Items Description
lag load-balance	LAG load balancing is based on source and destination MAC address and/ or IP address.Related Syntax:# lag load-balance src-dst-mac# lag load-balance src-dst-mac-ip

Example

P2500# configure
P2500(config)#

Telnet Command: line

Use this command to select line configuration mode.

Syntax Items

line console

line ssh

line telent

Description

Syntax Items Description
console/ssh/telnet	Select console configuration mode.To configure detailed settings, access into next level.#lineconsole - Select the console line to configure. Then, available sub-commands are:#do#exec-timeout#exit#history#no#password-thresh#silent-time
	Select SSH line to configure. Then, available sub-commands are:#do#end#exec-timeout#exit#password-thresh#silent-time
	telnet - Select telnet line to configure. Then, available sub-commands are:#do#end#exec-timeout#exit#password-thresh#silent-time
#do	Use the “do” command to run execution command in current mode.-Related Syntax:#do
#exec-timeout Use the “exec-timeout” to set the session timeout configuration.<0-65535> - Enter the number.Related Syntax:
	#exec-timeout <0-65535>
#exit	Use the “exit” command to close the current CLI session or return to the previous mode without saving the settings.Related Syntax:#exit
#history	Use the “history” command to specify the index number of history.<1-256>- Enter a number.Related Syntax:#history <1-256>
#no Use the “no” command to	negate line command.Related Syntax:#no enable#no history#no login
#password-thresh Use the “	password-thresh” command to set the login password intrusion threshold.<0-120>- Set a number of allowed password attempts. 0 means no threshold.Related Syntax:#password-thresh <0-120>
#silent-time Use the “silent-time”	time” command to set fail silent time.<0-65535>- Set the time to disable the console response.Related Syntax:#silent-time <0-65535>

Example

P2500# configure
P2500(config)#
P2500(config)# line telnet
P2280x(config-line)#

Telnet Command: Ildp

Use this command to set LLDP function.

Syntax Items

Ildp

Ildp holdtime-multiplier

Ildp Ildpdu

Ildp med

lldp reinit-delay

Ildp tx-delay

Ildp tx-interval

Description

Syntax Items Description
Ildp Enable the function of LLDP.
Ildp holdtime-multiplier	Set the multiplier used for calculating the LLDP discovery packet hold time.<2-10> - Set the LLDP hold time multiplier.Related Syntax:# Ildp holdtime-multiplier <2-10>
Ildp Ildpdu bridging - The LLDP packets will be bridging when LLDP is disabledPeopleding - The LLDP packets will be filtered and deleted when LLDP is disabled.flooding - The LLDP packets will be flooded and forwarded to all interfaces when LLDP is disabled.Related Syntax:# Ildp Ildpdu bridging# Ildp Ildpdu filtering# Ildp Ildpdu flooding
Ildp med	med fast-start-repeat-count - Set the LLDP PDU fast start TX repeat count.med network-policy - Set the LLDP MED network policy table.med network-poicy voice auto - Enable the network policy voice auto mode.<1-10> - Set the fast start repeat count.<1-32> - Specify the index number of the policy.appAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp AppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp appsAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp appAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppAppApp	Related Syntax:# Ildp med fast-start-repeat-count <1-10># Ildp med fast-start-repeat-count <1-10># Ildp med network-policy <1-32> app<guest-voice/gust-voice-signaling / softphone-voice / streaming-video / video-conferencing / video-signaling / voice / voice-signaling >vlan <1-4094> vlan-type <tag/ untag> priority <0-7> dscp <0-63> - Specify the DSCP value.Related Syntax:# Ildp med network-poicy voice auto
Ildp rinit-delay Set the LLDP re-initial delay to avoid LLDP generating too many PDU.<1-10> - Specify a number for LLDP server to initialize.Related Syntax:# Ildp rinit-delay <1-10>
Ildp tx-delay Set the delay time between the successful LLDP frame transmissions.<1-8191> - Enter the number of delay time.Note that both tx-interval and tx-delay will affect the LLDP PDU TX time.Related Syntax:# Ildp tx-delay <1-8191>
Ildp tx-interval Set the LLDP TX interval.<5-32767> - Enter the interval in unit of second.Related Syntax:

- # lldp tx-interval <5-32767>

Example

P2500# configure
P2500(config)#
P2500(config)# lldp med network-policy 30 app guest-voice vlan 30 vlan-type
untag priority 3 dscp
P2500(config)#

Telnet Command: logging

Use this command to set logging service on VigorSwitch.

Syntax Items

logging

logging buffered

logging console

logging file

logging host

Description

Syntax Items Description
logging Enable the logging service.
logging buffered Store the log message in the RAM.
logging console Specify the logging level.<0-7> - Specify the logging level by entering a number (from EMEGR-DEBUG).Related Syntax:# logging console# logging console severity <0-7>
logging file Store the log message in the flash.<0-7> - Specify the logging level by entering a number (from EMEGR-DEBUG).Related Syntax:# logging file severity <0-7>
logging host Define the logging server.host- Enter an IP address of the remote (or local) server.facility-Specify the facility parameter for the syslog message.port <1-65535>- Enter a number for the remote server. Default is 514.severity <0-7>- Specify the logging level by entering a number (from EMEGR-DEBUG).- Define a name as the host.Related Syntax:#logging hostfacility#logging hostport <1-65535>#logging hostport <1-65535> facility
	#logging host port <1-65535> severity <0-7> facility
	#logging host severity <0-7> facility
	#logging host facilityport <1-65535>
	#logging host port <1-65535> facility
	#logging host port <1-65535> severity <0-7> facility
	#logging host severity <0-7> facility
	#logging host facilityport <1-65535>
	#logging host port <1-65535> facility
	#logging host port <1-65535> severity <0-7> facility

Example

P2500# configure
P2500(config)#
P2500(config)# logging host aa:00::1a:FF facility local1

Telnet Command: logmail

Use this command to configure log mail.

Syntax Items

logmail active logmail auth logmail category logmail encry logmail password logmail port logmail receiver logmail sender logmail server logmail username

Description

Syntax Items Description
logmail active	- Enable or disable the function of log mail.Related Syntax:# logmail active
logmail auth	- Enable or disable the function of SMTP server authentication.Related Syntax:# logmail auth
logmail category	AUTHMGR, CABLE_DIAG, DAI, DHCP_SNOOPING, GVRP, IGMP_SNOOPING, IPSG, L2, LLDP, Mac-based, Mirror, MLD_SNOOPING, Platform, PM, POE, Port, PORT_SECURITY, QoS, Rate, SNMP, STP, Security, System, Surveillance, Trunk, UDLD, VLAN,CLEAR> - Specify one type for the logmail.Related Syntax:# logmail category- Specify the encryption type for mail alert.Related Syntax:# logmail encry
logmail encry
logmail password	- Enter the password for SMTP server authentication.Related Syntax:# logmail password
logmail port <0-65535>- Enter a port number.Related Syntax:# logmail port <0-65535>
logmail receiver Specify an address for receiving the alert mail.- Enter the email address of the receiver.Related Syntax:# logmail receiver
logmail sender Specify an address which sends out the alert mail.- Enter the email address of the sender.Related Syntax:# logmail
logmail server Set the IP address of the server.- Enter the IP address of the SMTP server.Related Syntax:# logmail server
logmail username - Enter the username authenticated by STMP server.Related Syntax:# logmail username

Example

P2500# configure
P2500(config)#
P2500(config)# logmail receiver [e-mail]
P2500(config)#

Telnet Command: loop-protection

Use this command to set loop-protection.

Syntax Items

loop-protection action loop-protection periodicTime loop-protection state

Description

Syntax Items Description
loop-protection action Specify an action to be taken when the loop is happened.
	- Specify one action to be executed.Related Syntax:# loop-protection action
loop-protection periodicTime	Send the loop protection packets to the network hosts.<1-3>- Enter the number of the packet.Related Syntax:# Related Syntax:# loop-protection periodicTime <1-3>
loop-protection state	- Enable or disable the function of loop protection.Related Syntax:# loop-protection state

Example

P2500# configure
P2500(config)#
P2500(config)# loop-protection state enable
P2500(config)#

Telnet Command: mac

Use this command to create a MAC access list.

Syntax Items

mac acl mac address-table

Description

Syntax Items Description
mac acl	- Set the name of the access list (ACL).To configure detailed settings, enter the name of ACL to access intonext level.#mac aclThen, available sub-commands are:#deny#do#end#exit#permit#sequence
	Use the “deny” command to add deny rules for the MAC access list:// -Specify the source and destination MAC addresses and subnet masks.cos <0-7><0-7> - Set the cos value and the cos mask for a packet.<0x0600-0xFFFF> - Set the EtherType of the packet.Shutdown - Disable the Ethernet interface.vlan <1-4094> - Specify the VLAN ID of the packet.any - Any MAC address.Related Syntax:● #deny/ cos <0-7><0-7>

●	<config-mac-acl>#deny/

Use the "do" command to run execution command in current mode. -

Related Syntax:

- #do

Use the "end" command to finish current mode. Any changes in current mode will be saved.

Related Syntax:

- #end

Use the "exit" command to close the current CLI session or return to the previous mode without saving the settings.

Related Syntax:

- #exit

Use the "no sequence" command to delete any entry in

management ACL.

<1-65535>- Specify an index number of the ACL.

Related Syntax:

- #no sequence <1-65535>

Use the "permit" command to add permit rules which bypass the packets meet the rule.

/ Specify the source and destination MAC addresses and subnet masks.

cos <0-7><0-7> - Set the cos value and the cos mask for a packet.

<0x0600-0xFFFF> - Set the EtherType of the packet.

Shutdown - Disable the Ethernet interface.

vlan <1-4094> - Specify the VLAN ID of the packet.

any - Any MAC address.

Related Syntax:

#permit /cos <0-7><0-7>
#permit / cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#permit /
ethtype <0x0600-0xFFFF>
#permit / vlan <1-4094>
#permit / vlan <1-4094>cos <0-7><0-7>
#permit / vlan <1-4094>cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#permit /vlan <1-4094>ethtype <0x0600-0xFFFF>
#permit any /cos <0-7><0-7>
#permit any /cos <0-7><0-7>ethtype <0x0600-0xFFFF>
#permit any /
ethtype <0x0600-0xFFFF>
#permit any /vlan <1-4094>
#permit any /vlan <1-4094> cos <0-7><0-7>
#permit any /vlan <1-4094> cos <0-7><0-7>ethtype <0x0600-0xFFFF>
#permit any /vlan <1-4094> ethtype <0x0600-0xFFFF>

Use the "sequence" command to deny or permit the ACL.

<1-2147483647> - Enter the sequence index ACE. The sequence represents the priority of the ACE in the ACL.

/ Specify the source and destination MAC addresses and subnet masks.

cos <0-7><0-7> - Set the cos value and the cos mask for a packet.

<0x0600-0xFFFF> - Set the EtherType of the packet.

shutdown - Disable the Ethernet interface.

vlan <1-4094> - Specify the VLAN ID of the packet.

any - Any MAC address.

Related Syntax:

- #sequence <1-2147483647>deny < A:B:C:D:E:F>// cos <0-7><0-7>

#sequence <1-2147483647>deny //

cos <0-7><0-7> ethtype <0x0600-0xFFFF>
- #sequence <1-2147483647>deny < A:B:C:D:E:F>/< A:B:C:D:E:F>// cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny /// cos <0-7><0-7> shutdown
#sequence <1-2147483647>deny /// ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny /// ethtype <0x0600-0xFFFF> shutdown
- #sequence <1-2147483647>deny < A:B:C:D:E:F>/< A:B:C:D:E:F>/ shutdown
#sequence <1-2147483647>deny any // cos <0-7><0-7>
#sequence <1-2147483647>deny any // cos <0-7><0-7> ethtype <0x0600-0xFFFF>
- #sequence <1-2147483647>deny any < A:B:C:D:E:F>/// cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any // cos <0-7><0-7> shutdown
- #sequence <1-2147483647>deny any any cos <0-7><0-7>
#sequence <1-2147483647>deny any any cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any any cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any any cos <0-7><0-7> shutdown
#sequence <1-2147483647>deny any any ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any any ethtype <0x0600-0xFFFF> shutdown
- #sequence <1-2147483647>deny any any shutdown
- #sequence <1-2147483647>deny any any vlan <1-4094>
#sequence <1-2147483647>deny any any vlan <1-4094> cos <0-7><0-7>
#sequence <1-2147483647>deny any any vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any any vlan <1-4094> cos <0-7><0-7> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any any vlan <1-4094> ethtype <0x0600-0xFFFF>
#sequence <1-2147483647>deny any any vlan <1-4094> ethtype <0x0600-0xFFFF> shutdown
#sequence <1-2147483647>deny any any vlan <1-4094> shutdown
- #sequence <1-2147483647>permit < A:B:C:D:E:F>/< A:B:C:D:E:F> < A:B:C:D:E:F>/< A:B:C:D:E:F> cos <0-7><0-7>
#sequence <1-2147483647>permit // cos <0-7><0-7> ethtype <0x0600-0xFFFF>

●#sequence <1-2147483647>permit/#sequence <1-2147483647>permit/#sequence <1-2147483647>permit/#sequence <1-2147483647>permit/#sequence <1-2147483647>permit/#sequence <1-2147483647>permit/#sequence <1-2147483647%

mac address-tableaging-time <10-630>

Set the aging time for an entry remains in the MAC address table. address-table static - Add a static address to the MAC address table to drop the packets with the specified source or destination MAC address. <10-630> - Unit is second. Default is 300. static - Enter the MAC address. vlan <1-4094> - Specify the VLAN ID of the packet. gigabitEthernet <1-50> - Specify a physical port. LAG <1-8> - Specify a LAG port.Related Syntax:# mac address-table aging-time <10-630)# mac address-table staticvlan <1-4094> drop# mac address-table staticvlan <1-4094> interfaces GigabitEthernet <1-50)# mac address-table staticvlan <1-4094> interfaces LAG <1-8>

Example

P2500# configure
P2500(config)# mac acl test_CA
P2500(config-mac-acl)# deny 00:50:00:7f:12:11/00:00:00:00:10:20
00:50:00:aa:bb:cc/00:00:00:00:12:00 cos 3 2 ethtype 0x0600
P2500(config-mac-acl)# deny any 00:50:00:7f:12:11/00:00:00:00:10:20 cos 5 6
ethtype 0x0600
P2500(config-mac-acl)# deny any
P2500(config)# mac address-table static 00:50:07:12:ff:aa vlan 300 drop

Telnet Command: mail alert

Use this command to configure mail alert for various conditions.

Syntax Items

mailalert active

mailalert auth

mailalert devicecheck

mailalert encry

mailalert hwmon

mailalert interval

mailalert ipconflict

mailalert password

mailalert poestatus

mailalert port

mailalert portlink

mailalert portspeed

mailalert receiver

mailalert sender

mailalert server

mailalert sysrestart

mailalert throughputcheck

mailalert username

Description

Syntax Items Description
mailalert active	- Enable or disable the function of mail alert.Related Syntax:# mailalert active
mailalert auth	- Enable or disable the function of SMTP server authentication.Related Syntax:# mailalert auth
mailalert devicecheck	- Enable or disable the function of sending a mail alert when encountering a device check error.Related Syntax:# mailalert devicecheck
mailalert encry Specify the encryption type for mail alert.-Related Syntax:# mailalert encry
mailalert hwmon Send a mail alert when hardware monitor error.- Enable or disable the function.
	Related Syntax:# mailalert hwmon
mailalert interval Set the transmission interval for the mail alert.<1-60>- Unit is second.Related Syntax:# mailalert interval <1-60>
mailalert ipconflict	- Enable or disable the function of sending a mail alert if encountering the IP conflict.Related Syntax:# mailalert ipconflict
mailalert password	- Enter the password for SMTP server authentication.Related Syntax:# mailalert password
mailalert poestatus	- Enable or disable the function of sending a mail alert when PoE status is changed.Related Syntax:# mailalert poestatus
mailalert port <0-65535>- Enter a port number.Related Syntax:# mailalert port <0-65535>
mailalert portlink	- Enable or disable the function of sending an alert when the port Inik status changes.Related Syntax:# mailalert portlink
mailalert portspeed	- Enable or disable the function of sending an alert when the port link speed changes.Related Syntax:# mailalert portspeed
mailalert receiver Specify an address for receiving the alert mail.- Enter the email address of the receiver.Related Syntax:# mailalert receiver
mailalert sender Specify an address which sends out the alert mail.- Enter the email address of the sender.Related Syntax:# mailalert sender
mailalert server	Set the IP address of the server.- Enter the IP address of the SMTP server.Related Syntax:# mailalert server
mailalert sysrestart	-Enable or disable the function of sending a mail alert when the system restarts.Related Syntax:# mailalert sysrestart
mailalert throughputcheck	- Enable or disable the function of sending a mail alert when reaching the throughput threshold.Related Syntax:# mailalert throughputcheck
mailalert username	- Enter the username authenticated by STMP server.Related Syntax:●# mailalert username

Example

P2500# configure
P2500(config)#
P2500(config)# mailalert receiver [e-mail]

Telnet Command: management

Use this command to create a management access list and set configuration mode.

Syntax Items

management access-list management access-class

Description

Syntax Items Description
management access-list	- Enter the name of the access list.To configure detailed settings, enter the name of ACL to access into next level.#management access-listThen, available sub-commands are:#deny#do#end#exit#permit#sequence
	Use the “deny” command to add deny rules for the management access list:GigabitEthernet <1-50> - Specify a physical port.LAG <1-8> - Specify a LAG port.service- Specify the servcie type.ip/ - Specify the source IP address with mask for the packets.ipv6/ <0-128> - Specify the source IPv6 address and prefix length of the packet.Related Syntax:#deny interfaces GigabitEthernet <1-50> service#deny interfaces LAG <1-8> service#deny ip/interfaces GigabitEthernet <1-50> service#deny ipv6/ <0-128> interfaces GigabitEthernet <1-50> service#deny ipv6/ <0-128> interfaces LAG <1-8> service
	Use the “do” command to run execution command in current mode.
	-Related Syntax:#do
	Use the “end” command to finish current mode. Any changes in current mode will be saved.Related Syntax:#end
	Use the “exit” command to close the current CLI session or return to the previous mode without saving the settings.Related Syntax:#exit
	Use the “no sequence” command to delete any entry in management ACL.<1-65535>- Specify an index number of the ACL.Related Syntax:#no sequence <1-65535>
	Use the “permit” command to add permit rules which bypass the packets meet the rule.GigabitEthernet <1-50>- Specify a physical port.LAG <1-8>- Specify a LAG port.service-Specify the servcie type.ip-/ - Specify the source IP address with mask for the packets.ipv6/ <0-128>- Specify the source IPv6 address and prefix length of the packet.Related Syntax:#permit interfaces GigabitEthernet <1-50>service#permit interfaces LAG <1-8>service#permit ip//interfaces GigabitEthernet <1-50>service#permit ip//interfaces LAG <1-8>service#permit ipv6/ <0-128>interfaces GigabitEthernet <1-50>service#permit ipv6/ <0-128>interfaces LAG <1-8>service
	Use the “sequence” command to deny or permit the ACL.<1-65535>- Specify an index number of the ACL.GigabitEthernet <1-50>- Specify a physical port.LAG <1-8>- Specify a LAG port.service-Specify the servcie type.ip-/ - Specify the source IP address with mask for the packets.ipv6/ <0-128>- Specify the source IPv6 address and prefix length of the packet.Related Syntax:#sequence <1-65535>deny interfaces GigabitEthernet <1-50>service●#sequence <1-65535>deny interfaces LAG <1-8>service●#sequence <1-65535>deny ip//interfaces GigabitEthernet <1-50>service●#sequence <1-65535>deny ip//interfaces LAG <1-8>service//http/https/snmp/ssh/telnet●#sequence <1-65535>deny ipv6/X:X:X>/<0-128>interfaces GigabitEthernet <1-50>service//http/https/snmp/ssh/telnet●#sequence <1-65535>deny ipv6/X:X:X>/<0-128>interfaces LAG <1-8>service//http/https/snmp/ssh/telnet●#sequence <1-65535>permit interfaces GigabitEthernet <1-50>service//http/https/snmp/ssh/telnet●#sequence <1-65535>permit interfaces LAG <1-8>service//http/https/snmp/ssh/telnet●#sequence <1-65535>permit ip//interfaces GigabitEthernet <1-50>service//http/https/snmp/ssh/telnet●#sequence <1-65535>permit t ip//interfaces LAG <1-8>service//http/https/snmp/ssh/telnet●#sequence <1-65535>permit ipv6/X:X:X>/<0-128>interfaces GigabitEthernet <1-50>service//http/https/snmp/ssh/telnet●#sequence <1-65535>permit/X:X:X>/<0-128>interfaces LAG <1-8>service//http/https/snmp/ssh/telnet>
management access-class	Specify an ACL as active access-list.- Enter the name of the access list.Related Syntax:●# management access-class

Example

P2500 # configure
P2500(config)#
P2500(config)# management access-list CA_ACL
P2500(config-macl)# deny ip 192.168.2.56/255.255.255.0 interfaces gigabitethernet 3 service telnet
P2500(config-macl)#
P2500(config-macl)# deny ipv6 00:50::7f:3b/24

Telnet Command: management-vlan

Use this command to set VLAN ID for management VLAN.

Syntax Items

management-vlan vlan

Description

Syntax Items Description
management-vlan vlan Set the management VLAN ID.
	<1-4094>- Specify the VLAN ID number of management VLAN.Related Syntax:●# management-vlan vlan <1-4094>

Example

P2500# configure
P2500(config)#
P2500(config)# management-vlan vlan 200
VLAN 200: VLAN does not exist
P2500(config)#

Telnet Command: mirror

Use this command to set the source / destination interface of a port mirror session.

Syntax Items

mirror session

Description

Syntax Items Description

mirror session

Set the destination interface of a port mirror session.<1-4>- Specify the mirror session ID number.GigabitEthernet <1-50>- Specify a physical port as the SPAN destination.allow-ingress - Enable the ingress traffic forwarding.- Specify the mirror direction, TX only, RX only or TX and RX.Related Syntax:# mirror session <1-4>destination interface GigabitEthernet <1-50>allow-ingress# mirror session <1-4>source interfaces GigabitEthernet <1-50>

Example

P2500# configure
P2500(config)#
P2500(config)# mirror session 3 destination interface GigabitEthernet 3 allow
P2500(config)#
P2500(config)# mirror session 3 source interfaces LAG 3 both
P2500(config)#

Telnet Command: mvr

Use this command to enable MVR function and configure related settings.

Syntax Items

mvr

mvr group

mvr mode

mvr query-time

mvr vlan

Description

Syntax Items Description
mvr Enable MVR function.	Related Syntax:# mvr
mvr group Set MVR group address.- Enter an IP address.<1-128>- Specify a number for contiguous series of IPv4 multicast address.Related Syntax:# mvr group<1-128>
mvr mode Set MVR mode as compatible or dynamic.- The switch does not support IGMP dynamic joins on the source ports.- The switch supports MVR membership on the source ports.Related Syntax:# mvr mode
mvr query-time Set query response time for MVR.<1-10>- Specify the response time (second).Related Syntax:# mvr query-time <1-10>
mvr vlan Set a VLAN ID for MVR.<1-4094>- Specify the existed static VLAN ID.Related Syntax:# mvr vlan <1-4094>

Example

P2500# configure
P2500(config)#
P2500(config)# mvr group 192.168.2.33
The operation will delete the MVR VLAN groups include static MVR groups.Continue
? [yes/no]:y
Input Parameter Error
P2500(config)#

Telnet Command: no

Use this command to disable specific command.

Syntax Items

no

Example

P2500# configure
P2500(config)#
P2500(config)# no port-security
P2500(config)#

Telnet Command: openvpn

Use this command to enable/ disable the OpenVPN tunnel.

Syntax Items

openvpn enable

openvpn disable

openvpn filename

Description

Syntax Items Description
enable Enable the OpenVPN tunnel.
disable Disable the OpenVPN tunnel.
filename	- Define a name for OpenVPN configuration.Related Syntax:# openvpn filename

Example

P2500# configure

P2500(config)#

P2500(config)#

Telnet Command: poe

Use this command configure settings for PoE device.

Syntax Items

poe mode

poe schedule

Description

Syntax Items Description
poe mode auto - VigorSwitch	determines the power watts for PoE device based on actual demand.manual - VigorSwitch will supply actual power demand for the PoE device and reserved PD class power for the PoE device none - VigorSwitch does not supply any power for the PoE device.Related Syntax:# poe mode auto# poe mode manual# poe mode none
poe schedule Specify a schedule	for PoE device.global-enable - index <1-50> - Specify the index number of the schedule profiles.Related Syntax:# poe schedule global-enable# poe schedule index <1-50>

Example

P2500# configure
P2500(config)#
P2500(config)# poe

Telnet Command: port-security

Use this command to enable the function of port security.

Syntax Items

port-security

Example

P2500# configure
P2500(config)#
P2500(config)# port-security
P2500(config)#

Telnet Command: qos

Use this command to configure QoS settings.

Syntax Items

qos qos map qos queue qos trust

Description

Syntax Items Description
qos Enable the quality of service based on basic trust type to assign the queue for packets.Related Syntax:# qos
qos map map cos-queue - Set the CoS to queue map.map dscp-queue - Set the DSCP to queue map.map precedence-queue - Set the IP Precedence to queue map.map queue-cos - Modify the queue to CoS map.map queue-dscp - Modify the queue to DSCP map.map queue-precedence - Modify the queue to IP precedence map.<1-8> - Specify the queue number for the following CoS values mapped.<1-8> - Specify the queue number to which the DSCP value shall correspond.<1-8> - Specify the queue number to which the IP precedence value shall correspond.<0-7> - Enter the cos value to which the queue ID shall correspond.<0-7> - Enter the DSCP value to which the queue ID shall
	correspond.<0-7> - Enter the IP precedence value to which the queue ID shall correspond.Related Syntax:# qos map cos-queue SEQUENCE to <1-8># qos map dscp-queue SEQUENCE to <1-8># qos map precedence-queue SEQUENCE to <1-8># qos map queue-cos SEQUENCE to <0-7># qos map queue-dscp SEQUENCE to <0-7># qos map queue-precedence SEQUENCE to <0-7>
qos queue queue strict-priority-num - Set the number of strict priority queue.queue weight SEQUENCE - Set the number of non-strict priority queue.<0-8> - Specify the queue number.<1-127> - Specify a number (1~127)representing queue weight value.Related Syntax:# qos queue strict-priority-num <0-8># qos queue weight SEQUENCE<1-127>	correspond.# qos trust# qos trust
qos trust	Set the trust type, cos, for the device to judge the appropriate queue of the packets.Related Syntax:# qos trust

Example

P2500# configure
P2500(config)#
P2500(config)# qos map cos-queue SEQUENCE to 3
P2500(config)#

Telnet Command: radius

Use this command to configure settings for RADIUS server.

Syntax Items

radius default-config

radius host

Description

Syntax Items Description
radius default-config	Key- Specify key string for RADIUS server.Retransmit <1-10>- Specify the retransmit times (from 1 to 10) for RADIUS server.Timeout <1-30>- Specify the time out value (from 1 to 30) for RADIUS server.Related Syntax:# radius default-config key# radius default-config keyretransmit <1-10># radius default-config keyretransmit <1-10>timeout <1-30># radius default-config retransmit <1-10>

	●# radius default-config retransmit <1-10>timeout<1-30>●# radius default-config timeout <1-30>
radius host host	Specify a domain name or IP address for RADIUS server host.auth-port <0~65535>- Specify a UDP port number for RADIUS server.key-Specify key string for RADIUS server.priority <0~65535>- Specify the priority for RADIUS server.retransmit <1-10>- Specify the retransmit times (from 1 to 10) for RADIUS server.timeout <1-30>- Specify the time out value (from 1 to 30) for RADIUS server.type <802.1x / all / login>- Choose the usage type for 802.1X authentication, or login, or both 802.1X authentication and login of RADIUS type.Related Syntax:●# radius hostauth-port <0~65535>●# radius hostauth-port <0~65535>key●# radius hostauth-port <0~65535>key●# radius hostauth-port <0~65535>key●# radius hostauth-port <0~65535>key●# radius hostauth-port <0~65535>key●# radius hostauth-port <0~65535>key●# radius hostauth-port <0~65535>key●# radius Hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius Hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostskey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostkey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius hostskey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radiusHostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Castkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius HStkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hoskey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius HSKey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Host Key●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Host key●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostkey●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Hostk●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host l●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host k●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Hostm●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Hostn●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host n●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host m●# radius Host min ● # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # N● # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # # #

Example

P2500# configure

P2500(config)#

P2500(config)# radius default-config key 123456789 retransmit 3 timeout 10

P2500(config)# radius host radius auth-port 3000

Telnet Command: schedule

Use this command to set schedule.

Syntax Items

schedule index

Description

Syntax Items Description

schedule index

Specify an index number for configuring detailed settings of a schedule profile.<1-15> - Enter a number to select a schedule profile.- Give a brief description for such profile.cycle-days - The action applied with the schedule will take place every few days.monthly-date - The action applied with the schedule will take place in specified day within a month.once - The action applied with the schedule will take place for one time.weekdays - The action applied with the schedule will take place on a certain day within a week.<1-31> - Enter a number to make action repeat.- Represent month of April, August, December, February, January, July, June, March, May, November, October, and September.- Enter a number as the start date within a month.<2000-2035> - Enter the number as the year of start date.- Enter the hours and the minutes.- Enable (on) or disable (off) the action applied with such profile.Related Syntax:# schedule index <1-15> description# schedule index <1-15> how-often cycle-days <1-31> start-date <1-31> <2000-2035> start-timedurationaction# schedule index <1-15> how-often monthly-date <1-31> start-date <1-31> <2000-2035> start-timeduration# schedule index <1-15> how-often once start-date<1-31> <2000-2035> start-timeaction# schedule index <1-15> how-often weekdayssun / mon / tue / wed / thu / fri / sat> start-date <1-31> <2000-2035> start-timedurationaction

Example

P2500# configure
P2500(config)#
P2500(config)# schedule index 1 how-often cycle-days 3 start-date jan 1 2019
start-time 08:01 duraton 17:30 action on
P2500(config)# schedule index 2 how-often weekdays sun start-date may 11 2019

start-time 02:10 duration 12:10 action on P2500(config)#

Use this command to define SNMP community.

Syntax Items

snmp community snmp engineid snmp group snmp host snmp trap snmp user snmp view

Description

Syntax Items Description
snmp community snmp community	- Set community name for SNMP v1 and v2, and access group name.Available parameters for SNMP community:after community - Enter a string (maximum length: 20 characters) as community name.after group - Enter a string (maximum length: 30 characters) as access group.ro - Set the community as read only.rw - Set the community as read and write.Related Syntax:# snmp communitygroupro# snmp community viewro# snmp community viewrw
snmp engineid snmp engineid	- Set the remote host for SNMP engine.default - Reset to default setting of engine ID for SNMP server.- Such number must be 10 ~ 64 hexadecimal.- Enter the IP address of the remote SNMP server.- Enter the host name of the remote SNMP server.- Enter the IPv6 address for remote SNMP server.Related Syntax:# snmp engineid# snmp engineid default# snmp engineid remote# snmp engineid remote# snmp engineid remote
snmp group snmp group - Set	the SNMP group.- Specify the name of SNMP group.version <1/ 2c/ 3> - Specify the version of SNMP service.- Specify the packet authentication mode. "auth" means to perform packet authentication without encryption. It is applicable for SNMPv3 only. "noauth" means no packet authentication performed. "priv" means to perform packet authentication with encryption and also it is applicable for SNMPv3 only.read-view- Set the view name to enable agent configuration.notify-view- Set the view name to send only trap included in SNMP view for notification.write-view- Set the view name to enable viewing.Related Syntax:# snmp groupversion <1/2c/3><auth/noauth/priv> read-view# snmp groupversion <1/2c/3><auth/noauth/priv> read-viewnotify-view# snmp groupversion <1/2c/3><auth/noauth/priv> read-viewnotify-viewwrite-view
snmp host	snmp host - Set a host to receive SNMP notifications.- Enter the IPv4/IPv6 address or host name of the receipt.version <1/2c/3> - Specify the version of SNMP service.- Set the community name sent with the notification.udp-port <1-65535> - Set the UDP port number.timeout <1-300> - Set the timeout of V2c informs.retries <1-255> - Enter the retry counter of V2c informs.Related Syntax:Set a host to receive SNMP notifications.# snmp hostretries <1-255)# snmp hosttimeout <1-300>retries <1-255)# snmp hostudp-port <1-65535>retries <1-255)# snmp hostudp-port <1-65535>timeout <1-300>
	Set a host to receive SNMP notifications. Notification type is informs.# snmp hostinformsretries <1-255)# snmp hostinformstimeout <1-300)# snmp hostinformstimeout <1-300>retries <1-255)# snmp hostudp-port <1-65535)# snmp hostinformsudp-port <1-65535>retries <1-255)# snmp hostinformsudp-port <1-65535>timeout <1-300)# snmp hostinformsudp-port <1-65535>timeout <1-300>retries <1-255)# snmp hostinforms version <1/2c/3># snmp hostinforms version <1/2c/3><name>retries <1-255)# snmp hostinforms version <1/2c/3><name>timeout <1-300)# snmp hostinforms version <1/2c/3><name>timeout <1-300>retries <1-255)# snmp hostinforms version <1/2c/3><name>udp-port <1-65535)# snmp hostinforms version <1/2c/3><name>retries <1-255># snmp hostinforms version<1/2c/3><NAME>udp-port <1-65535>timeout <1-300># snmp hostinforms version<1/2c/3><NAME>udp-port <1-65535>timeout <1-300>retries<1-255>
	Set a host to receive SNMP notifications. Notification type is traps.# snmp hosttraps# snmp hosttraps <1-255># snmp hosttraps <1-300># snmp hosttraps <1-255># snmp hosttraps version<1/2c/3><NAME>retries <1-255># snmp hosttraps version<1/2c/3><NAME>timeout <1-300>retries <1-255># snmp hosttraps version<1/2c/3><NAME>udp-port <1-65535># snmp hosttraps version<1/2c/3><NAME>udp-port <1-65535>retries <1-255># snmp hosttraps version<1/2c/3><NAME>timeout <1-300># snmp hosttraps version<1/2c/3><NAME>udp-port <1-65535>timeout <1-300>retries<1-255>
	# snmp hostversion <1/2c/3><NAME>retries <1-255># snmp hostversion <1/2c/3><NAME>timeout <1-300># snmp hostversion <1/2c/3><NAME>timeout <1-300>retries <1-255># snmp hostversion <1/2c/3><NAME>udp-port <1-65535># snmp hostversion <1/2c/3><NAME>timeout <1-255># snmp hostversion <1/2c/3><NAME>timeout <1-300># snmp hostversion <1/2c/3><NAME>timeout <1-300>retries <1-255>
	# snmp hostversion <1/2c/3><NAME>retries <1-255># snmp hostversion <1/2c/3><NAME>timeout <1-300># snmp hostversion <1/2c/3><NAME>timeout <1-300>retries <1-255># snmp hostversion <1/2c/3><Name>udp-port <1-65535># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>retries <1-255># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>timeout <1-300># snmp hostversion <1/2c/3><NAME>udp-port <1-65535>timeout <1-300>retries <1-255>
	# snmp host HOSTNAME# snmp host HOSTNAME# snmp host HOSTNAMEtimeout <1-300># snmp host HOSTNAMEtimeout <1-300># snmp host HOSTNAMEtimeout <1-300># snmp host HOSTNAMEudp-port <1-65535># snmp host HOSTNAMEudp-port <1-65535>retries <1-255># snmp host HOSTNAMEudp-port <1-65535>timeout <1-300># snmp host HOSTNAMEudp-port <1-65535>timeout <1-300>retries <1-255>
	# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informstimeout <1-300># snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snpm host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME informs# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# shnsp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HOSNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# smp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp host HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts HostNAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens # snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snpm hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts HOSNAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Open# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# snmp hosts Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s has Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s have Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s show Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s serves Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s receives Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s offers Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s delivers Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8sProvides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s提供 Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s providing Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provide Host NAME Opens# noq 8s provides Host NAME Opens# noq 8s provides Host<1-65535># snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snmp host HOSTNAME informs# snpm host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# # snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HOSTNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp host HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME traps# snmp hosts HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME tract# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp host HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME trac# snmp hosts HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp host HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tracts# snmp hosts HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp host HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME trct# snmp hosts HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp host HostNAME tract# snmp |timeout <1-300># snmp hostudp-port <1-65535>timeout <1-300>retries <1-255># snmp hostinforms# snmp hostinformsretries <1-255># snmp hostinformstimeout <1-300># snmp hostinformsretries <1-255>timeout <1-300>retries <1-255># snmp hostinformsudp-port <1-65535># snmp hostinformsudp-port <1-65535>retries <1-255># snmp hostinformsudp-port <1-65535>timeout <1-300># snmp hostinformsudp-port <1-65535>timeout <1-300>retries <1-255># snmp hosttraps# snmp hosttrapsretries <1-255># snmp hosttrapstimeout <1-300># snmp hosttrapsretries <1-255># snmp hostversion <1/ 2c/ 3>timeout <1-300># snmp hostversion <1/ 2c/ 3>timeout <1-300># snmp hostversion <1/ 2c/ 3>timeout <1-300># snmp hostversion <1/ 2c/ 3>timeout <1-300># snmp hostversion <1/ 2c/ 3>timeout <1-300># snmp hostversion <1/ 2c / 3>timeout <1-300># snmp hostversion <1/ 2c / 3>timeout <1-300># snmp hostversion <1/ 2c / 3>timeout <1-300># snmp hostversion <1/ 2c / 3>timeout <1-300># snmp hostversion <1/ 2c / 3>timeout <1-300># spnptap# snmp host# sepcify a name of SNMP group.
snmp user	snmp user - Set SNMP user account.- Specify a name of SNMP user.- Sepctify a name of SNMP group.auth- Specify the authentication mode, md5 or sha.- Enter the password for the md5/ sha mode.Pri- Enter a password as a privacy key.Related Syntax:# snmp userauth# snmp userauthpriv
snmp view	snmp view - Set the SNMP view.- Enter the SNMP view name.Subtree- Specify the ASN.1 subtree object identifier (OID).oid-mask- Speicfy the OID mask, or use all for all masks.viewtype- Let the selected MIBs include or exclude in the SNMP view.Related Syntax:# snmp view subtreeoid-maskviewtype

Example

P2500# configure
P2500(config)#
P2500(config)# snmp engineid remote 192.168.2.38 00036D001188
P2500(config)# snmp engineid remote 00:50::16:88 00036D002288
P2500(config)# snmp host 192.168.2.89 CAR_community udp-port 1500 timeout 200
P2500(config)# snmp host 192.168.2.88 informs version 2c CAR_community
udp-port 3000 timeout 180 retries 35
P2500(config)# snmp host 192.168.2.88 traps version 2c CAR_traps udp-port 6500
timeout 60 retries 2
P2500(config)# snmp host 192.168.2.88 version 2c CAR_version udp-port 3000
timeout 60 retries 2
P2500(config)# snmp host HOSTNAME CAR_host udp-port 3000 timeout 60 retries
P2500(config)# snmp host HOSTNAME informs HA_informs udp-port 3000 timeout 60
retries 2
P2500(config)# snmp host HOSTNAME version 2c HT_version udp-port 3000 timeout
60 retries 2
P2500(config)# snmp user CA_user_1 CA_group_1 auth md5 CA12345678 priv
PR12345678
P2500(config)# snmp view CAR_community subtree 10 oid-mask 9 viewtype included
P2500(config)#

Telnet Command: sntp

Use this command to configure settings for remote SNTP server.

Syntax Items

sntp host

Description

Syntax Items Description
sntp host	Set the remote SNTP server by specifying IP address or hostname.- Enter the IP address or hostname of SNTP server.<1-65535> - Specify the port number for the SNTP server.Related Syntax:● # sntp host● # sntp hostport <1-65535>

Example

P2500# configure
P2500(config)#
P2500(config)# sntp host KEY1245 port 3000
P2500(config)#

Telnet Command: spanning-tree

Use this command to configure settings for spanning-tree.

Syntax Items

spanning-tree spanning-tree bpdu spanning-tree forward-delay spanning-tree hello-time spanning-tree max-hops spanning-tree maximum-age spanning-tree mode spanning-tree mst spanning-tree pathcost spanning-tree priority spanning-tree tx-hold-count

Description

Syntax Items Description
spanning-tree Enable the function of spanning-tree.Related Syntax:# spanning-tree
spanning-tree bpdu Filter/flood the BPDU packets.- Packets will be filtered when STP is disabled on specified interface.- Packets will be flooded to all interfaces with STP disabled and flooding mode.Related Syntax:# spanning-tree bpdu
spanning-tree forward-delay Set the STP forward delay time.<4-30>- Default value is 15 (seconds).Related Syntax:# spanning-tree forward-delay <4-30>
spanning-tree hello-time Set the hello time interval to broadcast the message to other bridges.<1-10>- Default value is 2 (seconds).Related Syntax:# spanning-tree hello-time <1-10>
spanning-tree max-hops	Set the number of hops for BPDI packets to be forwarded in the MSTP region.<1-40> - Default value is 20 (seconds).Related Syntax:# spanning-tree max-hops <1-40>
spanning-tree maximum-age	Set the time interval for VigorSwitch to wait without receiving the configuration message.<6-40> - Default value is 20 (seconds).Related Syntax:# spanning-tree maximum-age <6-40>
spanning-tree mode	-Specify the operation mode for spanning tree, such as multiple spanning tree (MSTP), rapid spanning tree (RSTP) or spanning tree (STP).Related Syntax:# spanning-tree mode
spanning-tree mst	spanning-tree mst - Configure port priority settings for MST.<0-15> - Specify the instance ID.<0-61440> - Set the priority for the specified instance ID.Related Syntax:# spanning-tree mst <0-15> priority <0-61440>
	spanning-tree mst configuration - Access into the MSTP configuration mode. To configure detailed settings, access into next level.# spanning-tree mst configuration# then, available sub-commands are:# do# end# exit# instance# name# no# revisiondo - Enter the action to be performed.end - End current mode.exit - Exit from current mode.instance <0-15> vlan <1-4094> - Specify the instance ID number and VLAN ID number.name - Set a name of MST configuration.no - Set to default setting.revision <0-65535> - Set revision level.
spanning-tree pathcost Set the path-cost method for spanning tree.- Long means the path cost ranging from 1 to 200000000; short means the path cost ranging from 1 to 65535.Related Syntax:# spanning-tree pathcost method
spanning-tree priority Set the priority for the specified instance ID.<0-61440> - The number must be multiple of 4096.Related Syntax:# spanning-tree priority <0-61440>
spanning-tree tx-hold-count	Set the maximum number of packets transmission per second. <1-10> - Valid range is from 1 to 10.Related Syntax:# spanning-tree tx-hold-count <1-10>

Example

P2500# configure

P2500(config)#

P2500(config)# spanning-tree forward-delay 20

P2500(config)#

P2500(config)# spanning-tree maximum-age 38

P2500(config)#

P2500(config)# spanning-tree tx-hold-count 3

P2500(config)#

Telnet Command: start-up

Use this command to restart ICP status after rebooting VigorSwitch.

Syntax Items

start-up icp

Description

Syntax Items Description
start-up icp	Related Syntax:# start-up icp enable

Example

P2500# configure

P2500(config)#

P2500(config)# start-up icp enable

P2500(config)#

Telnet Command: storm-control

Use this command to configure settings for Storm Control.

Syntax Items

storm-control ifg exclude storm-control ifg include storm-control unit bps storm-control unit pps

Description

Syntax Items Description
storm-control ifg exclude Exclude	Include the preamble and IFG (inter frame gap) into the calculating.Related Syntax:# storm-control ifg exclude
storm-control ifg include	Include the preamble and IFG (inter frame gap) into the calculating.Related Syntax:# storm-control ifg include
storm-control unit bps Change	the unit of calculating method for storm-control.bps - Calculate the storm control rate by octet-based.Related Syntax:# storm-control unit bps
storm-control unit pps Change	the unit of calculating method for storm-control.pps - Calculate the storm control rate by packet-based.Related Syntax:# storm-control unit pps

Example

P2500# configure
P2500(config)#
P2500(config)# storm-control ifg exclude
P2500(config)#
P2500(config)# storm-control unit bps
P2500(config)#

Telnet Command: surveillance-vlan

Use this command to configure settings for surveillance-VLAN.

Syntax Items

surveillance-vlan surveillance-vlan aging-time surveillance-vlan cos surveillance-vlan oui-table surveillance-vlan vlan

Description

Syntax Items Description
surveillance-vlan Enable the function of surveillance VLAN on VigorSwitch.Related Syntax:# surveillance-vlan
surveillance-vlan aging-time Set the aging time for surveillance VLAN.<30-65536> - Enter a value as aging time.Related Syntax:# surveillance-vlan aging-time <30-65536>
surveillance-vlan cos Set the class of service (0~7) for surveillance VLAN.<0-7>- Enter a number.Related Syntax:# surveillance-vlan cos <0-7> remark
surveillance-vlan oui-table	Enable OUI surveillance VLAN configuration for specified interface.- Enter the OUI address (e.g., 00:50:12).- Enter a string to briefly explain the surveillance VLAN.Related Syntax:●# surveillance-vlan oui-table
surveillance-vlan vlan Specify a VLAN profile as surveillance VLAN.<2-4094>- Specify the surveillance VLAN ID.Related Syntax:●# surveillance-vlan vlan <2-4094>

Example

P2500# configure
P2500(config)#
P2500(config)#
P2500(config)# surveillance-vlan aging-time 60
P2500(config)#
P2500(config)# surveillance-vlan oui-table 00:50:12 fortestonly
P2500(config)#

Telnet Command: system

Use this command to modify the contact information of VigorSwitch.

Syntax Items

system contact

system location

system name

Description

Syntax Items Description
system contact	- Enter a string (maximum length: 256 characters).Related Syntax:# system contact
system location	- Specify the location of the host.Related Syntax:# system location
system name	- Change the name of the system. The default name is “P1280”.Related Syntax:# system name

Example

P2500# configure
P2500(config)#
P2500(config)# system contact callMIS
P2500(config)#
P2500(config)# system location DrayTek
P2500(config)# system name UPDATEFRIM
UPDATEFRIM(config)#

Telnet Command: tacacs

Use this command to configure TACACS+ server.

Syntax Items

tacacs default-config

tacacs host

Description

Syntax Items Description
tacacs default-config Set the	default parameters for the TACACS+ server.Modify the default parameters of server key and timeout setting for the TACACS+ server.- Enter a string as the TACACS+ server key.<1-30>- Enter a value as the TACACS+ server timeout.Related Syntax:# tacacs default-config# tacacs default-config key# tacacs default-config keytimeout<1-30>
tacacs host Set host name for	the TACACS+ server or set host name, server key and priority for the TACACS+ server.- Enter the host name of the TACACS+ server.- Enter a string as the TACACS+ server key.<0-65535>- Enter a value as server priority in server group.<1-30>- Enter a timeout setting.Related Syntax:# tacacs hostkey# tacacs hostkeypriority <0-65535)# tacacs hostkeytimeout <1-30>

Example

P2500# configure
P2500(config)#
P2500(config)# tacacs default-config key tce00056 timeout 25
P2500(config)#
P2500(config)# tacacs host carrie02 key TA012345 priority 3000 timeout 10
P2500(config)#

Telnet Command: tr069

Use this command to configure parameter settings of TR-069.

Syntax Items

tr069 acsPwd

tr069 acsUsername

tr069 acsurl

tr069 cpeEnable

tr069 cpePwd

tr069 cpeUsername

tr069 cpeport

tr069 healthlinkstatus

tr069 healthpoewarning

tr069 healthspeedstatus
tr069 periodicInfo
tr069 periodicTime Time
tr069 ssl
tr069 stun
tr069 stunMAXkeepalive
tr069 stunMINkeepalive
tr069 stunaddr
tr069 stunport

Description

Syntax Items Description
tr069 acsPwd	- Enter the password used for registering to VigorACS server.Related Syntax:# tr069 acsPwd
tr069 acsUsername	- Enter the username used for registering to VigorACS server.Related Syntax:# tr069 acsUsername
tr069 acsurl	- Enter the URL for VigorACS server.Related Syntax:# tr069 acsurl
tr069 cpeEnable	- Enter Enable for VigorACS controlling such CPE through the Internet.Related Syntax:# tr069 cpeEnable
tr069 cpePwd	- Enter the password that VigorACS server can use it to authenticate and control the CPE device.Related Syntax:# tr069 cpePwd
tr069 cpeUsername	- Enter the username that VigorACS server can use it to authenticate and control the CPE device.Related Syntax:# tr069 cpeUsername
tr069 cpeport	- Enter the port number for CPE.Related Syntax:# tr069 cpeport
tr069 healthlinkstatus	Perform the health check for the link status of specified interface(s).- Specify the interface, such as GE1, GE3-GE5 and so on.Related Syntax:# tr069 healthlinkstatus
tr069 healthpoewarning	Perform the health check for PoE port warning status.- Specify the interface, such as GE1, GE3-GE5 and so on.Related Syntax:●# tr069 healthpoewarning
tr069healthspeedstatus	Perform the health check for link speed status of specified interface(s).- Specify the interface, such as GE1, GE3-GE5 and so on.Related Syntax:●# tr069healthspeedstatus
tr069periodicInfo	<disable/ enable>- Enter Enable to activate periodic information setting.Related Syntax:●# tr069periodicInfo
tr069periodicTime TIME Update the CPE information to VigorACS server.Related Syntax:●# tr069periodicTime TIME
tr069 ssl	<disable/ enable>- Enter Enable to enable CPE management protocol with SSL.Related Syntax:●# tr069 ssl
tr069 stun	<disable/ enable>- Enter Enable to enable CPE management protocol with STUN server.Related Syntax:●# tr069 stun
tr069 stunMAXkeepalive	Set the maximum time period for CPE to send the binding request to VigorACS server.<0-65535>- Enter a number.Related Syntax:●# tr069 stunMAXkeepalive <0-65535>
tr069 stunMINkeepalive	Set the minimum time period for CPE to send the binding request to VigorACS server.<0-65535>- Enter a number.Related Syntax:●# tr069 stunMINkeepalive <0-65535>
tr069 stunaddr-	Enter the URL/IP address of STUN server.Related Syntax:●# tr069 stunaddr
tr069 stunport <0-65535>- Set the port number for STUN server.Related Syntax:●# tr069 stunport <0-65535>

Example

P2500# configure
P2500(config)#
P2500(config)# tr069 stunaddr 192.168.3.99
P2500(config)#

Telnet Command: udId

Use this command to set the time interval of UniDirectional Link Detection (UDLD) sent message.

Syntax Items

udld

Description

Syntax Items Description
udld message time <1-90> - S	Specify a time interval for sending message.
	Related Syntax:
	•#udld message time <1-90>

Example

P2500# configure

P2500(config)# udld message time 35

P2500(config)#

Telnet Command: username

Use this command to add a new user account or edit an existing user account.

Syntax Items

username

Description

Syntax Items Description

username

privilege - Set a user account with the privilege of admin, user or customized level.secret - Set a user account with unencrypted password.secret encrypted - Set a user account with encrypted password.- Enter the name (0~32 characters) of the local user profile.- Specify the privilege level to be admin (privilege 15) / user (privilege 1).- Enter a string as the password for the local user.Related Syntax:# usernameprivilegesecret# username secret# username secret encrypted

Example

P2500# configure

P2500(config)#

P2500(config)# username carrie_1 privilege admin secret md123456

P2500(config)#

P2500(config)# username carrie_1 secret encrypted ca123456

Old password:*****

P2500 (config)#

Telnet Command: vlan

Use this command to configure detailed settings for VLAN profile.

Before configuring, you have to access into next phase. See the following example:

P2500# configure
P2500(config)#
P2500(config)# vlan 3
P2280x(config-vlan)#

Syntax Items

vlan vlan-list

vlan mac-vlan group

vlan protocol-vlan group

Description

Syntax Items Description
vlan	Specify the index number of VLAN profile. To configure detailed settings, access into next level.- The available range is 1 to 4094.# vlan 33# Then, available sub-commands are:#do#end#exit#name
	Use the “do” command to run execution command in current mode.-Related Syntax:#do
	Use the “end” command to finish current mode. Any changes in current mode will be saved.Related Syntax:#end
	Use the “exit” command to close the current CLI session or return to the previous mode without saving the settings.Related Syntax:#exit
	Use the “name” command to add a VLAN profile.- Enter the name of the VLAN profile.Related Syntax:#name
vlan mac-vlan group Create a MAC-vlan group<1-2147483647>- Specify a group ID.- Enter the MAC address to be mapped.<9-48>- Enter a number representing the subnet mask.Related Syntax:#vlan mac-vlan group <1-2147483647>
	mask <9-48>
vlan protocol-vlan group Create a protocol VLAN group with specified protocol type and value.<1-8>- Enter a number to specify a VLAN group.- Specify a frame type by entering Ethernet_ii, 11c_other or snap_1042.- Enter a value (0x0600~0xFFFE).Related Syntax:# vlan protocol-vlan group <1-8> frame-typeprotocol-value	- Enter a number to specify a VLAN group.- Specify a frame type by entering Ethernet_ii, 11c_other or snap_1042.- Enter a value (0x0600~0xFFFE).
	- Enter a value (0x0600~0xFFFE).
	Related Syntax:●# vlan protocol-vlan group <1-8> frame-typeprotocol-value

Example

P2500# configure
P2500(config)# vlan 3
P2500(config-vlan)#
P2500(config-vlan)# name vlan_friends
P2500(config-vlan)#
...
P2500(config)# vlan mac-vlan group 33 00:50:17:22:12:ff mask 10
P2500(config)# vlan group 1 frame-type ethernet_ii protocol-value 0x0600
P2500(config)#

Telnet Command: voice-vlan

Use this command to enable voice VLAN and configure settings for voice VLAN.

Syntax Items

voice-vlan aging-time

voice-vlan cos

voice-vlan oui-table

voice-vlan vlan

Description

Syntax Items Description
voice-vlan aging-time Set the voice VLAN aging timeout interval.<30-65536> - The unit is minute. Default is 1440 (minutes).- Enter the name of the VLAN profile.Related Syntax:# voice-vlan aging-time <30-65536>
voice-vlan cos Set the voice VLAN cos value and remark function.Specify the class of service for voice VLAN.<0-7> - CoS value. Default is 6. Remark is disabled.remark - L2 user priority is remarked with the CoS value.Related Syntax:# voice-vlan cos <0-7> remark
voice-vlan oui-table	Add or remove the selected OUI to/ from the OUI table. In default, there are 8 OUI addresses.- Enter the OUI address.- Enter a brief description for the specified MAC address to the voice VLAN OUI table.Related Syntax:●# voice-vlan cos <0-7> remark
voice-vlan vlan Set the VLAN	identifier of the voice VLAN.<2-4094>- Enter the number of VLAN ID.Related Syntax:●# voice-vlan vlan <2-4094>

Example

P2500# configure
P2500(config)# voice-vlan aging-time 1000
P2500(config)#
P2500(config)# voice-vlan oui-table 22:30:ff test_01
P2500(config)#
P2500(config)# voice-vlan oui-table 00:01:E2 STAMP
P2500(config)# exit
P2500# show voice-vlan interfaces gigabitEthernet 1
Voice VLAN Aging : 1000 minutes
Voice VLAN CoS : 6
Voice VLAN 1p Remark: disabled

OUI table
    OUI MAC | Description
----+----
    00:E0:BB | 3COM
    00:03:6B | Cisco
    00:E0:75 | Veritel
    00:D0:1E | Pingtel
    00:01:E3 | Siemens
    00:60:B9 | NEC/Philips
    00:0F:E2 | H3C
    00:09:6E | Avaya
    22:30:FF | test_01
    00:01:E2 | STAMP

Port | State | Port Mode | Cos Mode
----+----+----+----
gil | Disabled | Auto | Src
P2500#

Telnet Command: webhook

Use this command to enable or disable the webhook service.

Syntax Items

webhook active

webhook host

webhook interval

webhook keep

Description

Syntax Items Description
webhook active- Enable or disable the webhook application.	- Enable or disable the webhook application.Related Syntax:# webhook active
webhook host	Specify the destination (URL, domain name, IP address) to receive the data transferred by VigorSwitch.ip- Enter the IP address of the destination.path- Enter the path string (part of the composition of the URL) of the destination.port- Enter a port number.service-Specify the protocol (http or https) of the destination.url- Enter the domain name (e.g., draytek.com) of the destination. Note that it is not necessary to enter this information if IP address has been set first.Related Syntax:#webhook host ip#webhook host path#webhook host port#webhook host service#webhook host url
webhook interval <1-60>- Set	the transmission interval (unit is minute).Related Syntax:#webhook interval <1-60>
webhook keep	settings- Enable or disable the function of keep webhook settings.Related Syntax:#webhook keep settings

Example

P2500# configure
P2500(config)# webhook host service https
P2500(config)# webhook host url www.demo.com
P2500(config)# webhook host path Draytek/demo
P2500(config)# webhook host port 443
P2500(config)# webhook interval 2

XI-2-4 Copy Configuration

Use this command to upgrade firmware image, configuration file, syslog file, language file and security certificate.

Syntax Items

copy flash://

copy tftp://

copy backup-config

copy running-config

copy startup-config

Description

Syntax Items Description
copy flash://	Related Syntax:# copy flash:// flash://# copy flash:// tftp://
copy running-config	startup-config - Copy the running configuration file to startup configuration.tftp:// - Copy the running configuration file to remote TFTP server with a filename.- Enter the IP address of TFTP sever.- Create a name to save the configuration file.Related Syntax:# copy running-config backup-config# copy running-config startup-config# copy running-config tftp://
copy startup-config	running-config - Copy the startup configuration file to the running configuration.tftp:// - Copy the startup configuration file to remote TFTP server with a filename.- Enter the IP address of TFTP sever.- Create a name to save the configuration file.Related Syntax:# copy startup-config backup-config# copy startup-config running-config# copy startup-config tftp://
copy tftp://	Backup-config - Get the backup configuration from specified TFTP server.running-config - Get the running configuration from specified TFTP server.startup-config - Get the startup configuration from specified TFTP server.Related Syntax:# copy tftp:// backup-config# copy tftp:// flash://# copy tftp:// running-config# copy tftp:// startup-config

- # copy tftp:// tftp://

Example

P2500# copy running-config tftp://172.16.3.8/test_carrie.cfg
Uploading file. Please wait...
Save configuration done.
P2500# copy startup-config tftp://172.16.3.8/test_da.cfg
Uploading file. Please wait...
Save configuration done.
P2500#

XI-2-5 Delete Configuration

Use this command to delete a file from the FLASH file system or restore the factory default settings of VigorSwitch.

Syntax Items

delete backup-config

delete flash:// startup-config

delete startup-config

delete system

Description

Syntax Items Description
delete backup-config	Delete the backup configuration file in FLASH file system.Related Syntax:# delete backup-config
deleteflash://startup-config	Delete the startup configuration file in FLASH file system.Related Syntax:# delete flash://startup-config
delete startup-config Restore	the factory default settings of VigorSwitch.Related Syntax:# delete startup-config
delete system Delete the firmware image0/image1 stored in FLASH file system.-Related Syntax:# delete system

Example

P2500# delet flash://startup-config
Delete flash://startup-config [y/n] y
Do you want to reload the system to take effect? [y/n] y

XI-2-6 Disable Configuration

All commands used will be divided into EXEC mode and Privileged EXEC mode. This command is to turn off privileged mode command.

Default privilege level is 15 if no privilege level is specified on enable command.

Default privilege level is 1 if no privilege level is specified on disable command.

Syntax Items

disable

Description

Syntax Items Description
disable	<1-14> - Enter a number to specify the privilege level.Related Syntax:● # disable <1-14>

Example

P2500# disable ?<1-14> Privilege level<cr>P2500# disable 3P2500#

XI-2-7 End Configuration

Use this command to end current mode.

Syntax Items

end

Example

P2500(config)# interface GigabitEthernet 3

P2280x(config-if)# end

P2500#

XI-2-8 Exit Configuration

Use this command to close current CLI session or return to previous mode.

Syntax Items

exit

Example

P2500(config)# interface GigabitEthernet 3
P2280x(config-if)# exit
P2500(config)#

XI-2-9 Ping Configuration

Use this command to send ICMP ECHO_REQUEST to network hosts.

Syntax Items

ping

Description

Syntax Items Description
ping	- Enter an IPv4/ IPv6 address or a domain name to ping.count <1-999999999>- Specify the number of repetitions of ping operation.Related Syntax:# pingcount <1-999999999>

Example

P2500# ping 192.168.1.11 count 3
PING 192.168.1.11 (192.168.1.11): 56 data bytes
64 bytes from 192.168.1.11: icmp_seq=0 ttl=64 time=0.0 ms
64 bytes from 192.168.1.11: icmp_seq=1 ttl=64 time=0.0 ms
64 bytes from 192.168.1.11: icmp_seq=2 ttl=64 time=0.0 ms

--- 192.168.1.11 ping statistics ---
3 packets transmitted, 3 packets received, 0% packet loss
round-trip min/avg/max = 0.0/0.0/0.0 ms
P2500#

XI-2-10 Reboot Configuration

Use this command to perform a cold restart of VigorSwitch.

Syntax Items

reboot

Example

XI-2-11 Renew Configuration

Use this command to renew DHCP Snooping database from backup file.

Syntax Items

renew ip dhcp snooping database

Example

P2500# renew ip dhcp snooping database
P2500#

XI-2-12 Restore-defaults Configuration

Use this command to restore the factory default settings for the system or for the selected port.

Syntax Items

restore-defaults

Description

Syntax Items Description
restore-defaults <1-50> - Enter the number (1 to 50) of LAN port.<1-8> - Enter the number of LAG port.Related Syntax:# restore-defaults# restore-defaults interfaces GigabitEthernet <1-50># restore-defaults interfaces LAG <1-8>

Example

P2500# restore-defaults interfaces gigabitethernet 3
Interface gi3: restore factory defaults.
P2500#
P2500# restore-default

System: restore factory defaults. Do you want to reboot now? (y/n)y

XI-2-13 Save Configuration

Use this command to save configuration and activate the settings.

Note that this command has the same effect as "copy running-config startup-config".

Syntax Items

save

Example

P2500# save
Success
P2500#

XI-2-14 Show Configuration

After finished the command setting, use this command to display the configuration for all commands.

Syntax Items

show

Example

P2500# show acl utilization
Type: sys usage: 256
Type: IPSG usage: 128
Type: Auth usage: 128
P2500#
P2500#
P2500# show arp
Address HWtype HWaddress Flags Mask Iface
192.168.1.55 ether 00:1D:AA:F0:26:08 C eth0
192.168.1.10 ether 00:05:5D:E4:D8:EE C eth0
P2500# show voice-vlan interfaces gigabitethernet 3
Voice VLAN Aging : 1440 minutes
Voice VLAN CoS : 6
Voice VLAN 1p Remark: disabled
OUI table
OUI MAC | Description
----+
00:E0:BB | 3COM
00:03:6B | Cisco
00:E0:75 | Veritel
00:D0:1E | Pingtel
00:01:E3 | Siemens

00:60:B9 | NEC/Philips
00:0F:E2 | H3C
00:09:6E | Avaya
Port | State | Port Mode | Cos Mode
----+----+----+----
gi3 | Disabled | Auto | Src
P2500#

XI-2-15 SSL Configuration

Use this command to generate security certificate files such as RSA, DSA.

After entering the command of SSL, follow the onscreen questions to give the required information.

Syntax Items

ssl

Example

P2500# ssl
Generating a 1024 bit RSA private key
....++++++
....++++++
writing new private key to '/mnt/ssh/ssl_key.pem_tmp'
----
You are about to be asked to enter information that will be incorporated into your certificate request.
What you are about to enter is what is called a Distinguished Name or a D There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
----
Country Name (2 letter code) [AU]:tw
State or Province Name (full name) [Some-State]:hs
Locality Name (eg, city) []:hschu
Organization Name (eg, company) [Internet Widgits Pty Ltd]:draytek
Organizational Unit Name (eg, section) []:marketing
Common Name (e.g. server FQDN or YOUR name) []:draytek
Email Address []:[e-mail]
P2500#

XI-2-16 Terminal Configuration

Use this command to set the maximum line number that the terminal is able to print.

Syntax Items

terminal

Syntax Description

Syntax Items Description
terminal <0-24> - Enter the length value. 0 means no limit.Related Syntax:# terminal length <0-24>

Example

P2500# terminal length 15

P2500# show running-config

......

XI-2-17 Traceroute Configuration

Use this command to execute network trace route diagnostic.

Syntax Items

traceroute

Syntax Description

Syntax Items Description
traceroute	- Enter the IP address or the hostname of the device for VigorSwitch to perform traceroute diagnostic.Related Syntax:● # traceroute

Example

P2500# traceroute 192.168.1.224traceroute to 192.168.1.224 (192.168.1.224), 30 hops max, 40 byte packets1 192.168.1.224 (192.168.1.224) 0 ms 0 ms 0 msP2500#

XI-2-18 UDLD Configuration

Use this command to reset all interfaces disabled by the UniDirectional Link Detection (UDLD) and make data traffic begin passing through the interfaces again.

Syntax Items

udld

Syntax Description

Syntax Items Description
udld	Enter the IP address or the hostname of the device for VigorSwitch to perform traceroute diagnostic.Related Syntax:● # udld reset

Example

P2500# udld reset

P2500#

This page is left blank.

Appendix: Reference

This chapter will tell you the basic concept of features to manage this switch and how they work.

A-1 What's the Ethernet

Ethernet originated and was implemented at Xerox in Palo Alto, CA in 1973 and was successfully commercialized by Digital Equipment Corporation (DEC), Intel and Xerox (DIX) in 1980. In 1992, Grand Junction Networks unveiled a new high speed Ethernet with the same characteristic of the original Ethernet but operated at 100Mbps, called Fast Ethernet now. This means Fast Ethernet inherits the same frame format, CSMA/CD, software interface. In 1998, Gigabit Ethernet was rolled out and provided 1000Mbps. Now 10G/s Ethernet is under approving. Although these Ethernet have different speed, they still use the same basic functions. So they are compatible in software and can connect each other almost without limitation. The transmission media may be the only problem.

In the above figure, we can see that Ethernet locates at the Data Link layer and Physical layer and comprises three portions, including logical link control (LLC), media access control (MAC), and physical layer. The first two comprises Data link layer, which performs splitting data into frame for transmitting, receiving acknowledge frame, error checking and re-transmitting when not received correctly as well as provides an error-free channel upward to network layer.

This above diagram shows the Ethernet architecture, LLC sub-layer and MAC sub-layer, which are responded to the Data Link layer, and transceivers, which are responded to the Physical layer in OSI model. In this section, we are mainly describing the MAC sub-layer.

Logical Link Control (LLC)

Data link layer is composed of both the sub-layers of MAC and MAC-client. Here MAC client may be logical link control or bridge relay entity.

Logical link control supports the interface between the Ethernet MAC and upper layers in the protocol stack, usually Network layer, which is nothing to do with the nature of the LAN. So it can operate over other different LAN technology such as Token Ring, FDDI and so on. Likewise, for the interface to the MAC layer, LLC defines the services with the interface independent of the medium access technology and with some of the nature of the medium itself.

DSAP address	SSAP address	Control	Information
8 bits	8 bits	8 or 16 bits	M*8 bits

DSAP address	=	Destination service access point address field
SSAP address	=	Source service access point address field
Control	=	Control field [16 bits for formats that include sequence numbering, and 8 bits for formats that do rot (see 5.2)]
Information	=	Information field
*	=	Multiplication
M	=	An integer value equal to or greater than 0. (Upper bound of M is a function of the medium access control methodology used.)

The table above is the format of LLC PDU. It comprises four fields, DSAP, SSAP, Control and Information. The DSAP address field identifies the one or more service access points, in which the I/G bit indicates it is individual or group address. If all bit of DSAP is 1s, it's a global address. The SSAP address field identifies the specific services indicated by C/R bit (command or response). The DSAP and SSAP pair with some reserved values indicates some well-known services listed in the table below.

0xAAAA	SNAP
0xE0E0	Novell IPX
0xF0F0	NetBios
0xFEFE	IOS network layer PDU
0xFFFF	Novell IPX 802.3 RAW packet
0x4242	STP BPDU
0x0606	IP
0x9898	ARP

LLC type 1 connectionless service, LLC type 2 connection-oriented service and LLC type 3 acknowledge connectionless service are three types of LLC frame for all classes of service. In Fig 3-2, it shows the format of Service Access Point (SAP). Please refer to IEEE802.2 for more details.

DSAP address field SSAP address field I/G D D D D D D D C/R S S S S S S S S LED of address Least significant bit Least significant bit of address fields delivered to/ received from the MAC sublayer I/G = 0 Individual DSAP I/G = 1 Group DSAP C/R = 0 Command C/R = 1 Response XODDDDDD DSAP address XOSSSSSS SSAP address X1DDDDDD Reserved for ISO definition X1SSSSSS Reserved for ISO definition

A-2 Media Access Control (MAC)

MAC Addressing

Because LAN is composed of many nodes, for the data exchanged among these nodes, each node must have its own unique address to identify who should send the data or should receive the data. In OSI model, each layer provides its own mean to identify the unique address in some form, for example, IP address in network layer.

The MAC is belonged to Data Link Layer (Layer 2), the address is defined to be a 48-bit long and locally unique address. Since this type of address is applied only to the Ethernet LAN media access control (MAC), they are referred to as MAC addresses.

The first three bytes are Organizational Unique Identifier (OUI) code assigned by IEEE. The last three bytes are the serial number assigned by the vendor of the network device. All these six bytes are stored in a non-volatile memory in the device. Their format is as the following table and normally written in the form as aa-bb-cc-dd-ee-ff, a 12 hexadecimal digits separated by hyphens, in which the aa-bb-cc is the OUI code and the dd-ee-ff is the serial number assigned by manufacturer.

Bit 47 Bit 0

The first bit of the first byte in the Destination address (DA) determines the address to be a Unicast (0) or Multicast frame (1), known as I/G bit indicating individual (0) or group (1). So the 48-bit address space is divided into two portions, Unicast and Multicast. The second bit is for global-unique (0) or locally-unique address. The former is assigned by the device manufacturer, and the later is usually assigned by the administrator. In practice, global-unique addresses are always applied.

A unicast address is identified with a single network interface. With this nature of MAC address, a frame transmitted can exactly be received by the target an interface the destination MAC points to.

A multicast address is identified with a group of network devices or network interfaces. In Ethernet, a many-to-many connectivity in the LANs is provided. It provides a mean to send a frame to many network devices at a time. When all bit of DA is 1s, it is a broadcast, which means all network device except the sender itself can receive the frame and response.

Ethernet Frame Format

There are two major forms of Ethernet frame, type encapsulation and length encapsulation, both of which are categorized as four frame formats 802.3/802.2 SNAP, 802.3/802.2, Ethernet II and Netware 802.3 RAW. We will introduce the basic Ethernet frame format defined by the IEEE 802.3 standard required for all MAC implementations. It contains seven fields explained below.

PRE SFD DA SA Type/Length Data Pad bit if any FCS

7 7 6 6 2 46-1500

4

Preamble (PRE) - The PRE is 7-byte long with alternating pattern of ones and zeros used to tell the receiving node that a frame is coming, and to synchronize the physical receiver with the incoming bit stream. The preamble pattern is:

10101010 10101010 10101010 10101010 10101010 10101010 10101010 10101010

Start-of-frame delimiter (SFD) - The SFD is one-byte long with alternating pattern of ones and zeros, ending with two consecutive 1-bits. It immediately follows the preamble and uses the last two consecutive 1s bit to indicate that the next bit is the start of the data packet and the left-most bit in the left-most byte of the destination address. The SFD pattern is 10101011.

Destination address (DA) - The DA field is used to identify which network device(s) should receive the packet. It is a unique address. Please see the section of MAC addressing.

Source addresses (SA) - The SA field indicates the source node. The SA is always an individual address and the left-most bit in the SA field is always 0.

Length/Type - This field indicates either the number of the data bytes contained in the data field of the frame, or the Ethernet type of data. If the value of first two bytes is less than or equal to 1500 in decimal, the number of bytes in the data field is equal to the Length/ Type value, i.e. this field acts as Length indicator at this moment. When this field acts as Length, the frame has optional fields for 802.3/ 802.2 SNAP encapsulation, 802.3/ 802.2 encapsulation and Netware 802.3 RAW encapsulation. Each of them has different fields following the Length field.

If the Length/ Type value is greater than 1500, it means the Length/ Type acts as Type. Different type value means the frames with different protocols running over Ethernet being sent or received.

For example,

0x0800	IP datagram
0x0806	ARP
0x0835	RARP
0x8137	IPX datagram
0x86DD	IPv6

Data - Less than or equal to 1500 bytes and greater or equal to 46 bytes. If data is less than 46 bytes, the MAC will automatically extend the padding bits and have the payload be equal to 46 bytes. The length of data field must equal the value of the Length field when the Length/ Type acts as Length.

Frame check sequence (FCS) - This field contains a 32-bit cyclic redundancy check (CRC) value, and is a check sum computed with DA, SA, through the end of the data field with the following polynomial.

$$ \mathrm{G} (x) = x ^ {3 2} + x ^ {2 6} + x ^ {2 3} + x ^ {2 2} + x ^ {1 6} + x ^ {1 2} + x ^ {1 1} + x ^ {1 0} + x ^ {8} + x ^ {7} + x ^ {5} + x ^ {4} + x ^ {2} + x + 1 $$

It is created by the sending MAC and recalculated by the receiving MAC to check if the packet is damaged or not.

How does a MAC work?

The MAC sub-layer has two primary jobs to do:

1. Receiving and transmitting data. When receiving data, it parses frame to detect error; when transmitting data, it performs frame assembly.
2. Performing Media access control. It prepares the initiation jobs for a frame transmission and makes recovery from transmission failure.

Frame transmission

As Ethernet adopted Carrier Sense Multiple Access with Collision Detect (CSMA/ CD), it detects if there is any carrier signal from another network device running over the physical medium when a frame is ready for transmission. This is referred to as sensing carrier, also "Listen". If

there is signal on the medium, the MAC defers the traffic to avoid a transmission collision and waits for a random period of time, called backoff time, then sends the traffic again.

After the frame is assembled, when transmitting the frame, the preamble (PRE) bytes are inserted and sent first, then the next, Start of frame Delimiter (SFD), DA, SA and through the data field and FCS field in turn. The followings summarize what a MAC does before transmitting a frame.

1. MAC will assemble the frame. First, the preamble and Start-of-Frame delimiter will be put in the fields of PRE and SFD, followed DA, SA, tag ID if tagged VLAN is applied, Ethertype or the value of the data length, and payload data field, and finally put the FCS data in order into the responded fields.
2. Listen if there is any traffic running over the medium. If yes, wait.
3. If the medium is quiet, and no longer senses any carrier, the MAC waits for a period of time, i.e. inter-frame gap time to have the MAC ready with enough time and then start transmitting the frame.
4. During the transmission, MAC keeps monitoring the status of the medium. If no collision happens until the end of the frame, it transmits successfully. If there is a collision happened, the MAC will send the patterned jamming bit to guarantee the collision event propagated to all involved network devices, then wait for a random period of time, i.e. backoff time. When backoff time expires, the MAC goes back to the beginning state and attempts to transmit again. After a collision happens, MAC increases the transmission attempts. If the count of the transmission attempt reaches 16 times, the frame in MAC's queue will be discarded.

Ethernet MAC transmits frames in half-duplex and full-duplex ways. In halfduplex operation mode, the MAC can either transmit or receive frame at a moment, but cannot do both jobs at the same time.

As the transmission of a MAC frame with the half-duplex operation exists only in the same collision domain, the carrier signal needs to spend time to travel to reach the targeted device. For two most-distant devices in the same collision domain, when one sends the frame first, and the second sends the frame, in worstcase, just before the frame from the first device arrives. The collision happens and will be detected by the second device immediately. Because of the medium delay, this corrupted signal needs to spend some time to propagate back to the first device. The maximum time to detect a collision is approximately twice the signal propagation time between the two most-distant devices. This maximum time is traded-off by the collision recovery time and the diameter of the LAN.

In the original 802.3 specification, Ethernet operates in half duplex only. Under this condition, when in 10Mbps LAN, it's 2500 meters, in 100Mbps LAN, it's approximately 200 meters and in 1000Mbps, 200 meters. According to the theory, it should be 20 meters. But it's not practical, so the LAN diameter is kept by using to increase the minimum frame size with a variable-length non-data extension bit field which is removed at the receiving MAC. The following tables are the frame format suitable for 10M, 100M and 1000M Ethernet, and some parameter values that shall be applied to all of these three types of Ethernet.

Actually, the practice Gigabit Ethernet chips do not feature this so far. They all have their chips supported full-duplex mode only, as well as all network vendors' devices. So this criterion should not exist at the present time and in the future. The switch's Gigabit module supports only full-duplex mode.

416 bytes for 1000Base-X 520 bytes for 1000Base-T Preamble SFD DA SA Length/type Data Pad FCS Extension* 64 bytes

Parameter value/LAN	10Base	100Base	1000Base
Max. collision domain DTE to DTE	100 meters 100 meters for UTP412 meters for fiber	100 meters for UTP316 meters for fiber
Max. collision domain with repeater	2500 meters 205 meters 200 meters
Slot time	512 bit times 512 bit times 512 bit times
Interframe Gap	9.6us	0.96us	0.096us
AttemptLimit	16	16	16
BackoffLimit	10	10	10
JamSize	32 bits 32 bits 32 bits
MaxFrameSize	1518	1518	1518
MinFrameSize	64	64	64
BurstLimit	Not applicable Not applicable 65536 bits

Preamble SFD DA SA Type/Length Data/PAD FCS Extension minFrameSize slotTime FCS Coverage late collision threshold (slotTime) Duration of Carrier Event

In full-duplex operation mode, both transmitting and receiving frames are processed simultaneously. This doubles the total bandwidth. Full duplex is much easier than half duplex because it does not involve media contention, collision, retransmission schedule, padding bits for short frame. The rest functions follow the specification of IEEE802.3. For example, it must meet the requirement of minimum inter-frame gap between successive frames and frame format the same as that in the half-duplex operation.

Because no collision will happen in full-duplex operation, for sure, there is no mechanism to tell all the involved devices. What will it be if receiving device is busy and a frame is coming at the same time? Can it use “backpressure” to tell the source device? A function flow control is introduced in the full-duplex operation.

A-3 Flow Control

Flow control is a mechanism to tell the source device stopping sending frame for a specified period of time designated by target device until the PAUSE time expires. This is accomplished by sending a PAUSE frame from target device to source device. When the target is not busy and the PAUSE time is expired, it will send another PAUSE frame with zero time-to-wait to source device. After the source device receives the PAUSE frame, it will again transmit frames immediately. PAUSE frame is identical in the form of the MAC frame with a pause-time value and with a special destination MAC address 01-80-C2-00-00-01. As per the specification, PAUSE operation can not be used to inhibit the transmission of MAC control frame.

Normally, in 10Mbps and 100Mbps Ethernet, only symmetric flow control is supported. However, some switches (e.g. 24-Port GbE Web Smart Switch) support not only symmetric but asymmetric flow controls for the special application. In Gigabit Ethernet, both symmetric flow control and asymmetric flow control are supported. Asymmetric flow control only allows transmitting PAUSE frame in one way from one side, the other side is not but receipt-and-discard the flow control information. Symmetric flow control allows both two ports to transmit PASUE frames each other simultaneously.

Inter-frame Gap time

After the end of a transmission, if a network node is ready to transmit data out and if there is no carrier signal on the medium at that time, the device will wait for a period of time known as an inter-frame gap time to have the medium clear and stabilized as well as to have the jobs ready, such as adjusting buffer counter, updating counter and so on, in the receiver site. Once the inter-frame gap time expires after the de-assertion of carrier sense, the MAC transmits data. In IEEE802.3 specification, this is 96-bit time or more.

Collision

Collision happens only in half-duplex operation. When two or more network nodes transmit frames at approximately the same time, a collision always occurs and interferes with each other. This results the carrier signal distorted and undiscriminated. MAC can afford detecting, through the physical layer, the distortion of the carrier signal. When a collision is detected during a frame transmission, the transmission will not stop immediately but, instead, continues transmitting until the rest bits specified by jamSize are completely transmitted. This guarantees the duration of collision is enough to have all involved devices able to detect the collision. This is referred to as Jamming. After jamming pattern is sent, MAC stops transmitting the rest data queued in the buffer and waits for a random period of time, known as backoff time with the following formula. When backoff time expires, the device goes back to the state of attempting to transmit frame. The backoff time is determined by the formula below. When the times of collision is increased, the backoff time is getting long until the collision times excess 16. If this happens, the frame will be discarded and backoff time will also be reset.

$$ 0 \leq r < 2 ^ {k} $$

where

$$ k = \min (n, 1 0) $$

Frame Reception

In essence, the frame reception is the same in both operations of half duplex and full duplex, except that full-duplex operation uses two buffers to transmit and receive the frame independently. The receiving node always “listens” if there is traffic running over the medium when it is not receiving a frame. When a frame destined for the target device comes,

the receiver of the target device begins receiving the bit stream, and looks for the PRE (Preamble) pattern and Start-of-Frame Delimiter (SFD) that indicates the next bit is the starting point of the MAC frame until all bit of the frame is received.

For a received frame, the MAC will check:

1. If it is less than one slotTime in length, i.e. short packet, and if yes, it will be discarded by MAC because, by definition, the valid frame must be longer than the slotTime. If the length of the frame is less than one slotTime, it means there may be a collision happened somewhere or an interface malfunctioned in the LAN. When detecting the case, the MAC drops the packet and goes back to the ready state.
2. If the DA of the received frame exactly matches the physical address that the receiving MAC owns or the multicast address designated to recognize. If not, discards it and the MAC passes the frame to its client and goes back to the ready state.
3. If the frame is too long. If yes, throws it away and reports frame Too Long.
4. If the FCS of the received frame is valid. If not, for 10M and 100M Ethernet, discards the frame. For Gigabit Ethernet or higher speed Ethernet, MAC has to check one more field, i.e. extra bit field, if FCS is invalid. If there is any extra bits existed, which must meet the specification of IEEE802.3. When both FCS and extra bits are valid, the received frame will be accepted, otherwise discards the received frame and reports frameCheckError if no extra bits appended or alignmentError if extra bits appended.
5. If the length/ type is valid. If not, discards the packet and reports lengthError.
6. If all five procedures above are ok, then the MAC treats the frame as good and de-assembles the frame.

What if a VLAN tagging is applied?

VLAN tagging is a 4-byte long data immediately following the MAC source address. When tagged VLAN is applied, the Ethernet frame structure will have a little change shown as follows.

Pre

SFD

DA

SA

VLAN type ID

Tag control information

Length/ type

Data

Pad

FCS

Ext

Only two fields, VLAN ID and Tag control information are different in comparison with the basic Ethernet frame. The rest fields are the same.

The first two bytes is VLAN type ID with the value of 0x8100 indicating the received frame is tagged VLAN and the next two bytes are Tag Control Information (TCI) used to provide user priority and VLAN ID, which are explained respectively in the following table.

Bits 15-13	User Priority 7-0, 0 is lowest priority
Bit 12	CFI (Canonical Format Indicator)1: RIF field is present in the tag header0: No RIF field is present
Bits 11-0	VID (VLAN Identifier)0x000: Null VID. No VID is present and only user priority is present.0x001: Default VID0xFFFF: Reserved

Note: RIF is used in Token Ring network to provide source routing and comprises two fields, Routing Control and Route Descriptor.

When MAC parses the received frame and finds a reserved special value 0x8100 at the location of the Length/ Type field of the normal non-VLAN frame, it will interpret the received frame as a tagged VLAN frame. If this happens in a switch, the MAC will forward it, according to its priority and egress rule, to all the ports that is associated with that VID. If it happens in a network interface card, MAC will deprive of the tag header and process it in the same way as a basic normal frame. For a VLAN-enabled LAN, all involved devices must be equipped with VLAN optional function.

At operating speeds above 100 Mbps, the slotTime employed at slower speeds is inadequate to accommodate network topologies of the desired physical extent. Carrier Extension provides a means by which the slotTime can be increased to a sufficient value for the desired topologies, without increasing the minFrameSize parameter, as this would have deleterious effects. Nondata bits, referred to as extension bits, are appended to frames that are less than slotTime bits in length so that the resulting transmission is at least one slotTime in duration. Carrier Extension can be performed only if the underlying physical layer is capable of sending and receiving symbols that are readily distinguished from data symbols, as is the case in most physical layers that use a block encoding/ decoding scheme.

The maximum length of the extension is equal to the quantity (slotTime - minFrameSize). The MAC continues to monitor the medium for collisions while it is transmitting extension bits, and it will treat any collision that occurs after the threshold (slotTime) as a late collision.

Index

A Account Manager, 203, 204

B

Backup Manager, 201

Bandwidth, 163

C

CoS Mapping, 160

D

Dashboard, 16, 17

Diagnostics, 209, 221

DoS, 126

DoS Port Setting, 128

DoS Protection, 128

E

Egress Shaping Per Queue, 165

Egress Shaping Rate, 164

F

Factory Default, 206

G

General, 146, 149, 154, 156

General Setup, 22

I

Ingress Rate Limit, 163

Installation for VigorAPM, 6

L

License Agreement, 25

License Information, 28, 29, 34, 50, 51, 78, 79, 88

Limiting Rate, 125

P

PoE Configuration, 167

Preamble, 124

Properties, 126

Q

QoS Configuration, 145, 155

S

Security, 93, 107

SNMP, 186

SNMP Community, 190, 191, 193

Storm Control, 125

Storm Control, 94, 108, 110, 111, 113, 116, 122, 124

Storm Control, 129

Storm Control, 132

Storm Control, 137

Stric Priority Queue, 159

System Configuration, 21

System Maintenance, 173

U

Upgrade Manager, 202

W

Weight, 159

WRR Bandwidth, 159
