Quick Start Manual L310W ‘This Quick Start Manual has been specially designed to guide you througn the basic functions and For more infomnation, refer to the User Manual included on the supplied CD-ROM Please rt Manuel and User Manual careful to ensure sale and correct use. your device. English/Français/Türkçe/ RRHX/Bahasa/ nu fe

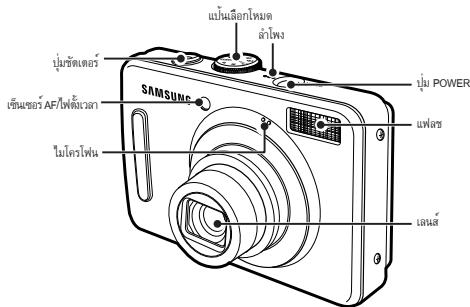

Getting to know your camera

Correct Disposal of This Product Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation incorporated in the United States andlor other countries: Al brand and product names appearing in this manual are registered trademarks of their respective companies. The contents and illustrations of this manual are subject to change without prior notice for upgrading the camera functions. Refer to the user manual included on the Software CD for more information. PDF documents of user manual are included in the Software CD- ROM supplied with this camera. Search the PDF files with Windows. explorer. Before opening the PDF fles, you must install the Adobe Reader included in the Software CD-ROM. Contents Getting to know your camera 1 Correct Disposal of This Product 1 Identification of features / Contents of camera 4 Battery life & Number of shot (Recording time) 5 When Using the Camera for the First Time 6 LCD monitor indicator 7 Mode dial 8 Taking a picture 9 Playingback, Deleting and Protecting Images 10 Downloading images 1 Specifications Correct disposal of batteries in this product

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or is terature, indicates that it should not be disposed of with other household wastes at the end of ts working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmental safe recycling. Business users should contact their Supplier and check the terms and conditions of he purchase contract This product should not be mixed with other commercial wastes for disposal| Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products. The Eco mark represents Samsung Techwin's will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

Getting to know your camera DANGER WARNING DANGER indicates an imminenty hazardous situation which, if not avoided, wil result in death or serious injury. Do not attempt to modify this camera in any way. To do so may result in fie, injury, electric shock or severe damage to you or your camera Internal inspection, maintenance and repairs should only be carried out by your dealer or Samsung Camera Service centre. Should any form of liquid or a foreign object enter the camera, do not use it. Switch of the camera, and then disconnect the power source. You must contact your dealer or Samsung Camera Service centre. Do not continue to use the camera as this may cause a fie or electric shock, Please do notuse this product in close proximity to flammable or explosive gases, as this could increase the risk of explosion. Do not insert or drop metallc or inflammable foreign objects into the camera through access points eg, the memory card ZX Slot and battery chamber. This may cause a fire or electric CI shock Æ({Îh 00 not operate this camera with wet hands, This could pose a risk of clectric shock. WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not use he flash in close proximiy to people or animals: VA osioning the flash too dose lo your subjects eyes may > 15° 1550 damare For safety reasons keep this product and accessories out of reach of children or animals to prevent accidents eg. - Swallowing battery or small camera accessories. Ian & accident should occur, please consult a doctor immediately. - There is the possibiity of injury from the camera's moving parts Battery and camera may become hot during prolonged use and it may result in camera malfunction. Should this be the case, allow the camera to si idle for a few minutes to allow it time to co! Do not leave this camera in places subject to extremely high temperatures, such as a sealed vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to extreme temperatures may adversely affect the camera's internal components and could cause a fie. SZ. When in use, do not cover the camera or Charger. This may cause heat to build up and distort {he camera body or cause

• OÙ à fre. Aways use the camera and its accessories in a well- ventilated area.

Getting to know your camera CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in a minor or moderate injury. Remove the battery when not planning to use the camera for a long period of time. Th ©'eisethe bat Ma ak corse eco end permanenty damage the camera's components. Leaking, overheating, or damaged battery could result in fire or injury. NM — Use battery with the correct specification for the camera a | — Do not short circuit, heat or dispose of battery in fie. — Do not insert the battery with the polarities reversed. Be sure to format the memory card if you are using a newly purchased memory for the first time, if it contains data that the camera cannot recognise, or it contains images captured with a different camera. Le Do notfire the flash while its in contact win hands or objects. Do not touch the flash after using it continuously. It O) may cause bus.

Credit cards may be demagnetized if left near a camera case . Avoid leaving magnetic strip cards near the case.

à 6 -B 8 46 ysifua Do not move the camera wii it is switched on when you are using the AC Charger. After use, always switch off the camera before unplugging the cable from the wall socket Then make sure that any connector cords or cables to other devices are disconnected before moving the camera. Failure to do so may damage the cords or cables and cause a fire or electric shock Take care not to touch the lens or lens cover to avoid taking an unclear image and possibly causing camera malfunction. Avoid obstructing the lens or the flash when you capture an image Before inserting any cables or AC adapter, check the directions and do not insert by force. It may cause breakage of cable or camera. Itis highly ikely to result in computer malfunctions when the 20 pin connector is connected to the USB por of a PC. Never connect the 20 pin connector to USB port of a PC. Do not insert the memory card the wrong way round. Doing so may cause damage to the camera. Before an important event or going on a trip, you should check the camera condition. Samsung cannot be held responsible for camera malfunctions. EN3

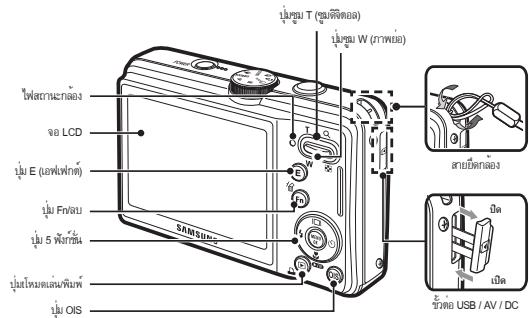

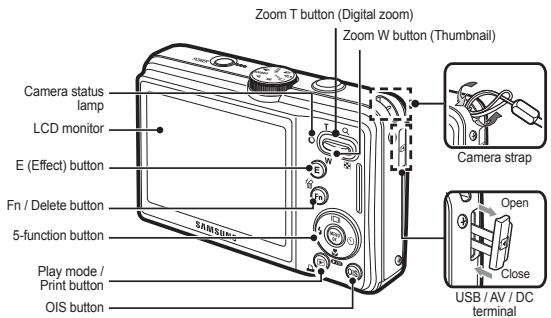

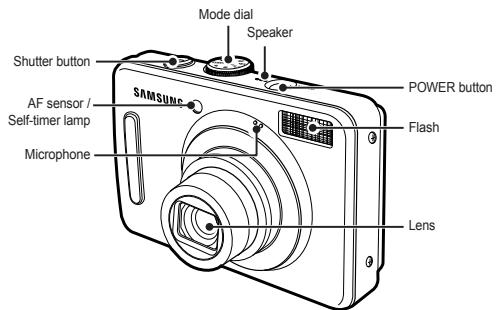

Camera status —f amp LCD monitor — E Etc buton Microphone —] Fn Delta buton Sfuncion baton D dons Play mode / Pin butan OS buton Contents Package Sold Separately Please check that you have the correct contents before using this product. The contents can vary depending on the sales region. À To buy the optional equipment, contact your nearest Samsung dealer or Samsung service centre. User manual,

Battery life & Number of shot (Recording time) # Number of images and battery life: Using the SLB-10A = When using a 1GB SD memory, the specified shooting capacity will be as follows. These figures are approximate sua Eater 28 image capacities can be affected by variables such as INumber of Condi subject matter and memory card type. images Using the fully charged battery, Auto Rx EE Fine | Normal | 30FPS | 20FPS | 15FPS mode, 13M image size, Fine image Lo Le Approx. 120 | qualit, Shot to shot interval: 30Sec arm am - | - | - MIN | Changingthe zoom position between 13m Approx. 240. | he Wide and the Tele after every shot. el 0 as [as | 2 | | shots | Using the flash on every second shot. Using the camera for 5 minutes and FIRIESEIRSESE then Powering itof for 1 minute. . image | 8M | 246 | 462 | 680 | — - - Movie | APprox 120 | Using the fuly charged battery 6401480 È MIN image size 30fps ame rate 5m) 579 | 720 lis | - | - | - + These figures are measured under Samsung's standard conditions 3m 601 | 1067 | 1510 | - | - | - and shooling conditions and may vary depending on the users methods. 1m | 1676 | 2814 | 2048 | - _ - + These figures are measured under OIS shooting condition. about 800! - | - | - | - sun) —

• More about about cip |640| - s = [36mn| = |7omn about about

320) - | - | — found - [zomn

+ The recording times can be changed by the zoom operation. The zoom button doesn't function during the movie recording,

When Using the Camera for the First Time Charge the rechargeable battery fuly before using the camera for the first time. When the camera is tumed on for the first ime, a menu wil be displayed in the LCD monitor to set date, time and language. This menu wil not be displayed again after setting up the date, time and language. Set up the date, time and language before using this camera. Setting up the language . Select the [Language] menu by pressing the Up/Down button and press the Right button. Select the desired sub menu by pressing the Up/Down button and press the OK button —_ You can select one of 26 languages. These are listed below: English, Korean, French, German, Spanish, ltlian, S.Chinese, TChinese, Japanese, Russian, Portuguese, Dutch, Danish, Swedish, Finnish, Thaï, Bahasa (Malay / Indonesia), Arabic, Czech, Polish, Hungarian, Turkish, Estonian, Lituanian, Latvian and Persian EN-6 = Setting up the date, time and date type

Select the [Date&Time] menu by pressing the Up/Down button ]=#" and press the Right button. == Select the desired sub menu by pressing the Up/Down/Left/ Right button and press the OK button Right button: Selects world time/year/ month/ day/hour! minute/date type Left button: Moves the cursor to the [Date&Time] main menu ifthe cursor is at the first item of the date and time setup. In al other instances, the cursor will be shifled to the left ofits current position: Up/Down button: … Changes the value of each item. For more information on setting Word Time, please refer to the documentation included with the software CD.

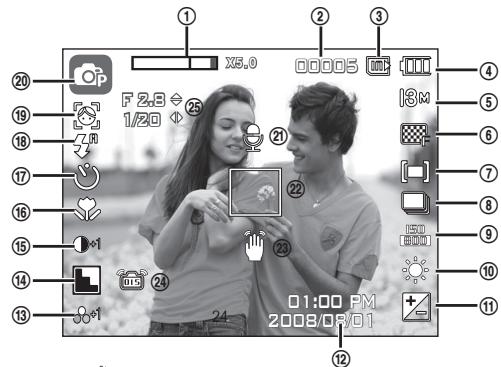

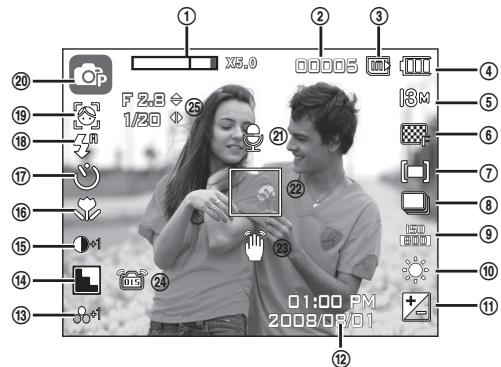

LCD monitor indicator The LCD monitor displays information about the shooti L s j] No. Description Icons _ functions and selections. Refer to the user manual included on ï Frame R TT: E the Software CD for more information. mage Qualty/Frame Rate LULU & 7 Metering/Stabiliser JUIVES = 3 Drive mode sas 9 150 Lasaasss 10 Wnite Balance miSHHéT 11 | Exposure compensation nm DateTime 2008/08/01 01:00 PM 13 Saturation db-2 dirt dt dbe2 14 Sharpness/Mic. off SRE ® 15 Contrast G20104102 16 Macro EX 17 SelFtimer EXC) 18 Flash CT] <image & Full Status> FRITES Face Deteclion : Self Portrait Bree! No. Description Icons. 19 | Smile Shot: Blink Detection Gi IColour 2666606 4 | OptcalDigital Zoom ban 50 Digital Zoom rate D Recording mode CC000C960 2 |. Number ofavaieble shots G00600880 remaining/Remaining time 21 Voice Memo $ 2 Auto Focus Fi : | nenrennen c'e ee ni nl 23 | Camera shake Waming Li 2 Battery mue 24 |OIS (Optical Image tabilization) ee = image Si ISu 65 Eu 8u 54 3m M Image Size 200 640 320 25 | Apeñure Value/Shutter Speed F28 120 EN7

Mode dial = You can select the desired shooting mode by using the mode dial on the upper body of your camera. EN-8 Auto Selects this mode for quick and easy picture taking with minimal user interaction. In this mode, you can select the basic menus. To select an advanced menu, select the other camera mode. Program Selecting the automatic mode wil configure the camera with optimal settings. You can stil manually configure all functions except the aperlure value and shutter speed. Manual The user can manually set both the aperture value and the shutter speed. DUALIS This mode will reduce the effect of camera shake and help you get a wel-exposed image in dim conditions. Photo Help Guide Helps the user leam the correct picture taking method and includes solutions for potential problems that may occur. This also enables the user to practice the best way to take the pictures. Beauty Shot Take a photo of portraits by setting opions to clear facial imperfections. ODO8000008688 Use the menu to easily configure optimal settings for a variety of shooting situations. Movie For taking a movie

Taking a picture “ How to take a picture 4. Take a picture ysifua ‘Tum on the POWER button and then select the desired shooting mode by using the mode dial on the upper body of your camera.

Pressing halfway down Focus Pressing fully Image is taken. and Flash status are checked. Hold the camera as shoun. = How to record a movie. Select the Movie Clip mode by using the mode dial on the upper body & of your camera.

1. Confirm the composition.

3. Confirm the composition.

2. Startthe recording.

Press the Shutter button and the recording starts and press. the Shutter button again to stop the recording

Playingback, Deleting and Protecting Images M Playingback the images The last image stored on the memory is displayed. Press the Play mode ([F]) button. Select an image that you want to play back by pressing the LeftiRight button Delete button This deletes images stored on the memory card

1. Select an image that you want to delete by pressing the LeftRight

the T button —_Lef/Right button: Selects images = T button: Checks for deletion — OK button: Deletes the selection

3. Select the submenu values by pressing the Up/Down button and

then press the OK button. —_ IF[No]is selected: Cancels “Delete Image”. — IfVes]is selected: Deletes the selected images. Protecting images This is used to protect specific shots from being accidentally erased. [Select]: Selected images are protected or unprotected. [AI]: All stored images are protected or unprotected. I you protect an image, he protect icon will be displayed on the LCD monitor. An image in LOCK mode wil be protected from the delete function, ie EU] but wil NOT be protected from the [Format] function.

Downloading images = System Requirements For Windows. For Macintosh USB support environment PC with processor better than Pentium Ill 500MHZ {Pentium Ill 800MHz recommended) Windows 2000 / XP / Vista Minimum 256M8 RAM (Over 512MB recommended) 250MB of available hard- disk space (Over 1GB recommended) 1024x768 pixels, 16-bit color display compatible monitor (24-bit color display recommended) Microsoft DirectX 9.0 or later Power Mac G3 or later, or Intel Processor Mac OS 10.3 or later Minimum 256MB RAM {Over 512MB recommended) Not supported X_Itis not compatible with Windows XP and Vista 64-bit Edition. X Samsung is not responsible for any defects or damages caused by the use of unauthorized computer including an assembled PC. = PC connection mode

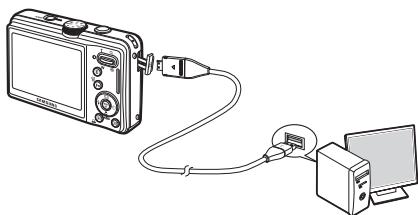

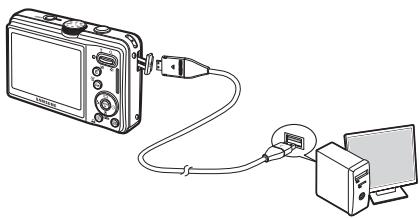

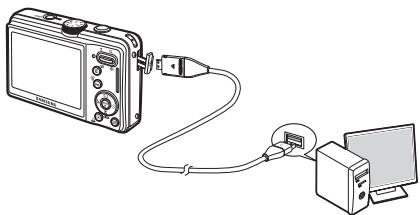

ysifua — Connect the camera and Computer with supplied USB

• Scene: Nightscene, Portrait, Children, Landscape, Text, Close-up, Sunset, Dawn, Backlight, Fireworks, Beach & Snow + Shooting: Single, Continuous, AEB, Motion Capture + Seltimer: 2sec,, 10 sec, Double (10 sec, 2 sec), Motion Timer

Specifications Storage Movie Clip

• With Audio or without Audio (user selectable, recording time : Memory capacity dependent, max 2hours) Size: 800x592(20FPS), 640x480 (0FPS, 15FPS), 320x240(30FPS, 15FPS) Frame rate: 15FPS, 20FPS, 30FPS Optical Zoom up to 3.6X (Sound goes mute when operating the zoom function) Movie Eciting (Embedded): Movie Stablization, Pause during recording, Still mage Capture Time Trimming Media + Internal memory: 30MB External Memory (Optional) MUC Plus (Up to 2G8, guaranteed, bit 20MH2) SD (up to 4GB guaranteed) SDHC (up to 8GB guaranteed)
• Internal memory capacity is subject to change without prior notice. File Format + Still image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0 +" Movie Clip: AVI (MPEG-4) + Audio: WAV — Image Size and Capacity (1GB Size) 18m | € | [1 | 8m | 5m | 3m | Im (az2as16s 12202816 [422002576 282448 seacteueousxts26] 10281768 SuperFine | 147 | 167 | 199 | 246 | 379 | 601 | 1876 Fne | 284 | 315 | 384 | 462 | 720 | 1067 | 2814 Normal | 418 | 465 | 547 | 680 | 1015 | 1510 | 248 *_ These figures are measured under Samsung standard conditions and may vary depending on shooting conditions and camera settings. EButton Recording Effect Color Effect: Normal, B&W, Sepi, Red, Blue, Green, Negative, Custom Color Image Adjust: Saturation, Contrast, Sharpness — Playback Effect: Image Edit Resize, Rotate, Trimming Color Effect: Normal, B&W, Sepi, Red, Blue, Green, Negative, Custom Color Image Adjust: ACB, Red Eye Fi, Brighness, Contrast, Saturation, Face Retouch — Single image, Thumbnails, Slide show, Movie clip Image PL 29 Gide show : Slide showrwith Effect & Music EN+3 ysifua

Specifications Interface Power Source Dimensions CE]

Operating Temperature Operating Humidity Software Digital output connector: USB 2.0 High Speed 20 pin Connector Audio: Mono (Speaker), Stereo (Microphone) Video output: NTSC, PAL (user selectable) DC Adapter: 4.2V, 20 pin connector Rechargeable battery: SLB-10A, 3 7V (1,050mAh) Adaptor: SAC-47, SUC-C3 Indluded battery may vary depending on sales region.

91.6 X 61 X 22.95mm (excluding protrusions)

138g (without batteries and card) — 0-40 5-85% Application: Samsung Master, Adobe Reader *_ Specifications are subject to change without prior notice.
