| Product Type | Domestic Fan |
| Brand | Imarflex |
| Model | IF-375BU |
| Dimensions (approx.) | Height 120 cm, Base diameter 35 cm, Fan diameter 40 cm |
| Net Weight (approx.) | 4.5 kg |
| Power Supply | AC 220-240V, 50Hz |
| Power Consumption (approx.) | 50 W |
| Number of Speed Settings | 3 |
| Oscillation | Yes, wide-angle horizontal oscillation |
| Adjustable Tilt | Yes, manual tilt adjustment |
| Control Type | Rotary knob on base |
| Fan Blade Material | ABS plastic |
| Grill Material | Metal with plastic coating |
| Stable Base | Wide circular base for stability |
| Overheat Protection | Yes, built-in thermal fuse |
| Removable Front Grill | Yes, for cleaning blades |
| Blade Cleaning | Wipe with damp cloth, avoid water on motor |
| Grill Cleaning | Remove grill and wash with mild soap |
| Spare Parts Availability | Replacement blades and grill available |
| Repair Service | Authorized service centers in most regions |
| Included Accessories | Fan unit, base, extension rod, user manual |
Frequently Asked Questions - IF-375BU Imarflex
How to assemble the Imarflex IF-375BU fan?
To assemble, attach the extension rod to the base, then mount the fan motor unit onto the rod, and finally attach the rear grill, blades, and front grill. Refer to the user manual for detailed steps.
How many speed settings does the fan have?
The fan has 3 speed settings: low, medium, and high, controlled by a rotary knob.
Does the fan oscillate?
Yes, the fan features wide-angle horizontal oscillation to distribute air across the room.
How to clean the fan blades?
Unplug the fan, remove the front grill, and wipe the blades with a damp cloth. Avoid using water directly on the motor.
What is the power consumption of the fan?
The fan consumes approximately 50 watts on the highest setting.
Can the fan be used outdoors?
This fan is for indoor domestic use only. Keep it away from water and moisture.
Does it have overheat protection?
Yes, the fan is equipped with a thermal fuse that shuts off power if overheating occurs.
How do I adjust the tilt?
Manually tilt the fan head up or down to the desired angle. It locks in place with friction.
Where can I find replacement parts?
Replacement blades, grill, and other parts are available through authorized service centers or online retailers.
Is the fan noisy?
The fan operates with minimal noise on low and medium settings. High speed may produce typical airflow sound.
User questions about IF-375BU Imarflex
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Household Fan in PDF format for free! Find your manual IF-375BU - Imarflex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IF-375BU by Imarflex.
USER MANUAL IF-375BU Imarflex
- Fit the rear fan guard to the motor housing by matching the two rear holes of the back guard to the two round pins in front of the motor housing.
- Fasten the clamping nut by turning it clockwise.
- Insert the fan blade to the motor shaft.
- Fasten the fan cap by turning it counter clockwise.
- Fit the rear fan guard and the front fan guard, push-up the clamp and tightened the screw
HOW TO USE
- Plug the unit into the convenience outlet (230Va.c.).
- Rotate the speed selector to the desired air flow. "1" indicates LOW speed; "2" indicates MEDIUM speed; "3" indicates HIGH speed; and "0" to turn it OFF. The air flow can be adjusted upward or downward by moving the Motor Housing up or down.
- To adjust the height: Turn fastening cap clockwise and pull-up/push-down to desired height then turn the fastening cap counter clockwise to fix the height.
CLEANING MAINTENANCE
- Always disconnect the unit from the convenience outlet before disassembling the unit or before cleaning.
- To disassemble the unit, simply reverse the assembly instruction.
- Wash the front fan guard, fan cap, fan blade, clamping nut and rear fan guard with soap and water.
- Use a moistened cloth (NOT WET) to remove the dirt from the plastic and metal surfaces of Electric Fan.
- Do not immerse the Motor Base in water or other liquids.
- Allow the detachable parts to dry off before assembling the unit.
REMINDER: Please do not forget to register your product warranty through the warranty registration website at https://imarflex.ph
Distributed By: Sabretech Technology Inc. 103-113 Sen Gil Puyat Ave. Pasay Made in China
imarflex®
LIVING FAN
3 Speed Settings
8-meter Wind Range
21,000 m/hr Ultra High Velocity
75° Oscillation Feature
5 Blades Design
- 10^ Tiltable Head
- Copper Motor
- Silent Motor
• 24-hour Operation
• Thermal Fuse Protection
50W POWER
SPECIFICATION
MODEL NO. : IF-375BU
RATED VOLTAGE : 230Va.c. 60Hz
POWER CONSUMPTION : 50W T
BOX DIMENSION
UNIT DIMENSION
GROSS WEIGHT
UNIT WEIGHT
IMPORTANT SAFEGUARDS:
- Read all instructions carefully.
- Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
- Do not use a two-way socket with another appliance.
- Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
- Do not place the unit near gas stove, electric stove or in a heated oven.
- Put the unit on flat stable surface; keep it away from the edge of counter to avoid accident.
- Children should be supervised to ensure that they do not play with the appliance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
- To protect against electric shock, do not immerse the unit in water or any other liquid.
- Do not use the unit for outdoor use.
- This unit must only be used for room ventilation. Do not use in bathrooms.
- Do not insert your fingers or any objects into the fan guard. It may cause accident or injuries.
- Never touch the unit with wet hands.
- Do not use the plug to stop or start the operation of the unit, use the switch button.
- Be sure that the fan is switched off from the convenient outlet before removing the fan guard, any of its parts or before cleaning.
- Avoid water spillage into the socket, connector, cord and alike.
- Do not use this unit other than its intended use.
- For household use only; not intended for any business purposes.
- Save this instruction for future reference.

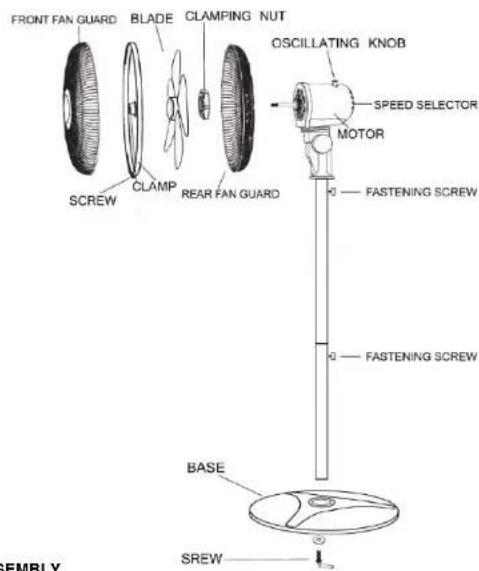

DESCRIPTION OF PARTS
ASSEMBLY
- Insert the base lock on the bottom of the base and turn it clockwise.
- Unscrew the fastening screw on the main body and insert height adjustment pipe. Tighten the fastening screw.
