Product Type	Car Coaxial Speaker
Model	Compose Ci3 FX-UNI.2
Brand	Helix
Speaker Size	6.5 inches (165 mm)
Woofer Cone Material	Polypropylene
Tweeter Type	Silk Dome
Tweeter Size	1 inch (25 mm)
Power Handling (RMS)	60 Watts
Power Handling (Peak)	180 Watts
Impedance	4 Ohms
Sensitivity	90 dB (1W/1m)
Frequency Response	40 Hz - 20,000 Hz
Mounting Depth	65 mm
Mounting Diameter	140 mm
Weight (per pair)	1.2 kg
Recommended Amplifier Power	30-100 Watts RMS
Crossover	Integrated
Voice Coil	1.5 inch (38 mm)
Magnet Type	Ferrite
Surround Material	Rubber
Grille Included	Yes

Frequently Asked Questions - Compose Ci3 FX-UNI.2 Helix

What is the size of the Helix Compose Ci3 FX-UNI.2 speaker?

It is a 6.5-inch (165 mm) coaxial speaker.

What is the power handling of this speaker?

The RMS power handling is 60 watts, and peak power handling is 180 watts.

What is the impedance?

The impedance is 4 ohms.

Is it compatible with my car?

It requires a mounting depth of 65 mm and a mounting diameter of 140 mm. Check your car's speaker locations for compatibility.

Does it come with a grille?

Yes, grilles are included in the package.

Do I need an external crossover?

No, the speaker has an integrated crossover.

What type of tweeter does it use?

It uses a 1-inch silk dome tweeter.

Is the speaker waterproof?

No, it is not waterproof. Keep it away from moisture and water.

How should I break in the speakers?

Play them at moderate volume with varied music for 10-20 hours to achieve optimal performance.

What is the sensitivity of this speaker?

The sensitivity is 90 dB (1W/1m), which means it is moderately efficient.

USER MANUAL Compose Ci3 FX-UNI.2 Helix

Congratulations on your purchase of this high-quality product.

HELIX COMPOSE highlights best quality, excellent manufacturing and state-of-the-art sound quality.

Thanks to more than 30 years of experience in research and development of audio products HELIX COMPOSE sets new standards in the car audio speaker market.

We wish you many hours of enjoyment with your new HELIX COMPOSE components.

Yours

AUDIOTEC FISCHER Team

General instructions

General instructions for installing HELIX loudspeakers

To prevent damage to the speakers and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.

For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized HELIX dealer.

If you choose to perform your own installation read the following information and precautions carefully.

Failure to follow the stated precautions may result in personal injury and / or damage to the audio system or vehicle.

1. Always make sure that the speaker will fit into the intended mounting location and that there is adequate depth for the magnet system.
2. Check for adequate space between speaker and window, window crank, power window mechanism, seat, rear deck torsion bars, and other items which may interfere with the speaker's mounting. This is very important if any hole cutting is required. Detailed size information is indicated in the dimension section of this manual. Take care that the mounting surface is flat and free from all obstructions.
3. Ensure that the loudspeakers are correctly connected in polarity. Exchanging plus and minus may result in significant loss of sound quality. The positive leads of the loudspeakers are marked red.

4. Make sure that all speaker wiring is fully protected from cutting or wear at sharp edges, which can lead to short circuits that may damage your head unit, amplifier and / or speaker system.

5. Verify that all connection wires are long enough in order to avoid any mechanical stress on the wires or the connectors.

6. Make sure that all components are mounted properly.
7. Do not mount the components where water may splash on them.
8. The quality of the installation has a significant effect on the overall performance of the speaker system. Treat each installation step with a high degree of attention.
9. Avoid low frequency cancellation caused by air leakage between the speaker basket and the mounting surface (e.g. mounted on a bended or uneven surface or mounted in an oversized hole).
10. Mounting panel reinforcement may be necessary in some cases in order to ensure a stable, torsion-free and even surface. This can be achieved by mounting the speaker on a metal, plastic or wooden sub-baffle behind the body or door panel. Consult an installation specialist for further advices.
11. In most cases you can use the original speaker mounting locations in the doors, A-pillars, body panels or the rear deck. If these are not available you have to prepare your own secure installation place. Due to their structural integrity and accessibility the precut mounting holes should be used whenever possible. Information on a proper mounting can be found in the section "Installation" of this manual.

IMPORTANT: Never cut any metal that is an integral part of an automobile's safety or structural car body.

We strongly recommend that you operate the complete audio system at low volume before final installation. So you can check whether each speaker is working before securing the loudspeakers into their mounting locations.

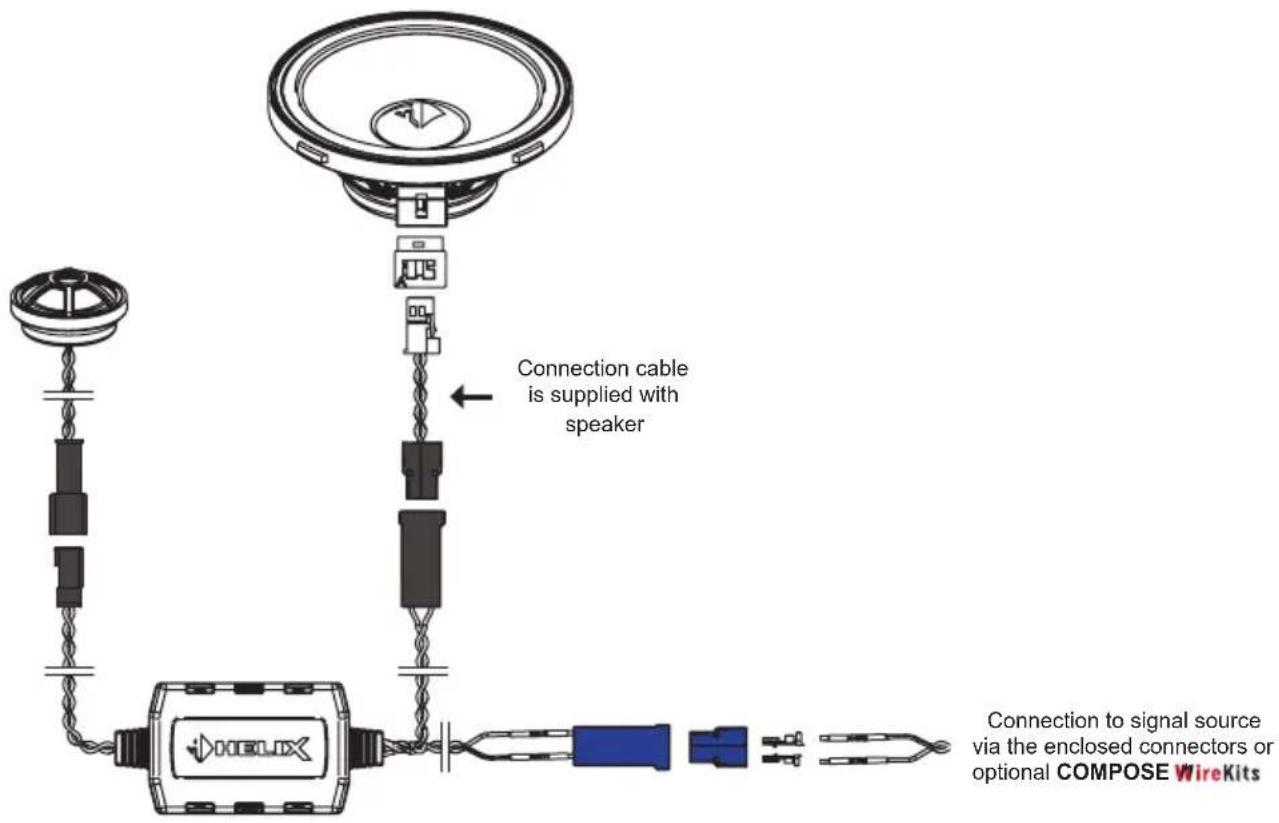

Wiring to COMPOSE midrange speaker M100FM and tweeter Ci3 T20FM-TI

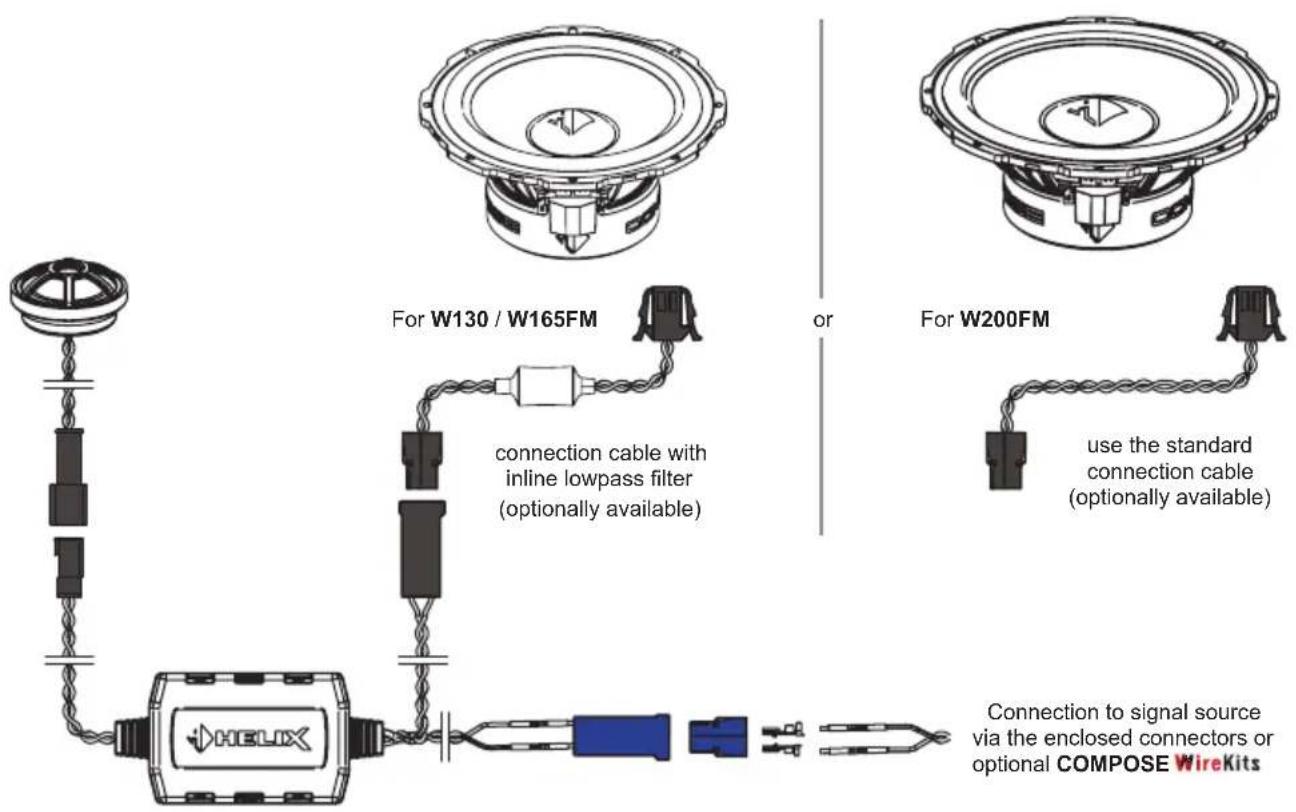

Wiring to midbass W130 / W165FM or woofer W200FM and tweeter Ci3 T20FM-TI

Ensure that all components are correctly connected (phase), i.e. plus to plus and minus to minus.
*Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available COMPOSE WireKits.

Tweeter level adjustment

The crossover allows to optimize the level of the connected tweeter internally by repositioning the tweeter level jumper. Therefore open the crossover housing, pull the jumper straight upwards and reinsert it to the desired position.

The correct tweeter level setting strongly depends on the location of the speakers. Then confirm the level by listening to the speakers and modify the jumper setting if needed.

+2 dB: The level of the tweeter is increased by 2 dB.

0 dB: The tweeter has the optimum level for most applications.

-2 dB: The level of the tweeter is reduced by 2 dB.

-3 dB: The level of the tweeter is reduced by 3 dB.

-4 dB: The level of the tweeter is reduced by 4 dB.

-5 dB: The level of the tweeter is reduced by 5 dB.

We recommend to use the settings in the table below as starting point:

Speaker combination Level Jumper position
Ci7 / Ci3 M100FM-S3 + Ci3 T20FM-TI	0 dB
Ci7 / Ci3 W130-S3 + Ci3 T20FM-TI	-2 dB
Ci7 / Ci3 W165FM-S3 + Ci3 T20FM-TI	0 dB
Ci7 / Ci3 W165FM-S2 + Ci3 T20FM-TI	+2 dB
Ci7 / Ci3 W200FM-S3 + Ci3 T20FM-TI	0 dB
Ci7 / Ci3 W200FM-S2 + Ci3 T20FM-TI	+2 dB

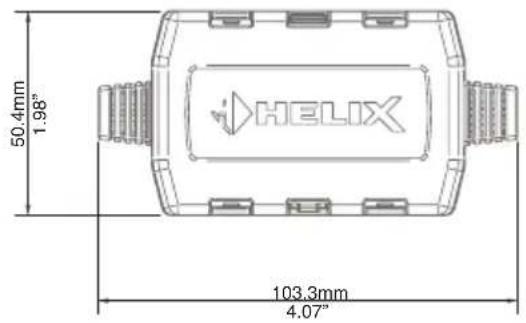

Technical data

	Ci3 FX-UNI.2
Slope 12 dB highpass for tweeter
Tweeter level adjustment range -5 dB	up to +2 dB
Features - Designed for Ci3 T20FM-TI	- 6-stage tweeter level adjustment- Tweeter protection

WireKits

The optionally available WlloVit's fail-safe and professional adaption of the HELIX COMPOSE Ci3 FX-UNI.2 to the vehicles original cable harness.

Blue plastic connector with red and black wires, no visible text or symbols

Contact your retailer or visit www.audiotec-fischer.com/compose for an up-to-date overview of available WireKits

(Applicable in the European Union and other countries with separate collection systems)

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Contact your local government office for details in locating a recycle facility close to you. Proper recycling and waste disposal will help conserve resources and prevent detrimental effects on our health and the environment.

Warranty disclaimer

The warranty service is based on the statutory regulations. Defects and damage caused by overload or improper handling are excluded from the warranty service. Any return can only take place following prior consultation, in the original packaging together with a detailed description of the error and a valid proof of purchase. Technical modifications, misprints and errors excepted! For damages on the vehicle and the device, caused by handling errors of the device, we can't assume liability. All HELIX speakers are tagged with a CE-Certification mark. Thereby these devices are certified for the use in vehicles within the European Community (EC).
