Product type	Digital photo frame
Brand	Samsung
Model	SPF-71E
Screen	TFT 7 inches (17 cm), resolution 480 x 234
Supported image formats	JPEG (Progressive JPEG and CMYK JPEG not supported)
Internal memory	120 MB
Power supply	External power adapter 12 V, 2 A, 24 W
Power consumption	Normal mode: < 7 W, Off mode: < 1 W
Dimensions (W x D x H)	217.5 x 156.5 x 43 mm
Weight	496.3 g
Main functions	Slideshow, clock, copy/delete photos, display settings, firmware update
Connectivity	USB (receive and transmit), flash memory card slot
Supplied accessories	Power cord, power adapter, USB cable, user guide, warranty
Care and cleaning	Unplug before cleaning; use a soft dry cloth; do not use chemicals
Safety	Do not block ventilation slots; avoid humidity and heat sources; do not expose to water
Sockets and repairability	Kensington lock; spare parts not specified; contact an authorized service center for repairs

Frequently Asked Questions - SPF-71E SAMSUNG

How can I copy photos from a memory card to the frame's internal memory?

Insert the flash memory card into the designated slot. Navigate the menu to select the photos, then use the Copy or Copy All option. You can also enable auto-resize in the settings to optimize display.

What image formats are supported by the SPF-71E?

The frame supports standard JPEG format. Progressive JPEG and CMYK JPEG files are not compatible.

How do I set the clock and time display?

Press the Menu button, go to Clock, then set the date, time, format, and clock type according to your preferences.

What should I do if the frame does not recognize my USB drive?

Check that the USB drive is properly connected. Test it on a computer to ensure it works. The frame supports standard USB storage devices.

How do I update the photo frame firmware?

Download the latest firmware from www.samsung.com. Copy the file to the root directory of a flash memory card or USB drive. Connect it to the frame, go to Settings > Update/Reset > Firmware Update, and follow the instructions.

Can I use high-resolution photos?

Yes, but photos with a resolution exceeding 8,000 x 8,000 pixels will not be displayed. Large files may slow down the slideshow.

How do I start a slideshow?

Press the Slideshow button (or the right arrow button) to start a slideshow of photos in the active folder. You can also access slideshow settings via the menu.

Can the photo frame be used wirelessly?

No, the SPF-71E does not have a wireless connection. It only uses wired connections via USB or memory card.

How do I clean the photo frame screen?

Always unplug the device before cleaning. Use a soft dry cloth. Never use chemicals, solvents, or abrasive cleaners.

What should I do if the screen stays black?

Check that the power adapter is properly plugged in and the frame is turned on. Ensure the power cord is not damaged. If the problem persists, contact an authorized service center.

USER MANUAL SPF-71E SAMSUNG

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register

Model ____ Serial No. ____

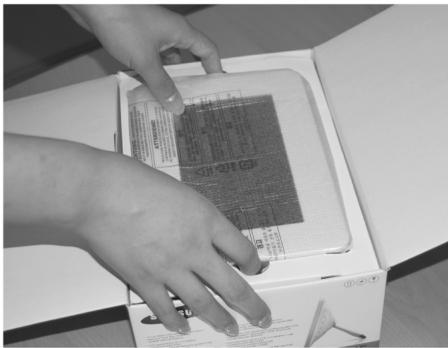

Please check all items are contained in your delivered package.

User manual

Warranty Card

Power Code

Power Adapter

USB cable

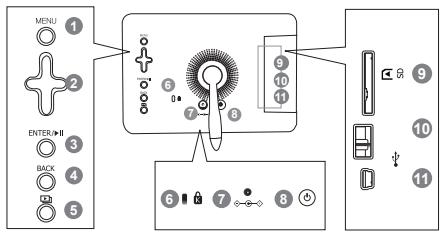

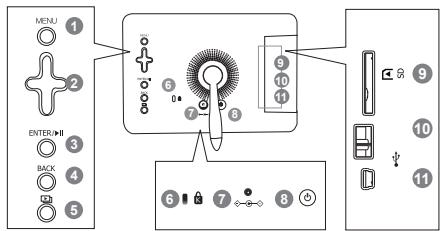

Front / Back Overview

Simple geometric diagram with two concentric rectangles (no text or symbols)

1 Menu button ( Displays the menu )
② Navigation buttons
3 Enter button ( Play/Stop while slide show )
4 Back button
⑤ Slideshow button ( Starts slide show instantly )
6 Kensington lock
7 Power outlet
8 Power On/Off button
9 SD memory card slot
10 USB Downstream ( for USB storage devices )
11 USB Upstream ( for PC connection )

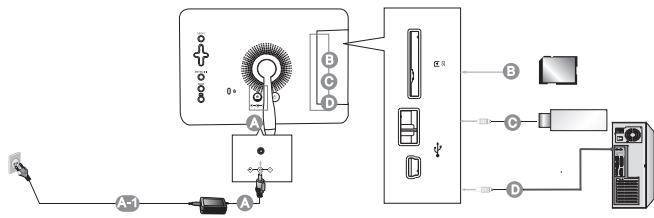

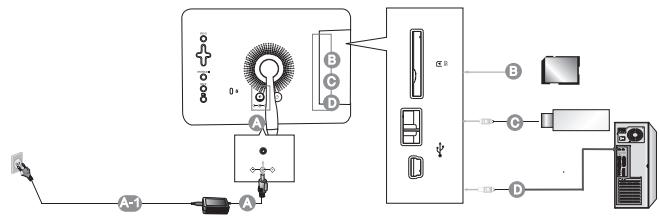

Connections

A Connect the power adapter to the power terminal at the back of the product.

Connect the power cord to the power adapter. Plug the power cord for the monitor into a nearby outlet.

The images here are for reference only, and are not applicable in all cases (or countries).

B Allows you to insert SD memory card. (SD Card only)
© Connect your Digital Photo Frame to a USB-supporting storage device.
Connect your Digital Photo Frame to a PC's USB terminal with a USB cable.

Updating the firmware

Preparations

Digital Photo Frame, Firmware update file, SD card or USB memory stick

Please visit www.samsung.com for the latest firmware update.

Connect SD card or USB memory stick to PC

Connect SD card or USB memory stick to your PC

Copy the firmware update file to SD card or USB memory stick.

Make sure to copy the firmware update file to the root directory.

Connect SD card or USB memory stick to Digital Photo Frame

Remove SD card or USB memory stick from your PC and connect to your Digital Photo Frame. If your Digital Photo Frame is off, turn it on.

Updating

Press the Back button to go to the Main screen.

Navigate until you reach the following stage. [Settings] -> [Update/Reset] -> [Firmware Update]

Press the Enter button and choose the appropriate memory location.

Wail until the message says it is done.

Press the power button to turn off the Digital Photo Frame.

Remove the SD card or USB memory stick.

Press the power button again to turn on the Digital Photo Frame.

Operations

If no button is operated for ten minutes, the screensaver starts to protect the monitor. However, the screensaver does not start in the slideshow status.

Direct Functions
MENU	Enters or exits a menu.
Navigation buttons	Moves around the items and adjusts a value.
	Selects a function you want to use.
	Returns to the previous screen.Hold down this button for two seconds to return to the Main screen.
	Starts a slideshow.When playing a slideshow by pressing the [→] button, the photos in the location of the last played photo are played. If the photos in the location of the last played photo have been removed, they are automatically searched for and then played in a slideshow.

If you press the Menu button, the menu of the selected item is displayed on the screen.

When selecting a folder	Open, Copy, Delete
When selecting a thumbnail	Start Slideshow, Copy, Copy All files, Delete, Delete All files, Set as background
When copying a photo from external memory (SD, USB memory) to internal memory and the following option (Settings -> Options -> Frame Memory Copy -> Resized) is activated, the screen quality size is reduced automatically before copying. This provides the resized photo to be displayed ideally in the screen. But the EXIF (camera related information) is removed when this option is used.So please make sure that resized photo is used only in the Digital Photo Frame.It may take a long time if many files are copied at a time.
Slide Show	Stop Slideshow, Slide Show Settings, Brightness, Rotate, Zoom, Aspect Ratio, Delete, Set as Background
Only photos with a resolution of less than 8000 (width) * 8000 (height) pixels can be displayed on the screen.
Clock
Date and Time, Time Format, Date Format, Clock Type

Settings
If you press the Menu button, the menu of the selected item is displayed on the screen.
Options	Language, Brightness, Direct Slideshow, Auto Fit Portrait Photo, Frame Memory Copy
Preference	Starting Mode, Screen Saver, Home Background, Auto Picture On/Off
Update/Reset	Firmware Update, Reset Settings, Product Information

Troubleshooting

Symptoms	Causes and Actions
I have connected an external storage device but it is not recognized.	Check the connection between product and external storage. Connect to PC and check the operation state.
It takes time to display the next photo.	When the resolution is high or the file size is large, it takes some time to display on the screen.

Specifications

Items		Specifications
Model Name		SPF-71E
Panel	Type	7" (17cm) TFT (Analog)
	Resolution	480 x 234
Supported Formats		JPEG (Progressive,CMYK JPEG is not supported.)
Built-in Memory		120 MB
Power	Rating	External DC power adapter (12 V, 2 A, 24 W)
	Consumption	Normal mode : under 7 WPower off mode : under 1 W
General	Dimensions (WxHxD)	217.5 x 156.5 x 43 mm
	Weight	496.3 g
The product design may differ according to the model, and specifications are subject to change without prior notice for product performance enhancement.

Warning! Important Safety Instructions

(Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product.)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.
• Do not cover the slots and openings with a cloth or other materials.
• Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.
• Do not place this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.
• Do not place this apparatus near or over a radiator or heat resistor, or where it is exposed to direct sunlight.
• Do not place a water containing vessel(vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.
• Do not expose this apparatus to rain or place it near water(near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately. Make sure to pull out the power cord from the outlet before cleaning.
• Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug end, adaptors and the point where they exit from the appliance.
• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.
• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local electrical supply.
• Never insert anything metallic into the open parts of this apparatus. Doing so many create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

• Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the plug from the outlet. Do not touch the power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it
• unplug it immediately and contact an authorized dealer or service center.
• Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substances and where it operates for 24 hours such as the airport, the train station etc. Failure to do so may cause serious damage to your set.
• Use only a properly grounded plug and receptacle.
• An improper ground may cause electric shock or equipment damage. (Class 1 Equipment only.)
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.
• Do not allow children to hang onto the product.
• Store the accessories (battery, etc.) in a location safely out of the reach of children.
• Do not install the product in an unstable location such as a shaky self, a slanted floor or a location exposed to vibration.
• Do not drop or impart any shock to the product. If the product is damaged, disconnect the power cord and contact a service center.
• Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the product.
• Apparatus shall not be exposed to dripping or splashing.
• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Komponenter

Kontroller, at alle elementer findes i produktets emballage.

Brugervejledning

Garantikort

Strømkabel

Strømadapter

USB-kabel

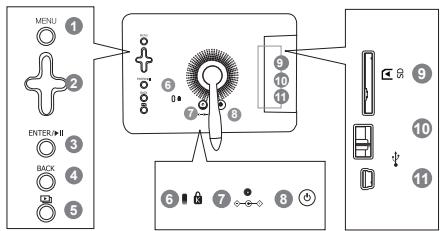

Set forfra/bagfra

Simple geometric diagram with two nested rectangles (no text or symbols)

1 Menu-knap (viser menuen)
② Navigationsknapper
3 Enter-knap (afspil/stop under diasshow)
4 Back-knap
5 Diasshow-knap (starter diasshow med det samme)
6 Kensington-lås
7 Strømstik
8 Tænd/sluk-knap
9 Åbning til SD-hukommelseskort
10 USB-downstream (til USB-lagringsenheder)
11 USB-upstream (til pc-tilslutning)

Tilslutninger

A Tilslut strømadapteren til strømstikket på bagsiden af produktet.

Ved valg af en mappe	Open, Copy, Delete
Ved valg af en miniature	Start Slideshow, Copy, Copy All files, Delete, Delete All files, Set as background

Slide Show

Stop Slideshow, Slide Show Settings, Brightness, Rotate, Zoom, Aspect Ratio, Delete, Set as Background

Clock
Date and Time, Time Format, Date Format, Clock Type

Settings
Hvis du trykker på Menu-knappen, vises menuen for det valgte emne på skærmen.
Options	Language, Brightness, Direct Slideshow, Auto Fit Portrait Photo, Frame Memory Copy
Preference	Starting Mode, Screen Saver, Home Background, Auto Picture On/Off
Update/Reset	Firmware Update, Reset Settings, Product Information

Fejlfinding

If you press the Menu button, the menu of the selected item is displayed on the screen.

RISQUE D'ELECTROCUTION NE PAS OUVRIR

Simple geometric diagram with two concentric rectangles (no text or symbols)

Options	Language, Brightness, Direct Slideshow, Auto Fit Portrait Photo, Frame Memory Copy
Preference	Starting Mode, Screen Saver, Home Background, Auto Picture On/Off
Update/Reset	Firmware Update, Reset Settings, Product Information

RISQUE D'ELECTROCUTION NE PAS OUVRIR

ATTENTION : POUR REDUIRE LES RISQUES D'ELECTROCUTION, NE RETIREZ PAS LE CAPOT (NI LE PANNEAU ARRIERE). A L'INTERIEUR DE L'APPAREIL, AUCUNE PIECE NE PEUT ETRE REPAREE PAR L'UTILISATEUR. POUR TOUT DEPANNAGE, ADRESSEZ-VOUS A UN SPECIALISTE.

Simple geometric diagram with two nested rectangles (no text or symbols)

Simple geometric diagram with two concentric rectangles (no text or symbols)

Simple geometric diagram with two concentric rectangles (no text or symbols)

A 將電源變壓器連接至產品背面的端子。

Options	Language, Brightness, Direct Slideshow, Auto Fit Portrait Photo, Frame Memory Copy
Preference	Starting Mode, Screen Saver, Home Background, Auto Picture On/Off
Update/Reset	Firmware Update, Reset Settings, Product Information

疑難排解

Simple geometric diagram with two nested rectangles (no text or symbols)

Simple geometric diagram with two concentric rectangles (no text or symbols)

Regulatory Compliance Statements

Your Samsung product is marked to indicate its compliance class

• Federal Communications Commission (FCC) - USA
• Industry Canada Equipment Standard for Digital Equipment (ICES-003) - Canada
• Voluntary Control Council for Interference (VCCI) - Japan
• Bureau of Standards Metrology and Inspection (BSMI) - Taiwan
• Ministry of Information and Communication (MIC) - Republic of Korea
• Italian Post Ministry (Homologation) - Italy

FCC Class B Notice

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.

User Information

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. If necessary, consult with your dealer or an experienced radio/television technician for additiona suggestions. You may find the booklet called How to Identify and Resolve Radio/TV Interference Problems helpful.

This booklet was prepared by the Federal Communications Commission. It is available from the U.S. Government Printing Office.

Washington, DC 20402, Stock Number 004-000-00345-4.

The party responsible for product compliance:

SAMSUNG ELECTRONICS CO., LTD.

America QA Lab of Samsung

3351 Michelson Drive

Suite #290, Irvine, CA92612 USA

Warning

User must use shielded signal interface cables to maintain FCC compliance for the product.

Provided with this monitor is a detachable power supply cord with IEC320 style terminations.

It may be suitable for connection to any UL Listed personal computer with similar configuration.

Before making the connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor and that the ampere rating of the computer convenience outlet is equal or exceeds the monitor voltage rating.

For 120 Volt applications, use only UL Listed detachable power cord with NEMA configuration 5-15P type(parallel blades) plug cap. For 240 Volt applications use only UL Listed detachable power supply cord with NEMA configuration 6-15P type (tandem blades) plug cap.

This television receiver provides display of television closed captioning in accordance with Section 15.119 of the FCC rules.

(TV broadcast receivers with picture screens 13 inches or larger in diameter models only)

ICES-003 Class B Notice - Avis NMB-003, Classe B

This Class B digital apparatus complies with Canadian ICES-003.

European Notice(Europe Only)

Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC),(93/68/EEC) and the Low Voltage Directive(73/23/EEC) issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Norms:

• EN55022: Radio Frequency Interference
• EN55024: Electromagnetic Immunity of Information Technology Equipment
• EN61000-3-2: Power Line Harmonics
• EN61000-3-3: Voltage Fluctuations
• EN55013: Radio disturbance characteristics of broadcast receivers and associated equipments
• EN55020: Electromagnetic immunity of broadcast receivers and associated equipments

Wiring the Mains Power Supply Plug(UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and, if it requires replacing, a fuse approved to BSI1362 of the same rating must be used.

Never use the plug with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the pin face of the plug. Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your house or the cable is not long enough to

reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative but to cut off the plug, remove the fuse and then safely dispose of the plug.

Do NOT connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code: BLUE - NEUTRAL BROWN - LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows :

The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING:

DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL, WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL ⏻, OR COLOURED GREEN OR GREEN AND YELLOW.

Russia Only - PCT Notice

AE95

Service Centers

North America
U.S.A	1-800-SAMSUNG(726-7864)	http://www.samsung.com/us
CANADA	1-800-SAMSUNG(726-7864)	http://www.samsung.com/ca
MEXICO	01-800-SAMSUNG(726-7864)	http://www.samsung.com/mx
Latin America
ARGENTINE	0800-333-3733	http://www.samsung.com/ar
BRAZIL	0800-124-421, 4004-0000	http://www.samsung.com/br
CHILE	800-SAMSUNG(726-7864)	http://www.samsung.com/cl
COLOMBIA	01-8000112112	http://www.samsung.com/co
COSTA RICA	0-800-507-7267	http://www.samsung.com/latin
ECUADOR	1-800-10-7267	http://www.samsung.com/latin
EL SALVADOR	800-6225	http://www.samsung.com/latin
GUATEMALA	1-800-299-0013	http://www.samsung.com/latin
HONDURAS	800-7919267	http://www.samsung.com/latin
JAMAICA	1-800-234-7267	http://www.samsung.com/latin
NICARAGUA	00-1800-5077267	http://www.samsung.com/latin
PANAMA	800-7267	http://www.samsung.com/latin
PUERTO RICO	1-800-682-3180	http://www.samsung.com/latin
REP. DOMINICA	1-800-751-2676	http://www.samsung.com/latin
TRINIDAD & TOBAGO	1-800-SAMSUNG(726-7864)	http://www.samsung.com/latin
VENEZUELA	0-800-100-5303	http://www.samsung.com/latin

Europe
AUSTRIA	0810 - SAMSUNG(7267864, € 0.07/min)	http://www.samsung.com/at
BELGIUM	02 201 2418	http://www.samsung.com/be
CZECH REPUBLIC	800 - SAMSUNG(800-726786)	http://www.samsung.com/cz
	Distributor pro Českou republiku:Samsung Zrt., Česká organizační složka, Oasis Florenc,Sokolovská394/17, 180 00, Praha 8
DENMARK	8 - SAMSUNG (7267864)	http://www.samsung.com/dk
EIRE	0818 717 100	http://www.samsung.com/ie
FINLAND	30 - 6227 515	http://www.samsung.com/fi
FRANCE	3260 'dites' SAMSUNG (€ 0,15/Min)0825 08 65 65(€ 0.15/Min)	http://www.samsung.com/fr
GERMANY	01805 - SAMSUNG(7267864, € 0.14/Min)	http://www.samsung.de
HUNGARY	06-80-SAMSUNG(726-7864)	http://www.samsung.com/hu
ITALIA	800 SAMSUNG (726-7864)	http://www.samsung.com/it
LUXEMBURG	02 261 03 710	http://www.samsung.com/lu
NETHERLANDS	0900 - SAMSUNG(7267864, € 0.10/Min)	http://www.samsung.com/nl
NORWAY	3 - SAMSUNG(7267864)	http://www.samsung.com/no
POLAND	0 - 801 - 1SAMSUNG (172678)022 - 607 - 93 - 33	http://www.samsung.com/pl
PORTUGAL	808 20 - SAMSUNG(7267864)	http://www.samsung.com/pt
SLOVAKIA	0800-SAMSUNG(726-7864)	http://www.samsung.com/sk
SPAIN	902 - 1 - SAMSUNG(902 172 678)	http://www.samsung.com/es
SWEDEN	075 - SAMSUNG(726 78 64)	http://www.samsung.com/se
SWITZERLAND	0848 - SAMSUNG(7267864, CHF 0.08/min)	http://www.samsung.com/ch
U.K	0845 SAMSUNG (7267864)	http://www.samsung.com/uk

CIS

ESTONIA	800-7267	http://www.samsung.ee/
LATVIA	8000-7267	http://www.samsung.com/lv
LITHUANIA	8-800-77777	http://www.samsung.lt/
KAZAKHSTAN	8-10-800-500-55-500	http://www.samsung.com/kz_ru
KYRGYZSTAN	00-800-500-55-500
RUSSIA	8-800-555-55-55	http://www.samsung.ru
TADJIKISTAN	8-10-800-500-55-500
UKRAINE	8-800-502-0000	http://www.samsung.ua
UZBEKISTAN	8-10-800-500-55-500	http://www.samsung.com/kz_ru

Asia Pacific

AUSTRALIA	1300 362 603	http://www.samsung.com/au
CHINA	800-810-5858400-810-5858010-6475 1880	http://www.samsung.com/cn
	HONG KONG : 3698-4698	http://www.samsung.com/hk
INDIA	3030 82821-800-3000-82821800 110011	http://www.samsung.com/in
INDONESIA	0800-112-8888	http://www.samsung.com/id
JAPAN	0120-327-527	http://www.samsung.com/jp
MALAYSIA	1800-88-9999	http://www.samsung.com/my
NEW ZEALAND	0800 SAMSUNG (0800 726 786)	http://www.samsung.com/nz
PHILIPPINES	1800-10-SAMSUNG (726-7864)	http://www.samsung.com/ph
REPUBLIC OF KOREA	1588-3366	http://www.sec.co.kr
SINGAPORE	1800-SAMSUNG (726-7864)	http://www.samsung.com/sg
THAILAND	1800-29-3232, 02-689-3232	http://www.samsung.com/th
TAIWAN	0800-329-999	http://www.samsung.com/tw
VIETNAM	1 800 588 889	http://www.samsung.com/vn

Middle East & Africa

SOUTH AFRICA	0860-SAMSUNG(726-7864)	http://www.samsung.com/za
TURKEY	444 77 11	http://www.samsung.com/tr
U.A.E	800-SAMSUNG(726-7864)8000-4726	http://www.samsung.com/ae

1

Hand placing a printed card into a white box with visible printed text (no readable document content)

2

Black-and-white photo of a Samsung portable electronic device on a textured surface, with a pen and ruler nearby (no visible text or symbols on the device itself)

3

Hand using a white tool to adjust or install a white wireless router device (no visible text or symbols)

4

Hand using a power tool to press or install a white electronic device (no visible text or symbols)

5

Close-up of hands cleaning a white electronic device with USB port and cable (no visible text or symbols)

6

Hand inserting a USB into a white wireless router device (no visible text or symbols)

7

White 3D-printed object resembling a stylized bird or wing, placed on a printed surface with printed labels (no legible text in image)

Black and white illustration of a hand holding a pencil over a dome-shaped object, enclosed in a circle with crossed lines (no text or symbols)

SAMSUNG

BN68-01567C-03
