Product Type	34" Curved WQHD Ultrawide Gaming Monitor
Model	KAMN34RQUCSB
Panel Type	VA
Resolution	3440 x 1440 (WQHD)
Refresh Rate	165Hz
Response Time	4ms
Brightness	300 cd/m² (typical)
Contrast Ratio	3000:1
Viewing Angle	≥178°(H) / 178°(V)
Aspect Ratio	21:9
Color Support	16.7M colors
Inputs	1 x HDMI 2.0, 1 x DP 1.4, 1 x USB-C, 3 x USB 2.0
Audio	Built-in speakers, 3.5mm audio out
Power	DC 24V, 5A (adapter included)
VESA Mount	100 x 100mm (M4 screws included)
Dimensions (with stand)	807.5 x 463.4 x 249.2 mm
Dimensions (without stand)	807.5 x 364.0 x 130.2 mm
Net Weight	7.65 kg
Gross Weight	10.5 kg
Special Features	AMD FreeSync, HDR, Low Blue Light, Flicker Free, Gameplus modes, Multi-Window (PIP/PBP)
Cleaning	Use dry micro-fiber cloth; avoid alcohol, ammonia, or harsh cleaners
Safety	Unplug before cleaning; do not cover vents; avoid heat sources; do not open back panel
Included Accessories	Stand arm, stand base, M6 screw, VESA screws (M4x10), DisplayPort cable, USB upstream cable, USB-C cable, power adapter & cable, user guide

Frequently Asked Questions - KAMN34RQUCSB Kogan

How do I assemble the stand?

Carefully remove the monitor and stand parts from the box. Attach the stand base to the stand arm using the provided M6 screw. Then insert the stand arm into the rear of the monitor and push down until firmly connected. Lift the monitor upright and remove the foam underneath.

What is the recommended way to clean the monitor screen?

Turn off the monitor, unplug it, and let it cool completely. Wipe the screen with a dry micro-fiber cloth. Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.

How do I connect the monitor to my computer?

You can connect via HDMI, DisplayPort, or USB-C using the appropriate cable. For USB 2.0 ports, first connect the USB upstream cable from the monitor to your computer.

How do I enable AMD FreeSync?

Ensure your graphics hardware supports FreeSync and drivers are up to date. Connect the monitor and enable FreeSync in the OSD menu under Setup or Other settings (toggle to On). You may also need to enable it in your graphics card control panel.

How do I adjust display settings?

Press the Power button left to open the navigation window, then press in to enter the OSD menu. Use up/down to navigate and left/right to adjust settings. Press in to confirm. Settings include brightness, contrast, color temperature, and ECO modes.

Does the monitor support HDR?

Yes, the monitor supports HDR. You can enable it in the OSD menu under Other settings (HDR: On, Off, or Auto). Note that HDR content requires compatible hardware and software.

Can I mount this monitor on a VESA arm?

Yes, it supports VESA 100x100 mm mounting. Use the provided M4x10 screws. Note that the VESA mount or mounting accessories are not included.

What are the multi-window (PIP/PBP) capabilities?

The monitor supports PIP (Picture-in-Picture) and PBP (Picture-by-Picture) with up to 3 windows. You can select input sources and adjust sub-window size/position in the OSD under Multi-Window settings.

How do I use the built-in speakers?

Connect your audio source via HDMI, DisplayPort, or USB-C. Volume can be adjusted in the OSD menu under Setup (Volume 0-100). To use external speakers, connect to the 3.5mm audio out.

What should I do if the monitor flickers or shows no signal?

Check cable connections and ensure the correct input source is selected in the OSD. For USB-C connections to phones, note that if the phone does not support 1440p, screen flickering may occur. Try a different cable or input port.

USER MANUAL KAMN34RQUCSB Kogan

Technical line drawing of a three-point mechanical assembly with no text or symbols

34" CURVED WQHD ULTRAWIDE 165HZ USB-C FREESYNC HDR

GAMING MONITOR (3440 x 1440)

KAMN34RQUCSB

SAFETY & WARNINGS

• Read all instructions before using the monitor and retain for future reference.
  • Unplug the monitor before cleaning it.
  • Use a clean, slightly dampened cloth to wipe the main monitor body.
• To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe it with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat.
• Place monitor in well ventilation room.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
  • Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.
• Before disposing of any packaging, place all items on a soft, clean and flat surface to ensure all components are accounted for.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

COMPONENTS

Blank white rectangle with a thin black border (no text or symbols)

Monitor

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Stand arm

Simple line drawing of a tool or bracket with three blades (no text or symbols)

Stand base

Stand base screw (M6 x 16mm)

Five identical vertical cylindrical structures with a 10 mm height dimension labeled, no text or symbols present.

VESA screws (x4) (M4 x 10mm)

DisplayPort cable

Pure electrical circuit lines without any symbols

USB upstream cable

USB-C cable

Illustration of a battery pack connected to a cable with a plug (no text or symbols visible)

Power adapter & Power cable

User guide

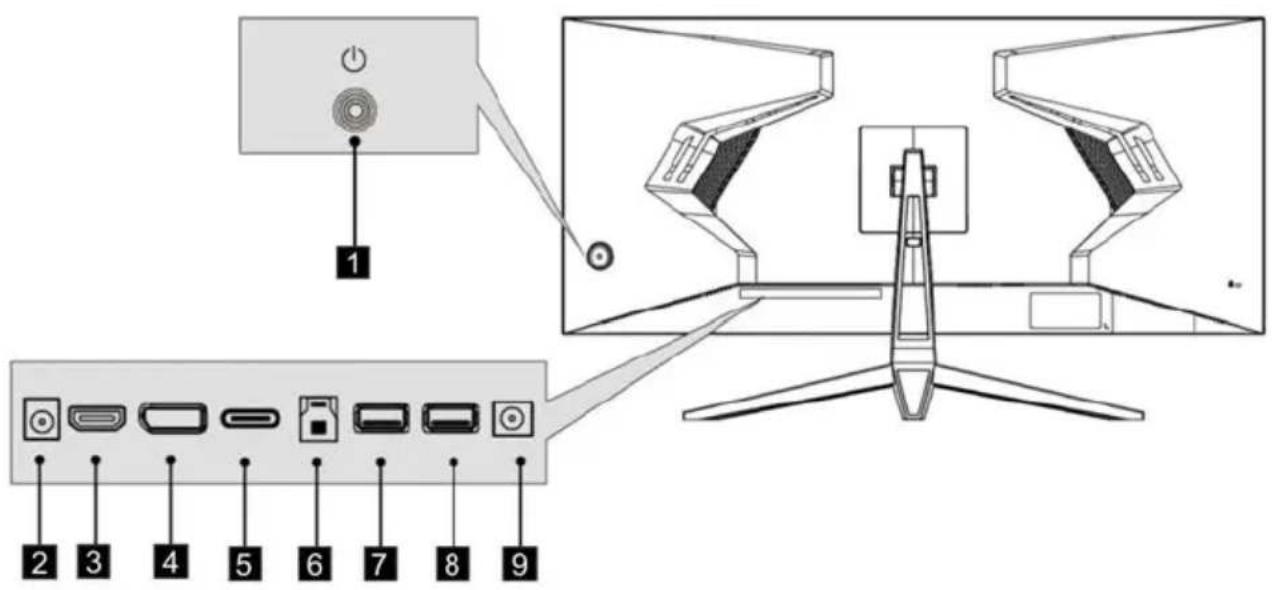

OVERVIEW

1 Power button
2 Power input
3 HDMI
4 DisplayPort
5 USB-C
6 USB upstream
7 USB 2.0
8 USB 2.0
9 Audio out (3.5mm jack)

ASSEMBLY

Before disposing of any packaging, place all items on a soft, clean and flat surface to ensure all components are accounted for.

WARNING: The panel of the monitor is fragile. Keep the foam underneath the monitor screen while assembling the stand.

Technical line drawing of two 3D rectangular electronic components with internal structures (no text or symbols)

Technical line drawing of a mechanical lever assembly with a magnified inset showing a dimension labeled M6 (no text or symbols present)

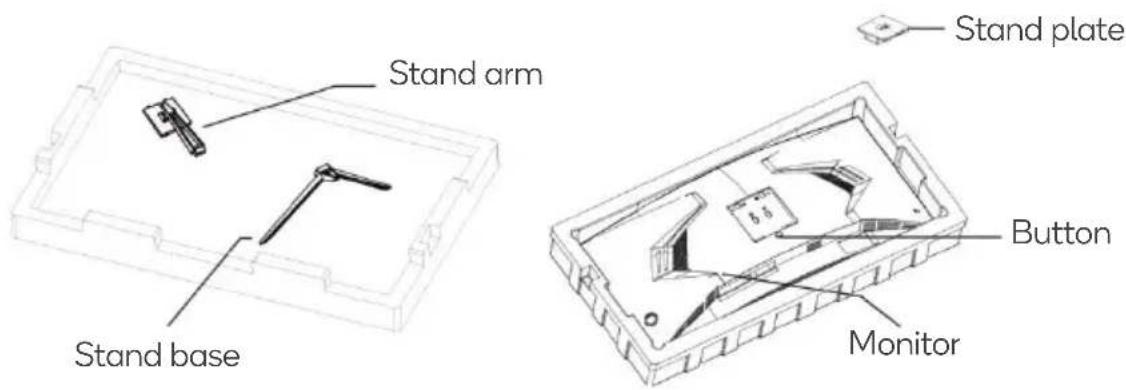

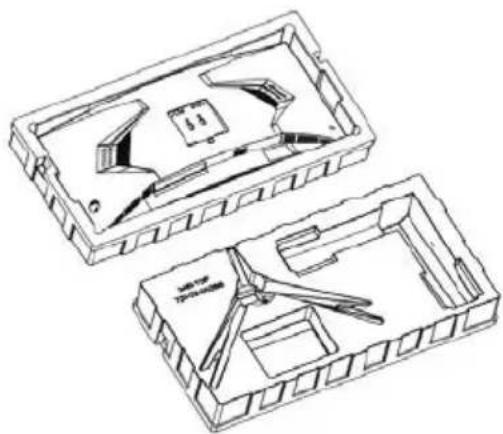

1. Carefully remove the monitor, stand arm and stand base from the box.

2. Attach the stand base to the stand arm using the provided M6 screw.

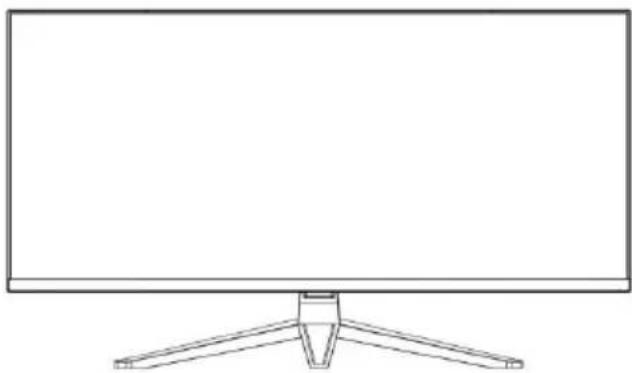

Line drawing of a flat-screen monitor with three legs and a blank screen (no text or symbols)

1. Insert the stand arm into the rear of the monitor and push down until it is firmly connected.

2. Lift the monitor up straight and remove the bottom foam. Stand the monitor up on the installed base.

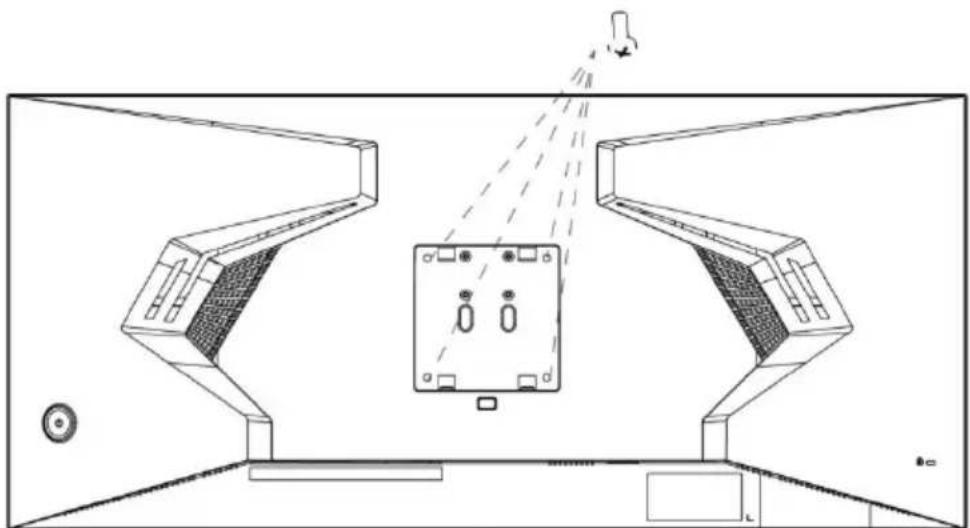

VESA MOUNT

VESA mounting pattern 100 x 100mm, screw size M4.

Note: VESA mount or mounting accessories are NOT included.

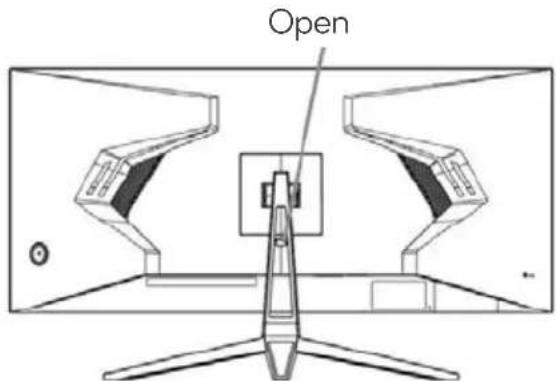

1. Open the box, remove the monitor keeping the protection foam attached and gently place it on a desktop or table.
2. Remove the foam covering the rear of the monitor. Press the release button to remove the stand plate. If the monitor is already attached to the stand, remove the stand.

1. Assemble the mount as per the instructions provided with the mount.

Technical line drawing of a device layout with two front-mounted units and a central display unit, no text or symbols present.

CONNECTIVITY

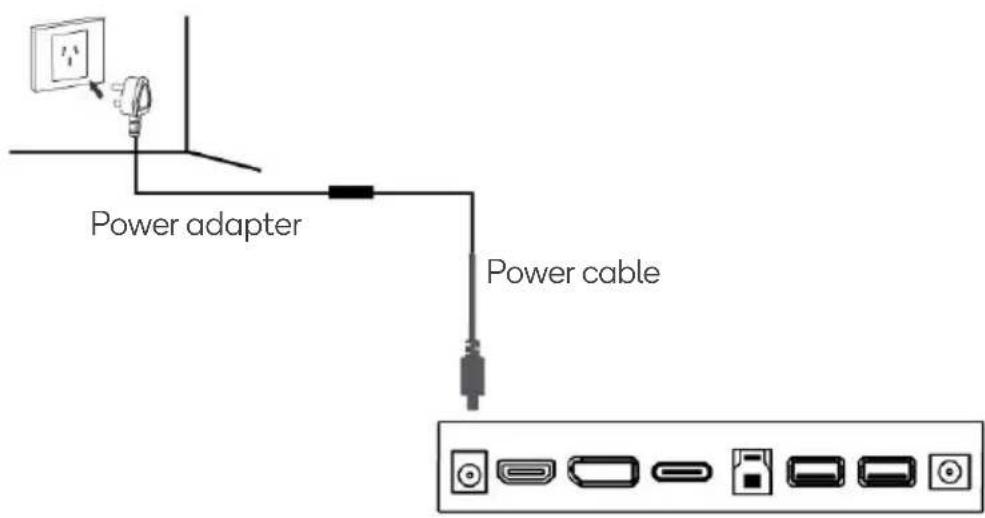

Power

1. Connect the included power cable to the monitor power port.
2. Connect the power cable to the power adapter.
3. Connect the power adapter to the power outlet.

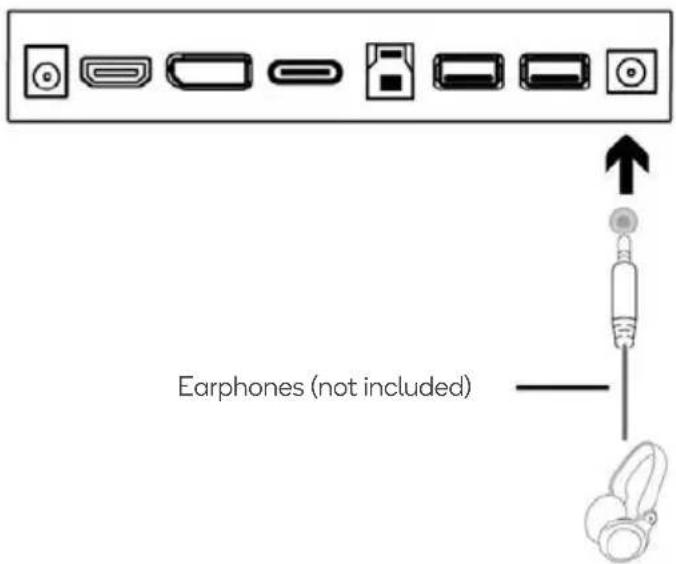

Audio

1. Connect a 3.5mm audio cable to the audio out on the monitor.
2. Connect the audio cable to the 3.5mm port on your headphones or speakers.
   Note: The monitor may need to be set as the PC's default sound output device.

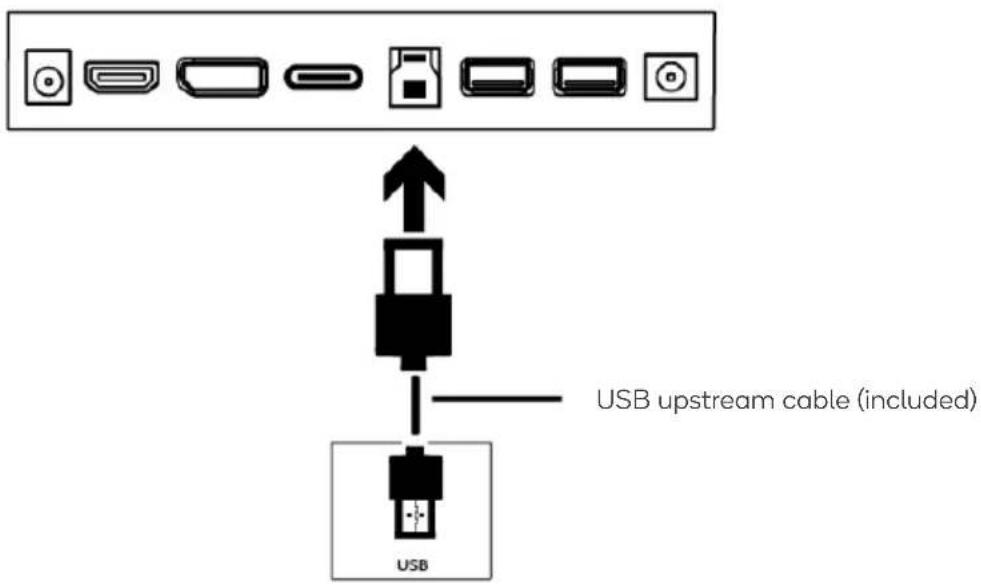

USB Upstream

Before using the two USB 2.0 ports you will first need to connect the monitor to your computer through the USB upstream input.

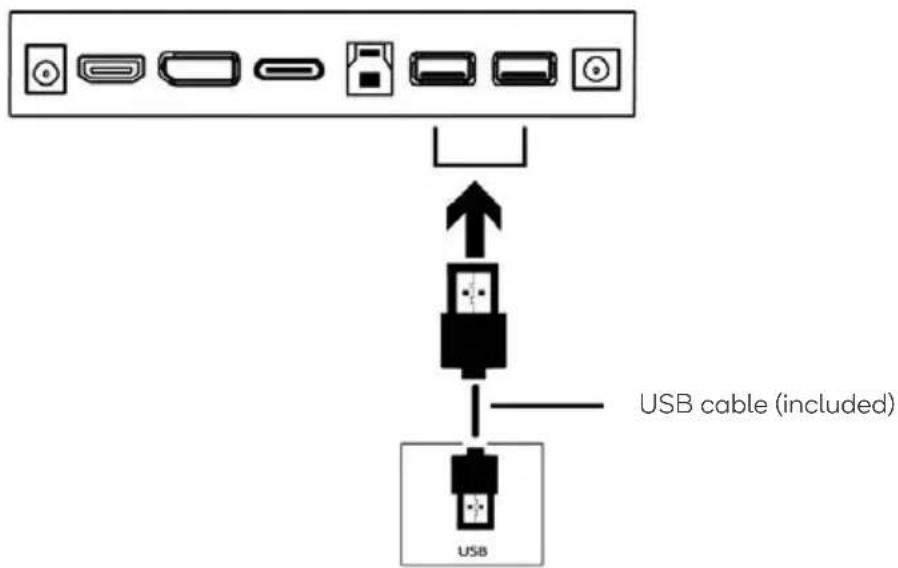

USB

The two USB 2.0 ports can be used to connect USB accessories to the monitor.

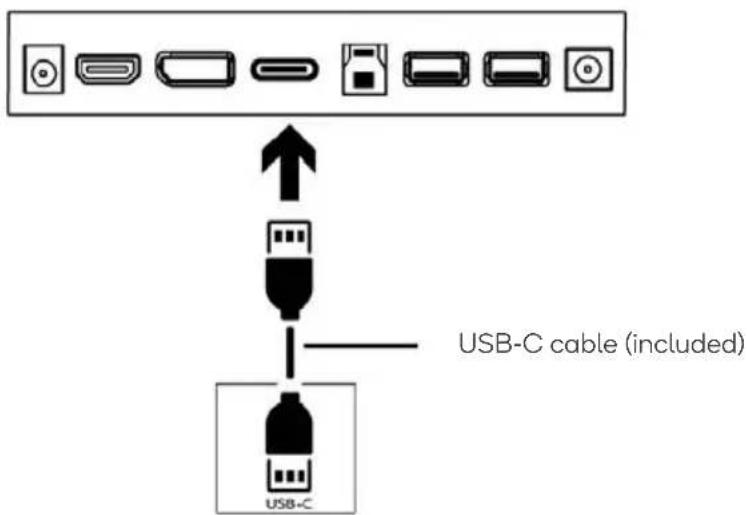

USB-C

Use the included USB-C cable to connect the monitor to your computer.

Note:

If connecting to a mobile phone that does not support 1440P, using it may cause screen flickering.

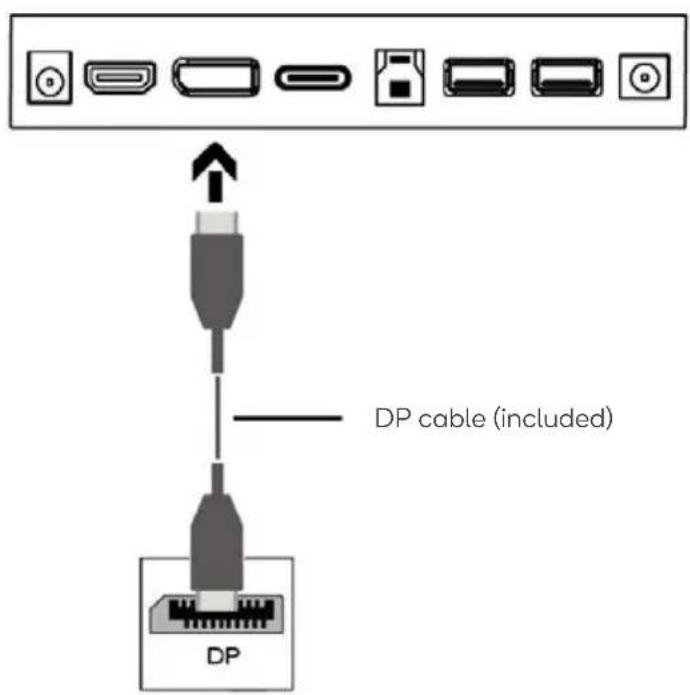

DisplayPort

Use the included DisplayPort cable to connect the monitor to your computer.

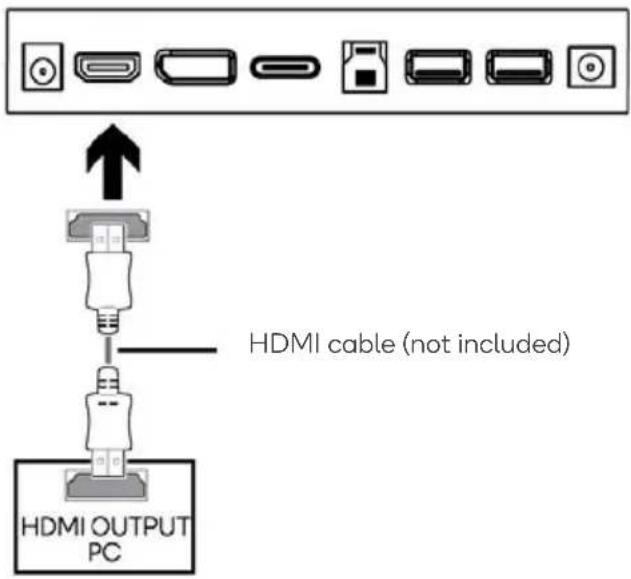

HDMI

Use a HDMI cable to connect the monitor to your computer.

OPERATION

1. Connect the monitor to the input device via HDMI/DisplayPort or USB-C.
2. Connect the power cable to the monitor, then connect the other end directly to a power socket.
3. Use the power button to turn the monitor on.

Monitor Control

You can easily control the functions of the monitor by pressing the Power button or moving it left/right (◄/►) with your finger.

Button		Action	Description
		Press in	Turn the monitor on/off.
		Push left	Enable the main menu or select the menu item.
		Push right	Exit from the main menu or return to the upper menu.
		Push up	Select menu items or increase the setting values of the selected menu item.
		Push down	Select menu items or decrease the setting values of the selected menu item.

FreeSync

• In order to use this feature, ensure your hardware has FreeSync capability and the graphics drivers are fully up to date.
• After connecting, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in your graphics card menu.
• See your graphics card manufacturer's documentation for instructions on how to turn on and/or enable FreeSync.

Display settings

When first using this monitor it will automatically configure the optimal display settings. The On-Screen Display (OSD) Menu can be used to adjust your monitor's display settings to your liking. To access the OSD:

1. Push the Power button right to activate the navigation window.

Auto-Source

USB-C

DP

HDMI

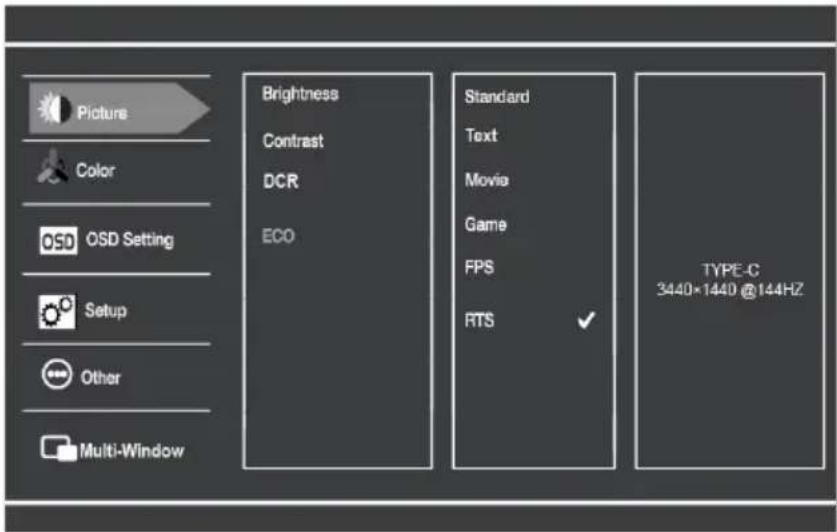

1. Press the Power button in to enter the OSD menu.

1. Press the Power button up and down to navigate the functions.
2. With the desired function highlighted, push Power button in to enter the sub-menu.
3. After making your desired adjustments push the Power button in to confirm the settings and exit the current screen.
4. Press the Power button left to exit the current screen.
5. Refer to the following pages for a detailed list of the OSD menu functions.

Menu	Sub-Menu	Options	Description
Picture	Brightness	~0-100	Adjust display brightness
	Contrast	~0-100	Adjust display contrast
	DCR	On/ Off	Turns dynamic contrast ratio on/off
	ECO	Standard, Text, Game, Movie, FPS, RTS	Preset colour modes
Colour	Colour Temperature	Normal	Select colour temperature mode or allow manual colour configuration (USER)
		Warm
		Cool
		USER
	Red	~0-100	Adjust red value (USER mode only)
	Green	~0-100	Adjust green value (USER mode only)
	Blue	~0-100	Adjust blue value (USER mode only)
OSD Setting	Language	English, 简体中文, 한국어, Русский, Español, Français, 日本语	Set OSD language
	OSD H-Position	0~100	Adjust OSD horizontal position
	OSD V-Position	0~100	Adjust OSD vertical position
	OSD Transparency	0~100	Set OSD overall transparency
	OSD Time Out	0-100	Set how long the OSD remains open after last input
Setup	Input Source	Auto Source, DP, USB-C, HDMI	Select input source or allow manual selection
	Mute	On, Off	Enable or disable monitor speaker output
	Volume	0-100	Adjust monitor speaker volume
	Audio Source	USB-C, DP, HDMI	When open Multi-Window, allows you to select an audio source from different sources
	USB Select	PC, USB-C	When open Multi-Window, PC or USB-C can be selected for this function.
	Reset	N/A	Restore factory defaults
Other	Aspect Ratio	Wide Screen	Select the display's aspect ratio
		4:3
		1:1
		Auto
	Low Blue Light	Off	Blue light reduction adjustment
		Low
		Medium
		High
		Max High
	Response Time	On, Off	Enable or disable overdrive for faster response time
	FreeSync	On, Off	Enable or disable AMD FreeSync
	HDR	On, Off, Auto	Enable or disable HDR
	LED Mode	On, Off	Press to turn the display backlight on or off.
	MPRT	On, Off	When the refresh rate reaches 85Hz MPRT can be turned on.
Multi-Window	Multi-Window	Off	Select Multi-Window mode
		PIP Mode
		PBP 2Win
		PBP 3Win
	Sub Win2 Input	USB-C, DP, HDMI	Select source to be displayed in the second window
	Sub Win3 Input	USB-C, DP, HDMI	Select source to be displayed in the third window
	PIP Size	Small, Medium, Large	Change the size of the sub window in PIP mode
	PIP Position	Top Right	Change the position of the sub-window in PIP mode
		Top Left
		Bottom Right
		Bottom Left
	Swap	Main Window	Swap between the main and sub window
		Sub Window

DISPLAY MODES & GAMEPLUS

Display modes

Press the Power button left to switch between the preset display modes. These modes include: Standard, Text, Movie, Game, FPS and RTS. These modes are designed to optimise settings according to your activity. Standard mode is suitable for most activities.

ECO

Standard

Gameplus

Press the Power button down to switch Gameplus modes. These overlay icons are primarily designed to assist aim during first person shooter games.

GAME CURSOR

SPECIFICATIONS

Screen size	34"
Aspect ratio	21:9
Brightness	300cd/m2 (typical)
Panel	VA
Resolution	3440 x 1440
Refresh rate	165Hz
Response time	4ms
Viewing angle	≥178°(H) / 178°(V)
Contrast ratio	3000:1
VESA mounting	100 x 100mm
Colours	16.7M
Signal input	1 x HDMI 2.0, 1 x DP 1.4, 1 x USB-C, 3 x USB2.0
Power	DC24V = 5A

Audio

Speakers	Yes
Audio out	Yes

Accessories

Power cable	Yes
DisplayPort cable	Yes
USB-C cable	Yes
USB3.0 cable	Yes

Additional functions

Low blue light	Yes
Flicker free	Yes

Physical dimensions

Dimensions (with stand)	807.5 x 463.4 x 249.2mm (mm)
Dimensions (without stand)	807.5 x 364.0 x 130.2mm (mm)
Net weight	7.65kg
Gross weight	10.5kg

Need more information?

We hope that this user guide has given you

the assistance needed for a simple set-up.

For the most up-to-date guide for your product,

as well as any additional assistance you may require,

head online to help.kogan.com

kogan.com
