KAMN24F18VA - Monitor Kogan - Free user manual and instructions

Product Type	Monitor
Brand	Kogan
Model	KAMN24F18VA
Screen Size	24"
Panel Type	VA
Resolution	1920 x 1080 (Full HD)
Refresh Rate	180Hz
Response Time	14ms
Brightness	300 cd/m²
Contrast Ratio	4000:1
Viewing Angle	178° (H) / 178° (V) typical
Aspect Ratio	16:9
Backlight	E-LED
Colors	16.7M
FreeSync	Yes
VESA Mount	75 x 75 mm
Inputs	2x HDMI 2.0, DP
Audio Output	3.5mm headphone jack
Power Supply	DC 12V, 3A
Dimensions (with stand)	540 x 169.3 x 402.1 mm
Dimensions (without stand)	540 x 41.2 x 322.4 mm
Net Weight	2.94 kg
Additional Features	Low blue light, Flicker-free, HDR, Adaptive-Sync
Tilt Range	-5° to +15°

Frequently Asked Questions - KAMN24F18VA Kogan

How do I adjust the brightness on the Kogan KAMN24F18VA monitor?

Press the Up or Down button when outside the OSD menu to quickly adjust brightness. Alternatively, press the Menu button to access the OSD menu, navigate to Picture Setting, and adjust Brightness from 0-100.

How do I enable FreeSync on this monitor?

Ensure your graphics card supports FreeSync and drivers are updated. Connect the monitor via HDMI or DP. If not prompted, enable FreeSync in your graphics card settings. The monitor defaults to FreeSync on at 180Hz refresh rate. You can also toggle it in OSD under Gaming Mode > Adaptive-Sync.

What is the proper way to clean the monitor screen?

Turn off the monitor and unplug it. Use a dry microfibre cloth to gently wipe the screen. For the body, use a slightly damp, clean cloth. Do not use alcohol, ammonia, or harsh cleaners.

Can I mount this monitor on a wall?

Yes, the monitor supports VESA mount with a 75 x 75 mm pattern. Remove the stand base and stem before mounting. Use a compatible VESA mount kit (not included). Ensure at least 10 cm clearance around the monitor.

How do I adjust the tilt of the monitor?

Hold the edges of the screen with both hands and gently tilt forward up to 5° or backward up to 15°. Avoid touching the screen directly during adjustment.

What input sources does the monitor support?

The monitor has 2x HDMI 2.0 ports and one DP port. To switch inputs, press the Exit/Input button, then use the Up/Down buttons to select the desired source (HDMI1, HDMI2, or DP).

How do I access and use the On-Screen Display (OSD) menu?

Press the Menu/Select button to enter the OSD menu. Use Up/Down buttons to navigate categories and sub-menus. Press Menu/Select to enter a sub-menu and adjust settings. Press Exit/Input to exit.

Does the monitor have built-in speakers?

No, the monitor does not have built-in speakers. It has a 3.5mm audio output port for connecting headphones or external speakers.

What is the power consumption of the monitor?

The monitor operates on DC 12V, 3A (36W max). Actual power consumption may vary depending on usage settings and brightness.

How do I reset the monitor to factory settings?

Press the Menu button, navigate to OSD Setting, then select Reset. Confirm to restore all settings to default. This will reset brightness, contrast, color modes, and other adjustments.

USER MANUAL KAMN24F18VA Kogan

24" FULL HD FREESYNC FRAMELESS MONITOR

1920 x 1080, 180Hz

KAMN24F18VA

SAFETY & WARNINGS

Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference.

• This monitor is designed with ventilation holes on the back of the casing. Do not cover or block them.
• Avoid placing the monitor near heaters, stoves, fireplaces, or other heat sources.
• Do not place this monitor in rooms lacking adequate ventilation.
• Do not insert any objects or spray any liquids into the vents.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and cause injury to people within its vicinity.
• Do not place heavy objects on the monitor, its power cord, or any connected cables.
• Do not open the back panel of the monitor as it contains a high-voltage current even when not plugged in.
• Unplug the monitor if it will not be used for an extended period.
• Ensure the monitor is unplugged before cleaning.

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States, and other countries.

COMPONENTS

Empty rectangular frame with no text, numbers, or symbols

A Monitor (x1)

B Stand stem (x1)

C Stand base (x1)

D Stand stem plate (x1)

E Adapter cord (x1)

F DP cable (x1)

G User guide (x1)

INSTALLATION

(The functions of the monitor may vary depending on the model, the actual product shall prevail)

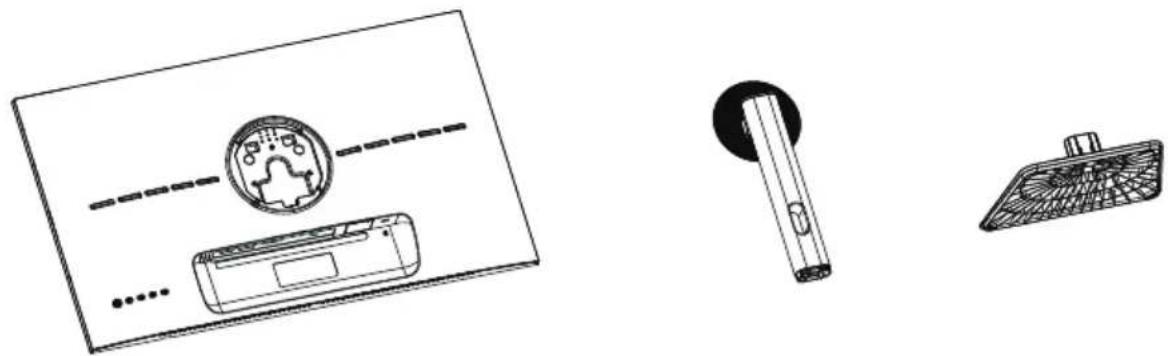

1

Line drawings of three household appliances: a mobile phone, a cylindrical device with a handle, and a smart home unit (no text or symbols)

2

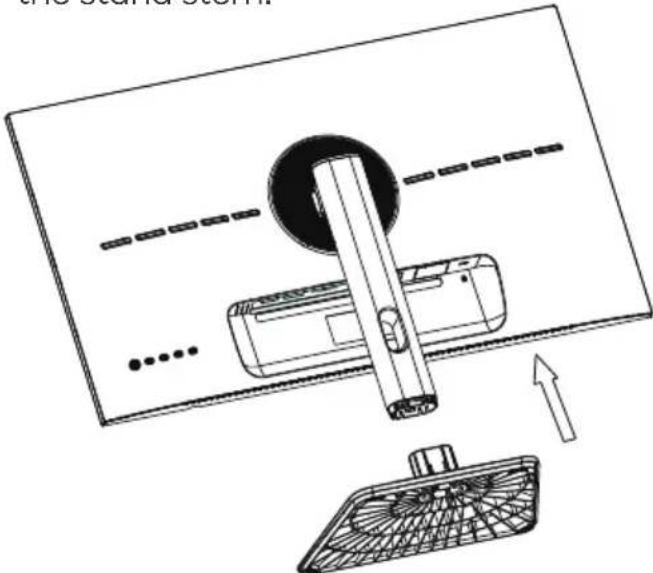

Align the stand base with the stand stem, then clip the stand base into the stand stem.

Technical line drawing of a mechanical assembly with a fan base and internal components (no text or symbols)

3

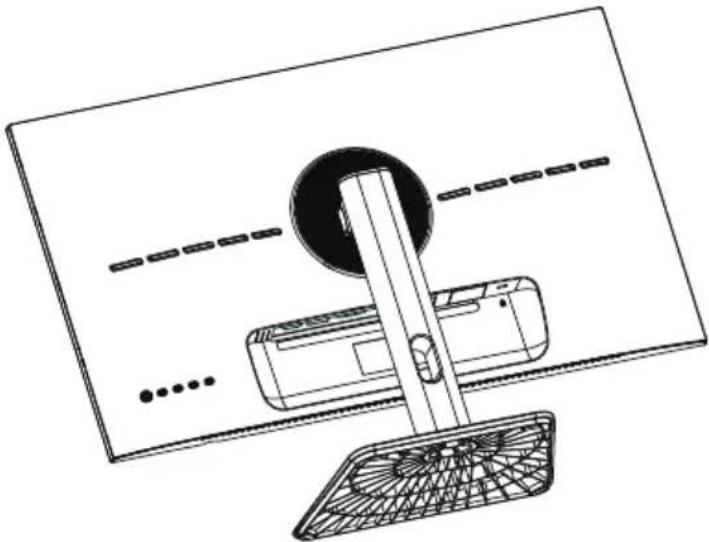

Fix the stand body to the back of the monitor.

Technical line drawing of a mechanical device with a central shaft and mounting base (no text or symbols)

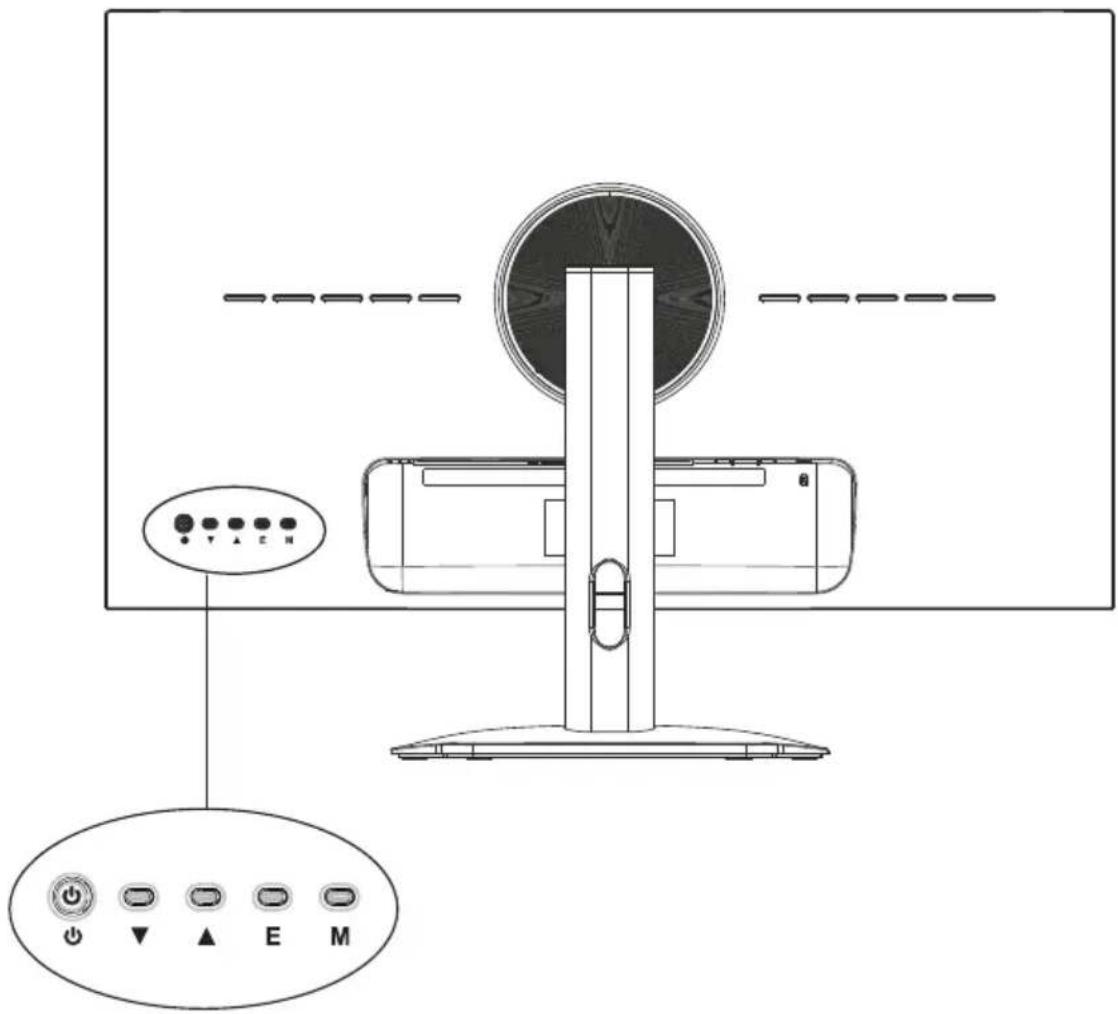

USERS CONTROLS

Button Function description

1. Press menu key display OSD and select.
2. Press E key display source(HDMI/DP optional).
3. Press down key volume; Press up key brightness.

STANDBY POWER OFF/ON

DOWN/VOLUME

UP/BRIGHTNESS

E----E-EXIT/INPUT MENU

M M-MENU/SELECT

ACCESSORIES

1. Please check if all items are included in your monitor set, if there are missing items; please contact your dealer in time.
2. Item color and shape may vary by model.
   3 The cables provided may vary depending on the product purchased.

Manual	User Manual for Monitor Warranty Card Screw
Cable	HDMI cable DP cable
Others	Adapter

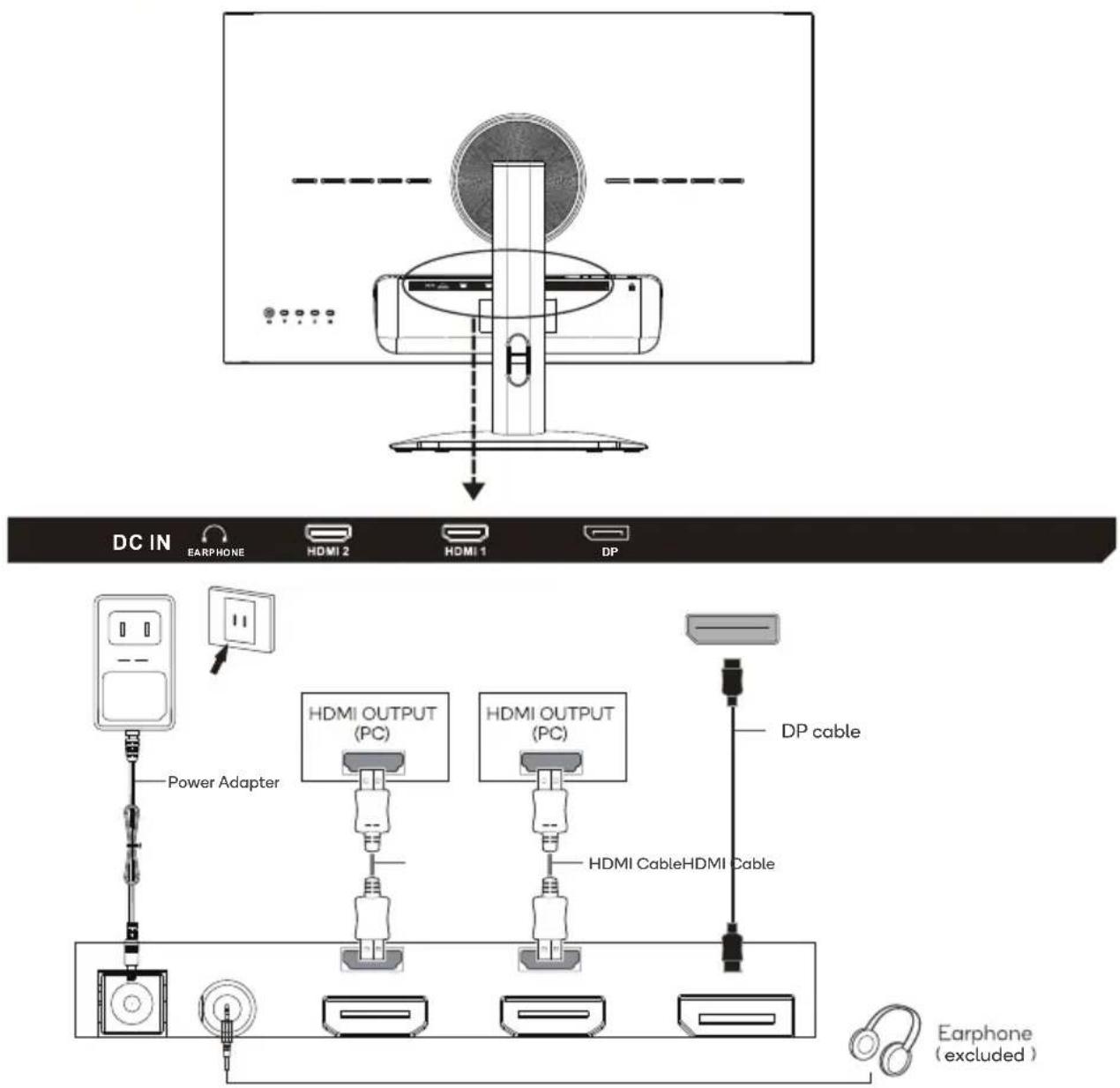

CONNECTIVITY

Before connecting, ensure the display is switched off.

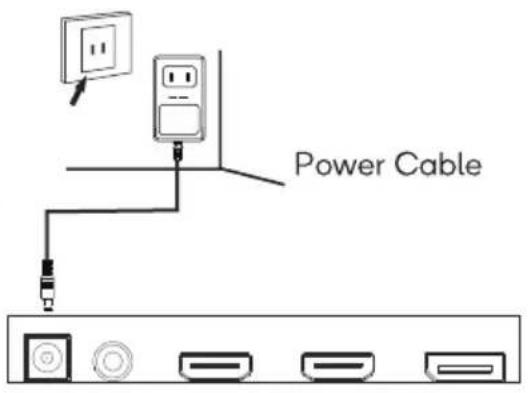

Power cable

Connect one end of the power cable into the power port on the monitor. Connect the other end into a power socket.

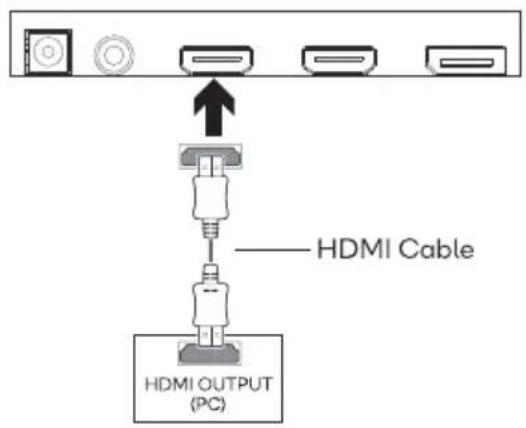

HDMI

In order for the monitor to receive HDMI signals to your computer, plug one end of the included HDMI cable into the HDMI port on the monitor.

Plug the other end into the HDMI port on your computer.

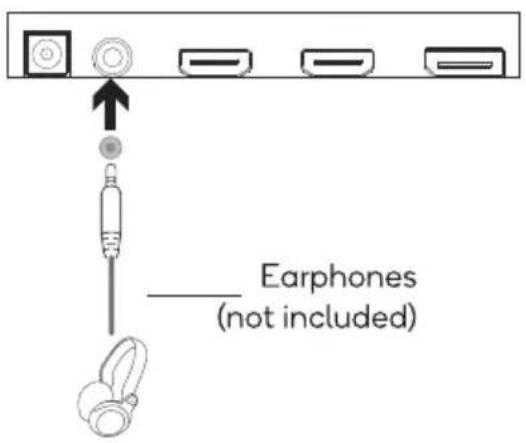

3.5mm audio port

In order to receive audio signals to your computer, plug your earphones, headphones, or other audio device (not included) into the 3.5mm audio port on the monitor.

If any audio device is connected to the computer at the same time, it will not produce sound.

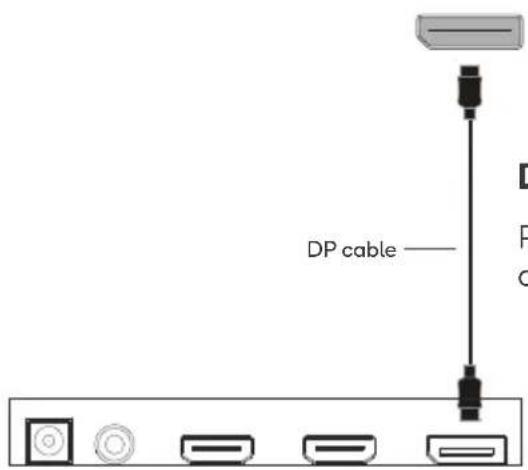

DP

Please link DP cable of LED to theport named DP IN at the back of the LED Monitor.

OPERATION

1. Connect the monitor to your computer via HDMI/DP.
2. Connect one end of the power cable into the power port of the monitor. Connect the other end into an outlet, then turn the outlet on.

Note:

It is recommended that a surge protector with adequate voltage is used if the monitor cannot be directly connected to an outlet.

1. Press the power button to turn the monitor on.

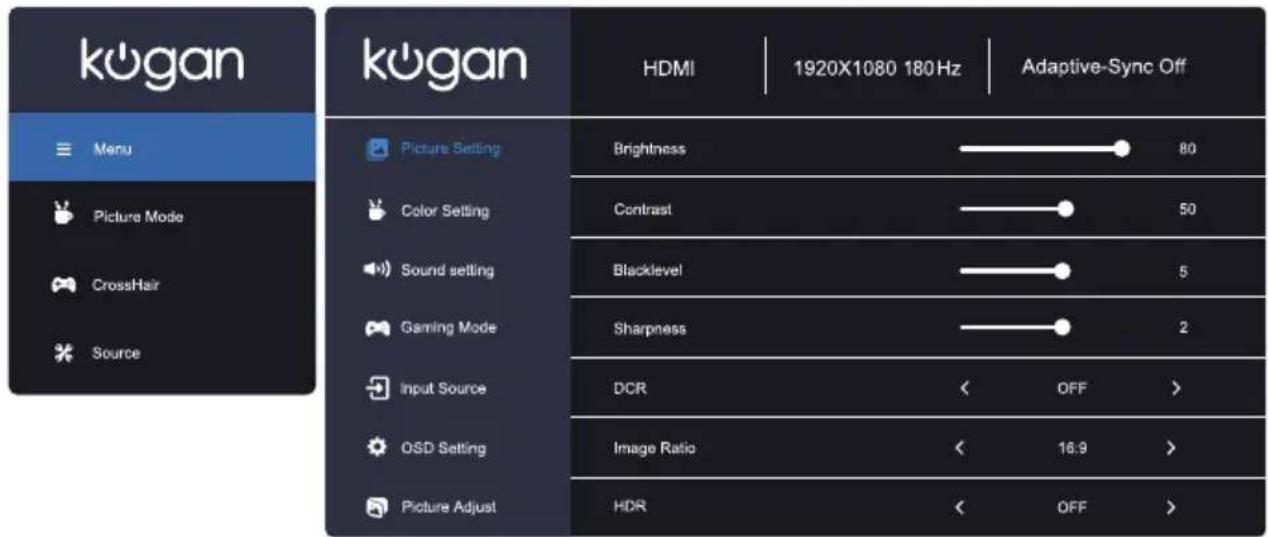

On-Screen display (OSD) menu

The OSD menu allows adjustments to various settings for the monitor.

1. Press the menu/select button to access the OSD menu.
2. Press the up and down buttons to browse through the categories of settings. Press the menu/select button to enter the sub-menu.
3. Press the up and down buttons to browse through the sub-menu. Press the menu/select button to enter the adjustment settings of the desired setting.
4. Press the up and down buttons to adjust the desired setting. Press the menu/select button to confirm the adjustment.
5. Press the exit/input menu button to exit the OSD menu.

OSD menu settings

Below is a list of the settings available that can be adjusted through the OSD menu.

Main Menu	Sub-Menu	Options	Description
Picture Setting	Brightness	0-100 Adjust display	brightness
	Contrast	0-100	Adjust display contrast
	Blacklevel	0-10	/
	Sharpness	0-4	/
	DCR	Off/On	Turn DCR function off/on
	Image Ratio	Auto,16:9,4:3	Set aspect ratio
	HDR	Off/On	Turn HDR function off/on
Color Setting	Picture Mode	Standard/Movie/Energy Star/Office/FPS/RTS/RACING/SRGB	Select Picture Mode
	Gamma	Off/1.8/2.0/2.2/2.4
	Low blue light	Off/weak/Middle/Strong	Adjust display low Blue
	Color temperature	Warm/User/Cool/Normal	Adjust color temperature
	Red	0-100	Customize RGB components
	Green	0-100
	Blue	0-100
Sound setting	Volume		Adjust audio volume0-100
	Mute	Off/On /
Gaming Mode	Adaptive-Sync	Off/On	/
	Response Time	Off/Fast/Extreme	/
	MPRT	Off/On	/
	Crosshair	Off/Icon1/Icon2/Icon3/Icon4	/
	Timer	Off/15:00/30:00/45:00/60:00	/
	RefreshRate	Off/leftTop/LeftBottom/RightTop/RightBottom	/
Input Source	Auto	Off/On	/
	Input Select	HDMI1/HDMI2/DP	Display the input select
OSD Setting	Language	EnglishFrançaisEspañolDeutschItaliano	Set OSD language
	H.Position	0-100	Adjust the horizontal position
	V.Position	0-100	Adjust the vertical position
	Timeout	0-60	Set how long the OSD remains
	Transparency	0-100	Adjust the OSD transparence value
	DDC/CI	Off/On	/
	Auto shutdown	Off/On	/
	Reset N/A		Reset monitor configurations

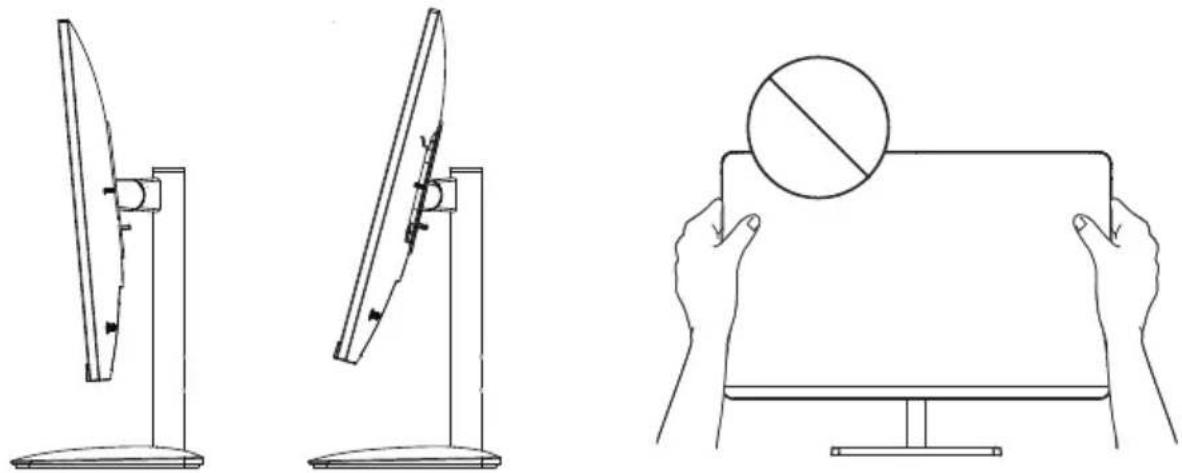

Adjusting the angle of the monitor

The screen can be tilted forwards up to 5° or backwards up to 15°.

To adjust the angle, hold the edges of the screen with both hands and tilt.

Note:

Do not directly touch the screen when tilting.

FreeSync

To use this feature, ensure your hardware has FreeSync capabilities, and that the graphics drivers are fully up to date.

After connecting the monitor, you may receive a prompt to enable the feature on your computer. If you do not receive the prompt, you may need to enable the function in the graphics card menu.

Check your graphics card manufacturer's documentation for instructions on how to turn on and/or enable FreeSync.

Note:

The feature is enabled by default when set to a 180Hz refresh rate.

Input menu shortcut

To quickly change the input source between HDMI and DP :

1. Press the exit/input menu button to access the input menu.
2. Press the up and down buttons to highlight the desired input source, then press the menu/select button to confirm.

Brightness shortcut

When outside the OSD menu, press the up and down buttons to adjust the brightness.

ECO modes

There are various pre-set colour modes suited for various use cases available on this monitor. These can be accessed using the ECO modes menu. The modes include the following:

• Standard (suitable for most activities)
• Movie (best suited when watching movies)
• RTS (best suited when playing real time strategy games)
• FPS (best suited when playing first person shooter games)
• Game (best suited for general gaming)
• Text (best suited when reading text)

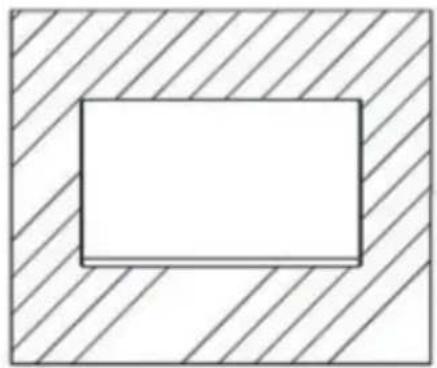

VESA MOUNT

If mounting to a wall, ensure the stand base and stand stem are disconnected from the monitor.

Consult a professional before mounting the monitor.

1. With the display side facing down, lay the monitor on a soft cloth to prevent damage.
2. Identify the four wall mounting screws on the back of the monitor.
3. Mount the monitor as desired with the steps provided with your VESA mount.

Simple geometric diagram with a rectangle inside a square, no text or symbols present

Notes:

• Ensure there is at least a 10cm clearance away from all sides of the monitor.
  • The mounting hole distance for this monitor is 75.75m x mm.
  • VESA mount and mounting accessories are not included.
  • Images are for reference only.

CLEANING & CARE

Ensure the monitor is turned off and unplugged before cleaning.

• Wipe the body with a slightly damp, clean cloth.
• Wipe the screen with a dry microfibre cloth.

Note:

Do not use cleaning alcohol, ammonia-based liquids, or other harsh cleaners.

SPECIFICATIONS

Model	KAMN24F18VA
Screen size	24"
Aspect ratio	16:9
Backlight	E-LED
Brightness	300cd/m2
Panel	VA
Resolution	1920 x 1080
Refresh rate	180Hz
Response time	14ms
Viewing angle	178° (H)178° (V) (typical)
Contrast ratio	4000:1
VESA mounting	75 x 75 mm
Colours	16.7M
FreeSync	Yes
Signal input	x2 HDMI 2.0
Power	DC 12V, 3A

Audio

Audio out Yes

Speakers No

Accessories

Power adapter Yes

HDMI cable Yes

Additional functions

Low blue light Yes

Flicker-free Yes

Physical dimensions

Dimensions (with stand) 540 x 169.3 x 402.1mm

Dimensions (without stand) 540 x 41.2 x 322.4mm

Net weight 2.94kg

Gross weight 4.70kg

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
