Product type	Ceiling fan with 4 blades
Brand	Izzy
Model	IZ-9044
Voltage	AC 220-240V
Frequency	50/60Hz
Rated input	65W
LED lamp	Included (color temperature adjustable: 3000K, 4000K, 5000K)
Number of blades	4
Speed settings	5 speeds (1 to 5)
Remote control	Included (requires 2xAAA batteries, not included)
Timer	1 to 12 hours
Operating modes	Normal, Sleep, Eco
Direction reversal	Yes (summer/winter mode)
Minimum blade height from floor	2.3 m
Minimum distance from walls	76 cm
Maximum ceiling slope	15°
Mounting bracket weight capacity	At least 68 kg
Safety cable	Included
Cleaning	Wipe with a soft cloth; do not use abrasive cleaners
Maintenance	Only by qualified electricians
Warranty	2 years from date of purchase
Certifications	CE, RoHS, complies with EU directives
Included accessories	Receiver, hanger bracket, upper canopy, support rod, blades, lower canopy, fixing screws, balance kit, remote control with wall base

Frequently Asked Questions - IZ-9044 Izzy

How do I install the Izzy IZ-9044 ceiling fan?

Installation must be done by a qualified electrician. Ensure the power is off. Mount the hanger bracket securely to the ceiling structure (wood or concrete) using the provided screws. Assemble the blades onto the motor, hang the fan on the bracket, connect the electrical wires according to the diagram in the manual, and attach the canopy. The blades must be at least 2.3 m from the floor and 76 cm from walls.

How do I use the remote control?

Insert 2xAAA batteries (not included) into the remote. Press the FAN button to turn the fan on/off (starts at speed 3 by default). Use the speed buttons (1-5) to adjust fan speed. Press the LIGHT button to turn the LED light on/off. Adjust brightness and color temperature using the dedicated buttons. The display shows timer and mode settings.

How can I change the fan's rotation direction?

Press and hold the MODE/F/R button for 3 seconds. The display will show F (counterclockwise, summer mode) or R (clockwise, winter mode). In summer mode, the fan creates a cooling breeze; in winter mode, it circulates warm air downward.

How do I set the timer?

Press the TIMER button repeatedly to set a timer from 1 to 12 hours. The selected time appears on the display. To deactivate, press until the display shows zero or turn off the fan manually.

How should I clean and maintain the fan?

Before cleaning, switch off the fan and disconnect power. Wipe the fan with a soft, dry cloth to remove dust. Do not use abrasive cleaners or metal scouring pads. Clean at least once a year. For any repairs, contact an authorized BENRUBI service center.

What should I do if the fan makes unusual noise or smells?

If you notice strange noise, smell, or smoke, stop using the fan immediately. Disconnect it from the power source and contact an authorized BENRUBI service center. Do not attempt to repair it yourself.

What is the warranty coverage?

BENRUBI guarantees the fan against manufacturing defects for 2 years from the date of purchase. The warranty does not cover damages from improper installation, misuse, unauthorized repairs, or normal wear. Keep your purchase receipt.

Can I use this fan outdoors?

No. The fan is designed for indoor use only. Do not use it outdoors, in bathrooms, near swimming pools, or in places with high humidity.

How do I adjust the light color temperature?

Use the LED color temperature change button on the remote to cycle through 3000K (warm), 4000K (neutral), and 5000K (cool) light settings. Adjust brightness with the brightness control button.

What are the available fan speed settings?

The fan has 5 speed levels: 1 (lowest) to 5 (highest). Use the numbered buttons on the remote to select the desired speed. The default speed when turning on is speed 3.

USER MANUAL IZ-9044 Izzy

Black and white photo of a four-blade modern airfare with a circular head (no text or symbols visible)

ΜΠΕΝΡΟΥΜΠΗ

Technical line drawing of a mechanical component with screw fasteners and a lever (no text or symbols)

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

Χειριστήριο

Technical line drawing of a handheld device with two lenses and a separate view of its internal components (no text or symbols)

Thank you for having chosen an appliance from the IZZY range.

Safety interlocks

Please read these instructions carefully before using the appliance and save them for future reference. Please keep the sales receipt for guarantee purposes (pls see below “Guarantee and Customer Service”) Any us which does not conform to the instructions will absolve IZZY from an liability.

• Make sure your electricity supply is the same as the one shown on the underside of the appliance.
- The fan must not be plugged into a normal socket. Install only on the ceiling.
ATTENTION: The electrical connections must be made by a qualified electrician and in accordance with the European rules for electrical installations.
- Before turning on the fan, check all connections to avoid falling and injury
- You need to be very careful when you are close to the fan blades.
- Never leave the appliance unattended when operating.

Note: Never leave the appliance in operation when you are not at home.

• Close supervision is necessary when your appliance is being used near children or infirm persons. Ensure that they do not play with the appliance.

• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, children or those with lack of experience and knowledge, unless they have been given supervision or instructing concerning use of the appliance by a person responsible for their safety.
  WARNING: Do not expose babies and the elderly many hours in front of the fan's air.

• Switch off and unplug:

• When not in use.
• When you move it.

• Before cleaning and maintenance

• Never use the appliance for any other use than indicated.

• The device is intended for indoor use. Do not use the device outdoors.
• The device is intended only for domestic use. Any other use will cancel the warranty.
• Do not operate or place the device or parts in places of high humidity or where it may get wet.
• Do not use this appliance in the immediate surroundings of a bath, shower or a swimming pool or in places where it may get wet.
• The connection of the fan to the power supply must not get wet.
• Leave enough free space around the device so as not to block the fan movement.
• Do not use the appliance after a fall or if it is damaged and contact one of the authorized BENRUBI repair centers.
• In case that you notice some strange noise, smell, smoke or anything unusual, do not use the appliance. Disconnect it from electricity and contact an authorized BENRUBI Service Center.
• Failure to use properly may cause injury.
• Never use highly corrosive or abstractive cleaning agents. Never use metal scouring pads for cleaning.
• Do not move the appliance when it is in operation.
• Do not touch the appliance with wet or damp hands.
• This appliance is not intended to be operated by means of an external timer or separate remote control system.
• To reduce the risk of electric shock and fire, do not use this fan with any solid-state fan speed control device or dimmer.
• The important safety precautions and instructions in the manual do not cover all possible conditions that may arise.
• Check the power cord periodically for possible damages.
• If the power cord or the plug of the appliance has been damaged, do not use the appliance and contact an authorized BENRUBI Service Center.
• In case of a possible damage, do not attempt to repair the appliance by yourself. Please contact one of the authorized BENRUBI service centers.
• Any repair made by an unauthorized BENRUBI Service Center CANCELS THE GUARANTEE.
• Any misuse of the device cancels the warranty.
• Only use original spare parts
• The appliance conforms to EU directive 2014/30/EU on Electromagnetic Compatibility, the 2014/35/ EU Low Voltage Directive, the2011/65/EU

RoHS Directive and the directive 2009/125/EC for eco-design.

SAVE THESE INSTRUCTIONS

Fan Installation

ATTENTION: The electrical connections must be made by a qualified electrician and in accordance with the European rules for electrical installations.

IMPORTANT: THE COMPANY HAS NO RESPONSIBILITY FOR THE INSTALLATION. THE INSTALLATION IS THE EXCLUSIVE RESPONSIBILITY OF THE CUSTOMER.

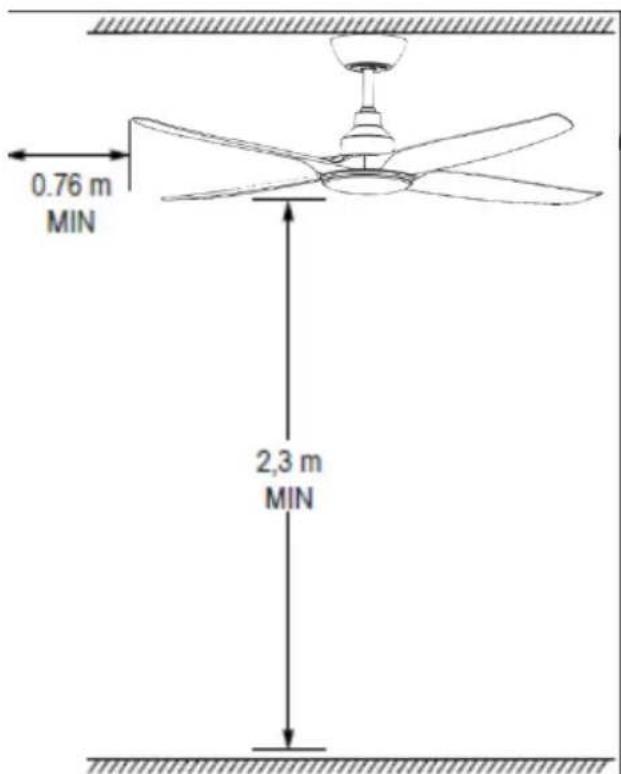

CAUTION: The fan blades must be at least 2.3 meters from the floor and at least 76cm from the wall or other obstacles. The network must be installed via a flexible cable or with a pole switch with a contact opening distance of at least 3mm.

CAUTION: Before installing the fan, be sure to turn off the power. Do not switch on the power supply until the fan is fully installed and ready for use.

- In most houses, the ceiling fan is placed in the center of the room, replacing a light. In this way, the ceiling fan provides an evenly distributed air flow throughout the room.

- Since a ceiling fan usually requires no more power than a light, the existing electrical circuit should not be overloaded. Make sure the electrical circuit is strong enough to support the load. If this is not the case, you will need to install a new circuit with a new circuit breaker in the main electrical panel so that the ceiling fan has its own circuit without powering any other appliances. If there is no central

light in the room, you will need to designate a location where the ceiling fan will be installed.

- Connection box required. Never use a plastic box.

- Ceiling fans can weigh up to 25 ~kg with the accessories. Make sure that the ceiling fan bracket is fixed in a stable place and that your installation can support a weight of at least 68 ~kg .

- For your own safety and the safety of others, check the weight of your ceiling fan and adjust the resistance of your installation if necessary. The fan bracket must be supported by the roof structure.

- Your installation must also be able to withstand the vibrations caused by your ceiling fan when it is running. Even a well-balanced ceiling fan vibrates when operating.

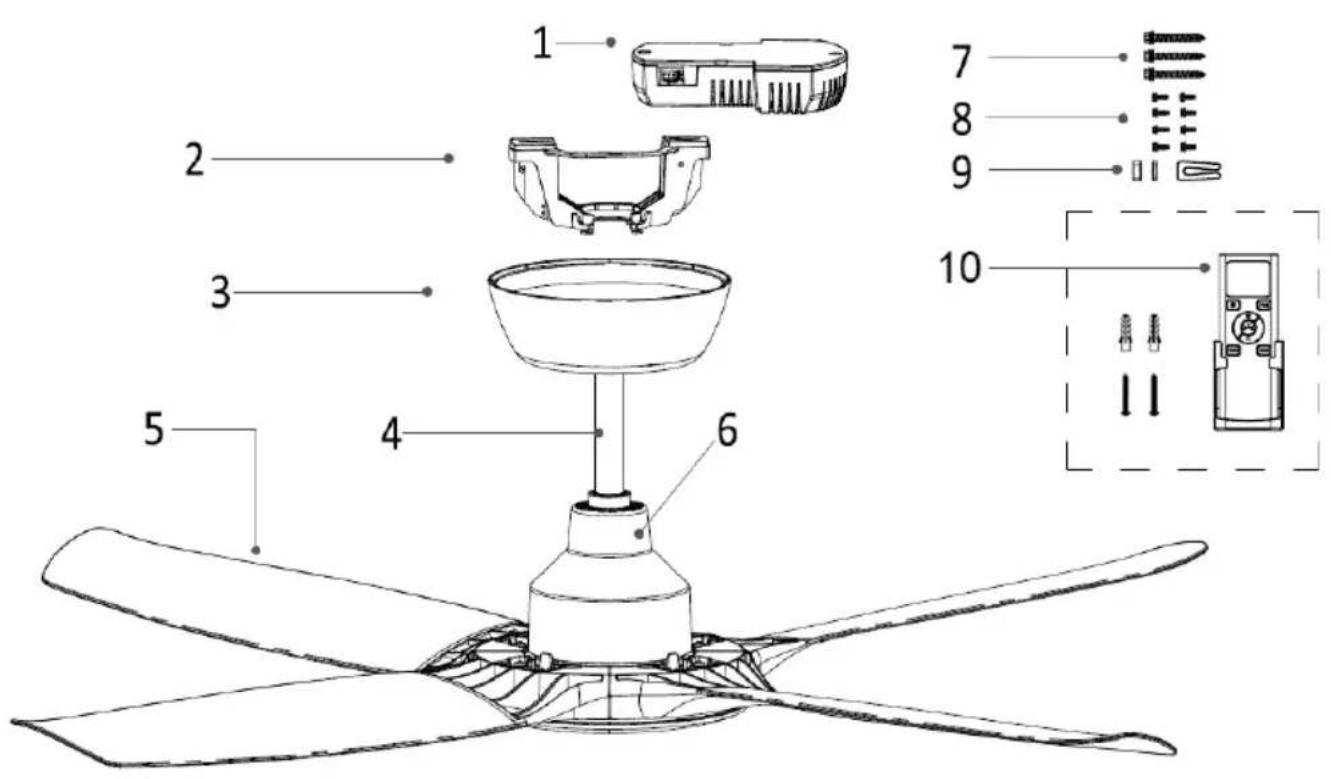

Parts of the Appliance

1. Receiver
2. Hanger bracket
3. Upper canopy
4. Support rod
5. Blades
6. Lower canopy
7. Fixing screws (wooden floor)
8. Blades fixing screws
9. Balance kit
10. Remote-control, wall base, washers and screws

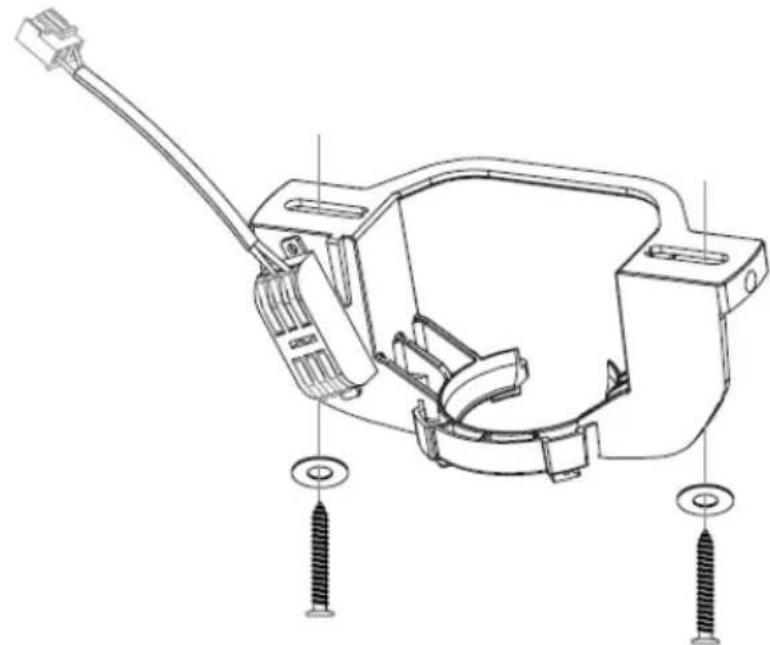

Wooden Ceiling Installation

WARNING: Fixing must be done securely to the roof structure by a qualified person. Depending on your roof structure, use appropriate screws and washers. Do not fix the ceiling bracket to a structure thinner than 50 mm or to concave surfaces, to avoid any risk of falling. Make sure the mount is very stable and can support at least 68kg by pulling it.

We are not responsible if the ceiling fan falls.

You can install the hanger bracket (2) on a ceiling sloped up to 15^ . If your roof is sloped, the brack lugs should be on the highest side of your roof. Don't put it on the lowest side.

- Place the bracket (2) in the desired position and fix it using the wooden ceiling fixing screws (7) provided.

Note: The bracket mounting screws provided are for use on wooden ceilings only. These screws are designed specifically for this purpose, and the use of other types of screws may void the warranty. For constructions other than wood, you should use an appropriate type of screw.

Technical line drawing of a mechanical component with screw fasteners and a lever (no text or symbols)

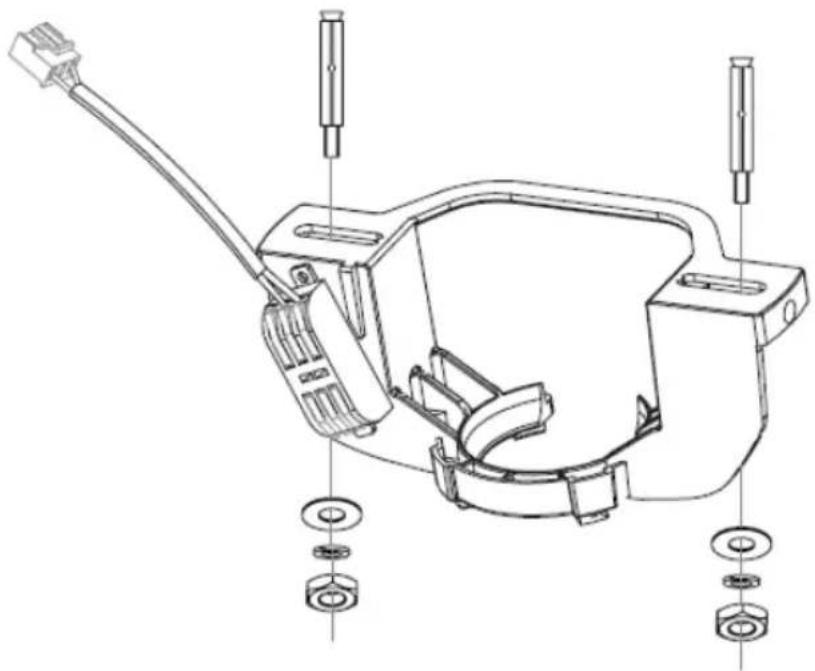

Installation on a Concrete Ceiling

- Place the bracket in the desired position and mark the holes to be made. Remove the bracket and drill the ceiling by making 2 holes corresponding to the diameter of the bracket screws. Remove the dust and insert the screws using a hammer (leave the threaded rod protruding). Remove the nuts and washers, refit the bracket, washers and nuts. Tighten the nuts securely using a suitable wrench.

Technical line drawing of a mechanical assembly with exploded view (no text or symbols)

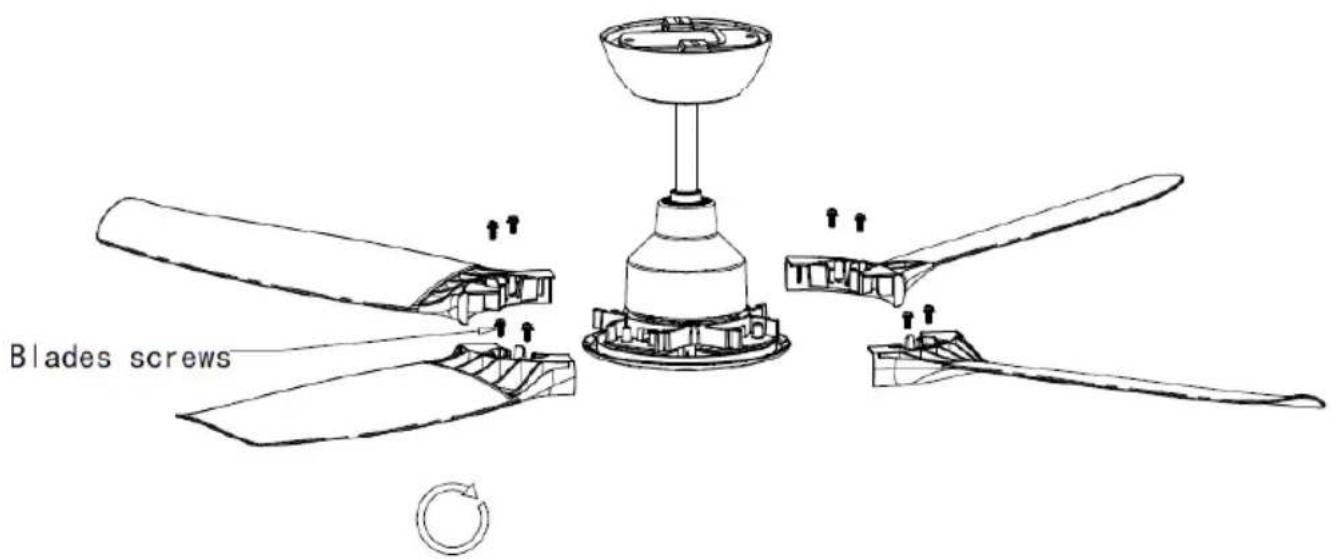

Blades Installation

1. Place each blade on the motor so that they snap into place.
2. Screw well with the screws provided in the package.
   Note: Tighten the screws well to avoid vibration when starting the device.

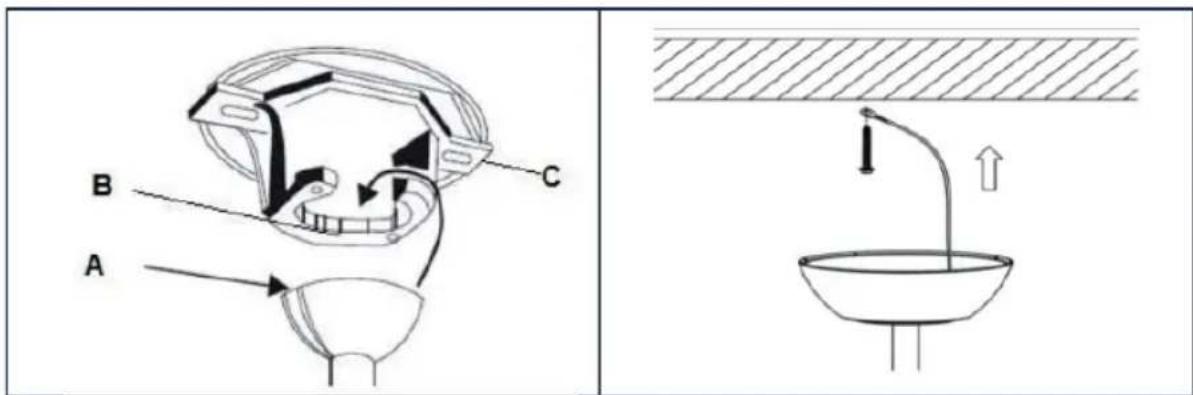

Hanging Fan

1. Place the upper canopy (3) in the cavity of the hanging bracket (2).
2. For more security, attach the supplied safety cable to a hook

A = Concave groove of hanger bracket

B = Lugs of hanger bracket

C = Hanger bracket

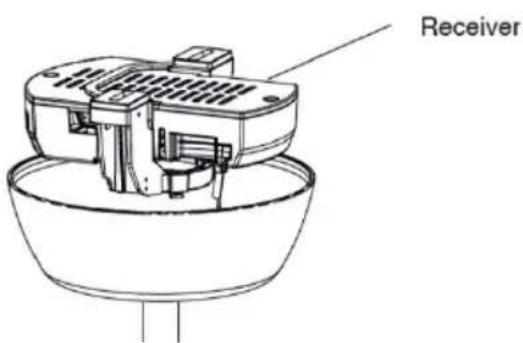

Receiver Installation

- Once the fan is mounted on the hanging bracket (2), slide the receiver into the slot on the bracket.

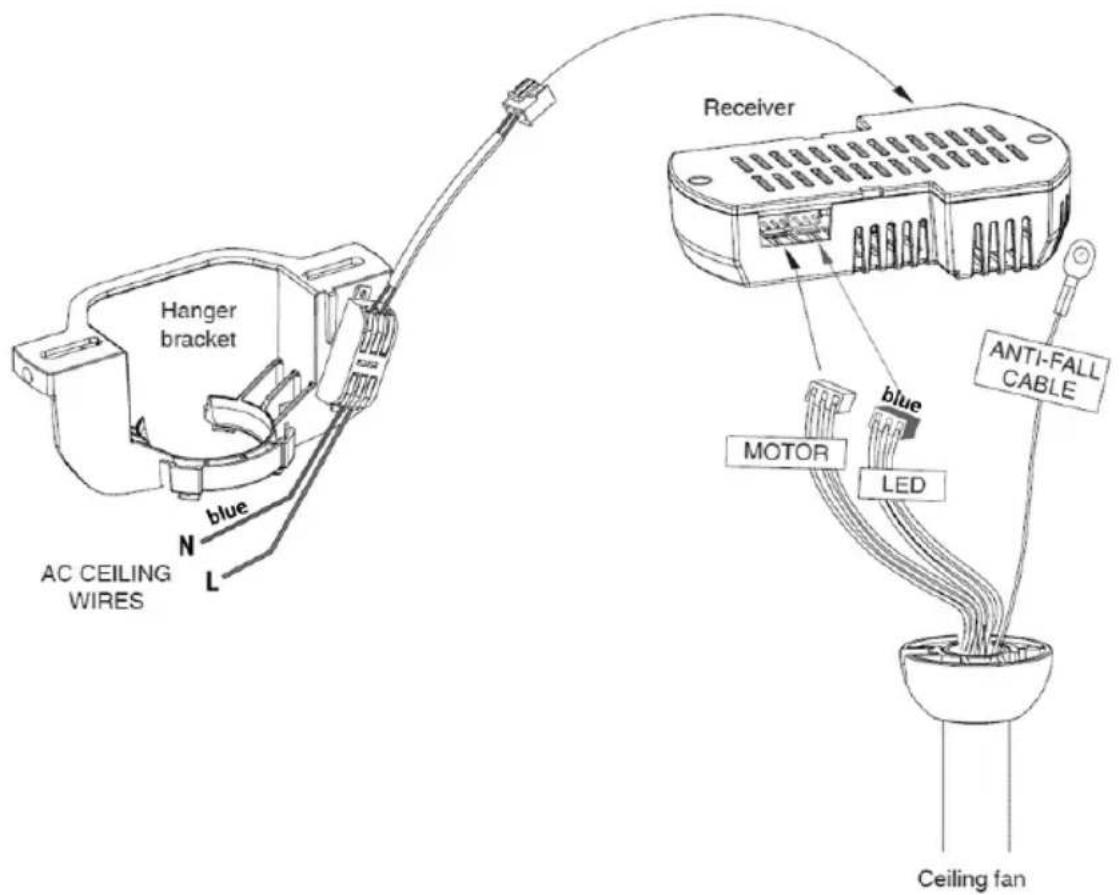

Cable Connection

- Connect the cables according to the diagram below:

- The important safety precautions and instructions in the manual do not cover all possible conditions that may arise.

IMPORTANT: THE COMPANY HAS NO RESPONSIBILITY FOR THE INSTALLATION.

THE INSTALLATION IS THE EXCLUSIVE RESPONSIBILITY OF THE CUSTOMER.

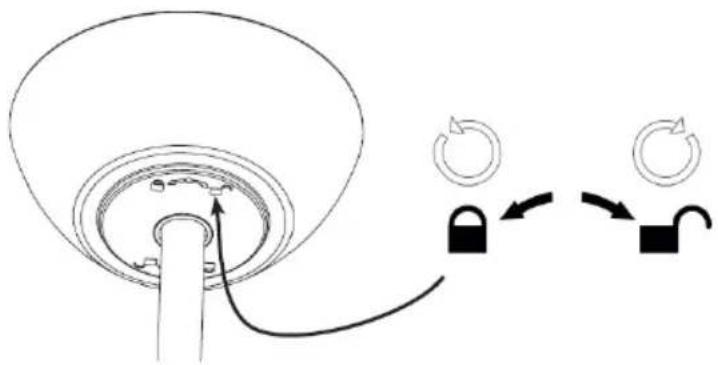

Upper Canopy Installation

• Once you have completed the electrical connection, place the upper canopy on the hanger bracket and snap into lock position.
• Be careful not to squeeze the cables.


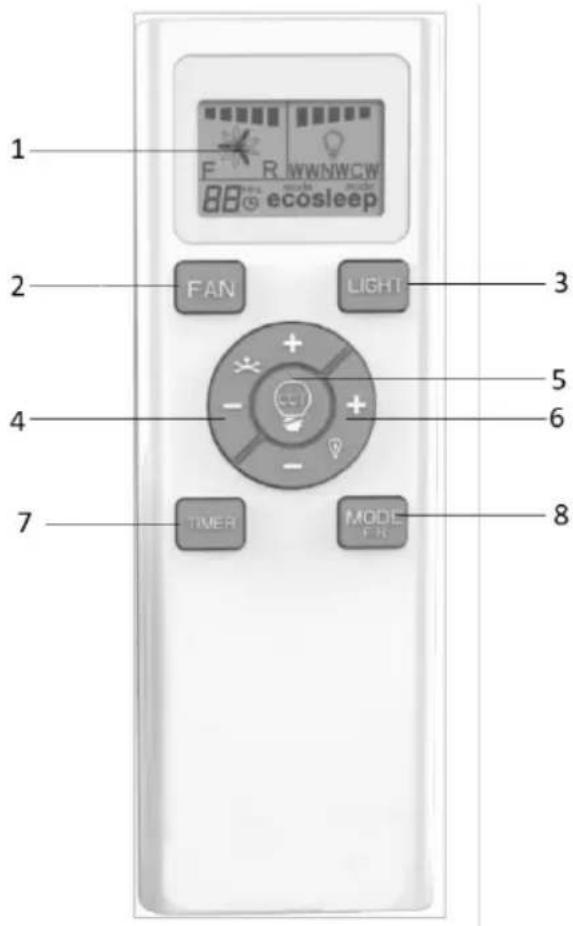

Remote Control

1. Display

2. FAN: On/Off button

Note: The ceiling fan starts at the default speed of 3.

1. LIGHT: LED On/off

1. Speed control (5 speeds)

- 1 - Speed 1 (low)

-2-Speed 2

-3-Speed 3

- 4 - Speed 4

- 5 - Speed 5 (high)

ED color temperature change

1. Light brightness adjustment:

- 3000K

-4000K

- 5000K

1. TIMER: Timer setting (1 to 12 hours). The selected time is displayed on the display.

Note: To deactivate the setting, press until the display shows the time to zero or manually turn off the fan.

MODE

1. F/R : Mode setting. Press successively to change fan functions. The default mode is NORMAL.

NORMAL: The fan operates normally according to the selected speed. No indication appears on the display.

SLEEP: The fan automatically reduces its speed by one level every 30 minutes. Select the startup speed before activating SLEEP. "MODE SLEEP" appears on the display.

ECO: The fan operates between speed 1 and 2. The display shows "ECO MODE".

Note: When the ECO or SLEEP modes are activated, the speed buttons do not work.

MODE

F/R : Press for 3 seconds to change the operating direction of the blades. The default direction of the blades is counterclockwise (summer mode). F or R will appear on the display.

- Summer function (F): blades turn counterclockwise

- Winter function (R): blades turn clockwise

Note: Never leave the appliance in operation when you are not at home.

Notes:

- Insert 2xAAA batteries into the controller (batteries are not included in the package).

ATTENTION: It is emphasized that extra care is required in addition to the above instructions when operating the fan.

Summer / Winter Function

In winter mode, the ceiling fan moves in a clockwise direction, with the result that the warm air collected at the upper level of the room is evenly diffused downwards throughout the room.

Tip: you can use the winter operation of the fan in parallel with the heating system you have (eg radiators) to achieve more efficient heating and energy savings!

Care and Cleaning

Before cleaning, switch off the fan, turn off the power and let it cool completely.

• Clean the unit using a soft cloth to wipe off any dust.
• Do not attempt to open the unit without a qualified electrician. Improper installation of the unit can be dangerous.
• Clean the appliance at least once a year.

Maintenance

• In case of possible damage, do not attempt to repair it yourself. Repairs should only be carried out by qualified electricians.
• Any repair by an unauthorized technician of the BENRUBI service centers CANCELED TH WARRANTY.
• Periodically check the cable for damage.
• Do not use the appliance if the power cord is damaged or has fallen or been damaged in any way. If you suspect that the device is damaged, contact an authorized BENRUBI repair center.

Technical Information

Model: Ceiling fan with 4 blades IZ-9044

Voltage: AC 220\~240V

Frequency: 50/60Hz

Rated input: 65W

LED lamp: included

Important Information for Correct Disposal of the Product in Accordance with EC Directive 2002/96/EC

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Guarantee & Customer Service

• BENRUBI Company guarantees its products for any manufacturing defect or defective materials for a period of two (2) years from the date of purchase or delivery by presenting purchase receipt. If your product malfunctions or you find any defects, please revert to the retail location you have purchased it from or contact an authorized BENRUBI Service Centre. To find the nearest authorized BENRUBI Service Centre, visit our website www.benrubi.gr. It is in the discretion of BENRU Company to replace or repair the defective product.
• The warranty does not cover damages resulting from normal wear, breakage, scaling, improper installation or maintenance of the product, mishandling, abnormal working conditions, failure implement the instructions, conversion or repair of the product by an unauthorized technician who does not belong to the BENRUBI Service Centers.

Also, the warranty does not cover the following indicative factors:

• Stains, discoloration or scratches.
- Burns due to exposure to heat or flame.
- Damage from thermal shock (sudden temperature change or change of voltage).

FOR MORE INFORMATION PLEASE CONTACT:

(NEW) H. BENRUBI & FILS SA

27 Aghiou Thoma str, GR15124, Maroussi – Athens,

Tel./Customer Support: [phone]

e-mail: [e-mail]
