Product Type	Refrigerator with Freezer
Model	HCNF-HM293XE++
Brand	Heinner
Total Capacity	293 liters
Refrigerator Capacity	200 liters
Freezer Capacity	93 liters
Energy Efficiency Class	A++
No Frost System	Yes
Cooling Technology	Static with fan assistance
Temperature Control	Mechanical thermostat
Door Reversibility	Yes
Shelving Type	Adjustable glass shelves
Crisper Drawers	1 for fruits and vegetables
Ice Cube Tray	Included
Defrost Method	Automatic (No Frost)
Dimensions (H x W x D)	1850 x 700 x 720 mm
Weight	72 kg
Power Source	220-240 V, 50 Hz
Annual Energy Consumption	220 kWh
Noise Level	40 dB
Climate Class	SN-ST (subnormal to subtropical)
Refrigerant	R600a
Maintenance	Clean condenser coils every 6 months
Spare Parts Availability	Contact Heinner support or authorized dealers
Manual Provided	English manual available for download (80 pages)

Frequently Asked Questions - HCNF-HM293XE++ Heinner

How do I install the refrigerator correctly?

Place the refrigerator on a level floor away from heat sources. Allow at least 10 cm clearance on the sides and back for ventilation. Adjust the feet to ensure stability. Wait 2-3 hours after transport before plugging in.

What temperature should I set for the fridge and freezer?

Recommended fridge temperature is 4°C (39°F) and freezer temperature is -18°C (0°F). Use the thermostat dial to adjust. Check with a thermometer for accuracy.

How do I clean the refrigerator?

Unplug the appliance. Remove all shelves and drawers. Wash with warm water and mild detergent. Avoid abrasive cleaners. Dry thoroughly before reassembling. Clean condenser coils twice a year to maintain efficiency.

The refrigerator is making unusual noise. What should I do?

Normal sounds include humming from the compressor, gurgling from refrigerant, and clicking from defrost timer. If noise is excessive, check that the appliance is level, not touching walls or cabinets, and that shelves are secure.

How often should I defrost the freezer?

This model features No Frost technology, so manual defrosting is not required. The system automatically prevents ice build-up. If ice accumulates, check door seals and ensure proper closing.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove hinges, transfer handles to opposite side, and reinstall. It may require a screwdriver and careful work.

Why is there water inside the fridge?

Water buildup can be due to a blocked defrost drain. Clean the drain hole using a pipe cleaner or cloth. Also ensure the door seals are clean and tight to prevent condensation.

How do I change the interior light bulb?

Unplug the fridge. Remove the light cover by gently prying it off. Replace the bulb (usually max 10W) with a suitable type (check manual). Reattach the cover and plug in.

What is the warranty period?

Standard warranty is 2 years from purchase date. Extended warranty may be available. Keep the receipt. For warranty claims, contact Heinner customer service.

Where can I find spare parts or accessories?

Contact Heinner support or visit authorized service centers. You can also search online for compatible parts using the model number HCNF-HM293XE++. Always use genuine parts.

USER MANUAL HCNF-HM293XE++ Heinner

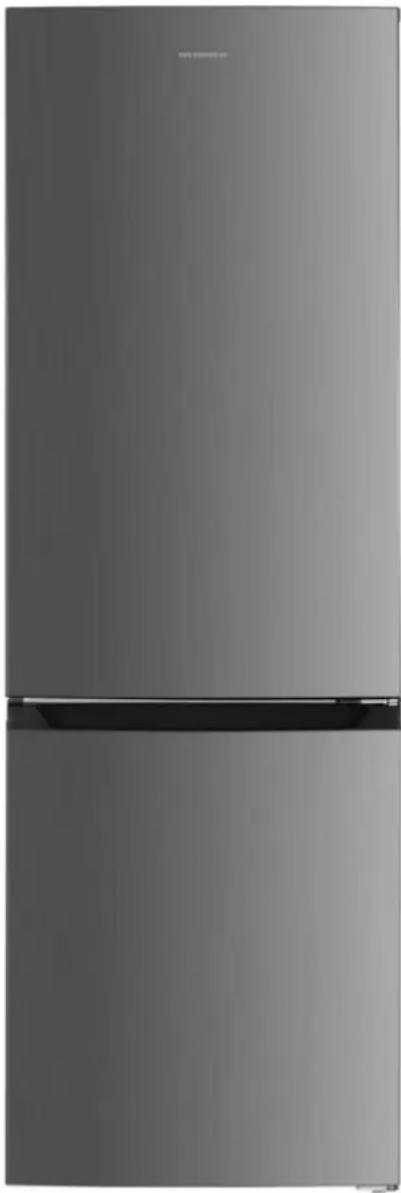

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

- Combi fridge

• Total capacity: 293 L

- Energy class: E

1. INTRODUCTION

Please read the instructions carefully and keep the manual for future information.

This manual is designed to give all necessary instructions concerning installation, use and maintenance of the unit. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

2. CONTENT OF YOUR PACKAGE

→ Combi fridge
→ User manual
→ Certificate of warranty

3. SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances (this clause applies only to the EU region).

General safety

Warning! Keep ventilation openings, in the appliance enclosure or in the built(in structure, clear of obstruction.

Warning! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning! Do not damage the refrigerant circuit.

Warning! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

Warning! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.

Warning! When positioning the appliance, ensure the supply cord is not trapped or damaged.

Warning! Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
- During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
  • This appliance is intended to be used in household and similar applications as:

• staff kitchen areas in shops, offices and other working environments:

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non(retail applications.

Warning! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

Warning! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. (if there is a light in the compartment)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Warning! Risk of fire

If the refrigerant circuit should be damaged:

• Avoid opening flames and sources of ignition.
  • Thoroughly ventilate the room in which the appliance is situated.

Warning! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
  • Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

• Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.

• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
  • Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.2)

1) If there is a freezer compartment

2) If there is a fresh-food storage compartment

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
  • Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance.
• Don't pack food close together as this prevents air circulating.
• Make sure food do not touch the back of the compartment(s).
• If electricity goes off, do not open the door(s).
• Don't open the door(s) frequently.
• Don't keep the door(s) open for too long time.
• Don't set the thermostat on exceeding cold temperatures.

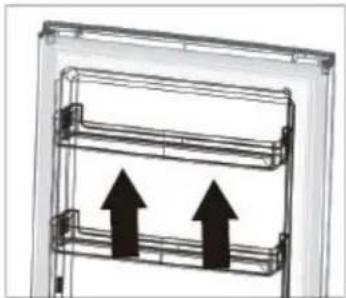

• All accessories, such as drawers, shelves, door balconies should be kept in original place for lower energy consumption.

Environment protection & packing materials

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The

insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

The materials with the symbol are recyclable.

Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

• Disconnect the mains plug from the mains socket.
• Cut off the mains cable and discard it.

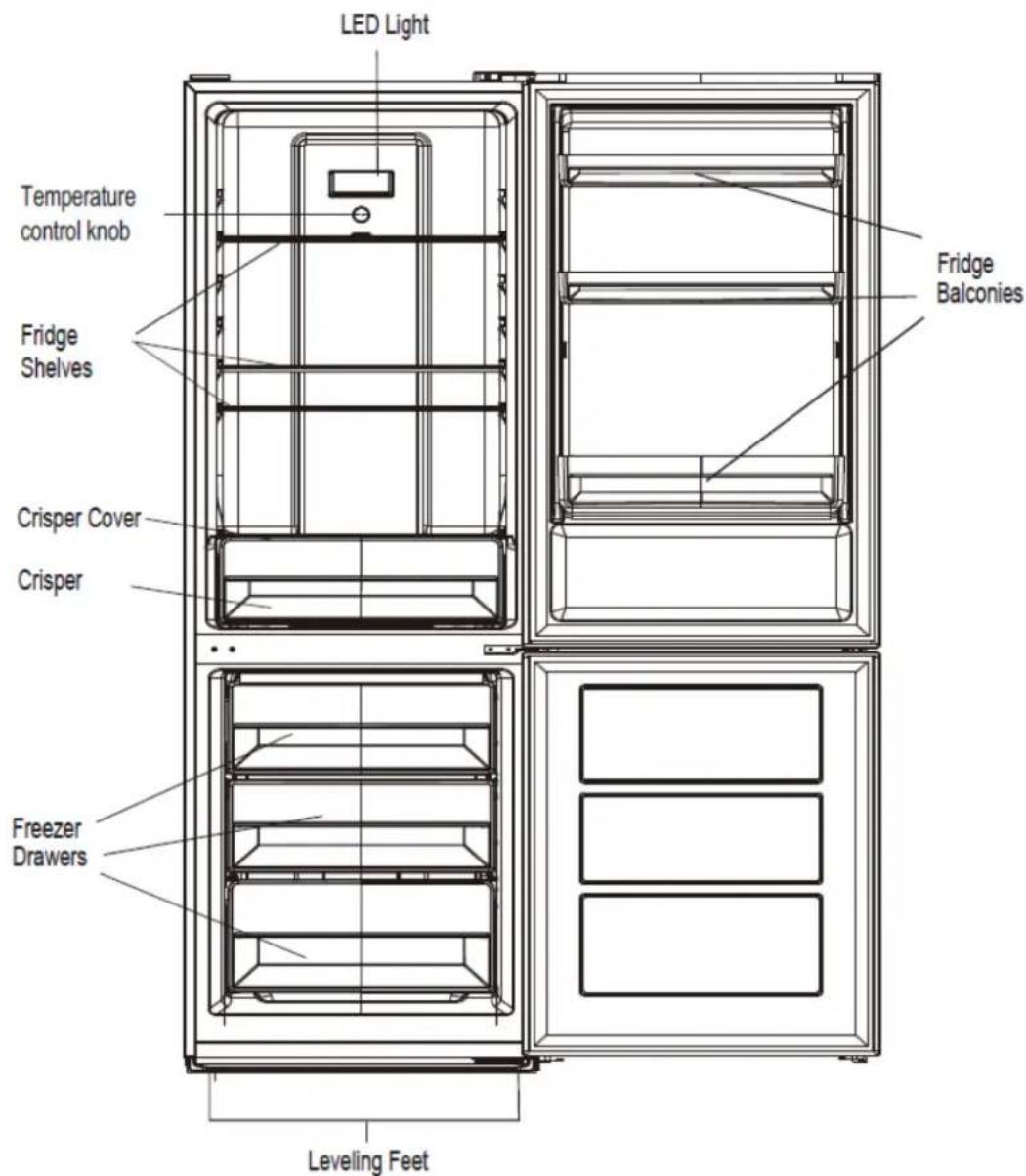

4. PRODUCT DESCRIPTION

To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration.

Note: Above picture is for reference only. Real appliance probably is different.

5. INSTALLATION

Space requirement

• Select a location without direct exposure to sunlight.

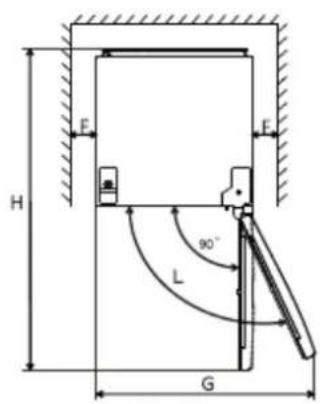

• Select a location with enough space for the refrigerator doors to open easily.
• Select a location with level (or nearly level) flooring.
• Allow sufficient space to install the refrigerator on a flat surface.

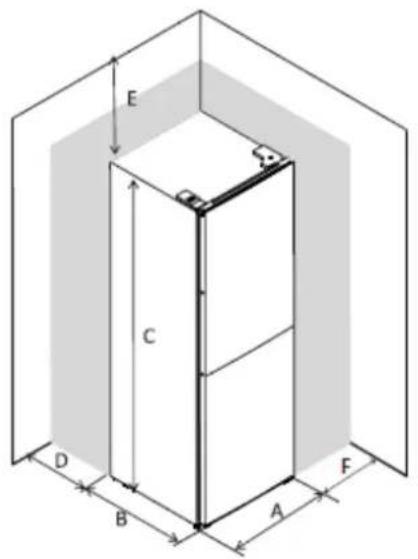

• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Keep at least 50 mm gap at two sides and back.

A	600
B	600
C	1860
D	min=50
E	min=50
F	min=50
G	1200
H	1200
L	135°

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

For refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10°C to 32°C (SN);
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C (N);
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C (ST);
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C (T).

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

This refrigerating appliance is not intended to be used as a built-in appliance.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

Door reversibility

Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag:

Left Door Hinge Cover x 1

Left Aid-Closer on Upper Door x 1

Left Aid-Closer on Lower Door x 1

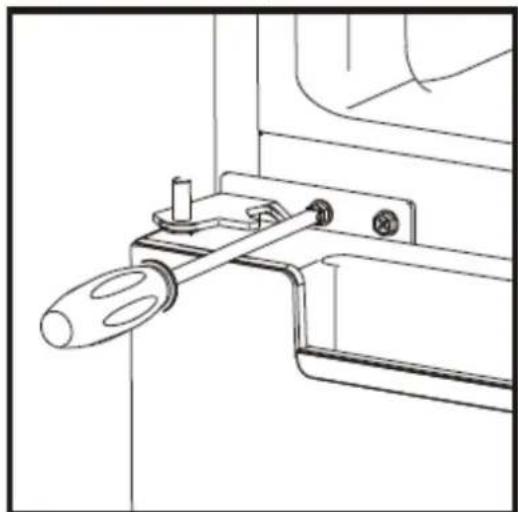

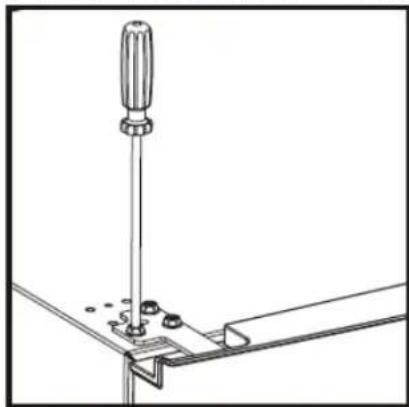

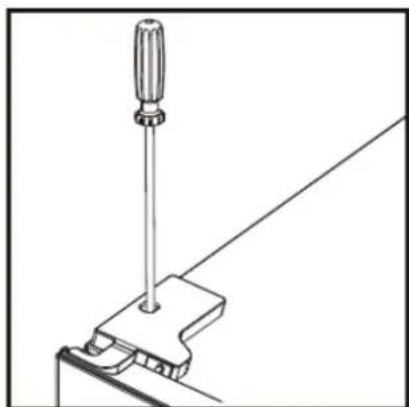

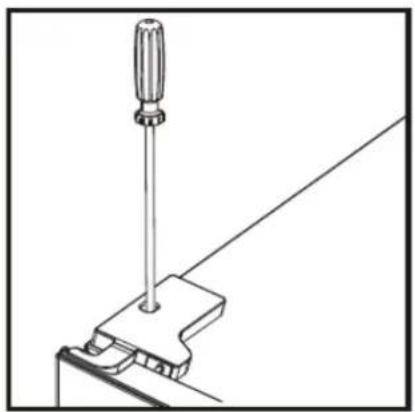

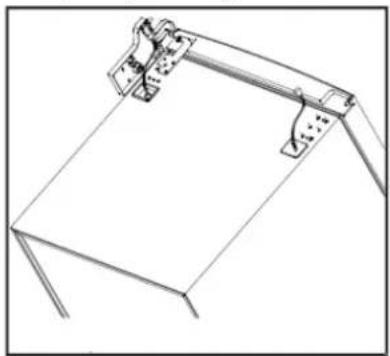

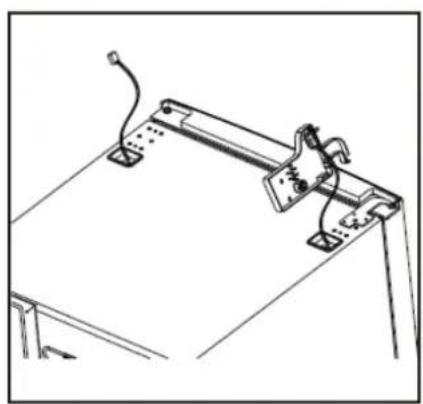

1. Unscrew top hinge cover and then unscrew the top hinge.

Then lift upper door and place it on a soft pad to avoid scratch and damage.

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical bracket or clamp assembly (no text or symbols)

Pure technical line drawing of a mechanical assembly with a screwdriver and base mount (no text or symbols)

Simple line drawing of a mechanical device with a handle and connector, connected to a small component (no text or symbols)

Diagram showing a device with a switch and a small component, no text or symbols present

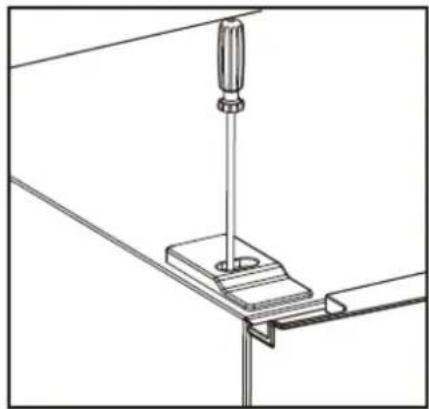

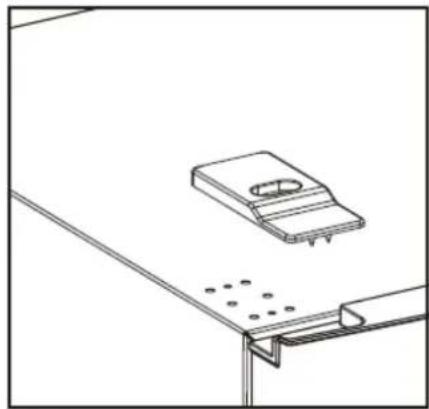

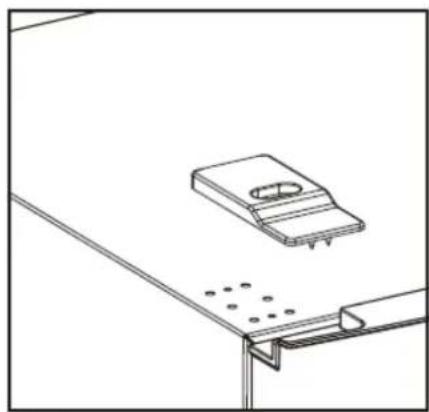

1. Remove the top left screw cover.

Technical line drawing of a screwdriver inserted into a bracket with a base plate (no text or symbols)

Technical line drawing of a mechanical bracket and mounting bracket (no text or symbols)

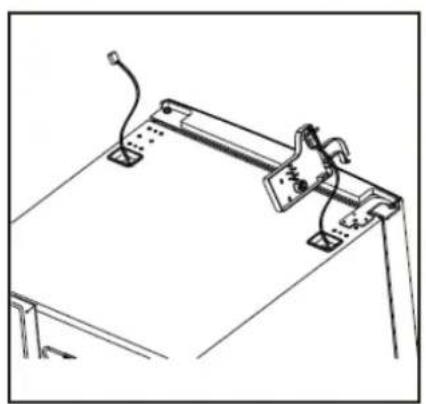

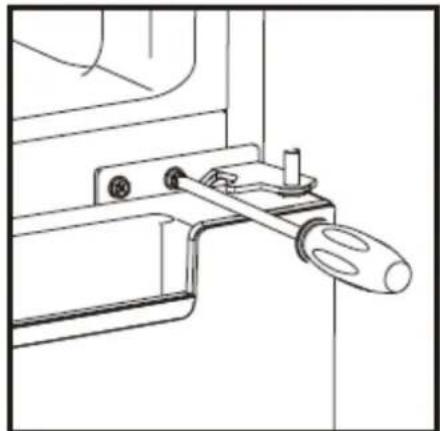

1. Take off the upper door, take out the screw from the middle hinge by cross screwdriver, then take off the lower door.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

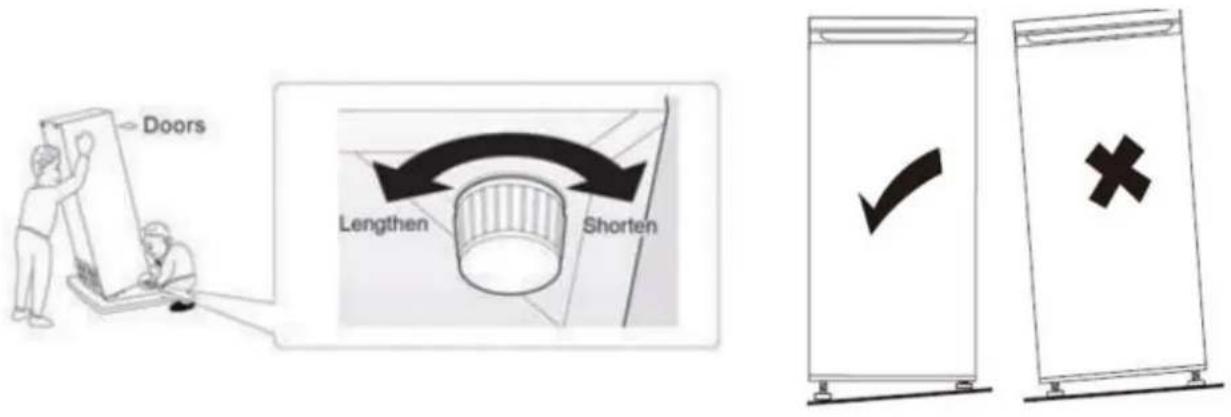

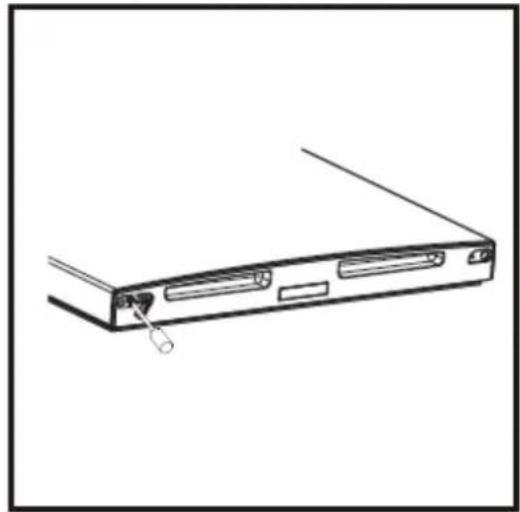

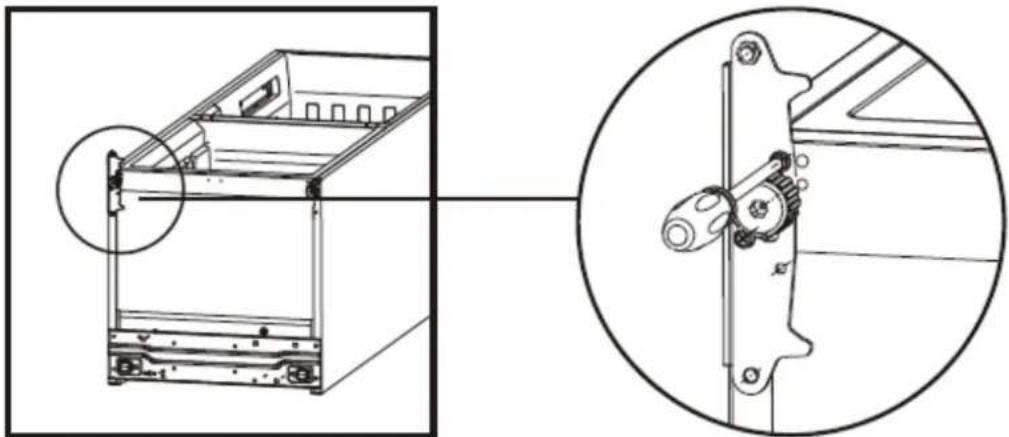

1. Laying down the refrigerator, take out the adjusting feet as below, then take off the lower hinge by cross screwdriver.

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

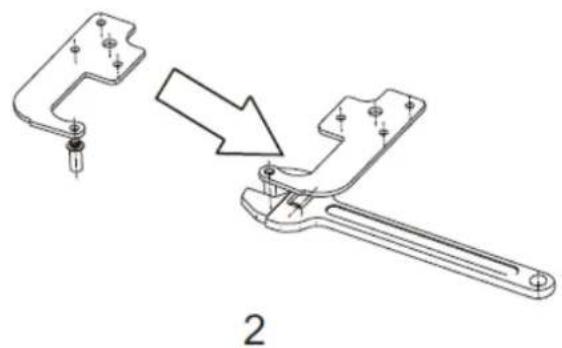

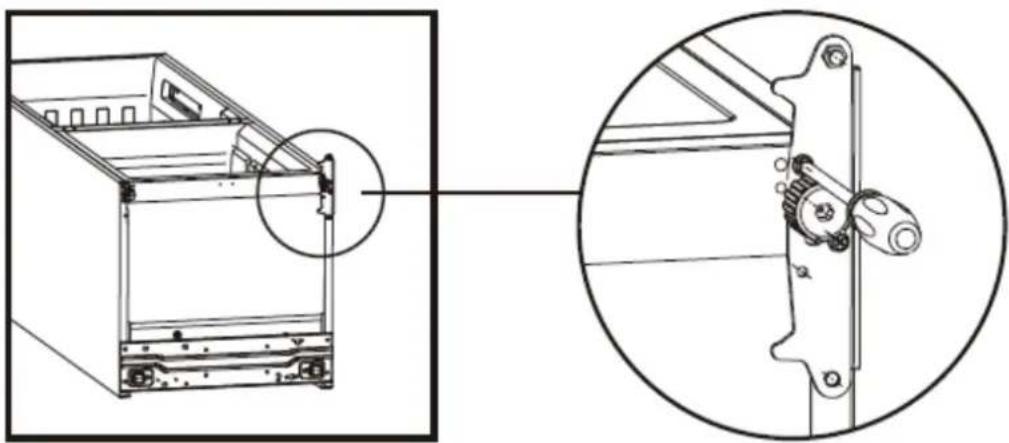

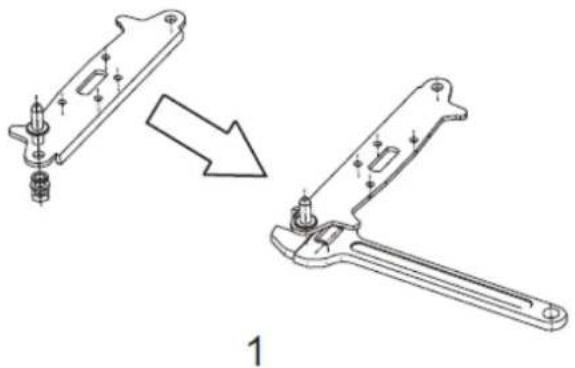

1. Adjusting the hinge core position of the lower hinge and upper hinge to opposite position.

Technical line drawing of a mechanical clamp or wrench assembly, showing disassembly from part 1 to final assembly (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly, showing a disassembly process with no text or symbols

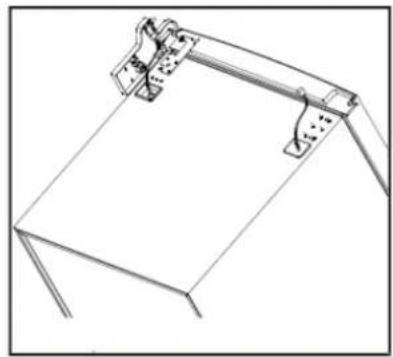

1. Install the lower hinge under to the refrigerator like below, screwing in the adjusting feet, make sure the position in horizon.

Technical line drawing of a mechanical assembly with an inset close-up showing a gear mechanism (no text or symbols)

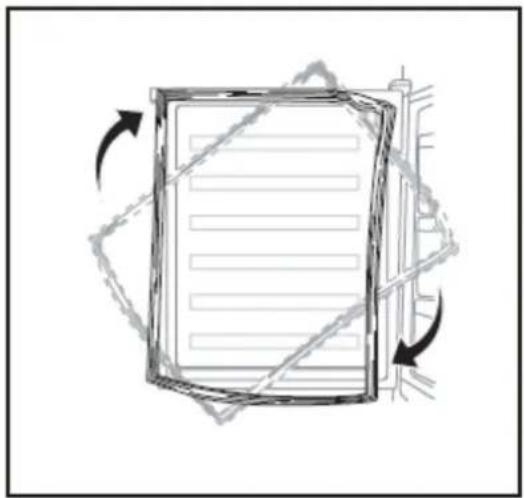

1. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.

Diagram of a document with arrows indicating rotational movement, no text or symbols present

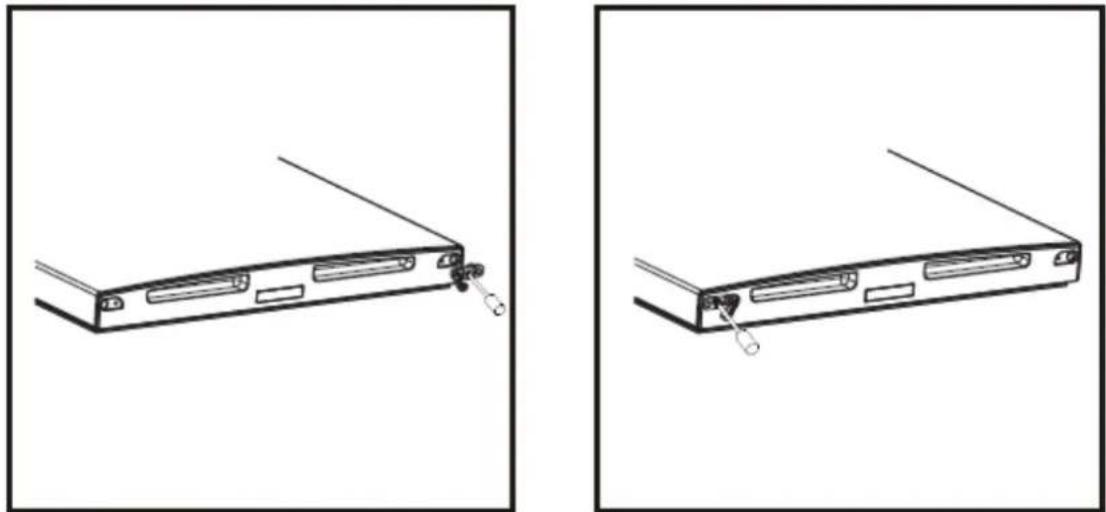

1. Remove the original aid-closers from upper and lower door, then install the aid-closers from the internal bag (with instruction manuals) to the opposite side.

1. Install the lower door, adjust and fix the middle hinge onto the cabinet.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

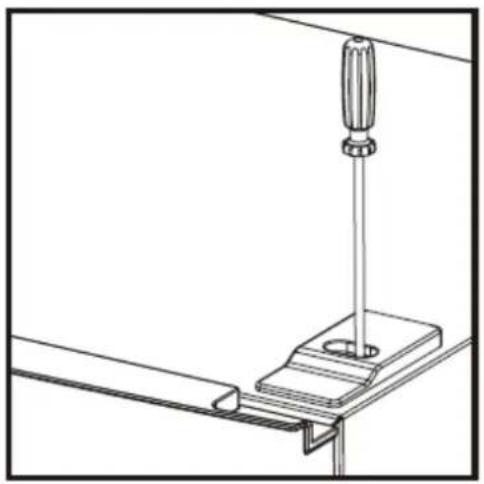

1. Place the upper door back on. Ensure the door is aligned horizontally and vertically so that the seal are closed on all sides before finally tightening the top hinge. Then inert the top hinge and screw it to the top of unit and then fix hinge cover (in accessory bag) by screw.

Technical line drawing of a screwdriver inserted into a bracket with mounting holes (no text or symbols)

Line drawing of a mechanical setup with a lever and base mount (no text or symbols)

Technical line drawing of a screwdriver inserted into a clamp bracket (no text or symbols)

1. Fix the screw cover.

Technical line drawing of a screwdriver inserted into a bracket with a base plate (no text or symbols)

Levelling the unit

To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

6. CONTROL PANEL

Temperature setting of the fridge compartment

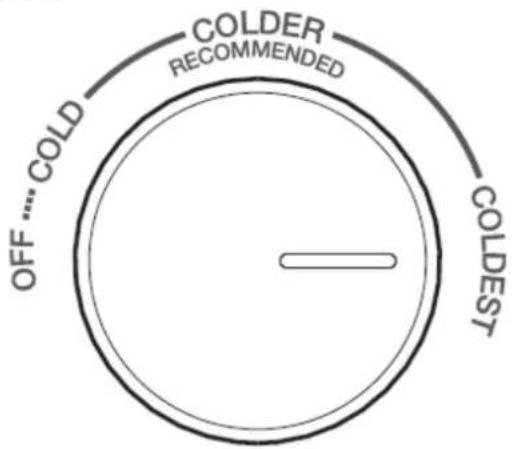

The fridge temperature setting knob.

• The knob in fridge compartment is used to adjust temperature of fridge compartment.

- The internal temperature is controlled by a sensor. There are 4 settings: OFF, COLD, COLDER and COLDEST. COLD is warmest setting and COLDEST is coldest setting.

- The appliance may not operate at the correct temperature if it is in a particularly hot room or if you open the door often.

• Neither fridge, nor freezer compartment works when the setting is OFF.

Temperature setting of the freezer compartment

The freezer temperature setting slider.

Simple diagram of a paperclip with a central circle and surrounding snowflake symbols (no text or labels)

• This slider in fridge compartment is used to adjust temperature of freezer compartment.

- Slider is positioned toward *, the temperature in freezer compartment will be higher. Contrarily, the temperature in freezer compartment will be lower if the slider is moved toward .

• Middle position of slider is advised position for normal using.

- To get lowest temperature in freezer compartment, you can adjust setting knob at coldest and position the slider at .

Temperature setting recommendation

Temperature Setting Recommendation
Environment Temperature Fridge setting
Summer (above 38°C)		Set on *
			Set on colder~coldest
Normal		Set on *
			Set on colder
Winter (below 16°C)		Set on *
			Set on colder~coldest

• Information above give users recommendation of temperature setting.
- In winter or temperature below 16^ , users should avoid set on and Cold.
- For energy saving, the and Coldest set only apply to special need (such as quick-freezing or ice making), and need turn back after special need.

Note: High temperature setting will accelerate food waste.

7. DAILY USE

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Position different food in different compartments according to be below table:

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams, juices, drinks, condiments.Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs and vegetables should be placed separately in the crisper bin.Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf – middle	Dairy products, eggs
Fridge shelf – top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	Foods for long-term storage.Bottom drawer/shelf for raw meat, poultry, fish.Middle drawer/shelf for frozen vegetables, chips.Top drawer/shelf for ice cream, frozen fruit, frozen baked goods

Freezing fresh food

• The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
• Place the fresh food to be frozen in the freezer compartment.
• The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
  • The freezing process lasts 24 hours: during this period do not add other food to be frozen.

Storing frozen food

When first starting-up or after a period out of use, before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).

Thawing

Deep-frozen or frozen food, prior to be used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand placing a rectangular object on a shelf (no text or symbols)

Positioning the door balconies

Door balconies can be disassembled for cleaning. To make the disassembling as follows: gradually pull the balcony in the direction of the arrows until it comes free, after cleaning, reposition it.

Diagram of a vertical structure with two upward-pointing arrows, no text or symbols present

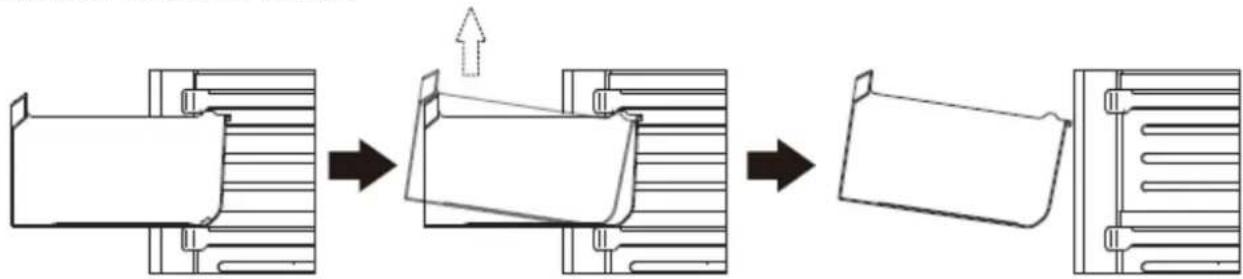

Disassemble the bottom drawer

1. Pull out the bottom drawer to stopper position.
2. Lift up the front of drawer.
3. Pull out the bottom drawer.

8. STORING THE FOOD

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
- only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.

Once defrosted, food deteriorates rapidly and cannot be refrozen.

Do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator;
• Do cover or wrap the food, particularly if it has a strong flavour.

Hints for refrigeration

• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
- For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
- Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
- Butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
- Milk bottle: these should have a cap and should be stored in the balconies on the door.
- Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
  • One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Note: Please store different foods according to the compartments or target storage temperature of your purchased products.

- If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Order	Compartments TYPE	Target storage temp. [°C]	Appropriate food
1	Fridge	+2≤+6	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2	(***)*-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	***-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
4	**-Freezer	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
5	*-Freezer	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	0-star	-6≤0	Fresh pork, beef, fish, chicken, some packaged processed foods etc. (Recommended to eat within the same day, preferably no more than 3 days). Partially encapsulated processed foods (non-freezable foods)
7	Chill	-2≤+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to stor above 0 °C).
8	Fresh Food	0≤+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days).
9	Wine	+5≤+20	Red wine, white wine, sparkling wine, etc.

9. CLEANING & DEFROSTING

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly. Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch off the appliance and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.

- Switch the appliance off and remove the plug from the mains or switch off or turn out the circuit breaker of fuse.

- Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.

• After everything is dry place appliance back into service.

Defrosting

The combi fridge is made based on the air-cooling principle and thus has automatic defrosting function.

10. TROUBLESHOOTING

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact qualified technician.

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance does not work	Temperature regulation knob is set at coldest	Set the knob at other switch on the appliance.
	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes or cools too much	Temperature is set too cold or the appliance runs at coldest.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough	Temperature is not properly adjusted.	Please look in the initial Temperature setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build up of frost on the door seal	Door seal is not airtight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	Appliance is not level.	Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	Water drain hole is blocked.	See the Cleaning section.
Side panels are hot	It's normal. Heat exchange parts are in the sides.	Take gloves to touch sides if needed.

If the malfunction shows again, contact the Service Center.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model and Serial Number.

The information can be found on the rating plate. Subject to change without notice.

TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

To access information about your product in the EPREL portal, you can scan the codes below:

Thank you for purchasing this product. If you need support with your product, visit our website using the links below.

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro

COMBINĂ FRIGORIFICĂ

Model:

HCNF-HM293XE++

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

A	600
B	600
C	1860
D	min=50
E	min=50
F	min=50
G	1200
H	1200
L	135°

Pozitionare

Technical line drawing of a screwdriver inserted into a mechanical clamp (no text or symbols)

Line drawing of a simple mechanical bracket or clamp assembly (no text or symbols)

Pure technical line drawing of a mechanical setup with a screwdriver and base components (no text or symbols)

Simple line drawing of a device with a handle and connector, connected to a small component (no text or symbols)

Diagram showing a device with a switch and internal components, no text or symbols present

Technical line drawing of a screwdriver inserted into a bracket with a base plate (no text or symbols)

Technical line drawing of a mechanical bracket and mounting plate assembly (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical clamp or wrench assembly, showing disassembly from part 1 to final assembly (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly, showing a disassembly process with no text or symbols

Technical line drawing of a mechanical assembly with two views: front view and side view (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Line drawing of a computer tower case with a cable and drive (no text or symbols)

Line drawing of a computer drive casing with ports and a cable, no text or symbols present

Line drawing of a mechanical switch or lever assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Line drawing of a mechanical setup with a lever and base mount (no text or symbols)

Technical line drawing of a screwdriver inserted into a clamp (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket with a base plate (no text or symbols)

6. PANOUL DE COMANDĂ

Simple diagram of a padlock with a central circle and surrounding snowflake symbols (no text or labels)

Line drawing of a hand holding a shelf with a rectangular object on top (no text or symbols)

Diagram of a multi-level mechanical or electrical component with two upward-pointing arrows indicating direction (no text or symbols present)

8. DEPOZITAREA ALIMENTELOR

Get User manuals: https://www.heinner.ro

Get Service information: https://www.heinner.ro

MASURI PENTRU PROTECTIA MEDIULUI

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

- Комбиниран хладилник

A	600
B	600
C	1860
D	min=50
E	min=50
F	min=50
G	1200
H	1200
L	135°

Разположение

Technical line drawing of a mechanical clamp or bracket assembly with a screwdriver (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Line drawing of a mechanical setup with a screwdriver and tool, no text or symbols present

Simple line drawing of a device with a handle and two small components, connected by an arrow (no text or symbols)

Diagram showing a device with a switch and internal components, no text or symbols present

Technical line drawing of a screwdriver inserted into a bracket with a base plate (no text or symbols)

Technical line drawing of a mechanical bracket and mounting plate assembly (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a bracket detail (no text or symbols)

Technical line drawing of a mechanical clamp or wrench assembly, showing disassembly from a housing component to a handle (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly, showing a disassembly process with no text or symbols

Technical line drawing of a mechanical assembly with two views: front view and side view (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Line drawing of a computer tower case with a cable and drive (no text or symbols)

Line drawing of a file folder with a clip and two rectangular slots (no text or symbols)

Line drawing of a mechanical switch or lever assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing of a screwdriver holding a tool, mounted on a bracket (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket with a base plate (no text or symbols)

Нивелиране на уреда

Simple diagram showing a central circle inside an oval shape with surrounding snowflake symbols (no text or labels)

Line drawing of a hand holding a shelf with a rectangular object on top (no text or symbols)

Diagram of a vertical structure with two upward-pointing arrows, no text or symbols present

8. СЪХРАНЯВАНЕ НА ХРАНИ

Exterior view of a modern stainless steel refrigerator (no visible text or symbols)

A	600
B	600
C	1860
D	min=50
E	min=50
F	min=50
G	1200
H	1200
L	135°

Elhelyezés

Simple line drawing of a screwdriver inserted into a clamp on a metal bracket (no text or symbols)

Technical line drawing of a mechanical bracket or frame structure (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Diagram of a device with a handle and connector, showing a process step (no text or symbols)

Diagram showing a device with a switch and a separate component, no text or symbols present

Technical line drawing of a screwdriver inserted into a bracket with a base plate (no text or symbols)

Technical line drawing of a mechanical bracket and mounting plate assembly (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with an inset close-up showing a component detail (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly, showing disassembly from part 1 to final assembly (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly, showing a disassembly process with no text or symbols

Technical line drawing of a mechanical assembly with two views: front view and side view (no text or symbols)

Abstract diagram of a document with arrows indicating rotational movement (no text or symbols)

Line drawing of a computer tower case with a cable and drive (no text or symbols)

Line drawing of a computer drive casing with ports and a cable, no text or symbols present

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly with no visible text or symbols

Technical line drawing of a screwdriver on a clamp (no text or symbols)

Technical line drawing of a screwdriver inserted into a bracket (no text or symbols)

6. VEZÉRLÓPANEL

Simple diagram showing a gray circle inside an oval shape with surrounding snowflake symbols (no text or labels)

Line drawing of a hand holding a shelf with a rectangular object on top (no text or symbols)

Diagram of a multi-level mechanical or electrical component with two upward-pointing arrows indicating direction (no text or symbols present)

The refrigerator works on the air-cooled principle, so it has an automatic defrost function.

10. A HIBÁK MEGOLDÁSA

Az izzó cseréje
