Product Type	Household Fan
Model	IFC-612S
Brand	Imarflex
Dimensions (Height x Base)	Approx. 50 cm x 30 cm diameter base
Weight	3.2 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	45 Watts
Fan Speed Settings	3 speeds (High, Medium, Low)
Oscillation	Yes, automatic left-right oscillation
Tilt Adjustment	Manual up/down tilt
Blade Diameter	16 inches (approximately 40 cm)
Material	ABS plastic body, metal stand
Control Type	Rotary switch on base
Noise Level	Low noise operation
Overheat Protection	Built-in thermal fuse
Safety Grille	Removable front grille with safety screws
Cleaning	Clean with soft damp cloth; do not immerse
Spare Parts	Blades, grille, motor, stand
Repairability	Motor and switch can be replaced by authorized service
Certifications	CE, RoHS

Frequently Asked Questions - IFC-612S Imarflex

How do I assemble the fan?

Attach the base to the stand using the provided screws. Then mount the motor housing onto the stand. Secure the back grille, attach the fan blade, and finally clip the front grille into place using the safety screws.

How do I clean the fan?

Unplug the fan. Remove the front grille by unscrewing the safety screws. Wash the grille with mild soap and water, then dry thoroughly. Wipe the blade and motor housing with a damp cloth. Do not use abrasive cleaners or immerse in water.

What should I do if the fan does not oscillate?

Ensure the oscillation knob is fully engaged. If it still doesn't oscillate, the oscillation mechanism may be jammed. Gently rotate the fan head manually to free it. If problem persists, contact customer service.

Can I use the fan outdoors?

This fan is designed for indoor use only. Exposure to rain or moisture can cause electrical shock or damage.

How do I change the fan speed?

Turn the rotary speed control knob on the base to select Low, Medium, or High speed setting.

Why is the fan making noise?

Check if the blade is properly centered and not hitting the grille. Tighten all screws. If noise persists, it may be due to worn bearings or motor issues. Contact support.

What is the power cord length?

The power cord is approximately 1.5 meters long.

Does the fan have a remote control?

No, the IFC-612S is controlled manually via the rotary switch on the base. There is no remote control.

How do I replace the fan blade?

Unplug the fan. Remove the front grille and unscrew the blade cap. Pull off the blade and replace with a compatible one. Ensure it is centered before reassembling.

What should I do if the fan stops working?

Check if the unit is plugged in and the outlet is working. If the thermal fuse has tripped, let the fan cool down for 30 minutes and try again. If still not working, contact an authorized service center.

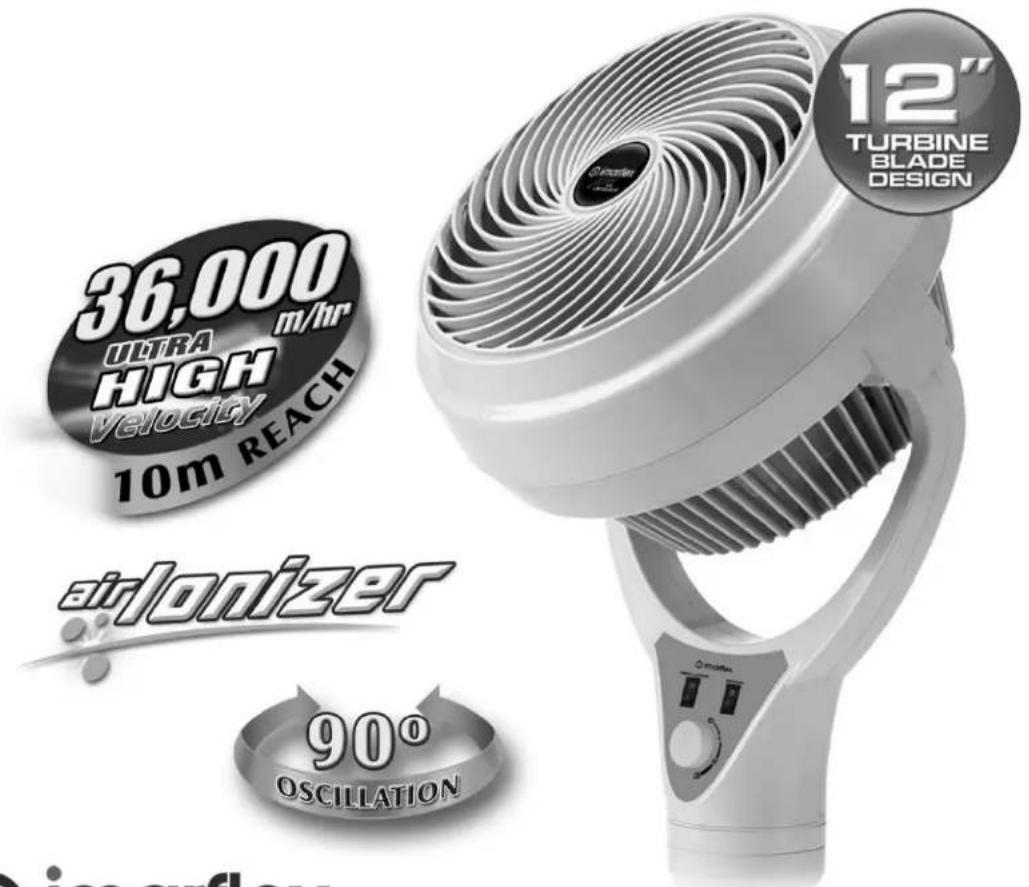

USER MANUAL IFC-612S Imarflex

Cyclone AIR CIRCULATOR

The New Generation of Cooling Fans

AIR CONDITIONER COMPANION • 90° TILT ANGLE 3-SPEED SETTINGS • 24-HOUR OPERATION

imarflex®

In Every Home.

www.imarflex.com

IFC-612S

SPECIFICATION

MODEL NO. : IFC-612S

RATED VOLTAGE : 230Va.c. \~60Hz

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully before use.
2. Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
3. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not attempt to repair, adjust or replace parts in the unit. It must be check and repair by an Authorized Imarflex Technician or by similar qualified persons in order to avoid electric hazard.
6. Do not place the unit near gas stove or electric stove.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
9. This unit must only be used for room ventilation. Do not use in bathrooms.
10. Do not insert any object into the Fan Guard.
11. Do not use the plug to stop or start the operation of the unit, use the Speed Control Knob.
12. To prevent the risk of electric shock do not operate the unit by wet hands.
13. For household use only.
14. Save this instruction manual for future reference.

FEATURES AND FUNCTIONS

Air circulator acts as a flow-straightener and further assists in focusing the outward stream of air into tight cyclone airflow.

• Summer: The cyclone air hits a wall across the room roughly halfway to decrease the room temperature.
• Rainy: This forces the hot air of the ceiling and mixes it with the cooler air resulting in an even room temperature.
• Ionizer: It releases a negative ion to purify the circulating air inside the room.

APPLICATION

Base on hot air rises and cool air falls of aerodynamic.

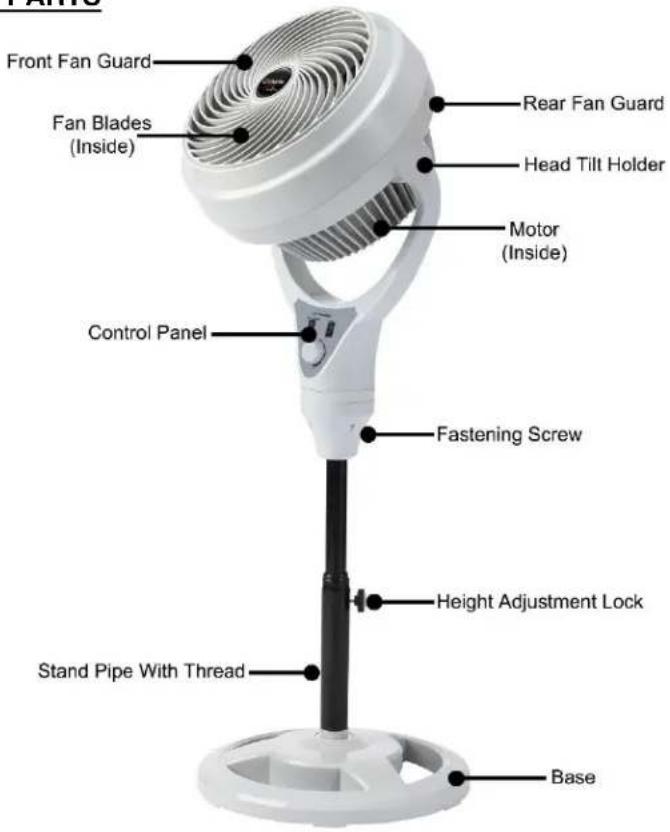

DESCRIPTION OF PARTS

ASSEMBLY INSTRUCTION

1. Attached the Adjustable Stand Pipe to the Base.

2. Unscrew the fastening screw on the Main Body Assembly and insert it onto the Adjustable Stand Pipe. Tighten the fastening screw.

Note:

The Main Body Assembly is heavier than the other traditional fans due to the powerful motor. To avoid the risk of falling damage, please be careful when assembling the unit.

HOW TO USE

1. Please make sure the Speed Control Knob is in "0" position.

2. Plug the unit into the convenience outlet (230Va.c.).

3. SPEED ADJUSTMENT – the speed can be adjusted by turning the Speed Control Knob to the desired setting:

0	Fan is switched off
1	Low range speed of the fan (weak air flow)
2	Medium range speed of the fan (medium air flow)
3	High range speed of the fan (strong air flow)

1. OSCILLATION – pressing the button "OSCILLATION "to (I) position, will start the unit to oscillate side-to-side and it can be stop by pressing the "OSCILLATION" button to (0) position.
2. IONIZER – pressing the button "IONIZER" to (I) position will start to purify the air by releasing negative ion and it can be stop by pressing the "IONIZER" button to (0) position.
3. HEAD TILT ADJUSMENT – this is equipped with a 90° tilt head for whole room air circulation.

Control Panel

CLEANING MAINTENANCE

1. Always unplug the unit from the convenience outlet before disassembling the unit.
2. Unscrew and remove the Front Fan Guard. (See fig.1)
3. Clean the Rear Fan Guard with moisten cloth. Wash the Front Fan Guard and Fan Blade with soap and water then rinse thoroughly.
4. Use vacuum or soft brush to clean the dust on the motor.
5. After cleaning return the Front Fan Guard and tighten the screws. (See fig. 2)
6. Wipe the Base with damp cloth.
7. Do not immerse the unit in water or other liquids.

Close-up of hands operating a large electric fan (no visible text or symbols)

Fig. 1

Close-up of a person cleaning a ceiling fan (no text or symbols visible)

Fig. 2
