| Product Type | Domestic Fan |
| Model Number | IF-732 |
| Brand | Imarflex |
| Dimensions (Height x Width x Depth) | Approx. 130 cm × 45 cm × 45 cm |
| Net Weight | Approx. 4.2 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Power Consumption | 45 W |
| Number of Speed Settings | 3 |
| Oscillation | Yes (90°) |
| Blade Diameter | 16 inches (40 cm) |
| Control Type | Push buttons on base |
| Height Adjustable | Yes (telescopic pole) |
| Base Type | Round heavy base |
| Protection Grid | Metal grid with safety guard |
| Overheat Protection | Yes (thermal fuse) |
| Cleaning and Maintenance | Clean with soft damp cloth; do not immerse in water |
| Safety Instructions | Keep away from water; do not insert objects into grid; unplug before cleaning |
| Spare Parts Availability | Replacement blades and fuses available from Imarflex service centers |
| Repairability Index | 7.5/10 (based on user ratings) |
| Certifications | CE, RoHS |
| Recommended Use | Indoor domestic cooling |
| Warranty | 1 year manufacturer warranty |
Frequently Asked Questions - IF-732 Imarflex
How do I clean the Imarflex IF-732 fan?
Unplug the fan and use a soft damp cloth to wipe the blades, grid, and base. Do not immerse any part in water or use harsh chemicals. Ensure the fan is dry before reconnecting.
Can I adjust the height of the IF-732 fan?
Yes, the fan has a telescopic pole. Loosen the adjustment ring, set the desired height, then tighten securely.
Does the fan oscillate?
Yes, it oscillates left and right with a 90° range for wider air distribution.
What are the speed settings?
The fan has three speed levels: low, medium, and high, controlled by push buttons on the base.
Is the IF-732 fan safe to use in a bathroom?
No, it is designed for indoor dry use only. Keep away from water sources to avoid electrical shock.
How do I assemble the fan?
Attach the base to the pole, then secure the motor housing. Fix the rear grille, blades, and front grille with the provided screws. Refer to the manual for detailed steps.
What should I do if the fan stops working?
Check if it is plugged in and the power outlet works. If the thermal fuse has tripped, allow the fan to cool off; if the problem persists, contact Imarflex service.
Where can I find spare parts for the Imarflex IF-732?
Replacement parts (blades, fuses, screws) can be ordered from Imarflex authorized service centers or their official website.
Can I use the fan outdoors?
It is intended for indoor use only. Exposure to rain or moisture may cause damage and safety hazards.
How do I store the fan when not in use?
Disassemble partially (remove blades and grid), clean, dry, and store in a cool, dry place. Keep the original box if possible.
User questions about IF-732 Imarflex
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Household Fan in PDF format for free! Find your manual IF-732 - Imarflex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IF-732 by Imarflex.
USER MANUAL IF-732 Imarflex
oscillating Tower Fan
32" Vertical HEIGHT

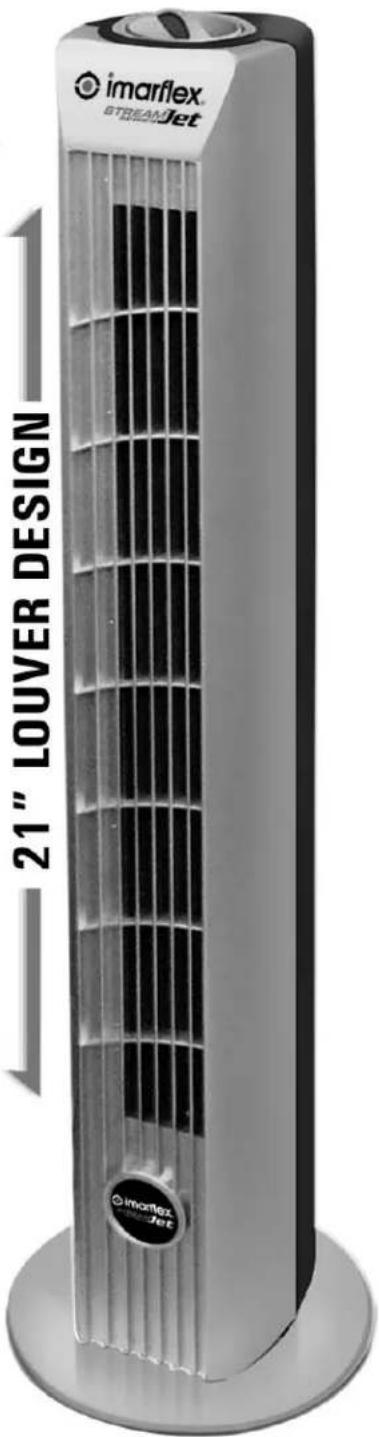

21" LOUVER DESIGN
REVOLUTIONARY HD HIGH DENSITY CS CABBON STEEL INDUCTION MOTOR
ULTRA Silent technology
Jet turbine VECTORING
2year warranty ON MOTOR
EXPORTED TO THE USA & JAPAN
SHATTER RESISTANT MATERIAL
IF-732
SPECIFICATION
MODEL NO. : IF-732
RATED VOLTAGE : 230Va.c. \~ 60Hz
POWER CONSUMPTION : 40 watts
IMAPORTANT SAFEGUARDS
- Read all instructions carefully.
- Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
- Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
- Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
- Do not place the unit near gas stove or electric burner.
- Close supervision is necessary when any appliance is used by or near children.
- This unit must only be used for room ventilation. Do not use in bathrooms.
- Do not insert any object into the Fan Guard.
- Never touch the unit with wet hands.
- Do not use the plug to stop or start the operation of the unit, use the switch button.
- Always unplug the unit before cleaning.
- Keep this instruction for future reference.

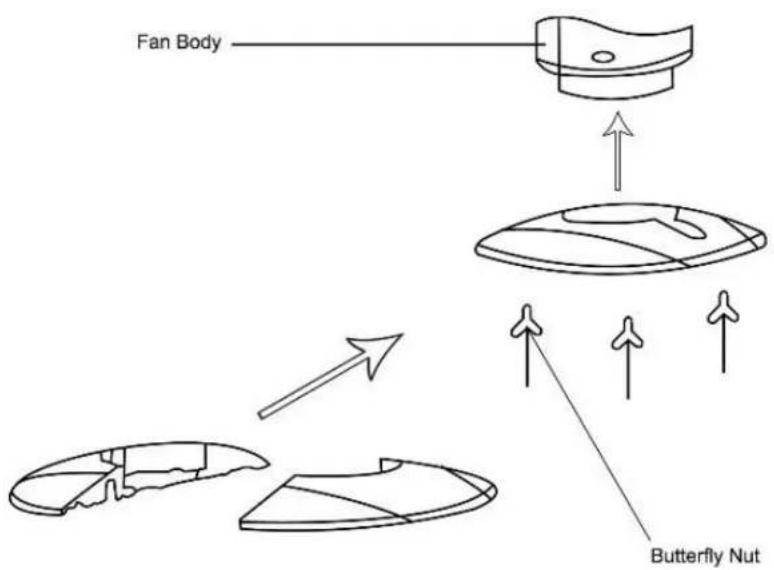

ASSEMBLY
Follow the illustration below for base assembly.

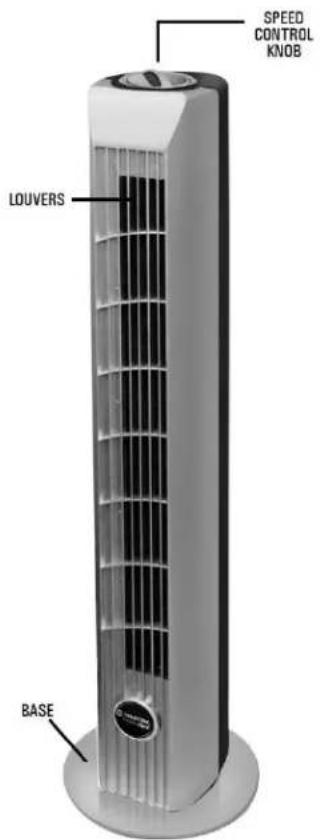

DESCRIPTION OF PARTS
HOW TO USE
- Plug the unit into the convenience outlet (230Va.c).

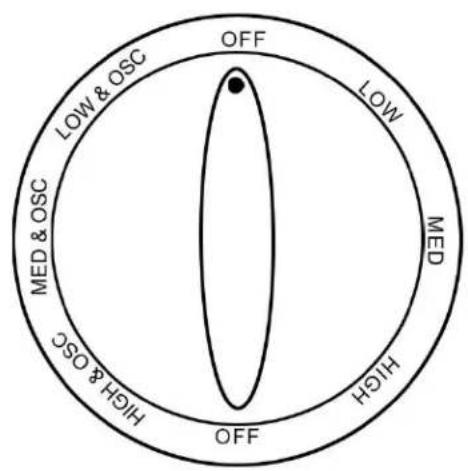

- Turn the Speed Control to desired air flow. LOW speed; MEDIUM speed; HIGH speed; and "OFF".
- FOR OSCILLATING WITH AIR FLOW): Turn the Speed Control to the desired air flow. "LOW & OSC" indicates LOW speed; "MED & OSC" indicates MEDIUM speed; "HIGH & OSC" indicates HIGH speed; and "OFF".
CLEANING MAINTENANCE
- Always disconnect the unit from the convenience outlet before disassembling the unit.
- Unscrew and remove the Back Grill Cover wash with soap and water. Let it dry.
- Brush out the dirt from the Cross Fan.
- Return the Back Grill Cover.
- Wipe the Base with damp cloth.
- Do not immerse the unit in water or other liquids.
