Product Type	True Wireless Earbuds (Hi-Fi System)
Model	MI08 (X180)
Bluetooth Version	V5.0
Effective Distance	Around 10 m (33 ft)
Battery Capacity (Charging Case)	500 mAh
Charging Time (Earbuds)	1-1.5 hours
Charging Time (Case)	1-1.5 hours
Playtime	Approximately 5 hours (at 80% volume)
Working Temperature	0-40°C (32-104°F)
Frequency Range	2402-2480 MHz
Transmit Power (EIRP)	<10 dBm (CE)
Power Supply	DC 5V (via USB Type-C)
Driver Unit	Not specified; typical 6-10 mm dynamic drivers
Impedance	Not specified; typical 16-32 ohms
Water Resistance	Not specified; likely IPX4 or similar (sweat-resistant)
Noise Cancellation	Passive noise isolation (no active noise cancellation)
Controls	Touch controls on both earbuds (volume, music, calls, voice assistant)
Voice Assistant	Supports activation via triple tap on left earbud
Ear Tips Included	Three sizes (S, M, L) – extra pairs included
Dimensions (Earbuds)	Approximately 23 x 16 x 13 mm (estimated)
Dimensions (Charging Case)	Approximately 60 x 40 x 25 mm (estimated)
Weight (Earbuds each)	Approximately 4-5 g (estimated)
Weight (Charging Case)	Approximately 35-40 g (estimated)
Cleaning	Wipe with a soft, dry cloth. Clean charging pins with a dry cotton swab.
Safety Precautions	Do not disassemble; avoid high temperatures and fire; keep out of reach of children to prevent choking hazard.
Replacement Parts	Ear tips (spare included); battery not user-replaceable
Warranty	2-year free warranty

Frequently Asked Questions - X180 Vankyo

How can I tell if the pairing is successful?

The LED indicators on the earbuds pulse blue slowly every 3 seconds. You will see 'Connected' on your mobile device. You can also launch a music app and tap either earbud once to check if you can play/pause music.

Can the X180 earbuds be paired with multiple devices?

No, they can only be paired with one device at a time.

Why can't I find 'X180' in my Bluetooth list?

Ensure the earbuds are not already paired with another device. If they are, go to that device's Bluetooth settings, select 'X180' and choose 'Forget This Device', or turn off Bluetooth on that device. Then close and reopen the charging case to make the earbuds discoverable. Also, the earbuds must be paired within 3 minutes after powering on, or they will power off automatically.

What should I do if there is no sound from one earbud?

First, turn off Bluetooth on your device, then turn it back on and re-pair the earbuds. If the issue persists, tap and hold the Touchpad on the right earbud to increase the volume, as the earbud may be muted.

How do I charge the earbuds?

Place the earbuds into the charging case, aligning the charging pins. They will magnetically snap into place and start charging automatically. The earbuds' LED indicators pulse blue slowly while charging and turn off when fully charged.

How do I clean the charging pins?

Use a dry cotton swab to gently clean the charging pins on both the earbuds and the charging case. Ensure no debris obstructs the connection.

What is the Bluetooth range of the X180?

The effective Bluetooth range is approximately 10 meters (33 feet) in open space.

How do I activate the voice assistant?

Triple-tap the Touchpad on the left earbud quickly to activate your device's voice assistant (e.g., Siri, Google Assistant).

How long does the battery last?

The earbuds provide approximately 5 hours of playtime at 80% volume. The charging case can recharge the earbuds fully several times (case battery capacity 500mAh). Charging time for earbuds or case is about 1-1.5 hours.

What should I do if one earbud is not powering on?

First, ensure the earbud has enough charge by placing it in the charging case for at least 1 hour. If it still doesn't power on, check if the charging pins on the earbud and case are dirty. Clean them with a dry cotton swab and try again. If the problem persists, contact VANKYO support.

USER MANUAL X180 Vankyo

Line drawing of an open wireless earbuds with four cups (no text or symbols)

Please read this manual carefully before use and keep it well for future reference.

V2.03

CONTENTS

IMPORTANT 01

CAUTIONS 01

PACKING LIST 02

PRODUCT OVERVIEW 03

CHARGE 04

POWER ON 08

READY FOR PAIRING 08

PAIR 09

UNPAIR 10

FIT THE EARBUD INTO YOUR EAR 10

FUNCTIONS OF THE EARBUDS 11

POWER OFF 13

REPLACE THE EAR TIP 14

SPECIFICATIONS 15

TROUBLESHOOTING 16

IMPORTANT

* For the detailed pairing steps, please refer to page 08-10. If you need any further assistance, please contact us at [e-mail] (US&CA)/[e-mail] (UK) according to your country.

* If the original ear tips don't fit your ears, please refer to page 14 and see how to replace the ear tips.

CAUTIONS

① Do not try to disassemble the product by yourself, please contact VANKYO for more help.
② Do not use the product in high temperature, and near heat or fire.
③ Please use the Type-C cable provided for charging the product.
4 Please keep the earbuds out of the reach of children to avoid choking hazard for the small parts contained in the product.
⑤ Long time exposure to loud volume may cause hearing damage. It's advised you adjust the volume to a proper level for use.

⑥ For your safety, it's not recommended to wear the earbud(s) when driving as it may result in distractions.
⑦ Please always pay attention to the surroundings to avoid potential risks caused by using the product.

PACKING LIST

Simple line drawing of a rounded rectangular device with a logo on top (no text or symbols on body)

Charging Case

Wireless Earbud x 2

Simple line drawing of a cable with two connectors (no text or symbols)

Type-C Cable x 1

Spare Ear Tip (Sx2, Mx2, Lx2)

User Manual x 1

Quick Start x 1

Note:

If there is any part of your product damaged or missing, please contact VANKYO support team.

PRODUCT OVERVIEW

Charging Case

Opening Slot LED Indicators
Type-C Charging Port

Line drawing of an open wireless earbuds with internal components (no text or symbols)

Left Earbud

Right Earbud

Charging Slot for the Right Earbud

Charging Slot for the Left Earbud

Earbud

CHARGE

Please charge the Charging Case and Earbuds before your first use.

Charge the Charging Case

1 Connect the Type-C Cable into the Type-C Charging Port on the Charging Case.
② Directly connect the other end into a USB wall outlet; or connect the other end to a compatible adapter with 5V DC in, then plug it into a socket. It may take around 1-1.5 hour to reach a full charge.

Line drawing of a car battery connected to a plug (no text or symbols)

The Explanations of the LED Indicators

Simple line drawing of a circular object with two dots on top, connected to a base (no text or symbols)

Charging (With the case closing)

The LED Indicators will pulse red slowly.

Fully Charged (With the case closing)

The LED Indicators will turn solid red for 10s, then off.

Battery Levels (Opening the case)

Quickly flash blue once for every 5s	0%-25% power
Quickly flash blue twice for every 5s	25%-50% power
Quickly flash blue 3 times for every 5s	50%-75% power
Quickly flash blue 4 times for every 5s	75%-100% power

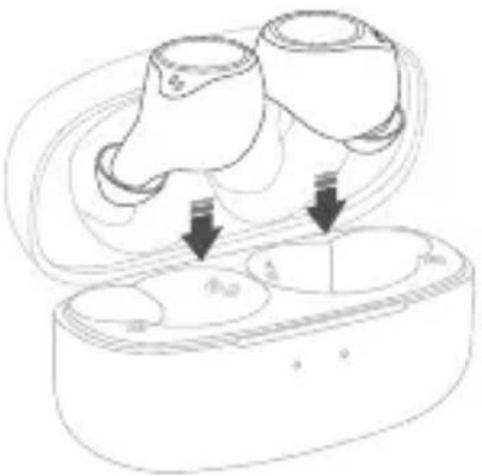

Charge the Earbuds

The earbuds will be charged while they are in the Charging Case.

① Align the Charging Pins on the earbuds with the Charging Pins on the Charging Slot in the case.
② Place the earbuds into the case until they magnetically snap into the place.

Diagram of a dental implant device with two heads and a base, showing internal components and directional arrows (no text or symbols)

The Explanations of the LED Indicator

Simple line drawing of two circular objects connected by a line (no text or symbols)

Charging

The LED Indicator on the earbud will pulse blue slowly.

Fully Charged

The LED Indicator on the earbud will be off.

POWER ON

Option 1

After opening the Charging Case, the LED indicator will flash blue quickly for 3-5 times.

Option 2

When the earbud is in power-off status, please tap and hold the Touchpad for 2s to power on.

READY FOR PAIRING

After powering on successfully, the LED Indicator on one earbud flashes blue quickly, while the other pulses blue slowly, which indicates they are ready for pairing with the mobile device.

PAIR

Turn on the Bluetooth on your device, search and connect to Alpha X180.

The LED Indicators on the earbuds will pulse blue slowly and you will see "Connected" on the mobile device, which indicates a successful connection.

Note:

Please connect the earbuds with a Bluetooth device within 3 mins after powering on, otherwise they will be powered off automatically.

UNPAIR

Option 1

Place the earbuds back in the Charging Case and close the Case. They will disconnect automatically.

Option 2

Go to the Bluetooth list of your mobile device, select Alpha X180 and Disconnect to disconnect the earbuds.

FIT THE EARBUD INTO YOUR EAR

1 Insert the earbud gently so the ear tip can rest in the opening of the ear canal.
② Gently and slowly adjust the earbud until it securely and firmly fits in your ear.

FUNCTIONS OF THE EARBUDS

Volume

Volume Up	Tap and hold the Touchpad of the Right(R) Earbud
Volume Down	Tap and hold the Touchpad of the Left(L) Earbud
Mute	Tap and hold the Touchpad of the Left(L) Earbud until it is muted

Music

Play/Pause	Tap the Touchpad of either earbud once
Previous	Tap the Touchpad of the Left(L) Earbud twice
Next	Tap the Touchpad of the Right(R) Earbud twice

Call

Accept	Tap the Touchpad of either earbud once
End	Tap the Touchpad of either earbud once
Decline	Tap and hold the Touchpad of either earbud for 2s
Call back the last call you dialed out	Tap the Touchpad of the Right(R) Earbud three times quickly
Continue &Decline	Tap the Touchpad of either earbud twice
Hold & Accept	Tap the Touchpad of either earbud once
End & Accept	Tap and hold the Touchpad of either earbuds for 1s

Activate Voice Assistant

Tap the Touchpad of the Left(L) Earbud three times quickly to wake up the voice assistant.

POWER OFF

Option 1

Place the earbuds into the charging case and close it to power off.

Diagram of a dental implant device with two cups and a base, showing internal components and directional arrows (no text or symbols)

Option 2

The earbuds will be powered off if there is no connection with a Bluetooth device within 3 mins after powering on.

REPLACE THE EAR TIP

We have pre-assembled the ear tip on the earbuds. If the size doesn't fit your ears, please take off the original ear tip on the earbud, then replace the new one we provided in the package.

Illustration of two hands holding a small animal, with an arrow indicating movement or change (no text or symbols present)

[e-mail]

SPECIFICATIONS

Model No.	MI08
Power Supply	DC 5V
BT Version	V5.0
Effective Distance	Around 10m (33ft)
Battery Capacity of the Charging Case	500mAh
Charging Time for the Earbud(s)	1-1.5H
Charging Time for the Charging Case	1-1.5H
Playtime	Around 5H(with 80% volume)
Working Temperature	0-40°C
Frequency Range	2402~2480MHz
Transmit Power (EIRP)	<10dBm(for CE)

TROUBLESHOOTING

Q1: How to tell whether the pairing is successful?

* The LED Indicators on the earbuds pulse blue slowly for every 3s.
* You will see "Connected" on the mobile device.
* Launch a music App and tap the Touchpad of either earbud once to check if you can play/pause the music.

Q2: Can X180 earbuds be paired with multiple devices?

* Sorry, they can't. They can only be paired with one device every time.

Q3: Why can't I see X180 from my Bluetooth list?

* Check if you have paired the earbuds with another mobile device before. If yes, please go to the interface of Bluetooth, select X180 and Forget This Device on that device; or directly turn off Bluetooth on that device to unpair the earbuds. Then close the Charging Case and open it again, X180 will be searched by the other device.

* The earbuds should be paired with a mobile device within 3 mins after powering on; Otherwise they will power off automatically.

Q4: What should I do if there is no sound from one earbud?

* Turn off Bluetooth on the device and turn it on, then pair your earbuds with the mobile device again.

* Tap and hold the Touchpad of the Right(R) Earbud to turn up the volume to check if the earbud is muted.

Q5: How should I do when the earbud(s) can't be charged?

* The Charging Case may run out of power. Please charge it for at least one hour, then put the earbud(s) into it to charge.

* Try to take out the earbud(s) and clean the Charging Pins, then put the earbud(s) into the Charging Case to see if the LED Indicator(s) on the earbud(s) pulse(s) blue slowly. If the earbud(s) still can't be charged, please directly contact us.

Q6: What should I do when one earbud can't be powered on?

* Check if the earbud has run out of power. If yes, please place it in the Charging Case and let it charge for around 1 hour.

* Check if the Charging Pins on the earbud and Charging Case are dirty. If yes, please clean them, then place the earbud into the Charging Case to be charged.

If the earbud still can't be powered on, please directly contact us.

WARRANTY

VANKYO wireless earbuds have a two-year free warranty. If you encounter any problems or have any questions while using the product, please send us an email to [e-mail] (US&CA)/[e-mail] (UK) according to your country. We look forward to your comments and suggestions so that we can help you better.

FCC Caution

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISEDC Warning

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

The device is compliance with RF exposure guidelines, users can obtain Canadian information on RF exposure and compliance.

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

The symbol indicates DC voltage

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

NOTES:

1. High Sound Pressure
2. Hearing Damage Risk
3. Do not listen at high volume levels for long periods.

IC:24268-BTM106

FCC ID: 2AQ3A-BTMI06

R 211-200332

Manufacturer

Shenzhen VanTop Technology & Innovation Co., Ltd.

Manufacturer address:

502, 5th Flr. BLDG 4, MinQi Technology Park, No. 65 Lishan Road,

Taoyuan Street, Nanshan District, Shenzhen, China

EC

REP

C&E Connection E-Commerce (DE) GmbH

Zum Linnegraben 20, 65933, Frankfurt am Main, Germany

[e-mail]

[e-mail]

CUSTOMER SUPPORT

North America

[e-mail]

United Kingdom

[e-mail]

www.Ivankyo.com

@VankyoOfficial

VANKYO
