MNS1200EWRCY21 - Heating MISTRAL - Free user manual and instructions

Product Type	Carbon Fibre Infrared Radiant Heater
Brand	Mistral
Model	MNS1200EWRCY21
Power Supply	AC 240V~50Hz
Power Consumption	1200W
Protection Rating	IP24
Heating Modes	Low and High settings
Oscillation	Yes, with oscillation button
Timer	1-6 hours, adjustable in 1-hour increments
Remote Control	Yes, uses CR2025 3V lithium battery (included)
Tip-Over Switch	Yes, automatically shuts off if not upright
Overheat Protection	Yes, thermal cutout
Placement Requirements	Horizontal, stable, heat-resistant surface; not on long pile carpet
Minimum Room Area	4 m²
Clearance Required	At least 100 cm in front, 50 cm behind from objects
Usage	Indoor household use only; not for commercial or industrial
Cleaning	Soft, damp cloth; do not immerse in water or spray liquids
Warranty	2 years (Australia & New Zealand)
Manufacturer	GSM Retail Group (Mistral is a registered trademark)
Country of Origin	China

Frequently Asked Questions - MNS1200EWRCY21 MISTRAL

How do I set the timer on my Mistral heater?

Press the Timer button repeatedly. Each press increases the timer by 1 hour, up to a maximum of 6 hours. The display will illuminate to confirm the setting. The heater will automatically turn off after the set time.

Can I use an extension cord with this heater?

No. The manual states: DO NOT use in conjunction with Extension cords, Power Boards or Double Adaptors, as these can overheat when overloaded. Always plug directly into a fixed domestic power outlet.

Why does the heater smell when first used?

It is normal for the heater to emit a burning smell and slight smoke during the first few minutes of operation. This is due to the 'burn-in' of heating elements and ceramic parts. Operate in a well-ventilated area until the smell disappears.

How do I clean the heater?

Always unplug and allow the heater to cool completely. Use a soft, damp cloth to wipe the exterior. Never immerse in water or spray liquids. Clean air inlet/outlet grilles frequently to prevent blockage.

Is this heater safe to use in a bathroom?

It has a IP24 rating, meaning it is protected against splashing water. However, never place it near bathtubs, showers, or swimming pools. Ensure it is positioned at least 1 meter from water sources and never use in damp areas.

How do I replace the remote control battery?

Unscrew the cover, press the locking arm, and pull out the battery tray. Insert a CR2025 3V lithium battery with the positive (+) side up. Reinsert the tray and tighten the screw. Dispose of old batteries safely.

What does the oscillation function do?

Press the Turn button to activate oscillation. The heater will rotate side to side to distribute heat over a wider area. Press again to stop oscillation.

Can I leave the heater unattended?

No. The manual warns: Never leave the appliance unattended when it is in use. Always turn off and unplug when not in use or when leaving the room.

What should I do if the heater tips over?

The heater has a tip-over switch that will automatically shut it off if it is not upright. Simply place it back on a stable, level surface and restart the heater.

What is the warranty period and how do I claim?

The warranty is 2 years from the date of purchase for Australia and New Zealand. To claim, take the product with proof of purchase to any Bunnings store. Contact GSM Retail Group at 1300 373 199 (Aus) or 0800 200 037 (NZ).

USER MANUAL MNS1200EWRCY21 MISTRAL

Carbon Fibre Infrared Radiant Heater

Black cylindrical industrial tower with mesh insulation and a flat top (no visible text or symbols)

Instruction Manual

Model: MNS1200EWRCY21

Important Safeguards

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including:

Safety Precautions

When using this appliance, below safety precautions should always be followed.

• To prevent fire or shock hazard, DO NOT expose this appliance to rain or moisture.
- Dangerous high voltages are present inside this enclosure. To avoid electric shock, DO NOT open the enclosure, refer servicing to qualified personnel only.
- To protect against fire, electrical shock and injury to persons, do not immerse the unit, plug or cord in water or spray with liquids.

- The heater shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed near the product. Dry location use only.

- No naked flames sources, such as candles, should be placed on the product.

- Any ventilation holes should not be impeded by covering with items, such as newspaper, table paper, tablecloths, curtains etc. Slots and opening are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. Never obstruct the air inlet and outlet. Do not use any object to cover this appliance.

- Only connect to a suitable AC 240V\~50Hz mains wall outlet. Do not overload the wall outlet.

- This appliance is not intended to be operated by means of an external timer or separate remote-control system. Other use not recommended may cause fire, electric shock or injury.

- This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Keep out of reach of children. Children should be supervised to ensure that they do not play with the appliance.
• To disconnect, grip the plug and pull it from the wall outlet. Never pull by the cord. Do not use with wet hands or in damp environments.
• Do not attempt to repair, disassemble or modify the appliance. There are no user-serviceable parts inside. Repairs should only be performed by qualified personnel.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use this appliance outdoors. This appliance is for household use only and not for commercial or industrial use.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Warning: In order to avoid overheating, DO NOT COVER the appliance.

Warning: Do not place the heater on LONG PILE CARPET OR FLOKATI RUGS. Use a heat board if necessary.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

WARNING: FIRE RISK EXISTS IF THE HEATER IS COVERED BY OR POSITIONED CLOSE TO CURTAINS OR OTHER COMBUSTIBLE MATERIALS.

Always

1. Always position the heater in accordance with the instructions.
2. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater.
3. Always use a fire guard when children, animals and infirm persons can come into contact with the heater. Pay attention! The air outlet gets hot during operation.
4. Always turn the appliance OFF and unplug it from the mains wall outlet when it is not in use, when moving the appliance from one location to another and before cleaning.

Never

1. Never leave the appliance unattended when it is in use. Never leave children unsupervised in a room where the heater is ON and unguarded.
2. Never obstruct or cover the air outlet or force items into the heater openings, this could cause overheating and consequent risk of fire. Never insert or allow foreign objects to enter the air outlet as this may cause damage to the appliance.
3. Never position or use the heater in the immediate vicinity of water, such as bathtub, shower, washbowls, swimming pool etc.
4. Never use aerosols or steam cleaners on or around the heater.
5. Never use the fan heater in rooms with explosive gas or while using flammable solvents, varnish or glue.
6. Never route the power supply cord under carpet etc.
7. Never use the heater to dry clothes, etc.
8. Never operate the appliance with a damaged cord or plug, after a malfunction or if it is not working normally, dropped or damaged in any way.
9. Never let the power cord hang over the edge of a table or counter or let it touch any hot surfaces.
10. Never move the appliance by pulling the cord.

11. Never immerse the product in water or any other liquid for any reasons.

12. Never use accessories that are not recommended or supplied by the manufacturer.

Position Instructions

This heater must be placed on a hard, level, heat resistant surface. When positioning, please keep the following points in mind:

• The heater requires no installation. It should be used solely as a portable appliance. The heater must always be used and stored in an upright position.
• This heater must not be located immediately below an electrical outlet.

- The heater MUST only directly be plugged in to a fixed Domestic Power outlet, DO NOT use in conjunction with Extension cords, Power Boards or Double Adaptors, as these can overheat when overloaded.

- Do not use the appliance in rooms less than 4m2 areas.

- Keep the air inlet and outlet free from objects at least 100cm in front and 50cm behind the heater. Do not hang anything on or in front of the fan heater.

- Never position the heater close to curtains or combustible materials such as furniture, cushions, bedding, paper, clothes, curtains etc. Keep the appliance at least 100cm (1m) from walls and any other combustible materials.

- Never position or use the heater in the immediate vicinity of water, such as bathtub, washbowls, swimming pool etc. where the likelihood of immersion or splashing could occur.

- Keep hearthrugs and other soft furnishings away from the front of the heater. They could obstruct the free flow of hot air and damage both soft furnishings and heater.

Cautions:

Do not operate the appliance on an inclined place. Do not move the appliance while the appliance is switched on.

In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

This heater is hot when in use or directly after use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains well away from the heater. Do not drape laundry or any other items over the heater.

At the end of the product's serviceable life it should be disposed of carefully and safely in accordance with local authority regulations.

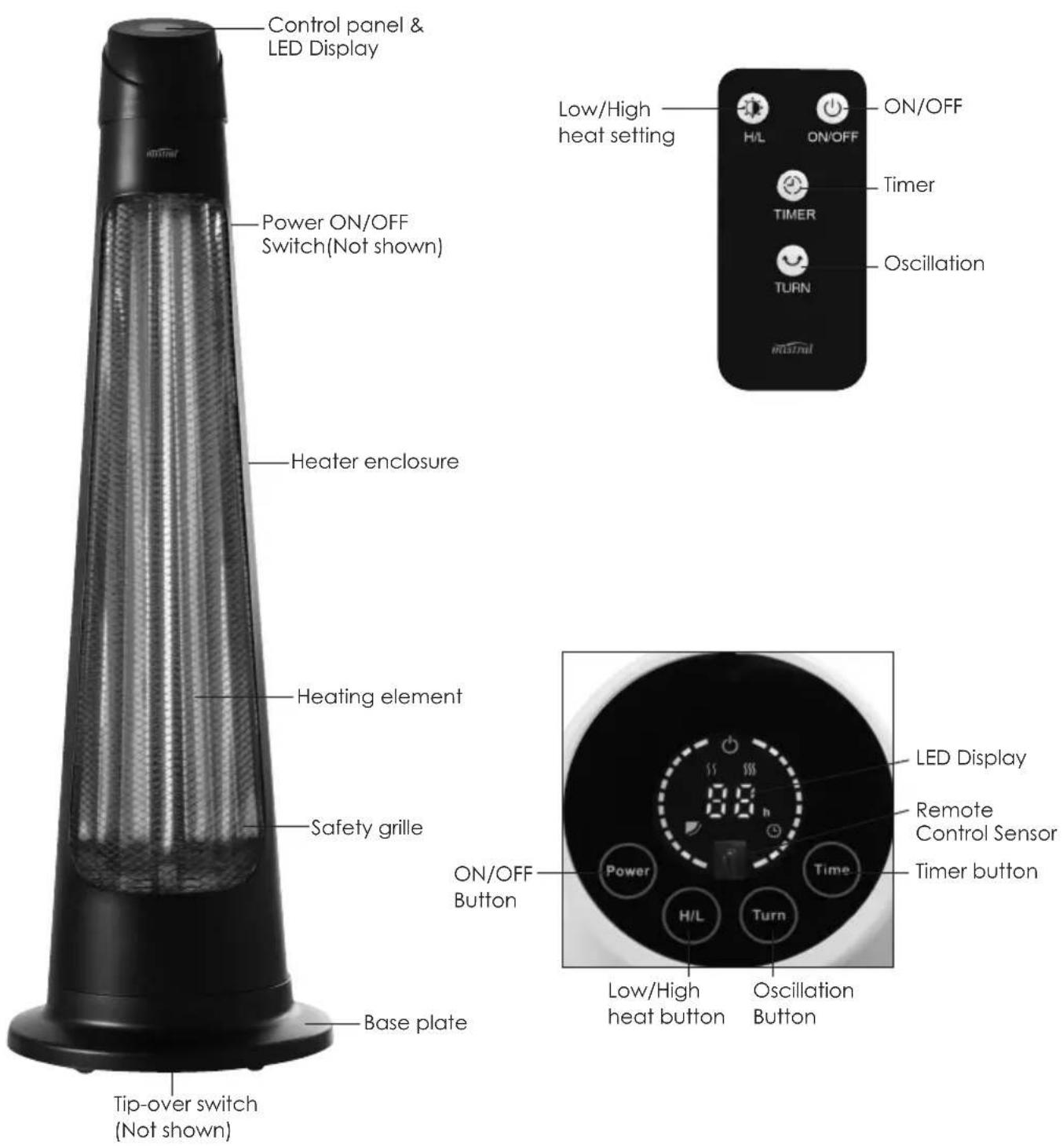

Features of Your Carbon Fibre Infrared Radiant Heater

Your Oscillating Radiant Heater

Congratulations on the purchase of your new Oscillating Radiant Heater.

Before using your new heater, it is important that you read and follow the instructions in this Use and Care booklet, even if you feel that you are quite familiar with this appliance. Find a place to keep this booklet handy for future reference. Attention is drawn to section dealing with 'IMPORTANT SAFEGUARDS.'

This appliance has been designed to operate from a standard domestic power outlet. It is not intended for industrial or commercial use.

Operation

When operated for the first time, the unit may emit an unpleasant burning type smell. This is normal, and will disappear after a short period of use.

1. Carefully remove the heater from the plastic bag and carton. Place the heater on a level surface in a stable upright position. Make certain the power switch is in the "OFF" position.
2. Unwind the power cord and plug your radiant heater into a socket outlet. Ensure that the voltage on the specifications plate is the same as in your home.
3. Turn the power switch (located at the back of the heater) 'On'. The heater is in standby mode.
4. Turn the heater 'On' by pressing the ON/OFF button on. The heater will begin to operate in Low heating.

Press the "L/H" button to activate Low heating /High heating.

1. After use, To turn the heater 'Off' press the ON/OFF button. Turn the switch off at the back of the unit, pull out the power cord. Allow to cool before putting away.

Timer function

The timer allows you to set the length of time from 1-6 hours. To use the timer, Press "Timer" button to set the timer. Each press of the button increases the time set by 1 hour, you need to auto power off the heater(up to 6 hours), the display will shining to finish the setting.

Oscillation

1. Press the "TURN" button to turn the oscillation function 'On'.
2. Press the "TURN" button again to turn the oscillation function 'Off'.

Tip over switch

This Heater will only work on a firm stable surface. If the Heater is not 100% stable and in an upright position (vertical), the unit will switch off until placed in the correct position.

When operating the heater for the first time or after a period of prolonged storage it is normal for the heater to emit a burning smell, fumes and a little smoke around the Heating elements and Ceramic mounting lugs. It requires only a few minutes of ("Burn In") time for the smell, fumes and smoke to disappear and this "Burn In" time should ideally be conducted in a well ventilated area before moving the heater to its intended position for ongoing use.

Infrared Remote control

Battery Replacing (For Remote Control)

1. The remote control requires one "CR2025" type 3-volt lithium battery (included). If the operation of the remote control becomes unsatisfactory, replace with a new 3-volt lithium battery.
2. Place the remote control with the control buttons facing downward.

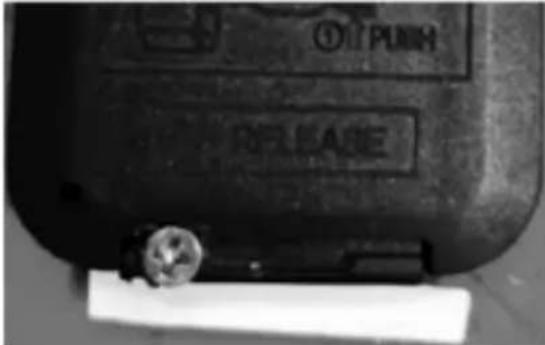

3. Loosen the cover screw, Press the locking arm of the battery cover and pull out the tray. (Push tab "A" towards the middle first. See the Fig.1).

1. Place one new 3V CR2025 battery into the battery tray with the positive "+" side facing up, observing the polarity markings. If the battery is placed incorrectly, the remote control will not work. CAUTION: There is danger of malfunction if the battery is replaced incorrectly. Replace only with the same or equivalent type of battery.
2. Insert the battery holder into the battery compartment and ensure it is secured. tighten the cover screw.

WARNINGS:

1. Please remove the battery if the unit will not be used for a long period of time. Use only the specified size and type of battery.
2. Keep coin-sized button batteries and devices out of sight and out of reach of children.
3. Examine devices and make sure the battery compartment is secure.
4. Dispose of used button batteries immediately. Flat batteries can still be dangerous.
5. If you suspect a child has swallowed a button battery, immediately go to a hospital emergency room.

DANGER if swallowed

WARNING: This product contains a coin/button cell battery inside. Keep batteries out of reach of children. Swallowing may lead to serious injury or death in as little as 2 hours due to internal burns.

If swallowed, immediately call the 24-hour Poison Information Centre on 13 11 26 (in Australia) or 24-hour National Poisons Centre on 0800 764 766 (in New Zealand) for fast, expert advice. Dispose of used batteries in an environmentally friendly manner in accordance with local council regulations immediately.

This product has been designed so that the coin/button cell battery is not accessible to young children, as the battery compartment cover is secured with a screw or mechanical fastener. Always ensure that the compartment is secured before use.

1. Tell others about the risk associated with button batteries and how to keep their children safe.

Care and Cleaning

Always ensure the appliance has cooled completely before cleaning and maintenance.

• Always switch off the appliance and unplug it from the electrical socket and wait for it to cool down before cleaning. Ensure that the unit is cool enough to work on.
- Avoid contact with heat surface/parts.
- Use only a soft, damp cloth to clean the fan heater. Keep the fan heater clean.
- Never spray with liquids or submerge the appliance in water or any other liquid.
- Clean the air inlet/outlet grilles frequently. Do not allow any objects to enter air inlet or outlet as this may cause electric shock, fire or damage to the heater.
- Do not use harsh chemicals or solvents to clean this product and avoid using abrasive cleaning agents. Use a slightly dampened, lint-free cloth to clean this appliance.
- Store the appliance in its original box to protect it from dust in a dry place if it will not be used for a long period of time.

Warning: NEVER immerses the unit, power cord and plug in water or any liquid while cleaning and never allow water to drip into the appliance.

Technical Specifications

Power Supply: AC 240V\~50Hz

Power Consumption: 1200W

Dust proof & Waterproof protection rating class: IP24

NOTE: As a result of continual improvements, the design and specifications of the product within may differ slightly to the unit illustrated on the packaging.

Technical Information

IP Rating Chart

The IP Code (or Ingress Protection Rating, sometimes also interpreted as International Protection Rating) consists of the letters IP followed by two digits.

First Numeral

Protection against the ingress of solid particles

IP

Second Numeral

Protection against the

harmful ingress of water

IP Requirements Example Protection of persons against access to hazardous parts with:
0 No	protection Non-protected
1 Full penetration of 50mm diameter sphere not allowed. Contact with hazardous parts not permitted.			Back of hand
2 Full penetration of 12.5 mm diameter sphere not allowed. The jointed test finger shall have adequate clearance from hazardous parts.			Finger
3 The access probe of 2.5 mm diameter shall not penetrate.			Tool
4 The access probe of 1.0 mm diameter shall not penetrate.			Wire
5 Limited ingress of dust permitted (no harmful deposit).			Wire
6 Totally protected against the ingress of dust.			Wire

Disposal

Do not dispose of packaging or the product through your household waste!

The product and packaging are made from recyclable materials (plastics, metals, paper).

If the product is no longer suitable for use dispose of it in an environmentally friendly manner in accordance with your local council regulations.

Warranty Conditions for purchase in Australia & New Zealand

Any claim under this warranty must be made within 2 years of the date of purchase of the product. To make a claim under the warranty in Australia, take the product (with proof of purchase) to any Bunnings store (see www.bunnings.com.au in Australia or www.bunnings.co.nz in New Zealand for store locations).

GSM Retail Group bears reasonable, direct, expenses of claiming under the warranty in Australia. You may submit details and proof to a Bunnings store for consideration or contact our service agent below.

This warranty is provided in addition to other rights and remedies you may have under law: our goods come with guarantees which cannot be excluded under the Australian Consumer Law (if purchased in Australia) or the Consumer Guarantees Act 1993 (if purchased in New Zealand). You are entitled to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The warranty excludes damage resulting from product misuse or product neglect. The warranty covers domestic use only and does not apply to commercial applications.

This warranty is given by GSM Retail Group

ABN: 53007682475

For Warranty and technical queries: 1300 373 199 Aus Or 0800 200 037 NZ

Warranty Exclusions

Damage to the base or diffuser or any part through accident, misuse or negligence.

Notes

Gerard Sourcing & Manufacturing

GSM Retail Group

Consumer Service Centre :

Aus: 1300 373 199

NZ: 0800 200 037

GSM Retail Group has a policy of continual improvement throughout the product range.

As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for GSM Retail Group

Mistral is a registered trademark of GSM Retail Group

Cat. No. MNS1200EWRCY21

November 2020
