Product Type	Bluetooth Party Speaker with LED Lights
Brand	Daewoo
Model	AVS1412
Dimensions (Approx.)	80 x 80 x 120 mm (3.15 x 3.15 x 4.72 in)
Weight	385 g (13.6 oz)
Power Input	DC 5V, 1A via Micro USB
Battery Type	Lithium Ion, 300 mAh
Speaker Power Output	3W
Speaker Impedance	4Ω
Frequency Response	20Hz – 20kHz
Bluetooth Frequency	2402 – 2480 MHz
Bluetooth Transmission Power	≤ -3.325 dBm
Pairing Name	AVS1412
Charging Indicator	Red light during charging, off when fully charged
LED Lights	Color changing, flash to music beat
Controls	Via connected device (play/pause, volume, track)
Operating Temperature	0°C to +40°C
Warranty	2 years
Cleaning	Wipe with clean damp cloth; do not immerse in water
Safety	Keep away from children, do not expose to water or heat sources

Frequently Asked Questions - AVS1412 DAEWOO

How do I charge the speaker?

Connect the Micro USB plug of the charging cable to the Micro USB DC Port on the rear panel. Then connect the large USB plug to a USB charger rated at 5V 1A minimum. The red indicator light shows charging; it turns off when fully charged.

How do I pair the speaker with my phone?

Move the ON/OFF switch to ON. Enable Bluetooth on your phone and search for devices. Select 'AVS1412' from the list. A chime indicates successful pairing. Then play music from your phone.

Can I use the speaker while it's charging?

Yes, the speaker can be used normally during charging.

Why is the speaker not turning on?

Ensure the ON/OFF switch is in the ON position. If still not working, charge the battery for a few hours. If the problem persists, check the USB cable and charger.

What do the LED lights do?

The built-in LED lights flash to the beat of the music and automatically switch to various color patterns, creating a party atmosphere.

Is the speaker waterproof?

No. Do not immerse the speaker in water or any other liquids. Use only in dry indoor environments.

How long does the battery last?

Battery life depends on volume and LED usage. At moderate volume, it typically lasts about 2-3 hours on a full charge.

Can I connect multiple speakers?

No, this speaker does not support multi-speaker connectivity. It pairs with one device at a time.

How do I clean the speaker?

Disconnect from USB power. Wipe the exterior with a clean, damp cloth. Do not use harsh or abrasive cleaners. Do not submerge in water.

What should I do if the sound is distorted?

Lower the volume on your connected device. Ensure the speaker is not placed near sources of interference. If distortion persists, check the Bluetooth connection and try re-pairing.

USER MANUAL AVS1412 DAEWOO

Abstract black-and-white fan-like graphic with radial lines (no text or symbols)

Stacked transparent LED display with colorful lighting and a black base (no text or symbols visible)

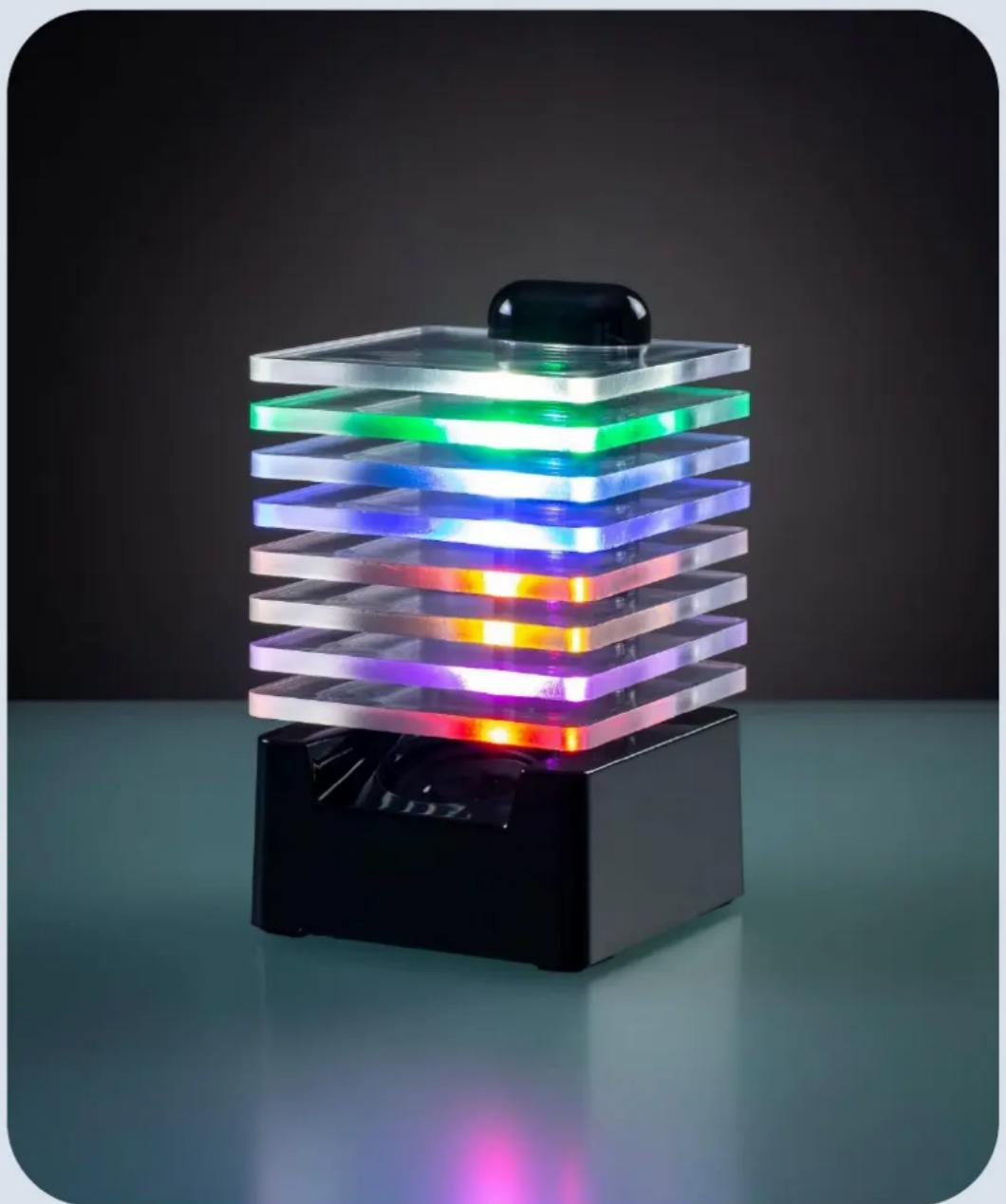

LED Flashing Bluetooth Party Speaker

with colour changing LED lights

User Manual

DAEWOO

2 YEAR

WARRANTY

Terms and conditions apply.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Speaker.
• Before plugging your unit into the USB supply, visually check that the unit is intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Always use this appliance on a solid, level, non-flammable surface.
• Ensure that there is clearance of at least 100mm (4 Inches) minimum around the Speaker for sufficient ventilation.
• Ensure that the ventilation openings are not covered with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the Speaker.
• Do not position the Speaker close to sources of heat such as radiators, heaters, other electronic equipment, etc.
• The Speaker shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
• Do not immerse the Speaker or its supply in water or any other liquids.
• Do not leave the Speaker unattended during use.
• Do not leave the Speaker unattended whilst connected to a USB supply.
• Close supervision is required when using this Speaker near children.
• Never leave this Speaker within reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

• Children of less than 3 years should be kept away unless continuously supervised.
• Do not use this Speaker outdoors.
• It is imperative to unplug the power supply after the Speaker has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by qualified personnel. Improper repairs may place the user at serious risk.
• Do not operate this appliance after a malfunction or after being dropped or damaged in any way.
• Do not allow the USB cable to hang over sharp edges or come in contact with hot surfaces.
• Do not run the USB charging cable under carpets, rugs, etc.
• This product is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this product other than those supplied or recommended by supplier.
• Do not use this product for anything other than its intended use.
• Do not push objects into any openings as damage to the product and/or electric shock may occur.

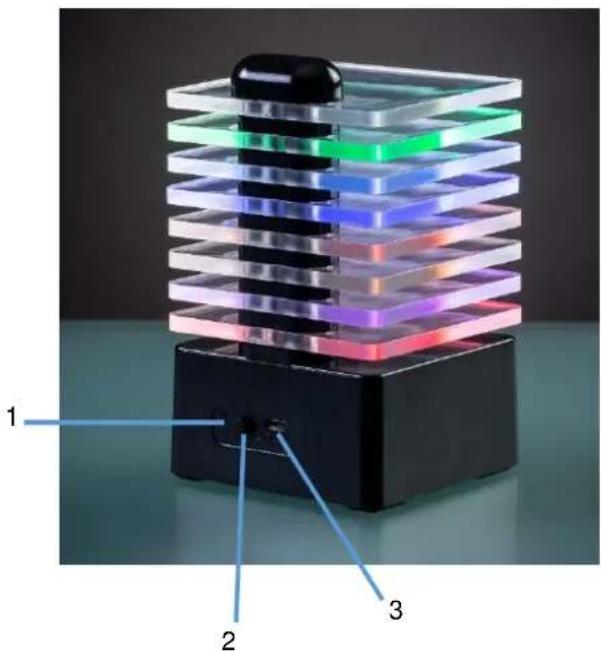

Description of Parts

1. Charge Indicator.
2. ON/OFF Switch.
3. DC 5V – Power Supply Micro USB Port.
4. USB Charging Cable.
5. Micro USB Plug.

Close-up of a black cable with two labeled connectors (no text or symbols beyond numbers)

3D rendering of a multi-tiered transparent display unit with color-coded internal structure (no text or symbols visible)

Before the first time you use your LED Flashing Speaker

Please read these operating instructions thoroughly and keep them in a safe place for future reference.

Remove all packing materials and discard responsibly.

Charging the internal Battery

Before use, please ensure that the internal rechargeable battery is fully charged as follows:

1. Insert the Micro USB Plug (5) of the USB Charging Cable (4) into the Micro USB DC Port (3) on rear panel of the Speaker to charge the internal battery.
2. Insert the large USB plug on the other end of the USB Charging Cable (4) into a suitable USB charger rated at 5 volts 1 amp minimum.
3. The Charging Indicator (1) will light red to show the internal battery is charging. Once the battery is fully charged, the Charging Indicator (1) will go out showing that the internal battery is fully charged and the USB Charging Cable (4) can be removed.

NB the Speaker can be used normally during charging.

Operating Instructions

Using the Bluetooth Mode

1. Move the ON/OFF Switch (2) to the 'ON' position to power up the speaker.
2. The speaker will light up to show it is powered up.
3. Enable the Bluetooth mode on your Phone, Tablet or other Bluetooth compatible device and set it to search.
4. Select 'AVS1412' from the search results found by your device which will now pair with the speaker. Once the device has paired the speaker will chime.
5. Enable the music player on your Phone, Tablet or other device you are using.
6. Use your devices controls in the usual manner to control the play/pause, volume, track change, etc.

NB the LED lights built into the speaker will flash to the beat of the music, switching automatically to various light patterns.

Care and Use of your Speaker

• Always disconnect the Speaker from the USB charging supply before cleaning.
- Clean outside of the Speaker with a clean damp cloth. Never clean with harsh or abrasive cleaners.
- Do not submerge the Speaker in water or any other liquids.

Technical Specification

Model Number	AVS1412
Input charge rating	DC 5V @1A
Total audio output power	3W
Speaker rating	4Ω 3W
Audio Frequency Response	20Hz – 20Khz
Unpacked Weight	Approx. 385gs
Dimensions (Approx.)	Approx. 80mm (w) x 80mm (l) x 120mm (h)
Operation temperature	0°C to + 40°C
Built in Battery type	Lithium Ion, 300 mAh
Bluetooth Frequency Range	2402 - 2480MHz
Bluetooth Transmission power	≤-3.325dBm
This product conforms to Radio Equipment Directive 2014/53/EU

Waste batteries should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

DAEWOO

ELECTRICALS

Abstract black-and-white fan-like pattern with radial lines on a black background (no text or symbols)

GUARANTEE

This product is guaranteed for twenty-four months from the date of original purchase. If any defect should occur due to faulty materials or workmanship, please return it to the store it was purchased from.

You will need to have your receipt of purchase to hand. The guarantee is subject to the following provisions:

• It is only valid within the boundaries of the country of purchase.
• The product must be correctly installed and operated in accordance with the instructions contained in the User Manual.
• The product must be used solely for domestic purposes.
• The guarantee will be rendered invalid if the product is re-sold or has been damaged by inexpert repair.
• The manufacturer disclaims any liability for incidental or consequential damages.
• The guarantee is in addition to, and does not diminish, your statutory or legal rights.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

CE

Daewoo Electricals is a registered trademark. Produced and imported under licence by ESG Ltd Manchester M3 1JS www.esgld.com
