Pump Air Nano - Earphones BLUEANT - Free user manual and instructions

Product Type	True Wireless Earbuds
Brand	BlueAnt
Model	Pump Air Nano
Driver Size	6mm
Bluetooth Version	5.0
Battery Life (Earbuds)	5 hours per charge
Battery Life (with Case)	20 hours total
Charging Case Battery	400 mAh
Charging Time	1.5 hours
Microphone	Built-in, with noise reduction
Water Resistance	IPX5 (sweat and water resistant)
Weight (each earbud)	4.5 grams
Dimensions (earbud)	27 x 20 x 16 mm
Weight (charging case)	40 grams
Connectivity Range	10 meters (33 feet)
Controls	Touch controls for play, pause, calls, voice assistant
Supported Audio Codecs	SBC, AAC
Maintenance	Clean with dry cloth; do not submerge
Safety Precautions	Do not use at high volumes for extended periods
Spare Parts/Accessories	Ear tips in S, M, L sizes; USB-C cable included
General Information	Compatible with iOS and Android devices

Frequently Asked Questions - Pump Air Nano BLUEANT

How do I pair my Pump Air Nano with my phone?

Open the charging case lid and press the button on the case for 3 seconds until the LED flashes blue and red. Then, enable Bluetooth on your phone and select 'BlueAnt Pump Air Nano' from the list.

How long does the battery last?

The earbuds last up to 5 hours on a single charge, and the charging case provides an additional 15 hours for a total of 20 hours.

Are the Pump Air Nano waterproof?

They have an IPX5 rating, meaning they are resistant to sweat and light rain, but not suitable for swimming or submersion.

How do I charge the earbuds?

Place the earbuds back into the charging case and close the lid. Connect the case to a USB-C charger. The case LED will indicate charging status.

Can I use only one earbud at a time?

Yes, you can use either earbud independently. Simply take one out of the case and pair it; the other can be used later.

How do I reset the earbuds?

Place both earbuds in the case, hold the button on the case for 10 seconds until the LED flashes purple, then release. The earbuds will be reset.

What should I do if the earbuds won't connect?

Ensure the earbuds are charged and within range (10m). Try resetting them or forgetting the device in Bluetooth settings and re-pairing.

Are there different ear tip sizes?

Yes, the package includes three sizes: small, medium, and large. Choose the ones that provide a comfortable and secure fit.

How do I control music and calls?

Use touch controls: single tap for play/pause or answer/hang up; double tap for next track; triple tap for voice assistant.

What devices are compatible?

The earphones are compatible with any device that supports Bluetooth 5.0, including smartphones, tablets, and computers running iOS, Android, Windows, or macOS.

USER MANUAL Pump Air Nano BLUEANT

Close-up of three metallic spheres with a small sphere on top, against a dark background (no text or symbols visible)

AIR NANO

True Wireless Microbuds

User Manual

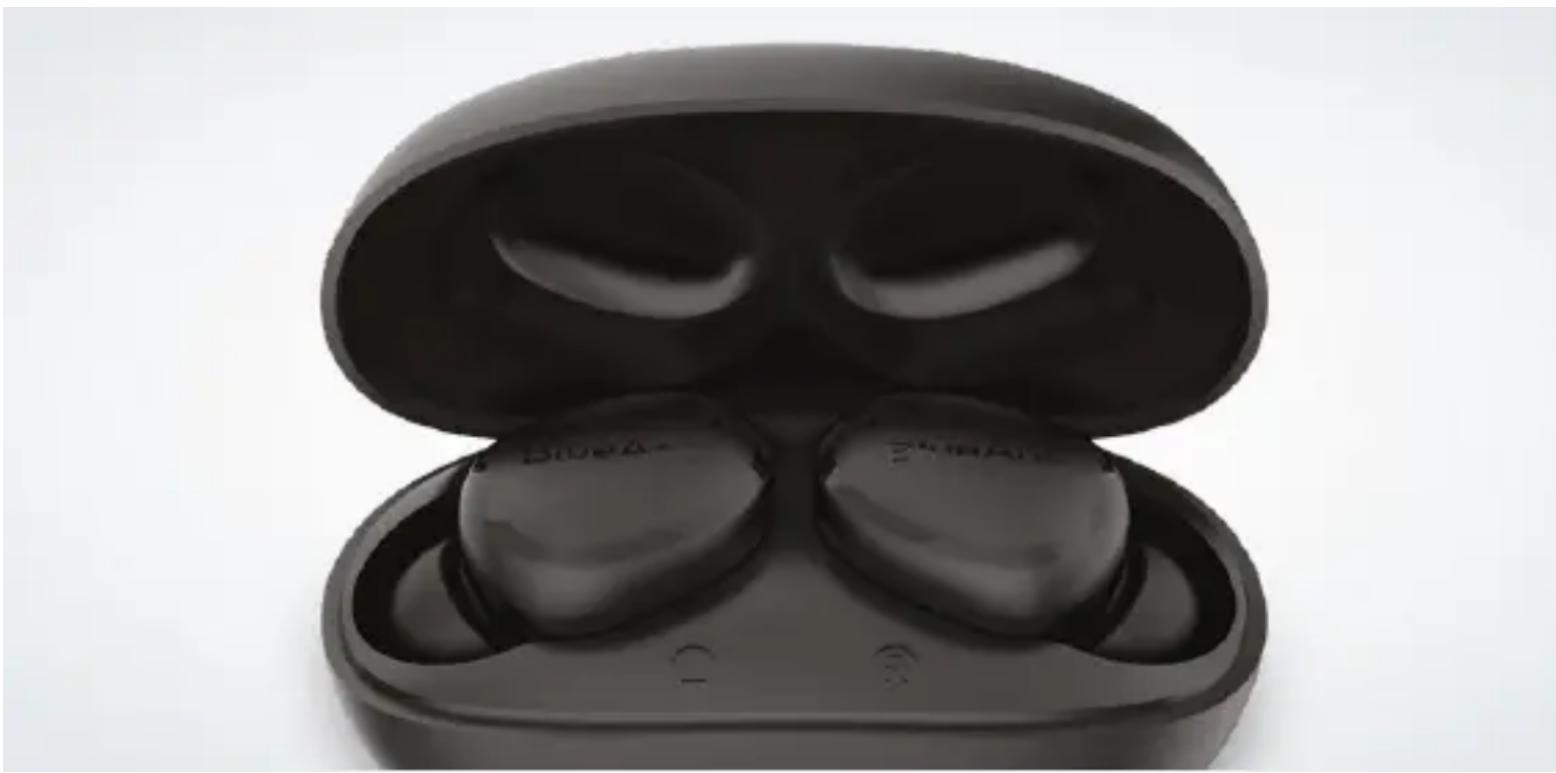

Black wireless earbuds with stylized eyes open, no visible text or symbols on the device itself

Welcome

Thank you for purchasing the BlueAnt Pump Air Nano True Wireless Microbuds. Please read through this manual to get the most out of your earbuds.

Inside the box

3 x Sizes of

1 x Pump Air Nano Microbuds ComfortSeal Tips User Manual Pack 1 x Charging Cable

Get to know your Pump Air Nano

Simple line drawing of a computer mouse head with a button and label (no text or symbols)

Item	Function
1	Charging Case LED Light
	Charging Port2
3	Multifunctional (MFB)/Command Button
	Earphone LED4
	Magnetic Charging Pin5
	Earphone Mic6

Charging your Pump Air Nano

1. Open the charging case 2. Place earbuds in case 3. Close the lid

Charging your Pump Air Nano cont'd

Simple line drawing of a computer mouse with a button and handle (no text or symbols)

Use the supplied charging cable. Please use only 5V/1A chargers.

The Pump Air Nano takes 2 hours for a full charge.

Simple line drawing of a blue object with no text or symbols

The Pump Air Nano charging case, takes 2 hours for a full charge. The charging case should charge the earbuds 3 times.

Charging your Pump Air Nano cont'd

- The charging case has 4 lights. These signify the charge level of the case.

1 light 25%, 2 lights 50%, 3 lights 75%, 4 lights 100% Once fully charged, please unplug the charging case.

- The charging case battery level indicator light turns on, when you remove or replace the earbuds in the charging case, to let you know the charge level of the charging case.

- The earbuds have a light that lights up when charging. The earbuds turn off when fully charged. The earbuds may charge at different rates for left and right sides.

Let's Get Started | Pairing

In order to get started using the Pump Air Nano, we need to pair it to your phone.

1. Please remove both earbuds from the charging case, and put them in your ears.
2. After a few seconds, they will play a sound in each ear, to let you know that both are connected.
3. When the earbuds turn on for the first time, it will go into pairing mode.
4. Now search your phone for 'BlueAnt Pump Air Nano' and pair.
5. The earbuds will auto-reconnect to your phone whenever you take it out of the charging case, and power off when you put it back in.

If you need to pair with another phone, please turn off Bluetooth on the connected phone.

The ear buds will say "No phone connected" followed by "Pair me."

Now select the "BlueAnt Pump Air Nano" on the new phone to connect.

Let's Get Started | Fit

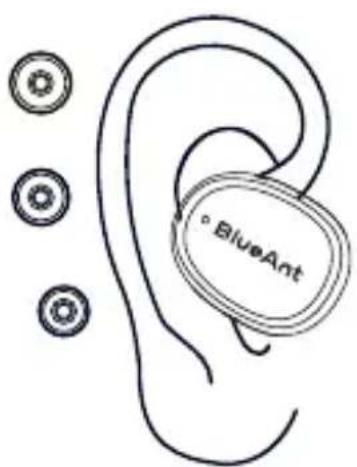

Simple line drawing of two identical abstract shapes resembling stylized faces or domes (no text or symbols)

To ensure the best sound, you need the best fit. Having the best fit creates a seal and enhances the bass performance.

The diagram on the right, is how the earbuds should sit in your ear. There are 3 sizes of ComfortSealTips - Small, Medium and Large.

To get the most out of the earbuds, it's best to try out each of the sizes to get the best fit.

Button Functions

Listen

Tap once to Play/Pause

Double tap the Right earbud to Skip Forward

Double tap Left earbud to Skip Back

Talk

Tap once to Answer Call

Tap once to End Call

Press and hold to Reject Call

Siri/Google

Tap MFB three times to Activate/Cancel Siri/Google

Volume

When music is playing or on a call

Press and hold the MFB on the Right earbud to increase volume

Press and hold the MFB on the Left earbud to decrease volume

Power

Illustration of a medical device with two cups and tubing, no visible text or symbols

Diagram of a device with two connected components and arrows indicating motion (no text or symbols)

1. When you remove the earbuds from the charging case, they will automatically power on and try to reconnect to the last phone they were connected to.
2. When you place the earbuds into the charging case, they will automatically power off.
3. To power on without the charging case, press and hold the MFB for 2 seconds. To power off without the charging case, press and hold each MFB earbud for 6 seconds.

4. To pair without the charging case from off, press and hold the MFB on one earbud for 5 seconds, and then pair with your phone. Then press and hold MFB on the other earbud for 2 seconds to power it on.

5. The earbuds announces when the battery is low, when there is about 30 mins of play time left.
   • The earbuds features an iPhone battery meter.

6. Mono Operation: It is possible to use the earbuds as a mono headset. Simply remove one of the earbuds from the charging case.

Legal

PLEASE PROTECT YOUR EARS. BlueAnt devices can reach volumes above 100 decibels. Prolonged use at high volumes may affect your hearing capacity and may result in noise induced hearing loss (NIHL). Please read the enclosed safety card for information about the safe use of BlueAnt products. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BlueAnt Wireless is under license. Android is a trademark of Google Inc., Apple, iPhone and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. BlueAnt and other trademarks are trademarks of BlueAnt and other organisations and may not be used without permission. The BlueAnt logo is registered in the U.S. Patent and Trademark Office and globally with the World Intellectual Property Organisation under the Madrid protocol.

Support

For help and support, visit: support.blueantwireless.com

Register your Pump Air Nano for updates: register.blueantwireless.com

By using this product, you agree to the terms and conditions listed on the BlueAnt website: www.blueantwireless.com

Sweatproof

The Pump Air Nano microbuds are sweatproof, while the charging case is not. Please take care to avoid moisture and liquids, entering the charging case.

SAFETY INFORMATION AND WARRANTY TERMS Important Safety Information

PLEASE READ THIS ENTIRE DOCUMENT CAREFULLY, BECAUSE IT CONTAINS IMPORTANT INFORMATION ABOUT THE SAFE USE OF BLUEANT DEVICES

WARNING - PROTECT YOUR HEARING

BLUEANT DEVICES CAN REACH VOLUMES ABOVE 100 DECIBELS.

ONLY CHARGE WHEN DEVICE IS CLEAN AND DRY

PROLONGED USE AT HIGH VOLUMES MAY AFFECT YOUR HEARING CAPACITY AND MAY RESULT IN NOISE INDUCED HEARING LOSS (NIHL). TURN OFF THE POWER TO YOUR DEVICE WHEN NOT IN USE.

Please ensure that the device and any associated components such as ear gels or chargers, are stored safely and that any packaging or unwanted contents are disposed of thoughtfully. Do not place the product on the floor or leave it in a place, where young children could access it, or someone could trip over it

Using Ear Gels

Your BlueAnt earbuds will come with eargels or foam tips that are designed to provide a secure fit in your ear, while providing high quality audio

- Ear gels and tips are designed to sit comfortably in your ear and should not be forced into your ear at any time. If you have

trouble fitting the ear gel or foam, please refer to the owner's manual for correct insertion and usage information.

Always make sure that the ear gel or foam is fitted securely to your device, before placing it in your ear.

WARNING

NOTE THAT NON COMPLIANCE, MISUSE OR FORCING THE EAR GEL OR FOAM MAY CAUSE DAMAGE TO YOUR EAR CANAL EARDRUM, OR MAY OTHERWISE CAUSE BODILY HARM

Care and Handling

Your BlueAnt Bluetooth device is a precision engineered instrument. To ensure its ongoing performance, you should look after it as you would any quality consumer electronic product, and use it in accordance with the instructions.

BlueAnt recommends that you take the following precautions.

• Avoid leaving your device in direct sunlight, such as on the dashboard or console of a car or truck. Do not leave your device unattended in your vehicle.
• Do not leave your device, or use your device, in any area where the temperature may exceed 60 degrees Centigrade (140 degrees Fahrenheit),

such as inside a closed car on a hot day. Remember that on a hot day, the temperature inside a closed car may be significantly higher than the outside air temperature.

• Do not leave your device, or use your device, in any area exposed to humidity, dust, soot, other foreign objects, smoke, or steam as this may cause your device to malfunction.
• Do not use any household or industrial grade detergents or cleaners to clean your device. If your device becomes dirty or smeared, in most instances, a wipe with a dry or slightly damp cloth should be sufficient to clean it.
• Do not leave your Bluetooth device, plugged into a wall or car charger for long periods after it is fully charged. BlueAnt does not recommend long periods of continued charging.
• Before charging your BlueAnt device, make sure that the AC outlet, adaptor and cable are not damaged. If you notice any abnormalities, seek advice from a

qualified professional.

• If travelling internationally, ensure that your BlueAnt wall or car power adapter is approved for use in the country where you plan to use it and that the adapter voltage is suited to the local power supply.
• Should a fault develop with your BlueAnt product, contact BlueAnt for advice on how to proceed. Do not attempt to repair or alter any BlueAnt product yourself.

Approved Accessories

The use of accessories not approved by BlueAnt, including but not limited to batteries, antennas, wall adapters, car chargers, ear gels, foam tips and convertible covers, may cause your BlueAnt device to malfunction, or in the case of non-approved electrical accessories, may cause the device to exceed RF energy exposure guidelines. Use only 5V/1A chargers.

Use of non approved accessories will void your device's warranty. For a list of approved BlueAnt accessories, visit our website www.blueantwireless.com

Electromagnetic Interference

Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise for electromagnetic compatibility.

Similar to a mobile phone, your BlueAnt device is a low power transmitter/ receiver and is covered by regulations in any facility where posted notices instruct you to do so. These facilities may include hospitals or health care facilities that may be using equipment that is sensitive to external RF energy.

- When instructed to do so, turn off your BlueAnt device when you board an aircraft. Any use of a mobile device must be in accordance with applicable laws, regulations and airline crew instructions.

- Some Bluetooth devices may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer or physician to discuss alternatives.

- If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your doctor or physician may be able to assist you in obtaining this information.

If you are in doubt whether your BueAnt device or mobile phone can be safely turned on or used, please consult an authorised person in the location you want to use your BlueAnt device. If no authorised person is available, or you remain uncertain, BlueAnt recommends that you turn off your Bluetooth device and any mobile phones unless they are required in an emergency situation.

BlueAnt Limited Global Warranty

This product is covered by BlueAnt's limited global warranty for one (1) year from the date of purchase by the first consumer purchaser of the product.

Please refer to the warranty.blueantwireless.com for full terms and conditions.

Register your BlueAnt product for warranty and new product updates at register.blueantwireless.com

THANK YOU FOR CHOOSING A BLUEANT PRODUCT

AUSTRALIAN CONSUMER LAW

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not amount to a major failure.

For warranty and technical support, please email [e-mail] visit: www.blueantwireless.com or call 1300 669 049

BlueAnt Wireless

Suite 6, 861 Doncaster East,

VIC 3109, Australia

Caring for the Environment by Recycling

Do not dispose of Bluetooth accessories, such as chargers or headsets, with your household waste. In some countries or regions, collection systems are set up to handle electrical and electronic waste items, and may prohibit or restrict how such items are disposed of. Check the laws and regulations for your areas to determine how to properly dispose of such items. Contact your regional authorities for more details.

BlueAnt

100% AUSTRALIAN

DESIGNED & OWNED

HELP & SUPPORT

Visit support.blueantwireless.com

or email: [e-mail]

Register your BlueAnt product for warranty and new product updates at: register.blueantwireless.com

www.blueantwireless.com
