Product Type	Soundbar
Brand	BlueAnt
Model	XT120
Total Power Output	120W
Speaker Configuration	2.1 channels
Dimensions (W x H x D)	1000 x 70 x 90 mm
Weight	2.5 kg
Power Supply	AC 100-240V, 50/60Hz
Bluetooth Version	5.0
Audio Inputs	HDMI ARC, Optical, USB, AUX
Wireless Range	10 meters
Key Features	Night Mode, Dialogue Enhancement, Equalizer presets
Remote Control	Included (battery CR2025)
Wall Mountable	Yes (brackets included)
Subwoofer	Wireless included
Dolby Audio	Dolby Digital
Cleaning	Wipe with a soft, dry cloth. Avoid liquids.
Safety	Do not expose to water or moisture. Do not open.
Spare Parts	Contact BlueAnt support for replacement parts.
Repair	Only qualified service personnel should perform repairs.

Frequently Asked Questions - XT120 BLUEANT

How do I pair my BlueAnt XT120 soundbar via Bluetooth?

Press the Bluetooth button on the remote or soundbar until the indicator blinks. Then select 'XT120' from your device's Bluetooth settings. Once connected, the indicator will become solid.

Can I control the soundbar with my TV remote?

Yes, if your TV supports HDMI ARC. Connect an HDMI cable from the TV's ARC port to the soundbar's ARC port. Then enable ARC in your TV's audio settings. The TV remote can control volume and power.

Why is there no sound from the soundbar?

Check that the soundbar is powered on and the correct input is selected. Ensure the volume is not muted. Verify all cable connections. If using Bluetooth, make sure the source device is connected and playing audio.

How do I reset the soundbar to factory settings?

With the soundbar on, press and hold the Volume Up and Source buttons simultaneously for 5 seconds. The soundbar will restart and all settings will be cleared.

What are the dimensions of the XT120 soundbar?

The soundbar dimensions are approximately 1000 mm wide, 70 mm high, and 90 mm deep. The wireless subwoofer measures 200 x 300 x 250 mm.

Does the soundbar support Dolby Atmos?

No, the XT120 supports Dolby Digital but not Dolby Atmos. It delivers virtual surround sound via its 2.1 channel configuration.

How do I clean the soundbar?

Unplug the soundbar. Use a soft, dry cloth to wipe the exterior. Do not use any liquid cleaners or sprays, as they may damage the electronics.

Is the subwoofer wireless?

Yes, the subwoofer connects wirelessly to the soundbar. Make sure the subwoofer is plugged into power and placed within 10 meters of the soundbar for optimal connectivity.

Can I mount the soundbar on a wall?

Yes, the soundbar comes with wall-mounting brackets. Ensure the wall can support the weight (2.5 kg). Follow the installation guide for proper placement.

What should I do if the remote control stops working?

First, check the CR2025 battery and replace if necessary. Ensure there are no obstacles between the remote and the soundbar. If it still doesn't work, try resetting the soundbar or contact BlueAnt support.

USER MANUAL XT120 BLUEANT

2.1 CH Soundbar with Built-in Subwoofer

User Manual

Contents

1. What's in the Box....4
2. Identifying the Parts.... 5

2.1 Main Unit 5
2.2 Remote Control....6

1. Preparations the Remote Control....6

3.1 Prepare the Remote Control....6
3.2 Replace the Remote Control Battery 6

1. Placement and Mounting....7

4.1 Placement....7
4.2 Wall Mounting (if using option-B)....7

1. Connections......8

5.1 HDMI Connection....8
5.2 Use the OPTICAL Socket 8
5.3 Use the COAXIAL Socket 8
5.4 Use the AUX Socket 8
5.5 Connect Power....9

1. Basic Operation 9

6.1 Standby/ON....9
6.2 Automatic Power Off Function....9
6.3 Select Modes 9
6.4 Adjust the Bass/Treble Level....9
6.5 Select Equalizer (EQ) Effect 9
6.6 Adjust the Volume....9
6.7 Adjust the Brightness 9

1. AUX / OPTICAL / COAXIAL / HDMI Operation....10
2. Bluetooth Operation ....10

8.1 First time pairing....10
8.2 Listen to Music from Bluetooth device....11

1. USB Operation ....11

2. Troubleshooting....12

3. Specifications 13
4. Important Safety Instructions .... 14

1. What's in the Box

Main Unit

Remote Control / AAA Batteries x 2

Coiled electrical plug with terminal connector (no text or symbols visible)

AC Power Cord x 1

Coiled audio cable with two connectors (no text or symbols visible)

3.5mm to 3.5mm Audio Cable

Technical illustration of mechanical components including a stacked bracket, four screws, and two separate screw fasteners (no text or symbols)

Wall Bracket

Wall mounting Screw

Line drawing of a coiled cable with connectors and a connector (no text or symbols)

HDMI Cable

- Design and specifications are subject to change without notice. Images, illustrations and drawings shown on this User Manual are for reference only. Actual product may vary in appearance.

2. Identifying the Parts

2.1 Main Unit

① Remote Control Sensor

Receive signal from the remote control.

② Display Window

Show the current status.

③ Wall bracket screws

④ (ON/OFF) button

Switch the unit between ON and Standby mode.

⑤ (SOURCE) button

Select the play function.

⑥ +/- (volume) buttons

Increase/decrease the volume level.

⑦ AC\~ Socket

Use to connect to power cable.

⑧ COAXIAL Socket

Use to connect to the COAXIAL OUT socket on an external device.

⑨ OPTICAL Socket

Use to connect to the OPTICAL OUT socket on an external device.

⑩ USB Socket

Insert the USB device to play music.

⑪ AUX Socket

Connect to an external audio device.

12 HDMI ARC Socket

Connect to a TV via HDMI cable.

3. Preparations the Remote Control

2.2 Remote Control

1 ⏻Switch the unit between ON and STANDBY mode.
2 SOURCE buttons Select the play function.
3 /▶kip to previous/next track in Bluetooth/USB mode.
- Play/pause/resume playback in Bluetooth/USB mode. Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.
4 BASS +/- Adjust bass level.
5 TREBLE +/- Adjust treble level.
6 +/- (vol) Increase/decrease the volume level.
7 × (MUTE) Mute or resume the sound.
8 EQ buttons Select Equalizer (EQ) Effect.
9 DIMMER Adjust display brightness.

3.1 Prepare the Remote Control

The provided Remote Control allows the unit to be operated from a distance.

• Even if the Remote Control is operated within the effective range 19.7 feet (6m), remote control operation may be impossible if there are any obstacles between the unit and the remote control.
- If the Remote Control is operated near other products which generate infrared rays, or if other remote control devices using infra-red rays are used near the unit, it may operate incorrectly. Conversely, the other products may operate incorrectly.

3.2 Replace the Remote Control Battery

1 Press and slide the back cover to open the battery compartment of the remote control.
2 Insert two AAA size batteries (included). Make sure the (+) and (−) ends of the batteries match the (+) and (−) ends indicated in the battery compartment.
3 Close the battery compartment cover.

Line drawing of a hand holding a smartphone with a download icon (no text or symbols)

Diagram of a mobile phone case with internal compartments and an open case (no text or symbols)

Illustration of a hand inserting a device into a cylindrical device (no text or symbols visible)

Precautions Concerning Batteries

• Be sure to insert the batteries with correct positive “⊕” and negative “⊖” polarities.
  • Use batteries of the same type. Never use different types of batteries together.
• Either rechargeable or non-rechargeable batteries can be used. Refer to the precautions on their labels.
• Be aware of your fingernails when removing the battery cover and the battery.
  • Do not drop the remote control.
  • Do not allow anything to impact the remote control.
• Do not spill water or any liquid on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct sunlight or near sources of excessive heat.
• Remove the battery from the remote control when not in use for a long period of time, as corrosion or battery leakage may occur and result in physical injury, and/or property damage, and/or fire.
• Do not use any batteries other than those specified.
  • Do not mix new batteries with old ones.
• Never recharge a battery unless it is confirmed to be a rechargeable type.

4. Placement and Mounting

4.1 Placement

A If your TV is placed on a table, you can place the unit on the table directly in front of the TV stand, centered with the TV screen.
B If your TV is attached to a wall, you can mount the unit on the wall directly below the TV screen.

4.2 Wall Mounting (if using option-B)

• Installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing that may be buried inside the wall). It is the installer's responsibility to verify that the wall will safely support the total load of the unit and wall brackets.
• Additional tools (not included) are required for the installation.
• Do not overtighten screws.
• Keep this instruction manual for future reference.
• Use an electronic stud finder to check the wall type before drilling and mounting.

Simple line drawing of a computer monitor above a grid, enclosed in a circle labeled 'A' (no text or symbols on the diagram itself)

Simple line drawing of a room with a monitor and towel rack inside a circular frame (no text or symbols)

WARNING

• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
• Suggested wall mounting height: ≤ 1.5 meters.

1. Drill 4 parallel holes (∅ 5.5-6 mm each according to wall type) in the wall. The distance between the holes should be 870 mm.
2. Firmly fix 1 dowel into each hole in the wall if necessary. Tighten the wall mount brackets on the wall with screws and screwdriver (not included). Make sure that they are securely installed.
3. Remove the screws at the back of the unit. Install the wall mounting screws into the back of the unit.
4. Lift the unit onto the wall mount brackets and slot into place.

5. Connections

5.1 HDMI Connection

Some 4K HDR TVs require the HDMI input or picture settings to be set for HDR content reception. For further setup details on HDR display, please refer to the instruction manual of your TV.

Method 1: ARC (Audio Return Channel)

The ARC (Audio Return Channel) function allows you to send audio from your ARC- compliant TV to your sound bar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOL +/- and MUTE) of the sound bar.

- Connect the HDMI cable from unit's HDMI ARC socket to the HDMI ARC socket on your ARC compliant TV. Then press the remote control to select HDMI ARC.

Tips:

• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, please refer to the owner's manual.
• ARC only works with devices that are HDMI ARC capable as well as with an HDMI 1.4 cable (and higher).

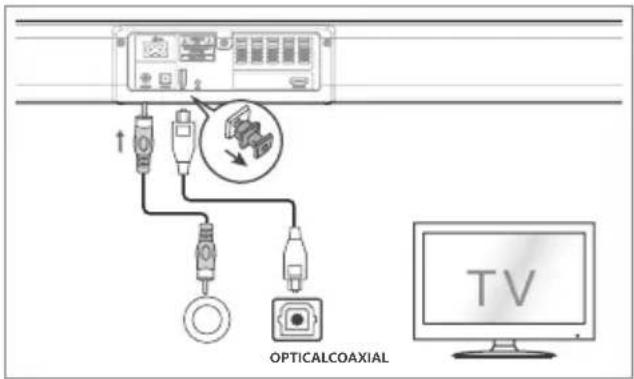

5.2 Use the OPTICAL Socket

- Remove the protective cap of the OPTICAL socket, then connect an OPTICAL cable to the TV's OPTICAL OUT socket and the OPTICAL socket on the unit.

5.3 Use the COAXIAL Socket

- You also can use the COAXIAL cable to connect the TV's COAXIAL OUT socket and COAXIAL socket on the unit.

Tip: The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM or Dolby Digital (Refer to the user manual of the input source device for its audio setting details) with HDMI / OPTICAL / COAXIAL input.

5.4 Use the AUX Socket

A. Use a RCA to 3.5mm audio cable to connect the TV's audio output sockets to the AUX socket on the unit.

B. Use a 3.5mm to 3.5mm audio cable to connect the TV's or external audio device headphone socket to the AUX socket on the unit.

5. Connections cont'd

5.5 Connect Power

• Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the unit.
• Before connecting the AC power cord, ensure you have completed all other connections.
• Connect the mains cable to the AC\~ Socket of the main unit and then into a mains socket.

6. Basic Operation

6.1 Standby/ON

When you first connect the main unit to the mains socket, the main unit will be in Standby mode.

• Press the ⏻ button on the unit or on the remote control to switch the unit ON.
• Press the ⏻ button again to switch the unit back to STANDBY mode.
• Disconnect the mains plug from the mains socket if you want to switch the unit OFF completely.
• If a TV or an external device is connected, the unit will switch on automatically when the TV or the external device is switched on.

6.2 Automatic Power Off Function

The unit automatically turns to Standby mode after about 15 minutes if the TV or the external unit is disconnected, switched off or the volume is too close to mute.

• To switch the unit off completely, remove the mains plug from the mains socket.
• Please turn the unit off completely to save energy when not in use.

6.3 Select Modes

Press the SOURCE button on the unit or the AUX, BT, OPT/COA, HDMI ARC and USB buttons on the remote control to select the desired mode. The selected mode will show on the display.

6.4 Adjust the Bass/Treble Level

• Press the BASS +/- buttons on the remote control to adjust bass level.
• Press the TREBLE +/- buttons on the remote control to adjust treble level.

- Press the VOICE / GAME / MOVIE / MUSIC buttons on the remote control to select your desired preset equalizer effects.

6.6 Adjust the Volume

• Press the +/- (VOL) buttons on the unit or on the remote control to adjust the volume.
• If you wish to turn the sound off, press the ⏻ (MUTE) button on the remote control. Press the ⏻ (MUTE) button again or press the +/− (VOL) buttons on the unit or on the remote control to resume normal listening.

6.7 Adjust the Brightness

- Press the DIMMER button on the remote control to select brightness level.

7. AUX / OPTICAL / COAXIAL / HDMI Operation

1 Ensure that the unit is connected to the TV or audio device.
2 Press the → button repeatedly on the unit or the AUX, OPT/COA, HDMI ARC buttons on the remote control to select the desired mode. The selected mode will show on the display.
3 Operate your audio device directly for playback features.
4 Press the VOL +/- button to adjust the volume to your desired level.

Tip: The unit may not be able to decode all digital audio formats from the input source. In this case, the unit will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game

console, DVD player, etc.) is set to PCM or Dolby Digital (Refer to the user manual of the input source device for its audio setting details) with HDMI / OPTICAL / COAXIAL input.

- When selecting a different audio format, the Soundbar will display the following as follows:

Audio (abbreviation) Display
LPCM 2ch PCM AUDIO
LPCM 5.1ch PCM AUDIO
LPCM 7.1ch PCM AUDIO
Dolby Digital DOLBY AUDIO
Dolby TrueHD DOLBY AUDIO
Dolby Digital Plus DOLBY AUDIO

8. Bluetooth Operation

The first time you connect your bluetooth device to this player, you need to pair your device to this player.

8.1 First time pairing

1 Press the → button repeatedly on the unit or BT button on the remote control to select Bluetooth mode. "NO BT" will show on the display if the unit is not paired to any Bluetooth device.
2 Activale your Bluetooth device and select the search mode. "BlueAnt XT120" will appear on your Bluetooth device list.
- If you cannot find the unit, press and hold the ▶II or BT button on the remote control to be searchable. The display will show "PAIR" and you will hear "Bluetooth Pairing" from the unit.
3 Select "BlueAnt XT120" enter "0000" for the password if necessary. The Soundbar will voice "Connected" and the display will show BT.
4 Play music from the connected Bluetooth device.

Pairing a new device after first time pairing

1. In Bluetooth mode, press and hold the BT or ▶II button to to disconnect from current Bluetooth connected devices and enter the Bluetooth pairing mode. The soundbar voice prompt and the display will show "PAIR".
2. Follow step 2-3 to pair your Bluetooth ^® device.

To disconnect the Bluetooth function

• Switch to another function on the Soundbar.
• Disable the function from your Bluetooth device.
• Press and hold the BT or ▶|| button on the remote control.

8.2 Listen to Music from Bluetooth device

If your Bluetooth device supports A2DP, play music via your device.

If your Bluetooth ^® device supports AVRCP, use the supplied remote control to control play.

• To increase/decrease the volume, press (volume) +/- button.
• To pause/resume playback, press▶|| button.
• To skip to a track, press ◀◀ / ▶▶ button.

8. Blue & 10 Perpetition cont'd

Tips:

• The operational range between the Soundbar and the device is approximately 8 metres (without any object between the Bluetooth device and the unit).
• Before connecting a Bluetooth ^3 device to the unit, ensure you know the device's capabilities.
• Compatibility with all Bluetooth ^ devices is not guaranteed.
• Any obstacle between the device and the Soundbar can reduce operational range.
• Keep this player away from other electronic devices that may cause interference.
• The player will also be disconnected when your device is moved beyond the operational range.

1 Insert the USB device.

2 Press the button repeatedly on the unit or press the USB button on the remote control to select USB mode.
3 During playback:

- To pause or resume play, press the ▶|| button on the remote control.

- To skip to the previous/next file, press the ◄◀/▶▶buttons on the remote control.

Tips:

• The unit can support USB devices with up to 32 GB of memory.
  • This unit can play MP3 only.
• The Soundbar may not be compatible with all USB devices, this is not an indication of a problem with the unit.

10. Troubleshooting

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service.

No power	·Ensure that the AC cord of the apparatus is properly connected.·Ensure that there is power at the AC outlet.·Press ⏻ (standby) button to turn the unit on.
Remote control does not work	·Before you press any playback control button, first select the correct source.·Reduce the distance between the remote control and the Soundbar.·Insert the battery with its polarities ➕ 📋Signed as indicated.·Replace the battery.·Aim the remote control directly at the sensor on the front of the Soundbar.
No sound ·Make sure that the Soundbar is not muted. Press MUTE or volume +/-button to resume normal listening.·Press ⏻ button on the Soundbar or on the remote control to switch the soundbar to standby mode. Then press the ⏻ button again to switch the soundbar on.·Ensure the audio setting of the input source (e.g. TV, game console, DVD player, etc.) is set to PCM or Dolby Digital mode while using digital (e.g. HDMI, OPTICAL, COAXIAL) connection.·The Soundbar may not be able to decode all digital audio formats from the input source. In this case, the Soundbar will mute. This is NOT a defect. device is not muted.·If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.
TV has display problem while viewing HDR content from HDMI source.	·Some 4K HDR TVs require the HDMI input or picture settings to be set for HDR content reception. For further setup details on HDR display, please refer to the instruction manual of your TV.
I can't find the Bluetooth name of this unit on my Bluetooth device for Bluetooth pairing	·Ensure the Bluetooth function is activated on your Bluetooth device.·Re-pair the Soundbar with your Bluetooth device.·The Soundbar has a Bluetooth® function that can receive a signal within 8 metres. Keep a distance within 8 metres between the Soundbar and your Bluetooth® device.
The Soundbar turns off	·When the unit's external input signal level is too low, the unit will be turned off automatically in 15 minutes. Please increase the volume level of your external device.
TV Volume level varies between channels	·Some TVs have a difference between the PCM and Dolby volume output levels noticed when switching between channels. This is not a fault with the unit.

11. Specifications

Soundbar

Power Supply 100-240V~ 50/60Hz
Power Consumption	30 W< 0.5 W (Standby)
Speakers Impedance 4Ω x 2
USB	5V = 500mAHi-Speed USB (2.0) / FAT32 / FAT1632G (max), MP3
Audio input sensitivity 500mV
Frequency Response 40Hz - 20KHz
Dimension (WxHxD) 950 x 76 x 106 mm
Net weight 2.5 kg

Bluetooth

Bluetooth Version /profilesBluetooth Maximum power transmitted (EIRP)Bluetooth Frequency bands

V 5.1 (A2DP, AVRCP)< 10 dBm2402 MHz~2480 MHz

Amplifier (RMS Output Power)

Total 120 W
Soundbar 30 W × 2 + 60 W (Built in Subwoofer)

Remote Control

Distance/Angle 6m / 30°
Battery type AAA (1.5V x 2)

BlueAnt Limited Global Warranty

This product is covered by BlueAnt's limited global warranty for one (1) year from the date of purchase by the first consumer purchaser of the product.

Please refer to the warranty.blueantwireless.com for full terms and conditions.

Register your BlueAnt product for warranty and new product updates at register.blueantwireless.com

THANK YOU FOR CHOOSING A BLUEANT PRODUCT

AUSTRALIAN CONSUMER LAW

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not amount to a major failure.

For warranty and technical support, please email [e-mail] visit: www.blueantwireless.com or call 1300 669 049

BlueAnt Wireless Suite 6, 861 Doncaster East, VIC 3109, Australia

12. Important Safety Instructions

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude as to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Safety

1 Read these instructions – All the safety and operating instructions should be read before this product is operated.
2 Keep these instructions – The safety and operating instructions should be retained for future reference.
3 Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
4 Follow all instructions – All operating and usage instructions should be followed.
5 Do not use this apparatus near water – The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like.
6 Clean only with a dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heaters, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades with one wider than the

other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
13 Unplug the apparatus during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the unit has been exposed to rain or moisture, does not operate normally, or has been dropped.
15 ☐ This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
16 The apparatus shall not be exposed to dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. cfidhlei
17 Minimum distance around the apparatus for sufficient ventilation is 5cm.
18 The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc...
19 No naked flame sources, such as lighted candles, should be placed on the apparatus.
20 Batteries should be recycled or disposed of as per state and local guidelines.

12. Important Safety Instructions cont'd

Caution

• Use of controls or adjustments or performance of procedures other than those described herein, may result in hazardous radiation exposure or other unsafe operation.
• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus must not be exposed to dripping or splashing and objects filled with liquids, such as vases, must not be placed on apparatus.
• The mains plug/appliance coupler is used as the disconnect device, the disconnect device must remain readily operable.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Warning

• The battery (batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
• Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
• Do not place this unit close to strong magnetic fields.
• Do not place this unit on the amplifier or receiver.
• If any solid object or liquid falls into the system, unplug the system and have it checked by qualified personnel before operating it any further.
• Do not attempt to clean the unit with chemical solvents as this may damage the finish. Use a clean, dry or slightly damp cloth.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank on the cord.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment.
• The rating label is pasted on the bottom or back of the equipment.

Battery usage CAUTION

To prevent battery leakage which may result in bodily injury, property damage, or damage to the apparatus:

• Install all batteries correctly, + and - as marked on the apparatus.
• Do not mix old and new batteries.
• Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cd, Ni-MH, etc.) batteries.
• Remove batteries when the unit is not used for a long time.

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of

material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

We hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

Bluetooth®

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Blueant Wireless is under license. Other trademarks and trade names are those of their respective owners.

The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Dolby Audio

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

BlueAnt

HELP & SUPPORT

Visit support.blueantwireless.com or email: [e-mail]

Register your BlueAnt product for warranty and new product updates at register.blueantwireless.com

100% AUSTRALIAN DESIGNED & OWNED

www.blueantwireless.com
