Kratos P2-1000G - Computer Adapter Gamdias - Free user manual and instructions

Type	Computer Power Supply / Adapter
Brand	Gamdias
Model	Kratos P2-1000G
Form Factor	ATX
AC Input	100-240V~, 13-6.5A, 47-63 Hz
+3.3V Output	20A / 130W
+5V Output	20A / 130W
+12V Output	83A / 996W
-12V Output	0.3A / 3.6W
+5Vsb Output	3A / 15W
Total Power	1000W
Efficiency	90% (typical)
Cooling	120mm smart fan control
Modularity	Fully modular
Cables Included	Motherboard 24-pin, CPU EPS 4+4 pin, GPU PCI-E 6+2 pin, SATA, Molex, 12VHPWR, RGB Sync
Protections	OVP, UVP, OCP, OPP, SCP
Dimensions (est.)	150 x 86 x 140 mm
Weight (est.)	2.7 kg
Safety	I/O switch; turn off before installation

Frequently Asked Questions - Kratos P2-1000G Gamdias

How do I install the Kratos P2-1000G power supply?

First, ensure the PSU is turned off by setting the I/O switch to O. Securely mount the PSU in your case, connect the necessary cables to your components (motherboard, CPU, GPU, drives), then plug in the AC power cord. Finally, turn on the PSU by switching to I.

Is the Kratos P2-1000G fully modular?

Yes, it is fully modular. All cables including the 24-pin motherboard, CPU EPS, GPU PCI-E, SATA, Molex, 12VHPWR, and RGB Sync can be detached for easy cable management.

What cables are included with the P2-1000G?

The package includes: Motherboard power cable, CPU EPS cable, GPU PCI-E cable, SATA cable, Molex cable, 12VHPWR cable, and RGB Sync cable.

What is the efficiency rating of this power supply?

The Kratos P2-1000G is rated for 90% efficiency under typical loads, equivalent to 80 Plus Gold standard.

Does it support the latest GPUs like RTX 4090?

Yes, it includes a 12VHPWR cable compatible with NVIDIA RTX 30/40 series and other high-end graphics cards.

What are the dimensions and weight of the P2-1000G?

It is a standard ATX size, approximately 150 x 86 x 140 mm and weighs about 2.7 kg.

What safety protections does it have?

It includes comprehensive protections: Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Over Power Protection (OPP), and Short Circuit Protection (SCP).

How quiet is the fan?

The 120mm fan uses smart control, operating silently under low to moderate loads and only increasing speed when needed.

What is the warranty period?

Warranty details are not listed in the manual; please check with the manufacturer or retailer for specific terms (typically 5 years for high-end PSUs).

Can the P2-1000G be used with 110V or 220V outlets?

Yes, it has a wide input range of 100-240V and auto-switching, making it suitable for use worldwide.

USER MANUAL Kratos P2-1000G Gamdias

STEP by STEP INSTALLATION GUIDE

GAMDIAS

KRATOS:50|P2 750G 90% EFFICIENCY POWER SUPPLY

GAMDIAS

KRATOS:50|P2 850G 90% EFFICIENCY POWER SUPPLY

GAMDIAS

KRATOS ⁵⁰ |P21000G 90% EFFICIENCY POWER SUPPLY

GAMDIAS

KRATOS 90% EFFICIENCY POWER SUPPLY P21 200G

Package Contents

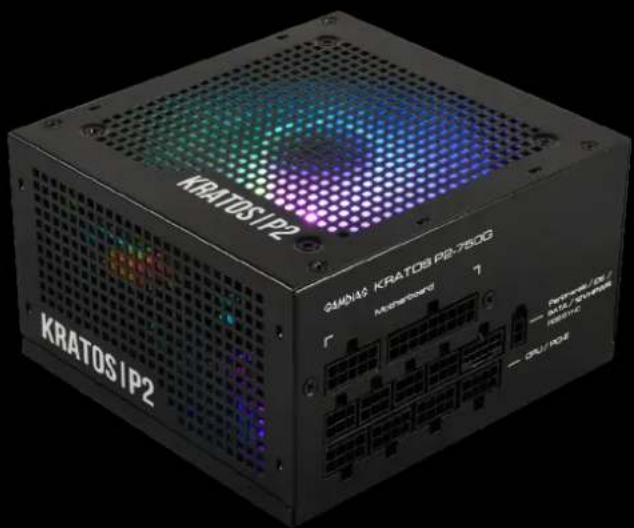

Model Name	KRATOS P2-750G
AC Input	100-240V~, 11-5.5A, 47-63 Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current	20A	20A	62.5A	0.3A	3A
Max. Output Power	130W		750W	3.6W	15W
Total Power	750W

Model Name	KRATOS P2-850G
AC Input	100-240V~, 11-5.5A, 47-63 Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current	20A	20A	70.5A	0.3A	3A
Max. Output Power	130W		846W	3.6W	15W
Total Power	850W

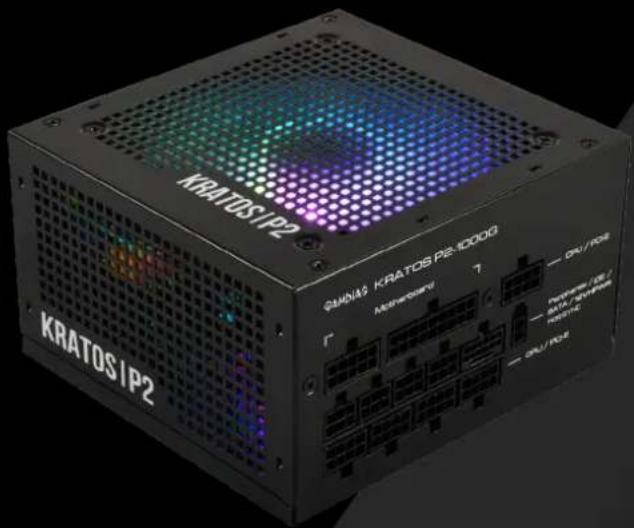

Model Name	KRATOS P2-1000G
AC Input	100-240V~, 13-6.5A, 47-63 Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current	20A	20A	83A	0.3A	3A
Max. Output Power	130W		996W	3.6W	15W
Total Power	1000W

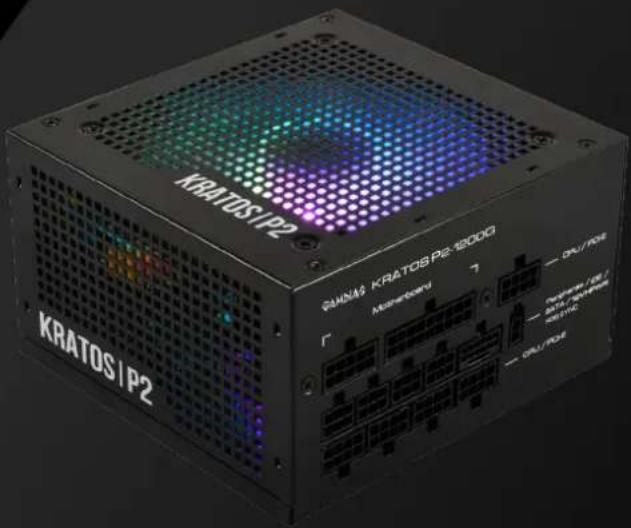

Model Name	KRATOS P2-1200G
AC Input	100-240V~, 15-7A, 47-63 Hz
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current	20A	20A	100A	0.3A	3A
Max. Output Power	130W		1200W	3.6W	15W
Total Power	1200W

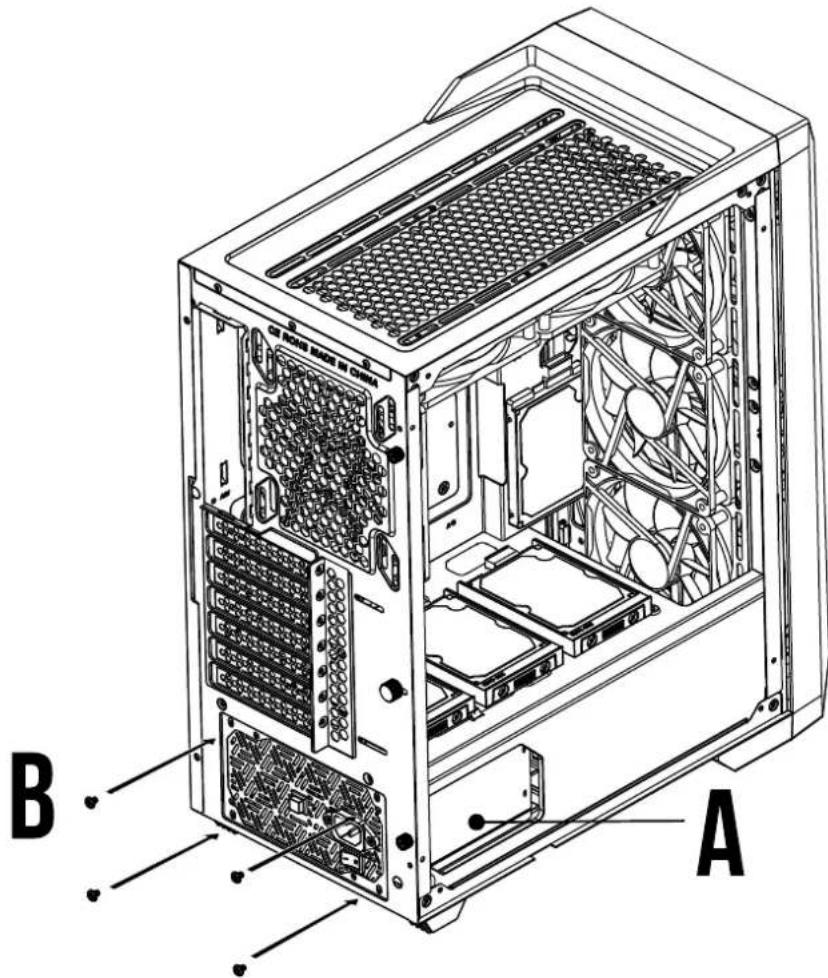

Package Contents

A

X1

B

X4

Package Contents

KRATOS P2-750G

KRATOS P2-850G

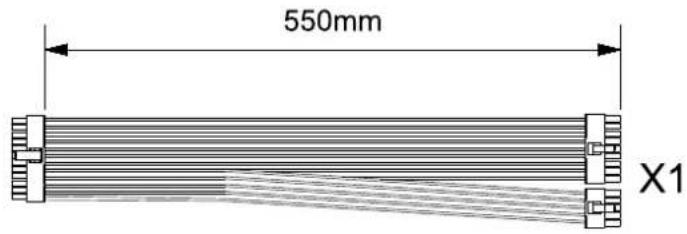

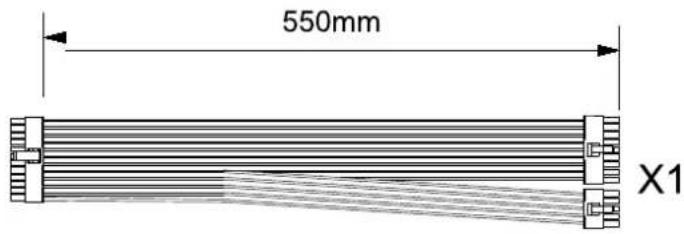

MOTHERBOARD POWER CABLE

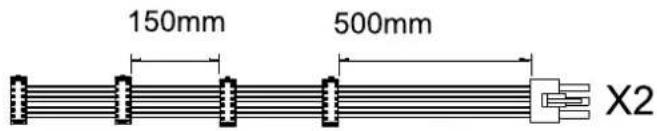

SATA CABLE

CPU EPS CABLE

MOLEX CABLE

GPU PCI-E CABLE

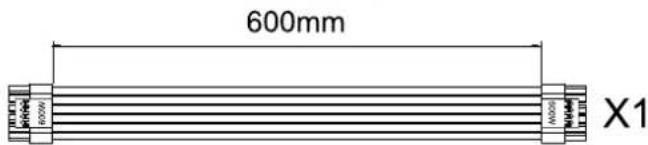

RGB SYNC

12VHPWR CABLE

Package Contents

KRATOS P2-1000G

KRATOS P2-1200G

MOTHERBOARD POWER CABLE

SATA CABLE

CPU EPS CABLE

MOLEX CABLE

GPU PCI-E CABLE

RGB SYNC

12VHPWR CABLE

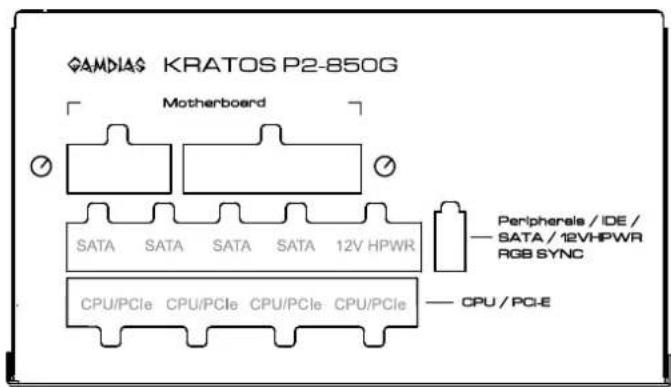

Connector Interface

KRATOS P2-750G

KRATOS P2-850G

KRATOS P2-1000G

KRATOS P2-1200G

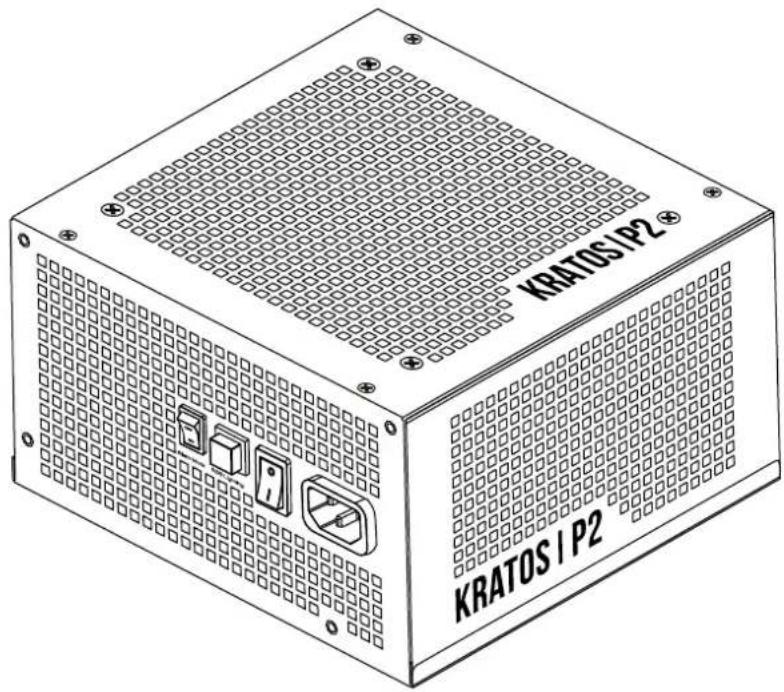

1 Turn off the PSU before installing by pushing I/O switch to "O" position.

2

3

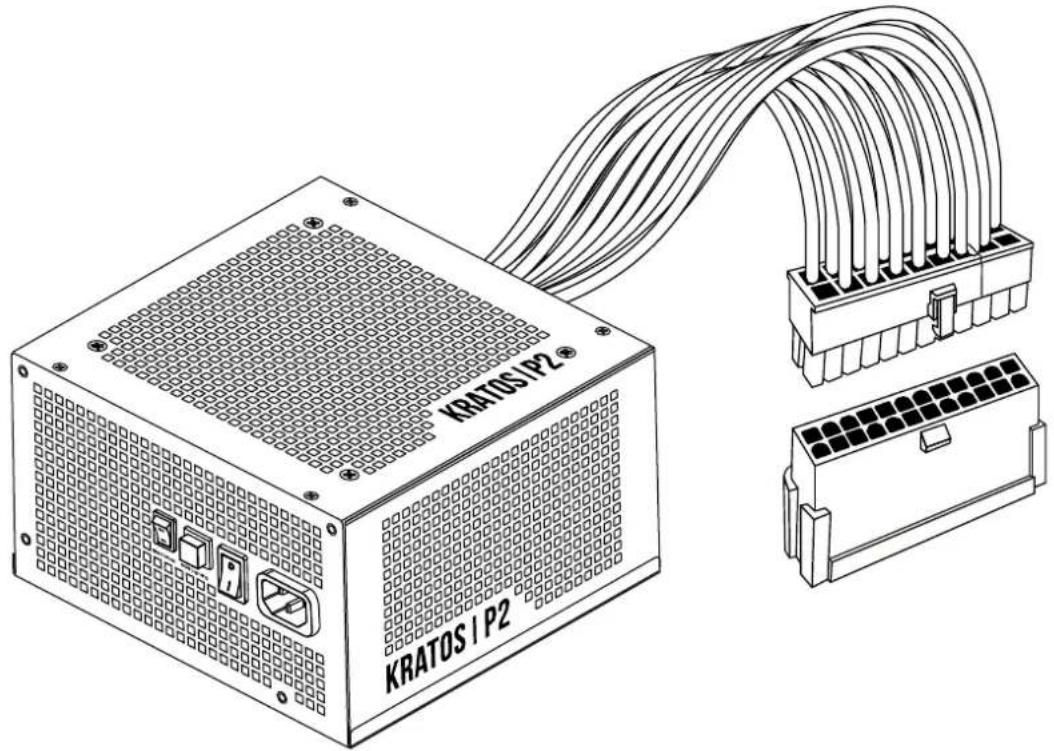

Motherboard

A

4

CPU

5
PCIE

6
SATA

7 Molex

8 RGB SYNC

9

Plug in the AC power cord.

10

Turn on the PSU after installing by pushing I/O switch to "I" position.
