USER MANUAL P2 Hegel

USERS' GUIDE

BRUKERMANUAL

Hegel System 4/System 2

HEGEL

USERS' GUIDE page/side 3

BRUKERMANUAL page/side 11

Hegel System 4 / System 2

TABLE OF CONTENTS

Connections

page

→ H4/H2 page 4
→ P4/P2 page 5
→ CDP4/CDP2 page 6

Remote Control page 7

Use/Placement page 8

Cleaning page 8

Warning page 8

Warranty page 8

Environment page 8

Technical Specifications page 9

Connections

The Hegel music system is easy to connect and operate and requires no prior technical knowledge. However, to get the most out of the system's good sound and music quality, we've provided a brief description of the connections and use of each component in order to give you a total music experience.

We recommend keeping this user's guide for future reference.

The amplifier has two types of audio inputs: unbalanced audio signal with RCA plugs (phono plugs) and real balanced audio signal with XLR plugs (pin 2 is positive phase, pin 3 is negative phase and pin 1 is chassis earth).

Select balanced or unbalanced inputs with the control knob situated between the input connections. The knob points to the input being used.

Avoid switching input cables or selecting inputs with the control knob while the amplifier is on and the speakers are connected. A transient signal might then arise, which can damage the speakers. It will not harm the amplifier, of course, but to avoid overloading the speakers, the amplifier should be switched off when connecting and disconnected cables. After the amplifier is switched on, there's a delay of about 10–30 seconds for the signal to reach the speaker outputs.

H4/H2 Power Amplifier

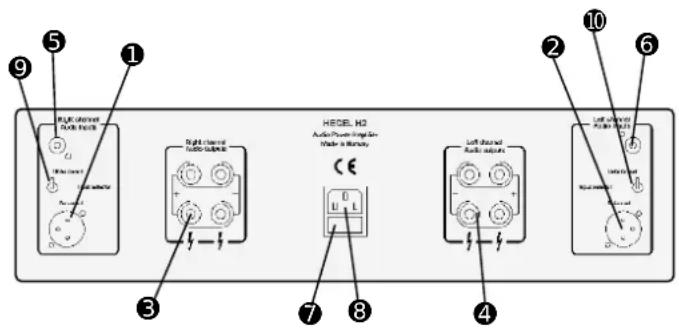

1,2 : Balanced (XLR) signal input right/left

3,4 : Speaker output right/left

5,6 : Unbalanced (Phono/RCA)

7 : Main fuse

8: Main connection

9,10 : Signal input selector signal input right/left

The amplifier is protected against short-circuiting of the speaker terminals, but we still recommend turning off the amplifier when connecting and disconnecting signal and speaker cables.

We recommend using high-quality audio cables. Use balanced signal cables between the various system components if possible. This will minimize power and earth hum between components.

We advise against placing the CD Player directly upon the Power Amplifier.

The amplifier is switched on with the button in the middle of the front panel. A blue light indicates that it is on.

For technical specifications, see page 9.

P4/P2 Preamplifier

The preamplifier is designed to be used with a CD player, VCR, cassette player, radio tuner and similar sound source. If you've purchased a P4/P2 with an RIAA part, it can also be used with a record player.

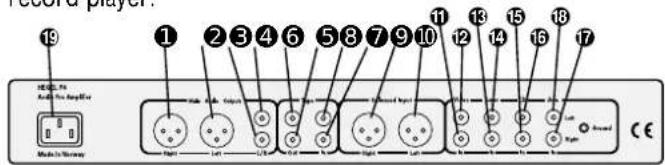

1,2: Signal output XLR right/left
3,4: Signal input RCA right/left
5,6: Signal output RCA right/left tape
7,8: Signal input RCA right/left tape
9,10:Balanced signal input XLR right/left

11,12: Signal input RCA right/left video
13,14: Signal input RCA right/left radio
15,16: Signal input RCA right/left CD
17,18: Signal input RCA right/left AUX
19: Main connection

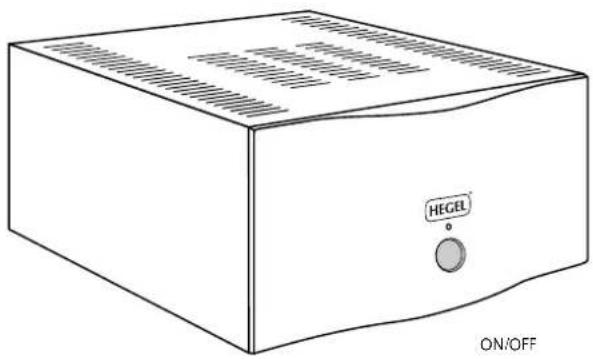

Line drawing of a HEGEL industrial device with ventilation grilles and control knob (no text or symbols on body)

The preamplifier has two types of audio inputs and outputs: unbalanced audio signal with RCA plugs (phono plugs) and real, balanced audio signal with XLR plugs (pin 2 is positive phase, pin 3 is negative phase and pin 1 is chassis earth).

We recommend using high-quality audio cables. Use balanced signal cables between the various system components if possible. This will minimize power and earth hum between components.

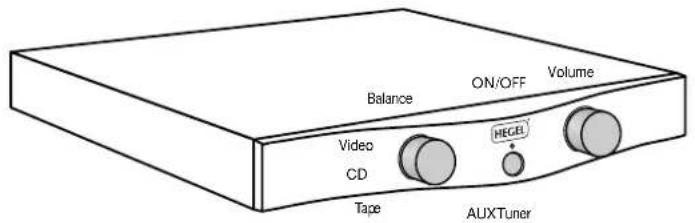

The preamplifier is switched on with the button on the front panel. A blue light indicates that it is on. To the right you have the volume control and to the left there's the channel selector with selections: Balanced, Video, CD, Tape, Tuner, Auxiliary.

For technical specifications, see page 9.

CDP4/CDP2 CD Player

We recommend connecting with balanced outputs for best results. The digital outputs are for connecting with digital recording equipment. For example, DAT player, mini-disc player or PC/MAC. The digital output can also be connected to an external digital-to-analogue converter.

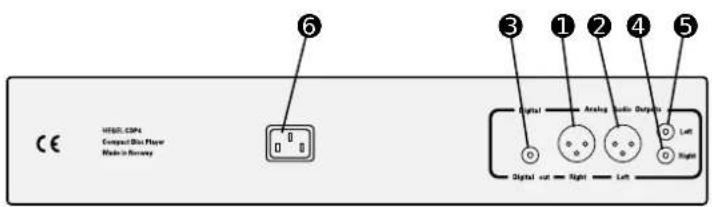

1,2 : Signal output XLR balanced right/left
3 : Signal output Digital Phono/RCA
4,5: Signal output Phono/RCA unbalanced right/left
6: Mains connection

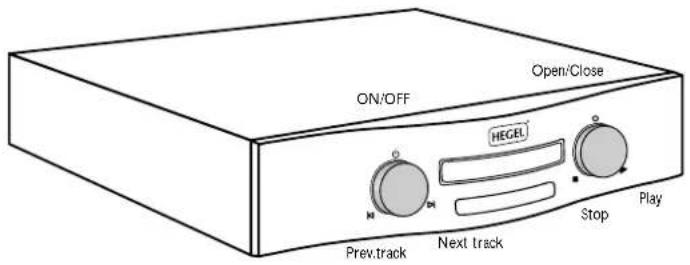

The CD player has only two control knobs. The left knob has the following 3 functions: on/off, previous track and next track. The right knob has the following functions: open/close, stop and play. For technical specifications, see page 9.

Hegel Remote Control

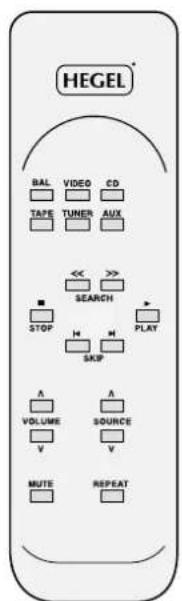

The Hegel CDP4/CDP2 and P4/P2 come with the following remote control. Like other Hegel products, the number of buttons is kept to a minimum and they contain virtually the same functions that you find on the CDP4/CDP2 and P4/P2.

You can select input source directly or switch between them by paging up/down with the source button (only P4). The mute button dampens the P4/P2 output signals. Repeat and forward/rewind are additional functions for CDP4/CDP2. To repeat one track, pres the repeat button twice. "Repeat 1" appears in the CD-player display. To repeat the whole CD press repeat button once. "Repeat" will appear in the CD-player display. The remote control uses four, 1.5-volt LR03 AAA batteries.

USE/PLACEMENT

The HEGEL system should be placed on a flat, hard surface for proper cooling. The amplifier gets hot when turned on. This is normal and the amplifier plays best when it is hot. There must be space for air circulation above and below the amplifiers. The amplifiers must never be placed on a carpet or similar surface that obstructs air circulation through the components. Nor must it be covered while in use or placed in a narrow shelf or other confined space. The amplifier will automatically switch itself off if overheated.

CLEANING

The top cover is made of brushed and anodized aluminium, while the front panel is made of massive, varnished aluminium (milled). Fingerprints or stains on the front panel or top cover can be removed with a cloth moistened with warm water.

NOTE/WARNING

Hegel products must never be opened by anyone other than certified technicians. The devices contain electronic components that can cause electric shock. Work performed on Hegel products by unqualified persons can cause serious damage and personal injury. The products must not be exposed to rain or moisture.

WARRANTY

Hegel as warrants this product to the original consumer purchaser against any failure resulting from original manufacturing defects in workmanship or materials. The limited warranty is in effects for a period of two (2) years from the date of original purchase and is valid only if the original bill of sale is presented when service is requested. The limited warranty does not cover damage caused during shipment, by accident, misuse, including use for other than normal audio applications, neglects, unauthorised product modification, failure to follow the instructions outlined in the owner's manual, failure to perform routine maintenance, damage from unauthorised repairs or claims based upon misrepresentations of the warranty by the seller.

ENVIRONMENT

Damaged products can be delivered to Hegel as, who will provide environmental recycling of (all) the material.

TECHNICAL SPECIFICATIONS

H4 Power Amplifier

Specifications:

Power output More than 250W + 250W at 8 Ohms

Input Phono unbalanced and XLR balanced

(Pin 1 chassis earth, Pin 2 pos., Pin 3 neg.)

Two sets of WBT terminals

Frequency response Less than +/- 0.05 dB deviation 20Hz - 20kHz

Phase response Less than 0.5 degrees deviation 20Hz - 20kHz

Signal-to-noise ratio More than 100dB

Crosstalk Less than - 100dB

Distortion Less than 0.01%

Intermodulation Less than 0.01% (19kHz + 20kHz)

Damping factor More than 1000

Dimensions 21cm x 43cm x 55cm (HxWxD), 40 kg

P4 Preamplifier

Specifications:

Selector for 6 input sources.(Pin 1 chassis earth, Pin 2 pos., Pin 3 neg.)

Balance and unbalanced inputs and outputs.

Frequency response Less than +/- 0.05 dB deviation 20Hz - 20kHz

Phase response Less than 0.5 degrees deviation 20Hz - 20kHz

Hum and noise Less than -130dB

Crosstalk Less than - 100dB

Distortion Less than 0.005%

Intermodulation Less than 0.001% (19kHz + 20kHz)

Dimensions 6cm x 43cm x 30cm (HxWxD), 6 kg

CDP4 CD Player

Specifications:

Analogue outputs Unbalanced and balanced

Digital outputs 75 ohms SPDIF phono plug

Outputs Phono unbalanced and XLR balanced

(Pin 1 chassis earth, Pin 2 pos., Pin 3 neg.)

Frequency response Less than +/- 0.1dB deviation 20kHz

Phase response Linear phase filter

Hum and noise Less than - 140dB

Crosstalk Less than - 100dB

Distortion Less than 0.003%

Intermodulation Less than - 110dB (19kHz + 20kHz)

Signal level 2.1V balanced and unbalanced outputs

Dimensions 10cm x 43cm x 30cm (HxWxD), 16 kg

H2 Power Amplifier

Specifications:

Power output 150W + 150W at 8 Ohms

Input Phono/RCA unbalanced and XLR balanced

(Pin 1 chassis earth, Pin 2 pos., Pin 3 neg.)

Output Two sets of LEXAN terminals

Frequency response Less than +/- 0.05 dB deviation 20Hz - 20 kHz

Phase response Less than 0.5 degrees deviation 20Hz - 20 kHz

Singal-to-noise ratio More than 100dB

Crosstalk Less than - 100dB

Distortion Less than 0.01%

Intermodulation Less than 0.01% (19kHz + 20kHz)

Damping factor More than 1000

Dimensions 12cm x 43cm x 37cm (HxWxD), 20 kg

P2 Preamplifier

Specifications:

Selector for 6 input sources.(Pin 1 chassis earth, Pin 2 pos., Pin 3 neg.)

Balanced and unbalanced inputs and outputs.

Frequency response Less than +/- 0.05 dB deviation 20Hz - 20kHz

Phase response Less than 0.5 degrees deviation 20Hz - 20kHz

Hum and noise Less than - 130dB

Crosstalk Less than - 100dB

Distortion Less than 0.005%

Intermodulation Less than 0.001% (19kHz + 20kHz)

Dimensions 6cm x 43cm x 30cm (HxWxD), 6 kg

CDP2 CD Player

Specifications:

Analogue outputs Unbalanced and balanced

Digital outputs 75 Ohms SPDIF phono plug

Outputs Phono unbalanced and XLR balanced

(Pin 1 chassis earth, Pin 2 pos., Pin 3 neg.)

Frequency response Less than +/- 0.1dB deviation 20kHz

Phase response Linear phase filter

Hum and noise Less than - 120dB

Crosstalk Less than - 100dB

Distortion Less than 0.003%

Intermodulation Less than -110dB (19kHz - 20kHz)

Signal level 2.1V balanced and unbalanced outputs

Dimensions 8cm x 43cm x 30cm (HxWxD), 10 kg

HEGEL

BRUKERMANUAL

HEGEL

BRUKERMANUAL

Hegel System 4 / System 2

INNHOLDSFORTEGNELSE

Tilkobling

side

→ H4/H2 side 14
→ P4/P2 side 15
→ CDP4/CDP2 side 16

Fjernkontrollen side 17

Bruk/Plassering side 18

Rengjøring side 18

Advarsel side 18

Garanti side 18

Miljø side 18
