IAHB53 - Headphones iLive - Free user manual and instructions

Product Type	Over-ear Wireless Headphones
Brand	iLive
Model	IAHB53
Color	Black (typical)
Wireless Technology	Bluetooth 5.0
Range	Up to 33 ft (10 m)
Driver Size	40 mm
Frequency Response	20 Hz - 20 kHz
Impedance	32 ohms
Sensitivity	105 dB
Battery Type	Rechargeable Lithium-Ion (300 mAh)
Playback Time	Up to 10 hours
Charging Port	Micro USB
Charging Time	About 2 hours
Built-in Microphone	Yes, for hands-free calls
Controls	Volume +/-, Play/Pause, Call answer/end
Foldable Design	Yes, for easy storage
Weight	Approx. 0.5 lbs (225 g)
Dimensions (folded)	7.0 x 6.0 x 3.0 in (18 x 15 x 7.5 cm)
Cleaning	Wipe with a soft, dry cloth
Safety Warnings	Avoid prolonged listening at high volume; keep away from moisture
Spare Parts	Replacement ear pads available
Warranty	Limited 1-year warranty

Frequently Asked Questions - IAHB53 iLive

How do I pair the headphones with my phone?

Turn on the headphones and put them in pairing mode by holding the power button for 5 seconds until the LED flashes red and blue. On your phone, enable Bluetooth and select 'iLive IAHB53' from the list.

How do I charge the headphones?

Connect the included Micro USB cable to the charging port on the right ear cup. Plug the other end into a USB power source (e.g., computer or wall adapter). The LED will turn red while charging and blue when fully charged.

Why is there no sound coming from the headphones?

Ensure the headphones are turned on and paired with your device. Check that the volume is turned up both on the headphones and the connected device. Also, verify that the audio source is playing.

Can I use the headphones while charging?

Yes, you can use the headphones in wired mode (with the included 3.5mm cable) while charging. However, Bluetooth playback is not possible during charging.

How do I reset the headphones?

If the headphones are unresponsive, press and hold the power button for 10 seconds. This will reset the device. You may need to re-pair with your phone.

Are the headphones compatible with my computer?

Yes, the headphones can be used with computers via Bluetooth or the included 3.5mm audio cable. For Bluetooth, ensure your computer has Bluetooth capability.

How do I clean the ear pads?

Remove the ear pads by gently pulling them off the ear cups. Hand wash with mild soap and water, then air dry completely before reattaching. Do not machine wash.

What should I do if the headphones connect but sound is distorted?

Try moving your device closer to the headphones to reduce interference. Also, check that the headphones are fully charged. Distortion may also occur if the volume is too high; lower the volume on both devices.

Can I replace the battery?

The battery is built-in and not user-replaceable. If the battery no longer holds a charge, contact iLive support for service options.

How long does the battery last?

The headphones provide up to 10 hours of playtime on a full charge. Actual battery life may vary depending on volume level and usage.

USER MANUAL IAHB53 iLive

• Bluetooth 5.3 – range 33 ft.
• Built-in microphone
• 3.5mm Aux In
• Adjustable headband
• Folds for travel
• On-ear controls
• Rechargeable battery
• Playback up to 7 hours at 50% volume

Includes

• USB-C to USB charging cable
- 3.5mm Cable

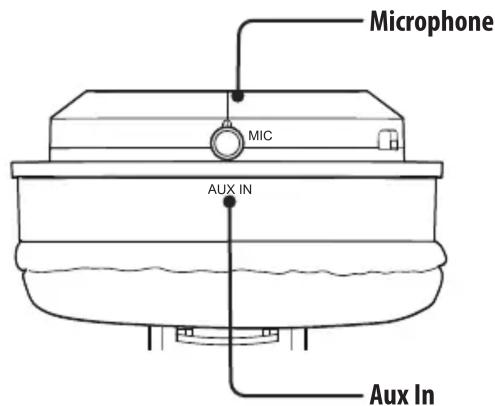

Controls and Functions

Charging the Battery

To charge the battery, use the USB-C to USB cable (included), to connect to the USB port of a powered-on computer or a UL certified USB power adaptor (not included). Charge fully before use. The initial charge time is approximately 2 hours.

STATUS	INDICATOR
Power On	Flashing blue light
Charging	Solid red light
Charging Complete	Light OFF
Pairing	Flashing red / blue light
Pairing Complete	Flashing blue light

Pairing Bluetooth

1. Power on the headphones. The headphones default to Bluetooth Mode and are ready to pair automatically. When pairing, stay within 3 feet of the Bluetooth device.
2. On your Bluetooth device, search for nearby devices in your Bluetooth settings and select IAHB53. When successfully connected to your Bluetooth device, a voice prompt will announce the Bluetooth connection.
3. Audio played through the connected Bluetooth device will now be heard through the headphones. Use the controls on the connected device to play audio and adjust volume.

Note: To pair to a different Bluetooth device, press and hold the Bluetooth Pairing button to manually enter Pairing Mode.

Previously Connected Devices

• The headphones can remember multiple Bluetooth devices and will always try to reconnect to the last device used.
• To reconnect to a different device, turn off Bluetooth on unwanted devices, then access the Bluetooth settings menu on the device you wish to use and select IAHB53.

Aux In

Aux mode will function even if the headphones are not powered on. To conserve battery power, the headphones will automatically power off when using Aux In.

Requires a 3.5mm audio cable (included).

1. Connect a 3.5mm audio cable to the Aux In on the headphones and the audio output on an audio device.
2. Use the controls on the connected device to select and play audio.

Customer Support

Customer Service: 1-888-999-4215 | Email Support: [e-mail] | Email Parts: [e-mail]

For Warranty Information and the most up-to-date version of this User's Guide, go to www.iLiveElectronics.com

To download this User's Guide in English, Spanish, or French, or to get answers to frequently asked questions, visit the support section at: www.iLiveElectronics.com

Copyright © 2023 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specifications are subject to change without notice.

FCC Warnings

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Additional Warnings

• WARNING: To prevent fire or shock hazards, do not expose this unit to rain or moisture.
• WARNING : Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain readily operable.
• Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed of according to state and local guidelines. They should never be disposed of in normal household waste, and they should never be incinerated, as they might explode. Contact your local government for disposal or recycling practices in your area.
• This product meets and complies with all Federal regulations.
• To avoid hearing damage, make sure that the volume on your music player is turned down before connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume until you reach a comfortable listening level.

WARNING : This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

This product meets and complies with required Federal product guidelines.
