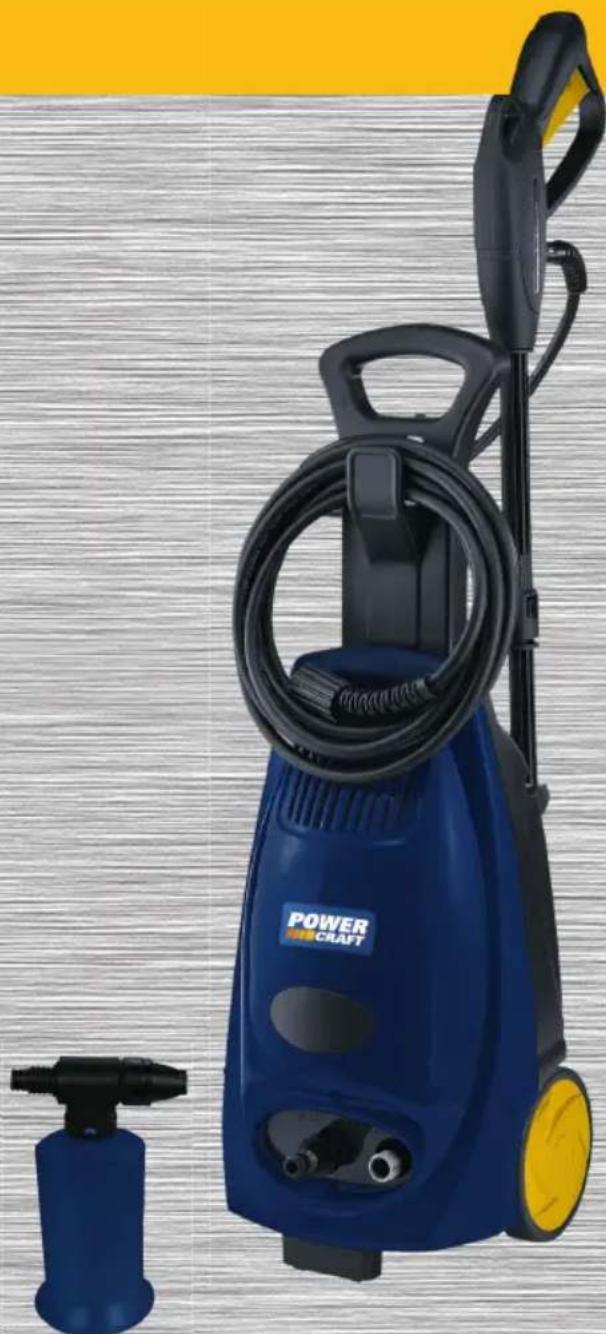

| Product Type | High-pressure cleaner |
| Brand | Power Craft |
| Model | PCPW-135 |
| Power Input | 2000 W |
| Working Pressure | 9 MPa (90 bar) |
| Maximum Operating Pressure | 16 MPa (160 bar) |
| Flow Rate (Delivery Rate) | 6 L/min |
| Max. Water Inlet Pressure | 0.4 MPa (4 bar) |
| Mains Voltage | 230-240 V ~ 50 Hz |
| Insulation Class | II (Double insulated) |
| Weight | 10 kg |
| Sound Pressure Level (L_pA) | 75 dB(A) |
| Sound Power Level (L_WA) | 97 dB(A) (measured 101 dB(A), guaranteed 102 dB(A)) |
| Water Temperature (Max) | 60°C |
| Operating Temperature Range | +5°C to +60°C |
| Hose Length | Not specified |
| Included Accessories | Spray gun, lance with rotating nozzle, foam nozzle, high-pressure hose, cleaning agent tank, transportation wheels |
| Functions | Adjustable jet (concentrated to flat), rotating nozzle for stubborn dirt, cleaning agent injection |
| Safety Features | Safety pin on gun, ON/OFF switch, automatic standby when trigger released |
| Warranty | 3 years (parts and labour) |
| Intended Use | Private use: cleaning vehicles, machines, buildings, facades |
| Maintenance | Regular cleaning of water intake filter, nozzle cleaning with wire, antifreeze for long storage |
| Disposal | Separate from household waste; recycle at appropriate facility (WEEE) |
Frequently Asked Questions - PCPW-135 Power Craft
User questions about PCPW-135 Power Craft
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual PCPW-135 - Power Craft and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PCPW-135 by Power Craft.
USER MANUAL PCPW-135 Power Craft
User Guide & Warranty
3
YEAR WARRANTY
CUSTOMER HELPLINE
Now you have purchased a PowerCraft product you can rest assured in the knowledge that as well as your 3 year parts and labour warranty you have the added peace of mind of dedicated helplines and web support.
AFTER SALES SUPPORT
UK / N.IRELAND HELPLINE NO 0151 649 1500
REP. IRELAND HELPLINE NO 1890 946 6244
AFTER SALES SUPPORT www.einhell-uk.co.uk
MODEL NUMBER: 7944
MONTH ON SALE: 10/200936
03 Introduction
04 Assembly and Parts List
10 Getting Started
11 Instructions
14 Other Useful Information
15 FAQ
16 Warranty Card
Packaging
The unit is supplied in packaging to prevent its contents being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.
Congratulations on choosing to buy a PowerCraft product.
By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of Europe's leading manufacturers.
All products brought to you by PowerCraft are manufactured to the highest standards of performance and safety, and, as part of our philosophy for customer service and satisfaction, are backed by our comprehensive 3 Year Warranty.
We hope you will enjoy using your purchase for many years to come.
Important! When using equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating manual with due care. Keep this manual in a safe place so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.
We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

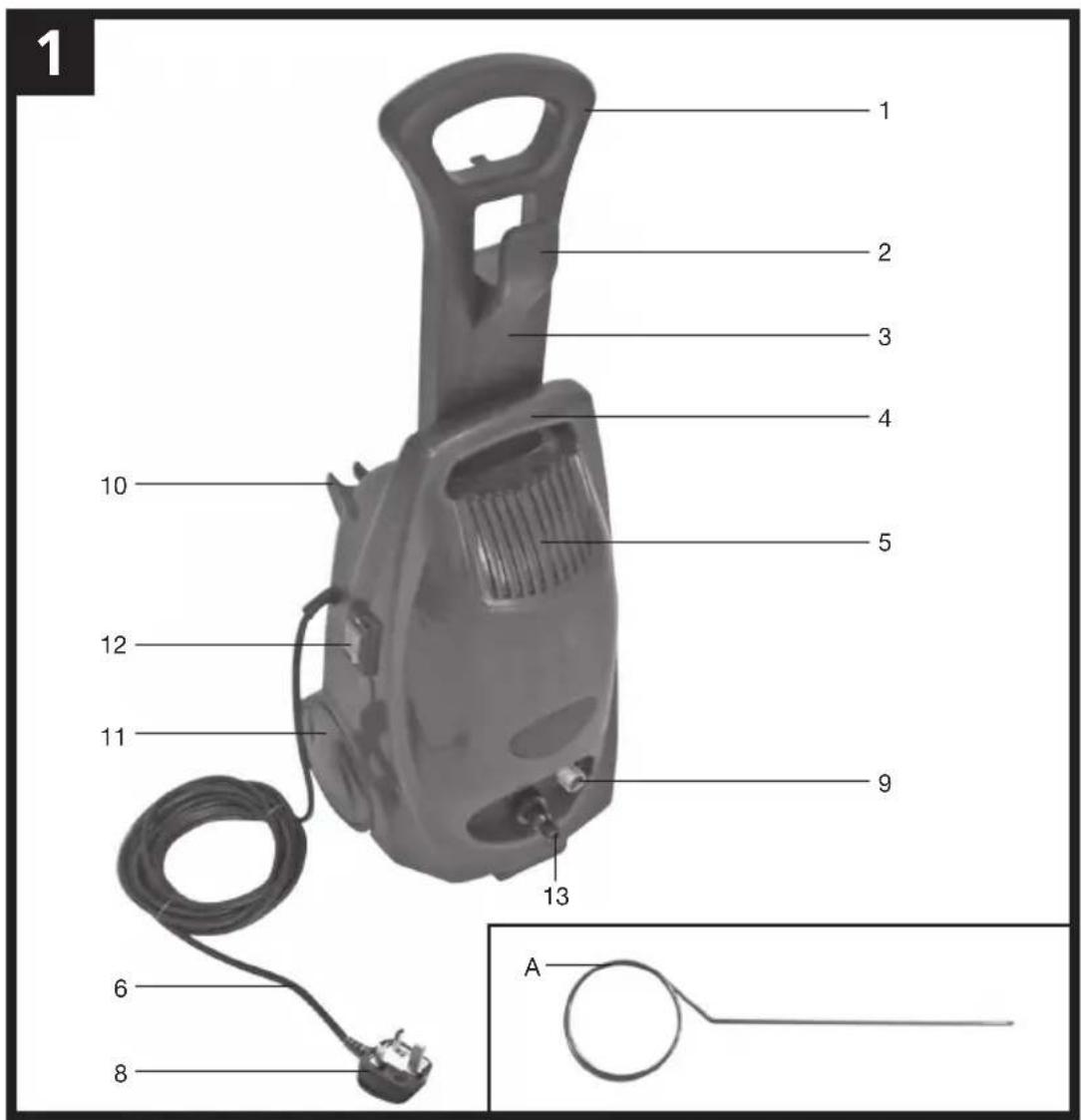

Layout and items supplied (see Fig.1-2)
1 Handle
2 Accessory mount
3 Swing-out push bar
4 Carry handle
5 High-pressure cleaner
6 Power cable
7 Foam nozzle
8 Mains plug
9 Connector for high-pressure hose to device
10 Holder for gun/accessories
11 Transportation wheels
12 ON/OFF switch
13 Water inlet connector
14 Gun
15 Cleaning agent tank
16 Lance point / wide cone
17 Lance with rotating nozzle
18 High-pressure hose
19 Water intake filter (Fig. 11)
A Wire
Assembling the equipment

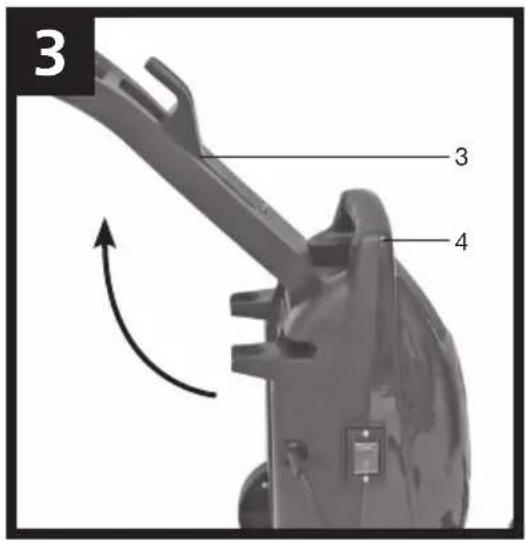

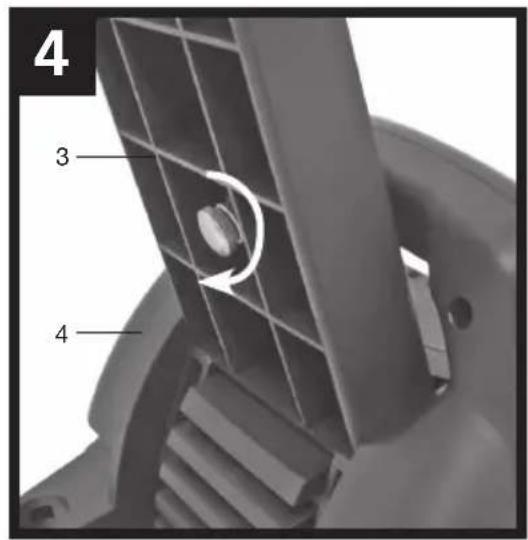

Assemble the high-pressure cleaner as shown in Fig. 2-7.

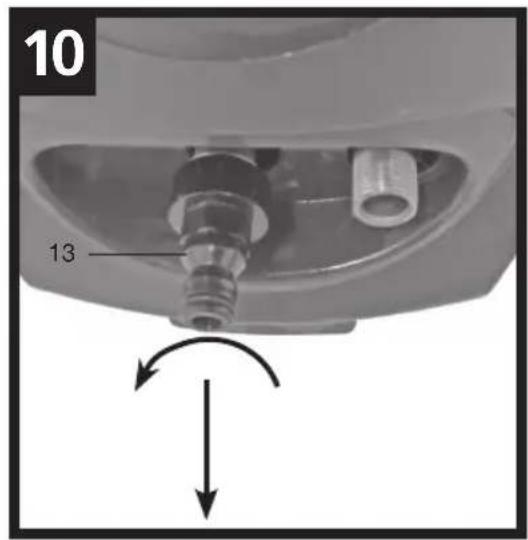

Water inlet connector (Fig. 1/13)
The connection for the water inlet (13) is equipped with a connector for standard hose coupling systems. Remove the transport cap (fig.5) and attach the hose coupling on the supply hose (min. ∅ 1/2") to the connector for the water inlet (13).
An anti-vacuum device must be installed between the water tap and the high-pressure cleaner! Ask your local plumber about this.

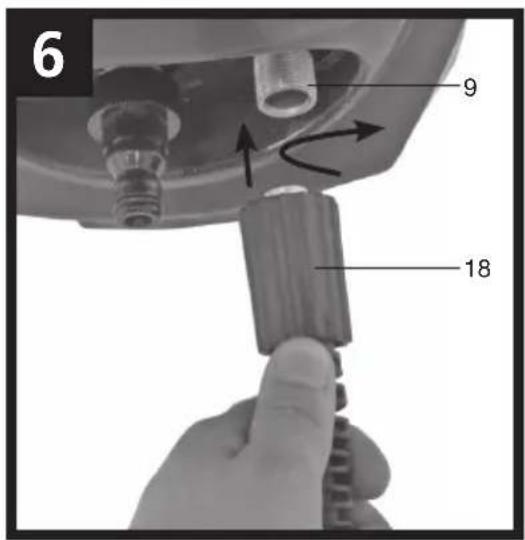

Connecting the high-pressure hose (Fig. 1-2; 5-6/18)

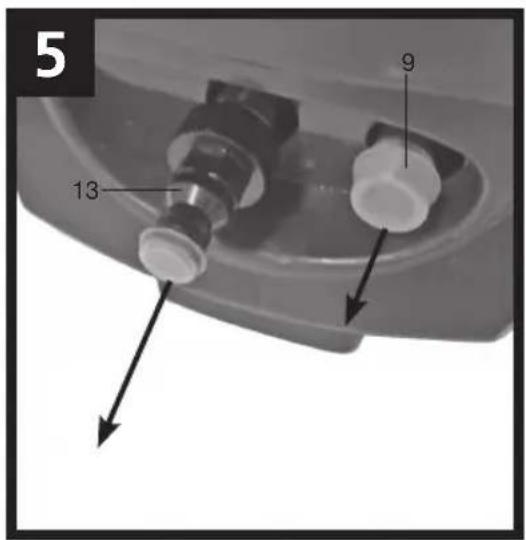

Remove the transport cap as shown in Fig. 5 from the connection for the high-pressure hose (9). Connect the high-pressure hose (18) to the connection on the high-pressure cleaner (9) (Fig. 6) and on the spray gun (14) (Fig. 2).

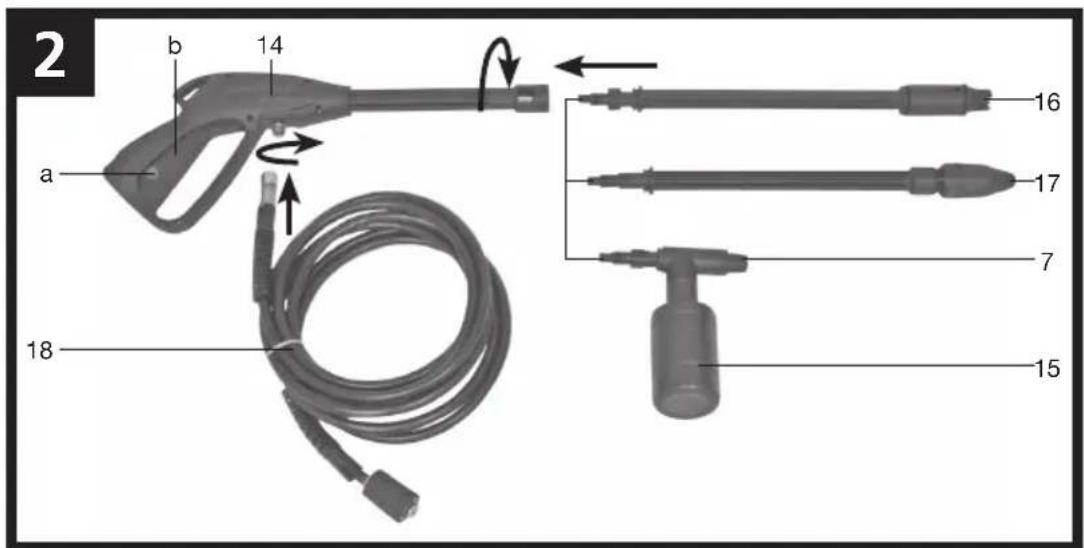

Fitting the gun attachments
The normal lance, the lance with rotating nozzle or the foam nozzle can be attached prior to using the high-pressure cleaner (Fig. 2).
Lance point / wide cone (16)

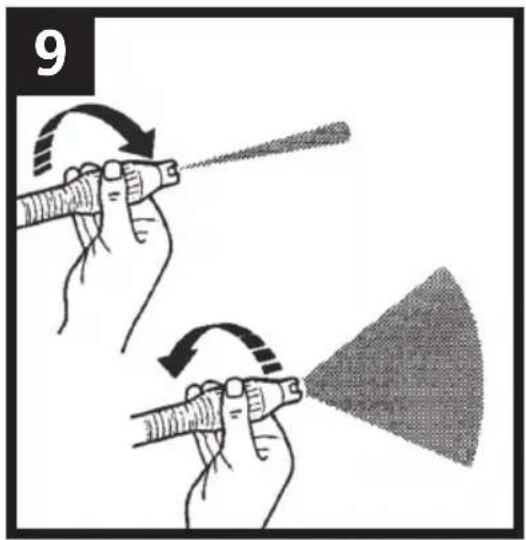

The shape of the water jet can be changed from concentrated to flat jet by turning the nozzle (Fig. 9).
Lance with rotating nozzle (17)
To remove particularly stubborn dirt, use the lance with rotating nozzle (17).
Electrical connections (Fig. 1)
- Before you connect the appliance to the mains supply make sure that the data on the rating plate is identical to the mains data.
- If you use any extension cables, make sure that they are suitable for outdoor use and have large enough wires:
1 - 10m: 1.5 mm ^4
10 - 30m: 2.5 mm ^4
- Plug the mains plug (8) on the power cable (6) into the mains socket outlet.
Proper use
The high-pressure cleaner is designed to clean vehicles, machines, buildings, facades, etc. in the private sector.
The equipment is to be used only for its prescribed purpose.
Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

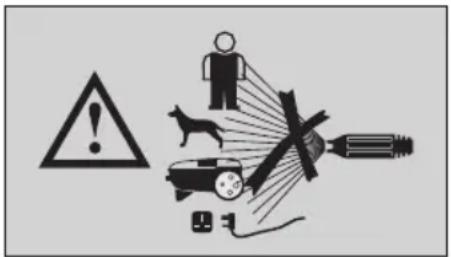

Warning! High-pressure jets can be dangerous if not used properly. Do not direct the jet at persons, animals, live electrical equipment or the unit itself.
Before putting the machine into operation
Correctly using the device
• The high-pressure cleaner must be set on a level, stable surface.
- It is recommended that you maintain the correct operating position every time you use the machine by placing one hand on the pistol and the other on the lance.
- Never direct the water jet toward electrical lines or the machine itself.
- It is normal for the pump to leak a little; this is necessary to avoid damage to the pump when it is at a standstill.
- Never use the equipment in potentially explosive areas under any circumstances!
• The operating temperature must be between +5 and +60°C.
- Do not cover or modify the lance or the spray nozzles in any way.
- The high-pressure cleaner is designed to be used with cold or lukewarm water (max. 60°C); higher temperatures can damage the pump.
- Do not use water that is dirty, gritty or contains any chemical products, as these could impair operation and shorten the life of the equipment.
- When using the pressure washer, we recommend you wear safety goggles to guard your eyes from flying debris/water spray.
Operation
The equipment consists of an assembly with a pump, which is encased in a shock absorbing housing. The equipment comes with a lance and a non-slip gun (for an optimal working position), whose shape and configuration comply with the applicable regulations.
Using for the first time
Once you have completely assembled the high-pressure cleaner and connected all connections, proceed as follows:
Turn on the water inlet supply. Press safety pin "a" (Fig. 2) on the spray gun and pull back trigger lever "b" (Fig. 2) in order to bleed the trapped air out of the device.
Turn on the device by switching the ON/OFF switch (Fig. 1/12) to "I".
To temporarily turn off, release the trigger lever (b), at which point the device goes to standby. As soon as you press the trigger lever again (b), the high-pressure cleaner restarts.
To completely turn off the high-pressure cleaner, switch the ON/OFF switch (Fig. 1/12) to "0".
Using cleaning agent (Fig. 2;7)

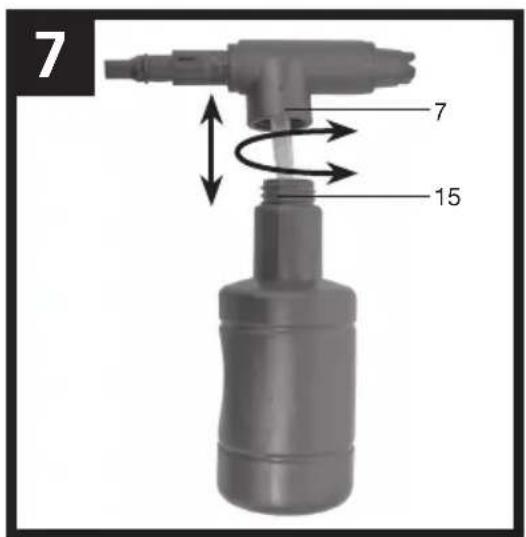

Unscrew and remove the foam nozzle (7) from the cleaning agent tank (15) (Fig. 7). Fill a suitable cleaning agent into the cleaning agent tank (15) and replace the foam nozzle (7). Fit the foam nozzle (7) to the pistol (14) as shown in Fig. 2. The cleaning agent will be added automatically.

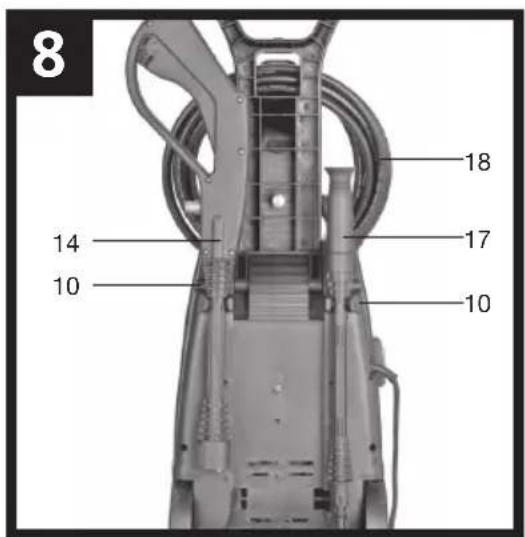

Holder for the gun/accessories (Fig. 1;8)
The gun and accessories can be kept in the provided holder (10) (Fig. 8) in order to save space when not in use.
Cleaning, maintenance and ordering of spare parts
Important! Always pull out the mains power plug before starting any cleaning work.
Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it. - Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.
Maintenance

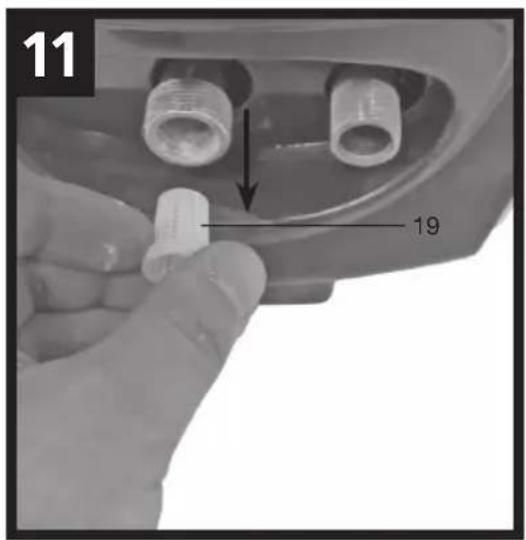

Checking the water intake filter (Fig. 10-11/19)
Periodically check the intake filter in order to prevent clogging, which could jeopardize operation of the pump.
To do this, unscrew the connection coupling for the water inlet hose from the device and clean the exposed inlet sieve by placing it under running water. Then re-fit the filter and connection coupling.
Long periods of non-use (electric pump)
If the machine is going to be stored for longer periods of time (i.e. over 3 months) in a room where frost could develop, it is recommended that the machine be filled with an antifreeze solution (similar to the antifreeze solutions used for vehicles).
When the device is not used for an extended period of time, lime deposits begin to form in the electric pump, which in turn can lead to starting difficulties.

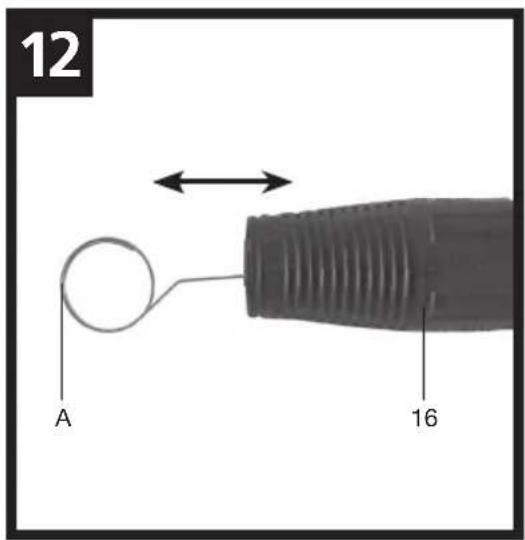

Cleaning the nozzle (Fig. 12)
Use the supplied wire (A) to clean clogged nozzles.
Ordering replacement parts
Please quote the following data when ordering replacement parts:
- Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to www.isc-gmbh.info
Disposal and recycling
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.
Technical data
Mains voltage: 230-240 V \~ 50 Hz
Power input: 2000 W
Working pressure: 9 MPa (90 bar)
Operating pressure (EW bar): max. 16 MPa (160 bar)
Delivery rate: 6 l/min
Max. water inlet pressure: 0.4 MPa (4 bar)
Totally insulated: II/
Sound pressure level L_pA : 75 dB
Sound power level L_WA : 97 dB
Weight 10 kg
FAULT POSSIBLE CAUSES TROUBLESHOOTING
| Device does not work | No electrical voltage at the device | Check the fuse, power cable and power plug and have them replaced by qualified personnel if necessary |
| Cross section of the extension cable not large enough and/or the extension cable is too long | Use extension cables with larger cross sections and/or use shorter extension cables | |
| The mains voltage is lower than that specified | Contact the power supply company if necessary | |
| The pump is frozen | Check and thaw if necessary | |
| The motor starts but there is no build up of pressure | The water intake filter is clogged | Clean the water intake filter (see 7.2.1) |
| Air intake in the water inlet | Check the supply hose and hose connection and replace if necessary | |
| Discharge nozzle is too large | Check and replace if necessary | |
| Irregular operating pressure | Air intake in the water inlet | Check the supply hose and hose connection and replace if necessary |
GB For EU countries only
Never place any electric tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the demand to return electrical devices: As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns centre, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.
Noise: measured L_WA = 101 dB (A); guaranteed L_WA = 102 dB (A)
P = 2.0 KW; L/∅ = cm
Notified Body: TÜV Rheinland Product Safety GmbH
97/68/EC
Emission No.:
Standard references: EN 14121; EN 60335-1; EN 60335-2-79; EN 55014-1; EN 55014-2; EN 50366; EN 61000-3-2; EN 61000-3-3
Subject to change without notice
Archive-File/Record: 4140460-19-4155050
Documents registrar: Daniel Protschka
Wiesenweg 22, D-94405 Landau/Isar
If you are requested by the manufacturer to return the item for repair please complete the enclosed section and send it together with your product and your receipt (proof of purchase) to the service address shown below.
Name:
Address:
