Product Type	Ceiling Monitor Speaker (Two-Way Coaxial)
Brand	RCF
Model	CMR 60T
Woofer	6.5" with 1.2" voice coil
Tweeter	1" Neodymium dome with 1" voice coil
Frequency Response (-10dB)	70 Hz – 20,000 Hz
Maximum SPL @ 1m	114 dB
Coverage Angle	130°
System Sensitivity	89 dB
Nominal Impedance	8 Ω (low impedance mode)
Power Handling (RMS)	80 W
Peak Power Handling	320 W
Recommended Amplifier Power	160 W
Crossover Frequency	2500 Hz
Constant Voltage Transformer	70/100 V, selectable taps (5 levels for 70 V, 4 for 100 V)
Connectors	Removable 4-pole Euroblock (input + link output)
Enclosure Material	Self-extinguishing ABS plastic body, steel backcan
Grille	Steel, magnetic fixing, includes safety cord
Color	White (RAL 9003)
Dimensions (Diameter x Depth)	300 mm x 202 mm (11.81" x 7.95")
Recessed Depth	193 mm (7.6")
Cut-out Diameter	260 mm (10.24")
Weight	4.5 kg (9.92 lbs)
Safety Compliance	CE, UL 1480A
Power Supply	Passive (requires external amplifier; operates on 70/100 V lines or 8 Ω low impedance)
Care & Cleaning	Use dry cloth only, no solvents; clean only when power is off
Spare Parts & Repairability	No user-serviceable parts; contact authorized service center for repairs

Frequently Asked Questions - CMR 60T RCF

How do I connect the CMR 60T to a constant voltage line?

Remove the magnetic front grille and set the rotary switch to one of positions 1-5 for 70V or 1-4 for 100V. Use the Euroblock connector: connect the line positive to INPUT + and negative to INPUT -. If linking multiple speakers, use LINK terminals.

What is the correct power selection for 100V lines?

For 100V lines, use positions 1-4: 10W, 20W, 40W, or 80W. Do not select position 5 (N.C.) or position 6 (8Ω), as this may damage the speaker or amplifier.

Can I use the CMR 60T as a low-impedance speaker?

Yes. Set the rotary switch to position 6 (8Ω). The total impedance of all connected speakers must not be lower than the amplifier's output impedance. Wiring in parallel reduces total impedance.

What is the cut-out diameter for ceiling installation?

Drill a circular hole of 260 mm (10.24 inches) in the false ceiling. Insert the speaker and tighten the three screws to secure the locking clamps.

How do I remove the front grille?

The grille is held by magnets. Gently pull it away from the speaker. It has a safety cord that must be hooked into the tweeter horn slot before installation to prevent falling.

What amplifier power is recommended for the CMR 60T?

RCF recommends an amplifier with 160 W RMS power to handle the speaker's 80 W RMS and 320 W peak capability.

Is the CMR 60T suitable for outdoor use?

The speaker is designed for indoor use only. If used outdoors, ensure it is protected from rain and moisture. The product is not weatherproof.

How should I clean the speaker?

Use a dry cloth to clean the exterior surfaces. Do not use solvents, alcohol, or abrasives. Always clean with the power turned off.

What is the maximum number of CMR 60T speakers I can connect to a 100V line?

The total power of all speakers must not exceed the amplifier's power rating. For example, if the amplifier delivers 200W, you can connect up to two speakers at 80W each (160W total) or more at lower power taps.

Does the CMR 60T come with mounting hardware?

The speaker includes three locking plastic clamps for ceiling installation. Safety cord is included for the grille. Anchoring screws and eyebolts for safety cord attachment are not supplied; you must use appropriate hardware for your ceiling.

USER MANUAL CMR 60T RCF

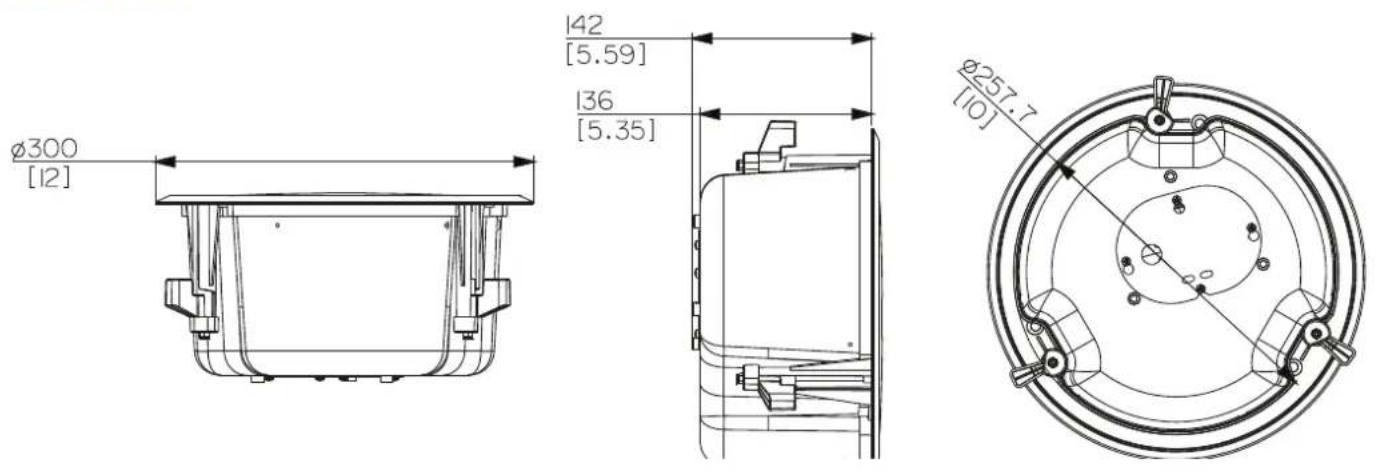

DIMENSIONS / DIMENSION8....21

1. SAFETY PRECAUTIONS AND GENERAL INFORMATION

The symbols used in this document give notice of important operating instructions and warnings which must be strictly followed.

	CAUTION	Important operating instructions: explains hazards that could damage a product, including data loss
	WARNING	Important advice concerning the use of dangerous voltages and the potential risk of electric shock, personal injury or death.
	IMPORTANT NOTES	Helpful and relevant information about the topic
	SUPPORTS, TROLLEYS AND CARTS	Information about the use of supports, trolleys and carts. Reminds to move with extreme caution and never tilt.
	WASTE DISPOSAL	This symbol indicates that this product should not be disposed with your household waste, according to the WEEE directive (2012/19/EU) and your national law.

IMPORTANT NOTES

This manual contains important information about the correct and safe use of the device. Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference. The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions. RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

SAFETY PRECAUTIONS

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.

2. Power supply from mains

a. The mains voltage is sufficiently high to involve a risk of electrocution; install and connect this product before plugging it in.
b. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please contact your RCF dealer.
c. The metallic parts of the unit are earthed through the power cable. An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
d. Protect the power cable from damage; make sure it is positioned in a way that it cannot be stepped on or crushed by objects.
e. To prevent the risk of electric shock, never open this product: there are no parts inside that the user needs to access.
f. Be careful: in the case of a product supplied by manufacturer only with POWERCON connectors and without a power cord, jointly to POWERCON connectors type NAC3FCA (power-in) and NAC3FCB (power-out), the following power cords compliant to national standard shall be used:

• EU: cord type H05VV-F 3G 3x2.5 mm2 - Standard IEC 60227-1
• JP: cord type VCTF 3x2 mm2; 15Amp/120V\~ - Standard JIS C3306

• US: cord type SJT/SJTO 3x14 AWG; 15Amp/125V\~ - Standard ANSI/UL 62

• Make sure that no objects or liquids can get into this product, as this may cause a short circuit. This apparatus shall not be exposed to dripping or splashing. No objects filled with liquid, such as vases, shall be placed on this apparatus. No naked sources (such as lighted candles) should be placed on this apparatus.

• Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.

Contact your authorized service centre or qualified personnel should any of the following occur:

• The product does not function (or functions in an anomalous way).

• The power cable has been damaged.

• Objects or liquids have got in the unit.

• The product has been subject to a heavy impact.

• If this product is not used for a long period, disconnect the power cable.

• If this product begins emitting any strange odours or smoke, switch it off immediately and disconnect the power cable.

• Do not connect this product to any equipment or accessories not foreseen. For suspended installation, only use the dedicated anchoring points and do not try to hang this product by using elements that are unsuitable or not specific for this purpose. Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

To prevent the risk of falling equipment, do not stack multiple units of this product unless this possibility is specified in the user manual.

1. RCF S.p.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms) who can ensure correct installation and certify it according to the regulations in force. The entire audio system must comply with the current standards and regulations regarding electrical systems.

2. Supports, trolleys and carts.

The equipment should be only used on supports, trolleys and carts, where necessary, that are recommended by the manufacturer. The equipment / support / trolley / cart assembly must be moved with extreme caution. Sudden stops, excessive pushing force and uneven floors may cause the assembly to overturn. Never tilt the assembly.

1. There are numerous mechanical and electrical factors to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.).

2. Hearing loss

Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices. When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones. See the manual technical specifications to know the maximum sound pressure level.

OPERATING PRECAUTIONS

• Place this product far from any heat sources and always ensure an adequate air circulation around it.
• Do not overload this product for a long time.
• Never force the control elements (keys, knobs,etc.).
• Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product.

IMPORTANT NOTES

To prevent the occurrence of noise on line signal cables, use screened cables only and avoid putting them close to:

• Equipment that produces high-intensity electromagnetic fields
• Power cables
• Loudspeaker lines

1. SAFETY PRECAUTIONS AND GENERAL INFORMATION

WARNING! CAUTION! To prevent the risk of fire or electric

shock, never expose this product to rain or humidity.

WARNING! To prevent electric shock hazard, do not connect to

mains power supply while grille is removed

WARNING! to reduce the risk of electric shock, do not disassemble

this product unless you are qualified. Refer servicing to qualified service personnel.

CORRECT DISPOSAL OF THIS PRODUCT

This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to tially hazardous substances

that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority or your household waste disposal service.

CARE AND MAINTENANCE

To ensure a long-life service, this product should be used following these advices:

• If the product is intended to be set up outdoors, be sure it is under cover and protected to rain and moisture.
• If the product needs to be used in a cold environment, slowly warm up the voice coils by sending a low-level signal for about 15 minutes before sending high-power signals.
• Always use a dry cloth to clean the exterior surfaces of the speaker and always do it when the power is turned off.

CAUTION: to avoid damaging the exterior finishes do not use

cleaning solvents or abrasives.

WARNING! CAUTION! For powered speakers, do cleaning

only when the power is turned off.

RCF S.p.A. reserves the right to make changes without prior notice to rectify any errors and / or omissions.

Always refer to the latest version of the manual on www.rcf.it.

2. DESCRIPTION

CMR 50T W and CMR 60T W are multi-purpose two-way ceiling monitor speakers, suitable for a wide range of applications.

Thanks to their elegant and discreet design and refined finishes, these are suitable for all environmental and architectural conditions.

The two models differ in the size of their woofer and their power. They are both equipped with a transformer for connection to constant voltage lines (70-100 V):

• CMR 50T W 5" woofer, 40 W
• CMR 60T W 6.5" woofer, 80 W

The high quality of their transducers (arranged in a coaxial configuration) guarantees faithful and precise musical reproduction throughout the audio spectrum and allows to reach truly remarkable sound pressure levels for such compact products.

The connection is simple and safe thanks to the removable four-pole screw terminals.

The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch (their line transformer allows selection among five power rates).

MAIN FEATURES

• 5" woofer (CMR 50T W) with 1" voice coil
• 6.5" woofer (CMR 60T W) with 1.2" voice coil
• Neodymium 1" dome tweeter with 1" voice coil
• Self extinguishing plastic body and metal backcan
• Internal transformer for connection to constant voltage lines (70-100 V), power selection is made with a rotary switch among 5 rates. The low impedance connection (8 Ω) is possible too.
• EUROBLOCK removable 4-pole connector (audio input and parallel output 'link')
• Steel front grille with magnetic fixing
• Colour: white.

3. CONNECTION AND POWER SELECTION

WARNING! Speaker connections should be only made by qualified and experienced personnel having the technical how or sufficient specific instructions to ensure that connections are made correctly and prevent any electrical danger.

To prevent any risk of electric shock, do not connect speakers when the amplifier is switched on. Before turning the system on, check all connections and make sure there are no accidental short circuits.

The entire sound system shall be designed and installed in compliance with the current local laws and regulations regarding electrical systems.

Make sure all speakers are connected in phase to ensure a correct sound reproduction.

CMR 50T W and CMR 60T W can be either connected to 70 V / 100 V constant voltage lines or used as low impedance speakers (8 Ω).

Remove the front grille (fixed with magnets and with a safety cord) to access the power rotary switch (6 different settings).

3. CONNECTION AND POWER SELECTION

SETTING THE POWER WHEN CONNECTED TO 100 / 70 V CONSTANT VOLTAGE LINES

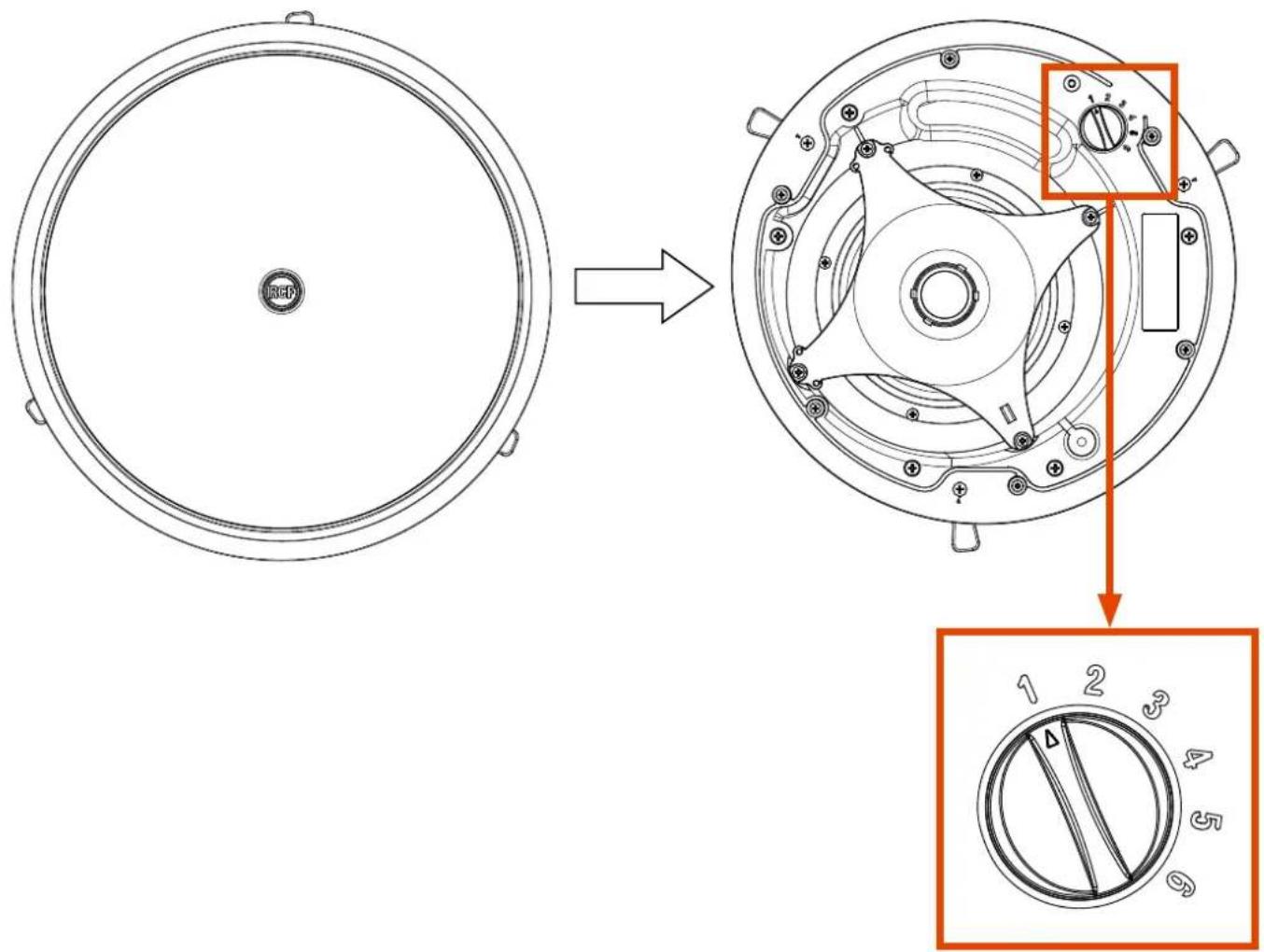

If speakers are connected to a constant voltage line, set the selector to one of the positions from 1 to 5 (70 V) or from 1 to 4 (100 V) to choose the power rate (according to the line voltage).

CMR 50T W

POSITION 1 2 3 4 5 6
70 V 2,5 W 5 W 10 W 20 W 40 W					8 Ω
100 V 5 W 10 W 20 W 40 W N.C.

CMR 60T W

POSITION 1 2 3 4 5 6
70 V 5 W 10 W 20 W 40 W 80 W					8 Ω
100 V 10 W 20 W 40 W 80 W N.C.

WARNING!

• DO NOT select position 6 (8 Ω) (as this may damage the speaker and the amplifier)!
• DO NOT select position 5 when linked to a 100 V line!

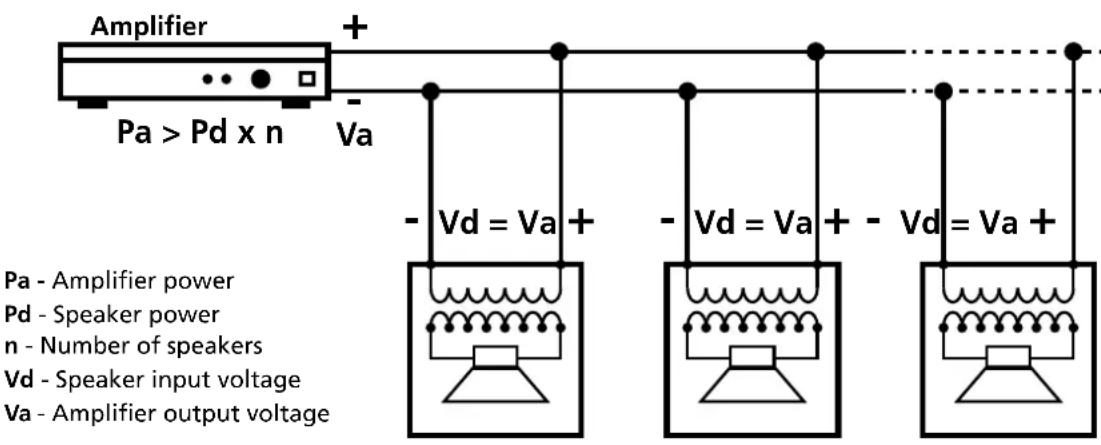

• The speaker input voltage (Vd) shall correspond to the amplifier output voltage (Va).
• The sum of nominal power values (Pd x n) of all speakers connected to the line shall not exceed the amplifier power (Pa).

3. CONNECTION AND POWER SELECTION

LOW IMPEDANCE CONNECTION (8 Ω)

Set the selector to position 6 (8 Ω).

• The total speaker impedance must not be lower than the amplifier output impedance.
• A speaker total impedance equal to the amplifier output one permits to get the maximum deliverable power (but a higher impedance entails less power).
• The total speaker power shall be adequate for the amplifier maximum deliverable power.
• Speaker lines shall be as short as possible (for long distances, it may be necessary to use cables with large cross-section wires).
• The impedance of a single speaker is 8 Ω. For example, the total impedance of the parallel of two speakers is 4 Ω (impedance = 8 / speaker number).

CONNECTION

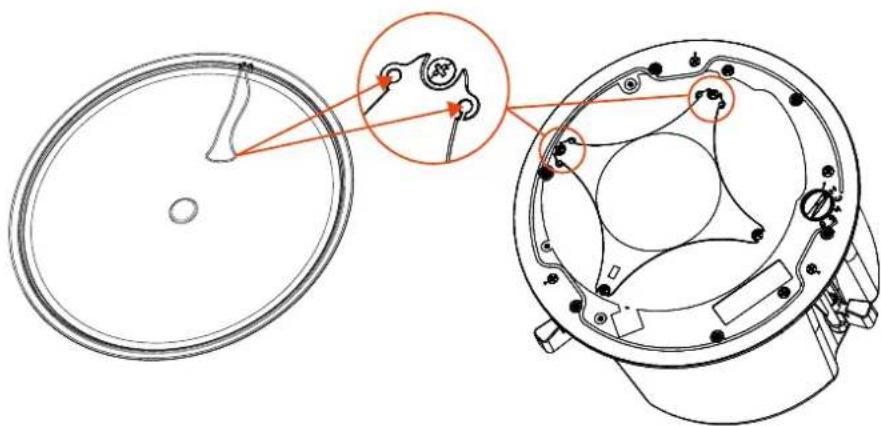

Remove the metal protective cover of the speaker backcan to access to the removable Euroblock connector socket.

Technical diagram showing a circular mechanical component before and after assembly, with no visible text or symbols.

The two INPUT contacts (+ and -) allow the connection of the input cable, the two LINK contacts (+ and -) can be linked to an output cable for the parallel connection of other speakers.

Applicable wire section: from 0.75 mm ^2 to 2.5 mm ^2 .

1. Connect the line positive wire to the speaker INPUT +.
2. Connect the line negative wire to the speaker INPUT -.
3. If necessary, connect in the same way the output cable (to link other speakers in parallel) to speaker LINK + and LINK -.
4. Refit the metal protective cover on the speaker backcan.

WARNING! Remeber to fix a safety cord (not included) to a separate solid surface like a beam or a wall and tie it to the speaker through the safety loops or to the provided eyebolt (or both, if necessary, for added safety); the eyebolt must be securely screwed to one of the three anchoring points (1, 2, 3). The cord must be suitable for the speaker dimension and weight and, in case of dropping, it must be able to firmly hold the speaker and avoid any possible injury.

• The loudspeaker input voltage (Vd) shall correspond to the amplifier output voltage (Va).
• The sum of nominal power values (Pd x n) of all loudspeakers connected to the line shall not exceed the amplifier power (Pa).
• Make sure all loudspeakers are connected in phase to ensure a correct sound reproduction.

• Always use cables having wires with an adequate cross-section, considering the cable length and the total loudspeaker power.
• oudspeaker lines must be kept separated from mains cable, microphone cables or others, in order to avoid inductive phenomena may cause hum or noises.
• Use loudspeaker cables having twisted wires to reduce hum caused by inductive effects due to coupling with electromagnetic fields.

5. INSTALLATION

WARNING! Make sure all speakers are installed in a stable and secure way in order to avoid any conditions that may be anxious for persons or structures. Check that the false ceiling has the necessary mechanical characteristics to support the other weight without any risk of falling.

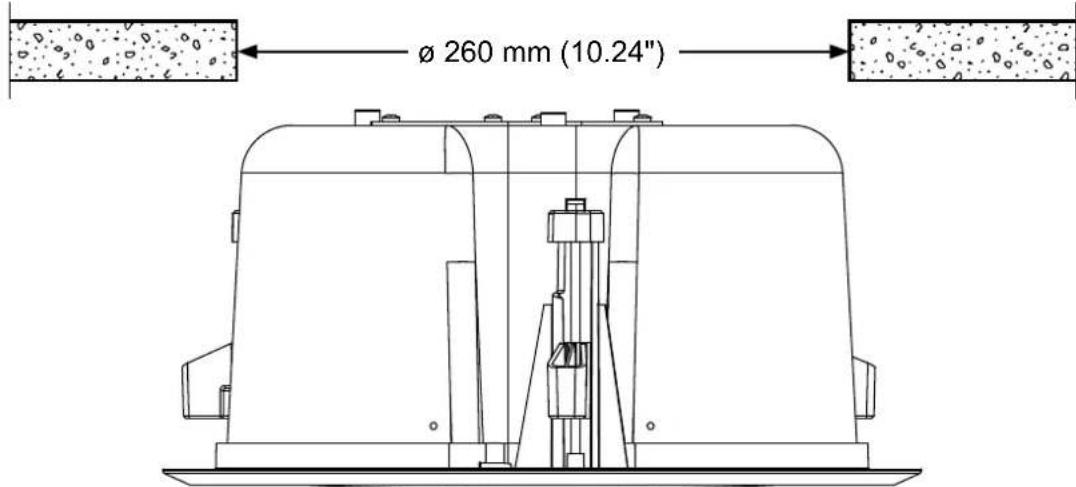

1. Drill a circular hole having a diameter ∅ 260 mm (10.24") in the false ceiling at the point chosen for the speaker installation.

1. Connect the speaker as previously described in the 'Connection' manual section.
2. Insert the speaker completely into the false ceiling hole.
3. Tighten (clockwise) the 3 screws that rotate the respective 3 locking plastic clamps to fix the speaker to the false ceiling. Note: to remove the speaker from the false ceiling (if necessary), screw counterclockwise.

Diagram of a mechanical assembly with a screwdriver and rotating component (no text or symbols)

1. Mount the speaker front grille. The grille is fixed with magnets and is equipped with a safety cord (included), which must be hooked into one of the slots on the tweeter horn.

1. AVVERTENZE PER LA SICUREZZA E INFORMAZIONI GENERALI

Technical diagram showing two circular mechanical components before and after assembly, with no visible text or symbols.

Diagram of a screwdriver performing a circular motion on a mechanical component (no text or symbols)

TECHNICAL SPECIFICATIONS		CMR 50T W	CMR 60T W
Acoustical specifications Frequency Response (-10dB):		80 Hz ÷ 20000 Hz	70 Hz ÷ 20000 Hz
	Max SPL @ 1m:	110 dB	114 dB
	Coverage angle:	130°	130°
	System Sensitivity:	88 dB	89 dB
Power section Amplification:		Full Range	Full Range
	Nominal Impedance:	8 ohm	8 ohm
	Power Handling:	40 W RMS	80 W RMS
	Peak Power Handling:	160 W PEAK	320 W PEAK
	Recommended Amplifier:	80 W	160 W
	Crossover Frequencies:	2500	2500
Transducers Dome Tweeter:		1.0" neo, 1.0" v.c	1.0" neo, 1.0" v.c
	Woofer:	5.0", 1.0" v.c	6.5", 1.2" v.c
Input/Output section Input connectors:		Euroblock	Euroblock
	Output connectors:	Euroblock	Euroblock
	Constant Voltage Transformer:	70/100 V	70/100 V
	Power selection 1:	40 W - 250 ohm	80 W - 125 ohm
	Power selection 2:	20 W - 500 ohm	40 W - 250 ohm
	Power selection 3:	10 W - 1000 ohm	20 W - 500 ohm
	Power selection 4:	5 W - 2000 ohm	10 W - 1000 ohm
	Power selection 5:	2.5 W - 4000 ohm	5 W - 2000 ohm
Standard compliance Safety agency:		CE compliant, UL 1480A	CE compliant, UL 1480A
Physical specifications Cabinet/Case Material:		ABS	ABS
	Hardware:	Steel backcan	Steel backcan
	Grille:	Steel	Steel
	Color:	White - RAL 9003	White - RAL 9003
Size Depth:		151 mm / 5.94 inches	202 mm / 7.95 inches
	Recessed Depth:	142 mm / 5.59 inches	193 mm / 7.6 inches
	Diameter:	300 mm / 11.81 inches	300 mm / 11.81 inches
	Cut out diameter:	260 mm / 10.24 inches	260 mm / 10.24 inches
	Weight:	4 kg / 8.82 lbs	4.5 kg / 9.92 lbs
Shipping information Package Height:		229 mm / 9.02 inches	280 mm / 11.02 inches
	Package Width:	362 mm / 14.25 inches	362 mm / 14.25 inches
	Package Depth:	362 mm / 14.25 inches	362 mm / 14.25 inches
	Package Weight:	5.5 kg / 12.13 lbs	6 kg / 13.23 lbs

CMR 50T W

CMR 60T W
