Product Type	Electric Meat Grinder / Mincer
Brand	DK2 Power
Model	OPC566E
Color	Silver and Black (typical)
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	500 W
Dimensions (L x W x H)	Approx. 30 cm x 20 cm x 30 cm
Net Weight	Approx. 3.0 kg
Housing Material	Stainless steel and ABS plastic
Hopper Capacity	Approx. 1.5 kg raw meat
Grinding Plates	2 grinding plates (fine and coarse)
Stainless Steel Blade	4-blade cross knife
Sausage Making Attachment	Included (for encasing sausages)
Kebbe Attachment	Included
Pusher	Plastic food pusher included
Reverse Function	Yes
On/Off Switch	Two-position switch with reverse
Non-Slip Feet	Yes, for stability during operation
Overload Protection	Integrated thermal fuse
Dishwasher Safe Parts	Removable parts (blade, plates, hopper) dishwasher safe
Cleaning Brush	Included
Spare Parts Available	Yes, blades, grinding plates, and pusher sold separately
User Manual Languages	English (PDF download)

Frequently Asked Questions - OPC566E DK2 Power

What is the maximum capacity of the DK2 Power OPC566E meat grinder?

The OPC566E can grind up to approximately 1.5 kg of meat per batch. It is recommended to cut meat into small cubes before grinding for optimal performance.

Can I grind frozen meat with this meat grinder?

No, do not grind frozen meat. Thaw meat completely and cut into small pieces. Grinding frozen meat can damage the machine and blade.

How do I assemble the meat grinder?

First, attach the hopper to the body. Insert the spiral screw. Place the blade and grinding plate in the correct order, then screw on the ring nut. Finally, attach the sausage or kebbe attachment if needed.

How to clean the OPC566E meat grinder?

Unplug the unit. Disassemble all removable parts. Rinse under running water and wash with mild detergent. Parts are dishwasher safe. Dry thoroughly before reassembly.

What attachments are included with the DK2 Power OPC566E?

The package includes two grinding plates (fine and coarse), a stainless steel blade, a sausage stuffing tube, and a kebbe attachment.

Why does my meat grinder reverse direction?

The reverse function helps clear clogs. If the motor labors, turn off and press the reverse button to dislodge stuck food. Do not force the machine.

Is the meat grinder suitable for grinding bones?

No, this meat grinder is designed for boneless meat, vegetables, and non-fibrous foods. Do not grind bones, as it will damage the blade and motor.

How do I replace the blade or grinding plate?

Unplug the grinder. Unscrew the ring nut. Remove the old blade and plate. Insert the new ones ensuring correct orientation. Tighten the ring nut securely.

Can I use the meat grinder for nuts or vegetables?

Yes, you can grind soft nuts (like almonds) and vegetables (onions, garlic). For hard nuts or fibrous vegetables, use appropriate attachments to avoid damage.

What safety precautions should I take?

Always unplug when not in use or cleaning. Use the pusher, never fingers. Keep hands away from hopper. Do not operate continuously for more than 5 minutes; rest for 1 minute between cycles.

USER MANUAL OPC566E DK2 Power

4301 S Valley View Blvd STE 10-11

Las Vegas, NV 89103

1-702-331-5353

DETAIL K2, INC.

1080 Clay Avenue Unit 2

Burlington, Ontario, Canada L7L0A1

DK2 USA EAST

6245 Industrial Parkway

Whitehouse, OH 43571

TOLL FREE 1-888-277-6960 EMAIL - [e-mail]

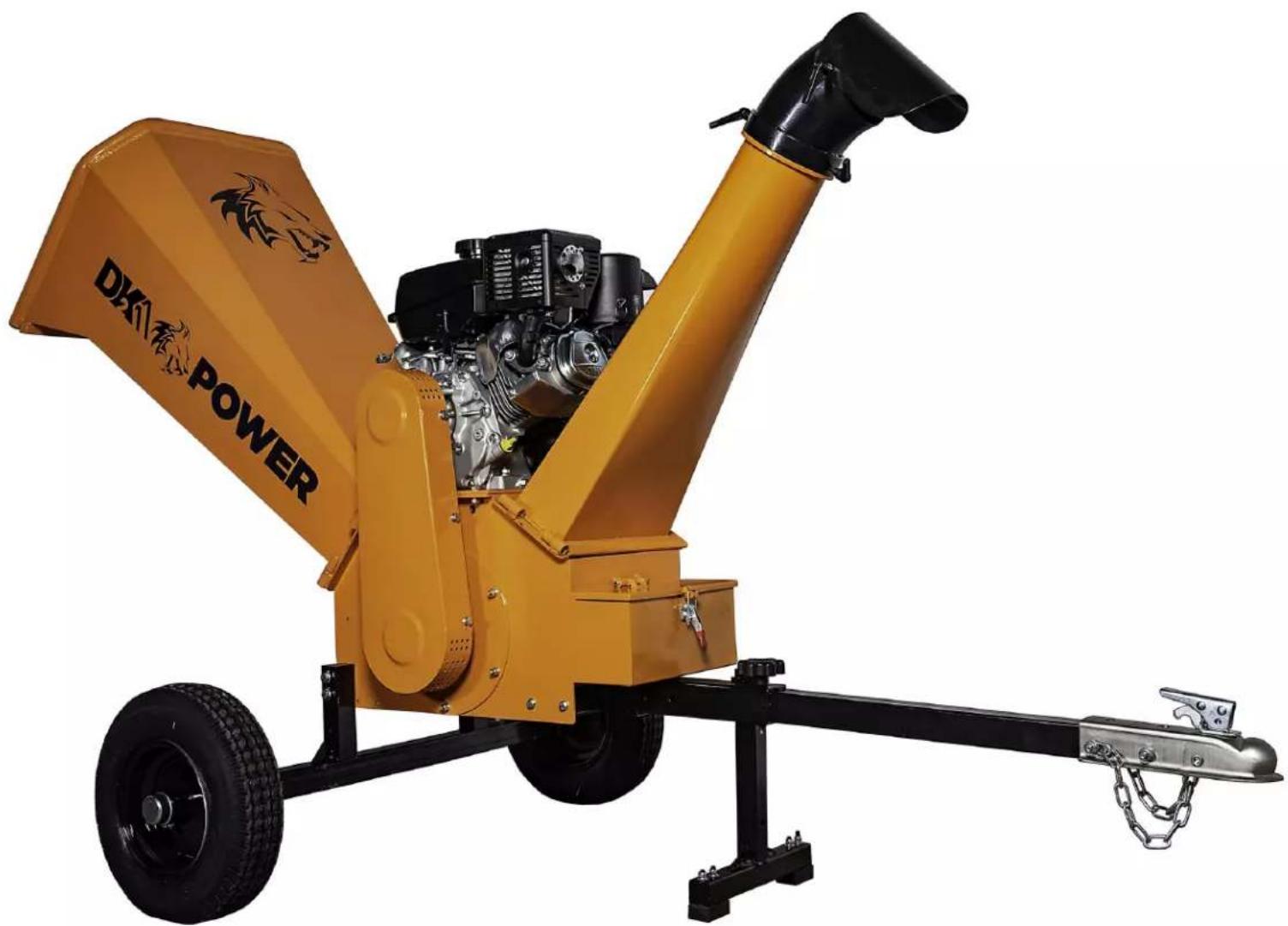

COMMERCIAL CHIPPER

SWING CHUTES

TOWABLE

KOHLER ENGINE

Yellow Dkk Power manual snowblower with visible engine and support structure (no text or symbols on the machine itself)

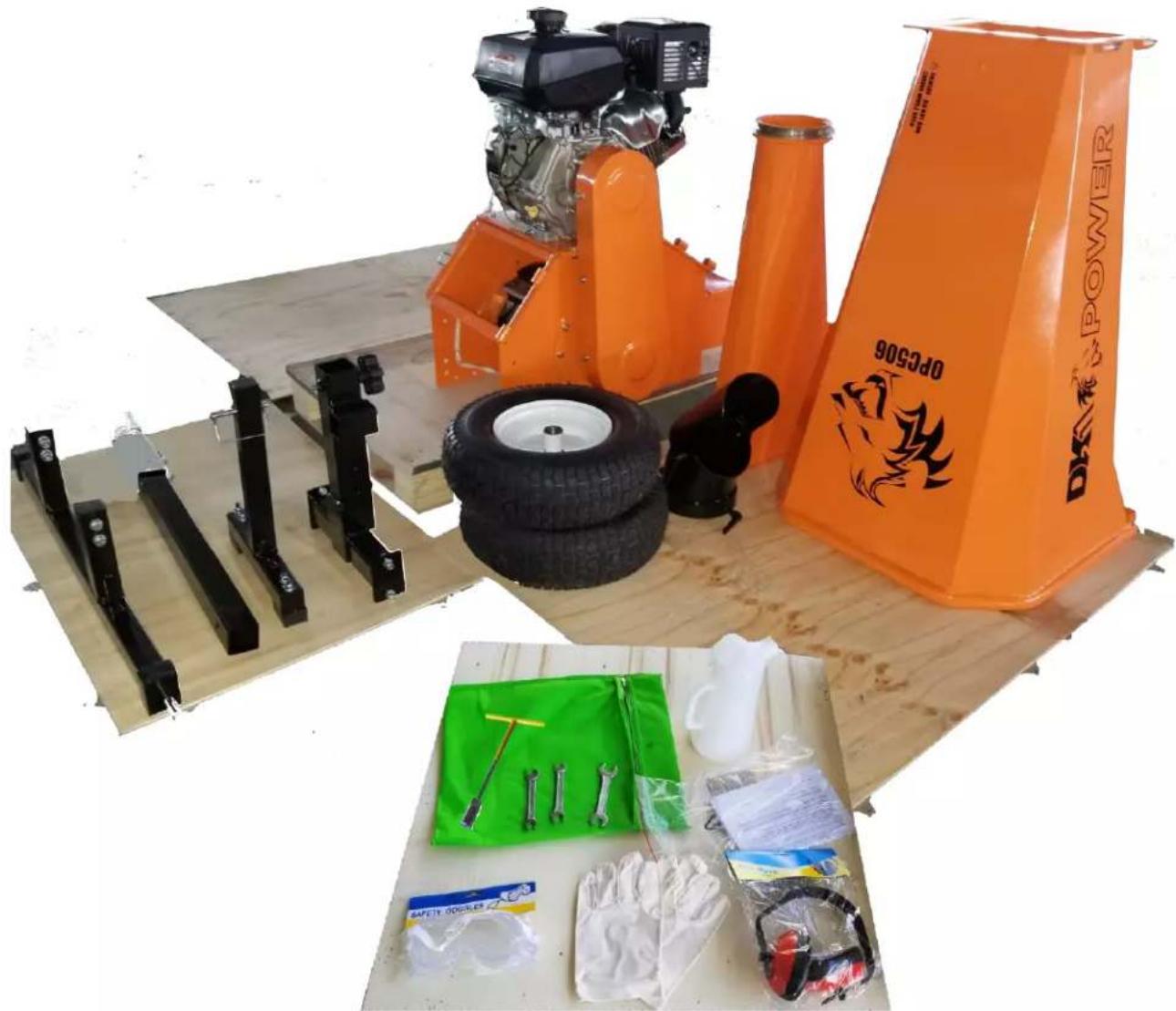

Open and unpack all items. Leave lots of working space. Inspect all parts.

The Chipper is shipped in a crate. Leave the sides folded down and use as your work space.

Exterior view of an orange agricultural machine with visible tire, mechanical components, and safety gear (no text or symbols)

NOTE: UPON INSPECTION OF PARTS IF YOU FIND ANY DAMAGE OR MISSING PARTS PLEASE CALL DK2 POWER AT 702-331-3535 OR CONTACT US VIA OUR WEBSITE WWW.DK2POWER.COM

WE WILL REPLACE ANY DAMAGED or MISSING PARTS TO YOU FREE

PLEASE DO NOT RETURN TO THE STORE

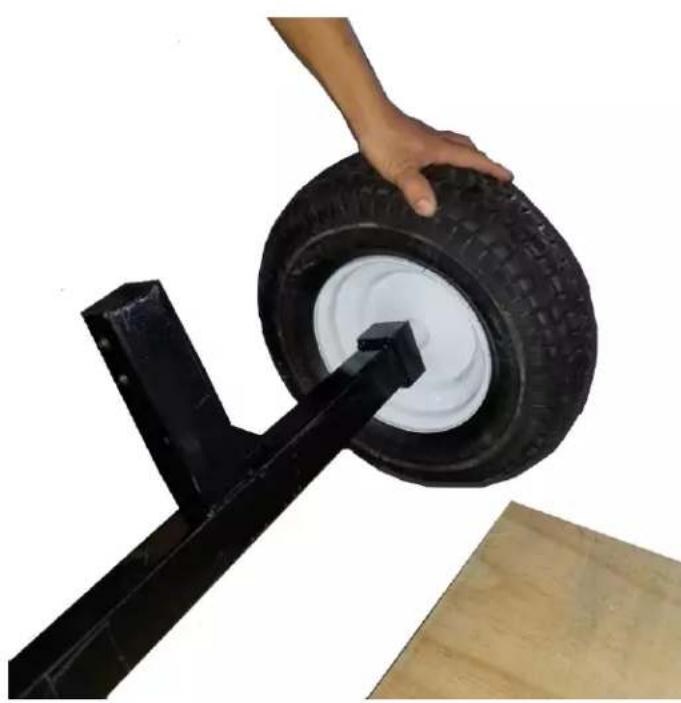

STEP 2:

1. Remove all hardware from axle.

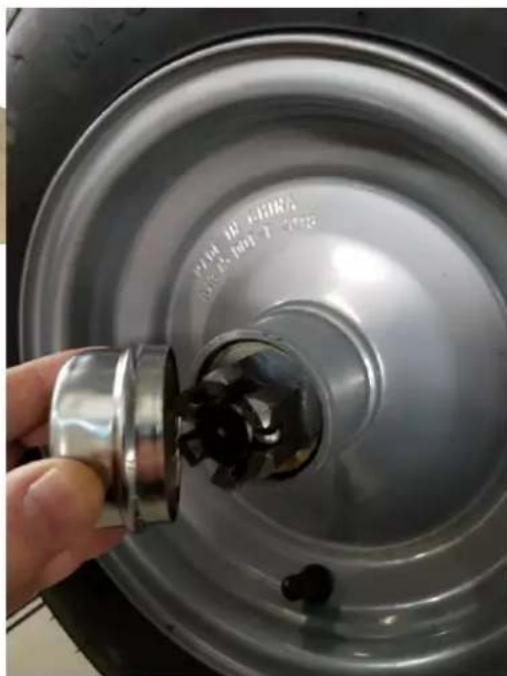

2. Install 2 wheels with washers, nuts, cotter pins and caps.
3. Your chipper tires are DOT approved and you can tow on the road. Safely tow at 25 mph max is recommended.
4. The extended axle is standard and adds stability on hills and corner turns when towing.

Hand pressing a tire on a black metal support structure, with wooden base nearby (no text or symbols visible)

Close-up of a hand pouring liquid into a metallic mechanical component, with no visible text or symbols.

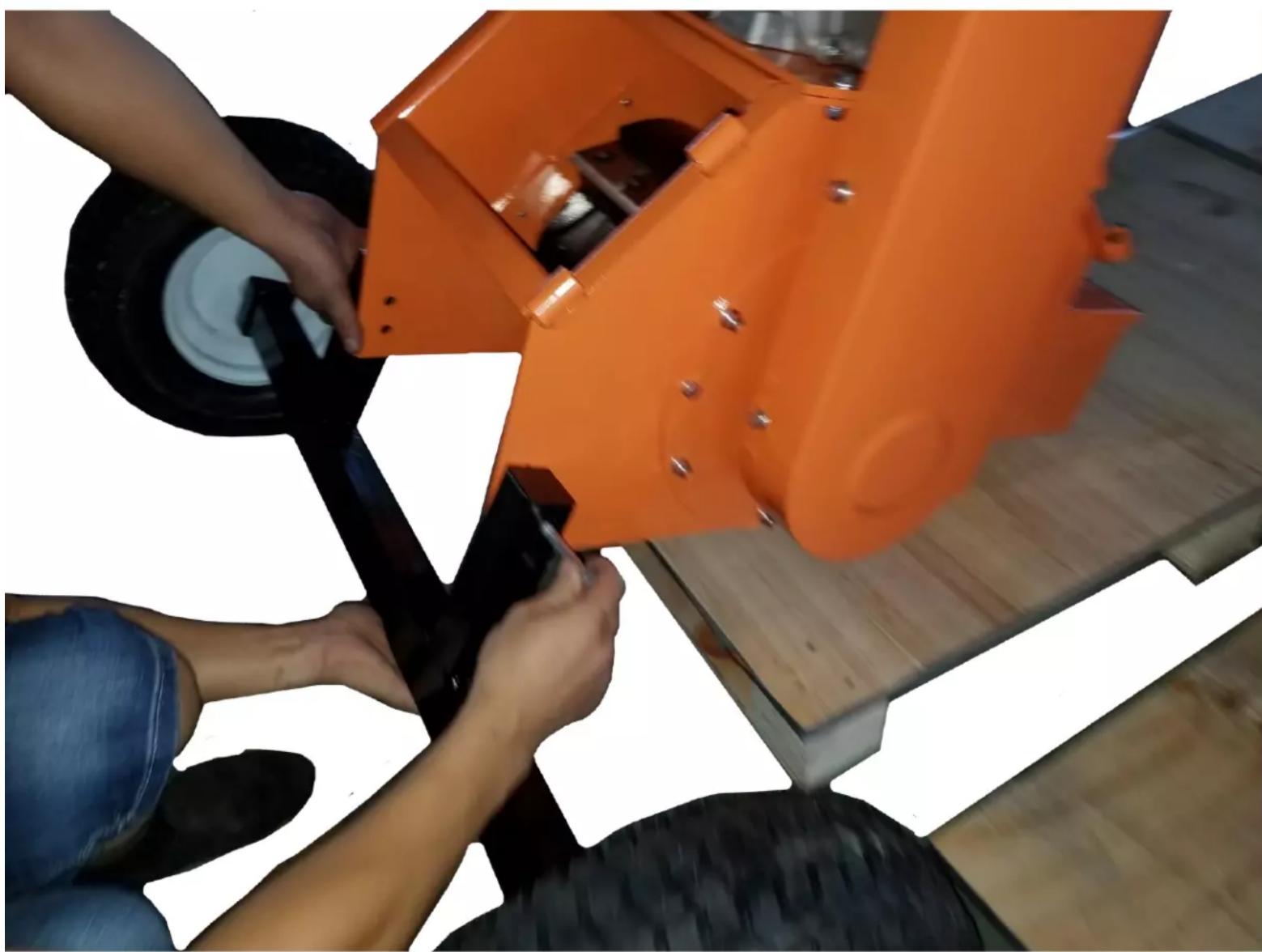

STEP 3:

1. Place rear wheel axle assembly on Chipper using supplied bolts and install both wheels.
2. Install the bolts from the OUTSIDE with the nuts on INSIDE.

Person assembling a large orange vehicle wheel on a wooden platform (no visible text or symbols)

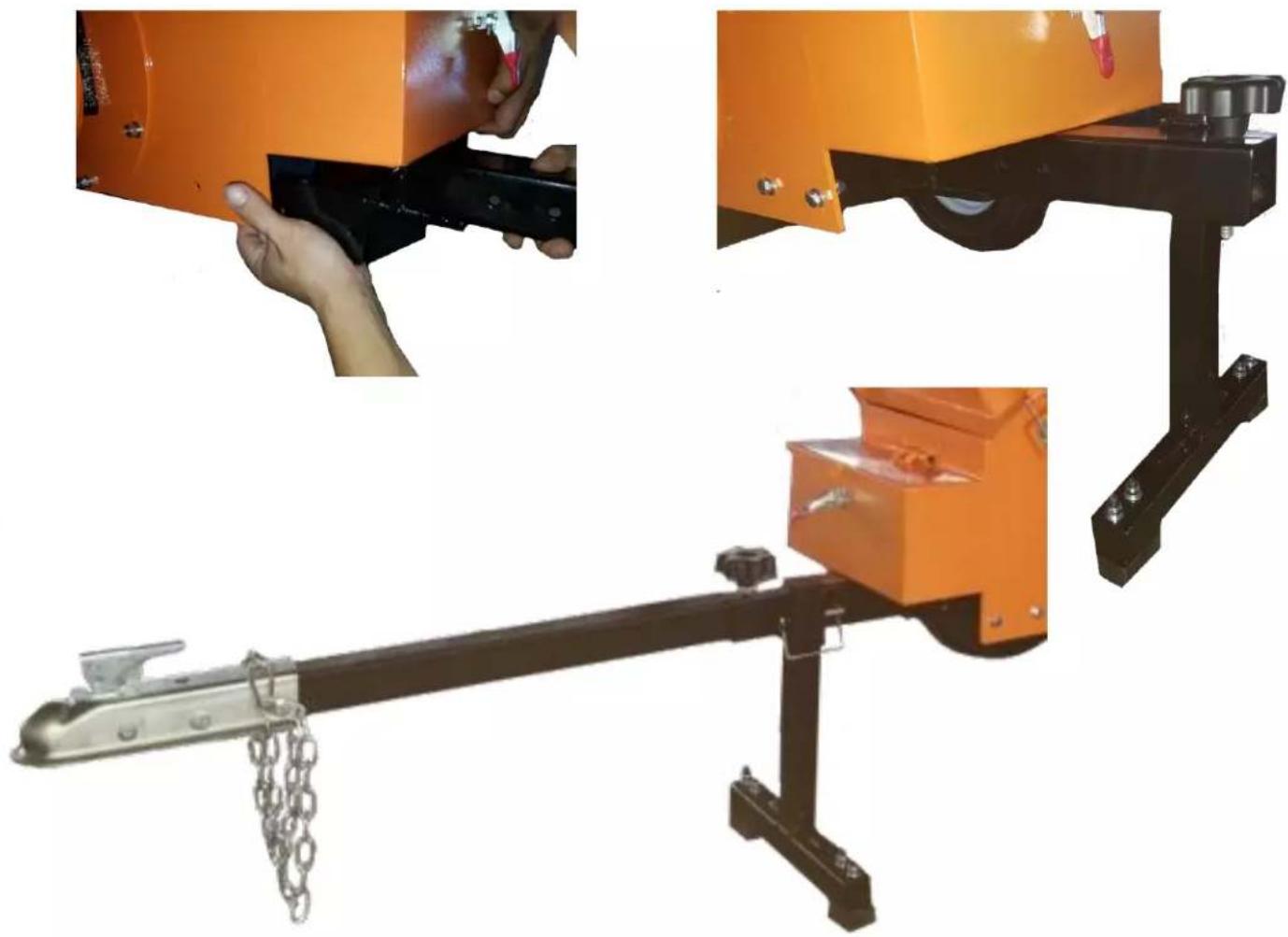

1. INSTALL THE TOW BAR HITCH USING 4 BOLTS. PLACE BOLTS FROM OUTSIDE AND PLACE NUTS ON INSIDE.
2. ASSEMBLE TOW STAND AND INSERT THE HITCH PIN
3. INSERT TOW BAR AND SECURE WITH TOW BAR SCREW LOCK

Three-panel image showing a hand operating an orange industrial machine, with no visible text or symbols.

1. INSTALL CHIP CHUTE ON BARN HINGES. SWING CHUTE CLOSED AND LOCK IT.
2. A RUBBER MALLET MAY BE USED IF NEEDED TO SET THE BARN HINGE PINS INTO THE MATING HINGES FOR THE FIRST TIME INSTALL.

Three orange industrial machines with visible internal components, one labeled 'KOHLER' and Chinese text (no technical symbols or numbers on the machines themselves)

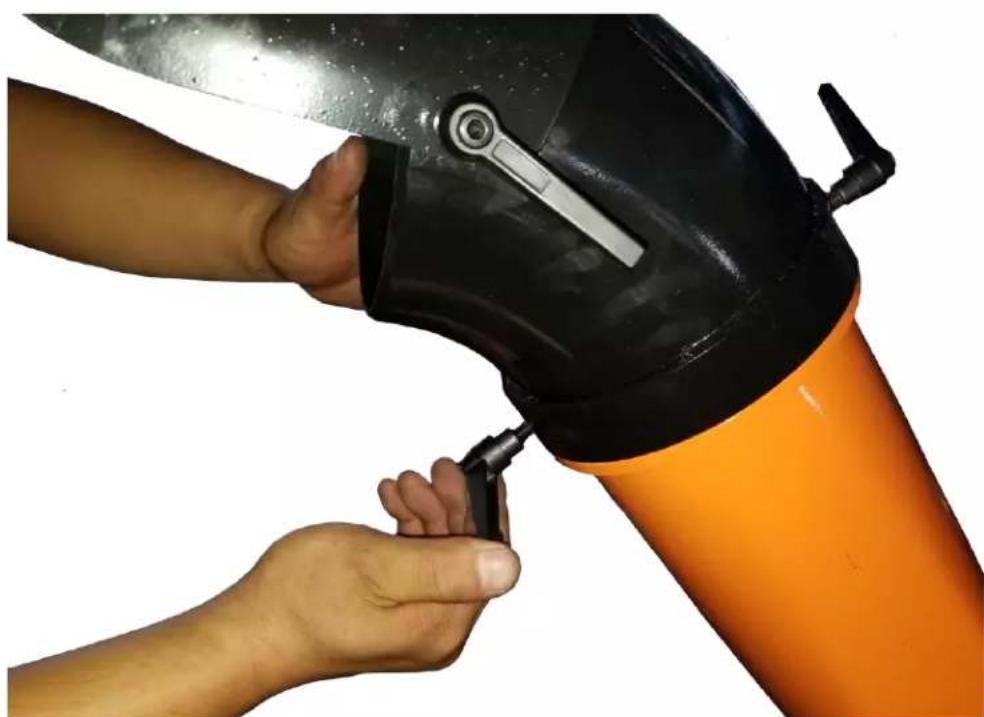

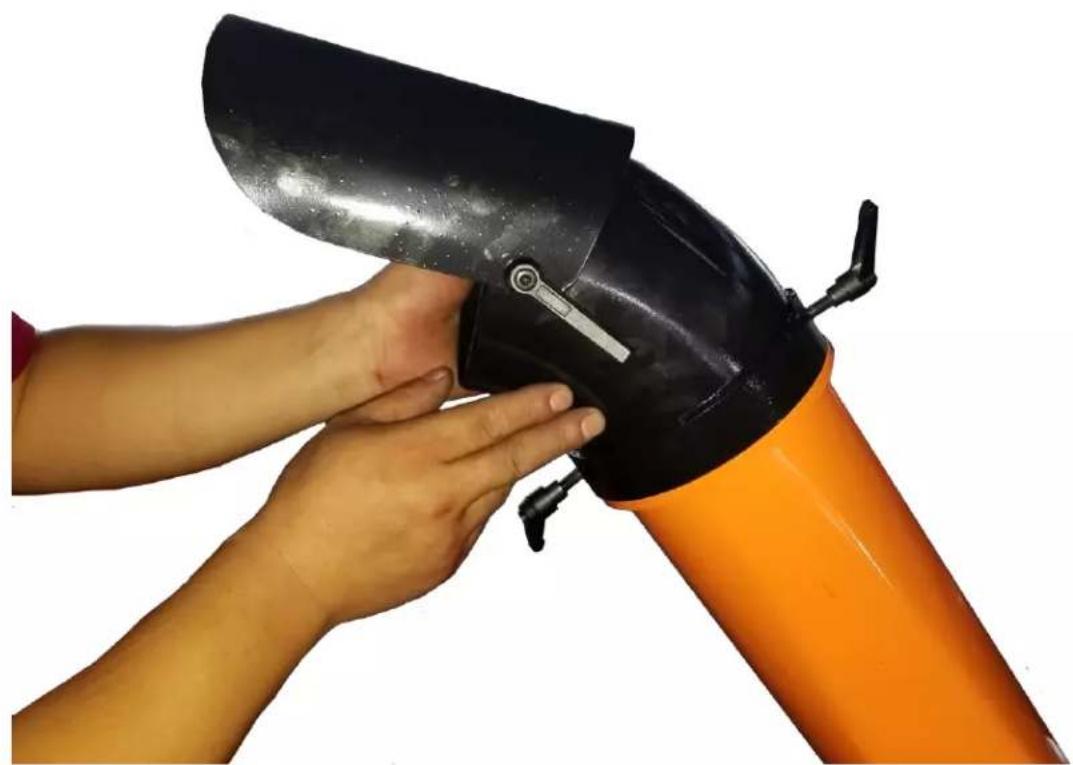

1. Install the Chip Chute Directional Deflector and tighten the locking handles.

Close-up of hands operating a black and orange portable device with a handle (no text or symbols visible)

Close-up of hands operating a black and orange industrial machine tool (no visible text or symbols)

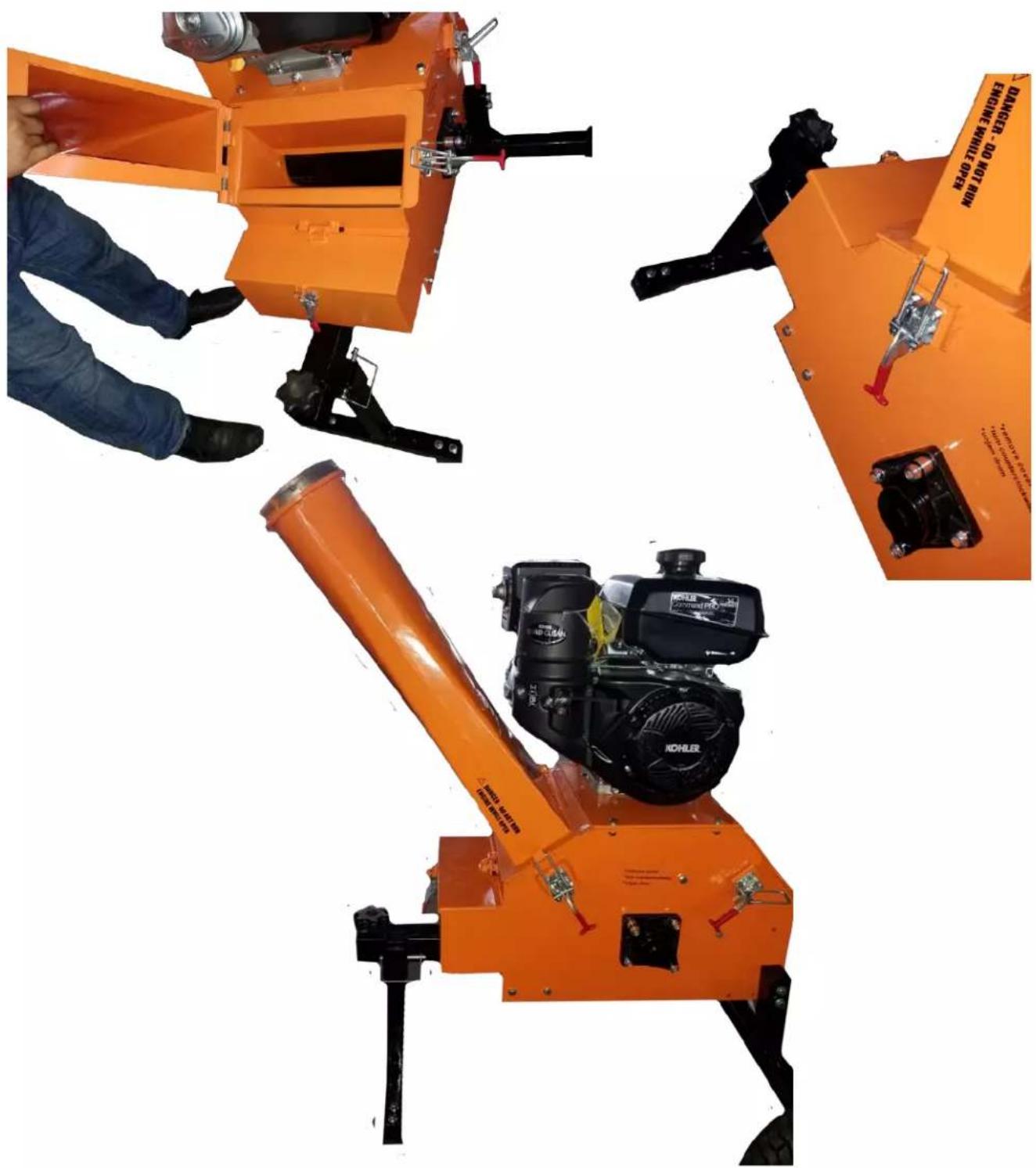

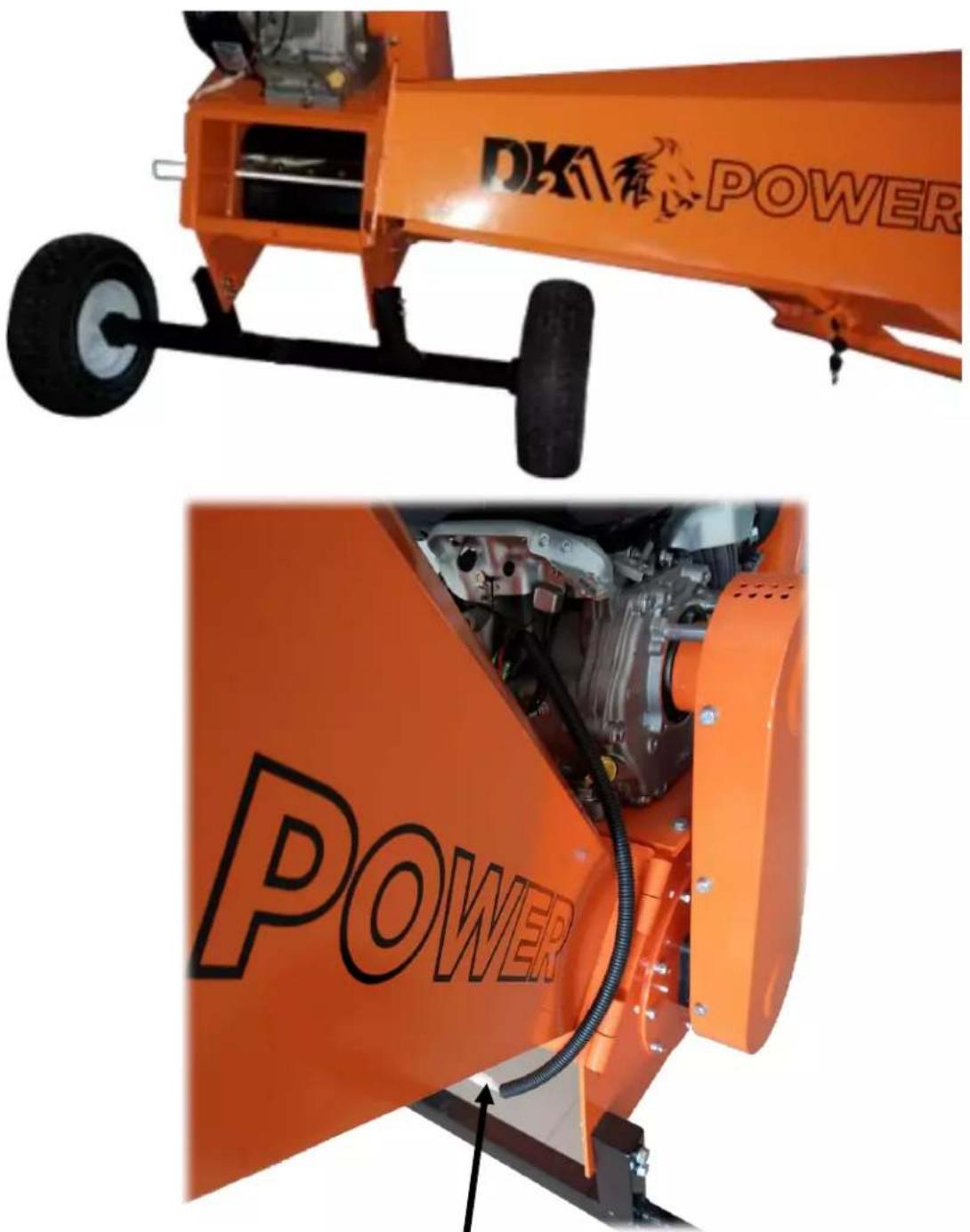

1. Install the feed chute on the 2 hinges. To seat the hinge pins for the first time a rubber mallet may be used to tap the pins into the hinges. These are tight fitting to reduce vibration noise.

2. Close the Chute and latch it.

3. Plug the safety key shut off wire connectors together.

CONNECT WIRING CONNECTORS

READ THE KOHLER ENGINE MANUAL SUPPLIED WITH YOUR UNIT FOR FULL ENGINE OPERATION, SAFETY, AND MAINTENANCE.

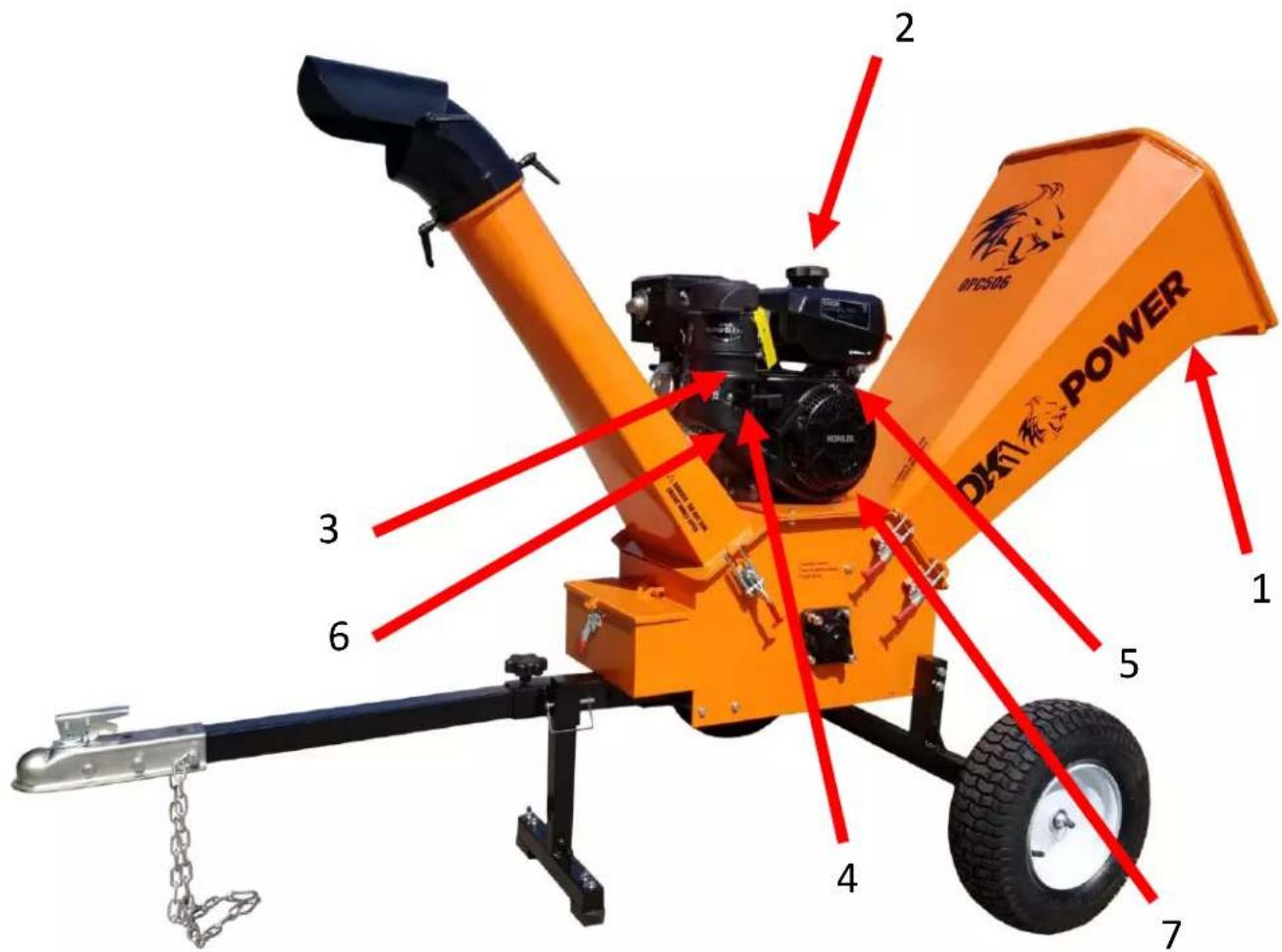

1	ON/OFF KEY LOCK
2	GAS – USE MID GRADE OR HIGHER
3	CHOKE – LEFT IS ON / RIGHT IS OFF (RUN POSITION)
4	GAS ON/OFF SWITCH – LEFT IS OFF / RIGHT IS ON
5	THROTTLE – RABBIT FAST / TURTLE SLOW
6	PULL STARTER– PULL TIGHT- THEN PULL START
7	OIL – FILL TO MARK 10W30, WILL NOT START IF OIL IS LOW, HAS LOW OIL SHUTOFF PROTECTION. 2 YELLOW CAPS ARE OIL FILL CAPS. USE EITHER ONE TO FILL OIL.

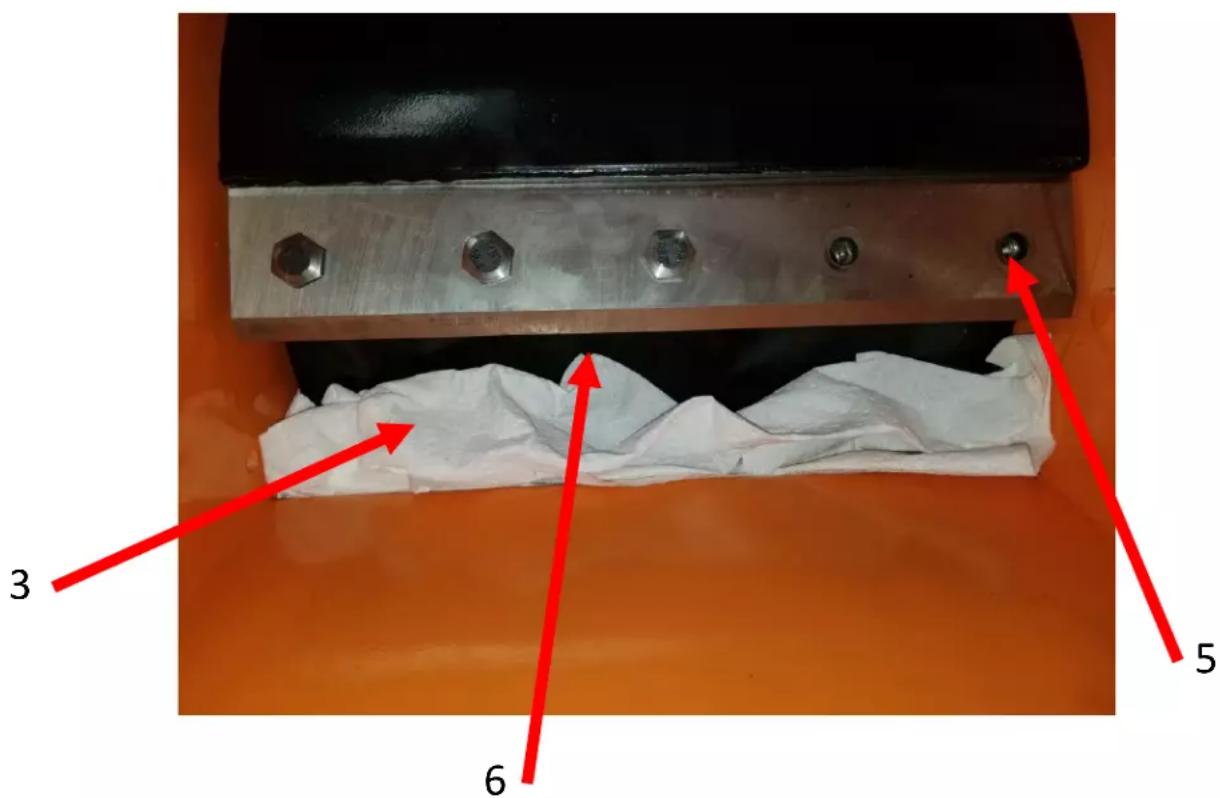

Your Chipper is equipped with dual REVERSABLE cutting blades.

1. Turn engine key off, remove key and unplug the spark plug.
2. Open the large feed chute
3. Before removing the bolts that mount the blades place paper towels in the area opening between the drum and the drum housing. This will prevent bolts from dropping into the drum housing.
4. Remove the first 4 bolts.
5. Before removing the last bolt be sure to support the blade from sliding down into the drum. More paper towels or a shop towel does a good job.
6. Remove the blade, reverse it to the new sharp edge and reinstall it. Use only DK2 POWER OEM blades.
7. Use Loctite on the bolt threads when replacing bolts.
8. Use the supplied T-Handle tool to remove and replace bolts
9. Wear protective gloves, the blades are very sharp.
10. Remove the paper towels, any paper left in the chipper will be cut up on the next running operation.

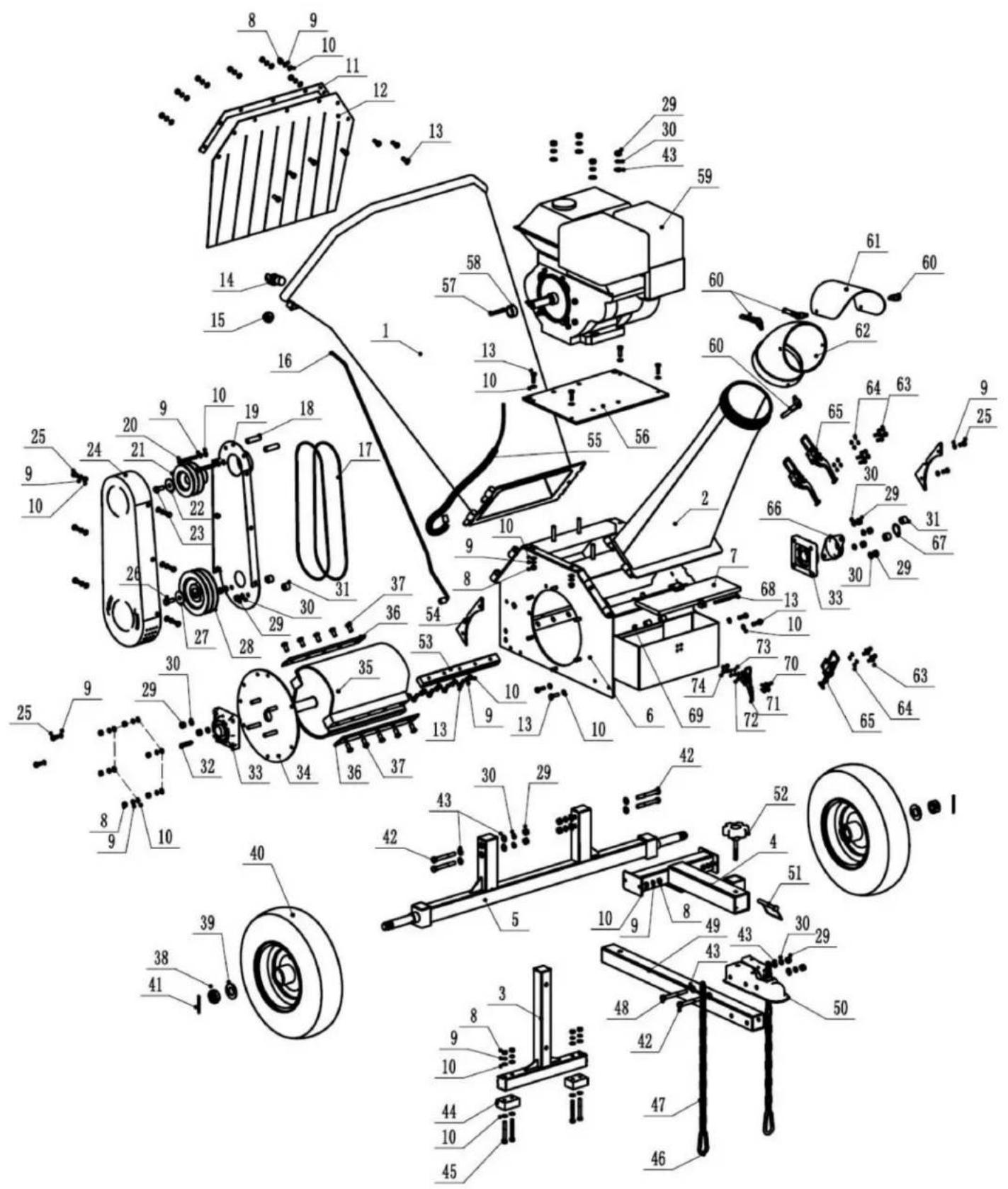

No. Specification	No. Specification
1feed hopper	38Hexagonal slotted thin nutM24*1.5
2outlet hopper	39washerø25*ø47.5*3.0
3support foot	40DOT Tire
4tow bar connecting part	41pinø4.0X40
5wheel axle	42boltM10*80
6crush house	43washerø10*ø22*2.2
7tool box cover	44rubber
8M8 locknut	45boltM8*65
9ø8lockwasher	46buckle
10washerø8*ø16*1.6	47chain
11plate for protection sheet	48boltM10*90
12protection sheet	49tow bar
13hexagon headed boltM8X25	50hitch trailer
14key switch	51Square latch
15pipe plug	52M10 knob
16wire	53blade gap adjusting plate
17belt	54feeding helper plate
18Spacer sleeveø9*ø14*44	55engine wire
19Belt cover accessory plate	56engine plate
20 boltM8*60	57key
21engine pulley	58Spacer sleeveø26*ø35*15
22washerø10*ø40*3.0	59engine
23bolt3/8-24UNF-25	60knob
24belt cover	61outlet hopper adjusting plate
25 boltM8*16	62upper part of outlet hopper
26boltM10X25	63bolt M6*16
27washerø10*ø40*3.0	64ø 6lockwasher
28rotor pulley	65clip
29M10locknut	66bearing cap
30ø10lockwasher	67B shaft ringø30
31Spacer sleeveø11*ø20*17	68Inside hexagonal cylindrical head screwM6*90
32key	69M6locknut
33Mounted Bearings	70boltM5*16
34steel plate for Mounted Bearing	71clip
35rotor	72washerø5*ø10*1.0
36blade	73ø 5lockwasher
37blade bolt	74M5locknut

CLEAR AREA OF ALL PEOPLE AND PROPERTY THAT COULD BE DAMAGED. THINK SAFETY. CHIPS ARE FLYING PROJECTILES AND CAN CAUSE INJURY. CHECK BOTH CHUTES AND MAKE SURE THEY ARE CLOSED AND LOCKED. WEAR SAFETY GLASSES, HEARING PROTECTION, AND GLOVES

DO NOT WEAR LOOSE FITTING CLOTHES THAT COULD GET STUCK IN THE CHIPPER

ONLY CHIP WOOD, NO METAL OR PLASTIC.

CHILDREN SHOULD NOT RUN THIS EQUIPMENT

STAY ALERT OF YOUR SURROUNDING AND PERSONS THAT COULD APEAR IN THE CHIP PATH WHILE YOU ARE WORKING.

FEED LARGE DIA TREES SLOWLY INTO THE CUTTING DRUM ALLOWING THE DRUM TO REGAIN RPM AND CUTTING SPEED BETWEEN CUTS.

RUN ALL CONTENTS IN THE HOPPER THROUGH THE MACHINE BEFORE SHUTTING ENGINE OFF TO PREVENT LOOSE WOOD FROM LOGING BETWEEN BLADES JAMMING DRUM BEFORE YOUR NEXT ENGINE START UP. REMOVE SMALL SIDE COVER WITH 2 NUTS AND TURN DRUM COUNTERCLOCKWISE TO FREE UP WOOD STUCK IN THE BLADE.

NEVER RUN CHIPPER WITH CHUTES OPEN. RUNNING A MACHINE WITH CHUTES OPEN CAN CAUSE INJURY OR DEATH.

READ AND OBEY ALL WARNING LABELS ON THIS MACHINE.

TOW THE MACHINE 25 MPH MAX.

DK\ POWER

PLEASE DO NOT RETURN TO THE STORE

YOU HAVE A 1 YEAR WARRANTY AND DK2 WILL REPLACE A DEFECTIVE PART FOR FREE

CALL US AT 702-331-5353 FOR FAST WARRANTY PARTS AND QUESTIONS

WHAT IS COVERED

DK2 Inc. warrants to the original purchaser of any DK2 product that it will be free and clear of manufacturing defects in workmanship and materials under normal use and service for a period of one (1) year from the date of the original purchase.

If within one (1) year from the original date of purchase this product fails due to defect in material or workmanship, Detail K2 will repair, replace, or supply any defective part at our option for DK2 trailer products. DK2 POWER outdoor power equipment is 1-year parts only warranty no labor.

Upon expiry of one (1) year, Detail K2 will have no further liability related to the product. Detail K2 does not authorize any party, including its authorized distributors or dealers, to offer any other warranty on behalf of Detail K2 Inc.

KOHLER ENGINES – KOHLER CH SERIES ENGINES COMMERCIAL 3 YR PARTS AND LABOR WARRANTY KOHLER ENGINES – KOHLER SH SERIES ENGINES RESIDENTIAL 2 YR PARTS AND LABOR WARRANTY see your Kohler manual for specific warranty.

DIESEL TRACTORS – Chassis component parts only, no labor, ENGINES – 1 YR KOHLER WARRANTY 3PT EQUIPMENT – 1-YEAR parts only, Gearbox drive unit 3-year warranty parts only.

DK2 POWER OUTDOOR EQUIPMENT – 1-Year parts only, no labor. 3-year commercial Kohler warranty.

THIS WARRANTY DOES NOT COVER OR APPLY TO:

Damage to the product due to misuse, mishandling and abuse

(b) Improper installation, maintenance and storage
(c) Expendable parts such as nuts and bolts, pins and springs, wiring and switch components, hydraulic hoses and fittings, cutting teeth, cutting chains, cutting blades, throttles, belts and tires.
(d) Normal wear and tear
(e) Consequential damage & incidental damages such as damage to persons or property

PROCEDURE FOR OBTAINING AN RETURN AUTHORIZATION

Within the one (1) year warranty period, the purchaser of the product must notify DK2 of the claimed defect and provide proof of original purchase. At this time the validity of the claim will be determined, and if approved replacement parts will be issued.

A Return Goods Authorization Number (RGA) will be issued if approved for DK2 Automotive products. No returned product will be accepted under warranty unless accompanied by an RGA# issued by Detail K2 Inc.

RESOLUTION FOR A DEFECTIVE PRODUCT

DK2 POWER – Tractors, Chippers, Stump Grinders, Log Splitters, 3pt, and Outdoor Power Equipment.

Call DK2 at 702-331-5353 in Las Vegas between 8am-4pm M-F Pacific Time.

DK2 Snow, Trailer, Rack and Winch Products.

Call DK2 at 888-277-6960 in Burlington Canada between 8am-4pm M-F Eastern Time.
