Type of Product	Stump Grinder
Brand	DK2 Power
Model	OPG777
Engine	14HP Kohler Command PRO (gasoline)
Cutting Width	3.5 inches
Number of Cutting Teeth	9 carbide cutters (extra set included)
Drive System	Direct dual belt drive (no clutch)
Towing Capability	Tow bar included; off-road towing only
Fuel Type	Mid grade or higher gasoline
Oil Type	10W30; low oil shutoff protection
Safety Equipment Required	Safety glasses, hearing protection, gloves
Warranty	1 year parts only (DK2 Power); Kohler engine separate warranty
Belt Tension Specification	0.25 inch movement above/below normal position
Wheel Brake Mechanism	Pin through wheel hub to brake; pin only axle for free rolling
Assembly Required	Yes; handles, throttle, bow handle, tow bar
Extra Teeth Included	Yes, one set of 9 carbide cutters
Engine Start	Pull starter; key switch; choke left ON, right OFF
Cutting Depth Control	Lower cutter into top of stump; repeat passes
Product Weight	Not specified in manual
Dimensions	Not specified in manual

Frequently Asked Questions - OPG777 DK2 Power

What should I do if the engine won't start?

First, ensure the key switch is ON. Check engine oil level and gas level. If problem persists, unplug the key switch; if engine starts, replace the key switch. Refer to your Kohler engine manual for further troubleshooting.

How do I adjust the belt tension?

Loosen the 4 engine mounting bolts. Use adjustment bolts to move the engine, changing tension on belts. Proper tension is set when belt movement is approximately 0.25 inches above and below its normal position. Retighten bolts after adjustment.

What causes excessive vibration during operation?

Check cutters for missing or loose teeth. Also inspect the cutter wheel pillar bearing mounting bolts. Tighten or replace as needed.

How do I start the stump grinder?

Tip the stump grinder with cutters off the ground. Ensure key is ON, choke in correct position (left for ON), throttle at fast (rabbit). Pull starter firmly. Engine must be at highest speed when cutting.

What safety precautions should I take?

Wear safety glasses, hearing protection, and gloves. Clear area of people and property. Do not wear loose clothing. Only chip wood. Children should not operate. Stay alert of surroundings.

How do I use the wheel brake for towing?

For transport in trailer or pickup, insert pin through wheel hub AND axle to brake both wheels (dual brake). For free rolling during grinding, pin only the axle to allow wheel to spin freely.

What is covered under warranty?

DK2 Power outdoor equipment has a 1-year parts only warranty (no labor). Kohler engines have separate warranty: CH series 3yr parts/labor, SH series 2yr parts/labor. Defective parts replaced free. Contact DK2 for RGA if needed.

What maintenance is required?

Regularly check belt tension and tighten engine mounting bolts. Check cutters for wear or damage. Follow Kohler engine manual for engine maintenance. Use DK2 OEM replacement belts.

How do I install the cutting teeth?

Install teeth in RCL (Right Center Left) pattern: Right, Center, Left, Right, Center, Left, Right, Center, Left. The unit has 9 teeth with a 3.5-inch cutting path.

What type of fuel and oil should I use?

Use mid grade or higher gasoline. For oil, use 10W30 and fill to mark. The engine has low oil shutoff protection; it will not start if oil is low. There are two yellow oil fill caps; use either one.

USER MANUAL OPG777 DK2 Power

4301 S Valley View Blvd STE 10-11

Las Vegas, NV 89103

1-702-331-5353

DETAIL K2, INC.

1080 Clay Avenue Unit 2

Burlington, Ontario, Canada L7L0A1

DK2 USA EAST

6245 Industrial Parkway

Whitehouse, OH 43571

TOLL FREE 1-888-277-6960 EMAIL - [e-mail]

Orange manual tiller with attached hydraulic cylinder and mechanical components, accompanied by a 14HP KOHLER ENGINE diagram showing disassembled parts.

3.5 WIDE CUT

TOWABLE

14HP KOHLER ENGINE

OFF ROAD TOWING ONLY

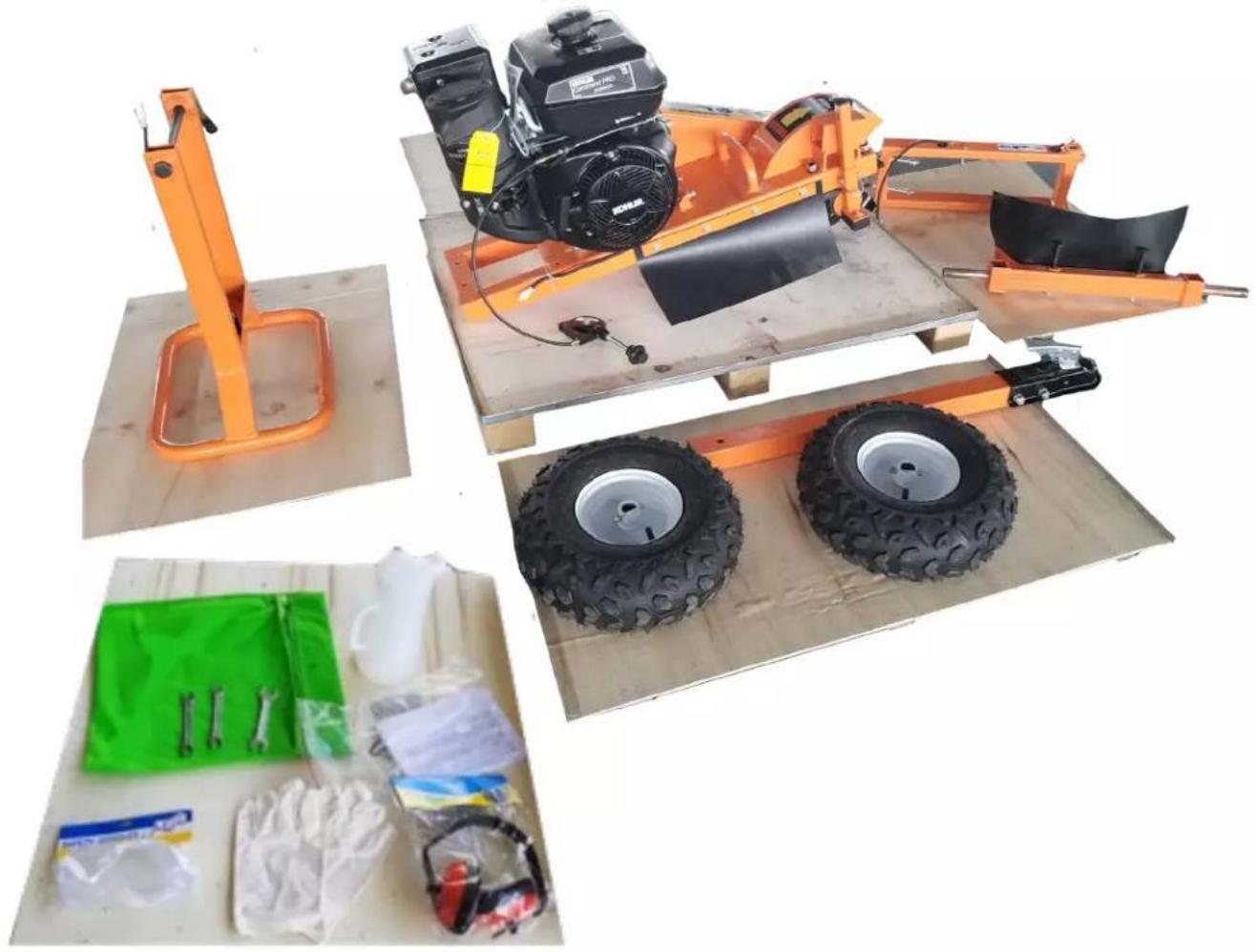

Open and unpack all items. Leave lots of working space. Inspect all parts.

The Stump Grinder is shipped in a crate. Leave the sides folded down and use as your work space.

Three-panel photo showing a small orange agricultural machine, a mechanical device with a black compressor, and a green safety bag with visible components (no text or symbols)

NOTE: UPON INSPECTION OF PARTS IF YOU FIND ANY DAMAGE OR MISSING

PARTS PLEASE CALL DK2 POWER AT 702-331-3535 OR CONTACT US VIA

OUR WEBSITE WWW.DK2POWER.COM

WE WILL REPLACE ANY DAMAGED or MISSING PARTS TO YOU FREE

PLEASE DO NOT RETURN TO THE STORE

STEP 2:

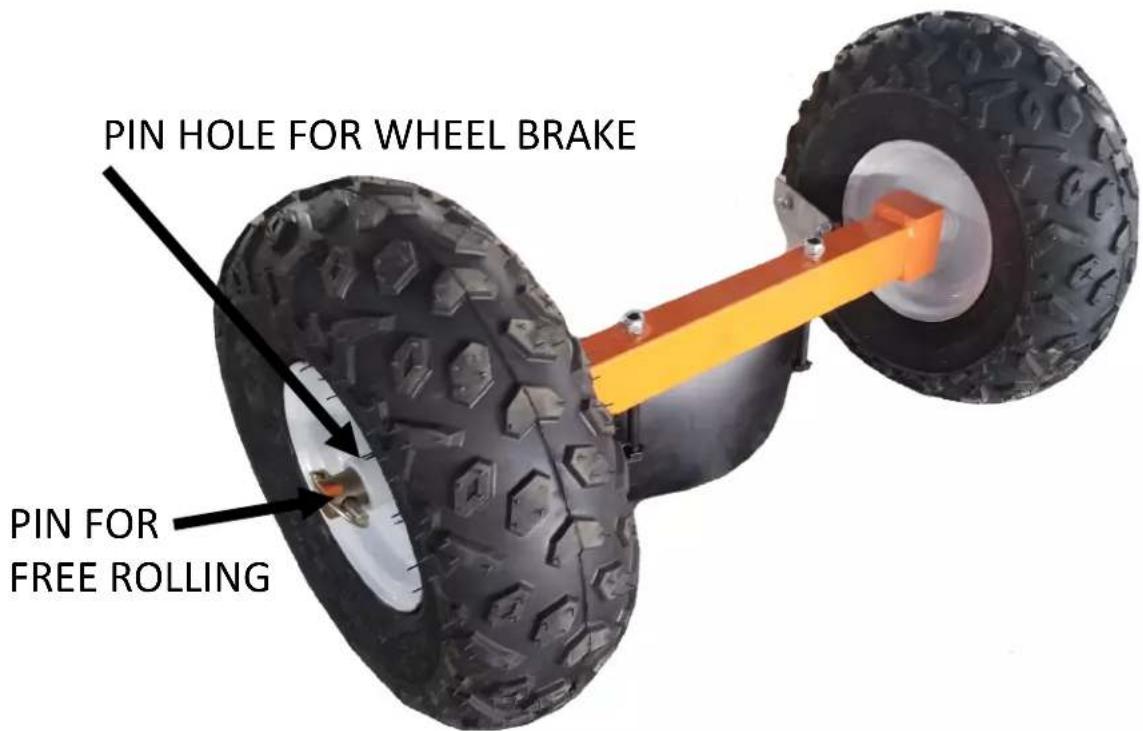

1. Slide wheels onto axle and install Lynch Pins.
2. To BRAKE one pivot wheel while stump grinding PIN through Wheel hub and axle to brake wheel from turning.
3. Pin ONLY the axle to allow the wheel to spin freely.
4. During transport in trailer or pickup PIN BOTH WHEELS for dual wheel brakes.
5. Install axle onto frame with 2 bolts and hardware provided.

BOLT AXLE TO FRAME

Close-up of hands assembling a large orange industrial machine component with visible tire and valve (no text or symbols)

STEP 3:

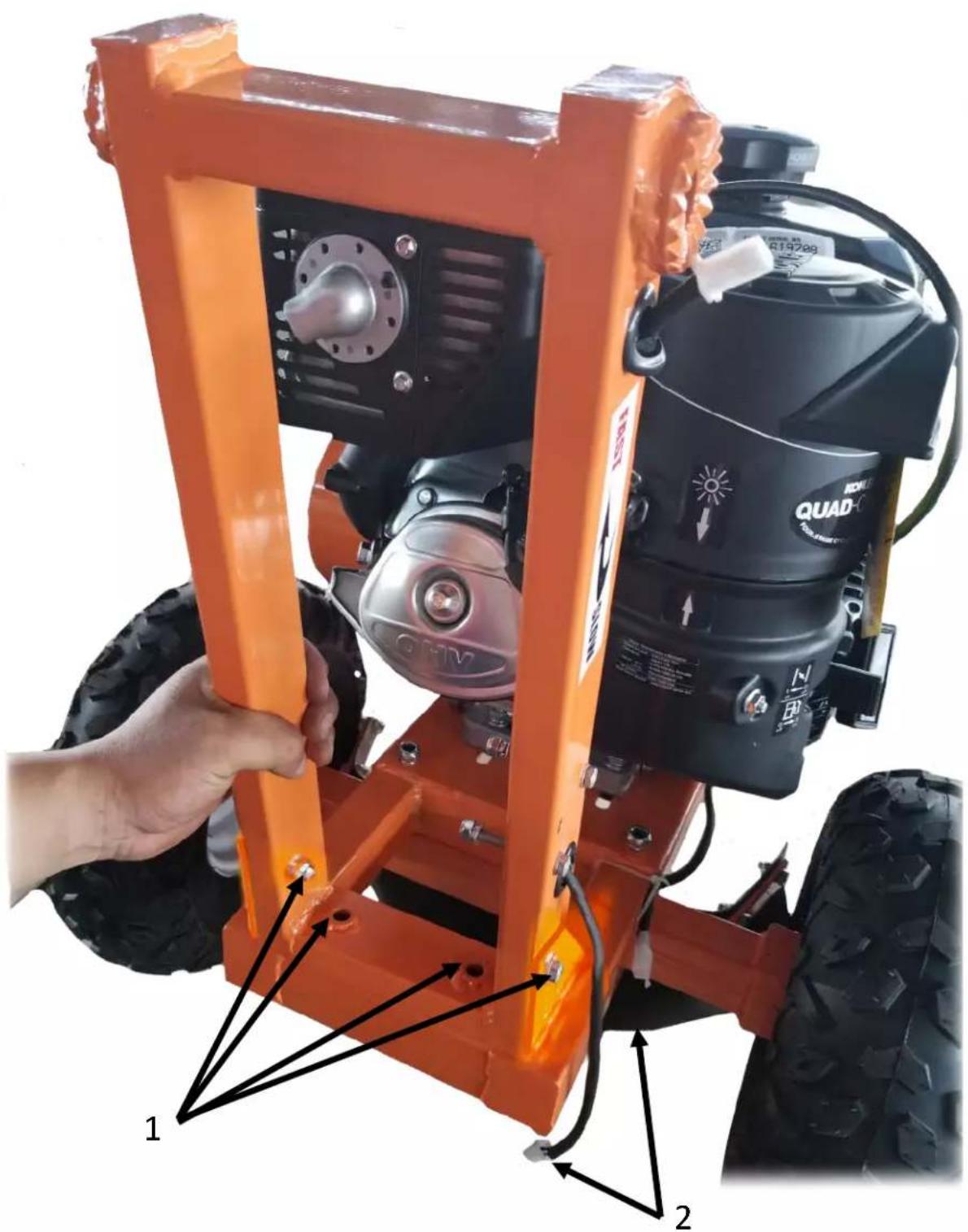

1. Mount the handle tower with the bolts provided.

2. Connect the 2 wire connectors.

STEP 4

1. INSTALL THE THROTTLE ASSY WITH 2 BOLTS PROVIDED.
2. PLACE BOLTS FROM OUTSIDE AND PLACE NUTS ON INSIDE OF HANDLE TOWER.

STEP 5

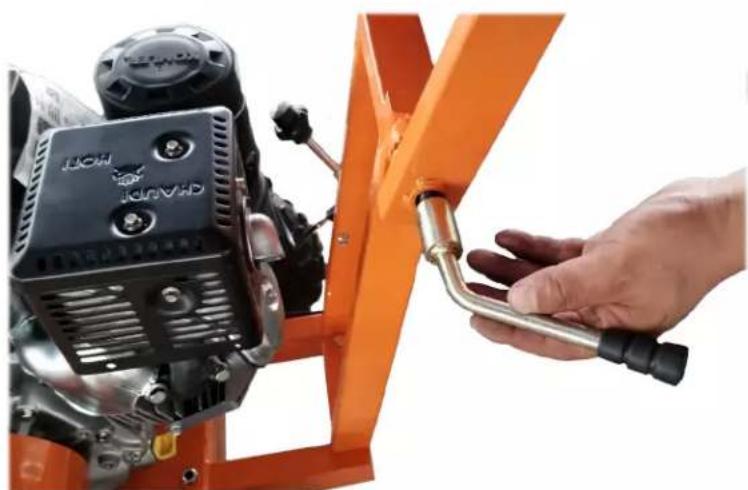

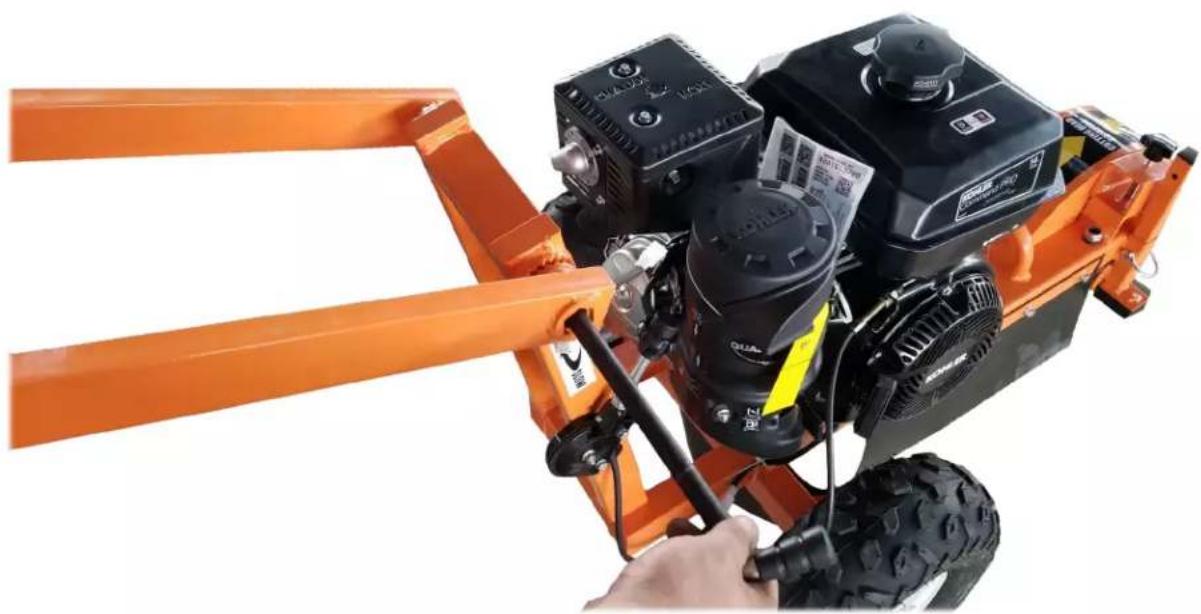

1. INSTALL THE BOW HANDLE WITH THE LONG BOLT.
2. ASSEMBLY THE ADJUSTMENT HANDLE

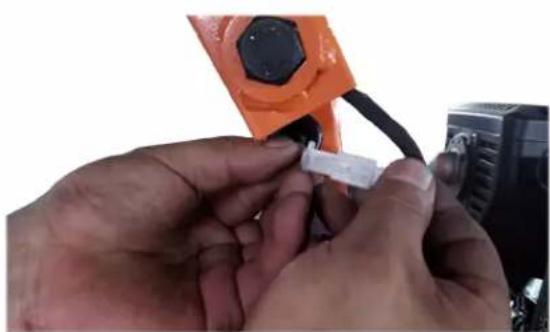

3. CONNECT THE WIRING CONNECTORS.

Close-up of a manual orange snowman with attached black and white equipment, being adjusted by hand (no visible text or symbols)

1

Close-up of a hand holding a metal tool next to an orange industrial machine component (no visible text or symbols)

2

Close-up of hands connecting an orange industrial component to a small white plastic clip (no text or symbols visible)

3

STEP 6

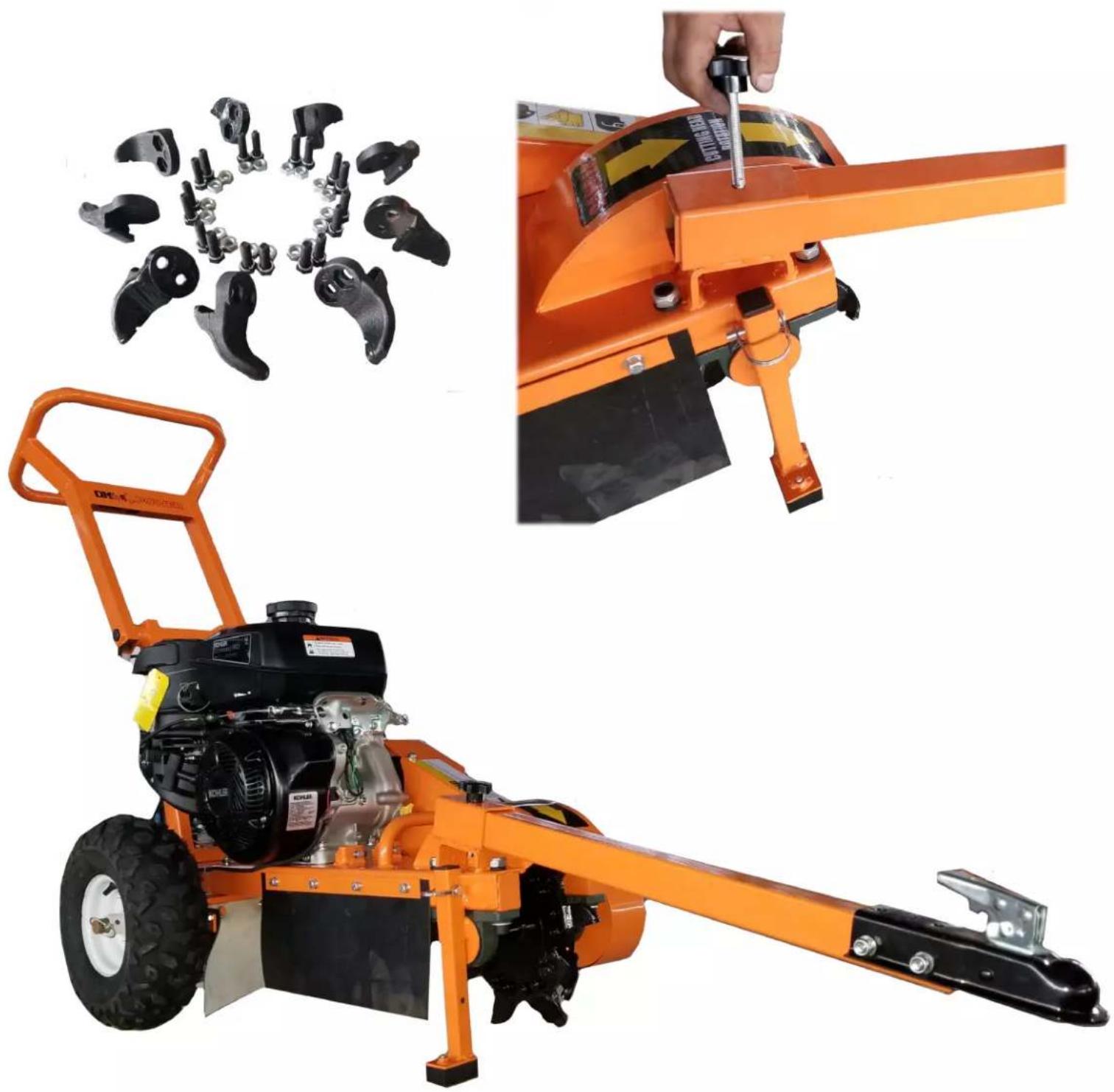

1. INSTALL YOUR TOW BAR AND YOUR DONE! GREAT JOB.
2. YOUR STUMP GRINDER COMES WITH AN EXTRA SET OF TEETH. INSTALL YOUR TEETH "RCL" RIGHT CENTER LEFT RIGHT CENTER LEFT RIGHT CENTER LEFT.
3. Your unit has 9 teeth and a cutting path of 3.5 inches wide.

Composite image showing a small orange manual tiller with mechanical components and a close-up of its workpiece (no visible text or symbols)

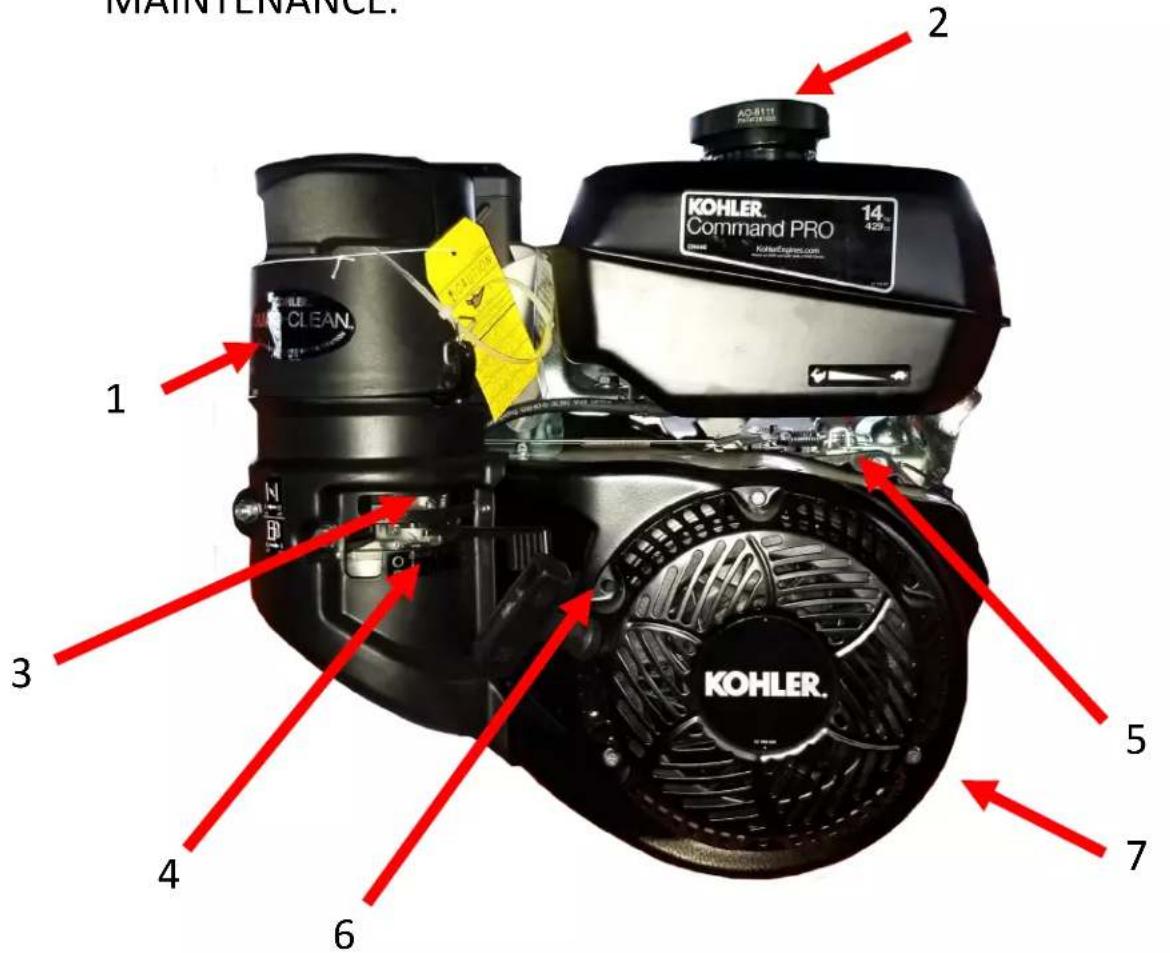

READ THE KOHLER ENGINE MANUAL SUPPLIED WITH YOUR UNIT FOR FULL ENGINE OPERATION, SAFETY, AND MAINTENANCE.

1	Air Filter – Summer and Winter Positions
2 GAS – USE MID GRADE OR HIGHER
3 CHOKE – LEFT IS ON / RIGHT IS OFF (RUN POSITION)
4	GAS ON/OFF SWITCH – LEFT IS OFF / RIGHT IS ON

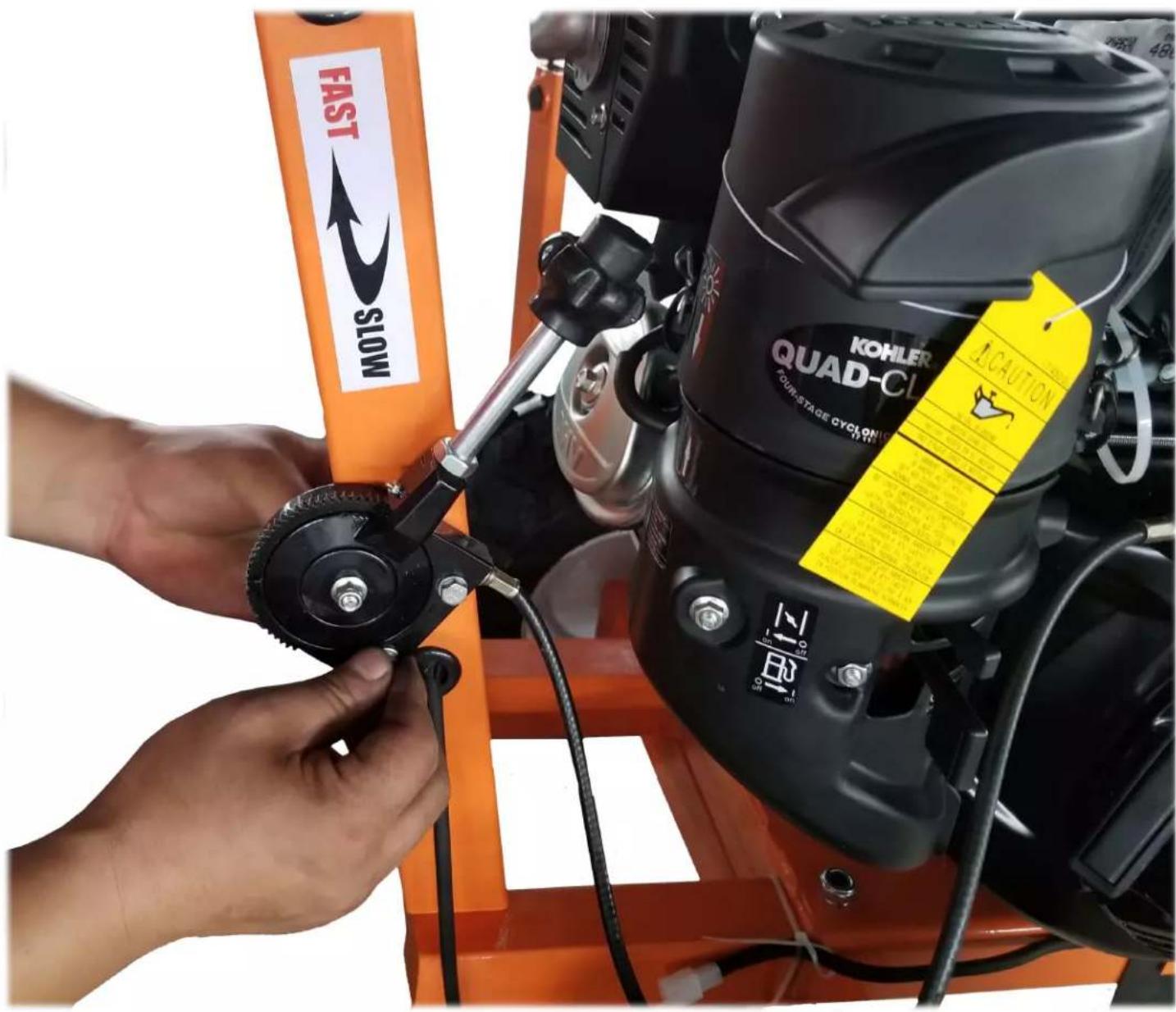

5 THROTTLE – RABBIT FAST / TURTLE SLOW
6	PULL STARTER – PULL TIGHT- THEN PULL START
7	OIL – FILL TO MARK 10W30, WILL NOT START IF OIL IS LOW, HAS LOW OIL SHUTOFF PROTECTION. 2 YELLOW CAPS ARE OIL FILL CAPS. USE EITHER ONE TO FILL OIL.

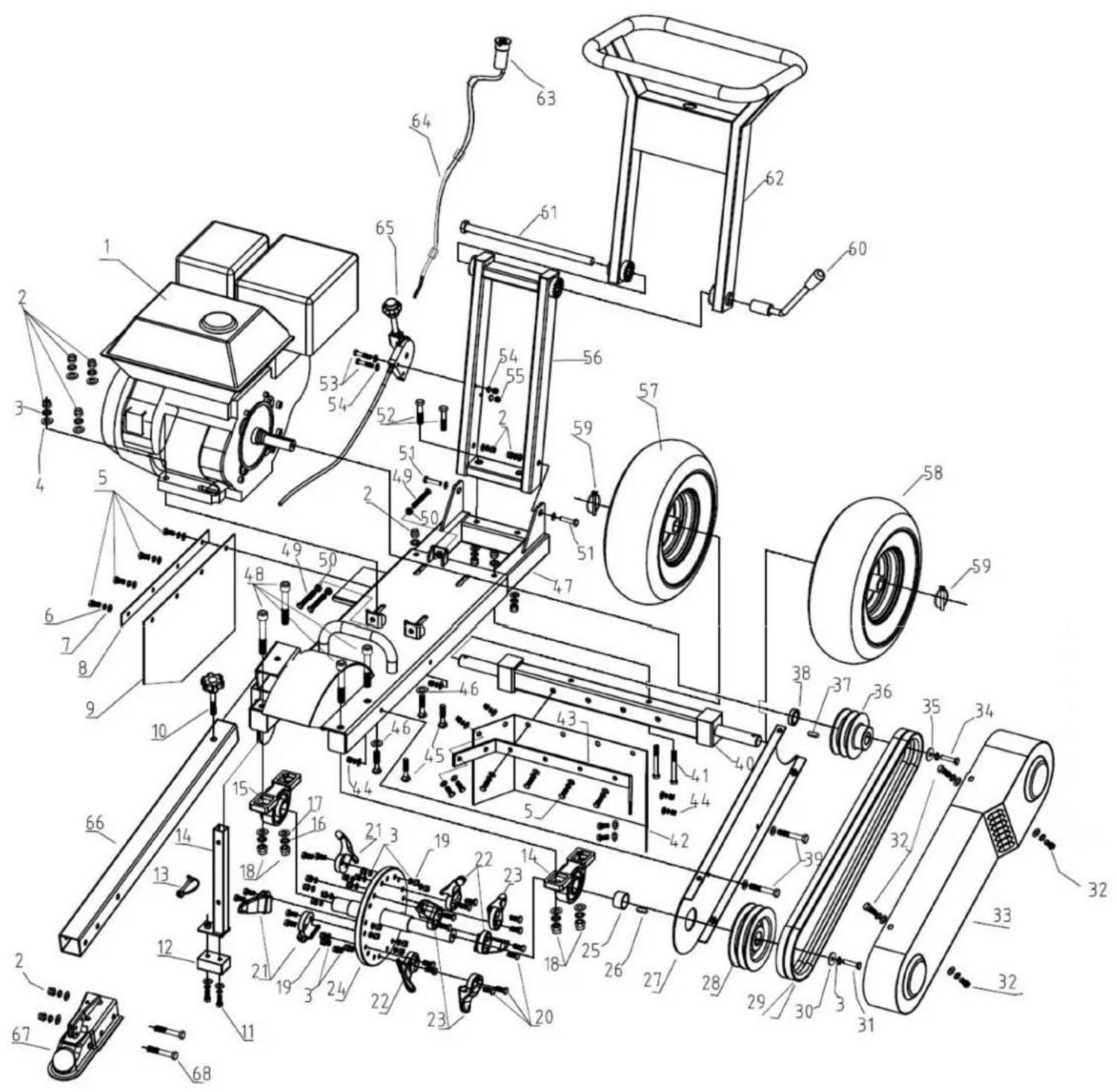

No.	Specification	No.	Specification
	1engine		35big washer
	2M10locknut		36engine pulley
	3ø10lockwasher 37		key
	4washerø10*ø20*1.5		38engine spacer
	5Bolt M8*25		39bolt M8*65
	6ø8lockwasher 40		wheel axle
	7washerø8*ø16*1.5		41bolt M10*125
	8protection sheet plate		42leather protect sheet
	9protection sheet		43leather protect sheet fixed plate
	10knobø50		44M8locknut
	11bolt M8*30		45half-round head square neck boltM10*45
	12rubber		46big washer
	13D-pinø8*50 47		frame
	14support foot		48Inner six angle cylinder bolt M14*95
	15vertical seat bearing		49bolt M8*80
	16ø14lockwasher 50		M8 nut
	17washerø14*ø28*2		51bolt M10*50
	18M14 locknut		52bolt M10*100
	19M10nut		53bolt M6*50
	20boltM10*35		54washerø6*ø12*1.2
	21right cutter		55M6locknut
	22left cutter		56lower part of handle
	23straight cutter		57right tyre
	24cutter rotor		58left tyre
	25side spacer		59Ring type lock
	26key		60handle adjusted bar
	27Belt cover accessory plate		61bolt M16*310
	28rotor pulley		62handle
	29belt		63key switch
	30big washer		64stop wire
	31bolt M10*25		65throttle
	32bolt M8*16		66tow bar
	33belt cover		67hitch trailer
	34engine bolt		68bolt M10*80

CLEAR AREA OF ALL PEOPLE AND PROPERTY THAT COULD BE DAMAGED. THINK SAFETY. CHIPS ARE FLYING PROJECTILES AND CAN CAUSE INJURY.

WEAR SAFETY GLASSES, HEARING PROTECTION, AND GLOVES

DO NOT WEAR LOOSE FITTING CLOTHES THAT COULD GET STUCK IN THE MACHINE MOVING PARTS, ONLY CHIP WOOD, CHILDREN SHOULD NOT RUN THIS EQUIPMENT, STAY ALERT OF YOUR SURROUNDING AND PERSONS THAT COULD APEAR IN THE CHIP PATH WHILE YOU ARE WORKING.

UNIT IS A DIRECT DUAL BELT DRIVE. NO CLUTCH TO SLIP OR BURN UP BUT YOUR BELTS WILL NEED TIGHTENED AND CHECKED ON A REGULAR BASIS TO MAINTAIN 100% CUTTING POWER.

- Tip the Stump Grinder up with the cutters off the ground when pull starting.

9 CARBIDE CUTTERS. AN EXTRA SET IS PROVIDED WITH YOUR PURCHASE AS A THANK YOU FOR CHOOSING DK2 POWER.

•ENGINE ON HIGHEST SPEED
•HOLD TIGHT ON BOW HANDLE WITH BOTH HANDS
- LOWER CUTTERS INTO TOP OF STUMP, CUT 3.5IN WIDE TO CUTTER DEPTH
•RAISE CUTTERS UP AND MOVE OVER FOR NEXT CUT, REPEAT
-PIVOT CUTTERS FROM SIDE TO SIDE TO FACE OFF REMAINING STUMP

TROUBLE SHOOTING

•ENGINE WONT START

• TURN KEY ON – CHECK ENGINE OIL LEVEL - CHECK GAS LEVEL
• UNPLUG KEY SWITCH – IF ENGINE STARTS REPLACE THE KEY SWITCH.
  • FOLLOW YOUR ENGINE MANUAL FOR FURTHER TROUBLE SHOOTING.

•UNIT VIBRATES

• CHECK YOUR CUTTERS FOR MISSING OR LOOSE TEETH.
• CHECK YOUR CUTTER WHEEL PILLAR BEARING MOUNTING BOLTS.

• POWER LOSS AT CUTTER WHEEL

• CHECK YOUR BELT TENSION – SLIPPING BELTS CAUSE POWER LOSS.
  • WORN BELTS - REPLACE
• BELT TENSION SHOULD BE SET AT .25 INCH MOVEMENT ABOVE AND BELOW BELT NORMAL POSITION.
• CHECK YOUR 4 ENGINE MOUNTING BOLTS, LOOSE ENGINE BOLTS WILL CREATE LOOSE BELT TENSION.

ADJUSTING THE DRIVE BELTS

• POWER LOSS AT CUTTER WHEEL

• CHECK YOUR BELT TENSION – SLIPPING BELTS CAUSE POWER LOSS.
  • WORN BELTS - REPLACE
• BELT TENSION SHOULD BE SET AT .25 INCH MOVEMENT ABOVE AND BELOW BELT NORMAL POSITION.
• CHECK YOUR 4 ENGINE MOUNTING BOLTS, LOOSE ENGINE BOLTS WILL CREATE LOOSE BELT TENSION.

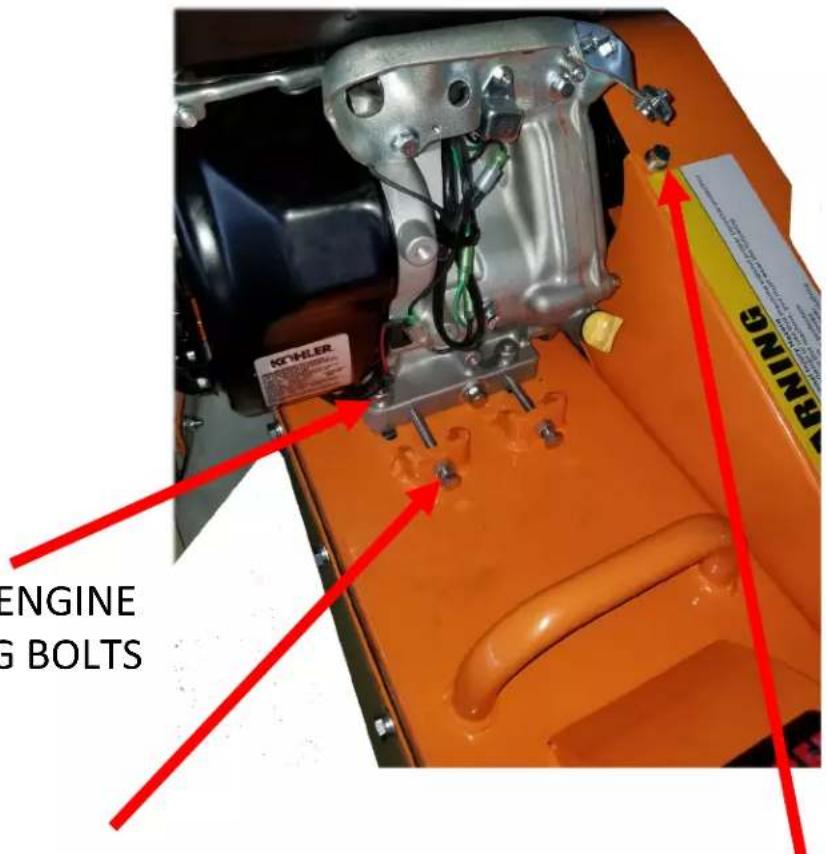

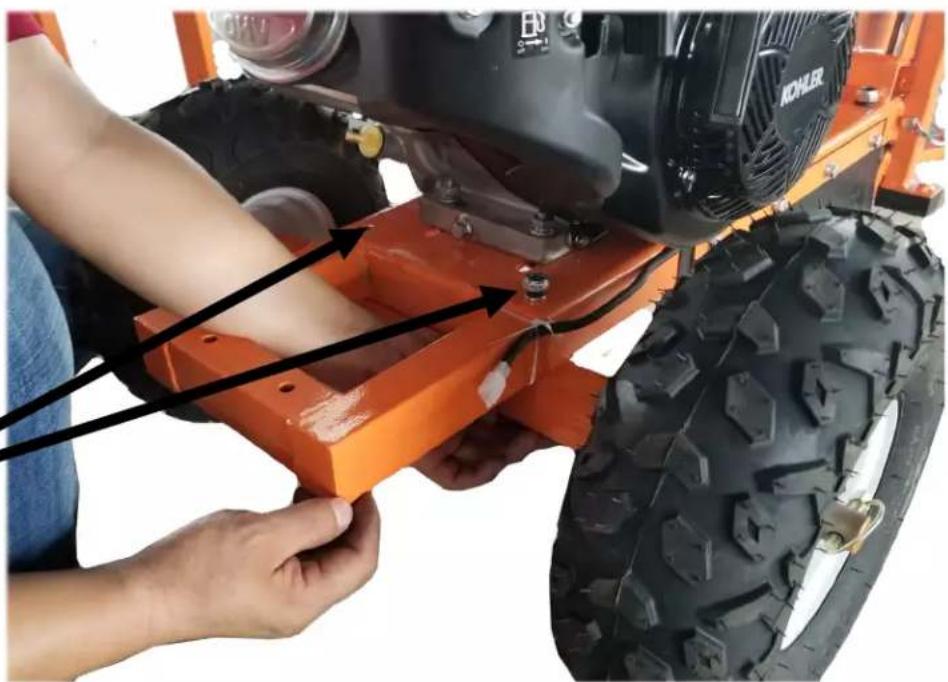

LOOSEN 4 ENGINE MOUNTING BOLTS

ADJUST BOLTS TO MOVE THE ENGINE - CHANGING TENSION ON BELTS.

REMOVE 4 COVER BOLTS AND REMOVE BELT COVER

USE DK2 POWER OEM REPLACEMENT BELTS FOR TOP PERFORMANCE

DK\ POWER

PLEASE DO NOT RETURN TO THE STORE

YOU HAVE A 1 YEAR WARRANTY AND DK2 WILL REPLACE A DEFECTIVE PART FOR FREE

CALL US AT 702-331-5353 FOR FAST WARRANTY PARTS AND QUESTIONS

WHAT IS COVERED

DK2 Inc. warrants to the original purchaser of any DK2 product that it will be free and clear of manufacturing defects in workmanship and materials under normal use and service for a period of one (1) year from the date of the original purchase.

If within one (1) year from the original date of purchase this product fails due to defect in material or workmanship, Detail K2 will repair, replace, or supply any defective part at our option for DK2 trailer products. DK2 POWER outdoor power equipment is 1-year parts only warranty no labor.

Upon expiry of one (1) year, Detail K2 will have no further liability related to the product. Detail K2 does not authorize any party, including its authorized distributors or dealers, to offer any other warranty on behalf of Detail K2 Inc.

KOHLER ENGINES – KOHLER CH SERIES ENGINES COMMERCIAL 3 YR PARTS AND LABOR WARRANTY KOHLER ENGINES – KOHLER SH SERIES ENGINES RESIDENTIAL 2 YR PARTS AND LABOR WARRANTY see your Kohler manual for specific warranty.

DIESEL TRACTORS – Chassis component parts only, no labor, ENGINES – 1 YR KOHLER WARRANTY 3PT EQUIPMENT – 1-YEAR parts only, Gearbox drive unit 3-year warranty parts only.

DK2 POWER OUTDOOR EQUIPMENT – 1-Year parts only, no labor. 3-year commercial Kohler warranty.

THIS WARRANTY DOES NOT COVER OR APPLY TO:

Damage to the product due to misuse, mishandling and abuse

(b) Improper installation, maintenance and storage

(c) Expendable parts such as nuts and bolts, pins and springs, wiring and switch components, hydraulic hoses and fittings, cutting teeth, cutting chains, cutting blades, throttles, belts and tires.

(e) Consequential damage & incidental damages such as damage to persons or property

PROCEDURE FOR OBTAINING AN RETURN AUTHORIZATION

Within the one (1) year warranty period, the purchaser of the product must notify DK2 of the claimed defect and provide proof of original purchase. At this time the validity of the claim will be determined, and if approved replacement parts will be issued.

A Return Goods Authorization Number (RGA) will be issued if approved for DK2 Automotive products. No returned product will be accepted under warranty unless accompanied by an RGA# issued by Detail K2 Inc.

RESOLUTION FOR A DEFECTIVE PRODUCT

DK2 POWER – Tractors, Chippers, Stump Grinders, Log Splitters, 3pt, and Outdoor Power Equipment. Call DK2 at 702-331-5353 in Las Vegas between 8am-4pm M-F Pacific Time.

DK2 Snow, Trailer, Rack and Winch Products.

Call DK2 at 888-277-6960 in Burlington Canada between 8am-4pm M-F Eastern Time.
