USER MANUAL HT-TX72T SAMSUNG
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.
Samsung Electronics America, Inc.
This symbol indicates "dangerous voltage"
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified as a CLASS 1 LASER product.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
CAUTION : INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID
EXPOSURE TO BEAM.
Note to CATV system installer
This reminder is provided to call the CATV system installer's attention to Section 820~40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future
reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus. Service is also required if the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

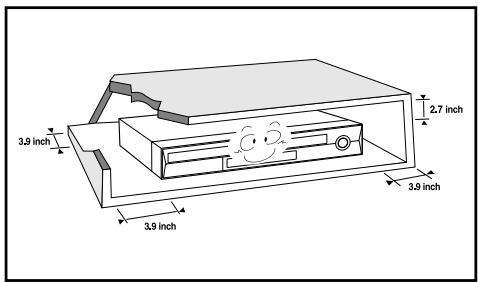

Precautions
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3-4inches). Make sure the ventilation slots are not covered. Do not stack anything on top of the player. Do not place the player on modules or other equipment which may become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the Home Theater to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

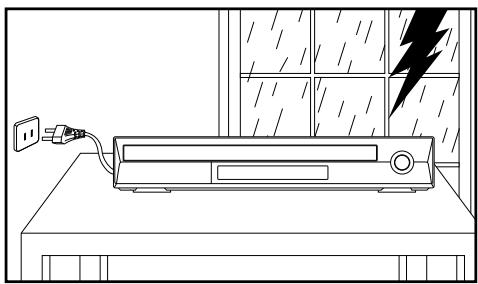

During thunderstorms, disconnect the AC main plug from the wall outlet.
Voltage peaks due to lightning could damage the unit.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.

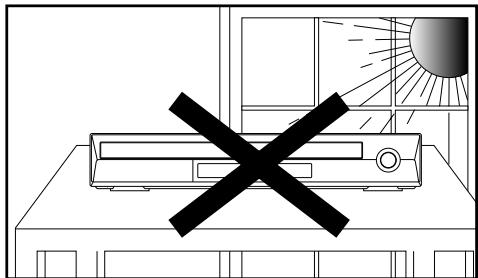

Do not expose the unit to direct sunlight or other heat sources.
This could lead to overheating and malfunction of the unit.

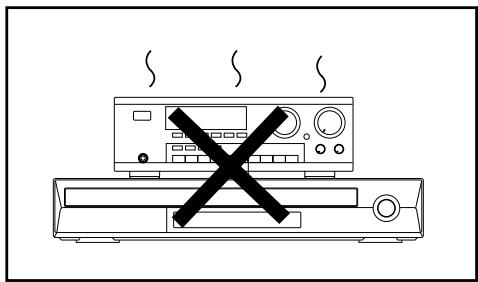

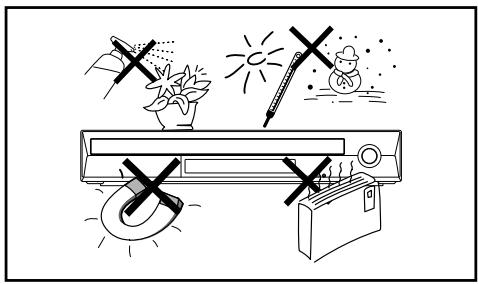

Protect the player from moisture(i.e. vases), and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc has been stored in cold temperatures.
If transporting the player during the winter, wait approximately 2 hours until the unit has reached room temperature before using.

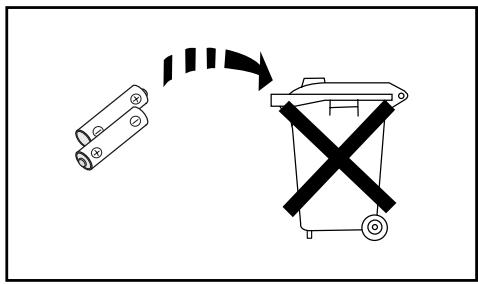

The batteries used with this product contain chemicals that are harmful to the environment.
Do not dispose of batteries in the general household trash.
Features
Multi-DiscPlayback&FMTuner
The HT-X70/HT-TX72/HT-TX75 combines the convenience of multi-disc playback capability, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW, with a sophisticated FM tuner, all in a single player.
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio.
The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail.
USB Host support
You can enjoy media files such as pictures, movies and music saved on an MP3 player, digital camera or USB memory stick by connecting the storage device to the USB port of the Home Theater.
Dolby Pro Logic II
Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic.
DTS (Digital Theater Systems)
DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound.
TV Screen Saver Function
If the main unit remains in Stop mode for 3 minutes, the Samsung logo appears on the TV screen. The HT-X70/HT-TX72/HT-TX75 will automatically switch to the Power Saving mode after 20 minutes in the Screen Saver mode.
Power Saving Function
The HT-X70/HT-TX72/HT-TX75 will automatically shut off after 20 minutes in Stop mode.
Customized TV Screen Display
The HT-X70/HT-TX72/HT-TX75 allows you to select your favorite image during JPEG or DVD playback and set it as your background wallpaper.
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Anynet+ (HDMI-CEC) Function
Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TV's that support Anynet+.
Optional XM radio
Samsung's XM Ready Home Theater Systems give you the opportunity to enjoy America's leading satellite radio service in CD-quality sound.

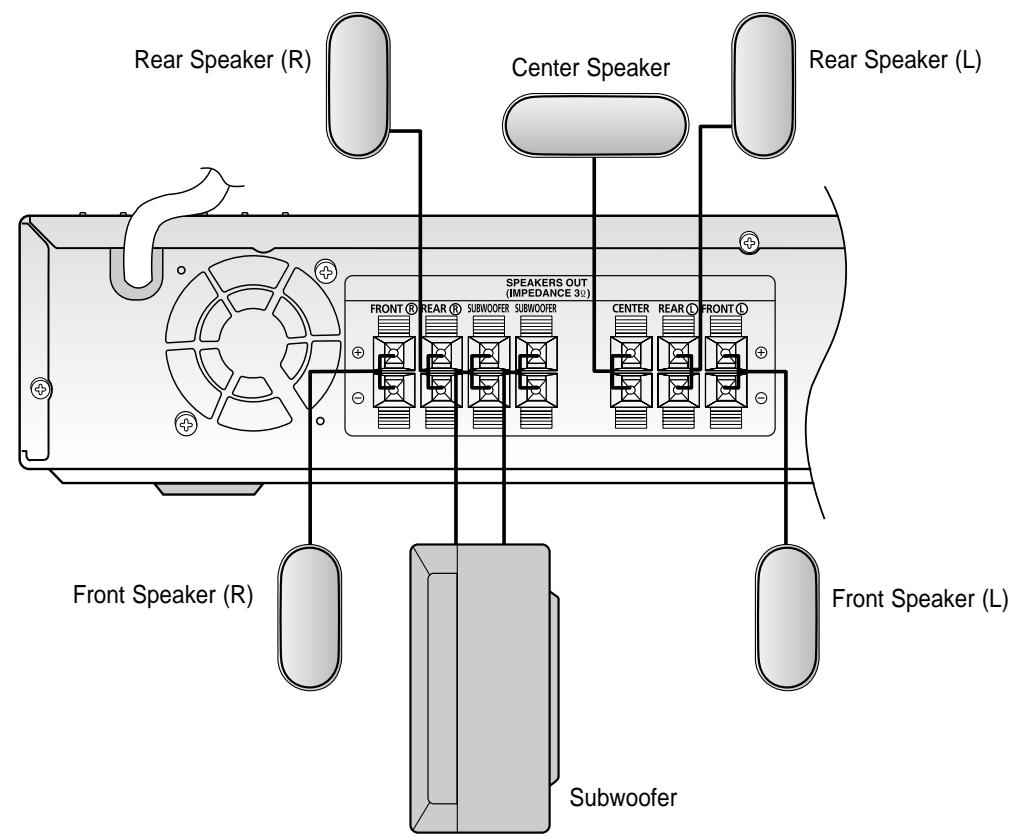

Connecting the Speakers 12
Speaker Installation 15
Connecting the optional Wireless Receiving Amplifier 16
Connecting the Video Out to your TV 19
Connecting the HDMI IN/OUT 20
HDMI Function 21
Connecting Audio from External Components 23

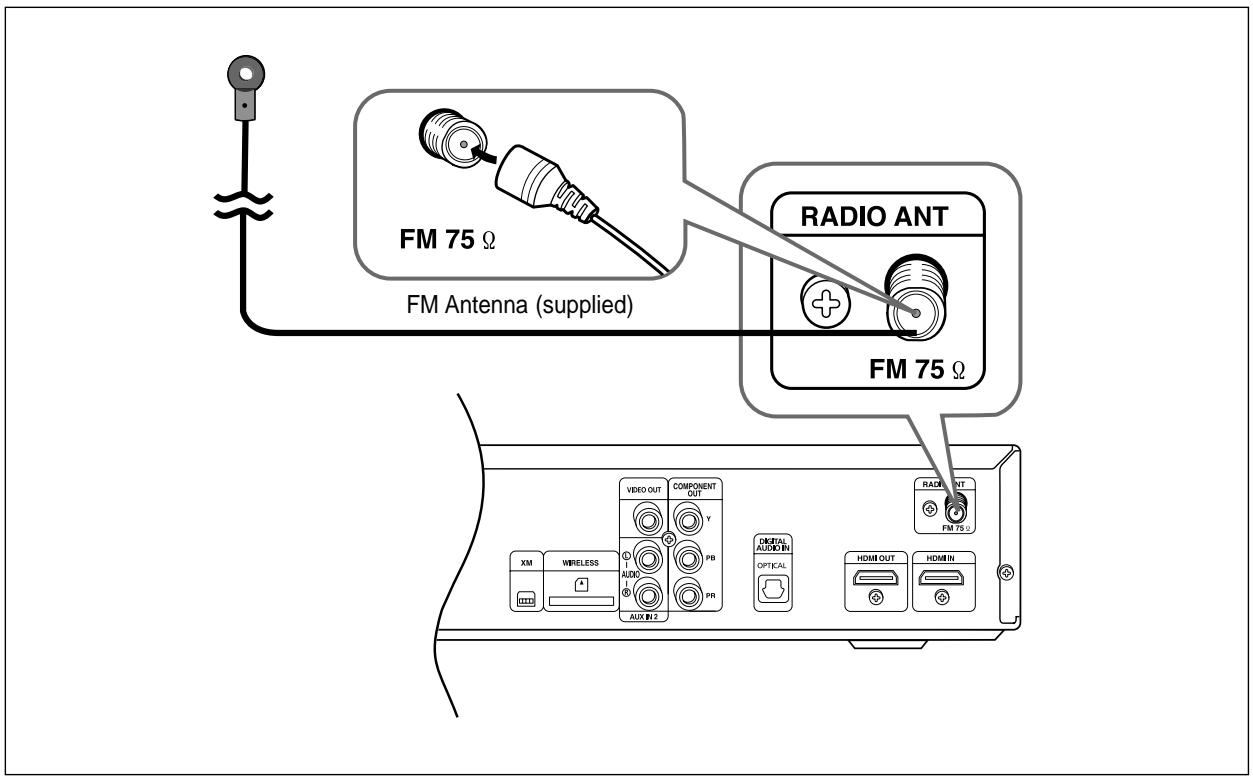

Connecting the FM Antenna 25

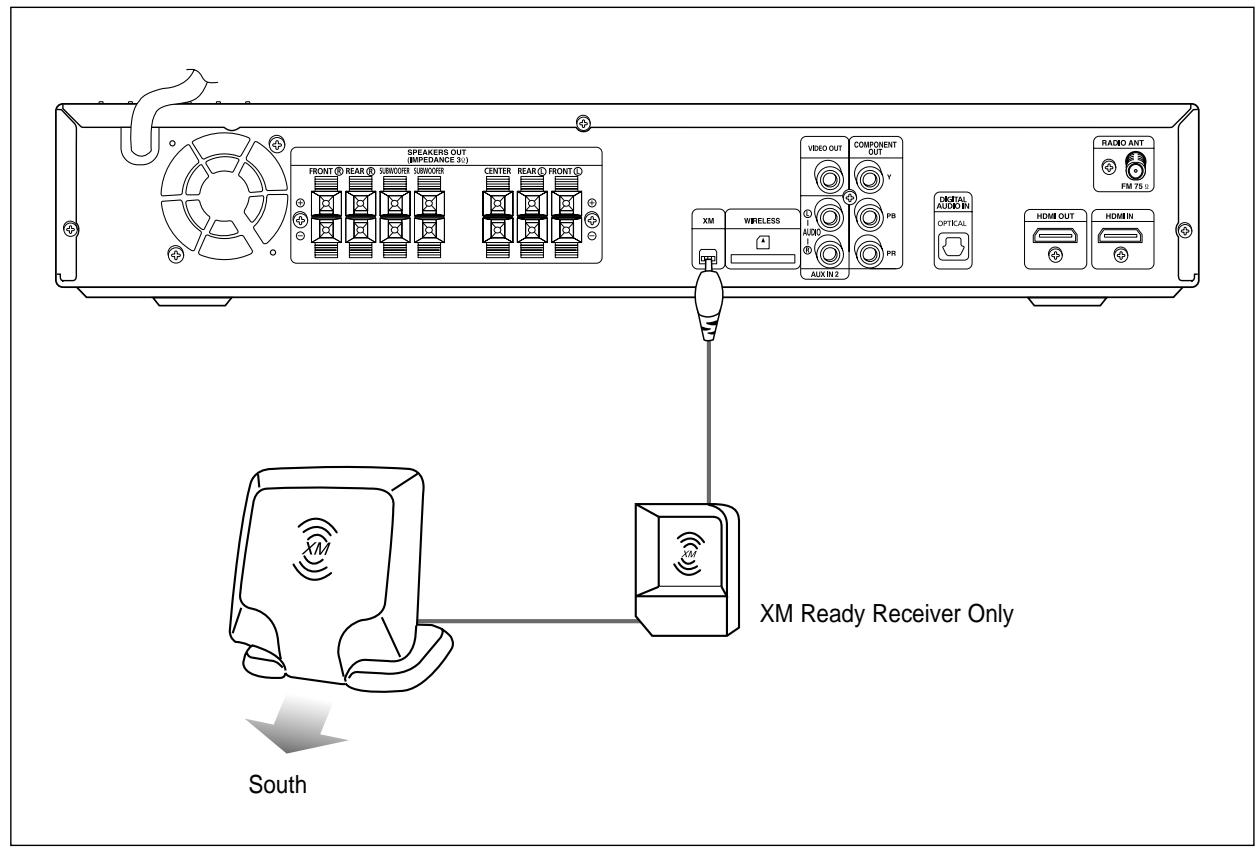

Connecting an optional XM Satellite Radio Antenna 26
OPERATION
Before Reading the User's Manual 27
Before Using Your Home Theater 28
DiscPlayback 29
MP3/WMA-CDPlayback 30
JPEG FilePlayback 31
DivXPlayback 32
Using the Playback Function 34

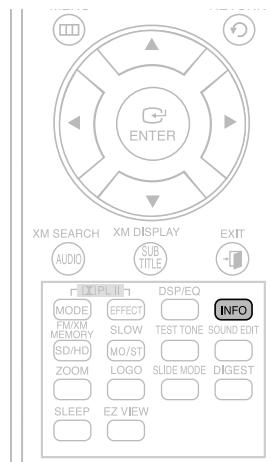

Displaying Disc Information 34
Checking the Remaining Time. 35
FastPlayback 35
SlowPlayback 35
Skipping Scenes/Songs 36
RepeatPlayback. 37

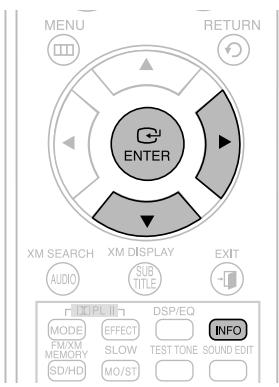

To Select a RepeatPlayback Mode in the Disc Information Screen 37

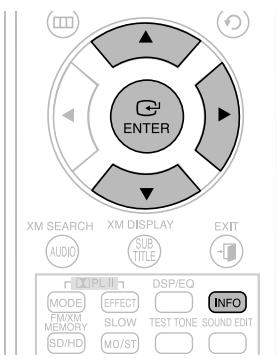

A-B Repeat Playback. 38
Step Function. 38
Angle Function 39
Zoom (Screen Enlarge) Function 39

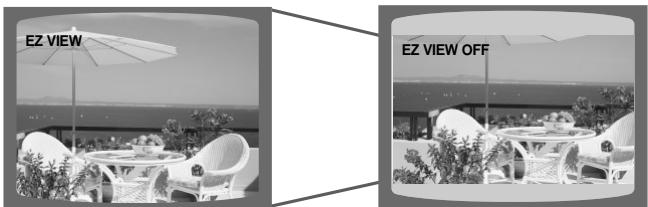

EZ VIEW Function 40
Bonus Group. 40
Navigating Pages. 40
Audio Language Selection Function. 41
Subtitle Language Selection Function 41
Moving Directly to a Scene/Song 42
Using the Disc Menu 43

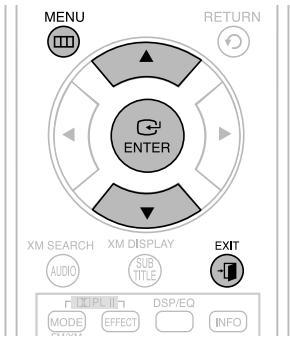

Using the Title Menu. 43
Playing Media Files using the USB Host feature ....44
SETUP
Settings. 46
Setting the Language 46
Setting TV Screen Type 47
Setting Parental Controls (Rating Level) 48
Setting the Password 48
Setting the Wallpaper 49
To Select One of the 3 Wallpaper Settings you've made. 49
DVDPlaybackMode 50
DivX (R) Registration. 50
Setting the Speaker Mode. 50
Setting the Delay Time 51
Setting the Test Tone. 52
Setting the Audio 53
Setting the DRC (Dynamic Range Compression)...54
Setting the AV SYNC. 54
Setting the HDMI Audio. 55
Sound Field (DSP)/EQ Function 561
Polby Pro Logic II Mode. 57
Polby Pro Logic II Effect. 58
MISCELLANEOUS
Listening to Radio. 59
XM Satellite Radio. 61
Convenient Functions 65
Operating a TV with the Remote Control 66
Troubleshooting 68
Cautions on Handling and Storing Discs. 70
Language Code List 71
USB Host Feature Supported Products 72
Specifications. 73
Notes on Discs
DVD players and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your DVD player will only play DVDs that are labeled with identical region codes.)
Playable Discs
Disc Type
Mark (Logo)
Recorded Signals
Disc Size
Max. Playing Time
DVD-AUDIO
AUDIO/VIDEO
Audio + Video
5"
Approx. 240 min. (single-sided)
DVD-VIDEO
Approx. 480 min. (double-sided)
3 1/2"
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
AUDIO-CD
COMPACT
Audio
5"
74 min.
3 1/2"
20 min.
DivX
DIVX
Audio + Video
5"
74 min.
3 1/2"
20 min.
Do not use the following types of disc!
LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player. If such discs are played, a message appears on the TV screen.
DVD discs purchased abroad may not play on this player. If such discs are played, a message appears on the TV screen.
Copy Protection
Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
This product is covered by one or more of the following U.S. patents:
This product is covered by the following U.S. patents:
US4,930,158 US4,930,160
Disc Recording Format
This product does not support Secure (DRM) Media files.
CD-R Discs
Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.
Use a 650MB/74 minute CD-R disc.
Do not use CD-R discs over 700MB/80 minute as they may not be playback.
Some CD-RW (Rewritable) media, may not be playable.
Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.
CD-R MP3 Discs
Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +) .
Use discs recorded with a compression/decompression data rate greater than 128Kbps.
Only files with the "mp3" and extensions can be played.
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
A maximum of 500 tracks can be played per CD.
A maximum of 300 folders can be played per CD.
CD-R JPEG Discs
Only files with the "jpg" extensions can be played.
If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +) .
Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.
A maximum of 9,999 images can be stored on a single CD.
When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
DVD±R/RW, CD-R/RW DivX Discs
Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not be play.
Software update for incompatible formats is not supported.
Sections with a high frame rate might not be played while playing a DivX file.
For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.net".
Description

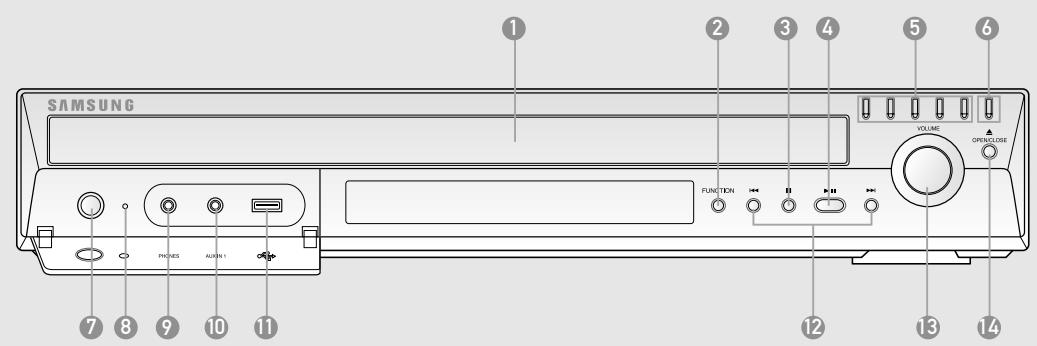

Front Panel
Disc Tray
Disc Change button
USB Port
Function button
Power ( / ) button
Tuning Up & Skip (▶▶) button
Stop (■) button
Standby indicator
Tuning Down & Skip (▶) button
Play/Pause (▶II) button
Headphone Jack
Volume Control
Direct Play buttons

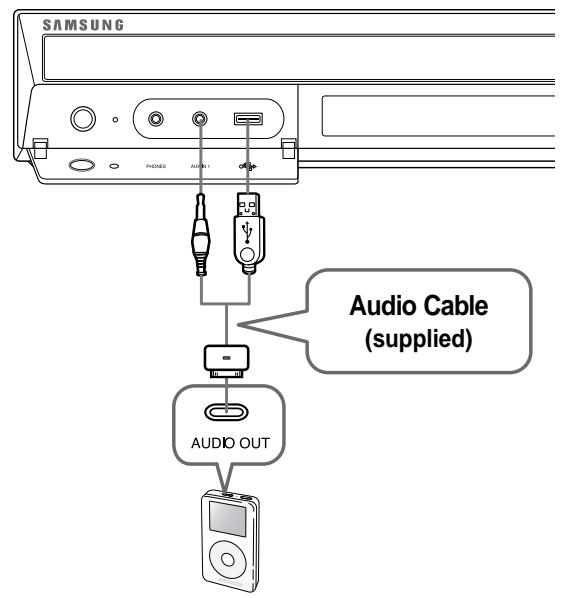

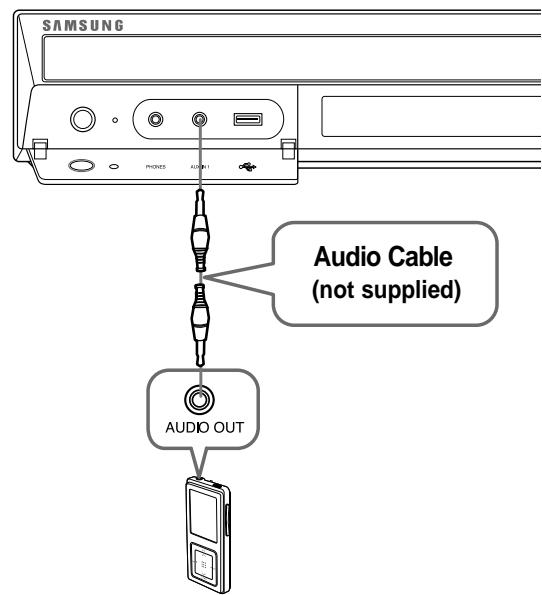

10.AUX IN 1 Jack
Open/Close button

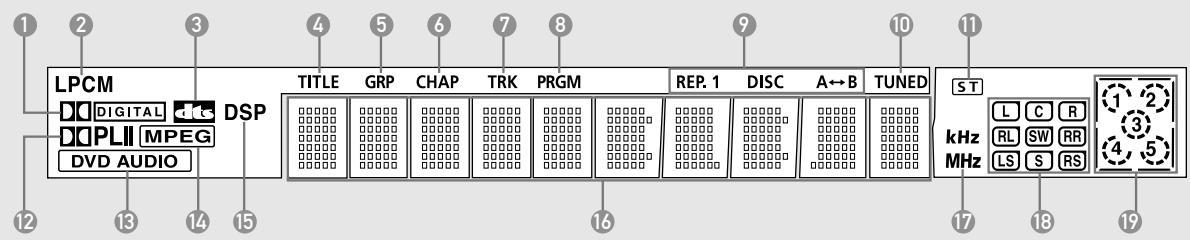

Display
DOLBY DIGITAL indicator
8.PROGRAMindicator
DSP indicator
LINEAR PCM indicator
REPEAT indicator
System Status Display
DTS indicator
TUNED indicator
RADIO FREQUENCY indicator
TITLE indicator
STEREO indicator
SPEAKER indicator
GROUP indicator
DOLBY PLII indicator
DISC(1~5) indicator
CHAPTER indicator
DVD AUDIO indicator
TRACK indicator
MPEG indicator

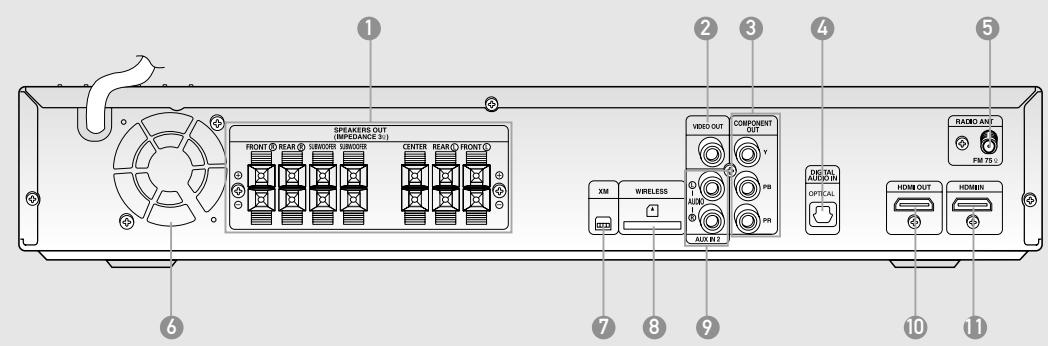

Rear Panel
5.1 Channel Speaker Output Connectors
FM 75Ω COAXIAL Jack
Video Output Jack

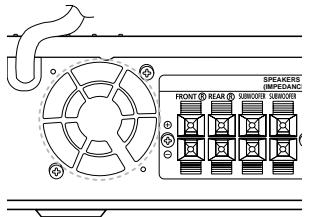

Cooling Fan
Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT Jack on this unit.
XM Antenna Jack
Component Video Output Jacks

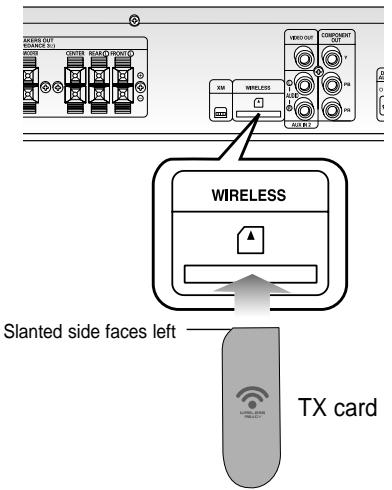

TX Card Connection(WIRELESS)
Connect a TV with Component video inputs to these jacks.

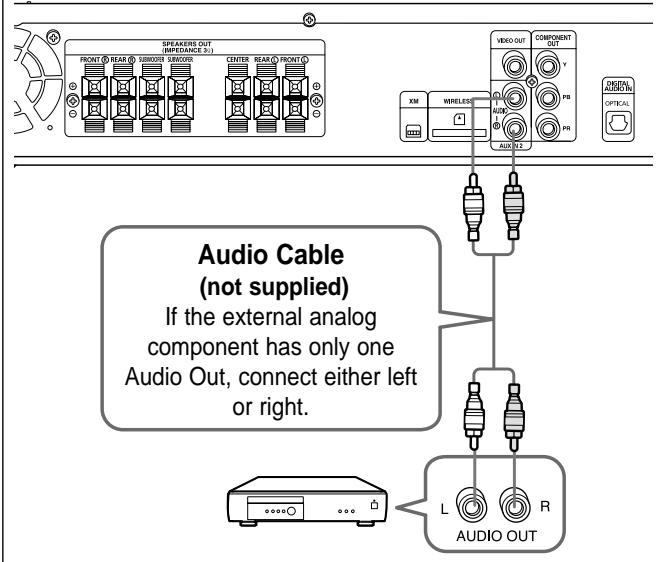

AUX IN 2 Jacks

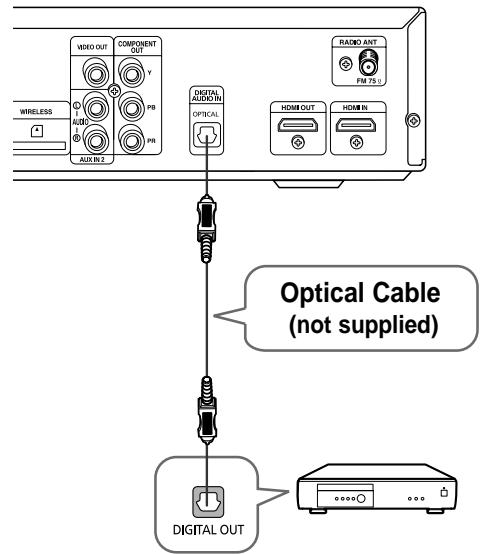

External Digital Optical Input Jack

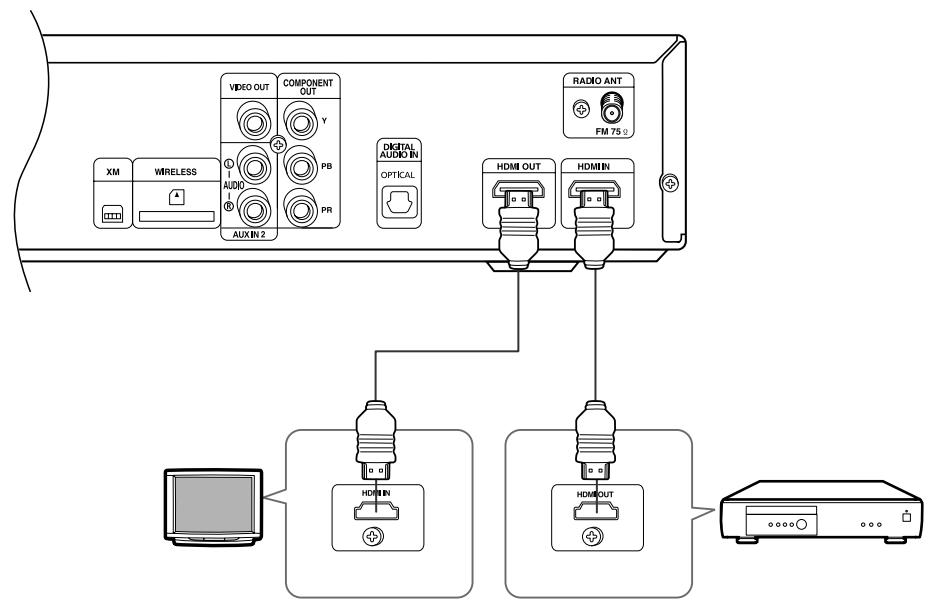

10.HDMI Output Jack
Use this to connect external equipment capable of digital output.

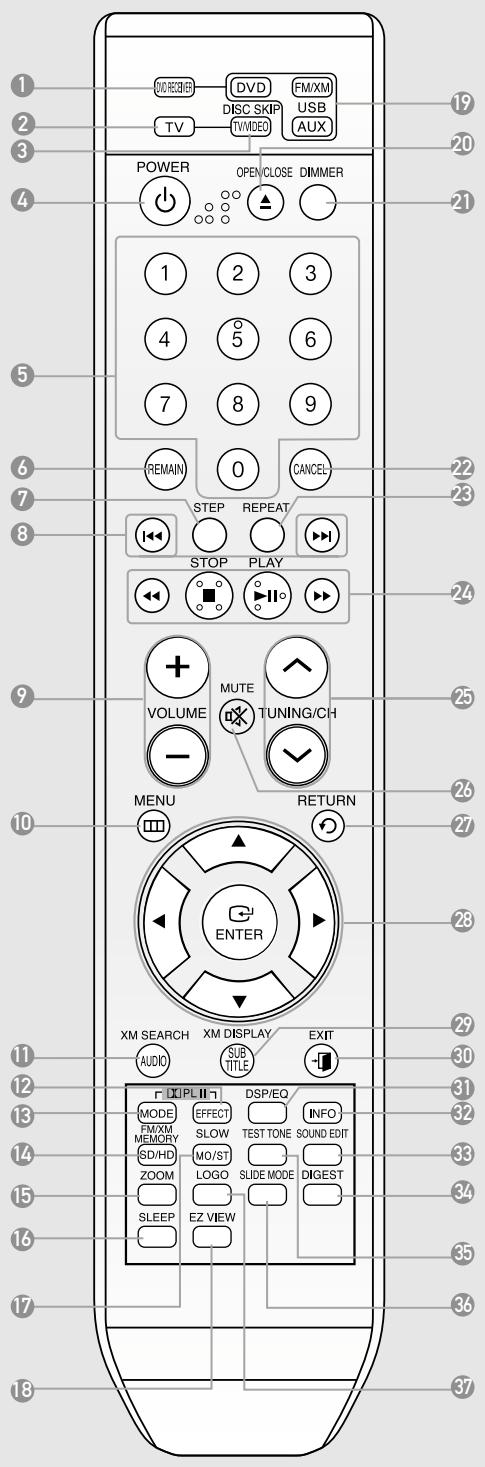

1 Remove the battery cover in the direction of the arrow.
2 Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and -).
3 Replace the battery cover.
Follow these precautions to avoid leaking or cracking cells:
Place batteries in the remote control so they match the polarity: (+) to (+) and (-) to (-)
Use the correct type of batteries. Batteries that look similar may differ in voltage.
Always replace both batteries at the same time.
Do not expose the batteries to heat or a flame.

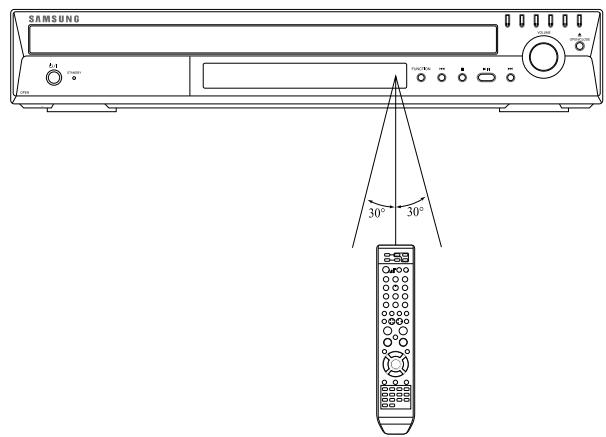

Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30^ from the remote control sensor.

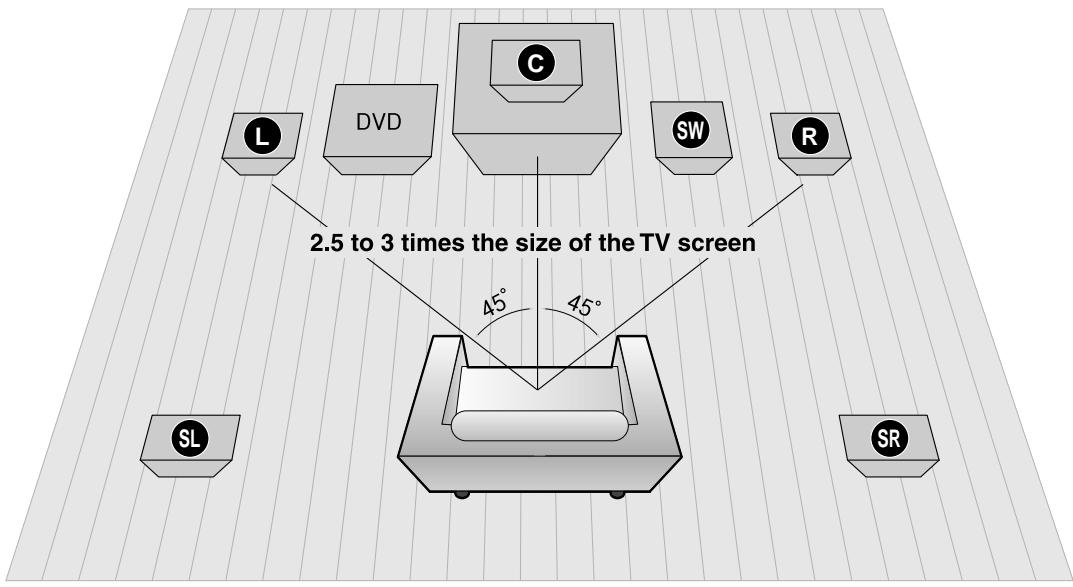

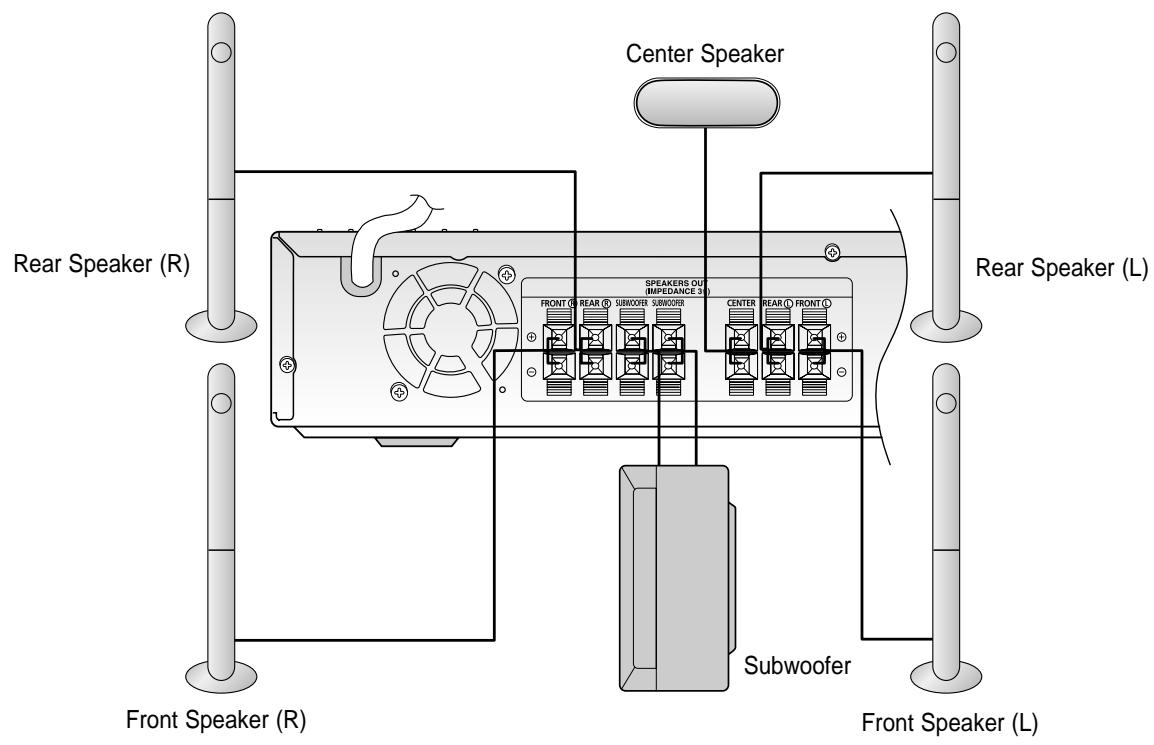

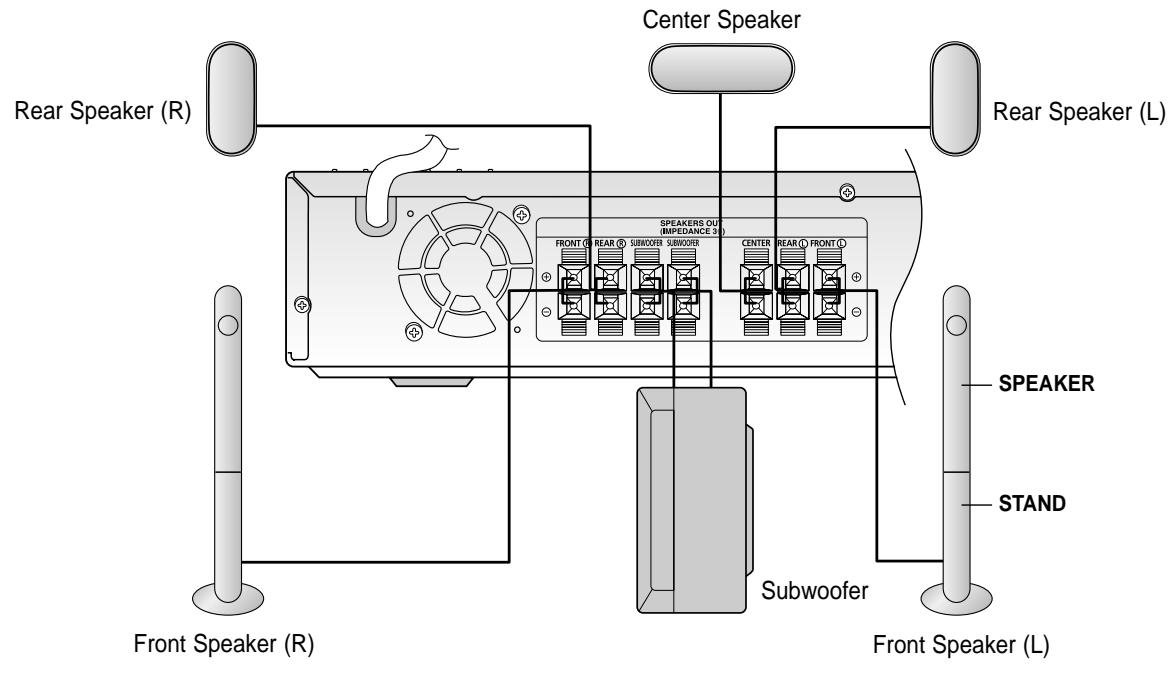

Connecting the Speakers
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Position of the Home Theater
Place it on a stand, cabinet shelf, or under the TV stand.
Front Speakers L
Place these speakers in front of your listening position, facing inwards (about 45^ ) toward you.
Place the speakers so that their tweeters will be at the same height as your ear.
Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.
Center Speaker C
It is best to install it at the same height as the front speakers.
You can also install it directly over or under the TV.
Selecting the Listening Position
The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.
Example: For 32'' TVs 2-2.4m (6-8 feet)
For 55" TVs 3.5-4m (11~13 feet)
Rear Speakers
Place these speakers behind your listening position.
If there isn't enough room, place these speakers so they face each other.
Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly downward.
Unlike the front and center speakers, the rear speakers are used to handle mainly sound effects and sound will not come from them all the time.
Sound will be heard from the rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
Subwoofer SW
The position of the subwoofer is not so critical. Place it anywhere you like.
HT-X70
1 Press and hold the terminal tab.
2 Insert the black wire into the black terminal (-) and the red wire into the red (+) terminal.
3 Release your finger.
Do not let children play with or near the speakers. They could get hurt if a speaker falls.
When connecting the speaker wires to the speakers, make sure that the polarity (+ / -) is correct.
Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their hands or alien substances into the duct (hole) of the subwoofer speaker.
Do not hang the subwoofer on the wall through the duct (hole).
If you place a speaker near your TV set, screen color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.
Connecting the Speakers (Cont)
HT-TX72
HT-TX75
Speaker Installation
With the HT-TX72 front speakers and HT-TX75 front/rear speakers, you have the option of installing the speakers on Stands, or directly to the Stand Base.
Speaker Components (HT-TX72/HT-TX75 only)
Screw (A)
Screw (B)
How to Install the Speaker on the Stand
0
2
1 Turn the STAND upside-down and connect it to the STAND BASE.
2 Insert two screws (A) into the two holes marked with arrows using a screwdriver as shown in the illustration.
3 Insert a screw (B), into the hole on the rear of the Speaker STAND.
4 Connect the assembled stand to the SPEAKER.
5 Insert another screw (B) into the hole on the rear of the speaker using a screwdriver as shown in the illustration.
6 This is the SPEAKER successfully assembled with the Stand.
4 Connect the assembled stand to the SPEAKER.
5 Insert another screw (B) into the hole on the rear of the speaker using a screwdriver as shown in the illustration.
6 This is the SPEAKER successfully assembled with the Stand.
3
4
5
- Make sure that the speaker is installed on a flat and stable area. Otherwise it may be easily knocked over.
How to Install the Speaker on the Stand Base
1
2
1 Connect the SPEAKER with the STAND BASE.
2 Insert the screw (B) into the hole on the rear of the speaker using a screwdriver as shown in the illustration.
3 This is the SPEAKER successfully assembled with the Stand Base.
3
Connecting the Optional Wireless Receiving Amplifier
To connect the rear speakers wirelessly, you have to purchase the wireless receiving module and
TX card from your Samsung retailer.
When you have Purchased the Wireless Receiving Module (SWA-3000)
HT-X70
WIRELESS RECEIVER MODULE
HT-TX72
WIRELESS RECEIVER MODULE
HT-TX75
WIRELESS RECEIVER MODULE

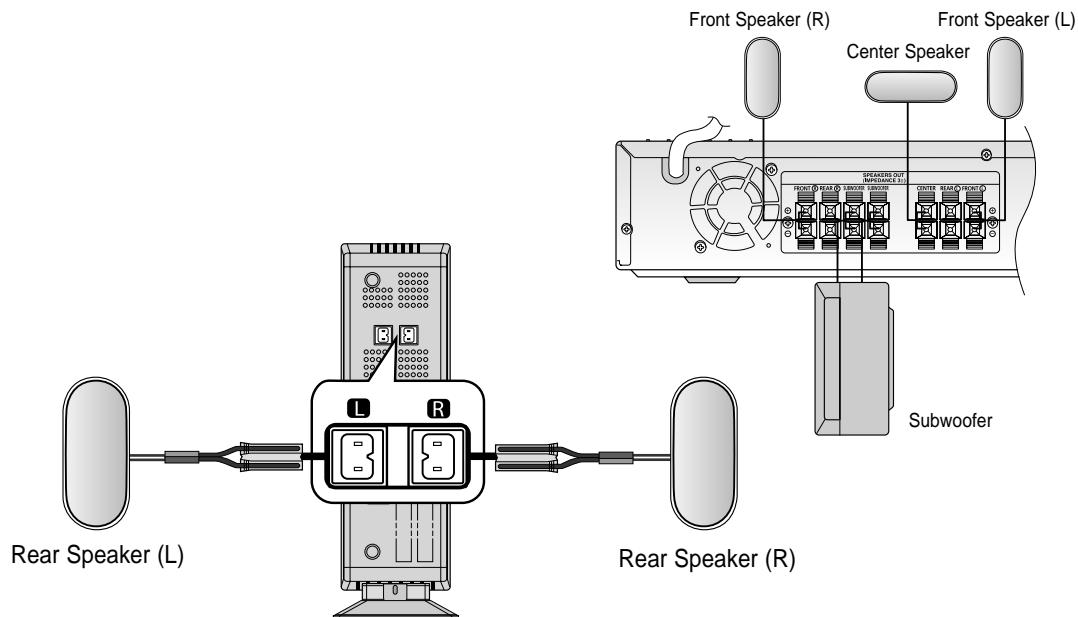

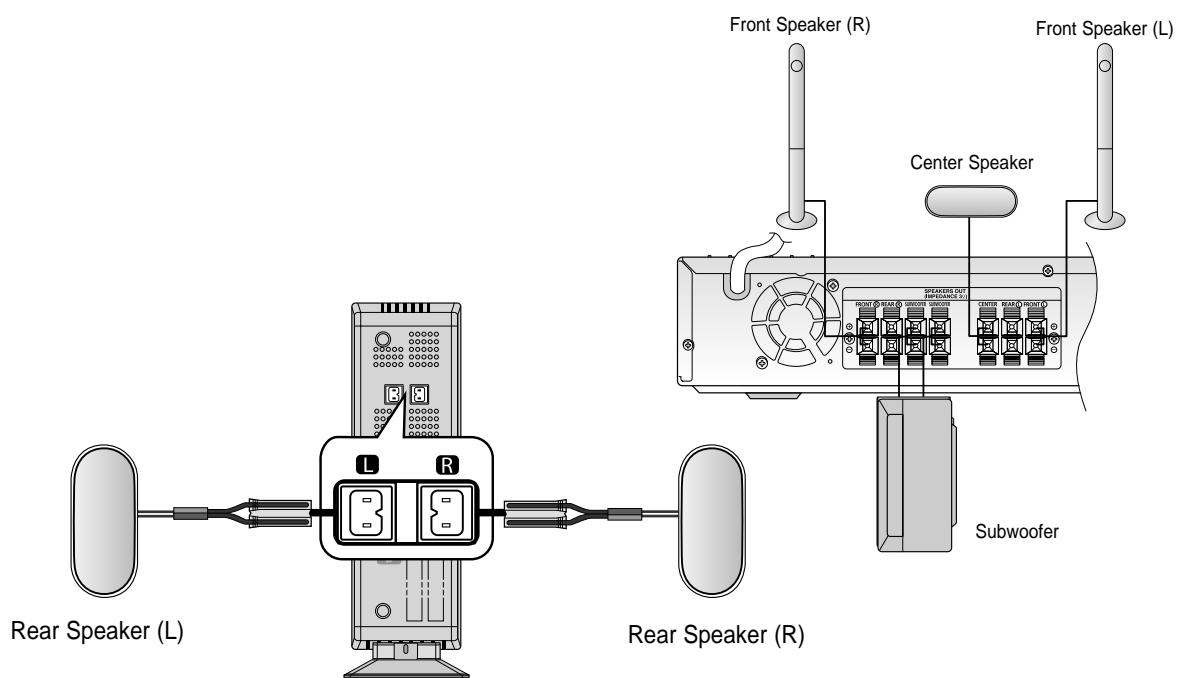

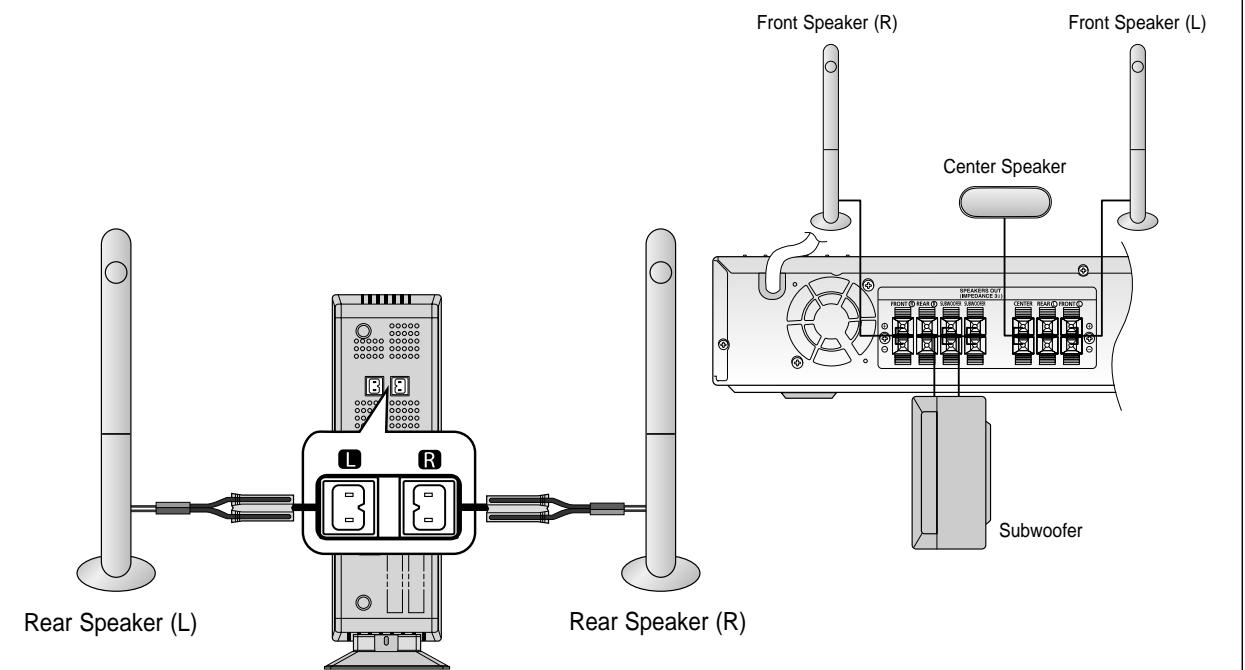

1 Connect the Front, Center and Subwoofer speakers to the DVD Player, referring to pages 13~15.
2 With the DVD Player turned off, insert the TX card into the TX Card Connection(WIRELESS) on the back of the main unit.
Hold the TX card so that the slanted side faces leftward and insert the card into the port.
The TX card enables communication between the main unit and the wireless receiver.
3 Connect the left and right rear speakers to the wireless receiving module.

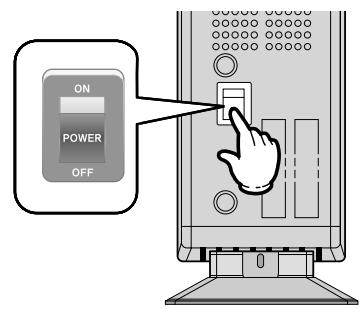

4 Plug the power cord of the wireless receiving module in the wall outlet and switch the power switch <ON> .
Do not insert a card other than the TX card dedicated for the product. The product might be damaged or the card may not be removed easily.
Do not insert the TX card upside down or in the reverse direction.
Insert the TX card when the DVD Player is turned off. Inserting the card when it is turned on may cause a problem.
If the TX Card is inserted, sound is not output from the Rear Speaker connectors on the main unit.
Connecting the Optional Wireless Receiving Amplifier (Cont)
Resetting the Wireless Receiving Module
Reset the system if a communication failure occurs, or if the Link indicator (blue LED) on the wireless receiver does not light up and the "REAR CHECK" message blinks on the main unit's display. Reset the system while the main unit and the wireless receiver module (SWA-3000) are in Power Standby mode.
1 With the main unit turned off, press and hold the remote control's REMAIN button for 5 seconds.
- The STANDBY LED on the front panel of the wireless receiver module blinks.

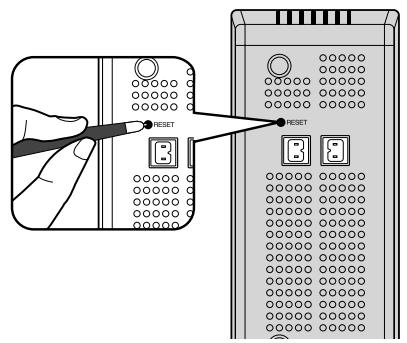

2 With the wireless receiver module turned on, use a ball point pen or a toothpick to press the RESET button on the back of the unit.
- The STANDBY LED on the front panel of the wireless receiver module blinks 2 Times.
3 Turn on the main unit.
- The LINK LED of the wireless receiver module is lit and the Reset is completed.
If Power Standby mode continues, repeat Steps 1 to 3 above.
When the wireless receiving module setting is complete, no sound is output from the Rear Speaker Output Connectors on the back of the main unit.
The wireless receiving antenna is built into the wireless receiver module. Keep the unit away from water and moisture.
For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions.
Sound will be heard from the wireless rear speakers in DVD 5.1-CH or Dolby Pro Logic II mode only.
In 2-CH mode, no sound will be heard from the wireless rear speakers.
Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the main unit, some sound interruption may be heard due to interference.
If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (2.4GHz) near the system, some sound interruption may be heard due to interference.
The transmission distance of a radio wave is about 33 feet, but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the main unit and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.
Connecting the Video Out to your TV

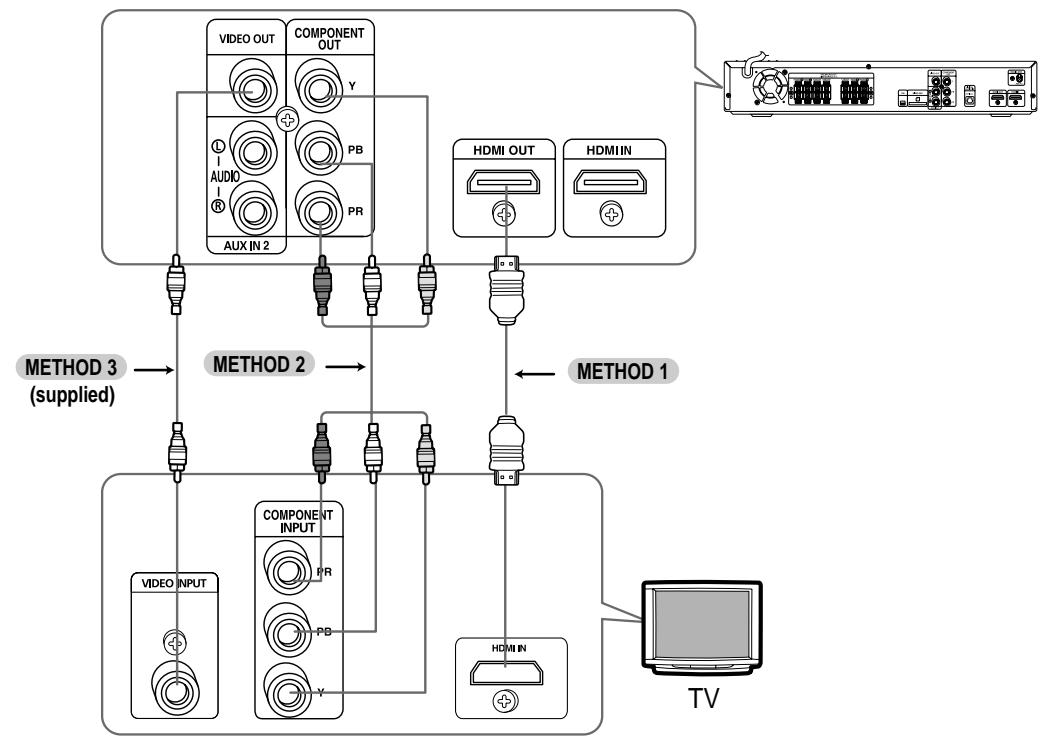

Choose one of the three methods for connecting to a TV.
METHOD 1 : HDMI ....... (Best Quality)
Connect the HDMI cable (not supplied) from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV.
METHOD 2 : Component Video ....... (Better Quality)
If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (Pr, Pb and Y) jacks on the back of the DVD Player to the Component Video Input jacks on your TV.
METHOD 3 : Composite Video ....... (Good Quality)
Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the VIDEO IN jack on your TV.
This product operates in Interlace scan mode(480i Only) for Component Output.
After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your Home theater. See your TV owner's manual for more information on how to select the TV's Video Input source.
If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Theater using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC).
Please check the Anynet ^+ logo. If your TV has an Anynet ^+ logo, then it supports the Anynet ^+ function.
Connecting the HDMI IN/OUT
HDMI (High-Definition Multimedia Interface) is an interface that enables the digital transmission of video and audio data with just a single cable. In addition, it enables you to enjoy multi-channel digital audio.
1 Connect the HDMI IN jack of this unit and the HDMI OUT jack of a Cable Box/Satellite receiver (Set-Top Box).
2 Connect the HDMI OUT jack of this unit and the HDMI IN jack of your TV.
3 Press the AUX button on the remote control to select .
You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD DIGITAL IN AUX 1 AUX 2 HDMI IN USB FM XM.
When this unit is turned off, no HDMI video or audio signal is output from this unit.
When a CableBox/Satellite Receiver is connected to HDMI IN, the SD/HD(Standard Definition/HighDefinition) button on the Remote control does not work.
When an external device is connected to this unit via DVI, no audio will be output. In this case, you can listen to the digital audio by connecting the Optical OUT of the external device to the Optical IN of this unit.
HDMI Function

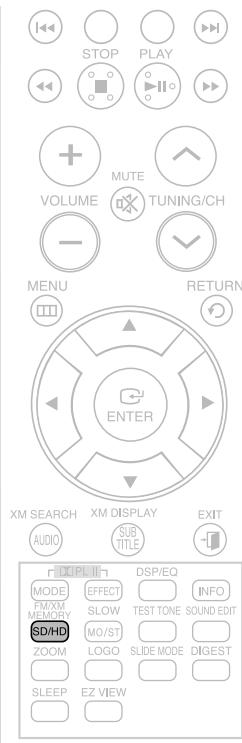

Resolution Selection
This function allows the user to select the screen resolution for HDMI output.
In Stop mode, press and hold the SD/HD (Standard Definition/High Definition) button on the remote control.
Resolutions available for the HDMI output are 480p, 720P and 1080i.
SD(Standard Definition) resolution is 480p and HD(High Definition) resolution is 720p / 1080i .
If the TV does not support the configured resolution, you will not be able to see the picture properly.
When a HDMI TV is connected, composite and component video signals are not output.
See your TV owner's manual for more information on how to select the TV's Video Input source.
Why use HDMI (High Definition Multimedia Interface)?
This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection.
Using Anynet+(HDMI-CEC)
Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control, Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+.
1 Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable. (See page 19)
2 Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)
You can operate the Home Theater by using the TV remote control.
Set the Anynet+(HDMI-CEC) function to <On> on your TV.
: You can listen to audio through the Home Theater.
- : You can listen to audio through the TV.
If you select the THEATER
Select and set the option of each items below.
: If Anynet+(HDMI-CEC) set to on and you select View TV, the Home Theater will automatically switch to DIGITAL IN.
: You can access the Home Theater menu.
: The Home Theater disc playback information will be displayed. :You can listen to audio through the Home Theater. : You can listen to audio through the TV.
When selecting View TV, you must have a digital optical cable connected from the TV to the Home Theater to listen to the TV sound through the Home Theater.
If Anynet+ (HDMI-CEC) is on and you turn off the main unit, your TV will also turn off.
Anynet+ (HDMI-CEC) will only work while in the DVDmode.
With Anynet+
You can operate this unit, power on your TV, or watch a movie by pressing the Play button on your Samsung TV's remote control.
AUX1:FrontPanel (iPodonly)
AUX1:FrontPanel(MP3player)
AUX1 : Connecting an MP3 player or iPod
You can listen to the audio from an MP3 player/iPod through the main unit.
1 Connect AUX IN 1 (Audio) on the Home Theater to the Audio Out of an MP3 player or iPod.
2 Press the AUX button on the remote control to select <AUX1> input.
You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD DIGITAL IN AUX 1 AUX 2 HDMI IN USB FM XM.
When the unit is powered on and you connect an iPod MP3 player, the unit will charge your iPod's battery.
"iPod is registered trade mark of Apple Computer, Inc"
Connecting Audio from External Components (Con't)
AUX2 : Rear Panel
OPTICAL : Rear Panel
AUX2 : Connecting an External Analog Component
Analog signal components such as a VCR.
1 Connect the AUX IN 2 (Audio) on the Home Theater to the Audio Out of the external analog component.
- Be sure to match connector colors.
2 Press the AUX button on the remote control to select <AUX2> input.
You can also use the FUNCTION button on the main unit.
The mode switches as follows : DVD/CD → DIGITAL IN → AUX 1 → AUX 2 → HDMI IN → USB → FM → XM.
You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.
OPTICAL : Connecting an External Digital Component
Digital signal components such as a Set-Top Box.
1 Connect the Digital Input (OPTICAL) on the Home Theater to the Digital Output of the external digital component.
2 Press the AUX button on the remote control to select .
You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD DIGITAL IN AUX 1 AUX 2 HDMI IN USB FM XM.
Connecting the FM Antenna
1 Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.
2 Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.
This unit does not receive AM broadcasts.
Cooling Fan
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit may rise and may damage it.
Do not obstruct the cooling fan or ventilation holes. If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and fire may result.
Connecting the Optional XM Satellite Radio Antenna
Connect an XM Antenna (not supplied) to the XM Antenna Jack on the rear of this unit.
To ensure optimal reception of XM's satellite signal, the XM Antenna should be placed at or near a southerly facing window with nothing obstructing its path to the sky. You can mount it indoors or outdoors.
When making connections, also refer to the operation instructions of the XM Antenna.
Depending on your location, the radio signal may be weak or cannot be tuned.
Before Reading the User's Manual
Make sure to check the following terms before reading the user manual.
Icons that will be used in manual
Icon
Term
Definition
DVD
DVD
This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode.
CD
CD
This involves a function available with a data CD (CD-R or CD-RW).
MP3
MP3
This involves a function available with CD-R/-RW discs.
JPEG
JPEG
This involves a function available with CD-R/-RW discs.
DivX
DivX
This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW)
!
CAUTION
This involves a case where a function does not operate or settings may be cancelled.
NOTE
This involves tips or instructions on the page that help each function operate.
In this manual, the instructions marked with "DVD ( DVD)" are applicable to DVD-VIDEO, DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then finalized. Where a particular DVD type is mentioned, it is indicated separately.
If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.
Before Using Your Home Theater

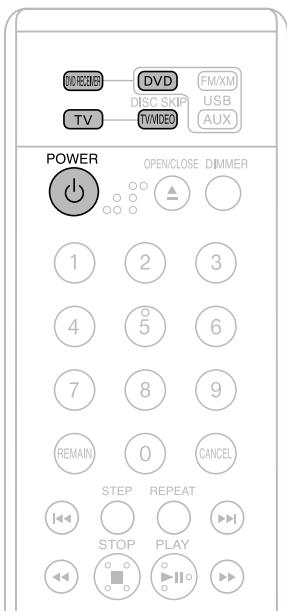

To Operate your Samsung TV and the Home Theater with the HT-X70/HT-TX72/HT-TX75's Remote Control
The DVD Home Theater's remote can be used to control Samsung TVs.

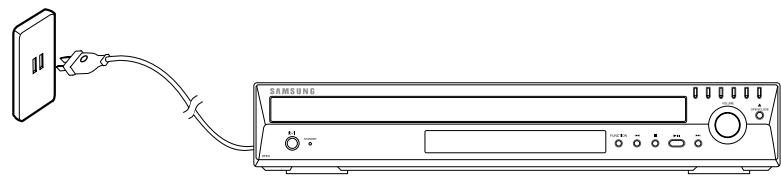

1 Plug the main unit's power cord into the AC power supply.
2 Press the TV button to set the remote to TV mode.
3 Press the POWER button to turn on your Samsung TV with this remote.
4 Press the TVVIDEO button to select VIDEO mode on your TV.
Press the DVD RECEIVER button to switch to DVD RECEIVER mode to operate the DVD Home Theater
6 Press the FUNCTION button on the main unit or DVD button on the remote to enable DVD/CD playback.
DiscPlayback

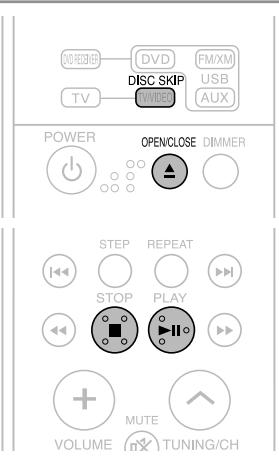

1 Press the OPEN/CLOSE button to open the disc tray.
2 Load a disc.
Place a disc gently into the tray with the disc's label facing up.
3 Press the DISC SKIP button.
- Rotate the carousel tray so you can load the third, fourth, and fifth discs.
4 Close the compartment by pressing the OPEN/CLOSE button again.
- Playback starts automatically.
To stop playback, press the STOP button during playback.
If pressed once, is displayed and the stop position will be stored in memory.
If the PLAY/PAUSE (▶II) button or ENTER button is pressed, playback resumes from the stop position. (This function works only with DVDs.)
If pressed twice, is displayed, and if the PLAY/PAUSE (▶II) button is pressed, playback starts from the beginning.
To temporarily pause playback, press the PLAY/PAUSE (▶II) button during playback.
To resume playback, press the PLAY/PAUSE (▶II) button again.
Depending on the content of the disc, the initial screen may appear different.
Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection system) recommendations.

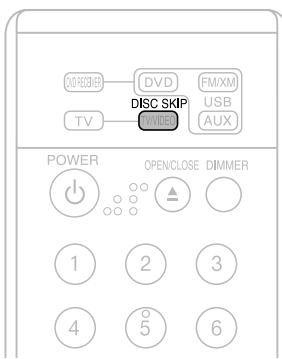

Selecting a Disc in the Disc changer
To select a specific disc, press the corresponding the DIRECT PLAY (1, 2, 3, 4, 5) buttons on the front panel or the DISC SKIP button on the remote control, until the required disc indicator flashes.
If the disc selected is not loaded, the next disc is played automatically.
MP3/WMA-CD Playback
Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.
1 Place the MP3/WMA disc on the disc tray.
The MP3/WMA menu screen will appear and playback will start.
The appearance of the menu depends on the MP3/WMA disc.
WMA-DRM files cannot be played.
2 In Stop mode, use the Cursor , , , button to select the album, and then press the ENTER button.
Use the Cursor , button to select the track.
3 To change the album, use the Cursor , , , button to select another album in Stop mode, and then press the ENTER button.
To select another album and track, repeat Steps 2 and 3 above.
4 Press the STOP (■) button to stop playback.
Depending on the recording mode, some MP3/WMA-CDs may not play.
Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.
To play a file icon in the screen,
Press the Cursor , , , button when it is in Stop mode and select a desired icon from the top part of the menu.
Music File Icon : To play music files only, select the Icon.
Image File Icon : To view image files only, select the Icon.
Movie File Icon : To view movie files only, select the Icon.
All All File Icon : To view movie files only, select the All Icon.
JPEG File Playback
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this Home Theater.
Slide Mode
1 Place the JPEG disc on the disc tray.
- Playback starts automatically. Each image is displayed for 5 seconds and then the next image is displayed.
2 Press the SLIDE MODE button.
Each time the button is pressed, the image makes the transition as follows:
SLIDE SHOW MODE : 1~5 → SLIDE SHOW MODE : RANDOM →
SLIDE SHOW MODE : NONE
Press the 1 button to skip to the next slide.
Each time the button is pressed, the slide moves backward or forward.
Digest Function
You can view 9 JPEG images on the TV screen at once.
1 Press the DIGEST button during playback.
JPEG files will be shown in 9 windows.
2 Press the Cursor , , , button to select the desired image and then press the ENTER button.
The selected image is played for 5 seconds before moving to the next image.
To view the previous or next 9 images, press the 1 button.

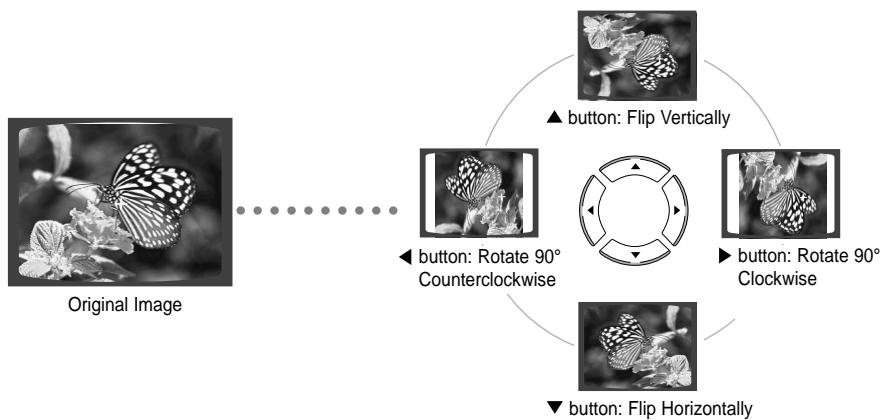

Rotate/Flip Function

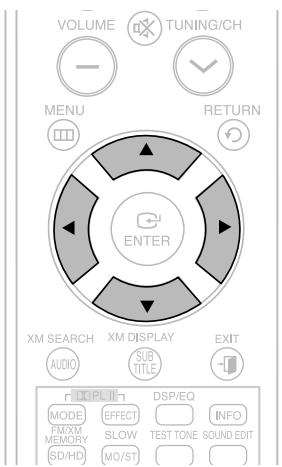

Press the Cursor , , , button during playback.
The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files.
If a JPEG file is played when the HDMI output resolution is 720p/1080i, the mode is automatically converted to 480p mode.
The functions on this page apply to DivX disc playback.
Skip Forward/Back

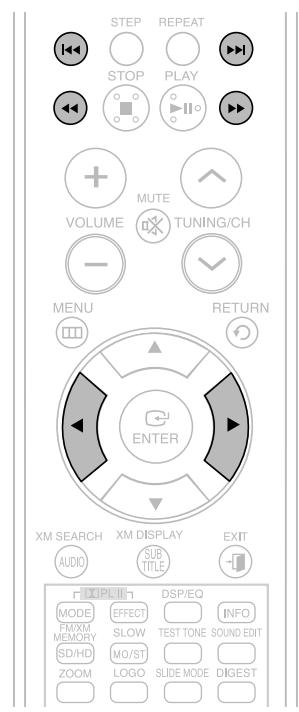

During playback, press the 144 , >> button.
Goes to the next file whenever you press the button, if there are over 2 files in the disc.
Goes to the previous file whenever you press the button, if there are over 2 files in the disc.
Fast playback
To play back the disc at a faster speed, press the or button during playback.
Each time you press either button, the playback speed will change as follows:
2x 4x 8x 32x Normal.
5 Minute Skip function
During playback, press the , button.
Playback skips 5 minutes forward whenever you press the Cursor button.
Playback skips 5 minutes back whenever you press the Cursor button.
Zoom Function
1 Press the ZOOM button.
Each time you press the button, your selection will toggle between and .
2 Press the Cursor , , , button to move to the area you want to enlarge.
A DivX file can be zoomed only in ZOOM X2 mode.
DivX files have .Avi file extensions, however, not all .Avi files are DivX and may not be playable in this unit.
Audio Display
Press the AUDIO button.
If there are multiple audio tracks on a disc, you can toggle between them.
Each time you press the button, your selection will toggle between
is displayed when there is one supported language in the disc.
Subtitle Display
Press the SUBTITLE button.
Each time you press the button, your selection will toggle between and .
If the disc has only one subtitle file, it will be played automatically.
See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX discs.
If the Disc has more than One Subtitle File
If the disc has more than one subtitle file, the default subtitle may not match the movie and you will have to select your subtitle language as follows:
1 In Stop mode, press the Cursor , button, select the desired subtitle ( ) from the TV screen, and then press the ENTER button.
2 When you select the desired DivX file from the TV screen, the movie will be played normally.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.
Supported Formats
This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.
Supported Video Formats
Format
AVI
WMV
Supported Versions
DivX3.11~DivX5.1, XviD
V1/V2/V3/V7
Supported Audio Formats
Format
MP3
WMA
AC3
DTS
Bit Rate
80~384kbps
56~128kbps
128~384kbps
1.5Mbps
Sampling Frequency
44.1kHz
44.1/48kHz
44.1kHz
DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.
Caption Function
You must have some experience with video extraction and editing in order to use this feature properly.
To use the caption function, save the caption file (.smi) in the same file name as that of the DivX media file (.avi) within the same folder.
Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.
Using the Playback Function
Displaying Disc Information
You can view disc playback information on the TV screen.
Press the INFO button.
Each time the button is pressed, the display changes as follows:
The information Display disappears from the screen
The information Display disappears from the screen
The information Display disappears from the screen
Depending on the disc, the disc information display may appear different.
Depending on the disc, you can also select DTS, DOLBY DIGITAL, or PRO LOGIC.
appears on the TV screen!
If this symbol appears on the TV screen when pressing a button, that operation is not possible with the disc currently being played.
Screen Display
DVD display
DVD-AUDIO display
TITLE display
CD display
CHAPTER display
CD display
TRACK (FILE) display
GROUP display
ELAPSED TIME display
LR STEREO (L/R) display
REPEAT PLAYBACK display
DOLBY DOLBY DIGITAL display
AUDIO LANGUAGE display
ANGLE display
Checking the Remaining Time
the REMAIN button.
hecking the total and remaining time of a title or chapter being played.
Each time the Remain button is pressed
TITLE ELAPSED TITLE REMAIN CHAPTER ELAPSED CHAPTER REMAIN
GROUP ELAPSED GROUP REMAIN TRACK ELAPSED TRACK REMAIN
TRACK ELAPSED TRACK REMAIN TOTAL ELAPSED TOTAL REMAIN
TRACK REMAIN TRACK ELAPSED
FastPlayback
SlowPlayback
Press the SLOW button.
Each time the button is pressed during playback, the playback speed changes as follows:
No sound is heard during slow playback.
Reverse slow playback does not work with DivX.
Using the Playback Function (Cont)
Skipping Scenes/Songs
Press the 1 button.
Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played.
You cannot skip chapters consecutively.
Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
RepeatPlaybackOptions
CHAPTER : Repeatedly plays the selected chapter.
TITLE: Repeatedly plays the selected title.
GROUP: Repeatedly plays the selected group.
RANDOM: Plays tracks in random order.
(A track that has already been played may be played again.)
TRACK: Repeatedly plays the selected track.
DIR: Repeatedly plays all tracks in the selected folder.
DISC: Repeatedly plays the entire disc.
OFF: Cancels Repeat Playback.
To Select a Repeat Playback Mode in the Disc Information Screen

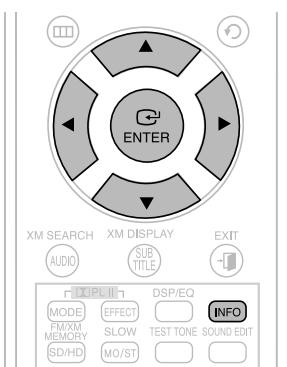

Press the INFO button twice.
Press the Cursor button to move to REPEAT PLAYBACK (C) display.
Press the Cursor button to select the desired Repeat Playback mode.
To select another album and track, repeat Steps 2 and 3 above.
Press the ENTER button.
For DivX, MP3 and JPEG discs, you cannot select Repeat Play from the information display screen.
Using the Playback Function (Cont)
A-B Repeat Playback
You can repeatedly play back a designated section of a DVD.
1 Press the INFO button twice.
2 Press the Cursor button to move to the REPEAT PLAYBACK (C) display.
3 Press the Cursor , button to select and then press the ENTER button at the beginning of the desired segment.
When the ENTER button is pressed, the selected position will be stored in memory.
4 Press the ENTER button at the end of the desired segment.
The specified segment will be played repeatedly.
A TO B REPEAT ON
To return to normal playback, press the Cursor , button to select OFF.
The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.
Step Function
Press the STEP button.
The picture moves forward one frame each time the button is pressed during playback.
No sound is heard during step motion playback.

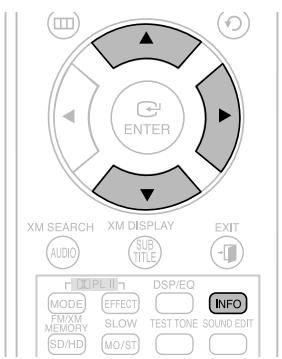

Angle Function
This function allows you to view the same scene in different angles.
1 Press the INFO button.
2 Press the Cursor button to move to ANGLE ( ) display.
3 Press the Cursor , button or numeric buttons to select the desired angle.
Each time the button is pressed, the angle changes as follows:
The Angle function works only with discs on which multiple angles have been recorded.
Zoom (Screen Enlarge) Function
This function allows you to enlarge a particular area of the displayed image.
1 Press the ZOOM button.
2 Press the Cursor , , , button to move to the area you want to enlarge.
3 Press the ENTER button.
Each time the button is pressed, the zoom level changes as follows:
ZOOM X 1.5 → ZOOM X 2 → ZOOM X 3 → ZOOM OFF
When a DivX disc is being played, the screen is enlarged up to twice the normal size.
Using the Playback Function (Cont)
EZ VIEW Function
Press the EZ VIEW button.
Each time the button is pressed, the zoom function will switch between On and Off.
- When a movie is played in Widescreen format, black bars at the top and bottom of the TV screen can be removed by pressing the EZ VIEW button.
This function will not work if the DVD is recorded with multi-camera angle format.
Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.
This feature is not supported for DivX discs.
During the EZ View operation, some of the left and right sides may be cut slightly.
Bonus Group
Some DVD-Audio discs have an extra 'bonus' group that requires a 4-digit key number to access. See the disc packaging for details and the key number.
When you play a DVD-Audio disc that has a bonus group, the key number input screen appears automatically.
If you eject the disc, switch the power off, or unplug the player, you will need to re-enter the key number.
Navigating Pages
During playback, press the , button on the remote control.
You can select the desired image from a DVD-Audio disc containing still images.
With some discs, you may not be able to select images.
Audio Language Selection Function
1 Press the INFO button twice.
2 Press the Cursor , button or numeric buttons to select the desired audio language.
Depending on the number of languages on a DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected each time the button is pressed.
Subtitle Language Selection Function
1 Press the INFO button twice.
2 Press the Cursor button to move to SUBTITLE ( l ) display.
3 Press the Cursor button or numeric buttons to select the desired subtitle.
To operate this function, you can also press the AUDIO or SUBTITLE buttons on the remote control.
Depending on the disc, the Subtitle and Audio Language functions may not be available.
Using the Playback Function (Cont)
Moving Directly to a Scene/Song
1 Press the INFO button.
2 Press the Cursor , button or numeric buttons to select the desired title/track ( ±b^ ) and then press the ENTER button.
3 Press the Cursor , button to move to the Chapter ( ) display.
4 Press the Cursor , button or numeric buttons to select the desired chapter and then press the ENTER button.
5 Press the Cursor , button to move to time (⑦) display.
6 Press the numeric buttons to select the desired time and then press the ENTER button.
Press the numeric buttons.
The selected file will be played.
- When playing an MP3 or JPEG disc, you cannot use the Cursor , button to move to a folder. To move a folder, press the Stop () and then press the Cursor , button.
You can press the button on the remote control to move directly to the desired title, chapter, or track.
Depending on the disc, you may not be able to move to the selected title or time.
Using the Disc Menu
You can use the menus for the audio language, subtitle language, profile, etc. DVD menu contents differ from disc to disc.

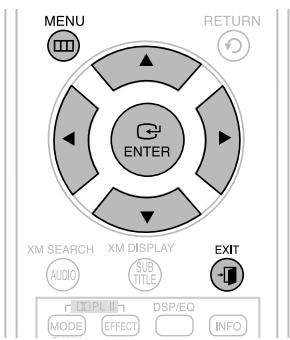

1 In Stop mode, press the MENU button.
2 Press the Cursor , button to move to and then press the ENTER button.
When you select Disc Menu and it is not supported by the disc, the "This menu is not supported" message appears on the screen.
3 Press the Cursor , , , button to select the desired item.
4 Press the ENTER button.
Press the EXIT button to exit the setup screen.
The disc menu display may be different depending on the disc.
Using the Title Menu
For DVDs containing multiple titles, you can view the title of each movie. Depending on the disc, the availability of this feature may vary.
1 In Stop mode, press the MENU button.
2 Press the Cursor , button to move to the
. <br />
3 Press the ENTER button.</p>
<p>The title menu appears. </p>
<blockquote>
<p>Press the EXIT button to exit the setup screen.</p>
</blockquote>
<p><img alt="" src="images/e639297975dba748ce95fb778b6a498474baf9994f56cb1d5dd3c43516a1c868.jpg" /></p>
<p><img alt="" src="images/9d7eba1a8483ad07365d66dfec80b0813861786116520ca5f5433e9b80d75289.jpg" /></p>
<ul>
<li>The Title menu display may be different depending on the disc.</li>
</ul>
<h1 id="playing-media-files-using-the-usb-host-feature">Playing Media Files using the USB Host Feature</h1>
<p>You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel Home Theater sound by connecting the storage device to the USB port of the Home Theater.</p>
<p><img alt="" src="images/2acae2b91a4b363e22a4948a77f380bff4d85652fe6cdb30bfa9799fb436c12a.jpg" /></p>
<p><img alt="" src="images/4ca93b36a9a47130d1691afd3c4044ed8dc16da2a9b963d87c6871e9eaeea418.jpg" /></p>
<p>1 Connect the USB device to the USB port on the front of the unit.</p>
<p><img alt="" src="images/a190e5caf90283f6ebb20f167057d4d842c4a80812a1d8e0a12e4b4207e532b6.jpg" /></p>
<p>2 Press the FUNCTION button on the DVD Player or the USB button on the remote control to select the USB mode.</p>
<ul>
<li><USB> appears on the display screen and then disappears. </li>
<li>The USB MENU screen appears on the TV screen and the saved file is played.</li>
</ul>
<p>3 To stop playback, press the STOP (■) button.</p>
<blockquote>
<p>Safe USB Removal</p>
</blockquote>
<p>To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.</p>
<p>(1) Press the STOP (■) button twice in a row. The display will show REMOVE USB. <br />
(2) Remove the USB cable.</p>
<p><img alt="" src="images/18c6c1ab96e44d9e08903c4624ef193e4712e2dd41ab8a7d01cef0def31dd249.jpg" /></p>
<ul>
<li>To listen to your music files with 5.1 channel home theater sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 57)</li>
</ul>
<h1 id="skip-forwardback-2">Skip Forward/Back</h1>
<p><img alt="" src="images/a9be0f03dfc8c9a5546b5251047ce34f10c8c3dadf79fbb4df9e5b281dc15ec9.jpg" /></p>
<p>During playback, press the 1 button.</p>
<ul>
<li>When there is more than one file and you press the button, the next file is selected. </li>
<li>When there is more than one file and you press the button, the previous file is selected.</li>
</ul>
<h1 id="fast-playback-2">Fast playback</h1>
<p><img alt="" src="images/3cd4c4a1cc6a114b70b9937cc880755ee184da5dfcfe3ad055d8832f56b85ef4.jpg" /></p>
<p>To play back the disc at a faster speed, press the button during playback.</p>
<p>Each time you press the either button, the playback speed will change as follows: 2x 4x 8x 32x Normal .</p>
<h1 id="compatible-devices">Compatible Devices</h1>
<ol>
<li>USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) </li>
<li>MP3 Player: HDD and flash type MP3 players. </li>
<li>
<p>Digital camera: Cameras that support USB Mass Storage v1.0.</p>
</li>
<li>
<p>Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation.</p>
</li>
<li>
<p>USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.</p>
</li>
<li>
<p>You may experience a difference in playback quality when you connect a USB1.1 device. </p>
</li>
<li>
<p>For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.</p>
</li>
<li>
<p>USB card Reader: One slot USB card reader and Multi slot USB card reader.</p>
</li>
<li>
<p>Depending on the manufacturer, the USB card reader may not be supported. </p>
</li>
<li>
<p>If you install multiple memory devices into a multi card reader, you may experience problems.</p>
</li>
<li>
<p>If you use a USB extension cable, the USB device might not be recognized.</p>
</li>
</ol>
<p>Supported Formats </p>
<table><tr><td></td><td>File name</td><td>File extension</td><td>Bit rate</td><td>Version</td><td>Pixel</td><td>Sampling Frequency</td></tr><tr><td>Still Picture</td><td>JPG</td><td>JPG .JPEG</td><td>-</td><td>-</td><td>640x480</td><td>-</td></tr><tr><td rowspan="2">Music</td><td>MP3</td><td>.MP3</td><td>80~384kbps</td><td>-</td><td>-</td><td>44.1kHz</td></tr><tr><td>WMA</td><td>.WMA</td><td>56~128kbps</td><td>V8</td><td>-</td><td>44.1kHz</td></tr><tr><td rowspan="2">Movie</td><td>WMV</td><td>.WMV</td><td>4Mbps</td><td>V1,V2,V3,V7</td><td>720x480</td><td>44.1KHz~48KHz</td></tr><tr><td>DivX</td><td>.AVI,.ASF</td><td>4Mbps</td><td>DivX3.11~DivX5.1,XviD</td><td>800x600</td><td>44.1KHz~48KHz</td></tr></table>
<ul>
<li>CBI (Control/Bulk/Interrupt) is not supported. </li>
<li>Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported. </li>
<li>A device using NTFS file system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) file system is supported.) </li>
<li>Some MP3 players, when connected to this product, may not operate depending on the sector size of their file system. </li>
<li>The USB host function is not supported if a product that transfers media files by its manufacturer-specific program is connected. </li>
<li>Does not operate with Janus enabled MTP(Media Transfer Protocol) devices. </li>
<li>The USB host function of this product does not support all USB devices. For information on the supported devices, see page 72.</li>
</ul>
<h1 id="setting-the-language">Setting the Language</h1>
<p>OSD (On-Screen Display) language is set to English by default.</p>
<p><img alt="" src="images/39dc5e8fe1883d3ec703ef3e16a8560d192afdeee42b2b35513e75565e710ad6.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to <Setup> and then press the ENTER button. <br />
3 Select <LANGUAGE> and then press the ENTER button. <br />
4 Press the Cursor , button to select <OSD LANGUAGE> and then press the ENTER button. <br />
Press the Cursor , button to select the desired language and then press the ENTER button.</p>
<ul>
<li>Once the setup is complete, the OSD will be English if English has been selected as language.</li>
</ul>
<p><img alt="" src="images/6e84186d4720323d54b97a3b347fbf5cff7428beb8ed8d688a64767bdde45dc8.jpg" /></p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<p><img alt="" src="images/728ed9a33bdc35b117cd9d8345b159c7243ae95bb14f7d641a74dc50dadc710d.jpg" /></p>
<ul>
<li>OSD LANGUAGE : Selecting the OSD Language </li>
<li>AUDIO: Selecting the Audio Language (recorded on the disc) </li>
<li>SUBTITLE : Selecting the Subtitle Language (recorded on the disc) </li>
<li>DISC MENU : Selecting the Disc Menu Language (recorded on the disc)</li>
</ul>
<p>If the language you selected is not recorded on the disc, the menu language will not change even if you set it to your desired language.</p>
<p><img alt="" src="images/cc91768799ae3395cf9ad525996036fc7eab5233bed9ae2ffb5fc6e5f3e16b34.jpg" /></p>
<ul>
<li>OTHERS: To select another language, select <OTHERS> and enter the language code of your country. (See page 71 for language codes) AUDIO, SUBTITLE and DISC MENU language can be selected.</li>
</ul>
<h1 id="setting-tv-screen-type">Setting TV Screen Type</h1>
<p>Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.</p>
<p><img alt="" src="images/e4b7f5fb7f1aa6241ebb069e7863fcd0bcb205910da811973f7ef2684a046a75.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to <Setup> and then press the ENTER button. <br />
3 Press the Cursor button to move to <TV DISPLAY> and then press the ENTER button. <br />
4 Press the Cursor , button to select the desired item and then press the ENTER button.</p>
<p>Once the setup is complete, you will be taken to the previous screen.</p>
<p><img alt="" src="images/8482278899b4a51e869679d2d13774633ab670a047c6a4383623f5b82300a007.jpg" /></p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="adjusting-the-tv-aspect-ratio-screen-size">Adjusting the TV Aspect Ratio (Screen Size)</h1>
<p>The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen sizes, you should adjust the aspect ratio to fit your TV or monitor.</p>
<p>For a standard TV, select either < 4:3PS> or < 4:3LB> option according to personal preference. Select < 4:3WIDE/HDTV> if you have a widescreen TV.</p>
<p><img alt="" src="images/dc51c9037f089aafe7c17645537f3c287fa038c8e7f1676f2beb3ed49bfe2999.jpg" /></p>
<h1 id="43ps-43-panscan">4:3PS (4:3 Pan&Scan)</h1>
<p>Select this to play a 16:9 picture in the pan & scan mode on a conventional TV. <br />
- You can see the central portion of the screen only (with the sides of the 16:9 picture cut off)</p>
<p><img alt="" src="images/e680de8c800cc30d410fb2a9d837761b15f6b6e55fa2cbabdd1ba2c984312f37.jpg" /></p>
<h1 id="43lb-43-letterbox">4:3LB (4:3 Letterbox)</h1>
<p>Select this to play a 16:9 picture in the letter box mode on a conventional TV. <br />
- Black bars will appear at the top and bottom of the screen.</p>
<p><img alt="" src="images/0854238cdaae83575e3304317841b45ea296ea36b7613cbb00fa27d968a1db2c.jpg" /></p>
<h1 id="widehdtv">WIDE/HDTV</h1>
<p>Select this to view a 16:9 picture in the full-screen mode on your widescreen TV. <br />
You can enjoy the widenscreen aspect.</p>
<p><img alt="" src="images/b36384a091d30e9639949c9db57bb5634d6a8c6a7095ffa8b74a80f44f678682.jpg" /></p>
<ul>
<li>If a DVD is in the 4:3 ratio, you cannot view it in widescreen. </li>
<li>Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting. </li>
<li>In HDMI operation, the screen is automatically converted to Wide mode.</li>
</ul>
<h1 id="setting-parental-controls-rating-level">Setting Parental Controls (Rating Level)</h1>
<p>Use this to restrict playback of adult or violent DVDs you do not want children to view.</p>
<p><img alt="" src="images/7fc18fe3b94627cf40baf8cae99be84aa246e0e869f99af9b6b7debc6831936a.jpg" /></p>
<p><img alt="" src="images/ce158c5e0c2a1534400d4d92b13a7a773cb8f876e521a540310f4b8e2dcd6873.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to <Setup> and then press the ENTER button. <br />
3 Press the Cursor button to move to <PARENTAL> and then press the ENTER button. <br />
4 Press the Cursor , button to select the desired rating level and then press the ENTER button.</p>
<p>If you have selected Level 6, you cannot view DVDs with Level 7 or higher. <br />
The higher the level, the closer the content is to violent or adult material.</p>
<p>5 Enter the password and then press the ENTER button.</p>
<p>The password is set to "7890" by default. <br />
Once the setup is complete, you will be taken to the previous screen.</p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<p><img alt="" src="images/a732f8adaa9e20e26746b061e7208f14e706872fb8156b7b7af5d17265a64be5.jpg" /></p>
<ul>
<li>This function works only if a DVD disc contains the rating level information.</li>
</ul>
<h1 id="setting-the-password">Setting the Password</h1>
<p>You can set the password for the Parental (rating level) setting.</p>
<p><img alt="" src="images/961e1d923d14111db7c6432ef6d3e4e322bc78ca0ec8c5bef2a4e76beab58e14.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to <Setup> and then press the ENTER button. <br />
3 Press the Cursor button to move to <password> and then press the ENTER button. <br />
4 Press the ENTER button.</p>
<p>5 Enter the password and then press the ENTER button.</p>
<p>Enter the old password, a new password, and confirm new password. <br />
The setting is complete</p>
<p><img alt="" src="images/695c6a8f6e650e8fb81818f5b2e666393f7dbd2d6b1e06906aae2f56a87b1433.jpg" /></p>
<p><img alt="" src="images/cc2a90988378ce2d0d8dc60a94e4b9c4804d7ea2c5ed65184a0d7153c1ef8492.jpg" /></p>
<ul>
<li>The password is set to "7890" by default.</li>
</ul>
<h1 id="if-you-have-forgotten-the-rating-level-password-do-the-following">If you have forgotten the rating level password, do the following</h1>
<ul>
<li>While the player is in No Dlsc mode, hold the DVD Player's STOP (■) button for longer than 5 seconds. <INITIAL> appears on the display and all settings will return to the default values. </li>
<li>Press the POWER button.</li>
</ul>
<p>Using the RESET function will erase all stored settings.</p>
<p>Do not use this unless necessary.</p>
<h1 id="setting-the-wallpaper">Setting the Wallpaper</h1>
<p><img alt="" src="images/a85305687b9449f60ac5f47bb7457b13362f0edaf5c531bc36b954166b664dab.jpg" /></p>
<p><img alt="" src="images/a33fddaf5b289dc7f428dcd947f92d3940ee738971a0a97ba31579ebd113c253.jpg" /></p>
<p>While watching a DVD or JPEG CD, you can set the image you like as background wallpaper.</p>
<p><img alt="" src="images/ef7925448a2540eee57f729893c6556a23c58b7c48cd69117226c29f8bdfffad.jpg" /></p>
<p>1 During playback, press the PLAY/PAUSE button when an image you like appears. <br />
2 Press the LOGO button.</p>
<ul>
<li><COPY LOGO DATA> will be displayed on the TV screen.</li>
</ul>
<p>3 The power will turn off and then back on.</p>
<p>The selected wallpaper will be displayed. <br />
- You can select up to 3 wallpaper settings.</p>
<p><img alt="" src="images/9ddbbbcd80f38b8f27486da616f29c04f9d21f391ff170014e7c2801fa7c777b.jpg" /></p>
<ul>
<li>This function will not work when the HDMI output is 720p or 1080i.</li>
</ul>
<h1 id="to-select-one-of-the-3-wallpaper-settings-youve-made">To Select One of the 3 Wallpaper Settings you've made</h1>
<p><img alt="" src="images/1a0dd01fb0c868eb70c3d49df315291caf87b77e9f7683523bda65142a7e9ec7.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to <Setup> and then press the ENTER button. <br />
3 Press the Cursor button to move to <LOGO> and then press the ENTER button. <br />
4 Press the Cursor , button to select the desired < USER > and then press the ENTER button.</p>
<p>This selects one of the 3 wallpaper screens</p>
<p>5 Press the EXIT button to exit the setup screen. <br />
- ORIGINAL: Select this to set the Samsung Logo image as your wallpaper. <br />
- USER: Select this to set the desired image as your wallpaper.</p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="dvdplaybackmode">DVDPlaybackMode</h1>
<p>Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.</p>
<p>To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.</p>
<p><img alt="" src="images/eec837d49109a6b2505b025994ed2eab1c5e870a4f1886d634add76936f504fa.jpg" /></p>
<p>1 Press the MENU button while the disc tray is open. <br />
2 Press the Cursor button to move to <Setup> and then press the ENTER button. <br />
3 Press the Cursor button to move to <DVD TYPE> and then press the ENTER button. <br />
4 Press the Cursor , button to move to <DVD VIDEO> and then press the ENTER button.</p>
<ul>
<li>Set steps 1 ~ 4 again if you want to switch to DVD AUDIO Play mode.</li>
</ul>
<p>DVDVIDEO: set to play the DVD video contents contained on a DVD audio disc. <br />
DVD AUDIO: set to play the default DVD audio.</p>
<p><img alt="" src="images/6545a8959f6e5a0a078ee7ac2799f50a6f81f0363f8d3e7cc667bc27f933d181.jpg" /></p>
<p><img alt="" src="images/a457958664afcb6312a4db8083ea1dbde6b014a28f9b7ac4372e9e32c580e537.jpg" /></p>
<ul>
<li>DVD Play mode is set to DVD Audio as factory default setting. </li>
<li>Powering off the main unit will automatically switch to the DVD Audio mode.</li>
</ul>
<h1 id="divx-r-registration">DivX (R) Registration</h1>
<p>Please use the Registration code to register this player with the DivX (R) video on demand format.</p>
<p>To learn more, go to www.divx.com/vod.</p>
<h1 id="setting-the-speaker-mode">Setting the Speaker Mode</h1>
<p>Signal outputs and frequency responses from the speakers will automatically be adjusted according to your speaker configuration and whether certain speakers are used or not.</p>
<p><img alt="" src="images/d8e4cdf97d39c02d24bf12cd704c9138cd678d68e77516bc489a08e53d5f6997.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to Audio> and then press the ENTER button. <br />
3 In the <SPEAKER SETUP>, press the the ENTER button again. <br />
4 Press the Cursor , , , button to move to the desired speaker and then press the ENTER button.</p>
<p>For C, SL, and SR, each time the button is pressed, the mode switches alternately as follows: SMALL NONE. <br />
For L and R, the mode is set to SMALL.</p>
<p><img alt="" src="images/467e8ffb278559b92821bc446f74c9485e557c4e74065eab15f868b9a10b0eb9.jpg" /></p>
<ul>
<li>SMALL: Select this when using the speakers. </li>
<li>NONE : Select this when no speaker is connected.</li>
</ul>
<p><img alt="" src="images/282d112ac84cecd7635598b798ebba3bba4795dcd640ac11525bfe0f6dc4d765.jpg" /></p>
<ul>
<li>Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 57).</li>
</ul>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="setting-the-delay-time">Setting the Delay Time</h1>
<p>If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the center and rear speakers.</p>
<p><img alt="" src="images/3d928c76392da03e25b7a88bdd30fd522393f81921e97be83143dfce82cd1f0e.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to Audio> and then press the ENTER button. <br />
3 Press the Cursor button to move to <DELAY TIME> and then press the ENTER button. <br />
4 Press the Cursor , , , button to move to the desired speaker and then press the ENTER button. <br />
5 Press the Cursor , button to set the Delay time.</p>
<ul>
<li>You can set the delay time for C between 00 and 05mSEC and for SL and SR between 00 and 15mSEC.</li>
</ul>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="setting-up-the-speaker-delay-time">Setting up the Speaker Delay Time</h1>
<p>When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the sound of the Center and Surround Speakers.</p>
<p><img alt="" src="images/dda0504b06d09f1e1a6c7cd4044a5b63c0be37c13e543cacde0f8853fde1b70f.jpg" /></p>
<p>It is desirable to place all speakers within this circle.</p>
<p>Df: The distance from FRONT SPEAKER <br />
Dc: The distance from CENTER SPEAKER <br />
Ds: The distance from SURROUND SPEAKER</p>
<h1 id="setting-center-speaker">Setting CENTER SPEAKER</h1>
<p>If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.</p>
<table><tr><td>Distance between Df and Dc</td><td>0 inch</td><td>13.6 inches</td><td>27.2 inches</td><td>40.8 inches</td><td>4.5 feet</td><td>5.6 feet</td></tr><tr><td>Delay Time</td><td>0 ms</td><td>1 ms</td><td>2 ms</td><td>3 ms</td><td>4 ms</td><td>5 ms</td></tr></table>
<h1 id="setting-rear-surround-speakers">Setting REAR (SURROUND) SPEAKERS</h1>
<p>If the distance of Df is equal to the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.</p>
<table><tr><td>Distance between Df and Dc</td><td>0 inch</td><td>40.8 inches</td><td>6.7 feet</td><td>10.0 feet</td><td>13.4 feet</td><td>16.7 feet</td></tr><tr><td>Delay Time</td><td>0 ms</td><td>3 ms</td><td>6 ms</td><td>9 ms</td><td>12 ms</td><td>15 ms</td></tr></table>
<p><img alt="" src="images/277258ec2b32c096ec255dc43c4b278f67b59c8e44e6ad0c09d7ac15382baa39.jpg" /></p>
<ul>
<li>With PL II (Dolby Pro Logic II), the delay time may be different for each mode. </li>
<li>With AC-3 and DTS, the delay time can be set between 00 and 15mSEC. </li>
<li>The Center channel is only adjustable on 5.1 channel discs.</li>
</ul>
<h1 id="settings-cont">Settings (Con't)</h1>
<h1 id="setting-the-test-tone">Setting the Test Tone</h1>
<p>Use the Test Tone feature to check the speaker connections.</p>
<p><img alt="" src="images/9dc193698d9cba7888403bdeb3f038bd53cbcf74997150eed4bf8d8cb65103d0.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to Audio> and then press the ENTER button. <br />
3 Press the Cursor button to move to <TEST TONE> and then press the ENTER button.</p>
<p>The test tone will be sent to L C R SR SL SW in order.</p>
<p>If the ENTER button is pressed again at this time, the test tone will stop.</p>
<p><img alt="" src="images/74859bd6e72551987fd4fb7a49fa62543e11ba8f7148598a45b0c79abdb3bad5.jpg" /></p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="alternative-method-press-the-test-tone-button-on-the-remote">Alternative method: press the TEST TONE button on the remote.</h1>
<p><img alt="" src="images/9143d6429a0b986ed2ec5e5394c9f9f86952e6b264b0f47eeb30da3fc58b93b5.jpg" /><br />
Multi-Channel Pro Logic Mode</p>
<p>L: Front Speaker (L)</p>
<p>C: Center Speaker</p>
<p>R: Front Speaker (R)</p>
<p>SL: Rear Speaker (L)</p>
<p>SW: Subwoofer</p>
<p>SR: Rear Speaker (R)</p>
<h1 id="press-the-test-tone-button">Press the TEST TONE button.</h1>
<p>Test tone will be produced as follows: <br />
When playing a DVD or CD, this will work only in Stop mode. <br />
- Use this function to check that each speaker is correctly connected and that there is no problem. <br />
- When HDMI AUDIO is on (audio is produced through TV speakers), the TEST TONE function is not available.</p>
<p>To end the test tone, press the TEST TONE button again.</p>
<h1 id="setting-the-audio">Setting the Audio</h1>
<p>You can adjust the balance and level for each speaker.</p>
<p><img alt="" src="images/dfdb806a94965decc2bcbf4998b432be8455620daff86a9876d2d07403fed633.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to Audio> and then press the ENTER button. <br />
3 Press the Cursor button to move to <SOUND EDIT> and then press the ENTER button. <br />
4 Press the Cursor , button to select and adjust the desired item. Press the Cursor , button to adjust the settings.</p>
<p><img alt="" src="images/2b2e121e14ef0be986ca72ae893c1b05ee529019d68bf5fc2647e79e2edbdfeb.jpg" /></p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="manually-adjusting-the-speaker-volume-and-balance-with-the-sound-edit-button">Manually Adjusting the Speaker Volume and Balance with the SOUND EDIT Button.</h1>
<p><img alt="" src="images/0d275d44809328385c65ad88ddbd15cc62edc8750a6ee5fbd34cb9f6901861e4.jpg" /></p>
<p>Press the SOUND EDIT button and then press the Cursor , button.</p>
<p><img alt="" src="images/46c19dd2e6324eae55a5e2fa1e75c850ea4d43143b891ab233325f1d01e8857b.jpg" /></p>
<h1 id="adjusting-frontrear-speaker-balance">Adjusting Front/Rear Speaker Balance</h1>
<ul>
<li>You can select between 00, -06, and OFF. <br />
The volume decreases as you move closer to -6.</li>
</ul>
<h1 id="adjusting-centerrearsubwoofer-speaker-level">Adjusting Center/Rear/Subwoofer Speaker Level</h1>
<p>The volume level can be adjusted in steps from +6dB to -6dB . <br />
- The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.</p>
<h1 id="setting-the-drc-dynamic-range-compression">Setting the DRC (Dynamic Range Compression)</h1>
<p>This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.</p>
<p><img alt="" src="images/9aad114d4f39f4bed02d38e13a15adf714a93b4c5ce8d9ee25853ba8fe8b89c7.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to Audio> and then press the ENTER button. <br />
3 Press the Cursor button to move to <DRC> and then press the ENTER button. <br />
4 Press the Cursor , button to adjust the DRC.</p>
<ul>
<li>When the Cursor button is pressed, the effect is greater, and when the Cursor button is pressed, the effect is smaller.</li>
</ul>
<p><img alt="" src="images/e3091052acc00e20e7db531b83b8c5dc68e83c7ca754fa2a1f63863257cfe936.jpg" /></p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="setting-the-av-sync">Setting the AV SYNC</h1>
<p>Video may look slower than the audio if it is connected to a digital TV. If this occurs, adjust the audio delay time to match the video.</p>
<p><img alt="" src="images/ec9eee57a316391c78392f656b6e7ab63f5b243d12a4e3a85735c7a76664a612.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to Audio> and then press the ENTER button. <br />
3 Press the Cursor button to move to <AV-SYNC> and then press the ENTER button. <br />
4 Press the Cursor , button to select the AV-SYNC Delay Time and then press the ENTER button.</p>
<ul>
<li>You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.</li>
</ul>
<p><img alt="" src="images/f2464604b59726f8bc9c4accd3b167623acd99ad081507400958d5da9d72eca6.jpg" /></p>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="setting-the-hdmi-audio">Setting the HDMI Audio</h1>
<p>The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.</p>
<p><img alt="" src="images/62569ac89c8881596891b87533d31f11ec9df5b88777e824b6ba0cb08fded0a1.jpg" /></p>
<p>1 In Stop mode, press the MENU button. <br />
2 Press the Cursor button to move to Audio> and then press the ENTER button. <br />
3 Press the Cursor button to move to <HDMI AUDIO> and then press the ENTER button. <br />
4 Press the Cursor , button to select <ON> or <OFF> and then press the ENTER button.</p>
<p><img alt="" src="images/b31e3944e9e9fcb765fe91a11839a6e952a4d56fde8a5982fe6f0cc9873182bc.jpg" /></p>
<ul>
<li>ON: Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only. </li>
<li>OFF: Video is transmitted over the HDMI connection cable only, and audio is output through the home theater speakers only.</li>
</ul>
<p><img alt="" src="images/8dba0480b78aa70acfb04b35add71e0abaded40e89617fb71c10679a9d0aeb56.jpg" /></p>
<ul>
<li>The default setting of this function is HDMI AUDIO OFF. </li>
<li>HDMI AUDIO is automatically down-mixed to 2ch for TV speakers. </li>
<li>The HDMI AUDIO is not available when using the HDMI IN function.</li>
</ul>
<blockquote>
<p>Press the RETURN button to return to the previous level. <br />
Press the EXIT button to exit the setup screen.</p>
</blockquote>
<h1 id="sound-field-dspeq-function">Sound Field (DSP)/EQ Function</h1>
<p>DSP(Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments.</p>
<p>EQ : You can select ROCK, POP, or CLASSIC to optimize the sound for the genre of music you are playing</p>
<p><img alt="" src="images/6a42aaf403de6d9c95149289a55eaac3b5202f94ea1be2e84fbc9fddb1867eca.jpg" /></p>
<h1 id="press-the-dspeq-button">Press the DSP/EQ button.</h1>
<ul>
<li><DSP> appears on the display panel. <br />
Each time the button is pressed, the selection changes as follows:</li>
</ul>
<p><img alt="" src="images/669472f12992f6d977d75e5ff3165151157796b2e30bd91c7867de72b2291a2e.jpg" /></p>
<ul>
<li>POP, JAZZ, ROCK: Depending on the genre of music, you can select POP, JAZZ, and ROCK. </li>
<li>STUDIO: Provides a sense of presence as if in a studio. </li>
<li>CLUB : Simulates the sound of a dance club with a throbbing bass beat. <br />
HALL: Provides a clear vocal as if listening in a concert hall. <br />
MOVIE : Provides the feeling of a movie theater. </li>
<li>CHURCH : Gives the feel of being in a grand church. </li>
<li>PASS: Select this for normal listening.</li>
</ul>
<p><img alt="" src="images/880e3f705322cefc33ef3895e1e66006efda9f595fcb3e38547df0df44df98c6.jpg" /></p>
<ul>
<li>The DSP/EQ function is only available in STEREO mode.</li>
</ul>
<p>Press the PL II mode button to show STEREO on the display.</p>
<ul>
<li>This feature works with CDs, MP3-CDs, 2 channel DVD-Audio, DivX and Dolby Digital discs. </li>
<li>When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and DSP/EQ function does not work.</li>
</ul>
<h1 id="dolby-pro-logic-ii-mode">Dolby Pro Logic II Mode</h1>
<p>You can select the desired Dolby Pro Logic II audio mode.</p>
<p><img alt="" src="images/c04fb584a3430cd8c41c2c541955c87b3e5e87ad5393ef47c5aea35b5ca8c0f1.jpg" /></p>
<h1 id="press-the-square-pl-ii-mode-button">Press the PL II MODE button.</h1>
<p>Each time the button is pressed, the mode changes as follows.</p>
<p><img alt="" src="images/a3a429badebc81523c0e6e5e22258c8144062f3737273792e197f876a90373c6.jpg" /></p>
<h1 id="pro-logic-ii">PRO LOGIC II</h1>
<ul>
<li>MUSIC: When listening to music, you can experience sound effects as if you are listening to the actual performance. <br />
CINEMA:Adds realism to the movie soundtrack. </li>
<li>PRO LOGIC: You will experience a realistic multi-channel effect, as if using five speakers, while using just the front left and right speakers. </li>
<li>MATRIX : You will hear 5.1 channel surround sound.</li>
</ul>
<p>STEREO : Select this to listen to sound from the front left and right speakers and the subwoofer only.</p>
<p><img alt="" src="images/112a6d4327ecf1b29fd66df686923715c36c8e268a8814eec8887d257dda16c6.jpg" /></p>
<ul>
<li>When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the player. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.</li>
</ul>
<h1 id="settings-cont-2">Settings (Con't)</h1>
<h1 id="listening-to-radio">Listening to Radio</h1>
<h1 id="dolby-pro-logic-ii-effect">Dolby Pro Logic II Effect</h1>
<p>This function works only in Dolby Pro Logic MUSIC mode.</p>
<p><img alt="" src="images/8acc430f0a634d304fa4919f7847438e12f2202eff060bd3c4181cca00a821a8.jpg" /></p>
<p>1 Press the [ ] PL II MODE button to select <MUSIC> mode.</p>
<p><img alt="" src="images/082635c94e193ebcef83264ab2725a1b9f3fdcf1ceab031af2cbf758d40b2b30.jpg" /></p>
<p>2 Press the PL II EFFECT button to select <PANorama>, then press the Cursor , button to select the desired effect setting.</p>
<p>You can select either 0 or 1. <br />
This mode extends the front stereo image to include the surround speakers for an exciting "wraparound" effect with side wall imaging.</p>
<p><img alt="" src="images/4f8d7d9f6190cf2f07fc7abeb92957ab8a7a9ec78dd02b085eca9f3fb10cac4d.jpg" /></p>
<p>3 Press the PL II EFFECT button to select <C-W I DTH> , then press the Cursor , button to select the desired effect setting.</p>
<p>You can select between 0 and 7. <br />
This sets the width of the center image. The higher the setting, the less sound comes from the center speaker.</p>
<p><img alt="" src="images/5d49003ed258927044aca92ea01a3f5d9a83cf7686ab1ecb81f4a352503db8a0.jpg" /></p>
<p>4 Press the PL II EFFECT button to select <DIMENS> , then press the Cursor</p>
<p>, button to select the desired setting</p>
<p>You can select between 0 and 6. <br />
- Incrementally adjusts the sound field (DSP) from the front or rear.</p>
<p><img alt="" src="images/b241f2dad3ff51a4ceab1d838b1789bddb45345600eb6531a3d676f251a89987.jpg" /></p>
<p><img alt="" src="images/d47b9208ee2a65de0e12fc2a8fe4fb507b8d534a04d9766ac547b85b82e2d74c.jpg" /></p>
<ul>
<li>When playing a DVD disc encoded with two or more channels, multi-channel mode will be selected automatically and the PL II (Dolby Pro Logic II) button does not work.</li>
</ul>
<p><img alt="" src="images/e1f8f703b505b3978d168058c2977f40a438caba1e5d94e4c50509af54526fca.jpg" /></p>
<h1 id="remote-control-2">Remote Control</h1>
<p>1 Press the FM/XM button to select the FM band. <br />
2 Tune in to the desired station.</p>
<p>Automatic Tuning 1: When the (\text{山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山山 <br />
Automatic Tuning 2: Press and hold the , button to automatically search for active broadcasting stations. <br />
- Manual Tuning: Briefly press the , button to increase or decrease the frequency incrementally.</p>
<h1 id="main-unit">Main Unit</h1>
<p>1 Press the FUNCTION button to select the FM band. <br />
2 Select a broadcast station.</p>
<p>Automatic Tuning 1: Press the STOP (■) button to select <PRESET> and then press the button to select the preset station. <br />
Automatic Tuning 2: Press the STOP (■) button to select <MANUAL> and then press and hold the button to automatically search the band. <br />
- Manual Tuning: Press the STOP (■) button to select <MANUAL> and then briefly press the button to tune in to a lower or higher frequency.</p>
<blockquote>
<p>Press the MO/ST button to listen in Mono/Stereo.</p>
</blockquote>
<p>Each time the button is pressed, the sound switches between <STEREO> and <MONO>. <br />
In a poor reception area, select MONO for a clear, interference-free broadcast.</p>
<h1 id="listening-to-radio-cont">Listening to Radio (Con't)</h1>
<h1 id="presetting-stations">Presetting Stations</h1>
<p><img alt="" src="images/33157cae820cb5824d8aef85f424919bbd71b362ac57ececae6c41c131b59fe7.jpg" /></p>
<p>Example : Presetting FM 89.10 in the memory</p>
<p>1 Press the FM/XM button to select the FM band. <br />
2 Press the , button to select < 89.10></p>
<p>FM 8910</p>
<p>3 Press the FM/XM MEMORY button.</p>
<ul>
<li><PRGM> flashes in the display.</li>
</ul>
<p><img alt="" src="images/7bbd5363239f7626ed58d9613448f63dca58d50c8a7db215241543650da28ef3.jpg" /></p>
<p>4 Press the button to select preset number.</p>
<ul>
<li>You can select between 1 and 15 presets.</li>
</ul>
<p><img alt="" src="images/455577d37d8c63736816b7a7479de61b3a0cfe311475b332426e65f7c7085206.jpg" /></p>
<p>5 Press the FM/XM MEMORY button again.</p>
<p>Press the FM/XM MEMORY button before <PRGM> disappears from the display. <br />
- <PRGM> disappears from the display and the station is stored in memory.</p>
<p>6 To preset another station, repeat steps 2 to 5. <br />
To tune in to a preset station, press the button on the remote control to select a channel.</p>
<p><img alt="" src="images/a2a18c51df1b67875dbc3ff56c0e9fc655e090d87016e430637fbbf6e0e0730e.jpg" /></p>
<ul>
<li>This unit does not receive AM broadcasts.</li>
</ul>
<h1 id="xm-satellite-radio">XM Satellite Radio</h1>
<h1 id="before-using-xm-satellite-radio">Before Using XM Satellite Radio</h1>
<p><img alt="" src="images/2f4b513e018595a808c77a1483d46706a5f692e4e6f3149fa562455567a0e0a9.jpg" /></p>
<h1 id="what-is-xm-satellite-radio">What is XM satellite Radio?</h1>
<p>XM Satellite Radio is the satellite radio service with millions of listeners across the U.S., broadcasting live daily. XM's channel lineup includes more than 160 digital channels of choice from coast to coast: 68 commercial-free music channels, featuring hip hop to opera, classical to country, bluegrass to blues; 33 channels of premier sports, talk, comedy, children's and entertainment programming; and more than 20 channels of the traffic and weather information for major metropolitan areas nationwide.</p>
<p><img alt="" src="images/536bcf6915ca326f583dab3ea1a7e9fb27a26c1b4afec54c6f6a60545180d23e.jpg" /></p>
<p>The XM Satellite Radio service is only available in the 48 contiguous United States (not available in Alaska and Hawaii)</p>
<ul>
<li>The XM Antenna and monthly subscription are sold separately. <br />
For details, see the XM Satellite Radio website at "http://www.xmradio.com" <br />
To ensure optimal reception of XM's satellite signal, the XM Antenna should be placed at or near a southerly facing window with nothing obstructing its path to the sky. You can mount it indoors or outdoors.</li>
</ul>
<h1 id="listening-to-xm-satellite-radio">Listening to XM Satellite Radio</h1>
<p><img alt="" src="images/bcf38917d2440fa31038fdb23171ab0895a580163df547bc4032327c3dd100d1.jpg" /></p>
<p>1 Press the FM/ XM button (or FUNCTION button on the main unit) and select the XM band. <br />
Each time the FM/XM button is pressed, the band switches between <FM><XM></p>
<h1 id="028">[028]</h1>
<p>2 Press the Cursor , button to select the channel, press the Cursor , button to select the category. <br />
- You can select the channel directly by pressing the number buttons(1 to 255).</p>
<p><img alt="" src="images/c4f14cff28f7bb6b8b2f9804a461c2d44ba3097880fd7c4c60f3adac31c2b169.jpg" /></p>
<ul>
<li>If <CHECK ANTENNA> appears in the display, the XM Antenna may not be connected to the XM Antenna Jack on the rear of this unit properly. </li>
<li>When the selected channel is not available, <CH----> is displayed.</li>
</ul>
<h1 id="xm-satellite-radio-cont">XM Satellite Radio (Con't)</h1>
<h1 id="xm-display-mode">XM Display Mode</h1>
<p>The XM features described here only operate when the optional XM antenna is connected to the main unit.</p>
<p><img alt="" src="images/aa7634d99fecf4b0528a53cd1728f0b54b40765dfbc5ea70509ebaf68f0b8cf7.jpg" /></p>
<h1 id="press-the-xm-display-button">Press the XM DISPLAY button.</h1>
<p>Each time the XM DISPLAY button is pressed, the mode changes as follows:</p>
<p>CHANNEL NAME/NUMBER CHANNEL CATEGORY ARTIST NAME/SONG TITLE </p>
<p>SIGNAL STRENGTH</p>
<ul>
<li>When the Channel Name/Number is displayed :</li>
</ul>
<p>[020]</p>
<ul>
<li>When the Channel Category is displayed :</li>
</ul>
<p><CAT></p>
<ul>
<li>When the Artist Name/Song Title is displayed :</li>
</ul>
<p>Chuck Berr</p>
<ul>
<li>When the Signal Strength is displayed :</li>
</ul>
<p>GOOD</p>
<p><img alt="" src="images/5e07338f53c79687ef3a70005382ba4afedc6bf185e27f47c22b006c33828e40.jpg" /></p>
<ul>
<li>
<p>The front panel display can indicate up to 10 alphanumeric characters at once. If the information contains more than 10 characters, the information scrolls from right to left</p>
</li>
<li>
<p>If the information contains a character that cannot be recognized by the unit, the character will be displayed with an underscore < ^*></p>
</li>
</ul>
<h1 id="checking-the-xm-signal-strength">Checking the XM Signal Strength</h1>
<p><img alt="" src="images/c01ac00422c69dddfeda892eea5e0d502edbb9722b13aaa8741a335a67f598d4.jpg" /></p>
<p>Press the XM DISPLAY button until <Signal> is displayed.</p>
<p>The display changes as shown below according to the receiving condition.</p>
<table><tr><td>Display</td><td>Condition</td></tr><tr><td>GOOD</td><td>Signal strength is good</td></tr><tr><td>MARGINAL</td><td>Signal strength is marginal</td></tr><tr><td>WEAK</td><td>Signal strength is poor</td></tr><tr><td>NO</td><td>Loss of signal</td></tr></table>
<h1 id="checking-the-radio-id">Checking the Radio ID</h1>
<p><img alt="" src="images/8883be1c9010bcd0aeb3a2e01b9f715523ac3183c12a9cc062db3e0214d62759.jpg" /></p>
<p>Press the Cursor , button (or 1 1 button on the main unit) to select channel < 0> .</p>
<p>The Radio ID is displayed. The ID below is just an example.</p>
<h1 id="jh7x504y">JH7X504Y</h1>
<p><img alt="" src="images/c29dc0b38d15a465ddf5ecc19a512097e94c7029e03d9bddd23cc6c43cb0aaa9.jpg" /></p>
<ul>
<li>To sign up for an account with the XM Satellite Radio service, an XM Satellite Radio ID number is required. Follow the procedure above to check your ID number, and then access the website at "http://activate.xmradio.com" or call "1-800-XM-RADIO(1-800-967-2346)" with a major credit card to sign up.</li>
</ul>
<h1 id="xm-search-mode">XM Search Mode</h1>
<p>The XM features described here only operate when the optional XM antenna is connected to the main unit.</p>
<p><img alt="" src="images/c61ebd00cd7c38eb4ab65af15ef2ce4c99196977f906dd072cc48b3b460c0449.jpg" /></p>
<p>Press the XM SEARCH button.</p>
<p>Each time the XM SEARCH button is pressed, the mode changes as follows:</p>
<p>CHANNEL SEARCH CATEGORY SEARCH PRESET SEARCH</p>
<ul>
<li>Channel Search Mode :</li>
</ul>
<p>Press the TUNING/CH (or , button on the main unit) to move to the desired channel.</p>
<p><img alt="" src="images/fa70d4c75778c161c909cedd62e9a3c0f0d7f58f77ca35554c6b20b0560bf3f0.jpg" /></p>
<ul>
<li>Category Search Mode :</li>
</ul>
<p>Press the TUNING/CH (or , button on the main unit) to select the channel within the selected category.</p>
<p><img alt="" src="images/038a84dd549c416e41772676bcd1587f7076346e1cde9f91d4ea790efa60fe31.jpg" /></p>
<ul>
<li>Preset Search Mode :</li>
</ul>
<p>Press the TUNING/CH (or , button on the main unit) to select the channel within the memorized channels.</p>
<p><img alt="" src="images/707607b5c152ae9a7087eecfd5f7bc3ad1456f2768079da0600d6f3081f72931.jpg" /></p>
<h1 id="xm-satellite-radio-cont-2">XM Satellite Radio (Con't)</h1>
<h1 id="presetting-xm-satellite-radio">Presetting XM Satellite Radio</h1>
<p><img alt="" src="images/5670c47064cee61654f29c5d0e71b675d6e6a65abeaf24e0ddb2a5f4b53daa6d.jpg" /></p>
<p>1 Press the FM/ XM button(or FUNCTION button on the main unit) and select the XM band. <br />
Each time the FM/ XM button is pressed, the band switches between <FM> <XM> .</p>
<p>2 Search the XM Satellite Radio channel you want to set as a preset channel. <br />
- When the channel number < 20 > is selected.</p>
<h1 id="020">[020]</h1>
<p>3 Press the FM/XM MEMORY button.</p>
<ul>
<li><PRGM> flashes in the display.</li>
</ul>
<h1 id="01028">01[028]</h1>
<p>4 Press the button select preset number.</p>
<ul>
<li>You can select between 1 and 15 presets.</li>
</ul>
<h1 id="0219201">0219201</h1>
<p>5 Press the FM/XM MEMORY button again.</p>
<p>Press the FM/XM MEMORY button before <PRGM> disappears from the display. <br />
- <PRGM> disappears from the display and the station is stored in memory.</p>
<p>6 To preset another station, repeat steps 2 to 5.</p>
<p><img alt="" src="images/8e3a7606c1fd1804b604a24048270837f3c30ff34ecbe8509bf7d9cc86eb3db2.jpg" /></p>
<ul>
<li>Up to 15 stations can be saved in memory. If you save more than 15 stations, the oldest station previously saved is removed and a new station is stored in its place.</li>
</ul>
<p>To tune in to a preset station, press the TUNING/CH button (or button on the main unit) to select a channel.</p>
<h1 id="convenient-functions">Convenient Functions</h1>
<h1 id="sleep-timer-function">Sleep Timer Function</h1>
<p>You can set the time that the Home Theater will shut itself off.</p>
<p><img alt="" src="images/4a3fb58935c11f9e6a4179d4aa2064407d2028bd6e459012e58ffc6d86c01ad0.jpg" /></p>
<p>Press the SLEEP button.</p>
<ul>
<li><SLEEP> will be displayed. Each time the button is pressed, the preset time changes as follows: 10 20 30 60 90 120 150 OFF.</li>
</ul>
<p>To confirm the sleep timer setting, press the SLEEP button. <br />
The remaining time before the Home Theater will shut itself off is displayed. <br />
- Pressing the button again changes the sleep time from what you have set earlier. <br />
To cancel the sleep timer, press the SLEEP button until <OFF> appears on the display.</p>
<h1 id="adjusting-display-brightness">Adjusting Display Brightness</h1>
<p>You can adjust the brightness of the display on the main unit so it won't interfere with your movie viewing.</p>
<p><img alt="" src="images/db033da2b2f05dbda4045f3bec0b283dae4cebb40675cda74381fac254265636.jpg" /></p>
<p>Press the DIMMER button.</p>
<p>Each time the button is pressed, the brightness of front display will be adjusted.</p>
<h1 id="mute-function">Mute Function</h1>
<p>This is useful when answering a doorbell or telephone call.</p>
<p><img alt="" src="images/c9ca346d4a2fcaf4f7533851a557d438bcc87624f1902b4364791543ce6f2899.jpg" /></p>
<p>Press the MUTE button.</p>
<ul>
<li><MUTE ON> appears in the display. <br />
To restore the sound, press the MUTE button again to select <MUTE OFF>.</li>
</ul>
<h1 id="mute-on">MUTE ON</h1>
<h1 id="using-headphones">Using Headphones</h1>
<p>Use headphones (not supplied) for private listening pleasure.</p>
<p><img alt="" src="images/ea211a9205503db39a27559d0993dfd54960a29836a99de2189fc9ecbdbd0e8a.jpg" /></p>
<p>Connect the headphones to the Headphone jack for private listening.</p>
<p><img alt="" src="images/507e0b42edf0b6d76fc02ec843486a2a7648adaa1cbfb85599b7d83ff0b276b2.jpg" /></p>
<ul>
<li>To prevent hearing damage, do not increase the volume excessively when using headphones.</li>
</ul>
<h1 id="operating-a-tv-with-the-remote-control">Operating a TV with the Remote Control</h1>
<h1 id="when-operating-a-tv-with-the-remote-control">When Operating a TV with the Remote Control</h1>
<p><img alt="" src="images/691c48db9101418e6681071b133387b57cf75251525ad49c030eece8f31cf135.jpg" /></p>
<p>1 Press the TV button to set the remote to TV mode. <br />
2 Press the POWER button to turn on the TV. <br />
3 While holding down the POWER button, enter the code corresponding to your brand of TV.</p>
<p>If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.</p>
<h1 id="example-for-a-samsung-tv">Example : For a Samsung TV</h1>
<p>While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.</p>
<p>4 If the TV turns off, the setting is complete. <br />
- You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).</p>
<p><img alt="" src="images/ca38faba881b5eb5a9ae9ba49e8a97d4a8afa249f50d519e5c51459cb83732e3.jpg" /></p>
<ul>
<li>The Remote control may not work on some brands of TVs. Also, some operations may not be possible depending on your brand of TV. </li>
<li>If you do not set the remote control with the code for your brand of TV, the remote control will work on a Samsung TV by default.</li>
</ul>
<p>TV Brand Code List </p>
<table><tr><td>No.</td><td>Brand</td><td>Code</td><td>No.</td><td>Brand</td><td>Code</td></tr><tr><td>1</td><td>Admiral (M.Wards)</td><td>56, 57, 58</td><td>44</td><td>MTC</td><td>18</td></tr><tr><td>2</td><td>A Mark</td><td>01, 15</td><td>45</td><td>NEC</td><td>18, 19, 20, 40, 59, 60</td></tr><tr><td rowspan="2">3</td><td rowspan="2">Anam</td><td rowspan="2">01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14</td><td>46</td><td>Nikei</td><td>03</td></tr><tr><td>47</td><td>Onking</td><td>03</td></tr><tr><td>4</td><td>AOC</td><td>01, 18, 40, 48</td><td>48</td><td>Onwa</td><td>03</td></tr><tr><td>5</td><td>Bell & Howell (M.Wards)</td><td>57, 58, 81</td><td>49</td><td>Panasonic</td><td>06, 07, 08, 09, 54, 66, 67, 73, 74</td></tr><tr><td>6</td><td>Brocsonic</td><td>59, 60</td><td>50</td><td>Penney</td><td>18</td></tr><tr><td>7</td><td>Candle</td><td>18</td><td>51</td><td>Philco</td><td>03, 15, 17, 18, 48, 54, 59, 62, 69, 90</td></tr><tr><td>8</td><td>Cetronic</td><td>03</td><td>52</td><td>Philips</td><td>15, 17, 18, 40, 48, 54, 62, 72</td></tr><tr><td>9</td><td>Citizen</td><td>03, 18, 25</td><td>53</td><td>Pioneer</td><td>63, 66, 80, 91</td></tr><tr><td>10</td><td>Cinema</td><td>97</td><td>54</td><td>Portland</td><td>15, 18, 59</td></tr><tr><td>11</td><td>Classic</td><td>03</td><td>55</td><td>Proton</td><td>40</td></tr><tr><td>12</td><td>Concerto</td><td>18</td><td>56</td><td>Quasar</td><td>06, 66, 67</td></tr><tr><td>13</td><td>Contec</td><td>46</td><td>57</td><td>Radio Shack</td><td>17, 48, 56, 60, 61, 75</td></tr><tr><td>14</td><td>Coronado</td><td>15</td><td>58</td><td>RCA/Proscan</td><td>18, 59, 67, 76, 77, 78, 92, 93, 94</td></tr><tr><td>15</td><td>Craig</td><td>03, 05, 61, 82, 83, 84</td><td>59</td><td>Realistic</td><td>03, 19</td></tr><tr><td>16</td><td>Croslex</td><td>62</td><td>60</td><td>Sampo</td><td>40</td></tr><tr><td>17</td><td>Crown</td><td>03</td><td rowspan="2">61</td><td rowspan="2">Samsung</td><td rowspan="2">00, 15, 16, 17, 40, 43, 46, 47, 48, 49, 59, 60, 98</td></tr><tr><td>18</td><td>Curtis Mates</td><td>59, 61, 63</td></tr><tr><td>19</td><td>CXC</td><td>03</td><td>62</td><td>Sanyo</td><td>19, 61, 65</td></tr><tr><td rowspan="2">20</td><td rowspan="2">Daewoo</td><td rowspan="2">02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90</td><td>63</td><td>Scott</td><td>03, 40, 60, 61</td></tr><tr><td>64</td><td>Sears</td><td>15, 18, 19</td></tr><tr><td>21</td><td>Daytron</td><td>40</td><td>65</td><td>Sharp</td><td>15, 57, 64</td></tr><tr><td>22</td><td>Dynasty</td><td>03</td><td>66</td><td>Signature 2000 (M.Wards)</td><td>57, 58</td></tr><tr><td>23</td><td>Emerson</td><td>03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85</td><td>67</td><td>Sony</td><td>50, 51, 52, 53, 55</td></tr><tr><td>24</td><td>Fisher</td><td>19, 65</td><td>68</td><td>Sounddesign</td><td>03, 40</td></tr><tr><td>25</td><td>Funai</td><td>03</td><td>69</td><td>Spectricon</td><td>01</td></tr><tr><td>26</td><td>Futuretech</td><td>03</td><td>70</td><td>SSS</td><td>18</td></tr><tr><td>27</td><td>General Electric (GE)</td><td>06, 40, 56, 59, 66, 67, 68</td><td>71</td><td>Sylvania</td><td>18, 40, 48, 54, 59, 60, 62</td></tr><tr><td>28</td><td>Hall Mark</td><td>40</td><td>72</td><td>Symphonic</td><td>61, 95, 96</td></tr><tr><td>29</td><td>Hitachi</td><td>15, 18, 50, 59, 69</td><td>73</td><td>Tatung</td><td>06</td></tr><tr><td>30</td><td>Inkel</td><td>45</td><td>74</td><td>Techwood</td><td>18</td></tr><tr><td>31</td><td>JC Penny</td><td>56, 59, 67, 86</td><td>75</td><td>Teknika</td><td>03, 15, 18, 25</td></tr><tr><td>32</td><td>JVC</td><td>70</td><td>76</td><td>TMK</td><td>18, 40</td></tr><tr><td>33</td><td>KTV</td><td>59, 61, 87, 88</td><td>77</td><td>Toshiba</td><td>19, 57, 63, 71</td></tr><tr><td>34</td><td>KEC</td><td>03, 15, 40</td><td>78</td><td>Vidtech</td><td>18</td></tr><tr><td>35</td><td>KMC</td><td>15</td><td>79</td><td>Videch</td><td>59, 60, 69</td></tr><tr><td>36</td><td>LG (Goldstar)</td><td>01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44</td><td>80</td><td>Wards</td><td>15, 17, 18, 40, 48, 54, 60, 64</td></tr><tr><td>37</td><td>Luxman</td><td>18</td><td>81</td><td>Yamaha</td><td>18</td></tr><tr><td>38</td><td>LXI (Sears)</td><td>19, 54, 56, 59, 60, 62, 63, 65, 71</td><td>82</td><td>York</td><td>40</td></tr><tr><td>39</td><td>Magnavox</td><td>15, 17, 18, 48, 54, 59, 60, 62, 72, 89</td><td>83</td><td>Yupiteru</td><td>03</td></tr><tr><td>40</td><td>Marantz</td><td>40, 54</td><td>84</td><td>Zenith</td><td>58, 79</td></tr><tr><td>41</td><td>Matsui</td><td>54</td><td>85</td><td>Zonda</td><td>01</td></tr><tr><td>42</td><td>MGA</td><td>18, 40</td><td>86</td><td>Dongyang</td><td>03, 54</td></tr><tr><td>43</td><td>Mitsubishi/MGA</td><td>18, 40, 59, 60, 75</td><td></td><td></td><td></td></tr></table>
<h1 id="troubleshooting">Troubleshooting</h1>
<p>Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.</p>
<table><tr><td>Symptom</td><td>Check/Remedy</td></tr><tr><td>Disc tray does not open.</td><td>• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.</td></tr><tr><td>Playback does not start.</td><td>• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this DVD player.
• Make sure that the rating level is correct.</td></tr><tr><td>Playback does not start immediately when the Play/Pause button is pressed.</td><td>• Are you using a deformed disc or a disc with scratches on the surface?
• Wipe the disc clean.</td></tr><tr><td>Sound is not produced.</td><td>• No sound is heard during fast playback, slow playback, and step motion playback.
• Are the speakers connected properly? Is the speaker setup correctly customized?
• Is the disc severely damaged?</td></tr><tr><td>Sound can be heard only from a few speakers and not all six.</td><td>• When listening to a CD or radio, sound is output to the front speakers (L/R) only. Select "PRO LOGIC II" by pressing (Dolby Pro Logic II) on the remote control to use all six speakers.
• Make sure that the DVD disc is 5.1-CH compatible.
• If you set C, SL, and SR to NONE in the speaker mode in the audio setup of the setup screen, no sound is heard from the center speaker and the front left and right speakers. Set C, SL, and SR to SMALL.</td></tr><tr><td>Dolby Digital 5.1 CH Surround Sound is not produced.</td><td>• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.
• Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in the information display?</td></tr><tr><td>The remote control does not work.</td><td>• Is the remote control being operated within its operation range of angle and distance?
• Are the batteries exhausted?
• Have you selected the mode(TV/DVD) functions of the remote control (TV or DVD) correctly?</td></tr></table>
<table><tr><td>Symptom</td><td>Check/Remedy</td></tr><tr><td>·Disc is rotating but no picture is produced.
·Picture quality is poor and picture is shaking.</td><td>·Is the TV power on?
·Are the video cables connected properly?
·Is the disc dirty or damaged?
·A poorly manufactured disc may not be playable.</td></tr><tr><td>Audio language and subtitles do not work.</td><td>·Audio language and subtitles will not work if the disc does not contain them.</td></tr><tr><td>Menu screen does not appear even when the menu function is selected.</td><td>·Are you using a disc that does not contain menus?</td></tr><tr><td>Aspect ratio cannot be changed.</td><td>·You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.</td></tr><tr><td>·The main unit is not working.
(Example: The power goes out or strange noise is heard.)
·The DVD player is not working normally.</td><td>·Turn off the power and hold the STOP(■) button on the main unit for longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.</td></tr><tr><td>The password for rating level has been forgotten.</td><td>·While “NO DISC” message appears on the display of main unit, hold the main unit's STOP(■) button for longer than 5 seconds.
<INITIAL> appears on the display and all settings will return to the default values.
·Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.</td></tr><tr><td>Can't receive radio broadcast.</td><td>·Is the antenna connected properly?
·If the antenna's input signal is weak, install an external FM antenna in an area with good reception.</td></tr><tr><td><CHECK ANTENNA> is displayed.</td><td>·XM Antenna Jack and the XM Antenna is not properly connected.
Check the connections.</td></tr><tr><td><ON SIGNAL> is displayed.</td><td>·Reposition your XM Antenna.</td></tr><tr><td><OFF AIR> is displayed.</td><td>·The selected channel is not currently broadcasting.</td></tr><tr><td>Receiving only XM channel 0 and channel 1.</td><td>·XM Antenna is not activated.
·Access the website at “http://activate.xmradio.com” with a credit card to sign up.</td></tr></table>
<h1 id="cautions-on-handling-and-storing-discs">Cautions on Handling and Storing Discs</h1>
<p>Small scratches on the disc may reduce sound and picture quality or cause skipping.</p>
<p>Be especially careful not to scratch discs when handling them.</p>
<h1 id="handling-discs">Handling discs</h1>
<p><img alt="" src="images/4ada1209ee40d477d6f2bb2ecccf0c3fe99730add6be700ba544e1fbfb117337.jpg" /></p>
<p>Do not touch the playback side of the disc.</p>
<p>Hold the disc by the edges so that fingerprints will not get on the surface.</p>
<p>Do not stick paper or tape on the disc.</p>
<h1 id="disc-storage">Disc Storage</h1>
<p>Do not keep in direct sunlight</p>
<p><img alt="" src="images/95db8b75fe4a4ee1edd43df13735ddcc85dd56977cf173d1b34cd2b7d56684f9.jpg" /></p>
<p>Keep in a cool ventilated area</p>
<p><img alt="" src="images/9e4fffa81006519aaacead264e15c3755ddb4b54322be4a3a973820bec1e48ad.jpg" /></p>
<p>Keep in a clean</p>
<p>Protection jacket.</p>
<p>Store vertically.</p>
<p><img alt="" src="images/bed4e61c006e573d52bb4a713484f1368d217dc04d76b326733540efcee773c8.jpg" /></p>
<p><img alt="" src="images/d96fe1ac7209a9b903b30b9c62e0e52599f0f4226f19584b3854bd96ccfd2622.jpg" /></p>
<ul>
<li>Do not allow the discs to become contaminated with dirt. </li>
<li>Do not load cracked or scratched discs.</li>
</ul>
<h1 id="handling-and-storing-discs">Handling and Storing Discs</h1>
<p><img alt="" src="images/0df2a7d79b772b455b4cc0a036490fa254cc90e9d0b88d6fcd15a3ad3bb48a6f.jpg" /></p>
<p>When you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.</p>
<ul>
<li>When cleaning, wipe gently from the inside to the outside of the disc.</li>
</ul>
<p><img alt="" src="images/f259b8111b6dfff6e69d1a4bd1cc22513377cb57be010d68706f66bdc6cc66ac.jpg" /></p>
<ul>
<li>Condensation may form if warm air comes into contact with cold parts inside the player. When condensation forms inside the player, the player may not operate correctly. If this occurs, remove the disc and let the player stand for 1 or 2 hours with the power on.</li>
</ul>
<h1 id="language-code-list">Language Code List</h1>
<p>Enter the appropriate code number for the initial settings "Disc Audio", "Disc Subtitle" and/or "Disc Menu" (See page 46).</p>
<table><tr><td>Code</td><td>Language</td><td>Code</td><td>Language</td><td>Code</td><td>Language</td><td>Code</td><td>Language</td></tr><tr><td>1027</td><td>Afar</td><td>1181</td><td>Frisian</td><td>1334</td><td>Latvian, Lettish</td><td>1506</td><td>Slovenian</td></tr><tr><td>1028</td><td>Abkhazian</td><td>1183</td><td>Irish</td><td>1345</td><td>Malagasy</td><td>1507</td><td>Samoan</td></tr><tr><td>1032</td><td>Afrikaans</td><td>1186</td><td>Scots Gaelic</td><td>1347</td><td>Maori</td><td>1508</td><td>Shona</td></tr><tr><td>1039</td><td>Amharic</td><td>1194</td><td>Galician</td><td>1349</td><td>Macedonian</td><td>1509</td><td>Somali</td></tr><tr><td>1044</td><td>Arabic</td><td>1196</td><td>Guarani</td><td>1350</td><td>Malayalam</td><td>1511</td><td>Albanian</td></tr><tr><td>1045</td><td>Assamese</td><td>1203</td><td>Gujarati</td><td>1352</td><td>Mongolian</td><td>1512</td><td>Serbian</td></tr><tr><td>1051</td><td>Aymara</td><td>1209</td><td>Hausa</td><td>1353</td><td>Moldavian</td><td>1513</td><td>Siswati</td></tr><tr><td>1052</td><td>Azerbaijani</td><td>1217</td><td>Hindi</td><td>1356</td><td>Marathi</td><td>1514</td><td>Sesotho</td></tr><tr><td>1053</td><td>Bashkir</td><td>1226</td><td>Croatian</td><td>1357</td><td>Malay</td><td>1515</td><td>Sundanese</td></tr><tr><td>1057</td><td>Byelorussian</td><td>1229</td><td>Hungarian</td><td>1358</td><td>Maltese</td><td>1516</td><td>Swedish</td></tr><tr><td>1059</td><td>Bulgarian</td><td>1233</td><td>Armenian</td><td>1363</td><td>Burmese</td><td>1517</td><td>Swahili</td></tr><tr><td>1060</td><td>Bihari</td><td>1235</td><td>Interlingua</td><td>1365</td><td>Nauru</td><td>1521</td><td>Tamil</td></tr><tr><td>1069</td><td>Bislama</td><td>1239</td><td>Interlingue</td><td>1369</td><td>Nepali</td><td>1525</td><td>Tegulu</td></tr><tr><td>1066</td><td>Bengali; Bangla</td><td>1245</td><td>Inupiak</td><td>1376</td><td>Dutch</td><td>1527</td><td>Tajik</td></tr><tr><td>1067</td><td>Tibetan</td><td>1248</td><td>Indonesian</td><td>1379</td><td>Norwegian</td><td>1528</td><td>Thai</td></tr><tr><td>1070</td><td>Breton</td><td>1253</td><td>Icelandic</td><td>1393</td><td>Occitan</td><td>1529</td><td>Tigrinya</td></tr><tr><td>1079</td><td>Catalan</td><td>1254</td><td>Italian</td><td>1403</td><td>(Afan) Oromo</td><td>1531</td><td>Turkmen</td></tr><tr><td>1093</td><td>Corsican</td><td>1257</td><td>Hebrew</td><td>1408</td><td>Oriya</td><td>1532</td><td>Tagalog</td></tr><tr><td>1097</td><td>Czech</td><td>1261</td><td>Japanese</td><td>1417</td><td>Punjabi</td><td>1534</td><td>Setswana</td></tr><tr><td>1103</td><td>Welsh</td><td>1269</td><td>Yiddish</td><td>1428</td><td>Polish</td><td>1535</td><td>Tonga</td></tr><tr><td>1105</td><td>Danish</td><td>1283</td><td>Javanese</td><td>1435</td><td>Pashto, Pushto</td><td>1538</td><td>Turkish</td></tr><tr><td>1109</td><td>German</td><td>1287</td><td>Georgian</td><td>1436</td><td>Portuguese</td><td>1539</td><td>Tsonga</td></tr><tr><td>1130</td><td>Bhutani</td><td>1297</td><td>Kazakh</td><td>1463</td><td>Quechua</td><td>1540</td><td>Tatar</td></tr><tr><td>1142</td><td>Greek</td><td>1298</td><td>Greenlandic</td><td>1481</td><td>Rhaeto-Romance</td><td>1543</td><td>Twi</td></tr><tr><td>1144</td><td>English</td><td>1299</td><td>Cambodian</td><td>1482</td><td>Kirundi</td><td>1557</td><td>Ukrainian</td></tr><tr><td>1145</td><td>Esperanto</td><td>1300</td><td>Kannada</td><td>1483</td><td>Romanian</td><td>1564</td><td>Urdu</td></tr><tr><td>1149</td><td>Spanish</td><td>1301</td><td>Korean</td><td>1489</td><td>Russian</td><td>1572</td><td>Uzbek</td></tr><tr><td>1150</td><td>Estonian</td><td>1305</td><td>Kashmiri</td><td>1491</td><td>Kinyarwanda</td><td>1581</td><td>Vietnamese</td></tr><tr><td>1151</td><td>Basque</td><td>1307</td><td>Kurdish</td><td>1495</td><td>Sanskrit</td><td>1587</td><td>Volapuk</td></tr><tr><td>1157</td><td>Persian</td><td>1311</td><td>Kirghiz</td><td>1498</td><td>Sindhi</td><td>1613</td><td>Wolof</td></tr><tr><td>1165</td><td>Finnish</td><td>1313</td><td>Latin</td><td>1501</td><td>Sangro</td><td>1632</td><td>Xhosa</td></tr><tr><td>1166</td><td>Fiji</td><td>1326</td><td>Lingala</td><td>1502</td><td>Serbo-Croatian</td><td>1665</td><td>Yoruba</td></tr><tr><td>1171</td><td>Faeroese</td><td>1327</td><td>Laothian</td><td>1503</td><td>Singhalese</td><td>1684</td><td>Chinese</td></tr><tr><td>1174</td><td>French</td><td>1332</td><td>Lithuanian</td><td>1505</td><td>Slovak</td><td>1697</td><td>Zulu</td></tr></table>
<h1 id="usb-host-feature-supported-products">USB Host Feature Supported Products</h1>
<p>Digital Camera </p>
<table><tr><td>Product</td><td>Company</td><td>Type</td></tr><tr><td>Finepix-A340</td><td>Fuji</td><td>Digital Camera</td></tr><tr><td>Finepix-F810</td><td>Fuji</td><td>Digital Camera</td></tr><tr><td>Finepix-F610</td><td>Fuji</td><td>Digital Camera</td></tr><tr><td>Finepix-f450</td><td>Fuji</td><td>Digital Camera</td></tr><tr><td>Finepix S7000</td><td>Fuji</td><td>Digital Camera</td></tr><tr><td>Finepix A310</td><td>Fuji</td><td>Digital Camera</td></tr><tr><td>KD-310Z</td><td>Konica</td><td>Digital Camera</td></tr><tr><td>Finecam SL300R</td><td>Kyocera</td><td>Digital Camera</td></tr><tr><td>Finecam SL400R</td><td>Kyocera</td><td>Digital Camera</td></tr><tr><td>Finecam S5R</td><td>Kyocera</td><td>Digital Camera</td></tr><tr><td>Finecam Xt</td><td>Kyocera</td><td>Digital Camera</td></tr><tr><td>Damage-Z1</td><td>Minolta</td><td>Digital Camera</td></tr><tr><td>Damage Z1</td><td>Minolta</td><td>Digital Camera</td></tr><tr><td>Damage X21</td><td>Minolta</td><td>Digital Camera</td></tr><tr><td>Coolpix4200</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix4300</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix 2200</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix 3500</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix 3700</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix 4100</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix 5200</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Stylus 410 digital</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>300-digital</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>U300</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>X-350</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>C-760</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>C-5060</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>X1</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>U-mini</td><td>Olympus</td><td>Digital Camera</td></tr><tr><td>Lumix-FZ20</td><td>Panasonic</td><td>Digital Camera</td></tr><tr><td>DMC-FX7GD</td><td>Panasonic</td><td>Digital Camera</td></tr><tr><td>Lumix LC33</td><td>Panasonic</td><td>Digital Camera</td></tr><tr><td>LUMIX DMC-F1</td><td>Panasonic</td><td>Digital Camera</td></tr><tr><td>Optio-S40</td><td>Pentax</td><td>Digital Camera</td></tr><tr><td>Optio-S50</td><td>Pentax</td><td>Digital Camera</td></tr><tr><td>Optio 33LF</td><td>Pentax</td><td>Digital Camera</td></tr><tr><td>Optio MX</td><td>Pentax</td><td>Digital Camera</td></tr><tr><td>Digimax-420</td><td>Samsung</td><td>Digital Camera</td></tr><tr><td>Digimax-400</td><td>Samsung</td><td>Digital Camera</td></tr><tr><td>Sora PDR-T30</td><td>Toshiba</td><td>Digital Camera</td></tr><tr><td>Coolpix 5900</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix S1</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>Coolpix 7600</td><td>Nikon</td><td>Digital Camera</td></tr><tr><td>DMC-FX7</td><td>Panasonic</td><td>Digital Camera</td></tr><tr><td>Damage Xt</td><td>Minolta</td><td>Digital Camera</td></tr><tr><td>AZ-1</td><td>Olympus</td><td>Digital Camera</td></tr></table>
<p>USB Flash Disc </p>
<table><tr><td>Product</td><td>Company</td><td>Type</td></tr><tr><td>Cruzer Micro</td><td>Sandisk</td><td>USB 2.0 USB Flash Drive 128M</td></tr><tr><td>Cruzer Mini</td><td>Sandisk</td><td>USB 2.0 128M</td></tr><tr><td>Cruzer Mini</td><td>Sandisk</td><td>USB 2.0 256M</td></tr><tr><td>SONY Micro Vault</td><td>Sony</td><td>USB 2.0 64MB</td></tr><tr><td>FLEX DRIVE</td><td>Serotech</td><td>USB 2.0 32MB</td></tr><tr><td>AnyDrive</td><td>A.L tech</td><td>USB 2.0 128MB</td></tr><tr><td>XTICK</td><td>LG</td><td>USB 2.0 128M</td></tr><tr><td>Micro Mini</td><td>Iomega</td><td>USB 2.0 128M</td></tr><tr><td>iFlash</td><td>Imation</td><td>USB 2.0 64M</td></tr><tr><td>LG</td><td>XTICK(M)</td><td>USB 2.0 64M</td></tr><tr><td>RiDATA</td><td>EZDrive</td><td>USB 2.0 64M</td></tr></table>
<p>MP3 Player </p>
<table><tr><td>Product</td><td>Company</td><td>Type</td></tr><tr><td>Creative MuVo NX128M</td><td>Creative</td><td>128 MB MP3 Player</td></tr><tr><td>Iriver H320</td><td>Iriver</td><td>20G HDD MP3 Player</td></tr><tr><td>YH-920</td><td>Samsung</td><td>20G HDD MP3 Player</td></tr><tr><td>YP-T7</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-MT6</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-T6</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-53</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-ST5</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-T5</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-60</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-780</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-35</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-55</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>iAUDIO U2</td><td>Cowon</td><td>MP3 Player</td></tr><tr><td>iAUDIO G3</td><td>Cowon</td><td>MP3 Player</td></tr><tr><td>iAudio M3</td><td>Cowon</td><td>HDD MP3 Player</td></tr><tr><td>SI-M500L</td><td>Sharp</td><td>256MB MP3 Player</td></tr><tr><td>H10</td><td>Iriver</td><td>MP3 Player</td></tr><tr><td>YP-T5 VB</td><td>Samsung</td><td>MP3 Player</td></tr><tr><td>YP-53</td><td>Samsung</td><td>256MB MP3 Player</td></tr></table>
<p>USB External HDD </p>
<table><tr><td>Product</td><td>Company</td><td>Type</td></tr><tr><td>MOMOBAY UX-2</td><td>Dvico</td><td>USB 2.0</td></tr></table>
<h1 id="specifications">Specifications</h1>
<table><tr><td rowspan="6">GENERAL</td><td>Power Requirements</td><td colspan="3">AC 120V ~ 60Hz</td></tr><tr><td>Power Consumption</td><td colspan="3">90W</td></tr><tr><td>Weight</td><td colspan="3">11lbs</td></tr><tr><td>Dimensions (W x H x D)</td><td colspan="3">17 x 3 x 17.1 inches</td></tr><tr><td>Operating Temperature Range</td><td colspan="3">41°F ~ 95°F</td></tr><tr><td>Operating Humidity Range</td><td colspan="3">10% ~ 75%</td></tr><tr><td rowspan="3">FM TUNER</td><td>Usable Sensitivity</td><td colspan="3">10dB</td></tr><tr><td>S/N Ratio</td><td colspan="3">60dB</td></tr><tr><td>Distortion</td><td colspan="3">1%</td></tr><tr><td rowspan="5">VIDEO OUTPUT</td><td>Composite Video</td><td colspan="3">1.0Vp-p(75Ω load)</td></tr><tr><td rowspan="3">Component Video</td><td colspan="3">Y:1.0Vp-p(75Ω load)</td></tr><tr><td colspan="3">Pr:0.70Vp-p(75Ω load)</td></tr><tr><td colspan="3">Pb:0.70Vp-p(75Ω load)</td></tr><tr><td>HDMI</td><td colspan="3">Impedance: 85~115Ω</td></tr><tr><td rowspan="8">AMPLIFIER</td><td>Front speaker output</td><td>133W x 2(3Ω)</td><td rowspan="4">D V O D E</td><td>170W x 2(3Ω)</td></tr><tr><td>Center speaker output</td><td>160W(3Ω)</td><td>180W(3Ω)</td></tr><tr><td>Rear speaker output</td><td>133W x 2(3Ω)</td><td>170W x 2(3Ω)</td></tr><tr><td>Subwoofer speaker output</td><td>268W(3Ω)</td><td>340W(3Ω)</td></tr><tr><td>Frequency range</td><td colspan="3">20Hz~20KHz</td></tr><tr><td>S/N Ratio</td><td colspan="3">75dB</td></tr><tr><td>Channel separation</td><td colspan="3">60dB</td></tr><tr><td>Input sensitivity</td><td colspan="3">(AUX)400mV</td></tr></table>
<h1 id="specifications-cont">Specifications (Con't)</h1>
<p>HT-X70 </p>
<table><tr><td rowspan="11">SPEAKER</td><td rowspan="2">Speaker system</td><td colspan="4">5.1ch speaker system</td></tr><tr><td colspan="3">Front/Rear /Center speaker</td><td>Subwoofer speaker</td></tr><tr><td>Impedance</td><td colspan="3">3Ω x 5</td><td>3Ω</td></tr><tr><td>Frequency range</td><td colspan="3">150Hz~20KHz</td><td>40Hz~200Hz</td></tr><tr><td>Output sound pressure level</td><td colspan="3">86dB/W/M</td><td>86dB/W/M</td></tr><tr><td>Rated input</td><td colspan="2">170W</td><td>180W</td><td>170W x 2</td></tr><tr><td>Maximum input</td><td colspan="2">340W</td><td>360W</td><td>340W x 2</td></tr><tr><td rowspan="2">Dimensions (W x H x D)</td><td>Front/Rear</td><td colspan="2">3.5 in. x 11.8 in. x 4.5 in.</td><td rowspan="2">8.7 in.x 15.8 in. x 16.8 in.</td></tr><tr><td>Center</td><td colspan="2">11.8in.x 3.5 in. x 3.9 in.</td></tr><tr><td rowspan="2">Weights</td><td>Front/Rear</td><td colspan="2">2.1 lbs / 1.8 lbs</td><td rowspan="2">24 lbs</td></tr><tr><td>Center</td><td colspan="2">2.8 lbs</td></tr></table>
<p>HT-TX72 </p>
<table><tr><td rowspan="13">SPEAKER</td><td rowspan="2">Speaker system</td><td colspan="4">5.1ch speaker system</td></tr><tr><td colspan="3">Front/Rear /Center speaker</td><td>Subwoofer speaker</td></tr><tr><td>Impedance</td><td colspan="3">3Ω x 5</td><td>3Ω</td></tr><tr><td>Frequency range</td><td colspan="3">150Hz~20KHz</td><td>40Hz~200Hz</td></tr><tr><td>Output sound pressure level</td><td colspan="3">86dB/W/M</td><td>86dB/W/M</td></tr><tr><td>Rated input</td><td colspan="2">170W</td><td>180W</td><td>170W x 2</td></tr><tr><td>Maximum input</td><td colspan="2">340W</td><td>360W</td><td>340W x 2</td></tr><tr><td rowspan="3">Dimensions (W x H x D)</td><td>Front</td><td colspan="2">3.5 in. x 45 in. x 3.7 in.</td><td rowspan="3">8.7 in.x 15.8 in. x 16.8 in.</td></tr><tr><td>Rear</td><td colspan="2">3.5 in. x 11.8 in. x 4.5 in.</td></tr><tr><td>Center</td><td colspan="2">11.8 in.x 3.5 in. x 3.9 in.</td></tr><tr><td rowspan="3">Weights</td><td>Front</td><td colspan="2">8 lbs</td><td rowspan="3">24 lbs</td></tr><tr><td>Rear</td><td colspan="2">1.8 lbs</td></tr><tr><td>Center</td><td colspan="2">2.8 lbs</td></tr></table>
<p>HT-TX75 </p>
<table><tr><td rowspan="11">SPEAKER</td><td rowspan="2">Speaker system</td><td colspan="4">5.1ch speaker system</td></tr><tr><td colspan="3">Front/Rear /Center speaker</td><td>Subwoofer speaker</td></tr><tr><td>Impedance</td><td colspan="3">3Ω x 5</td><td>3Ω</td></tr><tr><td>Frequency range</td><td colspan="3">150Hz~20KHz</td><td>40Hz~200Hz</td></tr><tr><td>Output sound pressure level</td><td colspan="3">86dB/W/M</td><td>86dB/W/M</td></tr><tr><td>Rated input</td><td colspan="2">170W</td><td>180W</td><td>170W x 2</td></tr><tr><td>Maximum input</td><td colspan="2">340W</td><td>360W</td><td>340W x 2</td></tr><tr><td rowspan="2">Dimensions (W x H x D)</td><td>Front/Rear</td><td colspan="2">3.5 in. x 45 in. x 3.7 in.</td><td rowspan="2">8.7 in.x 15.8 in. x 16.8 in.</td></tr><tr><td>Center</td><td colspan="2">11.8 in. x 3.5 in. x 3.9 in.</td></tr><tr><td rowspan="2">Weights</td><td>Front/Rear</td><td colspan="2">8 lbs / 7.4 lbs</td><td rowspan="2">24 lbs</td></tr><tr><td>Center</td><td colspan="2">2.8 lbs</td></tr></table>
<h1 id="warranty">Warranty</h1>
<h1 id="limited-warranty-to-original-purchaser">LIMITED WARRANTY TO ORIGINAL PURCHASER</h1>
<p>This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:</p>
<p>One (1) Year Parts and Labor*</p>
<p>(*90 Days Parts and Labor for Commercial Use)</p>
<p>This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.</p>
<p>SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.</p>
<p>SAMSUNG's obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an "AS IS" basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.</p>
<p>This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.</p>
<p>THERE ARE NO EXPRESS WARRANTY OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTY WHTHER EXPRESS OR IMPLIED, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREIGNING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.</p>
<p>Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.</p>
<p>To obtain warranty hardware service, please contact SAMSUNG at:</p>
<p>Samsung Electronics America, Inc.</p>
<p>105 Challenger Road Ridgefield Park, NJ 07660-0511</p>
<p>1-800-SAMSUNG (726-7864) and www.samsung.com</p>
<p>If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.</p>
<table><tr><td>Region</td><td>Country</td><td>Customer Care Center</td><td>Web Site</td></tr><tr><td rowspan="3">North America</td><td>CANADA</td><td>1-800-SAMSUNG (7267864)</td><td>www.samsung.com/ca</td></tr><tr><td>MEXICO</td><td>01-800-SAMSUNG (7267864)</td><td>www.samsung.com/mx</td></tr><tr><td>U.S.A</td><td>1-800-SAMSUNG (7267864)</td><td>www.samsung.com</td></tr><tr><td rowspan="14">Latin America</td><td>ARGENTINE</td><td>0800-333-3733</td><td>www.samsung.com/ar</td></tr><tr><td>BRAZIL</td><td>0800-124-4214004-0000</td><td>www.samsung.com/br</td></tr><tr><td>CHILE</td><td>800-726-7864 (SAMSUNG)</td><td>www.samsung.com/cl</td></tr><tr><td>COSTA RICA</td><td>0-800-507-7267</td><td>www.samsung.com/latin</td></tr><tr><td>ECUADOR</td><td>1-800-10-7267</td><td>www.samsung.com/latin</td></tr><tr><td>EL SALVADOR</td><td>800-6225</td><td>www.samsung.com/latin</td></tr><tr><td>GUATEMALA</td><td>1-800-299-0013</td><td>www.samsung.com/latin</td></tr><tr><td>JAMAICA</td><td>1-800-234-7267</td><td>www.samsung.com/latin</td></tr><tr><td>PANAMA</td><td>800-7267</td><td>www.samsung.com/latin</td></tr><tr><td>PUERTO RICO</td><td>1-800-682-3180</td><td>www.samsung.com/latin</td></tr><tr><td>REP. DOMINICA</td><td>1-800-751-2676</td><td>www.samsung.com/latin</td></tr><tr><td>TRINIDAD & TOBAGO</td><td>1-800-7267-864</td><td>www.samsung.com/latin</td></tr><tr><td>VENEZUELA</td><td>0-800-100-5303</td><td>www.samsung.com/latin</td></tr><tr><td>COLOMBIA</td><td>01-8000112112</td><td>www.samsung.com.co</td></tr><tr><td rowspan="19">Europe</td><td>BELGIUM</td><td>02 201 2418</td><td>www.samsung.com/be</td></tr><tr><td>CZECH REPUBLIC</td><td>844 000 844Distributor pro Českou republiku :Samsung Zrt, Čěska organizačné složka Vyskočilova 4, 14000 Praha 4</td><td>www.samsung.com/cz</td></tr><tr><td>DENMARK</td><td>70 70 19 70</td><td>www.samsung.com/dk</td></tr><tr><td>FINLAND</td><td>030-6227 515</td><td>www.samsung.com/fi</td></tr><tr><td>FRANCE</td><td>3260 SAMSUNG or08 25 08 65 65 (€ 0,15/Min)</td><td>www.samsung.com/fr</td></tr><tr><td>GERMANY</td><td>01805 - 121213 (€ 0,14/Min)</td><td>www.samsung.de</td></tr><tr><td>HUNGARY</td><td>06-80-SAMSUNG (7267864)</td><td>www.samsung.com/hu</td></tr><tr><td>ITALIA</td><td>800-SAMSUNG (7267864)</td><td>www.samsung.com/it</td></tr><tr><td>LUXEMBURG</td><td>0032 (0)2 201 24 18</td><td>www.samsung.lu</td></tr><tr><td>NETHERLANDS</td><td>0900 20 200 88 (€ 0,10/Min)</td><td>www.samsung.com/nl</td></tr><tr><td>NORWAY</td><td>815-56 480</td><td>www.samsung.com/no</td></tr><tr><td>POLAND</td><td>0 801 801 881</td><td>www.samsung.com/pl</td></tr><tr><td>PORTUGAL</td><td>80 8 200 128</td><td>www.samsung.com/pt</td></tr><tr><td>SLOVAKIA</td><td>0800-SAMSUNG (726786)</td><td>www.samsung.com/sk</td></tr><tr><td>SPAIN</td><td>902 10 11 30</td><td>www.samsung.com/es</td></tr><tr><td>SWEDEN</td><td>0771-400 200</td><td>www.samsung.com/se</td></tr><tr><td>U.K</td><td>0870 SAMSUNG (7267864)</td><td>www.samsung.com/uk</td></tr><tr><td>Republic of Ireland</td><td>0818 717 100</td><td>www.samsung.com/uk</td></tr><tr><td>Switzerland</td><td>0800-7267864</td><td>www.samsung.com/ch</td></tr><tr><td rowspan="7">CIS</td><td>RUSSIA</td><td>8-800-200-0400</td><td>www.samsung.ru</td></tr><tr><td>KAZAHSTAN</td><td>8-800-080-1188</td><td>www.samsung.kz</td></tr><tr><td>UZBEKISTAN</td><td>8-800-120-0400</td><td>www.samsung.uz</td></tr><tr><td>UKRAINE</td><td>8-800-502-0000</td><td>www.samsung.com/ur</td></tr><tr><td>LITHUANIA</td><td>8-800-77777</td><td>www.samsung.lt</td></tr><tr><td>LATVIA</td><td>800-7267</td><td>www.samsung.com/lv/index.htm</td></tr><tr><td>ESTONIA</td><td>800-7267</td><td>www.samsung.ee</td></tr><tr><td rowspan="12">Asia Pacific</td><td>AUSTRALIA</td><td>1300 362 603</td><td>www.samsung.com/au</td></tr><tr><td>CHINA</td><td>800-810-5858, 010-6475 1880</td><td>www.samsung.com.cn</td></tr><tr><td>HONG KONG</td><td>3698 - 4698</td><td>www.samsung.com/hk</td></tr><tr><td>INDIA</td><td>3030 82821800 110011</td><td>www.samsung.com/in</td></tr><tr><td>INDONESIA</td><td>0800-112-8888</td><td>www.samsung.com/id</td></tr><tr><td>JAPAN</td><td>0120-327-527</td><td>www.samsung.com/jp</td></tr><tr><td>MALAYSIA</td><td>1800-88-9999</td><td>www.samsung.com/my</td></tr><tr><td>PHILIPPINES</td><td>1800-10-SAMSUNG (7267864)</td><td>www.samsung.com/ph</td></tr><tr><td>SINGAPORE</td><td>1800-SAMSUNG (7267864)</td><td>www.samsung.com/sq</td></tr><tr><td>THAILAND</td><td>1800-29-323202-689-3232</td><td>www.samsung.com/th</td></tr><tr><td>TAIWAN</td><td>0800-329-999</td><td>www.samsung.com/tw</td></tr><tr><td>VIETNAM</td><td>1 800 588 889</td><td>www.samsung.com/vn</td></tr><tr><td rowspan="2">Middle East & Africa</td><td>SOUTH AFRICA</td><td>0860 7267864 (SAMSUNG)</td><td>www.samsung.com/za</td></tr><tr><td>U.A.E</td><td>8005AMSUNG (7267864)8000-4726</td><td>www.samsung.com/mea</td></tr></table>
Other manuals SAMSUNG
Discover other manuals and user guides for the brand SAMSUNG
💬 Hi! I'm your manual assistant.I know your SAMSUNG HT-TX72T.
How can I help you? (use, settings, error codes, maintenance, explaining a step from the manual, etc.)💡 Examples :
• How do I use it ?
• Error code E3 ?
• How do I clean it ?
