Product Type	Cylinder Vacuum Cleaner
Brand	Amica
Model	Bagio Turbo VM3047
Power Source	Mains (corded)
Voltage	220-240 V, 50/60 Hz
Power Consumption	2000 W
Dust Capacity	2.5 L
Filter Type	HEPA 13
Noise Level	75 dB
Cord Length	5 m
Weight	5.2 kg
Dimensions (L x W x H)	40 x 28 x 25 cm
Bagless	Yes
Accessories Included	Turbo brush, crevice tool, upholstery tool, combination brush
Suction Control	Electronic slider on handle
Overheat Protection	Yes
Automatic Cord Rewind	Yes
Turbo Brush	Yes, for pet hair and deep cleaning
Carrying Handle	Integrated
Filtration System	Cyclonic + HEPA, washable
Recommended Use	Hard floors and carpets

Frequently Asked Questions - Bagio Turbo VM3047 AMICA

How do I empty the dust container?

Press the release button on the dust container and pull it out. Empty the contents into a trash bin. Rinse the container with water if necessary and let it dry completely before reattaching.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-4 months. Tap it gently to remove dust or rinse with cold water if washable. Allow 24 hours to dry before reinstalling. Replace the filter every 12 months.

What should I do if the turbo brush stops rotating?

Turn off and unplug the vacuum. Check the brush for tangled hair or debris. Cut away any obstructions with scissors. Ensure the belt is intact and not broken. Reassemble and test.

Can I use the vacuum on hardwood floors?

Yes, the Amica Bagio Turbo VM3047 is safe for hardwood floors. Use the combination brush without the beater bar or select a low suction setting to avoid scratching.

How do I change the vacuum belt?

Unplug the vacuum. Remove the brush cover and take out the old brush. Remove the worn belt and loop the new belt around the motor pulley and brush roller. Reinstall the brush and cover securely.

The vacuum loses suction. What can I do?

Check the dust container for fullness, clean the filters, inspect the hose for blockages, and ensure the brush roll is not tangled. Also, verify that the suction control is set to maximum.

Is the vacuum bagless?

Yes, the Amica Bagio Turbo VM3047 is a bagless vacuum cleaner. It uses a transparent dust container for easy monitoring and emptying.

What is the cord length?

The power cord is 5 meters long, providing a good range for cleaning large rooms without changing outlets.

Can I wash the dust container?

Yes, the dust container can be washed with cold water. Make sure it is completely dry before reassembling to avoid moisture damage to the motor.

How do I store the vacuum?

Unplug the vacuum and rewind the cord. Store it upright in a dry place, away from direct sunlight. You can hang it using the integrated wall mount if available.

USER MANUAL Bagio Turbo VM3047 AMICA

VM 3047 (Bagio Turbo)

PL INSTRUKCJA OBSŁUGI 2

EN OPERATING INSTRUCTIONS 13

OBSŁUGA

CZYSZCZENIE I KONSERWACJA

Gwarancja

THANK YOU FOR PURCHASING AN AMICA APPLIANCE

DEAR CUSTOMER,

Your Amica appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions

CONTENTS

SAFETY INSTRUCTIONS FOR USE 14

DISPOSING/SCRAPPING OF USED EQUIPMENT 17

DESCRIPTION OF THE APPLIANCE 18

OPERATION 19

CLEANING AND MAINTANCE 20

WARRANTY AND AFTER SALES SERVICE 21

PRODUCT FICHE 22

The appliance is designed for household use only.

The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.

The pictures in this operating instructions are for illustration only

Important! To minimize the risk of fire, electric shock or injury:

• Carefully read this instruction before using the appliance.
• Children do not realize the dangers that can arise when using electrical appliances; therefore keep the appliance out of reach of children.
• Do not immerse the body of the appliance in water or other liquids. Immersing in water may cause an electric shock.
• If water spills on the external components of the appliance, dry it thoroughly before switching back on. Do not touch wet surfaces in contact with the appliance connected to power supply, immediately disconnect it from the mains.
• Do not use the appliance if it shows any signs of damage to the power cord, or if the appliance has been dropped on the floor.
• After use, always pull out the plug from the socket, and also in case of any malfunction, before cleaning or before changing accessories.
• When pulling out the plug from the wall outlet, never pull by the cord, only the plug, holding the socket with your other hand.
• The appliance is Class II fire protection electrical equipment.
• Do not attempt to remove any parts of the housing.
• To prevent damage to the power cord, do not place it over sharp edges or close to hot surfaces.
• Do not expose the appliance to rain or humidity, and do not use it outdoors. Do not operate the appliance with wet hands.
• If the power cord or plug is damaged, it should be replaced by a professional repair shop in order to avoid hazard.

• Never place the appliance on hot surfaces.

• Using attachments that were not supplied with the product may cause damage to the appliance.

• Never leave the appliance connected to the mains without supervision.
• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• Pull the plug from the wall outlet before replacing accessories.
• This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.
• The surface on which the appliance is used shall be levelled, clean and dry.
• To switch the appliance on, press the power switch (Fig. 1, item 2 / Fig. 3, item 6). To stop the appliance's motor, release the button (Fig. 1 item. 2 / Fig. 3, item 10). The complete appliance shutdown is possible by disconnecting the appliance from the power supply.

• Do not pull the vacuum cleaner or move it by the cord, do not use the cord as a handle, do not close the door squeezing the cord, and do not drag the cord over sharp edges. Be careful not to move the vacuum cleaner on the cord.

• Do not insert any objects into the openings in the vacuum cleaner. Do not use the vacuum cleaner when any opening is blocked, dispose of dust, lint, hair and anything that may restrict air flow.

• Keep hair, loose clothing parts, fingers and other body parts away from the openings and moving parts.
• Do not use the vacuum cleaner to collect flammable substances such as petrol, and do not use it in places where similar substances may be present.
• Hold the plug when retracting the cord. Do not let the plug was left loose during retracting.
• Do not collect any items that burn or smoke, such as cigarettes, matches or hot ashes.
• Do not use the vacuum cleaner without a dust bag and/or filters.
• If the opening, which sucks air, hose or telescopic tube are clogged, you should immediately switch the vacuum cleaner off. Before restarting the vacuum cleaner, first remove the blocking item.
• Do not use the vacuum cleaner too close to heaters, radiators, cigarette butts, etc.
• Before you put the plug into the wall outlet, make sure your hands are dry.
• Before using the vacuum cleaner, remove sharp objects from the floor to avoid damaging the dust bag (depending on the model).
• Do not collect fine particles such as: flour, gypsum, printer toners, etc., as this may clog filters and damage the vacuum cleaner.
• This vacuum cleaner is equipped with a power cord retractor.

Electrical requirements

Make sure that the voltage indicated on the nameplate corresponds to the electric power parameters at home, power must be marked as \~ (alternating current)

Connect the vacuum cleaner to the mains alternating current 230V fuse 16A.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage.

After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! During unpacking, keep the packaging material (polyethylene bags, polystyrene pieces, etc.) out of reach of children.

DISPOSAL OF THE APPLIANCE

At the end of its useful life, this product must not be disposed of with normal municipal waste. Instead, it should be taken to an electronic waste collection and recycling point. It is indicated by the symbol on the product itself, or on the Operating Instructions or packaging.

The materials used in making of this appliance can be reused, as indicated. By reusing or recycling the materials or parts, you will be playing an important part in protecting our environment.

Information about the relevant disposal points for worn-out electrical goods is available from your local authorities.

DESCRIPTION OF THE APPLIANCE

三

Appliance components (Fig. 1, item ...):

1. Handle
2. Power control slider in handle
3. Telescopic tube
4. Hose
5. Vacuum cleaner handle
6. Power smooth control knob
7. Cover lock
8. Dust container
9. Hose socket
10. Cord retractor button
11. Power button
12. Brush

10

11

12

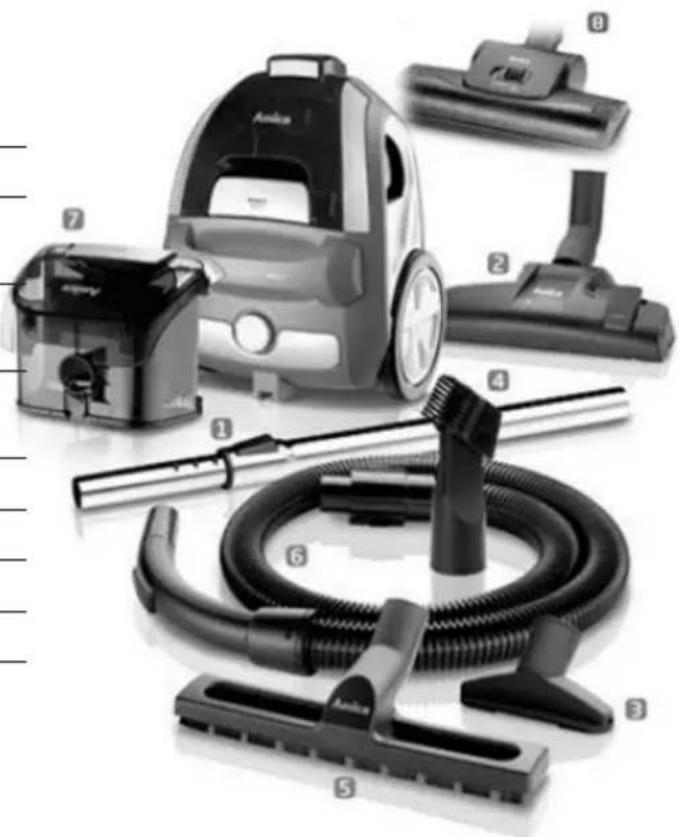

Attachments VM 3047 (Bagio Turbo)

1. Telescopic tube 1 / 56cm-94cm
2. All-purpose suction brush	1 / Eco
3. Suction head for upholstery	1
4. Suction head for narrow spaces and books	1 / 2 in 1
5. Parquet suction brush 1
6. Hose 1 / 1,5 m
7. Dust container 1,5 l
8. Turbo-brush 1

Preparing for vacuuming

Always unplug the appliance before attaching or removing attachments!

• Attaching flexible hose: insert the hose end into the inlet port. Push until the end falls into place with an audible click (Fig. 1).
• Removing the hose: press buttons on the hose end, unlatch and remove the hose from the inlet port (Fig. 2).
• Connect the telescopic tube with the hose (Fig. 3) and the proper attachment (Fig. 4), slide open the telescopic tube to a suitable length.
• Grab the plug and pull the power cord while holding the appliance body, plug into a power outlet.

• Before you start vacuuming, extend power cord cable to sufficient length and insert the plug into the wall socket. The yellow mark on the power cord indicates it is extended almost all the way. When you see the red mark do not pull the power cord any further.

• Switch on the appliance with the on / off button. (Fig. 5a).
  ● After finishing using the appliance, press the on/off button to turn off the vacuum cleaner (Fig. 6).
  ● Unplug the cord from the wall outlet.

• Retract the power cord by pressing cord retractor button (Fig. 8). For this operation hold the cord to prevent it from tangling or bumping the plug on the vacuum cleaner housing.
• Disconnect the suction - cleaning head from the tube and disconnect the telescopic tube from the hose.
• Close the telescopic tube.

The vacuum cleaner may be stored in a vertical or horizontal position. The hose can remain attached to the vacuum cleaner, but please be careful not to bend it too much during storage.

CLEANING AND MAINTENANCE

Cleaning the dust container

If the vacuum cleaner loses power, check how full the container is. If the dust container is not full, check whether the suction brush or cleaning head, hose or tube is not blocked with large items stopping the air flow. After removing easy dirt, start the appliance again.

the

Before removing the dust container remove the power cord plug from the wall outlet. Empty the dust container, when the vacuum cleaner becomes louder or when the suction power has decreased. Check if dust container is full after each use. If necessary, empty the container.

1. When you disconnect the flexible hose, pull the lock tab up (Fig. 9).
2. Press the button and open the container cover (Fig. 10).
3. Carefully remove dust and dirt from the dust container
4. Close the dust container cover (Fig.. 11).

Cleaning and replacing the outlet filter EPA12 (Fig. 12)

● Before cleaning the filter, remove the power cord plug from the wall outlet.
- Clean the filter when it is clearly soiled. Shake dirt off the filter and then brush it with a soft bristle brush. Do not wash the filter in water. In case of heavy soiling or lasting damage, replace the filter with a new one.
- Depending on the intensity of use, it is recommended that you clean the filter once a month and replace it with a new one every six months.
- It is recommended that you only use original Amica filters for your vacuum cleaner.
● Always use the vacuum cleaner with a filter in place.

Filters cleaning.

● Before cleaning the filter, remove the power cord plug from the wall outlet.
- The filter shall be cleaned when there are visible stains on it, wash the filter in warm water with no detergent. Use it only when completely dry.
- Check filters each time you empty the dust container.
● Always use the vacuum cleaner with a filter in place.
● Failure to install the filter may result in motor damage.

Filters cleaning.

Rinse the filter with lukewarm water and let dry completely

Warranty

Warranty service as stated on the warranty card.

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the C symbol and been issued with a declaration of compliance made available to market regulators.

Supplier name Amica S.A.

Supplier's model ID (Model)	VM 3047 (Bagio Turbo)
	1190253
Energy efficiency class	B
Annual energy consumption (AE) [kWh/year]1	29,2
Performance class for carpet vacuuming2	D
Performance class for hard floor vacuuming3	A
Dust re-emission class (dre) B
Noise level [dB(A) re 1 pW] 79

Rated input power [W] 850

1) Estimated annual energy consumption (kWh per year) assuming that the vacuum cleaner is used 50 times in a year. Actual annual energy consumption depends on how the appliance is used.

2) Applies to all-purpose vacuum cleaners and carpet vacuum cleaners. Vacuum cleaners for hard floors are not suitable for vacuuming carpets with the supplied suction head

3) Applies to all-purpose vacuum cleaners and vacuum cleaners for hard floors. Vacuum cleaners for carpets are not suitable for vacuuming hard floors with the supplied suction head

To determine these results and in accordance with the requirements for energy labelling of vacuum cleaners (Directive of the European Parliament and of the Council 2010/30/EU) and in terms of the requirements for vacuum cleaners ecodesign (Directive of the European Parliament and of the Council 2009/125/EC), the following measuring and calculation methods have been applied:

EN 60335-1 - Household and similar electrical appliance -- Safety -- Part 1: General requirements,

- EN 60335-2-2 - Household and similar electrical appliance -- Safety -- Part 2-2: Particular requirements for vacuum cleaners and water-suction cleaning appliances,

- EN 60312 - Vacuum cleaners for household use -- Methods for measuring the performance,

- EN 60704-2-1 — Household and similar electrical appliances -- Test code for the determination of airborne acoustical noise -- Part 2-1: Particular requirements for vacuum cleaners.

The vacuum cleaner shall be tested as a "all-purpose vacuum cleaner".

This is a universal vacuum cleaner.

In order to obtain the declared energy efficiency and vacuuming performance class on the carpet, it is recommended that you use a combination carpet & floor brush in carpet setting.

In order to obtain the declared energy efficiency and vacuuming performance class on hard floors with slot and expansion gaps, it is recommended that you use a combination carpet & floor brush in hard floor setting.
