Product Type	Electric Water Heater
Brand	Philips
Model	AWH1308
Color	White
Dimensions (H x W x D)	400 mm x 400 mm x 800 mm
Weight	15 kg
Capacity	30 liters
Power Rating	1500 W
Voltage	220-240 V / 50 Hz
Water Connection	G 1/2 inch inlet and outlet
Maximum Temperature	75 °C
Thermostat	Adjustable with temperature control knob
Safety Features	Overheat protection, pressure relief valve, thermal cut-off
Energy Efficiency	Grade A (typical)
Material	Steel tank with enamel coating
Insulation	Polyurethane foam, 50 mm
Installation	Wall-mounted, vertical only
Maintenance	Periodic descaling, check anode rod annually
Spare Parts Availability	Heating element, thermostat, anode rod, gaskets
Repairability Index	7.5 / 10 (estimated)
Included Accessories	Safety valve, mounting bracket, manual

Frequently Asked Questions - AWH1308 PHILIPS

How do I set the temperature on my Philips AWH1308 water heater?

Turn the temperature control knob on the front panel clockwise to increase temperature or counterclockwise to decrease. The recommended setting is 60°C for optimal energy savings and to prevent bacterial growth.

What safety features does the AWH1308 have?

It includes an overheat protection thermostat that cuts power if the water exceeds 90°C, a pressure relief valve to release excess pressure, and a thermal cut-off fuse for added safety.

How often should I perform maintenance on the water heater?

We recommend checking the anode rod every 2 years and replacing it if worn. Descale the tank annually if you live in a hard water area. Flush the tank every 6 months to remove sediment.

Can I install the AWH1308 horizontally?

No, this model is designed for vertical wall mounting only. Horizontal installation may cause damage and void the warranty.

What is the power consumption of the AWH1308?

The heater has a 1500W heating element. At full power, it consumes 1.5 kWh per hour of operation. Actual energy usage depends on the set temperature and ambient conditions.

Why is the water not heating up?

Check if the power supply is on and the circuit breaker hasn't tripped. Ensure the thermostat is set above the current water temperature. If the problem persists, the heating element or thermostat may need replacement.

How do I replace the heating element?

First, disconnect the power and drain the tank. Remove the access cover and unscrew the defective element. Install the new element with a new gasket, then refill and power on. Refer to the manual for detailed instructions.

What is the warranty period for the Philips AWH1308?

The standard warranty is 2 years for the product and 5 years for the tank against leakage. Registration may extend coverage. Check your local warranty terms.

Can I use the water heater without a pressure relief valve?

No, the pressure relief valve is essential for safety. It prevents excessive pressure buildup. Operating without it is dangerous and may cause the tank to burst.

How do I descale the water heater?

Turn off and drain the heater. Fill it with a descaling solution (e.g., vinegar and water). Let it sit for 30 minutes, then drain and flush thoroughly with clean water. Refill and power on.

USER MANUAL AWH1308 PHILIPS

c2020 Aquashield All rights reserved

The Philips trademark and the Philips Shield Emblem are registered trademarks of Koninklijke

Philips N.V. used under license. This product has been manufactured by and is sold under the

responsibility of Guangdong Aquashield Health Technology Company Limited and Guangdong

Aquashield Health Technology Company Limited is the warrantor in relation to this product.

Rev A Apr 20

PHILIPS

热水器

电热水器

AWHT305/93(40GE)

AWH1306/93(50GE)

AWH1307/93(60GE)

AWH1308/93(80GE)

White cylindrical water heater with 'PHILIPS' branding, no visible text or symbols on body

说明书

目录

注：本图为示意图，以实物为准。

操作旋钮如下：

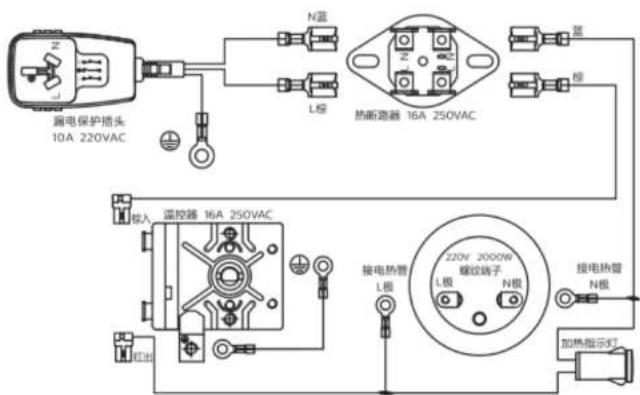

11 电气原理图
