Type of Product	Guitar Combo Amplifier with Bluetooth Receiver
Model	CG-10BT
Brand	Chord
Power Output	10W RMS
Speaker	165 mm (6.5")
Power Supply	230 V AC, 50 Hz (IEC connector)
Dimensions (W x H x D)	295 x 290 x 153 mm
Weight	4.132 kg
Inputs	6.3 mm guitar input jack
Outputs	3.5 mm headphones output
Bluetooth	Built-in Bluetooth receiver for wireless audio streaming
Controls	Gain, Drive (push-button), Volume, Treble, Middle, Bass, Bluetooth on/off/pairing
Drive Mode	Overdriven sound via DRIVE button
EQ Controls	3-band EQ: Treble, Middle, Bass
Bluetooth Pairing	Press BT button, indicator flashes, search for "CG-10BT" on device
Auto-Connect	Reconnects automatically to last paired device
Headphones	Silent practice via 3.5 mm headphone jack
Cooling	Vents at rear; do not cover
Safety	Use approved fuse only; unplug before replacing fuse
Disposal	Do not dispose with household waste; follow local WEEE directives
Certification	CE compliant (Directive 2014/53/EU)
Warranty	Damage from misuse not covered

Frequently Asked Questions - CG-10BT Chord

How do I pair my smartphone with the CG-10BT via Bluetooth?

Press the BT button (8) in; the indicator will flash. On your phone, search for 'CG-10BT' in Bluetooth settings and select it. Once paired, the indicator stays on constantly. The amplifier will automatically reconnect to your phone when Bluetooth is turned on next time.

Can I use headphones with this amplifier?

Yes, connect headphones to the 3.5mm PHONES jack (9) for silent practice. When headphones are connected, the internal speaker is muted.

How do I achieve an overdriven/distorted sound?

Press the DRIVE button (3) in and increase the GAIN control (2). Adjust the VOLUME (4) to balance the overall output. For a clean sound, keep the DRIVE button out and reduce GAIN.

What is the power requirement for the CG-10BT?

The amplifier requires 230 V AC, 50 Hz mains supply via the included IEC power lead. Ensure the outlet voltage matches the rating on the rear panel.

How do I replace the fuse?

First, unplug the amplifier from the mains. Use only an approved fuse with the rating shown on the rear panel. Replace the fuse and plug back in. Refer servicing to qualified personnel if issues persist.

Can I use the amplifier while charging?

The CG-10BT is mains-powered only; it does not have a battery or charging capability. It must be connected to a power outlet at all times during use.

What is the maximum power output?

The amplifier delivers 10W RMS into its built-in 6.5-inch speaker, suitable for practice and small rehearsals.

How do I clean and maintain the amplifier?

Keep the amplifier away from damp or dusty environments. Clean the exterior with a dry cloth. Do not cover the cooling vents at the rear. Unplug from mains before cleaning.

What should I do if the Bluetooth indicator does not stop flashing?

Ensure your phone's Bluetooth is on and search for 'CG-10BT'. If pairing fails, try resetting by turning the amplifier off and on, then repeat the pairing process. Also check that the amplifier is not already connected to another device.

Is the CG-10BT CE certified?

Yes, AVSL Group Ltd. declares that the CG-10BT (item ref: 173.014UK) is in compliance with Directive 2014/53/EU. The full EU declaration of conformity is available at the URL provided in the manual.

USER MANUAL CG-10BT Chord

Guitar Amplifier with Bluetooth®

Item ref: 173.014UK

User Manual

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing a Chord CG-10BT classically styled 10W guitar amplifier.

Ideal for practice and rehearsal, this combo includes a Bluetooth receiver for playing along to tracks from a smart phone.

Please read this manual to gain the best results from your product and avoid damage through misuse.

Caution

Do not cover cooling vents at the rear of the amplifier. Keep away from damp or dusty environments.

Check mains lead is in good condition and ensure mains outlet voltage is correct as indicated.

Use only approved fuse rated as shown. Unplug from mains before replacing fuse.

No user serviceable parts inside. Refer all servicing to qualified personnel.

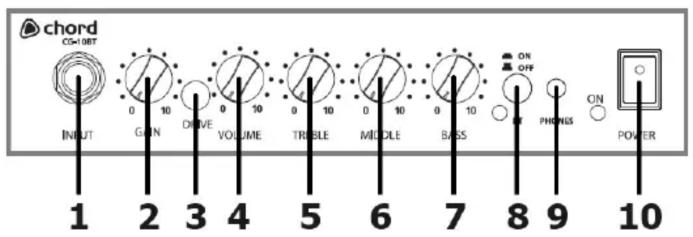

Control panel

1. 6.3mm guitar input jack
2. GAIN control
3. DRIVE button
4. VOLUME control
5. TREBLE EQ control
6. MIDDLE EQ control
7. BASS EQ control
8. Bluetooth on/off/pairing button
9. Headphones output
10. POWER on/off switch

Operation

Connect guitar to the input (1) via a 6.3mm jack lead.

If headphones are to be used for silent practice, connect these to the 3.5mm PHONES jack (9)

Turn the GAIN & VOLUME controls (2, 4) fully down and all other controls to the vertical (12 o'clock) position.

Connect to mains using the supplied mains lead via the rear panel IEC connector and switch POWER on (10)

With the DRIVE button (3) in the 'out' position and GAIN up part way, gradually turn up the VOLUME.

Play until sound is heard and increase both to the required level. More Gain increases both volume and drive.

Press the DRIVE button in and increase the GAIN for an overdriven sound and balance the GAIN and VOLUME to suit. Adjust TREBLE, MIDDLE and BASS (5, 6, 7) controls to achieve the required tone character.

For wireless playback of backing tracks from a smart phone, the CG-10BT has a built-in Bluetooth receiver.

Press the BT button (8) in and the indicator will flash. In your phone menu, search for "CG-10BT" and select to pair. Once pairing is completed, the indicator will stay on constantly and any tracks played on the smart phone should be heard through the CG-10BT speaker. Once paired, the CG-10BT will connect to the paired smart phone automatically whenever Bluetooth is switched on.

Specifications

Power supply	230Vac, 50Hz (IEC)
Output	10Wrms
Speaker	165mm (6.5")
Controls	Gain, Drive, Volume, Treble, Middle, Bass, BT
Connections	Guitar input, headphones out
Dimensions	295 x 290 x 153mm
Weight	4.132kg

Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Hereby, AVSL Group Ltd. declares that the radio equipment type 173.014UK is in compliance with Directive 2014/53/EU

The full text of the EU declaration of conformity is available at the following internet address: http://www.avsl.com/assets/exportdoc/1/7/173014UK%20CE.pdf
