Product Type	Car Subwoofer
Model	Punch P112S4
Size	12 inches (30.5 cm)
Impedance	Single 4 ohms
Power Handling (RMS)	400 Watts
Power Handling (Peak)	800 Watts
Frequency Response	20 Hz – 250 Hz
Sensitivity	86.5 dB @ 1W/1m
Voice Coil Diameter	2.5 inches (63.5 mm)
Cone Material	Injection-molded polypropylene
Surround Material	Rubber
Top Mount Depth	5.6 inches (142 mm)
Cutout Diameter	10.9 inches (277 mm)
Mounting Hole Diameter	11.25 inches (286 mm)
Subwoofer Displacement	0.14 cubic feet (4 liters)
Recommended Sealed Box Volume	1.0 – 1.5 cubic feet (28 – 42 liters)
Recommended Ported Box Volume	1.5 – 2.5 cubic feet (42 – 71 liters)
Weight	10.5 lbs (4.8 kg)
Warranty	1 year limited
RMS Power per Channel (recommended)	200 – 400 Watts @ 4 ohms

Frequently Asked Questions - Punch P112S4 Rockford Fosgate

What is the recommended amplifier power for the Rockford Fosgate Punch P112S4?

We recommend an amplifier delivering 200-400 Watts RMS at 4 ohms for optimal performance.

What type of enclosure is best for the P112S4?

The subwoofer works well in both sealed and ported enclosures. A sealed box (1.0-1.5 cu ft) gives tight bass, while a ported box (1.5-2.5 cu ft) provides more output and deeper bass.

What are the mounting dimensions for this subwoofer?

The top mount depth is 5.6 inches (142 mm) and the cutout diameter is 10.9 inches (277 mm). Ensure your enclosure has these clearances.

What is the impedance of the Punch P112S4?

It has a single 4-ohm voice coil, so wire it to a single channel amplifier at 4 ohms.

How much power can the P112S4 handle?

RMS power handling is 400 Watts and peak power handling is 800 Watts. Do not exceed the RMS rating for reliable operation.

Does the subwoofer require a break-in period?

Yes, break-in is recommended for 10-20 hours at moderate volume levels to loosen the suspension and achieve optimal performance.

Can I use the P112S4 in a free-air (infinite baffle) setup?

It is not recommended. The P112S4 is designed for enclosed applications only, either sealed or ported, to protect the subwoofer and ensure sound quality.

What is the frequency response of this subwoofer?

The frequency response is 20 Hz to 250 Hz, making it suitable for deep bass reproduction.

How do I clean and maintain the subwoofer?

Gently wipe the cone and surround with a soft, dry cloth. Avoid using liquids or cleaners. Check mounting screws periodically and ensure the enclosure is sealed properly.

Is the P112S4 compatible with a 1-ohm stable amplifier?

Yes, but you cannot wire a single 4-ohm subwoofer to 1 ohm. You would need multiple subwoofers (e.g., two 4-ohm subs in parallel for 2 ohms, or four for 1 ohm) to achieve that load.

USER MANUAL Punch P112S4 Rockford Fosgate

SVC - SINGLE VOICE COIL WOOFERS

PI8S4

PI8S8

PII0S4

PII0S8

PII2S4

PII2S8

PII5S4

PII5S8

P28S4

P28S8

P210S4

P210S8

P2I2S4

P2I2S8

P2I5S4

P215S8

Installation & Operation

CAUTION: Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.

CALCULATING VOLUMES

Calculating volume is merely a matter of measuring the internal dimensions in inches and using the formula:

Box Volume = Height " x Width" x Depth"

(cubic feet) 1728

FRANÇAIS

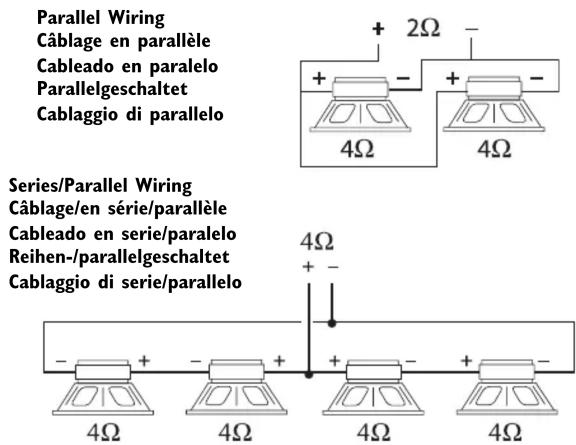

WIRING CONFIGURATIONS

Check our website for updates on your products.

www.RockfordFosgate.com

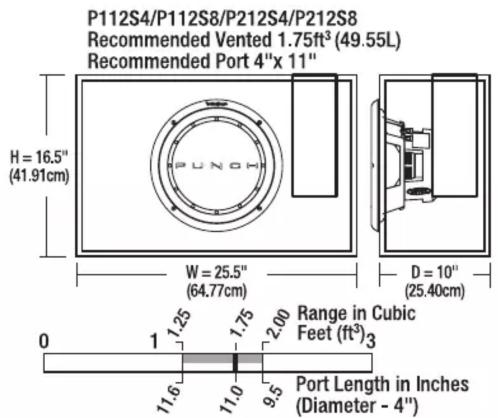

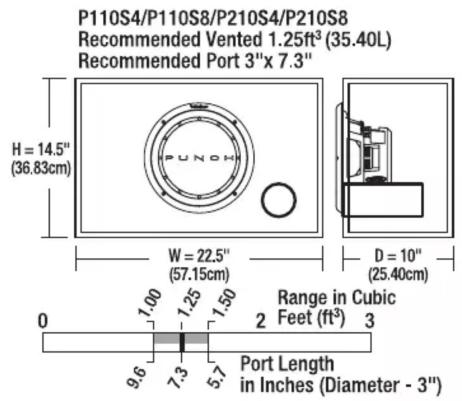

VENTED ENCLOSURES

NOTE: All recommended volumes are TOTAL internal volume, before any speaker and/or port displacement. All external dimensions were based on the use of 3/4" materials.
NOTE: When using enclosures other than specified, call Technical Support for correct application.

SPECIFICATIONS

Model - Punch SVC PI8S4 PI8S8 PI10S4 PI10S8 PI12S4 PI12S8 PI15S4 PI15S8
Nominal Impedance (ohms) 4	8	4	8	4	8	4	8
Voice Coil Diameter-inch (mm)	1.5 (38.1) 1.5 (38.1)	1.5 (38.1) 1.5 (38.1)	1.5 (38.1) 1.5 (38.1)	2.0 (50.8) 2.0 (50.8)
FS (Hz)	35	36	30	31	25	26	22	23
QTS	0.518	0.538	0.513	0.524	0.594	0.624	0.680	0.697
VAS-cu.ft. (liter)	0.565 (16)	0.565 (16)	1.766 (50)	1.766 (50)	3.779 (107)	3.779 (107)	8.829 (250)	8.829 (250)
Xmax-inch (mm)	0.276 (7.0)	0.276 (7.0)	0.303 (7.7)	0.303 (7.7)	0.303 (7.7)	0.303 (7.7)	0.315 (8.0)	0.315 (8.0)
SPL (dB @ lw/lm)	83.0	83.0	85.5	85.5	86.0	86.0	87.0	87.0
Power Handling (RMS)	150	150	150	150	150	150	200	200
Power Handling (Max)	300	300	300	300	300	300	400	400
Mounting Dia.-inch (mm)	7-1/16 (179.38)	7-1/16 (179.38)	9-1/4 (234.95)	9-1/4 (234.95)	11-1/8 (282.58)	11-1/8 (282.58)	13-7/8 (352.43)	13-7/8 (352.43)
Mounting Depth-inch (mm)	4-1/16 (103.19)	4-1/16 (103.19)	5-3/16 (131.76)	5-3/16 (131.76)	5-5/8 (142.88)	5-5/8 (142.88)	7-1/8 (180.98)	7-1/8 (180.98)
Speaker Dis.-cu. ft. (liter)	0.020 (0.508)	0.020 (0.508)	0.034 (0.864)	0.034 (0.864)	0.042 (1.067)	0.042 (1.067)	0.077 (1.956)	0.077 (1.956)
Sealed Box Vol.-cu. ft. (liter)	0.25 (7.08)	0.25 (7.08)	0.65 (18.41)	0.65 (18.41)	1.25 (35.40)	1.25 (35.40)	2.25 (63.71)	2.25 (63.71)
Vented Box Vol.-cu. ft. (liter)	0.65 (18.41)	0.65 (18.41)	1.25 (35.40)	1.25 (35.40)	1.75 (49.55)	1.75 (49.55)	2.50 (70.79)	2.50 (70.79)
Port Diameter & Length (in.)	(1) 2 x 5.9	(1) 2 x 5.9	(1) 3 x 7.3	(1) 3 x 7.3	(1) 4 x 11	(1) 4 x 11	(1) 4 x 9	(1) 4 x 9
Port Diameter & Length (cm)	(1) 5.08 x 14.99	(1) 5.08 x 14.99	(1) 7.62 x 18.54	(1) 7.62 x 18.54	(1) 10.16 x 27.94	(1) 10.16 x 27.94	(1) 10.16 x 22.86	(1) 10.16 x 22.86

Number of ports noted in ( )
Specifications subject to change without notice

Model - Punch SVC	P28S4	P28S8	P210S4	P210S8	P212S4	P212S8	P215S4	P215S8
Nominal Impedance (ohms) 4		8	4	8	4	8	4	8
Voice Coil Diameter-inch (mm)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)	2.0 (50.8)
FS (Hz)	35	36	28	29	25	26	21	22
QTS	0.491	0.515	0.437	0.500	0.488	0.526	0.560	0.578
VAS-cu.ft. (liter)	0.565 (16)	0.565 (16)	1.483 (42)	1.483 (42)	3.426 (97)	3.426 (97)	8.829 (250)	8.829 (250)
Xmax-inch (mm)	0.315 (8.0)	0.315 (8.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)	0.433 (11.0)
SPL (dB @ 1w/1m)	84.0	84.0	85.8	85.8	86.0	86.0	87.5	87.5
Power Handling (RMS)	200	200	200	200	200	200	250	250
Power Handling (Max)	400	400	400	400	400	400	500	500
Mounting Dia.-inch (mm)	7-1/16 (179.38)	7-1/16 (179.38)	9-1/4 (234.95)	9-1/4 (234.95)	11-1/8 (282.58)	11-1/8 (282.58)	13-7/8 (352.43)	13-7/8 (352.43)
Mounting Depth-inch (mm)	4 (101.60)	4 (101.60)	5-5/8 (142.88)	5-5/8 (142.88)	6-1/16 (153.98)	6-1/16 (153.98)	7-3/8 (187.33)	7-3/8 (187.33)
Speaker Dis.-cu. ft. (liter)	0.024 (0.610)	0.024 (0.610)	0.040 (1.016)	0.040 (1.016)	0.049 (1.245)	0.049 (1.245)	0.076 (1.930)	0.076 (1.930)
Sealed Box Vol.-cu. ft. (liter)	0.25 (7.08)	0.25 (7.08)	0.65 (18.41)	0.65 (18.41)	0.85 (24.07)	0.85 (24.07)	2.25 (63.71)	2.25 (63.71)
Vented Box Vol.-cu. ft. (liter)	0.65 (18.41)	0.65 (18.41)	1.25 (35.40)	1.25 (35.40)	1.75 (49.55)	1.75 (49.55)	2.50 (70.79)	2.50 (70.79)
Port Diameter & Length (in.)	(1) 2 x 5.9	(1) 2 x 5.9	(1) 3 x 7.3	(1) 3 x 7.3	(1) 4 x 11	(1) 4 x 11	(1) 4 x 9.4	(1) 4 x 9.4
Port Diameter & Length (cm)	(1) 5.08 x 14.99	(1) 5.08 x 14.99	(1) 7.62 x 18.54	(1) 7.62 x 18.54	(1) 10.16 x 27.94	(1) 10.16 x 27.94	(1) 10.16 x 23.88	(1) 10.16 x 23.88

Number of ports noted in ( )
Specifications subject to change without notice

Rockford Fosgate®

Rockford Corporation offers a limited warranty on Rockford Fosgate products on the following terms:

Length of Warranty

Source Units, Speakers, Signal Processors and PUNCH Amplifiers – 1 Year

POWER Amplifiers – 2 Years Type RF Amplifiers – 3 Years

Any Factory Refurbished Product – 90 days (receipt required)

What is Covered

This warranty applies only to Rockford Fosgate products sold to consumers by Authorized Rockford Fosgate Dealers in the United States of America or its possessions. Product purchased by consumers from an Authorized Rockford Fosgate Dealer in another country are covered only by that country's Distributor and not by Rockford Corporation.

Who is Covered

This warranty covers only the original purchaser of Rockford product purchased from an Authorized Rockford Fosgate Dealer in the United States. In order to receive service, the purchaser must provide Rockford with a copy of the receipt stating the customer name, dealer name, product purchased and date of purchase.

Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at Rockford's discretion.

What is Not Covered

I. Damage caused by accident, abuse, improper operations, water, theft, shipping
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford Fosgate Service Center
4.Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6.Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer

Limit on Implied Warranties

Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.

How to Obtain Service

Contact the Authorized Rockford Fosgate Dealer you purchased this product from.

If you need further assistance, call 1-800-669-9899 for Rockford Customer Service. You must obtain an RA# (Return Authorization number) to return any product to Rockford Fosgate. You are responsible for shipment of product to Rockford.

EU Warranty

This product meets the current EU warranty requirements, see your Authorized dealer for details.

Ship to: Electronics

Rockford Corporation

Warranty Repair Department

2055 E. 5th Street

Tempe,AZ 85281

10/04 B.M.

1230-50197-B Printed in U.S.A.

Ship to: Speakers

Rockford Acoustic Design

Speaker Returns

3056 Walker Ridge Dr. Suite G.

Walker, MI 49544

RA#:
