USER MANUAL FZR 1050-E Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

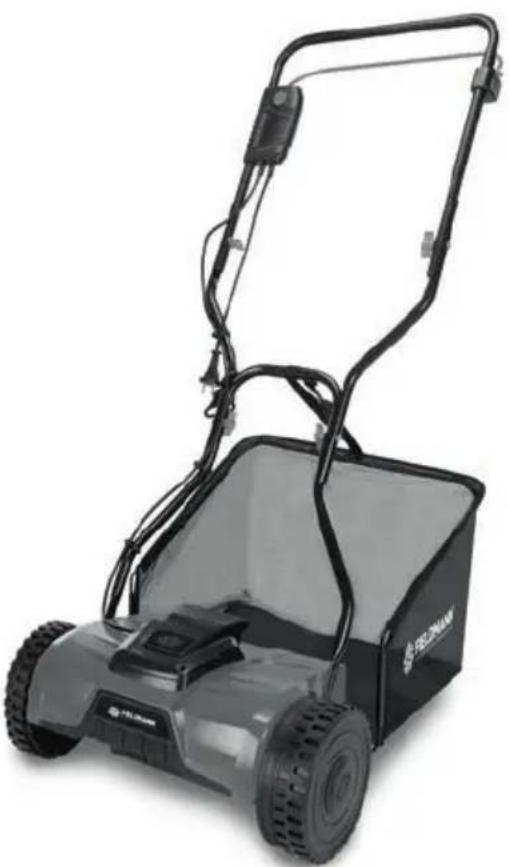

Exterior view of a modern lawn mower (no signage or text visible)

FZR 1050 E

English 1-16

Češťina....17 - 30

Slovenština....31 - 44

Magyarul 45 - 57

Polski 58-70

Electric Lawn mower

INSTRUCTIONS FOR USE

Thank you for purchasing this rotary electric lawn mower. Before you start using it, please, carefully read this user's manual and save it for possible future use.

TABLE OF CONTENTS

1. GENERAL SAFETY REGULATIONS 4
   Important safety notice....4
   Packaging 4
   User manual 4
2. SYMBOLS....5
3. DESCRIPTION (FIG. 1)....6
4. BASIC WORK SAFETY 7
   Other risks 7
   Before you start using the lawn mower....8
   Preparing for operation....8
   Operation 8
   Maintenance and storage....9
5. ASSEMBLY 10
   5.1 Installing the handle....10
6. OPERATION 11
   6.1 Setting the mowing height.... 11
   6.2 Connecting to the power grid....11
   6.3 Turning the lawnmower on/off....11
   6.4 Mowing....12
7. TECHNICAL SPECIFICATIONS....13
8. MAINTENANCE....14
9. DISPOSAL 15

1. GENERAL SAFETY REGULATIONS

IMPORTANT SAFETY NOTICE

* Unpack the product carefully and do not throw away any of the packaging until you have found all the parts of the product.
Store the product in a dry place out of reach of children.
Read all the warnings and instructions. Failure to comply with the warnings and instructions may lead to electric shock, fire and/or serious injuries.

PACKAGING

The product's packaging prevents damage during transport. This packaging is a resource and can be recycled.

USER MANUAL

Before starting to work with the machine, please read the following safety regulations and instructions for use. Get familiar with the controls and correct use of the equipment. Keep the user's manual in a safe place for easy future reference. Save the original packaging, including the internal packing material, guarantee card and proof of purchase receipt for at least the time of the guarantee. If you need to transport this power tool, pack it in the original cardboard box for maximum protection during shipping or transport (e.g. when moving or when you need to send this power tool to a service centre for repair).

Note: If you hand over the appliance to somebody else, do so together with this user's manual. Make sure you use the appliance properly by following the instructions in the included User manual. The user's manual also contains operating, maintenance, and repair instructions.

The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions.

2. SYMBOLS

Read the manual with the instructions before using this machine.

Bystanders must be at a safe distance.

Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cable is damaged, disconnect the plug from the mains.

Keep the power cable at a safe distance from the blade.

Do not mow grass in the rain and do not leave the lawn mower uncovered in the rain.

Use ear protection.

Use eye protection.

Use breathing protection.

Always disconnect the power cord before working on the mowing deck

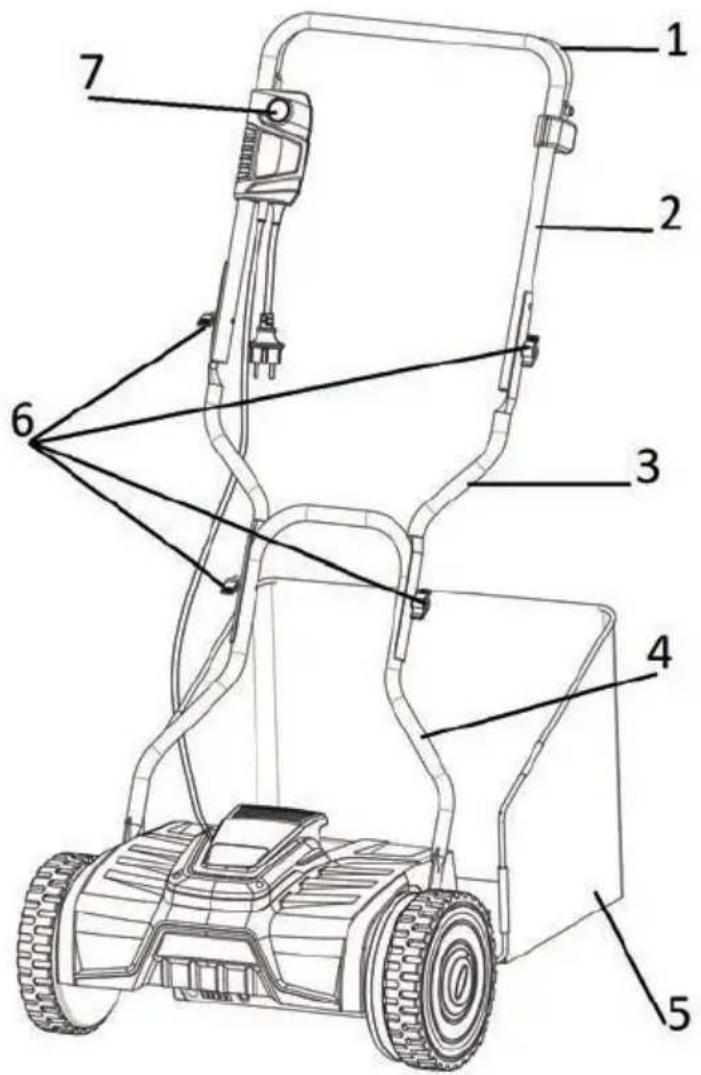

3. DESCRIPTION (FIG. 1)

1. Switch bar
2. Top part of the handle
3. Middle part of the handle
4. Bottom part of the handle
5. Grass catcher
6. Screws with wing nuts
7. Start unit

Fig. 1

4. BASIC WORK SAFETY

* Never use the machine if the power cable is damaged or visibly worn.
If the lawnmower is connected to a power source using a damaged power cable and the place that is not insulated is touched before the lawnmower is disconnected from the power source, you risk being electrocuted.
Also, never touch the blades until the machine is disconnected from the power source and until the blades completely stop.
Make sure that the extension cable never comes into contact with the blades. The blades could damage the power cable insulation and create a risk of an electric shock when a part of the body touches the exposed wire when it is live.
* Disconnect the machine from the voltage source (i.e. pull the power cable plug out of the mains power socket):

• If you need to leave the machine without supervision
• If you have to leave the machine unsupervised
• Before every inspection, every cleaning or repairs
  • If you hit a foreign body when working with it
• If the machine vibrates excessively.

Read carefully the basics of working safely with the machine and the user's manual.
Recommendation: Only connect the machine to a power source that has a residual current device (RCD) with a maximum leakage current of 30mA.
If the power cable is damaged, it must be replaced by the manufacturer or by a customer service centre.
This machine must not be operated by anyone with limited physical, sensory or mental abilities (including children). Furthermore, it must not be used by inexperienced people who do not have the technical knowledge to operate it. These people must be supervised by a competent person or instructed about the basics of work safety.
If children are near the machine, make sure they do not play with it.
* Tingling or numb hands are indications of excessive vibrations. If this happens, shorten the work cycle, take sufficiently long breaks, share the work among several people or if the lawnmower is used for long periods wear special anti-vibration gloves.
An unavoidable consequence of using the lawnmower is the noise when it is running. Therefore, only do noisy work during dedicated hours, or when this type of activity is normal. Respect quiet times and try to limit the work to the shortest possible time.

We also recommend that you and persons near the lawnmower wear ear protectors.

OTHER RISKS

Despite our products being designed to meet the valid technical standards and safety directives, there are still some risks to the user from using the machine:

• Stones and other fragments may fly out of the mowing deck.
• If the machine operator does not use ear protectors, then they risk subsequent deafness.
• Injured fingers during blade maintenance
  • Inhaling grass clipping particles
  • Electric shock from un-insulated parts.

This machine must not be operated by those with limited physical, sensory or mental abilities (including children) or inexperienced persons or persons whose technical knowledge is evidently insufficient for the given task; and these people should only operate the device under the supervision of a person that is competent for this task or where the person is thoroughly instructed in working safely with the machine.

If children are near the machine, make sure they do not play with it.

ATTENTION! Carefully read the user manual before using this lawn mower. Make sure that you thoroughly know all the control elements. Following the work safety rules for the machine minimises the risk of fire, electric shock or other injuries.

* Keep the user manual carefully in case it is needed.

If the machine is incorrectly operated it could cause an injury. The lawnmower could cause serious injury to the user and those nearby and therefore these work safety rules should always be followed to eliminate this risk if possible.

The user is responsible for safety when working with the machine. Never use the machine if any of its safety items are missing or not in full working order.

BEFORE YOU START USING THE LAWN MOWER

Carefully read all the instructions provided in this user manual. Thoroughly get to know the machine's control elements and the basics for correct use.

Never let children or anyone who you are not certain know the controls and the work safety rules for this machine operate it on their own. The national legislation may also stipulate a minimum age limit for operating this type of machine. Please read the laws governing this area in your country.

* Never use the lawnmower if people, particularly children or household pets, are moving nearby.

Always remember that the user is fully responsible for injuries or damage to property caused by operating this machine.

PREPARING FOR OPERATION

When working with the machine wear suitable footwear and long trousers. Never operate the lawnmower barefooted or in sandals.

Before starting work, inspect the ground and remove any items that could be deflected by the machine.

ATTENTION! Before every use of the machine, make sure that the blade, its mounting pin and the lawn mower body in general is not damaged or excessively worn. Always replace a damaged or worn out part, of which there are sets on the machine, with an entire set to prevent imbalance.

OPERATION

* Only operate the machine during daylight or sufficient artificial lighting.

If possible, do not mow wet grass.

Make sure that during work you always have a firm support and a secure stance.

Do not run when pushing the mower - walk normally.

The following general rules apply for work with the lawn mower: When mowing on a slope, do not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope.

Be very careful when changing direction on a slope.

* Never use the lawn mower on extremely steep slopes.

If you need to pull the lawnmower towards you while it is running or if you need to move backwards with the lawnmower, be very careful.
* Always stop the blades from turning when transporting the machine or moving over an un-grassed area.
* Never use the machine if any covers are damaged or if any of its safety elements are missing such as deflectors or grass catchers.
* Always start the motor as described in the user manual, and make sure to keep your feet away from the blades.
* Never tilt the machine when starting the motor unless it is really essential to start it. In this case, turn the side of the lawnmower that is farther away from you upwards.
* Never put your hands or feet under the lawnmower, in particular near to the moving parts. Never cover the grass ejection chute.
* Never transport the machine if the motor is still running.
Always stop the motor first and disconnect the cable plug before troubleshooting or emptying the grass catcher.

• Proceed in the same way before every inspection, cleaning or repair of the machine.
• If you hit a foreign body make sure the lawnmower has not been damaged, and if it has repair the damage before starting the motor again.
• Or if the machine starts to vibrate more than unusual (immediately check the machine!)

Stop the motor whenever you move away from the machine.

MAINTENANCE AND STORAGE

* Always make sure that all nuts, pins and bolts are securely tightened so that the machine operates safely.
* Regularly check the grass catcher for damage or excessive wear and tear.
* Immediately replace worn out or damaged parts. This will help your lawnmower to operate safely.
When setting adjustable elements, take care not to clamp your fingers between the moving blades and the fixed part of the machine. Let the motor cool down before storing the lawnmower in an enclosed area.

5. ASSEMBLY

For the purpose of transportation, the lawnmower is supplied disassembled. Before use, it must be assembled according to the following steps:

5.1 INSTALLING THE HANDLE

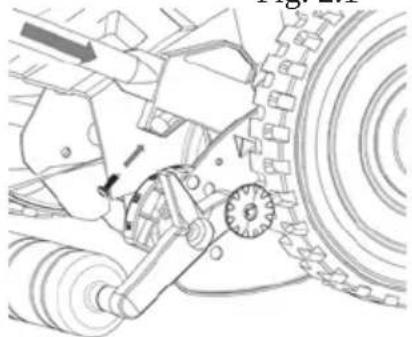

Fig. 2.1

Mechanical assembly diagram showing gear and shaft components (no text or labels)

Fig. 2.2

Simple line drawing of a mechanical clamp or bracket with two circular components inside (no text or symbols)

Fig. 2.3

Pure mechanical diagram showing a linkage or connector without any text, numbers, or symbols

Connect the bottom part of the handle to the lawnmower chassis (Fig. 2.1)
* Place the cable lock on the right side of the centre handle (Figure 2.2)
- Attach the upper part to the centre with the thumbscrews. Then attach the two parts to the lower handle (Fig. 2.3)

Note: the handle can be folded for storage purposes.

5.2 INSTALLING THE BASKET AND ITS USE

* Connect the two parts of the metal frame A and B (Fig. 2.4)
Thread the fabric onto the basket frame and attach the ends to the frame (Fig. 2.5)
* Connect the basket to the mower (Fig. 2.6)

Fig. 2.4

Close-up of a car interior showing a rectangular opening with internal compartments and arrows indicating movement or force (no text or symbols)

Fig. 2.5

Close-up of a black plastic container with a white top, showing internal structure (no text or symbols visible)

Fig. 2.6

6. OPERATION

6.1 SETTING THE MOWING HEIGHT

ATTENTION: Before setting the mowing height, always make sure that the lawnmower is turned off and the blade is not moving.

ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off. A rotating blade can cause injuries.

Cutting height can be set to 4 positions

1. position 13 mm
2. position 23 mm
3. position 32 mm
4. position 38 mm

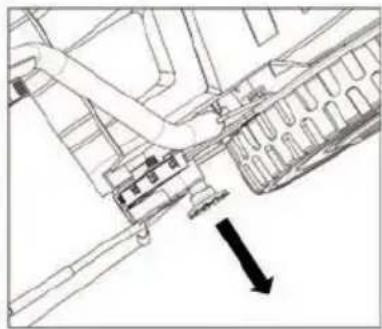

Fig. 3

Technical line drawing of a mechanical assembly with no visible text or symbols

* Unlock the height adjustment lock by pulling the pins and adjust to the desired height. The pins must be unlocked simultaneously on both sides of the mower. (Fig. 3.)

ATTENTION:

Note: The lawn should not be shortened by more than 1/3 of its height.

6.2 CONNECTING TO THE POWER GRID

Insert the power cable plug into the power grid (230-240 V, 50 Hz).

Check that there is a sufficient length of power cord available.

The length of the power cord should not exceed 30 m. The lawnmower may lose power when a longer power cord is used.

Secure the cable with the bracket on the centre handle (Fig. 2.2)

6.3 TURNING THE LAWNMOWER ON/OFF

ATTENTION: Do not start the lawnmower when it is standing in a place with tall grass.

Turning on:

Press and hold the safety button. (Fig. 4, point 1). Then pull the starting lever towards the handle. (Fig. 4, point 2). Release the safety button.

ELECTRIC LAWN MOWER USER'S MANUAL

Turning off:

Release the starting lever (Fig. 4, point 2)

Fig. 4

ATTENTION: The blade will rotate for several seconds after the lawn mower is turned off.
ATTENTION: Do not turn the lawnmower off and on in quick succession.

6.4 MOWING

ATTENTION: Mow the lawn only when it is dry. Mowing wet grass causes undesirable clogging of the lawnmower and subsequent loss in power and reduced grass collection performance.

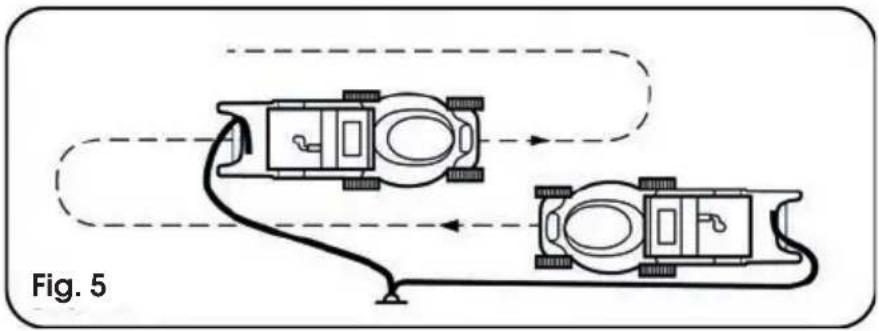

ATTENTION: Always mow in the direction away from the power cord. In this way, you will prevent accidentally severing the power cord. Figure 5.

Diagram of a vehicle with two connected vehicles and a cable, labeled Fig. 5 (no text or symbols on diagram itself)

7. TECHNICAL SPECIFICATIONS

Model FZR 1050 E
Power source 230-240 V, 50 Hz
Power input 400 W
Idling speed 1080 min	-1
Coverage width (blade length): 380 mm
Mowing heights 13/24/32/38 mm – 4 positions
Grass catcher volume 45 l
Weight when empty: 12.9 Kg
Noise level 96 dB (A)
Guaranteed emission level of acoustic power (LWA max) in accordance with the Noise Level Directive 2000/14:
LwA MAX 96 dB (A)
Vibrations: 0.336 m/s ^2

8. MAINTENANCE

ATTENTION! Before removing the grass catcher, always turn off the lawn mower and pull the extension cable plug out of the power socket.

Note: We recommend regularly carrying out the maintenance below, this will increase the lifetime and reliability of the machine.

* Regularly visually inspect the machine for defects such as a loose blade, blade installed upside down, blade damage or damaged or excessively worn parts.
Also regularly check that the protective covers and protective elements are not damaged and are properly placed.
Before using the machine, carry out all necessary repairs and maintenance.
If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops.

9. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Dispose of used packaging material at a site designated for waste in your municipality.

DISPOSING OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal and recycling, take these products to designated collection points. Or in some European Union states or other European countries the products can be returned to the local retailer when buying an equivalent new product. Disposing of this product correctly helps save valuable natural resources and prevents damage to the environment by improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic devices, ask your retailer or supplier for the necessary information. Disposal in other countries outside the European Union. This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.

This appliance meets all the basic requirements of the EU directives.

The text, design and technical specifications may be changed without prior notice and we reserve the right to make these changes.

Translation of the original user's manual.

FAST®

FAST ČR, a.s.

Černokostelecka 1621, 251 01 Řičany, Czech Republic

tel: [phone], fax: [phone]

Declaration of Conformity

Product/ brand: Electric cylinder lawnmower/ FIELDMANN

Type/ model: FZR 1050-E as factory model LP-CM 40038-B

AC 230-240V, 50Hz, 400W, 1080/min ^-1 , IPX4,

Cutting width 380mm, LpA 75,2dB(A), LwA 96dB(A)

Manufacturer: FAST ČR, a.s.

Černokostelecká 2111, 100 00 Praha 10, Czech Republic

VAT no: CZ26726548

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:

Directive Machinery 2006/42/EC

Directive EMC 2014/30/EU

Directive Noise 2000/14/EC + 2005/88/EC

Directive RoHS 2011/65/EU

The relevant harmonised standards and the other technical specifications:

EN 60335-1:2012+A11+A13

EN 60335-2-77:2010

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

CE

Place of issuance: Prague

Name: Ing. Zdeněk Pech

Chairman of the Board

Date of issuance: 30.08.2019

Signature:

Obr. 2.4

Close-up of a car interior showing a rectangular seat with arrows pointing to the side (no text or symbols visible)

Obr. 2.5

Close-up of a black plastic sheet with a white top, showing internal structure and mounting brackets (no text or symbols visible)

Obr. 2.6

6. PROVOZ

6.1 NASTAVENÍ VÝŠKY SEČENÍ

Technical line drawing of a mechanical assembly with no visible text or symbols

1. TECHNICKÉ ÚDAJE

Directive Machinery 2006/42/EC

Directive EMC 2014/30/EU

Directive Noise 2000/14/EC + 2005/88/EC

Directive RoHS 2011/65/EU

a normami:

EN 60335-1:2012+A11+A13

EN 60335-2-77:2010

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

CE

Vydáno v: Praze

Chairman of the Board

Interior view of a car showing the hood and side panel with arrows indicating direction (no text or symbols)

Obr. 2.5

Close-up of a black plastic container with a white lid and metal frame, no visible text or symbols

Obr. 2.6

6. PREVÁDZKA

6.1 NASTAVENIE VÝŠKY KOSENIA

Technical line drawing of a mechanical assembly with no visible text or symbols

Directive Machinery 2006/42/EC

Directive EMC 2014/30/EU

Directive Noise 2000/14/EC + 2005/88/EC

Directive RoHS 2011/65/EU

a normami:

EN 60335-1:2012+A11+A13

EN 60335-2-77:2010

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Vydáno v: Prahe

Meno: Ing. Zdeněk Pech

Chairman of the Board

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing gear and shaft components (no text or labels)

Rys. 2.2

Simple line drawing of a mechanical component with no text or symbols

Rys. 2.3

Rys. 2.4

Interior view of a car showing the rear compartment with arrows indicating movement or force (no text or symbols visible)

Rys. 2.5

Close-up of a black plastic container with a lid and side supports (no visible text or symbols)

Rys. 2.6

6. EKSPLOATACJA

6.1 USTAWIENIA WYSOKOŚCI KOSZENIA

Technical line drawing of a mechanical assembly with no visible text or symbols

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

[e-mail]

www.fastcr.cz

Fast Plus, a. s.

Na Pántoch 18

SK 831 06 Bratislava

Slovenská republika

Tel.: [phone]

Fax: [phone]

[e-mail]

www.fastplus.sk

Jótállási jegy

Exterior view of a black and gray lawn mower with attached circuit board (no text or symbols visible)

FIELDMANN®

Home & Garden Performance
