Product Type	Wet & Dry Vacuum Cleaner
Brand	Ursus Trotter
Model	UT-PANZER1416
Rated Voltage	220V ~
Frequency	50/60 Hz
Nominal Power	1450 W
Max Power	1450 W
Capacity (Solid & Liquid)	16 liters
Depression (Suction)	2100 mm/H2O
Dimensions (W x D x H)	31 x 31 x 41 cm
Weight	4.1 kg
Wet & Dry Capability	Yes; remove bag and filter for wet use
Blowing Function	Yes (Super PURE blower tech); requires clean interior
Filtration System	Cartridge filter + cloth dust bag
Float System	Automatic shut-off when water tank is full
Handle Type	Metal closing handles
Wheels	4 independent wheels (replaceable)
Included Accessories	Flexible hose, 2 extension tubes, floor nozzle, cloth bag, cartridge filter
Not Included Accessories	Corner nozzle, base and wheel supports
Power Cord	Replaceable only by qualified service
Safety Features	Grounded plug required; do not vacuum hot/flammable materials
Maintenance	Clean bag and filter regularly; store in cool dry place
Repairability	Authorized service only

Frequently Asked Questions - UT-PANZER1416 Ursus Trotter

Can I vacuum water with the Ursus Trotter UT-PANZER1416?

Yes, you can vacuum water. However, you must first remove the cloth bag and cartridge filter. The vacuum automatically stops suction when the tank is full (16 liters). After use, empty and dry the tank to prevent odors.

How do I use the blowing function?

To use the blowing function, remove the dust bag and filters, and thoroughly clean the inside of the vacuum. Then connect the hose to the blowing port. This ensures no dust is blown out. Use it for cleaning inaccessible areas, inflating balloons, or stirring coal.

Why has my vacuum lost suction power?

Loss of suction may be due to clogged hose, tube, or nozzle, a full dust tank, or dirty filters. Check and clear any blockages, empty the tank, and clean or replace the filters. Also ensure all connections are secure.

Can I vacuum ash or hot materials?

No, never vacuum ash, incandescent objects, flammable, corrosive, or hazardous substances. This can damage the vacuum and pose a fire risk.

What kind of power outlet should I use?

Use a grounded outlet with a minimum protection of 10A. The vacuum operates on 220V~. Ensure the voltage matches your mains supply.

How often should I clean the cloth bag and filter?

Clean the cloth bag and cartridge filter when they appear full or dirty. For dry use, tap out dust and reuse the bag. For wet use, remove them entirely. Regular cleaning prolongs the life of the vacuum.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be repaired or replaced by the manufacturer or a qualified service technician. Do not use the vacuum with a damaged cord.

Can I use extension cords?

The manual does not specify extension cord usage. To ensure safety, plug directly into a wall outlet with adequate rating. If necessary, use a heavy-duty grounded extension cord suitable for 1450W.

How do I store the vacuum cleaner?

Store the vacuum in a cool, dry place away from moisture. Keep it out of reach of children. Proper storage prevents damage to internal electrical components.

Are replacement parts available?

Use only accessories and spare parts recommended by the manufacturer. For repairs, contact an authorized service center. Common replacements include the cloth bag, cartridge filter, and wheels.

USER MANUAL UT-PANZER1416 Ursus Trotter

German Engineering & Design

STAUBSAUGER

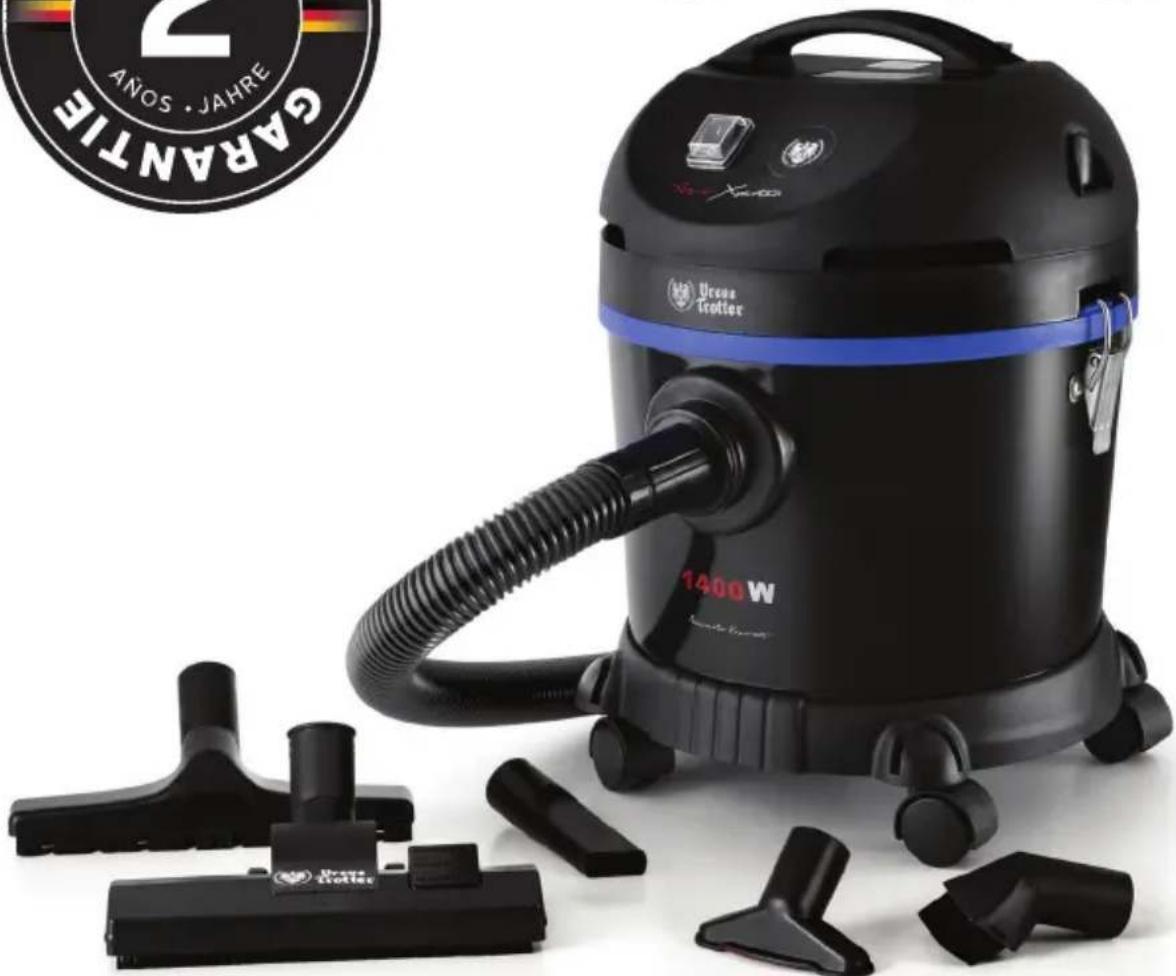

Aspiradora Wet & Dry Panzer 1416

Black and white photo of a Ucos air purifier with attached blue cover, surrounded by other components (no visible text or symbols)

STAUBSAUGER UT-PANZER1416

*Foto referencial.

Illustration of a hand holding a computer monitor with a speech bubble and download arrow (no text or symbols)

Illustration of a hand holding a hose with directional arrows indicating movement (no text or symbols)

Illustration of a bucket with falling rocks and leaves, no text or symbols present

Illustration of a person bending over water with a submerged object, no text or symbols present

Person using a hose to clean or wash the airbag (no text or symbols visible)

Illustration of a hand interacting with a computer screen displaying a speech bubble (no text or symbols present)

Sistema Soplado

* Picture only referential.

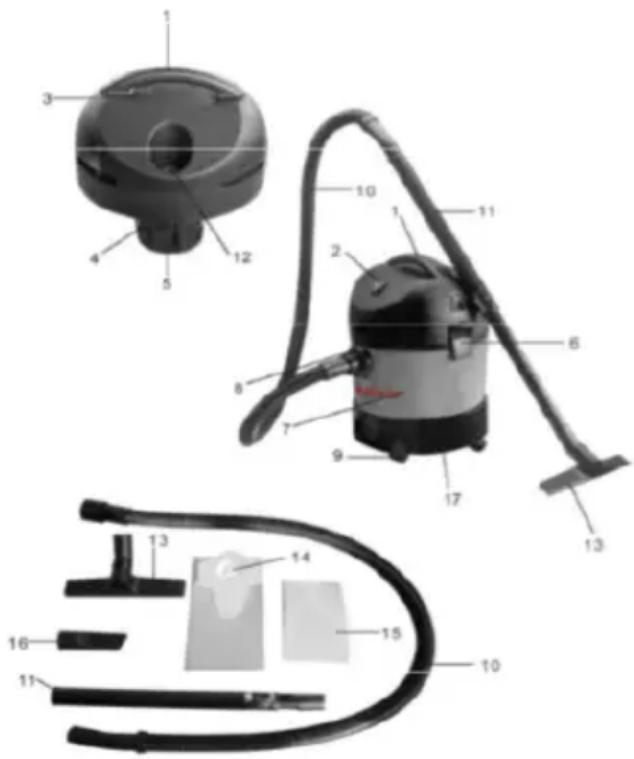

Accessories included

1. Upper Manilla transport
2. Switch on
3. Top cover engine
4. Filter Catridge (CARTRIDGE purification teck)
5. System float that stops when the vacuum suction is filled with water
6. Handles closing (Metal clips specially made for Ursus Trotter).
7. dust and water
8. Connecting suction hose
9. Four Wheels for movement
10. flexible suction tube
11. Two extension tubes
12. Hose connection for blowing (Super PURE blower teck) function for multiple functions.
13. Nozzle to vacuum hard floors
14. 1 bag of next gen that hold dust efficiently.
15. NOT INCLUDED
16. Accessory aspires corners
17. Base and wheel supports.

Important Precautions to consider:

• If the power cord is damaged, it must be repaired by the manufacturer or by a qualified service technician person.
• When this vacuum cleaner in operation, never close the hose pipes eyes or ears, this can cause damage to the person.
• Always unplug before cleaning or performing any maintenance of the vacuum cleaner.
• Caution: Before assembling and start using the vacuum cleaner, read the instructions carefully.
• Check that the voltage from the mains to the correct 220vlts corresponds.
• Connect only to electrical outlets with earthing and compatible.
• Minimum protection 10Amp outlets.
• Do not use abrasive liquids for cleaning.
• Take the plug to disconnect the socket and not pull the cable.
• Always supervise the vacuum cleaner when in operation. Keep out of reach of children.
• In any case aspire: ash and incandescent objects such as cigarettes, flammable, corrosive, fire or hazardous substances (vapors or hazardous liquids), explosive, that can damage the vacuum cleaner.
• Store the cleaner in a cool, dry place, free moisture as this impairs the internal electrical components.
• Maintenance and repair should be paid exclusively by an authorized manufacturer service.
• Use the vacuum cleaner only for domestic and indicated uses.
• Take special care when using the blowing feature, you must remove the dust bag cleaning the inside of the vacuum well and remove filters to ensure that the blow does not leave any dust outside, just so this feature will be very useful and beneficial. (The machine must be completely clean inside always).
• Use only accessories recommended by the manufacturer and original spare parts.
• Never suck dry without filters and bag as it could go pollution to the outside and pollute the air.
• To aspire always wet dreams bags and filters to extend its life, otherwise they could be damaged.

Technical characteristics

Rated voltage: 220V \~ normally Frequency: 50 / 60Hz Nominal power: 1450W Power Max.: 1450W Capacity: 16 liters Depression: 2100 mm / H2O Dimensions: 31x31x41 Cm. Weight: 4,1 Kg.

Overview use accessories

1. flexible hose to give versatility in use of the apparatus
2. nozzle to vacuum hard floors, dust as well as liquids, since it has a special glue for this feature and leave the floor free excess water.
3. 1 cloth bag of next gen that hold dust efficiently.
4. drum for solid and liquid waste
5. accessory to vacuum corners, high on the wall corners and hard to reach places

Assembling the vacuum cleaner components

1. Plug correctly and when unplugging dont pull the cable, as the plug may be damaged after pulling (to the extreme of receiving an electric shock).
2. Close correctly and safely vacuuming, their metal handles are long-lived and firmness so no risk to open when using the device.
3. In order to clean cloth bag and filter you should open the handles and pull up straight to avoid turning vacuuming dirt inside.
4. To assemble for the first time or to keep in your box, the wheels are pressed into the lower ring designed by our engineers to fit perfectly.
5. Each wheel is independent and pressure must exert force and expect to hear a clack for engagement.
6. Is important that the filter is properly installed and avoid damage to the engine and ensures that dust comes out clean outward.
7. The cloth bag is the main element in retaining dust, for this reason must be properly installed and give more life to the vacuum and therefore its internal filters.
8. Vacuum cleaner must be closed properly and will only work properly when is perfectly closed.
9. The slots in the housing of the vacuum cleaner

accessories are designed to place accessories (cornerback, upholsterer, acc, Furniture).

1. The nozzles for hard floors and carpets must be connected correctly to vacuum optimally, avoid exerting excessive force when you are operating with these accessories because they can be damaged when used with excessive force.

WARNING: Only use cartridge filter and cloth bag for dry use. Take both out when operating with any kind of liquids.

How to operate the machine with liquids

Must take out cloth bag and catridge filter to vacuum liquids, when the vacuum is filled with water the suction is automatically stopped, but the engine keeps running so you must turn off the machine, unplug it, open it and drain water, assemble and close it again and can continue to use it to suck more liquids, the Panzer 1416 vacuum cleaner has the ability to suck up to 16 litres of water. It is important after use to clean any liquids inside, to prevent odors and deterioration of the vacuum.

This function can suck slightly damp areas and excess water too from places such as terraces, bathrooms, kitchen etc, can also wash a carpet or mat by hand and then suck excess water so it can dry faster. It is better to used detergent that does not create foam specially mad for carpets and tapestries as these has an active ingredient which evaporates faster and consequently we can obtain an optimal drying process.

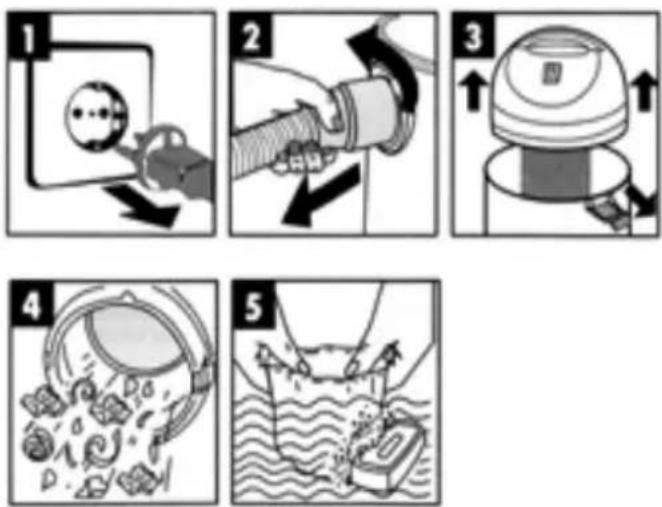

Dry cleaning

It should put the bag gender and catridge filter for dust extraction, these elements ensure us that the dust is inside the vacuum cleaner and abroad will not pollute our living quarters; as a suggestion when the bag is full of dust, remove, put the gift bag that comes with the vacuum cleaner and empty the used, then vacuum any dust and clean store to reuse again. Always go alternating both bags as this will prolong the visa to two bags.

Warning: do not suck up water with these elements (bag and filter) because they will deteriorate and may emit undesirable odors.

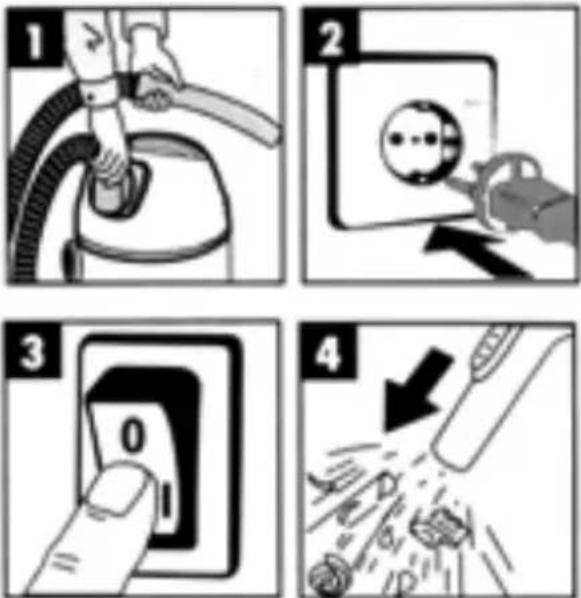

Blowing system

To use the blow, should take filter bag inside, clean the vacuum inside, this would guarantee us that the air is expelled vacuuming out free of contaminating particles, we must make this process always to blow only way we will achieve use this as practical function optimally and efficiently; blowing function used for many things, for example, clean inaccessible places (corners, crevices, high surfaces, baseboards,

inflating balloons, firing up of coal), and many other household functions.

CAUTION: If the cleaner correctly in this function is used, not generate any problem, apply logical to use this function approach since this product is for, nonindustrial home use, therefore must be careful because each component plastic vacuum cleaner is prone to be damaged by excessive heat approaching, or have contact with abrasive liquids or harmful. Use responsibly.

Cleaning & maintenance

PROBLEMS POSIBLE CAUSE	SOLUTION
The blower is not working	1. Make sure the power cord is plugged into the outlet.2. Check that the green switch is powered ON.	Reconnect the power cord and make sure the outlet (plug), no current power.Get green switch ON.If it does not go to an authorized service center.
The suction power has decreased.	1. Check whether the hose, tube or nozzle is clogged.2. Vacuum tank is full and dirty.3. Check if the filters are dirty, and if hose, pipes and nozzles are connected correctly.	Remove obstruction, empty tank, clean filters and reconnect hose, pipes and nozzles correctly.If not working properly contact an authorized service.
