Product Type	Range Hood
Brand	SVAN
Model	SCPT600A1IX
Width	60 cm
Depth	50 cm
Height (min-max)	60-110 cm
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Maximum Power Absorption	250 W
Fan Speeds	3 speeds
Extraction Capacity (max)	650 m³/h
Lighting	LED, 2 x 3 W
Filter Type	Aluminum grease filter (washable) + optional charcoal filter
Noise Level (max)	65 dB(A)
Control Type	Touch panel
Installation Type	Wall-mounted, canopy
Ducting	150 mm diameter (optional recirculation)
Energy Class	A+
Grease Filter Cleaning	Wash monthly in dishwasher or by hand
Charcoal Filter Replacement	Every 3-6 months
Safety Features	Automatic shut-off, thermal protection
Spare Parts Availability	Filters, LED lamps, control board
Warranty	2 years

Frequently Asked Questions - SCPT600A1IX SVAN

How do I install the SVAN SCPT600A1IX range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65 cm above the cooking surface for electric hobs and 75 cm for gas hobs. Connect the ducting to an external outlet or use the recirculation mode with a charcoal filter.

Can I use the hood in recirculation mode?

Yes, the SCPT600A1IX supports recirculation. You must install an optional charcoal filter (not included) to absorb odors. Follow the manual for filter placement.

How often should I clean the grease filter?

Clean the aluminum grease filter every month. It is dishwasher safe or can be washed by hand with warm soapy water. Ensure it is completely dry before reinstalling.

How do I replace the charcoal filter?

Replace the charcoal filter every 3 to 6 months depending on usage. Remove the grease filter, slide out the old charcoal filter, and insert a new one. Reattach the grease filter.

What do I do if the hood does not start?

Check the power supply: make sure the plug is connected and the circuit breaker is on. If it still doesn't start, inspect the fuse or contact customer support. Do not attempt internal repairs.

How do I adjust the fan speed?

Use the touch panel to select from 3 speeds. Press the speed button repeatedly to cycle through low, medium, and high. The corresponding indicator light will show the selected speed.

What type of lighting does the hood use?

The hood uses two LED lights (3W each). They provide bright, energy-efficient illumination for your cooking area. To replace, contact a qualified technician.

Is the hood noisy?

Noise level varies by speed: low speed is around 45 dB, medium 55 dB, and high up to 65 dB. These levels are typical for range hoods of this class.

Can I clean the hood with water?

Do not use water directly on the motor. Wipe the exterior with a damp cloth and mild detergent. Clean the controls with a dry cloth. Always disconnect the hood before cleaning.

Where can I find spare parts for my hood?

Spare parts like grease filters, charcoal filters, and LED lamps can be ordered from SVAN's official website or authorized dealers. Use the model number SCPT600A1IX to ensure compatibility.

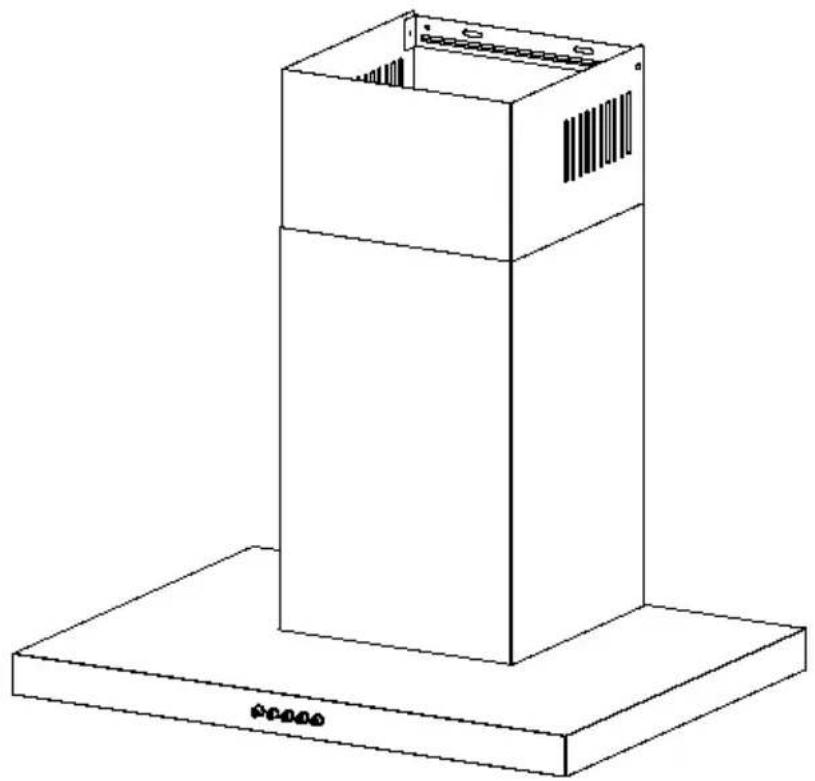

USER MANUAL SCPT600A1IX SVAN

Line drawing of a three-tiered industrial or storage unit with a base platform (no text or symbols)

Read this manual carefully and keep it for future reference.

The instructions for Use apply to several versions of this appliance. Accordingly, you

may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

● The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
- The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. ( When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65 cm can be reduced for:non-combustible parts of range hoods, and parts operating at safety extra low voltage,Provided these parts do not give access to live parts if deformed;)
- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
- For Class I appliances, check that the domestic power supply guarantees adequate earthing.
- Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm. The route of the flue must be as short as possible.
● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.
- When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
● Regulations concerning the discharge of air have to be fulfilled.

Illustration of a lamp illuminating a steaming lamp with a control panel (no text or symbols)

USE

● The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.

● Never use the hood for purposes other than for which it has been designed.

● Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

● Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

● Do not flame under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

● Children should be supervised to ensure that they do not play with the appliance.

● Cleaning and user maintenance shall not be made by children without supervision.

● "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

● The cooker hood and its filter should be cleaned regularly according to the instruction.
- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
● Clean and/or replace the Filters after the specified period(Fire hazard).
● Clean the hood using a damp cloth and a neutral liquid detergent.
● The appliance uses 4 hob elements at most.

Simple line drawing of a house with a chimney and a burning stove, no text or symbols present.

The symbol is packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

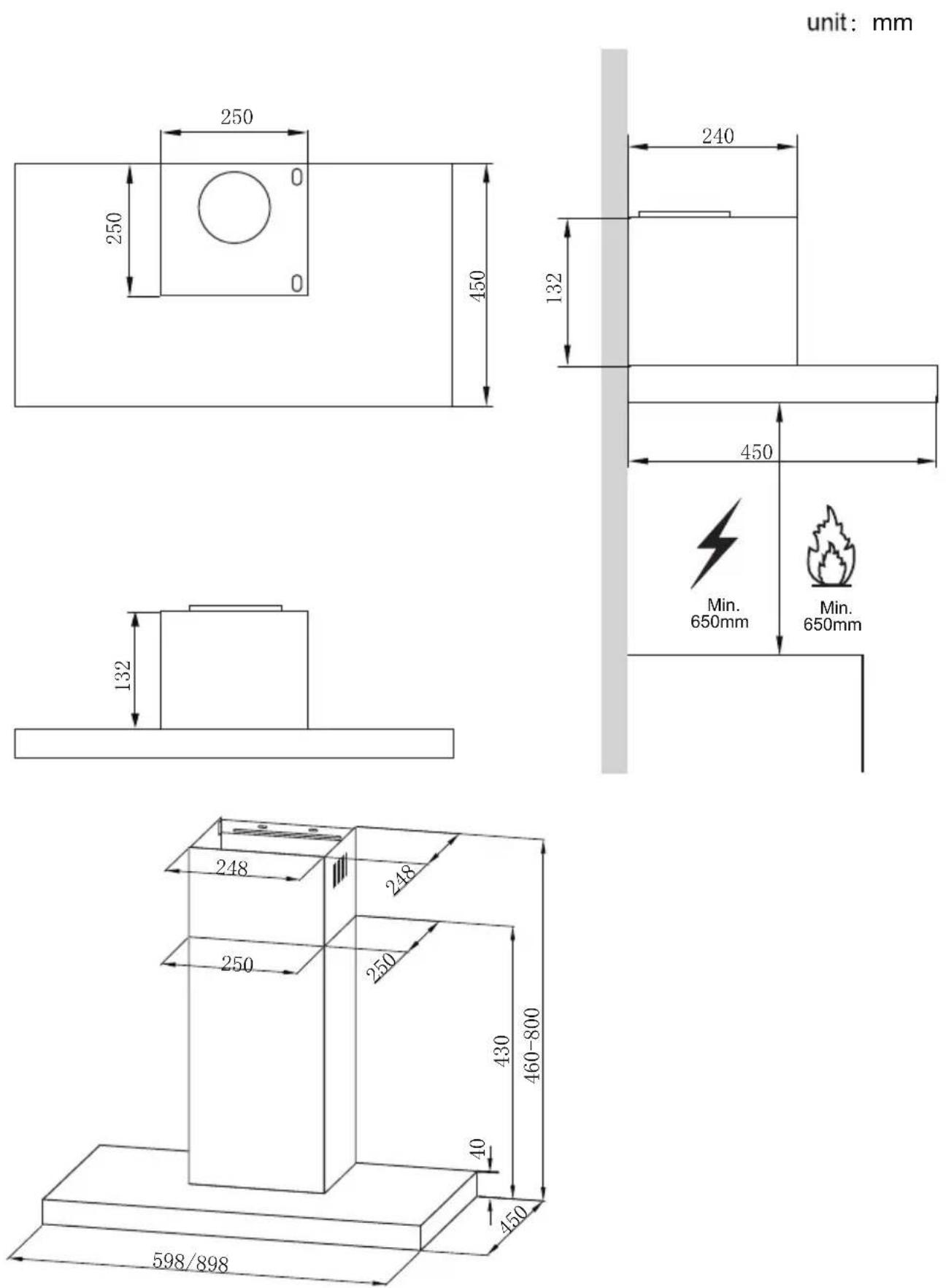

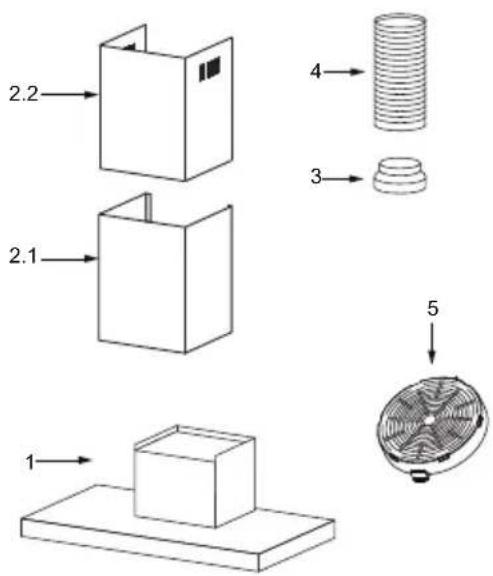

Ref. Qty.		Product Components
1	1	Hood Body,complete with: Controls, Light, Blower,Filter.
2.1	1	Lower Decorative Chimney
2.2	1	Upper Decorative Chimney
3	1	Flange (optional)
4	1	Exhaust Pipe
5	2	The Activated Charcoal filter (optional)

Qty. Documentation

1 Instruction Manual

Ref. Qty. Optional Installation Components
10	7 Screws 5 x 50
11	7 Wall Plugs
12	6 Screws 4,2 x 9,5
21	2 Chimney fixing bracket

EN-4

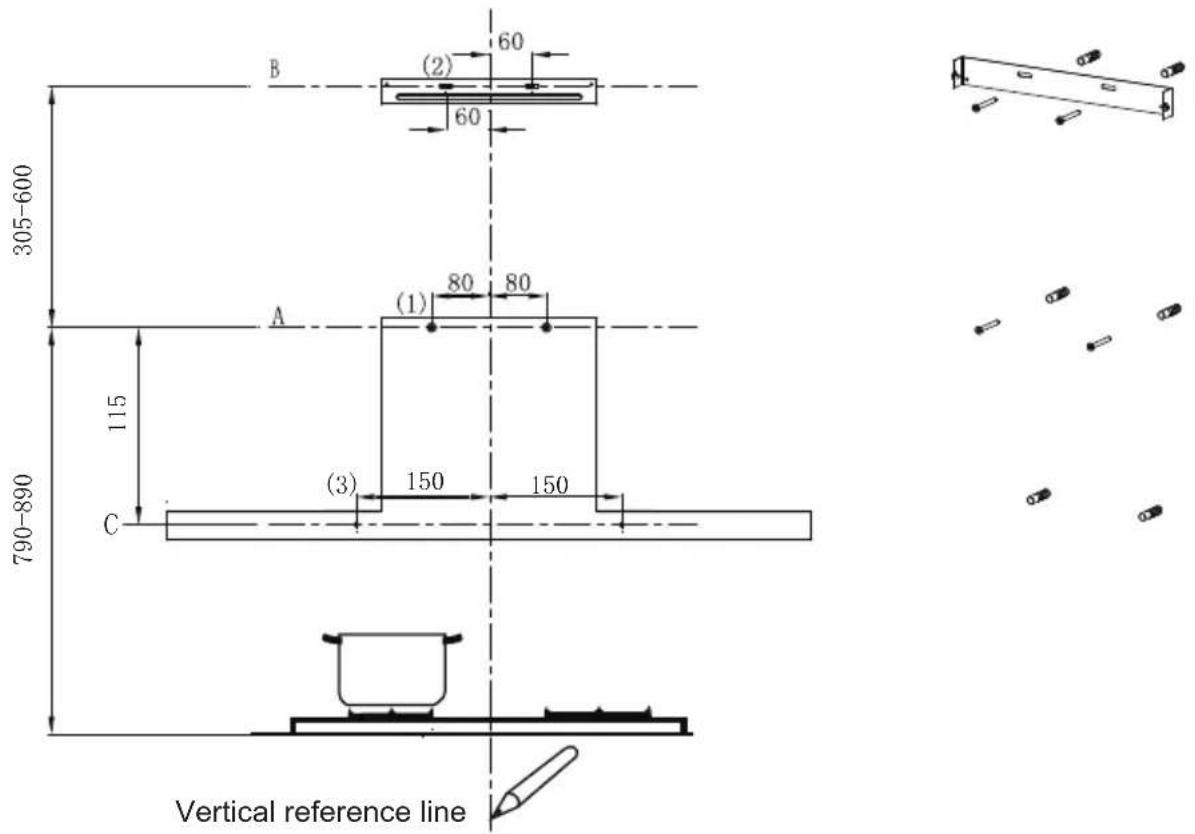

WALL DRILLING AND BRACKET FIXING

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
  ● A horizontal line A at 790–890 mm above the cooker top.
  ● A horizontal line B at a X mm above the horizontal line A.
  ● A horizontal line C at a 115mm below the horizontal line A.

Mark Points:

● Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are leveled.
● Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
- Repeat this operation on the other side, checking that the two marks are on the same horizontal line.
- Mark a point (3) on the horizontal line C, 150 mm to the vertical reference line. Repeat this operation on the other side, checking that the two marks are leveled.

Fix the brackets :

• Drill holes at the marked points with a 10 mm drill bit.
• Insert the Wall Plugs 11 into the holes.
  ● Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.
• Screw 2 screws 10 (5 x 50) to Wall Plugs 11 at the horizontal line A; approximately the four fifth length of the screws 10 (5 x 50) was screwed into the Wall Plugs 11, used for hook the hood.

Lower decorative chimney

● Fix the exhaust pipe on the hood body, connect chimney and hood body with 2 screws 12. connect chimney fixing bracket and chimney with 2 screws 12.

Hook the hood body

• Hook the hood body to the 2 screws 10 (5 x 50) at the horizontal line A.

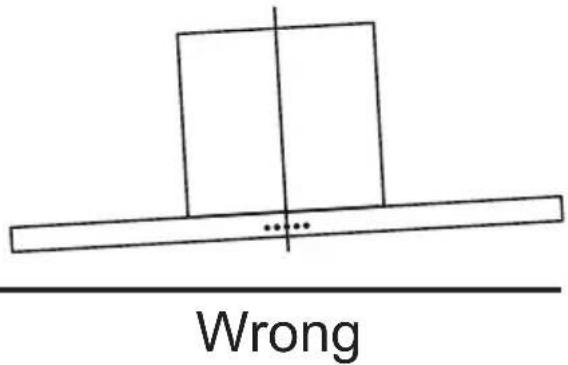

  ● Level the hood body itself.

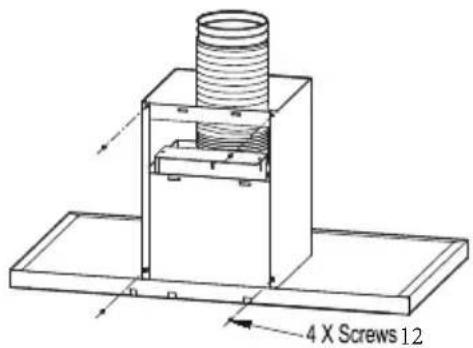

• Remove the filter from the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• If to install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
• Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

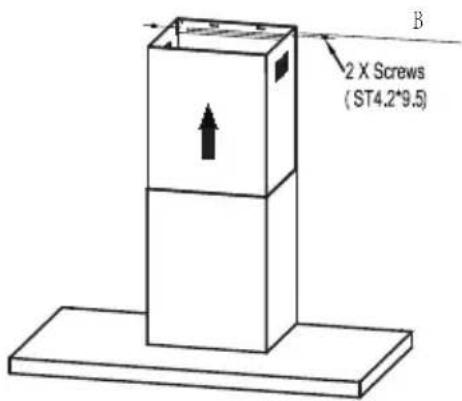

Upper Decorative Chimney

• Insert the upper decorative chimney 2.2 into the lower decorative chimney 2.1 and drag it up to the horizontal line B
• Connect upper decorative chimney 2.2 and chimney fixing bracket 21 with 2 screws 12 .

Speed adjustment.

Five circular icons with different symbols (circle, star, crescent, leaf) arranged horizontally, no text or labels present.

1	OFF MOTOR SWITCH: Press on this switch to stop the motor operation.
	SPEED SWITCH: Press on this switch, the motor runs at LOW speed.
	SPEED SWITCH: Press on this switch, the motor runs at MEDIUM speed.
	SPEED SWITCH: Press on this switch, the motor runs at HIGH speed.
	ON/OFF LIGHTING SWITCH: Press on this switch to turn on the lights, and press again to turn them off.

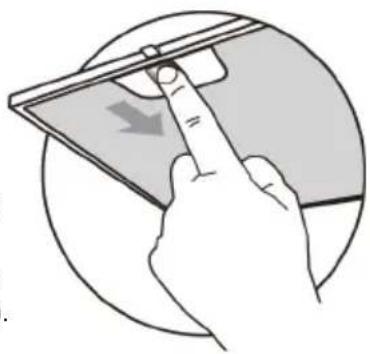

GREASE FILTERS

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.

Illustration of a hand holding a tablet device with a finger pointing at it, showing a download arrow (no text or symbols present)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

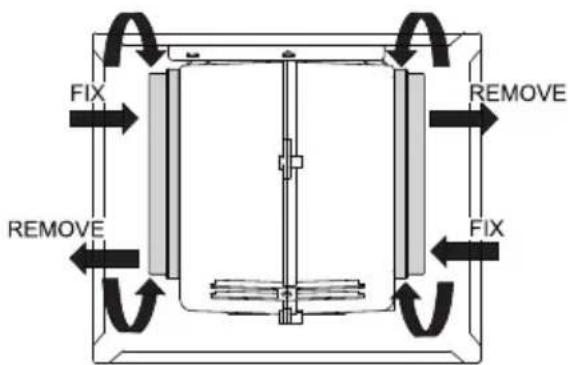

REPLACING THE ACTIVATED CHARCOAL FILTER

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
  ● Fit the new filters.
• Replace the metal grease filters.

LIGHTING

LIGHT REPLACEMENT(Completed by professionals)

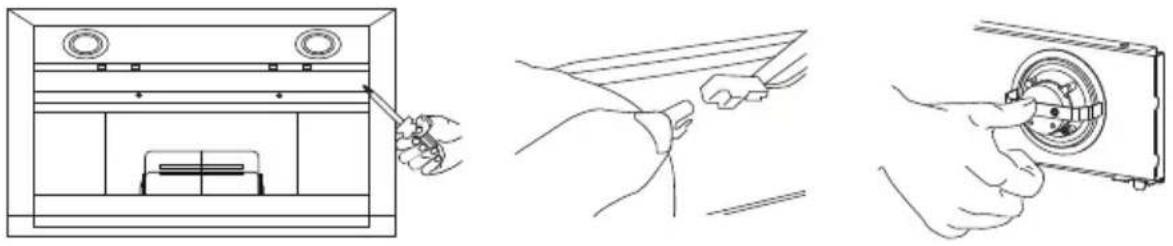

Replacing the light modules

● Cannot replaced the light bulbs, the entire light module has to be replaced.
- When changing the light modules, the contacts are live.
- Before changing the light module(s), unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

• Remove the grease filter and carefully remove the 2 screws from the front plate (a cross headed screwdriver will be needed to remove the screws).
• Disconnect the terminal of LED light.
• Press LED light on the back of the front plate, take the LED light out.
• Replace the lamp(commercially available LED lamp (max.1.5w).

Three-step diagram showing hand installation of a cabinet, cable being inserted, and cleaning a circular component (no text or symbols)

	Max Power	Voltage Picture Lamp Cap ILCOS D code
Square / Diameter : 33.2mm x 120mm	1.5W	220-240 V		— —	DSS-1.5-S-33.2/120

• Press LED light on the front of front plate, install the LED light on the front plate.
• Connect the terminal of LED light and light leads.
• Carefully fasten the 2 screws on the front plate, reinstall the grease filter.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Fault Cause	Solution
Light on, but motor does not work	The blades are blocked.	Check the blades.
	The capacitor is damaged. Replace capacitor.
	The motor is damaged. Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose.	Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough	Tighten the hanging screw and make it horizontal.
