Type of product	Portable electric heater
Model	BOR-7551
Brand	Becken
Heating method	Convection / fan-forced
Power consumption	2000 W
Voltage	230 V ~ 50 Hz
Dimensions (W x H x D)	25.0 x 20.0 x 15.0 cm
Weight	1.5 kg
Heating levels	2 power settings (1000 W / 2000 W)
Thermostat	Adjustable thermostat with auto shut-off
Timer	12-hour timer
Oscillation	Wide-angle oscillation (90°)
Safety features	Overheat protection, tip-over switch, cool-touch housing
Control type	Digital touch panel with remote control
Display	LED temperature and timer display
Noise level	~45 dB (low speed), ~52 dB (high speed)
Heating area	Up to 25 m²
Energy efficiency class	A
Cleaning and maintenance	Wipe with dry cloth; avoid water on controls
Spare parts and repairability	Replacement filters and fan available; repairable by certified technicians
Accessories included	Remote control, user manual
Warranty	2 years manufacturer warranty

Frequently Asked Questions - BOR-7551 Becken

How do I install the heater?

Place the heater on a stable, flat surface away from water and flammable materials. Plug it into a grounded outlet and ensure the voltage matches your supply.

How can I set the thermostat?

Press the thermostat button and use the + or - keys to set your desired temperature. The heater will maintain that temperature automatically.

Can I use the heater in a bathroom?

The heater has an IP21 rating, meaning it is splash-proof. It can be used in a bathroom if placed at least 60 cm from water sources.

What does the timer function do?

The timer allows you to set the heater to turn off automatically after 1 to 12 hours. Press the timer button and adjust the time using +/-

Why does the heater shut off suddenly?

The heater may shut off due to overheating or if it is tipped over. Check that the air intakes are not blocked and reposition the heater on a level surface.

How often should I clean the filter?

Clean the air intake filter every two weeks to ensure efficient operation. Use a vacuum cleaner or a soft brush.

Can I control the heater with my phone?

No, the BOR-7551 does not have smart connectivity. It is controlled via the touch panel or the included remote control.

Is the heater safe to leave on while I sleep?

Yes, the heater has overheat protection and a tip-over switch. However, we recommend setting the timer to avoid unnecessary power consumption.

What should I do if the remote control stops working?

Check the battery compartment for a drained battery and replace it with a new CR2025 battery. Ensure there are no obstructions between the remote and the heater.

How do I reset the heater?

Unplug the heater, wait 10 seconds, and plug it back in. If the issue persists, contact customer support for assistance.

USER MANUAL BOR-7551 Becken

Oil Heater Oil Heater

MANUAL DE INSTRUÇÕES

BOR-7551

BOR-7552

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 7

2.1. Product Description 7
2.2. Using the Product 7
2.3. Troubleshooting 9

3. TECHNICAL SPECIFICATIONS 9

4. POST-SALE SERVICE 10

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
- You notice any evidence of damage;
- Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

BECKEN

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

- If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- If the supply power cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- The heater must not be located immediately below a wall socket outlet.

- Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

[you can trust]

- This heater is filled with a precise quantity of special oil. Repairs requiring the opening of the oil-container are only to be made by the manufacturer or their service agent, who should be contacted if there is an oil leak. When disposing of the heater, follow the regulations concerning the disposal of oil.

• The following symbol means: Do not cover

- WARNING: In order to avoid overheating, do not cover the heater.

- CAUTION: Some parts of this appliance can become very hot and cause burns. Particular care must be taken when children and vulnerable people are present.

2. OPERATING INSTRUCTIONS

2.1. Product Description

2.2. Product usage

Using the oil heater

- Turn the heater upside down.

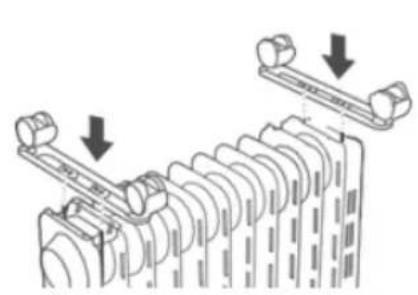

• As shown in figure 1, align the mounting holes of each caster

BECKEN

assembly with the screws on the caster pad plates, one of which is located under the heater fins, and the other under the control box.

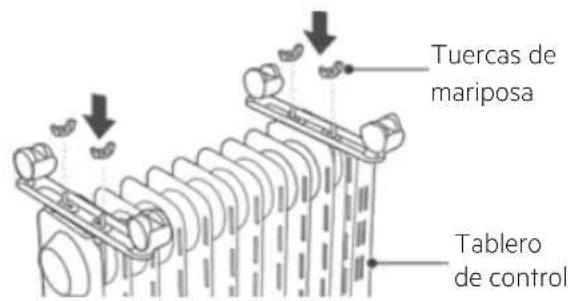

- As shown in the figure 2, both caster assemblies are tightened with four butterfly nuts. Tighten them firmly and then place the heater upright, with the wheels on the ground.

Technical diagram of a mechanical assembly with two components and directional arrows indicating motion (no text or symbols)

figure 1

figure 2

Operating instructions

Inspection before use

• The power cord must not be damaged or broken.
• Please check the rated current of the power socket matches the requirements in the rating plate and is equipped with a safety grounding device before use; otherwise, replace the socket.
• Insert the power plug into the socket and turn on the appliance; after about half an hour, turn it off and pull out the plug. Check whether the plug pins are hot (more than about 50 °C). If so, replace the socket to avoid burning the plug or causing a fire due to overheating of the socket as the result of poor contact.

Start and power selection

1.Start

- Plug in the power cord, turn the thermostat knob clockwise towards the “+” mark, then turn on the power switch. The heater will begin operating.

1. Power selection

- Under normal circumstances, please use the maximum power "III" position for rapid heating. If the room temperature is agreeable,

[you can trust]

please choose a lower power "ll" or "l" position to reduce energy consumption and prevent the room from overheating.

Note

When using the appliance for the first time or reconnecting the power cable, please check that the plug is securely inserted in the socket.

Temperature adjustment

• If during use you feel the room temperature is too hot, you can use the following adjustment modes:
• Turn the power switch to position "II" or "I".
• Turn the thermostat knob counterclockwise by a certain angle. The closer to the “-” position, the lower the set temperature.

Stop

- Turn the power switch to the "0" position, and then pull the power plug.

Moving the heater

- To move the heater, turn first turn it off, and pull out the power plug; then move it to the desired location by rolling it on its wheels.

2.3. Maintenance

• The electric heater should be cleaned regularly to wipe off any dust on the fins, as this may hinder the radiating efficiency.
• Disconnect the appliance from the power supply and allow the radiator to cool down before wiping and dusting it with a soft damp cloth. Do not use detergents or abrasives.
• Do not scrap the fins surface with sharp hard tools, in order to avoid the surfaces becoming rusty, due to damage to the paint coat.

3. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve

BECKEN

the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

This marking indicates that this product should not be disposed with other household waste throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle the appliance responsibly, to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.

Vertical gradient bar with two solid blue shades (no text or symbols)

EN

Estimado cliente,

Technical diagram of a mechanical assembly with two downward arrows indicating motion or force direction (no text or symbols present)

figura 1

figura 2

Technical diagram of a mechanical assembly with two downward arrows indicating motion or force direction (no text or symbols present)

figura 1

figura 2
