Product Type	Built-in Electric Oven
Model	FSE63110DSCS
Brand	Beko
Color	Stainless Steel
Dimensions (H x W x D)	595 x 594 x 567 mm
Net Weight	35 kg
Power Supply	230 V ~ 50 Hz, 3400 W
Energy Efficiency Class	A+
Oven Capacity	71 Liters
Cooking Functions	Conventional, Fan Assisted, Grill, Steam, Pizza, Defrost, Keep Warm
Cleaning Type	Hydrolytic Cleaning
Safety Features	Child Lock, Cool Touch Door, Automatic Shut-off
Accessories Included	Telescopic Rails, Baking Tray, Wire Shelf, Grill Rack
Installation	Built-in, Requires Proper Ventilation
Repairability Index	8.2/10
Warranty	2 Years (Parts & Labor)

Frequently Asked Questions - FSE63110DSCS BEKO

What is the oven capacity of the Beko FSE63110DSCS?

The oven capacity is 71 liters, suitable for large dishes.

How do I clean the oven using the hydrolytic function?

Pour 300ml of water into the bottom of the cold oven, select the hydrolytic cleaning function, and run it for 30 minutes. Wipe away softened residues with a damp cloth.

Does the oven have a child lock feature?

Yes, the child lock prevents accidental operation. Activate it by pressing and holding the lock button for 3 seconds.

What are the dimensions required for installation?

The built-in cavity must be at least 590 x 560 x 550 mm (H x W x D) with proper ventilation.

Can I use the steam function without water?

No, the steam function requires water to be filled in the internal tank. Without water, the oven will not produce steam and may heat unevenly.

How do I preheat the oven?

Select the desired cooking function and set the temperature. The oven will preheat automatically, indicated by a beep and the display showing the current temperature.

What does error code 'E01' mean?

Error code E01 indicates a temperature sensor fault. Try resetting the oven by disconnecting power for 5 minutes. If persistent, contact service.

Is the oven door cool to the touch?

Yes, the oven features a cool touch door with triple glazing, keeping external surfaces safe during operation.

Can I use aluminum foil for grilling?

It is not recommended to cover the grill element with aluminum foil as it may cause fire or damage. Use the provided grill rack.

How often should I replace the oven light bulb?

Replace when burnt out. The bulb type is G9, 25W. Turn off power before replacement. Lifespan varies with usage.

USER MANUAL FSE63110DSCS BEKO

Simple line drawing of a cupcake with frosting and toppings (no text or symbols)

FSE63110DSCS

EN / RU

285.3033.79/R.AG/28.10.2020

7738987625

Please read this user manual first!

Dear Customer,

Thank you for purchasing this Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Remember that this user manual is also applicable for several other models.

Differences between models will be identified in the manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning of hazardous situations with regard to life and property.

Warning of electric shock.

Warning of risk of fire.

Warning of hot surfaces.

Arçelik A.Ş.

Karaağaç caddesi No:2-6

34445 Süflüce/Istanbul/TURKEY

Made in TURKEY

1 Important instructions and warnings for safety and environment 4

General safety....4

Safety when working with gas 5

Electrical safety 6

Product safety....7

Intended use....10

Safety for children 10

Disposing of the old product 11

Package information.... 11

2 General information 12

Overview 12

Package contents 13

Technical specifications 14

Injector table....15

3 Installation 16

Before installation.... 16

Installation and connection.... 18

Gas conversion....22

Future Transportation 24

4 Preparation 25

Tips for saving energy.... 25

Initial use 25

First cleaning of the appliance .....25

Initial heating 25

5 How to use the hob 27

General information about cooking.....27

Using the hobs....27

6 How to operate the oven 29

General information on baking, roasting and grilling....29

How to operate the electric oven 30

Operating modes....30

Using the oven clock....31

Cooking times table 32

How to operate the grill....34

Cooking times table for grilling......34

7 Maintenance and care 35

General information 35

Cleaning the hob 35

Cleaning the control panel....36

Cleaning the oven....36

Removing the oven door....37

Removing the door inner glass 38

Replacing the oven lamp....39

8 Troubleshooting 40

1 Important instructions and warnings for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

General safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge,

unless they have been given supervision or instruction. Children should be supervised and ensure they do not play with the appliance

- If the product is handed over to someone else for personal use or second-hand use purposes, the user manual, product labels and other relevant documents and parts should be also given.

- Never place the product on a carpet-covered floor. Otherwise, lack of airflow beneath the product will cause electrical parts to overheat. This will cause problems with your product.

• Installation and repair procedures must always be performed by Authorised Service Agents. The manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons which may also void the warranty. Before installation, read the instructions carefully.

• Do not operate the product if it is defective or has any visible damage.
• Ensure that the product function knobs are switched off after every use.

Safety when working with gas

- Any works on gas equipment and systems may only be carried out by authorised qualified persons who are Gas Safe registered.

- Prior to the installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the adjustment of the appliance are compatible.

- This appliance is not connected to a combustion products or evacuation device. It shall be installed and connected in accordance with current installation regulations. Particular attention shall be given to the relevant requirements regarding ventilation; See Before installation, page 16

• CAUTION: The use of gas cooking appliance results in the production of heat and moisture in the room in which

it is installed. Ensure that the kitchen is well ventilated: keep natural ventilation holes open or install a mechanical ventilation device (mechanical extractor hood). Prolonged intensive use of the appliance may call for additional ventilation, for example increasing the level of the mechanical ventilation where present.

- Gas appliances and systems must be regularly checked for proper functioning. Regulator, hose and its clamp must be checked regularly and replaced within the periods recommended by its manufacturer or when necessary.

- Clean the gas burners regularly. The flames should be blue and burn evenly.

- This product should be used in a room which incorporates a properly adjusted and functioning Carbon Monoxide sensor. Make sure the Carbon Monoxide sensor works properly and is maintained frequently. Carbon Monoxide sensor should be installed maximum

2 meters away from the product.

• Good combustion is required in gas appliances. In case of incomplete combustion, carbon monoxide (CO) might develop. Carbon monoxide is a colourless, odourless and very toxic gas, which has a lethal effect even in very small doses.
• Request information about gas emergency telephone numbers and safety measures in case of gas smell from you local gas provider.

What to do when you smell gas

• Do not use open flame or do not smoke. Do not operate any electrical buttons (e.g. lamp button, door bell and etc.) Do not use fixed or mobile phones. Risk of explosion and toxication!
• Open doors and windows.
• Turn off all valves on gas appliances and gas meter at the main control valve, unless it's in a confined space or cellar.
• Check all tubes and connections for tightness. If

you still smell gas leave the property.

• Warn the neighbours.
• Call the fire-brigade. Use a telephone outside the house.
• Do not re-enter the property until you are told it is safe to do so.

Electrical safety

• If the product has a failure, it should not be operated unless it is repaired by an Authorised Service Agent. There is the risk of electric shock!
• Only connect the product to a grounded outlet/line with the voltage and protection as specified in the “Technical specifications”. Have the grounding installation made by a qualified electrician while using the product with or without a transformer. Our company shall not be liable for any problems arising due to the product not being earthed in accordance with the local regulations.
• Never wash the product by spreading or pouring water onto it! There is the risk of electric shock!

- Never touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by holding the plug.

- The product must be disconnected during installation, maintenance, cleaning and repairing procedures.

- If the power connection cable for the product is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The appliance must be installed so that it can be completely disconnected from the mains supply. The separation must be provided by a switch built into the fixed electrical installation, according to construction regulations.

- Rear surface of the oven gets hot when it is in use. Make sure that the gas/electrical connection does not contact with the rear surface; otherwise, connections can get damaged.

- Do not trap the mains cable between the oven door and frame and do not route it

over hot surfaces. Otherwise, cable insulation may melt and cause fire as a result of short circuit.

- Any work on electrical equipment and systems should only be carried out by authorised and qualified persons.

- In case of any damage, switch off the product and disconnect it from the mains. To do this, turn off the fuse at home.

• Make sure that fuse rating is compatible with the product.

Product safety

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

- Never use the product when your judgment or coordination is impaired by the use of alcohol and/or drugs.

- Be careful when using alcoholic drinks in your dishes. Alcohol evaporates at

high temperatures and may cause fire since it can ignite when it comes into contact with hot surfaces.

- Food Poisoning Hazard: Do not let food sit in oven for more than 1 hour before or after cooking. Doing so can result in food poisoning or sickness.

- Do not place any flammable materials close to the product as the sides may become hot during use.

- During use the appliances becomes hot. Care should be taken to avoid touching heating elements inside the oven.

- Keep all ventilation slots clear of obstructions.

- Do not heat closed tins and glass jars in the oven. The pressure that would build-up in the tin/jar may cause it to burst.

- Do not place baking trays, dishes or aluminium foil directly onto the bottom of the oven. The heat accumulation might damage the bottom of the oven.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven

door glass since they can scratch the surface, which may result in shattering of the glass.

- Do not use steam cleaners to clean the appliance as this may cause an electric shock.

• (Varies depending on the product model.)

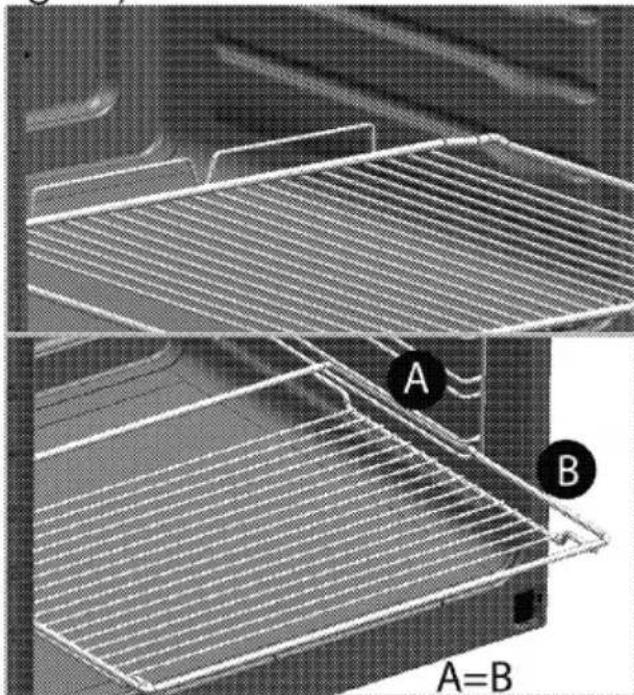

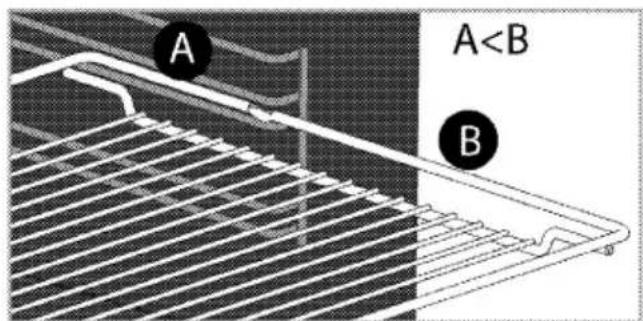

Placing the wire shelf and tray onto the wire racks properly

It is important to place the wire shelf and/or tray onto the rack properly. Slide the wire shelf or tray between 2 rails and make sure that it is balanced before placing food on it (Please see the following figure).

Technical diagram of a two-layered filtration or cooling system with labeled components A and B, showing internal grating structure (no text or symbols beyond labels)
