Product Type	Dynamic Vocal Microphone
Polar Pattern	Cardioid
Frequency Response	50 Hz - 15 kHz
Impedance	600 ohms
Sensitivity	-54 dBV/Pa (1.9 mV/Pa)
Connector	3-pin XLR (male)
Dimensions	Length: 185 mm, Diameter: 50 mm
Weight	320 g (11.3 oz)
Power Requirement	None (passive)
Main Functions	Vocal performance, public address, recording
Care and Cleaning	Wipe with a dry or slightly damp cloth; avoid solvents
Safety Precautions	Keep away from moisture and extreme temperatures
Spare Parts and Repairability	Contact Samson for service; no user-replaceable parts
General Information	Includes mic stand adapter and storage pouch

Frequently Asked Questions - Q6 SAMSON

What type of microphone is the Samson Q6?

The Samson Q6 is a dynamic microphone with a cardioid polar pattern, ideal for vocal applications.

Does the Q6 require phantom power?

No, the Q6 is a passive dynamic microphone and does not require phantom power.

What connector does the Q6 use?

It uses a standard 3-pin XLR (male) connector.

Is the Q6 suitable for live performances?

Yes, its cardioid pattern reduces feedback and off-axis noise, making it great for live vocals.

What is the frequency response of the Q6?

The frequency response is 50 Hz to 15 kHz, tailored for vocal clarity.

Can I use the Q6 for recording instruments?

While designed for vocals, it can also be used for amplified instruments like guitar amps.

How do I clean the Q6 microphone?

Wipe the body with a dry or slightly damp cloth. Avoid liquids entering the grille.

Does the Q6 come with a warranty?

Yes, Samson provides a limited warranty. Check the manual for details.

What accessories are included?

The package includes a mic stand adapter and a storage pouch.

Where can I find spare parts for the Q6?

Contact Samson customer support for spare parts and service options.

USER MANUAL Q6 SAMSON

Copyright 2021, Samson Technologies Corp.

Samson Technologies Corp.

278-B Duffy Avenue

Hicksville, NY 11801

www.samsontech.com

v2.2

Black Samsung 320 microphone with mesh grille (no visible text or symbols)

SAMSON®

Thank you for purchasing the Samson Q6 Dynamic Microphone. The Q6 dynamic microphone brings a high level of accuracy and audio performance to vocal miking applications thanks to its low mass, neodymium element.

The Q6 is a hand held, dynamic microphone that excels in both live performance and recording applications. Equipped with a linear frequency response for superior reproduction, it is also designed to withstand high sound pressure levels. Extremely sensitive, it employs a tight super cardioid pattern to reduce feedback. A special shock-mounted element minimizes handling noise and provides additional protection.

In this manual you'll find a detailed description of the features of the Q6 microphone, as well as instructions for using your Q6, and full specifications. You'll also find a warranty card enclosed-don't forget to fill it out and send it in! This will enable you to receive online technical support and will allow us to send you updated information about other Samson products.

Should your Q6 ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit samsontech.com/ra or contact us at [e-mail] for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your Q6 was purchased outside of the United States, contact your local distributor for warranty details and service information.

Features

The Samson Q6 utilizes state-of-the-art microphone technology and is engineered to the finest detail. Here are some of its main features:

• Ultra sensitive element picks up all of the nuances of any performance.
• Super cardioid polar pattern minimizes feedback problems and effectively rejects signals not originating directly in front of the mic capsule.
• Extended range frequency response for optimum reproduction and exceptionally clear, crisp sound.

• Handy ON/OFF switch for on-stage control.

• Special shock-mounting allows movement of the mic element to greatly reduce handling noise.

• Rugged zinc alloy die-casting case ensures reliable performance in even the most demanding environments.
• The Q6 can be mounted on any standard microphone stand (using the included mic clip).
• Withstands high SPLs lending itself to a wide range of miking situations.
• Low impedance output lets the Q6 send a strong full bandwidth signal over long cable runs.
  • Gold plated XLR Connector.

Microphone Placement and Tone Quality

Listed are some common microphone placement techniques. Use these suggestions as a guide and let your ears determine what works best in your situation.

• Sound source less than 6 inches away from mic—Full sound, pronounced bass, increased isolation from background noise.
• Sound source 6 inches to 2 feet away from mic—Balanced natural sound, less bass, some background noise.
• Sound source 3 to 6 feet away from mic—Thinner ambient sound.

Guidelines for Microphone Use

• Aim the microphone at the desired source. Keep unwanted sound sources at a 135° angle from the front of the microphone (see polar pattern).
• Place the microphone as close to the sound source as possible.
• Use the proximity effect to your advantage: The closer the mic is to the sound source, the more emphasized the bass response will be.
• When operating outdoors, use a foam windscreen to suppress unwanted wind noise.
• Never cup your hand over the microphone grill.

Operating Notes

• The Q6 will boost bass frequencies when the microphone is between 0—6 inches from the sound source. As you move the sound source further away from the microphone, the bass response will gradually roll off.
• The Q6 has a built-in wind screen which protects against most wind and breathing noise. Under adverse conditions, such as high winds, an optional foam windscreen (Samson part number, WS5) can be used.
• For maximum signal handling capability and minimal distortion, a minimum load impedance of 800 ohms should be used. A reduction in output signal strength and output clipping level will result with the load at 150 ohms.

Q6 Hook-up and Mounting

The Q6 can be connected to any mixer, mixer/amplifier, or mic preamp using a standard microphone cable. Connect the female XLR end directly to the Q6's gold-plated connector and the other end (normally a male XLR end, although some mixers use 1/4" connectors) to the mixer, mixer/amplifier, or mic preamp. Detailed wiring diagrams for XLR and XLR to 1/4 cables can be found on the back page of this manual.

The Q6 can be mounted to any standard microphone stand (using the included mic clip) or can be handheld; due to its unique mic element shock mounting, it generates significantly less handling noise than most other microphones. If handheld, take care not to cover the any part of the head grille with your hand. Be aware of a phenomenon called the proximity effect which causes a noticeable increase in low frequencies (bass response) when a microphone is close to the audio source. This can have positive impact—for example, it will cause your voice to sound much fuller when you sing close to the mic than when you sing at a distance. The Q6 is specially designed to be used up close, since it provides a built-in windscreen for removal of pops, sibilance and on stage noise. The key to developing the best mic technique is experimentation, along with awareness of the general principle that, the closer your Q6 is to a signal source, the greater the bass response.

Q6 Polar Pattern

Every microphone has a characteristic polar pattern that determines how well it accepts or rejects signal coming from various areas around the microphone. For example, omnidirectional mics accept all signals regardless of wherever those signals originate (in front of the mic, behind it, to the side, etc.).

In contrast, unidirectional, or cardioid, mics are specifically designed to accept mostly signal coming from directly in front, and to reject signal coming from behind or from the side. The super cardioid pattern is utilized by the Q6 (as shown in the illustration below). For this reason, the Q6 excels in environments where there is a good deal of unwanted ambient sound—it delivers those signals originating directly in front of the mic capsule itself while rejecting those that originate from behind.

Q6 Polar Pattern

The polar pattern also determines how prone a particular mic is to inducing feedback. Feedback is that characteristic nasty howling sound that occurs when a mic is placed too close to a loudspeaker—the signal from the loudspeaker is fed into the mic, then into the loudspeaker, then into the mic, over and over again until an oscillating tone is generated. Because the super cardioid pattern utilized by the Q6 is so good at rejecting signal not coming from directly in front of the mic, you'll find that use of the Q6 greatly minimizes feedback problems.

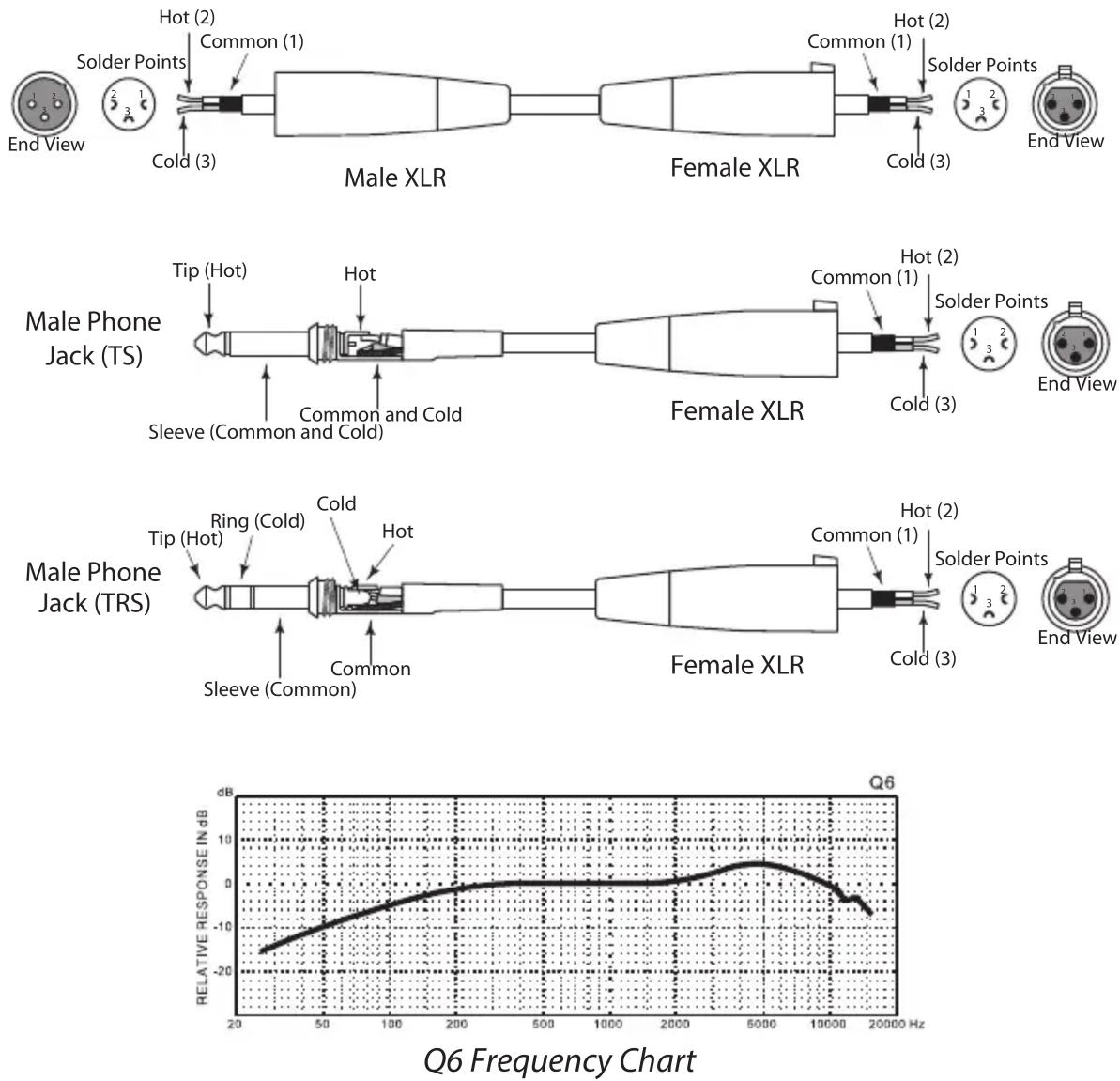

Q6 Mic Cable Wiring Diagram

Q6 Specifications

Type

Dynamic

Frequency Response 50 Hz - 15 kHz

Polar Pattern Super Cardioid

Output Impedance 500Ω

Sensitivity -48 dBV/Pa (4mV/Pa)

Connector 3-pin gold plated balanced XLR male

Dimensions

Diameter 2.09" / 53 mm

Total length 6.50" / 165 mm

Weight 9.52 oz / 270 g
