Product Type	Chest Freezer
Brand	Kunft
Model	KCF5215
Climate Class	SN (extended temperate), N (temperate), ST (subtropical), T (tropical)
Temperature Control	Mechanical thermostat knob with COOLING and FREEZING zones
Indicator Lights	POWER (green), COOLING, FREEZING
Defrosting	Manual defrost with drainage hole and water container
Interior Light	Optional incandescent lamp (max 15W) or LED
Power Supply	220-240V ~50Hz (typical, not explicitly stated)
Refrigerant Type	Flammable (cyclopentane foam, refrigerant not specified)
Warranty	2-year warranty for manufacturing defects
Spare Parts Availability	Thermostats, sensors, PCBs, light sources, handles, hinges, trays, baskets, door gaskets available for at least 10 years after last model launch
Door Hinge Maintenance	Regular greasing recommended to reduce noise and extend life
Cleaning	Use soft cloth with baking soda solution; avoid abrasive cleaners
Safety Features	Keep ventilation clear, do not damage refrigerant circuit, do not use mechanical defrosting devices, child entrapment prevention
Placement Clearance	Top >70 cm, sides and rear >20 cm for heat dissipation
Energy Saving Tips	Place in cool area, avoid direct sun, let hot food cool before placing, minimize door openings
Loud Noise Check	Ensure level floor and stable placement; proper accessory arrangement
Transient Door Difficulty	Normal due to pressure difference after closing; temporary
Condensation	Normal in high humidity; wipe with dry towel

Frequently Asked Questions - KCF5215 Kunft

How do I defrost my Kunft KCF5215 chest freezer?

To defrost, unplug the freezer and open the door. Remove all food and baskets. Open the outflow hole and drainage hole, placing a container under the drainage hole. The frost will melt naturally; wipe up defrost water with a dry, soft cloth. For faster defrosting, you may use an ice scraper once the frost softens. Never use mechanical devices or sharp tools to accelerate defrosting, as they may damage the refrigerant circuit.

How often should I clean the freezer?

Regular cleaning is recommended to prevent odors. Clean the interior with a soft cloth or sponge using a solution of two tablespoons of baking soda mixed with a quart of warm water. Rinse with water and wipe dry. For exterior, use a soft cloth dampened with soapy water. Clean door gaskets with a damp cloth. Avoid using harsh cleaners, abrasives, or organic solvents.

What should I do if my freezer doesn't turn on?

First, check that the freezer is plugged in and the power socket is working. Verify that the temperature control knob is set to a work area. Ensure there is no power failure or tripped circuit breaker. If the issue persists, contact the Customer Support Service.

How do I change the light bulb in the freezer?

Disconnect the freezer from the power supply. Remove the light bulb cover (if applicable). Unscrew the old bulb counter-clockwise and replace with a new incandescent bulb (max 15W) or LED bulb as specified. Screw clockwise and reassemble the cover. For LED replacements, contact the Customer Support Service.

Why is my freezer making loud noises?

Loud noises may be due to an uneven floor or unstable placement. Ensure the freezer is on a flat, sturdy surface. Check that accessories and baskets are properly placed. The compressor can produce a buzz, especially during start/stop, which is normal. Refrigerant flow may cause gurgling sounds. If noises persist, inspect for loose parts.

Can I store bottled drinks in the freezer?

No, do not store bottled or sealed containers of fluids such as beer or soda. The liquid may expand when frozen and cause the bottle to burst, leading to damage or injury. Only store food items suitable for freezing.

What do the indicator lights mean?

The POWER light (green) indicates the freezer is connected to power. The COOLING and FREEZING lights correspond to the temperature zone selected by the thermostat knob. When set to the cooling zone, the freezer maintains a higher temperature; in the freezing zone, it operates at lower temperatures for deep freezing.

How long will food stay frozen during a power failure?

The freezer can keep food frozen for several hours, even in summer, if the door is kept closed. To extend preservation, avoid opening the door and do not add fresh food during the outage. After power returns, check food condition before consuming.

Why is there condensation on the outside of the freezer?

Condensation on the exterior surfaces or door seals is normal in high humidity conditions. It is caused by the temperature difference between the freezer and the surrounding air. Simply wipe the condensation away with a dry towel. If persistent, check door gaskets for proper sealing.

How can I save energy with my freezer?

Place the freezer in the coolest area of the room, away from heat sources and direct sunlight. Allow hot food to cool to room temperature before storing. Avoid overloading, as it forces the compressor to run longer. Minimize door openings and organize food for quick retrieval. Clean dust from the rear and ground regularly to improve heat dissipation.

USER MANUAL KCF5215 Kunft

Two white kunft-shaped cabinets with control knobs and buttons, shown from different angles (no visible text or symbols on the cabinets themselves)

chest freezer

is perfectly enough

KCF5215

KCF5216

kunft.®

chest freezer

KCF5215 KCF5216

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply....6
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 7

1. OPERATING INSTRUCTIONS....17

2.1. Product Description.... 17
2.2. Product usage....18
2.3. Maintenance 20
2.4. Troubleshooting 21

1. TECHNICAL SPECIFICATIONS....22
2. POST-SALE SERVICE....24
3. ENVIRONMENTAL PROTECTION 24

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual

chest freezer

KCF5215 KCF5216

EN

modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

kunft®

Children shall not play with the appliance.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning.

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main

chest freezer

KCF5215 KCF5216

EN

power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

For more instructions on cleaning the item, check section "2.3. Maintenance".

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Do not store explosive substances such as aerosol cans with a flammable propellant inside this appliance.
• Please make sure the appliance is unplugged after use and before any user maintenance is carried out on it.

kunft®

Warning: Keep ventilation openings unobstructed in the appliance enclosure or in the built-in structure.

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning: Do not damage the refrigerant circuit.

Warning: Do not use electrical appliances inside the appliance's food storage compartments, other than those recommended by the manufacturer.

Warning: Please dispose of your freezer according to local regulations for it uses flammable blowing gas and refrigerant.

Warning: When positioning the appliance, please ensure the supply cord is not trapped or damaged.

Warning: Do not locate multiple portable outlets or portable power supplies at the rear of the appliance.

• Do not use extension cords or ungrounded (two prong) adapters.
• Danger: Risk of child entrapment. Before you throw your old refrigerator or freezer away:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

chest freezer

KCF5215 KCF5216

EN

• The freezer must be disconnected from the electrical supply source before attempting to install any accessories.
• Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, to prevent damage to the environment or any other harm.
• For doors or lids fitted with locks and keys, please keep the keys out of the reach of children and not near the refrigerating appliance, in order to prevent children from being locked inside.

To avoid food contamination, please follow the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the appliance's compartments.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days (note 1).
• Store raw meat and fish in suitable containers in the freezer, so that these are not in contact with or drip onto other food.

kunft®

• Two-star *Frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes (note 2).
• One, two, three-star and four-star compartments are not suitable for freezing fresh food (note 3).
• For appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing (note 4).
• If the freezer is left empty for long periods, please switch it off, defrost it, clean it, dry it, and leave the door open to prevent mould from developing within the appliance.

Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type.

• For a freestanding appliance: this refrigerating appliance is not intended to be used as a built-in appliance.
• Any LED lamp replacement or maintenance is intended to be made by the Customer Support Service or a similarly qualified person. (Please refer to chapter 2.4 for lamp replacement.)

Warning: To avoid a hazard due to the appliance's instability, it must be dully fixed.

Warning: Connect the appliance to a potable water supply. (Suitable for ice making machine.)

chest freezer

KCF5215 KCF5216

EN

- To prevent a child from being entrapped, keep children away from this appliance and not near a freezer (or refrigerator). (Suitable for products with locks.)

Meaning of safety warning symbols

Prohibition symbols

These symbols indicate prohibited matters, meaning that those behaviours are forbidden. Non-compliance with the instructions may result in product damage or endanger the personal safety of users.

Warning symbols

These symbols indicate matters that must be followed, meaning that those behaviours must be strictly executed in line with the operation requirements. Non-compliance with the instructions may result in product damage or endanger the personal safety of users.

Note symbols

These symbols indicate matters to pay attention to, meaning that these behaviours shall be specially noted. Due precautions are needed, otherwise minor or moderate injuries or product damage will be caused.

kunft.

Electricity related warnings

• When removing the power cord from the socket, do not pull the cable, firmly grasp the plug and pull out it from the socket directly instead.
• Do not damage the power cord under any circumstances so as to ensure a safety use; do not use the appliance when the power cord is damaged or the plug is worn.
• A worn or damaged power cord shall be replaced by the Customer Support Service authorised by the manufacturer.

Simple line drawing of a socket with a cable and an exclamation mark (no text or symbols)

• The power plug should be firmly in contact with the socket, otherwise a fire might be caused. Please ensure that the power socket's grounding electrode is equipped with a reliable grounding line.
• Please turn the valve of the leaking gas off and then open the doors and windows in case of a gas and other flammable gases leakage. Do not unplug the freezer and other electrical appliances considering that a spark may cause a fire.
• Please turn the valve of the leaking gas off and then open the doors and windows in case of a gas and other flammable gases leakage. Do not unplug the freezer and other electrical appliances considering that a spark may cause a fire.

Simple line drawing of a room with a monitor and wall-mounted device, no text or symbols present

chest freezer

KCF5215 KCF5216

EN

- In order to ensure safety, it is not recommended to place regulators, rice cookers, microwave ovens and other appliances on top of the freezer, other than those recommended by the manufacturer. Also, do not use electrical appliances in the food compartment.

Usage-related warnings

Simple line drawing of a box with a magnified view showing a small object and a prohibition symbol (no text or labels)

- Do not arbitrarily disassemble or reconstruct the freezer, nor damage the refrigerant circuit; any maintenance to the appliance must be performed by a specialist. - Any damaged power cord must be replaced by the manufacturer, its Customer Support Service or related professionals in order to avoid danger.

Simple line drawing of a box with a starburst symbol on the lid, no text or symbols present.

- The gaps between the freezer's doors and between doors and the freezer's body are small, so be careful not to put your hand in these areas to prevent from squeezing your fingers. Please be gentle when opening the freezer's door to avoid articles from falling down.

kunft®

- Do not pick any food or containers in the freezing chamber if your hands are wet when the freezer is running - especially metal containers - in order to avoid frostbite.

Illustration of a child climbing inside a cube with a warning symbol (no text or labels)

- Do not allow children to enter or climb the freezer to avoid them from being sealed inside the freezer or injured if the freezer falls down.

- Do not spray or wash the freezer; do not place the freezer in humid places and where it is easy to be splashed with water so as not to affect the freezer's electrical insulation properties.

Cartoon character with sad expression, holding a large block, with warning symbols (no text or labels)

- Do not place heavy objects on top of the freezer considering that objects may fall when opening the door, and accidental injuries might be caused.

- Please pull the plug out in case of a power failure or before cleaning. Please wait five minutes before reconnecting the freezer to the power supply to prevent damages to the compressor due to successive starts.

chest freezer

KCF5215 KCF5216

EN

Warnings related to placing items

Illustration of a hand holding a tray with a bottle, boxes, and an icon (no text or symbols)

- Do not put flammable, explosive, volatile and highly corrosive items in the freezer to prevent damages to the product or fire accidents.

- Do not place flammable items near the freezer to avoid fires.

- This product is a household freezer and shall be only suitable for storing food. According to national standards, household freezers shall not be used for other purposes, such as storing blood, drugs or biological products.

- Do not place items such as bottled or sealed containers containing fluids such as bottled beers and beverages in the freezer to prevent bursts and other losses.

Energy warnings

1. Your freezer might not operate consistently when running for an extended period of time below the cold temperature range limit for which it was designed
2. Please do not store effervescent drinks in the food freezer compartments or cabi-

kunft®

nets or in low temperature compartments or cabinets; also, be aware that some products such as iced water should not be consumed too cold

1. Please do not exceed the storage time recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets
2. Please be extremely precautious to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper
3. Please be aware that a rise in the frozen food's temperature during manual defrosting, maintenance or cleaning could shorten the storage life.

Warnings related to disposal

The freezer's refrigerant and cyclopentane foam materials are combustible materials, therefore discarded freezers should be isolated from fire sources and shall not be burned. Please transfer the freezer to qualified professional recycling companies for processing to avoid damages to the environment or other hazards.

Please remove the freezer's door and properly place its shelves to avoid accidents due to children entering and playing inside the freezer.

chest freezer

KCF5215 KCF5216

EN

2. OPERATING INSTRUCTIONS

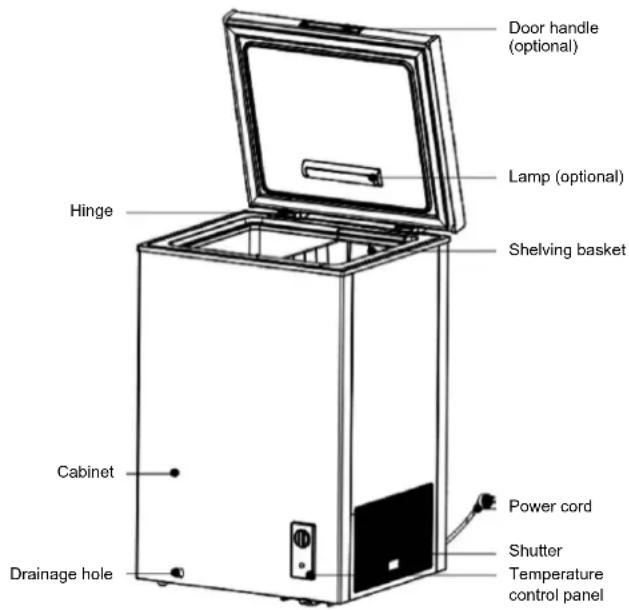

2.1. Product Description

(The above picture is for reference only. The actual configuration will depend on the physical product or statement made by the distributor.)

• The freezer's low temperature may keep food fresh for a long time and it is mainly used to store frozen food and make ice.
• The freezer is suitable for storing meat, fish, shrimp, pastries and other types of food not to be consumed within a short term. Please do not store fluids in bottled or closed containers items such as bottled beers, beverages, etc.
• Please note that food shall be consumed within the shelf time.
• The product's freezing speed is related to the amount of food stored and the ambient temperature. If too much food at normal temperature is put in at the same time, the thermostat shall be adjusted to the maximum gear 24 hours in advance or ice must be prepared ahead for cold storage; also, large food items shall be divided into small pieces and put in several times, otherwise the large piece of food or an excessive amount of food may not be frozen evenly, and the food may deteriorate.

kunft®

Notice:

After using the appliance for a long term, there may be a certain degree of wear with the hinge, and it will cause some noise when opening/closing the door and reduce the hinge's service life. It is recommended to regularly grease the hinge for proper maintenance, as this can effectively eliminate noise and extend the hinge's service life.

Temperature Control

Recommended gear

• Please connect the chest freezer to a power socket; the "POWER" lamp will light up (green light).
• Rotate the thermostat knob clockwise; the temperature inside the chest freezer will lower as you turn the knob.
• "COOLING" means cooling zone, "FREEZING" means freezing zone.
• "Recommended gear" - see the schematic marking position

(The above picture is for reference only. The actual configuration will depend on the physical product or statement made by the distributor.)

2.2. Product usage

Placement

Before using the freezer, remove all packaging materials including bottom cushions and foam pads and tapes inside the freezer, tear off the protective film on the door and the freezer's body.

Keep the appliance away from heat and avoid direct sunlight. Do not place the freezer in humid or watery places to prevent rust or reduction of insulating effect.

The freezer should be placed in a well-ventilated indoor place; the ground shall be flat, and sturdy.

The top clearance of the freezer shall be greater than 70 cm, and the distances from both sides and rear shall be more than 20 cm to facilitate heat dissipation.

chest freezer

KCF5215 KCF5216

EN

Changing the lightbulb (optional)

Any LED lamp replacement or maintenance is intended to be made by the manufacturer, its Customer Support Service or a similarly qualified person.

Replacing incandescent lamps:

• Disconnect the appliance from the power supply before carrying out the bulb replacement.
• Hold and remove the light bulb cover.
• Dismantle the old bulb by unscrewing it counter-clockwise. Replace it with a new bulb (Max. 15W) by screwing it clockwise, and make sure it is tightly fixed in the bulb holder.
• Reassemble the light cover and reconnect your freezer to the power supply.

(Above images are for reference only. The actual configuration will depend on the physical product or statement made by the distributor.)

Start using the freezer

• The freezer shall stay up for half an hour before connecting it to a power source when it is used for the first time.
• The freezer shall run for 2 to 3 hours before loading fresh or frozen food; on the other hand, the freezer shall run for more than 4 hours in summer in advance considering that the ambient temperature is higher.

Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and away from direct sunlight. Please allow hot food to cool down to room temperature before placing it inside the appliance. Please note that overloading the appliance forces the compressor to run for a longer period of time. Also, food that freezes too slowly may lose quality, or spoil.
• Please make sure you wrap food properly, and wipe containers dry before placing them inside the appliance, as this cuts down frost from building up inside the freezer.
• The appliance's storage bin should not be lined with aluminium foil, wax paper, or paper towelling since liners interfere with cold air circulation, making the appliance less efficient.
• Organise and label food to reduce door openings and extended searches. Remove as many items as needed at once, and close the door as soon as possible.

kunft®

2.3. Maintenance

Cleaning

• Any dust behind the freezer and on the ground shall be regularly cleaned to improve the cooling effect and save energy.
• Please check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the freezer should be cleaned regularly to avoid any odours.
• Please turn the power off before cleaning, and remove all food, baskets, containers, etc.
• Use a soft cloth or sponge to clean inside the freezer, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning the power on.
• For areas that are difficult to clean in the freezer (such as gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and, when necessary, combined with some auxiliary tools (such as thin sticks) to ensure contaminants or bacteria do not accumulate in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odours inside the freezer or contaminate food.
• Clean the baskets with a soft cloth dampened with soapy water or diluted detergent. Then dry it with a soft cloth or let it dry naturally.
• Wipe the outer surface of the freezer with a soft cloth dampened with soapy water, detergent, etc., and then wipe it dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the freezer's surface and interior. Please be aware that boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect the appliance's electrical insulation after immersion.

Defrost

• Your freezer shall be manually defrosted.
• Unplug the freezer and open the door, remove food and shelving baskets before defrosting; then open the outflow hole and drainage hole (and place the water container at the drainage hole); indoor frost will naturally melt; wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper might be used to accelerate the de-icing process.
• Please remove the food and put it in a cool place when defrosting before removing any accessories.

chest freezer

KCF5215 KCF5216

EN

Other mechanical devices or other means other than those recommended by the manufacturer shall not be used to accelerate defrosting. Do not damage the refrigerant circuit.

Stop using the freezer

• Food can be preserved for a couple of hours - even in summer - in case of a power failure; it is recommended to reduce the frequency of opening the door and not to put fresh food inside the freezer.
• Please unplug the freezer if left unused for a long time for cleaning. Keep the door open to avoid any bad odours.
• Do not turn the freezer upside down or make it vibrate, as the carrying angle cannot be greater than 45^ . Do not hold the appliance by the door and hinge when moving it.

Other mechanical devices or other means other than those recommended by the manufacturer shall not be used to accelerate defrosting. Do not damage the refrigerant circuit.

2.4. Troubleshooting

The following simple issues can be handled by the user. Please call the Customer Support Service if these issues are not settled.

Inoperation Check if the freezer is plugged and connected to a power source;Check if there is low voltage;Check if the temperature control knob is in the work area;Check if there is a power failure or tripping circuit.

Odour Odorous foods should be closely wrapped;

	Check if the food is rotten;Check if the interior shall be cleaned.
Long-term operation of the compressor	It is normal that the freezer operates for a longer period of time in summer when the ambient temperature is higher;Do not put too much food in the freezer at once;Do not put food inside until they are cooled;This might be due to frequent opening of the freezer's door;Check if there is a thick frost layer (defrost is needed).

kunft.®

Indication light does not light up	Check if the freezer is connected to a power source;Check if the light is damaged.
The freezer's door cannot be properly closed	Check if the freezer's door is stuck by food packages;Check if there is too much food;Check if the freezer is unbalanced.
Loud noises Check if the floor is flat and if the surface where the freezer is placed is stable;Check if the freezer's accessories are properly placed.
Transient difficulty while opening the door	After refrigeration, there will be a pressure difference between the freezer's inside and outside that will result in a transient difficulty while opening the door.This is a normal physical phenomenon.
Heat and condensation building up inside the freezer's enclosure	The freezer's enclosure may emit heat during operation, especially in summer; this is caused by the condenser's radiation, and it is a normal phenomenon.Condensation: a condensation phenomenon will be detected on the freezer's exterior surface and door seals when the ambient humidity is high; this is a normal phenomenon, and the condensation can be wiped away with a dry towel.
Airflow sound Buzz Clatter	Refrigerants circulating in the refrigerant lines will produce sounds and grunts, which is normal and does not affect the cooling effect.Buzz will be generated by the running compressor, especially when starting up or shutting down.

3. TECHNICAL SPECIFICATIONS

Table 1 - Climate classes

Class Symbol	Ambient temperature range °C
Extended temperate SN + 10 to + 32
Temperate N + 16 to + 32
Subtropical ST + 16 to + 38
Tropical T + 16 to + 43

chest freezer

KCF5215 KCF5216

EN

Extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10^ C to 32^ C.

Temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 32°C.

Subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C.

Tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16°C to 43°C.

Special for new European standard

The ordered parts in the following table can be acquired from several channels.

Ordered Part Provided by		Minimum Time Required for Provision
Thermostats	Professional maintenance personnel	At least 10 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 10 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 10 years after the last model is launched on the market
Light sources	Professional maintenance personnel	At least 10 years after the last model is launched on the market
Door handles	Professional repairers and final users	At least 10 years after the last model is launched on the market
Door hinges	Professional repairers and final users	At least 10 years after the last model is launched on the market
Trays	Professional repairers and final users	At least 10 years after the last model is launched on the market
Baskets	Professional repairers and final users	At least 10 years after the last model is launched on the market
Door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

kunft.®

4. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5.ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

congelador horizontal

KCF5215

KCF5216

ES

Estimado cliente:

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room with a monitor and keyboard, no text or symbols present

congelador horizontal

KCF5215

KCF5216

ES

Simple line drawing of a box with an arrow and a magnified view of the lid (no text or symbols)

Simple line drawing of a box with a starburst symbol on the front face and an exclamation mark at the bottom (no text or symbols on the box itself)

Illustration of a hand holding a tray with food items including a bottle, cheese, and instant noodles (no text or symbols)

Simple line drawing of a child climbing inside a cube with a warning symbol (no text or labels)

Cartoon illustration of a sad, anthropomorphic character carrying a large block on top, with an exclamation mark and warning symbol (no text or labels)

kunft.®

Simple line drawing of a plug with a cable and an exclamation mark (no text or symbols)

Simple line drawing of a room with a monitor and wall-mounted device (no text or symbols)

Simple line drawing of a box with a magnified view showing a small object and a circular symbol (no text or labels)

Simple line drawing of a box with a starburst symbol on top and an exclamation mark at bottom (no text or symbols)

Illustration of a child climbing inside a box with cracks and a warning symbol (no text or labels)

Cartoon character with a sad expression, carrying a stack of boxes on top, with an exclamation mark and warning symbol nearby (no text or symbols present)

Imported, produced and distributed by:
