Product Type	Chest Freezer
Brand	Kunft
Model	KCF1897
Capacity	189 L (estimated)
Power Supply	220-240 V ~ 50 Hz
Temperature Control	Thermostat knob (1-6, OFF), settings 1-6 (1 = warmest, 6 = coldest)
Defrosting	Manual defrosting required
Refrigerant	Flammable refrigerant (R600a assumed)
Shelving	1 removable shelving basket
Wheels	Yes, for easy movement
Drainage	Drainage holes with outflow for defrost water
Door	Top-opening lid with handle
Installation Clearance	Top: >70 cm; sides and back: >20 cm
Climate Class	N/ST/T (typical, not specified)
Energy Consumption	Approx. 250 kWh/year (estimated)
Noise Level	~40 dB (estimated)
Weight	Approx. 35 kg (estimated)
Dimensions (WxDxH)	Approx. 85 x 55 x 60 cm (estimated)
Cleaning	Wipe with soft cloth and mild detergent; do not rinse with water
Safety Features	Child lock (key lock) on lid; warning against flammable refrigerant
Warranty	2 years (manufacturing defects)

Frequently Asked Questions - KCF1897 Kunft

How do I set the temperature on my Kunft KCF1897 chest freezer?

The temperature is controlled by the thermostat knob inside the freezer. The numbers 1 to 6 do not represent specific temperatures; 1 is warmest and 6 is coldest. Turn the knob to your desired setting. The 'OFF' position turns the freezer off.

How do I defrost the chest freezer?

Unplug the freezer and open the lid. Remove all food and the basket. Open the drainage holes and place a container under the outflow. Allow frost to melt naturally. Use a plastic scraper to speed up the process if needed. Do not use sharp objects. Wipe dry before plugging in again.

What should I do if the freezer is not working?

First, check if the power cord is plugged in and the socket has power. Ensure the thermostat is not set to 'OFF'. Check if the circuit breaker has tripped. If the problem persists, contact Customer Support Service.

How do I clean the freezer?

Unplug the freezer and allow it to cool. Use a soft cloth or sponge with water and a mild, non-abrasive detergent. Rinse with clean water and dry thoroughly. Do not use hard brushes, steel wool, or organic solvents. Do not rinse electrical parts with water.

Why is the compressor running continuously?

This is normal in hot weather. Other causes: placing too much food at once, adding warm food, frequent door openings, or thick frost buildup. Defrost if the frost layer is thick. Allow hot foods to cool before storing.

Why is the door hard to open?

After refrigeration, a pressure difference between the inside and outside can make the door temporarily difficult to open. This is a normal physical phenomenon. Wait a moment and try again.

Why is there condensation on the outside of the freezer?

Condensation on the exterior or door seals is normal in high humidity. Wipe it with a dry cloth. The freezer may also emit heat during operation due to the condenser; this is normal.

Can I store medical supplies or blood in this freezer?

No. This freezer is designed for household food storage only. Do not use for blood, drugs, or biological products as per national standards.

How do I dispose of the freezer properly?

The freezer contains flammable refrigerant and foam. Do not burn it. Contact a qualified recycling company. Remove the door and shelves to prevent child entrapment before disposal.

What should I do if I smell a strange odor from the freezer?

Check if any food is spoiled. Ensure all food is well wrapped. Clean the interior with a mild detergent. If the odor persists, place an open box of baking soda inside to absorb smells.

USER MANUAL KCF1897 Kunft

Two white kunft refrigerators with visible branding and mounting holes, shown from different angles (no text or symbols on the boxes themselves)

chest freezer

is perfectly enough

KCF1897

KCF1899

kunft.®

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

chest freezer

KCF1897

KCF1899

EN

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables ...... 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS 9

2.1. Product Description....9
2.2. Using the Product 9
2.3. Maintenance 14
2.4. Troubleshooting 16

1. POST-SALE SERVICE 18

2. ENVIRONMENTAL PROTECTION 18

kunft.®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Contact the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft.®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.

• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
  • Children should be supervised to ensure that they do not play with the appliance.
• If the power cord is damaged, it must be replaced by the manufacturer, its Customer Support Service or similarly qualified technician in order to avoid a hazard.
• Do not store explosive products such as aerosol cans with a flammable propellant in this appliance. The appliance must be unplugged after use and before carrying out user maintenance on the appliance.
• WARNING: Risk of fire / flammable materials.
• WARNING: Do not block the ventilation gaps in the appliance housing or in the built-in structure.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.

kunft.®

• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are recommended by the manufacturer.
• WARNING: Please dispose of the refrigerator according to local regulations, as the unit contains flammable blowing gas and refrigerant.
• Do not use extension cords or ungrounded (two prong) adapters.

• DANGER: Risk of child entrapment. Before disposing of your old refrigerator or chest freezer:

• Remove the doors;

• Leave the shelves in place so that children may not easily climb inside. The appliance must be disconnected from the electrical supply source before attempting the installation of any accessory.

The refrigerant and cyclopentane foaming material used in the refrigerator is flammable. Thus, when the refrigerator is disposed of, it must be kept away from any fire source and collected by a qualified collection company and cannot be disposed by combustion, to prevent damage to the environment or any other hazard.

2. OPERATING INSTRUCTIONS

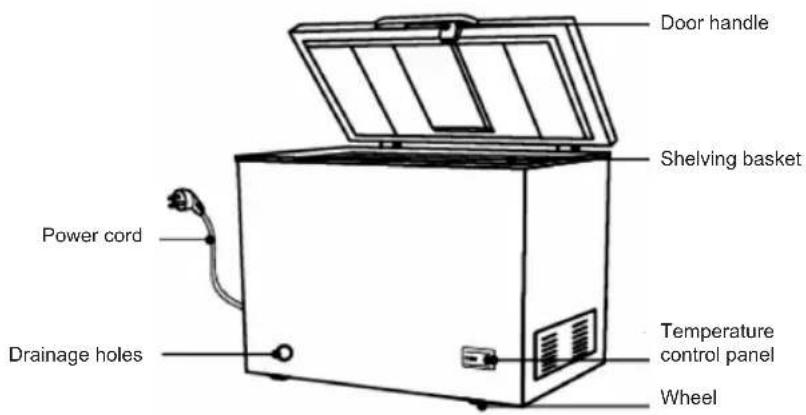

2.1. Product Description

• The low temperature of the chest freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The chest freezer is suitable to store meat, fish, shrimp, dumplings, rice balls and other foods that will not be consumed in the short term.
• Chunks of meat should be divided into small pieces for easy access. Please note that the food should be consumed within its shelf time.

The features and accessories of the chest freezer you purchased may be not entirely consistent with the key, please refer to the packing list

2.2. Using the Product

Safety Instructions

Warning: risk of fire / flammable materials

RECOMMENDATIONS:

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses, by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

kunft.®

By the EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision.

By the IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Meaning of the safety warning symbols

Prohibition symbol

The symbol indicates forbidden matters and behaviours. The non-compliance with the instructions may result in damage to the appliance or endanger the personal safety of the users.

Warning symbol

The symbol indicates matters that must be followed, and instructions that must be strictly carried out in accordance with the operation requirements. The non-compliance with the instructions may result in damage to the appliance or endanger the personal safety of the users.

Attention symbol

The symbol indicates matters that require attention, and behaviours that must be specially noted. Due precautions are needed, otherwise there is a risk of minor to moderate injuries, or damages to the product.

This manual contains important safety information that must be observed by the users.

Electricity Warnings

• Do not unplug the chest freezer by pulling the power cord. Grasp the plug firmly and unplug it directly from the socket.
• To ensure a safe use, do not damage the power cord under any circumstances, and do not use the appliance when the power cord is damaged or the plug is worn.
• If you find worn or damaged power cords please contact the Customer Support Service.

chest freezer

KCF1897

KCF1899

EN

!

• The power plug should be firmly contacted with the socket, otherwise it can cause fire. Please ensure that the power socket is equipped with a reliable ground connection.

  !

- The chest freezer requires 220-240 V / 50 Hz AC power, voltage fluctuations over the range of 220-240 V + 10% may cause malfunction or even damage.

- Please turn off the gas valve and open the doors and windows in case of gas and other flammable gas leaks. Do not unplug the chest freezer and other electrical appliances considering that sparks may cause a fire.

• To ensure safety, it is not recommended placing regulators, electric cooking pots, microwave ovens and other appliances on top of the chest freezer, unless they are recommended by the manufacture.

- Do not use electrical appliances in the food pan.

Precautions for use

- Do not disassemble or reconstruct the chest freezer, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a qualified person.

- If you find a damaged power cord please contact the Customer Support Service.

- The gaps between the chest freezer doors and between the doors and the chest freezer body are small, do not place your hand in these areas to prevent squeezing the fingers. Please be gentle when closing the chest freezer door to avoid falling objects.

- Do not pick foods or containers in the freezing chamber with wet hands when the chest freezer is running, especially metal containers in order to avoid frostbite.

⊗

- Do not allow children to enter or climb the chest freezer to prevent children from being trapped in the chest freezer or injured by the falling chest freezer.

- Do not spray or wash the chest freezer; do not place the chest freezer in damp places or that can easily splashed with water, so as not to affect the electrical insulation properties of the chest freezer.

kunft.®

- Do not place heavy objects on top of the chest freezer, considering that the objects may fall when closing the door and result in accidental injuries. - Please unplug the unit in case of power failure or when cleaning. Wait five minutes before plugging in the chest freezer to the power supply, to prevent damages to the compressor due to successive starts.

Precautions for placing items

- Do not place flammable, explosive, volatile and highly corrosive items in the chest freezer to prevent damages to the product or fire accidents. - Do not place flammable items near the chest freezer to avoid fire.

- This product is a household chest freezer and is suitable for food storage only. According to national standards, household chest freezers should not be used for other purposes, such as storage of blood, drugs or biological products.

- Do not place items such as bottled or sealed fluid containers, such as bottled beers and beverages in the chest freezer, to prevent bursts and other damage.

Energy Precautions

1) The chest freezer might not operate consistently when exposed to environments below the temperature range for which the appliance is designed, during an extended period of time.
2) Effervescent drinks should not be stored in the chest freezer compartments or cabinets or in the low-temperature compartments or cabinets, and some products such as ice cubes should not be consumed too cold;
3) Do not exceed the storage time recommended by food manufacturers for any kind of food, particularly for pre-frozen food in the chest freezer and in its storage compartments or cabinets;
4) Be aware of the necessary precautions to prevent an undue rise in the temperature of the frozen food while defrosting the appliance, such as wrapping the frozen food in several layers of newspaper.
5) A temperature increase of frozen food during manual defrosting, maintenance or cleaning may shorten its storage life.
6) For doors or lids fitted with locks and keys, the keys must be kept out of reach of children and far from the chest freezer, in order to prevent children from being locked inside.

chest freezer

KCF1897

KCF1899

EN

Temperature Control

• Connect the chest freezer to the power supply and the "Power" and "Run" indicator lights will turn on; the "ALARM" indicator light illuminates when the temperature inside is too high.
• The temperature of the chamber is adjusted through the thermostat knob. The numbers "1, 2, 3, 4, 5, 6" do not mean specific temperatures, the lower the number is, the higher the temperature inside will be, and vice versa. The user can choose the right temperature according to their needs.
• "OFF" shuts down the appliance.

Placement

- Before using the chest freezer, remove all packaging cushions and foam pads and tapes inside the chest freezer, tear off the protective film on the door and the chest freezer body.

- The chest freezer must be placed in a well-ventilated indoor area; the ground must be level and resistant.

- Keep away from heat and avoid exposing it to direct sunlight. Do not place the chest freezer in damp or watery places to prevent rust or reducing its insulating effect.

- The top space of the chest freezer should be greater than 70 cm, and the distance on the both sides and back should be greater than 20 cm to facilitate the dissipation of heat.

kunft.®

Start

- The chest freezer should be left unplugged for half an hour before connecting it to the 220-240 V/50 Hz power source when it is started for the first time.

The chest freezer should run 2 to 3 hours before loading fresh or frozen foods; the chest freezer should run for 4 hours in the summer, considering that the room temperature will be higher.

Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and away from direct sunlight.
• Let hot foods cool down to room temperature before placing them in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
• Be sure to wrap the food properly, and wipe the containers dry before placing them in the appliance. This prevents frost build-up inside the appliance.
• The appliance storage basket should not be lined with aluminium foil, wax paper, or paper towels. Liners interfere with the cool air circulation, making the appliance less efficient.
• Organise and label the food to reduce door opening times and extended searches. Remove as many items as needed each time, and close the door as soon as possible.

2.3. Maintenance

Cleaning

- The dust behind the chest freezer and on the ground should be cleaned regularly to improve the cooling effect and save energy. The interior of the chest freezer should be cleaned regularly to avoid unpleasant odours.

Use soft towels or a sponge dipped in water and non-corrosive neutral detergent to clean the appliance. In the end, the chest freezer should be cleaned with clean water and a dry cloth. Leave the door open for natural drying before the turning on the power.

chest freezer

KCF1897

KCF1899

EN

• Do not use hard brushes, clean steel balls, wire brushes, abrasive products such as toothpastes, organic solvents (alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline products to clean the chest freezer, considering that these may damage the surface and interior of the chest freezer.
• Do not rinse with water, to prevent damaging the electrical insulation properties. Please use a dry cloth when cleaning the temperature control knob and electrical components.

Please unplug the chest freezer for defrosting and cleaning.

Defrosting

- The chest freezer must be defrosted manually.

Unplug the chest freezer and open the chest freezer door, remove the foods and shelve baskets before defrosting; Open the outflow holes and drainage holes (and place a water container at the outflow hole exits); the frost in the interior will melt naturally, wipe the defrost water with a dry, soft cloth. When the frost softens, an ice scraper can be used to accelerate de-icing process.

- Please remove the food and place it in a cool place when defrosting and before removing the accessories.

Other mechanical devices or other means should not be used to elerate the defrosting process, except for those recommended by manufacturer. Do not damage the refrigerant circuit.

Stopping the operation

Foods can be preserved for a couple of hours even in the summer in case of power failure; it is recommended reducing the door opening frequency and not placing fresh foods inside the chest freezer. Please unplug the chest freezer if it will not be used for a long period of time and for cleaning. Keep the door open to avoid unpleasant odours.

Do not vibrate or turn the chest freezer upside down or horizontally. The loading angle cannot be greater than 45^ . Please hold the door and hinge when moving the appliance.

Continuous operation is recommended after the chest freezer is ed. Do not move the chest freezer under normal circumstances void affecting the chest freezer's service life.

kunft®

Disposal Warnings

The refrigerant and cyclopentane foam materials of the chest freezer are combustible materials and when disposed should be isolated from fire sources and cannot be burned. Please deliver the chest freezer to a qualified professional recycling company for processing, to avoid damages to the environment or other hazards.

Please remove the chest freezer door and shelves, which should be properly placed to avoid accidents with children entering and playing inside the chest freezer.

2.4. Troubleshooting

The following simple issues can be handled by the user. Please contact the Customer Support Service if the issue is not resolved.

Not working Check if the chest freezer is plugged in and connected to power; Low voltage;Check if the temperature control knob is in a working position;Power failure or tripping of the circuit breaker.
Odour Odorous foods should be well wrapped;Check if there are spoiled foods;Check if the interior needs cleaning.
Long-term operation of the compressor	It is normal that the chest freezer to operate for longer periods of time in the summer, when room temperatures are higher;Do not place too much food inside the chest freezer at once; Do not place foods until they are cooled;Frequent opening of the chest freezer door;Thick frost layer (defrosting is needed).
The light does not turn on	Check if the chest freezer is connected to power, and if the indicator light is damaged.
The chest freezer door does not close properly	The chest freezer door is stuck with food packages;Too much food;The chest freezer is tilted.
Loud noises Check if the food and the chest freezer are level;Check if the chest freezer parts are fitted properly.

chest freezer

KCF1897

KCF1899

EN

Temporary difficulty in opening the door	After refrigeration, there will be pressure difference between the inside and outside of the chest freezer, resulting in a temporary difficulty to open the door. This is a normal physical phenomenon.
Heat condensation on the chest freezer housing	The chest freezer housing may emit heat during operation, specially in the summer, this is caused by the radiation of the condenser, which is a normal phenomenon;The condensation phenomenon is detected on the exterior surface and the door seals of the chest freezer when there is an excessive humidity, this is a normal phenomenon, and the condensation can be wiped with a dry towel.
Airflow soundBuzzing soundRattling sound	Refrigerants circulating in the refrigerant lines will produce sounds and grunts, which are normal and do not affect the cooling effect;Buzzing may be generated by the running compressor, specially when starting up or shutting down the appliance;The solenoid valve or electric switch valve will produce a rattling sound, which is a normal phenomenon and does not affect the operation.

kunft.®

3. PoSt-SalE SErvlcE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENvIroNMENtal ProtEctloN

Symbol of a trash bin crossed out by a diagonal line, representing no waste or discharge (no text or labels present)

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Estimado cliente:

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

NOTES / NOTAS

55

kunft®

chest freezer

is perfectly enough

KCF1897

KCF1899
