Product Type	Air fryer
Brand	Nevir
Model	NVR-6602FAC
Voltage	220V~60Hz or 127V~60Hz
Power Consumption	1500W
Temperature Range	80-200°C (approximate)
Timer Range	0-60 minutes (approximate)
Control Type	Manual knobs (temperature and timer)
Heating Method	Hot air circulation
Inner Pot	Removable, dishwasher safe
Basket	Removable, dishwasher safe
Safety Feature	Auto shut-off when basket is removed
Indicator Light	Power on indication
Air Inlet/Outlet	Caps at top and back
Cleaning Instructions	Do not immerse shell; wipe with damp cloth
Oil Usage	Do not pour oil into inner pot
First Use Odor	Normal due to production residues
Cord Replacement	Must be done by qualified person
Material	Plastic shell, metal inner pot
Warranty	Not specified, refer to manual

Frequently Asked Questions - NVR-6602FAC NEVIR

How do I preheat the air fryer?

Set the temperature knob to 200°C and turn the timer to at least 3 minutes. The appliance will start preheating.

Can I use oil or liquid in the air fryer?

No, do not pour oil or any liquid into the inner pot. It may cause a fire hazard.

How should I clean the air fryer?

Unplug and let it cool completely. Wash the basket and inner pot with warm water and mild detergent; they are dishwasher safe. Wipe the shell with a damp cloth. Do not immerse the shell in water.

Is it normal to see smoke or smell odor when using it for the first time?

Yes, a slight odor or smoke may occur due to evaporation of production residues. This is normal.

What should I do if the power cord is damaged?

The supply cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.

Can I cook fresh potato fries?

Yes, but do not fry fresh potatoes at temperatures above 180°C to minimize acrylamide formation.

How do I turn food over during cooking?

When half the time has passed, pull out the inner pot (do not press the button), turn the food, then push the basket back in until you hear a click.

What does the indicator light show?

The indicator light turns on when the appliance is connected to power and heating, indicating it is in operation.

Is the air fryer safe to use near curtains or cabinets?

No, do not use near flammable materials like curtains or under cabinets. Keep at least 10 cm of free space around the appliance.

Can I use an external timer or remote control with this air fryer?

No, the appliance is not intended to be operated by an external timer or separate remote-control system.

USER MANUAL NVR-6602FAC NEVIR

Black electric air fryer with control knobs and a green indicator light (no visible text or symbols)

Black Hevlin air fryer with control knob and green indicator lights (no visible text or symbols)

INSTRUCTION MANUAL

PLEASE READ THIS OPERATING MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN IT FOR FUTURE REFERENCE.

Warning:

1、Before connecting the power, please check the voltage is conformity with the local voltage.
2、If plug power cord, appliance itself are damaged, please do not use this appliance.
3、If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4、The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
5、Children being supervised not to play with the appliance
6、Don't let the power cord come into contact with the surface of the high temperature
7、The appliance must be earthed socket inserts, and make sure it's correct insertion.
8、Don't put appliance rely on a wall or other products, on both sides, the back, the rack of the product should set aside at least 10cm above the free space, don't be placed above the items above the appliance ..
9、Don't use the appliance on any other purpose, except the described on the manual.
10、The appliance cooking by hot air, when working, there will be releasing the hot steam from outlet, your hands and face should keep a safe distance, also when you take out the inner pot from appliance.
11、When using the appliance, the surface may become hot.
12、Do not use the appliance at the bottom of the curtains and other

flammable materials (or a built-in wardrobe or cupboard below), otherwise may cause fire.

13、The appliances are not intended to be operated by means of an external timer or separate remote-control system.
14、This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Read this instructions booklet carefully before installing and using the appliance. It is the only way to ensure the best results and maximum user safety.

Specification:

Model	Product name	voltage frequency power
NVR-6602FAC	Air fryer	220V~	60Hz	1500W
		127V~		1500W

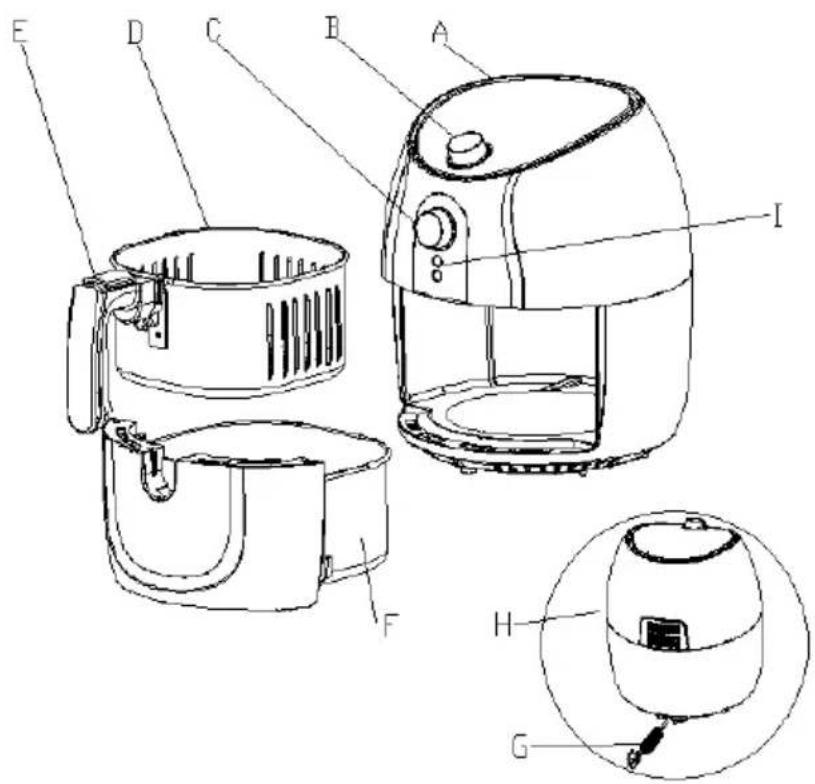

Description for the appliance:

A .air inlet cap

B. timer knob

C. temperature knob

D. basket

E. button for basket

F. inner pot

G. power cord

H. air outlet cap

I. indicator light

Dangerous:

1、Pull out the basket by handle directly ,do not touch the button .put the fixed inner pot on the table ,then press the button to make the

basket separation,

2、Food must be fried in the basket, to avoid contact with heating elements.
3、Do not seal the inlet and outlet when the appliance is working.
4、Do not pour the oil into inner pot, it may cause a fire.

Caution:

1、This appliance is limited to normal household it shall not be used for shops, offices, farm or other working conditions of staff canteen, and shall not be provided by the hotel, motel, accommodation and breakfast places and other use of guest accommodation environment.
2、Products can only be sent to the factory or maintenance center repair, do not repair by yourself.
3、 This appliance design using the environment temperature is between 5 and 40 °C.
4、Must pull out the plug once finish using.
5、Before handling or cleaning appliance, must make it cooling about 30 minutes.
6、Secure cooking ingredients in this product is golden brown, not black or brown. The charred section should be discarded. Do not Fried fresh potato under the temperature higher than 180 °C to minimize the formation of acrylamide).
7、When for the first time to use the air fryer, there will be a slight odor or smoke, because production caused by the remnants of evaporation, is a normal phenomenon.
8、When you are cooking oil content high food, a large number of lampblack to infiltrate the products, oil can produce white lampblack, at the same time, the surface of the product may be hotter than normal, this will not affect the product the end effect of Fried food.

Use for air fryer:

1、Plug in the power.
2、Turn the temperature knob to the highest 200 °Cmer adjust to at least 3 minutes the appliance start preheating.
3、Pull out the inner pot (do not press the button on the basket handle), this time the appliance stop heating, put the food into the basket, then push-in the basket into appliance directly. when you heard click, the basket has been placed in the right place, appliance continue to heating
4、In the Adjust the temperature and time according to the menu. (if the food more, time should bit longer).
5、When time has passed by half, pull the inner pot (do not press the button), turn over the food, push-in the basket into appliance again. when you heard click, appliance continue to heating.
6、When timer to "0" position, heard "Ding", stop heating, pull out the basket (do not press the button), take the basket on the table, press the button, take out the basket, put the food.

Turning over the food when half time is to make the food uniform heating, If do not preheat the time of cooking should increase 3 minutes accordingly.

Clean and maintenance:

1、Remove the plug, to be completely cooling products.
2、 And flexible, with warm water and detergent cleaning pot on top, rinse with water and dry bath, do not use steel wire ball/steel wire brush or kitchen and plastic shell base, strong detergent cleaning pot on top and the inner pot can be put in the dishwasher to clean.
3、Must not will shell immersed in water or any other liquid, not clean in the dishwasher, the shell can only use wet cloth to wipe clean.

4、Every time after use, wipe with wet cloth inside the air fryer, there may be a small amount of food on the internal surface oil spills.

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

The European Directive 2002/96 /EC on Waste Electrical and Electronic Equipment (WEEE) required that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product remind you of your obligations that when you dispose of the appliance, it must be separately collected.

Besides that, waste batteries and/or accumulator must be removed prior to delivery of WEEE, thought the separated collection channels provided for this purpose (distributors and/or facilities from Local Authorities)
