Type of product	Computer Power Supply
Brand	Cooler Master
Model	MasterWatt Maker 1200
Wattage	1200W
Efficiency rating	80+ Titanium
Modular design	Fully modular
Form factor	ATX
Dimensions (W x H x D)	150 mm x 86 mm x 190 mm
Weight	3.2 kg
Input voltage	100-240 V, 50-60 Hz
Fan size and type	135 mm Fluid Dynamic Bearing
Protection features	OVP, OPP, SCP, OTP
Certification	80 PLUS Titanium
Compatibility	ATX12V 2.4
Connectors	1x 24-pin, 2x 4+4 CPU, 10x PCIe, 12x SATA, 6x Molex
Digital control	Yes (via software)
Warranty	10 years
Maintenance and cleaning	Clean fan grille and vents with compressed air periodically
Safety precautions	Ensure proper cable connections; do not open the PSU internally
Repairability	Professional service only; do not attempt self-repair

Frequently Asked Questions - MasterWatt Maker 1200 COOLER MASTER

Is the MasterWatt Maker 1200 compatible with my PC case?

It is an ATX power supply with dimensions 150mm x 86mm x 190mm. Check your case's PSU clearance to ensure it fits.

What is the efficiency certification of this PSU?

It has 80+ Titanium certification, meaning up to 96% efficiency at typical loads.

How many PCIe connectors does it have?

It includes 10 PCIe connectors (6+2 pin), sufficient for multiple high-end graphics cards.

Is the power supply fully modular?

Yes, it is fully modular, allowing you to use only the cables you need for a clean build.

What software is used for digital control?

Cooler Master provides proprietary software to monitor and control fan speed, voltage, and efficiency settings.

Does it support multiple GPUs?

Yes, with 10 PCIe connectors it can support up to 4 high-end GPUs in SLI or CrossFire configurations.

What is the fan noise level?

The 135mm FDB fan is designed for quiet operation, often running passively at low loads and remaining inaudible under moderate loads.

What protections are built in?

It includes Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).

Can I use it with 110V and 220V outlets?

Yes, it has a universal input range of 100-240V AC, so it works with standard voltages worldwide.

How long is the warranty?

The MasterWatt Maker 1200 comes with a 10-year warranty for peace of mind.

USER MANUAL MasterWatt Maker 1200 COOLER MASTER

MASTERWATT MAKER

1200/1500

1

MPZ-C001-AFBAT	1200W Active PFC Power Supply
MPZ-F001-AFBAT	1500W Active PFC Power Supply

2

Type	Intel ATX 12V v2.4
Input Voltage	100-240V
Input Frequency	60-50Hz
Fan	135mm Silencio FP Fan
Power Good Signal	100~500ms
Hold Up Time	16ms
Efficiency	94% Typically
MTBF	100,000Hours
Protection	OCP / OPP / OVP / OTP / SCP / UVP
Dimension	150 × 200 × 86mm (5.9 × 7.9 × 3.4 inch)
Operation Temperature	+10°C to +50°C (Nominal Input Voltage)
Regulatory	TUV / CE / BSMI / FCC / cTUV-RHus / KC / CCC / EAC / RCM

MPZ-C001-AFBAT

AC Input	100-240V~ 12-6A 60-50Hz
DC Output	+3.3V	+5V	+12V 1	+12V 2	-12V 2	+5Vsb
	25A	25A	50A	50A	0.3A	3.5A
Total Power	130W		1200W		3.6W	17.5W
	1200W

MPZ-F001-AFBAT

AC Input	100-240V~ 15-7.5A 60-50Hz
DC Output	+3.3V	+5V	+12V 1	+12V 2	-12V	+5Vsb
	25A	25A	62.5A	62.5A	0.3A	3.5A
Total Power	130W		1500W		3.6W	17.5W
	1500W

EN | 1. Model Description / 2. Specifications
FR | 1. Description du modèle / 2. Spécifications
IT | 1. Descrizione modello / 2. Specifiche
PT | 1. Descrição do modelo / 2. Especificações
NL | 1. Beschrijving model / 2. Specificaties
DE | 1. Modellbezeichnung / 2. Spezifikationen
ES | 1. Descripción del modelo / 2. Especificaciones
RU | 1. Описание модели /2. Технические характеристики
HU | 1. Modell ismertetése / 2. Műszaki adatok
PL | 1. Opis modelu / 2. Specyfikacje
SR | 1. Opis modela / 2. Specifikacije
TR | 1. Model aç i klamas i /2. Teknik özellikler
CT | 1. 機種型號 / 2. 規格
CS 1. 机种型号 / 2. 规格
JP 1.モデルの詳細/2.仕様

3

1

2

3

4

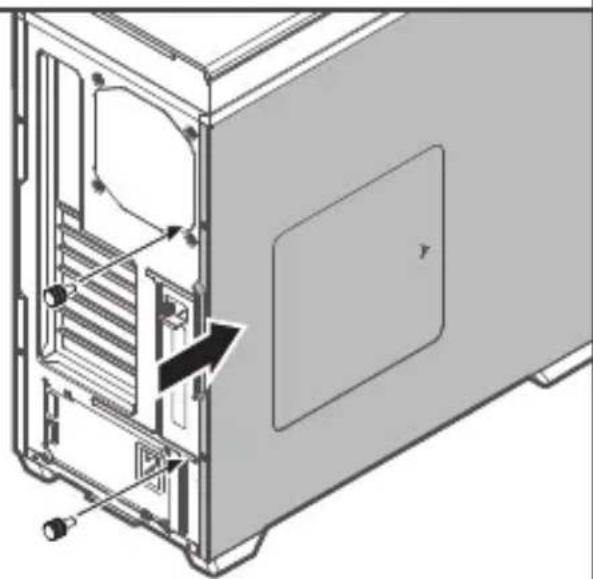

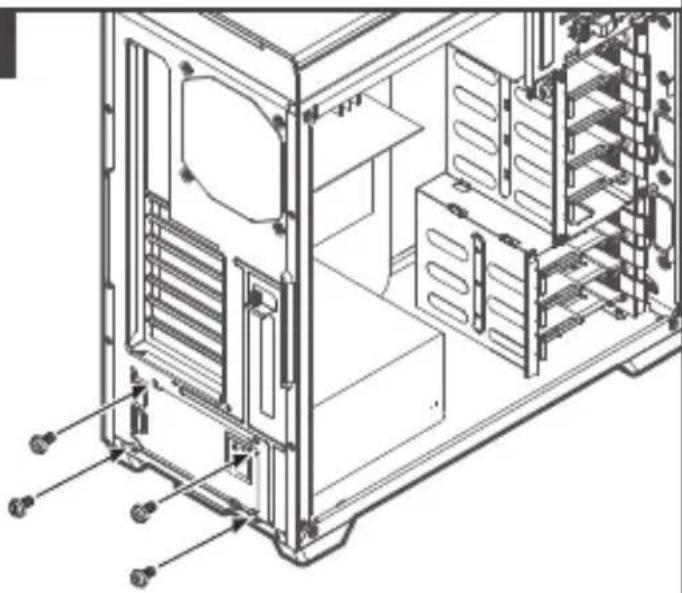

EN | 3. How to install power supply
FR | 3. Comment installer l'alimentation électrique
IT | 3. Come installare l'alimentatore
PT | 3. Como instalar a fonte de alimentação
NL | 3. De voeding installeren
DE | 3. Anleitung zur Installation des Netzteils
ES | 3. Cómo instalar la fuente de alimentación
RU 3.Установка блока питания
HU | 3. A tápforrás telepítésének módja
PL | 3. Jak zainstalować zasilacz
SR | 3. Kako da instalirate izvor napajanja
TR | 3. Güç kaynağı i n i takma yöntemi
CT 3. 如何安裝電源
CS 3. 如何安装电源
JP 3.電源の設置方法

4

2

5

1. How to connect Bluetooth dongle(Masterwatt maker 1200/1500w only)

2. How to connect digital cable(Masterwatt maker 1200/1500w only)

3. Comment connecter la clé Bluetooth (Masterwatt maker 1200/1500w uniquement)

4. Comment connecter le câble numérique (Masterwatt maker 1200/1500w uniquement)

5. Come collegare il dongle Bluetooth (solo Masterwatt maker 1200/1500w)

6. Come collegare il cavo digitale (solo Masterwatt maker 1200/1500w)

7. Como ligar o adaptador Bluetooth (apenas Masterwatt maker 1200/1500w)

8. Como ligar o cabo digital (apenas Masterwatt maker 1200/1500w)

9. De Bluetooth-dongle aansluiten (alleen Masterwatt maker 1200/1500w)

10. De digitale kabel aansluiten (alleen Masterwatt maker 1200/1500w)

11. Anleitung zum Anschluss des Bluetooth-Dongles (nur Masterwatt maker 1200/1500w)

12. Anleitung zum Anschluss des Digitalkabels (nur Masterwatt maker 1200/1500w)

13. Cómo conectar una llave Bluetooth (Masterwatt Maker, solo 1200/1500W)

14. Cómo conectar un cable digital (Masterwatt Maker, solo 1200/1500W)

15. Подключение Bluetooth-адаптера (только для модели Masterwatt maker 1200/1500 Вт)

16. Подключение цифрового кабеля (только для модели Masterwatt maker 1200/1500 Вт)

17. A Bluetooth kulcs csatlakoztatásának módja (csak a Masterwatt Pro 1200/1500 W esetén)

18. A Bluetooth kulcs csatlakoztatásának módja (csak a Masterwatt Pro 1200/1500 W esetén)

19. Jak podłączyć klucz Bluetooth (Wyłącznie Masterwatt maker 1200/1500w)

20. Jak podłączyć klucz Bluetooth (Wyłącznie Masterwatt maker 1200/1500w)

21. Način povezivanja Bluetooth adaptera (samo za Masterwatt maker 1200 W /1500 W)

22. Način povezivanja digitalnog kabla (samo za Masterwatt maker 1200 W /1500 W)

23. Bluetooth yard | mc | ayg | t | n | bağlama yöntemi (yaln | zca Masterwatt maker 1200/1500 w)

24. Dijital kablo bağlama yöntemi (yaln i zca Masterwatt maker 1200/1500 W)

25. 藍芽裝置安裝說明 / 5. 數位連接線安裝說明 (Masterwatt maker 1200/1500W 專用)

26. 蓝牙装置安装说明 / 5. 数位连接线安装说明 (Masterwatt maker 1200/1500W专用)

27. bluetooth ドングルの接続方法 (Masterwatt maker 1200/1500w のみ)

28. デジタルケーブルの接続方法 (Masterwatt maker 1200/1500w のみ)

6

6.1 Montherboard 24 Pin Connector

Pin1 Pin13

Pin	Description
1	+3.3V
2	+3.3V
3	COM
4	+5V
5	COM
6	+5V
7	COM
8	P.G.
9	+5Vsb
10	+12V
11	+12V
12	+3.3V

Pin	Description
13	+3.3V
	+3.3Vs
14	-12V
15	COM
16	PS-ON
17	COM
18	COM
19	COM
20	----
21	+5V
22	+5V
23	+5V
24	COM

6.2 CPU 4+4Pin

Pin1 Pin5

Pin	Description
1	GND
2	GND
3	GND
4	GND

Pin	Description
5	+12V
6	+12V
7	+12V
8	+12V

6.3 PCI-e 6+2Pin Connector

Pin1 Pin5

Pin	Description
1	+12V
2	+12V
3	+12V
4	COM

Pin	Description
5	COM
6	COM
7	COM
8	COM

6.4 S-ATA Connector

Pin	Description
1	+3.3V
2	COM
3	+5V
4	COM
5	+12V

6.5 Peripheral 4-Pin Connector

Pin	Description
1	+12V
2	COM
3	COM
4	+5V

6.6 Floppy Connector

Pin	Description
1	+12V
2	COM
3	COM
4	+5V

6.7 CM Digital Connector

Pin	Description	Pin	Description
1	VCC	6	COM
2	D-	7	COM
3	D+	8	COM
4	COM	9	COM
5	COM	10	COM

EN | 6. Connector descriptions

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

EN 60950-1: 2006+A11+A1:2010+A12:2011+A2:2013 Safety of Information Technology Equipment

EN 62311: 2008 / Article 3(1)(a) and Article 2 2006/95/EC) Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 Ghz)

EN 300 328 V1.9.1: 2015-02 Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering the essential requirements of article 3.2 of the R&TTE Directive

EN 301 489-1 V1.9.2: 2011

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements

EN 301 489-17 V2.2.1 2012

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Specific conditions for Broadband Data Transmission Systems

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

Česky (CS)

Hereby, Cooler Master Technology Inc., declares that this Bluetooth transmitter-receiver is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Español (ES)

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Please visit our website at www.coolermaster.com

Asia Pacific - Cooler Master Technology Inc. 8F., No. 788-1, Zhongzheng Rd., Zhonghe Dist., New Taipei City 23586, Taiwan (R.O.C.). Tel: [phone]

Europe - Cooler Master Europe B.V. Lodewijkstraat 1b, 5652AC Eindhoven, The Netherlands Tel: [phone]

China - Cooler Master China Room 2062, Floor 6, No. 421, Weiqing Rd., Jinshan District, Shanghai City, China Tel: [phone]

North America - Cooler Master NA 4820 Schaefer Ave. Chino CA. 91710, USA Tel: [phone]

Cooler Master Support: https://account.coolermaster.com/

Ver 1.0:2016/04

©2016 Cooler Master Technology Inc. All Rights Reserved. All trademarks are registered to their respective owners.
