Notice COOLER MASTER V650 SFX Gold - page 1
1 / 4
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type SFX Power Supply Unit
Model V650 SFX Gold
Form Factor SFX (with included SFX-to-ATX bracket)
Dimensions (L x W x H) 100 x 125 x 63.5 mm
Net Weight 1.41 kg
Input Voltage 100-240V AC
Input Current 8-4A
Input Frequency 50-60Hz
Efficiency Rating 80 PLUS Gold (90% @ Typical Load)
Total Power 650W
+12V Rail Single 54.1A (649.2W)
Fan Size 92mm
Fan Bearing Fluid Dynamic Bearing (FDB)
Modular Cabling Full-Modular
Connectors 1x ATX 24 Pin, 1x EPS 4+4 Pin, 1x EPS 8 Pin, 8x SATA, 4x Peripheral 4 Pin, 4x PCI-e 6+2 Pin
Protections OVP / OPP / SCP / OCP / UVP / OTP / Surge & Inrush Protection
Warranty 10 Years Limited
MTBF >100,000 hours
Operating Temperature 0-50°C
Regulatory Approvals TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA
Package Contents Power supply, power cord, SFX-to-ATX bracket, modular cables, screws, user manual

Frequently Asked Questions - V650 SFX Gold COOLER MASTER

What is the form factor of the Cooler Master V650 SFX Gold?
It is an SFX form factor power supply, but it includes an SFX-to-ATX bracket for use in ATX cases.
What is the efficiency rating of this PSU?
It is 80 PLUS Gold certified, providing up to 90% efficiency under typical load.
Are the cables modular?
Yes, the V650 SFX Gold features full-modular cabling, allowing you to connect only the cables you need.
What type of fan does it use and is it quiet?
It uses a 92mm Fluid Dynamic Bearing (FDB) fan, known for quiet and efficient cooling.
What is the warranty period?
The unit comes with a 10-year limited warranty.
What protections does it have?
It includes OVP, OPP, SCP, OCP, UVP, OTP, and surge/inrush protection.
Can this PSU fit in a mini-ITX case?
Yes, its SFX form factor is designed for small builds like mini-ITX, but also fits larger cases with the bracket.
What is the maximum power output?
The unit is rated for 650W total, with 649.2W available on the +12V rail.
Does it support the latest ATX standards?
It complies with SFX 12V Ver. 3.42 and includes active PFC.
What connectors are included for graphics cards?
It has 4x PCI-e 6+2 pin connectors, enough for most single GPU setups.

User questions about V650 SFX Gold COOLER MASTER

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Computer Adapter in PDF format for free! Find your manual V650 SFX Gold - COOLER MASTER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. V650 SFX Gold by COOLER MASTER.

USER MANUAL V650 SFX Gold COOLER MASTER

natural_image Front view of a black OP50 computer drive with ventilation slots and ports (no readable text or symbols)

FEATURES

SFX Form Factor : This unit is compatible with all SFX cases and suitable for mini-ITX system builds.

SFX-to-ATX Bracket : The included bracket allows users to install this unit securely in traditional ATX cases.

80 PLUS Gold Certified : This certification guarantees a typical efficiency of 90% under normal operating conditions.

Quiet FDB Fan : The 92mm FDB fan delivers effective, quiet, and efficient cooling.

Full-Modular Cabling : Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.

10 Year Warranty : This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.

PACKAGE INFORMATION

Cable TypeEANUPC
MPY-6501-SFHAGV-US4719512098370884102070679
MPY-6501-SFHAGV-UK4719512098387884102070686
MPY-6501-SFHAGV-EU4719512098394884102070693
MPY-6501-SFHAGV-ST4719512098400884102070709
MPY-6501-SFHAGV-AU4719512098417884102070716
MPY-6501-SFHAGV-BR4719512098424884102070723
MPY-6501-SFHAGV-KR4719512098431884102070730
MPY-6501-SFHAGV-TW4719512098448884102070747
MPY-6501-SFHAGV-JP4719512098455884102070754
MPY-6501-SFHAGV-IN4719512098462884102070761
MPY-6501-SFHAGV-WO4719512098479884102070778
Nett Weight1.41 kg
Gross Weight1.85 kg
Package Dimensions260 x 190 x 100mm (10.24 x 7.48 x 3.94")
Carton Dimensions520 x 275 x 215mm (20.47 x 10.83 x 8.46")
Unit / Carton5 pcs
Carton / Pallet24 pcs

The V SFX Gold delivers the high quality experience you've come to expect from the V series in SFX form factor. Enjoy the same great features with 80 Plus Gold efficiency, full-modular cabling, an FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. But now you can have it in a mini-ITX case. With the V SFX Gold, the V series is now viable for cases ranging from mini-ITX all the way up through E-ATX systems. And with the included bracket this unit is compatible with all of them.

SPECIFICATIONS

Product NameV650 SFX Gold
Item CodeMPY-6501-SFHAGV
ATX VersionSFX 12V Ver. 3.42
PFCActive PFC
Input Voltage100-240V
Input Current8-4A
Input Frequency50-60Hz
Dimensions (L x W x H)100 x 125 x 63.5mm
Fan Size92mm
Fan BearingFDB
Efficiency90% @ Typical Load
80 PLUS Rating80 PLUS Gold
ETA RatingGold
IAMBDA RatingStandard++
ErP 2014 Lot 3Yes
Operating Temperature0~50°C
Power Good Signal100-500ms
Hold Up Time16ms
MTBF>100,000 hours
ProtectionsOVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
RegulatoryTUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA
ConnectorsATX 24 Pinx1 = 1x (300mm)
EPS 4+4 Pinx1 = 1x (450mm)
EPS 8 Pinx1 = 1x (450mm)
SATAx8 = 2x (100+115+115+115mm)
Peripheral 4 Pinx4 = 1x (100+115+115+115mm)
PCI-e 6+2 Pinx4 = 2x (400+120mm)
AC INPUT100-240V~, 8-4A, 50-60Hz
DC OUTPUT+3.3V+5V+12V-12V+5Vstb
20A20A54.1A0.3A3A
TOTAL POWER120W649.2W3.6W15A
650W

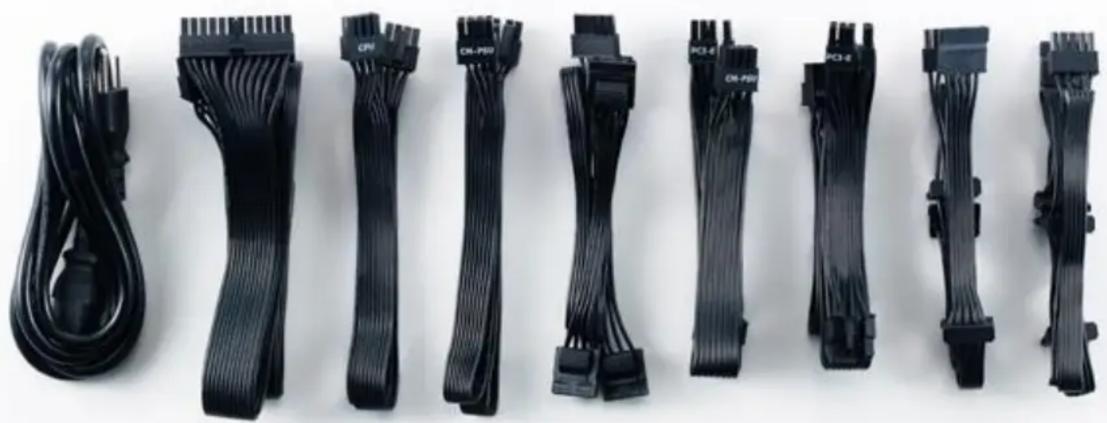

CABLES

COOLER MASTER V650 SFX Gold - CABLES - 1

natural_image Product display of black cable connectors with labels (CPI, OK-PR0, PCI-E, etc.) and a separate bundle of connected cables on a plain background.

FEATURES

COOLER MASTER V650 SFX Gold - FEATURES - 1

natural_image Interior view of a computer drive bay showing a black CPU drive unit with visible labels and buttons (no readable text beyond branding)

SFX Form Factor

COOLER MASTER V650 SFX Gold - FEATURES - 2

natural_image Exterior view of a black rectangular frame with mounting holes and a central blank space (no text or symbols)

SFX-to-ATX Bracket

650W MODEL / 型號 / 型號 : MPY-6501-SFHAGV Switching Power Supply 空路式電源控制器 (外延電源) DC/DC240V - 0.4V, 32.0MHz DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DC240V DC/DFM DC/DFM 80 PLA PLA CE FC EAC

80 PLUS Gold Certified

COOLER MASTER V650 SFX Gold - FEATURES - 4

natural_image Close-up of a black CPU fan with 'COOLER MASTER' branding, no visible text or symbols on the fan itself.

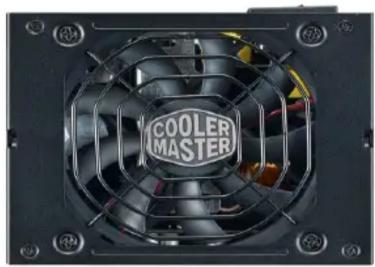

Quiet FDB Fan

10P M/B 8P PCR/OPU 18P M/B 5P HOD/SATA

Full-Modular Cabling

WARRANTY 10 YEARS

10 Year Warranty

COOLER MASTER V650 SFX Gold - FEATURES - 7

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) = [sum of bars] / [values] * (sum of bars + bars) * (sum of bars + bars) * (sum of bars + bars). The values in the table represent the sum of the bars and the corresponding sum of the bars. There is no additional data series or categories specified in the code.
