Product Type	Cooling Thermostat (Line Voltage)
Brand	King
Model	K101-C
Power Supply Voltage	120 / 208 / 240 / 277 VAC
Maximum Current	22A
Maximum Power	2640W @ 120V, 4576W @ 208V, 5280W @ 240V, 4986W @ 277V
Sensing Element	Bimetal
Temperature Range	41°F - 90°F (3°C - 32°C)
Control Type	Single Pole, Rotary Dial
Temperature Scales	Interchangeable °C and °F dials included
Mounting	Wall mount, flush against wall
Compatible Junction Box	Standard 2x4 inch vertical electrical outlet box
Cover Design	Fully vented, beveled face
Ground Wire	Not required (no ground wire design)
Safety Certification	cETL us listed
Installation	Indoor use only, by qualified electrician
Wiring Type	Line voltage, single pole (red line, black load)
Operating Environment	Avoid heat sources, direct sunlight, and drafts
Maintenance	Clean with dry cloth; no internal serviceable parts
Not for Outdoor Use	Yes

Frequently Asked Questions - K101-C KING

What voltage and power ratings does the King K101-C thermostat support?

The thermostat supports line voltages of 120V, 208V, 240V, and 277V AC. Maximum power ratings are 2640W at 120V, 4576W at 208V, 5280W at 240V, and 4986W at 277V, all at 22A.

How do I change the temperature display from Fahrenheit to Celsius?

Use a small flathead screwdriver to gently pry off the control dial. Then align the pins on the desired scale dial (included) with the holes on the thermostat knob and push until secured.

What is the temperature range of the King K101-C thermostat?

The operating temperature range is 41°F to 90°F (3°C to 32°C).

How do I install the King K101-C thermostat?

Turn off power at the circuit breaker. Mount the thermostat to a standard 2x4 inch vertical electrical outlet box. Connect the red LINE lead to L1 from the panel, black LOAD lead to the heater line, and neutral (L2) to the heater remaining line. Secure ground wire to the junction box ground screw. Install indoors 4.5 to 5 feet above the floor, away from heat sources and drafts.

Is this thermostat suitable for heating systems?

No, the King K101-C is a cooling thermostat designed for line voltage cooling systems only.

How do I set the desired temperature?

Turn the dial clockwise to lower the setpoint (call for cooling). When the room reaches the desired temperature, turn the knob counter clockwise until you hear a click. Leave it at that position to maintain temperature. Turning fully counter clockwise sets the thermostat to 90°F (maximum cut-out).

What does the clicking sound indicate?

The click indicates the thermostat's internal switch has opened or closed. When adjusting the dial, the click marks the point where the setpoint is reached and the cooling system turns off or on.

Can I use this thermostat outdoors?

No, the King K101-C is designed for indoor use only. Exposure to moisture or extreme temperatures can cause damage and inaccurate readings.

Does the thermostat require a ground wire?

No, the thermostat has a no ground wire design. However, the junction box must be grounded according to local codes; connect the ground wire to the ground screw in the box.

What safety precautions should I take before installation?

Always turn off power at the circuit breaker before installation. Read all wire sizing, voltage requirements, and safety data. Installation should be performed by a qualified electrician to avoid electric shock or fire hazard.

USER MANUAL K101-C KING

INSTALLATION AND MAINTENANCE

king

K101-C Cooling Thermostat

DANGER

ELECTRIC SHOCK OR FIRE HAZARD

READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND SAFETY DATA TO AVOID PROPERTY DAMAGE AND PERSONAL INJURY

White industrial air conditioner unit with rotary dial and cooling zone (no text or symbols visible)

Specifications:

Thermostat is suitable for line voltage cooling systems.

Power Supply AC 120V / 208V / 244V / 277V

Maximum Power:

2640W @ 120VAC (22A)

4576W @ 208VAC (22A)

5280W @ 240VAC (22A)

4986W @ 277VAC (22A)

Sensing Element: Bimetal

Temperature Operating Range:

41^-90^ (3^-32^)

cETL us listing.

WARNING

READ CAREFULLY - These instructions will help prevent difficulties that might arise during thermostat installation. Studying the instructions first may save considerable time and money later. Observing the following procedures will keep installation time to a minimum. Save these instructions for future use.

FUNCTIONS AND FEATURES

• 120/208/240/277 Volts
• Both °C & °F control dials included
• Wall mount design—Sits flush against wall
- Fully vented cover allows air sensing in all directions

• Large knob allows easy adjustment to all temperatures
• Beveled face gives modern appearance
• No Ground wire design
• Mounts directly to a 2x4 inch vertical electrical outlet box

INSTALLATION INSTRUCTIONS

Warning: Turn OFF the power at the circuit breaker before Installing. Installation should be performed by a qualified electrician.

Refer to thermostat and heater load specifications before installation of the thermostat to see if it can handle the amp load. The maximum this thermostat can run is 4986 Watts at 277 Volts, 5820 Watts at 240 Volts, 4576 Watts at 208 Volts and 2640 Watts at 120 Volts.

Install unit in a grounded metal or plastic wall junction box, indoors 4 ½' to 5' above the floor. Avoid any area where it can come in contact with external sources of heat and cold. This includes plumbing pipes, direct sunlight, a T.V. set, lamps, and drafts from a door or window, as this may cause inaccurate temperature readings. The most convenient place is above the light switch. Not for Outdoor use.

KING ELECTRIC MFG CO · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH:206 762 0400 · FAX: [phone] · www.king-electric.com

INSTALLATION CONTINUED

The installation of the thermostat must comply with the applicable local and/or national electrical code and utility requirements. This installation should be performed by a qualified electrician where required by law. Ensure that all wiring connections to the thermostat are correct and tight to prevent electrical shorts. Use the appropriate wire to meet local and national electrical codes for rated power consumption.

WIRING INSTRUCTIONS

Single Pole Thermostat Installation

1. Disconnect power supply to prevent electrical shock or damage to the product.
2. Run line voltage wiring to the location of thermostat.
3. Connect the red LINE lead on the thermostat to L1 line from the power supply panel.
4. Connect the black LOAD lead from the thermostat to the line lead on the heater.
5. Connect N Neutral (L2) line to the remaining line of the heater.
6. Secure the ground wire to the ground screw provided in the junction box.
7. Make sure wire connections are tight.
8. Insert wires into the junction box, making sure not to damage wiring.
9. Remove the thermostat cover by grabbing the cover from the sides and pulling it away from base.
10. Mount the thermostat base onto the junction box and secure using the provided screws.

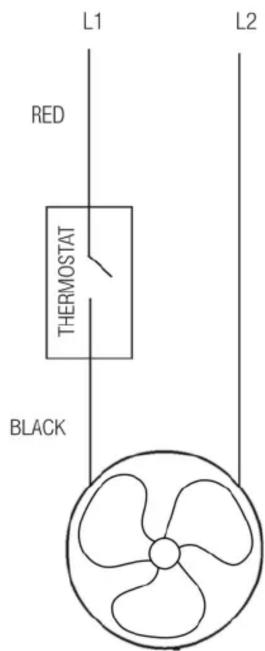

Single Pole Installation

PRODUCT SETUP AND SETTINGS

To adjust the temperature to your requirements, turn the dial on the thermostat clockwise all the way to turn fan on. When the room reaches the desired temperature, turn the thermostat knob counter clockwise until you hear the click. Leave in this position to maintain the room temperature at this setting. For additional cooling, turn clockwise until you the click and the heater will turn on.

- Single pole models—Turning knob fully counter clockwise will set the temperature rating to 90^ .

Changing °C and °F control dials

Use a small flathead screwdriver to pry off the control dial. Insert into one of the slots on the dial and gentle apply pressure to remove. To install the new control dial, line up the pins on the dial with the holes on the thermostat knob. Push together until secured into place.
