Product Type	Whiteboard
Brand	Quartet
Model	Classic S533
Frame Options	Euro Aluminum, Aluminum, Wood Finish
Surface	Dry-Erase
Mounting Type	Wall-mounted with hangers and L-brackets
Installation	Requires drilling and wall anchors (1/4" drill bit)
Included Accessories	Marker tray, mounting hardware, plastic corner caps
Marker Tray	Attaches to board frame before mounting
Cleaning	Use dry-erase cleaner or water with soft cloth
Suitable For	Office, classroom, home
Frame Material	Aluminum or wood (depending on option)
Assembly Required	Yes
Safety	Ensure anchors are fully expanded and screws tightened
Spare Parts	Marker tray, mounting brackets, anchors available from manufacturer
Repairability	Replacement parts may be ordered; contact Quartet/ACCO Brands
Country of Origin	Not specified
Package Includes	Board, marker tray, mounting hardware, instruction manual

Frequently Asked Questions - Classic S533 Quartet

How do I mount the Quartet Classic S533 whiteboard?

Mounting instructions vary by frame type: Euro Aluminum, Aluminum, or Wood Finish. For all types, first attach the marker tray to the board frame using the accessory kit. Then determine board location, mark and drill holes for top hanging brackets (6" from outer edge, specific distance from top depending on frame). Insert wall anchors, attach brackets, hang board at a 15° angle, and lower flush to wall. For Aluminum and Wood Finish frames, also install L-brackets at top and bottom. Refer to the manual for exact measurements.

What tools are needed for installation?

You will need a 1/4" drill bit for drilling holes for wall anchors, a 1/8" drill bit for pilot holes in the frame (for L-brackets), a screwdriver (for expanding anchors and driving screws), a level, and a measuring tape. The mounting hardware including anchors, brackets, and screws is included.

How do I attach the marker tray?

Before mounting the board to the wall, refer to the instructions in the Accessory Kit to attach the marker tray to the bottom of the board frame. The tray clips onto the frame; ensure it is securely fastened before hanging the board.

What are the different frame options for the Classic S533?

The Classic S533 is available in three frame styles: Euro Aluminum Frame, Aluminum Frame, and Wood Finish Frame. Each has slightly different mounting instructions, particularly the distances for bracket placement. The mounting instructions in the manual cover all three.

Can I use the board as a bulletin board?

The Quartet Classic S533 is a dry-erase whiteboard, designed for use with dry-erase markers. It is not intended as a bulletin board for pins. However, if you need a magnetic surface, check the product specifications; this model may not be magnetic.

How do I clean the dry-erase surface?

Clean the board with a soft cloth or eraser. For stubborn marks, use a dry-erase board cleaner or a mild solution of water and isopropyl alcohol. Avoid abrasive cleaners or scrubbing pads that could damage the surface.

What if the board is not level after mounting?

Before finalizing installation, use a level to ensure the board is straight. If it is not level, you may need to adjust the wall anchors or reposition the hangers. Ensure the mounting brackets are installed at the same height on both sides. For L-bracket installations, pilot holes in the frame can be adjusted slightly.

Are there different mounting instructions for the wood finish frame?

Yes, the Wood Finish Frame has different distances: top hangers are 2-1/4" down from top of board (instead of 7/8" or 1-3/8"), and L-brackets are placed 2-1/2" up from bottom and 2" down from top. Always follow the specific section for your frame type in the manual.

How do I remove the plastic corner caps?

The corner caps are plastic pieces covering the screws at the corners. To remove them, gently pry them off with a flat-head screwdriver or your fingers. After installing screws through the corners into wall anchors, replace the caps by pressing them into place over the screws.

Can I reposition the board after installation?

It is possible but not recommended as it may damage the wall or the board. To reposition, you would need to remove the board, patch and re-drill holes for anchors. If drywall anchors are used, they may not hold if removed and reinserted. Plan the location carefully before mounting.

USER MANUAL Classic S533 Quartet

EURO ALUMINUM FRAME BOARD – Mounting Instructions

*NOTE – For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1 Step 2

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 1-3/8" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

Turn screw counter-clockwise to remove screw from anchor and re-insert through hanging bracket into wall anchor (B). Tighten firmly. Holding the board at (approx.) 15° angle, place the channel in the back of the frame over the wall hangers. Lower the board so it is flush to the wall (C).

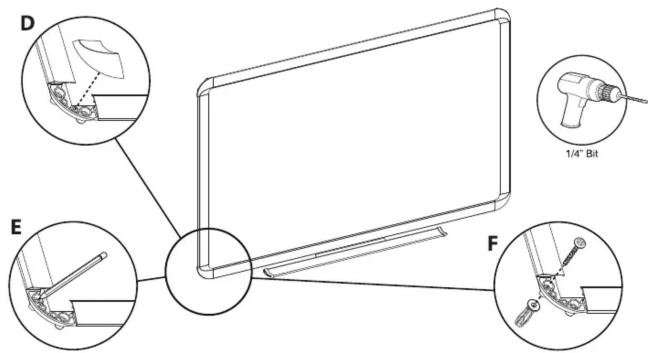

Remove plastic corner caps (D), mark wall through top hole of each corner (E). Remove board from wall and drill holes in marked locations using a 1/4" drill bit. Install wall anchors as indicated in Step #1 (F). Re-hang board and insert screw through plastic corner and into wall anchor. Tighten firmly. Replace corner caps by pressing into place over the screws. (L-Brackets & Truss Head Screws are not required.)

ALUMINUM FRAME BOARD - Mounting Instructions

*NOTE – For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 7/8" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

Turn screw counter-clockwise to remove screw from anchor and re-insert through hanging bracket into wall anchor (B). Tighten firmly. Holding the board at (approx.) 15° angle, place the channel in the back of the frame over the wall hangers. Lower the board so it is flush to the wall (C).

Step 2

To position bottom "L" brackets, mark wall 1-5/8" up from bottom of board 6" from each outside edge (D). To position top "L" brackets, mark wall 1-5/8" down from top of board and a 1/4 of the board width from each outside edge. Drill holes in marked locations using a 1/4" drill bit. Insert wall anchors and mount "L" brackets as indicated in Step #1 (E). Hang board and mark frame through hole in each "L" bracket. Remove board and drill pilot hole at each mark with 1/8" drill bit. Re-hang board and insert #8 x 1/2" truss head screw through each "L" bracket and into pilot hole in frame (F). Tighten firmly.

WOOD FINISH FRAME BOARD – Mounting Instructions

*NOTE – For Dry-Erase Boards:

Before mounting board to wall, please refer to instructions in "Accessory Kit" to attach the marker tray to the board frame.

Step 1

Determine board location. To position top hanging brackets, mark center hole of hanger 6" from outside edge of board and 2-1/4" down from top of board (A). Drill holes for each hanger in marked locations using a 1/4" drill bit. Tap anchor into hole flush to wall with metal "teeth" firmly embedded. Turn screw clockwise to expand metal legs. Stop when strong resistance is felt and legs are fully expanded.

Insert screws through hanging brackets into the wall anchor (B). Tighten firmly. Place the channel in the back of the frame over the wall hangers. Push top of frame down until board is fully engaged on hangers (C).

Step 2

To position bottom "L" brackets, mark wall 2-1/2" up from bottom of board 6" from each outside edge (D). To position top "L" brackets, mark wall 2" down from top of board and a 1/4 of the board width from each outside edge. Drill holes in marked locations using a 1/4" drill bit. Insert wall anchors and mount "L" brackets as indicated in Step #1 (E). Hang board and mark frame through hole in each "L" bracket. Remove board and drill pilot hole at each mark with 1/8" drill bit. Re-hang board and insert #8 x 1/2" truss head screw through each "L" bracket and into pilot hole in frame (F). Tighten firmly.

ACCESSORY PAGE CLIP

- Applies to all boards

Hardware Kit

Dry-Erase and Bulletin Board Installation Instructions

Illustration of a flat-screen monitor with a mesh screen and a magnified inset showing the front portion (no text or symbols)

ACCO Brands

300 Tower Parkway

Lincolnshire, IL 60069-3640

www.quartet.com

www.acco.com
