Product Type	Electric Water Heater
Brand	Jocel
Model	JT50L400154
Capacity	50 L (13.2 gal)
Dimensions (H x W x D)	600 x 400 x 400 mm
Weight (empty)	15 kg
Power Rating	1500 W
Voltage / Frequency	220-240 V / 50 Hz
Energy Efficiency Class	C
Max Temperature	75 °C
Thermostat Control	Adjustable
Heating Element	1 Copper element
Tank Material	Enamelled steel
Insulation	Polyurethane foam
Safety Features	Thermal cut-off, pressure relief valve, anti-corrosion anode
Installation Type	Wall-mounted
Water Connections	G 1/2 inch
Warranty	2 years
Included Accessories	Safety valve, mounting hooks

Frequently Asked Questions - JT50L400154 Jocel

How to install the water heater?

Installation must be performed by a qualified professional. Ensure the wall can support the weight, connect to cold water supply and hot water outlet, and install the pressure relief valve. Refer to the manual for detailed steps.

What is the recommended water pressure?

The recommended water pressure is between 0.2 and 0.6 MPa (2-6 bar). If pressure exceeds 0.6 MPa, install a pressure reducing valve.

How to adjust the temperature?

Turn the thermostat knob located near the bottom of the heater. Use a screwdriver to adjust to desired temperature (max 75 °C). Disconnect power before adjusting.

Why is there no hot water?

Check if power supply is connected and the circuit breaker is on. Also verify that the thermostat is set correctly and the heating element is functioning. If issues persist, contact a technician.

How often should I replace the anode rod?

The anti-corrosion anode should be inspected every year and replaced every 2-3 years to prevent tank corrosion. Signs of heavy depletion indicate replacement is needed.

Can I use the heater without the pressure relief valve?

No, the pressure relief valve is essential for safety. It prevents excessive pressure buildup. The heater must never be operated without it.

What maintenance is required?

Periodically check the pressure relief valve for operation, flush the tank to remove sediment, and inspect the anode rod. Refer to manual for detailed maintenance schedule.

Is the heater suitable for hard water areas?

Yes, but hard water may cause scale buildup. Regular flushing and using a water softener can help maintain performance and extend lifespan.

What does the energy efficiency class mean?

Class C indicates moderate energy efficiency. To save energy, set thermostat to 60 °C and insulate exposed pipes. Use during off-peak hours if possible.

How to drain the water heater?

Turn off power and close the cold water supply. Connect a hose to the drain valve, open the valve and a hot water tap to allow air in. Drain completely before servicing.

USER MANUAL JT50L400154 Jocel

Simple line drawing of a white rectangular container with a circular top and a central button (no text or symbols)

Technical line drawing of a mechanical assembly with hatched background and internal components (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and internal shaft (no text or symbols)

(Fig.3)

Simple line drawing of a rectangular container with a circular top and a central button, no text or symbols present.

Technical line drawing of a mechanical assembly with hatched background and vertical structural elements (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and labeled force arrow (no text or symbols)

(Fig.3)

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Simple line drawing of a rectangular container with a circular top and a central button, no text or symbols present.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

General Remark

• The installation and maintenance has to be carried out by qualified professionals or authorized technicians.
• The manufacturer shall not be held responsible for any damage or malfunction caused by wrong installation or failing to comply with following instructions included in this pamphlet.

TABLE OF CONTENTS

TITLE PAGE

1. Cautions ......(2)
   2.Product introduction ....(3)
2. Unit installation ....(5)
   4.Methods of using....(7)
3. Maintenance....(7)
   6.Troubleshooting....(8)
4. Produce information with EU regulation .....(9)

1. CAUTIONS

Before installing this water heater, check and confirm that the earthing on the supply socket is reliably grounded. Otherwise, the electrical water heater can not be installed and used. Do not use extension boards. Incorrect installation and use of this electrical water heater may result in serious injuries and loss of property.

Special Cautions

- The water heater is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the heater.

- The wall in which the electrical water heater is installed must be able to bear the load more than two times of the heater filled fully with water without distortion and cracks. Otherwise, other strengthening measures must be adopted.

- The supply socket must be earthed reliably. The installation height of the supply socket must not be lower than 1.8m. The rated current of the socket must not be lower than 16A. The socket and plug must be kept dry to prevent electrical leakage. If the flexible power supply cord is damaged, the special supply cord provided by the manufacturer must be selected, and replaced by the professional maintenance personnel.

- The maximum inlet water pressure is 0.5MPa; the minimum inlet water pressure is 0.1MPa, if this is necessary for the correct operation of the appliance.

- When using the heater for the first time (or the first use after maintenance), the heater can not be switched on until it has been filled fully with water. When filling the water, at least one of the outlet valves at the outlet of the heater must be opened to exhaust the air. This valve can be closed after the heater has been filled fully with water.

- The pressure relief valve attached with the heater must be installed at the cold water inlet of this heater, and make sure it is not exposed in the foggy. The water may be outflowed from pressure relief valve, so the outflow pipe must open wide in the air. In order to drain away the water inside the inner container, it can be drained away from the pressure release valve. Twist the thread screw of the pressure release valve off, and lift the drain handle upwards(See Fig.1). The drainage pipe connected to the pressure release hole must be kept sloping downwards and in a frost-free environment. The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere.

- During heating, there may be drops of water dripping from the pressure release hole of the pressure relief valve, this is a normal phenomenon. The pressure release hole shall not be blocked under no circumstances, otherwise, the heater may get damaged, even resulting in accidents. If there is a large amount of water leak, please contact customer care center for repair.

- The pressure relief valve need to be checked and cleaned regularly, so as to make sure it will not be blocked.

- Since the water temperature inside the heater can reach up to 75°C, the hot water must not be exposed to human bodies when it is initially used. Adjust the water temperature to a suitable temperature to avoid scalding.

- If any parts and components of this electrical water heater are damaged please contact customer care center for repair.

(Fig.1)

2. PRODUCT INTRODUCTION

2.1 Technical Performance Parameters

Model	Volume (L)	Rated Power (W)	Rated Voltage (ACV)	Rated Pressure (MPa)	Max Of Water Temperature (°C)	Protection Class	Waterproof Grade
JT30L400147	30		220-240		750.7520	00 I	IPX4
JT50L400154	50		220-240		750.7520	00 I	IPX4
JT80L400161	80		220-240		750.7520	00 I	IPX4
JT100L400178	100		220-240		750.7520	00 I	IPX4

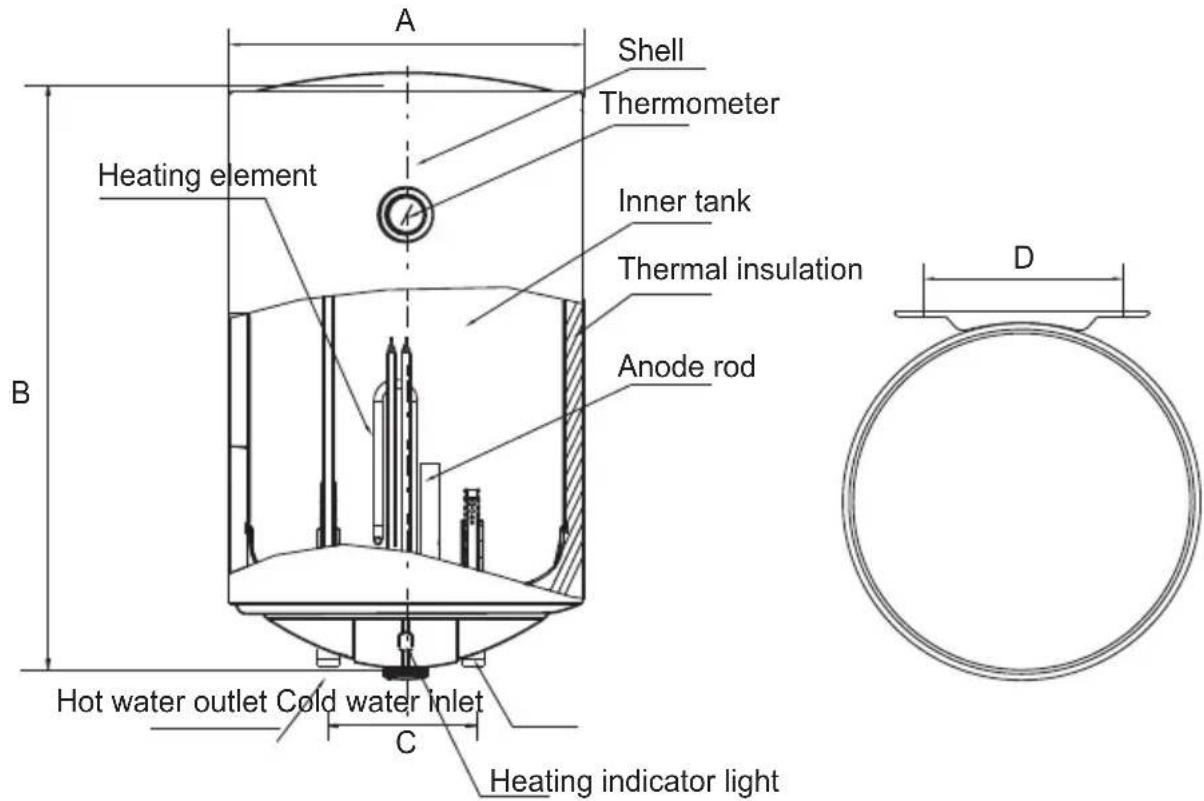

2.2 Brief introduction of product structure

	JT30L400147	JT50L400154	JT80L400161	JT100L400178
A	340	385	450	450
B	605	770	805	970
C	100	100	100	100
D	200	200	200	200

(Note: All dimensions are in mm)

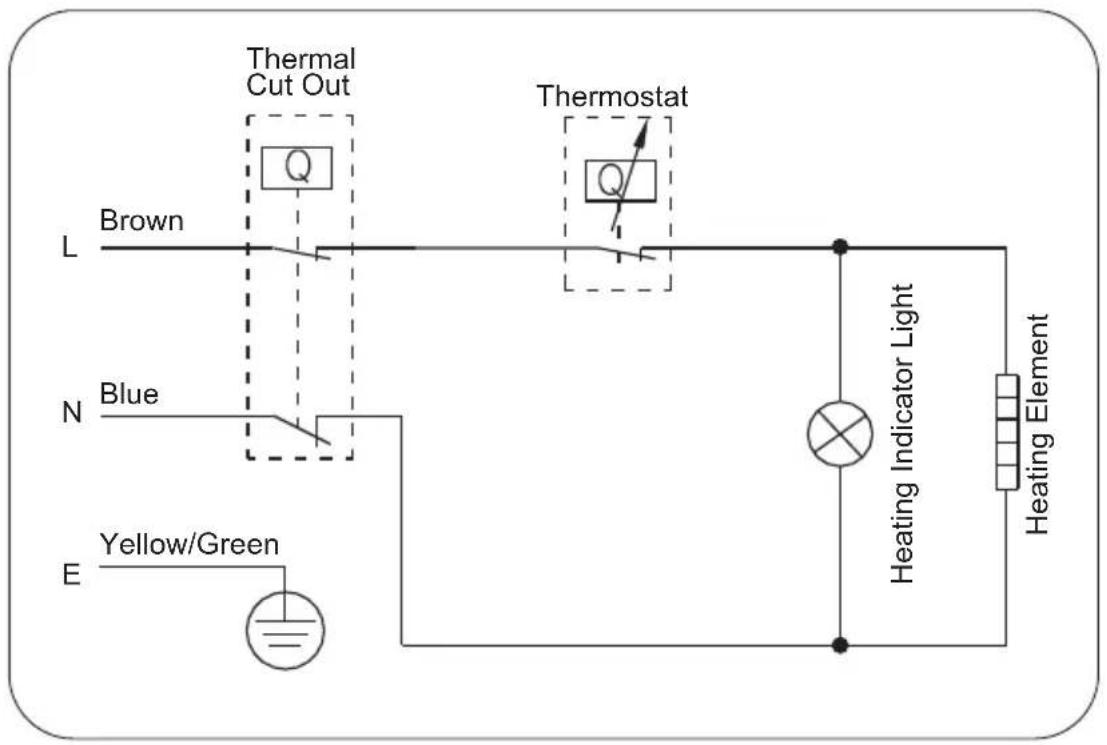

2.3 Internal Wire Diagram

3. UNIT INSTALLATION

3.1 Installation Instruction

① This electrical water heater shall be installed on a solid wall. If the strength of the wall cannot bear the load equal to two times of the total weight of the heater filled fully with water, it is then necessary to install a special support.
Incase of hollow bricks wall, ensure to fill it with cement concrete completely.

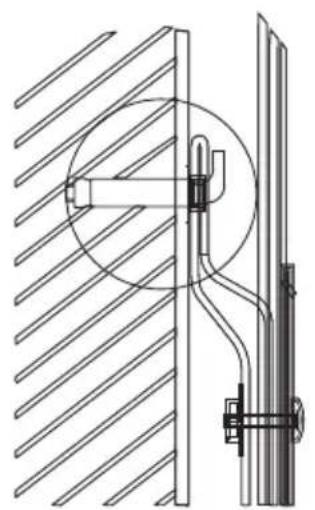

② After selecting a proper location, determine the positons of the two install holes used for expansion bolts with hook, Make two holes in the wall with the corresponding depth by using a chopping bit with the size matching the expansion bolts attached with the machine, insert the screws, make the hook upwards, tighten the nuts to fix firmly, and then hang the electrical water heater on it (see Fig.2).

Technical diagram of a mechanical assembly with hatched background and connected components (no text or symbols)

Cross-sectional diagram of a mechanical component with hatched fill and labeled point B (no text or symbols beyond label)

Expansion bolt (with hook)
(Fig.2)

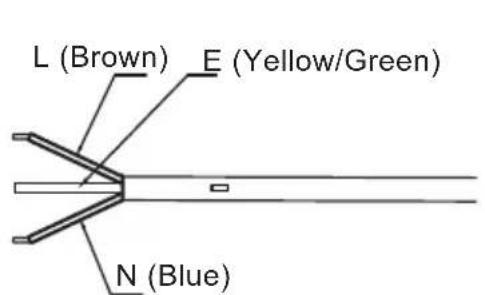

③ Install the supply socket in the wall. The supply socket be 220V. It is recommended to placed the socket on the right above the heater. The height of the socket to the ground shall not be less than 1.8m (see Fig.3). If there is fault on power cable, it should be replaced by the manufacturers, agencies or qualified person who is able to do this so as to ensure the safety.

(Fig.3)

④ If the bathroom is too small, the heater can be installed at another place. However, in order to reduce the pipeline heat losses, the installation position of the heater shall be closed to the location shall be as near as possible to the heater.

3.2 Pipelines Connection

① The dimension of each pipe part is G1/2"; The massive pressure of inlet should use Pa as the unit; The minimum pressure of inlet should use Pa as the unit.

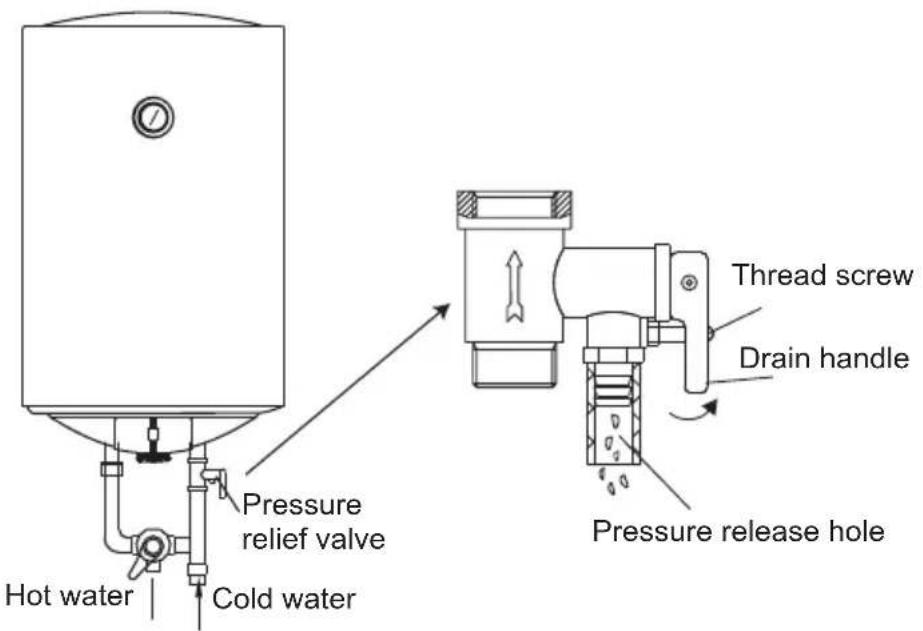

② Connection of pressure relief valve with the heater on the inlet of the water heater.

③ In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).

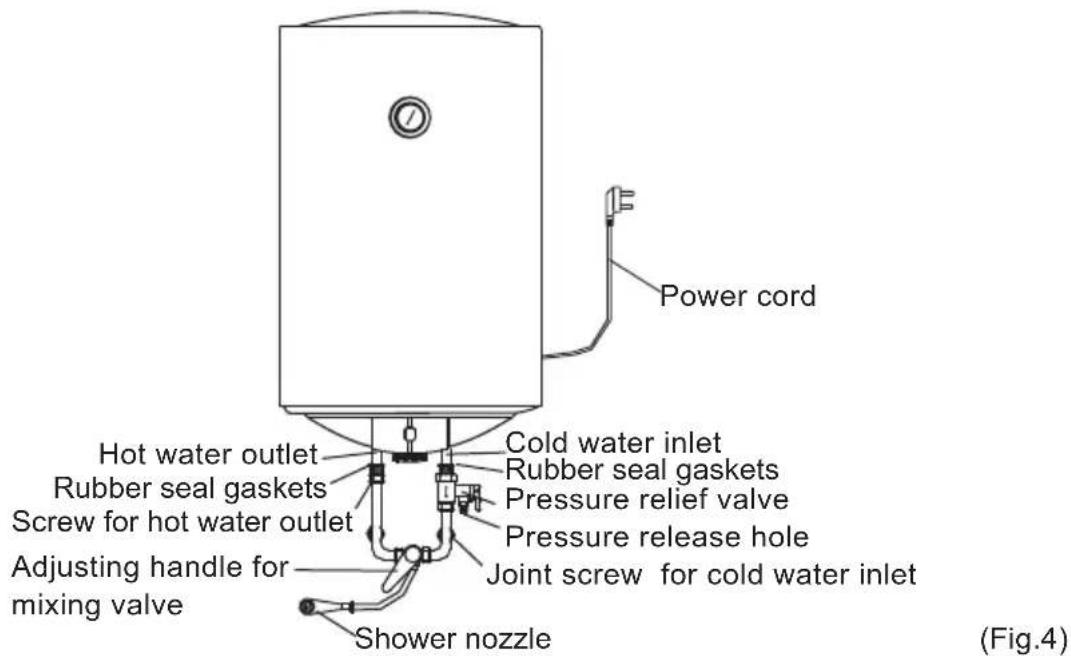

① The dimension of each pipe part is G1/2"; The massive pressure of inlet should use Pa as the unit; The minimum pressure of inlet should use Pa as the unit.
② Connection of pressure relief valve with the heater on the inlet of the water heater.
③ In order to avoid leakage when connecting the pipelines, the rubber seal gaskets provided with the heater must be added at the end of the threads to ensure leak proof joints (see Fig.4).

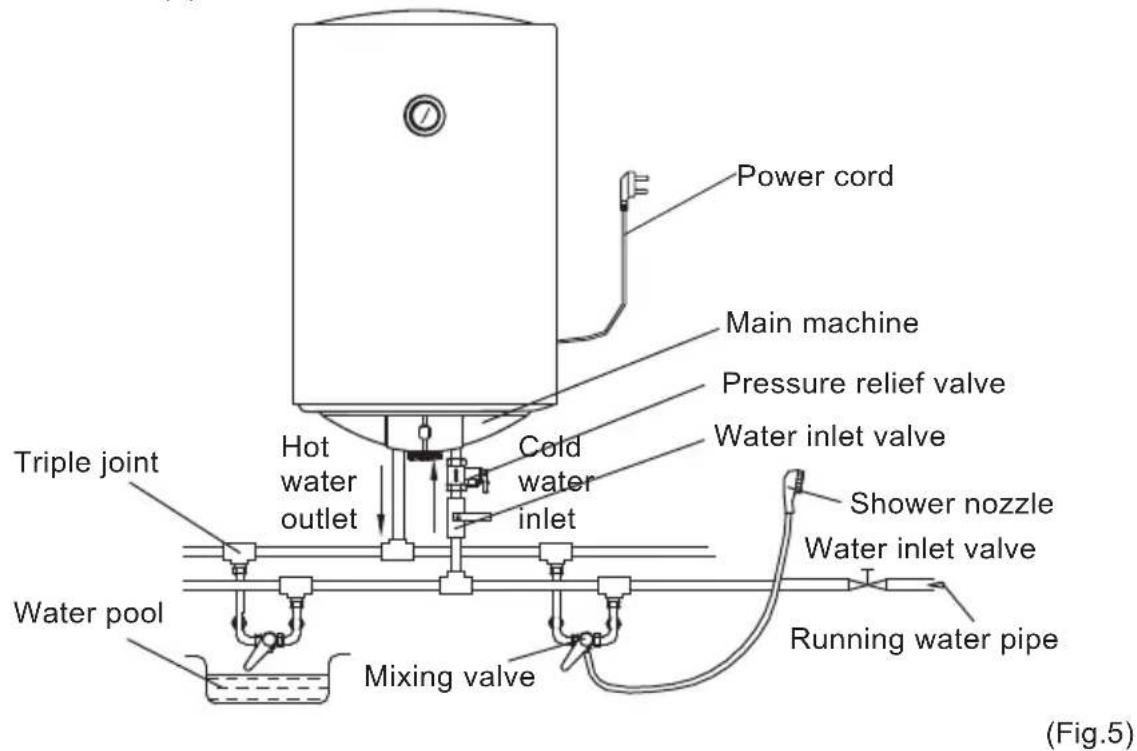

④ If the users want to realize a multi-way supply system, refer to the method shown in fig.5 for connection of the pipelines.

NOTE

Please be sure to use the accessories provided by our company to install this electric water heater. This electric water heater can not be hung on the support until it has been confirmed to be firm and reliable. Otherwise, the electric water heater may drop off from the wall, resulting in damage of the heater, even serious accidents of injury. When determining the locations of the bolt holes, it shall be ensured that there is a clearance not less than 0.2m on the right side of the electric heater, to convenient the maintenance of the heater, if necessary.

4. METHODS OF USING

- First, open any one of the outlet valves at the outlet of the water heater, then, open the inlet valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies that the heater has been filled fully with water, and the outlet valve can be closed.

NOTE

During normal operation, the inlet valve shall be always kept open.

- Insert the supply plug into the socket.

- Rotate the temperature adjusting knob, the “HEATING” indicator will light up. According to the marking on the knob to increase or decrease the setting temperature. The thermostat will automatically control the temperature. When the water temperature inside the heater has reached the set temperature, it will switch off automatically and light off the “Heating” indicator. When the water temperature falls below the set point, the heater will be turned on automatically to restore the heating, the indicator will light up again.

5. MAINTENANCE

WARNING

Before doing any maintenance, please cut off the power supply.

- Check the power plug and outlet as often as possible. Secure electrical contact and also proper grounding must be provided. The plug and outlet must not heat excessively.

- If the heater is not used for a long time, especially in regions with low air temperature (below 0^ ), it is necessary to drain water from the heater to prevent damage of the water heater, due to water freezing in the internal tank. (Refer Cautions in this manual for the method to drain away the water from the inner container).

- To ensure long reliable water heater operation, it is recommended to regularly clean the internal tank and remove deposits on the electric heating element of the water heater, as well as check condition (fully decomposed or not) of the magnesium anode and, if necessary, replace it with a new one in case of full decomposition. Tank cleaning frequency depends on hardness of water located in this territory. Cleaning must be performed by special maintenance services. You can ask the seller for address of the nearest service center.

- The water heater is equipped with a thermal switch, which cuts off power supply of the heating element upon water overheating or its absence in the water heater. If the water heater is connected to the mains, but water is not heated and the indicator doesn't light up, then the thermal switch was switched off or not switched on. To reset the water heater to the operating condition, it is necessary to:

1. De-energize the water heater, remove the plate of the side/lower cover.

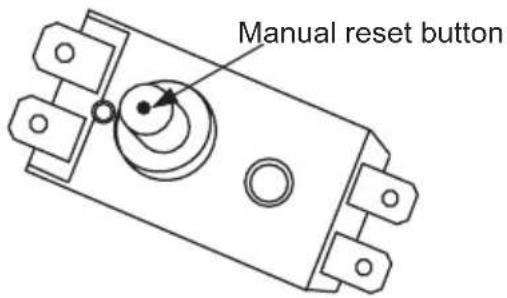

2. Press the button, located at the center of the thermal switch, see Fig.6;
3. If the button is not pressed and there is no clicking, then you should wait until the thermal switch cools down to the initial temperature.

(Fig.6)

WARNING

Non-professionals are not allowed to disassemble the thermal switch to reset. Please contact professionals to maintain. Otherwise our company will not take responsibility if any quality accident happens because of this.

6. TROUBLESHOOTING

Failures Reasons Treatment
The heating indicator light is off.	Failures of the temperature controller.	Contact Assistance Service helping for repair.
No water coming out of the hot water outlet.	1. The running water supply is cut off.2. The hydraulic pressure is too low.3. The inlet valve of running water is not open.	1. Wait for restoration of running water supply.2. Use the heater again when the hydraulic pressure is increased.3. Open the inlet valve of running water.
The water temperature is too high.	Failures of the temperature control system.	Contact Assistance service helping for repair.
Water leak.	Seal problem of the joint of each pipe.	Seal up the joints.

NOTE

Parts illustrated in this use and care manual are indicative only, parts provided with the product may differ with illustrations. This product is intended for household use only. Specifications are subject to change without notice.

7. Produce information with EU regulation

The electrical storage water heater JT30L400147 of the company Jocel, Lda was tested with a declared load profile of the size “M”

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 33.7%

that correspond to the water heating efficiency class "C"

In accordance with AnnexI Energy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricityconsumption Q_elec water heating energy efficiency _wh and mixed water at 40°C (V40)

Description tinUeulaVretemaraP
k-Value k		0.23
Smart control compliance	smart	0
Smart control factor SCF		0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor	-0.295	kWh
Referenct energy	Q_ref	2.1	kWh
Useful energy content	Q_H2O	2.113	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O	0.994	kWh
Daily electricity consumption (measured)	Q_test\_elec	2.611	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	60.7	°C
Water temperature at the end of the 24h measurement cycle	T5	60.2	°C
Storage volume	M_cd	30.3	kg
Storage volume	C_act	30.3	L
Daily electricity consumption (corrected)	Q_elec	2.612	kWh
Water heating energy efficiency	η_wh	33.7
Annual Electricity Consumption	AEC	548	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	60	°C
Average water temperature of outlet warm water	θ'_p	56.3	°C
Average water temperature of inlet cold water	θ_c	10.4	°C
Normalised value of the average temperature	θ_p	56.3	°C
Volume that delivered water of at least 40°C	V_40exp	20	L
Calculated volume that delivered hot water of at least 40°C	V_40	31	L

The electrical storage water heater JT50L400154 of the company Jocel, Lda was tested with a declared load profile of the size “M”

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 36.1%

that correspond to the water heating efficiency class “C”

In accordance with Annex II Energy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation(No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec and water heating energy efficiency _wh and mixed water at 40°C (V40)

Description tinUeulaVretemaraP
k-Value k		0.23
Smart control compliance	smart	0
Smart control factor	SCF	0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor	-0.467	kWh
Referenct energy	Q_ref	5.845	kWh
Useful energy content	Q_20	5.883	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O	0.994	kWh
Daily electricity consumption (measured)	Q_test\_elec	6.788	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	74.9	°C
Water temperature at the end of the 24h measurement cycle	T5	76.5	°C
Storage volume	M_act	50.6	kg
Storage volume	C_act	50.6	L
Daily electricity consumption (corrected)	Q_elec	6.656	kWh
Water heating energy efficiency	η_wh	36.1
Annual Electricity Consumption	AEC	1421	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	75	°C
Average water temperature of outlet warm water	θ'_p	72	°C
Average water temperature of inlet cold water	θ_c	10.3	°C
Normalised value of the average temperature	θ_p	72	°C
Volume that delivered water of at least 40°C	V_40exp	40	L
Calculated volume that delivered hot water of at least 40°C	V_40	82	L

The electrical storage water heater JT80L400161 of the company Jocel, Lda was tested with a declared load profile of the size “M”

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 36.5%

that correspond to the water heating efficiency class “C”

In accordance with AnnexII Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description tinUeulaVretemaraP
k-Value k		0.23
Smart control compliance	smart	0
Smart control factor SCF		0
Conversion coefficient CC		2.5
Ambient correction term	Q_cor	-0.423	kWh
Referenct energy	Q_ref	5.845	kWh
Useful energy content	Q_H2O	5.884	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O	0.993	kWh
Daily electricity consumption (measured)	Q_test\_elec	6.624	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	59.2	°C
Water temperature at the end of the 24h measurement cycle	T5	59.2	°C
Storage volume	M_act	80.6	kg
Storage volume	C_act	80.6	L
Daily electricity consumption (corrected)	Q_elec	6.580	kWh
Water heating energy efficiency	η_wh	36.5
Annual Electricity Consumption	AEC	1408	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	59	°C
Average water temperature of outlet warm water	θ'_p	56.4	°C
Average water temperature of inlet cold water	θ_c	10.1	°C
Normalised value of the average temperature	θ_p	56.4	°C
Volume that delivered water of at least 40°C	V_40exp	57	L
Calculated volume that delivered hot water of at least 40°C	V_40	88	L

The electrical storage water heater JT100L400178 of the company Jocel, Lda was tested with a declared load profile of the size “M”

The product fulfills and corresponds to the requirements of the commission regulation standards (No 814/2013) for electrical storage water heater and achieved a water heating energy efficiency of _wh = 36.1%

that correspond to the water heating efficiency class “C”

In accordance with AnnexI Enercy Efficiency Classes article 1 of the commission regulation (No 812/2013)

The evaluation of the result of this report with respect of conformity with the related commission regulation (No 812/2013 and 814/2019) is only a part of the conformity assessment to achieve the ErP-Label.

Electricity consumption Q_elec , water heating energy efficiency _wh and mixed water at 40°C (V40)

Description tinUeulaVretemaraP
k-Value k		0.23
Smart control compliance	smart	0
Smart control factor SCF		0
Conversion coefficient	CC	2.5
Ambient correction term	Q_cor	-0.474	kWh
Referenct energy	Q_ref	5.845	kWh
Useful energy content	Q_2O	5.867	kWh
Correction ratio of reference and useful energy	Q_ref/Q_H2O	0.996	kWh
Daily electricity consumption (measured)	Q_test\_elec	6.541	kWh
Water temperature at the beginning of the 24h measurement cycle	T3	59.1	°C
Water temperature at the end of the 24h measurement cycle	T5	57.8	°C
Storage volume	M_act	101.2	kg
Storage volume	C_act	101.2	L
Daily electricity consumption (corrected)	Q_elec	6.669	kWh
Water heating energy efficiency	η_wh	36.1
Annual Electricity Consumption	AEC	1423	kWh
Water heating energy efficiency class		C
Description	Parameter	Value	Unit
Water temperature without tapping	T_set	58	°C
Average water temperature of outlet warm water	θ'_p	56.4	°C
Average water temperature of inlet cold water	θ_c	10.1	°C
Normalised value of the average temperature	θ_p	56.4	°C
Volume that delivered water of at least 40°C	V_40exp	68	L
Calculated volume that delivered hot water of at least 40°C	V_40	105	L

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product W ATER HEATER

Brand J OCEL

Model JT30L4 00147 / JT50L400154 / JT80L400161 / JT100L400178

Complies with the following European directives and standards implementation

Low Voltage

2014/35/EU E N 60335-2-21:2003+A1:2005+

A2:2008

EN 60335-1:2012+AC 1:2012+

A11:2014+A13:2017

EN 62233:2008

Electromagnetic

2014/30/EU EN 55014-1:2017

EN55014-2:2015

E

N 61000-3-2:2014

EN 61000-3-3:2013+A1:2017

The product is subject to change without notice. Please keep this manual properly.
