Product Type	Mist Fan
Brand	Jocel
Model	JVAP030511
Rated Voltage	220V~
Rated Frequency	50Hz
Fan Power	50W
Humidity Power	30W
Total Power	80W
Mist Volume	230ml/h
Blade Diameter	300mm
Water Tank Capacity	2000ML
Fan Speeds	3 (low, medium, high)
Wind Modes	Normal, Natural, Sleep
Oscillation	Yes (Swing function)
Timer	Up to 8 hours (1-hour increments)
Humidifier	Ultrasonic, with waterless alarm
Anion Generator	Yes (air purification)
Mosquito Repellent	Yes (with incense mat)
Temperature Display	Yes (built-in sensor)
Remote Control	Yes (battery not included, 2xAAA)
Control Panel	LED display with touch buttons
Castors	4 (included for mobility)
Water Tank Access	Removable tank with screw cap
Cleaning	Weekly tank cleaning; detergent for hard water stains
Storage	Cool and dry place

Frequently Asked Questions - JVAP030511 Jocel

How do I add water to the mist fan?

Open the door on the fan, lift the water tank upward, remove it, turn it upside down, unscrew the cap, fill with water (below 40°C), screw the cap back, flip and reinstall the tank.

What does the waterless alarm do?

When the water level is too low, the alarm sounds three times, the display shows 'DRY', and the spraying function automatically shuts off to protect the device.

How do I use the mosquito repellent function?

Insert the insect repellent mat (T 2.5 x W 22 x D 35mm) into the hole at the back of the fan. Press the INSECT REPELLENT button on the control panel or remote to turn it on.

What are the wind modes and how do I change them?

Press the WIND button to cycle through Normal (fixed speed), Natural (simulates varying wind), and Sleep (gradually reduces speed every 30 minutes).

How do I set the timer?

Press the TIMING button repeatedly to set the desired time from 1 to 8 hours in 1-hour increments. The LED display will show the selected time.

What should I do if the fan is on but not working?

Check if the motor is locked, voltage is too low, or circuit board is faulty. Try starting at high speed, increase voltage, or have the circuit board replaced by a technician.

How often should I clean the water tank?

It is recommended to clean the water tank once a week. Use detergent for hard water stains, rinse thoroughly, and dry with a cloth.

Can I use the mist function alone without the fan?

Yes, the SPRAYING button can be used independently to activate the humidifier without the fan.

What type of water should I use?

Use distilled or demineralized water to prevent mineral buildup and ensure optimal mist production. Water temperature should be below 40°C.

How do I replace the remote control battery?

Open the battery compartment on the remote, insert two AAA batteries (not included) with correct polarity, and close the cover.

USER MANUAL JVAP030511 Jocel

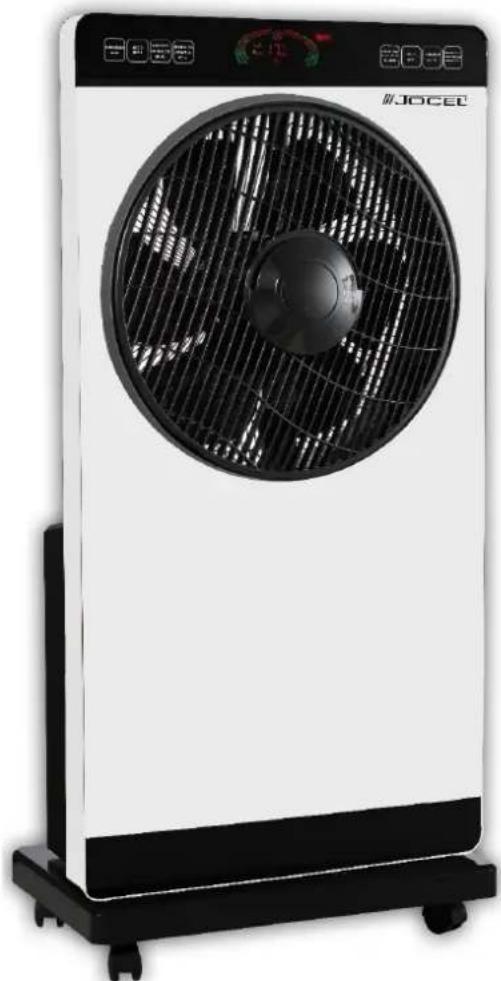

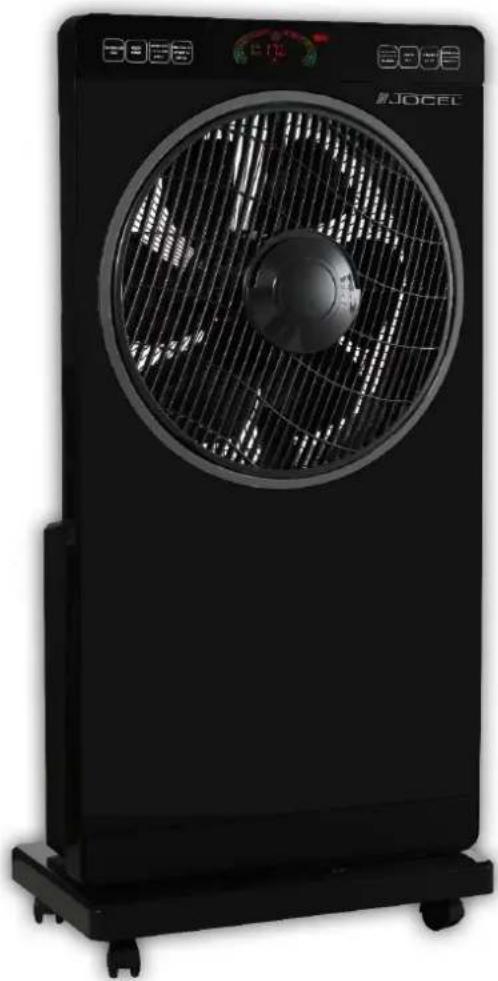

VENTOINHA NEBULIZADORA VENTILADOR NEBULIZADOR MIST FAN

JVAB030528

JVAP030511

Exterior view of a white outdoor air conditioner unit with black frame and digital display (no visible text or symbols)

Black JOCEL air conditioner unit with visible fan and control panel (no text or symbols on device body)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

Technical line drawing of a front-mounted air conditioning fan with visible blades and internal components (no text or symbols)

Depósito da água

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Bóia

Close-up of a black metal cabinet with a ventilation grille and door (no visible text or symbols)

Technical line drawing of a multi-volume air fan with blades and housing (no text or symbols)

Depósito de água

Pure electrical circuit lines without any symbols

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Close-up of a black cabinet with a white ventilation grille and door (no text or symbols visible)

Thanks for purchasing our product. In order to understand deeply and use properly, please read this manual carefully before using.

PRODUCT INTRODUCTION

The Mist Fan with a unique appearance and exquisite workmanship is also easy to operate. Functions include oscillating fan, ultrasonic humidifier, mosquito repellent, anion and temperature display. These functions can be used in unison or independently of one another. The mist fan can help you to stay cool during the hot season and keeps your air comfortably humid during the dry season to create a natural and relaxing environment.

SETTINGS AND ADJUSTMENT

*Humidifying: Uses ultrasonic high frequency oscillation principles to atomize the water into 1-5 micron ultrafine particles through the pneumatic setting, and then diffuses the water into the air, making the air more humid.

*Anion: Uses an anion generator which uses a pulse and a high oscillation circuit in order to produce and oxygen molecules. These will effectively produce reactive oxygen species and sterilize the air.

*Temperature Display: Electronic thermal sensors detect indoor temperatures, will work in unison with the fan, and there is no switch for this function.

*Waterless Alarm: Utilizes a sensor in order to control the water level, if the water level is too low the alarm will sound three times, "DRY" signal on the display will flash, and the spraying function will not work due to automatically disconnected power.

*Mosquito Repellent: Utilizes and distributes incense to achieve repellent effect when the metal plate is heated evenly.

HEALTHY HUMIDITY

A dry environment can lead to an excessive loss of body water and accelerates aging. Moist air can keep vitality. Keep a comfortable level of 45%RH-65%RH under various conditions in order to look and feel better. The ultrasonic mist fan will help to achieve this goal and create a comfortable environment.

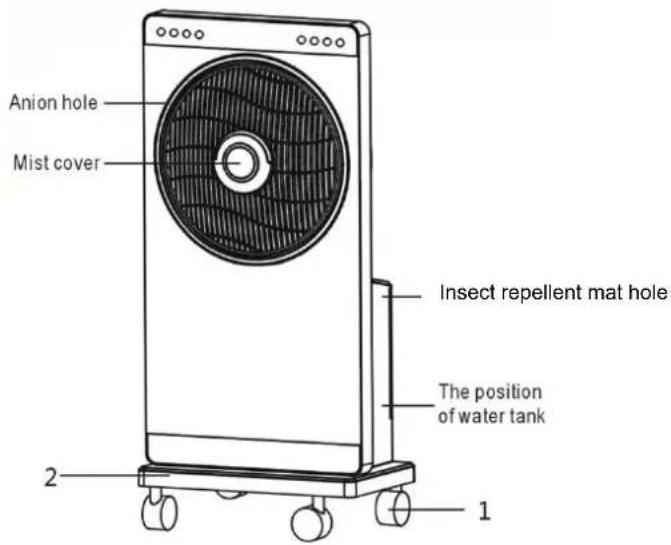

INSTALLATION

According to the above installation diagram, install as follows:

Step 1: Please balance to lay down the fan;

Step 2: Insert the castor 1 (quantities4) into the base2

Step 3: Power on the fan start working.

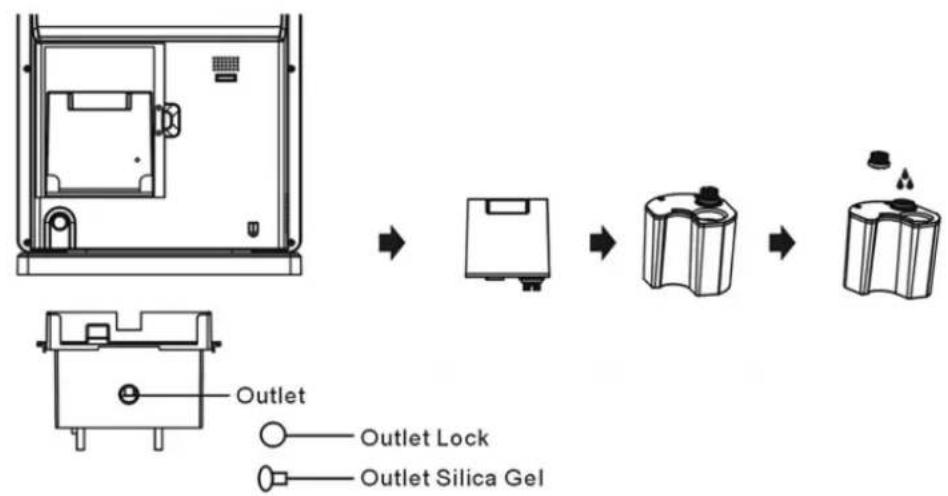

HOW TO ADD WATER

1. Open the door as shown in diagram.
2. Remove the tank by pulling it upward; take care not to spill water.
3. Turn the water tank so that the bottom side is facing upwards.
4. Remove the tank cover as shown and add water to the tank.
5. Screw on the tank cover, then flip the tank and return it to the fan body, ensuring that it is balanced.

STRUCTURE DIAGRAM & MAIN TECHNICAL PARAMETER

Rated Voltage	220V~
Rated Frequency	50Hz
Fan Power	50W
Humidity Power	30W
Total Power	80W
Mist Volume	230ml/h
Blade Diameter	300mm
Water tank	2000ML

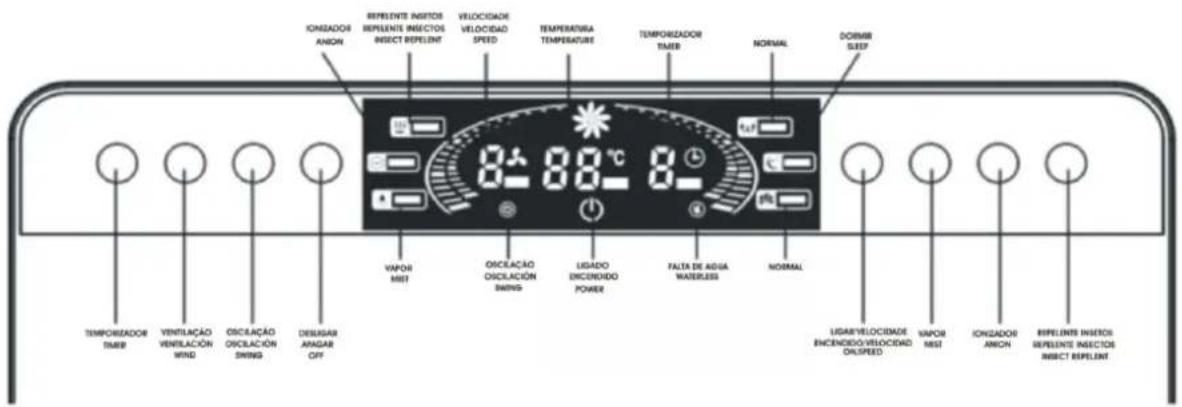

INSTRUSTION OF CONTROL PANEL

Plug in the fan, and check that indicator is on. Point the remote control at the receiving screen on the panel and press the function keys to select which function you would like to run.

ON/SPEED: Press once to start the fan then push again to adjust speed. It will show speeds 1,2 and 3.

SWING: Press this button, the rotating vane turning, the indicator of this function on, press again, the function stop

TIMING: Push to set the time that you need up to 8 hours in 1 hour increments. The LED display will reflect your selection.

WIND: Three settings: normal-natural-sleeping. Its normal when fan stars, to change press it to choose the desire settings.

Normal: The default setting will operate the 1, 2, or 3 speed;

Natural: Simulates real wind with varying power levels.

Sleeping: The fan will adjust from middle natural and weak natural in half hour increments until the preset time is completed.

ANION: Powers on the negative ion generator. When the indicator light is on it will release negative ions to purify the air. Press once is Anion function. Press 3 second could shut down the screen.

SPRAYING: This activates the humidifier, the indicator light will activate and cool mist will be released. This can work with the fan to cool the air or be used alone.

INSECT REPELLENT: Turn on/off the mosquito repellent function, can be used alone or with other functions.

OFF: This will shut off all functions (to close off the screen, just touch off button for 3s).

The remote control should be pointed towards the receiver if using. If it is not working check the battery power (not supplied 2 x AAA) and/or replace the batteries.

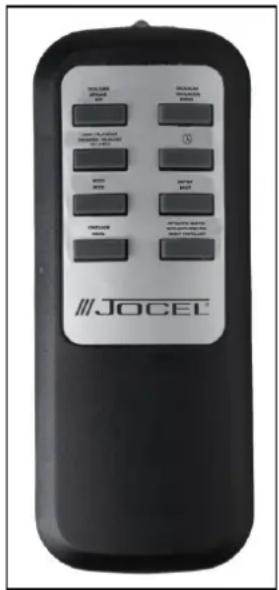

REMOTE CONTROL

*To reduce the risk of electric shock, keep plug away from water.

*Do not touch ultrasonic atomizer while operating, may result in injury.

*Keep small objects away from fan guard and mist cover to prevent damage.

*The water level switch will automatically turn off to protect the MIST function if the water level is too low.

*Water put into the tank should be less than 40°C.

*Do not put metals and chemicals into the tank, this is dangerous and will harm the mist function

*Before replacing mosquito incense, turn the mosquito function to off for at least 5 minutes.

*Keep flammable items away from the mosquito repellent.

*Infants, elderly, or those who are weak should not sit directly in the airflow for extended periods of time.

* Damaged power cords should be replaced by the Technical Department to avoid harm.

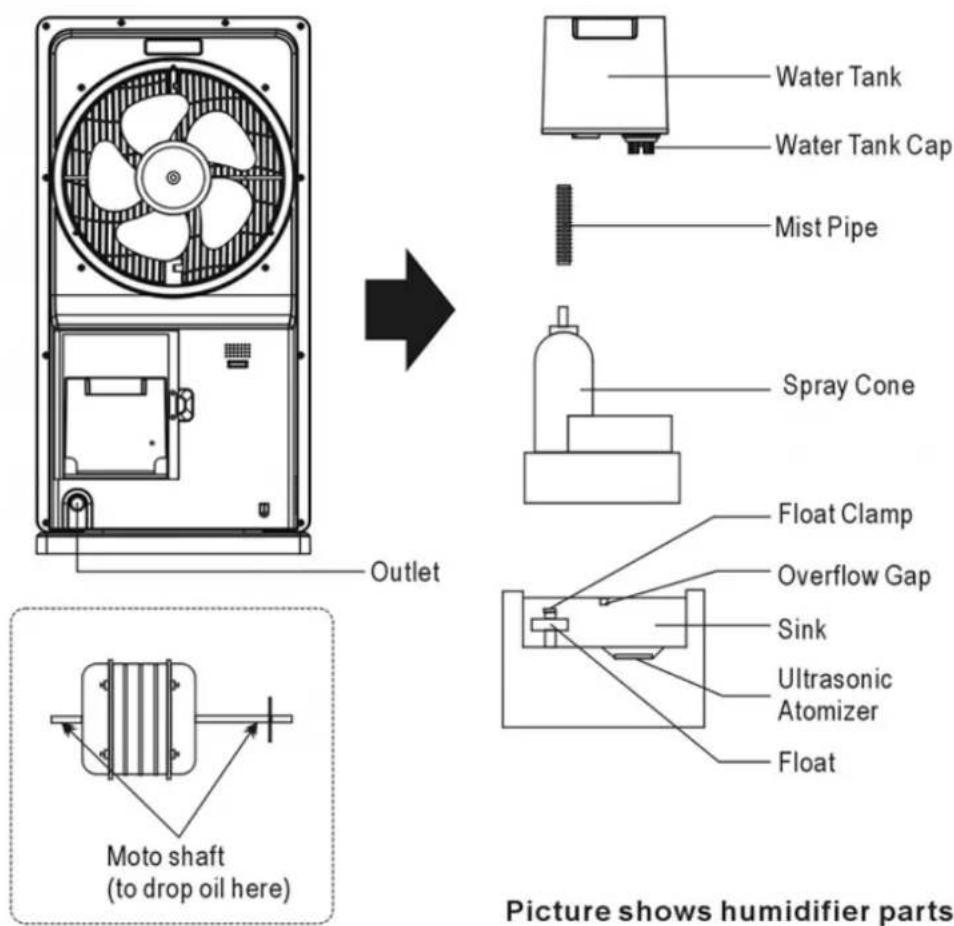

CLEANING & MAINTENANCE

*Turn power off and unplug before cleaning.

*Clean water tank once a week.

*Take out water tank and separate mist pipe, spray cone if humidifier needs cleaned.

*Empty excess water and use detergent for hard water stains inside the sink, dry with a cloth.

*Put 2-3 drops of machine oil in the motor shaft.

*Store fan in a cool and dry place.

Please put the insect repellent mat (T 2.5 x W 22 x D 35mm) in the hole at the back of the fan.

Close-up of a black metal cabinet with ventilation slots and a door (no visible text or symbols)

TROUBLESHOOTING

Problem	Possible Causes	Solution
Unit is on but not working	1.The motor does not work2.The voltage is too low3.The spindle of the motor is locked4.The circuit board is broken5.The capacitor is not working	1.Start high speed2.Increase the rated voltage3.Attempt to pull the motor cover from its jammed position4.Have the circuit board replaced5.Inspect the welding of the capacitor or install a new capacitor
Fan out of balance	1.Rear fan guard is loose2.Blade screw is loose3.Blade is unstable or broken4.Blade is unbalanced	1.Tighten the fan guard2.Tighten the blade screw3.Replace the blade4.Turn the blade 180°then install
Atomizer is running but there is no mist	1.The water in the tank is alkaline2.The water tank is broken or cracked	1.Clean water tank, spray barrel and sink several times2.Empty the water from the sink and replace tank
Atomizer is not working	The float is not up	Manually pull float up
Indicator light is on,fan and mist are not working	1.Fan is unplugged2.Power switch is off	1.Connect the plug2.Turn the mist switch on
Indicator light is on,mist is not working	1.No water in the tank2.Mist switch is off3.The float is loose	1.Fill the water tank with distilled water2.Turn on the switch3.Tighten the float
Foul odor from mist	1.New product, first use2.Internal tank needs cleaned	1.Open tank cap ad store the tank in a cool , dry location2.Clean the tank and replace the water
Other problems	1.Charred smell from motor2.Exposed wire, damaged insulation3.Rear motor shell is hot4.Rear motor shell is broken and fan guard damaged	1.Stop using, send for maintenance2.Stop using, send for maintenance3.Turn fan off and let it cool down4.Send to replace the parts

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. With the modification or disappearance of the nameplate of the appliance.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

We declare on our own responsibility that the machine indicated below

Product MIST FAN

Brand JOCEL

Model JVAB030528 AND JVAP030511

Complies with the following European directives and standards implementation

Low Voltage

2006/95/CE

EN 60335-1:2012+A11:2014

EN 60335-2:80:2003 + A1:2004 + A2:2009

EN 60335-2:98:2003 + A1:2005 + A2:2008

EN62233:2008

Electromagnetic Compatibility

2004/108/CE

EN 55014:1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

Country of Origin: R.P.C.
