OT65E - Monitor Allsee - Free user manual and instructions

Product Type	Professional Display Monitor
Screen Size	65 inches (163 cm diagonal)
Resolution	3840 x 2160 (Ultra HD 4K)
Brightness	350 cd/m² (typical)
Contrast Ratio	4000:1 (typical)
Viewing Angle	178° horizontal / 178° vertical
Response Time	8 ms (typical)
Inputs	HDMI 2.0 (3), DisplayPort 1.2 (1), VGA (1), USB 2.0 (2), Audio In, RS232
Outputs	Audio Out, IR Pass-through
Power Consumption	Typical: 150W, Standby: <0.5W
Power Supply	AC 100-240V, 50/60Hz
VESA Mount	400 x 400 mm
Dimensions (W x H x D)	Without stand: 1477 x 857 x 72 mm
Weight (without stand)	Approximately 32 kg
Operating Temperature	0°C to 40°C
Built-in Speakers	2 x 10W
Supported Languages	Multilingual OSD (English, French, Spanish, etc.)

Frequently Asked Questions - OT65E Allsee

What is the screen resolution of the Allsee OT65E monitor?

The Allsee OT65E features a 3840 x 2160 (4K UHD) resolution for crisp and detailed imagery.

How do I mount the OT65E on a wall?

The monitor supports a VESA 400 x 400 mm mount pattern. Use a compatible wall mount bracket and secure the monitor according to the mounting instructions.

What video inputs are available on the OT65E?

The monitor includes 3 HDMI 2.0 ports, 1 DisplayPort 1.2, and 1 VGA port. It also has USB and RS232 connections for control.

Can I use external speakers with this monitor?

Yes, the OT65E has an audio output (3.5 mm jack) to connect external speakers or a soundbar. Alternatively, the built-in 2x10W speakers provide basic audio.

How do I clean the screen of the OT65E?

Use a soft, lint-free cloth slightly dampened with water or a gentle screen cleaner. Avoid harsh chemicals and never spray directly onto the screen.

What power cord does the OT65E use?

The monitor uses a standard IEC C13 power cord. Ensure the voltage matches your local supply (100-240V AC, 50/60Hz).

Does the OT65E support HDCP 2.2?

Yes, the HDMI ports support HDCP 2.2, allowing playback of protected 4K content from streaming devices and Blu-ray players.

Can I control the monitor remotely?

Yes, the OT65E has RS232 and IR pass-through for remote control and integration with professional AV systems.

What is the power consumption in standby mode?

In standby mode, the OT65E consumes less than 0.5W, meeting energy efficiency standards.

How do I access the monitor's on-screen display (OSD)?

Use the buttons located on the back of the monitor (typically a joystick or set of keys) to navigate the OSD. The manual provides a detailed menu map.

USER MANUAL OT65E Allsee

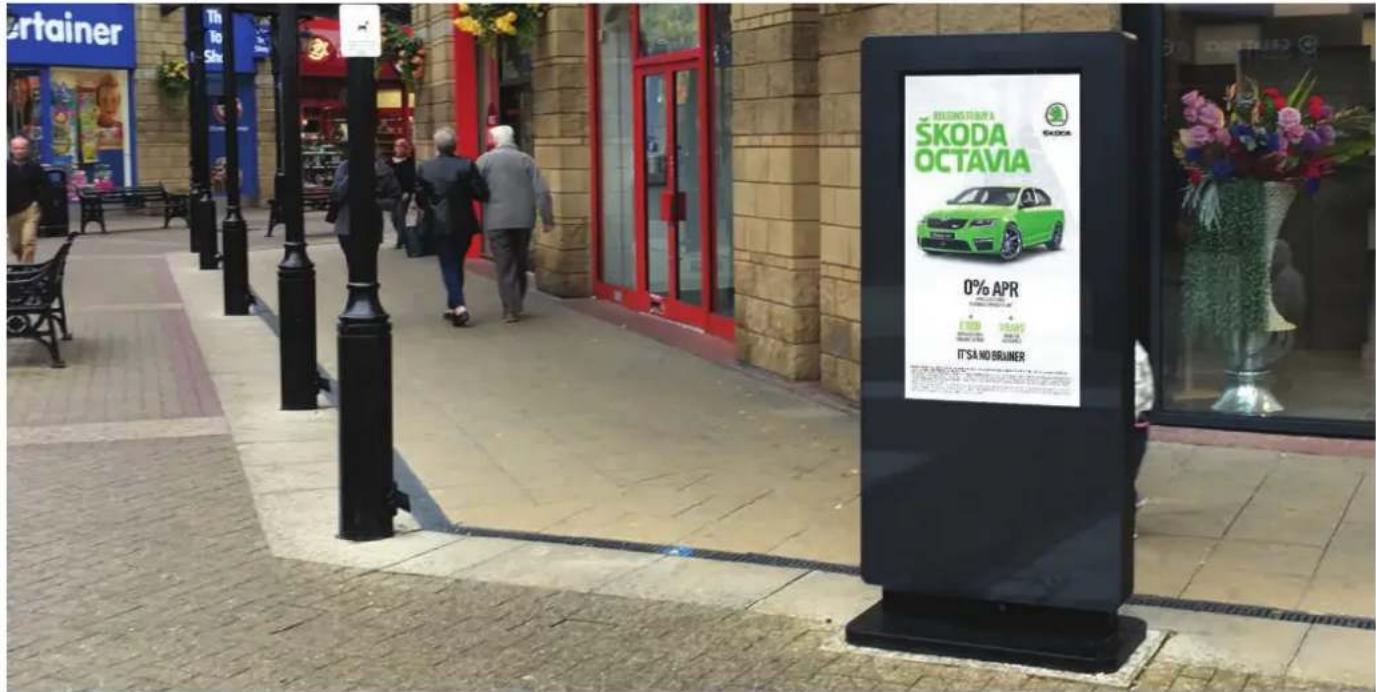

65" Outdoor Freestanding Digital Posters

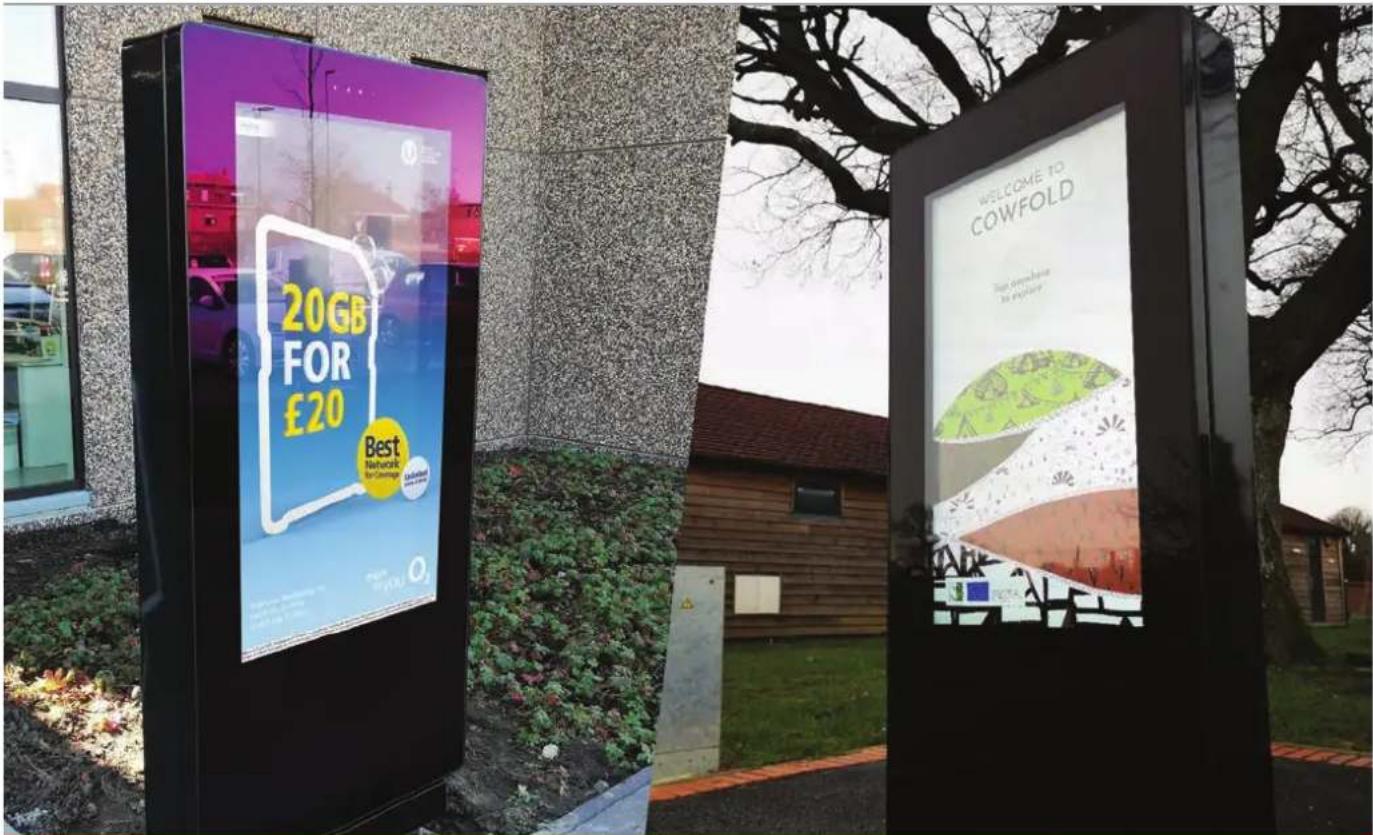

Stunning outdoor totems; perfect for any weather conditions

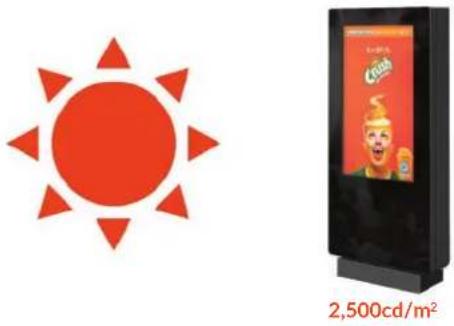

Direct Sunlight Readable

Thanks to their commercial grade ultra-high brightness panels (2,500cd/m ^4 ), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.

Vandal Proof

With a 2mm thick mild steel enclosure and 5mm thermally-toughened glass front, these IK10 rated displays are designed to withstand damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.

IK10

Impact Resistance

10

Protected against 20 joules of impact

◇

2mm Steel Enclosure 5mm Tough Glass

Weatherproof

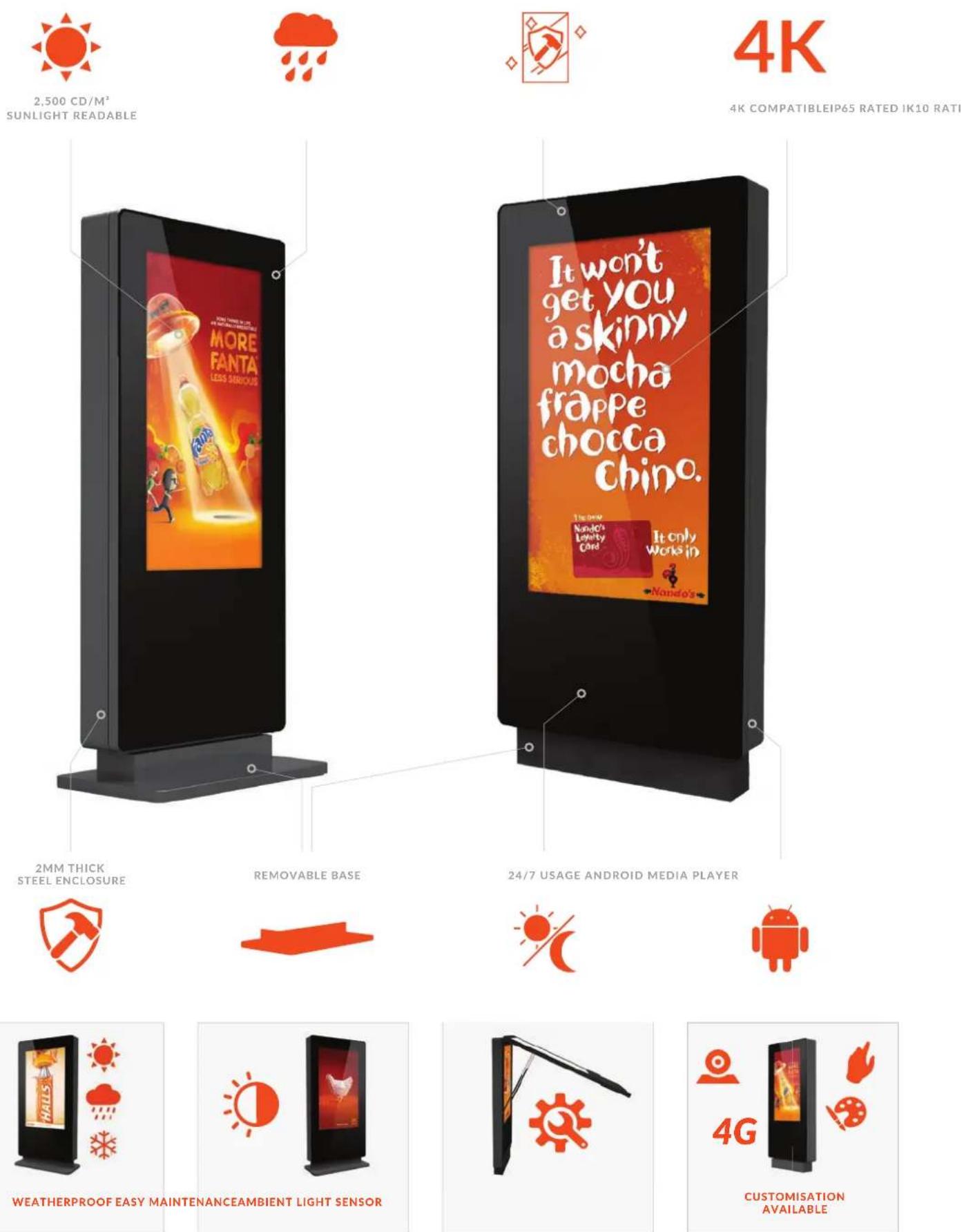

Advanced Temperature Control System

Ambient Light Sensor

Internal Locker

24/7 Usage

Plug and Play

Network Upgrade

Customisation Available

4K Compatible

Weatherproof

Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.

IP65

Dust Resistance

6

Protected against dust that may harm equipment.

5

Water Resistance

Protected against water spray from all directions.

Internal Locker

Should you need run the screen from an external source, there is space to fit a PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.

Anti-Reflective Glass

The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.

Optional Network Upgrade Customisation Available

For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.

Easy Maintenance

These displays use hydraulic cylinders to allow easy front access to the internal components, ensuring that maintenance is simple and straightforward.

Pure mechanical gear icon without any text or symbols

Advanced Temperature Control System

To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.

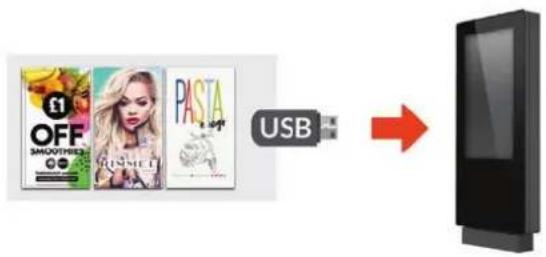

Plug and Play

Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.

Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.

		65 Inch
Panel	Resolution 3840x2160
	Display Area (mm) 1428.5x803.5
	Aspect Ratio 16:9
	Brightness (cd/m2) 2,500
	Colour 1.073 G
	Viewing Angle 178°
	Contrast Ratio 8000:1
AV Inputs Video HDMI, VGA
Power	Power Consumption (W) 680
	Input Voltage AC110~240V (50Hz~60Hz)

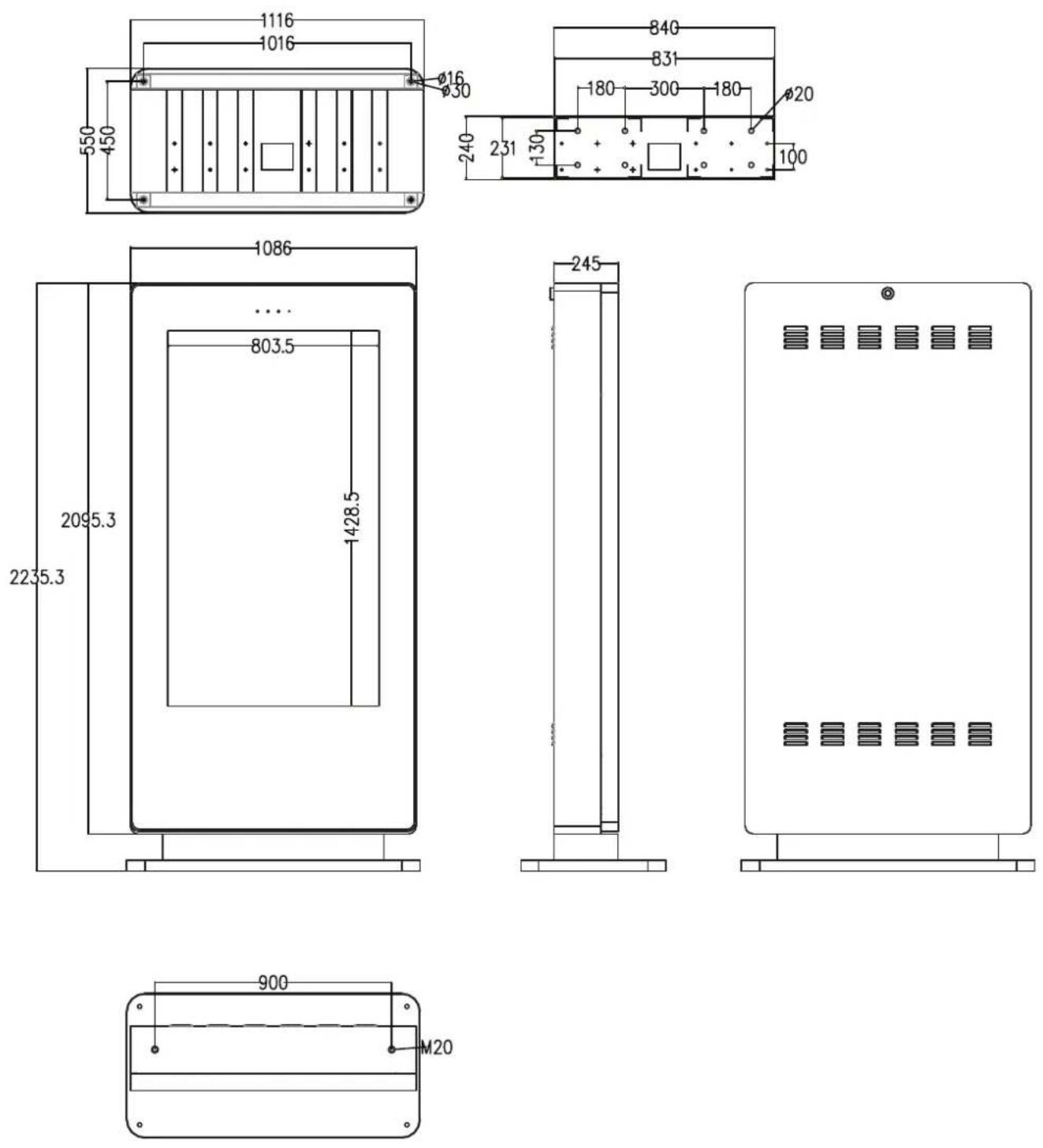

Mechanical	Unit Size (HxWxD mm) 2235.3x1086x245
	Package Size (HxWxD mm) 2350x1350x410
	Footprint (WxD mm)	1116x550
	Net Weight (kg)	260
	Gross Weight (kg)	340
	IK Rating	IK10

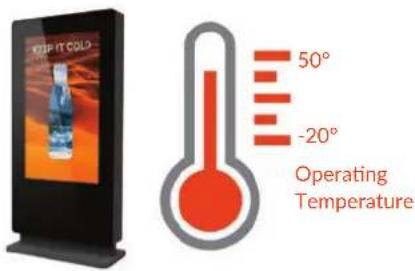

Environmental	Operating Temperature:	-20 °C to 50 °C
	Operating Humidity: 10% - 80%
	Storage Temperature:	-30°C - 60°C
	Storage Humidity:	5% - 90%
	Enclosure Protection	IP65
Computer	Media Formats	Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
	Media Resolution	1080x1920
	Internal Memory	6GB
	CPU	Quad-Core Cortex-A9 @1.6GHz
	GPU	Mali-400 MP4 @600MHz
	RAM	1GB DDR3
	Internal Storage	8GB NAND
	USB	USB2.0 HOST (x2)
	LAN	10/100M Ethernet
	Wi-Fi	802.11b/g/n
	OS	Android 4.2.2
	Graphic Engine	OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1
Accessories	Included AC Power Cable, Remote Control
	Optional	Touch Screen Upgrade, Network Upgrade, Camera
Warranty	Warranty Period	3 Year Warranty
	Technical Support	Lifetime

Errors and omissions excepted
