USER MANUAL HB65B Allsee

High Brightness Professional Monitor User Manual

Panoramic view of a vibrant sunset over a calm river surrounded by lush green trees, with no visible text or symbols.

Safety Instructions

• Please keep the display away from any heat sources. Place the display in a stable and well-ventilated place.
• Please handle with care as product contains glass.
• The holes or openings on the display are designed for ventilation. Do not cover or block the ventilation holes or openings with any objects.
• Remove protective covering from the screen before you use the display.
• Shut off the power supply before cleaning. Use a soft lint-free cloth instead of a tissue to wipe the screen.
• You may use a glass cleaner to clean the product as required. However, never spray the cleaner directly onto the display surface.
• Do not attempt to repair this product yourself! Improper disassembly of the product may invalidate the warranty and lead to possible danger
• If you have a problem that cannot be solved using the "Troubleshooting" guidelines, please contact your supplier.

Quick Start Guide

This section of the guide is to allow swift set up and use of the unit. Please refer to the main part of the User Guide for full information on use of the unit.

Please follow the steps detailed below:

1 Unpack unit and place in desired location.
2 Take the power lead from the accessories bag, connect power lead and plug into mains outlet. The unit will power ON automatically (if it doesn't please ensure the "AC Switch" is in the on position). After powering up the screen will start to play some pre-loaded sample content.
3 Collect the files you wish to display and make sure they are supported by the unit (see Section 2.1)
4 On a PC copy the files you want to play onto an empty USB drive. These should be in the root directory (without putting them into a folder). Remove USB from PC.
5 Insert USB drive into the one of the USB ports located on the rear of the unit (see Figure 1). The screen should indicate that it is copying the files onto the unit. Please note that all files currently stored in the unit will be deleted. Once completed, the screen will display a message to remove the USB drive.
6 Remove the USB drive and the unit will reboot and play the stored files in a loop.

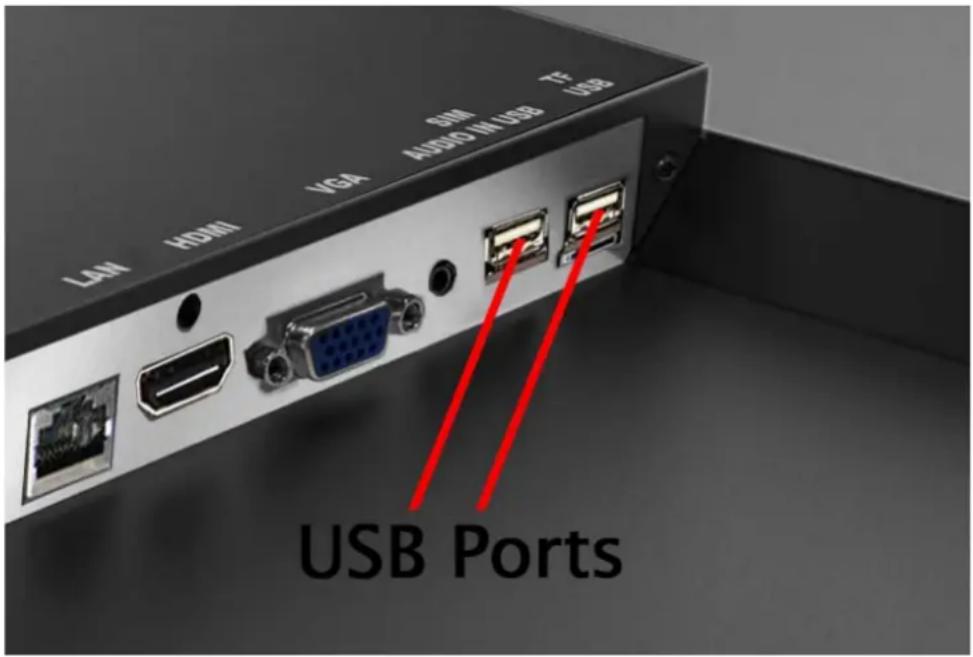

LAN HDMI VGA 8M TF USB AUDIO/USB USB Ports

Figure 1 Position of USB ports

Contents:

1. Introduction....5

1.1 Box Contents ....5
1.2 Inputs Overview 5
1.3 IR Remote Control Sensor Extension 6
1.4 Remote Control....7
1.5 Replacing the Remote Control Battery 8
1.6 Home Screen....9
1.7 System Menu Operation 10

1.7.1 System Settings 10
1.7.2 System Control....16
1.7.3 Date & Time 19
1.7.4 Power On/Off 21
1.7.5 Timer Strategy....22
1.7.6 File Management....25
1.7.7 Exit....25

1.8 Display Settings 26

2. System Operation 29

2.1 Supported Media Files 29
2.2 Steps to Load Media Files 30

3. Advanced Guide....31

3.1 Main Menu....31

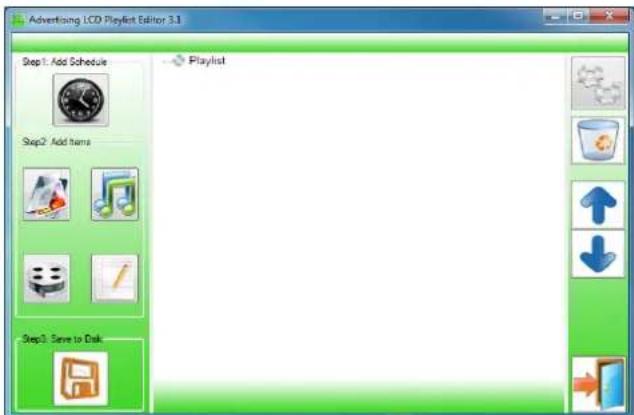

3.2 Creating Playlists 31

3.2.1 Add Schedule....32
3.2.2 Add Selected Items....32

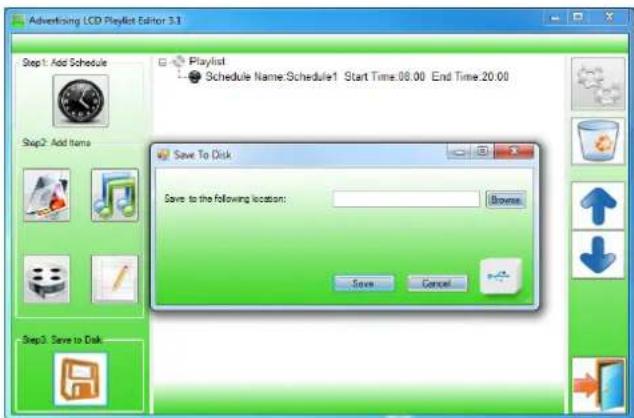

3.2.3 Saving 35

3.3 Editing Playlists....36

3.3.1 Deleting Items....36

4. F.A.Qs and Troubleshooting Guide ....37

4.1 How do I play PowerPoint presentations on my display? 37

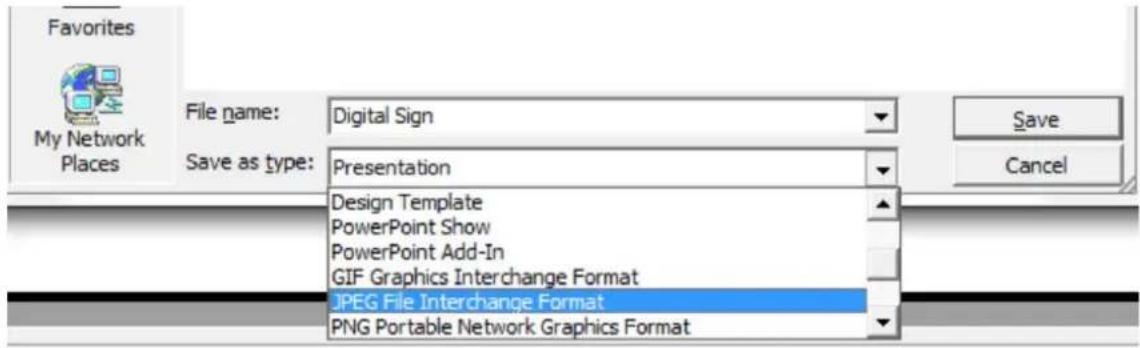

4.1.1 Option 1 (for plain slides with no animation):....37
4.1.2 Options 2 (for presentations with animation):....37

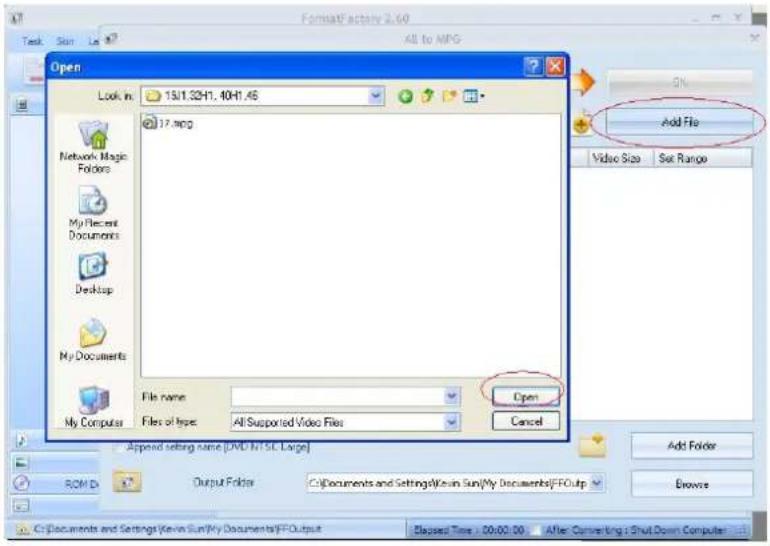

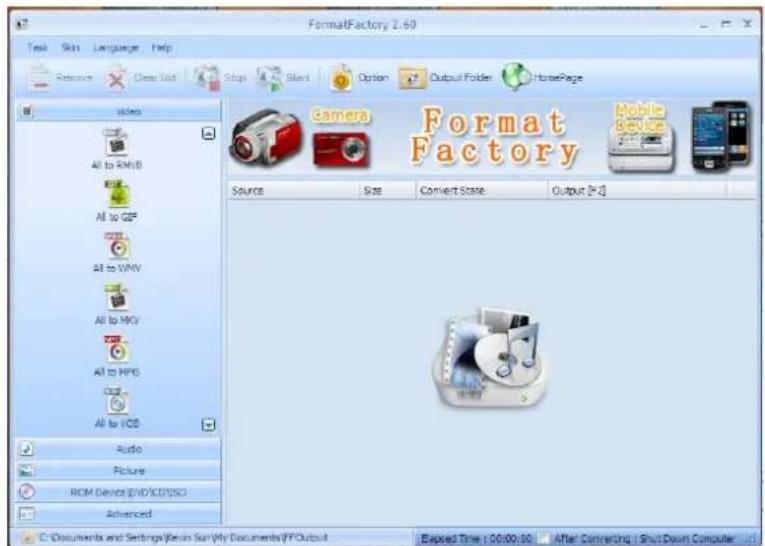

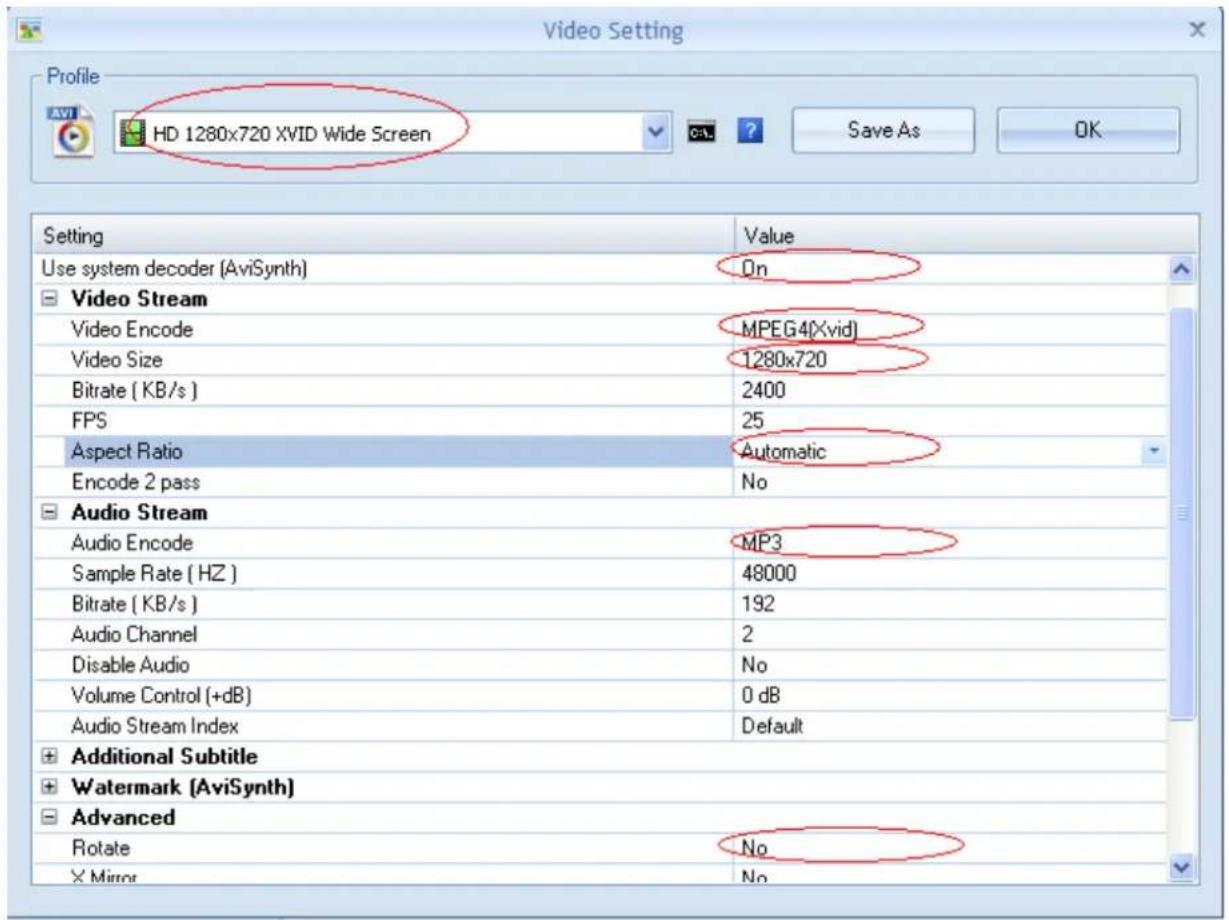

4.2 Video Format Conversion 38

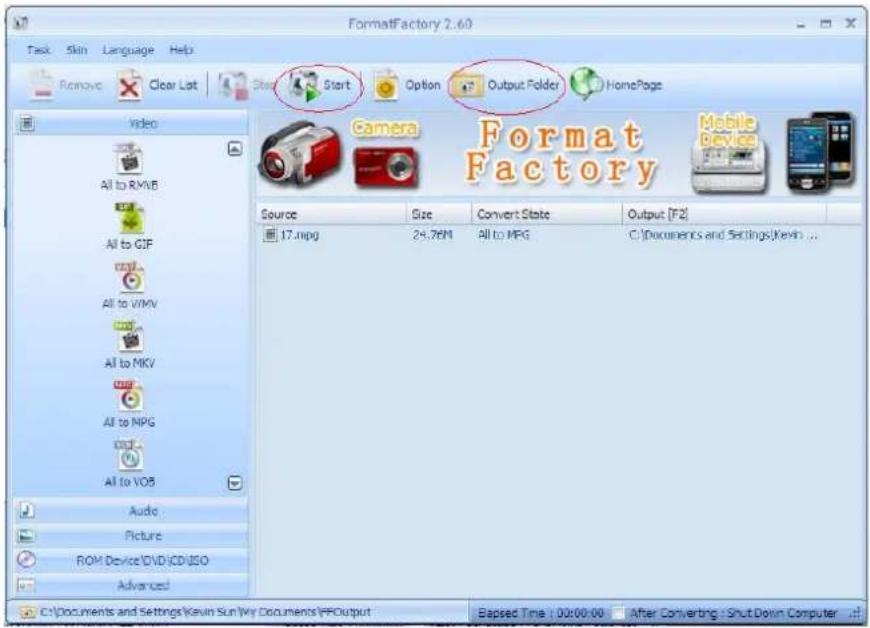

4.2.1 Format Factory....38

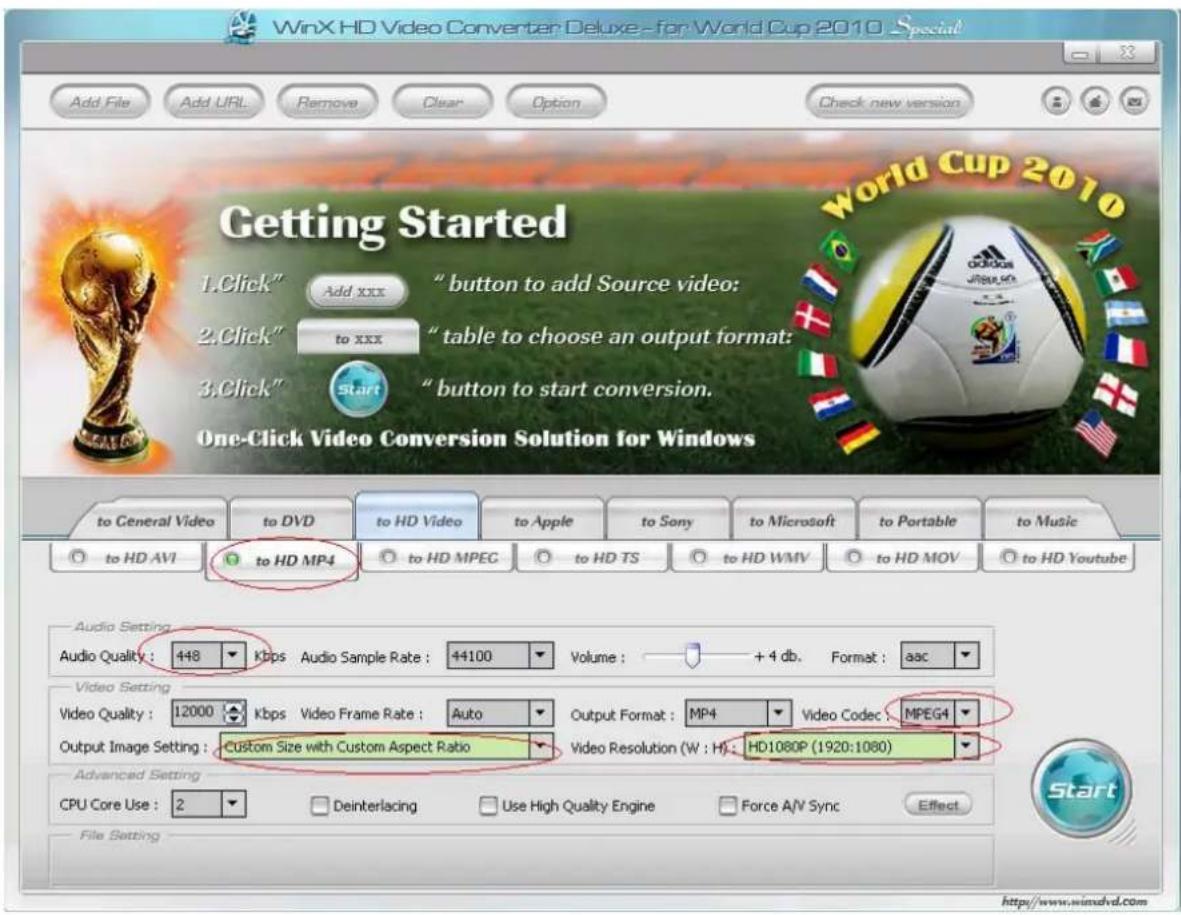

4.2.2 HD Video Converter Deluxe 40
4.3 Connecting screen to PC 41
4.4 My media file does not fit properly on the screen 41
4.5 My media file will not display or is missing from the playlist....42
4.6 My media files will not update....42
4.7 My moving GIF files will not move....42

Table of Figures

Figure 1 Position of USB ports ....2

Figure 2 Inputs Overview ....5

Figure 3 Home Screen....9

1. Introduction

Congratulations on your purchase of our product. Please read carefully and follow all instructions in the manual before first use.

The product should not be exposed to liquids dripping or splashing and no objects filled with liquids, such as vases, should be placed on the product.

Attention:

1. Do not change any default setting when it is unnecessary.
2. Keep the product far away from water during installation and use.

1.1 Box Contents

1 x High Brightness Professional Monitor.
1 x Power Cable.
1 x CD (User Manual).
1 x Remote Control (with 2xAAA batteries).
1 x IR Remote Control Sensor Extension
1 x HDMI Cable

1.2 Inputs Overview

AC Switch AC In WiFi USB Ports (x2) Audio (in @.5mm) RSB Input HDMI Input IAN Pin: Ampson's network Imprint Remote Control Sensor Extension Remote Control Sensor (Inside grill) Wi-Fi Aerial Saccles (require network upgrade) Power In Power Switch

Figure 2 Inputs Overview

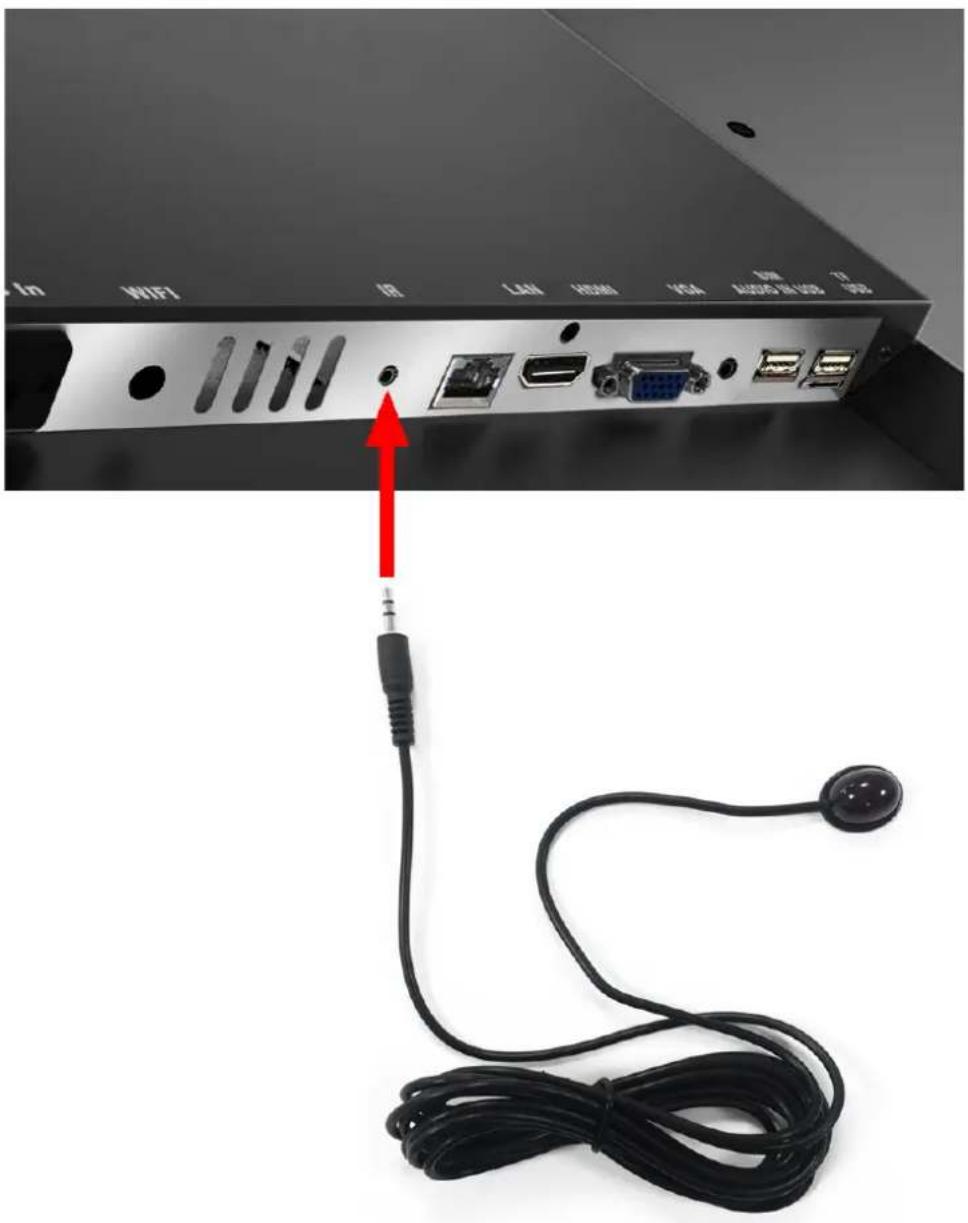

1.3 IR Remote Control Sensor Extension

The port marked "IR" is for the IR remote control sensor extension included. This is for applications where you may find it difficult to access the main IR remote control sensor and should be connected like so:

10 WIFI I2B LAN HDMI VGA MIA AMOS/AMOS 12 300

1.4 Remote Control

POWER MENU SETUP SOURCE + - +/-

Button	Function
POWER/∅	Power on or off
MENU	Display settings
SETUP	Menu settings
SOURCE/→	Input source
▲	Up (navigation)
◀	Left (navigation)
▶	Right (navigation)
▼	Down (navigation)
▶/||	Play media
■	Stop media
|◀◀	Previous
▶▶|	Next
◇	Display settings
◇+	Raise volume
◇-	Lower volume

1.5 Replacing the Remote Control Battery

1. Slide the battery cover off, as shown below.
2. Remove the used batteries.
3. Insert the two new AAA batteries with their terminals corresponding to the indicators.
4. Put the cover back on.

Three black remote control devices with internal battery modules, shown from different angles (no text or symbols visible)

1.6 Home Screen

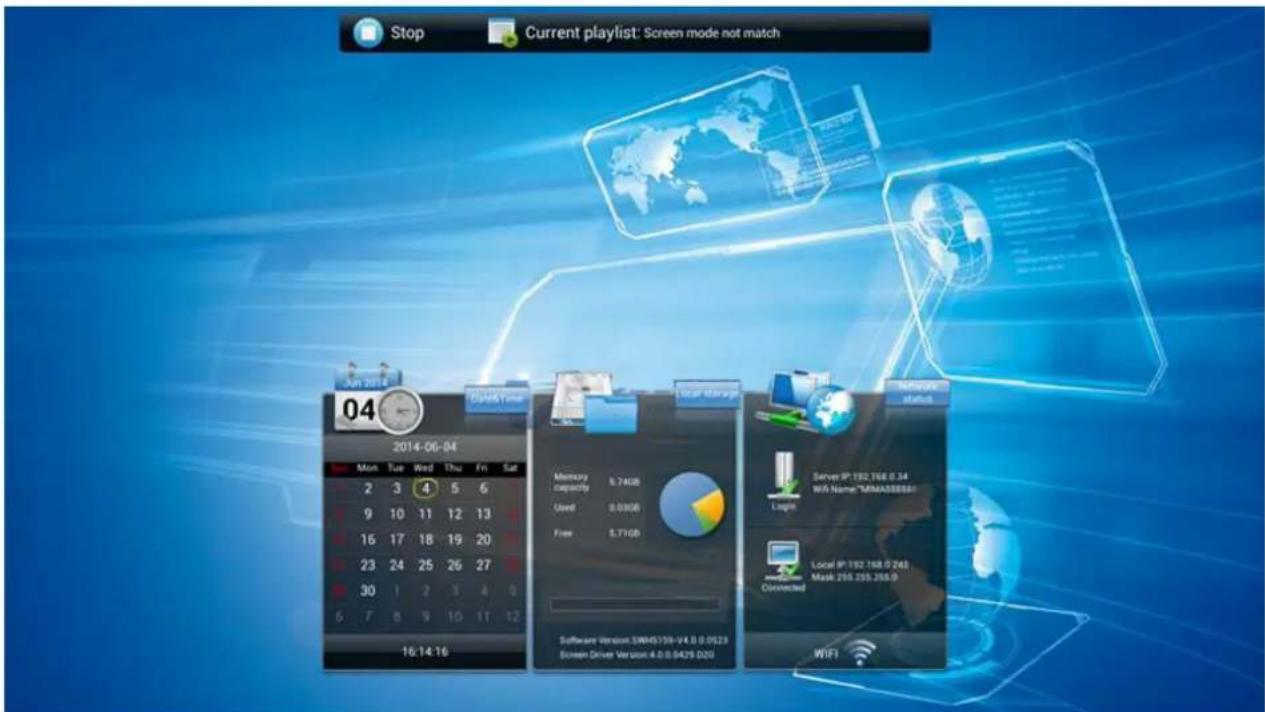

Once your screen has powered up and begins to play content press the "STOP" button on the remote control to go back to the Home Screen (pictured below).

Stop Current playlist: Screen mode not match 04 2014-06-04 Mon Tue Wed Thu Fri Sat 2 3 4 5 6 9 10 11 12 13 16 17 18 19 20 23 24 25 26 27 30 1 2 3 4 5 6 7 8 9 10 11 12 16:14:16 Memory capacity 9.74GB Used 8.83GB Free 5.71GB Software Version SWHS739-V4.8.8.0523 Screen Driver Version 4.8.8.8425.020 Login Server IP: 192.168.0.34 WiS Name: MIMAS88888 Local IP: 192.168.0.243, Mask: 255.255.255.0 Connected WiFi

Figure 3 Home Screen

1.7 System Menu Operation

From the Home Screen you can bring up the Main Menu by pressing the "SETUP" button the remote control. The Main Menu includes following sub-menus: System Settings, System Control, Date & Time, Power On/Off, Timer Strategy, File Management and Exit.

Press ↑ & ↓ to select the right item, press "PLAY" to confirm selection. To get back to the side menu press the "LEFT" navigation button on the remote control.

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit

1.7.1 System Settings

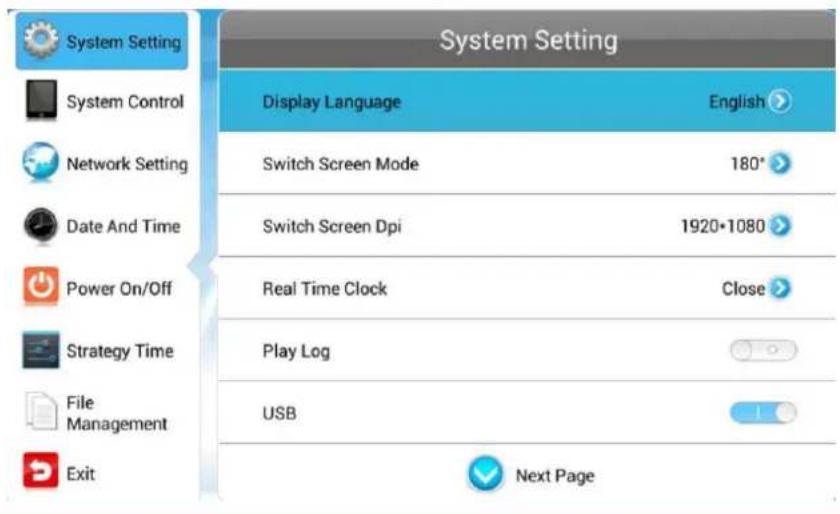

The sub-menus within this section are: Display Language, Screen Mode, Screen Resolution, On Screen Clock, USB, Scrolling Text, Sync Settings, Restore to Factory Settings and Auto Start. To exit a sub-menu please press the "LEFT" navigation button the remote control, you can now navigate though the Main Menus sub-menus.

System Setting Display Language English Switch Screen Mode 180° Switch Screen Dpi 1920*1080 Real Time Clock Close Play Log USB Exit Next Page

Display Language

The On Screen Display supports multiple languages, the default being English. As with all menu operation press “DOWN” to access the sub-menu then use the navigation buttons to select the right item, then “PLAY” to confirm selection.

Switch Screen Mode

Here you can set the screens orientation so as the OSD and content display correctly. There are 4 options as pictured below:

• 0^ (default landscape) - Displays in landscape with the locker door on the left hand side.
• 90^ - Displays in portrait with the locker door on the top.
• 180° - Displays in landscape with the locker door on the right hand side.
• 270° (default portrait) - Displays in portrait with the locker door on the bottom.

System Setting Back Switch Screen Mode System Control 0° Network Setting 90° Date And Time Power On/Off 180° Strategy Time 270° File Management Exit

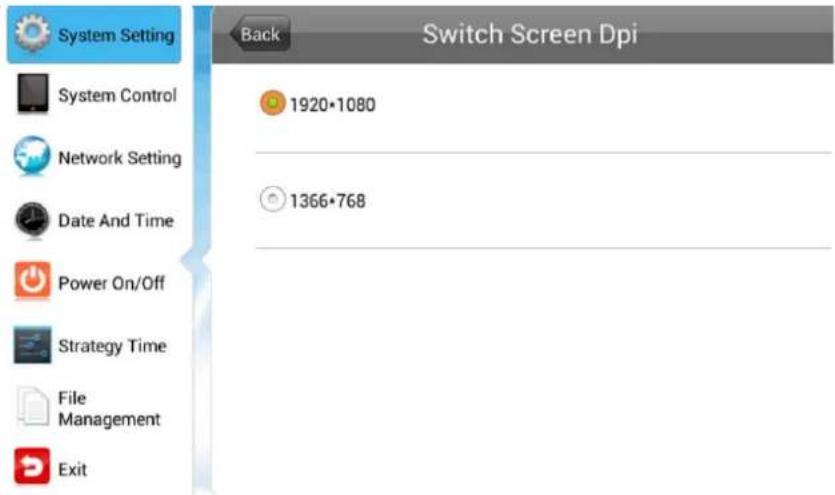

Screen Resolution

This menu allows you to set the screen resolution; this should be set to 1920x1080.

System Setting Back Switch Screen Dpi System Control 1920•1080 Network Setting 1366•768 Date And Time Power On/Off Strategy Time File Management Exit

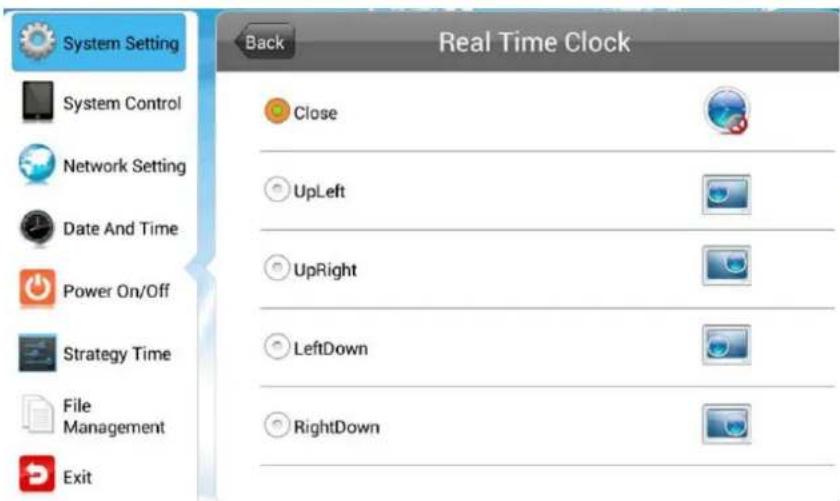

Real Time Clock

This option allows you to display a clock while content is playing. There are 5 options as pictured below:

• Close: The screen doesn't display time.
  • Top Left: The time will be displayed on top left of the screen.
  • Top Right: The time will be displayed on top right of the screen.
  • Bottom Left: The time will be displayed on bottom left of the screen.
  • Bottom Right: The time will be displayed on bottom right of the screen.

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit Back Real Time Clock Close UpLeft UpRight LeftDown RightDown

Play Log

This is a network function only and is disabled on this screen.

System Setting Display Language English Switch Screen Mode 180° Switch Screen Dpi 1920*1080 Real Time Clock Close Play Log USB Next Page Exit

USB

This allows you to enable or disable the USB port. If you want to be able to update the screen please ensure this is turned on (blue).

System Setting Display Language English Switch Screen Mode 180° Switch Screen Dpi 1920*1080 Real Time Clock Close Play Log USB Exit Next Page

Scrolling Text

This allows you to enable or disable the scrolling text function. If you have included scrolling text in your playlist (using the scheduling software) and want it to display please ensure this is turned on (blue).

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit System Setting Prev Page Roll Mtext Setting Sync Setting Open Restore to Factory Settings Auto Start

Sync Settings

This is a network function only and is disabled on this screen.

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit Back Sync Setting Sync Setting: Host Slave Sync Methods: 2.4G Network

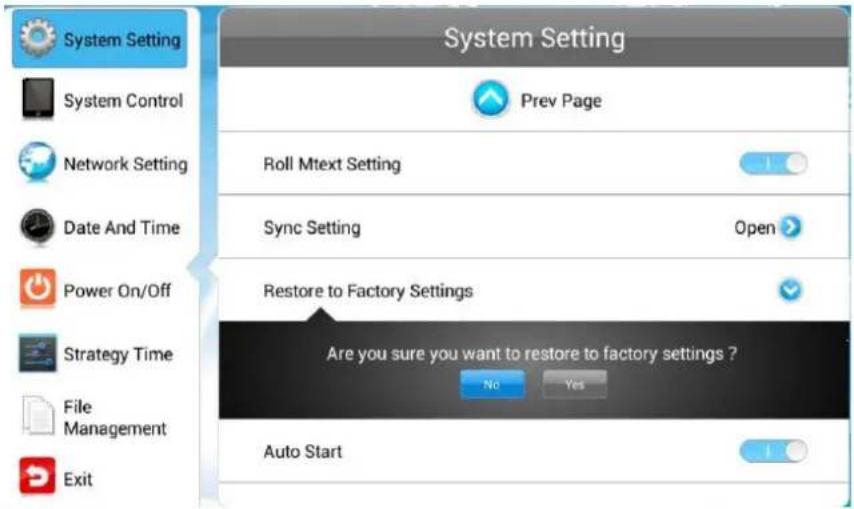

Restore To Factory Settings

Highlight "Yes" and press "PLAY" to restore factory settings; this will restore all system settings back to default.

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit System Setting Prev Page Roll Mtext Setting Sync Setting Open Restore to Factory Settings Are you sure you want to restore to factory settings ? No Yes Auto Start

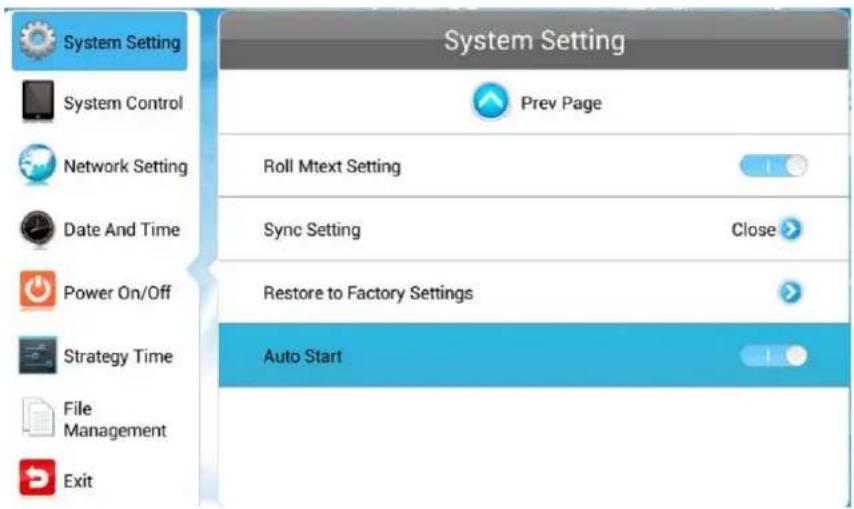

Auto Start

This feature allows your screen to start playing the pre-loaded content as soon as it has finished booting up. If you want to enable this feature (recommended) please ensure this is turned on (blue).

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit System Setting Prev Page Roll Mtext Setting Sync Setting Close Restore to Factory Settings Auto Start

1.7.2 System Control

To exit a sub-menu please press the "LEFT" navigation button the remote control, you can now navigate though the Main Menus sub-menus. The sub-menus within this section are: Work Mode, Play Mode, Content Storage, Image Duration.

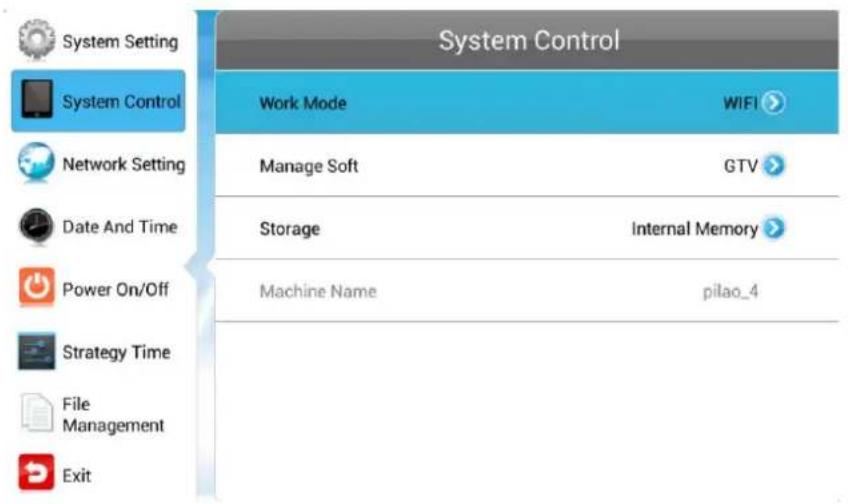

System Control Work Mode WIFI Manage Soft GTV Storage Internal Memory Machine Name pilao_4 Network Setting Date And Time Power On/Off Strategy Time File Management Exit

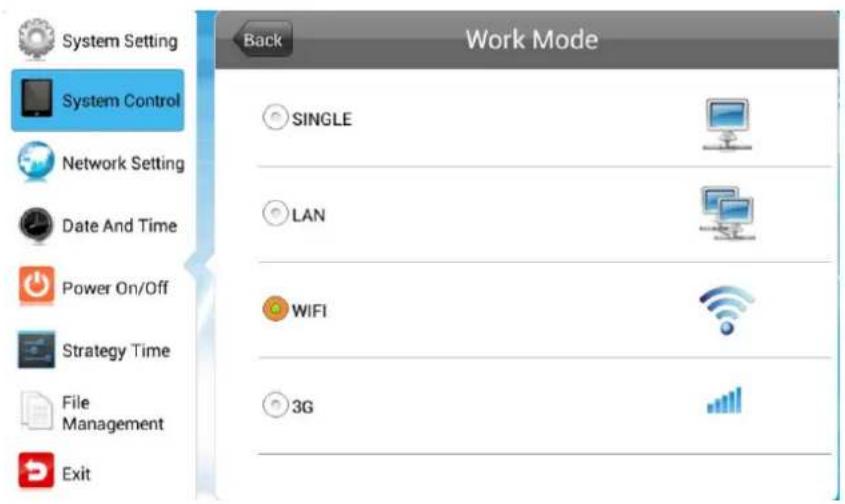

Work Mode

This feature allows you set the update method for your screen. It should be set to "STANDALONE"

System Setting Back Work Mode System Control SINGLE Network Setting LAN Date And Time Power On/Off WIFI Strategy Time File Management Exit

Play Mode

This feature is only available if the screen is set to "STANDALONE" mode and should be set to "Open".

System Control Work Mode SINGLE Play Mode Open Storage Internal Memory Playtime 10s Machine ID hrr12345

System Setting System Control Date And Time Power On/Off Strategy Time File Management Exit Back Play Mode Open Encrypt No Encrypt

Content Storage

This feature allows you to display content directly from a USB stick should you want to. We recommend that you set this feature to "Internal Memory" however if you want your content to displays directly from your USB stick (and not copy over) please select "USB".

System Setting System Control Date And Time Power On/Off Strategy Time File Management Exit Back Storage Internal Memory SD Card USB

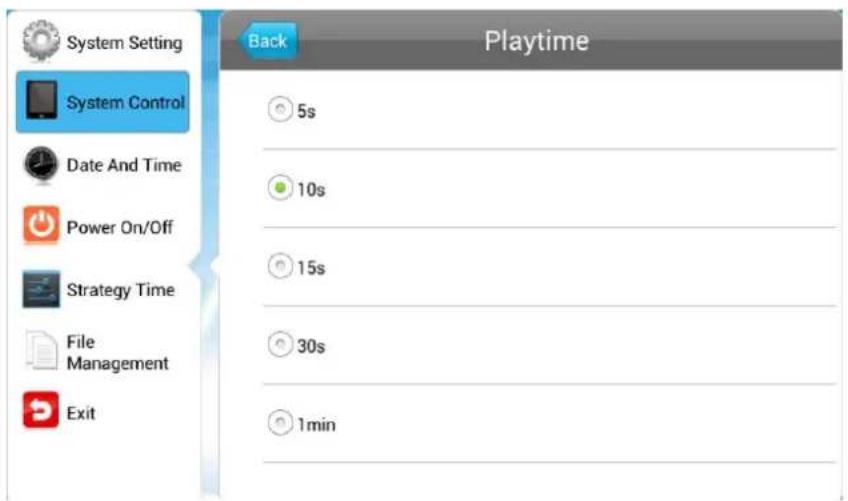

Image Duration

This feature allows you to set default duration time for your images (when not using the scheduling software).

System Setting System Control Date And Time Power On/Off Strategy Time File Management Exit Back Playtime 5s 10s 15s 30s 1min

1.7.3 Date & Time

To exit a sub-menu please press the "LEFT" navigation button the remote control, you can now navigate though the Main Menus sub-menus. To set accurate values first select the top "date" field by pressing "PLAY".

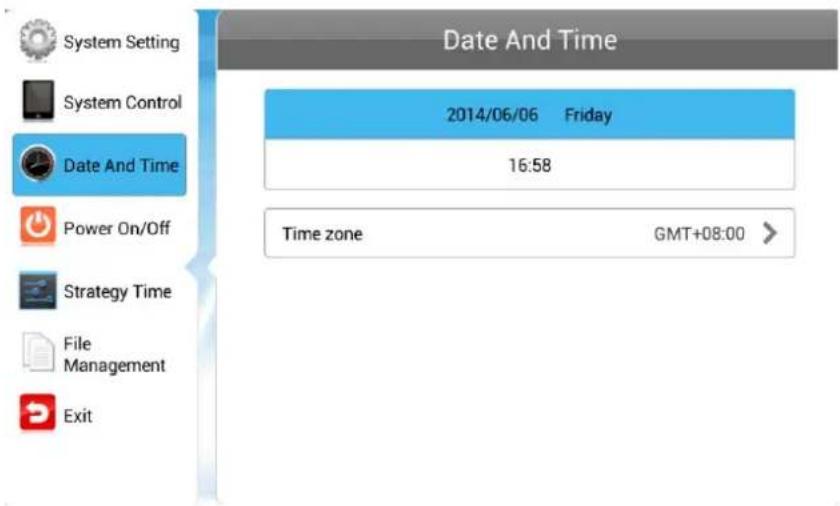

Date And Time 2014/06/06 Friday 16:58 Time zone GMT+08:00 > System Setting System Control Date And Time Power On/Off Strategy Time File Management Exit

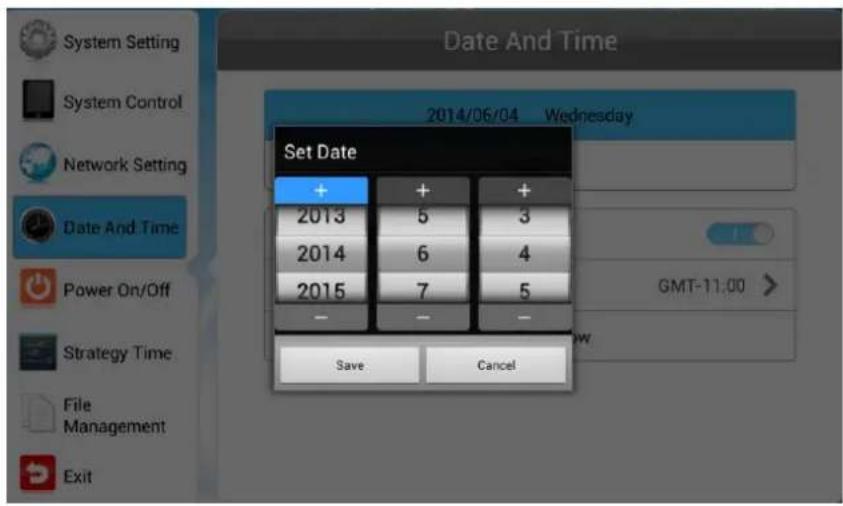

Another window will now appear, allowing you to set your date values by using the navigation buttons on your remote control and the on screen "+" and "-" icons. Once you have finished navigate to and select "Save".

Date And Time 2014/06/04 Wednesday Set Date + + + 2013 5 3 2014 6 4 2015 7 5 - - - Save Cancel GMT-11:00 > Exit System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit

Set the time using the same method, saving when complete.

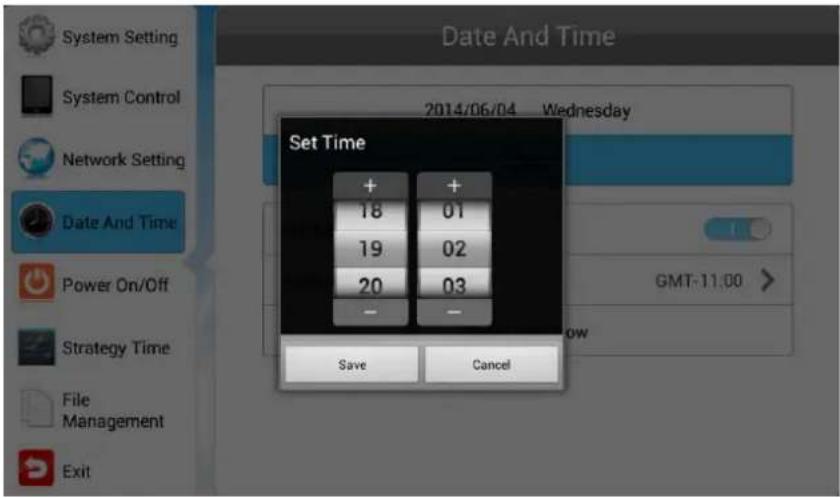

Date And Time 2014/06/04 Wednesday Set Time + + 18 01 19 02 20 03 - Save Cancel GMT-11:00 > Exit

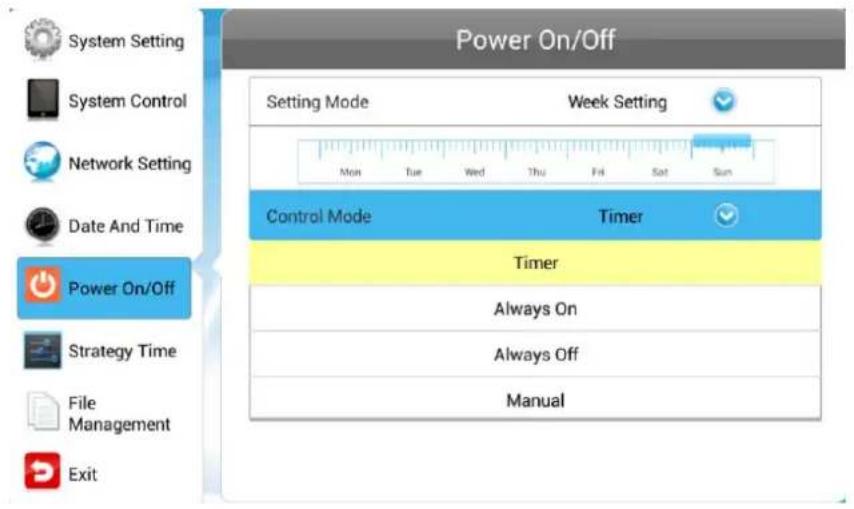

1.7.4 Power On/Off

Here is where you can set up your screens on/off timer, should you want it to power on and off automatically at designated times. If you do not wish to set on/off times for your screen please set the "Control Mode" to "Manual".

Power On/Off Setting Mode Week Setting Mon Tue Wed Thu Fri Sat Sun Control Mode Timer Timer Always On Always Off Manual System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit

There are two "Setting Modes" – "Daily", allowing you to set the same on/off times for every day of the week or "Weekly", allowing you to set individual on/off times for each day of the week.

To activate the on/off timer set the "Control Mode" to "Timer". Next set the "Setting Mode" to either "Daily" or "Weekly". Finally using the navigation buttons on your remote control navigate t the timer fields, press "PLAY", and assign on and off times.

Power On/Off Setting Mode Week Setting Mon Tue Wed Thu Fri Sat Sun Control Mode Timer 1 Close 00:00----00:00 > 2 Close 00:00----00:00 > 3 Close 00:00----00:00 > 4 Close 00:00----00:00 > 5 Close 00:00----00:00 >

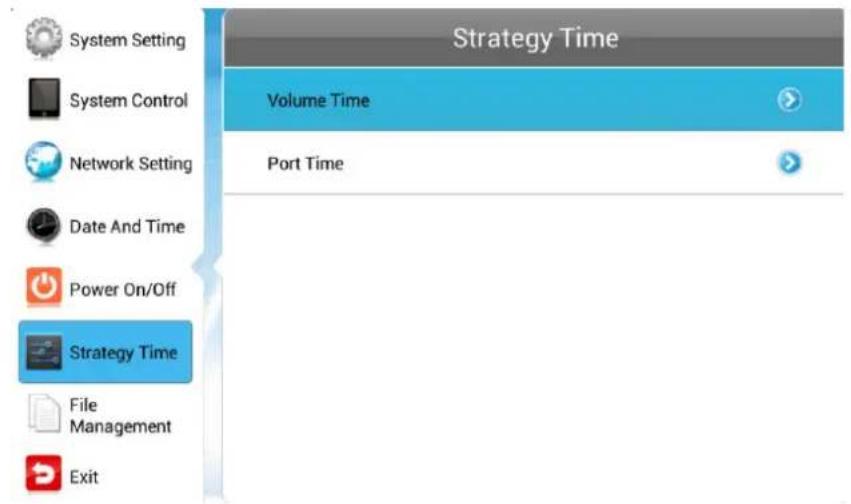

1.7.5 Timer Strategy

This feature allows you to schedule your screen to play at different volumes at different times of the day and switch to different AV inputs at different times of the day.

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit Volume Time Port Time

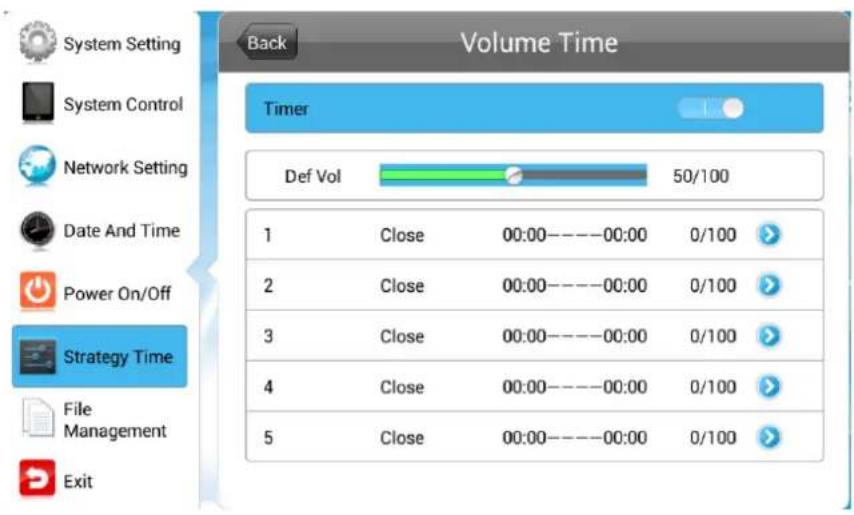

Volume Timer

To enable this feature turn the slider on (blue). New fields will now appear allowing you to set a default volume level as well as timer fields for setting different volume levels for different periods of the day.

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit Volume Time Timer Def Vol 50/100 1 Close 00:00----00:00 0/100 > 2 Close 00:00----00:00 0/100 > 3 Close 00:00----00:00 0/100 > 4 Close 00:00----00:00 0/100 > 5 Close 00:00----00:00 0/100 >

Navigate to a timer field and press "PLAY" on your remote control. Activate the timer, set a volume level and also a start and end time. Finally navigate to and select "SAVE".

Set Volume Strategy System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit Back Open The first period Start Time 00:00 End Time 00:00 Volume 0/100 Save

Port Timer

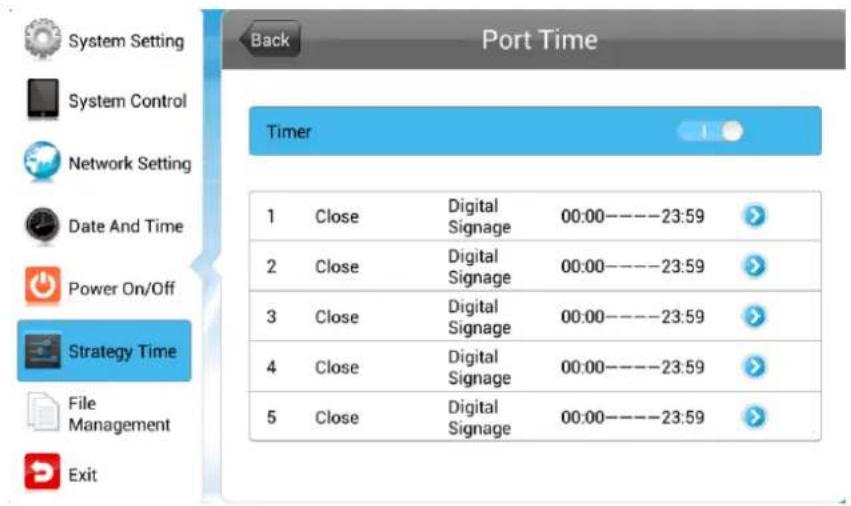

To enable this feature turn the slider on (blue). New fields will now appear allowing you to set different AV inputs for different periods of the day.

System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit Port Time Timer 1 Close Digital Signage 00:00----23:59 > 2 Close Digital Signage 00:00----23:59 > 3 Close Digital Signage 00:00----23:59 > 4 Close Digital Signage 00:00----23:59 > 5 Close Digital Signage 00:00----23:59 >

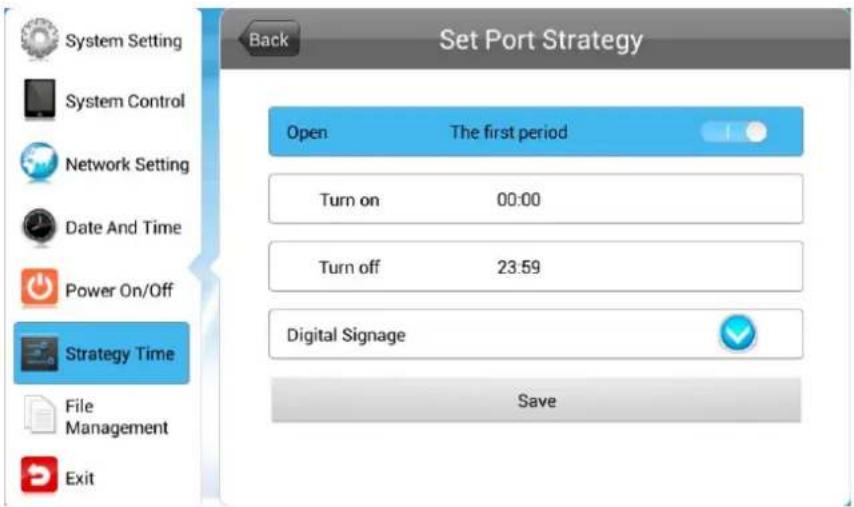

Navigate to a timer field and press "PLAY" on your remote control. Activate the timer then set a start and end time and an AV input. Finally navigate to and select "SAVE".

Set Port Strategy System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit Back Set Port Strategy Open The first period Turn on 00:00 Turn off 23:59 Digital Signage Save

1.7.6 File Management

Here, you can check storage information such as memory capacity, used space and free space. You can also format the disk. You should be extremely careful here as formatting the disk will result in a total loss of data.

File Management RAM card:Nand Total Capacity:5.74GB Used Capacity:0.03GB Spare Capacity:5.72GB File system:fat32 Format System Setting System Control Network Setting Date And Time Power On/Off Strategy Time File Management Exit

1.7.7 Exit

Highlighting and selecting this section will exit the Main Menu. If you have made any changes the system will ask to if you want to reboot the screen so that the changes can take effect, select "YES".

1.8 Display Settings

As well as having a main system menu that can be accessed through your home screen, the unit also has a display setting menu for changing which input source is being displays as well as altering values such as brightness, contrast and saturation. This can be accessed at any time by pressing the "MENU" button on your remote control.

Source

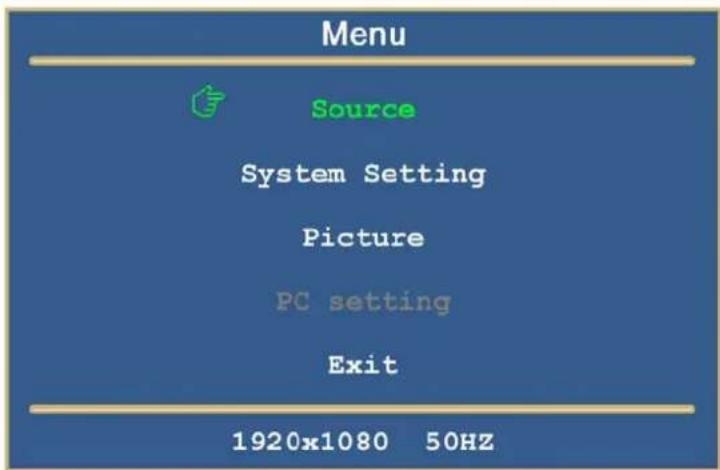

Menu Source System Setting Picture PC setting Exit 1920x1080 50HZ

Here you can select which video signal the screen displays. As a default it is set to “Digital Signage” as this plays from the internal media player. You can also select HDMI and VGA, to do so navigate to your desired input source and press the “PLAY” button on your remote control. To go back to the previous menu navigate to Return and press “PLAY” on your remote control.

System Setting

Menu Source System Setting Picture PC setting Exit 1920x1080 50Hz

Here you can set the OSD Language to either English or Chinese using the "LEFT" and "RIGHT" buttons on your remote control. We recommend that you do not change any of the other settings in this menu. To go back to the previous menu navigate to Return and press "PLAY" on your remote control.

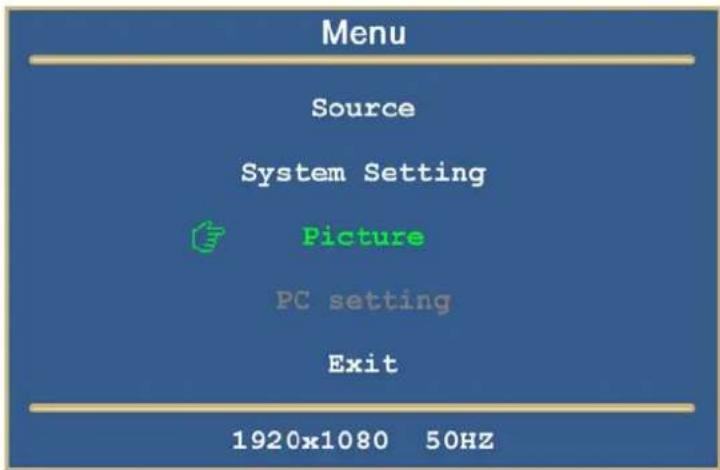

Menu Source System Setting Picture PC setting Exit 1920x1080 50HZ

Here you can alter the overall image settings of your screen. The default value for all the image settings (apart from Sharpness) is 50. To adjust the Brightness, Contrast and Colour of your display navigate to the setting and use the left and right navigation buttons to adjust the value accordingly.

Note: it is recommended not to change the image settings of your screen unnecessarily.

Exit

Menu Source System Setting Picture PC setting Exit 1920x1080 50Hz

To exit from this Display Settings menu, navigate to Exit and press "PLAY". If inactive for more than 10 seconds, you will automatically exit this menu.

2. System Operation

2.1 Supported Media Files

Media Type	Supported File Type
Image	JPG
Video	MPG, AVI, MP4
Audio	MP3

1. This unit does NOT support WMV or FLV video file types.
2. This unit does NOT support Sony ATRAC3, DTS or Dobly HD audio file types.

Note: Video and image files should be a maximum 1920x1080 resolution (16:9 aspect ratio).

2.2 Steps to Load Media Files

1. Copy the files you want to play on to USB drive in the root directory (without putting them into a folder).
2. Insert USB drive into the USB slot (see Figure 1).

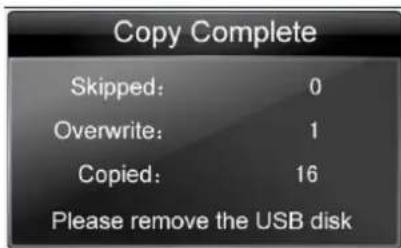

3. This will automatically delete any files currently stored on the unit's internal memory.

Disk Scanning File Checking ...

1. The files will then be copied to the internal memory and once completely loaded it will ask you to remove USB drive.

1. Remove the USB drive.

Copy Complete Skipped: 0 Overwrite: 1 Copied: 16 Please remove the USB disk

1. The unit will now restart (if it doesn't please turn off and back on via the mains or press the reset button) and play the stored files in a loop.

3. Advanced Guide

Although this unit can operate without using any additional software, for more advanced applications please copy the Playlist Editor scheduling software (on the CD provided) to your computers' hard drive. The software also allows you to edit existing

3.1 Main Menu

On opening the application you will be greeted by the main menu screen, giving you the options of "Create New Playlist" and "Load Existing Playlist".

Advertising LCD Playlist Editor CREATE NEW PLAYLIST LOAD EXISTING PLAYLIST

3.2 Creating Playlists

Once you have selected "Create New Playlist" the playlist creator will be launched.

Advertising LCD Playlist Editor 3.1 Step1: Add Schedule Step2: Add Items Step3: Save to Disk

The Playlist Editor is laid out in a user friendly way with the primary functions on the left hand side in easy to follow steps.

3.2.1 Add Schedule

The schedule functions as a timer for the playlists, so you can have between one and eight playlists scheduled to start and end at different times of the day, with up to 50 files in each playlist.

Note: If you enter more than one schedule ensure that the consecutive schedule times do not overlap.

Click on the "Add Schedule" Button

Type a Schedule name
Select preferred start time
Select preferred end time
Click "OK"

Schedule will appear in the playlist.

To add more schedules simply follow the whole process again for the preferred number of schedules, ensuring you select unique schedule names and times.

Advertising LCD Playlist Editor 3.1 Step1: Add Schedule Add Schedule Schedule Name Schedule1 Start Time 00 End Time 20:00 OK Cancel Step2: Add Name Step3: Save to Disk

3.2.2 Add Selected Items

Note: For compatible file formats please refer to 2.2 Supported Media Files.

Adding Images

Note: Before adding image files please ensure that it has a file name of 11 characters or less and contain no special characters (!"£\$%^&* etc.) only.

Click the "Add Image" button

Select appropriate Schedule
Click "Browse" and locate and select files
Enter a duration time

Select Image switch mode
Click "OK"
Image appears in Schedule.

You can select multiple image files at once to add to a schedule, you can also move each item up or down in the playlist by using the arrow buttons on the right hand side.

Advertising LCD Playlist Editor 3.1 Step1: Add Schedule Add Picture Schedule Name: Schedule1 File: Browse Duration: 5 Duration Range: 3x - 10000x Image Switch Effect: 0/Random OK Cancel Step2: Add Items Step3: Save to Disk

Adding Audio

Note: Before adding audio files please ensure that it has a file name of 11 characters or less and contain no special characters (!"£\$%^&* etc.).

Click the "Add MP3" button

Select Schedule
Click "Browse" and select MP3 file
Enter volume level
Click "OK"
MP3 Appears in Schedule.

Note: You must add audio files after all image files.

Advertising LCD Playlist Editor 3.1 Step1: Add Schedule Step2: Add Items Schedule Name: Schedule1 Start Time:08.00 End Time:20.00 Add Mp3 Schedule Name: Schedule1 File Browse OK Cancel

Adding Video

Note: Before adding video files please ensure that it has a file name of 11 characters or less and contain no special characters (!"£\$%^&* etc.).

Click the "Add Video" button

Select Schedule
Click "Browse" and locate Video file
Enter preferred repeat
Enter preferred volume
Click "OK"
Video appears in playlist.

Note: You cannot add Videos and MP3 audio files in the same schedule.

Advertising LCD Playlist editor 3.1 Step1: Add Schedule Add Schedule Schedule Name: Schedule1 Start Time:08:00 End Time:20:00 Add Video Schedule Name: Schedule1 File: Browse Please note: When displaying a High Definition video please use all, inp4 or to format. OK Cancel Step2: Add Items Step3: Save to Disk

Adding Scrolling Text

Note: you must ensure that the scrolling text function is activated on your display, you can do this by accessing the System Settings of the Main Menu (see 1.5.1 System Settings)

Click the "Add Scroll Message" button

Enter the message you would like to run across the bottom of the screen
Or if you have a pre-existing .txt document containing your message:
Highlight the "Import from file" checkbox and click "Browse"
Locate .txt file and highlight
Click "OK"
Message appears at the bottom of the playlist.

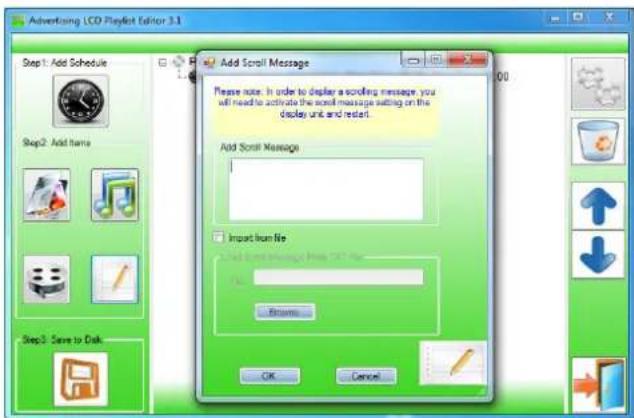

Advertising LCD Playlist editor 3.1 Step1: Add Schedule Step2: Add Items Step3: Save to Dash Add Scroll Message Please note: In order to deliver a scrolling message, you will need to activate the scroll message setting on the display unit and restart. Add Scroll Message Import from file Used to send message free PDF file OK Cancel

3.2.3 Saving

Note: Before saving please ensure location drive is empty.

Click "Save to Disk"

Click "Browse" and select the top level of the USB drive as the location of the playlist and files
Click "Save".

Advertising LCD Playlist Editor 3.1 Step1: Add Schedule Step2: Add Name Step3: Save to Disk Playlist Schedule Name:Schedule1 Start Time:08.00 End Time:20.00 Save To Disk Save to the following location: Browse Save Cancel

3.3 Editing Playlists

From the main menu click "Load Existing Playlist"

Locate and select playlist to edit

Playlist appears in playlist creator

Select item to edit and click "Edit" button located on the top right hand side of the application.

Note: You can also add items to the playlist and add further schedules.

3.3.1 Deleting Items

To delete items within a playlist, select the item and click "Delete" - located on the right hand side of the application. The item will be removed from the playlist.

4. F.A.Qs and Troubleshooting Guide

4.1 How do I play PowerPoint presentations on my display?

4.1.1 Option 1 (for plain slides with no animation):

You can save the PowerPoint presentation as a JPEG File Interchange Format (.JPG). Microsoft PowerPoint software allows the user to do this

1) Create or open a PowerPoint presentation.
2) Click File >Save As
3) Enter a File name
4) Click on "Save as type" scroll down and find the file extension "JPEG file interchange format", as shown in the image below.

Favorites My Network Places File name: Digital Sign Save as type: Presentation Design Template PowerPoint Show PowerPoint Add-In GIF Graphics Interchange Format JPEG File Interchange Format PNG Portable Network Graphics Format Save Cancel

5) Click Save.
6) A message will appear asking if you would like to save all slides as JPEG's
7) Once you have selected your option, The JPEG images will be saved and are ready to use within a playlist or to upload to a storage device.

Note: For the best portrait resolution, you can use this PowerPoint Page Setup: Width 42.6cm; Height 24cm (16:9 Ratio)

4.1.2 Options 2 (for presentations with animation):

You can convert the PowerPoint presentation to a MPEG video clip. For the best display quality you should use the MPEG2 format which gives the best display quality. We suggest that you use the following software:

Software Name: Wondershare PPT2DVD

Web link: http://www.ppt-to-dvd.com/ppt2dvd/overview.html :

Select Video Format: PowerPoint to MPEG2 Video Settings:

• TV Standard: NTSC (29.97fbs);
• Standard: Standard DVD;

• Aspect Ratio: 16:9 (widescreen);
• Encode Size: Width 720, Height 480.

4.2 Video Format Conversion

There are two possible tools for converting video

4.2.1 Format Factory

This is a free multipurpose converter that can be used for normal definition

Standard Definition

1. Download a free convertor (Windows) called Format Factory which can be found at https://format-factory.en.softonic.com/
2. Start the Software (picture 1).

FormatFactory 2.60 Task Skin Language Help Resource Clear Unit Stop Start Option Output Folder HomePage Video All to RMVB All to GFP All to VMV All to MVV All to MPB All to MPB All to VOS Audio Picture ROM Devices (PRO/CD/ISO) Advanced Camera Format Factory Source Size Convert State Output [F:2] Microsoft Eapsed Time: 00:00:00 After Connecting | Shift Down Computer

1. On the left hand window pane select the 'Video' conversion options.
2. Select the 'All to AVI' conversion
3. Click the 'Add File' button and locate the file to be converted.

Format\actory 2.60 Task Sun Lo All to MPG Open Look in: 15/11:32H1.40H1.46 17.mpg Add File Video Size Set Range Network Magic Folders My Recent Documents Desktop My Documents My Computer File name: Files of type: All Supported Video Files Open Cancel Apply setting name [DVD NTSC Large] Output Folder C:\Documents and Settings\Kevin Sun\My Documents\FFOutch Add Folder Browse C:\Documents and Settings\Kevin Sun\My Documents\FFOutch Classed Time: 00:00:00 After Connecting a Shut Down Computer

1. Click the 'Output Setting' button and modify it to look like the image shown below. A number of important settings have been highlighted.
2. Select 'OK' to save these changes and then Press 'OK' button to goto main screen

Video Setting Profile AVI HD 1280x720 XVID Wide Screen Save As OK Setting Value Use system decoder (AviSynth) On Video Stream Video Encode MPEG4[Xvid] Video Size 1280x720 Bitrate ( KB/s ) 2400 FPS 25 Aspect Ratio Automatic Encode 2 pass No Audio Stream Audio Encode MP3 Sample Rate ( HZ ) 48000 Bitrate ( KB/s ) 192 Audio Channel 2 Disable Audio No Volume Control (+dB) 0 dB Audio Stream Index Default Additional Subtitle Watermark (AviSynth) Advanced Rotate No Mirror No

1. Press the 'Start' button along the top to start the conversion. Once completed, press the 'Output

Folder' to see the converted video.

FormatFactory 2.60 Task Skin Language Help Remove Clear List Start Option Output Folder HomePage Video All to RMVB All to GIF All to VMV All to MKV All to NPG All to VOS Audio Picture ROM Device\DVD\CD\ISO Advanced Camera Format Factory Source Size Convert State Output [F2] 17.mpg 24.76M All to MPG C:\Documents and Settings\Kevin ... Elapsed Time : 00:00:00 After Converting : Shut Down Computer

4.2.2 HD Video Converter Deluxe

This is only really useful for High Definition videos.

Download link: http://www.winxdvd.com/hd-video-converter-deluxe/

This software is not free.

MP4 gives the best display quality. Please follow the following steps:

1. Select "to HD MP4" tab.
2. Change audio quality to 448 kbps, and change video quality to 12000, output image setting to custom size with custom aspect ratio, and video resolution to HD1080P(1920:1080), video codec to MPEG4.

See the screen shot below for the recommend settings.

WinX HD Video Converter Deluxe for World Cup 2010 Special Add File Add URL Remove Clear Option Check new version Getting Started 1.Click" Add xxx "button to add Source video: 2.Click" to xxx "table to choose an output format: 3.Click" start "button to start conversion. One-Click Video Conversion Solution for Windows to General Video to DVD to HD Video to Apple to Sony to Microsoft to Portable to Music to HD AVI to HD MP4 to HD MPEC to HD TS to HD WMV to HD MOV to HD Youtube Audio Setting Audio Quality: 448 Kbps Audio Sample Rate: 44100 Volume: + 4 db. Format: aac Video Setting Video Quality: 12000 Kbps Video Frame Rate: Auto Output Format: MP4 Video Codec: MPEG4 Output Image Setting: Custom Size with Custom Aspect Ratio Video Resolution (W : H): HD1080P (1920:1080) Advanced Setting CPU Core Use: 2 Deinterlacing Use High Quality Engine Force A/V Sync Effect File Setting Start http://www.wimvvd.com

4.3 Connecting screen to PC

If your PC has a HDMI output then this is ideal. Simply connect one end of a HDMI cable to the screens HDMI input (see Figure 4) and the other to your PCs HDMI output port. Using this method will carry both your PCs visual and audio signals. If your PC does not have a HDMI output, connect it to the screen using a VGA cable instead, this carries the video signal. If you wish the audio signal from your PC to be sent to the screen as well, this can be achieved by using a male-to-male 3.5mm audio jack cable. To change the input source of your screen press the SOURCE button located on the top right hand corner of your remote control. Next, navigate to your desired source and press "PLAY" on your remote control.

4.4 My media file does not fit properly on the screen

If your media is being displayed with black edges please refer to section 2.11. This has happened because the file does not have a 16:9 aspect ratio (1920x1080). Please resize file to 1920x1080 pixels and try loading the media onto the display once again.

4.5 My media file will not display or is missing from the playlist

In this situation the first step to take is to start with a blank USB drive. Copy one supported picture file (2.1 Supported Media Files) onto the blank USB drive and insert this into the unit. If this works there are most likely one or more unsupported files or folders on your original playlist.

If this does not work please check first that the media file is the correct size to fit the screen -1920x1080 pixels. If it is any bigger than this it is likely the media file will not display.

Finally make absolutely sure that your media is a supported file type as the screen will not recognise unsupported file types.

4.6 My media files will not update

If you are have problems updating your display follow these steps to ensure it is not a technical issue.

1) Ensure that there are no additional unsupported files or folders stored on the USB drive.
2) Make sure the USB drive is firmly inserted into USB slot
3) Before contacting your supplier try another USB drive to be certain this is not the fault.

4.7 My moving GIF files will not move.

As the screen recognises any .gif file as an image it will display the first frame of a moving gif for the allocated image display time.
