Product Type	Electric Pressure Washer
Brand	Vax
Model	PowerWash 1800w VPW1WC
Power Consumption	1800 W
Max Pressure	130 bar
Max Flow Rate	6 L/min
Power Supply	230 V ~ 50 Hz
Dimensions (L x W x H)	35 x 30 x 50 cm
Weight	8.5 kg
Hose Length	6 m
Motor Type	Brushed
Features	Adjustable nozzle, detergent tank, auto-stop system
Maintenance	Clean filter regularly, check oil level
Safety Features	Trigger lock, thermal protection
Spare Parts Availability	Nozzles, hoses, seals

Frequently Asked Questions - PowerWash 1800w VPW1WC VAX

How do I connect the pressure washer to the water supply?

Connect a garden hose to the water inlet. Ensure the water supply is turned on and the hose is not kinked. Use a quick-connect adapter if necessary.

Can I use hot water with this pressure washer?

No, this model is designed for cold water only. Using hot water can damage the pump.

How do I change the nozzle?

Pull back the collar on the spray wand, insert the desired nozzle, and release the collar to lock it in place.

What should I do if the pressure washer won't start?

Check the power cord, ensure the on/off switch is in the 'on' position, and verify that the circuit breaker hasn't tripped. Also, make sure the trigger safety lock is disengaged.

How do I clean the detergent filter?

Remove the detergent tank, locate the filter inside, and rinse it under running water. Replace it before reassembling.

What is the maximum pressure output?

The Vax PowerWash 1800w can deliver up to 130 bar (adjustable via the nozzle).

Can I use bleach or other chemicals?

Only use detergents recommended for pressure washers. Avoid bleach or acidic cleaners as they can damage the unit.

How do I store the pressure washer after use?

Disconnect the water supply and power, press the trigger to release residual pressure, then coil the hose and wand. Store in a dry, frost-free place.

Why is the pressure fluctuating?

This could be due to air in the system. Bleed the pump by squeezing the trigger without the nozzle attached until water flows steadily.

How often should I change the pump oil?

The pump is sealed and lubricated, so oil changes are not required. Regular maintenance includes checking for leaks.

USER MANUAL PowerWash 1800w VPW1WC VAX

Perfect for cleaning small cars, garden furniture, bikes, garden tools, and small scale patio areas.

Let's talk safety

Basic safety precautions

This pressure washer is intended for household use only and NOT for commercial or industrial use.

• This Pressure washer is for outdoor use only.
- It is your responsibility to check the suitability of the surface to be desired. Vax UK Ltd cannot be here responsible for damage caused.
- Keep fingers, hair and loose clothing from moving parts and openings whilst using the pressure washer.
- When using your pressure washer the recommended working distance between the nozzle and surface area or object to be cleared is 30cm.

• The appliance commonly be used by children aged 6 years and above and persons with reduced physical, sensory or mental, expertise or lack of experience and knowledge. If they have been given supervision or instruction occurring use of the appliance in a safe way and understand the Hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Vax only recommend the use of Vax genuine accessories and solution to be good with his pressure washer. The use of non-branded Vax accessories and solution will involve your warranty.

Don'ts

Don't leave the pressure washer unenclosed or running when not in use for more than 5 minutes without depressing the trigger.
✗ Don't use this pressure washer if it has been dropped, damaged or immersed in water.
Don't use pressure washer if the power cord or plug is damaged. Please contact our Customer Care Line on (UK) 0844 412 8455 1RC011 800 923 308
✗ Don't handle the plug of the pressure washer with wet hands.
✗ Don't use the pressure washer without supply hose (minimum length 7 mm) in place and unwind the nose fully from rest.

Don't use the pressure washer without the water filter in place.

Don't put on carry this pressure washer by the power cord. Don't use the power cord as a handle, put the power cord around corners or sharp edges or close button over the power cord. Don't undergo pressure washer by pulling on the power cord.
X Don't aim the pressure washer at people, animals, plants, electrical components, wires, or the pressure washer itself.
X Don't use the pressure washer on electrical components, damaged/delicate paint surfaces, tyres, engines/morors.
X Don't use the pressure washer with incorrect voltage as this may result in damage or injury to the user. The correct voltage is listed on the rating label.

Do's

√ Always wear suitable clothing, eco-wear and eye protection whilst using the pressure washer.
√ Always connect the water supply, remove the lance and squeeze the trigger to run water through the machine before switching the power on.
√ Always use a suitable hose connector to match the coupling on the pressure washer with a non-return valve at lap end of the supply hose.
√ Always unplug the pressure washer before cleaning or carrying out any maintenance.
√ Always turn off and plug the pressure washer before disconnecting or connecting the hose, after use always wrap the pressure hose and power cord around the storage clips provided

√ Always release dry built-up pressure in the handle prior to disconnecting the nose and ensure water inlet fiber is clean prior to storage in a cool dry place.
√ Use only SE approved 13emp extension cords with PCD, non-approved exons on cords may over Nepal. Care should be taken to arrange the extension cord as it could be a trip hazard.
√ Always make sure the power/extension cord is fully unwound and prevent the power/extension cord from getting wet, during use. √ Always replace the fuse in the plug with a British Damo fuse. Always protect the power cable from heated surfaces or near open flames.
√ Always carry the pressure washer by the handle
√ Always check water hose and accessories are not damaged, broken or worn before use.

Thank you for buying this Pressure Washer.

Taking care of your outdoor cleaning

The pressure washer is designed to make outdoor cleaning tasks as effective and efficient as possible and this user guide will help you get the most out of your machine.

Completing outdoor cleaning tasks using a Vax pressure washer will keep your outdoor items and surfaces cleaner for longer.

Taking care of your Pressure Washer

Also inside this guide are instructions on maintaining your new machine, so that it's always ready when you are to tackle your outdoor cleaning tasks.

Taking care of you

We're here if you need us. Instead of taking me back to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0844 412 8455 (ROI) 1-800 928 308

Monday-Friday 8.30am to 6.30pm, Saturday 9.00am to 5.00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number of the pressure washer before calling

Alternatively, you can write to us at:

Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK

You're home."

Let us know what you think

@VaxUK

Contents Getting to know you

Pressure Washer

Let's talk safety

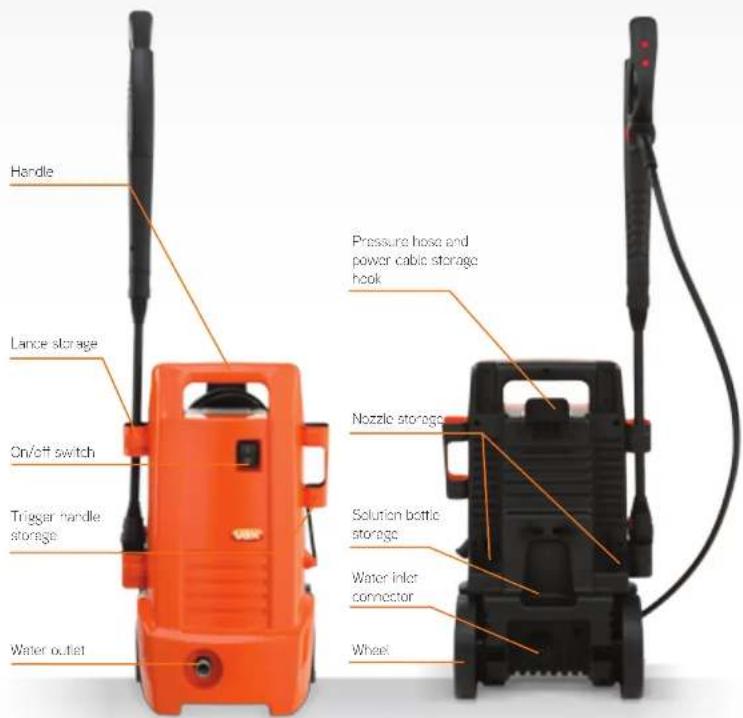

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let's talk technical

What to do if it goes wrong

Getting in touch

Accessories

Included with your machine

Jet nozzle (orange nib)

Turbo nozzle

Solution application bottle

Nozzle cleaning tool

Water inlet connector

Technical Specification

Name Pressure Washer

Voltage 1700W

Wotago 220-240V-50Hz

Max Pressure 130 bar

Worling Pressure 90 bar

Flow Rate 370L/Hr

Accessories & Consumables

Universal detergent

1-9-133398-00

Ratio & Decking detergent

1-9-133401-00

Wash & Protect

1.0 400/00.00

1-9-133400-00

Subject to technical change without notice.

*To purchase consumables and accessories, please visit vax.co.uk

Getting started Using your machine

PLEASE READ 'LET'S TALK SAFETY' AT THE BEGINNING BEFORE USE.

Assembling your pressure washer

Attach both wheels and push until they click into place.

Attach the hose connector to water inlet, by turning clockwise until tight.

After connecting pressure hose, lance and accessories check they are securely fitted and locked in place before turning on.

Always make sure the pressure washer and water supply is off before connecting or disconnecting the hose and accessories

IMPORTANT: Always make sure the trigger safety lock is in the LOCKED position when not in use or connecting/disconnecting the pressure hose.

Always check water hose, pressure hose, lance and accessories are not damaged broken or worn before use.

Preparing your pressure washer for use

Push the pressure hose firmly to the water outlet and turn the pressure hose collar clockwise until tight.

A trigger safety lock is located underneath the handle. The safety lock should always be in LOCKED position before connecting/disconnecting the pressure hose to the trigger handle.

To connect pressure hose to trigger handle, press the pressure hose release button and push pressure hose to lock into position. Gently pull the pressure hose to make sure it is locked securely.

Whilst firmly pushing the lance into the trigger handle turn clockwise to lock into position.

To remove the lance from the trigger handle firmly push and twist the lance anti-clockwise. When unlocked pull to remove.

IMPORTANT: Always use an RCD (Residual Current Device) adaptor when using this pressure washer.

Make sure water supply is not connected. Firmly push the water hose pipe with suitable connector onto the water inlet to lock into position.

Connect water nose pipe to a suitable water supply and turn water on.

Before plugging the machine in press the unlock safety button on the trigger handle and squeeze the trigger until water starts to flow through the nozzle.

Connect the power cord to the mains supply via an RCD adaptor.

Push switch to 'I' position to turn on. The machine will run for a few seconds then stop but no water will be released.

Squeeze the trigger on the trigger handle to release a high pressured water jet, and start cleaning.

Push switch to 'O' position to turn off

Portrait of a man in a black polo shirt with a small orange badge (no visible text or symbols)

WARNING
Don't aim the pressure washer directly at people, animals, plants, electrical components, wires or the pressure washer itself.

Using your machine

Using your machine

IMPORTANT: Always make sure the machine is switch off and the safety button on the trigger handle is LOCKED before connecting/disconnecting the lance, nozzle or accessories.

Jet nozzle has a wider spray and is ideal for use or surfaces areas such as cars, garden furniture, decking and beets.

Using your accessories

Three illustrations showing a tool with arrows indicating motion: one with rotation arrow, one with handle, and one with water splash (no text or symbols)

To attach the jet nozzle, fit the lance with a firm push and twist to lock into place.

Hold down the release button on the lance, push the jet nozzle and lance firmly together until you hear an audible CLICK. Release the button and gently pull the jet nozzle to make sure it is locked securely before use.

Squeeze the trigger on the trigger handle to release a high pressured water jet, and start cleaning.

Turbo rovle has a more concentrated spray and is ideal for use on very dirty surfaces, patios or masonry. As it is not filled with a pressure regulator it is not suitable for use on delicate or painted surfaces.

To attach the turbo nozzle, fit the lance with a firm push and twist to lock into place.

I laid down the release button on the lance, push the turbo nozzle and lance firmly together until you hear an audible CLICK. Release the button and gently pull the turbo nozzle to make sure it is locked securely before use.

Squeeze the trigger on the trigger handle to release a high pressured water jet and start cleaning.

Portrait of a man wearing a black polo shirt with an orange badge (no visible text or symbols)

WARNING

Never use the turbo nozzle on cars, tyres and engines.

IMPORTANT: When using solution make sure you follow the dilution instructions and use Vax solution only. IMPORTANT: Solution can only be used with the jet nozzle.

Using solution with your pressure washer

Fill the solution application bottle with the diluted solution mix. Turn the lid clockwise to lock.

Illustration of two spray gun holders with different colors and motion arrows, emitting blue spray from a surface (no text or symbols)

Push the solution application bottle onto the lance fitted with jet nozzle until locked into place.

Switch the pressure washer on and squeeze trigger to dispense the water and solution mix.

To remove or refill, lift the locking tab to release the solution application bottle from the jet nozzle.

Portrait of a smiling man in a black shirt with a lightbulb icon labeled 'TIP' in the corner (no additional text or symbols)

Always rinse fresh water through your pressure washer for 1 minute after using solution to prevent blockages.

Taking care of your machine

Let's talk technical

IMPORTANT: Always rinse fresh water through your pressure washer and accessories for 1 minute after using solution to prevent blockages.

Maintenance

To access water filter unscrew water inlet connector and remove.

To remove water filter, pinch the inner water filter tab with plers and gently pull.

Water filter can be rinsed under running water periodically.

IMPORTANT: Before storing your machine always make sure no water remains in the pressure washer or hose/accessories to prevent frost damage. Keep in a dry place above zero degrees and out of the reach of children.

Storage

Always store tools/cable/solution tank into a located slot.

Removing a blockage in the lance and nozzles

Illustration of four different medical or surgical tools with orange arrows indicating motion or movement (no text or symbols present)

To remove the lance from trigger handle, family push and twist the lance, when unlocked pull to remove.
To remove the nozzles press the nozzle release button and pull.
Insert the nozzle cleaning tool into the end of lance and nozzles to remove any dirt or debris.

Portrait of a man in a black polo shirt with a small logo on the chest (no text or symbols visible)

WARNING

Before carrying out any maintenance make sure the machine is switched off and unplugged.

What to do if it goes wrong Getting in touch

SolutionProblem

There is an accessory missing

- Check the "This pack contains" panel on the box to make sure the part is included with your machine.

Why won't my pressure washer turn on?

• Make sure the or/alt switch is set to the T position.
• The plug may not be fully pushed into the electrical socket.
- Check the fuse in the plug if this needs replacing, always replace with a British 13amp fuse.
- Check if your RCD has been tripped, if it has tripped, reset it
• The power cord may be damaged. Please contact our Customer Care Line on (UK) 0344 412 8455 (ROI) 1-800 928 308

Why won't the water /solution dispense?

• The pump may have stopped, make sure the on/off switch is set to the "I" position and check the plug fuse.
  • The pumo may have slooped. This may be because of overheating due
  to poor water supply. Check the water flow rate to your water supply.
• Hose may be blocked or kirked, check for leaks in the hose and clear any blockages. Straighten out the hose to ensure no kinks and check the hose pipe connections to the tap and water inlet.
• There may be an air lock. To remove, unlock the trigger safely lock and squeeze the trigger to release water before the machine is switched on.
• Check assembly of solution application bottle Go to the 'Using your machine' page. Nozzle/accessory may be blocked, clear any blockages and clean nozzle Go to the 'Lets-tak technical' page.

Why won't my pressure, washer reach operating pressure?

• Hose may be blocked or kirked, check for leaks in the hose and clear any blockages. Straighten out the hose to ensure no kinks and check the hose pore connections to the lap and water inlet.
• Nozzle may be blocked, clean any blockages and clean nozzle. Go to the 'Lets talk technical' page
• Remove and clean the water inlet filter Go to the Taking care of your machine page.
• Check the water flow rate to your water supply.

* Cals are charged at the UK local rate. Please make a note of the serial number and model number of the pressure washer before coll.rng.

Accessories

Don't forget your accessories!

Order at: www.vax.co.uk/spares-and-solutions

Universal detergent 1-9-133398-00Universal detergent to aid the break down and removal of stubborn dirt, moss, and grime.
Patio & Decking detergent 1-9-133401-00Patio & decking detergent to aid the break down and removal of stubborn dirt from patio and does it use.
Wash & Protect vehicle detergent 1-9-133400-00Wash & protect vehicle detergent to aid the removal of roac dirt, oil and grease from vehicles, and provide short-term protection against weathering conditions.
Standard lance 1-9-133749-00Standard lance connection between your trigger handle one of attachments.
Detergent nozzle 1-9-133759-00A detergent nozzle to directly apply detergent to surfaces to help oxygen dirt, moss, and grime.
Attachable detergent bottle 1-2-133752-00A detergent nozzle to directly apply detergent to surfaces to help oxygen dirt, moss, and grime.	[SAK8]
Trigger handle 1-2-133A smooth shops hand handle with an easy squeezed trigger and a built-in safety lock for coya or/fort trigger release.

Jet nozzle 1-9-133754-00

Jet mozzles to apply concentrated pressure to disedge dirt lane, grade on all surface types.

Turbo nozzle 1-9-133753-00

A high pressure turbo nozzle to blast away tough embossed out from high trail press.

Patio cleaning set 1-9-133767-00

A large circular case brush supplied with an extension tube for cleaning concentrated areas quickly and efficiently. Ideal for Parts, Decking, Driveways, Garden conns.

Rotary brush 1-9-133766-00

A firm brisled brush with 360 degree rolator, providing extra scrub power for an extra clean. Ideal for: Car alloy wheels, Car grills.

Car brush 1-9-133765-00

A soft bristed brush, certified for agitating tough cart from sensitive surfaces. Ideal for Car mirrors, Car bocy.

Outdoor brush 1-9-133769-00

A handy outdoor brush, perfect, for gently retrieving dirt from various outdoor surfaces. Ideal by: Garden furniture. Conservatories.

Extension bar 1-9-133768-00

An additional connection tube providing you extra reach.

You're home."

@VaxUK

Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 0QH, UK email: [e-mail] website: vax.co.uk

Version 1.0

EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the VPW series is manufactured in compliance with the following Directives:

Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
