Product Type	Pressure Washer
Brand	Vax
Model	Power 2 VPW3B
Power Consumption	2000W
Voltage	220-240V ~50Hz
Max Pressure	140 bar
Working Pressure	100 bar
Flow Rate	430 L/h
Water Supply Connection	Standard garden hose with non-return valve
Safety Features	Thermal cut-out, trigger safety lock
Electrical Protection	Requires RCD adaptor (not included)
Included Nozzles	Jet nozzle (orange), Turbo nozzle (black), Solution nozzle
Lance Included	Yes
Nozzle Cleaning Tool	Yes
Water Filter	Removable, accessible at water inlet
Solution System	Detergent tube and bag
Storage Features	Cord and hose storage clips, handle
Wheels	Yes
Intended Use	Outdoor household use only
Warranty	2 years (free registration required)
Recommended Accessories	Universal detergent, Patio detergent, Vehicle detergent, Patio cleaning set, Rotary brush, Car brush, Outdoor brush, Extension bar

Frequently Asked Questions - Power 2 VPW3B VAX

What type of detergent can I use?

Only use Vax genuine accessories and solution. Non-branded Vax accessories and solution will invalidate your warranty.

Can I use the turbo nozzle on my car?

No, never use the turbo nozzle on cars, tyres, engines, or delicate painted surfaces. It is only for very dirty surfaces like patios and masonry.

How do I connect the pressure hose?

Push the pressure hose firmly into the water outlet and turn the collar clockwise until tight. For the trigger handle, press the release button and push the hose to lock; gently pull to check.

What should I do if the pressure washer won't start?

Check the on/off switch is set to 'I', plug fully inserted, fuse (13 amp), RCD not tripped, and squeeze the trigger handle. The machine may have tripped the thermal cut-out – unplug, cool for 4 hours, and check for blockages.

How do I clean a blocked nozzle?

Remove the nozzle by pressing the release button. Insert the nozzle cleaning tool into the end of the nozzle to remove dirt or debris.

Can I use an extension cord?

Only use CE approved 13 amp extension cords with RCD. Non-approved cords may overheat. Fully unwind the cord and keep it away from water.

How do I store the pressure washer?

Always release pressure by squeezing the trigger until no water comes out. Wrap the pressure hose and power cord around the storage clips, and store in a dry place above 0°C.

Why is there no water coming out?

Ensure the water supply is on, hose is not kinked, pump is on, trigger is squeezed, and there is no air lock. Check the solution tube if using detergent; remove turbo/jet nozzle if using solution.

How do I use the solution nozzle?

Attach the solution nozzle to the lance. Insert the solution tube into the detergent bag. Squeeze the trigger to dispense. After use, rinse with fresh water for 1 minute.

What is the thermal cut-out?

If the pressure washer overheats, the thermal cut-out automatically switches it off. Switch off, unplug, allow to cool for 4 hours, and check for blockages before restarting.

USER MANUAL Power 2 VPW3B VAX

Perfect for tackling cars, large scale paved surfaces and patios.

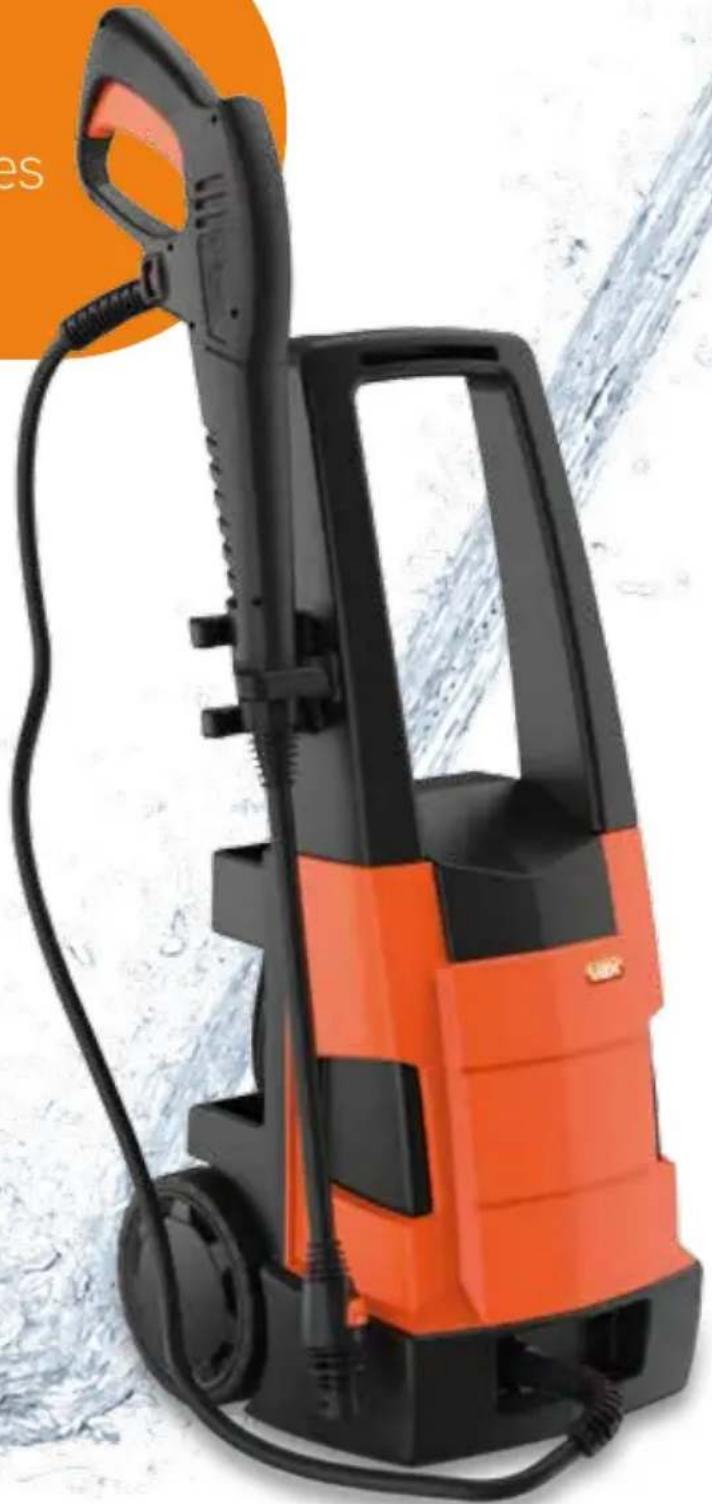

Orange and black power supply cleaner with water spray, no visible text or symbols

Basic safety precautions

This pressure washer is intended for household use only and NOT for commercial or industrial use.

• This Pressure washer is for outdoor use only.
• It is your responsibility to check the suitability of the surface to be cleaned. Vax UK Ltd cannot be held responsible for damage caused.
• Keep fingers, hair and loose clothing from moving parts and openings whilst using the pressure washer.
• When using your pressure washer the recommended working distance between the nozzle and surface area or object to be cleaned is 30cm.

Don'ts

• Don't leave the pressure washer unattended or running when not in use for more than 5 minutes without depressing the trigger.
• Don't use this pressure washer if it has been dropped, damaged or immersed in water.
• Don't use pressure washer if the power cord or plug is damaged. Please contact our Customer Care Line on (UK) 0330 026 8455 (ROI) 1-800 928 308. (Mon - Fri 8:30am to 6:30pm, Sat 9:00am to 5:00pm).
• Don't handle the plug of the pressure washer with wet hands.
• Don't use the pressure washer without supply hose (minimum length 7.5m) in place and unwind the hose fully from reel.

Do's

• Always wear suitable clothing footwear and eye protection whilst using the pressure washer.
• Always connect the water supply, remove the lance and squeeze the trigger to run water through the machine before switching the power on.
• Always use a suitable hose connector to match the coupling on the pressure washer with a non-return valve at tap end of the supply hose.
• Always unplug the pressure washer before cleaning or carrying out any maintenance.
• Always turn off and unplug the pressure washer before disconnecting or connecting the hose, after use always wrap the pressure hose and power cord around the storage clips provided.

- This appliance can only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Vax only recommend the use of Vax genuine accessories and solution to be used with this pressure washer. The use of non-branded Vax accessories and solution will invalidate your warranty.

• Don't use the pressure washer without the water filter in place.
• Don't pull or carry this pressure washer by the power cord. Don't use the power cord as a handle, pull the power cord around corners or sharp edges or close a door over the power cord. Don't unplug pressure washer by pulling on the power cord.
• Don't aim the pressure washer at people, animals, plants, electrical components, wires, or the pressure washer itself.
• Don't use the pressure washer on electrical components, damaged/delicate paint surfaces, tyres, engines/motors.

• Don't use the pressure washer with incorrect voltage as this may result in damage or injury to the user. The correct voltage is listed on the rating label.

• Always release any built up pressure in the handle prior to disconnecting the hose and ensure water inlet filter is clean prior to storage in a cool dry place.

• Use only CE approved 13amp extension cords with RCD, non-approved extension cords may overheat. Care should be taken to arrange the extension cord as it could be a trip hazard.
• Always make sure the power/extension cord is fully unwound and prevent the power/extension cord from getting wet during use.
  • Always replace the fuse in the plug with a British 13amp fuse.
  • Always protect the power cable from heated surfaces or near open flames.
  • Always carry the pressure washer by the handle.
• Always check water hose and accessories are not damaged, broken or worn before use.

Thank you for buying this Pressure Washer.

Taking care of your outdoor cleaning

The pressure washer is designed to make outdoor cleaning tasks as effective and efficient as possible and this user guide will help you get the most out of your machine.

Completing outdoor cleaning tasks using a Vax pressure washer will keep your outdoor items and surfaces cleaner for longer.

Taking care of your Pressure Washer

Also inside this guide are instructions on maintaining your new machine, so that it's always ready when you are to tackle your outdoor cleaning tasks.

Taking care of you

We're here if you need us. Instead of taking me back to the shop, simply visit:

vax.co.uk/support or call:

(UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm

Calls are charged at the UK local rate. Please make a note of the serial number and model number of the product before calling.

Alternatively, you can write to us at:

Vax Ltd, Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 OLW, UK This User Guide can be found online at: vax.co.uk/support

Contents

Let's talk safety

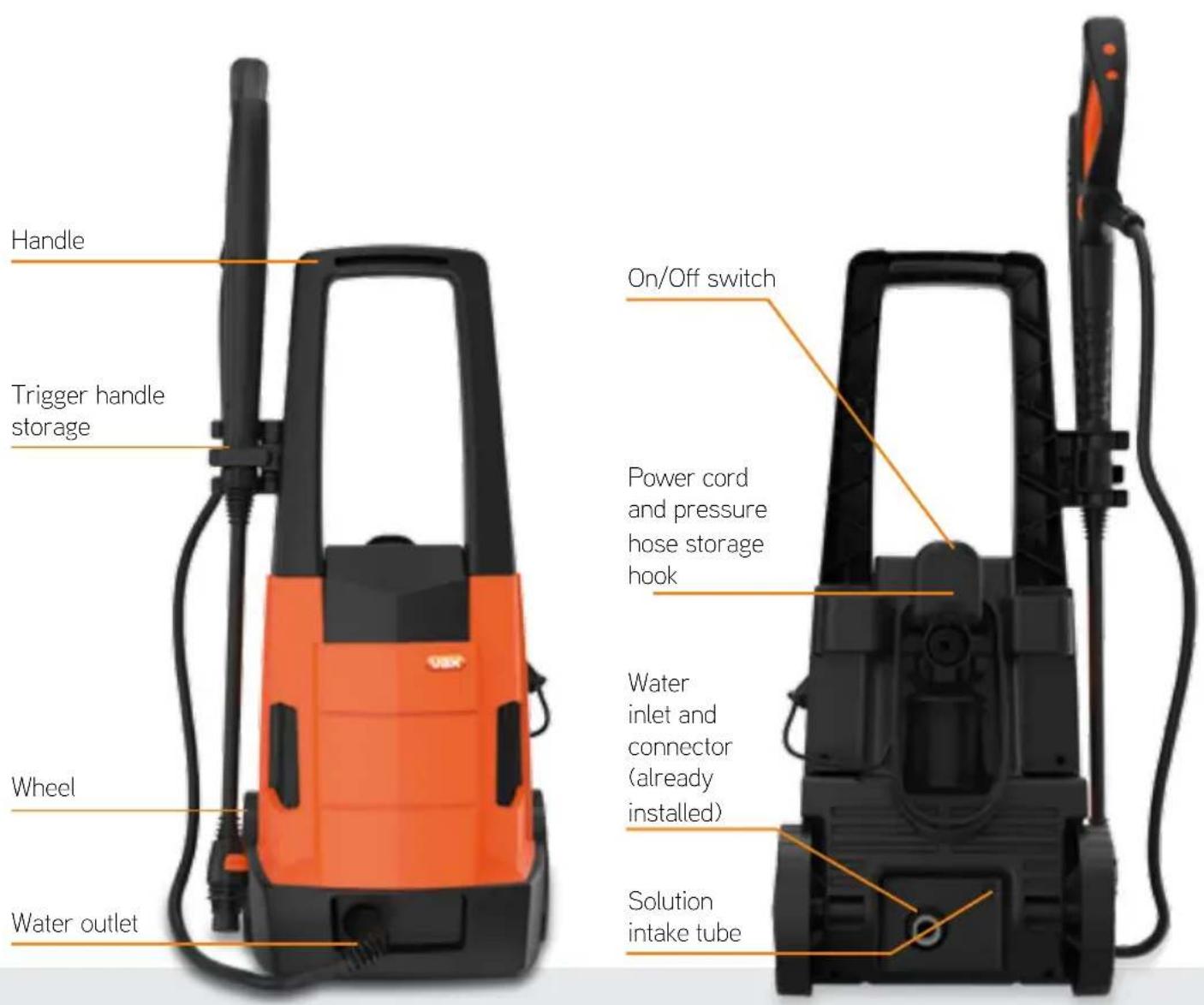

Getting to know your machine

Getting started

Using your machine

Taking care of your machine

Let's talk technical

What to do if it goes wrong

Getting in touch

Accessories

Pressure Washer

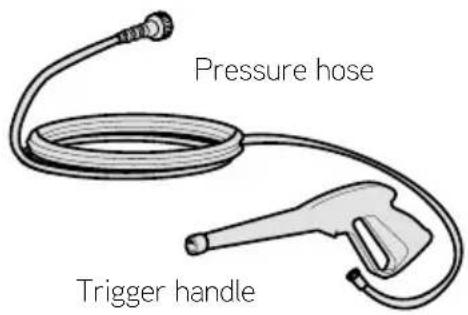

Included with your machine

Line drawing of a mechanical tool labeled 'Lance' (no other text or symbols)

Jet nozzle (pink nib)

Turbo Nozzle (black nib)

Solution nozzle

Nozzle cleaning tool

Technical Specification

Name VPW2B/VPW2

Wattage 2000W

Voltage 220-240V\~50Hz

Max Pressure 140 bar

Working Pressure 100 bar

Flow Rate 430L/Hr

Accessories & Consumables

Universal detergent

1-9-133398-00

Patio & Decking detergent

1-9-133401-00

Wash & Protect

vehicle detergent

1-9-133400-00

PLEASE READ 'LET'S TALK SAFETY' AT THE BEGINNING BEFORE USE

Always make sure the pressure washer and water supply is off before connecting or disconnecting the hose and accessories. The pressure washer is equipped with a thermal cut-out. If for any reason the pressure washer does overheat the thermostat will automatically turn the washer off. If this happen switch and unplug from the electrical socket. Remove the lance, nozzle and filter and check for blockages. Allow the pressure washer to cool for approx 4 hours

Assembling your pressure washer

Line drawing of a mechanical device with wheels and a small orange arrow indicating motion (no text or symbols)

Attach the hose connector to water inlet by turning clockwise until tight.

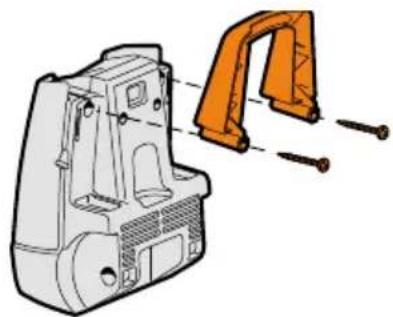

Technical illustration of a mechanical component with orange bracket and screw fasteners (no text or symbols)

Slot the handle in to the top of the machine and insert the 2 screws, turn clockwise to tighten.

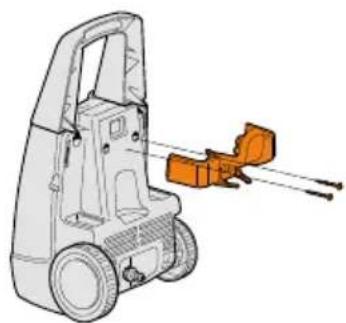

Illustration of a water purifier with orange components and a tool, no text or symbols present

Align the pressure hose and cord storage hook onto the back of the machine and secure with 2 screws.

IMPORTANT: Always make sure the trigger safety lock is in the LOCKED position when not in use or connecting /disconnecting the pressure hose.

Always check water hose, pressure hose, lance and accessories are not damaged broken or worn before use.

Preparing your pressure washer for use

Illustration of a portable electronic device connected to a coiled cable (no text or symbols visible)

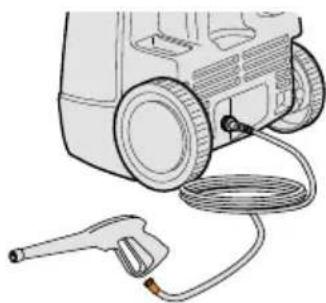

Push the pressure hose firmly to the water outlet and turn the pressure hose collar clockwise until tight.

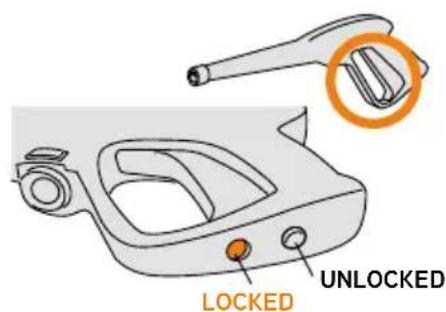

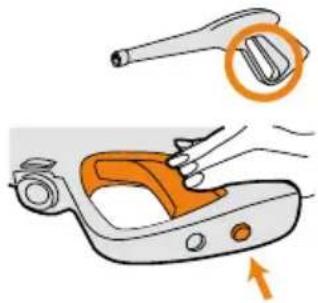

A trigger safety lock is located underneath the handle. The safety lock should always be in LOCKED position before connecting/disconnecting the pressure hose to the trigger handle.

Line drawing of a portable gasifier with hose and bulb (no text or symbols)

To connect pressure hose to trigger handle, press the pressure hose release button and push pressure hose to lock into position. Gently pull the pressure hose to check the connection.

Never use the turbo nozzle on cars, tyres and engines.

CAUTION

CAUTION: Always use an RCD (Residual Current Device) adaptor when using this pressure washer.

CAUTION: Don't leave the pressure washer running when not in use, or for more than 5 minutes to prevent overheating.

Before switching the machine on, the trigger handle must be squeezed to release water and to remove any airlocks in the machine or pressure hose. Always release any build up pressure in the handle prior to disconnecting the hose.

Illustration of a water purifier with attached pipe and valve, showing no text or symbols

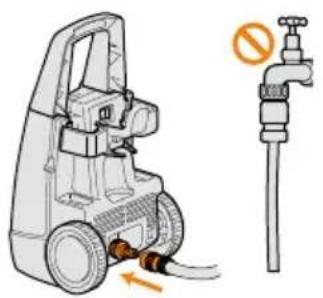

Make sure water supply is not connected. Firmly push the water hose pipe with suitable connector onto the water inlet to lock into position.

Connect water hose pipe to a suitable water supply and turn water on.

Illustration of a hand holding a tool next to a device with an orange handle and orange body, showing motion (no text or symbols)

Before plugging the machine in, press the unlock safety button on the trigger handle and squeeze the trigger until water starts to flow through the nozzle.

Line drawing of a wall-mounted device with a handle and mounting bracket (no text or symbols)

Connect the power cord to the mains supply via an RCD adaptor.

Simple diagram of a computer control panel with an orange and white buttons (no text or symbols)

Push the 'I' switch to turn on. The machine will run for a few seconds then stop but no water will be released.

Illustration of a handheld water spray gun with blue spray trail (no text or symbols)

Squeeze the trigger on the trigger handle to release a high pressured water jet, and start cleaning.

Push 'O' switch to turn off.

Illustration of a syringe with motion arrows indicating rotation (no text or symbols)

Whilst firmly pushing the lance into the trigger handle turn clockwise to lock into position.

Illustration of a syringe with motion arrows indicating rotation (no text or symbols)

To remove the lance from the trigger handle firmly push and twist the lance anti-clockwise. When unlocked pull to remove.

Don't aim the pressure washer directly at people, animals, plants, electrical components, wires or the pressure washer itself.

CAUTION

IMPORTANT: Always make sure the machine is switched off and the safety button on the trigger handle is LOCKED before connecting/disconnecting the lance, nozzle or accessories. IMPORTANT: Lance and Nozzle must be attached to the hose for pressurised water to be produced

Using your accessories

(Jet nozzle orange nib)

The jet nozzle has a wider spray and is ideal for use on surface areas such as cars, garden furniture, decking and boats.

Illustration of a syringe with motion arrows indicating rotation (no text or symbols)

To attach the jet nozzle. Fit the lance with a firm push and twist clockwise to lock into place.

Illustration of a medical or laboratory tool with a probe inserted, showing motion (no text or symbols)

Hold down the release button on the lance, push the jet nozzle and lance firmly together until you hear an audible CLICK. Release the button and gently pull the jet nozzle to make sure it is locked securely before use.

Illustration of a spray gun emitting blue spray lines (no text or symbols)

Switch the pressure washer on and squeeze the trigger handle to release a high pressured jet and start cleaning.

(Turbo nozzle black nib)

The turbo nozzle has a more concentrated spray and is ideal for use on very dirty surfaces, patios and masonry. As it is not fitted with a pressure regulator, it is not suitable for use on delicate or painted surfaces.

Illustration of a tool emitting a circular motion arrow (no text or symbols)

To attach the turbo nozzle, fit the lance with a firm push and twist clockwise to lock into place.

Illustration of a handheld tool emitting a droplet onto its tip, with an orange arrow indicating motion (no text or symbols)

Hold down the release button on the lance, push the turbo nozzle and lance firmly together until you hear an audible CLICK. Release the button and gently pull the turbo nozzle to make sure it is locked securely before use.

Illustration of a medical or laboratory tool emitting blue smoke or vapor (no text or symbols)

Squeeze the trigger on the trigger handle to release a high pressured water jet, and start cleaning.

After connecting pressure hose, lance and accessories check they are securely fitted and locked in place before turning on.

IMPORTANT: When using solution make sure you follow the dilution instructions and use Vax solution only.

Using solution with your pressure washer

Solution can only be used when the solution nozzle or car/outdoor/rotary brush nozzle is attached. Solution cannot be used with Jet and Turbo Nozzles.

IMPORTANT: Always make sure the solution tube is fully submerged into the solution/water mix inside the solution bag.

Illustration of a syringe with motion arrows indicating rotation (no text or symbols)

To attach the turbo nozzle, fit the lance with a firm push and twist clockwise to lock into place.

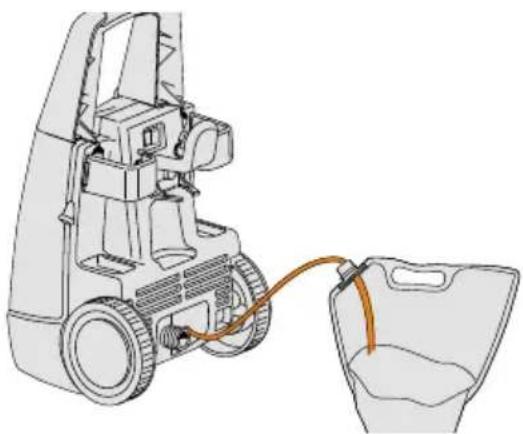

Line drawing of a portable water dispenser connected to a container with an orange cable (no text or symbols)

Unhook the solution tube and insert into the solution bag. Solution only dispensed with the trigger handle, lance and solution nozzle, or car/outdoor/rotary brush if supplied.

Illustration of a handheld tool emitting orange liquid from a small orange component (no text or symbols)

Hold down the release button on the lance, push the turbo nozzle and lance firmly together until you hear an audible CLICK. Release the button and gently pull the turbo nozzle to make sure it is locked secure before use.

Illustration of a hand cleaning a tool with blue spray lines (no text or symbols)

Switch the machine on and squeeze trigger to dispense the water and solution mix.

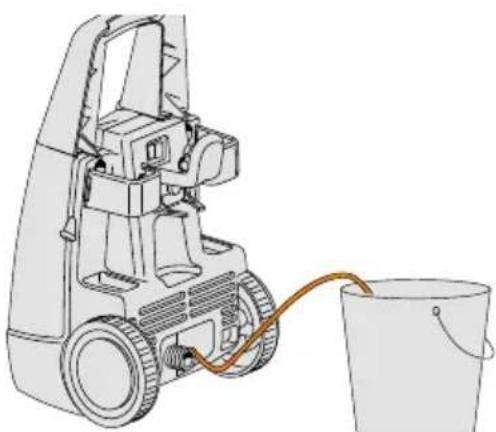

Line drawing of a robotic device connected to a bucket, no text or symbols present

After use rinse the pressure washer to prevent blockages. Inset the solution tube into a bucket of fresh water (Max 40°C), turn the machine on and squeeze the trigger for 1 minute.

To remove hose, lance, nozzle or accessories always squeeze trigger until water stops to release pressure build up

CAUTION

IMPORTANT: Always rinse fresh water through your pressure washer and accessories for 1 minute after using solution to prevent blockages.

Maintenance

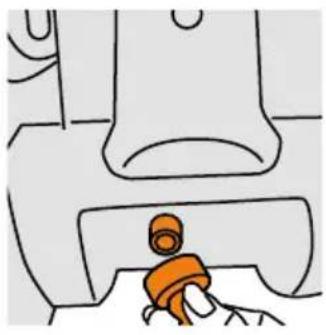

Illustration of a mechanical component with an orange knob inserted into a base (no text or symbols)

To access water filter unscrew water inlet connector and remove.

Diagram of a mechanical component with a central pin inserted into a housing (no text or symbols)

To remove water filter, pinch the inner water filter tab with pliers and gently pull.

Simple line drawing of a pipe fitting with a handle and base (no text or symbols)

Water filter can be rinsed under running water periodically.

Before carrying out any maintenance make sure the machine is switched off and unplugged.

CAUTION

IMPORTANT: If using the pressure washer with water from a water butt, the water filter will need to cleaned more frequently

IMPORTANT: Before storing your machine always make sure no water remains in the pressure washer, hose/accessories. Once machine is switched off and before removing the nozzles, lance or trigger handle always squeeze the trigger until no more water comes out, to prevent frost damage. Keep in a dry place above zero degrees and out of the reach of children.

Storage

Illustration of a robotic vehicle with orange handle and mechanical components (no text or symbols)

Always store tools, power cord and pressure hose into allocated storage slots.

Illustration of a mechanical device with orange components and wheels (no text or symbols)

Illustration of a tool with an orange handle and a gray handle, showing rotational motion (no text or symbols)

To remove the lance from the trigger handle firmly push and twist the lance anticlockwise. When unlocked pull to remove.

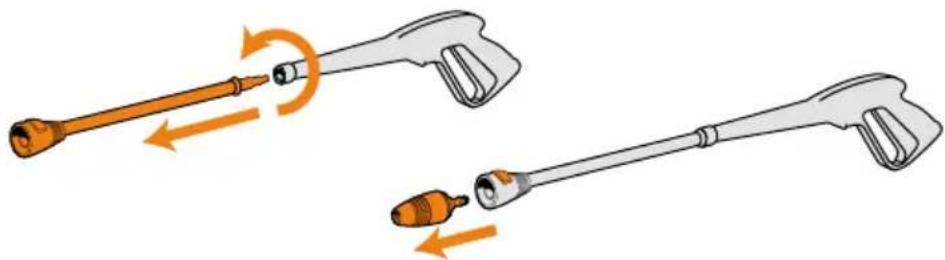

Removing a blockage in the lance and nozzles

Illustration of two medical or laboratory tools with orange connectors and directional arrows indicating motion (no text or symbols)

To remove the lance from trigger handle firmly push and twist the lance anti-clockwise, when unlocked pull to remove.

To remove the nozzles press the nozzle release button and pull.

Illustration of a medical device with an orange arrow pointing to its tip (no text or symbols present)

Insert the nozzle cleaning tool into the end of lance and nozzles to remove any dirt or debris.

What to do if it goes wrong

SolutionProblem

There is an accessory missing

- Check the 'This pack contains' panel on the box to make sure the part is included with your machine.

Why won't my pressure washer turn on?

• Make sure the on/off switch is set to the 'I' position.
• The plug may not be fully pushed into the electrical socket.
• Check the fuse in the plug if this needs replacing, always replace with a British 13amp fuse.
• Check if your RCD has been tripped, if it has tripped, reset it.
• The power cord maybe damaged. Please contact our Customer Care Line on (UK) 0330 026 8455 (ROI) 1-800 928 308.
• The trigger has not been squeezed the pressure washer will be silent, to activate squeeze the trigger handle.
• The pressure washer is equipped with a thermal cut-out. If for any reason the pressure washer does overheat the thermostat will automatically turn the washer off. If this happen switch and unplug from the electrical socket. Remove the lance, nozzle and filter and check for blockages. Allow the pressure washer to cool for approx 4 hours.

Why won't the water /solution dispense?

• The pump may have stopped, make sure the on/off switch is set to the 'I' position and check the plug fuse.
• The pump may have stopped. This may be because of overheating due to poor water supply. Check the water flow rate to your water supply.
• Hose may be blocked or kinked, check for leaks in the hose and clear any blockages. Straighten out the hose to ensure no kinks and check the hose pipe connections to the tap and water inlet.
• There may be an air lock. To unlock the trigger safety lock, squeeze the trigger to release water before the machine is switched on.
• Check the assembly of the solution tube and bag. Go to 'Using your machine'.
• Nozzle/accessory may be blocked, clear any blockages and clean with nozzle cleaning tool. Go to 'Lets talk technical' page.
• Turbo/Jet Nozzle attached, remove and attach solution Nozzle. No solution will be released when using the turbo/jet nozzle go to 'Using your machine' page

Why won't my pressure washer reach operating pressure?

• Lance and Nozzle not attached. A lance and Nozzle must be attached to the hose for pressurised water to be produced. Go to 'Taking care of your machine
• Hose may be blocked or kinked, check for leaks in the hose and clear any blockages. Straighten out the hose to ensure no kinks and check the hose pipe connections to the tap and water inlet.
• Nozzle may be blocked, clear any blockages and clean nozzle. Go to the 'Lets talk technical' page.
• Remove and clean the water inlet filter. Go to the 'Taking care of your machine' page.
• Check the water flow rate to your water supply.

It's quick and easy to

register for your FREE

2 year guarantee ^†

Online at: vax.co.uk/guarantees

Please retain your original receipt for proof of purchase.

we're here if you need us

Online vax.co.uk/support

Call: (UK) 0330 026 8455 (ROI) 1-800 928 308

Monday-Friday 8:30am to 6:30pm, Saturday 9:00am to 5:00pm*

Alternatively, you can write to us at:

Vax Ltd. Plot 302, Stonebridge Cross Business Park, Hampton Lovett, Droitwich, WR9 OLW, UK

Don't forget your accessories!

Order at: www.vax.co.uk/spares-and-solutions

Universal detergent 1-9-133398-00

Universal detergent to aid the break down and removal of stubborn dirt, moss, and grime.

Patio & Decking detergent 1-9-133401-00

Patio & decking detergent to aid the break down and removal of stubborn dirt from patio and decked areas.

Wash & Protect Vehicle detergent 1-9-133400-00

Wash & protect vehicle detergent to aid the removal of road dirt, oil and grease from vehicles, and provide short term protection against weathering conditions.

Standard lance 1-9-133749-00

Standard lance connection between your trigger handle and attachments.

Black ornamental object with a pointed tip and stem, isolated on white background (no text or symbols)

Detergent nozzle 1-9-133759-00

A detergent nozzle to directly apply detergent to surfaces to help loosen dirt, moss, and grime.

Attachable detergent bottle 1-2-133752-00

A detergent nozzle to directly apply detergent to surfaces to help loosen dirt, moss, and grime.

Trigger handle 1-2-133750-00

A smooth shape hand handle with an easy squeeze trigger and a built in safety lock for easy on/off trigger release.

Black handheld medical or cosmetic device with curved handle and red accent (no visible text or symbols)

Jet nozzle 1-9-133754-00

Jet nozzle to apply concentrated pressure to dislodge dirt and grime on all surface types.

Turbo nozzle 1-9-133753-00

A high pressure turbo nozzle to blast away tough embedded dirt from high traffic areas.

Patio cleaning set 1-9-133767-00

A large circular cased brush, supplied with an extension tube for cleaning concentrated areas quickly and efficiently. Ideal for: Patios, Decking, Driveways, Garage doors.

Rotary brush 1-9-133766-00

A firm bristled brush with 360 degree rotation, providing extra scrub power for an extra clean. Ideal for: Car alloy wheels, Car grills.

Car brush 1-9-133765-00

A soft bristled brush, perfect for agitating tough dirt from sensitive surfaces. Ideal for: Car mirrors, Car body.

Outdoor brush 1-9-133769-00

A handy outdoor brush, perfect for gently removing dirt from various outdoor surfaces. Ideal for: Garden furniture, Conservatories.

Extension bar 1-9-133768-00

An additional connection tube providing you extra reach.

Replacement hose (10m) 1-9-133751-00

An additional high pressure hose, highly durable and resistant to weather conditions.

Close-up of a black cable with orange connectors (no text or symbols visible)

@VaxUK

Vax Ltd., 5th Floor 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN, UK email: [e-mail] website: vax.co.uk

EEC Statement of Compliance: Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the VPW2B/VPW2 series is manufactured in compliance with the following Directives:

Safety: 2006/95/EC Low Voltage Directive. EMC: 2004/108/EC Electromagnetic Compatibility Directive.

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
