Product Type	Baby walker (baby walking frame)
Intended Use	For children who can sit unaided but cannot walk alone
Maximum Weight	12 kg
Minimum Age	From when child can sit unaided (approx. 6+ months)
Dimensions (Approx.)	Approx. 60 x 60 x 50 cm (unfolded)
Weight (Approx.)	Approx. 2.5 kg
Power Supply (Tray Toy)	2 x AA 1.5V batteries (not included)
Seat Height Adjustment	3 positions
Wheels	2 front wheels 360° rotatable; 2 rear wheels with back-stop
Stair Stoppers	6 stoppers to prevent tipping over stairs
Tray Features	Colorful tray with toys and melodies
Folding	Easy and compact folding for storage
Material	Plastic, metal, textile (polyester seat cover and filling)
Care Instructions	Hand wash fabric parts up to 30°C; wipe frame with damp cloth and mild detergent
Safety Standards	Complies with EU Directive 2001/95/EC and EN 1273
Assembly	Adult assembly required; no tools needed
Recommended Use Duration	Maximum 20 minutes per session
Spare Parts	Only use original parts supplied by manufacturer
Repairability	Contact retailer or authorized service for repairs

Frequently Asked Questions - Rolly Chipolino

What is the maximum weight and age for this baby walker?

The Chipolino Rolly baby walker is intended for children up to 12 kg who can sit unaided but cannot walk alone. Do not use for children who can walk independently.

Is the baby walker safe to use near stairs?

The walker comes with 6 stoppers that prevent tipping over or falling down stairs. Always ensure stoppers are attached. Never allow access to stairs, uneven surfaces, or steps.

How do I assemble the Chipolino Rolly walker?

Assembly requires adult supervision and no tools. Follow the numbered steps in the manual: attach front and rear wheels with stoppers, install the seat, and then attach the musical tray after inserting 2 AA batteries (not included).

How do I adjust the seat height?

The seat has 3 height positions. To raise, pull the upper tray upward until it clicks into the desired position. To lower, rotate the button 90°, press it, and adjust the tray downward until it clicks.

How do I clean and maintain the baby walker?

Hand wash the fabric seat cover and textile base in water up to 30°C. Wipe the frame with a damp cloth and mild detergent. Do not use bleach or abrasive cleaners. Let all parts dry completely before use or storage.

What type of batteries does the musical tray use?

The tray requires 2 x AA 1.5V batteries (not included). Install them under the tray toy, observing correct polarity. Always secure the battery cover with the screw.

Can I use the walker for longer than 20 minutes?

It is recommended to use the walker for short periods only, up to a maximum of 20 minutes per session to avoid overstimulation or fatigue.

How do I fold the walker for storage?

To fold, press the button on the upper tray and push downward until the walker collapses. It folds compactly for easy storage. Do not place heavy items on top during storage.

Are spare parts available?

Only use original parts supplied or approved by Chipolino. For replacement parts or repairs, contact the retailer or an authorized service center.

What should I do if a part is broken or missing?

Discontinue use immediately. Do not attempt to repair with non-original parts. Contact the retailer or an authorized service for advice and replacement.

USER MANUAL Rolly Chipolino

IMPORTANT! READ CAREFULLY THESE INSTRUCTIONS AND KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE!

Line drawing of a baby walker device with no text or symbols

This ____ baby walker is manufactured in accordance with the Product Safety Directive 2001/95/EU of the European Parliament and the Council, to European standard EN 1273 “Child use and care articles. Baby walking frames. Safety requirements and test methods” as well as Consumer Protection Law from national legislation.

TO SECURE THE SAFE USE OF THIS PRODUCT AND PREVENT BABY FROM INJURIES, FOLLOW THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL!

ATTENTION! WARNINGS!

✿ CAUTION! NEVER LEAVE THE CHILD IN BABY WALKER WITHOUT SUPERVISION!

✿ CAUTION! BABY WALKER IS NOT FOR CHILDREN, WHO CAN WALK ALONE!

✿ CAUTION! BABY WALKER IS NOT FOR CHILDREN WEIGHING MORE THAN 12 kg!

✿ CAUTION! BABY WALKER IS NOT FOR CHILDREN, WHO CANNOT SIT IN IT UNAIDED!

✿ CAUTION! THE CHILD IN BABY WALKER CAN REACH MORE OBJECTS, MOVE FASTER AND AT BIGGER DISTANCES. TO PROTECT THE CHILD FROM INJURY:

DO NOT ALOW ACCESS TO STAIRS, STAIRCASES, UNEVEN SURFACES!

❖ KEEP AWAY FROM FIRE, SOURCES OF HEAT, COOKING APPLIANCES!

✿ KEEP AWAY FROM CHILDREN HOT LIQUIDS, ELECTRIC CORDS AND OTHER DANGEROUS OBJECTS!

❖ AVOID IMPACTS WITH DOOR GLASSES, WINDOWS AND FURNITURE!

✿ CAUTION! THE SET IN THIS PACKAGE CONTAINS SMALL PARTS! DO NOT ALLOW CHILDREN AGED LESS THAN 3 YEARS NEAR THE PRODUCT DURING ITS ASSEMBLY!

Do not use the baby walker if you find broken, wobby or missing parts.

- Adult assembly of the walker and its accessories is required!

◆ Height of the seat must be according to child's needs.

You should use this baby walker only for short periods. Recommended duration is 20 minutes!

When the child is in the walker, its feet must touch the floor.

Before usage the walker must be completely unfolded and all parts must be fixed. Make sure that all locking mechanisms are engaged!

Use the walker only at home, on even (not sloped) surface and only for its purpose!

Do not lift and do not move the walker while the child is in it!

❖ Stick or remove any loose stickers to avoid them being swallowed by small children!

Do not use spare parts or components different from the ones supplied by the producer! The producer is not liable in case you use parts other than the original or approved by him.

Do not make changes or modifications to the frame! If necessary, contact the retailer or an authorized service for advice and repair.

- Keep the nylon package away from children to avoid the risk of suffocation!

IMPORTANT! WARNINGS AND GUIDELINES FOR BATTERY USE

✿ After installation of batteries, always secure the battery compartment with the cover.
Do not allow children to access or play with the batteries!
Use only batteries of the designated type and power.
Do not use batteries of different types.
Do not short circuit the contact surfaces!
◆ Follow the designated polarity in the battery compartment.
❖ Remove damaged or worn out batteries.
❖ Remove the batteries when the product will not be used for long time.
Do not throw the batteries in open fire. Do not take the batteries to pieces.

CAUTION! Waste from depleted or unusable batteries must be disposed of separately. It is forbidden to throw them out in containers for household waste. Dispose of the batteries only at the specified places.

MAIN FEATURES

INTENDED FOR CHILDREN UP TO 12 KG, WHO CANNOT WALK ALONE, BUT CAN SIT UNAIDED.
◆ Wide base or better stability;
◆ Colorful tray with toys and melodies;
◆ 3 height positions of the seat to match the height of the child;
❖ Stoppers to prevent tipping over or falling over stairs (6 pcs);
◆ 360° rotatable front wheels (2 pcs);
- Straight motion rear wheels (2 pcs) – they stop the walker if it suddenly goes backwards;
◆ Easy and compact folding;
✿ Batteries needed: 2 pcs size AA/1.5V for tray toy (not included).

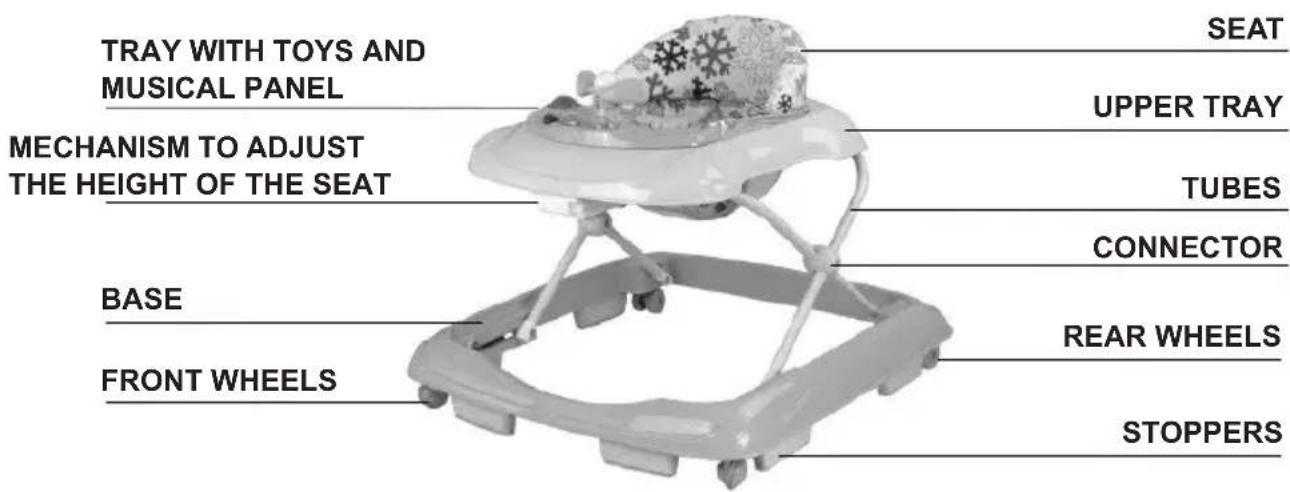

MAIN PARTS

Each package contains the following parts:

Frame – 1 pc Musical tray with toys – 1 pc Rear wheels – 2 pcs
Seat – 1 pc Stoppers – 6 pcs Front wheels – 2 pcs

ASSEMBLY

IMPORTANT! FOLLOW EXACTLY THE GUIDELINES AND SEQUENCE OF ASSEMBLY AND USE WHICH YOU WILL FIND IN THE FIGURES IN THIS MANUAL.

CAUTION! CHECK THE SECURITY OF FIXING UPON COMPLETING EACH OPERATION!

CAUTION! KEEP YOUR HANDS FROM ENTRAPMENT DURING ASSEMBLY ESPECIALLY WHEN FOLDING AND UNFOLDING THE WALKER!

Product is supplied partially assembled. To complete the assembly and disassembly you do not need any tools. The assembly actions are numbered from 1 to 5. Use the descriptions below in combination with the figure of the same number.

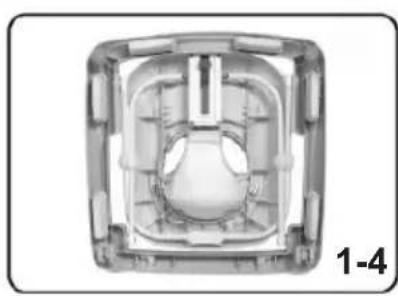

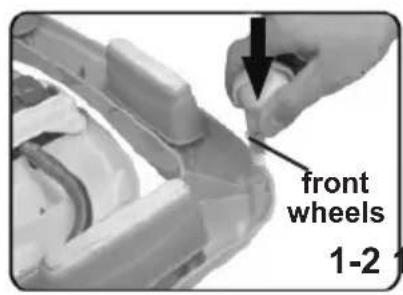

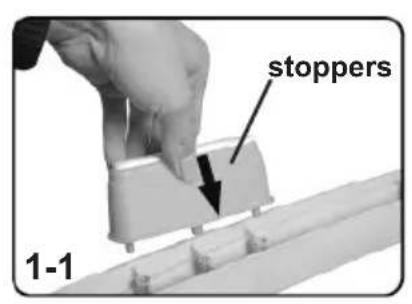

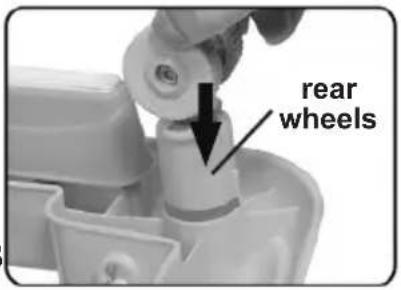

1. ASSEMBLY OF FRONT WHEELS, REAR WHEELS AND STOPPERS

CAUTION! NEVER USE THE BABY WALKER WITHOUT WHEELS AND STOPPERS!

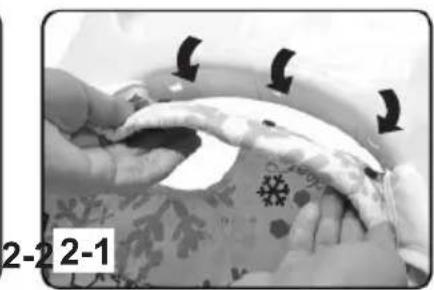

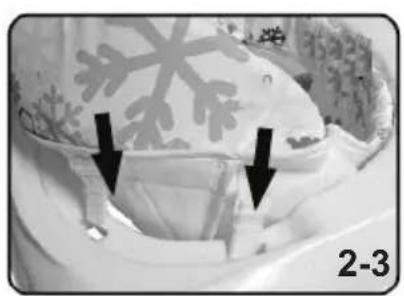

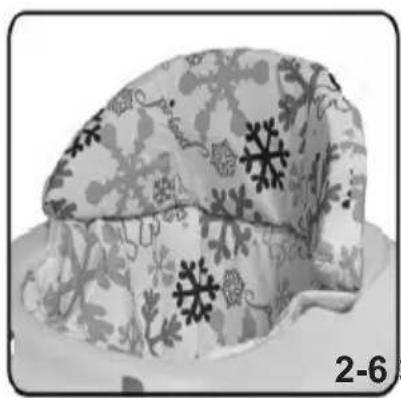

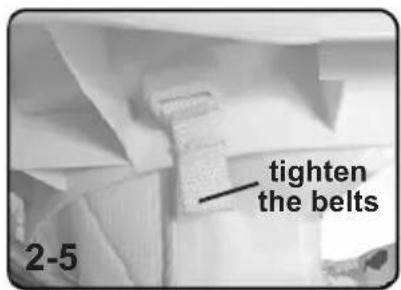

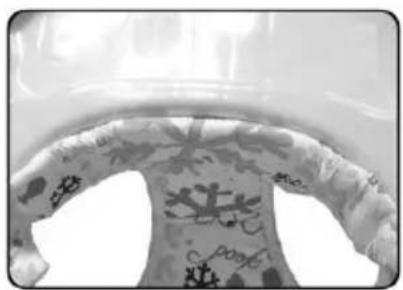

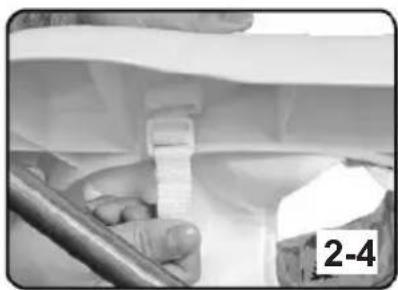

2. ASSEMBLY OF SEAT

3. TRAY WITH TOYS AND MUSICAL PANEL

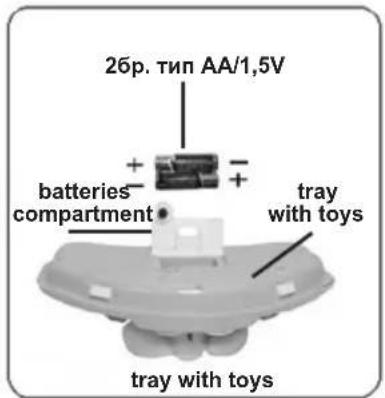

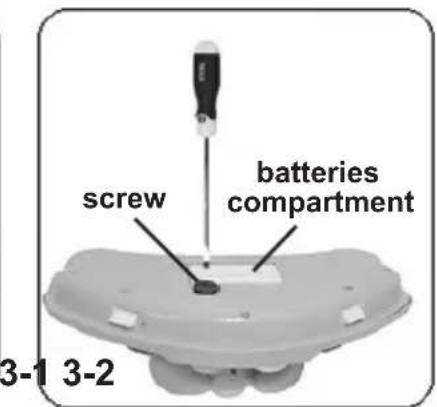

3-1 and 3-2 – Before assemble the tray with toys on the upper tray, you have to install the batteries.

Untighten the screw and open the batteries compartment cover, located under the tray toy. Install 2 pcs batteries size AA/1.5V obeying the given polarity, place back the cover and fix the screw.

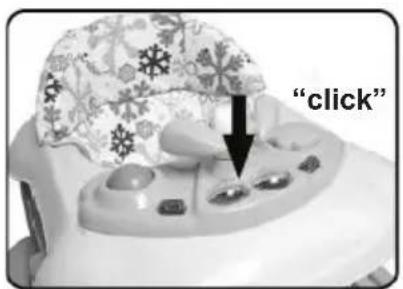

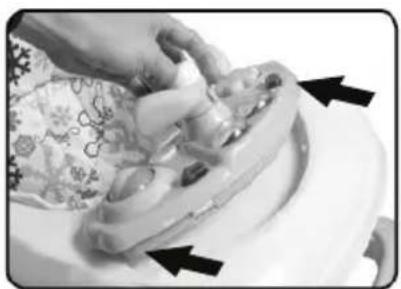

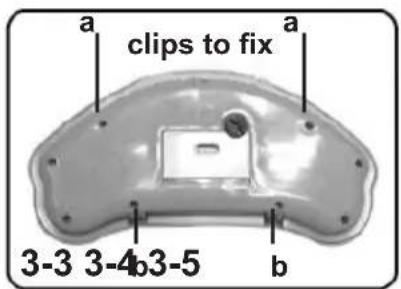

3-3, 3-4 and 3-5 – Assembly of tray toy.

4. FOLDING/ UNFOLDING OF BABY WALKER. HEIGHT ADJUSTMENT

Seat can be adjusted in 3 height positions.

To set the seat in higher position, pull the upper tray upwards until you reach the required position.

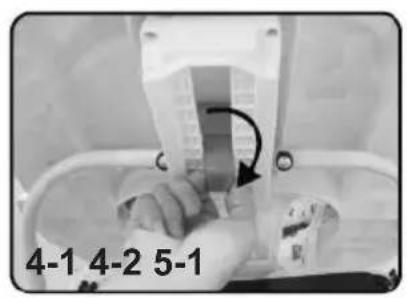

To set the seat in lower position, rotate the button at 900 (4-1). Press the button (4-2). Adjust the upper tray in required position or fold it. Fixing is accompanied with click sound.

To open the baby walker, pull the upper tray upwards until you hear a click sound.

5. FUNCTIONS

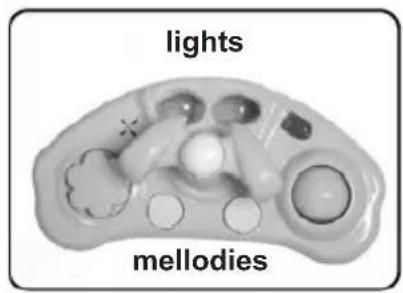

5 – 1 – Mallodies and lights when pressing the buttons

5-2 - Both front wheels can rotate at 3600

5-3 – Rear wheels are equipped with system that stoppes motion of baby walker when the weight center falls at the rear wheels.

5-4 – Baby walker folds compactly for easy storage and transportation.

-3

Cross-sectional view of a mechanical component with internal cavities and a central spherical feature (no text or symbols visible)

Close-up of hands performing a medical or cosmetic procedure on a patterned fabric surface, with arrows indicating direction (no text or symbols)

Close-up of a textured, patterned surface with two white triangular cutouts (no visible text or symbols)

Close-up of a garment with snowflake pattern and two black arrows pointing to fabric pieces (no text or symbols)

Close-up of a hand holding a plastic clip inside a kitchen appliance (no visible text or symbols)

Close-up of a patterned fabric with floral and snowflake motifs, no visible text or symbols

Close-up of hands cleaning a small object on a white plate, with black arrows indicating direction (no text or symbols)

Close-up of a mechanical component with a black arrow pointing to a specific part (no visible text or symbols)

Close-up of a plastic container with a circular button and rotational arrows indicating rotation (no text or symbols on the object itself)

Close-up of a mechanical component with a circular head and directional arrows indicating movement (no text or symbols)

Close-up of a small, textured object mounted on a rectangular base (no visible text or symbols)

CARE AND MAINTENANCE

Periodically check the good working order of all parts. Any broken or damaged parts must be immediately repaired or replaced.
✿ Fabric seat cover and textile base can be hand washed at temperature up to 30^ .
Do not pour water over the walker. Clean with damp soft towel and a neutral liquid.
✿ Never use abrasive, bleach or spirit based detergents.
◆ If the wheels creak, use lybricant.
- Discontinue using the walker if you find damage or non-working function.
✿ After each cleaning, leave the walker to fully dry and only after that use it or store it.
Do not store in areas with hot air or close to heat sources to avoid deforming.
Store the product in a clean and dry place. Do not leave it to environmental effects – sun, rain, moisture or harsh temperature fluctuations!
Do not put heavy items on the walker during transportation or storing.
In the event of problems with normal exploitation, contact an authorized service for advice or repair.

Fabric content:

Outer: 100% polyester

Filling: 100% polyester

Materials used: plastic, metal, textile.
