USER MANUAL Dolce Chipolino

IMPORTANT! KEEP FOR FUTURE REFERENCE

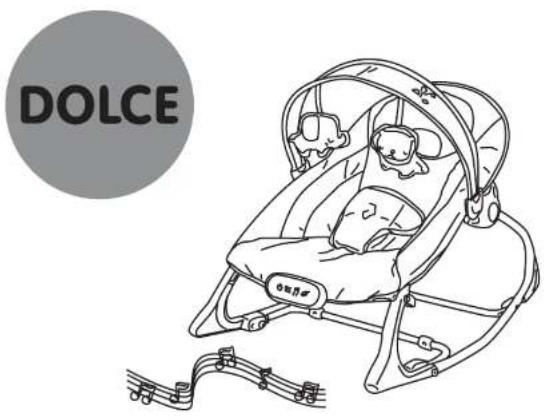

INSTRUCTION MANUAL FOR USE OF MUSICAL BABY BOUNCER „DOLCE”

Line drawing of a baby in a baby boom seat with a circular logo labeled 'DOLCE' in the top-left corner (no other text or symbols)

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT:

WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
WARNING! DO NOT USE THIS PRODUCT ONCE YOUR CHILD CAN SIT UNAIDEDI
WARNING! THIS PRODUCT IS NOT INTENDED FOR PROLONGED PERIODS OF USE AND
✿ WARNING! IT IS DANGEROUS TO USE THIS PRODUCT ON ELEVATED, SLOPED OR SOFT
SURFACES!
◆ WARNING! ALWAYS USE THE SAFETY HARNESSES!
WARNING! NEVER USE THE TOY BAR TO CARRY THE PRODUCT!
✿ WARNING! KEEP AWAY FROM FIRE!
❖ Adult assembly is required!
To be used only for babies with maximum weight 9 kg and aged approximately up to 6 months.
This product does not replace a cot or a bed. Should your child need to sleep, place it in a suitable
cot or bed.
To be used for one child at a time!
Do not use this rocker if any components are broken or missing!
Do not use accessories or replacement parts other than those approved by the producer!
If unapproved parts were used, the manufacturer declines all responsibility for the product
Do not make any changes or modifications to the product's structure. Contact the dealer or an
authorized repair service for advice and/or repair.
Do not attach any strings or long cords to the product in order to avoid risk of suffocation!
Only use the product for the purpose that it was designed for!
Do not allow children under 3 years during the assembly in order to avoid access of the child to
small parts!
❖ Keep away from children the plastic packaging in order to avoid the risk of suffocation!

IMPORTANT! WARNINGS AND INSTRUCTIONS FOR USING BATTERIES

◆ Always secure the batteries compartment with its cover after placing the batteries.
Do not allow access of the children to the batteries and do not allow them to play with them!
❖ Use only batteries of the recommended in this manual type and voltage.
Do not use batteries of different types.
Do not mix new and used batteries
❖ Follow the polarity shown in the batteries compartment.
❖ Remove the damaged and depleted batteries.
❖ Remove the batteries if the product will not be used for longer period.
Do not throw the batteries in open fire. Do not attempt to open the batteries.

IMPORTANT! The waste from the batteries must be discharged only in designated areas. Do not throw out the batteries in the household trash! You can contribute to saving the environment and protecting people's health by reducing the dangerous effect of battery

PRODUCT FEATURES

• Intended for use for babies aged from 0 up to approximately 6 months, who can not sit alone;
• Intended for use for babies with maximum weight up to 9 kg;
  ❖ 3-point safety harness;
  Arch with soft toys;
  Music box with tunes, sounds of nature and vibrating function;
  Batteries, 3 pcs, type AA 1.5V (not included in the set).

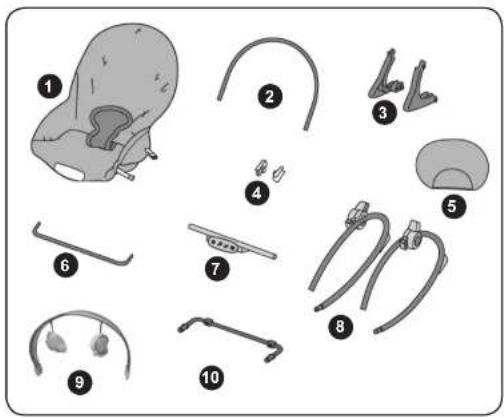

DIAGRAM OF THE MAIN PARTS

Illustration of various medical or surgical tools with numbered labels, including a catheter and multiple clamp devices.

1 - Fabric cover
2 - Rear tube of the seat
3 - Legs - 2 pcs.
4 - Fixing element with nut - 2 pcs.
5 - Soft head support
6 - Rear support tube
7 - Music and vibration box
R - Side base tube - 2 pcs

ASSEMBLY INSTRUCTIONS

IMPORTANT! Follow thoroughly the instructions for use and assembly steps given in the figures in this manual. CAUTION! CHECK IF FIXING IS SECURE AFTER EACH ASSEMBLY STEP! Make sure all pins show through the respective openings.

Tools needed to complete the assembly: a screwdriver (not included in the set). The assembly steps are numbered from 1 to 12. Use their descriptions below with the figure carrying the same number.

1 - ASSEMBLY OF THE REAR TUBE OF THE SEAT TO THE SIDE BASE TUBES

Note: Pull out the rear tube of the seat to make sure it is fixed

2 - ASSEMBLY OF THE LOWER END OF THE LEGS TO THE SIDE BASE TUBES

3 - ASSEMBLY OF THE UPPER END OF THE LEGS TO THE SIDE BASE TUBES

IMPORTANT! Each leg is designed to fit to one of the side bases. If the foot does not fit the base when mounting, you must remove it and mount it on the other base. Perform the actions shown in the figure to mount the other leg.

4 - ASSEMBLY OF MUSIC AND VIBRATION BOX

5 - ASSEMBLY OF THE FRONT SUPPORT TUBE

5-1 - Insert the two M5x50 screws into the leg openings and tighten.
5-2 - Insert the two ends of the support into the corresponding holes on both feet.

6 - ASSEMBLY OF THE REAR SUPPORT TUBE

Insert the two M5x30 screws into the holes of the side bases and tighten, and then insert the rear support pipe as shown in the figure. IMPORTANT! The back support tube is designed to fit on the side bases. If the mounting does not fit the base, you must turn it over and install it again.

7 - PLACING THE FABRIC COVER AND SOFT HEAD SUPPORT

Note: Secure with the fasteners of the upper pocket of the fabric.

FUNCTIOS

8 - POSITIONS OF THE SEAT - UPRIGHT AND RECLINED

9 - ROCKING FUNCTION

Use the rocking function, when the front support tube is folded to the seat (1).

Pull out the front support tube, to fix the bouncer (2).

Note: Make sure the bouncer is fixed by pressing the seat downwards.

10 - SAFETY HARNESS

Fasten the two seat belts in the buckle.

IMPORTANT! After adjusting the length, the belt should be as tight as possible to the child's body without causing any inconvenience.

ATTENTION! The belt should not be twisted, worn out or torn.

Leg Side base

Illustration of a mechanical tool with curved blades and a circular component, no text or symbols present

Music and vibration box M5x30 screw X2

Front support tube

Rear support tube

Fabric cover Soft head support

Upright position Press the button

Illustration of a baby in a walker device with a circular button labeled '9' (no text or symbols on the device itself)

ON/OFF Button Button for vibration Button for melodies Button for natural sounds

Batteries: 3 pcs type AA/1.5 V - AA/1.5V + -

CARE AND MAINTENANCE

• Clean the plastic and metal parts with damp cloth.
  ❖ Clean all fabric parts and toys with damp cloth. Follow the washing labels.
  Do not tumble dry or dry in drying machine!
  Do not soak in water or other liquids the music/vibration box!
  Do not use abrasive detergents or solvents. Do not bleach. Always dry the product, allow it to dry before storing or reusing. Mold or rust may occur if you store the products moist.
  Do not place other objects on top of the bouncer as this may damage its structure, fabric parts or
  music/vibration box.
• Store the product in a clean and dry place. Do not expose the bouncer to direct sun light, rain,
  moisture or sudden temperature changes!

Fabric composition:

100% polyester

Soft toys:

The toys are marked with

compliance sign

Materials used: textile, metal, plastic

SHEDL020xxx/29287/29288/29289

Producer: produced for Chipolino in PRC

Importers: CHORDUNO LTD. 4 Colliomelkoremske Sheano Pty
