Enjoy - Baby product Chipolino - Free user manual and instructions

Product Type	Musical Baby Rocker / Chair
Brand	Chipolino
Model	Enjoy
Age Range	0 to 36 months
Maximum Weight (Rocker)	9 kg
Maximum Weight (Chair)	18 kg
Power Supply	2 x AA 1.5V batteries (not included)
Features	Rocking function, vibration, 12 melodies, 2-position backrest, toy bar, feeding tray, 3-point safety harness
Safety Harness	3-point adjustable
Fabric Composition	100% polyester
Care Instructions	Clean plastic/metal with damp cloth; hand wash plush toys at max 30°C; do not soak music box; no bleach or abrasives
Assembly Required	Yes (adult assembly, screwdriver needed)
Compliance	EU Product Safety Directive 2001/95/EC, Toy Safety Directive 2009/48/EU, EN 12790
Warnings	Never leave child unattended; use only on flat, firm surfaces; stop using as rocker when child can sit unaided; always use harness
Spare Parts	Use only manufacturer-approved parts

Frequently Asked Questions - Enjoy Chipolino

How do I assemble the Chipolino Enjoy rocker?

Assembly requires adult supervision and a screwdriver (not included). Follow the 15-step illustrated instructions in the manual. Ensure all pins click into place and screws are tightened securely. Key steps: attach the backrest tube to side tubes, mount rear and front support tubes, then place the fabric cover and fasten buckles.

How do I change the batteries?

The battery compartment is located on the music/vibration box. Use a screwdriver to remove the cover. Insert 2 AA 1.5V batteries, observing correct polarity (+/-). Replace the cover securely. Remove batteries if not using for extended periods.

How do I use the rocking function?

To enable rocking, fold the front support tube inward so it is under the seat. Pull it out to lock the rocker in place. Press down on the seat to ensure it is fixed. For safety, always use the most reclined backrest position when rocking.

What are the weight and age limits?

As a rocker: max 9 kg and up to approximately 6 months (until child can sit unaided). As a chair: max 18 kg and up to 36 months, but only for children who can sit independently.

Can my baby sleep in this rocker?

No. This product is not intended for prolonged periods of sleep. If your child needs to sleep, transfer them to a proper cot or bed. Extended use as a sleeping area may pose suffocation risks.

How do I clean the fabric and toys?

Clean plastic and metal parts with a damp cloth. For fabric and plush toys, hand wash at temperatures up to 30°C. Do not soak the music/vibration box. Avoid abrasive detergents, solvents, or bleach. Always dry thoroughly before storage.

Is the rocker safe for my newborn?

Yes, when used correctly. Always use the safety harness, never leave the child unattended, place on a flat and firm surface, and adjust the backrest to the most reclined position. Stop using as a rocker once the child can sit unaided.

How do I adjust the backrest?

Press the buttons on both sides of the backrest simultaneously and move the backrest to the desired position. For newborns, use the most reclined position. For older children who can sit, you can use a more upright position.

How does the music and vibration work?

The music/vibration box is attached to the front tube. Press the button to cycle through functions: 1st press – power on, 2nd press – vibration on, 3rd press – melodies on, 4th press – off. Batteries required (2x AA, not included).

What should I do if a part is missing or broken?

Do not use the product if any components are damaged or missing. Contact the retailer or authorized service for replacement parts. Only use spare parts approved by the manufacturer to ensure safety.

USER MANUAL Enjoy Chipolino

IMPORTANT! KEEP FOR FUTURE REFERENCE!

INSTRUCTION MANUAL FOR USE OF MUSICAL BABY ROCKER „ENJOY”

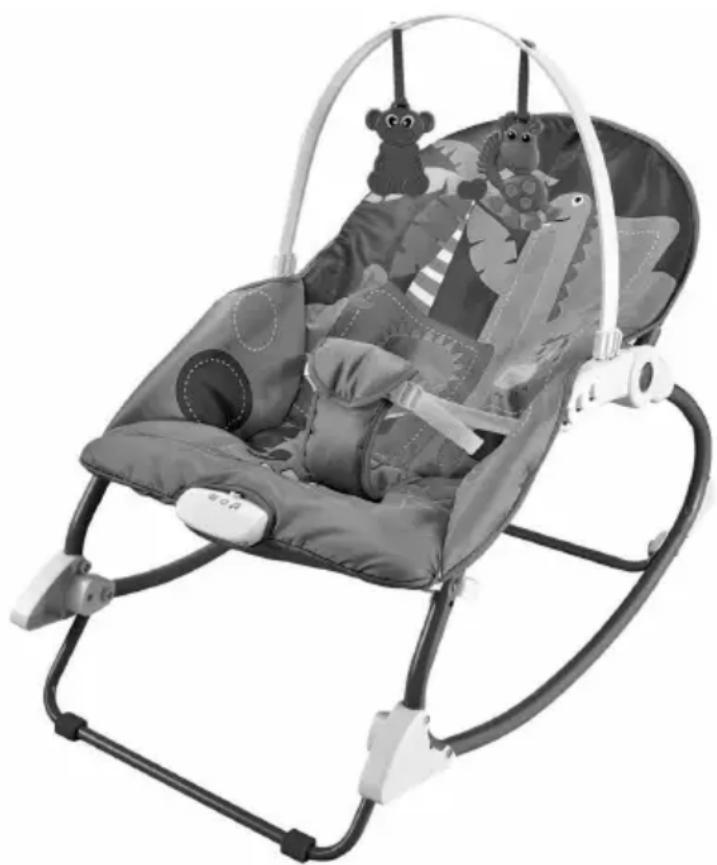

Black and white photo of a baby boom chair with animal-themed bedding and a teddy bear on the back (no text or symbols visible)

This product complies with the requirements of Product Safety Directive 2001/95/EU and Toy Safety Directive 2009/48/EU of the European Parliament and the European standard EN 12790 “Child use and care articles - Reclined cradles”, as well as all applicable for the toys of the arch European standards and the Consumer protection law.

FOLLOW ALL WARNINGS, INSTRUCTIONS AND RECOMMENDATIONS IN THIS MANUAL IN ORDER TO GUARANTEE THE SAFE USE OF THIS PRODUCT:

WARNING! NEVER LEAVE YOUR CHILD UNATTENDED!
✿ WARNING! STOP USING THE PRODUCT AS ROCKER ONCE YOUR CHILD IS ABLE TO SIT UNAIDED.
USE THE PRODUCT AS CHAIR WITH THE TRAY FOR CHILDREN WHO CAN SIT UNAIDED.
✿ WARNING! THIS PRODUCT IS NOT INTENDED FOR PROLONGED PERIODS OF USE AND SLEEPING.
✿ WARNING! IT IS DANGEROUS TO USE THIS PRODUCT ON ELEVATED, SLOPED OR SOFT SURFACES!
WARNING! ALWAYS USE THE SAFETY HARNESS!
WARNING! NEVER LIFT THE PRODUCT BY THE TOY BAR!
WARNING! KEEP AWAY FROM FIRE!
When you use the product as rocker, adjust the backrest in the most reclined position.
◆ Adult assembly is required!
Use the product as rocker only for babies with maximum weight 9 kg and aged approximately up to 6 months.
Use the product as chair for children, who can sit unaided, with maximum weight 18 kg, aged up to 36 months.
This product does not replace cot or bed. Should your child need to sleep, place it in a suitable cot or bed.
To be used for one child at a time!
Do not use the product if any components are broken or missing!
Do not use spare parts or other components, which are not supplied by the producer! The producer revokes all responsibility in case you have used spare parts different from the approved type or from the recommended by the producer.
Do not make changes or modifications to the structure! If necessary, contact the retailer or and authorized service for advice and repair.
Do not tie strings or cords to the product to avoid risk of suffocation!
◆ Use the product only for its purpose!
Do not allow presence of children under 3 years before assembly is complete to avoid their access to small or disassembled parts!
- Keep the nylon package away from children to avoid risk of suffocation!

IMPORTANT! WARNINGS AND GUIDELINES FOR USE OF BATTERIES

❖ Always secure the battery compartment cover after having inserted the batteries.
Do not let children have access to the batteries or play with them!
❖ Insert batteries only of the designated type and voltage.
Do not use batteries of different types.
Do not mix used and new batteries.
◆ Follow the designated polarity in the battery compartment.
❖ Remove the damaged or worn out batteries.
❖ Remove the batteries when you are not using the product.
Do not throw the batteries in open fire. Do not take the batteries to pieces.

CAUTION! Waste from exhausted or unusable batteries must be disposed of separately. Do not dispose of the batteries with your household waste. Throw out the batteries at the designated places.

PRODUCT FEATURES

• Intended for use for babies and little children aged from 0 up to 36 months.
  ◆ The product can be used as:
• Rocker for babies and little children with weight up to 9 kg, aged from 0 to approximately 6 months, who cannot sit unaided.
• Chair for children, who can sit unaided, with maximum weight 18 kg, aged up to 36 months.
  ◆ 3-point safety harness;
  Toy bar;
  ◆ Two positions of the backrest;
  Tray;
  ◆ Music box with melodies and vibration function;
  Batteries, 2 pcs., type AA/1,5V (not included in the set).

DIAGRAM OF MAIN PARTS

Top-down illustration of a dark, irregularly shaped object with internal features (no text or symbols)

Fabric cover

Backrest tube

Retainers with lock nut

Rear support tube

Front tube

Side base tubes

Toy bar

Front support tube

Screw M5x30 mm - 8 pcs

Note: The feeding tray (1 pc) is not shown on the figure.

Please check whether all described disassembled parts are available in the package.

ASSEMBLY INSTRUCTIONS

IMPORTANT! Follow thoroughly the instructions for use and assembly steps given in the figures in this manual. CAUTION! CHECK IF THE FIXING IS SECURE AFTER EACH ASSEMBLY STEP! Make sure all pins show through the respective openings.

Tools needed to complete the assembly: a screwdriver (not included in the set).

The assembly steps are numbered from 1 to 15. Use their descriptions below along with the illustration with the same number.

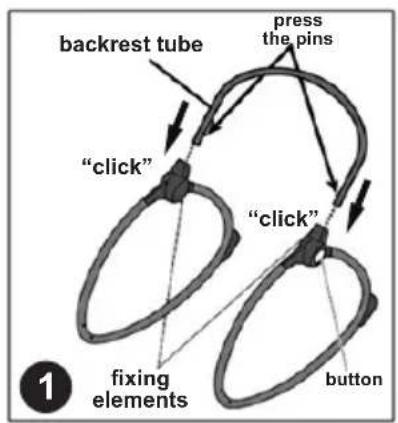

1 - ASSEMBLY OF THE BACKREST TUBE TO THE SIDE BASE TUBES

Note: Pull out the backrest tube to make sure it is fixed.

2 - ASSEMBLY OF REAR SUPPORT TUBE

Mount the rear support tube to the side base tubes, as shown on the figure.

3 - SCREWS FOR THE REAR SUPPORT TUBE

Insert the screws M5x30, as shown on the figure.

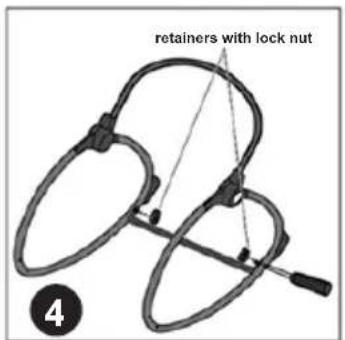

4 – RETAINERS WITH LOCK NUT

Place the retainers with lock nut to the screws inside part of the rear support. Tighten the screws.

5 - ASSEMBLY OF THE FRONT TUBE

Mount the front tube to the side base tubes, as shown on the figure, so the holes match and hold.

Note: The music box should look forward.

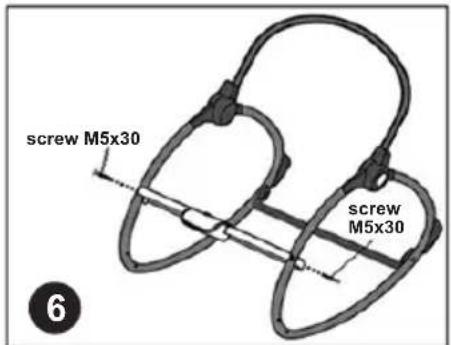

6 and 7- FIXING THE FRONT TUBE

8 - ASSEMBLY OF THE FRONT SUPPORT TUBE

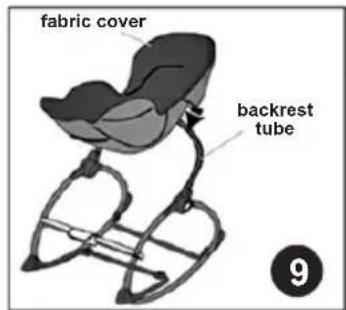

9 and 10 - FABRIC COVER

Place the fabric cover over the backrest tube (fig.9) and around the side tubes (fig.10). Fasten the buckles to fix.

FUNCTIONS

11 - POSITIONS OF THE SEAT - UPRIGHT AND RECLINED

Press the buttons from both sides simultaneously and adjust.

CAUTION! FOR NEWBORN BABIES AND LITTLE CHILDREN, WHO CANNOT SIT UNAIDED USE THE MOST RECLINED POSITION OF THE ROCKER.

12 - ROCKING FUNCTION

Use the rocking function, when the front support tube is folded inside the seat.

Pull out the front support tube, to fix the rocker.

Note: Make sure the rocker is fixed by pressing the seat downwards.

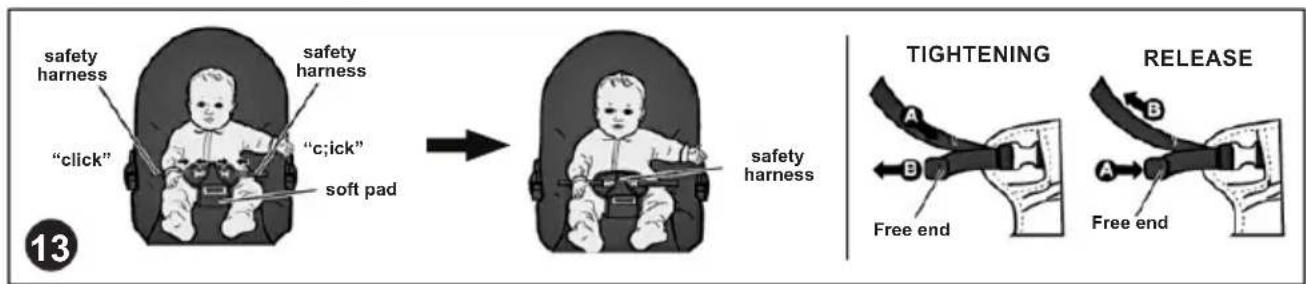

13 - SAFETY HARNESS

Fasten the two seat belts in the buckles of the soft pad.

IMPORTANT! After adjusting the length, the belt should be as tight as possible to the child's body without causing any inconvenience.

ATTENTION! The belt should not be twisted, worn out or torn.

14 - TOY BAR

CAUTION! REMOVE THE TOY BAR WITH THE TOYS, WHEN THE CHILD IS ABLE TO SIT UNAIDED!

The music and vibration box is mounted and removed from the front tube by sliding.

Batteries: Remove the cover of the battery compartment with a screwdriver. Insert 2 pcs batteries type AA/1,5V keeping the polarity. Secure the battery compartment with the cover.

Functions:

When the button is pressed for the first time, the power supply of the music and vibration box is turned on.

When the button is pressed second time, the vibration function is activated.

The third time you press the button, melodies are activated.

The fourth time you press the button, the music and vibration box is switched off.

CARE AND MAINTENANCE

• Clean the plastic and metal parts with damp cloth.
• Clean the fabric and plastic toys with damp cloth. Follow the washing labels.
  ✿ Wash plush toys by hand at temperatures up to 30^ .
  Do not soak in water or other liquids the music/vibration box!
  Do not use abrasive detergents or solvents. Do not bleach.
  Always dry the product, allow it to dry before storing or reusing. Mold or rust may occur if you store the products moist.
  Do not place other objects on top of the bouncer as this may damage its structure, fabric parts or music/vibration box.
  Store the product in a clean and dry place. Do not expose the bouncer to direct sun light, rain, moisture or sudden temperature changes!

Fabric composition:

100% polyester

Used materials: textile, metal, plastic

Producer: produced for Chipolino in PRC

Importer: CHIPOLINO LTD., 1 Goliamokonarsko Shosse Str,

Plovdiv, BULGARIA; tel.: [phone];
